Optoma TX650, EP709 User Manual

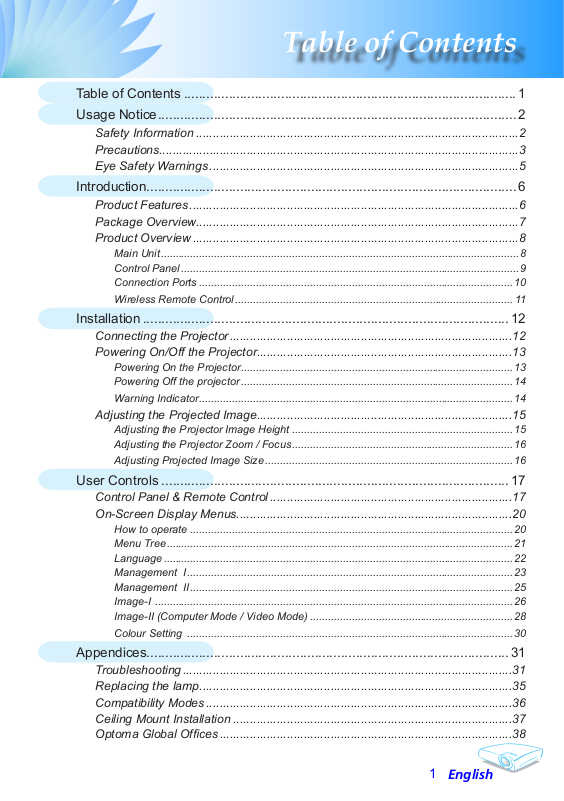

Table of Contents
Table of Contents .........................................................................................1
Usage Notice ................................................................................................ 2
Safety Information ................................................................................................2
Precautions...........................................................................................................3
Eye Safety Warnings ............................................................................................5
Introduction................................................................................................... 6
Product Features ..................................................................................................6
Package Overview................................................................................................7
Product Overview .................................................................................................8
Main Unit ........................................................................................................................ 8
Control Panel .................................................................................................................9
Connection Ports .........................................................................................................10
Wireless Remote Control ............................................................................................. 11
Connecting the Projector ....................................................................................12

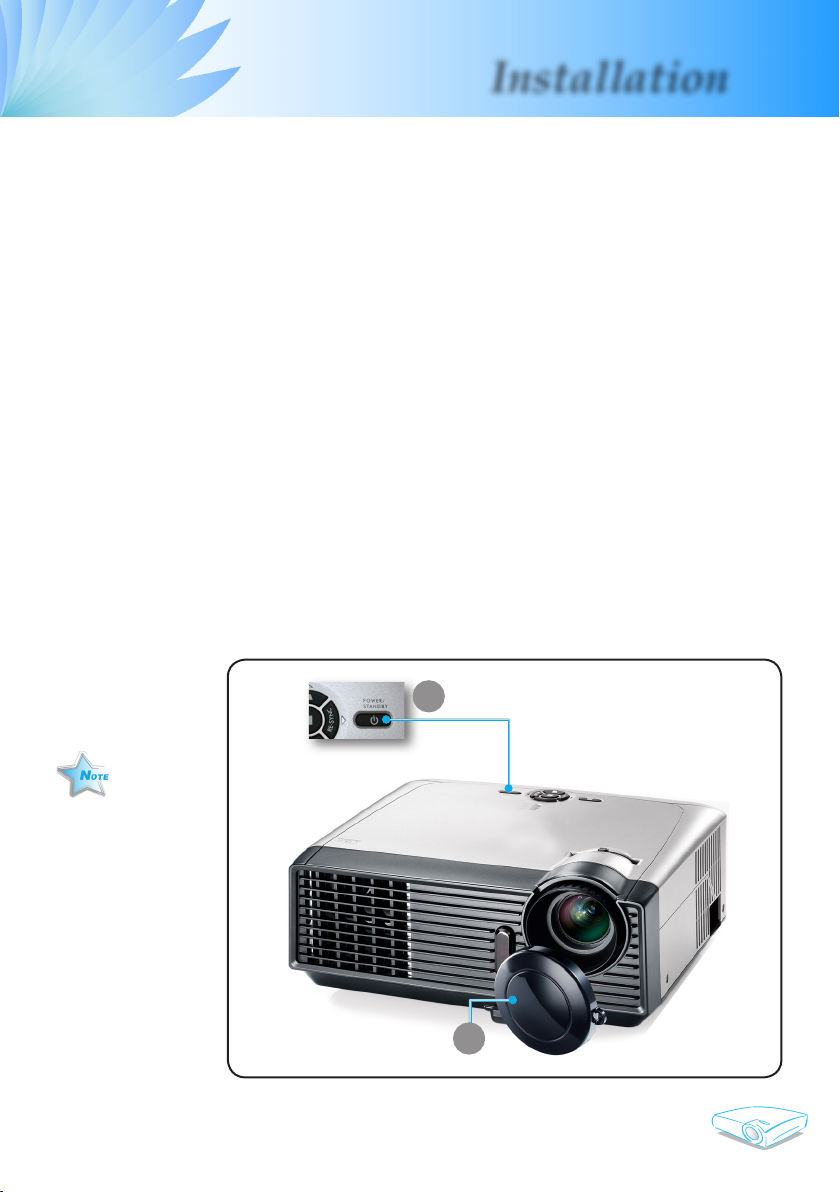

Powering On/Off the Projector............................................................................13
Powering On the Projector ........................................................................................... 13

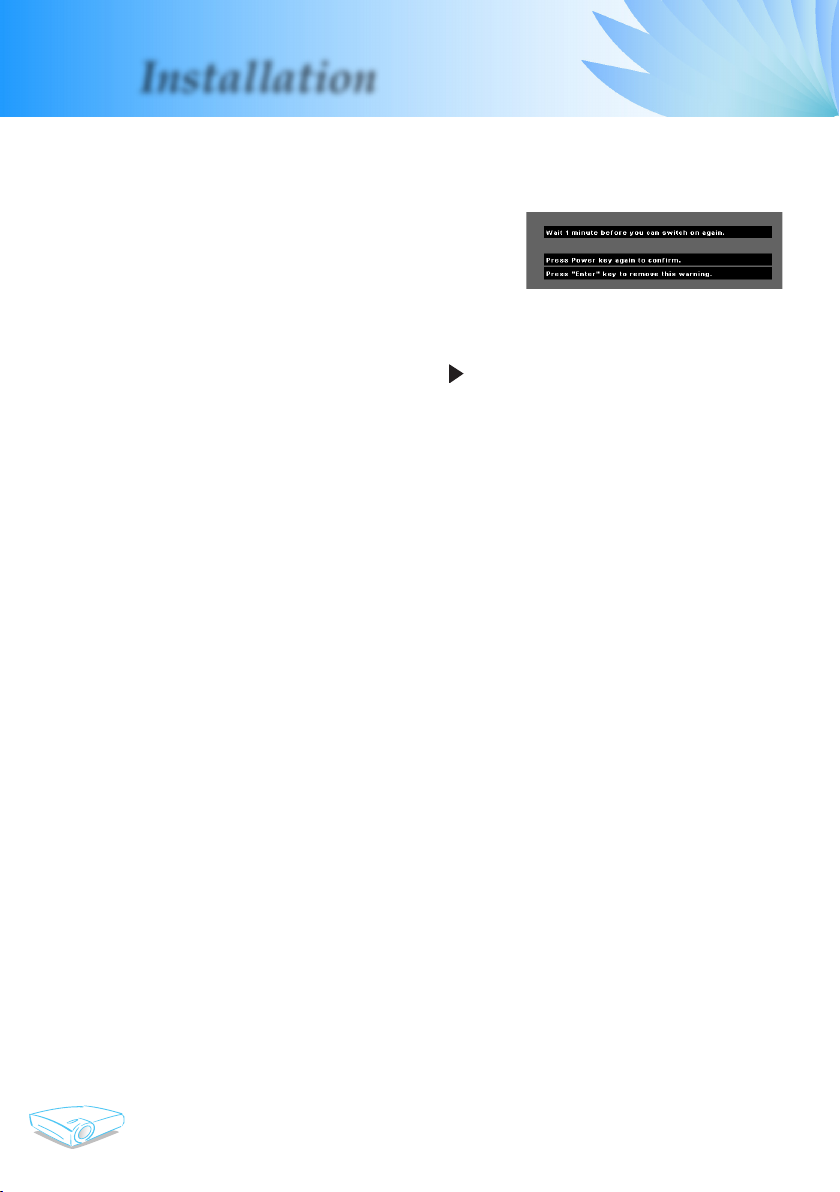

Powering Off the projector ...........................................................................................14

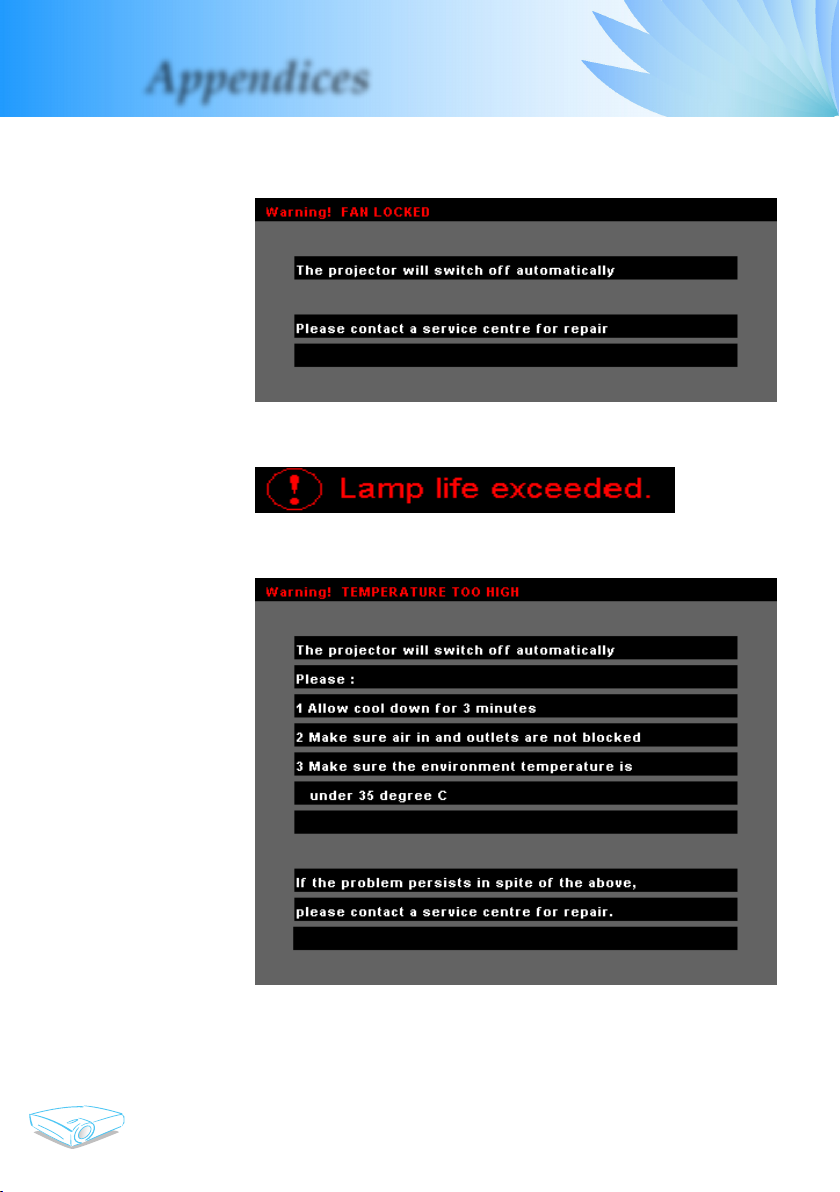

Warning Indicator ......................................................................................................... 14
Adjusting the Projected Image............................................................................15

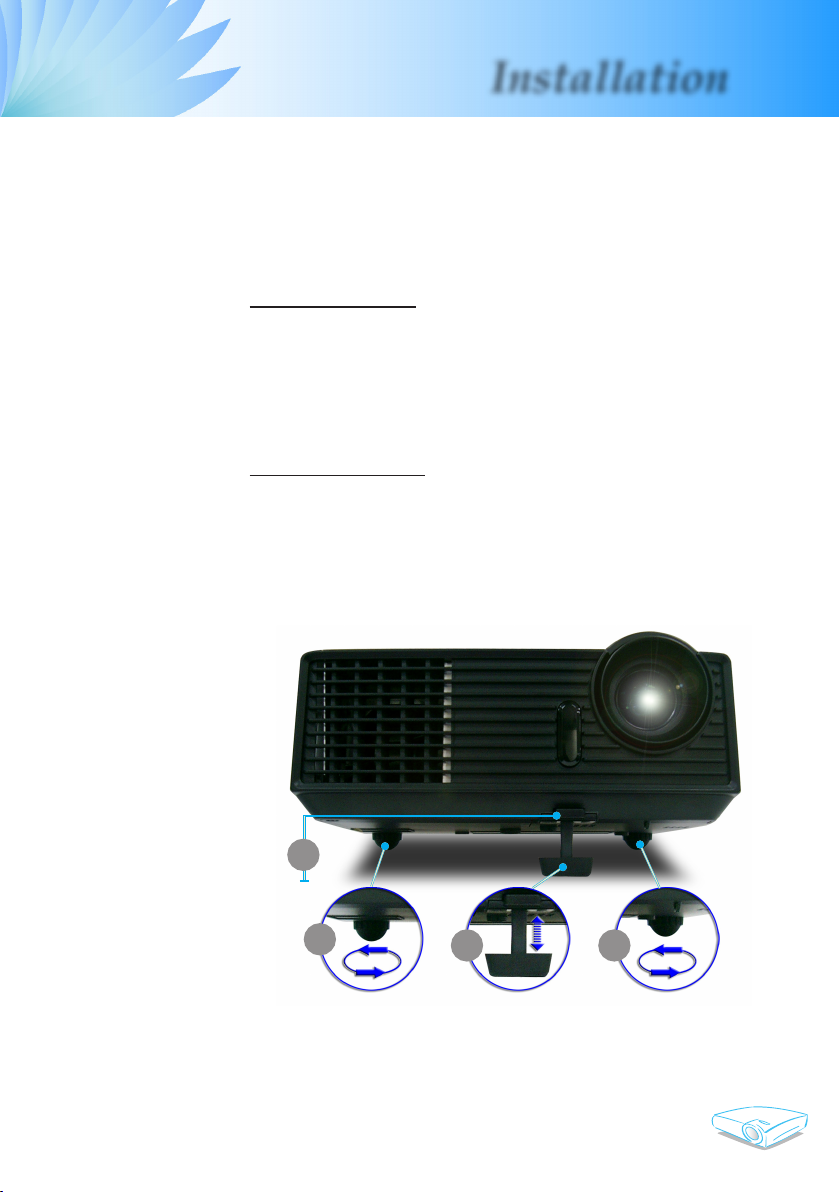

Adjusting the Projector Image Height ..........................................................................15

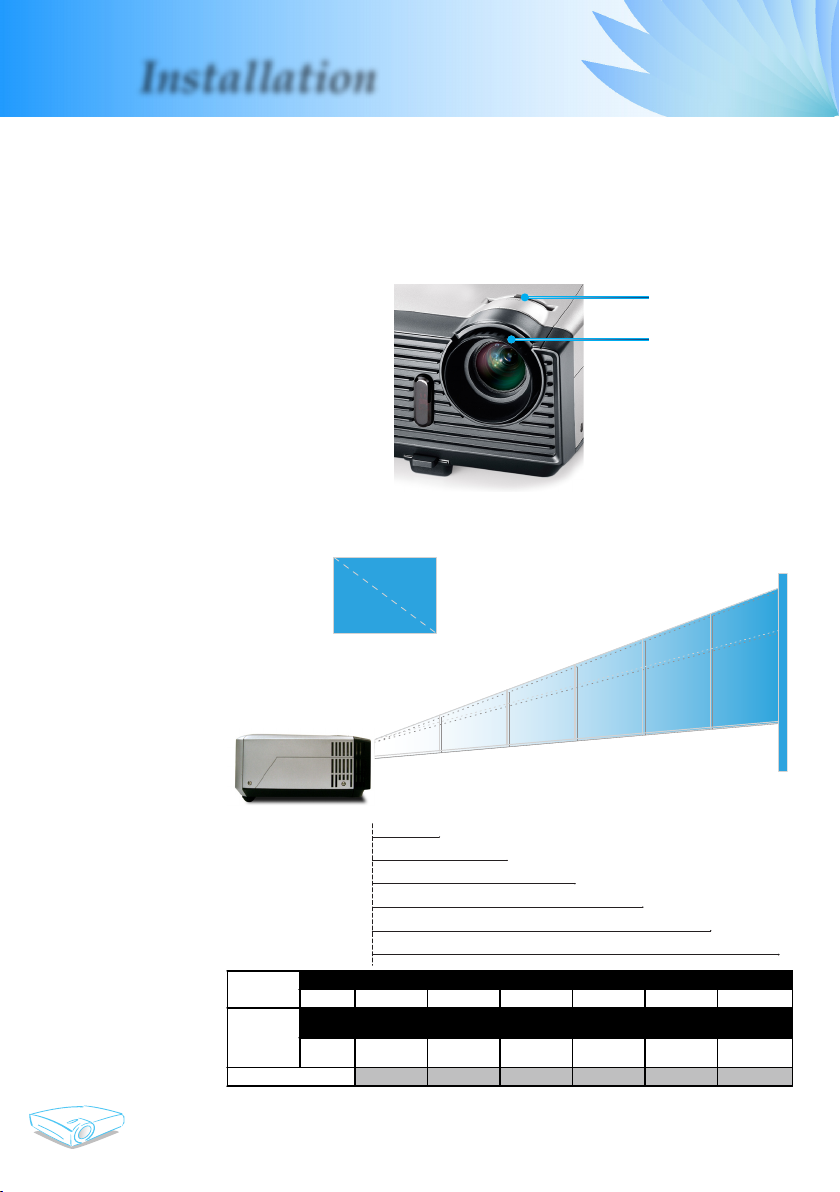

Adjusting the Projector Zoom / Focus .......................................................................... 16
Adjusting Projected Image Size ...................................................................................16
Control Panel & Remote Control ........................................................................17

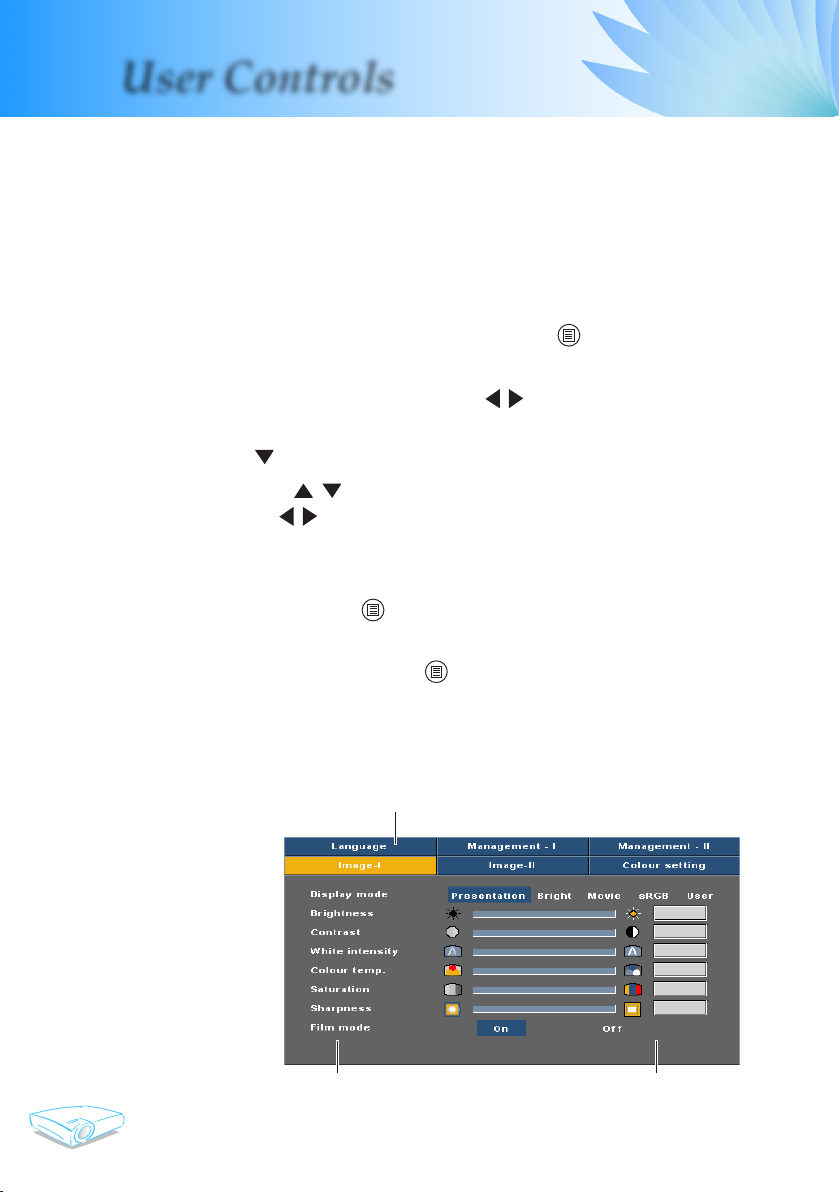

On-Screen Display Menus..................................................................................20
How to operate ............................................................................................................20

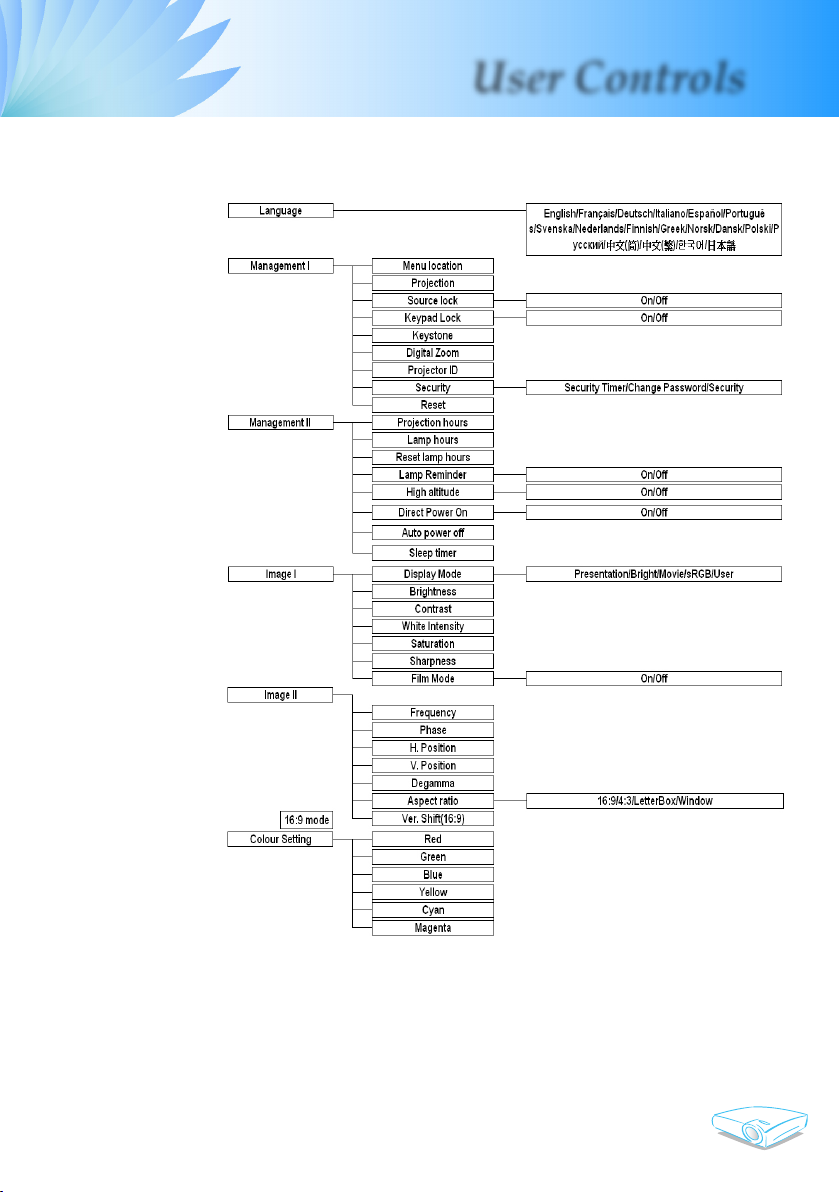

Menu Tree ....................................................................................................................21

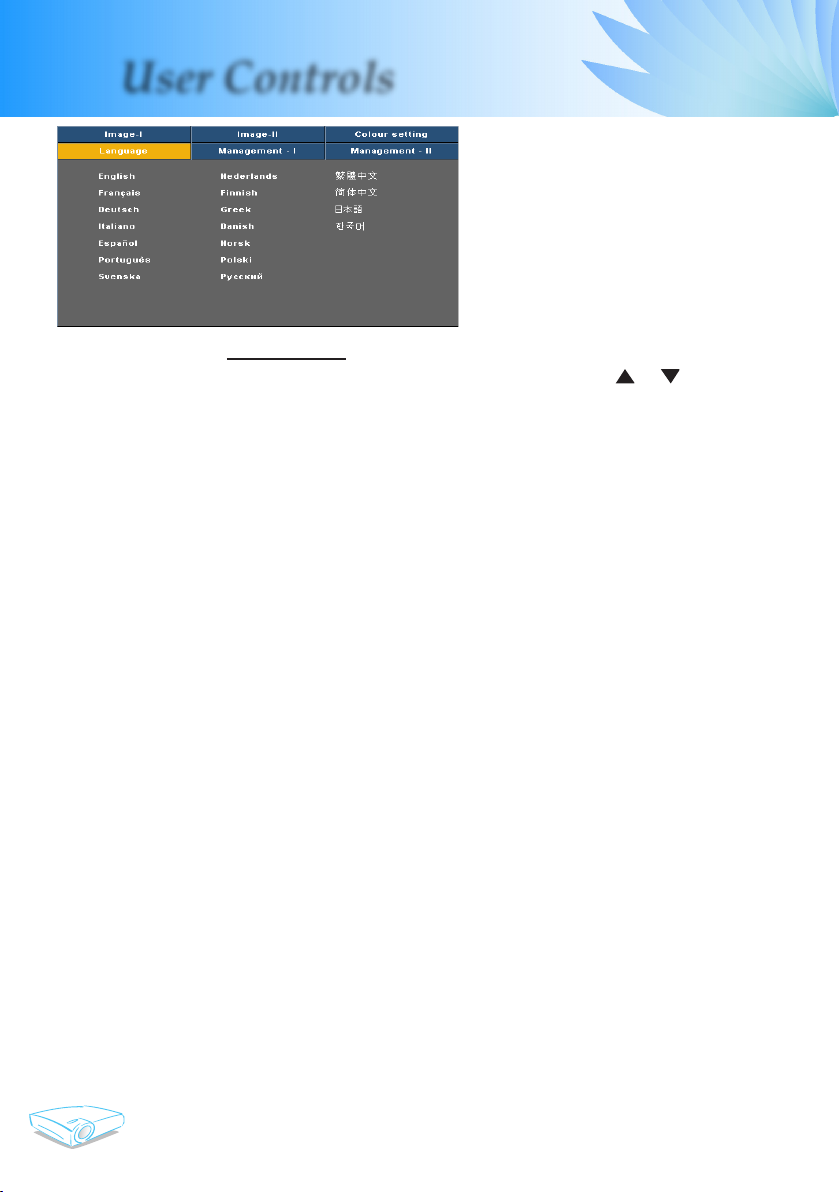

Language .....................................................................................................................22

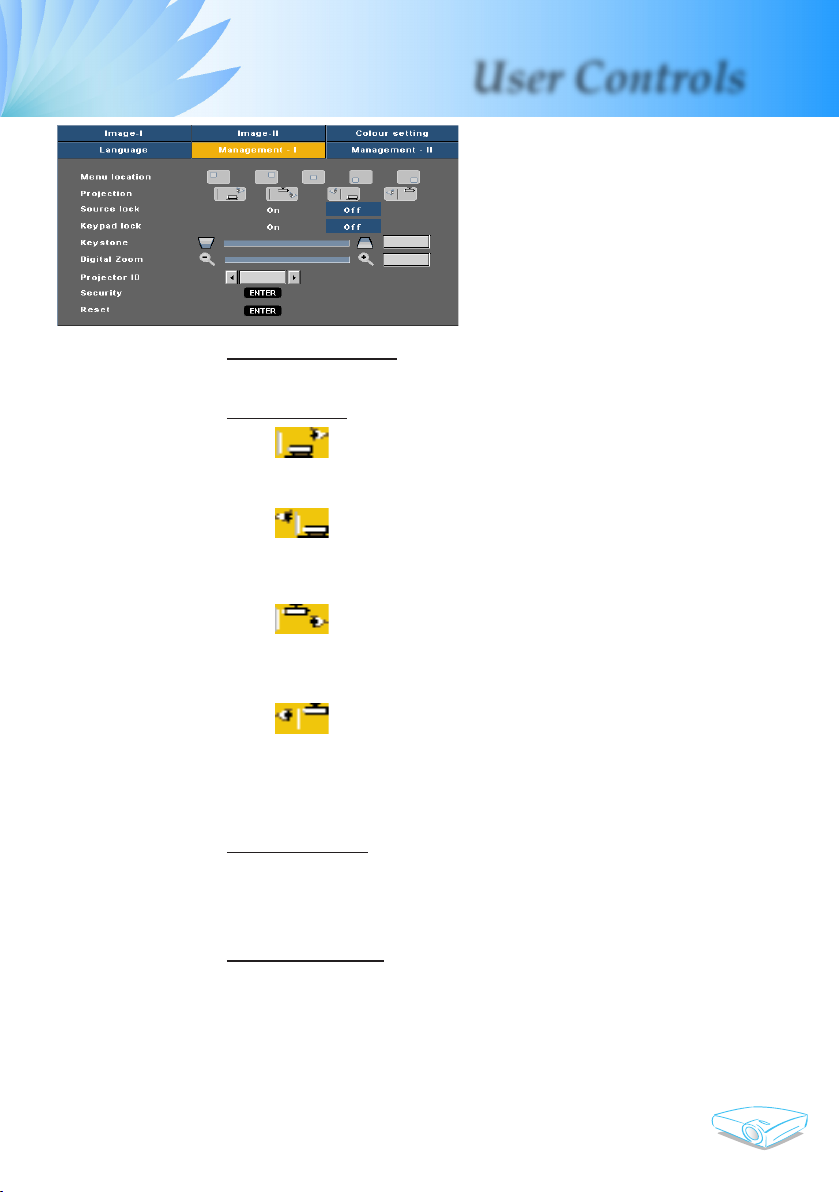

Management I .............................................................................................................23

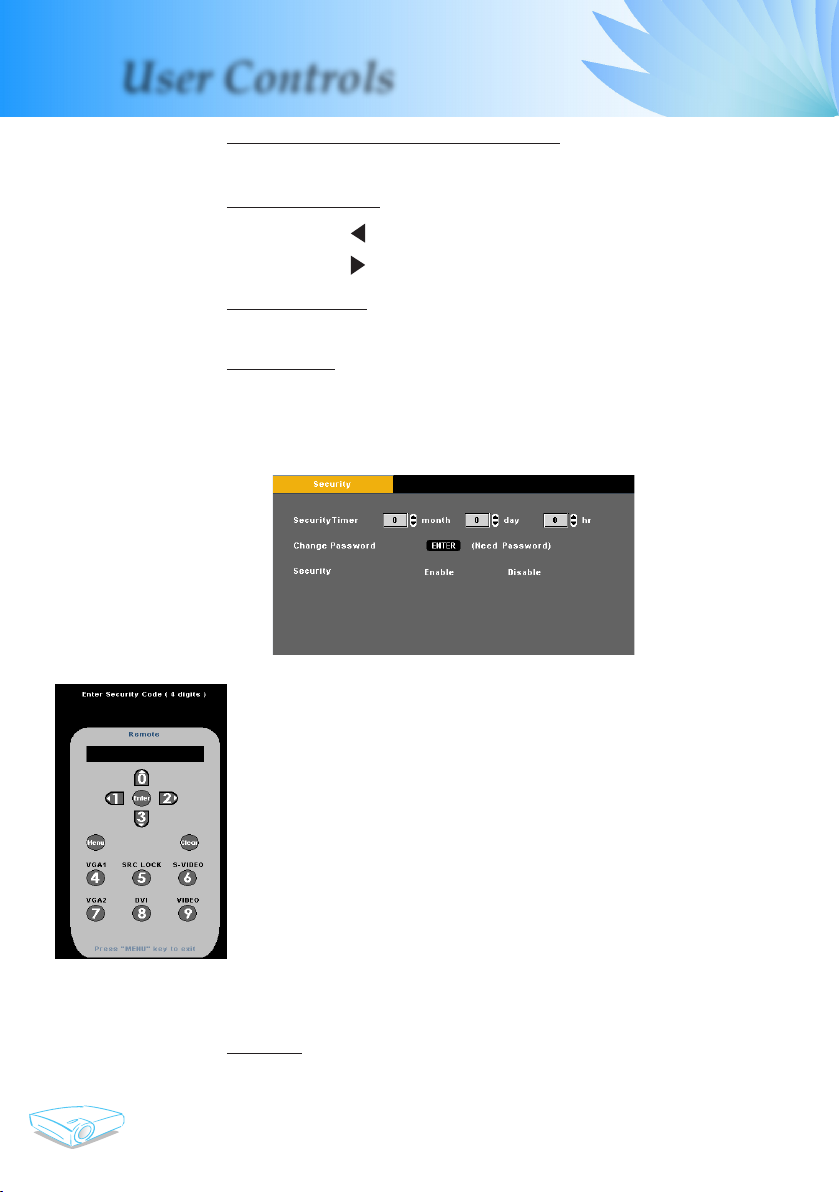

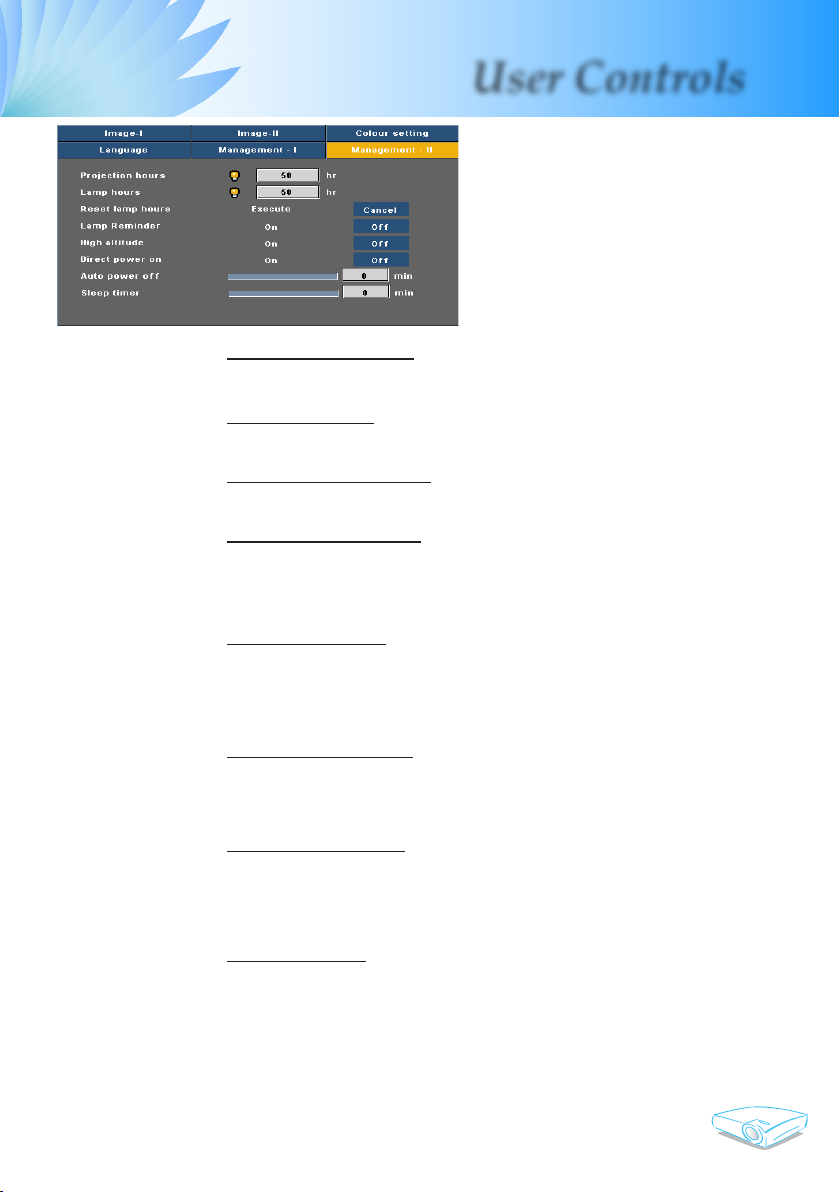

Management II ............................................................................................................25

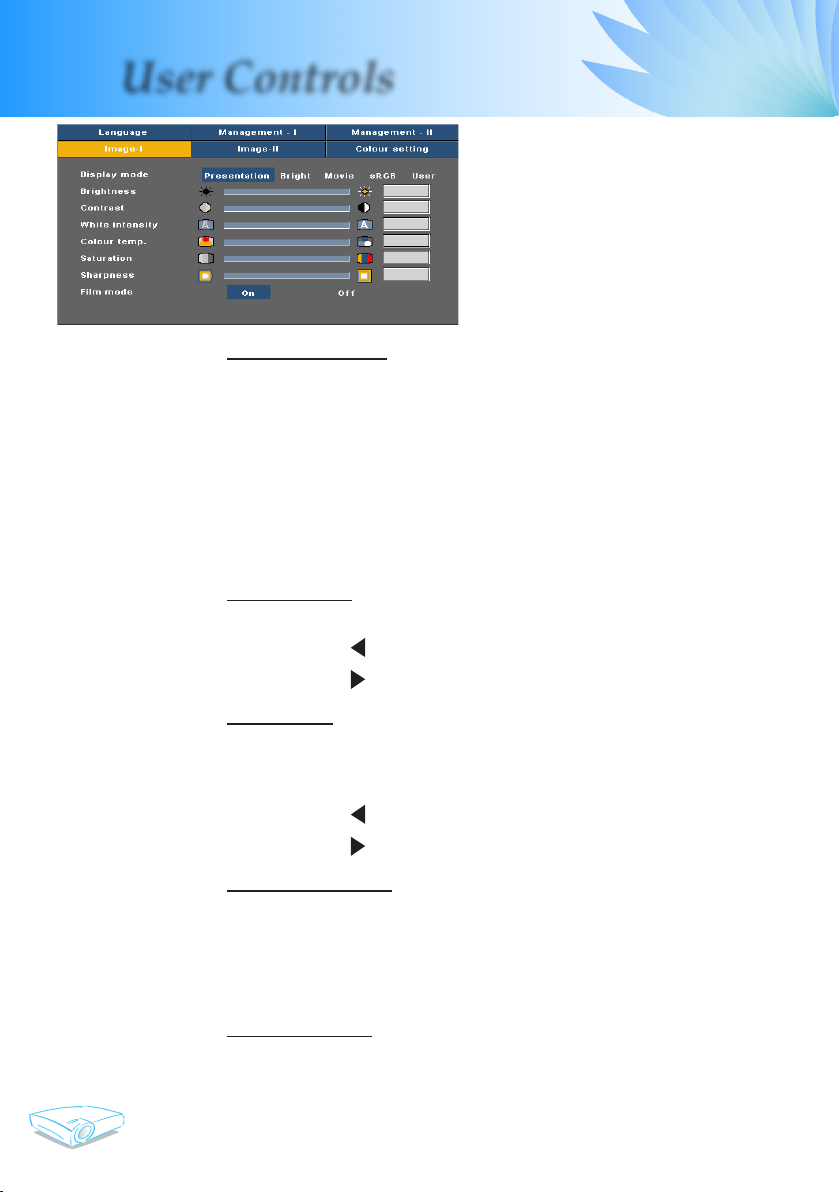

Image-I ........................................................................................................................ 26

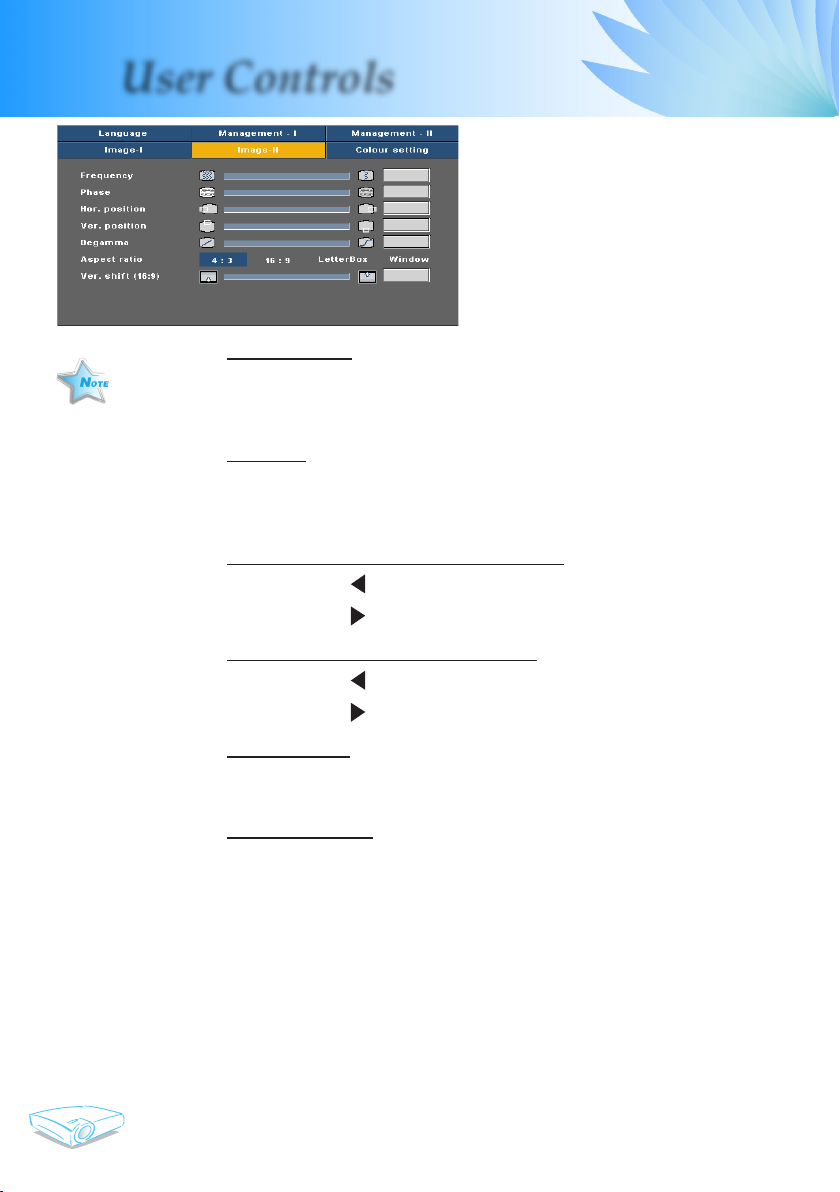

Image-II (Computer Mode / Video Mode) ....................................................................28

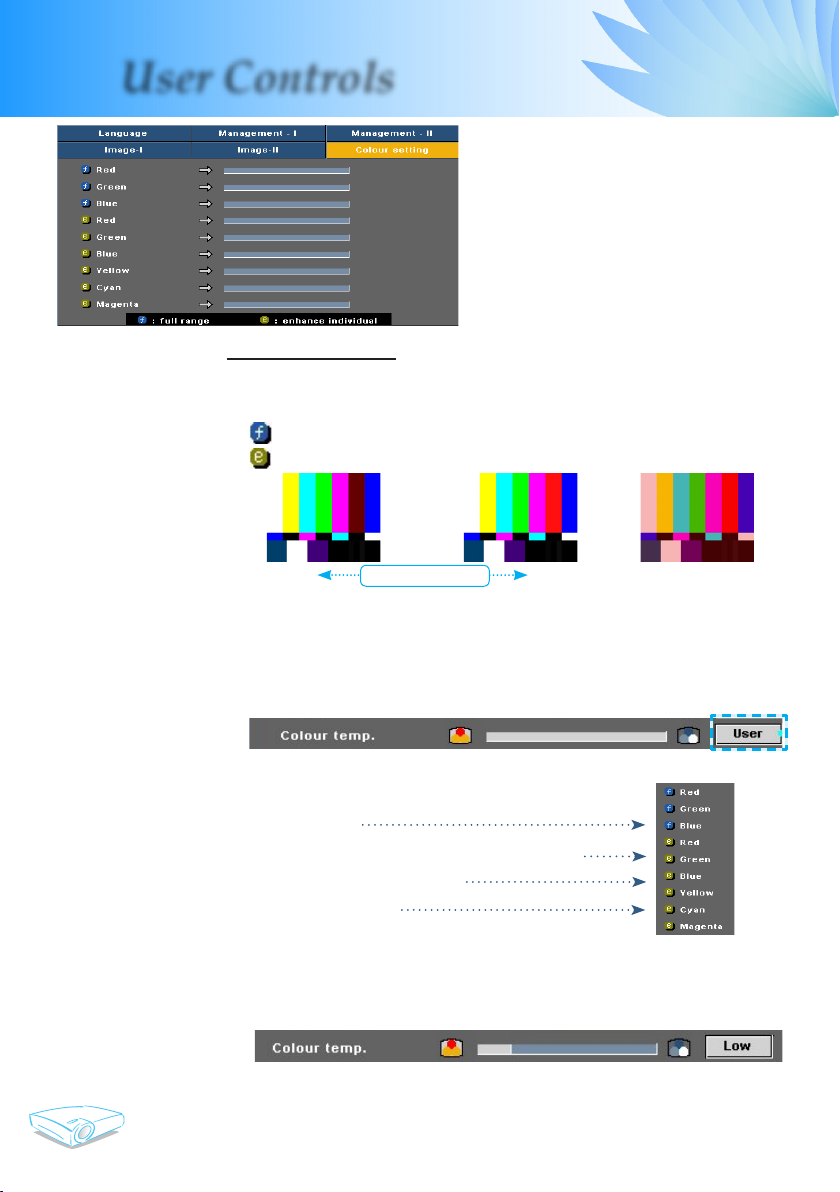

Colour Setting .............................................................................................................30
Troubleshooting ..................................................................................................31

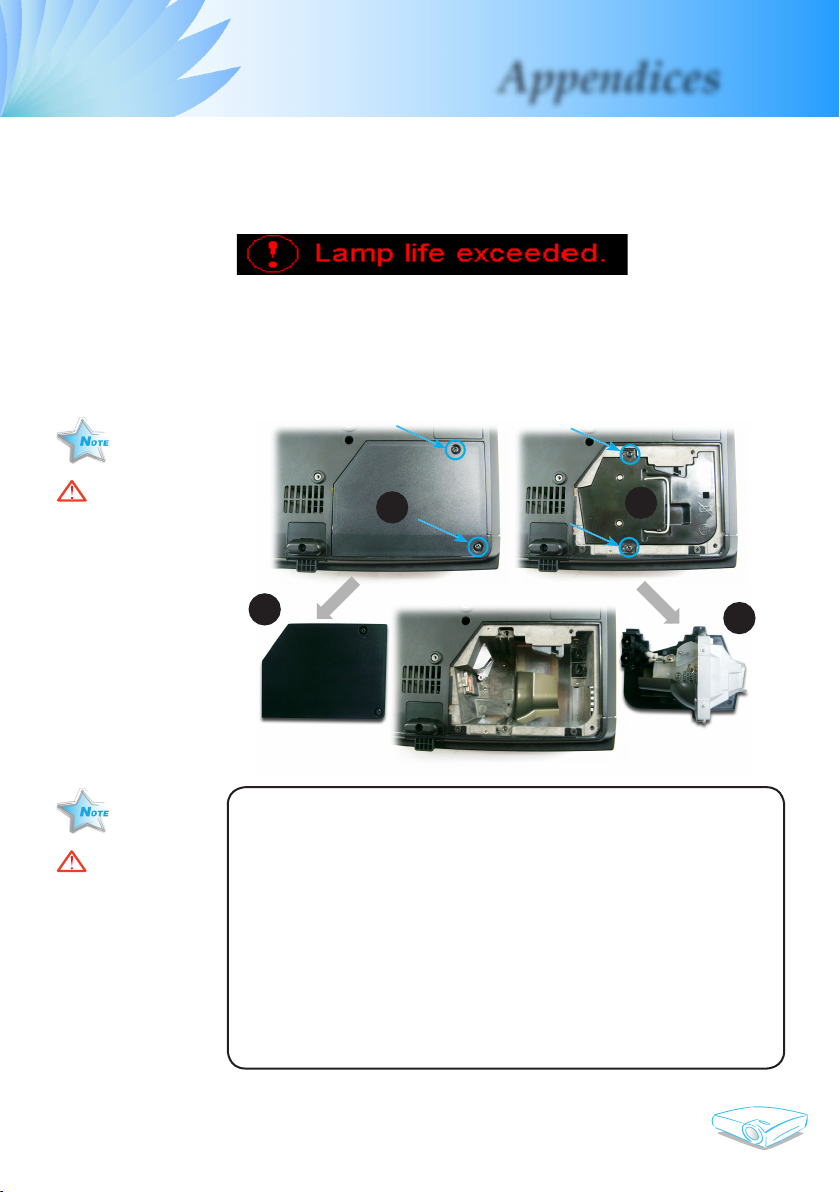

Replacing the lamp .............................................................................................35
Compatibility Modes ...........................................................................................36

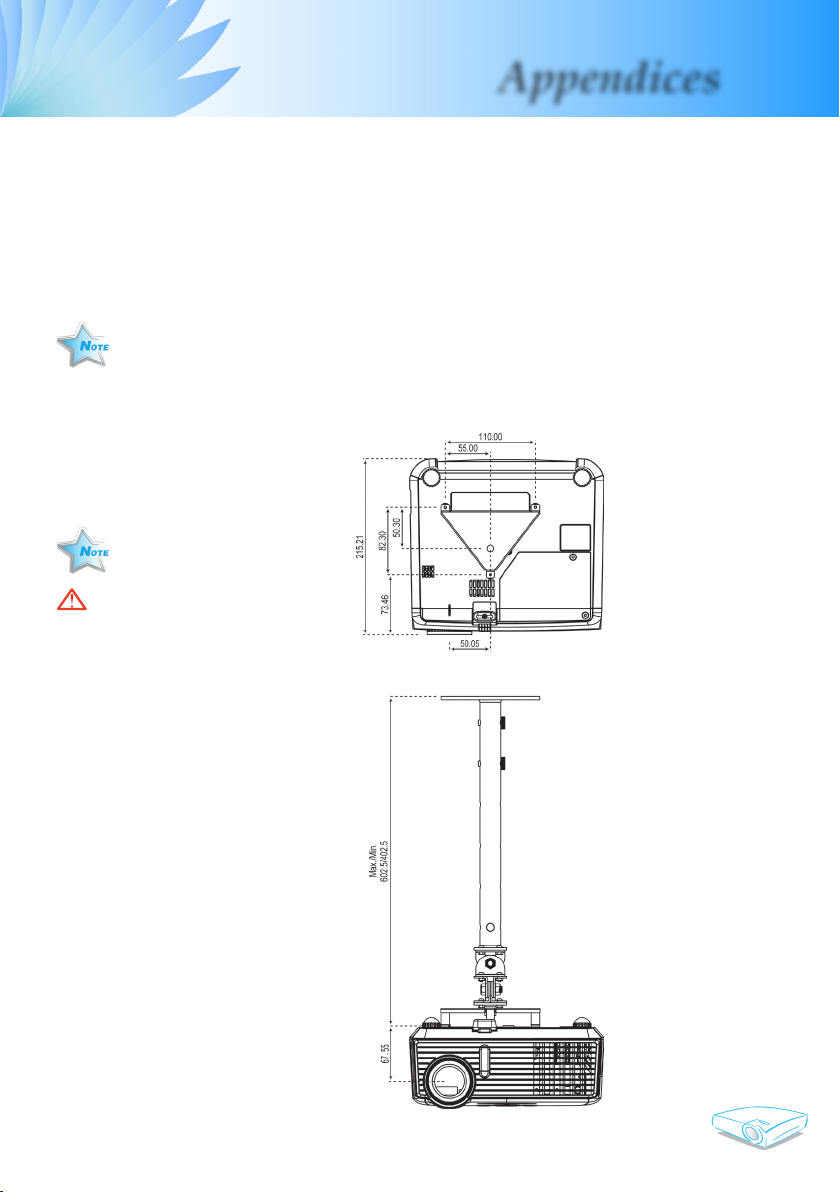

Ceiling Mount Installation ...................................................................................37
Optoma Global Ofces .......................................................................................38
1
English
English
2
Usage Notice
Safety Information
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Important Safety Instruction
1. Read these instructions –before using this projector.
2. Keep these instructions –for future reference.
3. Follow all instructions.
4. Install in accordance with the manufacturer’s instructions
A. Do not block any ventilation openings
To ensure reliable operation of the projector and to protect it from over-
heating, put the projector in a position and location that will not inter­fere with its proper ventilation. For example, do not place the projector on a bed, sofa, carpet, or similar surface that may block the ventilation openings. Do not put it in an enclosure, such as a bookcase or a cabinet
that may keep air from owing through its ventilation openings.
B. Do not use this projector near water or moisture. To reduce the
risk of re or electric shock, do not expose the projector to rain or mois­ture.
C. Do not install near any heat sources, such as radiators, heaters,
stoves or other apparatus (including ampliers) that produce heat.
5. Clean only with a dry cloth.
6. Only use attachments/accessories specied by the manufacturer.
7. Refer all servicing to qualied service personnel. Servicing is required
when the projector has been damaged in any way:
▀■ Such as power supply cord or plug is damaged. ▀■ Liquid has been spilled or objects have fallen into the apparatus. ▀■ The projector has been exposed to rain or moisture, does not oper-
ate normally, or has been dropped. Do not attempt to service this projector yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please call Optoma to be referred to an authorized service center near you.
8. Do not let objects or liquids enter the projector –as they may touch
dangerous voltage points or short-out parts that could result in a re or
electric shock.
9. See projector enclosure for safety related markings.
10. The projector should not be adjusted or repaired by anyone except
properly qualied service personnel.
The lightning ash with arrowheard within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous volt-
age” within the product’s enclosure that may be of sufcient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of import operating and maintenance (servicing) instructions in the literature accompanying the appliance.
Usage Notice
Precautions
Follow all warnings, precautions and maintenance as recom­mended in this user’s guide to maximize the life of your unit.
Warning - Do not look into the projector’s lens when the
lamp is on. The bright light may hurt your eyes.
Warning - To reduce the risk of re or electric shock, do not
expose this product to rain or moisture.
Warning - Please do not open or disassemble the product
as this may cause electric shock.
Warning - When changing the lamp, please allow unit to
cool down, and follow all changing instructions.
Warning - This product will detect the life of the lamp
itself. Please be sure to change the lamp when it
shows warning messages (refer to page 34).
Warning - Reset the “Reset Lamp Hours” function from the
On Screen Display “Management II” menu after
replacing the lamp module (refer to page 25).
Warning - When switching the projector off, please ensure
the projector completes its cooling cycle before disconnecting power.
Warning - Turn on the projector rst and then the signal
sources.
Warning - Do not use lens cap when projector is in opera-
tion.
Warning - When the lamp reaches the end of its life, it will
burn out and may make a loud popping sound. If this happens, the projector will not turn back on until the lamp module has been replaced. To replace the lamp, follow the procedures listed
under “Replacing the Lamp”. (see page 35)
3
English
English
4
Usage Notice
Do:
Turn off the product before cleaning.Use a soft cloth moistened with mild detergent to clean the
display housing.
Disconnect the power plug from AC outlet if the product is
not being used for a long period of time.
Don’t:
Block the slots and openings on the unit provided for ventila-
tion.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:
- In extremely hot, cold or humid environments.
- In areas susceptible to excessive dust and dirt.
- Near any appliance that generates a strong magnetic eld.
- In direct sunlight.
Usage Notice
Eye Safety Warnings
▀■ Avoid staring directly into the projector beam at all times. ▀■ Minimize standing facing into the beam. Keep your back to
the beam as much as possible.
▀■ A stick or laser pointer is recommended to avoid the need for
the user to enter the beam.
▀■ Ensure that projectors are located out of the line of sight from
the screen to the audience; this ensures that, when presenters look at the audience, they do not also have to stare at the pro­jector lamp. The best way to achieve this is by ceiling-mount-
ing rather than oor or table-mounting the projector.
▀■ When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the screen.
▀■ In order to minimize the lamp power needed, use room blinds
to reduce ambient light levels.
5
English
English
6
Introduction
Product Features
This product is an XGA single chip 0.55” DLPTM projector. Outstanding features include:
True XGA, 1024 x 768 addressable pixels
Single chip Dark Chip2TM DLPTM technology
NTSC/NTSC4.43/PAL/PAL-M/PAL-N/SECAM and
HDTV compatible (480i/p, 576i/p, 720p, 1080i)
Multi-Auto functions: Auto detection, Auto image and
Auto saving the adjustments
Full function remote control
User friendly multilingual on screen display menu
Advanced digital keystone correction and high quality
full screen image re-scaling
User friendly control panel
SXGA compression and VGA, SVGA re-sizing
Mac compatible
Introduction
Package Overview
This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immedi­ately if anything is missing.
Due to the difference
in applications for each country, some regions may have different accessories.
Projector with lens cap
Remote Controller
SCART RGB/S-Video
Adaptor
(available in European
version only)
Power Cord 1.8m VGA Cable 1.8m
2 x AAA Batteries
Carrying Case
Documents :
User’s Guide

Quick Start Card

Warranty Card

7
English
English
8
Introduction
Product Overview
Main Unit
8
7
2
1
2
3
4
5
6
10
9
1. Control Panel
2. Zoom Lever
3. Focus Ring
4. Power Socket
5. Zoom Lens
6. Elevator Foot
7. Elevator Button
8. IR Receivers
9. Connection Ports
10. Tilt Adjusting Feet
10

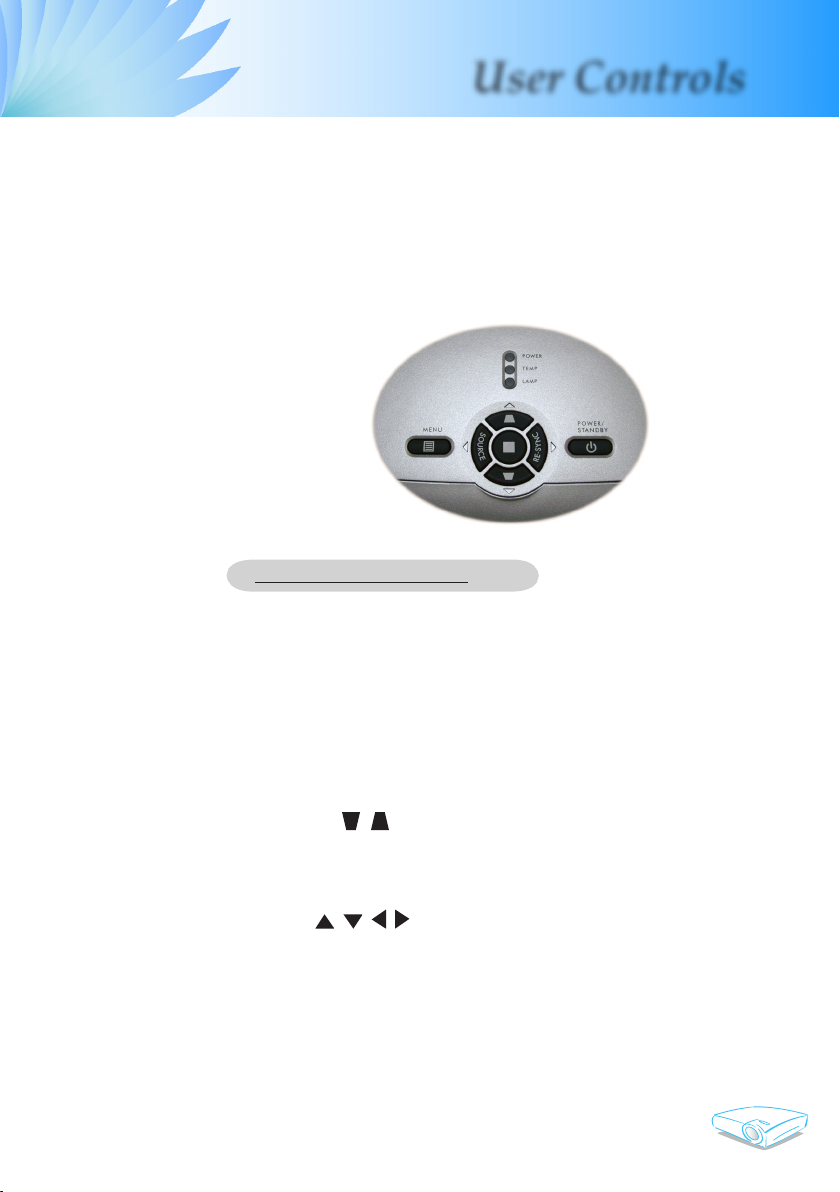

Control Panel
2
Introduction
1
3
4
5
9
10
1. Power Indicator LED
2. Temp Indicator LED
3. Lamp Indicator LED
4. Keystone Correction
5. Menu (On/Off)
6. Power/Standby
7. Four Directional Select Keys
8. Re-Sync
9. Source
10. Enter
6
4
8
7
9
English
English
10
Introduction
Connection Ports
1
1. DVI-D Input Connector (with HDCP)
2. PC Analog signal/SCART RGB/HDTV/Component Video Input Connector
3. S-Video Input Connector
4. Composite Video Input Connector
5. RS232 Connector
6. KensingtonTM Lock Port
2
3 4 5
6
Introduction

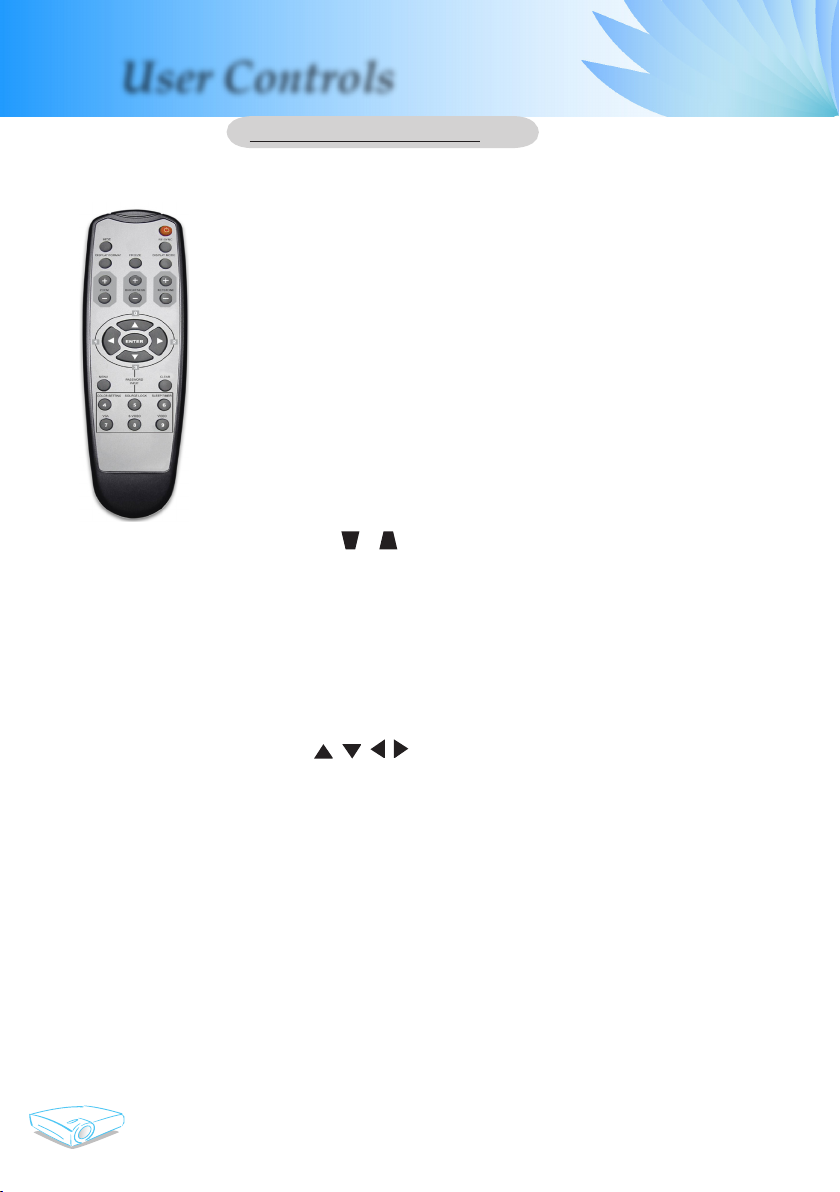

Wireless Remote Control
1
1. IR LED
2. Power
3. Re-Sync
4. Display Mode
5. Keystone Correction
6. Number Buttons
7. Clear
8. Sleep Timer
9. Video
10. S-Video Source
11. Source Lock
12. VGA Source
13. Color Setting
14. Menu
15. Enter
16. Four Directional Select Keys
17. Brightness
18. Zoom
19. Display Format
20. Hide
21. Freeze
20
19
18
17
16
15
14
13
12
11
21
2
3
4
5
6
7
8
9
10
11
English
English
12
Installation
Connecting the Projector
Due to the differ-
ence in applications for each country, some regions may have different ac­cessories.
RGB
7
23
6
DVD Player, Settop Box,
HDTV receiver
S-Video Output
1...............................................................................................................Power Cord
2................................................................................................................VGA Cable
3...............................................................DVI to DVI Cable(Optional Accessory)
4.....................................................Composite Video Cable(Optional Accessory)
5.....................................................................S-Video Cable (Optional Accessory)
6..................................... D-15 to RCA Adapter for YPbPr (Optional Accessory)
7........................................................................RS232 Cable (Optional Accessory)
4
5
1
Video Output
To ensure the projector works well with your computer,
please set the display mode of your graphic card less than or equal to 1024 X 768 resolution. Make sure the timing of the display mode is compatible with the projector. Refer to the “Compatibility Modes” section on page 36.
