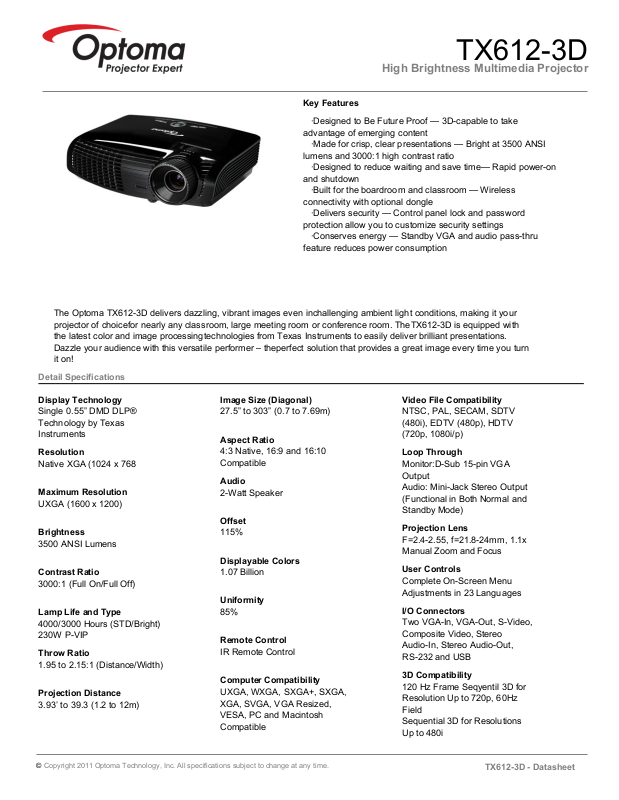

Optoma TX612-3D Product Sheet

High Brightness Multimedia Projector

TX612-3D

·Designed to Be Future Proof — 3D-capable to take advantage of emerging content

·Made for crisp, clear presentations — Bright at 3500 ANSI lumens and 3000:1 high contrast ratio

·Designed to reduce waiting and save time— Rapid power-on and shutdown

·Built for the boardroom and classroom — Wireless connectivity with optional dongle

·Delivers security — Control panel lock and password protection allow you to customize security settings

·Conserves energy — Standby VGA and audio pass-thru feature reduces power consumption

Key Features

The Optoma TX612-3D delivers dazzling, vibrant images even inchallenging ambient light conditions, making it your projector of choicefor nearly any classroom, large meeting room or conference room. TheTX612-3D is equipped with the latest color and image processingtechnologies from Texas Instruments to easily deliver brilliant presentations. Dazzle your audience with this versatile performer – theperfect solution that provides a great image every time you turn it on!

Detail Specifications

Display Technology

Single 0.55” DMD DLP® Technology by Texas Instruments

Resolution

Native XGA (1024 x 768

Maximum Resolution

UXGA (1600 x 1200)

Brightness

3500 ANSI Lumens

Contrast Ratio

3000:1 (Full On/Full Off)

Lamp Life and Type

4000/3000 Hours (STD/Bright) 230W P-VIP

Throw Ratio

1.95 to 2.15:1 (Distance/Width)

Projection Distance

3.93’ to 39.3 (1.2 to 12m)

Image Size (Diagonal)

27.5” to 303” (0.7 to 7.69m)

Aspect Ratio

4:3 Native, 16:9 and 16:10 Compatible

Audio

2-Watt Speaker

Offset

115%

Displayable Colors

1.07 Billion

Uniformity

85%

Remote Control

IR Remote Control

Computer Compatibility

UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible

Video File Compatibility

NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)

Loop Through

Monitor:D-Sub 15-pin VGA Output Audio: Mini-Jack Stereo Output (Functional in Both Normal and Standby Mode)

Projection Lens

F=2.4-2.55, f=21.8-24mm, 1.1x Manual Zoom and Focus

User Controls

Complete On-Screen Menu Adjustments in 23 Languages

I/O Connectors

Two VGA-In, VGA-Out, S-Video, Composite Video, Stereo Audio-In, Stereo Audio-Out, RS-232 and USB

3D Compatibility

120 Hz Frame Seqyentil 3D for Resolution Up to 720p, 60Hz Field Sequential 3D for Resolutions Up to 480i

TX612-3D - Datasheet

High Brightness Multimedia Projector

TX612-3D

Security

Kensington® Lock, Security Bar and Keypad Lock

Power Consumption

328 Watts (Bright), 272 Watts (STD), <1 Watt (Standby)

Standard Accessories

\AC Power Cord, VGA to VGA Cable, Remote Control, Batteries for Remote, Carrying Case, Lens Cap, CD-ROM User’s Manual, Quick Start Card and Warranty Card

Optional Accessories

Ceiling Mount, Wireless Dongle, VGA to Component Cable, S-Video Cable, Composite Video Cable, RS-232 Cable and Panoview™ Series Screens

Warranty

3 Years Optoma Express Replacement Service, 1 Year on Lamp

UPC

796435 41 733 8

Accessory Part Numbers

Lamp: BL-FP230D Remote: BR-3044N Mount: BM-5001U Case: BK-4028 Wireless Dongle:BI-EXTGB02

TX612-3D - Datasheet
