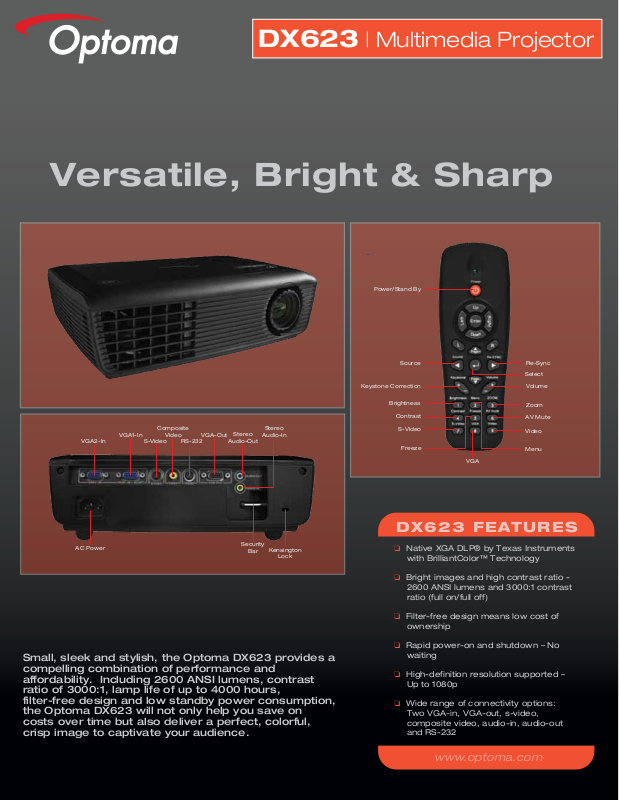

Optoma Technology DX623 User Manual

DX623 | Multimedia Projector

www.optoma.com

Versatile, Bright & Sharp

Power/Stand By

Security

Bar

Stereo

Audio-In

Kensington

Lock

VGA2-In

AC Power

VGA1-In

Composite

S-Video

Video

RS-232

VGA-Out

Stereo

Audio-Out

Small, sleek and stylish, the Optoma DX623 provides a compelling combination of performance and affordability. Including 2600 ANSI lumens, contrast ratio of 3000:1, lamp life of up to 4000 hours, filter-free design and low standby power consumption, the Optoma DX623 will not only help you save on costs over time but also deliver a perfect, colorful, crisp image to captivate your audience.

Source

Keystone Correction

Brightness

Contrast

S-Video

Freeze

DX623 FEATURES

❏ Native XGA DLP® by Texas Instruments

with BrilliantColor™ Technology

❏ Bright images and high contrast ratio -

2600 ANSI lumens and 3000:1 contrast ratio (full on/full off)

❏ Filter-free design means low cost of

ownership

❏ Rapid power-on and shutdown – No

waiting

❏ High-definition resolution supported –

Up to 1080p

❏ Wide range of connectivity options:

Two VGA-in, VGA-out, s-video, composite video, audio-in, audio-out and RS-232

Re-Sync

Select

Volume

Zoom

AV Mute

Video

VGA

DX623 | Multimedia Projector

Power/

Standby

Lamp LED

Select

Re-Sync

Source

Temp LED

Four Directional Keys

Power LED

Keystone

Correction

Keystone

Correction

www.optoma.com

Projection Distance/Image Size

Projection Distance

(Feet)

Maximum Diagonal

(Inches)

113

127

Control Panel

Optional Accessories

Lamp:

Remote:

VGA Cable (1.8m):

Power Cord (1m):

Power Cord (11m):

Composite Cable (1.8m):

VGA to Component Adaptor:

Ceiling Mount:

Wireless Dongle:

Carrying Case:

100” Matte White 4:3 Manual Pull-Down Screen:

Minimum Diagonal

(Inches)

102

115

BL-FU185A

BR-3043N

BC-VGVGXX02

BC-PUPIXY01

BC-PUPIXY11

BC-COCOXX02

BC-VGCRXY00

BM-5001U

BI-EXTGB

BK-4006

DS-3100PMG+

Specifications

Display Technology:

Resolution:

Maximum Resolution:

Brightness (Typical):

Contrast Ratio:

Lamp Type:

Lamp Life (STD/Bright):

Throw Ratio:

Image Size (Diagonal):

Projection Distance:

Noise Level (STD/Bright):

Remote Control:

Computer Compatibility:

Video Compatibility:

Aspect Ratio:

Projection Lens:

Offset:

Monitor Loop Through:

User Controls:

Audio:

Keystone Correction:

Vertical Refresh Rate:

Horizontal Scan Rate:

Power Supply:

Power Consumption:

Weight:

Dimensions (W x H x D):

Operating Temperature:

Displayable Colors:

Projection Method:

Uniformity:

Security:

I/O Connectors:

Standard Accessories:

Optional Accessories:

Warranty:

UPC:

Single 0.55” DMD DLP

Technology by Texas Instruments

Native XGA (1024 x 768)

UXGA (1600 x 1200)

2600 ANSI Lumens

3000:1 (Full On/Full Off)

185W UHP

Estimated at 4000/3000 Hours

1.95 to 2.15:1 (Distance/Width)

22.9” to 300” (0.58 to 7.62 m)

3.28’ to 32.8’ (1.0 to 10 m)

28dB/30dB

IR Remote Control

UXGA, WXGA, SXGA+, SVGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible

NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)

4:3 Native, 16:9 & 16:10 Compatible

F=2.41~2.55, f=21.8~23.98 mm, 1.1x Manual Zoom and Focus

115%

D-Sub 15-Pin VGA Output (Functional in Both Normal and Standby Modes)

Complete On-Screen Menu in 23 Languages

2-Watt Speaker

± 40° Vertical

24 to 85 Hz

15.3 to 91.1 KHz

AC Input 100-240V, 50-650Hz, Auto-Switching

255 Watts (Bright), 230 Watts (STD), <1 Watt (Standby)

5 lbs (2.27 kg)

11.28” x 3.98” x 7.6” (287 x 101 x 193 mm)

41° to 95°F (5° to 40°C), 85% Max Humidity, Adjustable Fan Speed for High Altitude Application

1.07 Billion

Front, Rear, Ceiling Mount, Table Top

85%

Kensington® Lock, Keypad Lock, Security Bar

Two VGA-In, VGA-Out, S-Video, Composite Video, Stereo Audio-In, Stereo Audio-Out and RS-232

AC Power Cord, VGA to VGA Cable, Remote Control, Batteries for Remote, Carrying Case, Lens Cap, Quick Start Card, CD-ROM User’s Manual and Warranty Card

Ceiling Mount, VGA Cable, S-Video Cable, Composite Video Cable, RS-232 Cable and Panoview Series Screens

One-Year Limited Parts and Labor, 90 Days on Lamp

796435 41 685 0

Data-DX623-1210

All Specifications are subject to change without notice. ©2010 Optoma Technology, Inc. DLP® and the DLP logo are registered trademarks of Texas Instraments. All other names mentioned herein are property of their respective owners.
