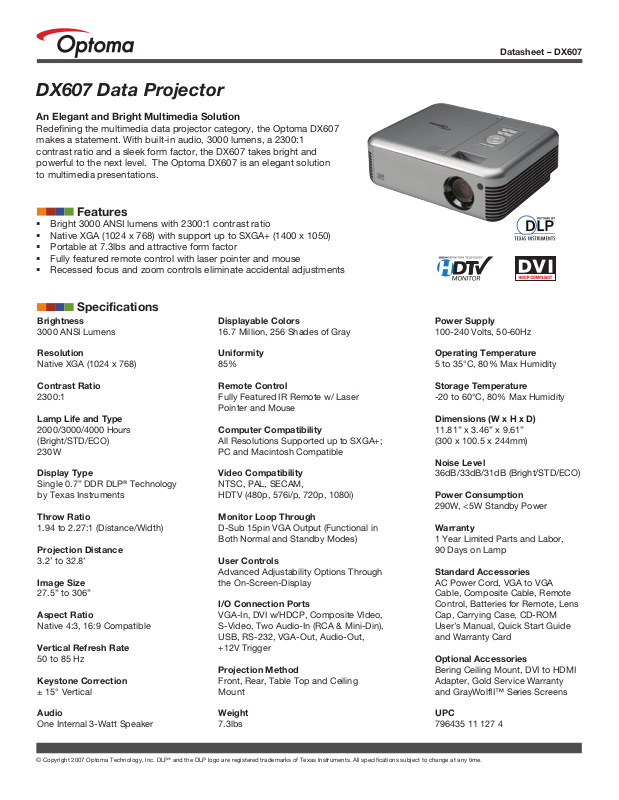

Optoma DX607 Product Sheet
DX607 Data Projector
An Elegant and Bright Multimedia Solution
Redefining the multimedia data projector category, the Optoma DX607
makes a statement. With built-in audio, 3000 lumens, a 2300:1
contrast ratio and a sleek form factor, the DX607 takes bright and
powerful to the next level. The Optoma DX607 is an elegant solution
to multimedia presentations.
Features
Bright 3000 ANSI lumens with 2300:1 contrast ratio
Native XGA (1024 x 768) with support up to SXGA+ (1400 x 1050)
Portable at 7.3lbs and attractive form factor
Fully featured remote control with laser pointer and mouse
Recessed focus and zoom controls eliminate accidental adjustments
Specifications
Brightness
3000 ANSI Lumens
Displayable Colors
16.7 Million, 256 Shades of Gray
Datasheet – DX607
Power Supply
100-240 Volts, 50-60Hz
Resolution
Native XGA (1024 x 768)
Contrast Ratio
2300:1
Lamp Life and Type
2000/3000/4000 Hours
(Bright/STD/ECO)
230W
Display Type
Single 0.7” DDR DLP® Technology
by Texas Instruments
Throw Ratio
1.94 to 2.27:1 (Distance/Width)
Projection Distance
3.2’ to 32.8’
Image Size
27.5” to 306”
Aspect Ratio
Native 4:3, 16:9 Compatible
Vertical Refresh Rate
50 to 85 Hz
Keystone Correction
± 15° Vertical
Uniformity
85%
Remote Control
Fully Featured IR Remote w/ Laser
Pointer and Mouse
Computer Compatibility
All Resolutions Supported up to SXGA+;
PC and Macintosh Compatible
Video Compatibility
NTSC, PAL, SECAM,
HDTV (480p, 576i/p, 720p, 1080i)
Monitor Loop Through
D-Sub 15pin VGA Output (Functional in
Both Normal and Standby Modes)
User Controls
Advanced Adjustability Options Through
the On-Screen-Display
I/O Connection Ports
VGA-In, DVI w/HDCP, Composite VIdeo,
S-Video, Two Audio-In (RCA & Mini-Din),
USB, RS-232, VGA-Out, Audio-Out,
+12V Trigger
Projection Method
Front, Rear, Table Top and Ceiling
Mount
Operating Temperature
5 to 35°C, 80% Max Humidity
Storage Temperature
-20 to 60°C, 80% Max Humidity
Dimensions (W x H x D)
11.81” x 3.46” x 9.61”
(300 x 100.5 x 244mm)
Noise Level
36dB/33dB/31dB (Bright/STD/ECO)
Power Consumption
290W, <5W Standby Power
Warranty
1 Year Limited Parts and Labor,
90 Days on Lamp
Standard Accessories
AC Power Cord, VGA to VGA
Cable, Composite Cable, Remote
Control, Batteries for Remote, Lens
Cap, Carrying Case, CD-ROM
User’s Manual, Quick Start Guide
and Warranty Card
Optional Accessories
Bering Ceiling Mount, DVI to HDMI
Adapter, Gold Service Warranty
and GrayWolfII™ Series Screens
Audio
One Internal 3-Watt Speaker
© Copyright 2007 Optoma Technology, Inc. DLP® and the DLP logo are registered trademarks of Texas Instruments. All specifications subject to change at any time.
Weight
7.3lbs
UPC
796435 11 127 4
