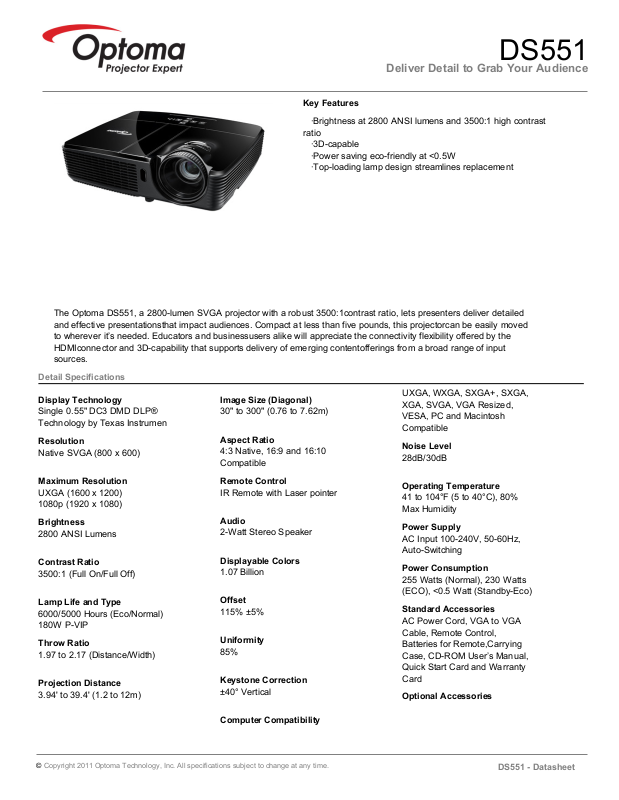

Optoma DS551 Product Sheet

Deliver Detail to Grab Your Audience

DS551

·Brightness at 2800 ANSI lumens and 3500:1 high contrast ratio

·3D-capable

·Power saving eco-friendly at <0.5W

·Top-loading lamp design streamlines replacement

Key Features

The Optoma DS551, a 2800-lumen SVGA projector with a robust 3500:1contrast ratio, lets presenters deliver detailed and effective presentationsthat impact audiences. Compact at less than five pounds, this projectorcan be easily moved to wherever it’s needed. Educators and businessusers alike will appreciate the connectivity flexibility offered by the HDMIconnector and 3D-capability that supports delivery of emerging contentofferings from a broad range of input sources.

Detail Specifications

Display Technology

Single 0.55" DC3 DMD DLP® Technology by Texas Instrumen

Resolution

Native SVGA (800 x 600)

Maximum Resolution

UXGA (1600 x 1200) 1080p (1920 x 1080)

Brightness

2800 ANSI Lumens

Contrast Ratio

3500:1 (Full On/Full Off)

Lamp Life and Type

6000/5000 Hours (Eco/Normal) 180W P-VIP

Throw Ratio

1.97 to 2.17 (Distance/Width)

Projection Distance

3.94' to 39.4' (1.2 to 12m)

Image Size (Diagonal)

30" to 300" (0.76 to 7.62m)

Aspect Ratio

4:3 Native, 16:9 and 16:10 Compatible

Remote Control

IR Remote with Laser pointer

Audio

2-Watt Stereo Speaker

Displayable Colors

1.07 Billion

Offset

115% ±5%

Uniformity

85%

Keystone Correction

±40° Vertical

Computer Compatibility

UXGA, WXGA, SXGA+, SXGA, XGA, SVGA, VGA Resized, VESA, PC and Macintosh Compatible

Noise Level

28dB/30dB

Operating Temperature

41 to 104°F (5 to 40°C), 80% Max Humidity

Power Supply

AC Input 100-240V, 50-60Hz, Auto-Switching

Power Consumption

255 Watts (Normal), 230 Watts (ECO), <0.5 Watt (Standby-Eco)

Standard Accessories

AC Power Cord, VGA to VGA Cable, Remote Control, Batteries for Remote,Carrying Case, CD-ROM User’s Manual, Quick Start Card and Warranty Card

Optional Accessories

DS551 - Datasheet

Deliver Detail to Grab Your Audience

DS551

USB Cable, Ceiling Mount, VGA to Component Cable, S-Video Cable, Composite Video Cable, RS-232 Cable and Panoview™ Series Screens Remote Control with Laser Pointer, DLP Link 3D Glasses

Warranty

2 Years Limited Parts and Labor, 1 Year on Lamp

UPC

796435 81 129 7

Accessory Part Numbers

Lamp: BL-FP180F Remote: BR-3057L Carrying Case: BK-4018

Video File Compatibility

NTSC, PAL, SECAM, SDTV (480i), EDTV (480p), HDTV (720p, 1080i/p)

3D Compatibility

120Hz Frame Sequential 3D for Resolutions Up to 720p, 60Hz Field Sequential 3D for Resolutions Up to 480i

Horizontal Scan Rate

15.3 to 91.1 KHz

Vertical Refresh Rate

24-85Hz, 120 Hz

Loop Through

Monitor: D-Sub 15-Pin VGA Output Audio: Stereo Mini-Jack Output (Functional in Both Normal and Standby Modes)

Projection Lens

F= 2.4-2.66, f= 18.2-21.8mm,

1.1x Manual Zoom and Focus

User Controls

Complete On-Screen Menu Adjustments in 23 Languages

I/O Connectors

HDMI,Two VGA-In, VGA-Out, S-Video, Composite Video, Audio-In, Audio-Out, RS-232 and USB Type B

Security

Kensington® Lock, Security Bar and Keypad Lock

Projection Method

Front, Rear, Ceiling Mount, Table Top

Weight

4.9 lbs (2.2kg)

Dimensions (W x H x D)

11” x 9.06” x 3.03” (279 x 230 x

76.96 mm)

DS551 - Datasheet
