Optoma DS346, DW346, DX346, S316, W316 User Guide
...
1
English

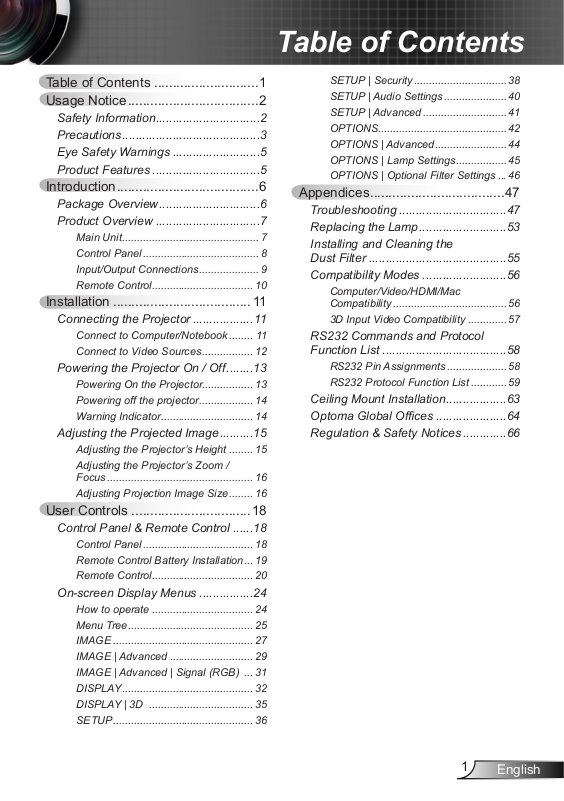

Table of Contents
Table of Contents ............................1
Usage Notice ...................................2
Safety Information ...............................2
Precautions .........................................3
Eye Safety Warnings ..........................5
Product Features ................................5
Introduction ......................................6
Package Overview ..............................6
Product Overview ...............................7
Main Unit ..............................................7
Control Panel ....................................... 8
Input/Output Connections .................... 9
Remote Control ..................................10
Installation ..................................... 11
Connecting the Projector .................. 11
Connect to Computer/Notebook ........ 11
Connect to Video Sources ................. 12
Powering the Projector On / Off ........13
Powering On the Projector .................13
Powering off the projector .................. 14
Warning Indicator ...............................14
Adjusting the Projected Image ..........15
Adjusting the Projector’s Height ........ 15
Adjusting the Projector’s Zoom /
Focus ................................................. 16
Adjusting Projection Image Size ........ 16
User Controls ................................18
Control Panel & Remote Control ......18
Control Panel ..................................... 18
Remote Control Battery Installation ... 19
Remote Control ..................................20
On-screen Display Menus ................24
How to operate ..................................24
Menu Tree .......................................... 25

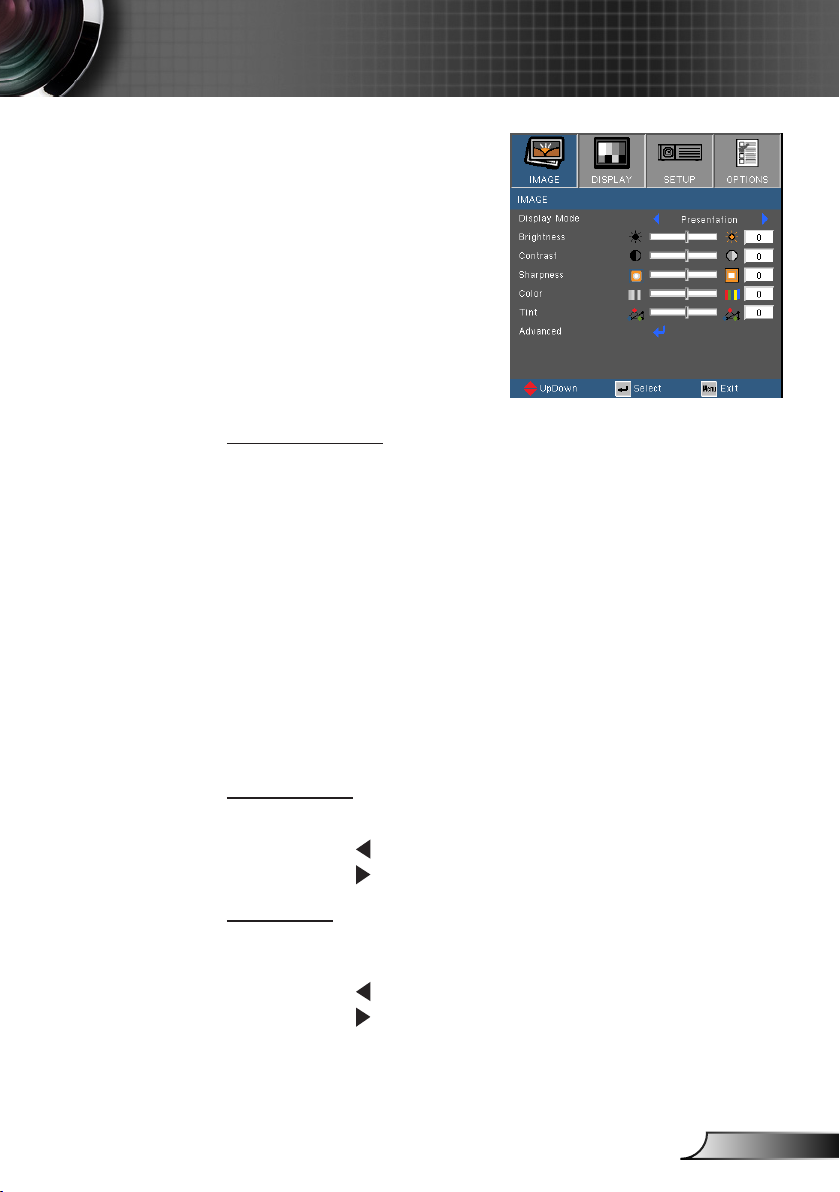

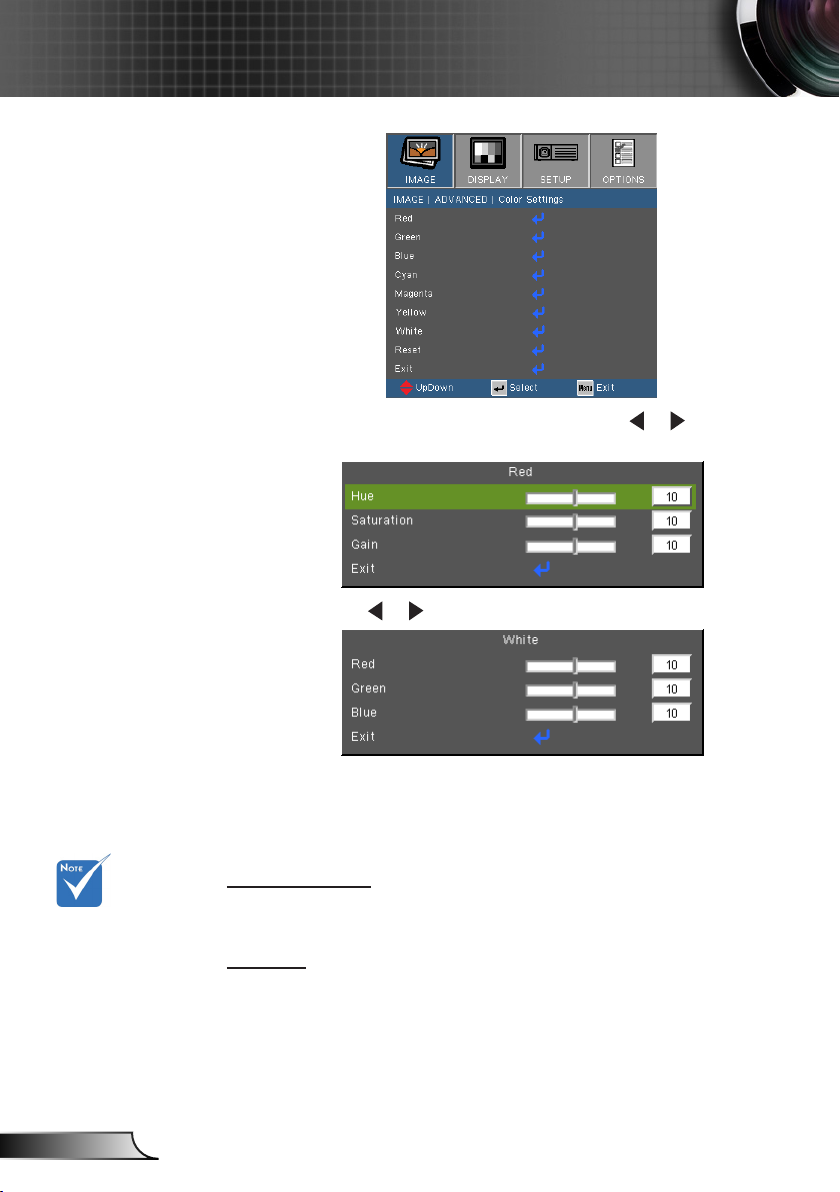

IMAGE ............................................... 27

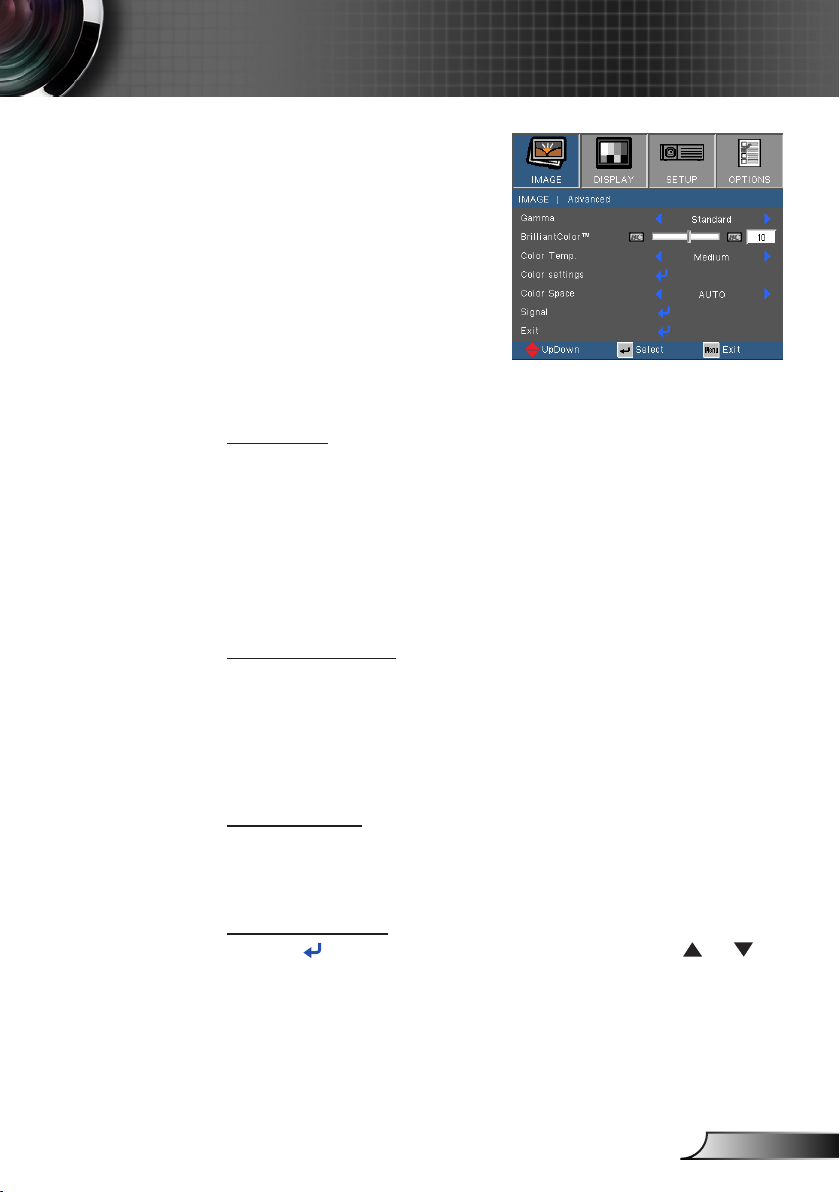

IMAGE | Advanced ............................ 29

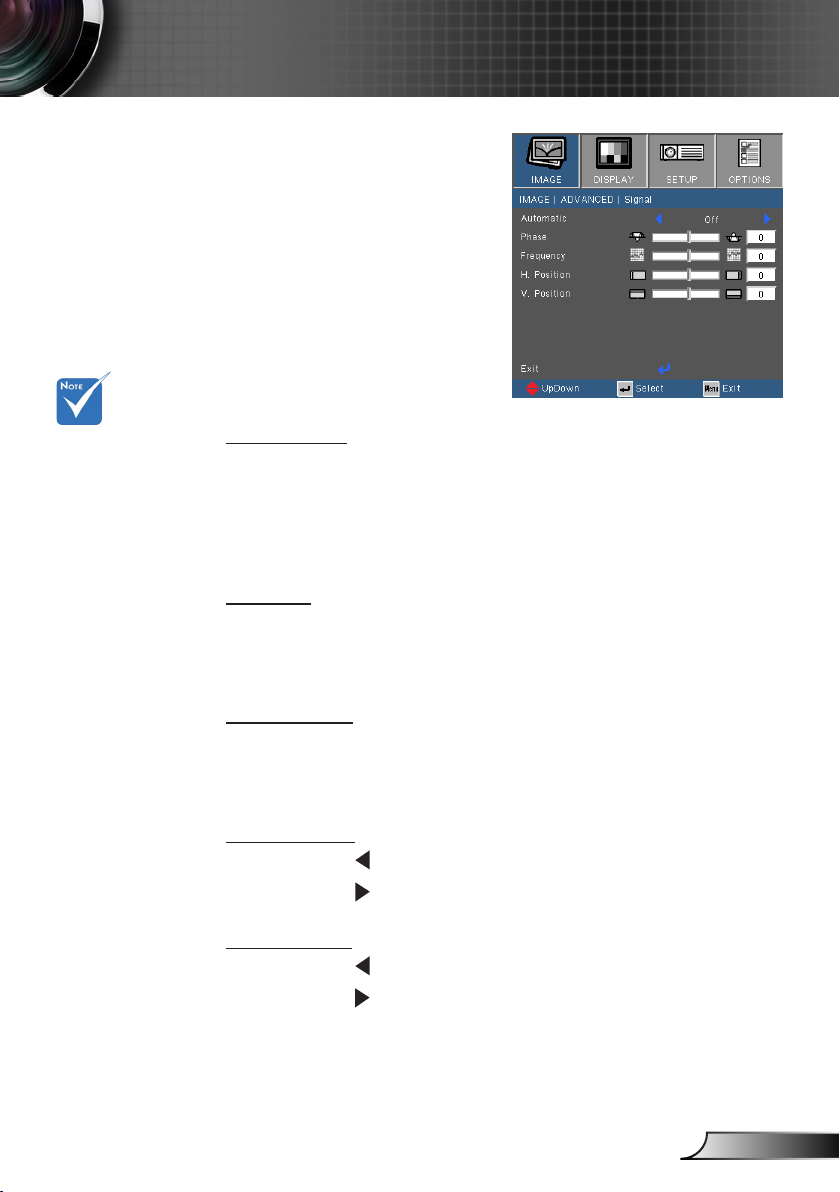

IMAGE | Advanced | Signal (RGB) ... 31

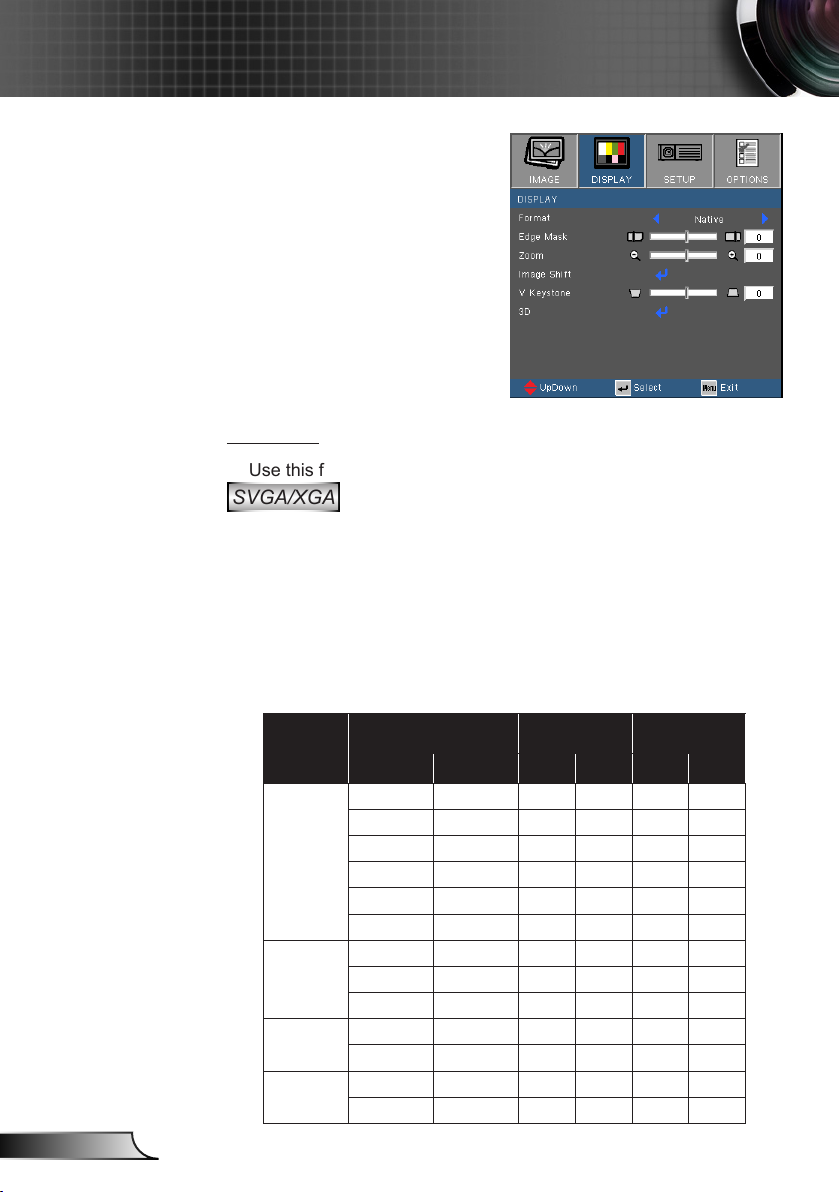

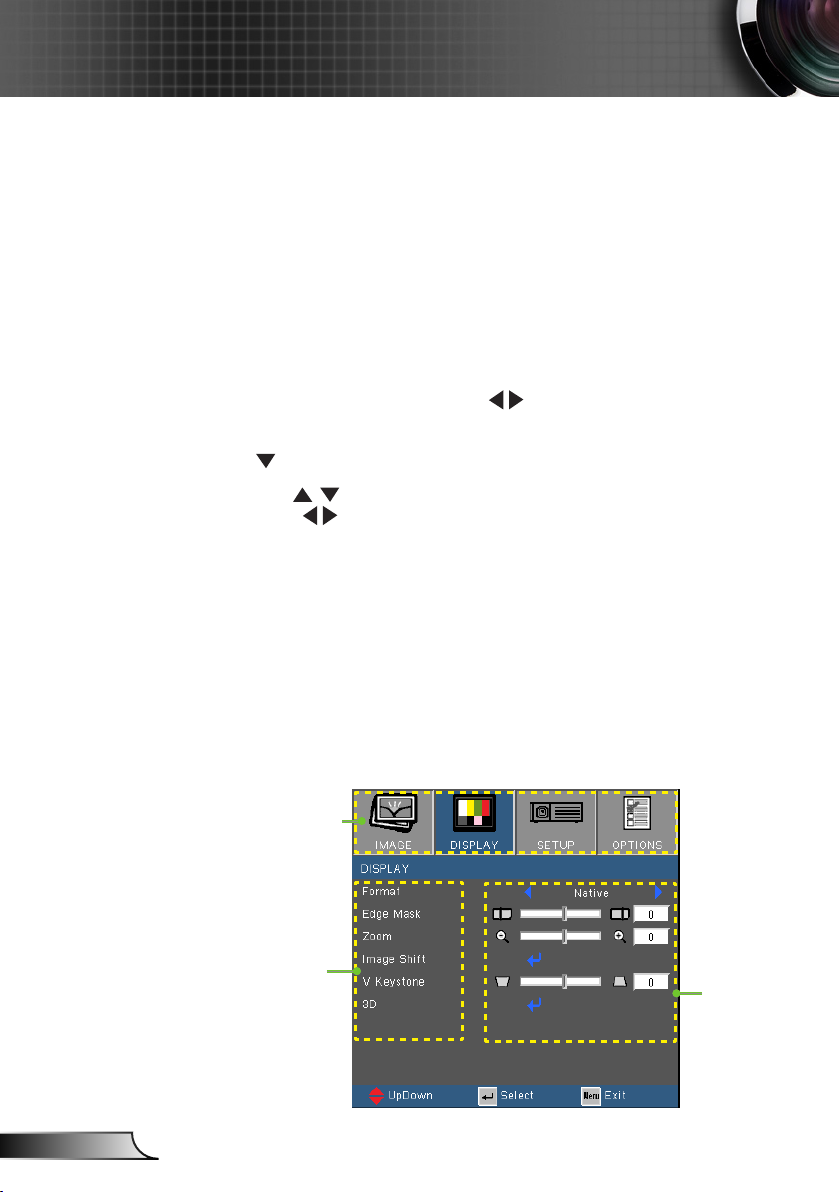

DISPLAY ............................................ 32

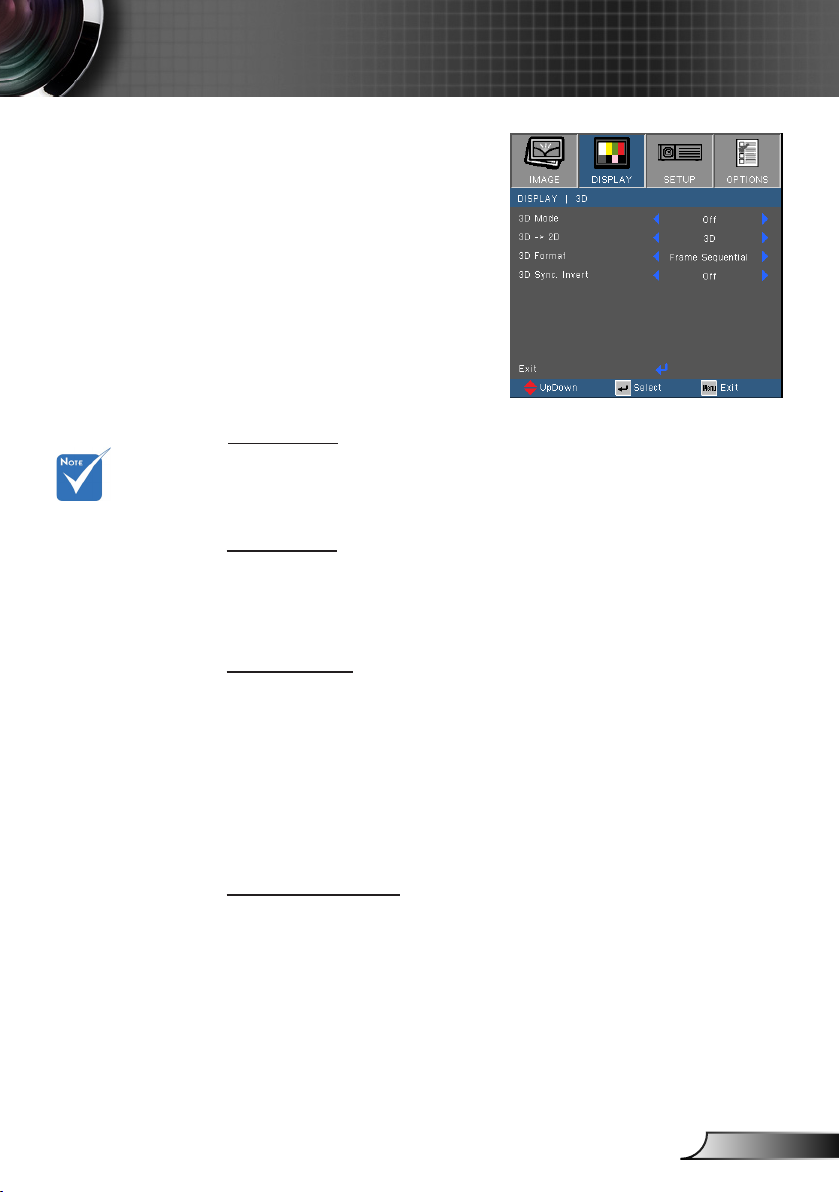

DISPLAY | 3D ................................... 35

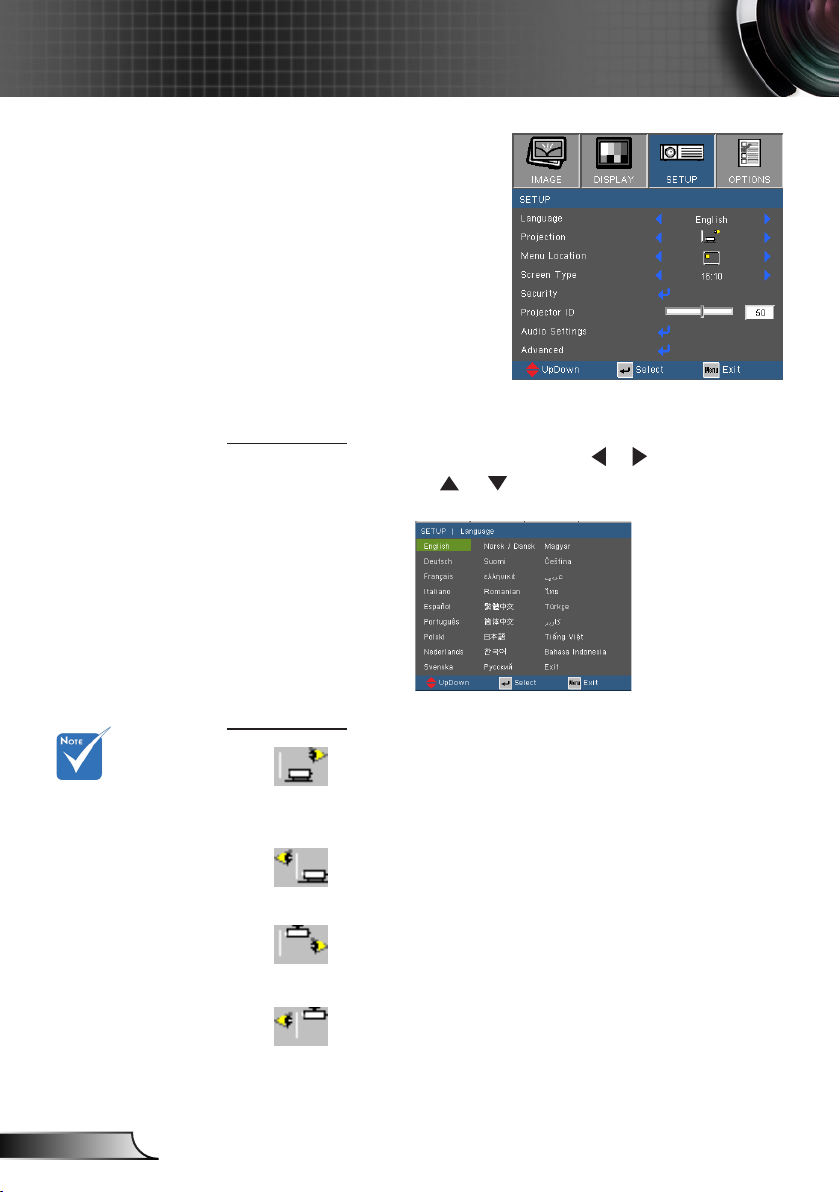

SETUP ............................................... 36

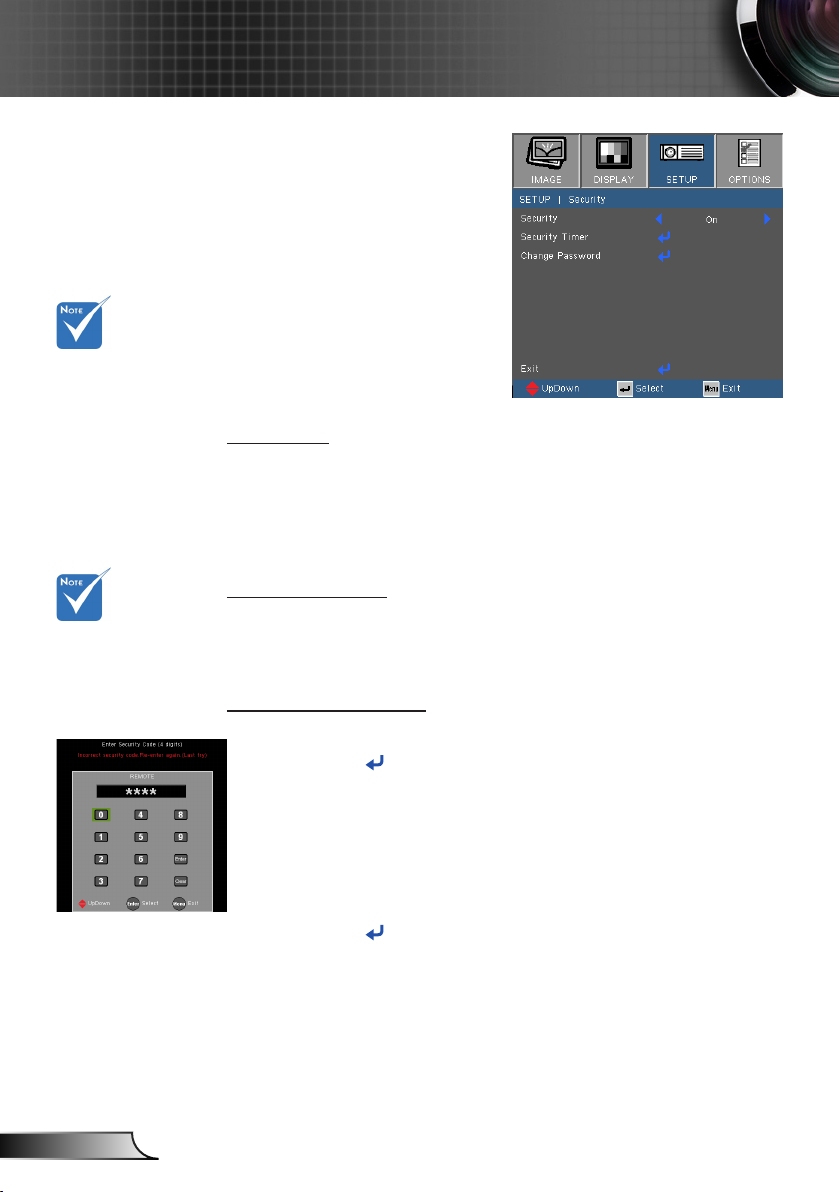

SETUP | Security ............................... 38

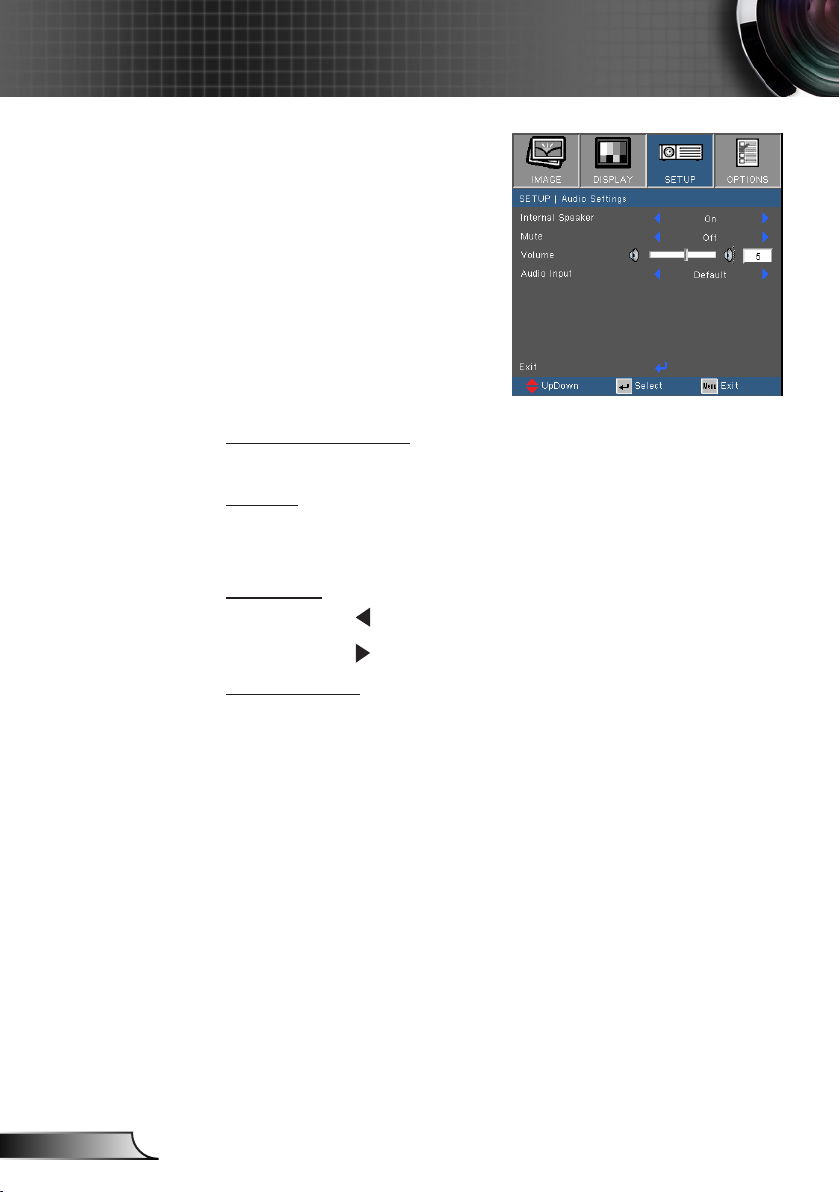

SETUP | Audio Settings ..................... 40

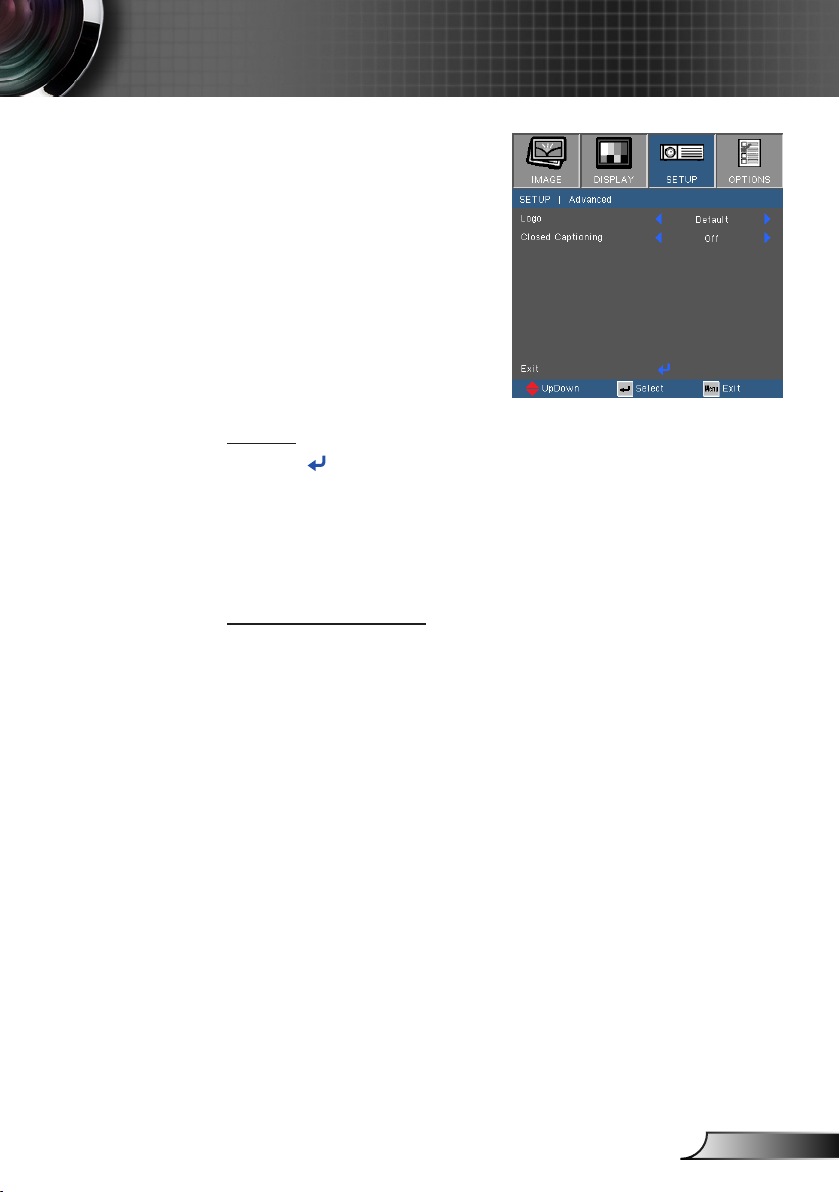

SETUP | Advanced ............................ 41

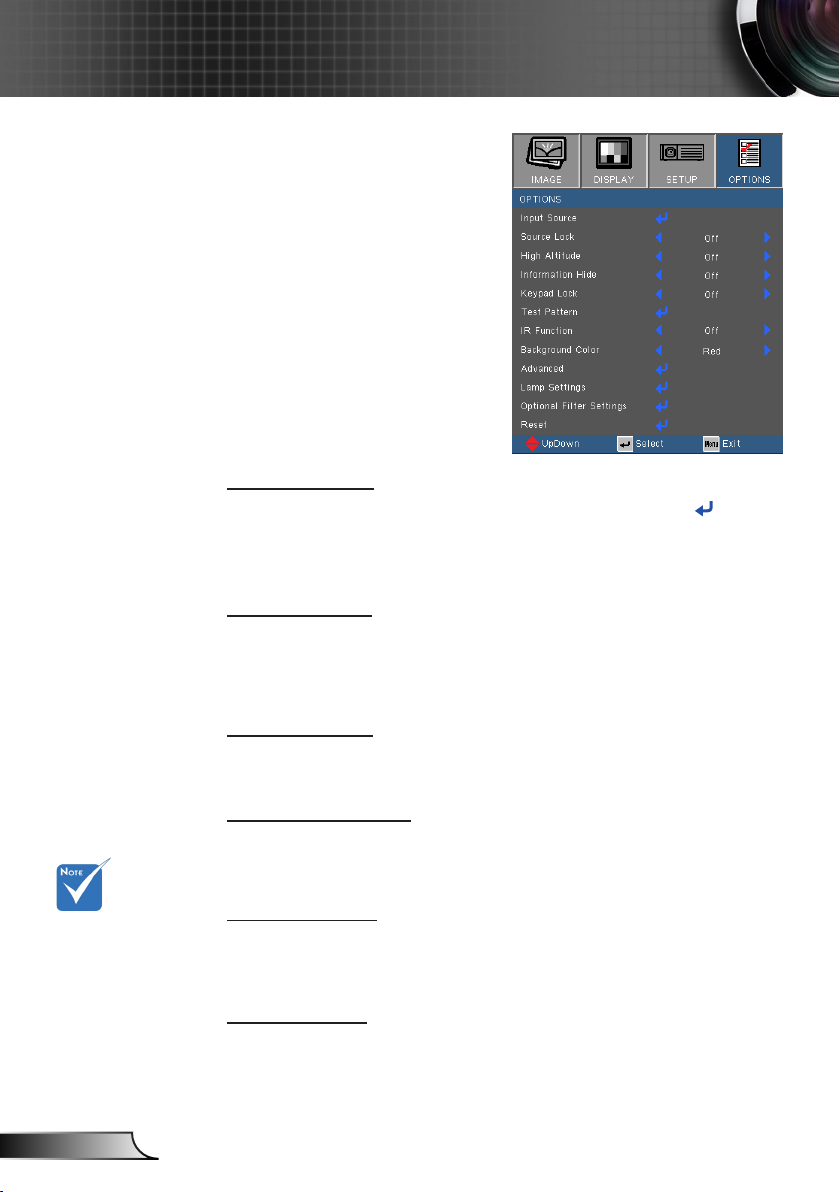

OPTIONS ........................................... 42

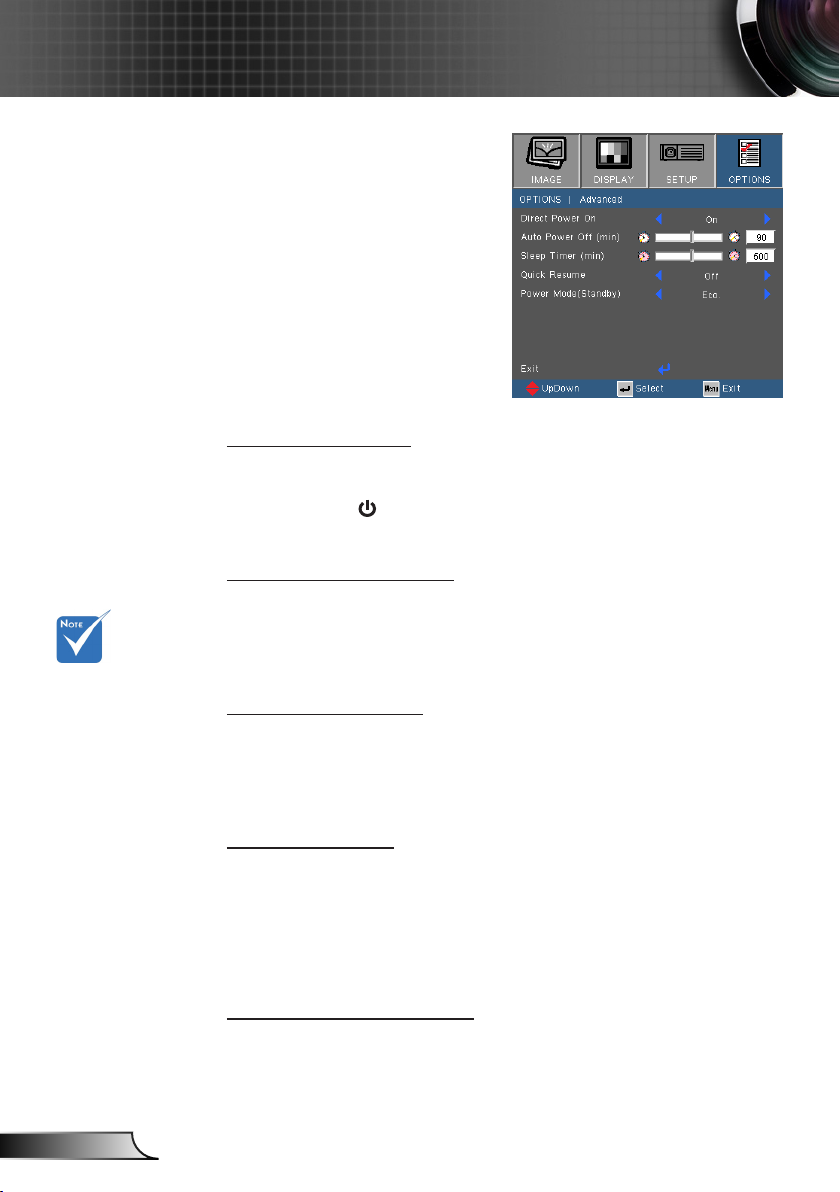

OPTIONS | Advanced ........................ 44

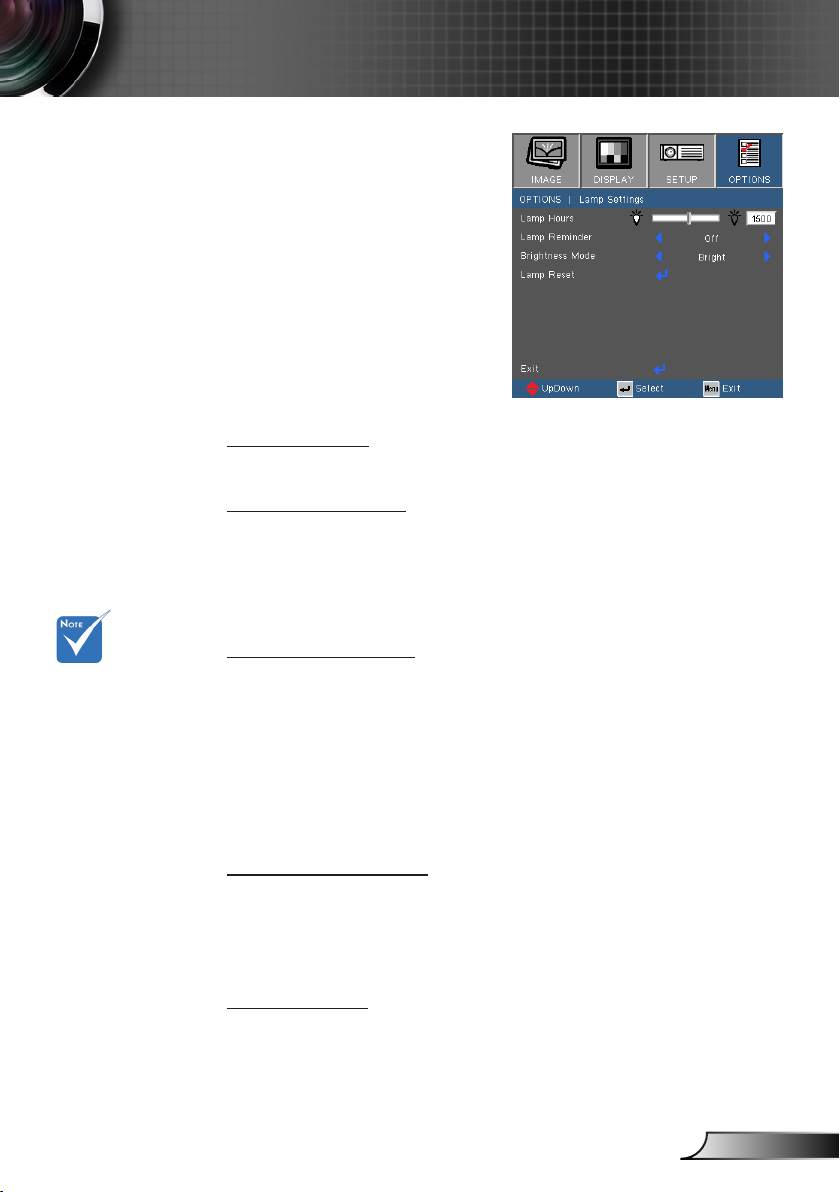

OPTIONS | Lamp Settings ................. 45

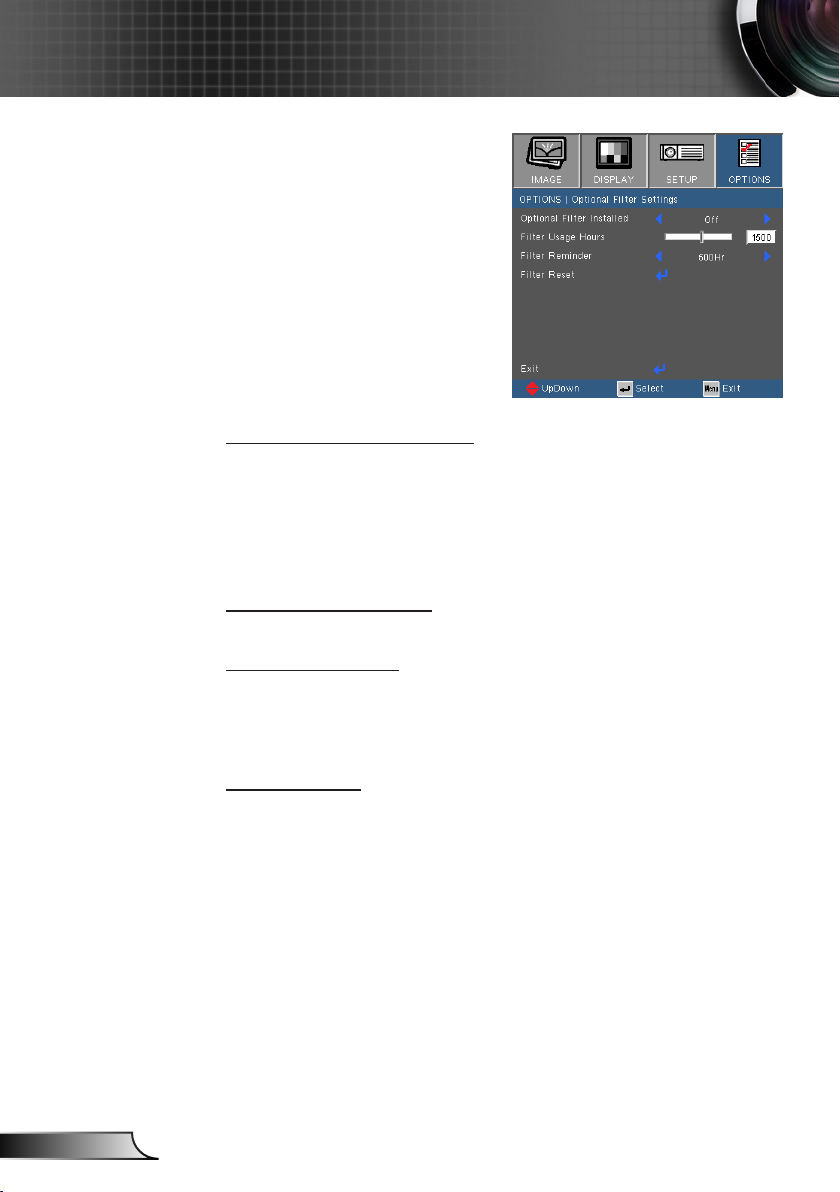

OPTIONS | Optional Filter Settings ... 46
Appendices ....................................47

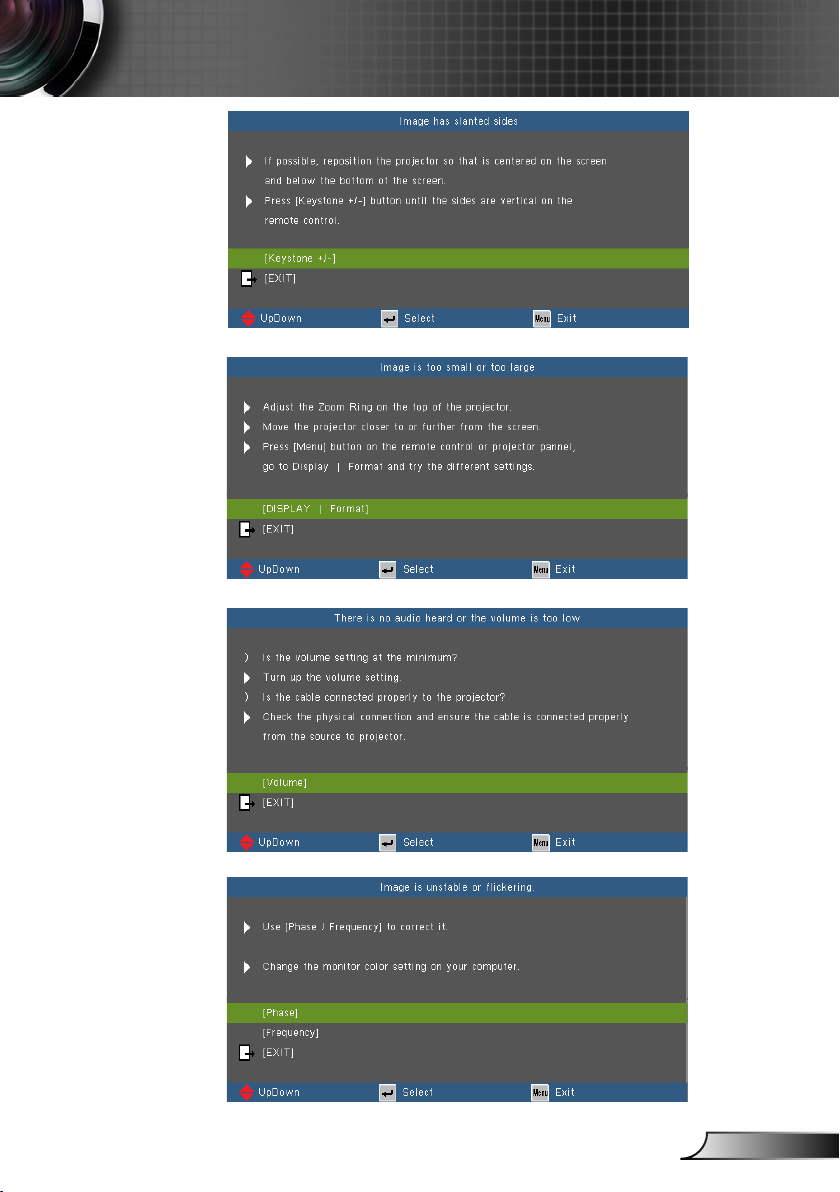

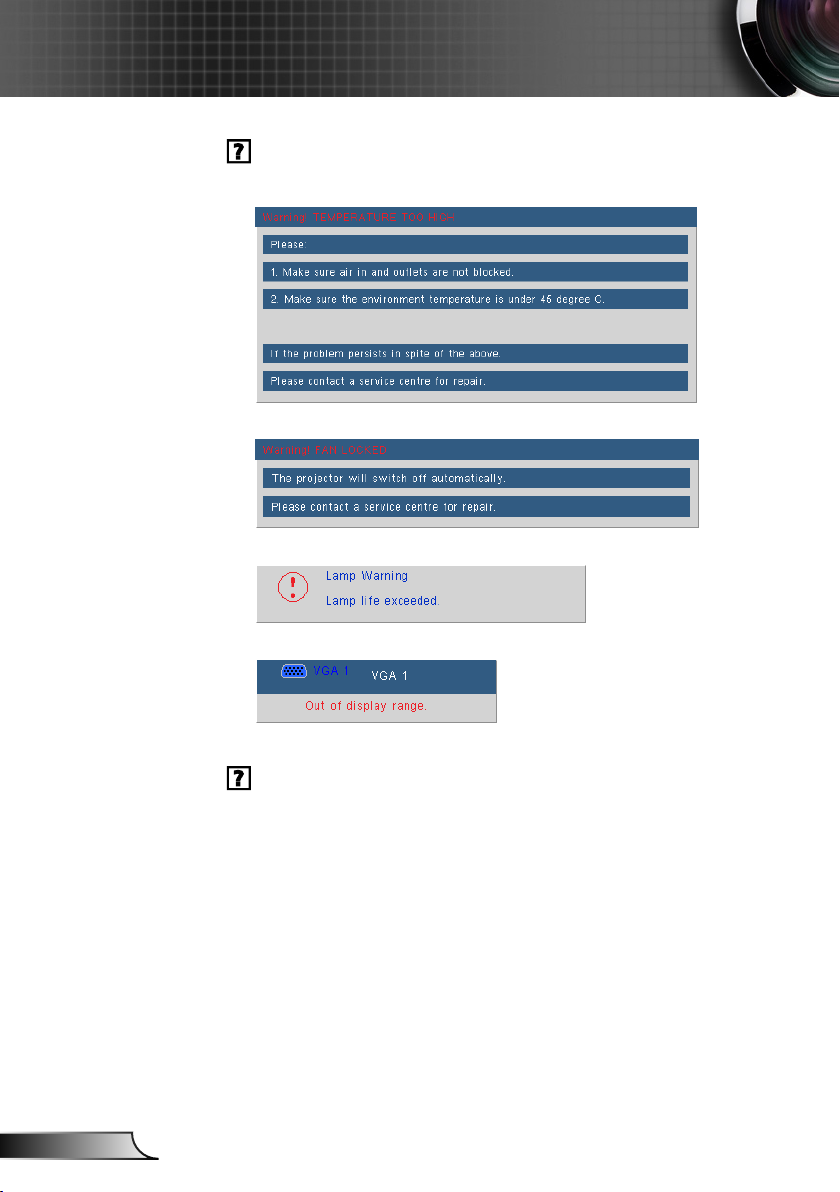

Troubleshooting ................................47

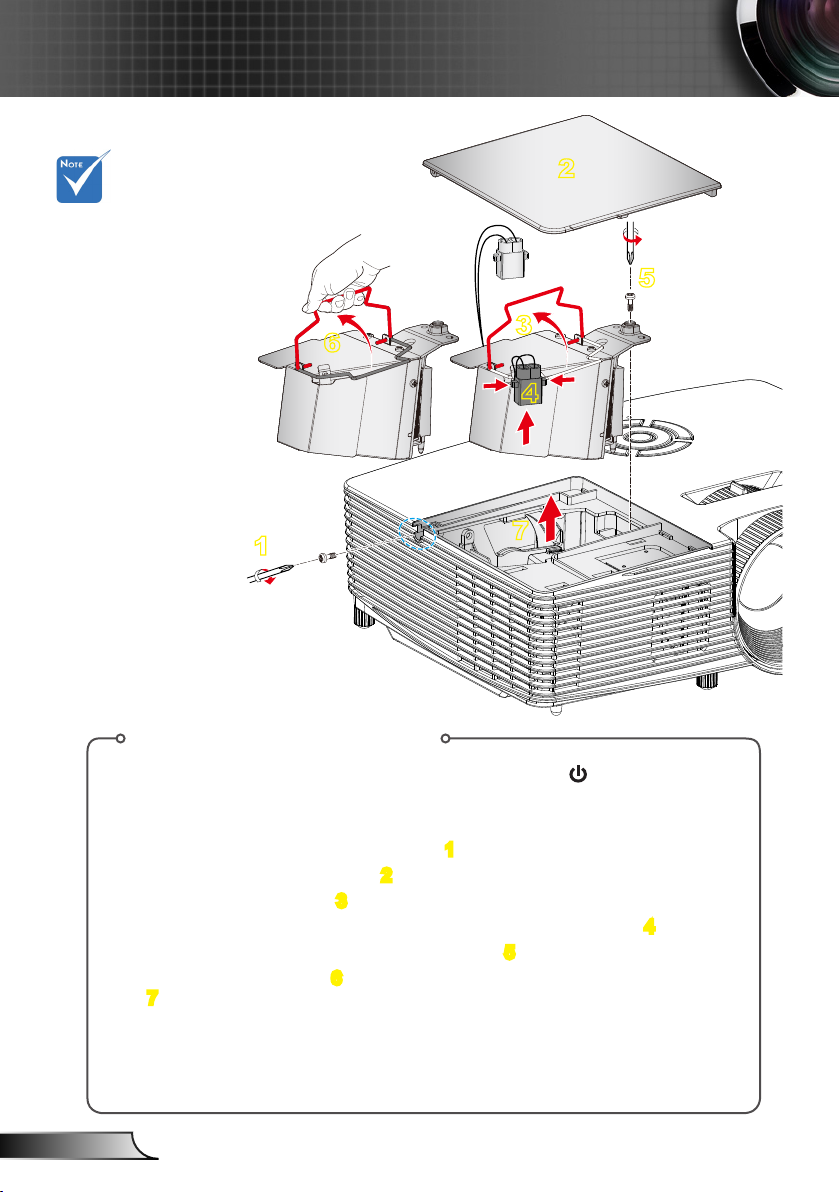

Replacing the Lamp ..........................53

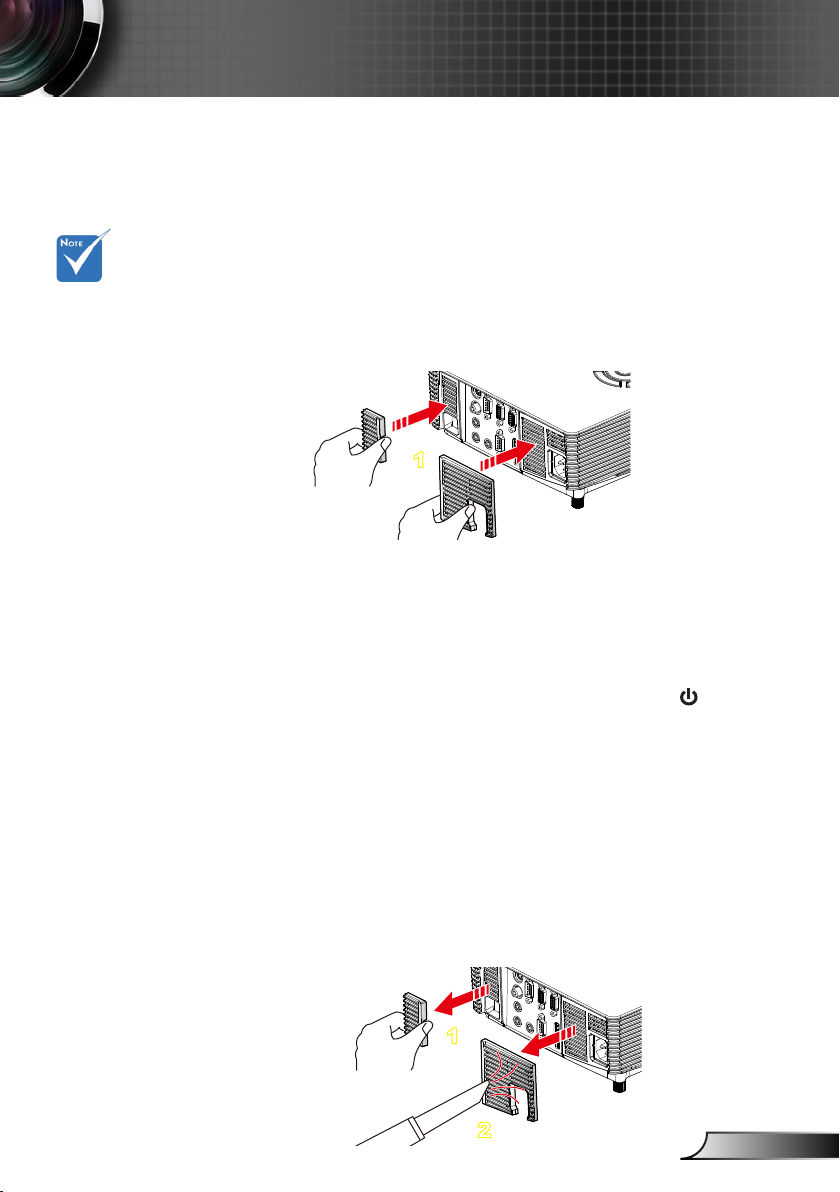

Installing and Cleaning the
Dust Filter .........................................55
Compatibility Modes .........................56
Computer/Video/HDMI/Mac
Compatibility ...................................... 56
3D Input Video Compatibility .............57
RS232 Commands and Protocol
Function List .....................................58

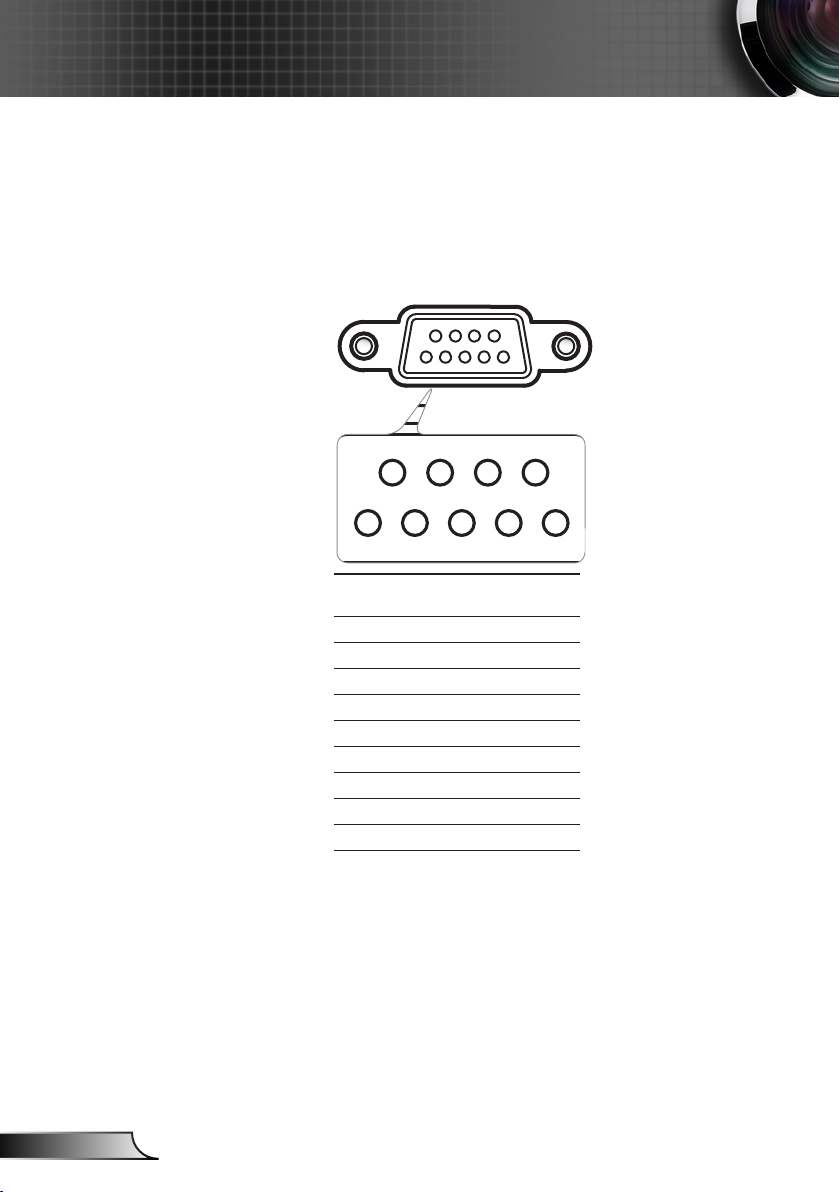

RS232 Pin Assignments .................... 58
RS232 Protocol Function List ............ 59

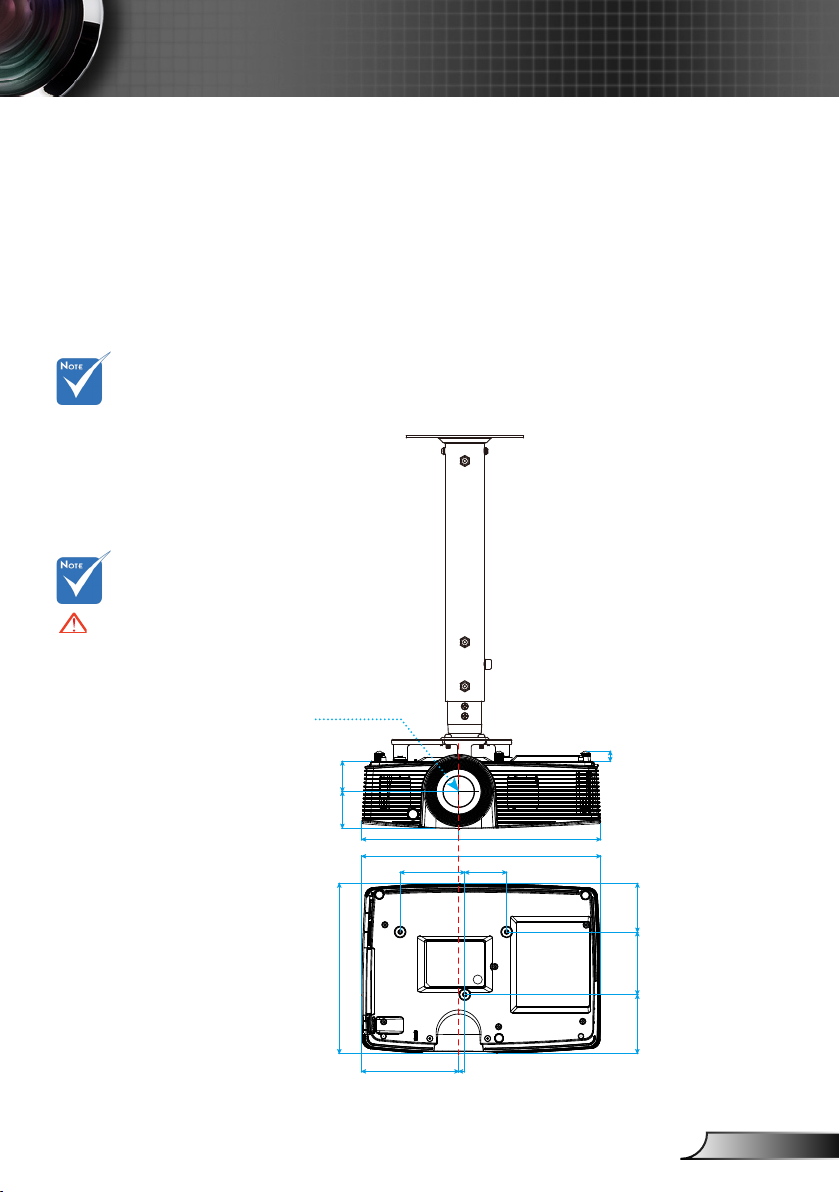

Ceiling Mount Installation ..................63
Optoma Global Ofces .....................64
Regulation & Safety Notices .............66
2
English
Usage Notice
Safety Information
The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of sufcient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH
VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Important Safety Instruction
1. Do not block any ventilation openings. To ensure reliable operation of
the projector and to protect from over heating, it is recommended to
install the projector in a location that does not block ventilation. As an
example, do not place the projector on a crowded coffee table, sofa,
bed, etc. Do not put the projector in an enclosure such as a book case
or a cabinet that restricts air ow.
2. Do not use the projector near water or moisture. To reduce the risk
of re and/or electric shock, do not expose the projector to rain or
moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or
any other apparatus such as ampliers that emits heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories specied by the manufacturer.
6. Do not use the unit if it has been physically damaged or abused.
Physical damage/abuse would be (but not limited to):
Unit has been dropped.
Power supply cord or plug has been damaged.
Liquid has been spilled on to the projector.
Projector has been exposed to rain or moisture.
Something has fallen in the projector or something is loose inside.
Do not attempt to service the unit yourself. Opening or removing covers
may expose you to dangerous voltages or other hazards. Please call
Optoma before you send the unit for repair.
7. Do not let objects or liquids enter the projector. They may touch
dangerous voltage points and short out parts that could result in re or
electric shock.
8. See projector enclosure for safety related markings.
9. The unit should only be repaired by appropriate service personnel.
3
English
Usage Notice
Precautions
Please follow all warnings, precautions and
maintenance as recommended in this user’s
guide.
▀■ Warning- Do not look into the projector’s lens when the lamp is
on. The bright light may hurt and damage your eyes.
▀■ Warning- To reduce the risk of re or electric shock, do not
expose this projector to rain or moisture.
▀■ Warning- Please do not open or disassemble the projector as
this may cause electric shock.
▀■ Warning- When replacing the lamp, please allow the unit to
cool down. Follow instructions as described on pages
53-54.
▀■ Warning- This projector will detect the life of the lamp itself.
Please be sure to change the lamp when it shows
warning messages.
▀■ Warning- Reset the “Lamp Reset” function from the on-screen
display “OPTIONS | Lamp Settings” menu after
replacing the lamp module (refer to page 45).
When the lamp
reaches the end
of its life, the pro-
jector will not turn
back on until the
lamp module has
been replaced.
To replace the
lamp, follow the
procedures listed
under “Replacing
the Lamp” section
on pages 53-54.
▀■ Warning- When switching the projector off, please ensure
the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the
projector to cool down.
▀■ Warning- Do not use lens cap when projector is in operation.

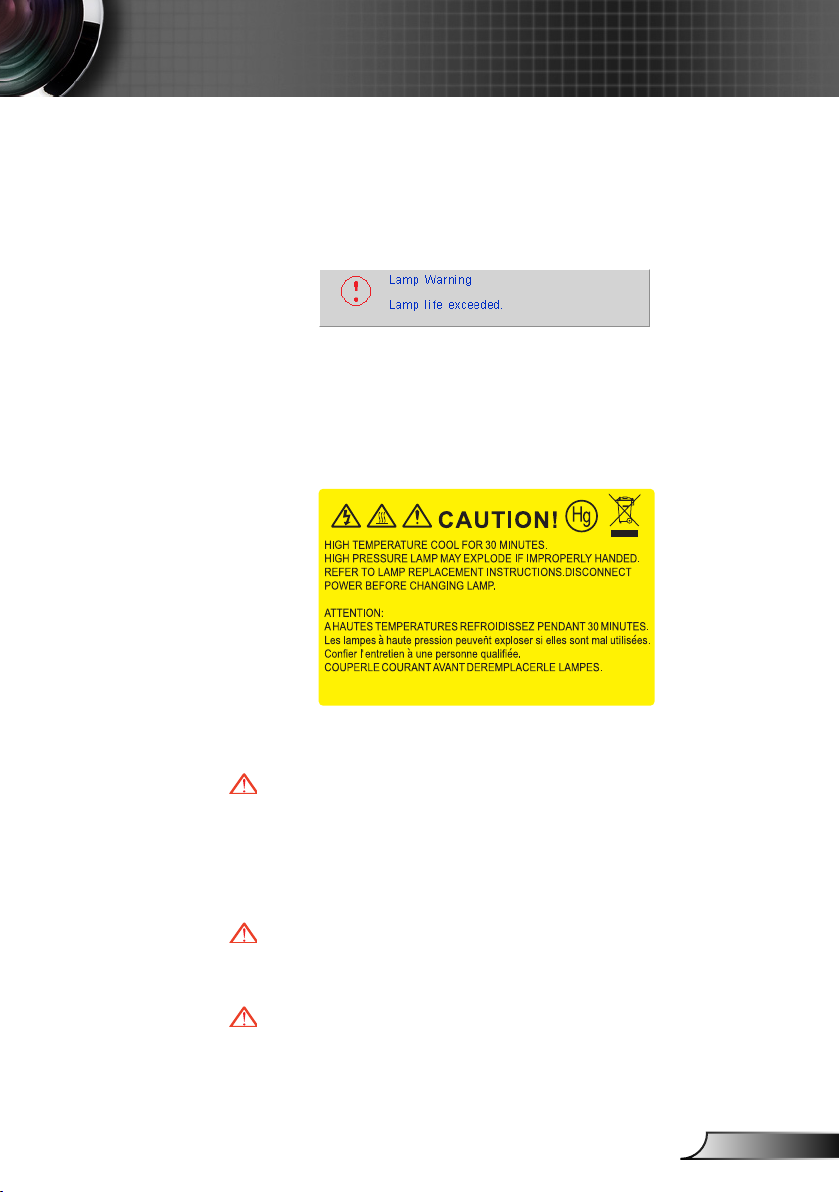

▀■ Warning- When the lamp is approaching the end of its lifetime,
the message “Lamp Warning: Lamp life exceeded.”
will show on the screen. Please contact your local
reseller or service center to change the lamp as soon
as possible.
4
English
Usage Notice
Do:
Turn off and unplug the power plug from the AC outlet before
cleaning the product.
Use a soft dry cloth with mild detergent to clean the display
housing.
Disconnect the power plug from AC outlet if the product is
not being used for a long period of time.
Do not:
Block the slots and openings on the unit provided for
ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:
- In extremely hot, cold or humid environments.
Ensure that the ambient room temperature is within
5 - 40°C.
Relative Humidity is 5 - 40°C, 80% (Max.),
non-condensing.
- In areas susceptible to excessive dust and dirt.
- Near any appliance generating a strong magnetic eld.
- In direct sunlight.
5
English
Usage Notice
Eye Safety Warnings
▀■ Avoid staring/facing directly into the projector beam at all
times. Keep your back to the beam as much as possible.
▀■ When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the
screen.
▀■ In order to minimize the lamp power, use room blinds to
reduce ambient light levels.
Product Features
(*) For models with
HDMI Input.
Product features may
vary depending on
model.
▀■ SVGA (800x600) / XGA (1024x768) / WXGA
(1280X800) Native resolution
▀■ HD compatible – 720p and 1080p supported
▀■ BrilliantColorTM Technology
▀■ Kensington Lock
▀■ RS232 control
▀■ Rapid shutdown
▀■ Full 3D
▀■ The Product Features shall be congured by the manu-
facturer as per practical conditions.
(*)
(See page 57)
6
English
Introduction
VGA
Enter
Menu
Zoom
CR2025
3V
Package Overview
Unpack and inspect the box contents to ensure
all parts listed below are in the box. If something
is missing, please contact your nearest customer
service center.
Due to different
applications in
each Country,
some regions
may have
different
accessories.
(*) The acces-
sory depends on
model’s specica-
tions.
Projector VGA Cable
Battery
Power Cord
IR Remote Control
Documentation :
User’s Manual
Warranty Card
Quick Start Card
WEEE Card
(for EMEA only)
Carrying case
(*)
(*)
7
English
Introduction
Product Overview
Main Unit
The interface
is subject to
model’s specications.
Do not block
projector in/out
air vents.
11
10
8
9
1
21
4
3
5
6
7
Focus Ring1.
Zoom Lever2.
IR Receiver3.
Control Panel4.
Input / Output Connections5.
Kensington6.
TM
Lock Port
Ventilation (inlet)7.
Speaker8.
Lens Cap9.
Tilt-Adjustment Feet10.
Ventilation (outlet)11.
8
English
Introduction
Control Panel
1 2
11
10
9
3 4
5
6
78
Source1.
Keystone Correction2.
Enter3.
Re-Sync4.
Help5.
Four Directional Select Keys6.
Temp LED7.
Power8.
On/Standby LED 9.
Lamp LED 10.
Menu11.
9
English
Introduction
USB
VGA1-IN/YPbPr/
VIDEO
VGA-OUT
VGA2-IN/YPbPr
HDMI
AUDIO1-IN
AUDIO-OUT
AUDIO2-IN
S-VIDEO
RS-232C
Monitor loop
through only support in VGA1-IN/
YPbPr.
The interface is
subject to model’s
specications.
VGA dongle is a
optional accesso-
ry. Please contact
Optoma service
for details.
(*) for optional.
Remote mouse
requires special
remote.
Input/Output Connections
2 3 4 51 6
7 9 10 11 12 138
Composite Video Input Connector1.
S-Video Input Connector2.
VGA-Out Connector (Monitor Loop-through Output)3.
VGA2-IN/YPbPr Connector 4.
(PC Analog Signal/Component Video Input/HDTV/YPbPr)
VGA1-IN/YPbPr/5. Connector
(PC Analog Signal/Component Video Input/HDTV/YPbPr/
Wireless function via VGA Dongle)
HDMI Connector 6.
Security Lock Slot7.
Audio2 Input 8. Connector (3.5mm mini jack)
Audio Output Connector ( 3.5mm mini jack)9.
Audio1 Input Connector (3.5mm mini jack)10.
RS-232 Connector (9-pin)11.
USB Connector (Connect to PC for Remote Mouse func-12.
tion/USB Service for rmware upgrade)
Power Socket13.
(*)
10
English
Introduction
VGA
Ent er
Men u
Zoo m
3
V
O
L
T
S
CR2025
Remote Control
The interface is
subject to model’s
specications.
Before using the
remote control
for the rst time,
remove the trans-
parent insulation
tape. See page
19 for battery
installation.
10
11
1
2
3
4
5
6
7
8
9
12
13
14
15
6
16
17
14
18
Source1.
Re-Sync2.
Video and S-Video 3.
HDMI4.
3D5.
Volume +/-6.
Four Directional Select 7.
Keys
Menu8.
AV Mute9.
Mute10.
IR LED Indicator11.
Power On/Off12.
VGA13.
Keystone +/-14.
Aspect15.
Enter16.
Zoom17.
Brightness Mode18.
11
English
Installation
USB
VGA1-IN/YPbPr/
VIDEO
VGA-OUT
VGA2-IN/YPbPr
HDMI
AUDIO1-IN
AUDIO-OUT
AUDIO2-IN
S-VIDEO
RS-232C
molex
MOLEX
Connecting the Projector
Connect to Computer/Notebook
Monitor Output
Audio Output
2 3
4
Due to the
difference in
applications for
each country,
some regions may
have different
accessories.
(*) Optional
accessory
The interface is
subject to model’s
specications .
1
5
6
7
1......................................................................................*Audio Output Cable
2.............................................................................................*VGA Out Cable
3.....................................................................................................VGA Cable
8
2..................................................................................................*HDMI Cable
5....................................................................................................Power Cord
6....................................................................................................*USB Cable
7................................................................................................*RS232 Cable
8.........................................................................................*Audio Input Cable
12
English
Installation
USB
VGA1-IN/YPbPr/
VIDEO
VGA-OUT
VGA2-IN/YPbPr
HDMI
AUDIO1-IN
AUDIO-OUT
AUDIO2-IN
S-VIDEO
RS-232C
Connect to Video Sources
Composite Video Output
Due to the
difference in
applications for
each country,
some regions may
have different
accessories.
(*) Optional
accessory
The interface is
subject to model’s
specications .
1
Audio Output
S-Video Output
2
DVD Player, Set-top Box,
HDTV receiver
3
8
765
9
DVD Player, Set-top Box,
HDTV receiver
4
1................................................................................*Composite Video Cable
2.............................................................................................. *S-Video Cable
3..................................................................................................*HDMI Cable
4....................................................................................................Power Cord
5......................................................................................*Audio Output Cable
6.........................................................................................*Audio Input Cable
7...........................................................................................*VGA/RCA Cable
8................................................*15-Pin to 3 RCA Component/HDTV Adaptor
9.............................................................................*3 RCA Component Cable
13
English
Installation
When Power mode
(Standby) is set to
Eco (<0.5W), the
VGA output and
Audio pass-through
will be deactivated
when the projector is
in standby.
Powering the Projector On / Off
Powering On the Projector
1. Remove the lens cap.
2. Securely connect the power cord and signal cable. When
connected, the ON/STANDBY LED will turn Amber.
3. Turn on the lamp by pressing “ ” button either on the top of
the projector or on the remote. The ON/STANDBY LED will
now turn Green.
The startup screen will display in approximately 10 seconds.
The rst time you use the projector, you will be asked to
select the preferred language and power saving mode.
4. Turn on and connect the source that you want to display
on the screen (computer, notebook, video player, etc). The
projector will detect the source automatically. If not, push
menu button and go to “OPTIONS”.
Make sure that the “Source Lock” has been set to “Off”.
If you connect multiple sources at the same time, press the
“SOURCE” button on the control panel or direct source keys
on the remote control to switch between inputs.
Turn on the
projector rst and
then select the
signal sources.
1
2
Power
Lens Cap
14
English
Installation
Powering off the projector
1. Press the “ ” button on the remote control or on the
control panel to turn off the projector.
The following message will be displayed on the screen.
Press the “ ” button again to conrm otherwise the
message will disappear after 15 seconds. When you pressing for the second time, the projector will shut down.
2. The cooling fans continue to operate for about 10 seconds
for cooling cycle and the ON/STANDBY LED will Flash
Green. When the ON/STANDBY LED lights solid Amber,
the projector has entered standby mode.
If you wish to turn the projector back on, you must wait until
the projector has completed the cooling cycle and has entered standby mode. Once in standby mode, simply press “
” button to restart the projector.
3. Disconnect the power cord from the electrical outlet and the
projector.
4. Do not turn on the projector immediately following a power
off procedure.
Contact the
nearest service
center if the
projector displays
these symptoms.
See pages
64-65 for more
information.
Warning Indicator
When the warning indicators (see below) come on, the
projector will automatically shutdown:
“LAMP” LED indicator is lit red and if “On/Standby” indicator
ashes amber.
“TEMP” LED indicator is lit red and if “On/Standby”
indicator ashes amber. This indicates the projector has
overheated. Under normal conditions, the projector can be
switched back on.
“TEMP” LED indicator ashes red and if “On/Standby”
indicator ashes amber.
Unplug the power cord from the projector, wait for 30 seconds
and try again. If the warning indicator light up again, please
contact your nearest service center for assistance.
15
English
Installation
Adjusting the Projected Image
Adjusting the Projector’s Height
The projector is equipped with elevator feet for adjusting
the image height.
1. Locate the adjustable foot you wish to modify on the
underside of the projector.
2. Rotate the adjustable ring clockwise to raise the projector
or counter clockwise to lower it. Repeat with the remaining
feet as needed.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
16
English
Installation
Width
Height
Diagonal
Top View
Side View
Projection Distance (D)
Projection Distance (D)
Screen
Screen
Screen (W)
Screen (H)
Offset (Hd)
Adjusting the Projector’s Zoom / Focus
You may turn the zoom ring to zoom in or out. To focus the image, rotate the focus ring until the image is clear.
SVGA/XGA series: The projector will focus at distances from
3.28 to 39.4 feet (1.0 to 12.0 meters).
WXGA series: The projector will focus at distances from 3.28
to 39.4 feet (1.0 to 12.0 meters).
Adjusting Projection Image Size
SVGA/XGA series: Projection Image Size from 22.9” to
300.0” (0.58 to 7.62 meters).
Zoom Lever
Focus Ring
WXGA series: Projection Image Size from 27.2” to 301.0”
(0.69 to 7.65 meters).
17
English
Installation
SVGA/XGA
Diagonal length
(inch) size of
4:3 Screen
30.00 0.61 0.46 24.00 18.00 1.19 1.31 3.90 4.30 0.07 2.70
40.00 0.81 0.61 32.00 24.00 1.58 1.75 5.20 5.73 0.09 3.60
60.00 1.22 0.91 48.00 36.00 2.38 2.62 7.80 8.60 0.14 5.40
70.00 1.42 1.07 56.00 42.00 2.77 3.06 9.10 10.03 0.16 6.30
80.00 1.63 1.22 64.00 48.00 3.17 3.50 10.40 11.46 0.18 7.20
90.00 1.83 1.37 72.00 54.00 3.57 3.93 11.70 12.90 0.21 8.10
100.00 2.03 1.52 80.00 60.00 3.96 4.37 13.00 14.33 0.23 9.00
120.00 2.44 1.83 96.00 72.00 4.75 5.24 15.60 17.20 0.27 10.80
150.00 3.05 2.29 120.00 90.00 5.94 6.55 19.50 21.49 0.34 13.50
180.00 3.66 2.74 160.00 120.00 7.92 8.74 25.99 28.66 0.46 18.00
250.00 5.08 3.81 200.00 150.00 9.91 10.92 32.49 35.82 0.57 22.49
300.00 6.10 4.57 240.00 180.00 11.89 13.11 38.99 42.99 0.69 26.99
Screen Size W x H Projection Distance (D)
(m) (inch) (m) (feet)
Width Height Width Height wide tele wide tele (m) (inch)
Offset (Hd)
WXGA
Diagonal length
(inch) size of
16:10 Screen
30.00 0.65 0.40 25.43 15.90 1.00 1.10 3.26 3.62 0.05 1.99
40.00 0.86 0.54 33.91 21.19 1.33 1.47 4.35 4.83 0.07 2.65
60.00 1.29 0.81 50.87 31.79 1.99 2.21 6.53 7.25 0.10 3.97
70.00 1.51 0.94 59.34 37.09 2.32 2.58 7.62 8.46 0.12 4.64
80.00 1.72 1.08 67.82 42.39 2.65 2.95 8.70 9.66 0.13 5.30
90.00 1.94 1.21 76.30 47.69 2.99 3.31 9.79 10.87 0.15 5.96
100.00 2.15 1.35 84.78 52.99 3.32 3.68 10.88 12.08 0.17 6.62
120.00 2.58 1.62 101.73 63.58 3.98 4.42 13.06 14.50 0.20 7.95
150.00 3.23 2.02 127.17 79.48 4.98 5.52 16.32 18.12 0.25 9.93
180.00 3.88 2.42 152.60 95.38 5.97 6.63 19.58 21.75 0.30 11.92
250.00 5.38 3.37 211.95 132.47 8.29 9.21 27.20 30.20 0.42 16.56
300.00 6.46 4.04 254.33 158.96 9.95 11.05 32.64 36.24 0.50 19.87
Screen Size W x H Projection Distance (D)
(m) (inch) (m) (feet)
Width Height Width Height wide tele wide tele (m) (inch)
Offset (Hd)
This table is for user’s reference only.
18
English
User Controls
Control Panel & Remote Control
Control Panel
Using the Control Panel
POWER
RE-SYNC
ENTER
SOURCE
Menu
Help
Four Directional Se-
lect Keys
Keystone
Lamp LED Indicate the projector’s lamp status.
Temp LED Indicate the projector’s temperature status.
ON/STAND-
BY LED
/
Refer to the “Power On/Off the Projector” section on
pages 13-14.
Automatically synchronize the projector to the input
source.
Conrm your item selection.
Press “SOURCE” to select an input signal.
Press “Menu” to launch the on-screen display
(OSD) menu. To exit OSD, Press “Menu” again.
Help Menu (only available when OSD menu is not
shown).
Use to select items or make adjustments to your selection.
Use to adjust image distortion caused
by tilting the projector. (±40 degrees)
Indicate the projector’s status.
19
English
User Controls
3
V
O
L
T
S
CR2025
M
3
V
O
L
T
S
CR2025
Remote Control Battery Installation
Press rmly and slide the 1.
battery cover off.
Install new battery into the 2.
compartment. Remove the
old battery and install new
one (CR2025). Ensure that
the side with a “+” is facing
up.
Put the cover back.3.
To ensure safe operation, please observe the following precautions :
Use CR2025 type battery. `
Avoid contact with water or liquid. `
Do not expose the remote control to moisture or heat. `
Do not drop the remote control. `
If the battery has leaked in the remote control, carefully wipe `
the case clean and install new battery.
Risk of an explosion if battery is replaced by an incorrect type. `
Dispose of used battery according to the instructions. `
20
English
User Controls
VGA
Ent er
Men u
Zoo m
Remote Control
Using the Remote Control
The interface
is subject to
model’s specications.
Power
Source
Re-Sync
Video
HDMI
3D
Four Directional
Select Keys
AV Mute
Enter
Mute
VGA
Keystone +/-
Aspect
Menu
Volume +/-
Brightness
Mode
Zoom
Refer to the “Power On/Off the Projector”
section on pages 13-14.
Press “Source” to select an input signal.
Automatically synchronizes the projector to
the input source.
Press “Video” to choose Composite Video
and S-video source.
Press “HDMI” to choose HDMI source. (For
certain model)
Press the “3D” to turn the 3D OSD menu on/
off.
Use to select items or make
adjustments to your selection.
Momentarily turns off/on the audio and video.
Conrm your item selection.
Momentarily turns off/on the audio.
Press “VGA” to choose VGA sources.
Adjust image distortion caused by tilting the
projector.
Use this function to choose your desired
aspect ratio.
Press “Menu” to launch the on-screen dis-
play (OSD) menu. To exit OSD, press “Menu”
again.
Adjust to increase / decrease the volume.
Change the brightness mode: Bright->Eco
->Dynamic. (refer to page 45)
Zoom in on an image.
Press buttons to alter zoom.
21
English
User Controls

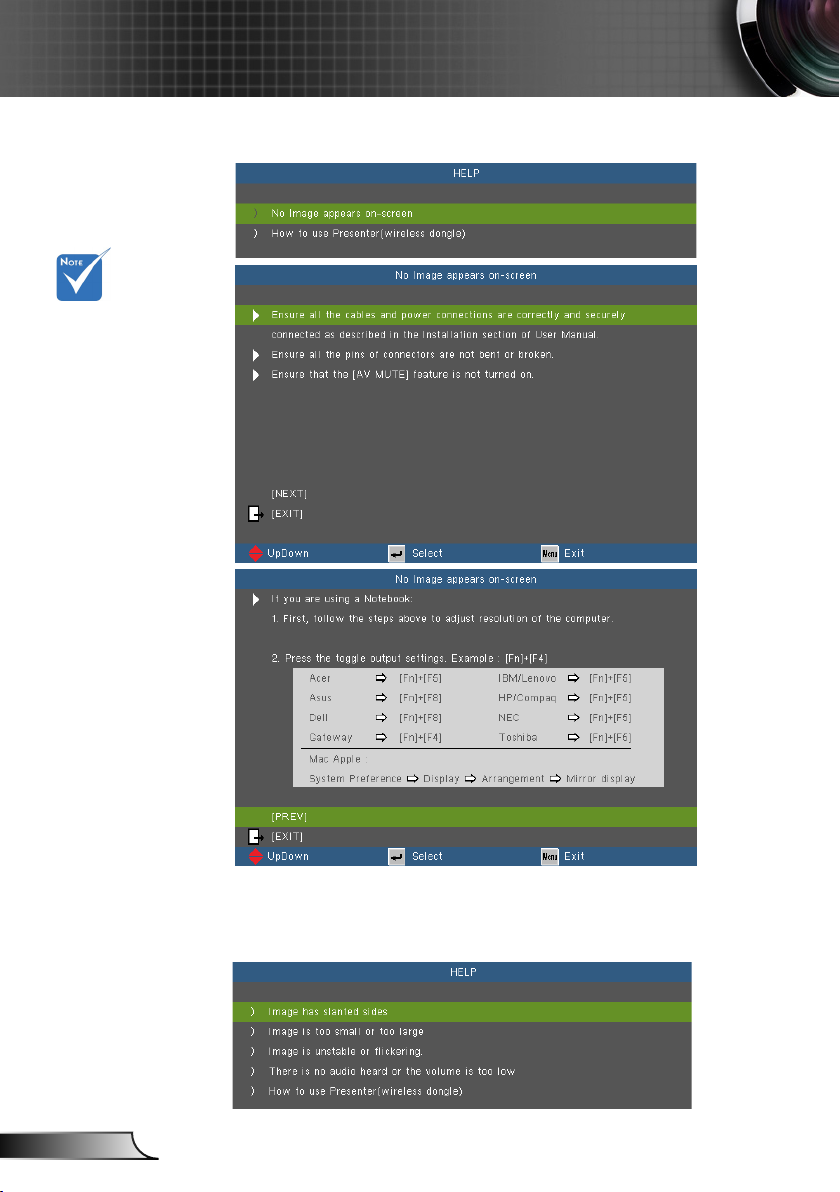

Using the HELP button
The HELP function ensures easy setup and operation.
Press the “?” button on the control panel to open the Help
Menu.
Loading...
