DELUXE ELECTRIC
POWER BRUSH
MODEL: CT700
! HOUSEHOLD TYPE !
AB0008
HOMEOWNERS OPERATING INSTRUCTIONS READ AND SAVE THESE INSTRUCTIONS
Broan-NuTone LLC
Hartford, Wisconsin www.nutone.com 888-336-3948
To register this product, visit www.nutone.com
The instructions given in this booklet serve as a guide to routine maintenance. To obtain the most satisfying years of service, read through these instructions and keep them handy for future reference.
IMPORTANT SAFETY INSTRUCTIONS
When using an electric appliance, basic precautions should always be followed, including the following:
READ ALL INSTRUCTIONS BEFORE USING THE POWER BRUSH.
WARNING !
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR PERSONAL INJURY:
1.Always turn power off and unplug before cleaning or servicing the power brush.
2.Do not pick up the following items: sharp objects, flammable liquids, hot ashes, burning matches, cigarettes, etc.
3.Never use, connect or disconnect the power brush with wet hands.
4.Do not use with damaged power plug or plug pins. If the power brush is not working properly, contact your local supplier or service agent. The problem may be covered under the warranty.
5.Do not put objects into the brush opening.
6.Do not use with brush opening or air channel blocked. Keep free of dust, hair, etc.
7.Keep hair, loose clothing, fingers or any other parts of the body away from moving parts.
8. Never leave electric power brush unattended while it is plugged in.
9.This is not a toy. Do not let children play with power brush. Children should be supervised when near the power brush.
10.Use only manufacturer’s recommended attachments.
11.Do not use outdoors or on wet surfaces.
12.Do not use to pick up water.
13.Use extra care when cleaning stairs.
14.Always check underside of product for any obstructions prior to use.
15.Do not use without dust bag or cyclonic filter in place in power unit.
16.Motor shaft can become hot during normal use. To prevent burns, avoid touching the motor shaft when servicing the drive belt.
17.Keep your work area well lighted.
18. Store your cleaner indoors in a clean, dry area.
- 2 -

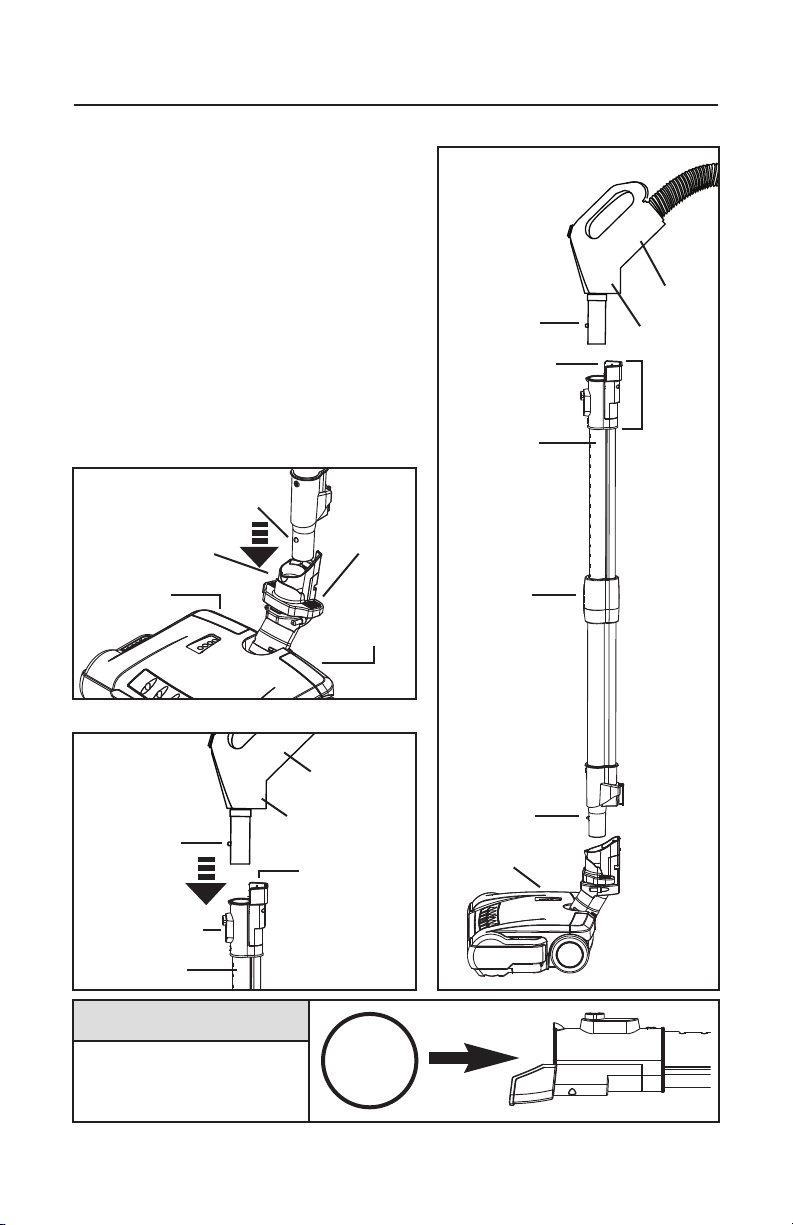

1. HOW TO ASSEMBLE POWER BRUSH/WAND/HANDLE
1.Read important safety instructions before installing power brush.
2.Ensure hose is disconnected from
power supply before installing power brush.
3. Push wand into power brush neck so that the lock button snaps in place.
4.Connect hose handle into wand quick
connector and ensure that the prongs |
|
HOSE |
are aligned with the receptacle holes. |
LOCK |
HANDLE |
|
||
Push until lock button snaps in place. |
BUTTON |
RECEPTACLE |
|
||
|
PRONGS |
|
|
|
QUICK |
WAND TO POWER BRUSH CONNECTION |
CONNECTOR |
|
|
||
LOCK BUTTON |
|
WAND |
|
WAND |
|
POWER BRUSH |
RELEASE |
|
NECK |
PEDAL |
|
HEIGHT |
|
|
ADJUSTMENT |
|
|
PEDAL |
|
|
|
POWER BRUSH |
|
|
NECK RELEASE |
WAND |
|
PEDAL |
GRIP |
HOSE HANDLE TO WAND CONNECTION |
|
||
|
HOSE |
|
|
|
HANDLE |
|
|
RECEPTACLE |
LOCK |
||
BUTTON |
|||
LOCK |
|
||
|
|
||
BUTTON |
|
POWER |
|
|
|
||
|
PRONGS |
BRUSH |
|
HOSE HANDLE |
|
|
|
RELEASE BUTTON |
|
|
|
WAND |
|
|
|

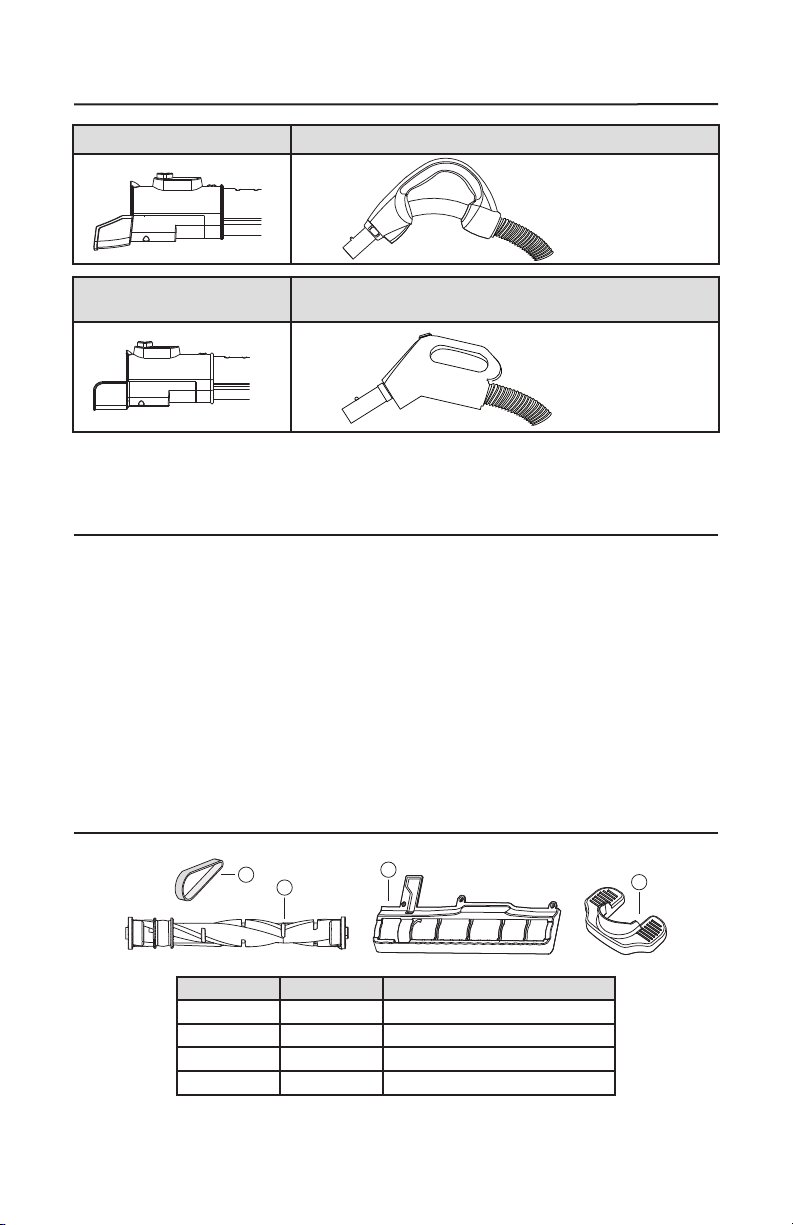

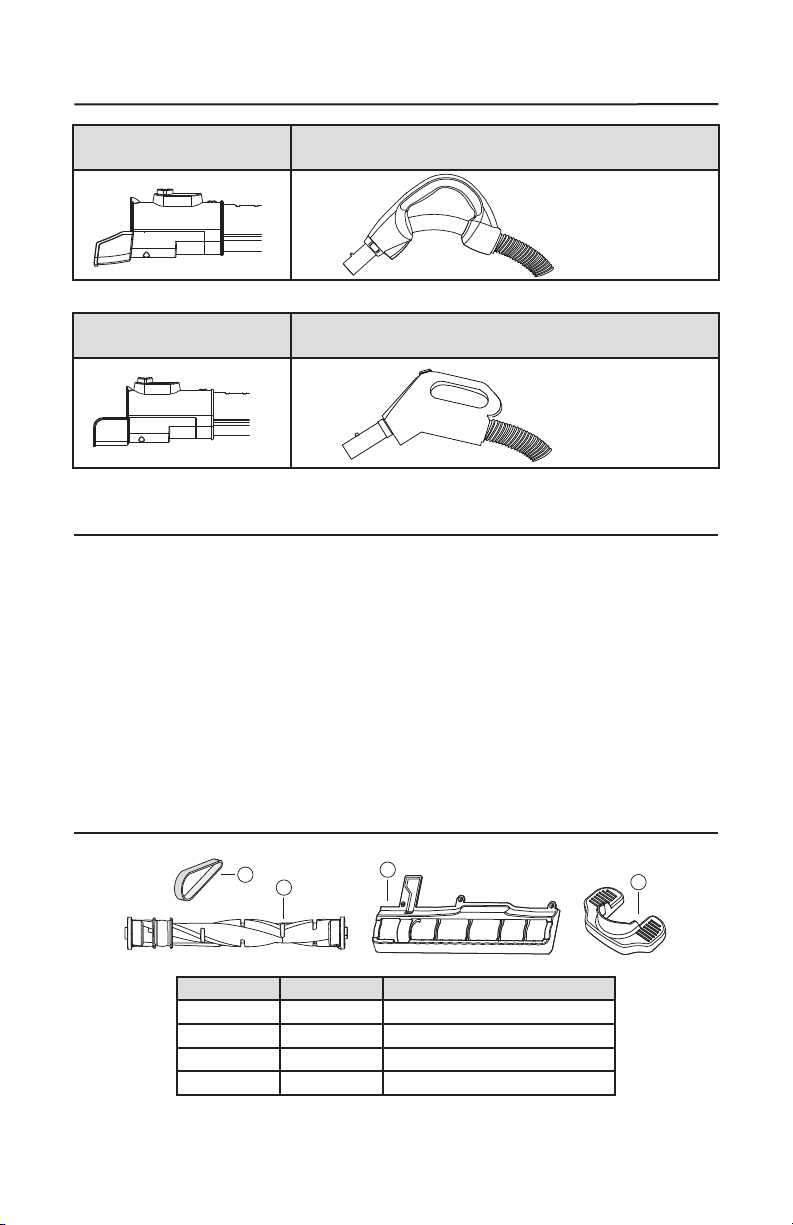

WAND & HOSE COMPATIBILITY |
? |
|
|
See section 5 on page 7 |
|
||
for wand and hose |
|
||
compatibility table. |
|
||
|
- 3 - |
|
|
2. HOW TO USE POWER BRUSH/WAND
CAUTION
Always pick up hard or sharp objects by hand before using your power brush. Items such as pins, hairpins, tacks, crayons, etc., may damage the brush roll or may break the belt.
2.1 WAND RELEASE
The power brush is not recommended for use on bare floors. Wand release pedal (A) on power brush allows you to quickly disconnect wand and switch to combination floor/rug tool for use on bare floors.
2.2 POWER BRUSH NECK RELEASE
CAUTION
Always unlock brush neck before use.
Push down power brush neck release pedal (B) to unlock brush neck. Return the neck to the upright position for storage.
C |
A |
B |
2.3 POWER BRUSH HEIGHT ADJUSTMENT |
|
|
|||
The icons (D) refer to the carpet pile height. Select height |
FLOOR HEIGHT |
||||
by depressing height adjustment pedal (C) to desired position: |
|
||||
(Extra-Low), |
(Low), |
(Medium) or |
(High). |
|
|
HEIGHT ADJUSTMENT LED INDICATORS |
|
|
D |
||
The LEDs show the carpet pile covered by the selected |
|
||||
height, e.g.: when |
(High) is selected, all LEDs will be |
|
|||
lit, since this height covers all pile heights. So |
if |
|
|||
(Extra-Low) is selected, only the lowest LED will be lit. |
|
||||
|
|
|
E |
|
|
2.4 WAND LENGTH ADJUSTMENT |
|
|
|
||
Extend (E) or shorten (F) the wand to comfortable |
|
|
|
||
work position by holding the wand grip (G) in |
|
F |
|
||
one hand and sliding the upper section (the one |
|
|
G |
||
with the prongs) with the other hand. |
|
|
|||
2.5 EDGE CLEANER
Brush extends full width for effective edge cleaning along both sides of nozzle. To operate, simply run cleaner along edge board. Rubber bumper protects furniture and baseboards.
- 4 -
2. HOW TO USE POWER BRUSH/WAND (continued)
2.6 ELECTRONIC CIRCUIT BREAKER
The power brush is equipped with an electronic circuit breaker that protects the motor and the belt if a too large object is picked up accidentally.
If the power brush stops while vacuuming, turn the power unit off using handle. Release the power brush from the wand and turn it over to see if there is an obstruction. When brush roll jam has been cleared, press the reset button (H) and connect the power brush back to the wand. Finally, turn the power unit/power brush back on. If it fails to restart or continues to trip without any apparent reason, the power brush must be serviced by an authorized service center.
AD0030 |
H |
3. CLEANING & STORAGE
! WARNING
Disconnect electrical supply before servicing or cleaning the unit. Failure to do so can result in electrical shock or personal injury from cleaner suddenly starting.

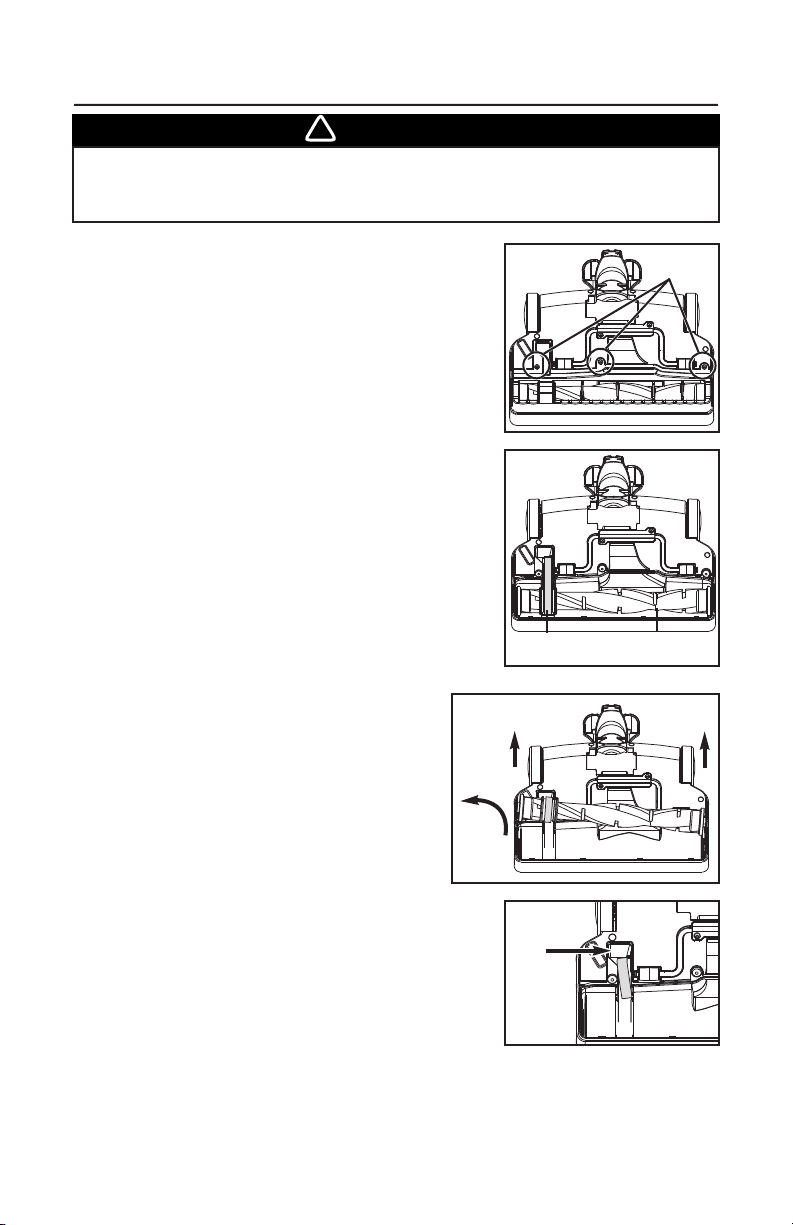

3.1 CLEANING BRUSH ROLL
In order to keep high cleaning efficiency and to prevent damage to your vacuum cleaner, the brush roll must be cleaned every time the belt is changed.
The brush roll must also be cleaned according to the following schedule:
VACUUM CLEANER USE |
CLEAN BRUSH ROLL |
Heavy (used daily) |
Every week |
Moderate (2-3 times per week) |
Every month |
Light (1 time per week) |
Every 2 months |
Check and remove hair, string and lint build-up frequently in the brush roll and end cap areas. Remove any dirt or debris in the belt path and in the brush roll areas.
3.2 CLEANING HOUSING
To keep the power brush housing clean, it can be wiped with a damp cloth and a mild soap solution, then thoroughly dried. Never use any type of chemical as they can damage the housing.
3.3 STORAGE
1.Ensure that hose and power cord are disconnected from wall inlet before unplugging power brush.
2.Disconnect hose handle from wand.
3.Always keep hose neatly coiled when not in use.
4.When not in use, the power brush should be stored in a clean, dry place.
-5 -
