Nilfisk P 150.2, P 130.2, P 160.2 User Manual

Nilfisk P 130.2/150.2/160.2

User Manual

Copyright © 2011 Nilfisk, Division of Nilfisk-Advance A/S

Index



1

Safety precautions and warnings .............................................

3

2

Description ...............................................................................

5

3

Before you start using your pressure washer...........................

6

4

Operating your pressure washer ..............................................

7

5

Fields of application and working methods ............................

11

6

After using your pressure washer...........................................

13

7

Maintenance...........................................................................

14

8

Trouble Shooting ....................................................................

15

9

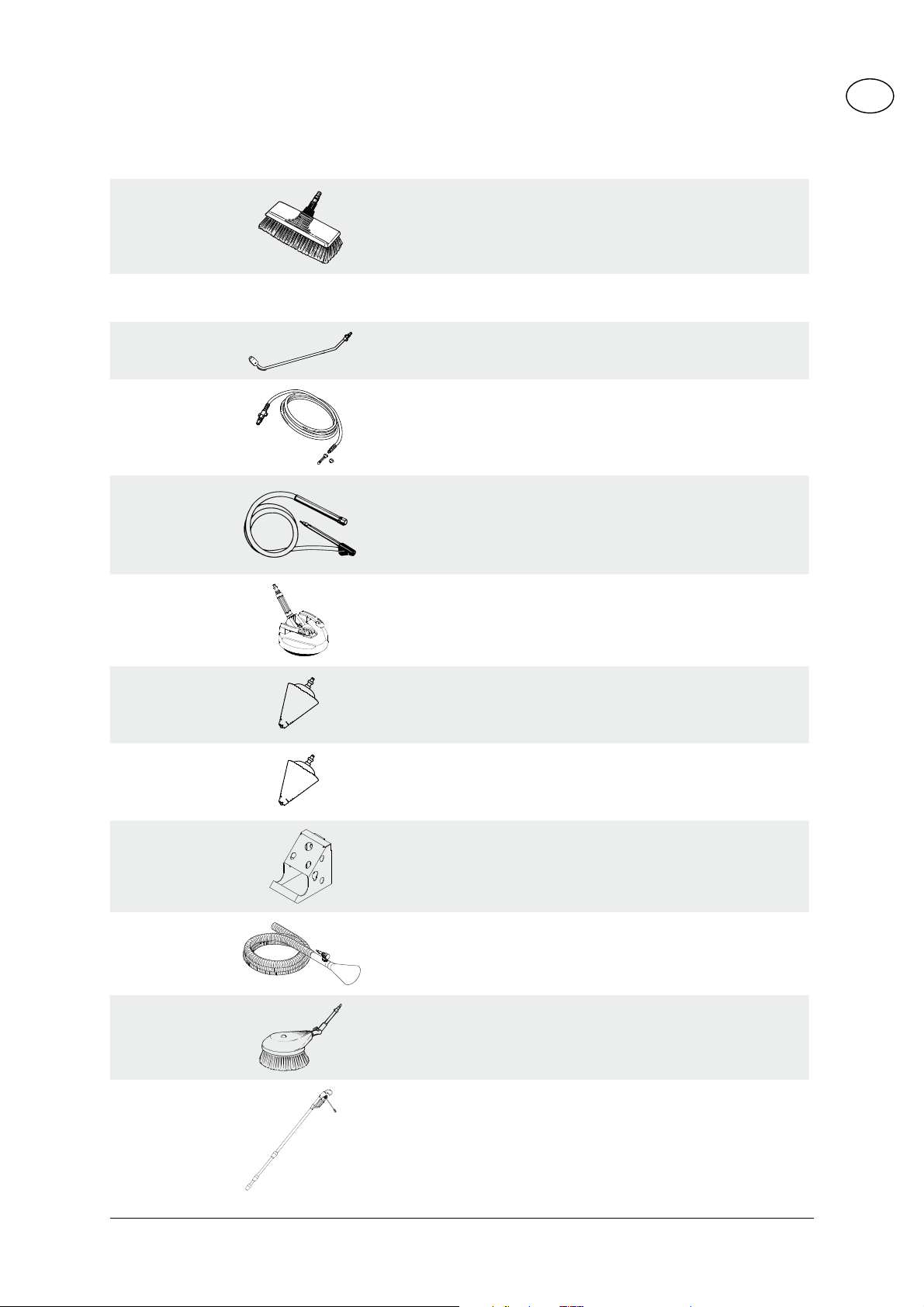

Further information.................................................................

16

10

EC Declaration of Conformity.................................................

18

Nilfisk P 130.2 / P 150.2 / P 160.2

EN

1 Safety Precautions and Warnings

Symbols used to mark in-





Before starting up

This symbol is

structions





your high-pres-

used to mark







sure washer for

safety instruc-







the Þrst time, this

tions that must







instruction manual

be observed to



must be read through carefully.

prevent damage to the



Save the instructions for later

machine and its performance.



use.











This symbol







Safety instructions

indicates tips







marked with this

and instructions







symbol must be

to simplify work and to ensure a







observed to pre-

safe operation.



vent danger to persons.



Do not let children or people who have not read the instruction manual operate the machine.

This appliance is not intended for use by children or other persons without assistance or supervision if their physical, sensory or mental capabilities prevent them from using it safely. Children should be supervised to ensure that they do not play with the appliance.

Before starting up your machine please check it carefully for any defects. If you Þ nd any, do not start up your machine and con-

tact your NilÞsk distributor.

Especially check:

The insulation of the electric cable should be faultless and without any cracks. If the electric cable is damaged, an authorized NilÞ sk distributor should replace it.

WARNING!

High pressure jets can be dangerous. Never direct the water jet at persons, pets, live electrical equipment or the machine itself.

Never try to clean clothes or footwear on yourself or other persons.

Hold the spray lance Þ rmly with both hands. The spray lance is affected by a thrust of up to 16.4 N during operation.

The operator and anyone in the immediate vicinity of the site of cleaning should take action to protect themselves from being struck by debris dislodged during operation. Wear goggles during operation.

This appliance has been designed for use with cleaning agents supplied or recommended by the manufacturer. The use of other cleaning agents or chemicals may

3



Nilfisk P 130.2 / P 150.2 / P 160.2

EN

adversely affect the safety of



the appliance.



Disconnect from electrical



power supply before carrying



out user maintenance.



To ensure the appliance



safety only use original spare



parts from the manufacturer



or approved by the manufac-



turer.



High pressure hoses, Þ ttings



and couplings are important



for the safety of the appli-



ance. Only use hoses, Þ ttings



and couplings recommended



by the manufacturer.



Do not use the appliance



if a supply cord or impor-



tant parts of appliance are



damaged, e.g. safety device ,



high pressure hose and trig-



ger gun.



The appliance is intended for



cleaning outdoors.



Appropriate ear protection



must be used.



Never use the machine in



an environment where there



could be a danger of explo-



sion. If any doubt arises,



please contact the local



authorities.



It is not allowed to clean



asbestos-containing surfaces



with high pressure.



This high pressure washer



must not be used at tempera-



tures below 0¡C.



Never let any persons stay



under the product when



stored on the wall.



WARNING!



Inadequate extension cables



can be dangerous. Cables on



reels should always be com-



pletely unwound to prevent the



cable from overheating.

Extension cables should be of a watertight construction and comply with the below-men- tioned requirements for length and cable dimensions.

1.0 mm²

max.

12.5 m

1.5 mm²

max.

20 m

2.5 mm²

max.

30 m

If the electric cable is damaged, it must be replaced by the manufacturer or his service agent or similarly qualiÞed person in order to avoid a hazard.

Mains power connection

The following should be observed when connecting the high pressure washer to the electric installation:

Only connect the machine to an installation with earth connection.

The electric installation shall be made by a certiÞ ed electrician.

It is strongly recommended that the electric supply to this machine should include a residual current device (GFCI).

Water connection

Connection to the public mains according to regulations.

This high pressure washer is only allowed to be connected with

the drinking water

mains, when an appropriate backß ow preventer has been installed, Type BA according

to EN 1717. The backß ow preventer can be ordered under number 106411177. The length of the hose between the back- ß ow preventer and the high pressure washer must be at least 10 metres to absorb possible pressure peaks (min diameter ½ inch).

Operation by suction (for example from a rainwater vessel) is carried out without backß ow preventer. Recommended suction set: 126411387.

As soon as water has ßown through the BA valve, this water is not considered to be drinking water any more.

IMPORTANT! Only use water without any impurities. If there is a risk of silt, sand or sediment in the inlet water (i.e. from your own well), an additional Þlter should be mounted.

Repair and maintenance WARNING! Always remove the electric plug from the socket before carrying out maintenance work on the machine.

Safety devices

Locking device on spray handle (7a) (see illustration at the end of this manual):

The spray handle features a locking device. When the button is activated, the spray handle cannot be operated.

Thermal sensor:

A thermal sensor protects the motor against overloading. The machine will restart after a few minutes when the thermal sensor has cooled.

Pressure safety device

An integrated hydraulic safety valve protects the system from excessive pressure.

4

2 Description

Nilfisk P 130.2 / P 150.2 / P 160.2

EN

2.1 Application

This high-pressure washer has



been developed for domestic



use for cleaning:



- Car, motorbike, boat, cara-



van, trailer, patio/drive/flag-



stones, woodwork, brickwork,



barbecue, garden furniture,



lawn mower



Section 5 describes the use of



the high-pressure washer for



vaious cleaning jobs.

Only use the high-pressure washer for purposes described in this manual.

The safety precautions must be observed to prevent damage to the machine, the surface to be cleaned or severe personal injuries.

2.2 Operation elements

See illustration at the end of

Specifications: See model tag

and model survey

this manual.

(15) of machine.





1

Start/stop switch

Sound pressure level measured



2

Water inlet (with filter)

in accordance with ISO 3744



3

High pressure connection

EEC directive 2000/14/EEC:





(only machines without









hose reel)

P 130.2:





4

High pressure hose

LpA = 80 dB(A), LWA = 90 dB(A)



5

Electric cable

P 150.2:





6

Spray lance

LpA = 80 dB(A), LWA = 93 dB(A)



7

Spray handle with lock (7a)

P 160.2:





8

Tornado® PR nozzle

L = 80 dB(A), L

= 95 dB(A).



9

Powerspeed® nozzle

pA

WA









10

Detachable detergent con-

Hand/arm vibrations measured





tainer

according to ISO 5349 below



11

Nozzle cleaning tool

2.5 m/s2.





12

Dosing of detergents







13

Hose reel

We reserve the right to alter the



14

Hose hook (only machines

specifications.







without hose reel)







15

Model tag







16

Button for telescopic handle







17

Telescopic handle







18

Turnable cable hook





5

Nilfisk P 130.2 / P 150.2 / P 160.2

EN 3 Before you start using your pressure washer

3.1Mounting of holders for spray lance

Mount the holders for spray lance on the machine.

3.2Mounting of hose hook (only models without hose reel)

Mount the hose hook (14) on the handle (2 screws).

Note: the hose hook can be mounted on the front as well as on the back. Front position is to be used if the product is used together with a special wall hook for wall storage.

3.3Mounting of hose reel handle (only models with hose reel)

1.Click the hose reel handle on to the trolley handle (no screws).

6
