Newcon Optik MB-3 User Manual

OPERATION MANUAL

NIGHT VISION SCOPE

		MB-3
		In USA : 3310 Prospect Ave. Cleveland, OH 44115
		In Canada : 1183 Finch Ave. W., Suite 302, Toronto, ON. M3J 2G2 Canada
	Newcon International ltd. © 1998-2003 Printed in Canada	Tel: [phone] Fax: [phone]
		Email: [e-mail]
		Internet: www.newcon-optik.com

IMPORTANT INFORMATION

Read prior to activation

You have just purchased a complicated electronic device. To operate it properly, please read this manual carefully. Here are some common Precautions that must be noted.

•NEVER expose the opened objective lens of an active unit in daylight. (Note: 1st generation units will still remain active for a few minutes after switching the unit off). At daytime objective lens must be covered by caps. There is a tiny hole in the cap to provide enough light for day time operation. It is allowed to turn on the unit at daytime, but the lenses must be covered by caps.

•NEVER aim active unit at intense light sources (i.e. lights, headlamps, campfires, the moon, etc.)

•NEVER reverse the polarity of a battery

•NEVER disassemble the unit

ATTENTION!

Image quality of the object, which is being observed when an image intensifier is functioning, depends mainly upon operating characters

of this image intensifier.

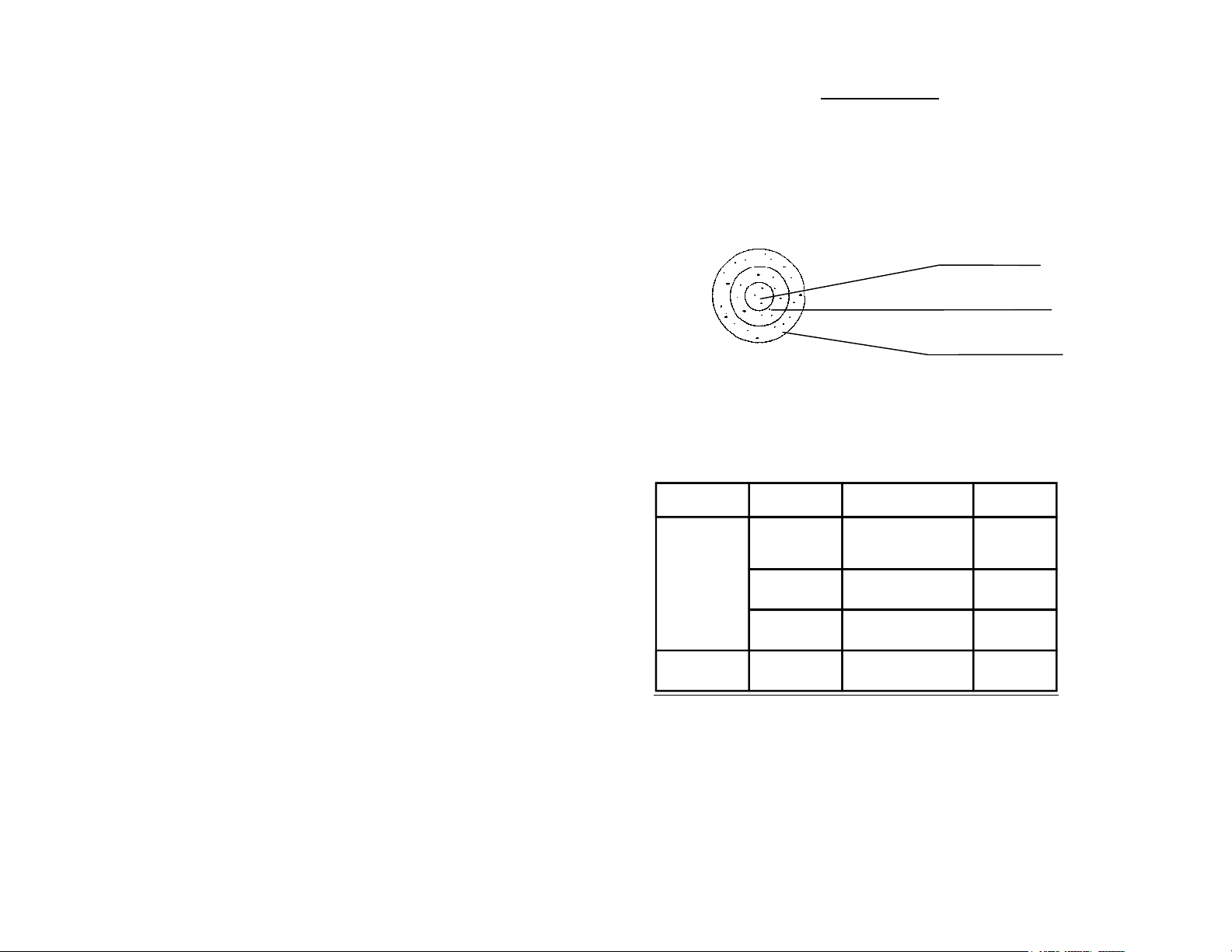

Due to this fact black spots, which are inherent in the image intensifier, may be seen in the field of view of a viewing device. Field of view is shown below.

Central zone

Boundary zone

Periphery zone

Permissible defects, which may be seen in the field of viewing device, are given in the table

Type of	Zone
black spots
	Central
	(circle of diameter
	5.5 mm)
Immovable	Boundary
	(circle of diameter
	5.5-9.0 mm)
	Periphery
	(circle of diameter
	9.0-11.0 mm)
Moving	Entire field
	(circle of diameter
	11.0 mm)

Size of black spots,	Number of
mm	spots
Up to 0.073	Not limited
From 0.073 to 0.150	5
From 0.150 to 0.294	1
From 0.073 to 0.150	10
From 0.150 to 0.294	3
From 0.294 to 0.400	1
Not limited	Not limited
From 0.150 to 0.294	1

9. ACCEPTANCE CERTIFICATE

NIGHT VISION DEVICE MB-3

Serial Number _______________________________

Model MB-3_____________________

corresponds to technical conditions ADSH 3.807.020 TU and is admitted for use.

Date of production -___________________

Place for seal

Quality inspector ____________________

(Signature)

•NEVER connect the unit to external power sources

•ALWAYS remove batteries when not in use for a long period

•ALWAYS keep the objective lenses covered when not in use

•ALWAYS store in a warm dry place when not in use
