DATA SHEET
MOS INTEGRATED CIRCUIT
PD45128441, 45128841, 45128163
µµµµ
128M-bit Synchronous DRAM
4-bank, LVTTL
Description
The µPD45128441, 45128841, 45128163 are high-speed 134,217,728-bit synchronous dynamic random-access
memories, organized as 8,388,608 × 4 × 4, 4,194,304 × 8 × 4, 2,097,152 × 16 × 4 (word × bit × bank), respectively.
The synchronous DRAMs achieved high-speed data transfer using the pipeline architecture.
All inputs and outputs are synchronized with the positive edge of the clock.
The synchronous DRAMs are compatible with Low Voltage TTL (LVTTL).
These products are packaged in 54-pin TSOP (II).
Features
Fully Synchronous Dynamic RAM, with all signals referenced to a positive clock edge
•
Pulsed interface
•
Possible to assert random column address in every cycle
•
Quad internal banks controlled by BA0(A13) and BA1(A12)
•
Byte control (×16) by LDQM and UDQM
•
Programmable Wrap sequence (Sequential / Interleave)
•
Programmable burst length (1, 2, 4, 8 and full page)
•
Programmable /CAS latency (2 and 3)
•
Automatic precharge and controlled precharge
•
CBR (Auto) refresh and self refresh
•
4, ×8, ×16 organization
• ×
Single 3.3 V ± 0.3 V power supply
•
LVTTL compatible inputs and outputs
•
4,096 refresh cycles / 64 ms
•
Burst termination by Burst stop command and Precharge command
•
The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
Not all devices/types available in every country. Please check with local NEC representative for
availability and additional information.
Document No. M12650EJBV0DS00 (11th edition)
Date Published April 2000 NS CP (K)
Printed in Japan
The mark
••••
shows major revised points.
©
1997
Ordering Information
µµµµ
PD45128441, 45128841, 45128163
Part number
PD45128441G5-A75-9JF 8M × 4 × 4 133 54-pin Plastic TSOP (II )
µ
PD45128441G5-A80-9JF 125 (10.16mm (400))
µ
PD45128441G5-A10-9JF 100
µ
PD45128441G5-A10B-9JF 100
µ
PD45128841G5-A75-9JF 4M × 8 × 4 133
µ
PD45128841G5-A80-9JF 125
µ
PD45128841G5-A10-9JF 100
µ
PD45128841G5-A10B-9JF 100
µ
PD45128163G5-A75-9JF 2M × 16 × 4 133
µ
PD45128163G5-A80-9JF 125
µ
PD45128163G5-A10-9JF 100
µ
PD45128163G5-A10B-9JF 100
µ
Organization
(word × bit × bank)
Clock frequency
MHz (MAX.)
Package
2
Data Sheet M12650EJBV0DS00
Part Number
[ x4, x8 ]
µ
NEC Memory
Synchronous DRAM
Memory density
µµµµ
PD45128441, 45128841, 45128163
PD45128841G5 - A75
128 : 128M bits
Organization
Number of banks
4 : 4 banks
Interface
1 : LVTTL
[ x16 ]
4 : x4
8 : x8
163
Minimum cycle time
75 : 7.5 ns (133 MHz)
80 : 8 ns (125 MHz)
10 : 10 ns (100 MHz)
10B: 10 ns (100 MHz)
Low voltage
A : 3.3 V
Package
G5 : TSOP (II)
±
0.3 V
Organization
16 : x16
Number of banks
and Interface
3 : 4 banks, LVTTL
Data Sheet M12650EJBV0DS00
3
Pin Configurations
/xxx indicates active low signal.
µµµµ
PD45128441, 45128841, 45128163
PD45128441]
[
µµµµ
54-pin Plastic TSOP (II) (10.16mm (400))
8M words
4 bits
××××
4 banks
××××
V
NC
CC
V
NC
DQ0
SS
V
NC
NC
CC
V
NC
DQ1
SS
V
NC
V
NC
/WE
/CAS
/RAS
/CS
BA0(A13)
BA1(A12)
A10
A0
A1
A2
A3
V
CC
Q
Q
Q
Q
CC
CC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
Vss
NC
VssQ
NC
DQ3
VccQ
NC
NC
VssQ
NC
DQ2
VccQ
NC
Vss
NC
DQM
CLK
CKE
NC
A11
A9
A8
A7
A6
A5
A4
Vss
A0 to A11
Note
: Address inputs
BA0(A13), BA1(A12): Bank select
DQ0 to DQ3 : Data inputs / outputs
CLK : Clock input
CKE : Clock enable
/CS : Chip select
/RAS : Row address strobe
/CAS : Column address strobe
/WE : Write enable
DQM : DQ mask enable
CC
V
SS
V
CC
Q : Supply voltage for DQ
V
SS
Q : Ground for DQ
V
: Supply voltage
: Ground
Note
A0 to A11 : Row address inputs
A0 to A9, A11 : Column address inputs
NC : No connection
4
Data Sheet M12650EJBV0DS00
V
DQ0
CC
V
NC
DQ1
SS
V
NC
DQ2
CC
V
NC
DQ3
SS
V
NC
V
NC
/WE
/CAS
/RAS
/CS
BA0(A13)
BA1(A12)
A10
A0
A1
A2
A3
V
µµµµ
PD45128441, 45128841, 45128163
[
PD45128841]
µµµµ
54-pin Plastic TSOP (II) (10.16mm (400))
4M words
CC
Q
Q
Q
Q
CC
CC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
8 bits
××××
4 banks
××××
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
Vss
DQ7
VssQ
NC
DQ6
VccQ
NC
DQ5
VssQ
NC
DQ4
VccQ
NC
Vss
NC
DQM
CLK
CKE
NC
A11
A9
A8
A7
A6
A5
A4
Vss
A0 to A11
Note
: Address inputs
BA0(A13), BA1(A12): Bank select
DQ0 to DQ7 : Data inputs / outputs
CLK : Clock input
CKE : Clock enable
/CS : Chip select
/RAS : Row address strobe
/CAS : Column address strobe
/WE : Write enable
DQM : DQ mask enable
CC
V
SS
V
CC
Q : Supply voltage for DQ
V
SS
Q : Ground for DQ
V
: Supply voltage
: Ground
NC : No connection
Data Sheet M12650EJBV0DS00
Note
A0 to A11 : Row address inputs
A0 to A9 : Column address inputs
5
V
DQ0
CC
V
DQ1
DQ2
SS
V
DQ3
DQ4
CC
V
DQ5
DQ6
SS
V
DQ7
V
LDQM
/WE
/CAS
/RAS
/CS
BA0(A13)
BA1(A12)
A10
A0
A1
A2
A3
V
µµµµ
PD45128441, 45128841, 45128163
[
PD45128163]
µµµµ
54-pin Plastic TSOP (II) (10.16mm (400))
2M words
CC
Q
Q
Q
Q
CC
CC
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
16 bits
××××
4 banks
××××
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
Vss
DQ15
VssQ
DQ14
DQ13
VccQ
DQ12
DQ11
VssQ
DQ10
DQ9
VccQ
DQ8
Vss
NC
UDQM
CLK
CKE
NC
A11
A9
A8
A7
A6
A5
A4
Vss
A0 to A11
Note
: Address inputs
BA0(A13), BA1(A12): Bank select
DQ0 to DQ15 : Data inputs / outputs
CLK : Clock input
CKE : Clock enable
/CS : Chip select
/RAS : Row address strobe
/CAS : Column address strobe
/WE : Write enable
LDQM : Lower DQ mask enable
UDQM : Upper DQ mask enable
CC
V
SS
V
CC
Q : Supply voltage for DQ
V
SS
Q : Ground for DQ
V
: Supply voltage
: Ground
Note
A0 to A11 : Row address inputs
A0 to A8 : Column address inputs
NC : No connection
6
Data Sheet M12650EJBV0DS00
Block Diagram
µµµµ
PD45128441, 45128841, 45128163
CLK
CKE
Address
/CS
/RAS
/CAS
/WE
Clock
Generator
Mode
Register
Control Logic
Command Decoder
Row
Address
Buffer
&
Refresh
Counter
Column
Address
Buffer
&
Burst
Counter
Bank B
Bank A
Row Decoder
Sense Amplifier
Column Decoder &
Latch Circuit
Data Control Circuit
Bank D
Bank C
Latch Circuit
DQM
DQ
Input & Output
Buffer
Data Sheet M12650EJBV0DS00
7
µµµµ
PD45128441, 45128841, 45128163
CONTENTS
1. Input / Output Pin Function ............................................................................................................ 10
2. Commands ....................................................................................................................................... 11
3. Simplified State Diagram ................................................................................................................ 14
4. Truth Table ....................................................................................................................................... 15
4.1 Command Truth Table............................................................................................................................. 15
4.2 DQM Truth Table...................................................................................................................................... 15
4.3 CKE Truth Table....................................................................................................................................... 15
4.4 Operative Command Table .................................................................................................................... 16
4.5 Command Truth Table for CKE ............................................................................................................. 19
5. Initialization ...................................................................................................................................... 20
6. Programming the Mode Register ................................................................................................... 21
7. Mode Register .................................................................................................................................. 22
7.1 Burst Length and Sequence .................................................................................................................. 23
8. Address Bits of Bank-Select and Precharge ................................................................................ 24
9. Precharge ......................................................................................................................................... 25
10. Auto Precharge ................................................................................................................................ 26
10.1 Read with Auto Precharge .................................................................................................................. 26
10.2 Write with Auto Precharge .................................................................................................................. 27
11. Read / Write Command Interval ..................................................................................................... 28
11.1 Read to Read Command Interval ........................................................................................................ 28
11.2 Write to Write Command Interval ....................................................................................................... 28
11.3 Write to Read Command Interval ........................................................................................................ 29
11.4 Read to Write Command Interval ........................................................................................................ 30
12. Burst Termination ........................................................................................................................... 31
12.1 Burst Stop Command .......................................................................................................................... 31
12.2 Precharge Termination ........................................................................................................................ 32
12.2.1 Precharge Termination in READ Cycle .................................................................................... 32
12.2.2 Precharge Termination in WRITE Cycle .................................................................................. 33
8
Data Sheet M12650EJBV0DS00
µµµµ
PD45128441, 45128841, 45128163
13. Electrical Specifications ................................................................................................................. 34
13.1 AC Parameters for Read Timing ......................................................................................................... 39
13.2 AC Parameters for Write Timing ......................................................................................................... 41
13.3 Relationship between Frequency and Latency ................................................................................. 42
13.4 Mode Register Set ................................................................................................................................ 43
13.5 Power on Sequence and CBR (Auto) Refresh ................................................................................... 44
13.6 /CS Function ......................................................................................................................................... 45
13.7 Clock Suspension during Burst Read (using CKE Function) .......................................................... 46
13.8 Clock Suspension during Burst Write (using CKE Function) .......................................................... 48
13.9 Power Down Mode and Clock Mask ................................................................................................... 50
13.10 CBR (Auto) Refresh ............................................................................................................................. 51
13.11 Self Refresh (Entry and Exit) ............................................................................................................... 52
13.12 Random Column Read (Page with Same Bank) ................................................................................ 53
13.13 Random Column Write (Page with Same Bank) ................................................................................ 55
13.14 Random Row Read (Ping-Pong Banks) ............................................................................................. 57
13.15 Random Row Write (Ping-Pong Banks) ............................................................................................. 59
13.16 Read and Write ..................................................................................................................................... 61
13.17 Interleaved Column Read Cycle .......................................................................................................... 63
13.18 Interleaved Column Write Cycle ......................................................................................................... 65
13.19 Auto Precharge after Read Burst ........................................................................................................ 67
13.20 Auto Precharge after Write Burst ....................................................................................................... 69
13.21 Full Page Read Cycle ........................................................................................................................... 71
13.22 Full Page Write Cycle ........................................................................................................................... 73
13.23 Byte Write Operation ............................................................................................................................ 75
13.24 Burst Read and Single Write (Option) ................................................................................................ 77
13.25 Full Page Random Column Read ........................................................................................................ 79
13.26 Full Page Random Column Write ....................................................................................................... 81
13.27 PRE (Precharge) Termination of Burst ............................................................................................... 83
14. Package Drawing ............................................................................................................................. 85
15. Recommended Soldering Conditions ........................................................................................... 86
16. Revision History .............................................................................................................................. 87
Data Sheet M12650EJBV0DS00
9
µµµµ
PD45128441, 45128841, 45128163
1. Input / Output Pin Function
Pin name Input / Output Function
CLK Input CLK is the master clock input. Other inputs s i gnal s are referenced to the CLK rising
edge.
CKE Input CKE determine validity of the next CLK (clock). If CKE i s high, the next CLK rising edge
is valid; otherwise it is i nval i d. If the CLK rising edge is inval i d, the internal clock is not
issued and the
When the
power down mode. During power down mode, CKE must rem ai n l ow.
/CS Input /CS low starts the com mand input cycle. When /CS is high, com mands are ignored but
operations continue.
/RAS, /CAS, /WE Input /RAS, /CAS and /WE have the same symbols on conventional DRAM but diff erent
functions. For details, refer to the comm and table.
A0 - A11 Input
BA0, BA1 Input BA0(A13) and BA1(A12) are the bank select signal. In command cycle, BA0(A13) and
DQM, UDQM, LDQM Input
DQ0 - DQ15 Input / Output DQ pins have the same function as I/O pins on a conventional DRAM.
VCC, VSS, VCCQ, VSSQ (Power supply) VCC and VSS are power supply pins for internal circui t s. VCCQ and VSSQ are power
Row Address is determined by A0 - A 11 at the CLK (clock) rising edge in the active
command cycle. It does not depend on the bit organization.
Column Address is det ermined by A0 - A9, A11 at the CLK rising edge in the read or
write command cycle. It depends on the bit organization: A0 - A9, A11 for ×4 device, A0
- A9 for ×8 device, A0 - A8 for ×16 device.
A10 defines the precharge mode. When A10 is high in t he precharge command cycle,
all banks are precharged; when A10 is low, only the bank selected by BA0(A13) and
BA1(A12)
When A10 is high i n read or write c ommand cycle, the precharge starts automatic al l y
after the burst acces s.
BA1(A12) low select bank A, B A0(A13) high and BA1(A12) low select bank B, BA0(A13)
low and BA1(A12) high select bank C and then BA0(A13) and BA1(A12) high select
bank D.
DQM controls I/O buffers. In ×16 products, UDQM and LDQM control upper byte and
lower byte I/O buffers, respectively.
In read mode, DQM controls the output buffers like a conventi onal /OE pin.
DQM high and DQM low turn the output buffers off and on, respectively.
The DQM latency for the read is two clocks.
In write mode, DQM controls the word m ask. Input data is written to t he memory cell if
DQM is low but not if DQM is high.
The DQM latency for the write is zero.
supply pins for the output buf f ers.
PD45128xxx sus pends operation.
µ
PD45128xxx is not in b urst mode and CKE is negated, the devi ce enters
µ
is precharged.
10
Data Sheet M12650EJBV0DS00
2. Commands
µµµµ
PD45128441, 45128841, 45128163
Mode register set command
(/CS, /RAS, /CAS, /WE = Low)
The
PD45128xxx has a mode register that defines how the device
µ
operates. In this command, A0 through A11, BA0(A13) and BA1(A12)
are the data input pins. After power on, the mode register set
command must be executed to initialize the device.
The mode register can be set only when all banks are in idle state.
RSC
During 2 CLK (t
) following this command, the µPD45128xxx
cannot accept any other commands.
Activate command
(/CS, /RAS = Low, /CAS, /WE = High)
The
PD45128xxx has four banks, each with 4,096 rows.
µ
This command activates the bank selected by BA0(A13) and
BA1(A12) and a row address selected by A0 through A11.
This command corresponds to a conventional DRAM’s /RAS falling.
Fig.1 Mode register set command
CLK
CKE
H
/CS
/RAS
/CAS
/WE
BA0(A13), BA1(A12)
A10
Add
Fig.2 Row address strobe and
bank activate command
CLK
CKE
H
/CS
/RAS
/CAS
/WE
BA0(A13), BA1(A12)
A10
Add
Row
Row
Precharge command
(/CS, /RAS, /WE = Low, /CAS = High)
This command begins precharge operation of the bank selected by
BA0(A13) and BA1(A12). When A10 is High, all banks are
precharged, regardless of BA0(A13) and BA1(A12). When A10 is
Low, only the bank selected by BA0(A13) and BA1(A12) is
precharged.
After this command, the
command to the precharging bank during t
PD45128xxx can’t accept the activate
µ
RP
(precharge to activate
command period).
This command corresponds to a conventional DRAM’s /RAS rising.
Data Sheet M12650EJBV0DS00
Fig.3 Precharge command
CLK
CKE
H
/CS
/RAS
/CAS
/WE
BA0(A13), BA1(A12)
(Precharge select)
A10
Add
11
µµµµ
PD45128441, 45128841, 45128163
Write command
(/CS, /CAS, /WE = Low, /RAS = High)
If the mode register is in the burst write mode, this command sets the
burst start address given by the column address to begin the burst
write operation. The first write data in burst mode can input with this
command with subsequent data on following clocks.
Read command
(/CS, /CAS = Low, /RAS, /WE = High)
Read data is available after /CAS latency requirements have been
met. This command sets the burst start address given by the column
address.
Fig.4 Column address and write command
CLK
CKE
H
/CS
/RAS
/CAS
/WE
BA0(A13), BA1(A12)
A10
Add
Col.
Fig.5 Column address and read command
CLK
CKE
H
/CS
/RAS
/CAS
/WE
BA0(A13), BA1(A12)
A10
Add
Col.
CBR (auto) refresh command
(/CS, /RAS, /CAS = Low, /WE, CKE = High)
This command is a request to begin the CBR (auto) refresh
operation. The refresh address is generated internally.
Before executing CBR (auto) refresh, all banks must be precharged.
After this cycle, all banks will be in the idle (precharged) state and
ready for a row activate command.
RC
During t
command), the
period (from refresh command to refresh or activate
PD45128xxx cannot accept any other command.
µ
Fig.6 CBR (auto) refresh command
CLK
CKE
H
/CS
/RAS
/CAS
/WE
BA0(A13), BA1(A12)
A10
Add
12
Data Sheet M12650EJBV0DS00
µµµµ
PD45128441, 45128841, 45128163
Self refresh entry command
(/CS, /RAS, /CAS, CKE = Low, /WE = High)
After the command execution, self refresh operation continues while
CKE remains low. When CKE goes high, the
PD45128xxx exits the
µ
self refresh mode.
During self refresh mode, refresh interval and refresh operation are
performed internally, so there is no need for external control.
Before executing self refresh, all banks must be precharged.
Burst stop command
(/CS, /WE = Low, /RAS, /CAS = High)
This command can stop the current burst operation.
Fig.7 Self refresh entry command
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0(A13), BA1(A12)
A10
Add
Fig.8 Burst stop command in Full Page
Mode
CLK
CKE
H
/CS
/RAS
/CAS
/WE
BA0(A13), BA1(A12)
A10
Add
No operation
(/CS = Low, /RAS, /CAS, /WE = High)
This command is not an execution command. No operations begin
or terminate by this command.
Fig.9 No operation
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0(A13), BA1(A12)
A10
Add
H
Data Sheet M12650EJBV0DS00
13
3. Simplified State Diagram
µµµµ
PD45128441, 45128841, 45128163
Self
Refresh
SELF
WRITE
SUSPEND
CKE
CKE
Mode
Register
Set
Write
WRITE
BST
MRS
Write
IDLE
ROW
ACTIVE
Write with
Read
Auto precharge
ACT
Auto precharge
PRE
Write
Read
Read with
SELF exit
REF
CKE
CKE
CKE
CKE
BST
READ
CBR (Auto)
Refresh
Power
Down
Active
Power
Down
Read
CKE
CKE
READ
SUSPEND
WRITEA
SUSPEND
14
POWER
ON
CKE
CKE
WRITEA
Precharge
PRE (Precharge termination)
PRE (Precharge termination)
Precharge
Data Sheet M12650EJBV0DS00
READA
CKE
CKE
READA
SUSPEND
Automatic sequence
Manual input
4. Truth Table
4.1 Command Truth Table
Function Symbol CKE /CS /RAS /CAS /WE BA1, A10 A11,
Device deselect DESL H
No operation NOP H
Burst stop BST H
Read READ H
Read with auto precharge READA H
Write WRIT H
Write with auto precharge WRITA H
Bank activate ACT H
Precharge select bank PRE H
Precharge all banks PALL H
Mode register set MRS H
µµµµ
PD45128441, 45128841, 45128163
n – 1 n BA0 A9 - A0
×
×
×
×
×
×
×
×
×
×
×
H
LHHH
LHHL
LHLHVLV
LHLHVHV
LHLLVLV
LHLLVHV
LLHHVVV
LLHLVL
LLHL
LLLLLLV
ЧЧЧЧЧЧ
×××
×××
×
×
H
×
Remark
H = High level, L = Low level, × = High or Low level (Don't care), V = Valid data input
4.2 DQM Truth Table
Function Symbol CKE DQM
n – 1 n U L
Data write / output enable ENB H
Data mask / output di sable MASK H
Upper byte write enable / output enable ENBU H
Lower byte write enable / output enable ENBL H
Upper byte write inhibit / output disable MASKU H
Lower byte write inhibit / output disable MASKL H
Remark
H = High level, L = Low level, × = High or Low level (Don't care)
×
×
×
××
×
××
L
H
L
H
×
L
×
H
4.3 CKE Truth Table
Current state F unction Symbol CKE /CS /RAS /CAS /WE Address
n – 1 n
Activating Clock sus pend mode entry H L
Any Clock suspend mode L L
Clock suspend Clock suspend mode exit L H
Idle CBR (auto) refresh command REF H H L L L H
Idle Self refresh entry SELF H L L L L H
Self refresh Self ref resh exit L H L H H H
LHH
Idle Power down entry H L
Power down Power down exit L H H
LHLHHH
ЧЧЧЧЧ
ЧЧЧЧЧ
ЧЧЧЧЧ
××××
ЧЧЧЧЧ
××××
×
×
×
×
Remark
H = High level, L = Low level, × = High or Low level (Don't care)
Data Sheet M12650EJBV0DS00
15
µµµµ
PD45128441, 45128841, 45128163
4.4 Operative Command Table
Current state /CS /RAS /CAS /WE Address Command Action Notes
Idle H
Row active H
Read H
Write H
××××
LHH
L H L H BA, CA, A10 READ/READA ILLEGAL 3
L H L L BA, CA, A10 WRIT/W RITA ILLEGAL 3
L L H H BA, RA ACT Row activating
L L H L BA, A10 PRE/PALL Nop
LLLH
L L L L Op-Code MRS Mode register accessing
××××
LHH
L H L H BA, CA, A10 READ/READA B egi n read : Determine AP 5
L H L L BA, CA, A10 WRIT/WRITA Begin write : Determine AP 5
L L H H BA, RA ACT ILLEGAL 3
L L H L BA, A10 PRE/PALL Precharge 6
LLLH
L L L L Op-Code MRS ILLEGAL
××××
LHHH
LHHL
L H L H BA, CA, A10 READ/READA T erminate burst, new read : Determine AP 7
L H L L BA, CA, A10 WRIT/WRITA Terminate burst, start write : Determine AP 7, 8
L L H H BA, RA ACT ILLEGAL 3
L L H L BA, A10 PRE/PALL Terminate burst, precharging
LLLH
L L L L Op-Code MRS ILLEGAL
××××
LHHH
LHHL
L H L H BA, CA, A10 READ/READA T erminate burst, start read : Determine AP 7, 8
L H L L BA, CA, A10 WRIT/WRITA Terminate burst, new write : Determine AP 7
L L H H BA, RA ACT ILLEGAL 3
L L H L BA, A10 PRE/PALL Terminate burst, precharging 9
LLLH
L L L L Op-Code MRS ILLEGAL
Note1
××
××
DESL Nop or power down 2
NOP or BST Nop or power down 2
×
×
×
×
×
×
×
×
REF/SELF CBR (aut o) ref resh or self refresh 4
DESL Nop
NOP or BST Nop
REF/SELF ILLEGAL
DESL Conti nue burst to end → Row active
NOP Continue burst t o end → Row active
BST Burst stop → Row active
REF/SELF ILLEGAL
DESL Conti nue burst to end → Write recoveri ng
NOP Continue burst t o end → Write recoveri ng
BST Burst stop → Row active
REF/SELF ILLEGAL
(1/3)
16
Data Sheet M12650EJBV0DS00
µµµµ
PD45128441, 45128841, 45128163
Current state /CS /RAS /CAS /WE Address Command Act i on Notes
Read with auto H
××××
precharge L H H H
LHHL
×
×
DESL Conti nue burst to end → Precharging
NOP Continue burst t o end → Precharging
BST ILLEGAL
L H L H BA, CA, A10 READ/READA ILLEGAL 3
L H L L BA, CA, A10 WRIT/W RITA ILLEGAL 3
L L H H BA, RA ACT ILLEGAL 3
L L H L BA, A10 PRE/PALL ILLEGAL 3
LLLH
×
REF/SELF ILLEGAL
LLLLOp-Code MRS ILLEGAL
Write with auto
precharge
H
××××
LHHH
DESL Conti nue burst to end → Write
recovering with auto precharge
×
NOP Continue burst t o end → Write
recovering with auto precharge
LHHL
×
BST ILLEGAL
L H L H BA, CA, A10 READ/READA ILLEGAL 3
L H L L BA, CA, A10 WRIT/W RITA ILLEGAL 3
L L H H BA, RA ACT ILLEGAL 3
L L H L BA, A10 PRE/PALL ILLEGAL 3
LLLH
×
REF/SELF ILLEGAL
LLLLOp-Code MRS ILLEGAL
Precharging H
××××
LHHH
LHHL
DESL Nop → Enter idle after t
×
×
NOP Nop → Enter idle after t
BST ILLEGAL
RP
RP
L H L H BA, CA, A10 READ/READA ILLEGAL 3
L H L L BA, CA, A10 WRIT/W RITA ILLEGAL 3
L L H H BA, RA ACT ILLEGAL 3
L L H L BA, A10 PRE/PALL Nop → Enter idle after t
LLLH
×
REF/SELF ILLEGAL
RP
LLLLOp-Code MRS ILLEGAL
Row activating H
××××
LHHH
LHHL
DESL Nop → Enter bank active aft er t
×
×
NOP Nop → Enter bank active aft er t
BST ILLEGAL
RCD
RCD
L H L H BA, CA, A10 READ/READA ILLEGAL 3
L H L L BA, CA, A10 WRIT/W RITA ILLEGAL 3
L L H H BA, RA ACT ILLEGAL 3, 10
L L H L BA, A10 PRE/PALL ILLEGAL 3
LLLH
×
REF/SELF ILLEGAL
LLLLOp-Code MRS ILLEGAL
(2/3)
Data Sheet M12650EJBV0DS00
17
µµµµ
PD45128441, 45128841, 45128163
Current state /CS /RAS /CAS /WE Address Command Act i on Notes
Write recoveri ng H
××××
LHHH
LHHL
DESL Nop → Enter row active after t
×
×
NOP Nop → Enter row active after t
BST Nop → Enter row active after t
DPL
DPL
DPL
L H L H BA, CA, A10 READ/READA Start read, Determine AP 8
L H L L BA, CA, A10 WRIT/W RITA New write, Determine AP
L L H H BA, RA ACT ILLEGAL 3
L L H L BA, A10 PRE/PALL ILLEGAL 3
LLLH
×
REF/SELF ILLEGAL
LLLLOp-Code MRS ILLEGAL
Write recoveri ng H
××××
with auto precharge L H H H
LHHL
DESL Nop → Enter precharge after t
×
×
NOP Nop → Enter precharge after t
BST Nop → Enter precharge after t
DPL
DPL
DPL
L H L H BA, CA, A10 READ/READA ILLEGAL 3, 8
L H L L BA, CA, A10 WRIT/W RITA ILLEGAL 3
L L H H BA, RA ACT ILLEGAL 3
L L H L BA, A10 PRE/PALL ILLEGAL
LLLH
×
REF/SELF ILLEGAL
LLLLOp-Code MRS ILLEGAL
Refreshing H
××××
LHH
LHL
LLH
LLL
Mode register H
××××
accessing L H H H
LHHL
LHL
LL
×××
××
××
××
××
×
×
××
DESL Nop → Enter idle after t
NOP/BST Nop → Enter idle after t
READ/WRIT ILLEGAL
ACT/PRE/PALL
REF/SELF/MRS
ILLEGAL
ILLEGAL
DESL Nop → Enter idle after t
NOP Nop → Enter idle after t
BST ILLEGAL
READ/WRIT ILLEGAL
ACT/PRE/PALL/
REF/SELF/MRS
ILLEGAL
RC
RC
RSC
RSC
(3/3)
Notes 1.
Remark
18
All entries assume that CKE was active (High level) during the preceding clock cycle.
2.
If all banks are idle, and CKE is inactive (Low level),
PD45128xxx will enter Power down mode.
µ
All input buffers except CKE will be disabled.
3.
Illegal to bank in specified states; Function may be legal in the bank indicated by Bank Address (BA),
depending on the state of that bank.
4.
If all banks are idle, and CKE is inactive (Low level), µPD45128xxx will enter Self refresh mode. All input
buffers except CKE will be disabled.
5.
Illegal if t
6.
Illegal if t
7.
Must satisfy burst interrupt condition.
8.
Must satisfy bus contention, bus turn around, and/or write recovery requirements.
9.
Must mask preceding data which don't satisfy t
10.
Illegal if t
RCD
is not satisfied.
RAS
is not satisfied.
RRD
is not satisfied.
DPL
.
H = High level, L = Low level, × = High or Low level (Don’t care), V = Valid data
Data Sheet M12650EJBV0DS00
µµµµ
PD45128441, 45128841, 45128163
4.5 Command Truth Table for CKE
Current State CKE /CS /RAS /CAS /WE Address A ction Notes
n – 1 n
Self refresh H
Self refresh recovery H H H
Power down H
All banks idle H H H
Row active H
Any state other than H H
listed above H L
ЧЧЧЧЧЧ
LHH
LHLHH
LHLHL
LHLL
LL
HHLHH
HHLHL
HHLL
HLH
HLLHH
HLLHL
HLLL
ЧЧЧЧЧ
LHH
LHLHHH
LL
HHLH
HHLLH
HHLLLH
H H L L L L Op-Code Refer to operations in Operative Command Table
HLH
HLLH
HLLLH
HLLLLH
HLLLLLOp-CodeRefer to operations in Operative Command Table
L
ЧЧЧЧЧЧ
ЧЧЧЧЧЧ
L
ЧЧЧЧЧЧ
LH
LL
××××
××
××
×××
ЧЧЧЧЧ
××××
××
××
×××
××××
××
××
×××
××××
×
ЧЧЧЧЧ
×××
××
×
×
×××
××
×
×
ЧЧЧЧ
ЧЧЧЧЧ
ЧЧЧЧЧ
ЧЧЧЧЧ
INVALID, CLK (n – 1) would exit self refres h
Self refresh recovery
Self refresh recovery
ILLEGAL
ILLEGAL
Maintain self refresh
Idle after t
Idle after t
ILLEGAL
ILLEGAL
ILLEGAL
ILLEGAL
ILLEGAL
ILLEGAL
INVALID, CLK (n – 1) would exit power down
EXIT power down → Idle
EXIT power down → Idle
Maintain power down mode
Refer to operations in Operative Command Table
Refer to operations in Operative Command Table
Refer to operations in Operative Command Table
CBR (auto) Refresh
Refer to operations in Operative Command Table
Refer to operations in Operative Command Table
Refer to operations in Operative Command Table
Self refresh 1
Power down 1
Refer to operations in Operative Command Table
Power down 1
Refer to operations in Operative Command Table
Begin clock suspend next cyc l e 2
Exit clock suspend next cycl e
Maintain clock suspend
RC
RC
Notes 1.
Remark
Self refresh can be entered only from the all banks idle state. Power down can be entered only from all
banks idle or row active state.
2.
Must be legal command as defined in Operative Command Table.
H = High level, L = Low level, × = High or Low level (Don't care)
Data Sheet M12650EJBV0DS00
19
µµµµ
PD45128441, 45128841, 45128163
5. Initialization
The synchronous DRAM is initialized in the power-on sequence according to the following.
(1) To stabilize internal circuits, when power is applied, a 100
(2) After the pause, all banks must be precharged using the Precharge command (The Precharge all banks
command is convenient).
(3) Once the precharge is completed and the minimum t
RSC
After the mode register set cycle, t
(4) Two or more CBR (Auto) refresh must be performed.
Remarks 1.
The sequence of Mode register programming and Refresh above may be transposed.
2.
CKE and DQM must be held high until the Precharge command is issued to ensure data-bus Hi-Z.
(2 CLK minimum) pause must be satisfied as well.
s or longer pause must precede any signal toggling.
µ
RP
is satisfied, the mode register can be programmed.
20
Data Sheet M12650EJBV0DS00
µµµµ
PD45128441, 45128841, 45128163
6. Programming the Mode Register
The mode register is programmed by the Mode register set command using address bits A11 through A0, BA0(A13)
and BA1(A12) as data inputs. The register retains data until it is reprogrammed or the device loses power.
The mode register has four fields;
Options : A11 through A7, BA0(A13), BA1(A12)
/CAS latency : A6 through A4
Wrap type : A3
Burst length : A2 through A0
Following mode register programming, no command can be issued before at least 2 CLK have elapsed.
/CAS Latency
/CAS latency is the most critical of the parameters being set. It tells the device how many clocks must elapse
before the data will be available.
The value is determined by the frequency of the clock and the speed grade of the device.
between Frequency and Latency
the device.
shows the relationship of /CAS latency to the clock period and the speed grade of
13.3 Relationship
Burst Length
Burst Length is the number of words that will be output or input in a read or write cycle. After a read burst is
completed, the output bus will become Hi-Z.
The burst length is programmable as 1, 2, 4, 8 or full page.
Wrap Type (Burst Sequence)
The wrap type specifies the order in which the burst data will be addressed. This order is programmable as either
“Sequential” or “Interleave”. The method chosen will depend on the type of CPU in the system.
Some microprocessor cache systems are optimized for sequential addressing and others for interleaved
addressing.
Both sequences support bursts of 1, 2, 4 and 8. Additionally, sequence supports the full page length.
7.1 Burst Length and Sequence
shows the addressing sequence for each burst length using them.
Data Sheet M12650EJBV0DS00
21
7. Mode Register
BA1
BA0
(A12)
(A13)
00
BA1
BA0
(A12)
(A13)
xx
BA1
BA0
(A12)
(A13)
BA1
BA0
(A12)
(A13)
xx
BA1
BA0
(A12)
(A13)
00
µµµµ
PD45128441, 45128841, 45128163
A0A1A2A3A4A5A7 A6A8A9A10A11
10000 JEDEC Standard Test Set (refresh counter test)
A0A1A2A3A4A5A7 A6A8A9A10A11
BLWTLTMODE001xx Burst Read and Single Write
01 Use in future
BLWTLTMODE00000 Mode Register Set
(for Write Through Cache)
A0A1A2A3A4A5A7 A6A8A9A10A11
A0A1A2A3A4A5A7 A6A8A9A10A11
VVVVVV1V1xxx Vender Specific
A0A1A2A3A4A5A7 A6A8A9A10A11
V = Valid
x = Don’t care
Burst length
Wrap type
Latency
Remark R : Reserved
Mode Register Set Timing
mode
Bits2-0
000
001
010
011
100
101
110
111
0
1
Full page
Sequential
Interleave
Bits6-4
000
001
010
011
100
101
110
111
WT = 0
1
2
4
8
R
R
R
/CAS latency
WT = 1
1
2
4
8
R
R
R
R
R
R
2
3
R
R
R
R
22
CLK
CKE
/CS
/RAS
/CAS
/WE
A0 - A11,
BA0(13), BA1(A12)
Mode Register Set
Data Sheet M12650EJBV0DS00
7.1 Burst Length and Sequence
[Burst of Two]
Starting address
(column address A0, binary)
0 0, 1 0, 1
1 1, 0 1, 0
[Burst of Four]
Starting address
(column address A1 - A 0, binary)
00 0, 1, 2, 3 0, 1, 2, 3
01 1, 2, 3, 0 1, 0, 3, 2
10 2, 3, 0, 1 2, 3, 0, 1
11 3, 0, 1, 2 3, 2, 1, 0
µµµµ
Sequential addressing sequence
(decimal)
Sequential addressing sequence
(decimal)
PD45128441, 45128841, 45128163
Interleave addressing sequence
(decimal)
Interleave addressing sequence
(decimal)
[Burst of Eight]
Starting address
(column address A2 - A 0, binary)
000 0, 1, 2, 3, 4, 5, 6, 7 0, 1, 2, 3, 4, 5, 6, 7
001 1, 2, 3, 4, 5, 6, 7, 0 1, 0, 3, 2, 5, 4, 7, 6
010 2, 3, 4, 5, 6, 7, 0, 1 2, 3, 0, 1, 6, 7, 4, 5
011 3, 4, 5, 6, 7, 0, 1, 2 3, 2, 1, 0, 7, 6, 5, 4
100 4, 5, 6, 7, 0, 1, 2, 3 4, 5, 6, 7, 0, 1, 2, 3
101 5, 6, 7, 0, 1, 2, 3, 4 5, 4, 7, 6, 1, 0, 3, 2
110 6, 7, 0, 1, 2, 3, 4, 5 6, 7, 4, 5, 2, 3, 0, 1
111 7, 0, 1, 2, 3, 4, 5, 6 7, 6, 5, 4, 3, 2, 1, 0
Sequential addressing sequence
(decimal)
Interleave addressing sequence
(decimal)
Full page burst is an extension of the above tables of sequential addressing, with the length being 2,048 (for 32M ×4
device), 1,024 (for 16M ×8 device), and 512 (for 8M ×16 device).
Data Sheet M12650EJBV0DS00
23
8. Address Bits of Bank-Select and Precharge
(Activate command)
(Precharge command)
(/CAS strobes)
µµµµ
PD45128441, 45128841, 45128163
BA1
(A12)
BA1
(A12)
BA1
(A12)
BA0
(A13)
BA0
(A13)
BA0
(A13)
A11A10A9A8A7A6A4 A5A3A2A1A0Row
A11A10A9A8A7A6A4 A5A3A2A1A0
xA10A9A8A7A6A4 A5A3A2A1A0Col.
BA1(A12) BA0(A13)
0
0
1
0
1
0
1
1
BA1(A12) BA0(A13)
A10
0
0
0
0
0
1
0
1
1
x
x : Don’t care
disables Auto-Precharge
0
(End of Burst)
enables Auto-Precharge
1
(End of Burst)
Result
Select Bank A
“Activate” command
Select Bank B
“Activate” command
Select Bank C
“Activate” command
Select Bank D
“Activate” command
Result
Precharge Bank A
0
Precharge Bank B
1
Precharge Bank C
0
Precharge Bank D
1
Precharge All Banks
x
BA1(A12) BA0(A13)
0
0
1
0
1
0
1
1
Result
enables Read/Write
commands for Bank A
enables Read/Write
commands for Bank B
enables Read/Write
commands for Bank C
enables Read/Write
commands for Bank D
24
Data Sheet M12650EJBV0DS00
9. Precharge
µµµµ
PD45128441, 45128841, 45128163
The precharge command can be issued anytime after t
RAS (MIN.)
is satisfied.
Soon after the precharge command is issued, precharge operation performed and the synchronous DRAM enters
RP
the idle state after t
is satisfied. The parameter tRP is the time required to perform the precharge.
The earliest timing in a read cycle that a precharge command can be issued without losing any data in the burst is
as follows.
It is depending on the /CAS latency and clock cycle time.
Burst length=4
/CAS latency = 2
Command
/CAS latency = 3
Command
CLK
DQ
DQ
T0 T1 T2 T3 T4 T5 T6 T7
READ
Q1 Q2 Q3 Q4
READ
Q1 Q2 Q3 Q4
PRE
PRE
T8
Hi-Z
Hi-Z
RAS must be satisfied)
(t
In order to write all data to the memory cell correctly, the asynchronous parameter “t
(MIN.)
specification defines the earliest time that a precharge command can be issued. Minimum number of clocks is
DPL (MIN.)
calculated by dividing t
with clock cycle time.
DPL
” must be satisfied. The t
In summary, the precharge command can be issued relative to reference clock that indicates the last data word is
valid. In the following table, minus means clocks before the reference; plus means time after the reference.
/CAS latency Read Write
2–1+t
3–2+t
DPL (MIN.)
DPL (MIN.)
DPL
Data Sheet M12650EJBV0DS00
25
µµµµ
PD45128441, 45128841, 45128163
10. Auto Precharge
During a read or write command cycle, A10 controls whether auto precharge is selected. A10 high in the Read or
Write command (Read with Auto precharge command or W rite with Auto precharge command), auto precharge is
selected and begins automatically.
RAS
The t
next activate command to the bank being precharged cannot be executed until the precharge cycle ends.
In read cycle, once auto precharge has started, an activate command to the bank can be issued after t
satisfied.
In write cycle, the t
The timing that begins the auto precharge cycle depends on both the /CAS latency programmed into the mode
register and whether read or write cycle.
10.1 Read with Auto Precharge
During a read cycle, the auto precharge begins one clock earlier (/CAS latency of 2) or two clocks earlier (/CAS
latency of 3) the last data word output.
must be satisfied with a read with auto precharge or a write with auto precharge operation. In addition, the
RP
has been
DAL
must be satisfied to issue the next activate command to the bank being precharged.
CLK
/CAS latency = 2
Command
DQ
/CAS latency = 3
Command
DQ
T0 T2T1 T3 T4 T5 T6 T7 T8
READA B
QB1 QB2 QB3 QB4
READA B
Auto precharge starts
Auto precharge starts
QB1 QB2 QB3 QB4
RAS
(t
Burst length = 4
T9
Hi-Z
Hi-Z
must be satisfied)
Remark
26
READA means Read with Auto precharge
Data Sheet M12650EJBV0DS00
10.2 Write with Auto Precharge
µµµµ
PD45128441, 45128841, 45128163
During a write cycle, the auto precharge starts at the timing that is equal to the value of the t
data word input to the device.
T0 T2T1 T3 T4 T5 T6 T7 T8
CLK
/CAS latency = 2
Command
DQ
/CAS latency = 3
Command
DQ
WRITA B
DB1 DB2 DB3 DB4
WRITA B
DB1 DB2 DB3 DB4
Auto precharge starts
t
DPL(MIN.)
Auto precharge starts
t
DPL(MIN.)
DPL (MIN.)
Hi-Z
Hi-Z
after the last
Burst length = 4
(t
RAS
must be satisfied)
Remark
WRITA means Write with Auto Precharge
In summary, the auto precharge begins relative to a reference clock that indicates the last data word is valid.
In the table below, minus means clocks before the reference; plus means after the reference.
/CAS latency Read Write
2–1+t
3–2+t
DPL (MIN.)
DPL (MIN.)
Data Sheet M12650EJBV0DS00
27
µµµµ
PD45128441, 45128841, 45128163
11. Read / Write Command Interval
11.1 Read to Read Command Interval
During a read cycle, when new Read command is issued, it will be effective after /CAS latency, even if the previous
read operation does not completed. READ will be interrupted by another READ.
The interval between the commands is 1 cycle minimum. Each Read command can be issued in every clock
without any restriction.
Burst length = 4, /CAS latency = 2
T0 T2T1 T3 T4 T5 T6 T7 T8
CLK
T9
Command
DQ
READ A
1cycle
READ B
QA1
QB1 QB2 QB3 QB4
Hi-Z
11.2 Write to Write Command Interval
During a write cycle, when a new Write command is issued, the previous burst will terminate and the new burst will
begin with a new Write command. WRITE will be interrupted by another W RITE.
The interval between the commands is minimum 1 cycle. Each Write command can be issued in every clock
without any restriction.
Burst length = 4, /CAS latency = 2
T0 T2T1 T3 T4 T5 T6 T7 T8
CLK
Command
DQ
28
WRITE A
DA1
WRITE B
DB1 DB2 DB3 DB4
1cycle
Data Sheet M12650EJBV0DS00
Hi-Z
11.3 Write to Read Command Interval
Write command and Read command interval is also 1 cycle.
Only the write data before Read command will be written.
The data bus must be Hi-Z at least one cycle prior to the first D
T0 T2T1 T3 T4 T5 T6 T7 T8
CLK
/CAS latency = 2
µµµµ
PD45128441, 45128841, 45128163
OUT
.
Burst length = 4
Command
DQ
/CAS latency = 3
Command
DQ
WRITE A
DA1
WRITE A
DA1
READ B
READ B
Hi-Z
Hi-Z
QB1 QB2 QB3 QB4
QB1 QB2 QB3 QB4
Data Sheet M12650EJBV0DS00
29
µµµµ
PD45128441, 45128841, 45128163
11.4 Read to Write Command Interval
During a read cycle, READ can be interrupted by WRITE.
The Read and Write command interval is 1 cycle minimum. There is a restriction to avoid data conflict. The Data
bus must be Hi-Z using DQM before WRITE.
Burst length = 4
T0 T2T1 T3 T4 T5 T6 T7 T8
CLK
Command
DQM
DQ
READ
Hi-Z
WRITE
D1 D2 D3 D4
1cycle
READ can be interrupted by WRITE. DQM must be High at least 3 clocks prior to the Write command.
Burst length = 8
CLK
/CAS latency = 2
Command
DQM
DQ
/CAS latency = 3
Command
T0 T2T1 T3 T4 T5 T6 T7 T8
READ
Q1 Q2 Q3
Hi-Z is
necessary
READ
WRITE
D1 D2 D3
WRITE
T9
30
DQM
DQ
Q1 Q2
Hi-Z is
necessary
Data Sheet M12650EJBV0DS00
D1 D2 D3
µµµµ
PD45128441, 45128841, 45128163
12. Burst Termination
There are two methods to terminate a burst operation other than using a Read or a Write command. One is the
burst stop command and the other is the precharge command.
12.1 Burst Stop Command
During a read cycle, when the burst stop command is issued, the burst read data are terminated and the data bus
goes to Hi-Z after the /CAS latency from the burst stop command.
Burst length = X
T0 T2T1 T3 T4 T5 T6 T7
CLK
Remark
READCommand
/CAS latency = 2
Q1 Q2 Q3DQ
/CAS latency = 3
BST: Burst stop command
BST
Q1 Q2 Q3DQ
Hi-Z
Hi-Z
During a write cycle, when the burst stop command is issued, the burst write data are terminated and data bus goes
to Hi-Z at the same clock with the burst stop command.
Burst length = X
T0 T2T1 T3 T4 T5 T6 T7
CLK
Command
WRITE
BST
Remark
/CAS latency = 2, 3
DQ
BST: Burst stop command
D1
D2 D3 D4
Data Sheet M12650EJBV0DS00
Hi-Z
31
µµµµ
PD45128441, 45128841, 45128163
12.2 Precharge Termination
12.2.1 Precharge Termination in READ Cycle

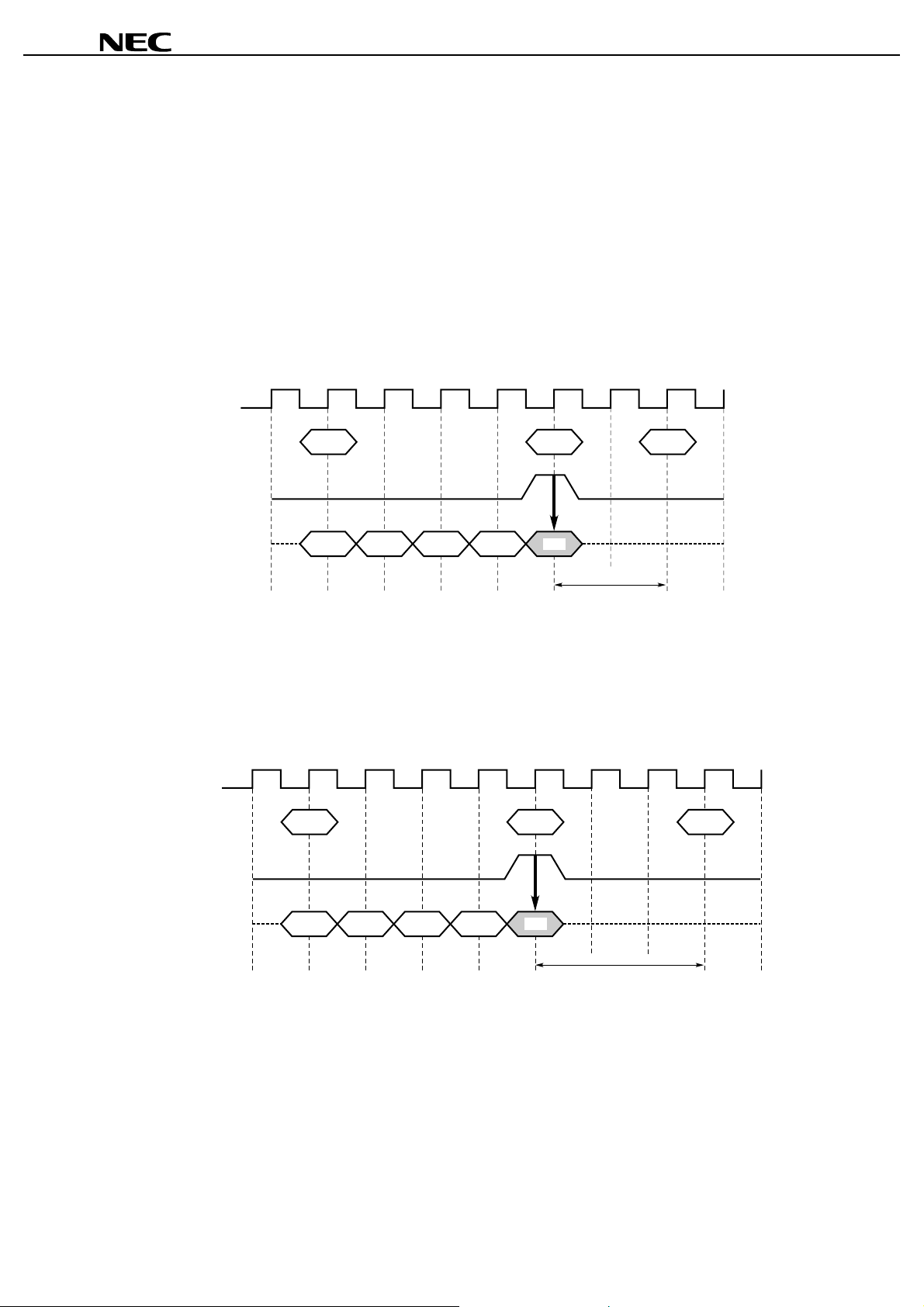

During a read cycle, the burst read operation is terminated by a precharge command.
When the precharge command is issued, the burst read operation is terminated and precharge starts.
RP
The same bank can be activated again after t
RAS
To issue a precharge command, t
must be satisfied.
from the precharge command.
When /CAS latency is 2, the read data will remain valid until one clock after the precharge command.

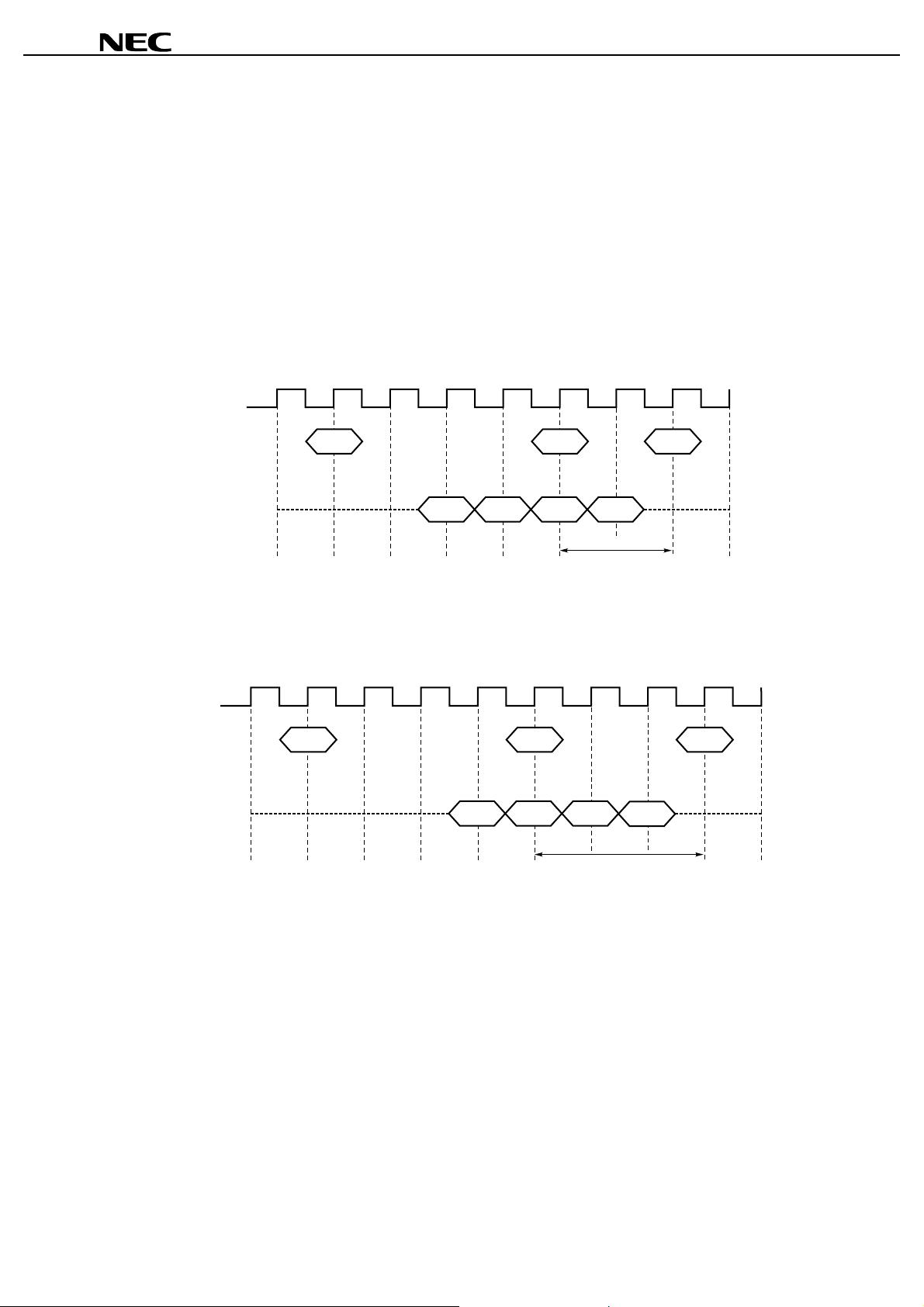

Burst length = X, /CAS latency = 2
T0 T2T1 T3 T4 T5 T6 T7
CLK
Command
READ
Q1DQ
Q2 Q3 Q4
PRE
ACT
t
RP
(t
RAS
must be satisfied)
Hi-Z
When /CAS latency is 3, the read data will remain valid until two clocks after the precharge command.
Burst length = X, /CAS latency = 3
T8
ACT
CLK
Command
DQ
T0 T2T1 T3 T4 T5 T6 T7
READ
Q1 Q2 Q3
PRE
Q4
tRP
(tRAS must be satisfied)
Hi-Z
32
Data Sheet M12650EJBV0DS00
µµµµ
PD45128441, 45128841, 45128163
12.2.2 Precharge Termination in WRITE Cycle
During a write cycle, the burst write operation is terminated by a precharge command.
When the precharge command is issued, the burst write operation is terminated and precharge starts.
RP
The same bank can be activated again after t
RAS
To issue a precharge command, t
must be satisfied.
from the precharge command.
When /CAS latency is 2, the write data written prior to the precharge command will be correctly stored. However,
invalid data may be written at the same clock as the precharge command. To prevent this from happening, DQM
must be high at the same clock as the precharge command. This will mask the invalid data.
Burst length = X, /CAS latency = 2
T0 T2T1 T3 T4 T5 T6 T7
CLK
Command
DQM
DQ
WRITE
D1 D2 D3
D4 D5
PRE
ACT
Hi-Z
tRP
(tRAS must be satisfied)
When /CAS latency is 3, the write data written prior to the precharge command will be correctly stored. However,
invalid data may be written at the same clock as the precharge command. To prevent this from happening, DQM
must be high at the same clock as the precharge command. This will mask the invalid data.
Burst length = X, /CAS latency = 3
CLK
Command
DQM
T0 T2T1 T3 T4 T5 T6 T7
WRITE
PRE
T8
ACT
DQ
D1 D2 D3
Data Sheet M12650EJBV0DS00
D4
D5
Hi-Z
t
RP
(t
RAS
must be satisfied)
33
13. Electrical Specifications
All voltages are referenced to VSS (GND).
•
After power up, wait more than 100 µs and then, execute
•
proper device operation is achieved.
Absolute Maximum Ratings
Parameter Symbol Condition Rating Unit
µµµµ
PD45128441, 45128841, 45128163
Power on sequence and CBR (auto) Refresh
before
Voltage on power supply pin relative to GND VCC, VCCQ
Voltage on any pin relative to GND V
Short circuit output c urrent I
Power dissipation P
Operating ambient tem perature T
Storage temperature T
T
O
D
A
stg
0.5 to +4.6 V
−
0.5 to +4.6 V
−
50 mA
1W
0 to 70
55 to + 125
−
Caution Exposing the device to stress above those listed in Absolute Maximum Ratings could cause
permanent damage. The device is not meant to be operated under conditions outside the limits
described in the operational section of this specification. Exposure to Absolute Maximum
Rating conditions for extended periods may affect device reliability.
Recommended Operating Conditions
Parameter Symbol Condition MIN. TYP. MAX. Unit
Supply voltage VCC, VCCQ 3.0 3.3 3.6 V
High level input voltage V
Low level input voltage V
Operating ambient tem perature T
Notes 1.
IH (MAX.)
V
2.
V
= VCC + 1.5 V (Pulse width ≤ 5 ns)
IL (MIN.)
= –1.5 V (Pulse width ≤ 5 ns)
IH
IL
A
2.0 VCC+0.3
Note2
0.3
−
070
Note1
+0.8 V
C
°
C
°
V
C
°
A
= 25
Pin Capacitance (T
C, f = 1 MHz)
°°°°
Parameter Symbol Condition MIN. TYP. MAX. Unit
Input capacitance C
Data input / output capaci t ance C
34
I1
CLK 2.5 3.5 pF
I2
C
A0 - A11, BA0(A13), BA1(A12), CKE,
/CS, /RAS, /CAS, /WE, DQM, UDQM,
LDQM
I/O
Data Sheet M12650EJBV0DS00
DQ0 - DQ15 4 6.5 pF
2.5 3.8
µµµµ
PD45128441, 45128841, 45128163
DC Characteristics 1 (Recommended Operating Conditions unless otherwise noted)
Parameter S ymbol Test condition /CAS Grade Maximum Unit Notes
latency
Operating current I
CC1
Burst length = 1, CL = 2 -A75 100 100 110 mA 1
RC (MIN.)
tRC ≥ t
, Io = 0 mA, -A80 100 100 110
One bank active -A10 100 100 110
-A10B 90 100 110
CL = 3 -A75 105 105 115
-A80 100 100 110
-A10 100 100 110
-A10B 95 100 110
Precharge standby current I
in power down mode I
Precharge standby current
in non power down mode
CC2
P CKE ≤ V
CC2
PS CKE ≤ V
CC2
I
N CKE ≥ V
CC2
I
NS CKE ≥ V
Input signals are changed one time during 30 ns.
IL (MAX.)
, tCK = 15 ns 1 1 1 mA
IL (MAX.)
, tCK =
∞
IH (MIN.)
, tCK = 15 ns, /CS ≥ V
IH (MIN.)
, tCK = ∞,
IH (MIN.)
,
Input signals are stable.
Active standby current I
in power down mode I
Active standby current
in non power down mode
CC3
P CKE ≤ V
CC3
PS CKE ≤ V
CC3
I
N CKE ≥ V
CC3
I
NS CKE ≥ V
Input signals are changed one time during 30 ns.
IL (MAX.)
, tCK = 15 ns 5 5 5 mA
IL (MAX.)
, tCK =
∞
IH (MIN.)
, tCK = 15 ns, /CS ≥ V
IH (MIN.)
, tCK = ∞ ,
IH (MIN.)
,
Input signals are stable.
Operating current I
CC4tCK
≥ t
CK (MIN.)
, Io = 0 mA, CL = 2 -A75 105 120 145 mA 2
(Burst mode) All banks active -A80 105 120 145
-A10 85 95 110
-A10B 75 85 100
CL = 3 -A75 140 155 185
-A80 130 145 175
-A10 110 125 140
-A10B 110 125 140
CBR (auto) refresh current I
CC5tRC
≥ t
RC (MIN.)
CL = 2 -A75 230 230 230 mA 3
-A80 230 230 230
-A10 230 230 230
-A10B 220 220 220
CL = 3 -A75 240 240 240
-A80 230 230 230
-A10 230 230 230
-A10B 220 220 220
Self refresh current I
CC6
CKE ≤ 0.2 V 2 2 2 mA
4
×
8
×
111
20 20 20 mA
888
444
30 30 30 mA
20 20 20
16
×
Notes 1.
CC1
I
depends on output loading and cycle rates. Specified values are obtained with the output open. In
addition to this, I
CC4
2.
I
depends on output loading and cycle rates. Specified values are obtained with the output open. In
addition to this, I
CC5
3.
I
is measured on condition that addresses are changed only one time during t
CC1
is measured condition that addresses are changed only one time during t
CC4
is measured condition that addresses are changed only one time during t
CK (MIN.)
Data Sheet M12650EJBV0DS00
.
CK (MIN.)
CK (MIN.)
.
.
35
µµµµ
PD45128441, 45128841, 45128163

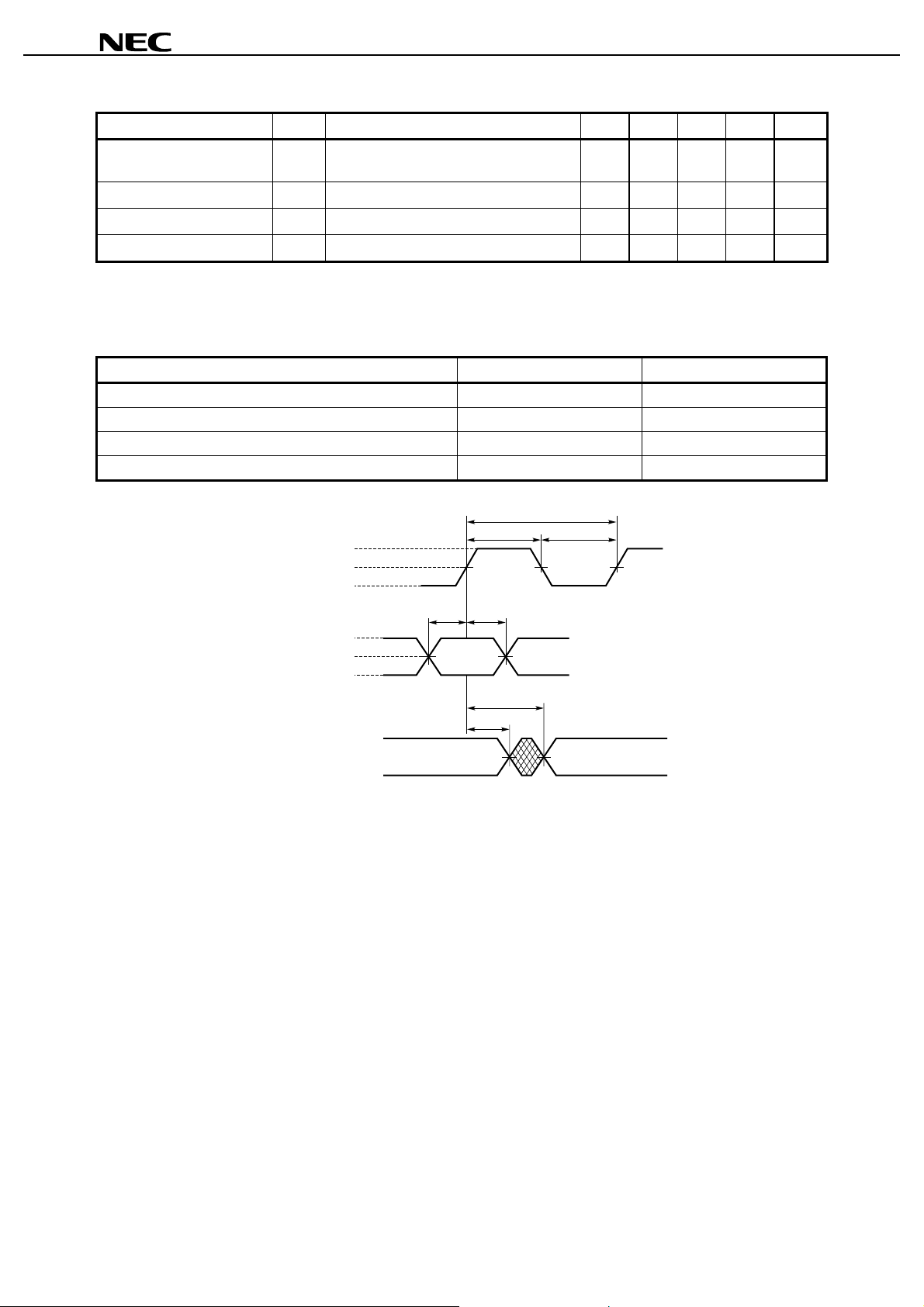

DC Characteristics 2 (Recommended Operating Conditions unless otherwise noted)
Parameter S ymbol Test condition MIN. TYP. MA X. Unit Note
Input leakage current I
I (L)
0 ≤ VI ≤ VCCQ, VCCQ = V
CC
1.0 +1.0
−
All other pins not under test = 0 V
Output leakage current I
High level output voltage V
Low level output voltage V
O (L)
0 ≤ VO ≤ VCCQ, D
OHIO
= −4 mA 2.4 V
OLIO
= +4 mA 0.4 V
OUT
is disabled
1.5 +1.5
−
AC Characteristics (Recommended Operating Conditions unless otherwise noted)
Test Conditions
Parameter Value Unit
AC high level input voltage / low level input vol t age 2.4 / 0.4 V
Input timing m easurement reference level 1.4 V
Transition time (Input rise and fall time) 1 ns
Output timing m easurement reference level 1.4 V
A
µ
A
µ
CLK
Input
Output
2.4 V
1.4 V
0.4 V
2.4 V
1.4 V
0.4 V
t
SETUPtHOLD
t
CK
t
CH
t
AC
t
OH
t
CL
36
Data Sheet M12650EJBV0DS00
Synchronous Characteristics
Parameter Symbol -A75 -A80 -A10 -A10B Unit Note
Clock cycle time /CAS l aten c y = 3 t
/CAS latency = 2 t
Access time from CLK /CAS latency = 3 t
/CAS latency = 2 t
CLK high level width t
CLK low level width t
Data-out hold time t
Data-out low-impedance time t
Data-out high-impedance time /CAS latency = 3 t
/CAS latency = 2 t
Data-in setup time t
Data-in hold time t
Address setup time t
Address hold time t
CKE setup time t
CKE hold time t
CKE setup time (P ower down exit) t
Command (/CS, /RAS, /CAS, /WE, DQM)
setup time
Command (/CS, /RAS, /CAS, /WE, DQM)
hold time
µµµµ
PD45128441, 45128841, 45128163
MIN. MAX. MIN. MAX. MIN. MAX. MIN. MAX.
CK3
CK2
AC3
AC2
CH
CL
OH
HZ3
HZ2
DS
DH
AS
AH
CKS
CKH
CKSP
CMS
t
CMH
t
LZ
(133 MHz)
7.5
(100 MHz)
10
5.4 6 6 7 ns 1
6678ns1
2.53 33.5ns
2.53 33.5ns
3333ns1
0000ns
35.4363637ns
36363738ns
1.52 22.5ns
0.8 1 1 1 ns
1.52 22.5ns
0.8 1 1 1 ns
1.52 22.5ns
0.8 1 1 1 ns
1.52 22.5ns
1.52 22.5ns
0.8 1 1 1 ns
8
10
(125 MHz)
(100 MHz)
10
13
(100 MHz)
(77 MHz)
10
15
(100 MHz)
(67 MHz)
ns
ns
Note 1.
Output load
Z = 50 Ω
Output
50 pF
Data Sheet M12650EJBV0DS00
37
Asynchronous Characteristics
Parameter Symbol -A75 -A80 -A10 -A10B Unit Note
ACT to REF/ACT command period (operation) t
REF to REF/ACT command period (refresh) t
★
ACT to PRE command period t
PRE to ACT command period t
Delay time ACT to READ/WRITE command t
ACT (one) to ACT (another) command period t
Data-in to PRE command period t
Data-in to ACT (REF)
command period
(Auto precharge) /CAS latency = 2 t
Mode register set cycle time t
Transition time t
Refresh time (4,096 refres h cycles) t
/CAS latency = 3 t
µµµµ
PD45128441, 45128841, 45128163
MIN. MAX. MIN. MAX. MIN. MAX. MIN. MAX.
RC
67.5707090ns
RC1
67.5707090ns
RAS
45
120,000
RP
20 20 20 30 ns
RCD
20 20 20 30 ns
RRD
15 16 20 20 ns
DPL
8 8 10 10 ns
DAL3
1CLK
+22.5
DAL2
1CLK
+20
RSC
2222CLK
T
0.5 30 0.5 30 1 30 1 30 ns
REF
48
1CLK
+20
1CLK
+20
120,000
50
1CLK
+20
1CLK
+20
120,000
60
1CLK
+30
1CLK
+30
120,000
ns
64 64 64 64 ms
ns 1
ns
Note 1.
The –A75 grade device can satisfy the t
DAL3
spec of 1CLK+20 ns for up to and including 125MHz operation.
38
Data Sheet M12650EJBV0DS00
CKH
t
µµµµ
PD45128441, 45128841, 45128163
Activate
Command
for Bank A
HZ
t
OH
t
AC
t
AC
t
AC
t
AC
t
RP
OH
t
t
OH
t
Precharge
Command
for Bank A
OH
t
LZ
t
RC
t
RAS
t
Read
Command
for Bank A
RCD
t
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13
CMH
t
CL
CMS
t
CK
t
CLK
t
CH
t
CKS
t
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
ADD
AH
t
AS
t
L
Hi-Z
DQM
DQ
13.1 AC Parameters for Read Timing (Manual Precharge, Burst Length = 4, /CAS Latency = 3)
Data Sheet M12650EJBV0DS00
Activate
Command
for Bank A
39
,
,
,
,
CKH
t
µµµµ
PD45128441, 45128841, 45128163
Activate
Command
for Bank C
HZ
t
OH
t
AC
t
OH
t
AC
t
OH
t
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13
Activate
Command
for Bank D
AC
t
OH
t
Auto Precharge
Start for Bank C
AC
t
LZ
t
RC
t
RAS
RRD
t
t
Read with
Command
for Bank C
Auto Precharge
RCD
t
CMH
t
CL
CMS
t
CK
t
t
CH
t
CKS
t
AH
t
AS
t
L
Hi-Z
Activate
Command
for Bank C
40
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
ADD
DQM
DQ

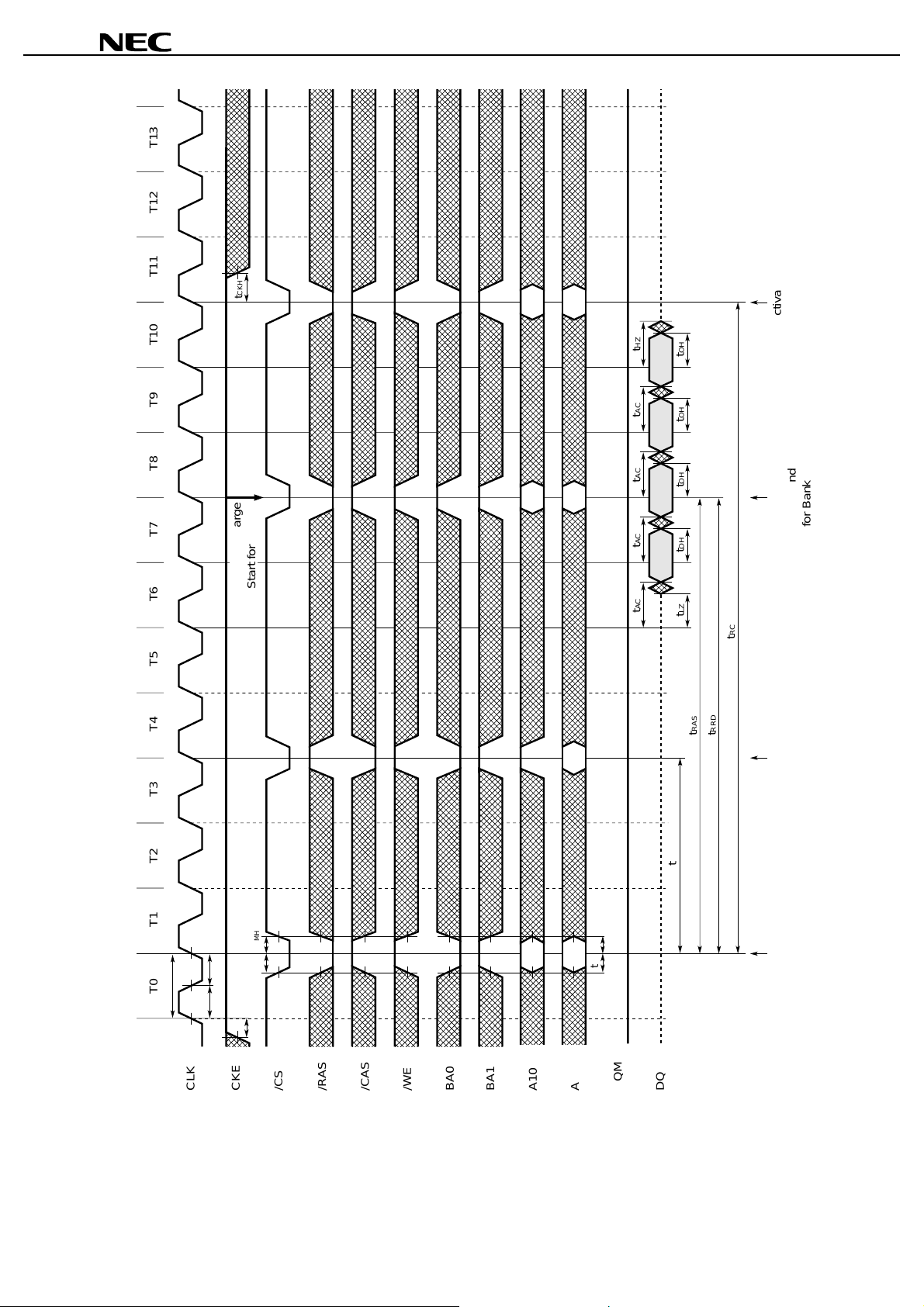

AC Parameters for Read Timing (Auto Precharge, Burst Length = 4, /CAS Latency = 3)
Data Sheet M12650EJBV0DS00
,
,
,
,,
,,
,,
,,
,,
,,
,,
CKH
,
,
,
,
,
t
µµµµ
PD45128441, 45128841, 45128163
Activate
Command
for Bank B
RP
t
Precharge
Command
DPL
t
for Bank B
Auto Precharge
Start for Bank C
CMH
t
CMS
t
Activate
Command
for Bank C
DAL
t
RAS
t
RC
t
Write
Command
for Bank B
RCD
t
RC
t
Activate
Command
for Bank B
DH
t
DS
t
RRD
t
RCD
t
AH
t
AS
t
Write with
for Bank C
Command
Auto Precharge
Activate
Command
for Bank C
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
13.2 AC Parameters for Write Timing (Burst Length = 4, /CAS Latency = 3)
CLK
CKS
t
CKE
/CS
/RAS
/WE
BA0
/CAS
Data Sheet M12650EJBV0DS00
BA1
A10
ADD
L
DQM
Hi-Z
DQ
41
µµµµ
PD45128441, 45128841, 45128163
13.3 Relationship between Frequency and Latency
Speed version -75 -80 -10 -10B
Clock cycle time [ns] 7.5 10 8 10 10 13 10 15
Frequency [MHz] 133 100 125 100 100 77 100 67
/CAS latency 32323232
RCD
[t
] 32322232
/RAS latency (/CAS latency + [t
[tRC] 97977696
RC1
[t
] 97978696
RAS
[t
] 65655464
RRD
[t
] 22222222
[tRP] 32322232
DPL
[t
] 21111111
DAL
[t
] 43433343
RSC
[t
] 22222222
RCD
]) 64645464
42
Data Sheet M12650EJBV0DS00
µµµµ
PD45128441, 45128841, 45128163
RSC
t
2 CLK (MIN.)
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
H
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
13.4 Mode Register Set (Burst Length = 4, /CAS Latency = 2)
Data Sheet M12650EJBV0DS00
BA1
ADDRESS KEY
A10
ADD
DQM
Hi-Z
DQ
is valid
Activate
Command
Mode
Command
Register Set
All Banks
Command
Precharge
43
RP
t
,
,
2 refresh cycles are necessary
µµµµ
PD45128441, 45128841, 45128163
Activate
Command
RC1
t
RSC
t
ADDRESS KEY
Refresh
Command
CBR (Auto)
is necessary
Refresh
Command
CBR (Auto)
is necessary
Mode
Command
Register Set
is necessary
RC1
t
RP
t
High level is necessary
Clock cycle is necessary
CLK
CKE
/CS
/RAS
/CAS
/WE
13.5 Power On Sequence and CBR (Auto) Refresh
44
Data Sheet M12650EJBV0DS00
BA0
BA1
A10
ADD
Hi-Z
High level is necessary
DQM
DQ
All Banks
Command
Precharge
is necessary
µµµµ
PD45128441, 45128841, 45128163
Precharge
Command
for Bank A
Write
Command
for Bank A
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
H
CLK
CKE
/CS
/RAS
/CAS
/WE
13.6 /CS Function (Burst Length = 4, /CAS Latency = 3)
Only /CS signal needs to be issued at minimum rate
L
BA0
L
BA1
RAa
A10
RAa CAa CAb
ADD
L
DQM
Hi-Z
QAa1 QAa2 QAa3 QAa4 DAb1 DAb2 DAb3 DAb4
DQ
Read
Command
for Bank A
Activate
Command
for Bank A
Data Sheet M12650EJBV0DS00
45
µµµµ
PD45128441, 45128841, 45128163
Hi-Z (turn off)
at the end of burst
3-CLOCK
SUSPENDED
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
RAa
CAa
RAa
2-CLOCK
SUSPENDED
1-CLOCK
SUSPENDED
QAa1 QAa2 QAa3 QAa4
Read
Command
for Bank A
Activate
Command
L
Hi-Z
for Bank A
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
ADD
DQM
DQ
13.7 Clock Suspension during Burst Read (using CKE Function) (1/2) (Burst Length = 4, /CAS Latency = 2)
46
Data Sheet M12650EJBV0DS00
µµµµ
PD45128441, 45128841, 45128163
Hi-Z (turn off)
at the end of burst
3-CLOCK
SUSPENDED
CAa
QAa1 QAa2 QAa3 QAa4
2-CLOCK
SUSPENDED
1-CLOCK
SUSPENDED
Read
Command
for Bank A
RAa
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
RAa
A10
ADD
L
DQM
Hi-Z
DQ
Activate
Command
Clock Suspension during Burst Read (using CKE Function) (2/2) (Burst Length = 4, /CAS Latency = 3)
Data Sheet M12650EJBV0DS00
for Bank A
47
µµµµ
PD45128441, 45128841, 45128163
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
RAa
CAa
RAa
3-CLOCK
SUSPENDED
2-CLOCK
SUSPENDED
1-CLOCK
SUSPENDED
DAa1 DAa2 DAa3 DAa4
L
Hi-Z
Write
Command
for Bank A
Activate
Command
for Bank A
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
ADD
DQM
DQ

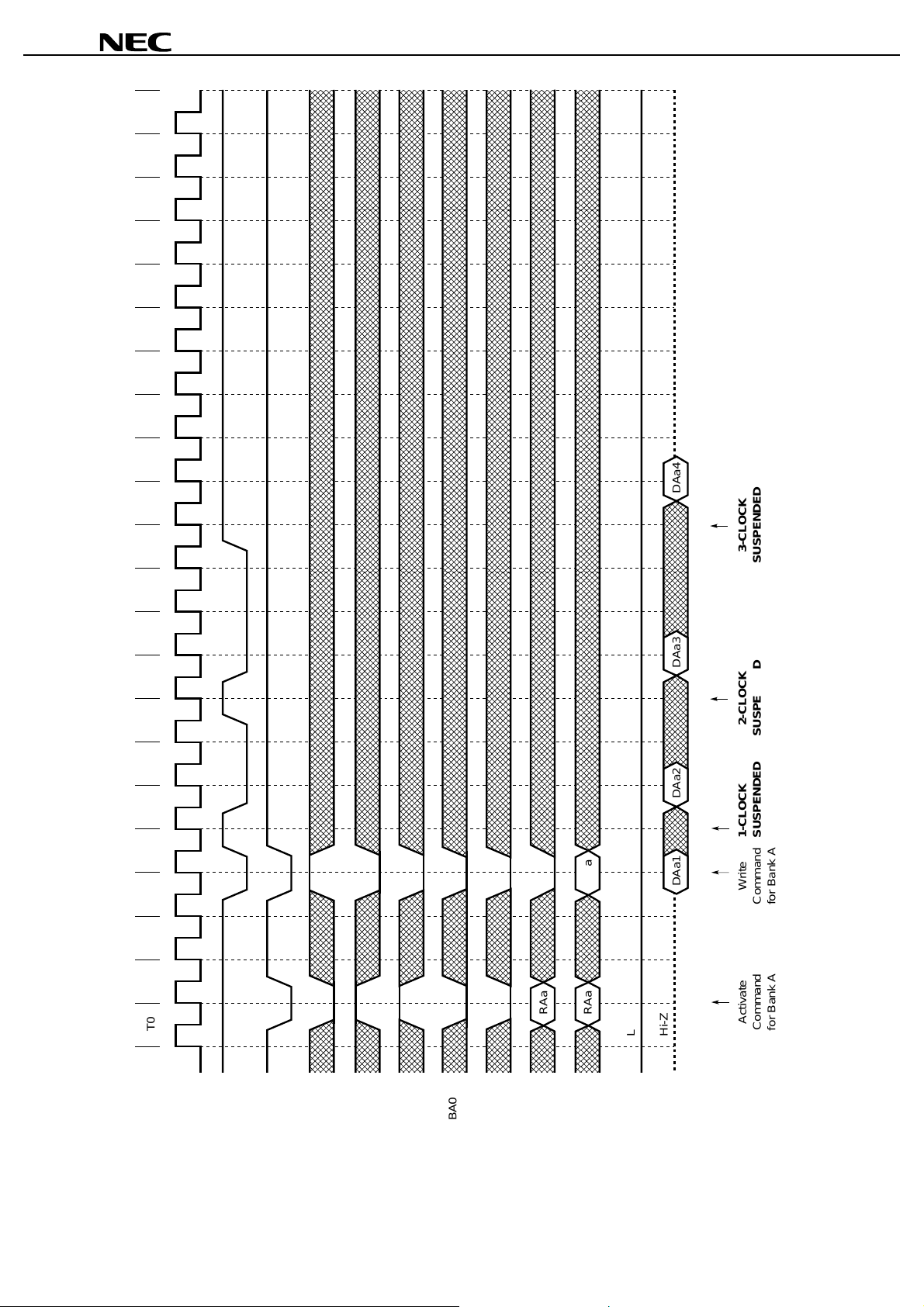

13.8 Clock Suspension during Burst Write (using CKE Function) (1/2) (Burst Length = 4, /CAS Latency = 2)
48
Data Sheet M12650EJBV0DS00
µµµµ
PD45128441, 45128841, 45128163
CAa
DAa1 DAa2 DAa3 DAa4
3-CLOCK
SUSPENDED
2-CLOCK
SUSPENDED
1-CLOCK
SUSPENDED
Write
Command
for Bank A
RAa
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
RAa
A10
ADD
L
DQM
Hi-Z
DQ
Activate
Command
Clock Suspension during Burst Write (using CKE Function) (2/2) (Burst Length = 4, /CAS Latency = 3)
Data Sheet M12650EJBV0DS00
for Bank A
49
CKSP
t
VALID
µµµµ
PD45128441, 45128841, 45128163
Mode Exit
Power Down
Precharge
Command
for Bank A
Mode Entry
QAa4
Power Down
PRECHARGE STANDBY
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
CKSP
t
RAa
CAa
RAa
End
Clock Mask
QAa3
Start
QAa1 QAa2
Read
Command
Activate
L
Hi-Z
Command
Clock Mask
for Bank A
Power Down
Power Down
for Bank A
Mode Exit
ACTIVE STANDBY
Mode Entry
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
ADD

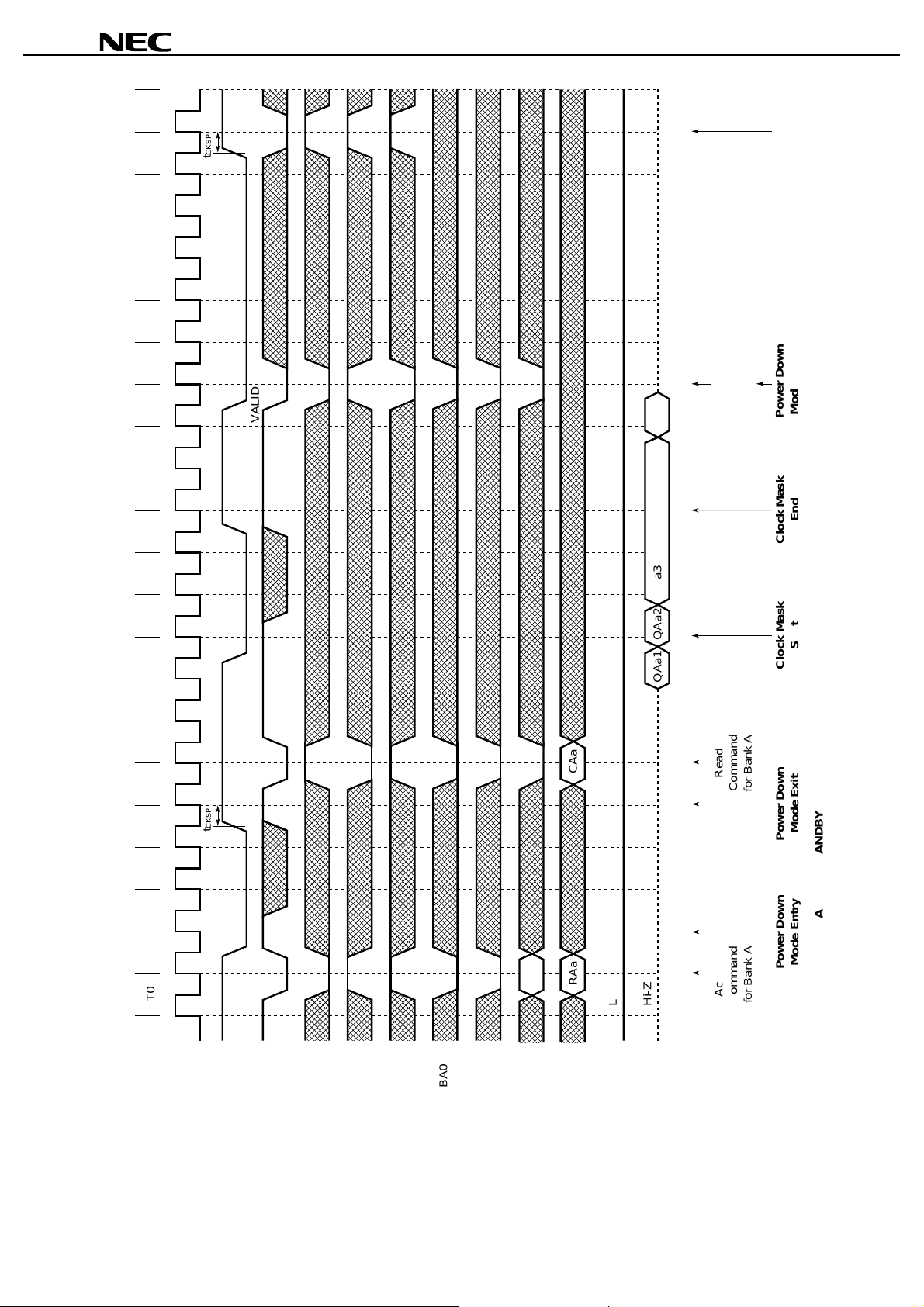

13.9 Power Down Mode and Clock Mask (Burst Length = 4, /CAS Latency = 2)
50
Data Sheet M12650EJBV0DS00
DQM
DQ
µµµµ
PD45128441, 45128841, 45128163
Q1
Read
Command
Command
CLK
H
CKE
T0 T1 T2 T3 T4 T5 T6 Tn Tn + 1Tn + 2Tn + 3Tn + 4Tn + 5Tn + 6TmTm + 1Tm + 2Tm + 3Tm + 4Tm + 5Tm + 6Tm + 7

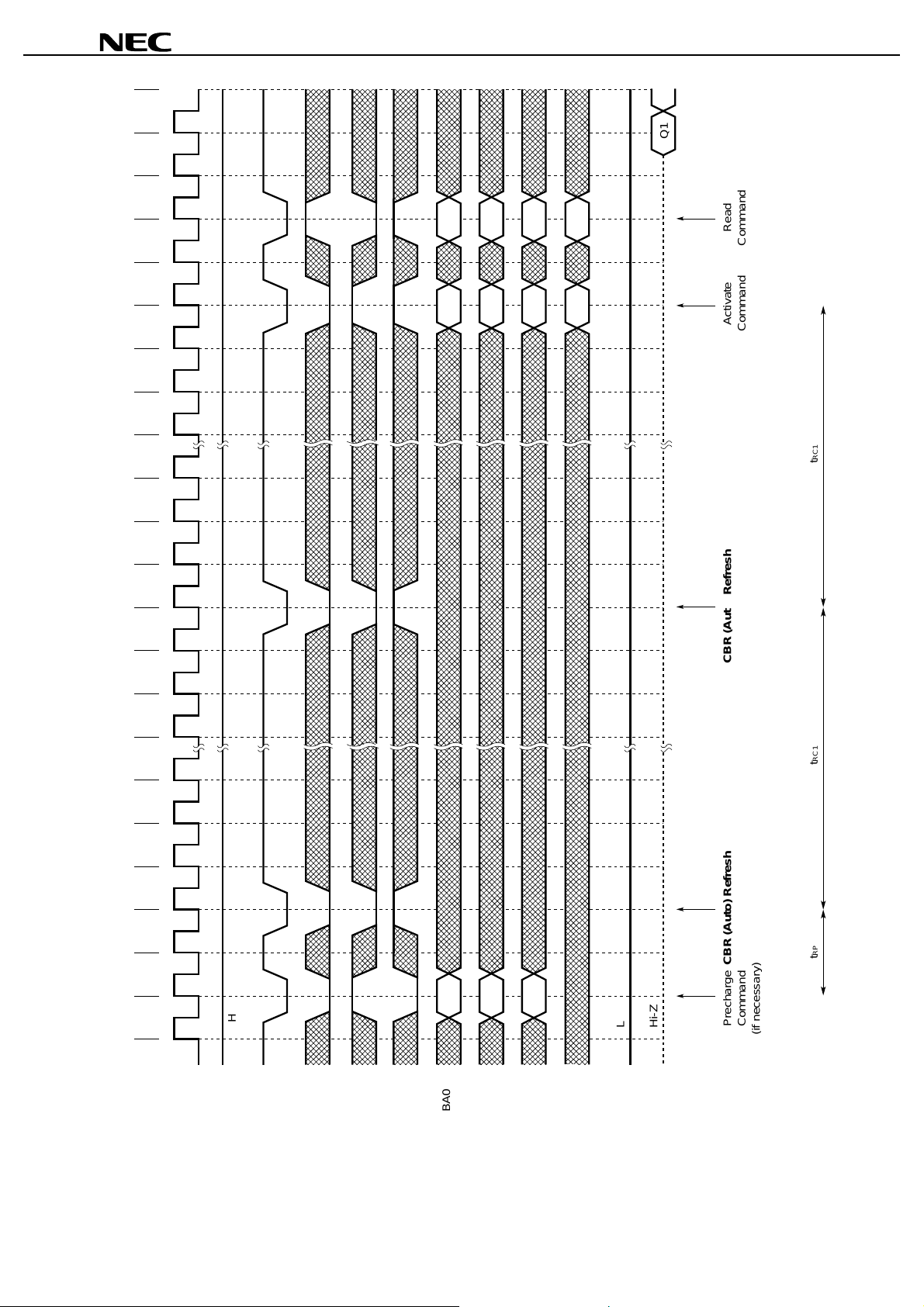

13.10 CBR (Auto) Refresh
/CS
/RAS
/CAS
/WE
Data Sheet M12650EJBV0DS00
BA0
BA1
A10
ADD
L
DQM
Hi-Z
DQ
CBR (Auto) Refresh CBR (Auto) Refresh Activate
Precharge
Command
(if necessary)
51
RC1 tRC1
t
tRP
4
,
,
,
+
3Tk
+
2Tk
+
1Tk
+
1TkTk
+
µµµµ
PD45128441, 45128841, 45128163
Activate
Command
Enable
Next Clock
Exit
Self Refresh
Entry
Self Refresh
RC1
t
2TmTm
+
1Tn
+
(or Activate Command)
Enable
Next Clock
Exit
Self Refresh
Entry
Self Refresh
Precharge
Command
(if necessary)
RC1
t
RP
t
T0 T1 T2 T3 T4 Tn Tn
CLK
CKE
/CS

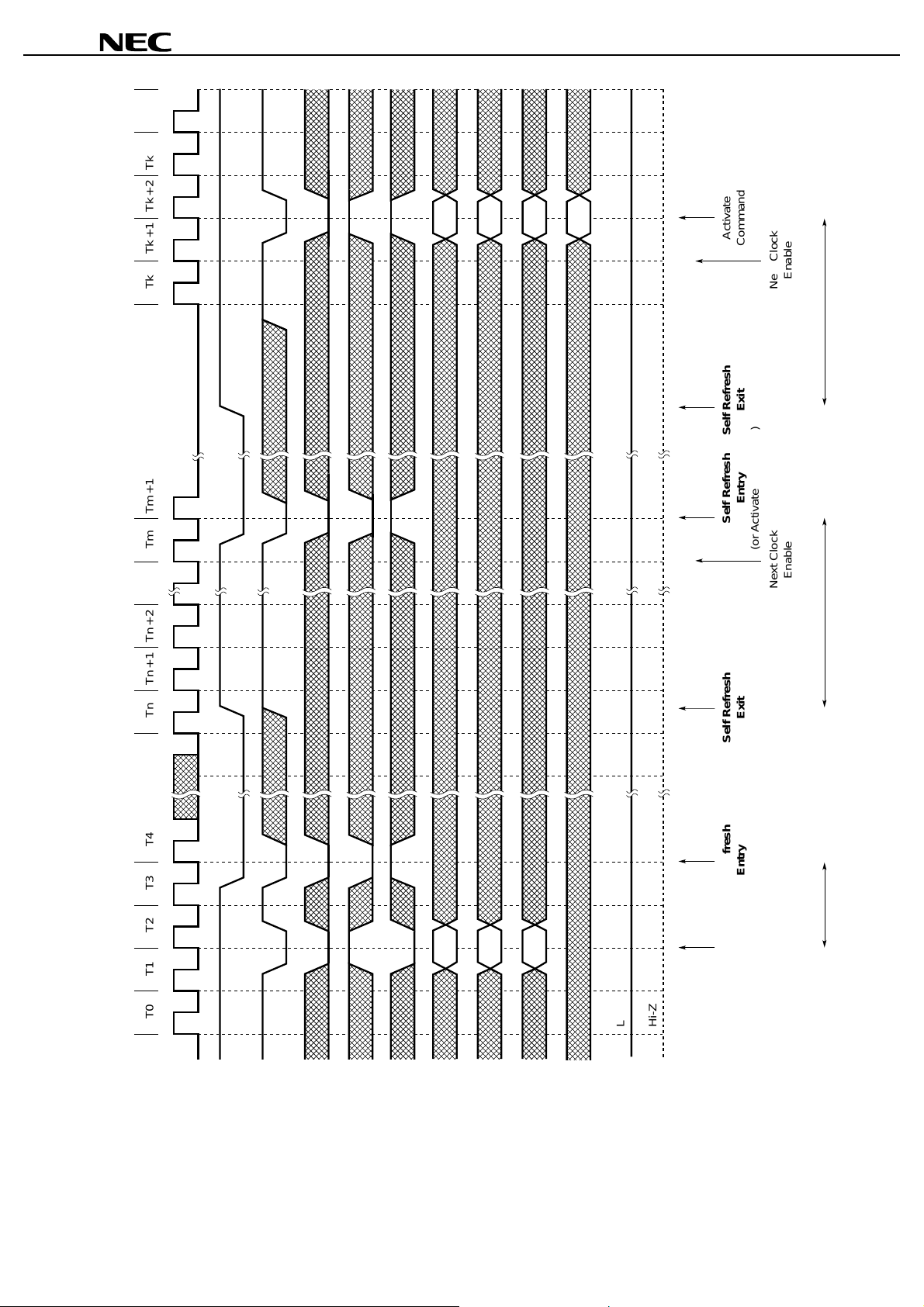

13.11 Self Refresh (Entry and Exit)
52
/RAS
/CAS
/WE
BA0
Data Sheet M12650EJBV0DS00
BA1
A10
ADD
L
DQM
Hi-Z
DQ
µµµµ
PD45128441, 45128841, 45128163
Read
Command
for Bank A
RAd
QAa3 QAa4 QAb1 QAb2 QAc1 QAc2 QAc3 QAc4 QAd1 QAd2 QAd3
QAa1 QAa2
Activate
Command
for Bank A
Precharge
Command
for Bank A
Read
Command
for Bank A
Read
Command
for Bank A
RAa
RAa CAdCAcCAa RAdCAb
CLK
H
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
ADD
L
DQM
Hi-Z
DQ
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21

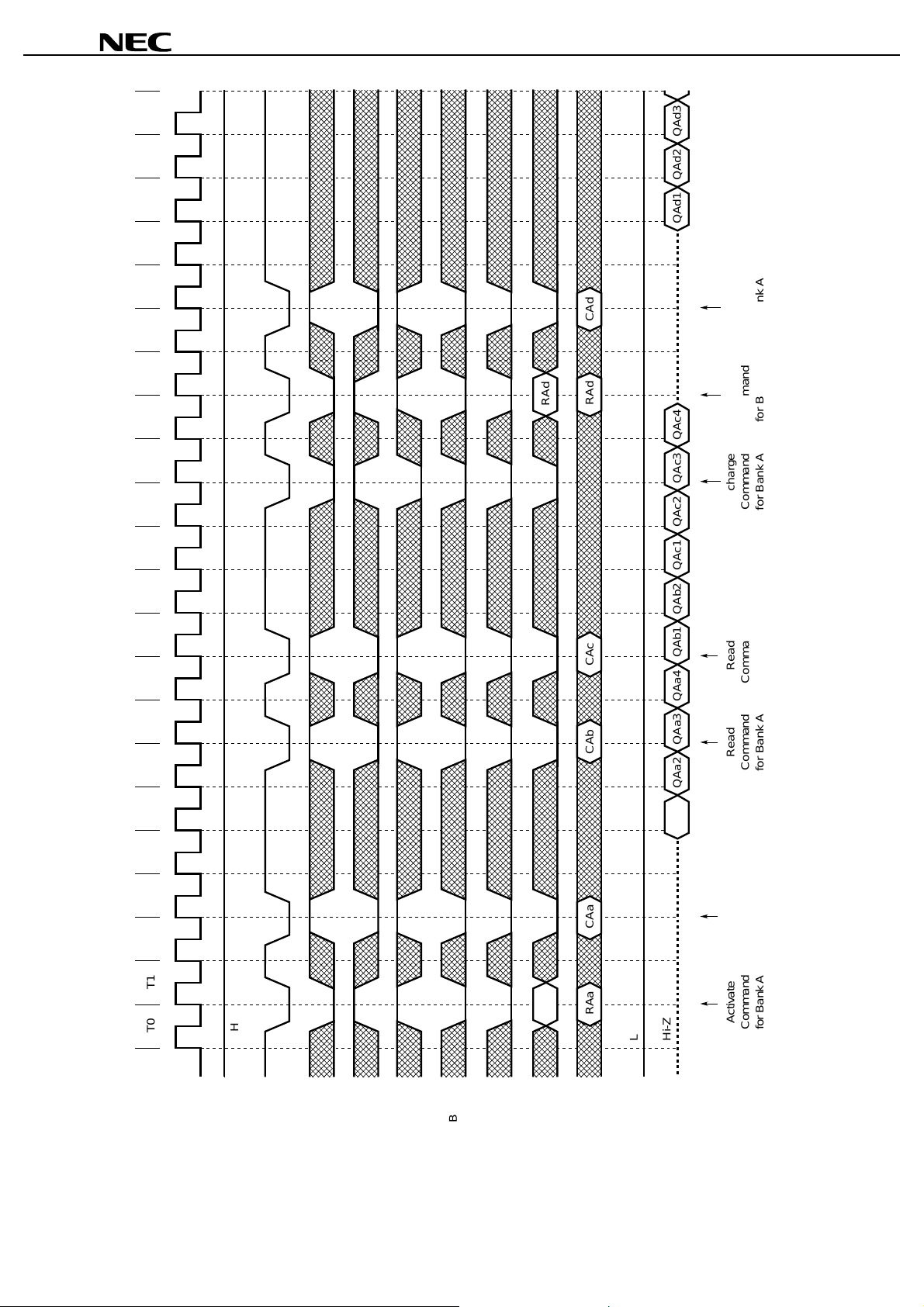

13.12 Random Column Read (Page with Same Bank) (1/2) (Burst Length = 4, /CAS Latency = 2)
Data Sheet M12650EJBV0DS00
Read
Command
for Bank A
Activate
for Bank A
Command
53
µµµµ
PD45128441, 45128841, 45128163
Read
Command
for Bank A
RAa
RAaCAb
Activate
Command
for Bank A
Precharge
Command
for Bank A
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
Read
Command
for Bank A
QAa3 QAa4 QAb1 QAb2 QAc1 QAc2 QAc3 QAc4
Read
Command
for Bank A
QAa1 QAa2
CAa
RAa
H
RAa CAaCAc
Hi-Z
L
Read
Command
Activate
Command
for Bank A
for Bank A
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
ADD
DQM

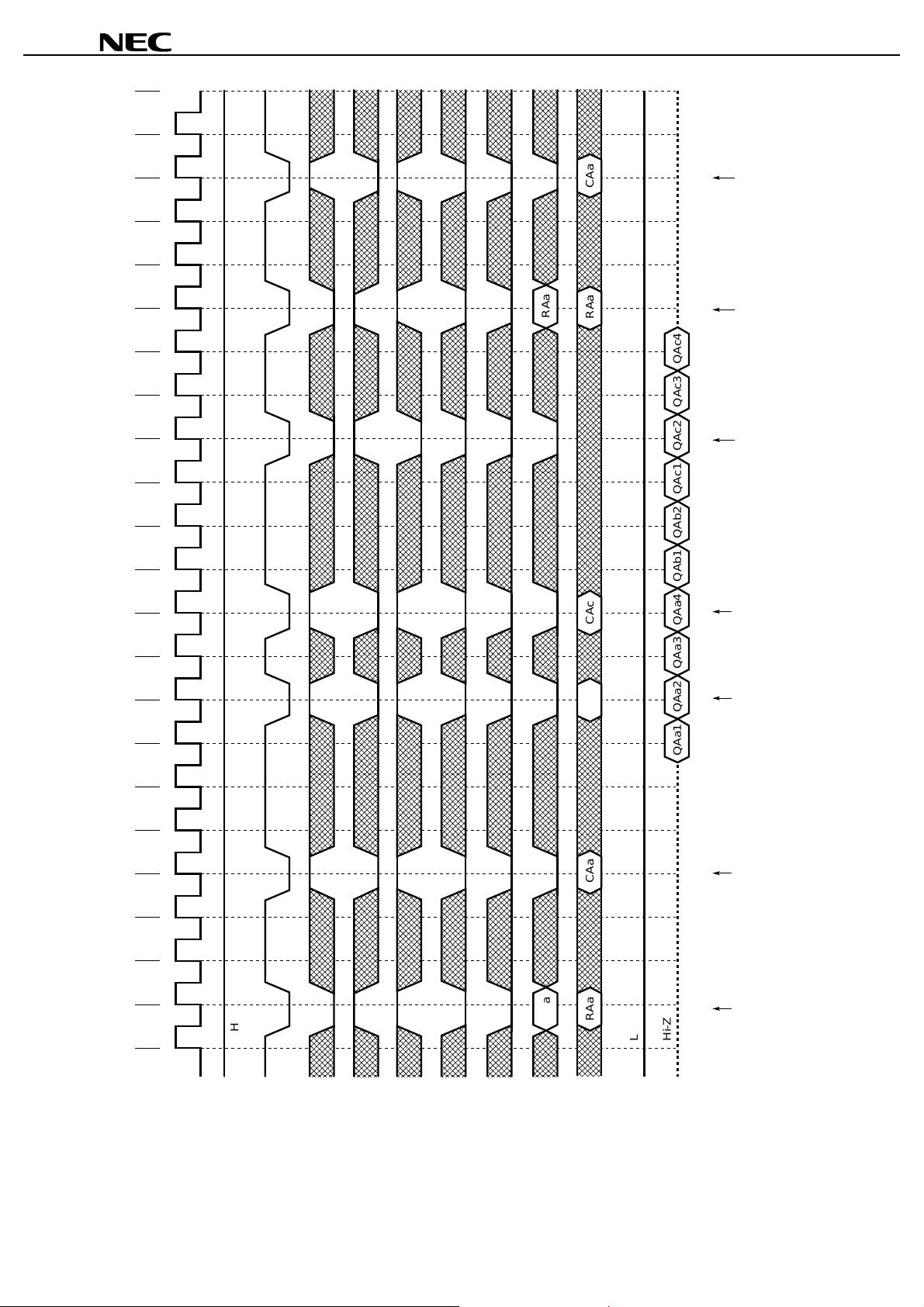

Random Column Read (Page with Same Bank) (2/2) (Burst Length = 4, /CAS Latency = 3)
54
Data Sheet M12650EJBV0DS00
DQ
µµµµ
,
,
,
,
,
PD45128441, 45128841, 45128163
DDd4
Write
Command
for Bank D
RDd
DDa3 DDa4 DDb1 DDb2 DDc1 DDc2 DDc3 DDc4 DDd1 DDd2 DDd3
Activate
Command
for Bank D
Precharge
Command
for Bank D
Write
Command
for Bank D
Write
Command
for Bank D
DDa1 DDa2
RDa CDdCDcCDa RDdCDb
RDa
CLK
H
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
ADD
L
DQM
Hi-Z
DQ
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21

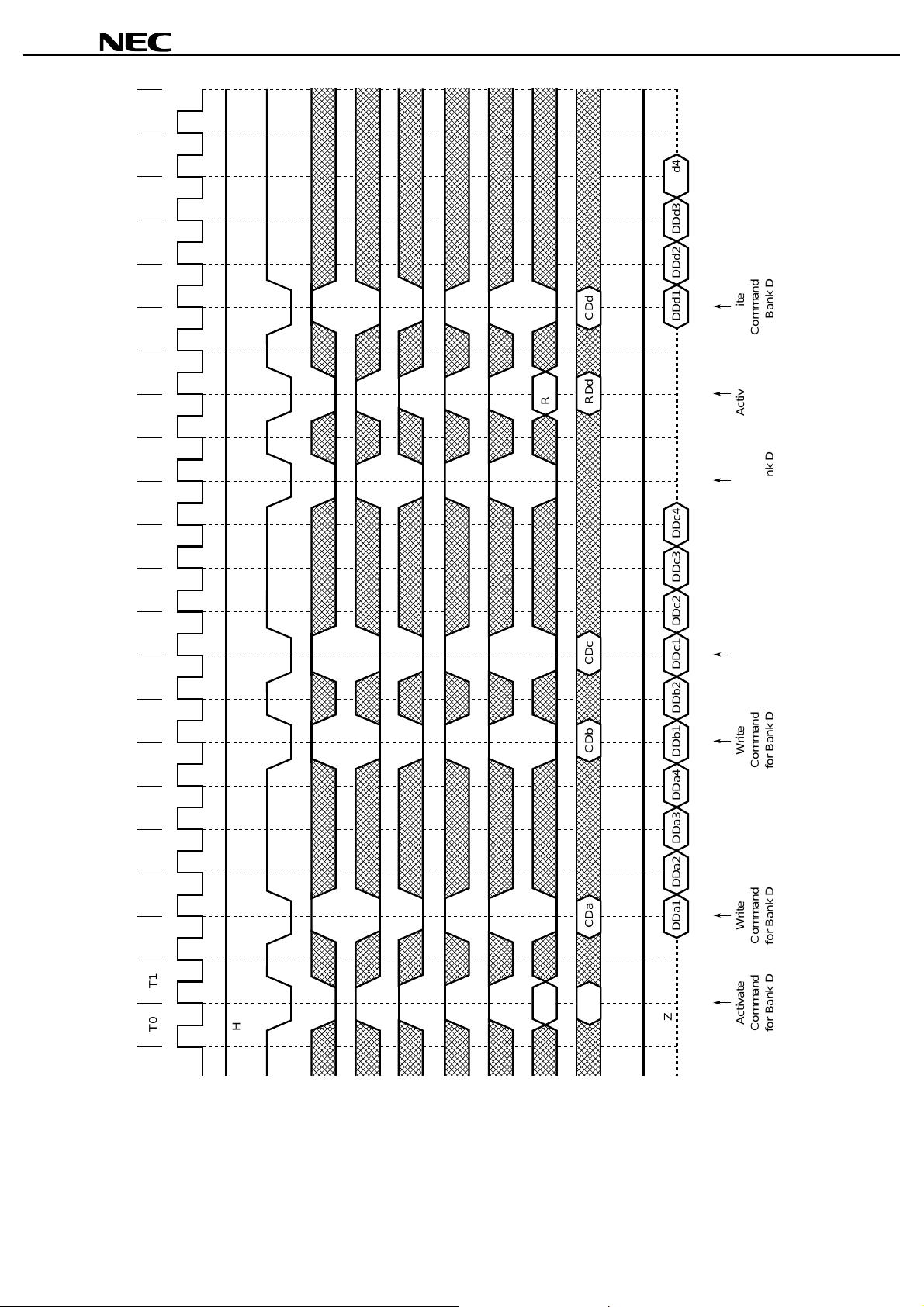

13.13 Random Column Write (Page with Same Bank) (1/2) (Burst Length = 4, /CAS Latency = 2)
Data Sheet M12650EJBV0DS00
Write
Command
for Bank D
Activate
Command
for Bank D
55
µµµµ
PD45128441, 45128841, 45128163
DDd2
RDd
DDd1
Write
Command
for Bank D
Activate
Command
for Bank D
Precharge
Command
for Bank D
Write
Command
for Bank D
RDa
A10
RDa CDdCDcCDa RDdCDb
ADD
L
DQM
Hi-Z
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21

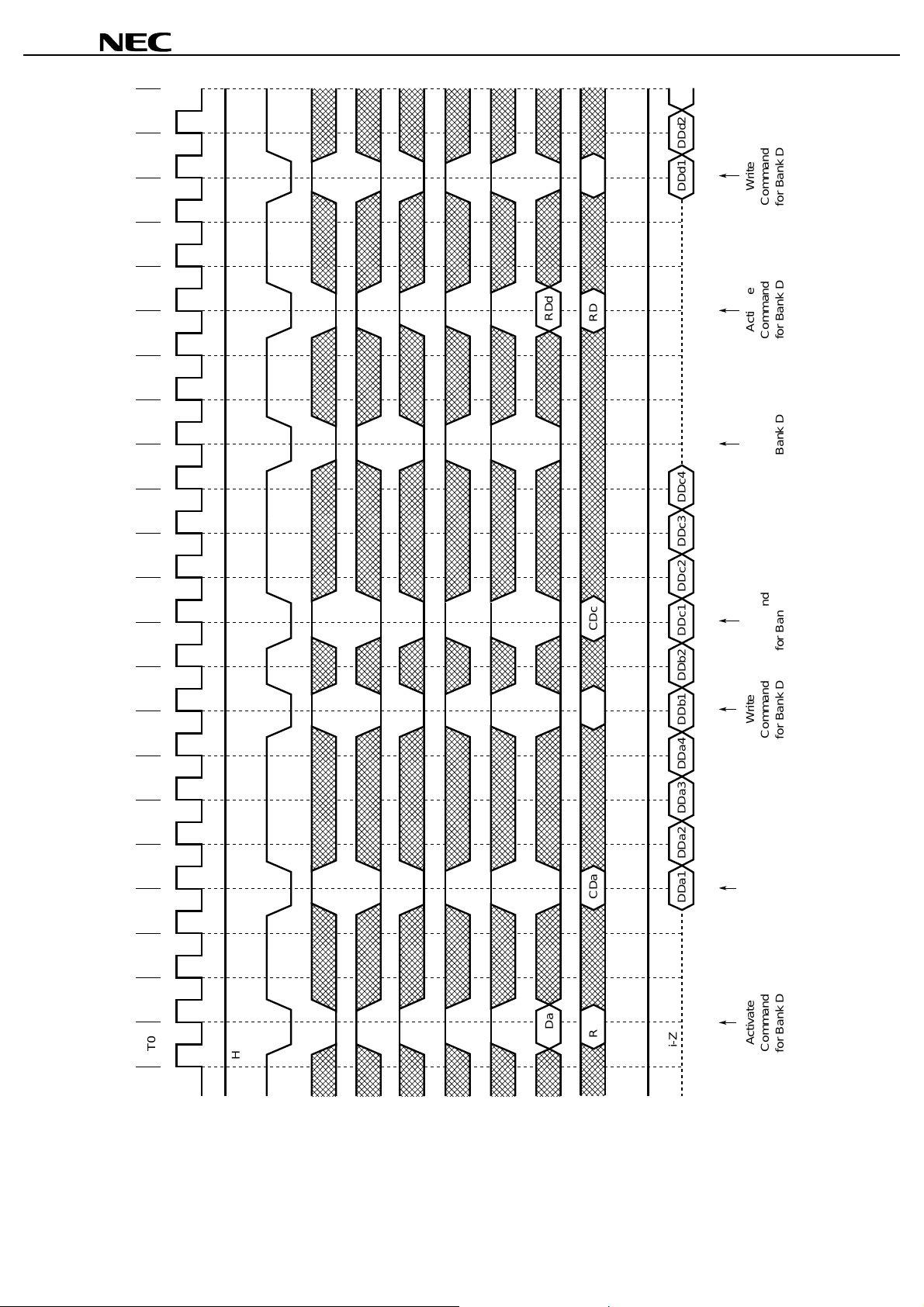

Random Column Write (Page with Same Bank) (2/2) (Burst Length = 4, /CAS Latency = 3)
CLK
H
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
DDa3 DDa4 DDb1 DDb2 DDc1 DDc2 DDc3 DDc4
DDa1 DDa2
DQ
Write
Command
for Bank D
Write
Command
for Bank D
Activate
Command
for Bank D
56
Data Sheet M12650EJBV0DS00
µµµµ
PD45128441, 45128841, 45128163
Read
Command
for Bank D
QBa6 QBa7 QBa8
RDb
RBa
QDa3 QDa4 QDa5 QDa6 QDa7 QDa8 QBa1 QBa2 QBa3 QBa4 QBa5
QDa1 QDa2
Activate
Command
for Bank D
Read
Command
for Bank B
Activate
Command
for Bank B
Precharge
Command
for Bank D
RDa CDbCBaCDa RDbRBa
RDa
CLK
H
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
ADD
L
DQM
Hi-Z
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21

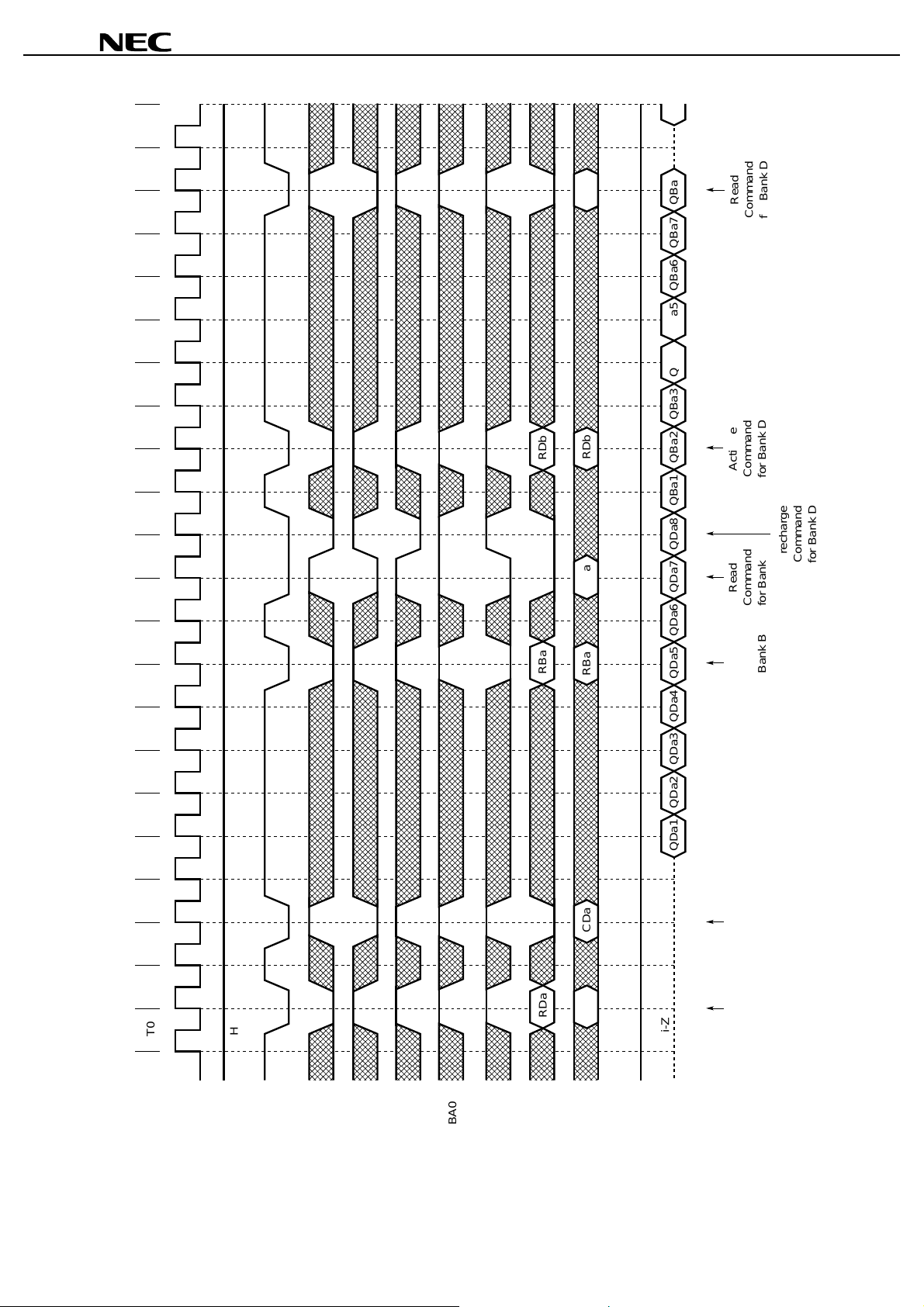

13.14 Random Row Read (Ping-Pong Banks) (1/2) (Burst Length = 8, /CAS Latency = 2)
Data Sheet M12650EJBV0DS00
DQ
Read
Command
for Bank D
Activate
Command
for Bank D
57
µµµµ
,,
,
,,
,,
,,
,,
,
,,
,,
,,
,,
,,
PD45128441, 45128841, 45128163
Precharge
Command
for Bank A
RBb
QAa6 QAa7
Read
Command
for Bank B
Activate
Command
for Bank B
Precharge
Command
for Bank B
Read
Command
for Bank A
RAa
RBa
RBa CBbCAaCBa RBbRAa
CLK
H
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
ADD
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
Random Row Read (Ping-Pong Banks) (2/2) (Burst Length = 8, /CAS Latency = 3)
L
DQM
QBa3 QBa4 QBa5 QBa6 QBa7 QBa8 QAa1 QAa2 QAa3 QAa4 QAa5
QBa1 QBa2
Hi-Z
DQ
Activate
Command
for Bank A
Read
Command
for Bank B
Activate
Command
for Bank B
58
Data Sheet M12650EJBV0DS00
µµµµ
PD45128441, 45128841, 45128163
RAb
RAb
DAb2 DAb3
Write
Command
for Bank A
Activate
Command
for Bank A
Write
Command
for Bank D
Precharge
Command
for Bank D
Command
for Bank A
Precharge
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
RDa
RAa
RAa CAbCDaCAa RDa
H
DAa7 DAa8 DDa1 DDa2 DDa3 DDa4 DDa5 DDa6 DDa7 DDa8 DAb1
DAa5 DAa6
DAa1 DAa2 DAa3 DAa4
L
Hi-Z
Activate
Command
for Bank D
Write
Command
for Bank A
Activate
Command
for Bank A
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
ADD
DQM

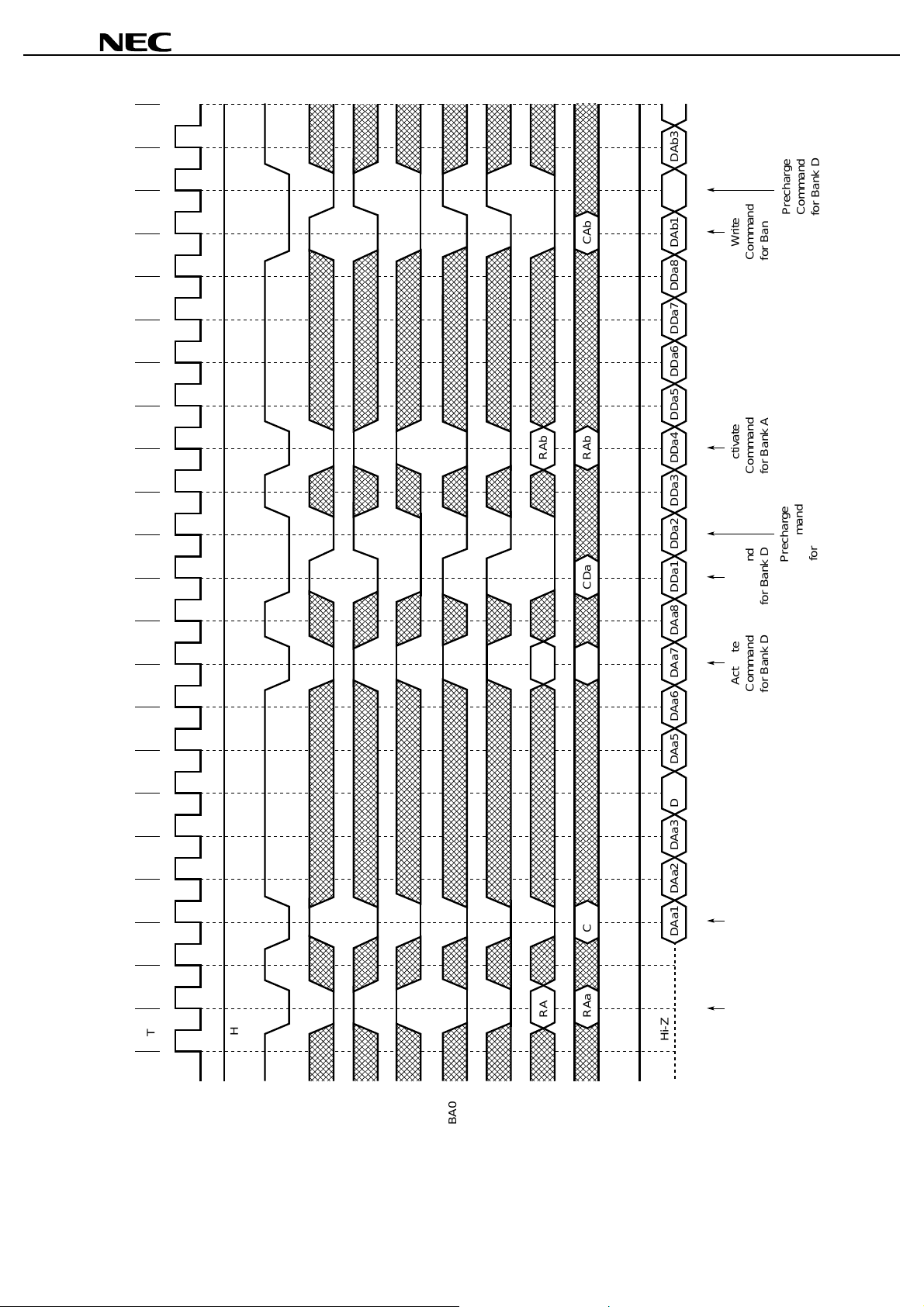

13.15 Random Row Write (Ping-Pong Banks) (1/2) (Burst Length = 8, /CAS Latency = 2)
Data Sheet M12650EJBV0DS00
DQ
59
µµµµ
,
,
,,
,,
,,
,,
,,
,,
,
,
,
,
PD45128441, 45128841, 45128163
Precharge
Command
for Bank D
Write
Command
for Bank A
DDa8 DAb1 DAb2
RAb
RAb
Activate
Command
for Bank A
DDa4
Precharge
Command
for Bank A
RDa
CAa
DAa5 DAa6 DAa7 DAa8 DDa1 DDa2 DDa3 DDa5 DDa6 DDa7
DAa3 DAa4
DAa1 DAa2
Write
Command
for Bank D
Activate
Command
for Bank D
Write
Command
for Bank A
RAa
RAa CAbCDaRDa
CLK
H
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
ADD
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
Random Row Write (Ping-Pong Banks) (2/2) (Burst Length = 8, /CAS Latency = 3)
60
Data Sheet M12650EJBV0DS00
L
DQM
Hi-Z
DQ
Activate
Command
for Bank A
µµµµ
PD45128441, 45128841, 45128163
Read
Command
for Bank A
DAb4
Write Latency = 0
CAa
Word Masking
QAa3 QAa4 DAb1 DAb2 QAc1 QAc2 QAc4
QAa1 QAa2
Write
Command
Read
Command
0-Clock Latency 2-Clock Latency
for Bank A
Hi-Z at the end of wrap function
for Bank A
CLK
H
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
13.16 Read and Write (1/2) (Burst Length = 4, /CAS Latency = 2)
Data Sheet M12650EJBV0DS00
RAa
A10
RAa CAcCAb
ADD
L
DQM
Hi-Z
DQ
Activate
Command
for Bank A
61
µµµµ
PD45128441, 45128841, 45128163
Read
Command
for Bank A
DAb4
Write Latency = 0
CAa
Word Masking
QAa3 QAa4 DAb1 DAb2 QAc1 QAc2
QAa1 QAa2
Write
Command
for Bank A
Read
Command
for Bank A
0-Clock Latency
Hi-Z at the end of wrap function 2-Clock Latency
CLK
H
CKE
/CS
/RAS
/CAS
/WE
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
Read and Write (2/2) (Burst Length = 4, /CAS Latency = 3)
62
Data Sheet M12650EJBV0DS00
BA0
BA1
RAa
A10
RAa CAcCAb
ADD
L
DQM
Hi-Z
DQ
Activate
Command
for Bank A
µµµµ
PD45128441, 45128841, 45128163
Precharge
Command
Precharge
Command
CDd
Ab1 Ab2Db1 Db2
Read
Command
for Bank D
Read
Command
for Bank A
for Bank D
for Bank A
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
Read
Command
for Bank D
Read
Command
for Bank D
CDa CDb CDc CAb
RDa
CAa
RAa RDa
RAa
H
Aa3 Aa4 Da1 Da2 Dc1 Dc2 Dd1 Dd2 Dd3 Dd4
Aa1 Aa2
L
Hi-Z
Read
Command
for Bank D
Read
Command
for Bank A
Activate
Command
for Bank A
Activate
Command
for bank D
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
ADD
13.17 Interleaved Column Read Cycle (1/2) (Burst Length = 4, /CAS Latency = 2)
Data Sheet M12650EJBV0DS00
DQM
DQ
63
µµµµ
PD45128441, 45128841, 45128163
Precharge
Command
Ab1 Ab2Db1 Db2
Read
Command
for Bank A
Precharge
Command
for Bank D
for Bank A
RDa
CDc
CDb
RDa CDaCAa
Aa3 Aa4 Da1 Da2 Dc1 Dc2 Ab3 Ab4
Aa1 Aa2
Read
Command
Read
Command
Read
Command
Read
Command
for Bank D
for Bank D
for Bank D
Activate
Command
for Bank A
for Bank D
RAa
CLK
H
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21

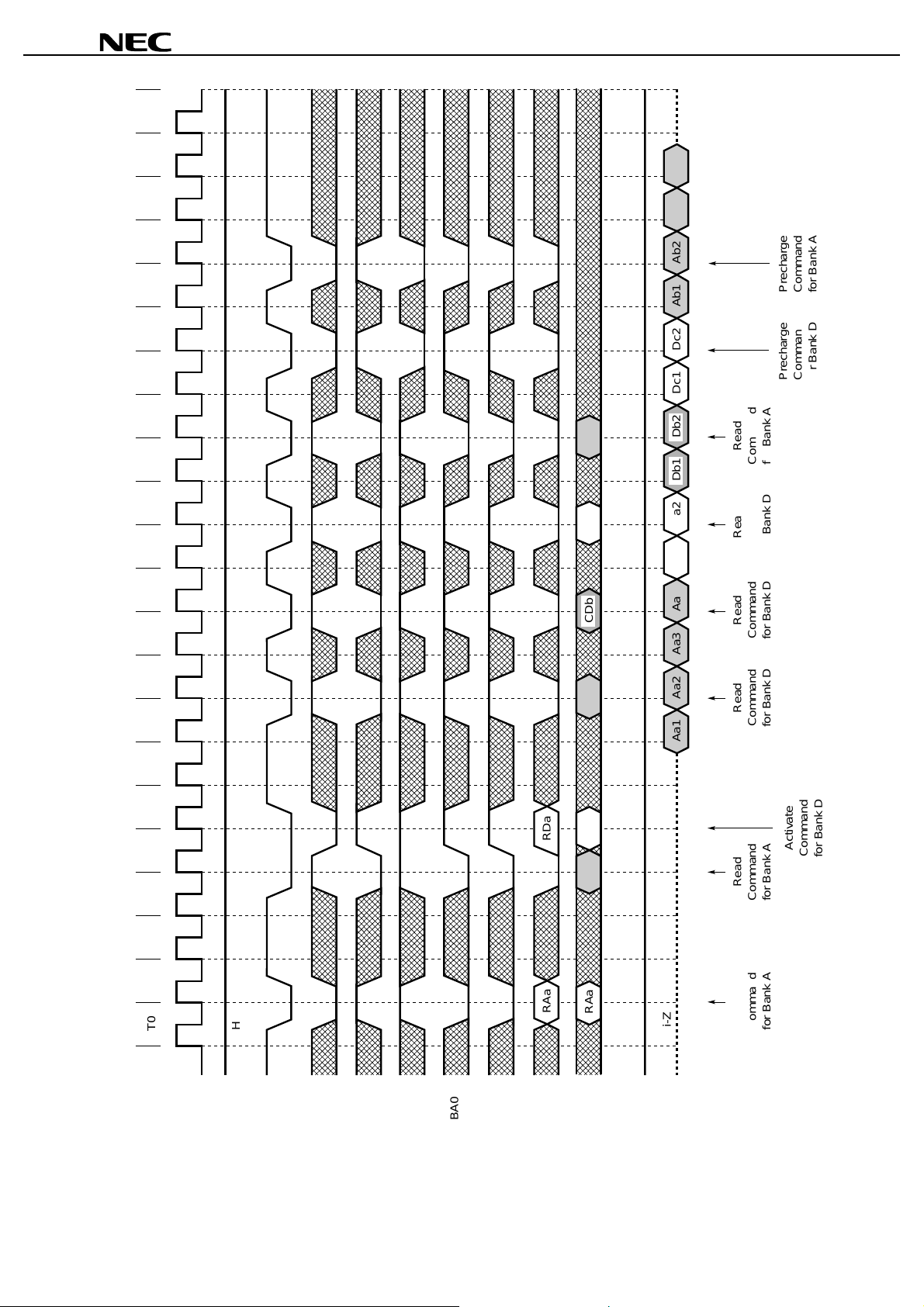

Interleaved Column Read Cycle (2/2) (Burst Length = 4, /CAS Latency = 3)
64
Data Sheet M12650EJBV0DS00
RAa CAb
ADD
L
DQM
Hi-Z
DQ
Activate
Command
for Bank A
µµµµ
,
,
,
,
,
,
,
,
,
,
,
PD45128441, 45128841, 45128163
Precharge
Command
for Bank B
Precharge
Command
for Bank A
CBd
Write
Command
for Bank B
RBa
CBa CBb CBc CAb
CAa
Ab1 Ab2Bb1 Bb2
Aa3 Aa4 Ba1 Ba2 Bc1 Bc2 Bd1 Bd2 Bd3 Bd4
Aa1 Aa2
Write
Command
for Bank A
Write
Command
for Bank B
Write
Command
for Bank B
Write
Command
for Bank B
Activate
Command
for Bank B
Write
Command
for Bank A
RAa RBa
RAa
CLK
H
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
ADD
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21

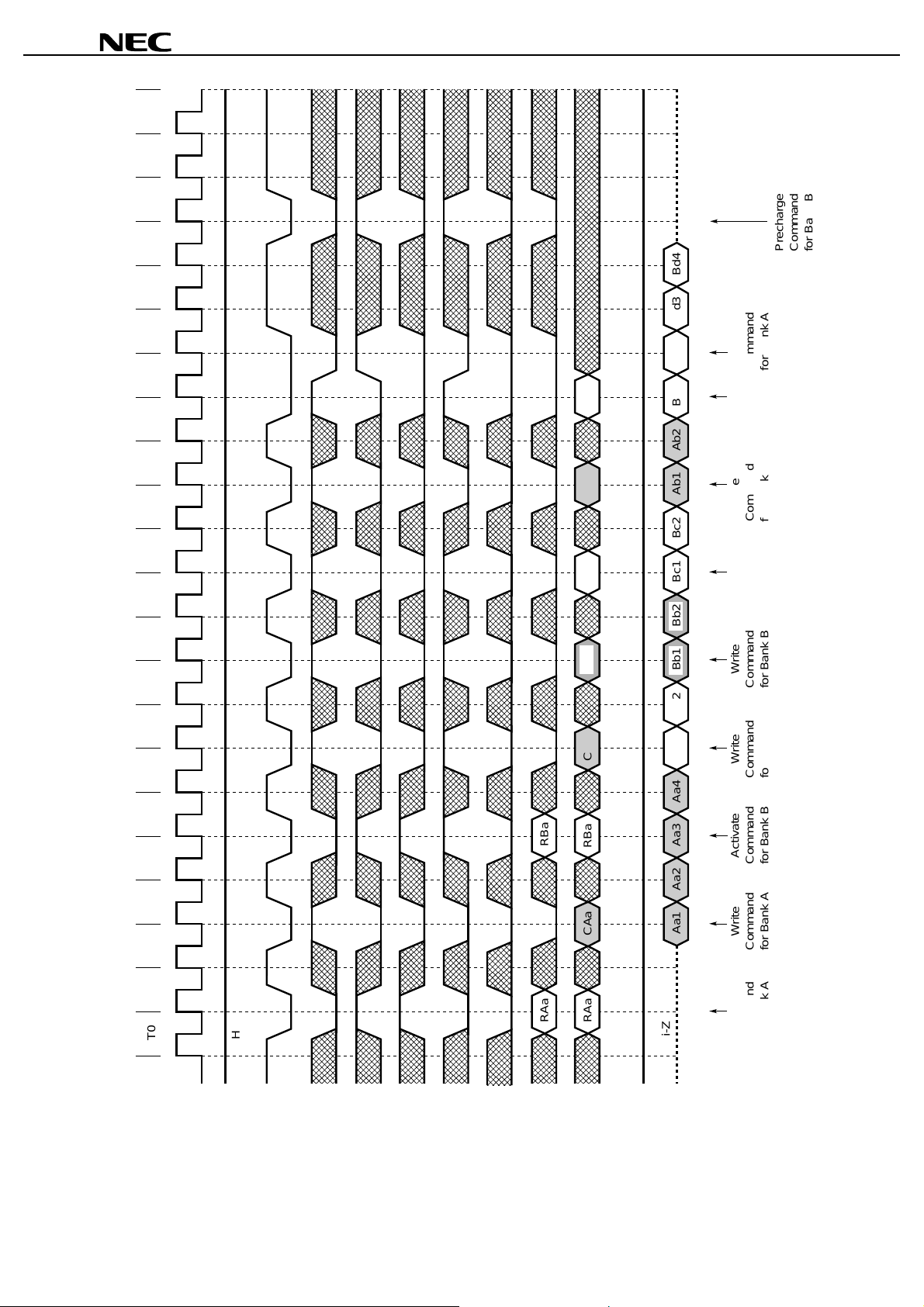

13.18 Interleaved Column Write Cycle (1/2) (Burst Length = 4, /CAS Latency = 2)
Data Sheet M12650EJBV0DS00
L
DQM
Hi-Z
DQ
Activate
Command
for Bank A
65
µµµµ
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
,
PD45128441, 45128841, 45128163
Precharge
for Bank B
Command
Bd3 Bd4
Precharge
for Bank A
Command
CBd
CBc
Ab1 Ab2Bb1 Bb2
Aa3 Aa4 Ba1 Ba2 Bc1 Bc2 Bd1 Bd2
Write
Command
for Bank B
Write
Command
for Bank A
Write
Command
for Bank B
Write
Command
for Bank B
Write
Command
for Bank B

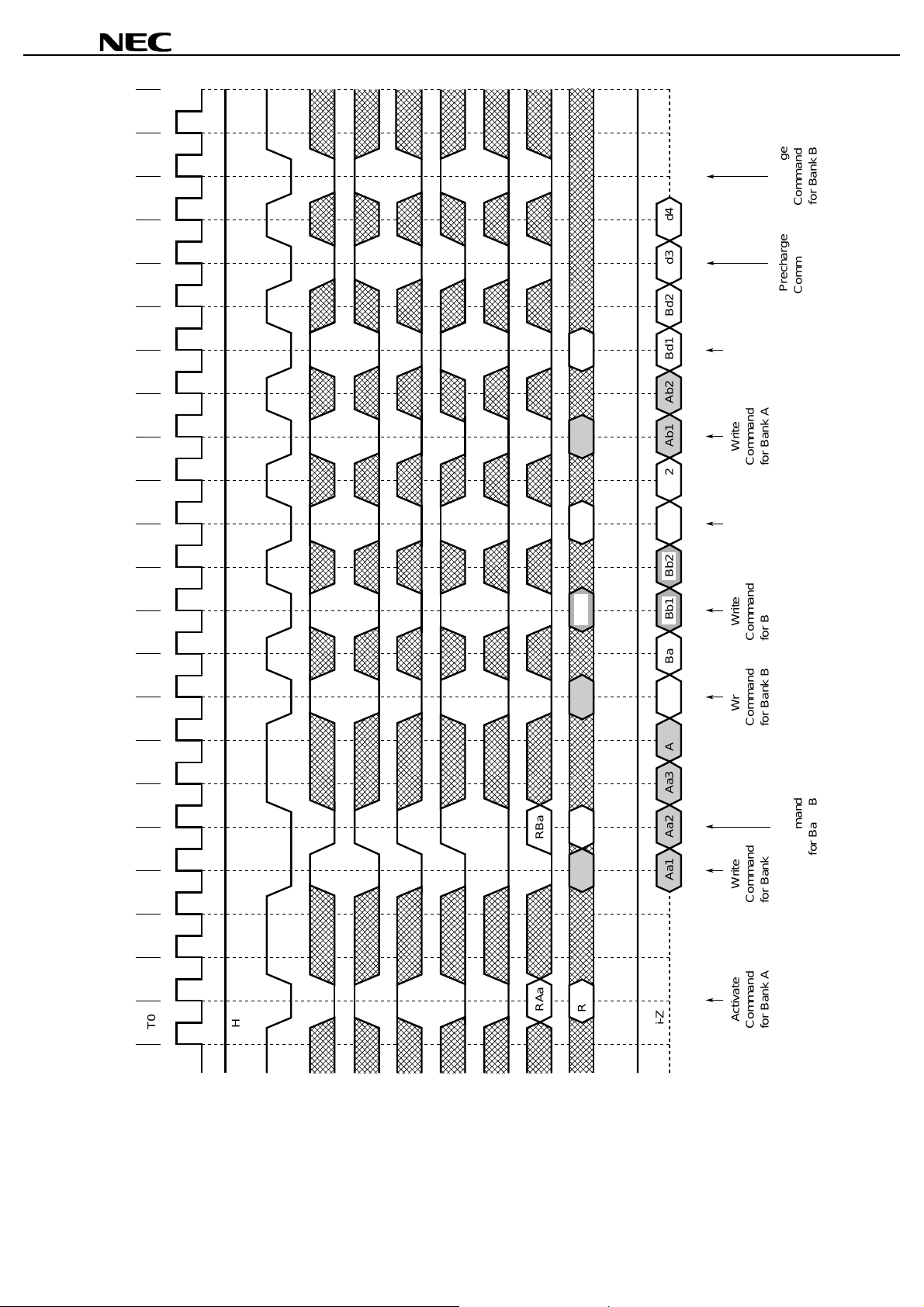

Interleaved Column Write Cycle (2/2) (Burst Length = 4, /CAS Latency = 3)
66
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
CLK
H
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
Data Sheet M12650EJBV0DS00
RBa
RAa
A10
RBa CBa CBbCAa
RAa CAb
ADD
L
DQM
Aa1 Aa2
Hi-Z
DQ
Write
Command
for Bank A
Activate
Command
for Bank A
Activate
Command
for Bank B
µµµµ
PD45128441, 45128841, 45128163
Read with
Command
for Bank A
Auto Precharge
Auto Precharge
Activate
Command
for Bank A
RAc
Read with
for Bank D
Command
Auto Precharge
Auto Precharge
Start for Bank D
Start for Bank A
RDb
RDa
Activate
Command
for Bank D
Read with
Read with
Activate
Command
for Bank D
Read
Auto Precharge
Start for Bank D
Command
for Bank A
Auto Precharge
Command
for Bank D
Auto Precharge
Command
for Bank A
RAa CAbCAa RDbCDaRDa CAcCDb RAc
BA1
RAa
A10
ADD
L
DQM
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
CLK
H
CKE
/CS
/RAS
/CAS
/WE
BA0

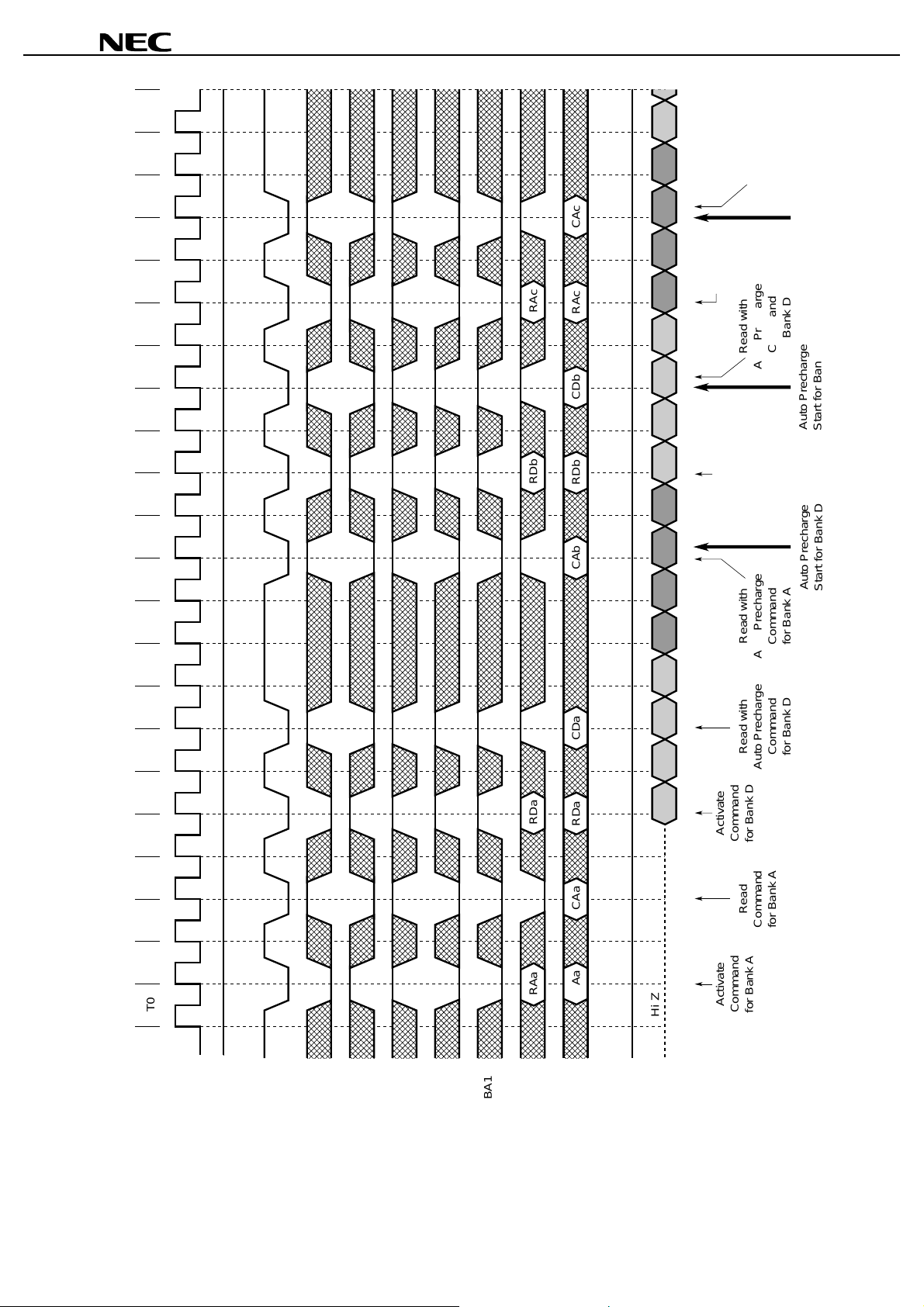

13.19 Auto Precharge after Read Burst (1/2) (Burst Length = 4, /CAS Latency = 2)
Data Sheet M12650EJBV0DS00
Hi-Z
DQ
Activate
Command
for Bank A
67
µµµµ
PD45128441, 45128841, 45128163
Read with
Command
for Bank D
Auto Precharge
RDb
Auto Precharge
Activate
Command
for Bank D
Start for Bank A
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
Auto Precharge
Start for Bank D
Read with
Command
for Bank A
Auto Precharge
Read with
Command
for Bank D
Auto Precharge
RDa
RAa CAbCAa RDbCDaRDa CDb
H
RAa
L
Hi-Z
Activate
Command
for Bank D
Activate
Command
for Bank A
Read
Command
for Bank A
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10

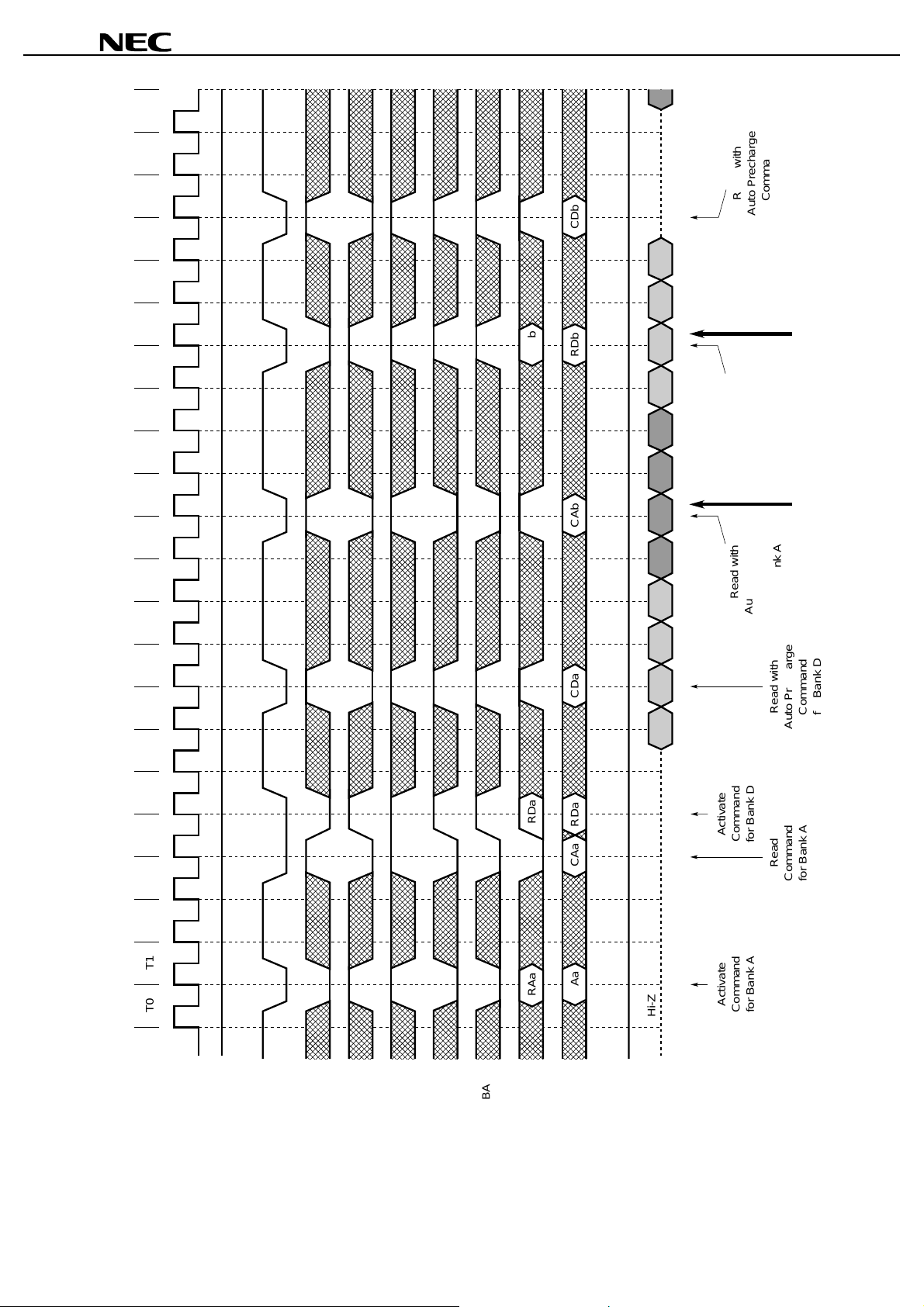

Auto Precharge after Read Burst (2/2) (Burst Length = 4, /CAS Latency = 3)
68
Data Sheet M12650EJBV0DS00
ADD
DQM
DQ
µµµµ
PD45128441, 45128841, 45128163
Auto Precharge
Write with
Command
for Bank A
Auto Precharge
Start for Bank D
RAc
RDb
Activate
Command
for Bank A
Activate
Command
for Bank D
Write with
Command
for Bank D
Auto Precharge
Write with
Command
for Bank A
Auto Precharge
Write with
Command
for Bank D
Auto Precharge
Auto Precharge
Start for Bank A
Auto Precharge
Start for Bank D
RDa
RAa CAbCAa RDbCDaRDa CAcCDb RAc
BA1
RAa
A10
ADD
L
DQM
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
CLK
H
CKE
/CS
/RAS
/CAS
/WE
BA0

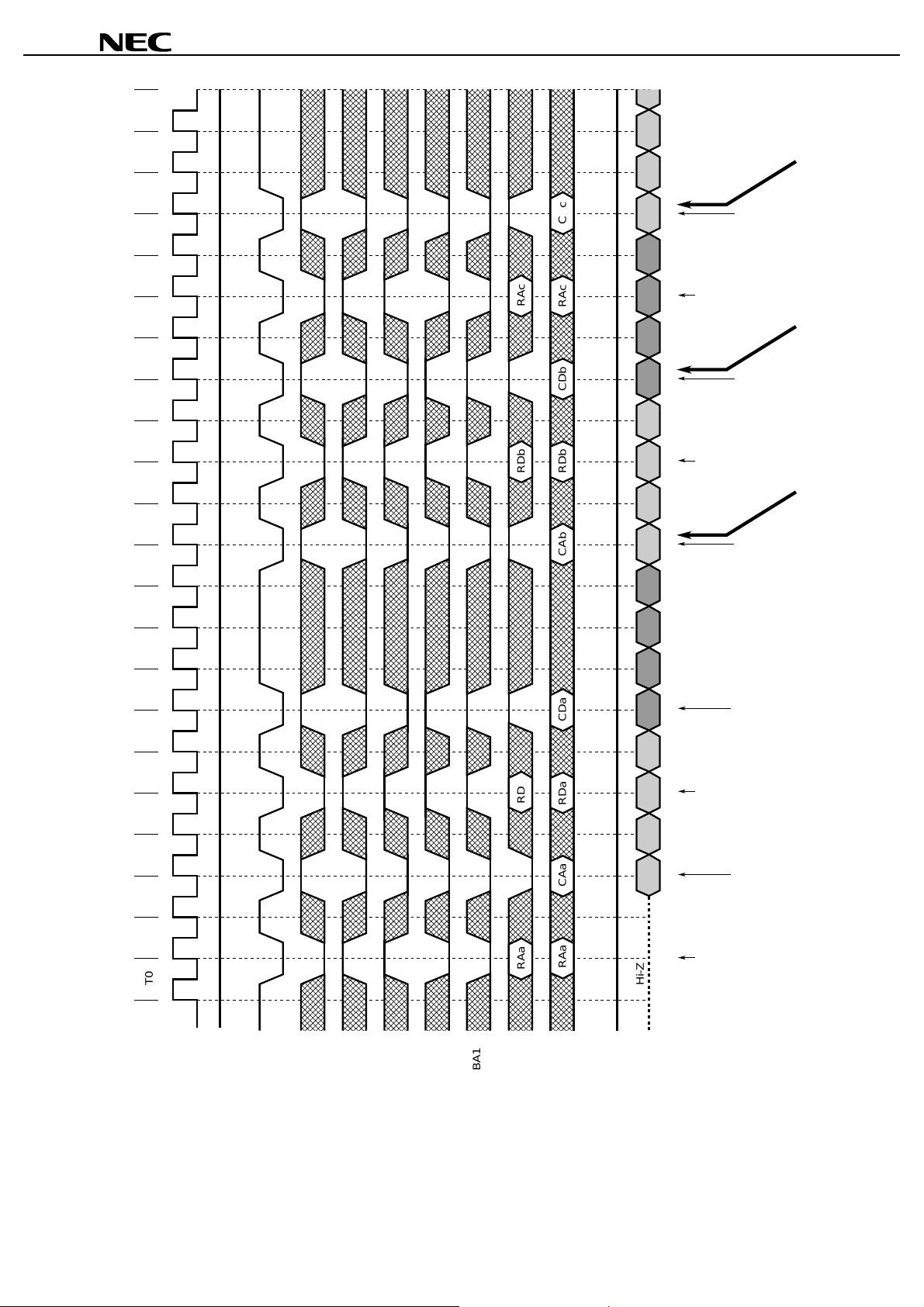

13.20 Auto Precharge after Write Burst (1/2) (Burst Length = 4, /CAS Latency = 2)
Data Sheet M12650EJBV0DS00
Hi-Z
DQ
Activate
Command
for Bank D
Activate
Command
for Bank A
Write
Command
for Bank A
69
µµµµ
PD45128441, 45128841, 45128163
Write with
Command
for Bank D
Auto Precharge
RDb
Auto Precharge
Activate
Command
for bank D
Start for Bank A
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
Auto Precharge
Start for Bank D
Write with
Command
for Bank A
Auto Precharge
Write with
Command
for Bank D
Auto Precharge
RDa
RAa CAbCAa RDbCDaRDa CDb
RAa
H
Hi-Z
L
Activate
Command
for Bank D
Activate
Command
for Bank A
Write
Command
for Bank A
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10

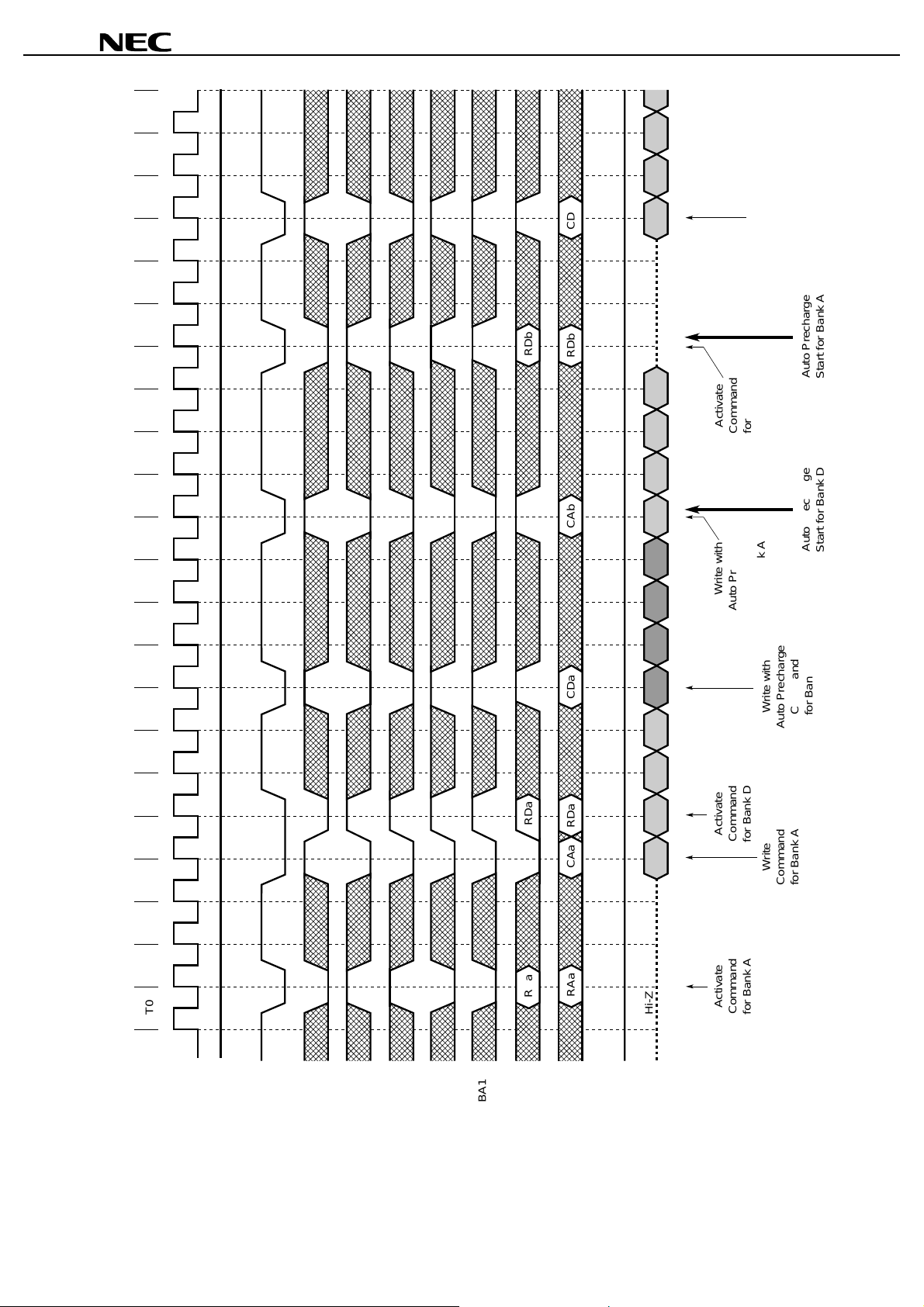

Auto Precharge after Write Burst (2/2) (Burst Length = 4, /CAS Latency = 3)
70
Data Sheet M12650EJBV0DS00
ADD
DQM
DQ
13
+
12 Tn
+
µµµµ
PD45128441, 45128841, 45128163
11 Tn
+
10 Tn
+
9Tn
+
8Tn
+
7Tn
+
6Tn
+
5Tn
+
4Tn
+
3Tn
+
2Tn
+
1Tn
+
RDb
CDaCAa RDb
Activate
Command
for Bank D
Precharge
Command
for Bank D
Burst Stop Command
Read
Command
for Bank D
T6
H
T0 T1 T2 T3 T4 T5 T7 Tn Tn
CKE
CLK
/CS
/RAS
/CAS
/WE

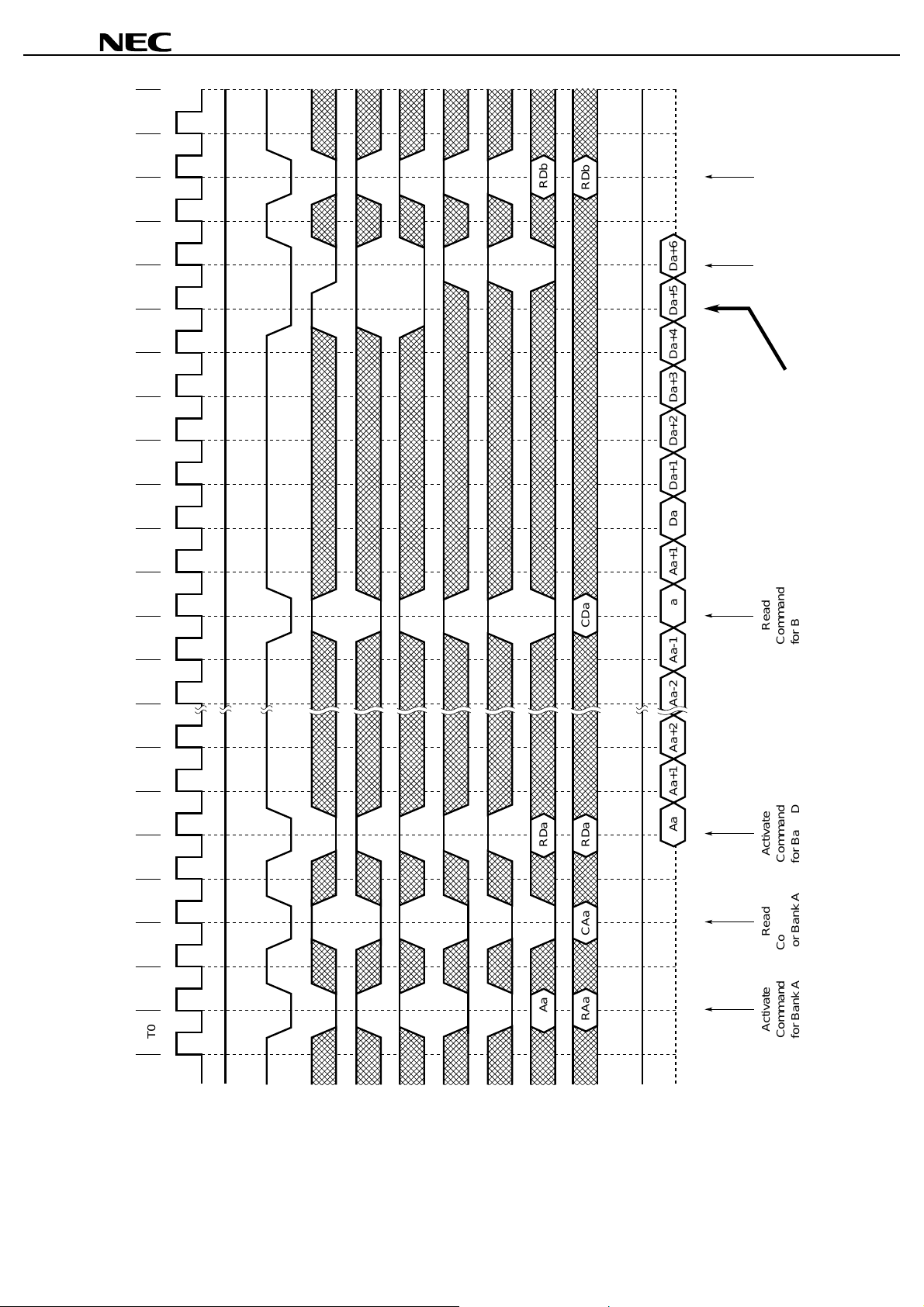

13.21 Full Page Read Cycle (1/2) (/CAS Latency = 2)
Data Sheet M12650EJBV0DS00
BA0
BA1
RAa RDa
A10
RDa
RAa
ADD
L
DQM
Aa Aa+1 Aa+2 Aa-2 Aa-1 Aa Aa+1 Da Da+1 Da+2 Da+3 Da+4 Da+5 Da+6
Hi-Z
DQ
Activate
Command
for Bank D
Read
Command
for Bank A
Activate
Command
for Bank A
71
12
+
µµµµ
PD45128441, 45128841, 45128163
11 Tn
+
10 Tn
+
9Tn
+
8Tn
+
7Tn
+
6Tn
+
5Tn
+
4Tn
+
3Tn
+
2Tn
+
1Tn
+
RDb
Activate
Command
for Bank D
Precharge
Command
for Bank D
Burst Stop Command
Read
Command
for Bank D
CLK
H
CKE
/CS
/RAS
T0 T1 T2 T3 T4 T5 T6 T7 T8 Tn Tn

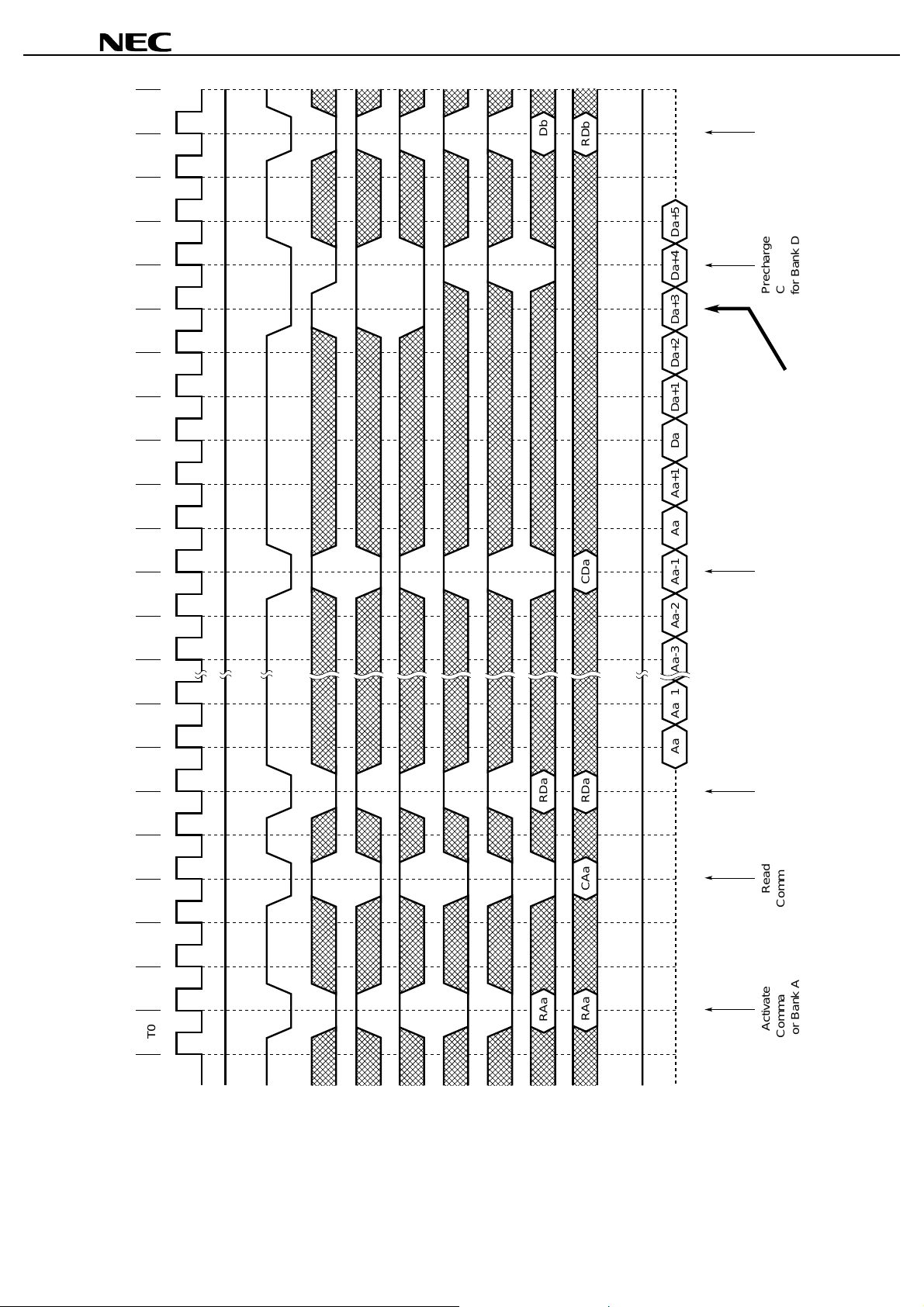

Full Page Read Cycle (2/2) (/CAS latency = 3)
72
/CAS
/WE
BA0
BA1
Data Sheet M12650EJBV0DS00
RAa RDa
A10
RAa RDa CDaCAa RDb
ADD
L
DQM
Aa Aa+1 Aa-3 Aa-2 Aa-1 Aa Aa+1 Da Da+1 Da+2 Da+3 Da+4 Da+5
Hi-Z
DQ
Activate
Command
for Bank D
Read
Command
for Bank A
Activate
Command
for Bank A
15
+
14 Tn
+
13 Tn
+
µµµµ
PD45128441, 45128841, 45128163
12 Tn
+
11 Tn
+
10 Tn
+
9Tn
+
8Tn
+
7Tn
+
6Tn
+
5Tn
+
4Tn
+
3Tn
+
2Tn
+
RDb
Precharge
Command
for Bank D
Write
Command
for Bank D
Activate
Command
for Bank D
Burst Stop Command
1Tn
+
T0 T1 T2 T3 T4 T5 Tn Tn
CLK
H
CKE
/CS
/RAS
/CAS
/WE

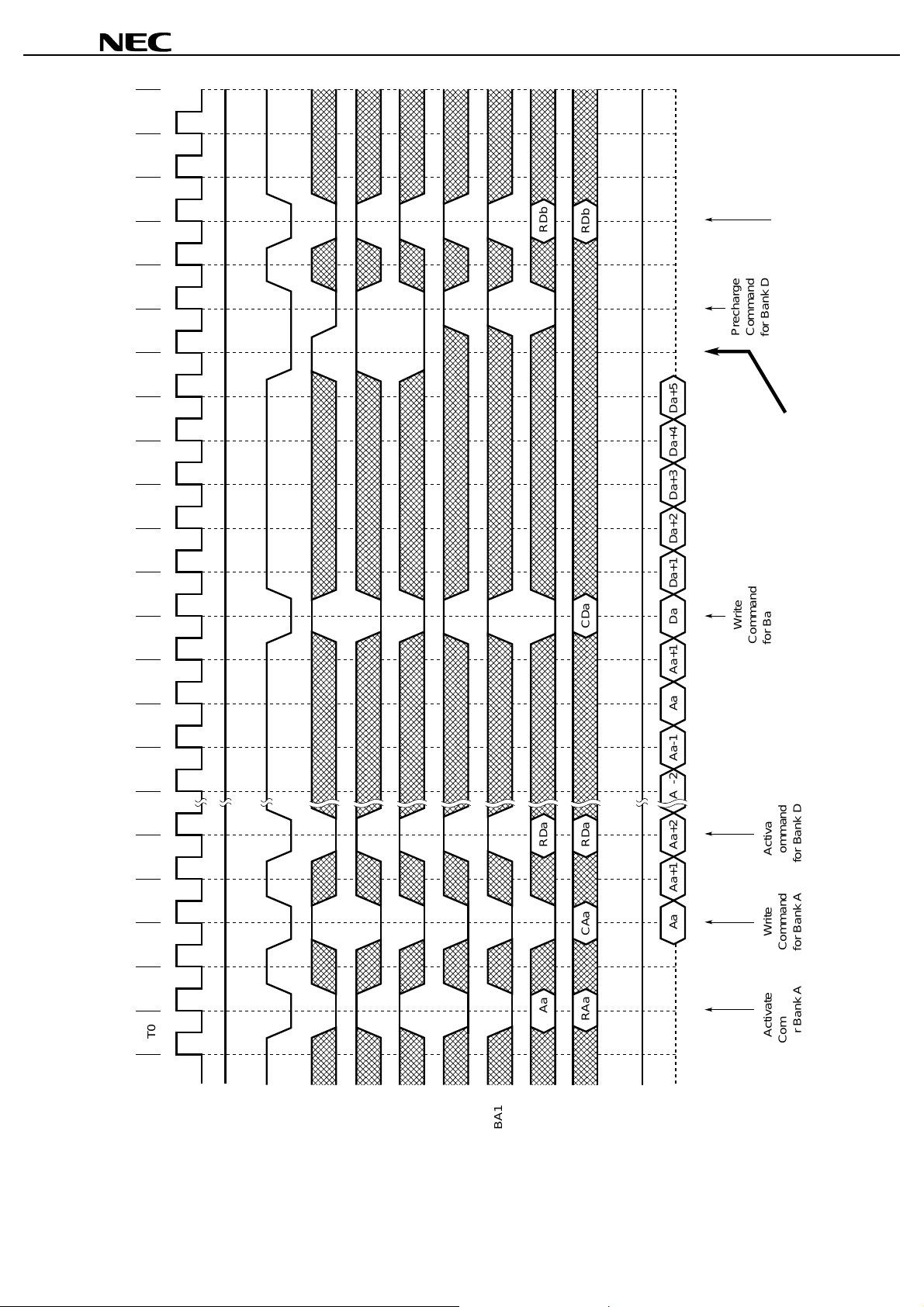

13.22 Full Page Write Cycle (1/2) (/CAS latency = 2)
BA0
BA1
RAa RDa
A10
RAa RDa CDaCAa RDb
ADD
L
DQM
Aa Aa+1 Aa+2 Aa-2 Aa-1 Aa Aa+1 Da Da+1 Da+2 Da+3 Da+4 Da+5
Hi-Z
DQ
Activate
Command
for Bank D
Write
Command
for Bank A
Activate
Command
for Bank A
Data Sheet M12650EJBV0DS00
73
13
+
µµµµ
PD45128441, 45128841, 45128163
12 Tn
+
11 Tn
+
10 Tn
+
9Tn
+
8Tn
+
7Tn
+
6Tn
+
5Tn
+
4Tn
+
3Tn
+
2Tn
+
RDb
CDaCAa RDb
Activate
Command
Precharge
Command
for Bank D
Write
Command
for Bank D
for Bank D
Burst Stop Command
1Tn
+
T0 T1 T2 T3 T4 T5 T6 T7 Tn Tn
in the Full Page Mode
Burst is not completed
RDa
Aa Aa+1 Aa+2 Aa+3 Aa-1 Aa Aa+1 Da Da+1 Da+2 Da+3 Da+4 Da+5
RAa
RAa RDa
H
L
Hi-Z
Activate
Command
for Bank D
Write
Command
for Bank A
Activate
Command
for Bank A
CLK
CKE
/CS
/RAS
Full Page Write Cycle (2/2) (/CAS Latency = 3)
74
/CAS
/WE
BA0
BA1
Data Sheet M12650EJBV0DS00
A10
ADD
DQM
DQ
µµµµ
PD45128441, 45128841, 45128163
not Write
Lower Byte
not Write
Upper Byte
not Write
Lower Byte
not Read
Upper Byte
Read
Command
for Bank D
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
13.23 Byte Write Operation (Burst Length = 4, /CAS Latency = 2)
Data Sheet M12650EJBV0DS00
A10
ADD
LDQM
UDQM
DQ
(lower)DQ(upper)
Activate
Command
for Bank D
75
µµµµ
PD45128441, 45128841, 45128163
Byte
Lower
Byte
Lower
Read
Command
Lower
Byte
not Read
not Read
for Bank D
not Write
Byte
Upper
Byte
Lower
Byte
Lower
Byte
Upper
Read
Command
not Write
not Write
not Read
not Read
for Bank D
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
Byte Write Operation (Burst Length = 4, /CAS Latency = 3)
76
Data Sheet M12650EJBV0DS00
BA1
A10
ADD
LDQM
UDQM
DQ
(lower)DQ(upper)
Activate
Command
for Bank D
µµµµ
PD45128441, 45128841, 45128163
Write
Single
Command
for Bank D
Read
Command
for Bank D
Qa1 Qa2 Qa3 Qa4 D1 Qb1 Qb2 Qb4 D2
Write
Single
Command
Write
Single
Command
Read
Command
for Bank D
for Bank D
for Bank D
CLK
H
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
ADD
DQM
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
13.24 Burst Read and Single Write (Option) (Burst Length = 4, /CAS Latency = 2)
Data Sheet M12650EJBV0DS00
Hi-Z
DQ
Activate
Command
for Bank D
77
µµµµ
PD45128441, 45128841, 45128163
Read
Command
for Bank D
Write
Single
Command
for Bank D
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
Write
Single
Command
for Bank D
Qa1 Qa2 Qa3 Qa4 D1 Qb1 Qb2 Qb4
Read
Command
for Bank D
Activate
Command
H
Hi-Z
for Bank D
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
Burst Read and Single Write (Option) (Burst Length = 4, /CAS Latency = 3)
78
Data Sheet M12650EJBV0DS00
ADD
DQM
DQ
µµµµ
PD45128441, 45128841, 45128163
Precharge
Command
for Bank D
(PRE Termination of Burst)
RDa
CDc
CAc
CDbCAbRDa
CAa CDa
QAa1 QDa1 QAb1 QAb2 QDb1 QDb2 QAc1 QAc2 QAc3 QDc1 QDc2 QDc3
Activate
Command
for Bank D
Read
Command
for Bank D
Read
Command
for Bank A
Read
Command
for Bank D
Read
Command
for Bank A
Read
Command
Read
Command
for Bank D
for Bank A
RAa
RAa
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
ADD
LHHi-Z
DQM

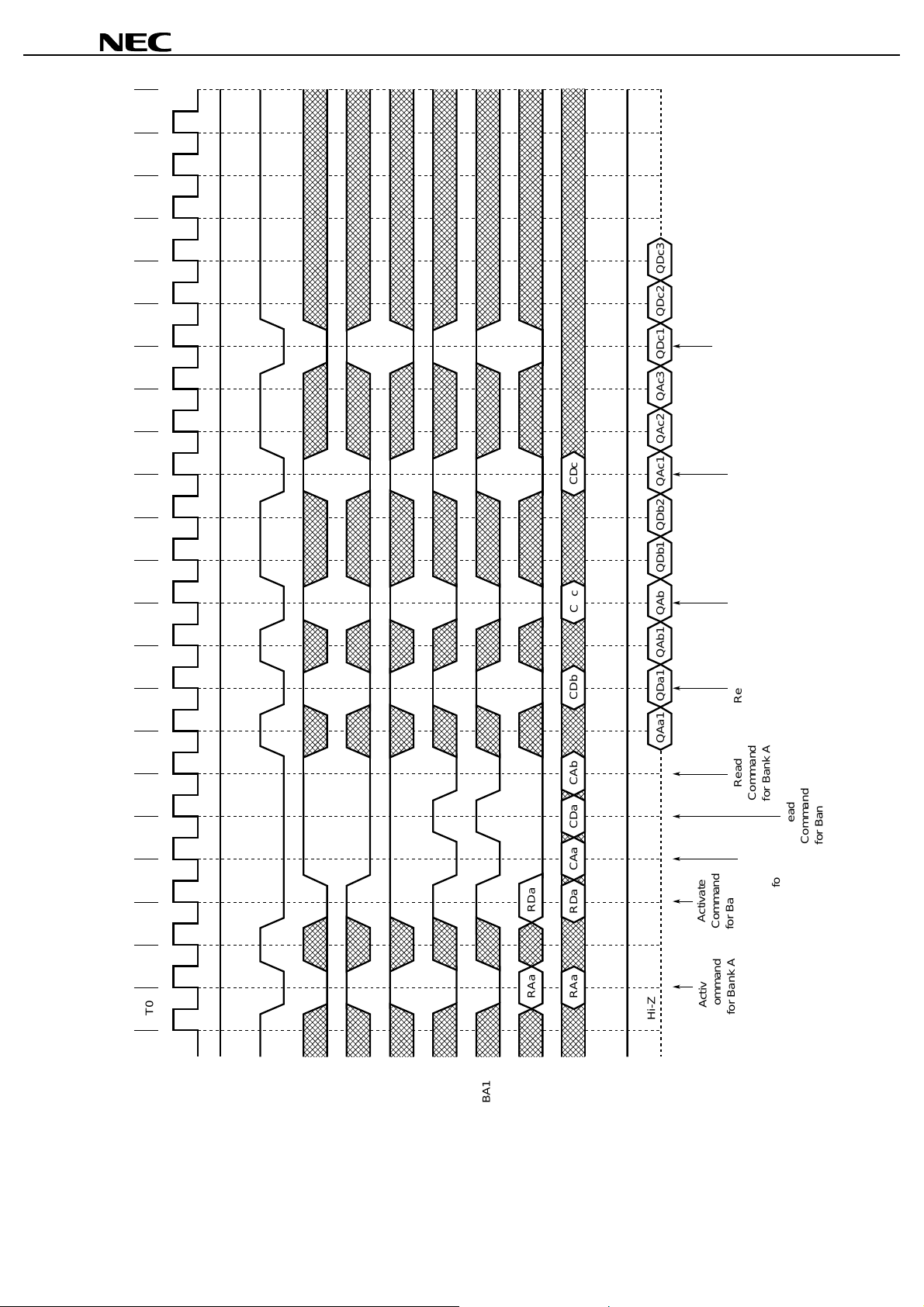

13.25 Full Page Random Column Read (Burst Length = Full Page, /CAS Latency = 2)
Data Sheet M12650EJBV0DS00
DQ
Activate
Command
for Bank A
79
µµµµ
PD45128441, 45128841, 45128163
Hi-Z
Precharge
Command
for Bank D
(PRE Termination of Burst)
RDa
CDc
CAc
CDbCAbRDa
CAa CDa
QAa1 QDa1 QAb1 QAb2 QDb1 QDb2 QAc1 QAc2 QAc3 QDc1 QDc2 QDc3
Activate
Command
for Bank D
Read
Command
for Bank D
Read
Command
for Bank A
Read
Command
for Bank D
Read
Command
for Bank A
Read
Command
Read
Command
for Bank D
for Bank A
RAa
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
Full Page Random Column Read (Burst Length = Full Page, /CAS Latency = 3)
80
Data Sheet M12650EJBV0DS00
RAa
ADD
LHHi-Z
DQM
DQ
Activate
Command
for Bank A
µµµµ
PD45128441, 45128841, 45128163
CDc
CAc
CDbCAbRDa
DDc4
Precharge
Command
for Bank D
(PRE Termination of Burst)
Write
Command
for Bank D
Write
Command
for Bank A
Write
Command
for Bank D
Write
Command
for Bank A
CAa CDa
RDa
RAa
RAa
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
ADD
LHHi-Z
DQM

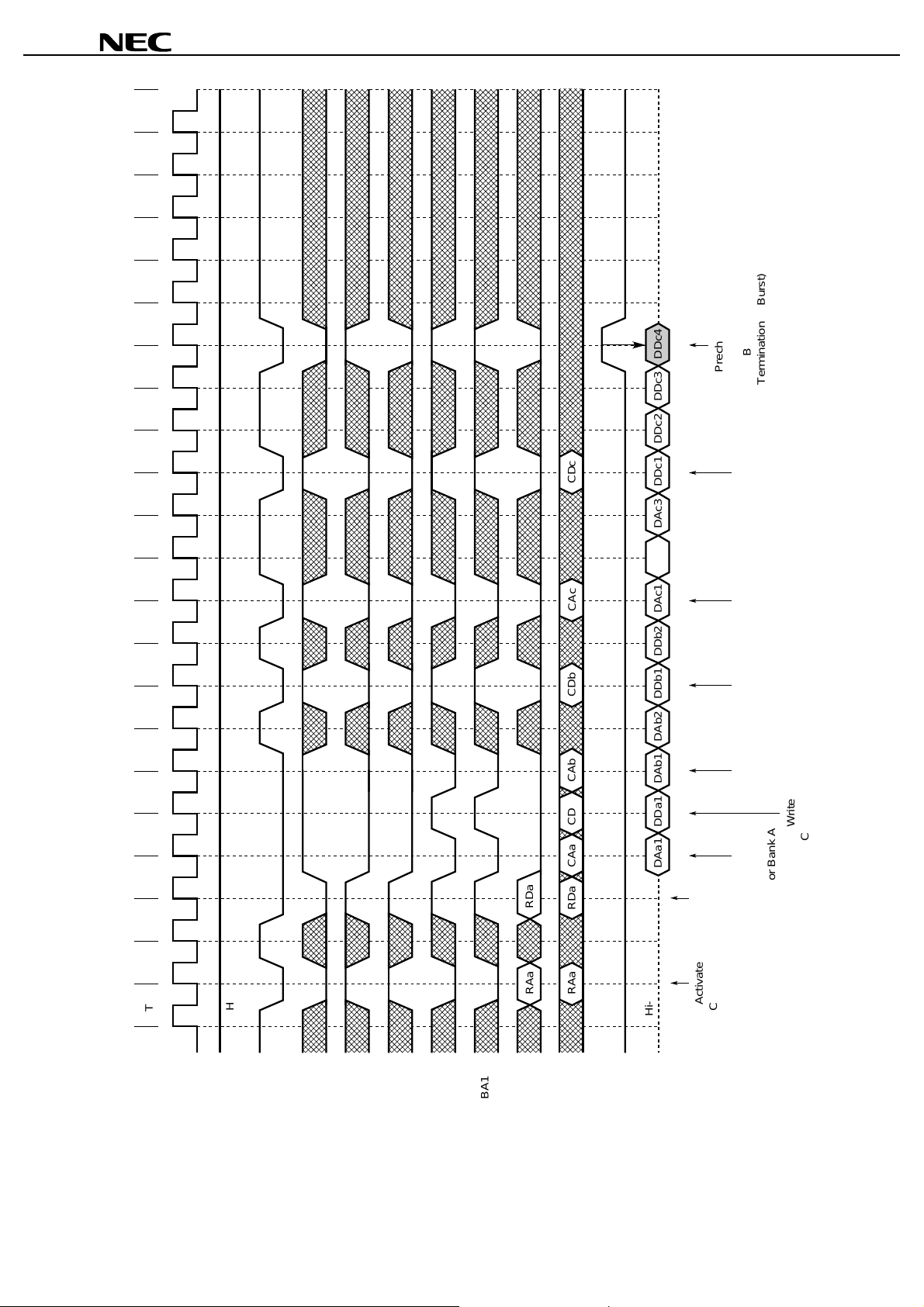

13.26 Full Page Random Column Write (Burst Length = Full Page, /CAS Latency = 2)
Data Sheet M12650EJBV0DS00
DAa1 DDa1 DAb1 DAb2 DDb1 DDb2 DAc1 DAc2 DAc3 DDc1 DDc2 DDc3
DQ
Activate
Command
for Bank D
Activate
Command
for Bank A
Write
Command
Write
Command
for Bank A
81
for Bank D
µµµµ
PD45128441, 45128841, 45128163
CDc
CAc
CDbCAbRDa
DDc4
Precharge
Command
for Bank D
(PRE Termination of Burst)
Write
Command
for Bank D
Write
Command
for Bank A
Write
Command
for Bank D
Write
Command
for Bank A
RDa
RAa
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
Full Page Random Column Write (Burst Length = Full Page, /CAS Latency = 3)
82
Data Sheet M12650EJBV0DS00
CAa CDa
RAa
ADD
DAa1 DDa1 DAb1 DAb2 DDb1 DDb2 DAc1 DAc2 DAc3 DDc1 DDc2 DDc3
LHHi-Z
DQM
DQ
Activate
Command
for Bank D
Activate
Command
for Bank A
Write
Command
Write
Command
for Bank A
for Bank D
µµµµ
PD45128441, 45128841, 45128163
Hi-Z
RAc
RAc
Activate
Command
for Bank A
Precharge
Command
for Bank A
of Burst
PRE Termination
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
CAb
RAb
Write
Masking
CAa
RAa
H
RAa RAb
DAa1 DAa2 DAa3 DAa4 DAa5 QAb1 QAb2 QAb3 QAb4 QAb5
L
Hi-Z
Read
Command
for Bank A
Write
Command
for Bank A
Activate
Command
for Bank A
Activate
Command
for Bank A
Precharge
Command
for Bank A
tDPL tRP tRAS
of Burst
PRE Termination
tRCD
tRAS
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
ADD
DQM

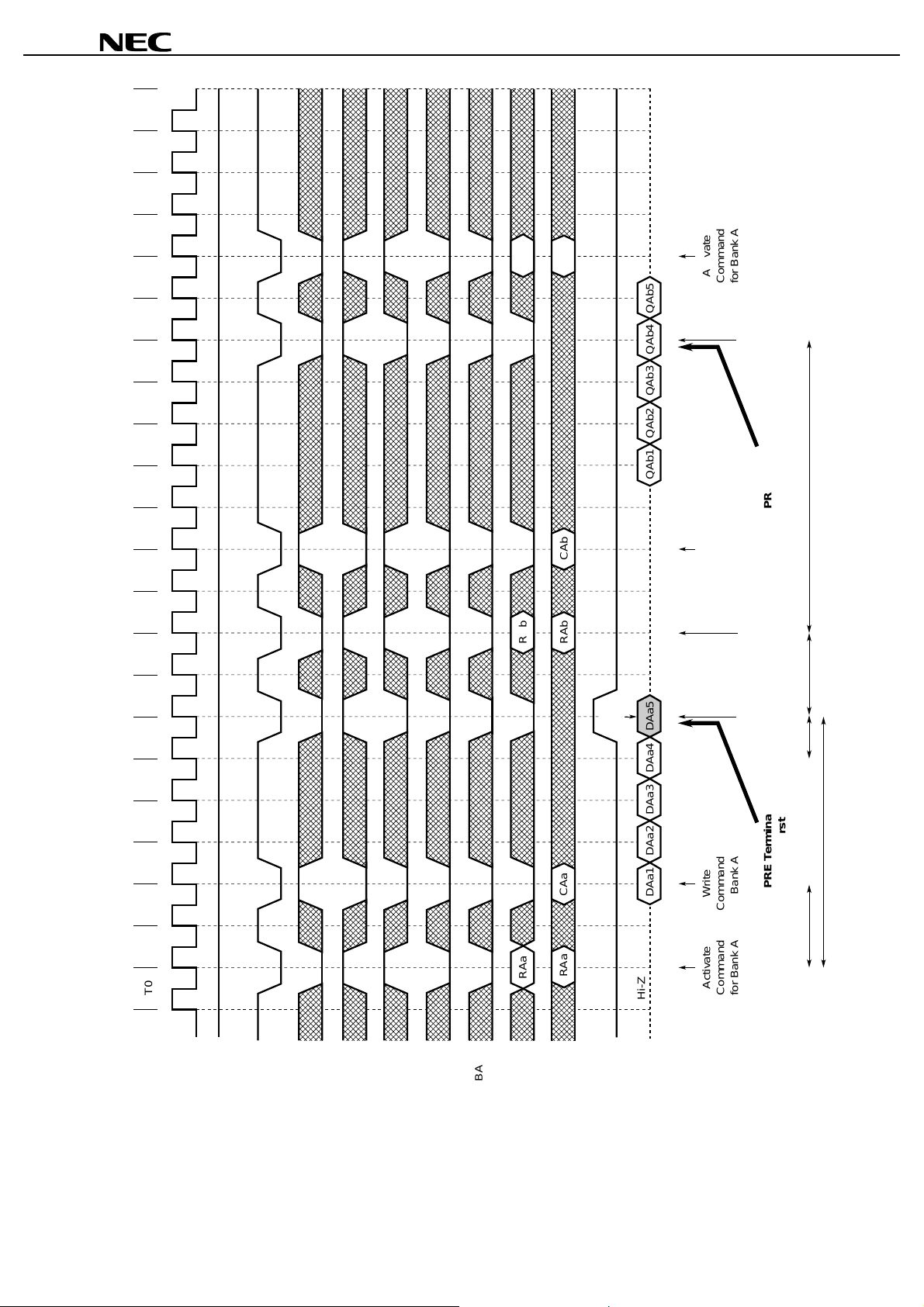

13.27 PRE (Precharge) Termination of Burst (1/2) (Burst Length = 8, /CAS Latency = 2)
Data Sheet M12650EJBV0DS00
DQ
83
µµµµ
PD45128441, 45128841, 45128163
RAc
RAc
Hi-Z
CAb
Activate
Command
Read
Command
for Bank A
Precharge
Command
for Bank A
PRE Termination
for Bank A
of Burst
RAS
t
T0 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21
RAb
Write
Masking
DAa4 DAa5
CAa
RAa
H
RAa RAb
DAa1 DAa2 DAa3 QAb1 QAb2 QAb3 QAb4
L
Hi-Z
Write
Command
Activate
Command
Activate
Command
for Bank A
Precharge
Command
for Bank A
PRE Termination
for Bank A
for Bank A
RP
t
DPL
t
of Burst
RCD
t
RAS
t
CLK
CKE
/CS
/RAS
/CAS
/WE
BA0
BA1
A10
ADD
PRE (Precharge) Termination of Burst (2/2) (Burst Length = 8, /CAS Latency = 3)
84
Data Sheet M12650EJBV0DS00
DQM
DQ

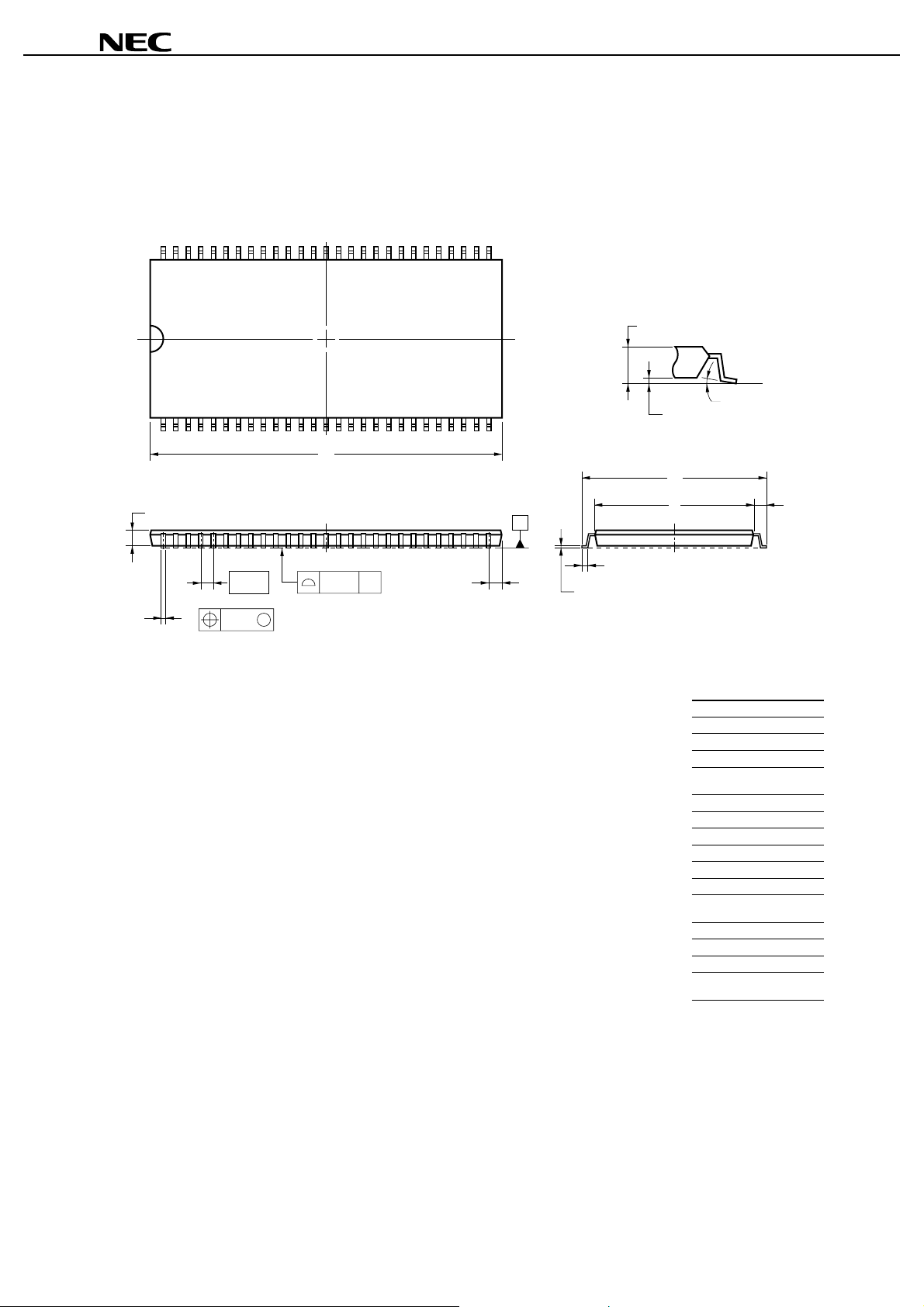

14. Package Drawing
54-PIN PLASTIC TSOP (II) (10.16 mm (400))
54 28
µµµµ
PD45128441, 45128841, 45128163
detail of lead end
F
E
P
127
A
H
G
S
I
L
N
C
D
NOTES
1. Each lead centerline is located within 0.13 mm of
its true position (T.P.) at maximum material condition.
2. Dimension "A" does not include mold fiash, protrusions or gate
burrs. Mold flash, protrusions or gate burrs shall not exceed
0.15 mm per side.
M
M
S
B
K
ITEM
MILLIMETERS
A
22.22±0.05
B
0.91 MAX.
C
0.80 (T.P.)
D
E
F
G
H
I
J
K
L
M
N
P
+0.08
0.32
−0.07
0.10±0.05
1.1±0.1
1.00
11.76±0.20
10.16±0.10
0.80±0.20
0.145
0.50±0.10
0.13
0.10
+7°
3°
−3°
S54G5-80-9JF-2
J
+0.025
−0.015
Data Sheet M12650EJBV0DS00
85
µµµµ
PD45128441, 45128841, 45128163
15. Recommended Soldering Conditions
Please consult with our sales offices for soldering conditions of the µPD45128xxx.
Type of Surface Mount Device
PD45128xxxG5 : 54-pin Plastic TSOP (II) (10.16mm (400))
µ
86
Data Sheet M12650EJBV0DS00
µµµµ
PD45128441, 45128841, 45128163
Revision History
16.
Edition / Page Description
Date This
edition
9th edition /
p.15 p.15 Modification,
Mar. 1999
p.19 p.19 Modification,
Previous
edition
Type of
revision
CKE Truth Table - Power down
Addition
Command Truth Table for CKE - Power down
Addition
p.35 p.35 Modification I
CC1
(spec), I
CC2
NS (spec), I
CC3
N (spec), I
p.37 p.37 Modification Output l oad
p.50 p.50 Modification Tim i ng Chart (Power Down Mode and Clock Mask)
p.77 p.77 Modification Tim i ng Chart (Full Page Random Column Read)
10th edition /
Throughout Throughout
Modification A13 → BA0, A12 → BA1
Jan. 2000 p.2, 3 p.2, 3 Addition -A75
Deletion -AxxL (Low power)
p.34 p.34 Addition Pin Capacitance (MAX.)
p.35 p.35 Addition -A75 specs
Modification I
Deletion I
CC5
CC6
-AxxL (Low power)
p.36 p.36 Modification AC Charact eri stics Test Conditions
p.37, 38,42p.37, 38,42Addition -A 75 s pecs
Location
CC4
(spec), I
CC5
(spec)
p.76, 78,
– Addition Timing chart (/CAS l atency = 3)
80, 82
p.85 p.81 Modificati on Package Drawing
11th edition / p.38 p.38 Modific ation t
Apr. 2000
RC1
spec (-A10)
Data Sheet M12650EJBV0DS00
87
[MEMO]
µµµµ
PD45128441, 45128841, 45128163
88
Data Sheet M12650EJBV0DS00
[MEMO]
µµµµ
PD45128441, 45128841, 45128163
Data Sheet M12650EJBV0DS00
89
[MEMO]
µµµµ
PD45128441, 45128841, 45128163
90
Data Sheet M12650EJBV0DS00
µµµµ
PD45128441, 45128841, 45128163
NOTES FOR CMOS DEVICES
1 PRECAUTION AGAINST ESD FOR SEMICONDUCTORS
Note:
Strong electric field, when exposed to a MOS device, can cause destruction of the gate oxide and
ultimately degrade the device operation. Steps must be taken to stop generation of static electricity
as much as possible, and quickly dissipate it once, when it has occurred. Environmental control
must be adequate. When it is dry, humidifier should be used. It is recommended to avoid using
insulators that easily build static electricity. Semiconductor devices must be stored and transported
in an anti-static container, static shielding bag or conductive material. All test and measurement
tools including work bench and floor should be grounded. The operator should be grounded using
wrist strap. Semiconductor devices must not be touched with bare hands. Similar precautions need
to be taken for PW boards with semiconductor devices on it.
2 HANDLING OF UNUSED INPUT PINS FOR CMOS
Note:
No connection for CMOS device inputs can be cause of malfunction. If no connection is provided
to the input pins, it is possible that an internal input level may be generated due to noise, etc., hence
causing malfunction. CMOS devices behave differently than Bipolar or NMOS devices. Input levels
of CMOS devices must be fixed high or low by using a pull-up or pull-down circuitry. Each unused
DD
pin should be connected to V
being an output pin. All handling related to the unused pins must be judged device by device and
related specifications governing the devices.
or GND with a resistor, if it is considered to have a possibility of
3 STATUS BEFORE INITIALIZATION OF MOS DEVICES
Note:
Power-on does not necessarily define initial status of MOS device. Production process of MOS
does not define the initial operation status of the device. Immediately after the power source is
turned ON, the devices with reset function have not yet been initialized. Hence, power-on does
not guarantee out-pin levels, I/O settings or contents of registers. Device is not initialized until the
reset signal is received. Reset operation must be executed immediately after power-on for devices
having reset function.
Data Sheet M12650EJBV0DS00
91
µµµµ
PD45128441, 45128841, 45128163
• The information in this document is subject to change without notice. Before using this document, please
confirm that this is the latest version.
• No part of this document may be copied or reproduced in any form or by any means without the prior written
consent of NEC Corporation. NEC Corporation assumes no responsibility for any errors which may appear in
this document.
• NEC Corporation does not assume any liability for infringement of patents, copyrights or other intellectual property
rights of third parties by or arising from use of a device described herein or any other liability arising from use
of such device. No license, either express, implied or otherwise, is granted under any patents, copyrights or other
intellectual property rights of NEC Corporation or others.
• Descriptions of circuits, software, and other related information in this document are provided for illustrative
purposes in semiconductor product operation and application examples. The incorporation of these circuits,
software, and information in the design of the customer's equipment shall be done under the full responsibility
of the customer. NEC Corporation assumes no responsibility for any losses incurred by the customer or third
parties arising from the use of these circuits, software, and information.
• While NEC Corporation has been making continuous effort to enhance the reliability of its semiconductor devices,
the possibility of defects cannot be eliminated entirely. To minimize risks of damage or injury to persons or
property arising from a defect in an NEC semiconductor device, customers must incorporate sufficient safety
measures in its design, such as redundancy, fire-containment, and anti-failure features.
• NEC devices are classified into the following three quality grades:
"Standard", "Special", and "Specific". The Specific quality grade applies only to devices developed based on a
customer designated "quality assurance program" for a specific application. The recommended applications of
a device depend on its quality grade, as indicated below. Customers must check the quality grade of each device
before using it in a particular application.
Standard: Computers, office equipment, communications equipment, test and measurement equipment,
audio and visual equipment, home electronic appliances, machine tools, personal electronic
equipment and industrial robots
Special: Transportation equipment (automobiles, trains, ships, etc.), traffic control systems, anti-disaster
systems, anti-crime systems, safety equipment and medical equipment (not specifically designed
for life support)
Specific: Aircraft, aerospace equipment, submersible repeaters, nuclear reactor control systems, life
support systems or medical equipment for life support, etc.
The quality grade of NEC devices is "Standard" unless otherwise specified in NEC's Data Sheets or Data Books.
If customers intend to use NEC devices for applications other than those specified for Standard quality grade,
they should contact an NEC sales representative in advance.
M7 98. 8
Loading...
