® C 446
Digital Media Tuner
Owner’s Manual
ENGLISH
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS FOR LATER USE.
FOLLOW ALL WARNINGS AND INSTRUCTIONS MARKED ON THE AUDIO EQUIPMENT.
1Read instructions - All the safety and operating instructions should be read before the product is operated.
2Retain instructions - The safety and operating instructions should be retained for future reference.
3Heed Warnings - All warnings on the product and in the operating instructions should be adhered to.
4Follow Instructions - All operating and use instructions should be followed.
5Cleaning - Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Clean only with a dry cloth.
6Attachments - Do not use attachments not recommended by the product manufacturer as they may cause hazards.
7Water and Moisture - Do not use this product near water-for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
8Accessories - Do not place this product on an unstable cart, stand, tripod, bracket, or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. Any mounting of the product should follow the manufacturer’s instructions, and should use a mounting accessory recommended by the manufacturer.
9A product and cart combination should be moved with care. Quick
stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
10Ventilation - Slots and openings in the cabinet are provided for ventilation and to ensure reliable operation of the product and to protect it from overheating, and these openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug, or other similar surface. This product should not be placed in a built-in installation such as a bookcase or rack unless proper ventilation is provided or the manufacturer’s instructions have been adhered to.
11Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. The primary method of isolating the amplifier from the mains supply is to disconnect the mains plug. Ensure that the mains plug remains accessible at all times. Unplug the AC power cord from the AC outlet if the unit will not be used for several months or more.
12Grounding or Polarization - This product may be equipped with a polarized alternating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
13Power Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
14Outdoor Antenna Grounding - If an outside antenna or cable system is connected to the product, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information
with regard to proper grounding of the mast and supporting structure, grounding of the lead-in wire to an antenna discharge unit, size of grounding conductors, location of antenna discharge unit, connection to grounding electrodes, and requirements for the grounding electrode.
NOTE TO CATV SYSTEM INSTALLER
This reminder is provided to call the CATV system installer’s attention to Section 820-40 of the NEC which provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
15Lightning - For added protection for this product during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the product due to lightning and power line surges.
16Power Lines - An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17Overloading - Do not overload wall outlets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
18Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product.
WARNING: THE APPARATUS SHOULD NOT BE EXPOSED TO DRIPPING OR SPLASHING, AND OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES,
SHOULD NOT BE PLACED ON THE APPARATUS. AS WITH ANY ELECTRONIC PRODUCTS, USE CARE NOT TO SPILL LIQUIDS INTO ANY PART OF THE SYSTEM. LIQUIDS CAN CAUSE A FAILURE AND/OR A FIRE HAZARD.
19Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:
a)When the power supply cord or plug is damaged.
b)If liquid has been spilled, or objects have fallen into the product.
c)If the product has been exposed to rain or water.
d)If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation.
e)If the product has been dropped or damaged in any way.
f)when the product exhibits a distinct change in performance-this indicates a need for service.
20Replacement Parts - When replacement parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
21Safety Check - Upon completion of any service or repairs to this product, ask the service technician to perform safety checks to determine that the product is in proper operating condition.
2
IMPORTANT SAFETY INSTRUCTIONS
22Wall or Ceiling Mounting - The product should be mounted to a wall or ceiling only as recommended by the manufacturer.
23Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves or other products (including amplifiers) that produce heat.
24Headphones - Excessive sound pressure form earphones and headphones can cause hearing loss.
25Battery Disposal - When disposing of used batteries, please comply with governmental regulations or environmental public instruction’s rules that apply in your country or area. Batteries (battery pack or batteries installed) must not be exposed to excessive heat such as sunshine, fire or the like.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.
CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
THE LIGHTNING FLASH WITH ARROWHEAD SYMBOL, WITHIN AN EQUILATERAL TRIANGLE, IS INTENDED TO ALERT THE USER TO THE PRESENCE OF UNINSULATED “DANGEROUS VOLTAGE”WITHIN THE PRODUCT’S ENCLOSURE THAT MAYBE OF SUFFICIENT MAGNITUDE TO CONSTITUTE A RISK OF ELECTRIC SHOCK TO PERSONS.
THE EXCLAMATION POINT WITHIN AN EQUILATERAL TRIANGLE IS INTENDED TO ALERT THE USER TO THE PRESENCE OF IMPORTANT OPERATING
AND MAINTENANCE (SERVICING) INSTRUCTIONS IN THE LITERATURE ACCOMPANYING THE APPLIANCE.
THE EQUIPMENT MUST BE CONNECTED TO AN EARTHED MAINS SOCKET-OUTLET.
The mains plug of the apparatus should be easily accessible or free from any obstruction during intended use.
RF EXPOSURE STATEMENT
The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operated in conjunction with any antenna or transmitter other than those contained in this device.
CAUTION
Changes or modifications to this equipment not expressly approved by NAD Electronics for compliance could void the user’s authority to operate this equipment.
CAUTION REGARDING PLACEMENT
To maintain proper ventilation, be sure to leave a space around the unit (from the largest outer dimensions including projections) that is equal to or greater than shown below.
Left and Right Panels: 10 cm Rear Panel: 10 cm
Top Panel: 50 cm
NOTES ON ENVIRONMENTAL PROTECTION
At the end of its useful life, this product must not be disposed of with regular household waste but must be returned to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user’s manual and packaging, point this out.
The materials can be reused in accordance with their markings. Through re-use, recycling of raw materials or other forms of recycling of old products, you are making an important contribution to the protection of our environment. Your local administrative office can advise you of the responsible waste disposal point.
INFORMATION ABOUT COLLECTION AND DISPOSAL OF WASTE BATTERIES (DIRECTIVE 2006/66/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL OF EUROPEAN UNION) (FOR EUROPEAN CUSTOMERS ONLY)
Batteries bearing any of these symbols indicate that they should be treated as “separate collection” and not
as municipal waste. It is encouraged that necessary measures are implemented to maximize the separate collection of waste batteries and to minimize the disposal of batteries as mixed municipal waste.
End-users are exhorted not to dispose waste batteries
as unsorted municipal waste. In order to achieve a high level of recycling waste batteries, discard waste batteries
separately and properly through an accessible collection point in your vicinity. For more information about collection and recycling of waste batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.
By ensuring compliance and conformance to proper disposal of waste batteries, potential hazardous effects on human health is prevented and the negative impact of batteries and waste batteries on the environment is minimized, thus contributing to the protection, preservation and quality improvement of the environment.
NOTE: THE C 446 IS NOT AN AUTO VOLTAGE UNIT. CONNECT ONLY TO THE PRESCRIBED AC OUTLET, I.E., 120V 60HZ OR 230V 50HZ.
RECORD YOUR MODEL NUMBER (NOW, WHILE YOU CAN SEE IT)
The model and serial number of your new C 446 are located on the back of the cabinet. For your future convenience, we suggest that you record these numbers here:
Model no:. . . . . . . . . . . . . . . . . . . .
Serial no.: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ENGLISH
NAD is a trademark of NAD Electronics International, a division of Lenbrook Industries Limited Copyright 2011, NAD Electronics International, a division of Lenbrook Industries Limited
3
ENGLISH
INTRODUCTION
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . .2
INTRODUCTION |
|
GETTING STARTED. . . . . . . . . . . . . . . . . . . . . . . . |
5 |
WHAT’S IN THE BOX. . . . . . . . . . . . . . . . . . . . . . . . . .5 CHOOSING A LOCATION . . . . . . . . . . . . . . . . . . . . . . . 5 RESTORING C 446 TO ITS FACTORY DEFAULT SETTINGS. . . . . . . 5 NOTICE TO EUROPEAN CUSTOMERS . . . . . . . . . . . . . . . . . 5
IDENTIFICATION OF CONTROLS |
|
FRONT PANEL.. . . . . . . . . . . . . . . . . . . . . . . . . . 6 |
|
REAR PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . |
7 |
TNR 2 REMOTE CONTROL. . . . . . . . . . . . . . . . . . . . |
9 |
SETUP |
|
SETTING UP THE C 446 . . . . . . . . . . . . . . . . . . . . . . |
10 |
OUT OF THE BOX. . . . . . . . . . . . . . . . . . . . . . . . . . |
10 |
NETWORK SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . |
10 |
TEXT/CHARACTER ENTRY . . . . . . . . . . . . . . . . . . . . . . |
11 |
SELECTING SOURCES. . . . . . . . . . . . . . . . . . . . . . . |
11 |
SETTINGS MENU . . . . . . . . . . . . . . . . . . . . . . . . . . |
11 |
OPERATION |
|
USING THE C 446 – INTERNET RADIO. . . . . . . . . . . . . . |
12 |
MY FAVOURITES. . . . . . . . . . . . . . . . . . . . . . . . . . . |
12 |
LOCAL AREA . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
12 |
STATIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
12 |
THANK YOU FOR CHOOSING NAD.
The C 446 Digital Media Tuner is NAD’s answer to connecting the past, present and future by combining the best of analog and digital broadcast technology. Along with NAD’s tried and true high performance analog tuner for the FM and AM bands, the C 446 takes advantage of the latest frontier in music broadcasting by allowing connection to thousands of free audio broadcast service transmitted over the internet.
Through C 446, you get to enjoy various available radio stations from different parts of the world in real time and without the use of a computer. The C 446 takes the computer out of the equation and can be connected directly to the internet using wireless or wired connection.
Aside from Internet radio and FM and AM radio in their native analog format or as a decoded S/PDIF digital output, the C 446 also features the
PODCASTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12 MY ADDED STATIONS . . . . . . . . . . . . . . . . . . . . . . . . 12 HELP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
USING THE C 446 – OTHER SOURCES. . . . . . . . . . . . . . . 13
UPnP CLIENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 UPnP RECEIVER. . . . . . . . . . . . . . . . . . . . . . . . . . . 13 LAST.FM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13 USB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 IPOD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
LISTENING TO AM/FM RADIO. . . . . . . . . . . . . . . . . . .15
STORING PRESETS (AM/FM/DAB).. . . . . . . . . . . . . . . . . 15 CHOOSING THE TUNER MODE. . . . . . . . . . . . . . . . . . . 15 ABOUT USER NAMES. . . . . . . . . . . . . . . . . . . . . . . . 15 ABOUT RDS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
LISTENING TO DAB RADIO.. . . . . . . . . . . . . . . . . . . |
17 |
DAB OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . |
17 |
DAB SETUP MENU.. . . . . . . . . . . . . . . . . . . . . . . . . |
17 |
STATION ORDER. . . . . . . . . . . . . . . . . . . . . . . . . . . |
17 |
MANUAL SCAN.. . . . . . . . . . . . . . . . . . . . . . . . . . |
18 |
PRUNE LIST.. . . . . . . . . . . . . . . . . . . . . . . . . . . . |
18 |
RESET SETTINGS. . . . . . . . . . . . . . . . . . . . . . . . . . |
18 |
INFORMATION SETTINGS.. . . . . . . . . . . . . . . . . . . . . |
18 |
REFERENCE

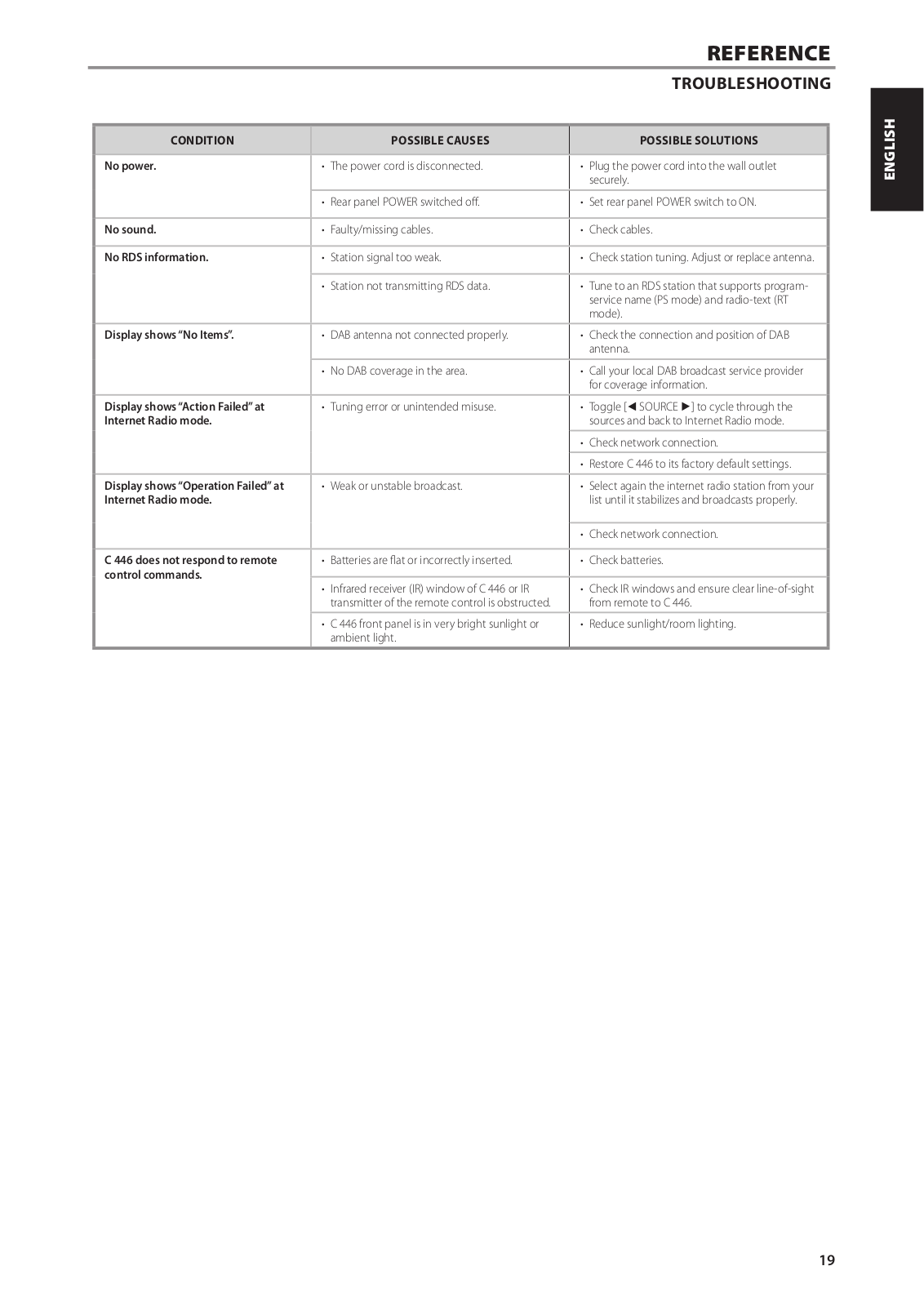

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . .19 SPECIFICATIONS. . . . . . . . . . . . . . . . . . . . . . . . .20
As with all our products, NAD’s “Music First” design philosophy guided the C 446’s design, such that it can confidently promise you both state-of-the- art and audiophile-quality music listening for years to come.
We encourage you to take a few minutes now to read right through this manual. Investing a little time here at the outset might save you a good deal of time later, and is by far the best way to ensure that you make the most of your investment in the C 446.
One more thing: We urge you to register your C 446 ownership on the NAD Worldwide Web site:
http://NADelectronics.com
following |
For warranty information contact your local distributor. |
•built-in DAB+ radio (230V version model only)
•support for the music recommendation streaming service Last.fm
•browse and playback audio content from your computer via uPnP (Universal Plug and Play) media sharing
•USB connectivity to playback music files in AAC, MP3, WMA, WAV and FLAC format
•NAD IPD Dock for iPod (NAD IPD) control and connectivity
•analog stereo line level output or S/PDIF digital audio output
NAD SHALL NOT BE HELD LIABLE FOR ANY TECHNICAL OR USER INTERFACE DISCREPANCIES IN THIS MANUAL.
THE C 446 OWNER’S MANUAL MAY BE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE. CHECK OUT THE NAD WEBSITE FOR THE LATEST VERSION OF THE C 446 OWNER’S MANUAL.
4
INTRODUCTION
GETTING STARTED
WHAT’S IN THE BOX
Packed with your C 446 you will find
•AM loop antenna
•FM ribbon-wire antenna with balun
•Wireless antenna
•DAB antenna (230V version model only)
•Detachable mains power cord
•TNR 2 remote control with 2 AA batteries
•Quick Start guide
SAVE THE PACKAGING
Please save the box and all of the packaging in which your C 446 arrived. Should you move or otherwise need to transport your C 446, this is by far the safest container in which to do so. We’ve seen too many otherwise perfect components damaged in transit for lack of a proper shipping carton, so please: Save that box!
CHOOSING A LOCATION
Choose a location that is well ventilated (with at least several inches to both sides and behind), and that will provide a clear line of sight, within 25 feet/8 meters, between the C 446’s front panel and your primary listening/viewing position - this will ensure reliable infrared remote control communications. The C 446 generates a modest amount of heat, but nothing that should trouble adjacent components. It is especially important that sufficient ventilation be provided.
RESTORING C 446 TO ITS FACTORY DEFAULT SETTINGS
Sometimes power spikes and drop-outs may from time to time cause some inadvertent functionality. The procedure below will reset the C 446 to its factory default settings.
For 120V version model only (AH version)
•At any Source modes, press and hold front panel [3SOURCE] button first and then followed by the [BACK] button. The VFD shows
NOTICE TO EUROPEAN CUSTOMERS
The C 446 may be operated in the following countries:
Armenia |
Greece |
Portugal |
|
|
|
Austria |
Hungary |
Romania |
|
|
|
Belarus |
Iceland |
Russia |
|
|
|
Belgium |
Ireland |
Serbia & Montenegro |
|
|
|
Bulgaria |
Italy |
Slovakia |
|
|
|
Croatia |
Latvia |
Slovenia |
|
|
|
Cyprus |
Lithuania |
Spain |
|
|
|
Czech Republic |
Luxembourg |
Sweden |
|
|
|
Denmark |
Macedonia |
Switzerland |
|
|
|
Estonia |
Malta |
Turkey |
|
|
|
Finland |
Moldova |
Ukraine |
|
|
|
France |
The Netherlands |
United Kingdom |
|
|
|
Georgia |
Norway |
|
|
|
|
Germany |
Poland |
|
|
|
|
EU COUNTRY RESTRICTION IN 2.4GHZ BAND
This device may be used indoors or outdoors in all countries of the European Community using the 2.4GHz band: Channel 1-13, except where noted below.
•In France, the output power is restricted to 10 mW EIRP when the product is used outdoors in the band 2454 - 2483.5 MHz. There are no restrictions when used in other parts of the 2.4 GHz band.
AH Reset...
complete.
For 230V version model only (C version)
•At any Source modes, press and hold front panel [3SOURCE] button first and then followed by the [SETUP] button. The VFD shows
C Reset...
complete.
IMPORTANT NOTES
•TheC 446willautomaticallygotostandbymodeafterthe“reset” display.
•RestoringtheC 446toitsfactorydefaultsettingswilldeleteallAM, FMandDABpresetsaswellasallsetupsettingsdoneviathe“Settings Menu”.
ENGLISH
5
ENGLISH
IDENTIFICATION OF CONTROLS
FRONT PANEL
Digital Media Tuner C 446 |
|
|
CONTROL/ENTER |
|
SOURCE |
PLAY/PAUSE INFO |
Internet Radio |
SETUP |
BACK |
|
|
Magic 89.9 |
|
|
Playing
© NAD C 446
1 |
|
2 |
|
3 |
|
4 |
|
5 |
|
6 |
|
|
|
|
|
|
|
|
|
|
|
1STANDBY BUTTON
•The rear panel POWER switch must be at ON position for the Standby button to activate.
•Press this button to switch ON the C 446 from standby mode. The Standby LED indicator will turn from amber to blue and illuminate the VFD. Pressing the STANDBY button again turns the unit back to standby mode.
•The C 446 will wake up to the last Source used prior to standby mode.
2STANDBY LED
•This indicator will light up amber when the C 446 is at standby mode.
•When the C 446 is powered up from standby mode, this indicator will illuminate blue.
3tSOURCE u
•Select through Source modes.
•Press these buttons to toggle through the Source selections - Internet Radio, UPnP Client, UPnP Receiver, Last.FM, USB, iPod, AM, FM and DAB (230V version model only).
4PLAY/PAUSE
•Toggle to activate playback or pause of applicable source.
•PLAY/PAUSE is applicable only for playback or pause of USB files, the docked iPod player and UPnP media.
•Pressing [PLAY/PAUSE] while at Internet Radio mode will cause the broadcast to stop. Press [PLAY/PAUSE] again to resume broadcast at current time.
5INFO
•Show information as supplied by the applicable source.
•INFO feature is applicable only for USB, DAB and Internet Radio. Toggle [INFO] button to display supplied information.
6REMOTE SENSOR
•Point the TNR 2 remote control at the remote sensor and press the buttons.
•Do not expose the remote sensor of the C 446 to a strong light source such as direct sunlight or illumination. If you do so, you may not be able to operate the C 446 with the remote control.
Distance: About 23ft (7m) from the front of the remote sensor. Angle: About 30° in each direction of the front of the remote sensor.
7 VACUUM FLUORESCENT DISPLAY (VFD)
7 |
|
8 |
|
9 |
|
10 |
|
11 |
|
|
|
|
|
|
|
|
|
8USB
•Connect a USB memory stick to this input.
•Refer also to the item about USB at the USING THE C 446 – OTHER SOURCES section of the OPERATION page.
9SETUP
•Activate and display “Settings Menu”.
•SETUP button can be pressed at any Source mode; “Settings Menu” is activated each time.
10BACK
•Return to previous display.
•Repeatedly press [BACK] to return back to a “page” or menu one at a time.
•During character entry of password or user name, press [BACK] to delete current character.
11CONTROL/ENTER
•Dual-function control knob.
•Rotate to select through menu or item list.
•Rotate to select alphanumeric characters for text/character entry as required by a menu item.
•Press to select item, start playback of a file or complete character entry (for password and user name).
Display visual information about the current Source. Information supplied is generated by the Source.
6
IDENTIFICATION OF CONTROLS
REAR PANEL
|
ANTENNA |
|
FM |
GND |
AM |
© NAD C 446
1
|
WIFI |
|
100~240V – 50/60Hz |
AUDIO OUT |
|
|
|
L |
DIGITAL OUT |
IR IN |
POWER |
DAB |
LAN |
RS232 |
|
|
|
MP DOCK |
ON |
R |
+12V |
TRIGGER |
|
|
IN |
|
DATA PORT |
2 |
3 |
|
4 |
|
5 |
6 |
|
7 |
|
8 |
|
9 |
|
10 |
|
11 |
|
12 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ATTENTION!
PleasemakesurethattheC 446ispoweredofforunpluggedfromthemainspowersourcebeforemakinganyconnections.Itisalsoadvisabletopowerdown
orunplugallassociatedcomponentswhilemakingorbreakinganysignalorACpowerconnections.
1FM ANTENNA TERMINAL
•Connect the supplied wire “dipole” FM antenna to the FM antenna terminal using the supplied “balun” adapter. It will usually work best when mounted on a vertical surface such as a wall, with arms fully outstretched forming a horizontal “T” perpendicular to the origin point of the signal.
AM ANTENNA TERMINAL
The AM loop antenna supplied with the C 446 (or a suitable replacement) is required for AM reception.
•Connect the supplied AM loop antenna to these terminals. If an external AM antenna is used, make connections to the AM and GND terminals in accordance with the instructions supplied with the antenna.
•Testing different positions for the antenna may improve reception; vertical orientation will usually produce the best results. Antenna proximity to large metal objects (appliances, radiators) may impair reception, as well as attempts to lengthen the wire to the loop.
•Refer also to the item about ASSEMBLING THE LOOP ANTENNA at the LISTENING TO AM/FM RADIO section of the OPERATION page.
2DAB ANTENNA TERMINAL (230V version model only)
•Install the supplied DAB antenna into this DAB terminal.
•With DAB, you can receive CD-like quality programs without any annoying interference and signal distortion.
•Refer also to the “LISTENING TO DAB RADIO” segment of the “OPERATION” section.
3AUDIO OUT
Connect to the corresponding analog audio input of an amplifier, receiver or stereo system.
4DIGITAL OUT
Using an optical cable (TOSLINK connector), connect DIGITAL OUT to the corresponding digital audio input of receivers or digital processors.
5LOCAL AREA NETWORK (LAN) PORT
•LAN connection must be setup for Wired connection to be established. Set up a Wired Ethernet broadband router with broadband internet connection.
•Using a standard straight-through Ethernet cable (not supplied), connect one end of the Ethernet cable to the LAN port of your wired Ethernet broadband router and the other end to C 446’s LAN port.
NOTES
•NADisnotresponsibleforanymalfunctionoftheC 446and/orthe internetconnectionduetocommunicationerrorsormalfunctions associatedwithyourbroadbandinternetconnectionorotherconnected equipment.ContactyourInternetServiceProvider(ISP)forassistanceor theservicebureauofyourotherequipment.
•ContactyourISPforpolicies,charges,contentrestrictions,service limitations,bandwidth,repairandotherrelatedissuespertinentto internetconnectivity.
6WIRELESS (WIFI) ANTENNA TERMINAL
•Install the supplied wireless antenna into this wireless antenna terminal (WiFi).
•Wireless (WiFi) broadband router with broadband internet connection is required for wireless connection to be established.
7RS 232
NAD is a certified partner of AMX and Crestron and fully supports these external devices. Check out the NAD website for information about AMX and Crestron compatibility with NAD. See your NAD audio specialist for more information.
•Connect this interface using RS-232 serial cable (not supplied) to any Windows compatible PC to allow remote control of the C 446 via compatible external controllers.
8MP DOCK
The C 446 is equipped with a data port in the rear panel where an optional NAD IPD (NAD IPD Dock for iPod) 1, NAD IPD 2 and later variants can be plugged in.
•Connect the “MP DOCK (DATA PORT)” jack of the C 446 to the corresponding “DATA PORT” socket of the optional NAD IPD model.
•Connection between the C 446 and NAD IPD is only via their respective DATA PORT. NAD IPD audio and S-Video port connections should be directed to the external device’s corresponding input ports (assigned for NAD IPD).
NOTE
TheNADIPDDockforiPodisnotsuppliedwithyourC 446.
ENGLISH
7
Loading...
