Parts Manual
SERIES 1000
Hydrostatic Lawn Tractor
Models LT1018
LT1022
CUB CADET LLC, P.O. BOX 361131 CLEVELAND, OHIO 44136-0019
PRINTED IN U.S.A.
www.mymowerparts.com
www.mymowerparts.com
FORM NO.
769-00578B
12/12/03
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-2-
MODELS LT1018 & LT1022
TABLE OF CONTENTS
DESCRIPTION PAGE
Axle, Front ....................................................... 6
Battery ............................................................. 16
Brake Pedal .............................................. ....... 12
Head Lamp ...................................................... 18
Mower Deck, 38-inch................... ... .................. 22
Pedal Controls ................................................. 12
Dash Panel ...................................................... 16
Drive System ................................................... 4
Electrical Sysytem ........................................... 26
Engines ............................................................ 26
Engine Accessories ......................................... 15
Fender ............................................................. 10
DESCRIPTION PAGE
Frame .............................................................. 8
Fuel Tank ........................................................ . 10
Grille ................................................................ 18
Hood ................................................................ 18
Deck Lift Handle/Linkage ................................. 11
Muffler .............................................................. 15
PTO Clutch ...................................................... 20
Seat ................................................................. 14
Side Panels ..................................................... 18
Steering ........................................................... 6
Transmission, Hydrostatic ............................... 24
Wheels, Front & Rear ...................................... 3
NOTE, For painted parts, please refer
to the list of color codes below. Please
add the applicable color code, wherever
needed, to the part number to order a
replacement part. For instance, if a part,
numbered 700-xxxx, is painted Cub
Yellow, the part number to order would
be 700-xxxx-0716.
Cub Yellow: 0716
Cub Beige: 0499
Powder Black: 0637
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-3-
WHEELS
9
1
8
2
3
4
REF.
NO.
1 734-3189 Tire, Turf, Cub Cadet 20 x 9 x 8 2
2 634-0246A Rim Assembly, 8.0 x 6.19 (4-Lug) 2
3 712-3050 Lug Nut, 7/16-14 8
4 741-3032 Bearing, Ball, .75 ID x 1.75 OD 4
5 634-04104 Rim Assembly, 6 x 4.5 2
6 731-3020 Hub Cap 2
7 734-3186 Tire, Turf, Cub Cadet 15 x 6 x 6 2
8 634-04094 Wheel Assembly, Cub Cadet 15 x 6 x 6 2
9 634-0245A Wheel Assembly, Cub Cad et 20 x 9 x 8 2
— 737-0224 Gease Fitting 2
— 734-0255 Valve, Tubeless Air 4
PART
NUMBER DESCRIPTION QTY.
(Included, Bearings, Spacer and Valve)
(Includes Rim Ass’y, Tire and Fitting)
(Includes Rim Ass’y, Tire and Valve)
4
7
5
6
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-4-
25
27
20
DRIVE SYSTEM
A
18
18
1
A
42
3
19
2
53
28
21
13
B
34
B
B
33
36
B
23
29
49
35
39
17
11
22
31
18
8
45
47
12
5
40
41
48
46
52
37
8
50
14
44
10
38
36
16
26
36
6
4
www.mymowerparts.com
www.mymowerparts.com
7
32
30
51
23
35
36
Attach Spring (732-1716) Here
9
9
43
44
15
36
23
24
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-5-

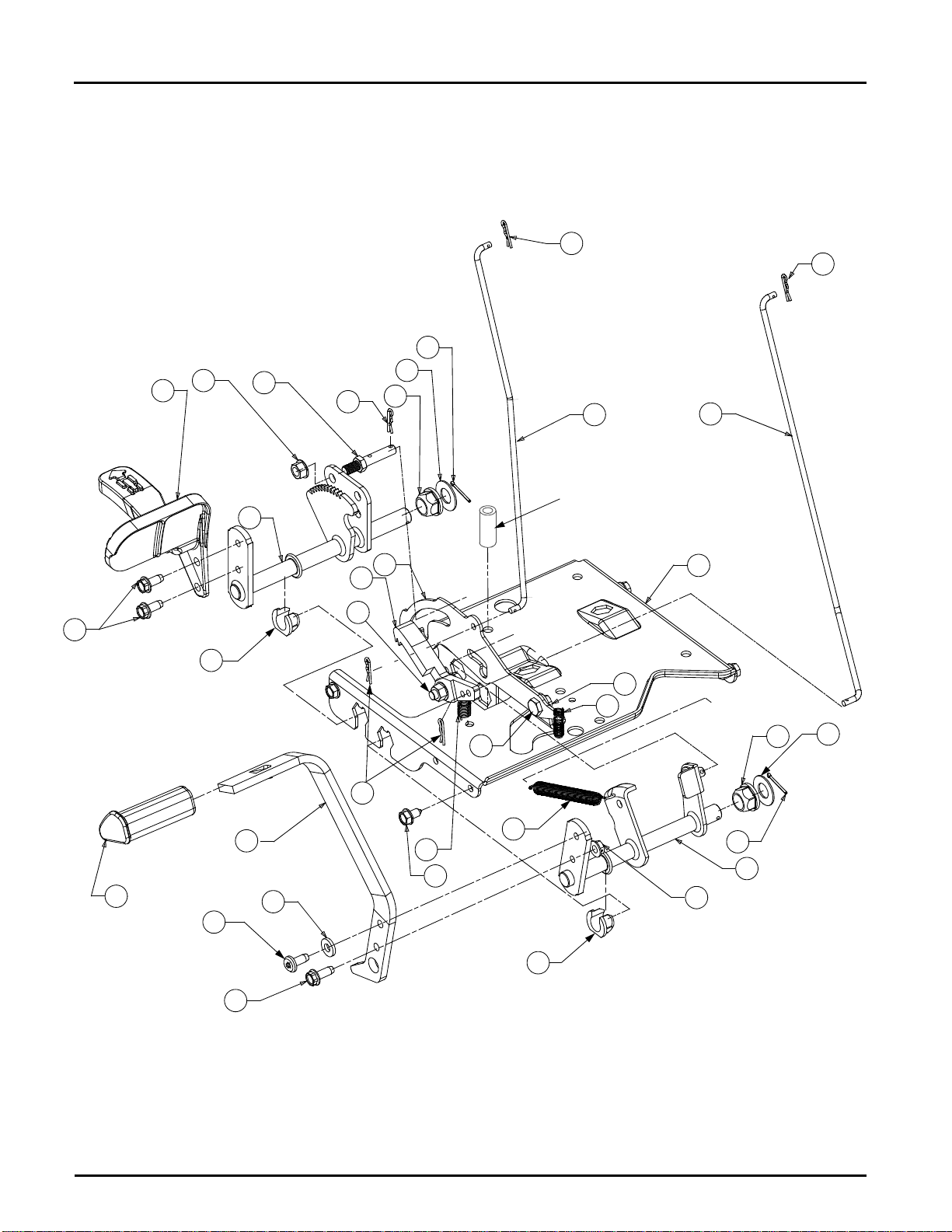

DRIVE SYSTEM
REF.
PART
NO.
NUMBER DESCRIPTION QTY.
1 17840 Bracket, Mounting, Transaxle 2
2 618-04154 Hub Assembly, Wheel 2
3 618-0319 Transmission, Hydrostatic 1
4 629-0949A Harness Assembly , Ground & Reverse 1
5 783-04442 Bracket Assembly, Idler, Center Dbl 1
6 710-1266 Hex Cap Screw, 5/16-18,3.5, Gr5 4
7 710-0227 Screw, #8-18, 0.500 2
8 710-0344 Hex Cap Screw, 3/8-16, 1.50, Gr5 3
9 710-0726 Screw, 5/16-12, 0.75 6
10 710-0599 Screw, 1/4-20, 0.5 1
11 710-3007 Screw, #12-24, 0.375 3
12 710-3011 Hex Cap Screw, 3/8-16, 2.25, Gr5 1
13 710-3103 Hex Cap Screw, 5/16-18, 2.00, Gr5 1
14 710-0627 Hex Cap Screw, 5/16-24 x .750 2
15 711-0832 Ferrule, 3/8-24 x .375 Dia 1
16 712-0291 Nut, Hex Lock, 1/4-20 1
17 712-0333 Nut, Hex, 1/2-20, Gr2 1
18 712-0130 Nut, Nylon Lock, 3/8-16 4
19 731-04675 Sleeve, 1.5” 2
20 712-0429 Nut, Nylon Lock, 5/16-18, Gr5 5
21 712-3010 Nut, Hex, 5/16-18, Gr5 1
22 712-3017 Nut, Hex, 3/8-16, Gr8 3
23 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 2
24 714-0111 Pin, Cotter, 3/32, 1.0 1
25 725-0157 Cable, Tie, 3/16 x .05 x 7.4 2
26 725-1644 Switch, Spring, Short 1
27 726-0154 Tie, Cable, Push Mount 7.5 Lg 1
28 726-0320 Plate, Insulator Nut 1
29 731-1449A Fan, Blade, 10” 1
30 732-0209 Spring, .48 OD x 2.03 Extension 1
31 732-0429A Spring, Extension, .50 Dia x 3.97 Lg 1
32 732-0716 Spring, Extension, .59 OD x 4.00 Lg 1
33 732-0729 Ring, Wire 1
34 732-0994 Spring, Extension, .500 Dia x 7.0 Lg 1
35 732-3118 Spring, Extension, 3/8 OD x 1.44 Lg 1
36 736-0140 Washer, Flat, .385 x .62 x .063 3
37 736-0169 Washer, Lock, 3/8 , Regular Duty 1
38 736-0866 Washer, Flat, .755 x 1.92 x .060 2
39 736-0921 Washer, Lock, 1/2 , Regular Duty 1
40 736-3010 Washer, Flat, .407 x .812 x .135 Hdn 1
41 738-0372B Spacer, Shoulder, 1.00 x .38 x .38 1
42 747-1149 Rod, Hydro Bypass 1
43 747-1150 Rod, Brake, Hydro 1
44 747-1151 Rod, Control, Hydro 1
45 750-0535 Spacer, .376 ID x .625 OD x .22 1
46 754-0640 Belt, V Type, Poly (Use w/ 756-1166) 1
754-0461 Belt, V Type, Poly (Use w/ 756-04111) 1
47 756-0116 Pulley, Idler, V Type x 3.06 Dia 2
48 756-0981A Pulley, Idler, Flat 2.75 OD 1
49 756-1166 Pulley, Input, 5.0 Dia 1
756-04111 Pulley, Engine, 4.11Dia. 1
50 783-0810 Bracket, Transmission, Torque Hydro 1
51 783-1019 Bracket, Actuator, Switch 1
52 756-0978A Pulley, Engine, 3.56 Dia. 1
53 736-0242 Belle Washer 2
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-6-
STEERING
29
4
14
28
23
19
20
11
18
1
7
15
8
10
17
22
3
7
9
19
9
27
6
13
25
7
27
21
26
24
2
www.mymowerparts.com
www.mymowerparts.com
5
12
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-7-
STEERING
REF.
NO.
1 710-0514 Hex Cap Screw, 3/8-16, 1.00, Gr5, Std 2
2 711-1408 Link, Drag, RH 1
3 711-1409A Link, Drag, LH 1
4 710-1260A Self-tapping Screw, 5/16-18 x .75 1
5 712-0240 Nut, Jam, 7/16-20, Gr2 2
6 712-0241 Nut, Hex, 3/8-24, Gr5 2
7 712-0130 Nut, Nylon Lock, 3/8-16 4
8 712-0459 Nut, Flange Lock, 7/16-20 1
9 712-0429 Nut, Nylon Lock, 5/16-18 2
10 717-1550E Gear, Steering, 11/90 Ratio 1
11 717-1554 Gear, Pinion, Steering 1
12 723-0610 Ball Joint, 7/16-20 2
13 736-0169 Washer, Lock, 3/8 , Regular Duty 2
14 736-3004 Washer, Flat, .406 x .875 x .105 1
15 736-3084 Washer, Flat, .510 x 1.120 x .060 1
16 737-3007 Grease, Alvania Ep 2 1
17 738-0372B Spacer, Shoulder, 1.00 x .38 x .38 2
18 738-04075 Shaft, Steering, .625 OD x 25.00 Lg 1
19 741-0475 Bushing, Plastic, .380 ID 2
20 741-0656 Bearing, Hex Flange, 5/8 1
21 683-04101 Axle Assembly, LH .750 Dia 1
22 683-04102 Axle Assembly, RH .750 Dia 1
23 712-0417A Nut, Hex, Flange, 5/8-18 2
24 714-0162 Pin, Cot, 5/32, 1.25 2
25 719-0525C Axle, Pivot, Cast .750 Dia 1
26 736-0866 Washer, Flat, .755 x 1.92 x.060 2
27 738-1011 Spacer, Shoulder, .500 x 2.230, 3/8-16 2
28 731-04008 Wheel, Steering, Three Spoke 1
29 731-04532 Cover, Steering Wheel 1
PART
NUMBER DESCRIPTION QTY.
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-8-
FRAME
5
18
5
13
5
16
5
5
9
13
23
22
10
7
14
12
6
21
2
725-04039
REF. ONLY
5
1
19
4
17
6
20
8
5
17
9
11
3
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-9-
FRAME
REF.
NO.
1 17962 Plate, Switch 1
2 683-0304A Frame Assembly, Lower 1
3 683-0612 Bumper Assembly 1
4 710-0224 Screw, Hex Wash. Hd. Tapp, 10-16 x .5 2
5 710-0726 Screw, Self-tapping, 5/16-18, 0.75 15
6 710-1260A Screw, 5/16-18, 0.750 2
7 710-1652 Screw , He x Wa sh. Hd. Tapp, 1/4-20 x 0.625 1
8 711-0332 Pin, Clevis, .50 Dia x .78 Lg 2
9 712-0130 Nut, Nylon Lock, 3/8-16 2
10 710-0607 Screw, Hex Wash. Tapp, 5/16-18 x .5 1
11 714-0145 Pin, Click, .092 x 1.64 Lg 2
12 741-04092 Snap Bushing 1
13 732-04035 Spring, Compression, 1.28 OD x 3.125 Lg 2
14 736-0222 Washer, Lock, Ext 1/4 2
16 738-04058 Shoulder Spacer 2
17 738-0143 Shoulder Screw, 3/8-16 2
18 710-3005 Hex Screw 3/8-16 x 1.25 2
19 783-0726C Bracket, Pivot, Support RH 1
20 783-0727B Bracket, Pivot, Support LH 1
21 783-0728 Bracket, Pivot, Bar 1
22 783-04330 Frame, Upper, Cub 1500 1
23 783-04329 Bracket, Frame, Seat 1
PART
NUMBER DESCRIPTION QTY.
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-10-

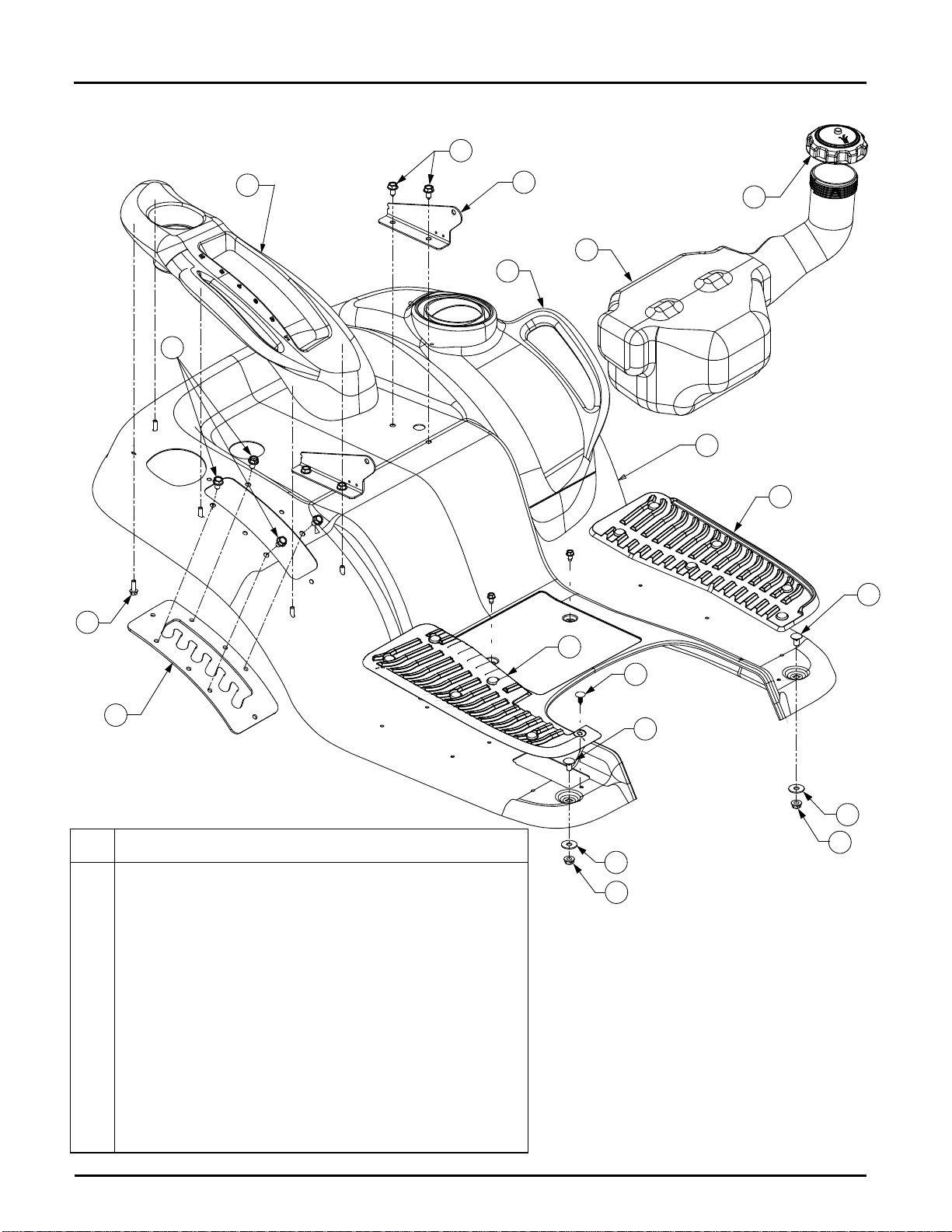

FENDER & FUEL TANK
2
5
2
3
9
15
14
6
10
12
1
13
8
REF.
NO.
1 710-0260A Bolt, Carriage, 5/16-18 x .62 Lg 2
2 710-0726 Screw, 5/16-12, 0.75 8
3 710-0895 Screw, 1/4-15, 0.750 9
4 712-0429 Nut, Nylon Lock, 5/16-18 2
5 731-2616A Cover , Fender, RH 1
6 731-2617 Cover, Fender, LH 1
7 736-3078 Washer, Flat, .349 x 1.00 x .063 2
8 783-0677 Bracket, Lift, Adjustment 1
9 783-0715B Bracket, Seat, Mount 2
10 783-04398 Fender 1
11 726-3046 Clip, Ratchet, .250 Dia 12
12 735-0697 Pad, Foot, LH 1
13 735-0698A Pad, Foot, RH 1
14 751-0819A Tank, Fuel 1
15 751-3124B Cap, Fuel 1
16 710-0599 Screw, Self-tapping, 1/4-20, 0.500 2
PART
NUMBER DESCRIPTION QTY.
11
1
7
4
7
4
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-11-
LIFT ASSEMBLY
1
9
10
20
22
REF.
NO.
1 683-04079 Shaft Assembly, Lift 1
2 711-0332 Pin, Clevis, .50 Dia x .78 Lg 2
3 783-0720A Bracket, Adjustment, Front Deck Rod 1
4 712-0130 Nut, Nylon Lock, 3/8-16 2
5 712-0429 Nut, Nylon Lock, 5/16-18, Gr5 2
6 712-3083
7 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 2
8 714-0111 Pin, Cotter, 3/32, 1.0 2
9 714-04023 Pin, Click, .092 x 1.64 Lg 2
10 716-0106A E-ring, .625 Dia. Shaft 2
11 720-0311 Grip, Handle 1
12 732-0874 Spring, Torsion 1
18 738-0138A Screw, Hex Cap, 5/16-18x.620 Gr2 2
19 738-0143 Shoulder Screw, 3/8-16 2
20 741-0225
22 746-0968 Cable, Lift, 16.16 Lg 2
23 747-04155 Ha ndle, Lift 1
24 747-1130B Rod, Deck, Front Adju stment .5" Dia 1
25 756-1154 Pulley, Roller 2
26 783-0678A Lift, Arm 2
PART
NUMBER DESCRIPTION QTY.
25
5
8
10
14
7
20
25
11
12
18
B
B
26
4
22
18
A
23
19
24
Nut, Hex Lock, 1/2-13, Gr8, Nylon 2
Bearing, Hex Flange 2
5
A
8
26
4
19
2
9
3
6
www.mymowerparts.com
www.mymowerparts.com
12
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-12-
PEDAL ASSEMBLY
10
11
23
19
26
25
8
7
10
10
REF. ONLY
2
17
27
22
5
24
9
13
21
10
15
16
18
6
20
14
3
28
Hook to Flange
In Frame (783-0650)
11
1
9
23
19
24
4
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-13-
PEDAL ASSEMBLY
REF.
NO.
1 647-0031B Control Assembly, Brake 1
2 647-0049A Control Assembly, Hydro 1
3 710-0726 Screw, Self-tapping, 5/16-12, 0.75 4
4 710-0650 Screw, Self-tapping, 5/16-18, 0.875 1
5 710-1260A Screw, 5/16-18, 0.750 2
6 783-0773A Pedal, Brake 1
7 711-1363 Pin, 3/8-16, 3/8 x 2.43 Lg 1
8 712-0130 Nut, Nylon Lock, 3/8-16 2
9 712-0429 Nut, Nylon Lock, 5/16-18, Gr5 2
10 714-0104 Pin, Cotter, .072 Dia. x 1.13 Lg 5
11 714-0111 Pin, Cotter, 3/32, 1.0 2
12 719-0584A Pedal, Hydro Control 1
13 732-0335 Spring, Compression, .405 x 1.17 1
14 732-0955 Spring, Extension, .50 OD x 1.41 Lg 1
15 732-0963 Spring, Extension, .50 Dia x 6.37 Lg 1
16 735-3049 Pad, Brake, Control 1
17 783-0663C Bracket, Lockout, Hydro 1
18 710-1611B Screw, Torx Hd. Tapp. 5/16-18 x .75 1
19 736-0187 Washer, Flat .64 ID x 1.24 x .06 2
20 736-3008 Washer, Flat, .344 x .750 x .120 1
21 738-0155 Shoulder, Screw .437 x 1.62 Lg 1
22 738-0507B Screw, Shoulder, .500 Dia x .434 1
23 741-0225 Bearing, Hex Flange 2
24 741-3065B Bearing, Hex Flange, .628 ID, Split 2
25 747-04096 Rod, Control, Cruise 1
26 747-04093 Rod, Control, Brake Lock 1
27 748-04039B Latch, Cruise 1
28 783-0653F Bracket, Support, Stearing 1
PART
NUMBER DESCRIPTION QTY.
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-14-
ADJUSTABLE SEAT
11
7
15
12
20
13
6
13
4
12
17
REF.
NO.
1 17239C Bracket, Seat Lift
2 710-1268 Screw, #10-16, 0.375 2
3 712-0429 Nut, Nylon Lock, 5/16-18, Gr5 2
4 712-0324 Nut, Nylon Lock, 1/4-20 1
5 720-0433 Grip, Seat, Adjustment (Yellow) 1
6 726-0201 Nut, Speed, .3125 ID 2
7 731-04074 Spacer, Seat, Adjustment 4
8 732-0499 Spring, Compression .41 OD x 1.50 1
9 732-1027 Spring, Extension, .80 Dia x 4.2 Lg. 1
10 732-1175 Spring, Extension, .815 Dia x 4.4 Lg. 1
11 757-04004 Seat, Mid-back, V-1480 1
12 783-0753 Selector, Seat, Adjustment 1
PART
NUMBER DESCRIPTION QTY.
13
6
19
10
PART
14
15
9
16
18
1
8
2
21
5
3
REF.
NO.
NUMBER DESCRIPTION QTY.
13 736-0275 Washer, Flat, .344 x .688 x .065 2
14 736-3019 Washer, Flat, .531 x 1.062 x .134 2
15 738-0137A Screw, Shoulder, .340 x .285, 1/4-20 1
16 738-0296 Shoulder, Screw .437 x .286 Lg 2
17 738-0966 Screw, Shoulder, .50 x.925, 3/8-16 4
18 783-0209C Bracket, Seat Lift 1
19 783-0611 Stop, Seat, Adjustment 1
20 783-0738A Bracket, Pivot, Seat 1
21 783-0739A Lever, Seat, Adjustment 1
3
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-15-
ENGINE ACCESSORIES
OHV V-Twin
9
13
(for choke)
24
11
7
19
23
20
18
9
Engine Illustration
Not Available
6
3
31
2
21
22
4
(for throttle)
12
REF.
NO.
1 710-0227 Self-tapping Screw, #8-18 x.50
2 710-0599 Self-tapping Screw, 1/4-20 x.50
3 710-0726 Self-tapping Screw, 5/16-18 x.625
4 710-1237 Screw, #10-32 x.625 (OHV V-Twin)
5 710-1314A Socket Cap Screw, 5/16-18 x.625
6 710-1315 Self-tapping Screw, 3/8-16 x 1.25
7 712-3017 Hex Nut, 3/8-16
8 721-0460 Exhaust Gasket (OHV V-Twin)
9 726-0205 Hose Clamp
10 751B213146 Casing Clamp (OHV Single)
11 736-0300 Lock Washer,.406 x.875 x.059
12 751B221535 Casing Clamp (OHV V-Twin)
13 751-0535 Fuel Line Hose
14 751-0564A Muffler Deflector
15 751-0616A Muffler, Twin Inlet ( OHV V-Twin)
16 751-0650A RH Exhaust Pipe (OHV V-Twin)
17 751-0651A LH Exhaust Pipe (OHV V-Twin)
18 751-3140 Oil Drain Valve
19 751-3141 Oil Drain Hose
20 751-3142 Oil Drain Cap
21 783-0615C Muffler Heat Shield
22 783-0625C Engin e Heat Shield (OHV V-Twin)
23 712-0271 Hex Sems Nut, 1/4-20 (OHV V-Twin)
24 725-0157 Cable Tie
31 746-1086 Throttle Cable ( OHV V-Twin)
32 751-0617A Muffler, Single Inlet (OHV Single)
33 746-1087 Throttle Cable (OHV Single)
34 732-0966 Extension Spring, .275 x 1.25 (OHV Single)
35 751-0619A Exhaust Pipe (OHV Single)
36 721-0208 Exhaust Gasket (OHV Single)
PART
NO. DESCRIPTION
23
34
5
5
16
15
OHV Single
33
4
10
Engine Illustration
Not Available
32
8
5
5
17
14
1
36
35
NOTE: Engine accessory parts are applicable to all Series 1000 tractors except where ot herwise noted.
www.mymowerparts.com
www.mymowerparts.com
30
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-16-
DASH PANEL
20
10
11
17
2
4
24
25
7
9
18
21
7
14
12
35
3
15
26
19
28
8
34
7
1
13
3
31
12
22
16
3
6
23
www.mymowerparts.com
www.mymowerparts.com
29
27
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-17-
DASH PANEL
REF.
NO.
1 710-0837 Screw, #10-16 x .625 1
2 710-0192 Screw, #10-24 x .375 2
3 710-0599 Screw, Self-tapping, 1/4-20, 0.500 6
4 710-0642 Screw, Hx. Wash. Hd, Tapp. 1/4-20 x .75 2
5 710-0650 Screw, Hx. Wash. Hd, Tapp, 5/16-18, .875 4
6 710-0703 Screw, Carriage, 1/4-20, .75, 1
7 710-0726 Screw, Hx. Wash. Hd, Tapp, 5/16-12 x .75 6
8 710-0895 Screw, 1/4-15, 0.750 1
9 710-1611B Screw, Torx Hd. Tapp. 5/16-18 x .75 2
10 710-3217 Screw, Machine, #8-32, 0.375, Trus Phillips 1
11 712-0142 Nut, 8-32 1
12 712-0324 Nut, Nylon Lock, 1/4-20 1
13 747-04215 Strap, Battery 1
14 712-3087 Nut, Wing, 1/4-20 1
15 714-0104 Internal Cotter Pin, .072 x 1.13 1
16 725-1426 Solenoid, 12V, 100 Amp 1
17 731-04668 Dash 1
18 731-04294A Lever, Dash, Cruise 1
19 731-04293A Lever, Dash, Brake 1
20 731-3161 Knob, Throttle Control 1
21 783-04285 Dash Support, RH 1
22 736-0222 Washer, External Lock, 1/4 2
23 738-1132 Screw, Shoulder, 1/4-20, .25 x .15 1
24 783-04323 Dash Support, LH 1
25 746-04121 Control, Choke, 24.0 (LT1018) 1
26 747-1323A Rod, .250 Dia x 4.25 Lg. 1
27 783-04475 Bracket, Steering Support 1
28 783-04506 Plate, Dash Support 1
29 741-0587 Steering Colume Bear ing 1
30 783-0462 Bracket, PTO Switch Retainer 1
31 783-1447A Bracket, Support, Battery 1
34 783-1499 Bracket, Rod, Dash 1
35 725-1737A Battery, 190 CCA (LT1018) 1
PART
NUMBER DESCRIPTION QTY.
746-04120 Control, Choke, 40.5 (LT1022) 1
725-1706A Battery, 270 CCA (LT1022) 1
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-18-
HOOD & GRILLE
4
1
12
4
4
5
10
REF.
NO.
1 631-04091 Hood Asssembly, Includes: 1
2 710-0599 Screw, Hx. Wash, Hd,Tapp 1/4-20 x .5 2
3 710-0726 Self-tapping Screw, 5/16-18 x.625 4
4 710-0895 Screw, 1/4-15 x .75 8
5 725-0157 Cable Tie 1
6 731-04687 Cover, Front Hood 1
7 732-04189 Spring, .46 x 4.12 2
8 738-04091 Shoulder Screw, .43 x .29 x 5/16-18 4
9 783-04428 Pivot Bracket 1
10 783-04464 Pivot Bracket, Hood, RH 1
11 783-04465 Pivot Bracket, Hood, LH 1
12 731-04569 Hood Pl enum (LT1018) 1
PART
NUMBER DESCRIPTION QTY.
629-04083 Headlight Harness 1
725-0963 Minirature Lamp, 12 V 2
725-1649 Lamp Socket 2
731-04567 Hood 1
731-04577 Headlight Lens 1
777X41562 Headlight Lens Reflector, RH 1
777X41563 Headlight Lens Reflector, RH 1
731-04579 Hood Plenum (LT1022) 1
4
4
8
7
3
2
3
7
9
8
11
6
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-19-

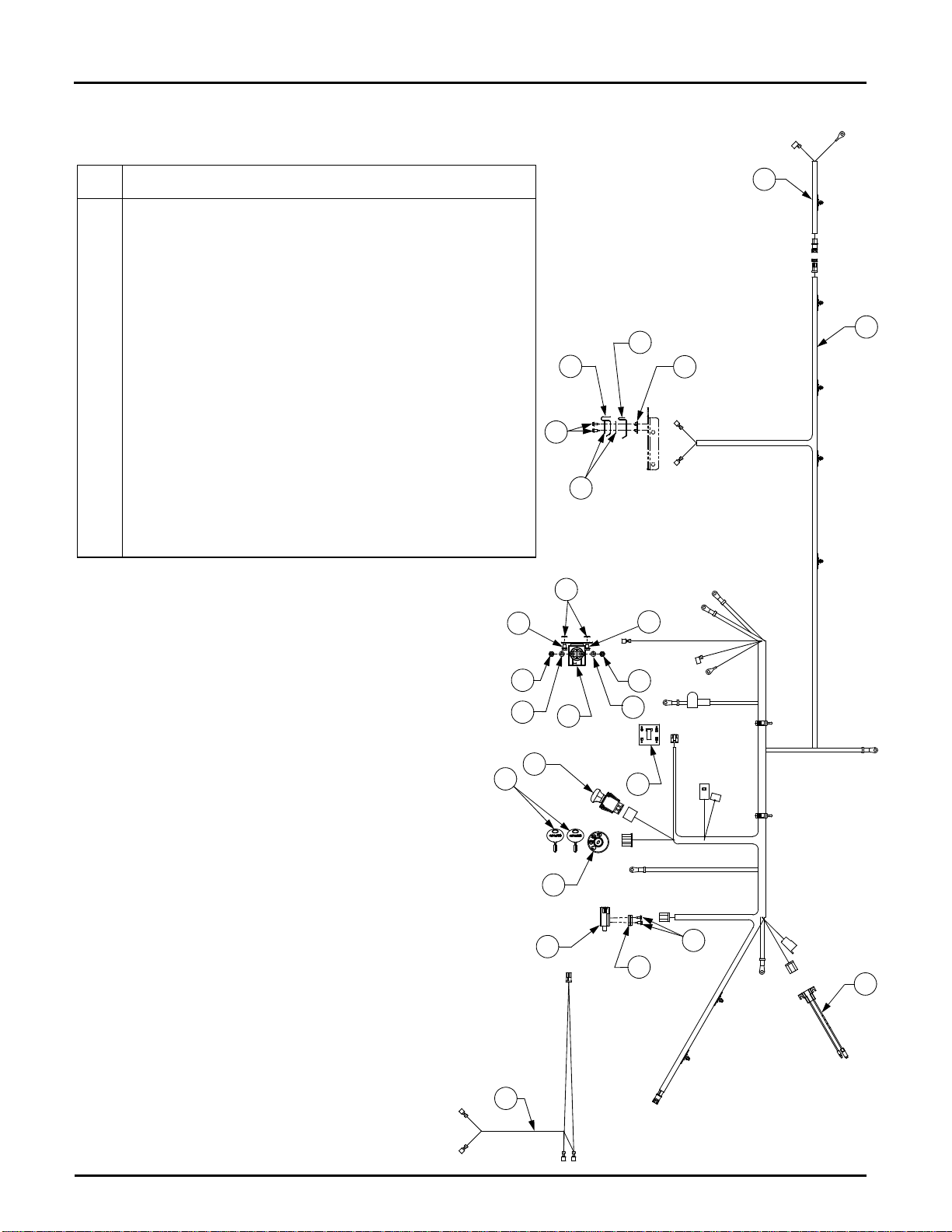

ELECTRICAL SYSTEM
REF.
NO.
1 17962 Plate, Switch 1
2 736-0329 Washer, Lock, 1/4 2
3 629-04083 Harness Assembly, Headl ight 1
4 629-04079 Harness Assembly 1
5 629-04082 Harness Assembly, Safety, Reverse 1
6 710-0224 Screw, Hx. Wash. Hd. Tapp, 10-16 x .5 2
7 710-0227 Screw, Hx. Wash. Hd. Tapp, 8-18 x .5 2
8 710-0642 Screw, Hx. Wash. Hd. Tapp, 1/4-20, 0.75 2
9 712-3006 Nut, Hex, 1/4-20, Gr5 2
10 725-04022 Indicator/ Meter Hour 1
11 725-04039 Switch, Interlock 1
12 725-1303 Switch, Outer Seat Spring 1
13 725-1426 Solenoid, Starter, 12V 1
14 725-1439 Switch, Inner Seat Spring 1
15 725-1741 Switch, Key, 4-Position 1
16 725-2054 Key, Switch, Plastic 2
17 725-04175 Switch, Electric PTO, Yellow Knob 1
18 726-0278 Plate, Insulator Boss 1
19 726-0279 Plate, Insulator 2
20 736-0222 Washer, Lock, Ext 1/4 2
PART
NUMBER DESCRIPTION QTY.
5
14
12
7
19
20
8
18
8
4
16
9
2
13
17
15
11
3
9
2
10
6
1
2
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-20-
POWER TAKE-OFF (PTO) SYSTEM
5
3
2
10
1
12
6
13
6
10
22
7
9
8
14
24
Model LT1018
23
5
18
25
20
21
19
5
17
Model LT1022
www.mymowerparts.com
www.mymowerparts.com
4
7
26
27
16
15
26
9
8
4
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-21-
POWER TAKE-OFF (PTO) SYSTEM
REF.
NO.
1 710-0859 Screw, 3/8-16 x 2.5 GR5 1
2 710-1238 Screw, 5/16-18, .875 GR5 1
3 710-3025 Screw, 5/16-18, .625 GR5 2
4 710-3157 Screw, Hex Cap, 7/16-20 x 3.25 GR5 1
5 712-0130 Nut, Nylon Lock, 3/8-16 2
6 712-0429 Nut, Nylon Lock, 5/16-18 3
7 717-1708 Clutch, Electric PTO (Model 1018) 1
8 736-0171 Washer, Lock, 7/16, Regular Duty 1
9 738-0785 Spacer, Shoulder, 1.38 x .445 x .36 1
10 748-0415A Spacer, 3/8 x 1.54 1
11 756-0978A Pulley, Engi ne 1
12 783-0891B Deck Stop 1
13 783-1003 Bracket, Clutch 1
14 683-0450 Plate Assembly, Engagement 1
15 710-0347 Screw, 3/8-16, 1.75 1
16 710-0831 Screw, 3/8-16, 5.5 1
17 710-3144 Screw, 3/8-16, 2.0 1
18 712-0229 Push Nut, 3/8 1
19 712-3017 Nut, 3/8-16 1
20 714-0470 Cotter Pin, 1/8 x 1.25 1
21 732-0384 Spring, Extension .62 x 6.12 1
22 732-0991A Belt Guard 1
23 736-0140 Washer, Flat .385 x .62 x .063 1
24 736-3039 Washer, Flat .406 x 1.5 x .11 Ga 2
25 738-0372B Shoulder Spacer, .380 1
26 756-0627B Pulley, Idler, 3.5 1
27 756-1208 Pulley, Idler, 4.0 1
28 754-0497 Belt, V-Type 1
PART
NUMBER DESCRIPTION QTY.
717-04080 Clutch, Electric PTO (Model 1022) 1
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-22-
42-INCH MOWER DECK
28
38
19
44
23
35
36
51
14
43
56
19
43
47
37
6
2
16
55
33
9
30
39
13
25
52
25
57
17
50
11
26
7
35
40
45
8
17
39
54
58
59
48
59
58
54
46
41
34
3
41
34
17
27
42
10
20
49
20
1
18
17
12
20
10
21
4
21
53
53
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-23-
42-INCH MOWER DECK
REF.
NO.
1 711-04069 Pin, Grasscatcher 1
2 683-0254 Bracket, Deck Hanger LH 1
3 683-0607B Deck Weldment, 42 inch 1
4 734-04039 Wheel, Deck, 5.0 OD 2
6 710-0136 Screw, Hex Cap, 1/4-20 x 1.75 GR5 1
7 710-0520 Screw, Hex Cap, 3/8-16 x 1.5 GR5 1
8 710-0528 Screw, 5/16-18, 1.25, Gr5 1
9 710-0726 Screw, Self-tapping, 5/16-12 x .75 4
10 710-0751 Screw, Hex Cap, 1/4-20, .620, Gr5 3
11 710-1238 Screw, Hex, 5/16-18 x .875 Gr5 1
12 710-0650 Screw, Self-tapping, 5/16-18 x .875 8
13 710-1336A Bolt, Spindle, 3/4-16 x 4.25 2
14 710-3151 Screw, Hx. Cap, 5/8-18 x 4.25 GR5 1
16 712-0337 Nut, Hex, 5/8-18, GR5 1
17 712-0130 Nut, Hx. Nylon Lock, 3/8-16 5
18 712-0429 Nut, Hx. Nylon Lock, 5/16-18 1
19 712-3006 Nut, Hex, 1/4-20, Gr5 3
20 712-0324 Nut, Hx. Nylon Lock, 1/4-20 2
21 712-3078 Nut, Hx. Flange, 3/4-16 2
23 714-0470 Pin, Cotter, 1/8 x 1.25 2
25 716-3020 Ring, Internal Retaining, 1
26 717-1553B Adjustment Gear, Deck 1
27 726-0233 Nut, Push, .25 ID x .50 OD 2
28 731-1032B
30 731-2486A Cover, Belt, Deck 2
32 732-0306 Spring, Compression, .406 x .531 x 2
33 732-0470A Spring, Extension .53 x 4.75 1
34 734-0973 Wheel Deck 5.0 x 1.38 2
35 736-0119 Washer, Lock, 5/16, Regular Duty 1
36 736-0158 Washer, Lock, 5/8 1
37 736-0162 Washer, Flat, .641 x 1.0 x .12 1
PART
NUMBER DESCRIPTION QTY.
Chute Assembly, Side Discharge —
703-1693A
711-0792
726-0106
732-0602A
Includes the following parts:
Bracket, Mounting
Pin, Hinge
Cap, Push
Spring, Torsion
REF.
NO.
38 736-0270 Washer, Belleville, .265 x .75 x .062 3
39 736-0343 Washer, Flat, .330 x 1.25 x .12 8
40 737-3000 Fitting, 3/16 Drive Lube 2
41 738-0373 Shoulder Screw 2
42 738-3056 Shoulder Screw - 1/2 Dia x 2.50 Lg. 2
43 741-0524 Bearing, Ball, .625 x 1.57 x .47 2
44 747-1116 Rod, Handle, Deck Release .375 Dia 2
45 748-0331 Spacer, Shoulder, .625 x .324 1
46 748-3065 Spacer, Deck Spindle 4
47 750-0932A Spacer, .635 x .88 x 1.72 1
48 750-3190A Bearing Spacer 2
49 754-0498 Belt, V-Type 1
50 756-0627B Pulley, Idler, 3.50 Dia. 1
51 756-1202 Pulley, Double, 5.0 x 5.0 1
52 756-3106 Pulley, Spindle 2
53 742-3033 Blade, 21.20 Lg, 3-in-1 2
54 721-3018A Oil Seal 4
55 783-1291 Bracket, Idler 1
56 783-04013A Bracket, Pulley Stabilizer 1
57 719-3118A Spindle Housing 2
58 741-04089 Cone Bearing 4
59 741-04091 Bearing Cup 4
— 618-0677 Spindle Assembly, inlcudes:
1
1
1
1
1
PART
NUMBER DESCRIPTION QTY.
741-04089 Cone Bearing (Ref. 58) 2
741-04091 Bearing Cup (Ref. 59) 2
719-3118A Spindle Housing (Ref. 57) 1
721-3018A Oil Seal (Ref. 54) 2
750-3190A Bearing Spacer (Ref. 48) 1
710-1336A Spindle Bolt (Ref. 13) 1
756-3106 Pulley (Ref. 52) 1
737-3000 Lube Fitting (Ref. 40) 1
712-3078 Flange Nut, 3/4-16 (Ref. 21) 1
748-3065 Spindle Spacer (Ref. 46) 1
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-24-
46-INCH MOWER DECK
36
12
4
12
7
25
32
37
1
13
7
1
24
23
17
1
38
29
18
19
22
16
15
2
10
11
12
6
5
31
34
26
21
3
12
8
7
9
www.mymowerparts.com
www.mymowerparts.com
7
35
9
28
27
14
27
9
14
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-25-
46-INCH MOWER DECK
REF.
NO.
1 618-04123B Spindle Assembly 3
2 683-0254 Bracket Assembly, Deck Hanger 1
3 683-04126 Deck Weldment, 36-inch 1
4 710-0347 Screw, 3/8-16, 1.75 1
5 710-0514 Hex Cap Screw, 3/8-16, 1.00, Gr5, Std 1
6 710-0528 Screw, 5/16-18, 1.25, Gr5 1
7 710-0599 Screw, Hx. Wash. Hd. Tapp, 1/4-20, 0.5 13
8 710-0751 Screw, Hex Cap, 1/4-20, .620, Gr5 2
9 710-1260A Self-tapping Screw, 5/16-18 x .75 12
10 711-04069 Pin, Grasscatcher 1
11 712-0324 Nut, Nylon Lock, 1/4-20 1
12 712-0431 Flange Lock Nut, 3/8-16 6
13 712-3006 Nut, Hex, 1/4-20, Gr5 2
14 712-3078 Nut, Hx. Flange, 3/4-16 3
15 714-0411 Cotter Pin, 1.0 2
16 717-04074 Deck Adjustment Gear 1
17 726-0233 Push Nut 2
18 732-0306A Compression Spring, 1.75 2
19 732-0594A Extension Spring, 7.33 1
20 734-04039 Deck Wheel, 5.0 2
21 734-0973 Deck Wheel, 2
22 736-0119 Washer, Lock, 5/16, Regular Duty 1
23 736-0270 Washer, Belleville, .265 x .75 x .062 2
24 731-1032B
25 738-0372B Spacer, Shoulder, 1.00 x .38 x .38 1
26 738-0373 Shoulder Screw 1
27 742-04015 Blade, 16.28 2
28 742-04016 Blade, 14.88 1
29 747-1116 Rod, Handle, Deck Release .375 Dia 2
31 754-04033 Belt, V-Type 1
32 756-1229 Idler Pulley, 4.06 1
34 783-0141 Deck Skirt, Center 1
35 783-0142 Deck Skirt, RH 1
36 783-0747B Belt Cover, LH 1
37 783-0805C Belt Cover, RH 1
38 783-1421 Bracket, Idler 1
PART
NUMBER DESCRIPTION QTY.
Chute Assembly, Side Discharge —
703-1693A
711-0792
726-0106
732-0602A
Includes the following parts:
Bracket, Mounting
Pin, Hinge
Cap, Push
Spring, Torsion
1
1
1
1
1
www.mymowerparts.com
www.mymowerparts.com
29
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-26-
ENGINE (LT1018)
1
2
3
32
25
26
28
552
759
691
584
10
43
11
9
1264
1263
27
306
27
307
358 ENGINE GASKET SET
3
7
9
617
12
20
524
15
51
691
842
868
943
4
12
718
46
1035
45
1022
1266
1019 LABEL KIT
1017
16
146
741
758
24
357
1270
757
847
523
842
1032
525
22
524
20
www.mymowerparts.com
www.mymowerparts.com
415
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-27-

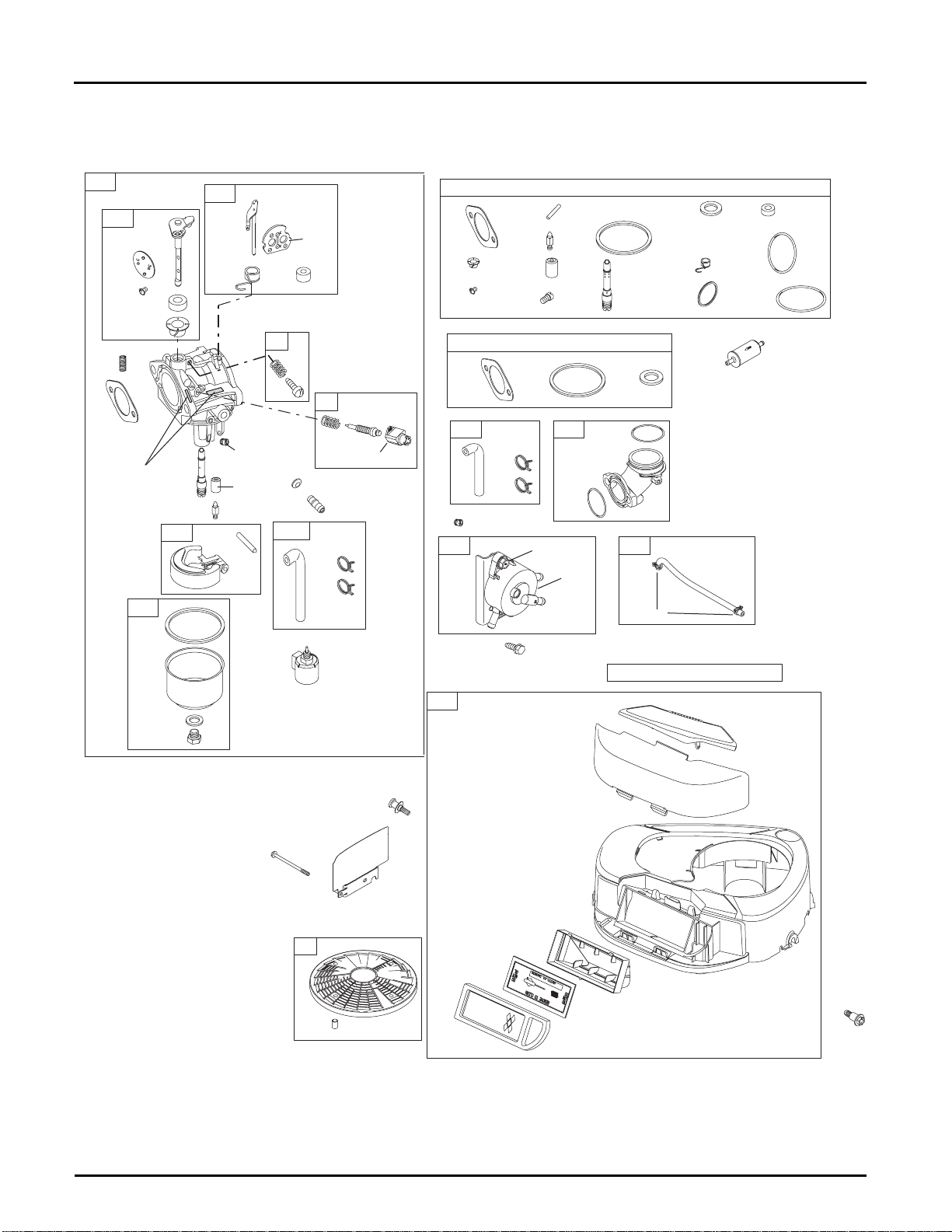

ENGINE (LT1018)
1095 VALVE GASKET SET
50
617
5
192
1034
830
1022
51
1027
51
42
238
51
868
7
617
36
1022
34
868
1024
965
943
42
750
45
13
35
1026
337
635
383
7
33
1029
54
1022
914
1023
www.mymowerparts.com
www.mymowerparts.com
53
654
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-28-
ENGINE (LT1018)
125
131
130
95
692
51
LMT / PART
NUMBER
LOCATIONS
975
987
137
93
142
133
105
141
634
104
117
106
633
98
127
187A
947
186A
108
94
601
1091
121 CARBURETOR OVERHAUL KIT
104
51
93
95
977 CARBURETOR GASKET SET
51
187 431
118
387
105
106
117
137
601
385
137
142
1266
385A
387A
276
634
617
276
1266A
918
601
1036 EMISSION LABEL
987
1266
1266A
240
276
950
1279
73
668
1265
305A
304
445
1267
968
643
967
305
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-29-
ENGINE (LT1018)
1070
1005
474
877
1059
789
526
501
363
1044
309
510
783
513
1051
579
462
216
801
544
803
1090
797
802
202
311
232
310
503
697
227
562
729
222
209
729A
505
188
616
404
356
614
23
521
1051
783
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-30-

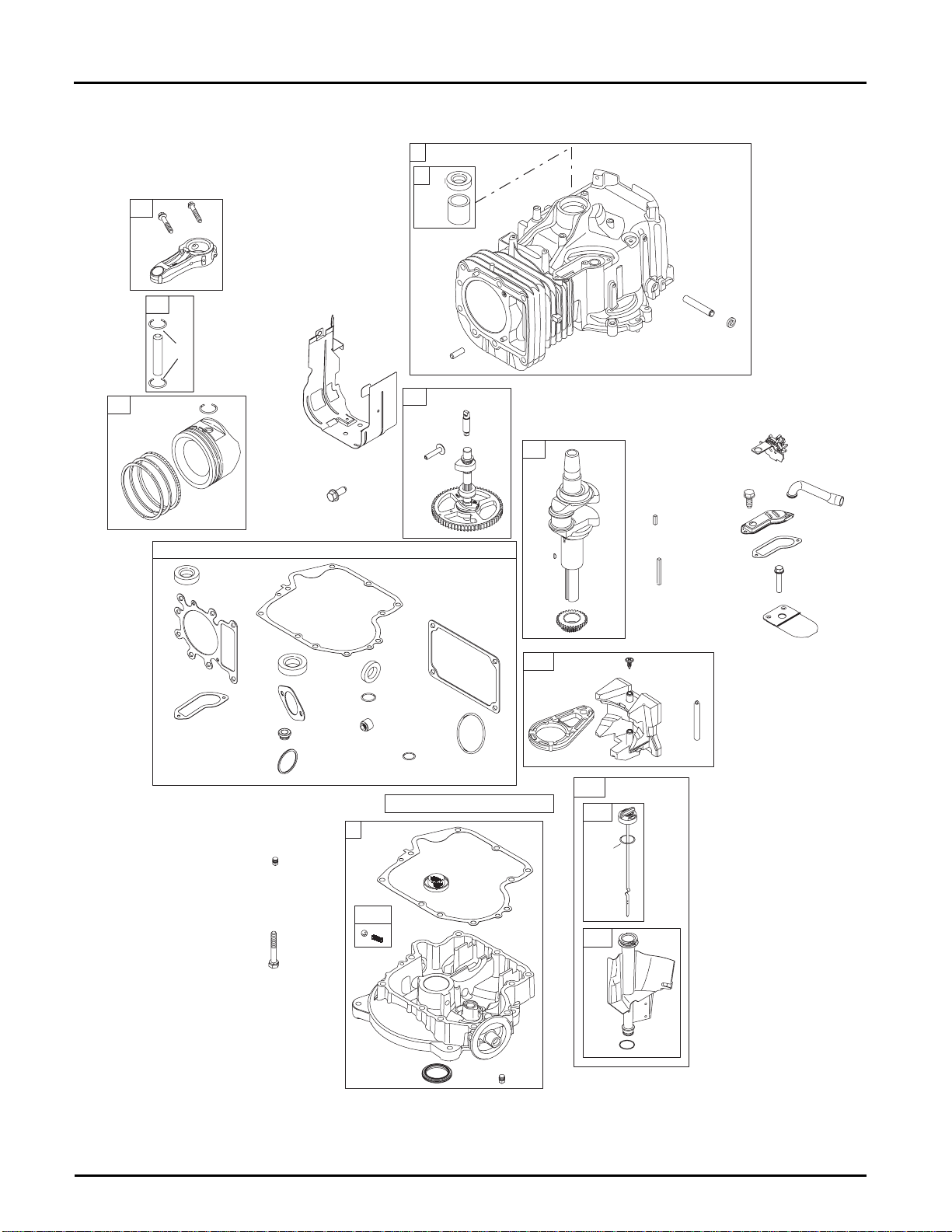

ENGINE (LT1018)
REF.
NO.
1 697174 Cylinder Assembly
2 399265 Kit-Bushing/Seal (Magneto Side)
3 391086• Seal-Oil (Magneto Side)
5 698404 Head-Cylinder (Cylinder 1)
7 699168• Gasket-Cylinder Head
9 697109• Gasket-Breather
10 697157 Screw (Breather Assembly)
11 697113 Tube-Breather
12 697110• Gasket-Crankcase
13 690360 Screw (Cylinder Head)
15 691680 Plug-Oil Drain
16 697516 Crankshaft
20 690947• Seal-Oil (PTO Side)
22 692125 Screw (Crankcase Cover)
23 693556 Flywheel
25 699052 Piston Assembly (Standard)
26 699051 Ring Set (Standard)
27 698469 Lock-Piston Pin
28 697099 Pin-Piston
29 697518 Rod-Connecti ng (Standard)
32 692852 Screw (Connecting Rod)
33 698370 Valve-Exhaust
34 695761 Valve-Intake
35 691279 Spring-Valve (Intake)
36 691279 Spring-Valve (Exhaust)
42 499586 keeper-Valve
45 690564 Tappet-Valve
46 698492 Camshaft
50 699028 Manifold-Intake
51 692137• ؇ Gasket-Intake
53 690227 Stud (Carburetor)
54 691148 Screw (Intake Manifold)
73 494439 Screen-Rotating
74 691647 Screw (Rotating Screen)
93 690602 Ø Bushing-Throttle Shaft
94 498030 Kit-Idle Mixture
95 691636 Ø Screw (Throttle Valve)
98 495800 Kit-Idle Speed
104 690525 Ø Pin-Float Hinge
105 231855 Ø Valve-Float Needle
106 691780 Seat-Inlet
108 692344 Valve-Choke
117 694352 Ø Jet-Main (Standard)
118 697228 Jet-Main (High Altitude)
121 697241 Kit-Carburetor Overhaul
125 699937 Carburetor
PART
NUMBER DESCRIPTION
699054 Piston Assembly (.020” Oversize)
697559 Ring Set (.020” Oversize)
697264 Rod-Connecting (.020” Under-
size)
REF.
NO.
127 695005 Plug-Welch
130 691750 Valve-Throttle
131 494379 Kit-Throttle Shaft
133 494381 Float-Carburetor
137 281165 ؇ Gasket-Float Bowl
141 495931 Kit-Choke Shaft
142 697140 Ø Nozzle-Carburetor
146 691639 Key-Timing
186 698174 Connector-Hose
187 697098 Line-Fuel (Formed)
187A 698417 Line-Fuel (Formed (Cut to Re-
188 69 1693 Screw (Control Bracket)
192 691986 Adjuster-Rocker Arm
202 691841 Link-Mechanical Governor
209 692208 Spring-Governor
216 691840 Link-Choke
222 694042 Bracket-Control
227 691374 Lever-Governor Control
232 691842 Spring-Governor Link
238 691843 Cap-Valve
240 695666 Filter-Fuel
276 692255 ؇ Washer-Sealing
304 790009 Housing-Blower
305 697102 Screw (Blower Housing)
305A 697103 Screw (Blower Housing)
309 693551 Motor-Starter
310 69 0323 Bolt (Starter Motor)
311 497608 Brush Set
333 492341 Armature-Magneto
334 691061 Screw (Magneto Armature)
337 491055 Plug-Spark
356 697089 Wire-Stop
358 697191 Gasket Set-Engine
363 19203 Flywheel Pulle r
383 89838 Wrench-Spark Plug
385 694476 Screw (Fuel Pump)
385A 690297 Screw (Fuel Pump)
387 697090 Pump-Fuel
387A 808656 Pump-Fuel
404 691691 Washer (Governor Crank)
415 690283 Plug
431 697122 Elbow-Intake
445 697153 Filter-Air Cleaner
462 691261 Washer (Starter Cable)
474 696458 Alternator
501 691185 Regulator
503 691532 Strap-Starter
505 69 1251 Bolt (Governor Control Lever)
510 693699 Drive-Starter
PART
NUMBER DESCRIPTION
quired Length)
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-31-
ENGINE (LT1018)
REF.
NO.
513 692024 Clutch-Drive
521 690581 Shield-Cable
523 697086 Dipstick
524 691032• Seal-Dipstick Tube
525 697085 Tube-Dipstick
526 697348 Screw (Regulator)
544 692034 Armature-Starter
552 697144 Bushing-Governor Crank
562 691119 Bolt (Governor Control Lever)
579 691029 Nut (Starter Cable)
584 697112 Cover-Breather Passage
601 95162 Clamp-Hose
614 691620 Pin-Cotter
616 692012 Crank-Governor
617 692138 •Ø Seal-O Ring (Intake Manifold)
634 690802 Ø Spring/Seal Assembly
635 691909 Boot-Spark Plug
643 698401 Retainer-Air Filter
668 691500 Spacer
691 692407• Seal-Governor Shaft
692 690572 Spring-Detent
697 690372 Screw (Drive Cap)
718 690959 Pin-Locating
729 691224 Clip-Wire
729A 694123 Clip-Wire
741 697128 Gear-Timing
750 691033 Screw (Oil Pump Cover)
757 697607 Link-Counterweight
758 697134 Counterweight
759 697392 Pin-Counterweight
PART
NUMBER DESCRIPTION
REF.
NO.
783 693713 Gear-Pinion
789 698329 Harness-Wiring
797 693167 Nut (Brush Retainer)
801 691283 Cap-Drive
802 691286 Cap-End
803 693757 Housing-Starter
830 691095 Stud (Rocker Arm)
842 691031• Seal-O Ring (Dipstick Tube)
851 692424 Terminal-Spark Plug
868 690968•‡ Seal-Valve
877 399916 Wire/Connector-Alternator
914 69 1108 Screw (Rocker Cover)
918 697091 Hose-Vacuum (Cut to Required
943 690589• Seal-O Ring (Oil Pump Cover)
950 691657 Screw (Float Bowl)
965 499613 Cover-Oil Pump
967 697015 Filter-Pre Cleaner
968 790008 Cover-Air Cleaner
975 495933 Bowl-Float
977 690192 Gasket Set-Carburetor
987 691326 Ø Seal-Throttle Shaft
1005 697111 Fan-Flywheel
1017 690770 Screen-Oil Pump
1019 698414 Kit-Label
1022 272475•‡ Gasket-Rocker Cover
1023 692492 Cover-Rocker Arm
1024 499054 Pump-Oil
1026 692003 Rod-Push (Intake)
PART
NUMBER DESCRIPTION
Length)
• In clu de d in Eng in e Ga sket Set, Key. No. 358
Ø Included in Carburetor Overhaul Kit, Key. No. 121
‡ Included in Carburetor Gasket Set, Key. No. 977
+ Included in Valve Gasket Set, Key. No. 1095
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-32-
ENGINE (LT1022)
213
216
25
26
847
523
842
222
188
10
27
1026
28
27
1
718
32
16
146
741
2
3
305
24
968
445
967
304
1267
8
11
9
29
45
525
287
524
865B
750
965
1024
943
865
1035
250
219
615
220
447A
252
447A
15
22
27
4
12
1017
46
691
552
703
20
1027
1013
89
865A
447A
239
50
617
54
212
654
855
53
447
163
51
929
89
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-33-
ENGINE (LT1022)
5
42
35
1022
36
1029
1100
798
187
121 CARBURETOR OVERHAUL KIT
51
672
1123
1124
192
1023
601
187A
117
276
105
977 CARBURETOR GASKET SET
51
672
1123
1022
137
142
150
104
633
1124
34
868
240
601
1128
987
137
150
633
385
387
788
918
276
987
33
7
628
616
552
552A
742
404
552A
691
13
383
635
125
141
108
51
5A
211
209
33
227
505
633
34
7
231
337
1169
418
672
135
1124
1126
1123
117
105
160
868
562
914
1022
1029
192
1023A
1022
1019 LABEL KIT
142
98
1128
150
131
987
133
104
975
137
1127
276
947
276
35
36
130
42
1100
798
95
www.mymowerparts.com
www.mymowerparts.com
73
74
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-34-
ENGINE (LT1022)
334
333
1095 VALVE GASKET SET
668
1005
851
1119
474
332
75
23
358 ENGINE GASKET SET
877
1059
726
363
7
789
695
165
1329 REPLACEMENT ENGINE
1330 REPAIR MANUAL
163
1022
868
1036 EMISSION LABEL
573
526
501
1054
405
48
729
9
20
12
• Included in Engine Gasket Set, Key. No. 358
Ø Included in Carburetor Overhaul Kit, Key. No. 121
‡ Included in Carburetor Gasket Set, Key. No. 977
+ Included in Valve Gasket Set, Key. No. 1095
7
163
276
51
842
1058 OWNER'S MANUAL
691
943
1022
524
868
3
309
1051
544
510
783
513
803
801
697
1090
310
311
797A
802
797
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-35-
ENGINE (LT1022)
REF.
NO.
1 699742 Cylinder Assembly
2 499585 Kit-Bushing/Seal (Magneto Side)
3 391086• Seal-Oil (Magneto Side)
4 699747 Sump-Engine
5 697580 Head-Cylinder (Cylinder 1)
5A 697581 Head-Cylinder (Cylinder 2)
7 690962•+ Gasket-Cylinder Head
8 499601 Breather Assembly
9 690937• Gasket-Breather
10 690960 Screw (Breather Assembly)
11 690942 Tube-Breather
12 697227• Gasket-Crankcase
13 690360 Screw (Cylinder Head)
15 690946 Plug-Oil Drain
16 691046 Crankshaft
20 690947• Seal-Oil (PTO Side)
22 694966 Screw (Engine Sump)
23 691053 Flywheel
24 222698 Key-Flywheel
25 698429 Piston Assembly (Standard)
25 698434 Piston Assembly(.020”)
26 698430 Ring Set-Piston (Standard)
26 698437 Ring Set-Piston (.020”)
27 690975 Lock-Piston Pin
28 690229 Pin-Piston
29 499583 Rod-Connecting
32 690976 Screw (Connecting Rod)
33 697576 Valve-Exhaust
34 499597 Valve-Intake
35 690963 Spring-Valve (Intake)
36 690963 Spring-Valve (Exhaust)
42 499586 Keeper-Valve
45 690977 Tappet-Valve
46 699748 Camshaft
48 698177 Short Block
50 695241 Manifold-Intake
51 690950• ؇ Gasket-Intake
53 690951 Stud (Carburetor)
54 695240 Screw (Intake Manifold)
73 691055 Screen-Rotating
74 698425 Screw (Rotating Screen)
75 691056 Washer (Flywheel)
89 690283 Plug-Oil
95 690718 Screw (Throttle Valve)
98 499802 Kit-Idle Speed
104 690984Ø Pin-Float Hinge
105 690985Ø Valve-Float Needle
108 690986 Valve-Choke
117 690232Ø Jet-Main (Standard)
121 499811 Kit-Carburetor Overhaul
PART
NUMBER DESCRIPTION
REF.
NO.
125 499804 Carburetor
130 690993 Valve-Throttle
131 499805 Kit-Throttle Shaft
133 499806 Float-Carburetor
135 499803 Tube-Fuel Transfer
137 690994؇ Gasket-Float Bowl
141 499807 Kit-Choke Shaft
142 499808Ø Nozzle-Carburetor
146 690979 Key-Timing
150 690995؇ Gasket-Nozzle
160 690996 Retainer-Solenoid
163 691001•+ Gasket-Air Cleaner
165 69 3148 Nut (Ring Gear)
187 698742 Line-Fuel
187A 691049 Line-Fuel (Molded)
188 69 0960 Screw (Control Bracket)
192 690083 Adjuster-Rocker Arm
209 697674 Spring-Governor
211 691019 Spring-Governed Idle
212 695238 Link-Throttle
213 691021 Bracket-Choke Control
216 691022 Link-Choke
219 698231 Gear-Governor
220 690412 Washer (Governor Lever)
222 698761 Bracket-Control
227 691048 Lever-Governor Control
231 690718 Screw (Choke Valve)
239 49 1657 Switch-Oil Pressure
240 695666 Filter-Fuel
250 690957 Retainer-Breather
252 690956 Collector-Oil
276 690997•Ø+ Washer-Sealing
287 69 0960 Screw (Dipstick Tube)
304 698073 Housing-Blower
305 691005 Screw (Blower Housing)
309 691262 Motor-Starter
310 69 1263 Bolt (Starter Motor)
311 497608 Brush Set
332 691059 Nut (Flywheel)
333 691060 Armature-Magneto
334 691061 Screw (Magneto Armature)
337 491055 Plug-Spark
358 694012 Set-Engine Gasket
363 691062 Flywheel Puller
383 690966 Wrench-Spark Plug
385 690960 Screw (Fuel Pump)
387 808656 Pump-Fuel
404 690442 Washer (Governor Crank)
405 69 7820 Screw (Back Plate)
418 690999 Plate-Carburetor
PART
NUMBER DESCRIPTION
www.mymowerparts.com
www.mymowerparts.com
For Parts Call 606-678-9623 or 606-561-4983
For Parts Call 606-678-9623 or 606-561-4983
-36-
ENGINE (LT1022)
REF.
NO.
445 698754 Filter-Air Cleaner Cartridge
447 691003 Screw (Air Guide Cover)
447A 690960 Screw (Air Guide Cover)
474 696458 Alternator
501 691185 Regulator
505 691029 Nut (Governor Control Lever)
510 497606 Drive-Starter
513 692024 Clutch-Drive
523 691036 Dipstick
524 691032 Seal-Dipstick Tube
525 691037 Tube-Dipstick
526 690960 Screw (Regulator)
544 Armature-Starter (Service with
552 690552 Bushing-Governor Crank
552A 690553 Bushing-Governor Crank
562 690311 Bolt (Governor Control Lever)
573 691009 Plate-Back
601 691038 Clamp-Hose
615 698290 Retainer-Governor Shaft
616 691045 Crank-Governor
617 697891 Seal-O Ring (Intake Manifold)
628 690960 Screw (Fuel Pump Bracket)
633 690998؇ Seal-Choke/Throttle Shaft
635 66538 Boot-Spark Plug
654 690958 Nut (Carburetor)
668 691215 Spacer
672 690234؇ Gasket-Carburetor Plate
691 690657• Seal-Governor Shaft
695 693149 Screw (Ring Gear)
697 690372 Screw (Drive Cap)
703 691010 Clip
718 690959 Pin-Locating
726 499612 Gear-Ring
729 694123 Clip-Wire
741 690980 Gear-Timing
742 690328 Retainer-E Ring
750 696999 Screw (Oil Pump Cover)
783 693058 Gear-Pinion
788 691039 Bracket-Fuel Pump
789 698330 Harness-Wiring
797 691029 Nut (Brush Retainer)
797A 693167 Nut (Brush Retainer)
798 697890 Screw (Rocker Arm)
801 691283 Cap-Drive
802 691286 Cap-End
803 Housing-Starter (Service with
842 691031• Seal-Dipstick/Tube
847 499602 Dipstick/Tube Assembly
PART
NUMBER DESCRIPTION
691262 Starter Motor)
691262 Starter Motor)
REF.
NO.
851 493880 Terminal-Sparkplug
855 698072 Adapter-Air
865 691012 Cover-Air Guide
865A 691014 Cover-Air Guide
865B 691015 Cover-Air Guide
868 690968•+ Seal-Valve
877 399916 Wire/Connector- Alternator
914 69 1127 Screw (Rocker Cover)
918 694000 Hose-Vacuum
929 695239 Screw (Choke Control Bracket)
943 690589• Seal-O Ring (Oil Pump Cover)
947 499809 Solenoid-Fuel
965 499613 Cover-Oil Pump
967 273638 Filter-Pre Cleaner
968 698075 Cover-Air Cleaner
975 499810 Bowl-Float
977 499812 Gasket Set-Carburetor
987 691000؇ Seal-Throttle Shaft
1005 698760 Fan-Flywheel
1013 690954 Nipple-Oil Filter
1017 690770 Screen-Oil Pump
1019 690103 Kit-Label
1022 690971 Gasket-Rocker Cover
1023 499599 Cover-Rocker (Cylinder 1)
1023A 499600 Cover-Rocker (Cylinder 2)
1024 499054 Pump-Oil
1026 690981 Rod-Push (Steel)
1026 690982 Rod-Push (Aluminum)
1027 696854 Filter-Oil
1029 690972 Arm-Rocker
1035 691042 Shaft-Pump
1036 697913 Label-Emission
1051 691265 Ring-Retaining
1054 280275 Cable-Tie
1058 275475 Owner's Manual
1059 698516 Kit-Screw/Washer
1090 691293 Retainer-Brush
1095 694013 Gasket Set-Valve
1100 690973 Pivot-Rocker Arm
1119 691183 Screw (Alternator)
1123 690987Ø ‡ Seal-O Ring (Solenoid Retainer)
1124 690988Ø ‡ Seal-O Ring
1126 690991 Screw (Fuel Transfer Tube)
1127 690992 Screw (Float Bowl)
1128 690990Ø Screw (Carburetor Nozzle)
1169 693140 Screw (Carburetor Cover Plate)
1267 698440 Latch-Blower Housing
1329 40H777-0027 Replacement Engine
1330 273521 Repair Manual
PART
NUMBER DESCRIPTION
(Fuel Transfer Tube)
(Transfer 6 pin Harness and
Governor Spring)
www.mymowerparts.com
www.mymowerparts.com
Loading...
