MOTOROLA
SEMICONDUCTOR TECHNICAL DATA
Order this document by H11B1/D
GlobalOptoisolator |
H11B1* |
[CTR = 500% Min] |
6-Pin DIP Optoisolators |
H11B3 |
|
[CTR = 100% Min] |
||
|
||
Darlington Output (Low Input Current)*Motorola Preferred Device |
The H11B1 and H11B3 devices consist of a gallium arsenide infrared emitting diode optically coupled to a monolithic silicon photodarlington detector. They are designed for use in applications requiring high output current (IC) at low LED input currents (IF).
•High Sensitivity to Low Input Drive Current (IF = 1 mA)
•To order devices that are tested and marked per VDE 0884 requirements, the suffix ºVº must be included at end of part number. VDE 0884 is a test option.
Applications
•Appliances, Measuring Instruments
•I/O Interfaces for Computers
•Programmable Controllers
•Interfacing and coupling systems of different potentials and impedances
•Solid State Relays
•Portable Electronics
MAXIMUM RATINGS (TA = 25°C unless otherwise noted)
Rating |
Symbol |
Value |
Unit |
|
|
|
|
INPUT LED |
|
|
|
|
|
|
|
Reverse Voltage |
VR |
3 |
Volts |
Forward Current Ð Continuous |
IF |
60 |
mA |
LED Power Dissipation @ TA = 25°C |
PD |
150 |
mW |
with Negligible Power in Output Detector |
|
|
mW/°C |
Derate above 25°C |
|
1.41 |
|
|
|
|
|
OUTPUT DETECTOR |
|
|
|
|
|
|
|
Collector±Emitter Voltage |
VCEO |
25 |
Volts |
Emitter±Base Voltage |
VEBO |
7 |
Volts |
Collector±Base Voltage |
VCBO |
30 |
Volts |
Collector Current Ð Continuous |
IC |
100 |
mA |
Detector Power Dissipation @ TA = 25°C |
PD |
150 |
mW |
with Negligible Power in Input LED |
|
|
mW/°C |
Derate above 25°C |
|
1.76 |
|
|
|
|
|
TOTAL DEVICE |
|
|
|
|
|
|
|
Isolation Surge Voltage(1) |
V |
7500 |
Vac(pk) |
(Peak ac Voltage, 60 Hz, 1 sec Duration) |
ISO |
|
|
|
|
|
|
|
|
|
|
Total Device Power Dissipation @ TA = 25°C |
PD |
250 |
mW |
Derate above 25°C |
|
2.94 |
mW/°C |
|
|
|
|
Ambient Operating Temperature Range(2) |
T |
± 55 to +100 |
°C |
|
A |
|
|
Storage Temperature Range(2) |
T |
± 55 to +150 |
°C |
|
stg |
|
|
Soldering Temperature (10 sec, 1/16″ from case) |
TL |
260 |
°C |
1.Isolation surge voltage is an internal device dielectric breakdown rating.
1.For this test, Pins 1 and 2 are common, and Pins 4, 5 and 6 are common.
2.Refer to Quality and Reliability Section in Opto Data Book for information on test conditions.
Preferred devices are Motorola recommended choices for future use and best overall value.
GlobalOptoisolator is a trademark of Motorola, Inc.

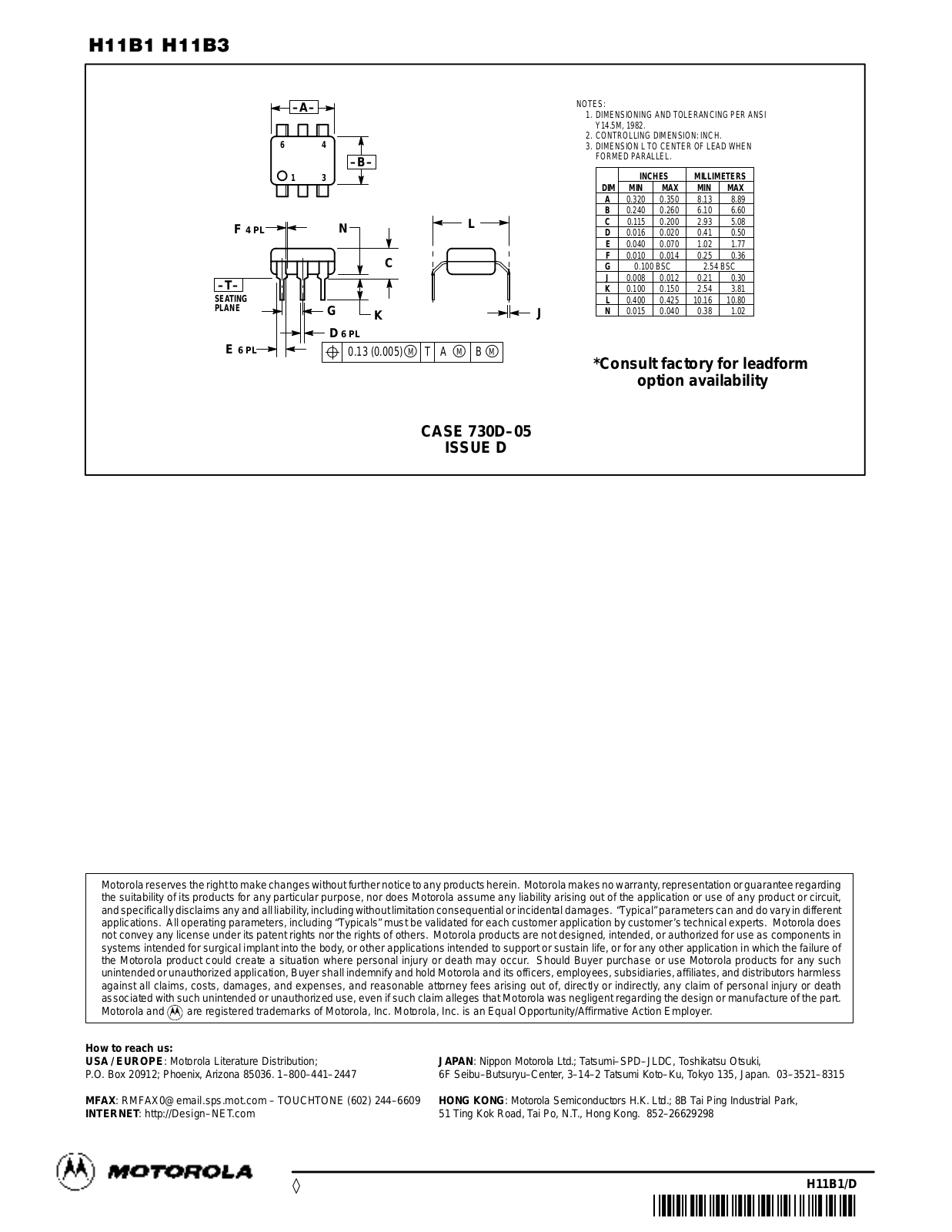

STYLE 1 PLASTIC
6
1
STANDARD THRU HOLE
CASE 730A±04
|
SCHEMATIC |
|
1 |
|
6 |
2 |
|
5 |
|
|
|
3 |
NC |
4 |
PIN 1. LED ANODE
2.LED CATHODE
3.N.C.
4.EMITTER
5.COLLECTOR
6.BASE
REV 1
Motorola, Inc. 1995
H11B1 |
|
|
H11B3 |
|
|
|
|
|
|
|
|
|
|
ELECTRICAL CHARACTERISTICS (T = 25°C unless otherwise noted)(1) |
|
|
|
|
|||||||||
|
|
|
|
|
|
|
A |
|
|
|
|
|
|
|
|
|
|
|
Characteristic |
|
Symbol |
Min |
Typ(1) |
Max |
Unit |
||
INPUT LED |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
Forward Voltage (IF = 10 mA) |
|
|
H11B1 |
VF |
Ð |
1.15 |
1.5 |
Volts |
|||||
Forward Voltage (IF = 50 mA) |
|
|
H11B3 |
VF |
Ð |
1.34 |
1.5 |
Volts |
|||||
Reverse Leakage Current (VR = 3 V) |
|
|
IR |
Ð |
Ð |
10 |
μA |
||||||
Capacitance (V = 0 V, f = 1 MHz) |
|
|
CJ |
Ð |
18 |
Ð |
pF |
||||||
OUTPUT DETECTOR |
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|||||||
Collector±Emitter Dark Current (VCE = 10 V) |
|
ICEO |
Ð |
5 |
100 |
nA |
|||||||
Collector±Emitter Breakdown Voltage (IC = 10 mA) |
|
V(BR)CEO |
25 |
80 |
Ð |
Volts |
|||||||
Collector±Base Breakdown Voltage (IC = 100 μA) |
|
V(BR)CBO |
30 |
100 |
Ð |
Volts |
|||||||
Emitter±Collector Breakdown Voltage (IE = 100 μA) |
|
V(BR)ECO |
7 |
Ð |
Ð |
Volts |
|||||||
DC Current Gain (IC = 5 mA, VCE = 5 V) (Typical Value) |
hFE |
Ð |
16K |
Ð |
Ð |
||||||||
Collector±Emitter Capacitance (f = 1 MHz, VCE = 5 V) |
CCE |
Ð |
4.9 |
Ð |
pF |
||||||||
Collector±Base Capacitance (f = 1 MHz, VCB = 5 V) |
|
CCB |
Ð |
6.3 |
Ð |
pF |
|||||||
Emitter±Base Capacitance (f = 1 MHz, VEB = 5 V) |
|
CEB |
Ð |
3.8 |
Ð |
pF |
|||||||
COUPLED |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||||
Output Collector Current (IF = 1 mA, VCE = 5 V) |
H11B1 |
IC (CTR)(2) |
5 (500) |
Ð |
Ð |
mA (%) |
|||||||
|
|
|
|
|
|
|
|
H11B3 |
|
1 (100) |
Ð |
Ð |
|
|
|
|
|
|
|
||||||||
Collector±Emitter Saturation Voltage (IC = 1 mA, IF = 1 mA) |
VCE(sat) |
Ð |
0.7 |
1 |
Volts |
||||||||
Turn±On Time (I |
= 5 mA, V |
= 10 V, R = 100 Ω)(3) |
t |
Ð |
3.5 |
Ð |
μs |
||||||
|
|
|
F |
|
CC |
|
L |
|
on |
|
|
|
|
Turn±Off Time (I |
= 5 mA, V |
= 10 V, R = 100 Ω)(3) |
t |
Ð |
95 |
Ð |
μs |
||||||
|
|
|
F |
|
CC |
|
L |
|
off |
|
|
|
|
Rise Time (I |
F |
= 5 mA, V |
= 10 V, R |
= 100 Ω)(3) |
|
t |
Ð |
1 |
Ð |
μs |
|||
|
|
CC |
|
L |
|
r |
|
|
|
|
|||
Fall Time (I |
|
= 5 mA, V |
= 10 V, R |
= 100 Ω)(3) |
|
t |
Ð |
2 |
Ð |
μs |
|||
F |
|
|
CC |
|
L |
|
f |
|
|
|
|
||
Isolation Voltage (f = 60 Hz, t = 1 sec)(4) |
|
VISO |
7500 |
Ð |
Ð |
Vac(pk) |
|||||||
Isolation Resistance (V = 500 V)(4) |
|
|
RISO |
1011 |
Ð |
Ð |
Ω |
||||||
Isolation Capacitance (V = 0 V, f = 1 MHz)(4) |
|
CISO |
Ð |
0.2 |
Ð |
pF |
1.Always design to the specified minimum/maximum electrical limits (where applicable).
2.Current Transfer Ratio (CTR) = IC/IF x 100%.
3.For test circuit setup and waveforms, refer to Figure 11.
4.For this test, Pins 1 and 2 are common, and Pins 4, 5 and 6 are common.
TYPICAL CHARACTERISTICS
|
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
PULSE |
|
|
ONLY |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
(VOLTS) |
1.8 |
|
|
|
|
|
PULSE |
|
OR DC |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
VOLTAGE |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
FORWARD, |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1.2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
1.4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
TA = |
±55 |
°C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
25°C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
F |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
100°C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
1 |
|
10 |
|
100 |
1000 |
IF, LED FORWARD CURRENT (mA)
Figure 1. LED Forward Voltage versus Forward Current
(NORMALIZED) |
10 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
NORMALIZED TO: IF = 10 mA |
|
|
|
|
||
|
|
|
TA = 25°C |
|
|
|
|
|
CURRENT |
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
COLLECTOR |
|
+70°C |
|
|
|
|
|
|
|
0.1 |
TA = ±55°C THRU |
|
|
|
|
|
|
OUTPUT |
|
+25°C |
|
|
|
|
|
|
|
0.5 |
1 |
2 |
5 |
10 |
20 |
50 |
|
|
|
+100°C |
|
|
|
|
|
|
|
0.01 |
|
|
|
|
|
|
|
, |
|
|
I , LED INPUT CURRENT (mA) |
|
|
|||
C |
|
|
|
|
||||
I |
|
|
F |
|
|
|
|
|
Figure 2. Output Current versus Input Current
2 |
Motorola Optoelectronics Device Data |
