Moore Industries TRY, TRX Quick Start Manual

Download

Page 1

T R Y & TRX

May 2016 235-701-00H

Isolated & Non-Isolated

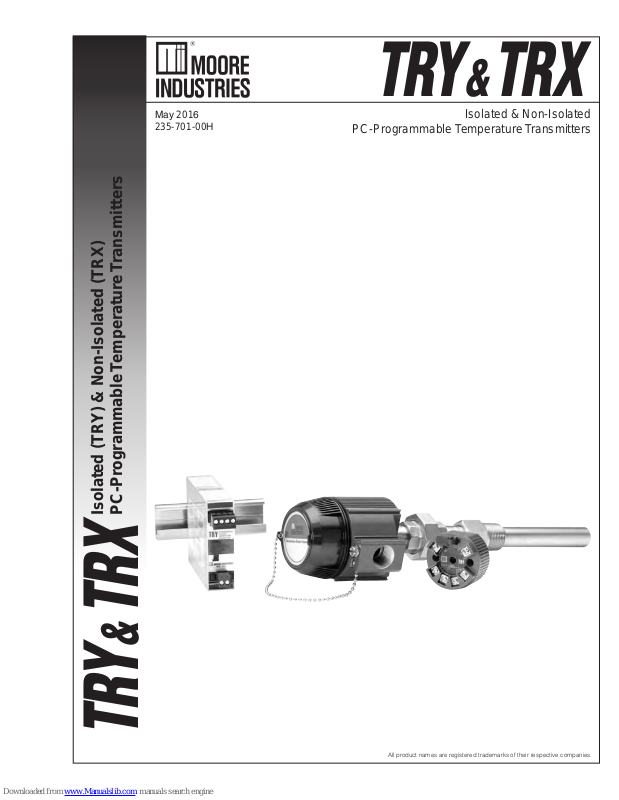

PC-Programmable Temperature Transmitters

Isolated (TRY) & Non-Isolated (TRX)

PC-Programmable T emperature T ransmitters

T R Y & TRX

All product names are registered trademarks of their respective companies.

Page 2

Quick-Start

Most users familiar with a PC and Windows will not ha v e a need for the inf ormation in this manual. Moore Industries suggests that if you do need to refer to the information here, rely heavily on the Table of Contents that follow this Quick-Start Guide.

The majority of conﬁguration work with these transmitters can be carried out from the Main Conﬁguration Screen of the PC Conﬁguration Program (see Figure 3, page 8). The menus and screen prompts are in “plain english”, and the help system should guide most users through most of the conﬁguration procedures without any problems.

In general, the use of the TRY or TRX transmitter follows this path:

1. Installing the Conﬁguration Software (page 10)

2. Connecting the TRY/TRX to the PC (page 10)

3. Input Connection Hookups (page 11)

4. Scale the Input (page 15)

5. Scale the Output (page 16)

6. Trim the Input (page 17)

7. Trim the Output (page 17)

8. Download the Conﬁguration File (press PROG button)

9. Save the Conﬁguration File to disk for future reference or use with another unit (page 22)

10. Install the unit (page 23)

Page 3

Table of Contents

Introduction .............................................................................................................................................5

The TRY & TRX

Speciﬁcations

Input Type & Accuracy ......................................................................................................7

Ordering Information Everything You Need is Included

....................................................................................................................................... 5

........................................................................................................................................ 6

........................................................................................................8

......................................................................................8

Conﬁguring a TR Y & TRX ............................................................................................................... 9

What is First .....................................................................................................................9

What is Next Installing the Software Gathering the Equipment Needed PC Conﬁguration Software Summary

.....................................................................................................................9

....................................................................................................10

.................................................................................10

............................................................................12

Keeping What You’ve Got Safe—Using the “Get Setup” Function Selecting Input Type, Wiring, etc. Scaling the Input (also: Setting Reverse Output) Setting the Reverse Output Scaling the Output Applying Conﬁguration Settings to Your Transmitter

..........................................................................................................16

..................................13

...................................................................................14

..........................................................15

............................................................................................15

.......................................................16

Page 4

Trimming the Input..........................................................................................................17

Trimming the Output Setting Miscellaneous Functions--Engineering Unit Readout, Input Filtering,

Upscale or Downscale Drive, and Broken Wire Detection

Setting Output Damping .................................................................................................19

Using the Loop Test Creating a Custom Linearization Table

.......................................................................................................17

.............................................18

........................................................................................................19

..........................................................................20

Managing Conﬁguration Files ...........................................................................................22

Saving the Conﬁguration Files to Disk ...........................................................................22

Retrieving a Conﬁguration File from Disk Retrieving a Conﬁguration File from a Connected TRY or TRX

.......................................................................22

.....................................22

Installing and Connecting the TRY or TRX ......................................................................23

Physical Dimensions ......................................................................................................24

Connecting the TRY or TRX in an Application................................................................25

Operating the TR Y or TRX ............................................................................................................25

Maintaining the TR Y or TRX

T roubleshooting the TRY or TRX

Conﬁguration Software Error Messages ........................................................................26

Contacting Customer Support

.......................................................................................................25

............................................................................................26

........................................................................................26

Appendix A--Intrinsically Safe Diagrams .........................................................................27

Page 5

TRY & TRX

Isolated, Scaleable 4-20mA

2-Wire (Loop-Powered)

Complete, Ready-to-Install Temperature Assemblies Available

RTD

Thermocouple

Millivolts

Resistance

Potentiometer

Introduction

The TRY and TRX are 2-wire (loop-powered) temperature transmitters. They are conﬁgured using a personal computer (PC) and the software program provided by Moore Industries.

About this Manual

Wherever you see a “Note”, “Caution”, or “WARNING ” pay particular attention.

• A“Note” provides information to help you avoid mi- nor inconveniences during calibration, installation, or operation of the TRY and TRX.

• A“Caution” provides information on steps to take in avoiding procedures and practices that could risk damage to the TRY and TRX or other equipment.

• A“WARNING ” provides information on steps to take in avoiding procedures and practices that

could pose safety risks to personnel.

Figure 1. Use the PC-Programmable TRY or TRX as an interface between temperature sensors and control systems such as a DCS, PLC or PC-based control system.

The TRY & TRX

Both the TRY and the TRX transmit input from a thermocouple, or an RTD, a direct resistance or millivolt source, or a potentiometer as a linearized, scaled and offset 4-20 milliamps (mA). Their output signal is proportional (or, by user designation inversely proportional) to the input. Refer to Figure 1.

The TRY provides 1500Vrms isolation between input and output (500Vrms isolation for the DIN-style version). The TRX is a non-isolating transmitter.

Demand MOORE Reliability 5

Page 6

TRY & TRX

Speciﬁcations

Performance

Speciﬁcations and Information subject to change without notice

Input Accuracy: Refer to Table 1 Output Accuracy:

4.8µA (±0.03% of 4-20mA span) Overall Accuracy: The overall accuracy of the unit is the combined input and output accuracy. It includes the combined effects of linearity, hysteresis, repeatability and adjustment resolution. It does not include ambient temperature effect. For T/C input only, add the Reference Junction Compensation error

Reference Junction Compensation Accuracy:

±0.45°C Stability: Error is in Maximum Conformance Range

Stability Input to Output 1yr

T/C, mV 0.11 0.18 0.24 RTD

Ohm 0.13 0.22 0.28 Pot.

Isolation: For TRY in HPP housing, 1500Vrms input to output; For TRY in DIN housing, 500Vrms input to output to case

Measurement Cycle:

Output updates 8 times per second Response Time: 256msec typical for the output to change from 10% to 90% for an input step change of 0% to 100%

3yrs

5yrs

Performance

(Continued)

Step Response Time:

500msec typical from the time an input is applied until the output reaches 90% of its ﬁnal value. Ripple: 10mV peak-to-peak, max.

Power Supply and Load Effect: Negligible within

power and load limits Over-Voltage Protection: 4V, max, on input; 48V, max, on output; 48V reverse polarity Load Capability: 500 ohms @ 24V, typical; (Supply Voltage – 10V) /

0.024A for TRY ; (Supply Voltage – 8V) /

0.024A for TRX; Burnout Protection: Total Sensor Diagnostics user-selected via Windows conﬁguration software; Upscale to 24mA or downscale to 3.3mA Output Current Limiting:

21.4mA for input overrange;

23.6mA for sensor failure or broken wire T/C Input Impedance: 40M ohms, nominal RTD Excitation: 250µA, ±10%

RTD Lead Wire Resistance Maximum:

RTD resistance + 2 times the lead wire resistance must be less than 4000 ohms; Recommend <35 ohms per wire for 3-wire RTD inputs; <5 ohms per wire for 10 ohms Cu inputs

Ambient

Conditions

Adjusments

Weight

Operating & Storage Range: –40°C to +85°C

(–40°F to +185°F) Relative Humidity: 0-95%, non-condensing

Effect of Ambient Temperature on Accuracy:

±0.015% of span/°C change, max. (+0.001% of ohms reading for RTD inputs)

Effect of Ambient Temperature on Reference Junction Compensation:

±0.015°C/°C change RFI/EMI Immunity: 20V/m @ 20-1000MHz, when tested according to SAMA standard 33.1. (10V/m @ 80-1000MHz, 1K AM, when tested according to IEC 1000-4-3-1995) Common Mode Rejection: 100dB, min., @ 50/60Hz Normal Mode Rejection: 100dB, typical, @ 1V peakto-peak, 50/60Hz

All settings made using Windows-based conﬁguration program, then stored in non-volatile memory

HPP-style housing: 65g (2.3 oz) DIN-style housing: 184g (6.5 oz) LH housing styles: 549 g (19.4 oz)

Default Factory Conﬁguration for TRX

Input: RTD 4W Pt3850 100Ohms 0-100degC Filter: 60Hz Broken Wire: ON Input T rim: OFF Output: 4-20mA Sensor Failure: Up 24mA Damping: 0s

6 Demand MOORE Reliability

Default Factory Conﬁguration for TRY

Input: 4W 3850-100Ohm RTD, 0-100degC Filter: 60Hz Broken Wire: ON Input T rim: OFF AO: 4-20mA Sensor Failure: Up 24mA Damping: 0s

Page 7

TRY & TRX

Table 1. Input Types, Ranges, Minimum Span and Maximum Range Speciﬁcations, and Accuracy of the TRY and TRX

Maximum

Range

-100 to 560°C

-148 to 1040°F

-240 to 960°C

-400 to 1760°F

-150 to 720°C

-238 to 1328°F

-235 to 710°C

-391 to 1310°F

-240 to 580°C

-400 to 1076°F

-235 to 680°C

-391 to 1256°F

-235 to 710°C

-391 to 1310°F

-260 to 962°C

-436 to 1763.6°F

-100 to 360°C

-148 to 680°F

-65 to 280°C

-85 to 536°F n/a

-210 to 770°C

-346 to 1418°F

-270 to 1390°C

-454 to 2534°F

-270 to 1013°C

-454 to 1855.4°F

-270 to 407°C

-454 to 764.6°F

-50 to 1786°C

-58 to 3246.8°F

-50 to 1786°C

-58 to 3246.8°F 200 to 1836°C

392 to 3336.8°F

-270 to 1316°C

-454 to 2400.8°F 0 to 2338°C

32 to 4240.4°F

Conformance

Range

-50 to 500°C

-58 to 932°F

-200 to 850°C

-328 to 1562°F

-100 to 650°C

-148 to 1202°F

-200 to 630°C

-328 to 1166°F

-200 to 510°C

-328 to 950°F

-200 to 600°C

-328 to 1112°F

-200 to 630°C

-328 to 1166°F

-200 to 850°C

-328 to 1562°F

-80 to 320°C

-112 to 608°F

-50 to 250°C

-58 to 482°F

0-4000 ohms

-180 to 770°C

-292 to 1418°F

-150 to 1372°C

-238 to 2501.6°F

-170 to 1000°C

-274 to 1832°F

-200 to 400°C

-328 to 752°F 0 to 1768°C

32 to 3214.4°F

0 to 1768°C

32 to 3214.4°F

400 to 1820°C 752 to 3308°F

-130 to 1300°C

-202 to 2372°F 0 to 2315°C

32 to 4199°F

Input Type α

RTD

Ohms

T/C

Millivolts DC n/a n/a -50 to 1000mV 4mV ±0.04mV -50 to 1000mV

Platinum

Nickel

Copper

Direct resistance or Potentiometer

∗

Ohms

0.003750

0.003850

0.003902

0.003911

0.003916

0.003923

0.003926

0.003928

0.000672

0.000427

n/a n/a

n/a

1000

100, 200, 300,

400, 500, 1000

100, 200, 400

500, 1000

100, 500

100

98.129

100, 470,

500 100

120

9.035

n/a n/a

n/a

Minimum

Span

15°C (27°F) for 100 ohm inputs

10°C (18°F) for 200 ohm inputs

7.5°C (13.5°F) for 500 and

1000 ohm in-

puts

10°C (18°F)

100°C (180°F)

30 ohms

35°C 63°F

40°C 72°F

35°C 63°F

20°C 36°F

50°C 90°F

75°C

135°F

45°C 81°F

100°C 180°F

Input Accuracy

±0.11°C ±0.2°F

±0.21°C ±0.38°F

±0.15°C ±0.27°F

±0.17°C ±0.31°F

±0.14°C ±0.25°F

±0.16°C ±0.29°F

±0.17°C ±0.31°F

±0.21°C ±0.38°F

±0.16°C ±0.29°F

±1.2°C ±2.16°F

±0.4 ohms −

±0.28°C ±0.5°F

±0.3°C ±0.54°F

±0.26°C ±0.47°F

±0.24°C ±0.43°F

±0.71°C ±1.28°F

±0.43°C ±0.77°F

±1.33°C ±2.39°F

±1.16°C ±2.09°F

* α values with both 32 and 128-point linearization curves are available. (lower resolution values provided for compatibility with older units.)

Demand MOORE Reliability 7

Page 8

TRY & TRX

Ordering Information

Unit

TRY Isolated, PC- Programmable Temperature Transmitter

TRX

Non- Isolated, PC- Programmable Temperature Transmitter

When Ordering, specify: Unit/Input/Output/Power/Option(s) [Housing] Model number example: TRY/PRG/4-20MA/10-30DC/-ISF [LH2MSP]

Input

PRG

Programmable with supplied Conguration Software (see Table 1 for descriptions of available input types; Factory Con-

guration

available)

Output

4-20MA

User scaleable with supplied software

Power

TRY 10-42DC

10-30DC

Required for -ISA,

-ISC,

-ISE and

-ISF options

TRX 8-42DC 8-30DC

Required for -ISA,

-ISC,

-ISE, and -ISF options

Options

-ISA TestSafe

approved IS (ANZEx)

-ISC CSA approved IS and NI (HPP)

-ISE ATEX approved IS (HPP)

-ISF FM approved IS and NI (HPP)

-FMEDA Unit comes with Failure Modes, Effects and Diagnostic Analysis (FMEDA) data for evaluating the instrument for suitability of use in a safety-related application

Housing

DIN DIN-style aluminum housing mounts on 32mm G-type (EN50035) and 35mm Top Hat (EN50022) rails HPP Hockey-puck housing for mounting in standard connection heads LH1NS‡ Connection head with two entry ports: ½-inch NPT cable and process–black PBT polyester cover LH1MS‡ Connection head with two entry ports: M20 cable and

½-inch NPT process–black PBT polyester cover LH1CS‡ Connection head with two entry ports: M20 cable and G½ (BSP) process–black PBT polyester cover LH1NX Connection head with ½-inch NPT entry and mounting plate for customer’s air duct opening–black PBT polyester cover LH2NS(*) or (‡) Explosion-proof connection head with two entry ports: ½-inch NPT cable and process–black metal cover LH2MS(*) or (‡) Explosion-proof connection head with two entry ports: M20 cable and ½-inch NPT process–black metal cover

Either A or E sufx

* A sufx indicates ANZEx/TestSafe (Ex d) Flame-Proof approvals (i.e. LH2NSA) E sufx indicates ATEX (Ex d and tD) Flame-Proof approvals (i.e. LH2NSE) ‡

P sufx indicates enclosure comes equipped with base plate and U-bolts for

mounting on a 2-inch pipe (i.e. LH1NSP)

Model and Serial Numbers Moore Industries uses a system of model and serial numbers to keep track of all of the information on every unit it sells and services. If a problem occurs with a TRY or TRX, check for a tag afﬁxed to the unit listing these numbers. Supply the Customer Support representative with this information when calling.

If additional units are needed, use the information printed in bold text in the table above to “build” a model number for the type of transmitter required.

Each TRY or TRX order comes with one copy of our Conﬁguration Software (Windows 2000, XP, Vista, and 7 compatible).

To order additional or replacement cables, specify Moore Industries’ part number 803-040-26, or 803-039-26 for the special cable equipped with its own, self-powered input-to-output isolation circuit for operation in areas of high ground potentials.

8 Demand MOORE Reliability

Page 9

TRY & TRX

Conﬁguring a TRY/TRX

One of the beneﬁts of the TRY and TRX transmitters is their easy-to-use PC Conﬁguration Program; there are no internal or external controls to adjust or jumpers to change. All operating parameters are set using the PC program included with each shipment. These settings are downloaded in the form of a Conﬁguration File into nonvolatile unit memory (EEPROM) over a connection between the PC’s serial (COM) port and a COM port on the transmitter.

This section of the manual contains instructions for conﬁguring the TRY or TRX:

• InstallingtheSoftware(page6)

• SavingtheDefaultConguration(page9)

(Keeping What You’ve Got Safe)

• SelectingInputType,WiringConguration,

etc. (page 10)

• ScalingtheInput/SettingReverseOutput (page 11)

• ScalingtheOutput(page12)

• TrimmingtheInput(page13)

• TrimmingtheOutput(page13)

• SettingMiscellaneousParameters,

including Readout Engineering Units in °F or °C, Input Filtering, Upscale or Downscale Drive on Sensor Failure, and Broken Input Wire Detection (page 14)

• SettingOutputDamping,UsingtheLoopTest

(page 15)

What is First

First, it is necessary to install the Conﬁguration Program on a PC. Once the program is loaded and running, nearly all of the operating parameters for the connected transmitter are shown on a single screen (see Figure 3). This makes it easy to determine which aspects of transmitter operation need to be changed to suit the application requirements.

What is Next

Once the Conﬁguration Program is installed on the PC, the TRY or TRX can be connected to equipment to simulate input and monitor output, and with the PC program, the user can view and/or change its operating parameters.

No T ransmitter Needed

It is not necessary to connect the TRY or TRX to a PC to create conﬁguration ﬁles. The Conﬁguration Program can be run without connecting a transmitter, and most operating parameters can be set without beneﬁt of input from a sensor or from a transmitter.

This makes it easy to create a set of operating parameters, save them to disk, and download them to one or more transmitters at a later time.

Note, however, that not all parameters can be set without a transmitter. In some cases, a source of input is also required.

The transmitter must be connected to the PC in order to:

• TrimInput

• CreatingCustomLinearizationTables

(page 16)

• ManagingCongurationFiles(page18)

• TrimOutput

• AssignaTag

• PerformaLoopTest

• Receive(viadownload)aCongurationFile

And, perhaps most importantly...

• SAVETHECONFIGURATIONFILEALREADYIN

THE TRANSMITTER’S MEMORY (refer to “Keeping What You’ve Got Safe—Using ‘Get Setup’”, on page 9)

Demand MOORE Reliability 9

Page 10

TRY & TRX

Installing the Conﬁguration Software

Refer to Table below for the equipment needed.

1. Insert the Moore Industries Interface Solution PC Conﬁguration Software CD into the CD drive of the PC. Access the CD and open the “SDY SIY TDY TRX TRY PC Conﬁguration Software” folder.

2. Double-click the installation program located in the folder. Follow the prompts to correctly install the program.

Once the Conﬁguration Program is installed on the PC, the SIY can be connected to equipment to simulate input and monitor output. This makes it easy to create a set of operating parameters, save them to disk, and download them to one or more instruments at a later time.

Gathering the Equipment Needed

It is possible to create a Conﬁguration File for a transmitter without ever connecting the transmitter to a PC. Most TRY or TRX operating parameters can be set up, saved in a Conﬁguration File, and stored on disk entirely within the Conﬁguration Program— without ever communicating with a transmitter.

It is not possible to trim the transmitter input or output without a transmitter, a source of input, and a meter (for output trimming). Likewise, it is not possible to use the Loop Test function of the transmitter unless everything is setup as shown in Figure 2, and it is not possible to store a tag name in the memory of a transmitter without connecting that transmitter to the Conﬁguration Program.

Table 2 lists the things needed to setup the TRY or TRX as shown in Figure 2.

Note:

Be sure to use calibrated test equipment when

performing any trimming operations on the TRY or

TRX. Moore Industries uses equipment rated 5:1

over the rated accuracy of the unit under test.

We recommend the use of equipment

rated at least 3:1.

Connecting the TRY or TRX to the PC

Connect the RS-232 end of the cable to the PC’s COM port.

See Table below for information on the necessary equipment.

Table 1. Assembling the equipment needed to conﬁgure the SIY

Device Speciﬁcations

Current or Voltage Source

Power Supply

Multimeter (optional)

Precision Load Resistor (optional)

Personal Computer

Moore Industries PC

Conﬁguration Software

Communication Cable

Accurate to 0.05% of span for the intended application

10-42Vdc, ±10%

Accurate to ±0.025%; e.g., Fluke Model 87

Accurate to ±0.025%; e.g., HP Model 3478A Microsoft Windows based PC;

16Mb free RAM; 20MB free disk space on hard drive Microsoft Windows XP, Vista or 7 and 1 (one) serial port or one available USB port

Version 1.0 or greater, successfully installed to the hard drive

Non-Isolating 803-040-26, Isolating 803-039-26, USB Cable (PN 208-236-00), or Fuse Protected USB Cable (PN 804-030-26)

10 Demand MOORE Reliability

Page 11

TRY & TRX

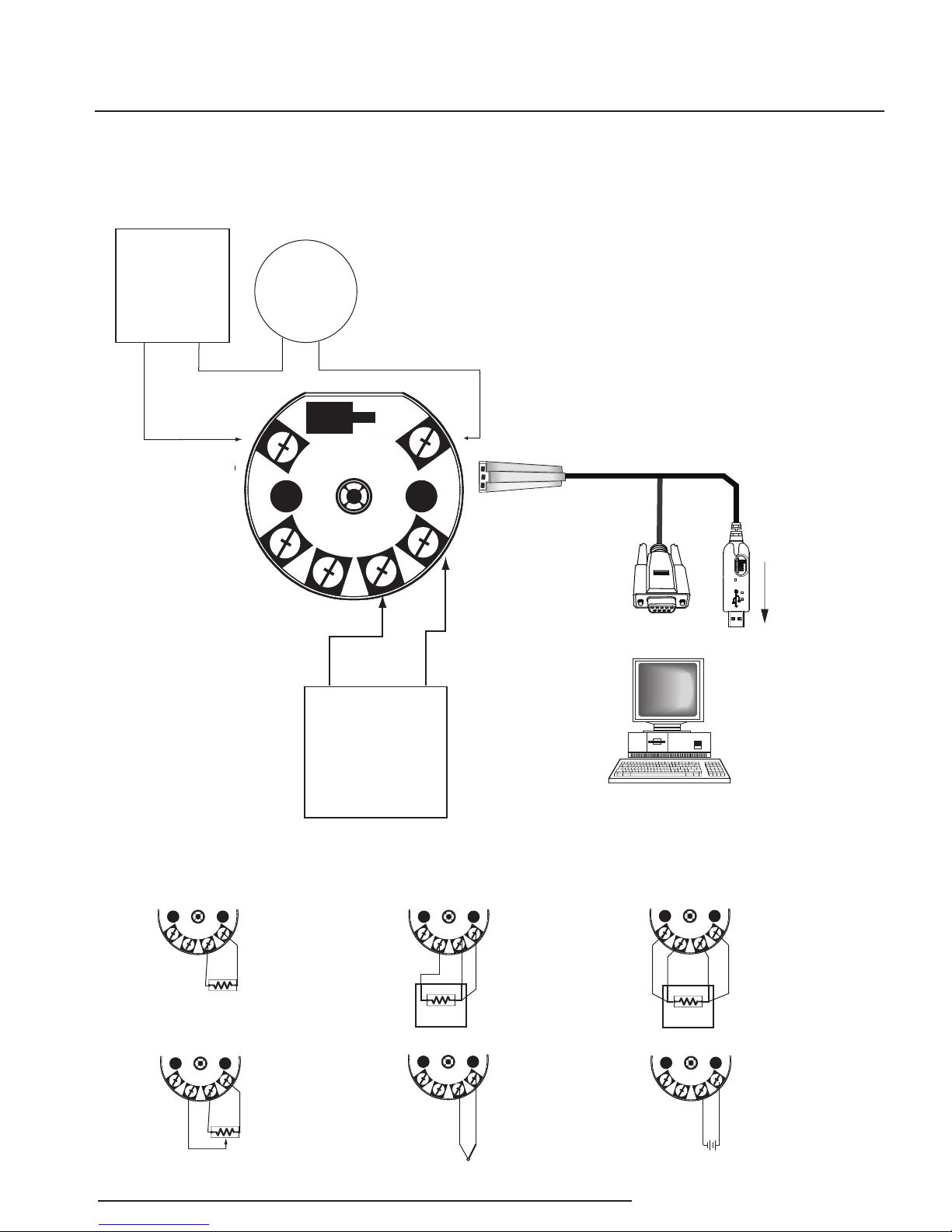

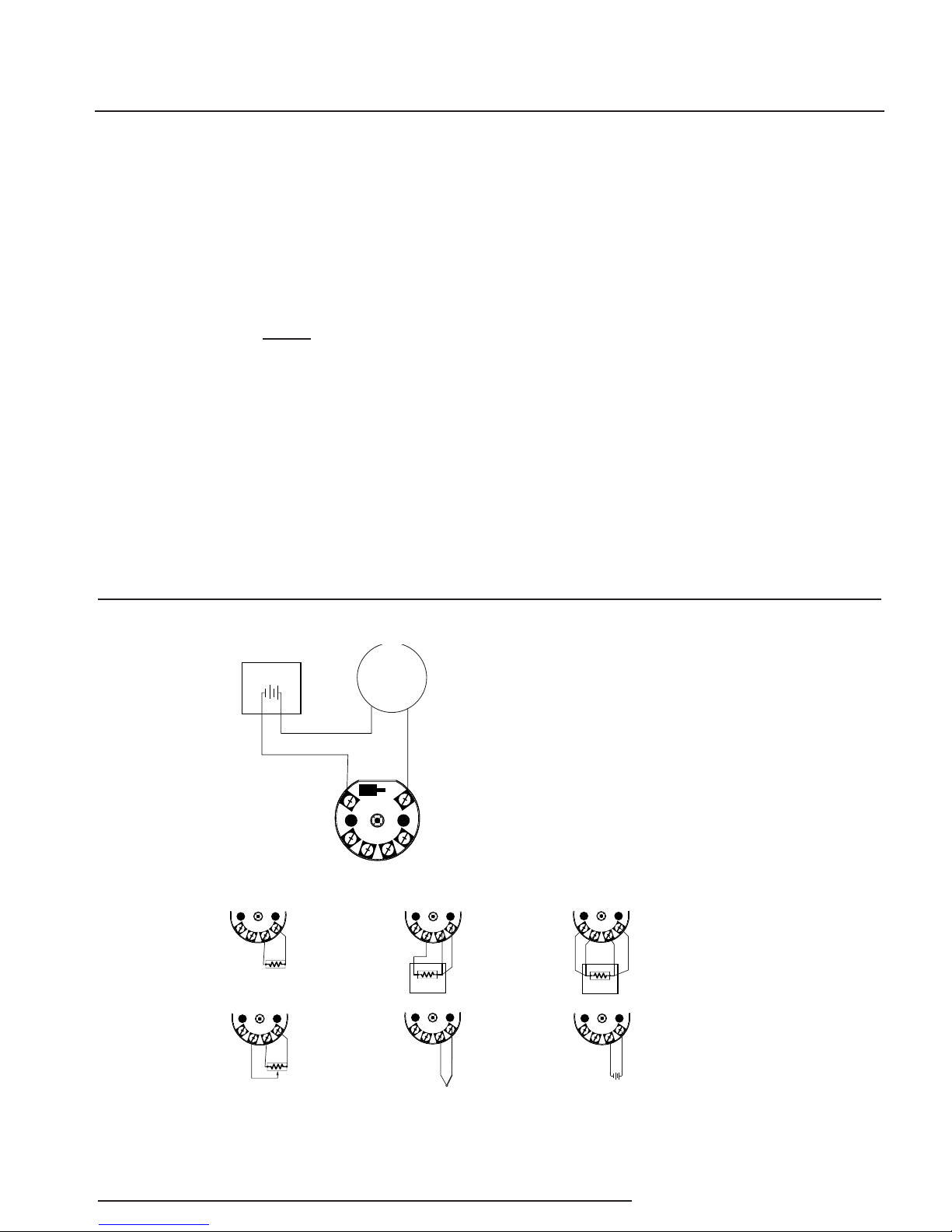

Figure 2. Use the PC Conﬁguration Software to program the TRY or TRX.

–

–+

POWER SOURCE 10-42Vdc

CURRENT

METER 0-50mA

CALIBRATED

INPUT

SIMULATOR

2-WIRE RTD, TC, OHM

MILLIVOLTS

TRY/TRX COMMUNICATION CABLE

803-040-26 FOR NON-ISOLATED

803-039-26 FOR ISOLATED

208-236-00 USB Cable

804-030-26 Fuse Protected USB Cable

–

THERMOCOUPLE INPUT

3-WIRE RTD OR RESISTANCE INPUT

MILLIVOLT INPUT

4-WIRE RTD OR RESISTANCE INPUT

POTENTIOMETER INPUT

Input Connection Hookups

2-WIRE RTD OR RESISTANCE INPUT

–PS+PS

COM

COM PORT

OF PC

TO SERIAL (COM) PORT OF PC

FUSE

COMMTX/RX

Demand MOORE Reliability 11

Page 12

TRY & TRX

PC Conﬁguration Software Summary

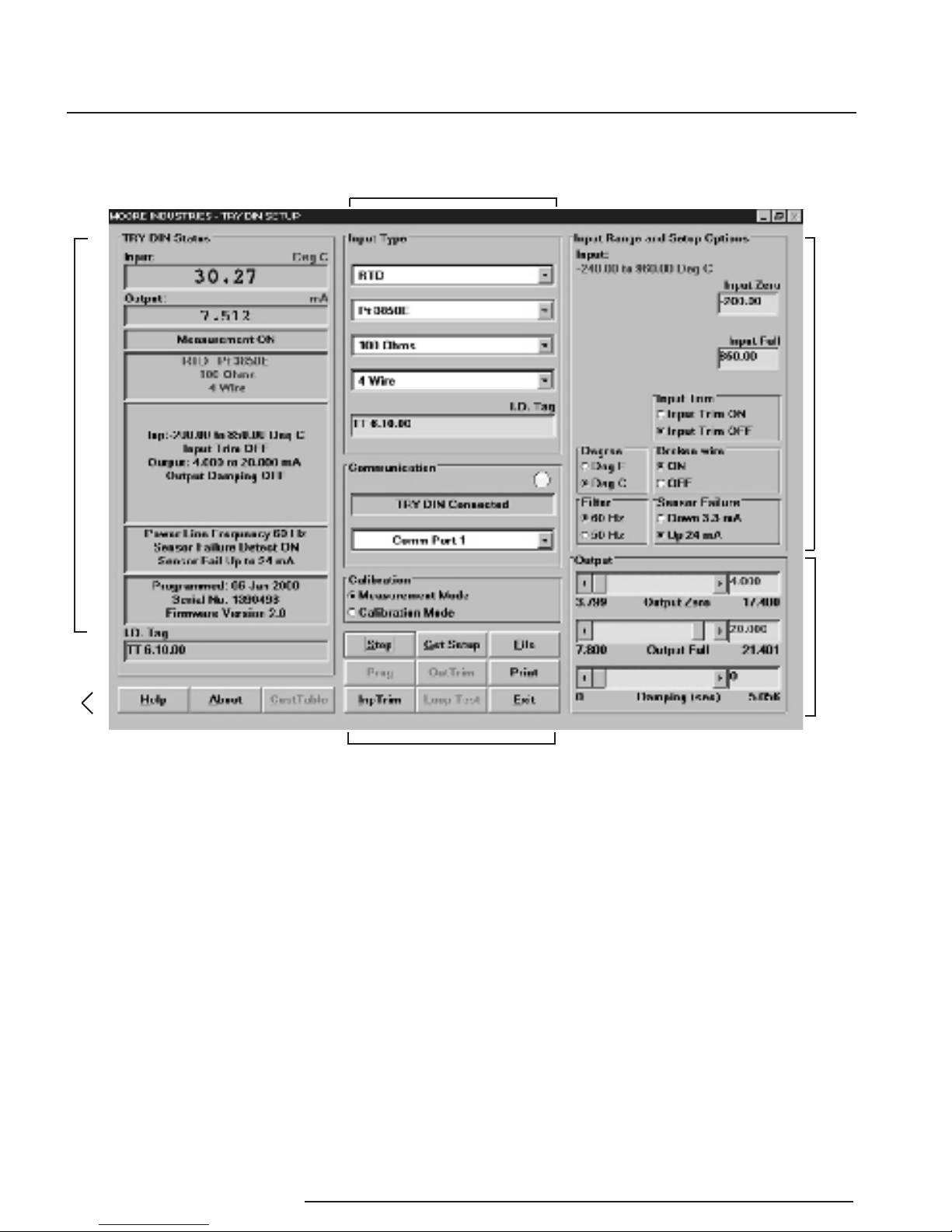

Figure 3. Main Conﬁguration Screen Summary

1. TRY/TRX Status The left column of the screen displays the input, output, and settings of the TRY or TRX. This column will change to reﬂect the values on the rest of the screen when you program the TRY or TRX with its new values.

2. Calibration Use these radio buttons to change from “Measurement Mode”, the mode that you will be working in from your PC, and “Calibration Mode”, the mode that you will select when using a handheld calibrator to simulate input to the unit.

3. “Help” Buttons The “Help” and “About” buttons both provide information on the TRY or TRX Conﬁguration Software. The “CustTable” button allows you to set up a custom linearization table for your unit.

4. File Management Buttons This set of nine buttons are essential to all the functions of the Conﬁguration Software, and will be used often. The names and functions of the individual command buttons may change when you press a button.

12 Demand MOORE Reliability

5. Output These scroll bars control the scaling and damping values of the TRY or TRX. When certain options are selected, these scroll bars are renamed to adjust the reverse output and the loop test.

6. Input Range and Setup Options Use this section to conﬁgure the transmitter’s range of input and parameters of its display options.

7. Input Type The top pull-down menu of this section selects the type of input that the TRY or TRX will accept: Millivolt, Ohms, RTD, Thermocouple, or Potentiometer. The pull-down menus below it change to provide only the options for the input type you have selected.

8. Communication The communication menu displays the status of the TRY or TRX: if it is connected, and to which COM port it’s connected to. The yellow light in the upper right corner of this section will ﬂash if the transmitter is connected.

Page 13

TRY & TRX

Keeping What You’ve Got Safe— Using “Get Setup”

Every TRY or TRX is shipped from the factory with a Conﬁguration File already installed in its memory. This ﬁle is comprised of either the factory default set of operating parameters, or of the set of parameters speciﬁed by the customer at the time of order.

CAUTION:

Any time a connected TRY or TRX is “programmed”

by downloading a Conﬁguration File into memory,

ALL of the conﬁguration parameters

resident in the transmitter memory

at the time of the download are OVERWRITTEN

with whatever parameters are showing

on the Conﬁguration Program Screen. All previous

parameters are then unrecoverable.

This includes things like, input type, tag name,

calibration date, input and/or output trim values, etc.

IMPORTANT:

To safeguard against the accidental loss of a

Conﬁguration File, always use the “Get Setup” button

and the File Management facilities under the “File”

button, located at the bottom-center of the

Main Conﬁguration Screen.

2. Click on the “Get Setup” button at the bottomcenter of the Conﬁguration Program Main Screen (see Figure 3).

The screen will ﬂicker once, and the settings

shown on the left area of the screen will match those showing on the right.

3. Click on the “File” button. This brings up an Explorer-like set of windows on the left area of the screen.

4. Enter a name for the current Conﬁguration File (the one already in the transmitter’s memory), and click on the “Save” button.

Note:

File names must follow the DOS convention; Eight-

character maximum and no sufﬁx.

The Conﬁguration Program adds

a sufﬁx to the ﬁle name automatically.

5. Answer “Yes” to save the named ﬁle to disk. The left side of the screen will now show the name of the ﬁle entered in Step 4. The “starting point” of the TRY or TRX Conﬁguration Process is now saved on the PC disk. If you decide to edit the conﬁguration, this ﬁle can always be downloaded back to the transmitter.

To save the Conﬁguration File already resident in the transmitter’s memory:

1. Start the PC Conﬁguration Program, making sure that the transmitter is connected as shown in Figure 2.

6. Click on “QuitFile” to return to the Main Conﬁguration Screen.

Demand MOORE Reliability 13

Page 14

TRY & TRX

Selecting Input Type, Wiring, etc.

Use the selection tools in the Input Type box to choose the sensor type that the TRY or TRX will be reading. Moore Industries suggests saving the initial settings resident in the transmitter before making any changes (refer to “Keeping What You’ve Got Safe”, page 9).

After saving, select the appropriate Input Type values as shown in Figure 4. Continue to change the remaining areas in Input Type (such as ohms, linearization, custom table, or # wires, depending on your sensor type).

Figure 4. Choosing the Input Type for the TRY or TR

Note:

The Custom Input Linearization Table facility is avail-

able only with the “Millivolts” input selection.

RTD input selections distinguished by the “E” sufﬁxed alpha value selections use 128-bit linearization curves. RTD selections without the “E” sufﬁx use standard, 32bit curves. For RTD and TC applications all curves are

stored in the installation directory as ﬁles.

IMPORTANT:

Settings on the Main Conﬁguration Screen

do not take effect in the unit until the Conﬁguration

File is downloaded.

Note:

Once you have completed all parameters you wish

to conﬁgure, please refer to “’Applying Conﬁguration

Settings to your Transmitter” (page 12).

14 Demand MOORE Reliability

Page 15

TRY & TRX

Scaling the Input

This parameter allows the user to set the TRY or TRX to scale its output in response to a portion of the total range of the selected input type. In a reverse output application, the TRY or TRX output drops in proportion to a rise on the input, and rises in proportion to a drop on the input.

The instructions assume that the Conﬁguration Program has been loaded successfully (page 6).

To set the scaling for the Input to the TRY or TRX:

1. Start the PC Conﬁguration program and connect a transmitter. Press the “Get Setup” button to display the transmitter’s current conﬁguration.

Note:

It is not necessary to connect a unit to the PC in

order to scale the input.

2. With the Conﬁguration Program Main Screen showing (Figure 3, page 8), select the “Input Zero” box in the upper right corner of the screen.

Figure 5. The Input Zero/Full menu

IMPORTANT:

Settings on the Main Conﬁguration Screen

do not take effect in the unit until the Conﬁguration

File is downloaded.

Note:

Once you have completed all parameters you wish

to conﬁgure, please refer to “’Applying Conﬁguration

Settings to your Transmitter” (page 12).

Setting Reverse Output

a. Select the “Input Zero” box (Figure 5). b. Enter a value GREATER THAN THE

INTENDED FULL SCALE INPUT.

c. Select the “Input Full” box. d. Enter a value LESS THAN THE ZERO SCALE

INPUT entered in Step b.

The Conﬁguration Program will display a mes-

sage in the output section of the screen to indicate that a Reverse Output situation exists (see Figure 6).

3. Enter the desired 0% input value into the “Input Zero” value box.

4. Repeat the above step to set the desired 100% input value in the “Input Full” box.

Any value which falls within the range of the

selected measurement type may be used for “Input Zero” and “Input Full” percentages

Demand MOORE Reliability 15

Page 16

TRY & TRX

Figure 6. Scale the output or set the Reversed Output using the bars in the bottom right of the Main Conﬁguration Screen.

Scaling the Output

The TRY or TRX can be conﬁgured to scale its 4-20mA output to offset the performance or calibration of other instruments in the process loop.

The instructions assume that the Conﬁguration Program has been loaded successfully (page 6). Moore Industries also suggests saving the initial settings resident in the transmitter before making any changes (refer to “Keeping What You’ve Got Safe”, page 9).

To set the output of the TRY or TRX:

1. Start the PC Conﬁguration program and connect a TRY or TRX as shown in Figure

2. Press the “Get Setup” button to display the transmitter’s current conﬁguration.

Note:

It is not necessary to connect a unit to the PC in

order to scale the output.

2. Enter the desired 0% output value (between

3.800mA and 17.400mA) in the “Output Zero” box at the lower right corner of the screen (see Figure 6), or click and drag the slide bar, adjacent to the box, to adjust the value for 0% as desired.

3. Enter the desired 100% output value (between

7.800mA and 21.400mA) in the “Output Full” box, or click and drag the slide bar to adjust the value.

Note:

The minimum difference between

0% output and 100% output is 4.000mA.

IMPORTANT:

Settings on the Conﬁguration Program Screen do

not take effect in the unit until the Conﬁguration File

is downloaded.

Applying Conﬁguration Settings to Y our T ransmitter

1. Select one of these options: a. Create a Conﬁguration File by setting

different parameters.

b. Save the current settings into a ﬁle on

disk as a back-up or to down load later. Refer to “Keeping What You’ve Got Safe”, starting with Step 3 on page 9.

c. Download the current settings into

memory

2. To enable the Download Process, click on

the “Stop” button at the bottom-center of the screen, then on the “Prog” button. This transfers the settings from the screen to the memory of the connected transmitter.

The Status Bar in the upper-left corner of the

Conﬁguration Program screen will display the progress of the download of the Conﬁguration File to the connected transmitter.

When the download is complete, the

Conﬁguration Program will emit a faint, yet distinctly audible “beep” to indicate that the download was successful and will show the conﬁguration setting resident in memory towards the left side of the screen.

3. Click on the “Start” button to re-enable the

Conﬁguration Program’s monitoring of the connected transmitter.

The status area of the Conﬁguration Program

screen will display the “Measurement ON” message.

16 Demand MOORE Reliability

Page 17

TRY & TRX

CAUTION:

Any time a connected TRY or TRX is “programmed”

by downloading a Conﬁguration File into memory,

ALL of the conﬁguration parameters resident in the

transmitter memory at the time of the download are

OVERWRITTEN.

This includes things like, tag name, calibration date,

trim values, etc.

Trimming the Input

Use this feature to enhance the accuracy of the transmitter by precisely matching its actual reading of the input to its scaling of the either one or two input points. Trim the input by following the directions below:

Note:

The “Input Trim” procedure may require several

hours for completion. Please determine whether

or not your process requires this function before

proceeding.

7. Attach the sensor that you wish to trim to the

transmitter and place the sensor in a calibration bath. Adjust the bath until its temperature settles. Click “Trim Upper” and wait for it to capture the value (about 10 seconds).

Caution:

If planning on beginning a new task, ensure that you

have saved your lower trim value of your Input Trim

before proceeding to Steps 8 and 9.

8. Click on the button labeled “QuitTrim”, then the

“Stop” button, and ﬁnally the “Prog” button to send the trim values to the transmitter.

9. Click on the “Start” button to re-enable the

Conﬁguration Program’s monitoring of the connected transmitter.

Figure 9. Trim Capture Box

1. Connect the transmitter to your PC using the setup shown in Figure 2. Press the “Get Setup” button to display the transmitter’s current conﬁguration.

2. Click “Start”, then “InpTrim”.

3. Click the radio button labeled “Input Trim On”.

4. Select whether you will trim two points (upper and lower) or just one point by clicking on the appropriate radio button in the “Trim Pnts” section.

5. In the “Trim Lower” and “Trim Upper” boxes, type in the sensor’s value that you are trimming.

6. Attach the sensor that you wish to trim to the transmitter and place the sensor in a calibration bath. Adjust the bath until its temperature settles. Click “Trim Lower” and wait for it to capture the value (about 10 seconds).

Trimming the Output

Trimming is the function that allows precise control over the transmitter’s output. Note that to activate this function, a unit must be connected as shown in Figure

2. To trim TRY or TRX output:

1. Set all unit parameters on the TRY or TRX Conﬁguration Screen as required for your intended application.

When the Conﬁguration File shown on the screen

has been modiﬁed for your application, click “Stop” to stop measurement.

2. Click “OutTrim”. Monitor the output with a calibrated current meter or with a voltmeter measuring the drop across a precision 250 Ohm resistor (see Figure 2).

Demand MOORE Reliability 17

Page 18

TRY & TRX

3. While monitoring your meter, select and move the “Zero Scale Output” or the “Full Scale Output” slide bar to adjust the TRY or TRX output .

4. When both zero and full scale have been adjusted to satisfaction, press “QuitTrim”, then “Prog” to program the transmitter with the new trim values.

The “TRY or TRX Status” area of the Conﬁguration

Screen will reﬂect the new output settings.

Setting Miscellaneous Functions— Engineering Unit Readout, Input Filtering, Upscale or Downscale Drive, and Broken Wire Detection

There are several “radio buttons” on the PC Conﬁguration Program Main Screen that control ancillary transmitter functions. It is not necessary to have a transmitter hooked up to the PC in order to set these parameters and save them in a Conﬁguration File.

Setting Engineering Unit Readout

When a temperature sensor is designated as the input to the transmitter, the radio buttons for “Degree” are enabled.

Use this setting to have the Conﬁguration Program display the Centigrade or Fahrenheit temperature for readout in the “Status” area of the screen whenever the PC is being used to monitor the input from the connected sensor.

Setting Input Filtering

Use this radio button setting to ﬁlter out noise on the power to the transmitter.

Note:

There is a difference between the available

Full Scale output setting and the Upscale Drive,

and between the available zero scale output setting

and the Downscale Drive:

The TRY or TRX will only output 24mA or 3.3mA

(as conﬁgured) in the event of a sensor or sensor

wiring failure (upscale/downscale drive).If sensor

input drops below the rated range, output drops to a

minimum of 3.8mA. If sensor input rises above the

rated range, output rises to 21.4mA.

This allows the user to distinguish between an input

failure and an input over or under-range condition.

Disabling Broken Wire Detection

One of the premier features of many of Moore Industries’ temperature transmitters is our Total

Sensor Diagnostics® system. During operation, the TRY or TRX sends random micro-amp pulses through input wiring to check for broken wiring or a burned out sensor.

Working with a Millivolt Input

When the transmitter is connected to a PC, the “TRY/TRX Status” section of the Main Conﬁguration screen displays the message “Broken Wire” whenever problems are detected on the input, and the transmitter itself drives its output upscale or downscale.

This can cause problems for some types of millivolt input sources. To temporarily disable this feature when the TRY or TRX is working in a millivolt input conﬁguration, select the “Broken Wire Off” radio button.

Working with a Thermocouple or RTD Input Total Sensor Diagnostics can also cause problems with some types of temperature calibrators.

Choosing Between Upscale and Downscale Drive

The TRY and TRX transmitters can be conﬁgured to provide a special warning, using its output, of a breakdown in its connected sensor or sensor wiring. Use this radio button setting to conﬁgure the transmitter to drive its output either up to 24mA or down to 3.3mA when a sensor or sensor wiring failure is detected.

18 Demand MOORE Reliability

When working with thermocouple or RTD inputs, set the “Calibration” radio button in the lowerleft area of the Conﬁguration Screen to “Calibration Mode”. This temporarily disables Total Sensor Diagnostics.

Page 19

TRY & TRX

Setting Output Damping

The Output Damping function allows the user to introduce a delay into the response of the transmitter in order to minimize the effect of step output changes. The higher the damping value (set in seconds), the longer the TRY or TRX will take to respond to trends on the input.

Note:

It is not necessary to connect an input device to the

PC in order to select and conﬁgure the Damping

Value.

To set the damping value, either adjust the position of the slider bar in the lower-right area of the Conﬁguration Program Main Screen, or enter a value directly into the space provided.

The default damping value is 0 seconds in which damping is off. The maximum allowable damping value is 5.056 seconds.

Using the Loop Test

The Loop Test feature allows the user to employ the transmitter’s output to “trim” other instruments in the loop.

To use the Loop Test feature, the connected TRY or TRX must stop measuring input.

1. Click on the “Stop” button.

2. Click on the “Loop Test” button. This enables a slide bar in the lower-right area

of the Conﬁguration Screen.

3. Use the slide bar to adjust the output of the connected TRY or TRX to a percentage of the conﬁgured scale. Monitor the effect of this on other instruments in the loop, and adjust accordingly.

4. Click on “Quit Loop” to stop using the Loop Test feature.

Figure 10. The Output Loop Test scroll ba

Demand MOORE Reliability 19

Page 20

TRY & TRX

Creating a Custom Linearization T able

The TRY or TRX support user-deﬁned linearization of mV inputs. Up to 85 input/output points can be deﬁned, and the user can also specify the format and engineering units of the output (viewable with the Conﬁguration Program). A Custom Linearization Curve is used for mV inputs only.

This section explains how to create a Custom Linearization Table for downloading into TRY or TRX memory.

The instructions assume that the Conﬁguration Program has been loaded successfully. Moore Industries also suggests saving the initial settings resident in the transmitter before making any changes.

To create a Custom Linearization Table:

1. Attach the equipment listed in Table 1 as shown in Figure 2 and start the PC Conﬁguration Program.

Figure 12. Creating a Custom Linearization Table.

Note:

Connect the unit to a PC in order to create a Custom

Linearization Table. You may work On or Off-Line.

2. Use the pull-down menu to set “Linearization ON”. Then click the “CustTabl” button in the lower-left area of the Main Conﬁguration Screen.

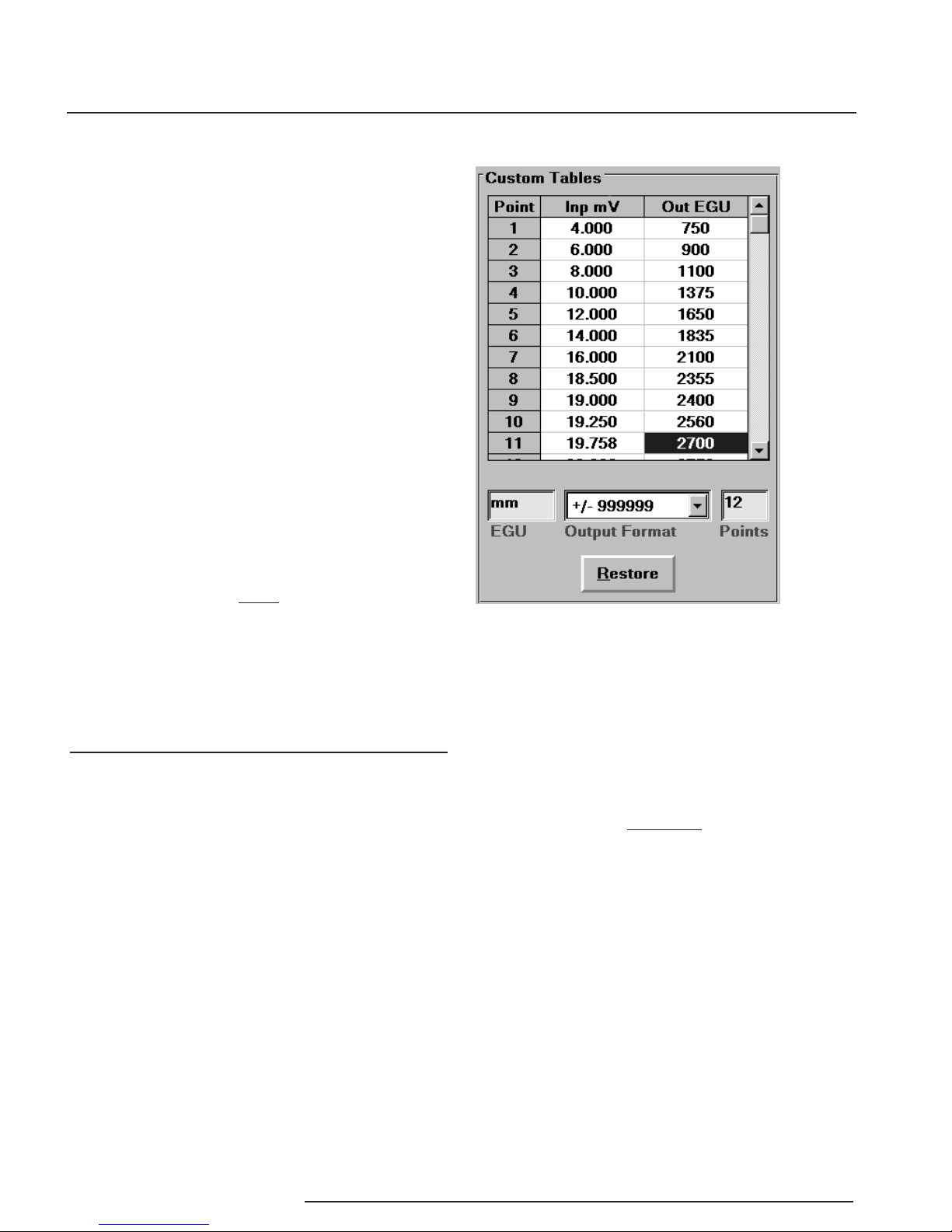

Figure 11. Linearization Must be set to ON to Create a Custom Table.

3. Click on the “CustTabl” (Customize Linearization Table) button. This causes the Conﬁguration Program to change its upper-right corner area to accommodate the table.

4. Use the table ﬁelds to set values for input and output from the transmitter’s intended application.

Use the Up, Down, Left, and Right arrow keys on the PC keyboard to move the cursor among the cells in the table.

5. Use the “Restore” button to reset the table to the table stored in the TRY OR TRX’s memory.

CAUTION:

Restoring the conﬁguration ﬁle erases any values in

the table, overwriting them with whatever is stored in

the most recent ﬁle.

6. Use the “EGU” ﬁeld to set the Engineering units of the readout from the transmitter when connected to the Conﬁguration Program.

7. Set the “Output Format” ﬁeld to the desired resolution using the pull-down menu.

8. Enter the number of points to use to constitute the Linearization Table in the “Points” ﬁeld.

20 Demand MOORE Reliability

Page 21

TRY & TRX

The Rules for Custom Linearization:

• Thedifferencebetweenanyconsecutive

values in the table (in either column) must be less than 50% of the entire conﬁgured range.

Note:

Values in the “Inp mV” column must be in ascending

order and must fall within a range of -50 to 1000 mV.

• One“OutputEGU”valueper“InputmV”value

only.

Note:

Values in the “Out EGU” column must fall within a

range of ±999999. The output must be scaled to

your “Output EGU” Table range.

• Itisnotnecessarytouseall85available

points, but the ﬁrst and last points in the curve always default to the 0% and 100% input scale (input range).

• Ifyoudecidenottouseall85points,youmust

change the number of points in the “Points” ﬁeld to the number you wish to use.

9. When the table is complete, click on the “QuitTabl” button and answer “Yes” on the pop-up dialog box. You may save the conﬁguration to a ﬁle whether you are On or Off-Line.

10. Click on the “Prog” (Program) button to download the output trim settings into the transmitter memory.

CAUTION:

Any time a connected TRY or TRX is “programmed”

by downloading a Conﬁguration File into memory, ALL of the conﬁguration parameters resident in the transmitter memory at the time of the download are

OVERWRITTEN.

This includes things like: tag name, calibration date,

trim values, etc.

Once a transmitter’s memory is “erased”

in this fashion, the old operating parameters

are unrecoverable, and will have to be

regenerated from scratch if needed again.

Note:

Moore Industries suggests ﬁlling in the EGU

(Engineering Units), then the number of points, and

ﬁnally the values in the table.

Demand MOORE Reliability 21

Page 22

TRY & TRX

Managing Conﬁguration Files

Once all the parameters for a transmitter are set, they can be saved to disk on the PC using the “File” menus

and ﬁelds.

Figure 13. The File Menu.

The left side of the screen will now show the

name of the ﬁle entered in Step 2 resident on disk.

Retrieving a Conﬁguration File from Disk

1. From the Main Conﬁguration Screen, click on the “File” button to bring up the File Management portion of the program.

2. Use the Explorer-like ﬁle display (see Figure

13) to locate the ﬁle to be retrieved, and click on the ﬁle to highlight it. Once you’ve clicked on the ﬁle it is read and the screen is updated.

3. Click on the “Quit File” button.

You may also edit the screen conﬁguration

and save it to another ﬁle. However, once you click the “Quit File” button you will be asked whether you want to keep the current ﬁle conﬁguration or restore the previous version before saving.

Saving a Conﬁguration File to Disk

1. Click on the “File” button. This brings up an Explorer-like window on the left area of the screen.

2. Enter the ﬁle name that you wish to save in the “Selected File Name” box.

Note:

File names must follow the DOS convention.

Eight-character maximum and no sufﬁx.

The Conﬁguration Program adds

a sufﬁx to the ﬁle name automatically.

3. Use the Explorer-like interface to designate the location on the PC drive (or ﬂoppy) for the ﬁle to be saved.

4. Click on “Save”

5. Click “Yes” to save the named ﬁle to disk.

The Conﬁguration Screen will change to show the parameters entered into the retrieved ﬁle. The parameters can now be edited and/or downloaded into the memory of a connected TRY or TRX.

Retrieving a Conﬁguration File from the Connected TRY or TRX

Make sure a transmitter is connected and communicating properly with the Conﬁguration Program, then simply click on the “GetSetup” button.

The Main Conﬁguration Screen changes to show the parameters resident in the memory of the connected transmitter. The parameters can now be edited, saved to disk, and/or edited and re-downloaded into memory.

Note:

Connection to another device will not change the

Conﬁguration Screen. This is beneﬁcial when

you must conﬁgure several devices with the same

conﬁguration. In this case you would simply conﬁgure the unit and click the “Stop” button and then the “Prog” button. If no sensor is connected

during conﬁguration download, click the “Stop BW”

button and then the “Prog” button.

22 Demand MOORE Reliability

Page 23

TRY & TRX

–

POWER

TRX OR TRY

(HPP

SHOWN)

CURRENT-

DRIVEN

INSTRUMENT

THERMOCOUPLE INPUT

3-WIRE RTD OR RESISTANCE INPUT

MILLIVOLT INPUT

4-WIRE RTD OR RESISTANCE INPUT

POTENTIOMETER INPUT

–

–PS+PS

COM

Input Connection Hookups

DC Power 8-30Vdc FOR TRX w/ INTRINSIC SAFETY OPTIONS 8-42Vdc FOR STANDARD TRX 10-30Vdc FOR TRY w/ INTRINSIC SAFETY OPTIONS 10-42Vdc FOR STANDARD TRY

2-WIRE RTD OR RESISTANCE INPUT

Printing Saved Conﬁgurations

1. Click on the “File” button. This brings up an Explorer-like window on the left area of the screen.

2. Navigate to the save ﬁle you want to print and click on it.

3. Click on the “Print” button.

Note:

Printing saved conﬁgurations must

be done when the Explorer-like ﬁle

window is up.

Installing and Connecting the TR Y or TRX

Now that the TRY or TRX has been programmed to your satisfaction, it is ready for installation.

The TRY and TRX are available in both DIN and HPP housing styles, and are available with a number of enclosure options. Consult your local Moore Industries’ Interface Solutions Expert for information on the type of enclosure that best suits your application.

Connecting the TRY or TRX in an Application

Moore Industries suggests installing the TRY or TRX by ﬁrst mounting the unit in its intended application, then making the electrical connections to input, output, and power. Before any installation, make sure that the unit has been bench checked to ensure that it is conﬁgured and calibrated properly for its intended application.

Figure 14. Connecting the TRX or TRY to the loop.

Demand MOORE Reliability 23

Page 24

TRY & TRX

138mm

(5.43 in)

WHEN INSTALLED

133mm

(5.24 in)

WHEN INSTALLED

80mm

(3.15 in)

43mm

(1.69 in)

113mm

(4.45 in)

110mm

(4.33 in)

25mm

(1.0 in)

1234

+PS –PS

TRY

COM

30mm

–PS+PS

TOP BOTTOM

SIDE

(1.56 in)

25mm

(1.0 in)

52mm

(2.04 in)

49mm

(1.92 in)

27mm

(1.05 in)

4 X 40

0.125 in depth 2 PLACES

33mm

(1.3 in)

33mm (1.3 in)

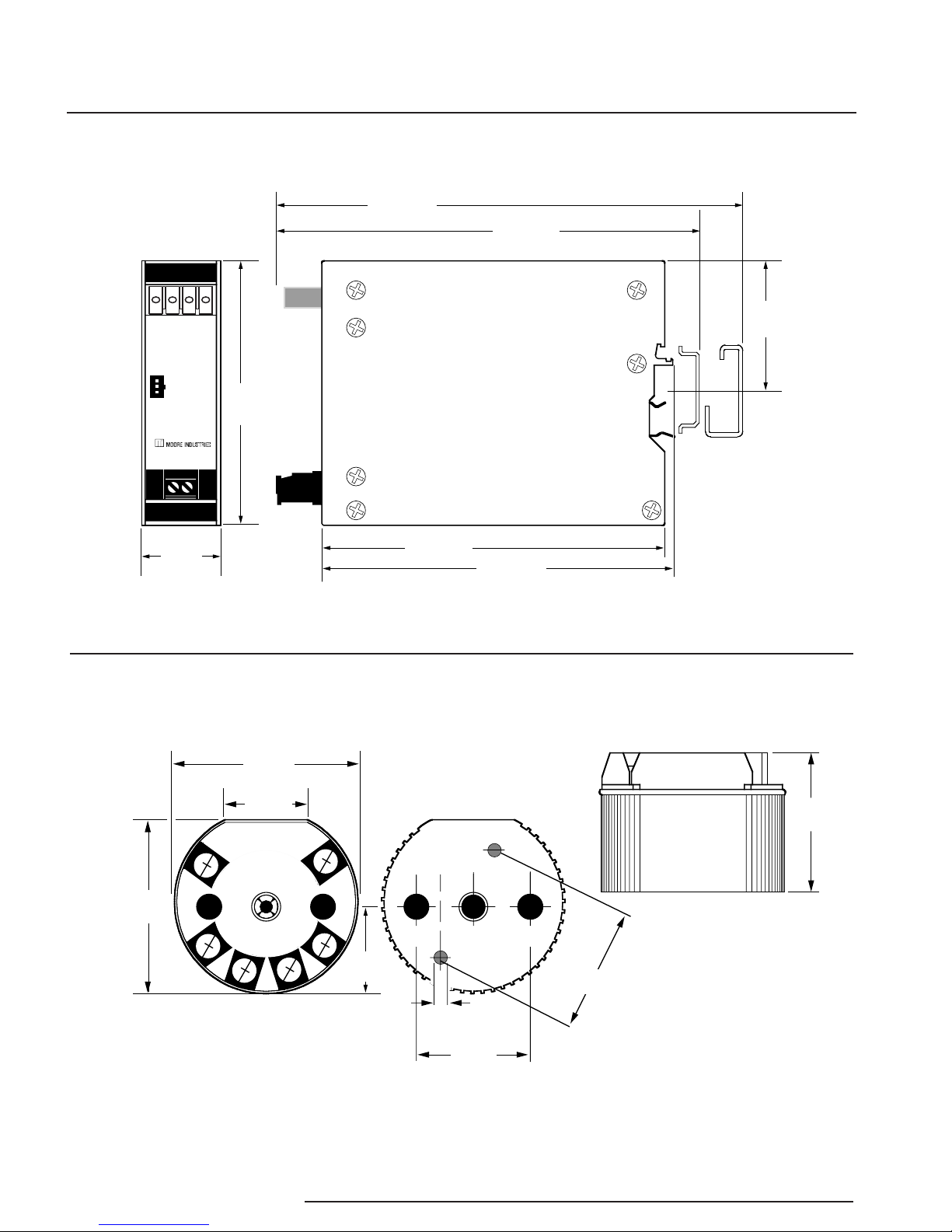

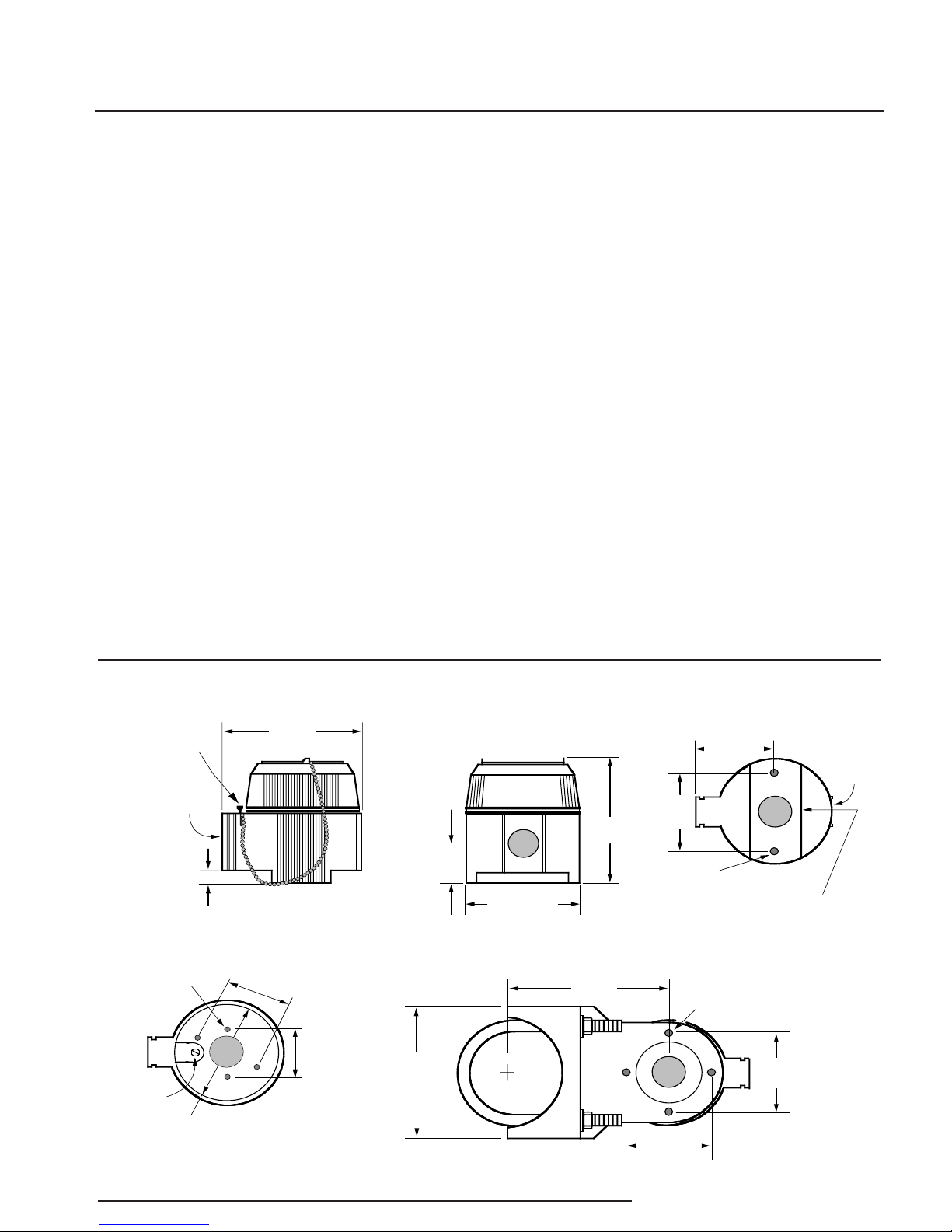

Figure 15. The Dimensions of the DIN housing for the TRY or TRX unit.

Figure 16. The Dimensions of the TRY or TRX HPP housing.

24 Demand MOORE Reliability

Page 25

TRY & TRX

92mm

(3.62 in)

9mm

(0.35 in)

87mm

(3.43 in)

Conduit

Entry Port

89mm

(3.5 in)

84mm

(3.31 in)

61mm

(2.40 in)

2-in Pipe Bracket Mounting Holes (4)

61mm

(2.40 in)

Process Connection

1/2-in NPT (N and M models) or

G½ (BSP) (C models)

61mm

(2.40 in)

10-32

Mounting

Holes (2)

51mm

(2.01 in)

Safety Lock

(LH2 only)

Metal Tag

BOTTOM

INSIDE

2-INCH PIPE MOUNTING HARDWARE

30mm

(1.18 in)

DIA. 72mm

(DIA. 2.83 in)

Instrument Mounting Holes 40mm (1.56 in)

Instrument Mounting Holes 33mm (1.30 in)

I.D. 62mm x 19mm Deep

(2.44 in x 0.75 in Deep)

Ground

M4.0 x 0.7

(4 places)

FRONT

SIDE

Recommended Ground Wiring Practices

Moore Industries recommends the following ground wiring practices:

• Any Moore Industries product in a metal case or

housing should be grounded.

• Theprotectiveearth conductor mustbeconnected

to a system safety earth ground before making other connections.

• Allinputsignalsto,andoutputsignalsfrom,Moore

Industries’ products should be wired using a shielded, twisted pair wiring technique. Shields should be connected to an earth or safety ground.

• Forthebestshielding,theshieldshouldberunallthe

way from the signal source to the receiving device. (see Note below)

• Themaximumlengthofunshieldedinputandoutput

signal wiring should be 2 inches.

Note:

Some of Moore Industries’ instruments can be

classiﬁed as receivers (IPT 2, IPX 2, etc.) and some

can be classiﬁed as transmitters (TRX, TRY, etc.)

while some are both a receiver and a transmitter

(SPA

, HIM, etc). Hence, your shield ground

connections should be appropriate for the type

of signal line being shielded. The shield should

be grounded at the receiver and not at the signal

source.

CE Conformity Installation of any Moore Industries’ products that carry the CE marking must adhere to the guidelines in the Recommended Ground Wiring Practices section in order to meet the EN 61326 requirements set forth in the applicable EMC directive.

Operating the TRY/TRX

Once conﬁgured, installed, and supplied with the correct power, the TRY or TRX transmitter begins to operate immediately. Depending upon environmental conditions, it can be expected to continue to operate unattended indeﬁnitely.

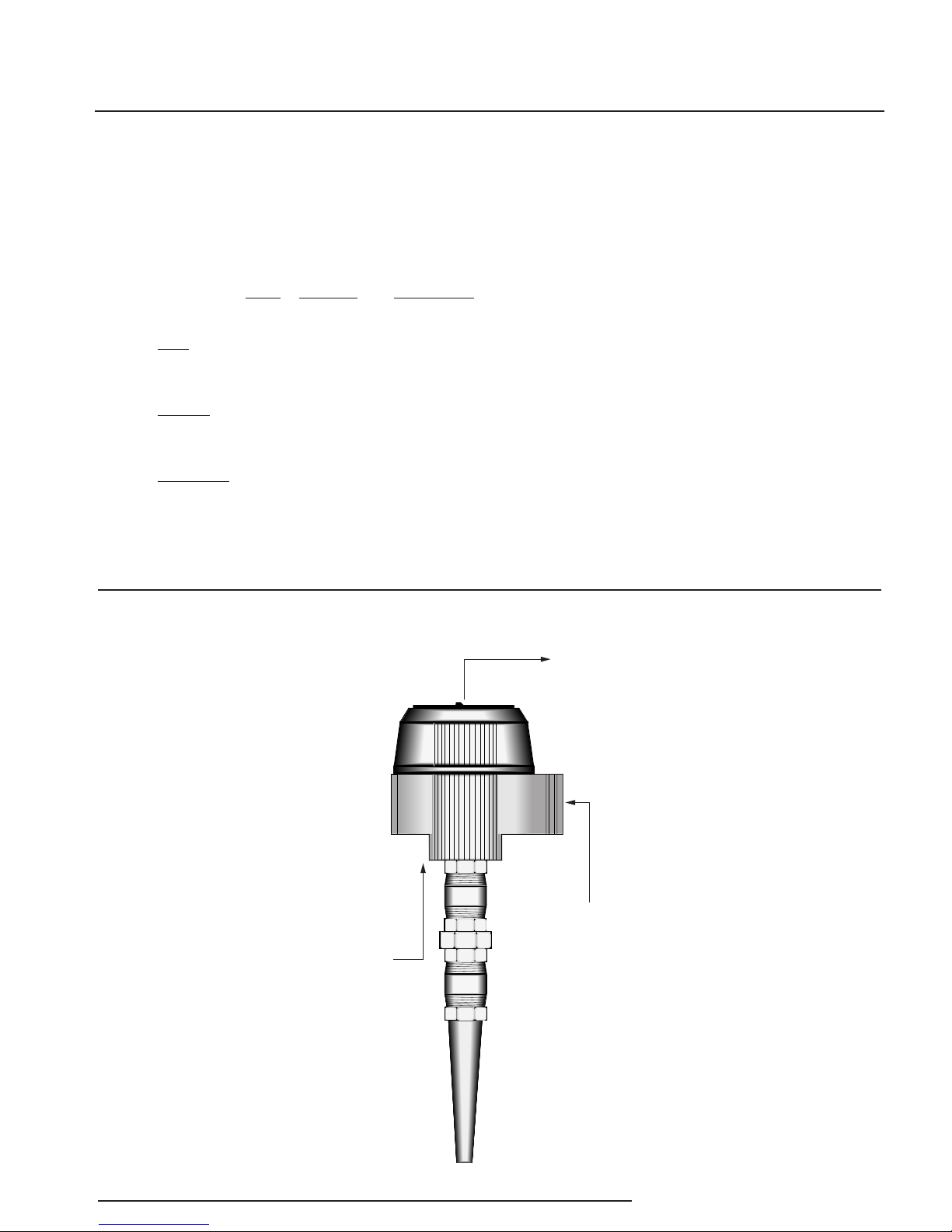

Figure 17. The Dimensions of the explosion-proof housing for the TRY or TRX unit.

Demand MOORE Reliability 25

Page 26

TRY & TRX

Maintaining the TRY/TRX

Moore Industries suggests a quick check for terminal tightness and general unit condition every 6-8 months, depending upon the severity of conditions. Things such as ambient vibration, corrosive atmospheres, extreme heat or cold, etc., can play a role in shortening the service life of any piece of electronic equipment.

IMPORTANT:

Always adhere to any site requirements for

programmed maintenance.

T roubleshooting the TR Y/ TRX

If a transmitter’s performance begins to deteriorate and a physical check of the installation uncovers no adverse conditions or damage, remove the offending unit from service and reperform the Conﬁguration Procedures from earlier in this manual.

“Table Data Invalid”

If there is a broken or loose communication wire, ambient electronic noise, or a problem with the memory chip inside the transmitter, this message may appear.

To ﬁx the condition, make sure that the desired operating parameters are displayed on the Conﬁguration Screen, and click on the “Prog” (Program) button. This should override the corrupt conﬁguration information in unit memory and reset the parameters correctly.

Contacting Customer Support

Moore Industries is recognized as the industry leader in delivering top quality to its customers in products and services. We perform a battery of stringent quality assurance checks on every unit we ship. If any Moore Industries product fails to perform up to rated speciﬁcations, call us for help. Our highly skilled staff of trained technicians and engineers pride themselves on their ability to provide timely, accurate, and practical answers to your process instrumentation questions.

Conﬁguration Software Error Messages

Data ﬁelds on the Conﬁguration Main Screen can change color or appearance in some way to indicate that an attempt is being made to create a nonstandard or ill-advised condition in the Conﬁguration File.

“Zero or Full Scale Outside Conformance Range”

Setting thermocouple input parameters to zero or full scale values that fall outside the published ISA thermocouple tables will cause this error message to appear on screen.

This condition is “downloadable” to a TRY or TRX. It is intended to provide the user with the ability to monitor general trends on the input, functioning within the rated accuracy whenever input is within the conformance range, but inherently less accurate outside the range.

“Reverse Output”

Setting the parameter for “Input Zero” numerically above the parameter for “Input Full Scale” causes this message in the “Output” section of the Conﬁguration Screen. This condition is downloadable to the unit, and causes transmitter output to rise proportionally in response to a drop on the input, and to fall proportionally as the input rises.

Factory phone numbers are listed on the back cover of this manual.

If problems involve a particular TRY or TRX, there are several pieces of information that can be gathered from the installation before the factory is called that will help our staff get the necessary answers in the shortest time possible. For the fastest service, gather:

• Thecompletemodelnumber(s)oftheproblem

unit(s)

• Thecompleteserialnumber(s)oftheproblem

unit(s)

26 Demand MOORE Reliability

Page 27

TRY & TRX

Appendix A: Intrinsic Safety

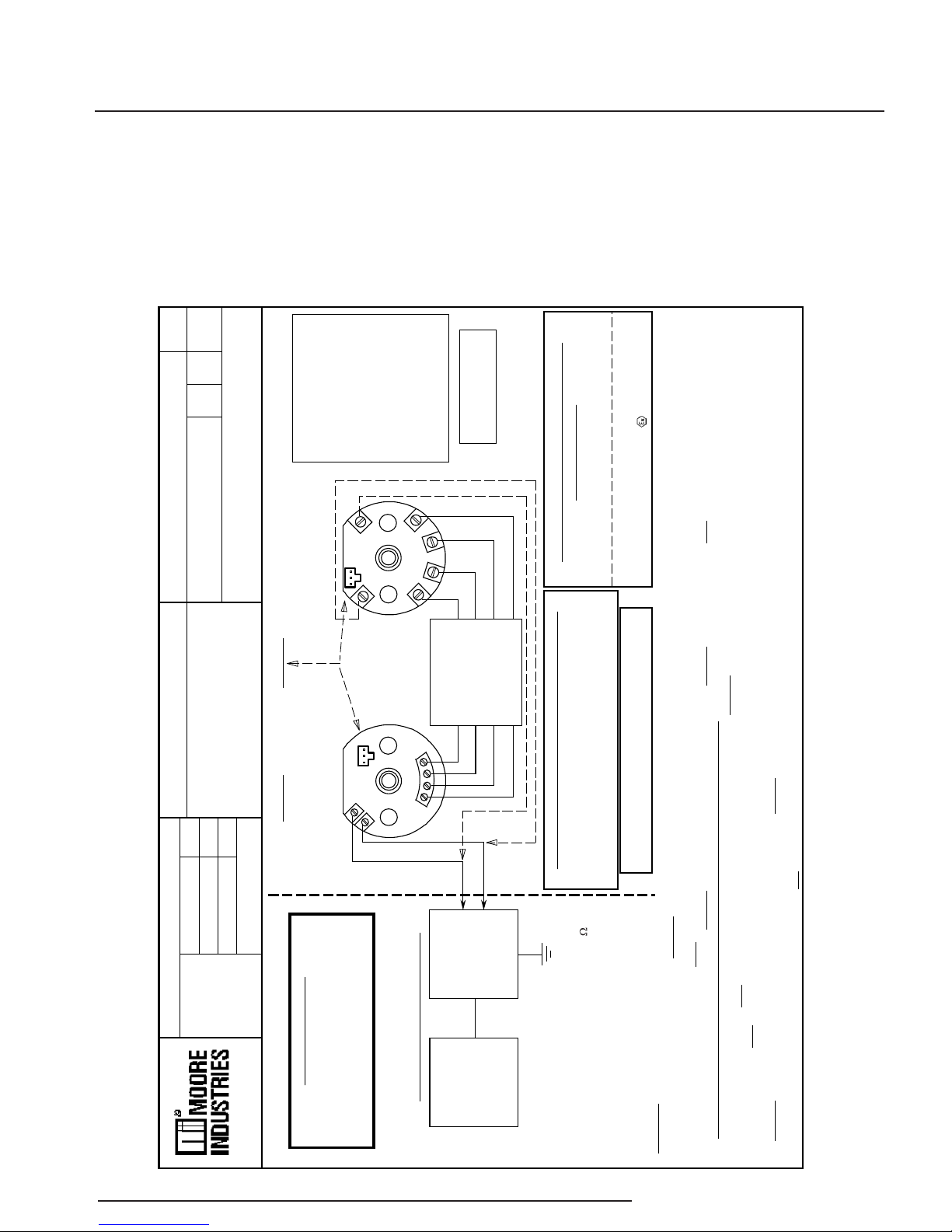

This page contains the installation diagram for the TRY or TRX carrying the intrinsically safe option. It also includes guidelines for setting up zener barriers necessary in these types of applications.

REVISION

100-100-38 C

DRAWING NUMBER

REVISED BY DATE BY APPROVAL

G.E. 02/01

ECO 13262

NOTICE RE PROPRIETARY INFORMATION: This drawing and the inform-

ation contained herein are the proprietary property of Moore Industries-

International, Inc. (MII) and should not be reproduced or disclosed to any

third party without the written consent of an authorized officer of MII.

= 30 VDC

= 110 mA

max

Entity Parameters

max

(Power/Loop, +PS & -PS):

COM

T2X & TRX-R [HPP]

Temperature Transmitter

Non-Isolated PC-Programmable

= 0.825 W

= 317 nF

max

+PS -PS

cable

or V

+ C

+ L

³ V

= 0 µH

³ C

³ L

max

RTD & T/C:

or I

³ I

max

LCIE, SIRA, SAA, TUV, etc...).

Input device must be 'Agency'

approved per application area

(CSA, EECS, FM, ISSeP,

= 2.96 µF

= 2.9 mH

= 110 mA

= 6.51 VDC

or I

or L

or C

or V

These diagrams must be used to augment the installation instructions earlier in this manual for units that are to operate in areas requiring intrinsically safe instrumentation.

II 2G EEx ib IIB T6

CSA International

Hazardous (Classified) Locations/Areas:

Intrinsically Safe: Class I, Div. 1, Groups A-D.

= 0.825 W

[T2X: RTD only]

Suitable for use in: Class I, Div. 2, Groups A-D.

LCIE/ATEX I.S. (T2X/TRX-R):

KEMA/CENELEC I.S. (TRX only): EEx ia IIC T4/T5

£ +60˚C

amb.

= 240 µW.

max

= 300 µA, P

max

= 3.0 VDC, I

max

The 'COM' Port Must Not Be Used In Hazardous 'Classified' Locations.)

CONTROL DRAWING

Moore Industries TRY, TRX Quick Start Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
