Quick user guide
Moniron Mobile
Portable automatic currency detector
Congratulations on your purchase
of Moniron Mobile automatic
currency detector created to work
on the move.
This quick user guide will help you quickly
master the operation of Moniron Mobile
automatic currency detector. The full version
of the user guide can be downloaded from
website: moniron.com
24
7
365
+
We hope that Moniron Mobile will
please you with its flawless detection
and convenience of operation 24
hours a day, 7 days a week, 365 days
a year throughout its entire lifetime.

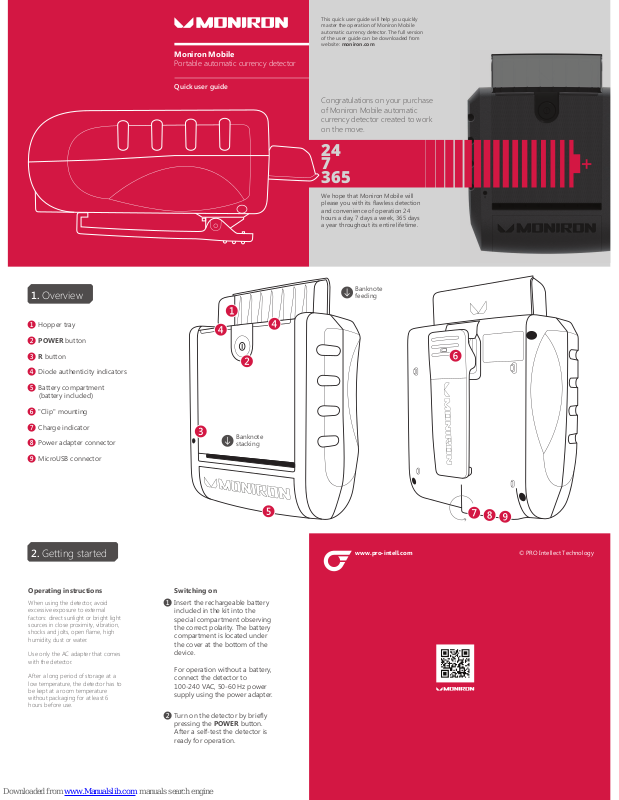

❶ Hopper tray
❷ POWER button
❸ R button
❹ Diode authenticity indicators
❺ Battery compartment
(battery included)
❻ "Clip" mounting
❼ Charge indicator
❽ Power adapter connector
❾ MicroUSB connector
1. Overview
Banknote
stacking
Banknote
feeding
Operating instructions
When using the detector, avoid
excessive exposure to external
factors: direct sunlight or bright light
sources in close proximity, vibration,
shocks and jolts, open flame, high
humidity, dust or water.
Use only the AC adapter that comes
with the detector.
After a long period of storage at a
low temperature, the detector has to
be kept at a room temperature
without packaging for at least 6
hours before use.
Switching on
❶ Insert the rechargeable battery
included in the kit into the
special compartment observing
the correct polarity. The battery
compartment is located under
the cover at the bottom of the
device.
For operation without a battery,
connect the detector to
100-240 VAC, 50-60 Hz power
supply using the power adapter.
❷ Turn on the detector by briefly
pressing the POWER button.
After a self-test the detector is
ready for operation.
2. Getting started
© PRO Intellect Technologywww.pro-intell.com
3. Banknote verification
Feeding instructions
• Banknotes should be smooth and without
folds
• Do not feed banknotes at an angle
Banknote verification
❶ Bring the hopper tray into the
operating condition.
❷ Feed a banknote in the hopper
tray. The detector will start
verification automatically.
❸ Take the checked banknote.
4. Useful features
Energy saving
In order to save energy, the detector will
automatically shut off if not used for a
certain period of time:
• 2 hours at AC
• after 3 minutes on battery
Turning off the audio signal
When the detector is on, press and hold
the POWER button until three beeps
follow to enable or disable the audio
indication.
Forced switching off
By pressing the R button, you can always
turn off the detector, if it fails to turn off
after pressing the POWER button.
Removing a misfed banknote
To eliminate a jam one needs to press and
hold the POWER button until a single
beep follows. The motor will switch on for
one second to push a jammed banknote
to the stacker.
Any jammed banknote can be gently
pulled out manually after turning off the
detector by briefly pressing the POWER
button.
PC connection
To connect Moniron Mobile to a PC for
the firmwave update one can use a
USB–microUSB cable.
! New banknotes appear in circulation
occasionally. If errors occur during
verification of such banknotes, a new
version of the software has to be installed
by your service provider or on your own.
5. Mobile operation and battery
"Clip" mounting
A special "clip" mounting on the rear
panel of the detector is provided, one
can use it for easy fixation of the
detector on a belt, a variety of straps
and so on.
Checking the battery charge
level
❶ When the detector is on, press and
hold the POWER button until a
single beep. The motor will turn on
for one second.
❷ Red LEDs will blink from 1 to 5
times, depending on the battery
charge level (1 time – minimum).
! If the battery is almost discharged, red
lights begin to blink rapidly for 30 seconds,
then the detector will turn off. One is free
to turn off the device by pressing the
POWER button with no need to wait for
30 seconds.
! Try to avoid a complete battery discharge
5. Mobile operation and battery
Continued
Battery charging
❶ AC charging
Connect the device to power
supply using the AC adapter
available in the set.
❷ USB charging
Connect the device to a working
PC using a USB-microUSB cable.
❸ Charge indication
Red light – charging
Green light – battery is
recharged or taken out.
! Additional charging options: external
laptop battery, car adapter (5 V,
min 0.54 A).
Battery: maintenance and
storage
Avoid exposing the detector either to too
high or too low temperatures. Peak
temperatures may temporarily reduce the
operation life of the battery, or interfere
with the operation of the detector. Avoid
sudden changes in temperature or
humidity when using the detector, as
condensation inside the device may occur.
! Please make sure to use the battery
included in the kit. For more information
about battery replacement or choosing a
compatible analogue please contact an
authorized Moniron Service Center.
DC 5V
Verification result
Green indication — a genuine
banknote.
Red indication — a banknote is
suspicious or unidentified. In addition,
a beep sounds in case it is not
disabled by the user.
Orange indication — a banknote
passed inaccurately or too slowly. It is
necessary to repeat the verification
procedure.
Switching off
Turn off the detector by briefly
pressing the POWER button.
6. Specifications
Moniron Mobile
Type of equipment
Currency type
Detection
Indication
Verification speed
Power supply
Operating temperature, С°
Dimensions
Net weight
Automatic banknote detector
USD (standard set)
Moniron Detection System
Audio • LED-indication of banknote authenticity
Up to 130 banknotes per minute
Battery: 18650 type, charging voltage 4.20 V ±
0.05 V, maximum length 65 mm • AC: power
supply — input AC 100-240 V, 50/60 Hz, output
DC 5 V, 2.0 А
+5 ~ +35
110×104×49 mm (61 mm – including a
detachable clip)
0.3 kg (without battery)
0.35 kg (including battery)
! The manufacturer reserves the right to make modifications in the software and engineering design of the
device which are not described in this user guide or specified in the table of specifications.
Warranty
The Manufacturer guarantees proper performance of the
device during the warranty period from the date of purchase,
provided the user complies with storage and operation
requirements specified in this user guide.
Please keep the original packaging, user guide and filled
warranty certificate. The warranty is revoked in case the
device has been shipped without its original packaging or
its operation and maintenance requirements have not been
complied with. The Manufacturer is not liable for any defects
or failures that occur due to improper transportation, storage
or operation as well as due to mechanical damages. In case
the device fails to function properly during the warranty
period, the owner is entitled to have it repaired at the Service
Center. The device is accepted for warranty repair clean, free
of dust and dirt. Cleaning services are not included in warranty
maintenance and are provided at extra charge.
Warranty maintenance does not include training on the
device operation or any functions aimed to ensure its
performance (plugging, testing, adjustment, routine
maintenance, etc.) which can be performed by the user
according to the instructions in this user guide.
The Manufacturer reserves the right to make
modifications in the software and engineering design
which are not described in this user guide.
Warranty services are not provided if:
• the warranty certificate is missing or incorrectly filled;
• the information in the warranty certificate has been
edited;
• the operating instructions specified in this user guide
have not been followed;
• the device has mechanical damages;
• there are foreign items or liquid inside the device;
• there is evidence that the device has been unsealed
and opened.
This warranty does not cover accumulators, power
adapters, power supply units, connectors, lamps,
batteries, belts, fuses, brushes, parts of the device
housing or any other parts that have their own
limited lifetime. The warranty does not cover defects
or failures caused by unstable environmental
conditions or power failures. Replaced defective parts
are property of PRO Intellect Technology. Defective
equipment is shipped to the Service Center at the
owner’s expense.
More information about Moniron Mobile
portable automatic currency detector is
available at www.moniron.com
