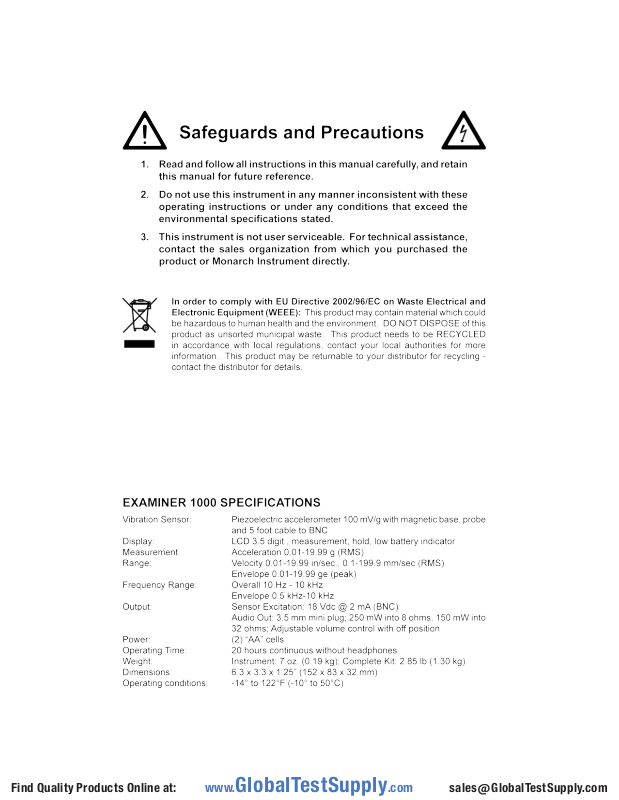

TABLE OF CONTENTS

TABLE OF CONTENTS

OPERATING THE EXAMINER 1000

Overview ........................................................................... 1

Controls and Functions........................... ........................... 1

Rear Panel, Batteries and Connections ............................. 2

Parts of the System ........................................................... 3

Overview of Data Collection Procedure.............................. 3

Find Quality Products Online at: [e-mail]

APPLYING THE EXAMINER 1000

What is Predictive Maintenance? ....................................... 4

Benefi ts of Predictive Maintenance .................................... 4

Why Measure Vibration? .................................................... 5

Selecting Machinery & Measurements................................ 6

Selecting Measurement Types ........................................... 7

Getting Started in your Plant............................................... 8

Establishing a Data Collection Route.................................. 9

What are you Measuring? .................................................. 10

Measurement Techniques .................................................. 11

Evaluating overall Vibration Measurements ........................ 12

Evaluating Acceleration Envelope Measurements............... 13

GLOSSARY ........................................................................ 14

Vibration Severity Chart per ISO 10816-1 ........................... 16

www.GlobalTestSupply.com

OPERATING THE EXAMINER 1000

Overview

The EXAMINER 1000 is designed to be used with vibration limits established in
ISO Standard 10816 to help you detect signs of malfunction or changes in rotating
machinery during operation. This is accomplished with overall vibration (ISO
VIB) and envelope measurements. Problems with bearings occur when there is a
microscopic crack or fl aw or when there is a breakdown in lubrication which leads
to metal-to-metal interaction. The EXAMINER 1000 is designed to detect fl aws
or a lack of lubrication in bearings and gears at an early stage by measuring the
high-frequency impacts through acceleration envelope methods.

Vibration measurements are made by pressing the accelerometer sensor against
designated Measurement Points on your equipment with either the stringer probe
or with the magnetic base.

Find Quality Products Online at: [e-mail]

Controls and Functions

ON/SELECT Button - Press this button to turn power on. Power automatically
turns off after ten minutes of non-use. After turning the EXAMINER “on”, press the

ON/SELECT button again to select the measurement type. Pressing and holding the
ON/SELECT button while collecting data will HOLD the display value, indicated
by the word “HOLD” in the display. To release from HOLD mode, press the ON/
SELECT button again.

DISPLAY- The digital display shows the numerical value of the measurement.

An arrow indicates the measurement type selected. The units of vibration are
automatically displayed as the type of measurement is selected. The user may work
in either metric or imperial units in the V-velocity mode.

Units of
Measure

g
GE
in/s
mm/s

Type of
Measurement

Low Battery
Indicator

Hold Reading
Indicator

Type of Measurement
Indicator

Value of Measurement

V

LoBat

A

HOLD

0.09

E

1

CONNECTIONS

QUICK REFERENCE
INSTRUCTION
PANEL

REAR PANEL CONNECTIONS

E X A M I N E R

1 0 0 0

VIBRATION METER

ELECTRONIC STETHOSCOPE

REFER TO OPERATORS MANUAL

FOR INSTRUCTIONS

CONNECTIONS

www.GlobalTestSupply.com

Find Quality Products Online at: [e-mail]

PRODUCT SERIAL
NUMBER

BATTERY
C O M P A R T M E N T

Contains two “AA”
alkaline batteries.

SENSOR IN AUDIO OUT

AUDIO OUT SENSOR IN

Measurement Types Units
V velocity mm/s in/s
A acceleration g
E envelope ge

AUDIO OUT

1/8” (3.5 mm)
stereo mini plug

Monarch Instrument
15 Columbia Drive
Amherst, NH 03031 USA

TOP VIEW

SENSOR INPUT

BNC Connector
output 18 vdc @ 2 mA

CONTROL

VOLUME

2

Parts of the System

HEAD PHONES

HOLSTER

www.GlobalTestSupply.com

EXAMINER 1000 METER

ON-TIME SOFTWARE
(optional)

Find Quality Products Online at: [e-mail]

ACCELEROMETER

MAGNETIC BASE

STINGER PROBE

WITH CABLE

Overview of Data Collection Procedure

1. Press the ON/SELECT button.

2. Press the ON/SELECT button again to select the desired measurement type.
Place the accelerometer sensor on the machinery Measurement Point (use proper
probe technique as discussed on the following pages).

3. Wait for the reading to stabilize, then press and hold the ON/SELECT button
to “HOLD” the measurement. Indicated by HOLD in the display.

4. Adjust headphones volume level and listen for any distinct patterns or noises.

5. Record the measurement value in your Machinery Data Worksheet.

6. To release the HOLD function, press ON/SELECT again.

7. Repeat the above steps for each Measurement Point.

3

www.GlobalTestSupply.com

What Is Predictive Maintenance?

Predictive Maintenance can be defi ned as collecting information from machines
as they operate to aid in making decisions about their health, repair and possible
improvements in order to reach maximum runability, before any unplanned break­down. Machinery maintenance has evolved because of the demands to become more
profi table through reduced maintenance costs. Below is the progression of these
maintenance philosophies:

• Break Down Maintenance

• Preventive Maintenance

• Predictive Maintenance

Break Down Maintenance occurs when repair action is not taken on a problem

until the problem results in the machines failure. Run to failure problems often cause
costly secondary damage along with expenses resulting from unplanned downtime
and unplanned maintenance.

Find Quality Products Online at: [e-mail]

Preventive Maintenance occurs when a machine, or parts of a machine, are
overhauled on a regular basis regardless of the condition of the parts. While better
than run to failure, preventive maintenance results in excessive downtime due to
unnecessary overhauls and the excessive costs of replacing good parts along with
worn parts.

Predictive Maintenance is the process of determining the condition of machinery as
it operates, to predict and schedule the most effi cient repair of problem components
prior to failure. Predictive Maintenance not only helps plant personnel eliminate
unplanned downtime and the possibility of catastrophic failure, but allows them
effectively order parts, schedule manpower, and plan multiple repairs during
scheduled downtime.

Benefi ts of Predictive Maintenance

Documented experience proves that plants which establish a predictive maintenance
program are able to:

• Improve Machinery Reliability-reduced “unplanned failures”

• Reduce Maintenance Costs-knowing the exact problem to fi x

• Increase Production-optimize machinery capabilities

• Lower Energy Consumption- less vibration usually means less friction

• Extend Bearing Service Life- reduce vibration and lubrication failures

• Improve Product Quality- where less vibration improves fi nish

The benefi ts are numerous and will vary depending upon the implementation of
your Predictive Maintenance Program.

4

www.GlobalTestSupply.com

Why Measure Vibration?

Vibration is considered the best operating parameter to judge dynamic conditions
such as balance (overall vibration), bearing defects (enveloping) and stress applied
to components. Many machinery problems show themselves as excessive vibration.
Rotor imbalance, misalignment, mechanical looseness, structural resonance, soft
foundation, and gearmesh defects are some of the defects that can be measured by
vibration. Measuring the “overall” vibration of a machine, a rotor in relation to a
machine or the structure of a machine, and comparing the measurement to its normal
value (norm) indicates the current health of the machine.

The EXAMINER 1000 measures the vibration of a machine while it is operating.
Trending these measurements shows how a machine’s condition changes over a
period of time. Analyzing these, along with other measurements, provide insight into
the condition of the machine and which components may be wearing or failing. How
to best monitor a machine’s condition requires one to know which measurements
to take and where and how to take them. Sensors are placed at strategic Points on
the machinery to monitor the machine’s condition.

Find Quality Products Online at: [e-mail]

The EXAMINER 1000 processes the accelerometer’s mechanical vibration
energy into an electrical signal and displays the measurement value in numerical
form for evaluation. Commonly measured physical characteristics in Predictive
Maintenance are:

• Vibration (as explained above)

• Temperature

• Oil Analysis

Temperature

As a bearing fails, friction causes its temperature (or its lubricant’s temperature)
to rise. While trending a bearing if the temperature rises followed by a vibration
increase, then it is safe to conclude their was a loss of lubrication which induced the
mechanical failure. If vibration increased fi rst, followed by increased temperature

readings then a mechanical defect caused the lubrication failure.

Lube Oil Analysis (Ferrography)
Monitoring oil condition warns of an increase in foreign substances, such as water,
which can degrade the lubricating properties of the oil and cause bearing failures.
It also detects the presence of metallic particles carried into the oil stream. These
metallic particles are analyzed to determine which part of the machine is wearing
and how fast. Lubrication analysis is the earliest warning of a developing problem.
Lube oil testing results can be trended with On-Time software.

5

www.GlobalTestSupply.com

Selecting Machinery and Measurements

Maintenance personnel have always made visual and hands-on inspections of their
machinery on a periodic basis. Systematic data collection and trending allows
for recall and comparison of events over time but is not a replacement for good
maintenance practices. Collecting machinery data is an aid to the maintenance
professional, which is used in addition to good maintenance practices.

Selecting and Classifying Machinery

Setting up an effective Predictive Maintenance Program requires a careful study
of the needs of the plant. It is necessary to know each machine and its response to
change. The following is an example of machinery classifi cation:

Find Quality Products Online at: [e-mail]

CRITICAL

ESSENTIAL

REDUNDANT

Critical Machines expensive premium equipment, generally >500 HP. Usually
less than 5% of all plant equipment. Maintenance dollars per horsepower per year
average $11.00. This category of equipment is very well maintained and monitored.
Continuous monitoring systems are better suited for this type of equipment.

Essential Machines medium size equipment, 100-500 HP. This group may be 30­40% of all the equipment in the plant. Maintenance costs can average $22.00 per
horsepower per year. Less attention is paid to these machines even though their
repair costs can be as high as critical machines. Select some of these machines for
your Predictive Maintenance Program.

Redundant Machines small redundant equipment usually < 100 HP. This group
can be as much as 50% of all machines in a plant and yet they are usually neglected.
By far the most expensive to maintain at $49.00/HP/year, this group will benefi t
the most from Predictive Maintenance practices. At many facilities, this group
consumes 80% of the annual maintenance budget. If you want to have an immediate
impact begin with these machines. Also include machines with known problems
or a history of problems. Personnel Safety is always the fi rst priority in selecting

machinery to monitor.

6

www.GlobalTestSupply.com

Selecting Measurements

Establish measurement types that most accurately refl ect the condition of the
equipment. Different causes or “mechanisms” are acting on the machine; various

types of measurements have been developed to measure each type of mechanism.
Those mechanisms are:

A force on the machine or components which defl ects the part. Best measured

Stress

in Displacement. The Examiner 1000 does not measure Displacement as
it is a very low vibration frequency, below 10 Hz (600 RPM).

Fatigue Repeated cycles of stress on a component. If you bend a part back and

forth enough times it will fatigue. As a general rule, fatigue failures result
from vibration frequencies 10 -2000 Hz and Velocity measurements are
used. Velocity will be the primary measurement taken.

Find Quality Products Online at: [e-mail]

Force Mass x acceleration. Measured in Acceleration. Acceleration is the rate

of change of velocity. Acceleration is used for high frequencies above
2000 Hz (120,000 RPM). Bearing defects and gearmesh frequencies are
usually found in this range.

Impact forces The result of fatigue. Impact forces are cyclical events which

can be detected with Acceleration Enveloping. These are high
frequency-low amplitude events and a fi lter in the EXAMINER
1000 is set at 10-30 kHz to measure them.

Types of Measurements in the EXAMINER 1000

Velocity- Good for frequency ranges 10-2000 Hz (600-120,000 RPM).
Acceleration-used for higher frequencies or speeds above 2000 Hz (120,000 CPM).
Acceleration Enveloping-uses a high pass fi lter to measure high-frequency,

repetitive bearing and gearmesh vibration signals. Used for early detection of
developing bearing or lubrication problems. Use this type in combination with the
other types to detect changes in machinery.

Select Measurement Intervals

Based on the classifi cation of the machine, its repair history and the amount of data
required for a detailed trend analysis. At the beginning of a Predictive Maintenance
Program, collect data frequently to build a rapid history of each machine. Adjust
your program as you go. If measurement results are indicating signs of change,

measurements should be performed more frequently.

7

www.GlobalTestSupply.com

Getting Started in Your Plant

Planning your work is very important to achieve success. The EXAMINER 1000
is an overall vibration meter and electronic stethoscope. It can be used as a stand
alone device for the collection of vibration data for the purposes of trending or as
a diagnostic instrument used to troubleshoot machinery defects. In order to setup a
trending program you must collect data on the same point with the same measurement
type at a defi ned interval. The Machinery Data Worksheet allows for record keeping
of collected data. The EXAMINER may be used with the On-Time software to
store data and perform trend analysis. REPEATABILITY IS REQUIRED FOR
ACCURATE TRENDING.

Establish a standard naming convention so you can communicate your results to
the rest of maintenance. Vibration readings are taken on the bearing caps or as close
to the bearings as possible. Always collect data the same way, at the same point on
the machine each time.

Find Quality Products Online at: [e-mail]

Direction for placing the Sensor

For Vertical and Horizontal readings, the
sensor is placed in a radial position.

Axial

Also establish a starting point for each machine. Begin from the OUTBOARD
END of the DRIVE UNIT, calling this point A. Proceed to label Points (bearings)
as needed until you have reached the outboard end of the driven unit.

POINT
A

B C D

Vertical

Horizontal

MOTOR PUMP

8

www.GlobalTestSupply.com

Establishing a Data Collection Route

The Machinery Data Worksheet helps organize data for routine data collection.
Vibration readings are taken on the Points (bearings) established in your route
and recorded using your naming convention on the worksheet. Vibration, speed,
temperature, pressure or any process data may be recorded using this type of
systematic approach.

Steps for Route collection

1. Determine the machines which require data collection.

2. Defi ne each measurement type for data collection Points on each Machine.
Several Points will have numerous readings i.e. VEL and ENV and Temp.

3. Establish a Route with the Machines grouped by physical location.

4. Walk the Route, collecting and recording data for each Point.

5. Transfer data values to your On-Time Trending software.

Find Quality Products Online at: [e-mail]

Recording Data for a Machine

The vi b r a t i o n sensor
i s p la ce d o n e a ch
da ta collecti on Point.
The P o in t , d ir e c ti o n
of the sensor and the
value are recorded on
th e Mac h in ery Da t a
Worksheet.

example of Machinery Data Worksheet

Point AVV is taken
on the outboard end
of the motor, in the
vertical position
with a velocit y
type reading.

AH V -P oi nt A
in the horizontal
position wit h a
Velocity type.

Machine Identifi cation Water Pump #707

Machine Description AC motor 1800 RPM, fl exible

coupling, 3 vane pump. CAUTION HOT WATER!!!

Date Point Direction Type Value

Jan 2 1999 A V V 0.06 in/s
Jan 2 1999 A H V 0.04 in/s
Jan 2 1999 A X V 0.03 in/s
Jan 2 1999 B V V 0.07 in/s
Jan 2 1999 B H V 0.05 in/s
Jan 2 1999 B V Env 0.001 ge

A

MOTOR PUMP

B C D

9

www.GlobalTestSupply.com

What are you Measuring?

Vibration is the behavior of a machine’s mechanical components as they react to
internal or external forces. Since most rotating machinery problems show themselves
as excessive vibration, we use vibration signals as an indication of a machine’s
mechanical condition. Also, each mechanical problem or defect generates vibration
in its own unique way. We therefore analyze the “type” of vibration to identify its
cause and take appropriate repair action. With overall vibration monitoring (VIB
ISO) using the Examiner 1000, analysis of the cause of excess vibration relates
to the monitoring equipment’s probe position; either horizontal, vertical, or axial.

Horizontal - Typically, unbalanced shafts tend to cause excess radial (horizontal
and vertical) vibrations, depending on the machine support design.
Vertical - Excessive vertical vibration can indicate mechanical looseness as well
as imbalance.
Axial - Excessive axial vibration is a strong indicator of misalignment.
It’s important to note that these are general guidelines and that knowledge of your
machinery and proper hand-held probe techniques are necessary to accurately
analyze the cause of excessive vibration.

Find Quality Products Online at: [e-mail]

Multi-Parameter Monitoring

Using different measurement types to monitor your machinery for changes. This
allows for early detection of specifi c machinery problems that may not show under
normal overall vibration monitoring. For example, if a rolling element bearing has
a defect on its outer race, each roller will strike the defect as it goes by and cause
a small, repetitive vibration signal. However, this vibration signal is of such low
amplitude that under normal overall vibration monitoring, it is lost in the machine’s
rotational and structural vibration signals. Acceleration Enveloping can measure
these signals better than overall readings. Use both measurement types for bearings

and gearboxes. As ENV values begin to decrease, rely on VEL readings.

Overall Vibration Monitoring -Monitors normal, low frequency machine vibration.

Detects rotational and structural problems like imbalance, misalignment, and
mechanical looseness.

Enveloping - Amplifi es high-frequency, repetitive bearing and gear mesh vibration
signals for early detection of bearing problems, but does not detect non-repetitive
rotational or structural events like imbalance, misalignment, and looseness. Provides
earliest detection of high frequency metal-to-metal contact or poor lubrication in
problem bearings.

10

www.GlobalTestSupply.com

Measurement Techniques

In general, vibration of anti-friction bearings is best monitored in the load zone
of the bearing. Equipment design often limits the ability to collect data in this
zone. Simply select the measurement Point which gives the best signal. Avoid
painted surfaces, unloaded bearing zones, housing splits, and structural gaps.
When measuring vibration with a hand-held sensor, it is very important to collect
consistent readings, paying close attention to the sensor’s position on the machinery,
the sensor’s angle to the machinery, and the contact pressure with which the sensor
is held on the machinery.

• Location - always collect at the same point on the machine. Mark

locations.

• Position - Vibration should be measured in three directions:

A axial direction
H horizontal direction
V vertical direction

• Angle - Always perpendicular to the surface (90

• Pressure - Even, consistent hand pressure must be used (fi rm, but not

so fi rm as to dampen the vibration signal). For best results
use the magnetic base. If using the stinger/probe is the only
method available to collect data, it is best to use a punch to
mark the location for the probe-tip to ensure a consistent
coupling to the housing.

o

+10o).

Find Quality Products Online at: [e-mail]

Optimum Measurement Conditions

Perform measurements with the machine operating under normal conditions. For
example, when the rotor, housing, and main bearings have reached their normal
steady operating temperatures and with the machine running under its normal rated
condition (for example, at rated voltage, fl ow, pressure and load). On machines with
varying speeds or loads, perform measurements at all extreme rating conditions in
addition to selected conditions within these limits. The maximum measured value
represents the vibration severity.

Stinger Mounted
Vibration Sensor

11

load zone

Magnetically
Mounted
Vibration Sensor

www.GlobalTestSupply.com

Evaluating the Overall Vibration Measurements

Three general principles are commonly used to evaluate your vibration measurement
values:
ISO 10816 Standard Comparison - Compare values to the limits established in

the ISO 10816 Standard. See Vibration Severity Chart on page 16.

Trend Comparison - Compare current values with values of Baseline for the same

Points over a period of time.

Comparison with Other Machinery - Measure several machines of a similar type

under the same conditions and judge the results by mutual comparison.

If possible, you should use all three comparisons to evaluate your machinery’s
condition. ISO 10816 and trend comparisons should always be used.

Find Quality Products Online at: [e-mail]

ISO 10816 Standard Comparison

The ISO 10816 Standards provide guidance for evaluating vibration severity in
machines operating in the 10 to 200 Hz (600 to 12,000 RPM) frequency range.
Examples of these types of machines are small, direct-coupled, electric motors and
pumps, production motors, medium motors, generators, steam and gas turbines,
turbo-compressors, turbo-pumps and fans. Some of these machines can be coupled
rigidly or fl exibly, or connected through gears. The axis of the rotating shaft may

be horizontal, vertical or inclined at any angle.

Machinery class designations are:

Class l

Individual parts of engines and machines, integrally connected with the complete
machine in its normal operating condition. (Production electrical motors of up to
20 HP (15 kW) are typical examples of machines in this category.)

Class ll

Medium-sized machines typically, electric motors with 20 to 75 HP (15-75 kW)
without special foundations, rigidly mounted engines, or machines on special
foundations up to 400 HP (300 kW).

Class lll

Large prime movers and other large machines with rotating masses mounted on
rigid and heavy foundations which are relatively stiff in the direction of vibration
measurement.

Class lV

Large prime movers and other large machines with rotating masses mounted on
foundations which are relatively soft in the direction of vibration measurement
(for example, turbo-generator sets, especially those with lightweight ub-structures).

Note: These ISO 10816 Standard classes do not apply to prime movers or driven equipment in
which the major working components have a reciprocating motion.

12

www.GlobalTestSupply.com

Trend Comparison

The most effi cient and reliable method of evaluating vibration severity is to compare
the most recent reading against previous readings for the same measurement Point,
allowing you to see how the Point’s vibration values are “trending” over time. This
trend comparison between present and past readings is easier to analyze when the
values are plotted in a “trend plot”. A trend plot displays current and past values
plotted over time. Measurement records should also include a baseline (known
good) reading. The baseline value may be acquired after an overhaul or when other
indicators show that the machine is running well. Subsequent measurements are
compared to the baseline to determine machinery changes.

Comparison with Other Machinery

When several similar machines are used under the same operating conditions,
evaluation can be carried out by measuring all machines at the same Points and
comparing the results.

Find Quality Products Online at: [e-mail]

Evaluating Acceleration Envelope Measurements

Use the same techniques of comparison as for Overall Vibration readings. Remember,
acceleration envelope is an advanced “early warning” of a developing problem.
High values do not necessarily indicate bearing failure. They can also indicate:
A. Lack of lubrication or decreasing oil viscosity due to high bearing

temperature caused by overload or external heat source.

B. Breaking of the lubricant fi lm by excessive imbalance, misalignment,

or housing deformation. Loss of boundary lubrication.
C. A rubbing seal or cover.
D. Gear mesh interaction (bad lubrication, defects)
E. Dirt or particles in the lubricant, or a seal or fi lter problem.

Use trend Comparison similar to overall vibration to establish severity levels.

Accelerating Envelope readings tend to decrease as Overall Vibrations readings
increase. This happens when the defect in the bearing is becoming more severe
and the frequency it generates becomes lower which makes it better read with the
Velocity-type readings.

Audio Comparison with Other Bearings on the Same Machinery

When several bearings are used under the same operating conditions, evaluation can
be carried out by listening to the audio signals to determine changes. This method
will help to locate the defective bearing quickly. Measure all machines at the same
Points and compare the results. Listen for increases in signal and for “clicking”
patterns which indicate wear.

13

www.GlobalTestSupply.com

GLOSSARY (for vibration purposes)

Acceleration A scalar quantity that specifi es time rate of change of velocity.
Expressed in either g’s or m/sec2 where 1 g = 386.1 in/sec2 and

9.8066 m/sec2.
Acceleration Enveloping A high-frequency, fi ltered data collection method

expressed in ge.

Accelerometer A transducer which converts acceleration motion in to an

electrical output.

Amplitude The magnitude of vibratory motion. Can be measured as peak-to-

peak, zero-to-peak, or RMS.

Axial The direction parallel to the axis of rotation.
Baseline Recorded values taken when a machine is known to be good. The

standard which all additional readings will be compared to.

CPM Unit of frequency measurement-cycles per minute.
Displacement A scalar quantity specifying the change of position of a body

measured from the resting position.

Dynamic Force A force that varies with time.
Force Energy applied to a mass producing a defl ection (static force) or

motion (dynamic force).

Frequency The repetition rate of a periodic event, expressed in cycles per

second (Hz), CPM, RPM, or multiples of running speed (orders).
g’s Units of acceleration referenced against the force of gravity.
(1g=32.1739 ft./sec/sec; 1g=9.8066 m/sec/sec)
Gear Mesh Frequency A frequency generated by a gear. Defi ned as the number

of gear teeth on a gear times its shaft-rotating frequency.

Hertz (Hz) A unit of frequency measurement, cycles per second.

High-pass Filter A filter that allows only those components above a selected

frequency to pass.
Integration The time-based process of converting acceleration and velocity to

velocity or displacement.

in/sec, ips Abbreviations for inches per second, a measure of velocity.
Mass The measure of body resistance to acceleration. Proportional to,

but not equal to, weight (mass = weight/gravity).

Measurement Point A location on a machine or component where all subsequent

measurements should be made for accurate comparison.
Mechanical Impedance Ratio of applied force to resulting velocity during simple

harmonic excitation.

Overall The amplitude of vibration within a specifi ed frequency range.
Peak Value The absolute value zero to the maximum excursion on a dynamic

waveform. Also true peak and zero-to-peak.
Periodic Monitoring Measurements recorded at intervals of time.

Find Quality Products Online at: [e-mail]

14

www.GlobalTestSupply.com

GLOSSARY (for vibration purposes)

Piezoelectric A material in which electrical properties change when subjected to

force.

Process Measurements Variables such as temperature, pressure, speed and fl ow

used to assess internal conditions of effi ciency.

Radial Direction perpendicular to the shaft centerline.
Repeatability A measure of the deviation between successive measurements made

under the same conditions.

RMS Peak Vibration x .707. ( in/s or mm/s)

Rolling Element Bearing A bearing consisting of balls or rollers operating between

fi xed and rotating races.
Route A sequence of measurements arranged for convenience during

acquisition.
Sensitivity Used to describe a transducer’s electrical output for a unit variation

of the mechanical quantity measured.

Stress Force per unit area
Synchronous F r e quency co m p o n e nts that are an integer mu ltiple of

running speed.
Transducer A system consisting of a sensor and signal conditioner to convert

a physical quantity into an output for display, monitoring

and analysis.

Transmission Path The path from source (excitation) to sensor.
Trending The plot of a variable over time used as an indicator of change.
Velocity A vector quantity of the time rate change of displacement.

Find Quality Products Online at: [e-mail]

Vibration Conversions

D = 19.10 x 103 x (V/F)
D = 70.4 x 106 x (A/F2)

V = 52.36 x 10-6 x D x F
V = 3.68 x 103 x (A/f)

A = 14.2 x 10-9 x D x F
A = 0.27 x 10

-3

x V x F

2

where: D = Displacement (mils peak-to-peak)
V = Velocity (in/s zero-to-peak)
A = Acceleration (in/s2 zero-to-peak)
F = Frequency (cpm)

15

VIBRATION SEVERITY PER ISO 10816-1

Vibration Velocity Vrms

Machine Class I Class II Class III Class IV

sm all medium large rigid large soft

in/s mm/s machines machines foundation foundation

0.01 0.28

0.02 0.45

0.03 0.71

0.04 1.12

0.07 1.80

0.11 2.80

0.18 4.50

0.28 7.10

0.44 11.2

0.71 18.0

1.10 28.0

1.77 45.0

good

satisfactory

unsatisfactory

unacceptable

www.GlobalTestSupply.com

Use the chart below as a guide to judge the overall vibration severity of your
equipment. Refer to page 12 for further details.

Find Quality Products Online at: [e-mail]

16
