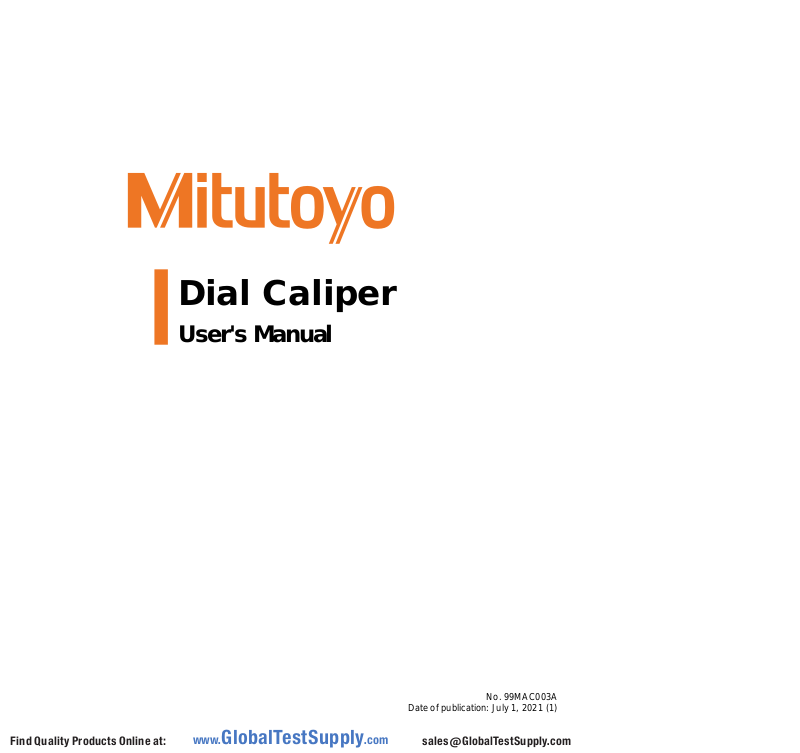

User's Manual
Dial Caliper
No. 99MAC003A
Date of publication: July 1, 2021 (1)
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Safety Precautions
CAUTION
The outside and inside measuring jaws of this caliper have
Shows risks that could result in minor or moderate injury.
sharp edges. Handle it with great care to avoid injury.
Do not measure the workpiece if it is rotating. There is a risk
of injury due to being caught in the machine, etc.
Conventions and wording indicating prohibited and mandatory actions
Indicates concrete information about prohibited actions.
Indicates concrete information about mandatory actions.
Content s
1
Code Number ……………………………………………………2 2 3
4 5 6
7
8 9 10
11
Names of Components …………………………………………2
Product Applications ……………………………………………2
Precautions before Use …………………………………………2
Basic Usage ………………………………………………………3
Confirmation before Measurement ……………………………3
Measurement Method ……………………………………………4
Reading Measurements …………………………………………6
Zero Point Adjustment of Pointer ………………………………
Precautions after Use ……………………………………………7
Maximum Permissible Error of Indicated Values ……………7
7
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
1 Code Number
505-730 505-731 505-732 505-733 505-734 505-735 505-736 505-737 505-738 505-739 505-740J 505-741J 505-742J 505-742-56J 505-748 505-749 505-750
Names of Components
2
505-742-51J 505-742-52J 505-742-53J 505-742-54J 505-742-55J
505-743J 505-744
505-745 505-746 505-747
Inside measuring jawsMain scale reading edge
SliderPointer
Dial graduation
Slider clamp screwBeamDepth bar
Depth measuring faces
⑬ ⑫
Sliding surface (reference surface)
Main scaleThumb roller
Finger rest
Bezel clamp screw
Outside measuring jaws
Rack
Step measuring faces
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
3 Product Applications
Outside measurement
Inside measurement
Step measurement
Depth Measurement
4 Precautions before Use
Before using this product for the first time, wipe the rust preventive oil from the
product with a soft cloth soaked with cleaning oil. If the rust preventive oil is left on the product, it will dry on and the motion may become stiff. In this case,
wipe the sliding surface (reference surface) with a cloth to improve the motion
further.
If cutting chips or debris adhere to the beam, measuring faces, or graduations,
wipe them off with chamois or gauze, etc.
Apply clean oil to the beam, especially the sliding surface. This protects the
sliding surface and improves the slider motion.
Do not perform the adjustment at sites where the temperature will change
abruptly. Thermally stabilize the instrument sufficiently at room temperature.
Be careful not to allow cutting chips or dust to enter the rack. Chips or particles
can damage the rack, degrading accuracy or causing the pointer to skip and the zero point to deviate.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
5 Basic Usage
Holding the caliper and moving the slider
Grasp the beam lightly with your right hand, put your right thumb on the slider finger rest, and slide the slider horizontally for measurement.
Tips
Fixing the slider
For the measuring method details, refer to "7
Measurement Method".
The thumb roller is a feed mechanism for handier open/close
operation of the inside and outside jaws. Rotate the thumb roller with your thumb for fine adjustment of the slider.
Reading of the main scale and dial is usually taken with the workpiece clamped (or in close contact). However, depending on the measuring location, the orientation during measurement and so on, it may be difficult
to get a reading in this position.
In this case, tighten the slider clamp screw, move the caliper carefully away from the workpiece, and take the reading.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
6 Confirmation before Measurement
Confirming Slider Movement
Confirm that there is no irregular slider movement and that the slider moves smoothly throughout the measurement range.
Confirm that there is no play of the slider in the vertical direction against the sliding surface.
Confirming that Pointer is on Dial Graduation Zero Point
Confirm that the pointer is pointing at the dial graduation zero point with each jaw measuring face closed.
If the pointer deviates from the dial graduation zero point, the pointer zero point needs to be adjusted. For the adjustment method details, refer to "9 Zero Point Adjustment of Pointer".
Confirming Clearance (Wear) between Measuring Faces
When the outside measuring jaws are closed and held to the light, confirm that there is no slit observed between the jaws against the light, or that a faint light is uniformly visible. As well, confirm that the jaw tips are not deformed.
When the inside measuring jaws are closed and held to the light, observing the
jaws obliquely, confirm that a light is uniformly visible, and that the tips are not
deformed.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
7 Measurement Method
2 3
Precautions when measuring
Do not measure the workpiece if it is rotating, etc. Measuring faces will be worn out.
Outside measurement
2
3
1
2 3
• Do not apply excessive force to the
workpiece.
Excessive measuring force will cause
measurement error because of the
positional deviations of the jaws.
• Do not clamp the workpiece diagonally.
Measurement error will ensue if tilted.
L1
D
L2
D
OK
L1 < D
Clamp the workpiece as close to the sliding surface as possible. Measurement error is more likely to increase if clamped near the outside measuring jaw tips.
1
Insert the workpiece into the outside measuring jaws and bring jaws
into close contact with the workpiece, using appropriate and uniform measuring force.
2
With the workpiece clamped, take the main scale and dial readings.
OK
OK
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Inside measurement
2 3
3
1
2
• Insert the inside measuring jaws as deeply as possible into the workpiece.
• For inner diameter measurement, bring the measuring faces into close contact, and read the value when the pointer indicated value is maximum: a direct line between the measuring faces passes through the center of the cross­section.
• For groove width measurement, bring the measuring faces into close contact, and read the value when the pointer indicated value is minimum: a direct line between perpendicular to the groove inner wall.
the faces is
OK
OK
OK
1
Insert the inside measuring jaws into the workpiece, and bring jaws into
close contact with the workpiece interior using appropriate and uniform measuring force.
2
With the workpiece inserted, take the main scale and dial readings.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Step measurement
2 3
2
1
3
2 3
Do not use a depth bar for step measurement, as the small contact area
with the workpiece makes it difficult to
retain a stable orientation
For a stepped workpiece, bring the entire stepmeasuring surfaces (
contact with the workpiece
1
Bring the step measuring face (①, beam side) into close contact with the
①, ②
) into close
② ①
workpiece.
2
Move the slider until the step measuring face (②, slider side) strikes the
workpiece (stepped surface).
3
With the measuring faces in close contact, take the reading.
OK
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
Depth measurement
1
2 3
2
3
1
Bring the depth measuring surface (beam side) into close contact with the
workpiece.
The depth measuring face is narrow and unstable. Bring it into contact
perpendicular with the workpiece.
OK
OK
2
Move the slider until the depth measuring surface (depth bar side) makes
contact.
3
With the measuring faces in close contact, take the main scale and dial
readings.
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
8 Reading Measurements
The measurement value (C) is obtained by adding the main scale reading (A) and the dial reading (B). The resolution (dial graduation interval value) is shown near the
center of the dial face.
For Resolution: 0.02 mm (1 main scale graduation: half dial graduation rotation)
1
Take the main scale reading (A) shown by
the main scale reading edge.
0
.9
.1
For example, if the main scale reading edge
is between 76 mm and 77 mm, read the smaller "76 mm". A = 76 mm
2
Take the dial reading.
.8
.7
.6
.5
0.02mm
.4
.3
.2
.1
.9
A
0
Take the dial reading for within one main scale graduation position. For example, if the pointer points to "34", read "0.34 mm".
B = 0.34 mm
3
Add the main scale and dial readings for the measurement value (C).
C = A + B = 76 mm + 0.34 mm = 76.34 mm
For Resolution: 0.01 mm (1 main scale graduation: full dial graduation rotation)
1
Take the main scale reading (A) shown by
the main scale reading edge.
For example, if the main scale reading edge
is between 91 mm and 92 mm, read the smaller "91 mm" A = 91 mm
2
Take the dial reading.
B
90
80
0.01mm
70
60
A
50
Take the dial reading for within one main scale graduation position. For example, if the pointer points to "85", read "0.85 mm".
B = 0.85 mm
3
Add the main scale and dial readings for the measurement value (C).
C = A + B = 91 mm + 0.85 mm = 91.85 mm
.2
.8
10
40
.3
.4
.5
.6
.7
20
30
B
0.02 mm
0.01 mm
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
For Resolution: 0.001 in (1 main scale graduation: half dial graduation rotation)
1
Take the main scale reading (A) shown by
the main scale reading edge.
For example, if the main scale reading edge
is between 2.8 in and 2.9 in, read the smaller "2.8 in". A = 2.8 in
2
Take the dial reading.
Take the dial reading for within one main
90
10
80
70
A
20
0.001
30
60
40
50
B
0.001 in
scale graduation position. For example, if the pointer points to "34", read "0.034".
B = 0.034 in
3
Add the main scale and dial readings for the measurement value (C).
C = A + B = 2.8 in + 0.034 in = 2.834 in
Find Quality Products Online at: sales@GlobalTestSupply.com
www.GlobalTestSupply.com
9 Zero Point Adjustment of Pointer
Wipe any cutting chips, dust, or oil carefully off the measuring faces, and with the jaws closed, if the pointer deviates from the dial graduation zero point, adjust the pointer zero
point with the method below.
2
0
.1
.9
.2
.8
.7
.6
.5
.4
.3
.3
.4
.5
.6
.7
.8
.2
.90.1
1
1
Loosen the bezel clamp screw.
2
Rotate the bezel to align the dial graduation zero point and the pointer.
3
Tighten the bezel clamp screw.
0
.9
.1
.8
.2
.7
.6
.5
.4
.3
.3
.4 .5
.6
.7
.2
.8
.1
.9
0
3
10 Precautions after Use
If there is dirt on the measuring faces, sliding surface, etc., wipe it away with a dry cloth or a cloth slightly moistened with alcohol.
For long-term disuse, wipe away any dirt carefully and apply a light coating of rust preventive oil before storage.
Do not store in locations with high temperatures, low temperatures, high humidity, or exposure to direct sunlight.
11 Maximum Permissible Error of Indicated Values
MPE
See "
MPE (E
