WIRING DIAGRAMS
Article Text
1990 Mitsubishi Galant
For (095) 723-1791 Kirill
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 16, 1999 01:10PM
ARTICLE BEGINNING
1990 Wiring Diagrams
Mitsubishi
Galant
COMPONENT LOCATION MENU
COMPONENT LOCATIONS TABLE
ДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДД
Component |
(Figure No.) Location |
||
A/C SYSTEM ................................ |
10 (A-B 36-39) |
||

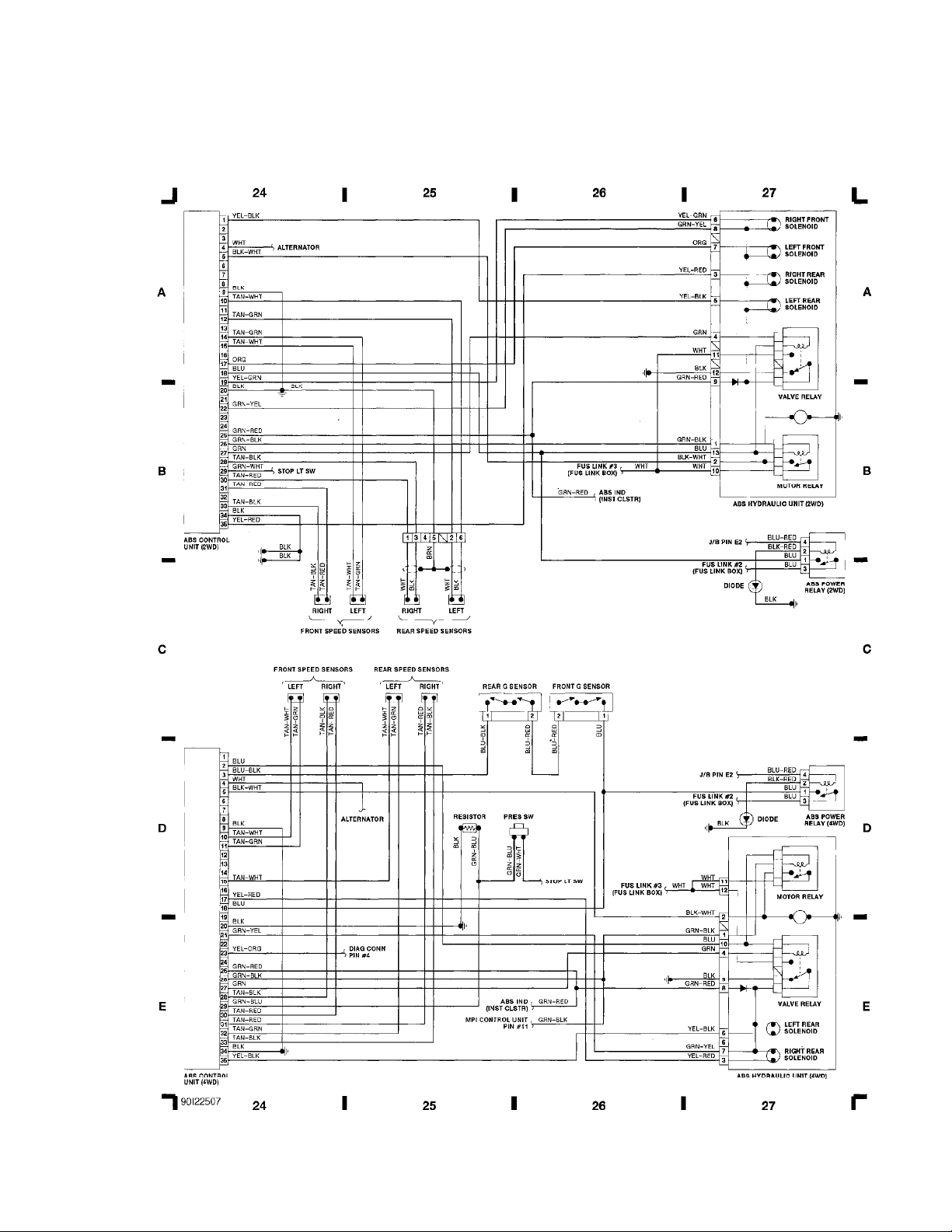

ABS CONTROL UNIT (2WD) ........................ |
7 |
(A-B 24) |
|
ABS CONTROL UNIT (4WD) ........................ |
7 |
(D-E 24) |
|
ABS HYDRAULIC UNIT (2WD) ...................... |
7 |
(A-B 27) |
|
ABS HYDRAULIC UNIT (4WD) ...................... |
7 |
(D-E 27) |
|
ABS POWER RELAY (2WD) ........................... |
|
7 |
(C 27) |
ABS POWER RELAY (4WD) ........................... |
|
7 |
(D 27) |
ABS PRES SW (4WD) ............................... |
|
7 |
(D 27) |
ALTERNATOR ....................................... |
|
|
1 (D 3) |
ALTERNATOR RELAY ................................. |
|
|
1 (E 3) |
ANTENNA RELAY .................................. |
|
12 |
(A 46) |
AUTO SEAT BELTS ............................ |
8 (D-E 28-31) |
||
BACK-UP LT SW (M/T) ............................. |
|
9 |
(D 32) |
BATTERY .......................................... |
|
|
1 (A 2) |
CIG LIGHTER ..................................... |
|
8 |
(C 28) |
CLOCK .......................................... |
|
11 |
(D 40) |
COLUMN SW ................................... |
10 (E 36-39) |
||
COMP RELAY ...................................... |
|
6 |
(A 21) |
CONDENSER FAN RLY (HI) .......................... |
|
4 |
(A 14) |
CONDENSER FAN RLY (LO) .......................... |
|
4 |
(A 14) |
CRUISE CONTROL DIODE ............................ |
|
9 |
(A 33) |
CRUISE CONTROL SW (COLUMN SW) ................ |
9 (A 33-34) |
||
CRUISE CONTROL UNIT ............................. |
|
9 |
(B 32) |
DEFOG RELAY .................................... |
|
11 |
(E 41) |
DEFOG SW ....................................... |
|
11 |
(E 41) |
DIAG CONN (2.0L DOHC) ............................ |
|
|
3 (E 6) |
DIAG CONN (2.0L SOHC) ........................... |
|
3 |
(E 11) |
DIR/HAZ FLASHER ................................ |
|
10 |
(B 37) |
DOME LT ......................................... |
|
8 |
(C 28) |
DOME LT & SUNROOF SW ............................ |
|
8 |
(A 28) |
DOOR SWS & LTS ............................. |
8 (B-C 29-31) |
||
ECS CONTROL UNIT .............................. |
6 |
(B-E 20) |
|
ECS INDICATORS .............................. |
6 |
(C-E 23) |
|
ECS POWER RELAY ................................. |
|
6 |
(B 23) |
ELECT A/T CONTROL SYS ......................... |
9 |
(A-B 35) |
|
ELECT POWER STEERING .......................... |
9 |
(A-B 35) |
|
ENGINE COOLANT TEMP SW (2.0L DOHC) ............... |
|
|
2 (A 7) |

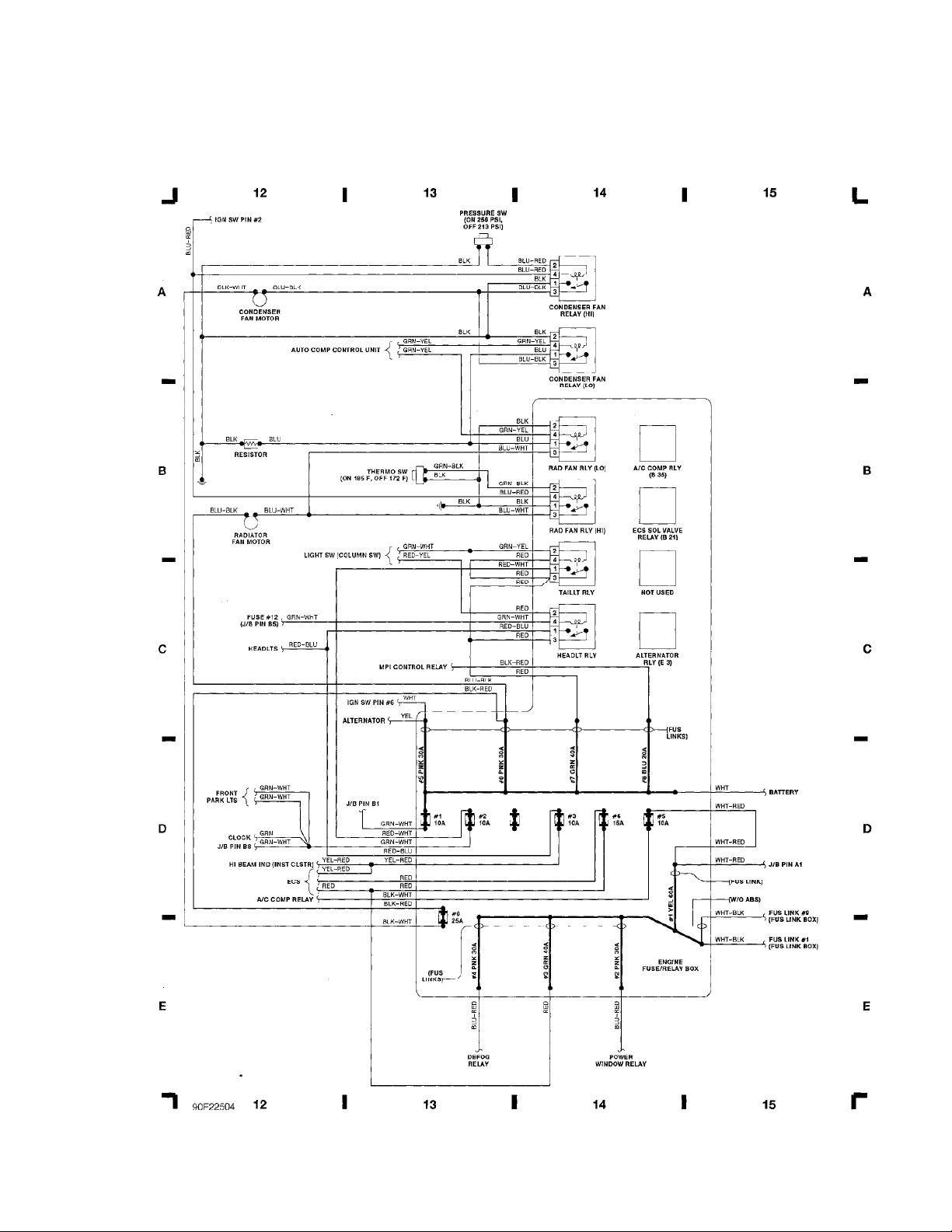

ENGINE FUSE/RELAY (F/R) BOX ............... |
4 (B-E 13, 15) |
||
ETACS CONTROL UNIT ........................... |
10 |
(B-C 36) |
|
|
WIRING DIAGRAMS |
|
|
|
Article Text (p. 2) |
|
|
|
1990 Mitsubishi Galant |
|
|
|
For (095) 723-1791 Kirill |
|
|
Copyright © 1998 Mitchell Repair Information Company, LLC |
|||
Thursday, December 16, 1999 01:10PM |
|
|
|
FUEL PUMP GAUGE UNIT (4WD) ..................... |
11 |
|
(B 43) |
FUS LINK BOX ..................................... |
|
1 |
(B 3) |
HAZARD SW ...................................... |
10 |
|
(C 38) |
HEATER CONTROL ILLUM LIGHT ...................... |
8 |
|
(C 30) |
IGNITION COIL (2.0L DOHC) ........................ |
|
2 |
(D 4) |
IGNITION COIL (2.0L SOHC) ........................ |
|
3 |
(D 8) |
ILLUM LTS ....................................... |
8 |
|
(D 28) |
INHIBITOR SW A/T) ............................... |
9 |
|
(D 32) |
INSTRUMENT CLUSTER ........................ |
11 (A-C 40-43) |
||

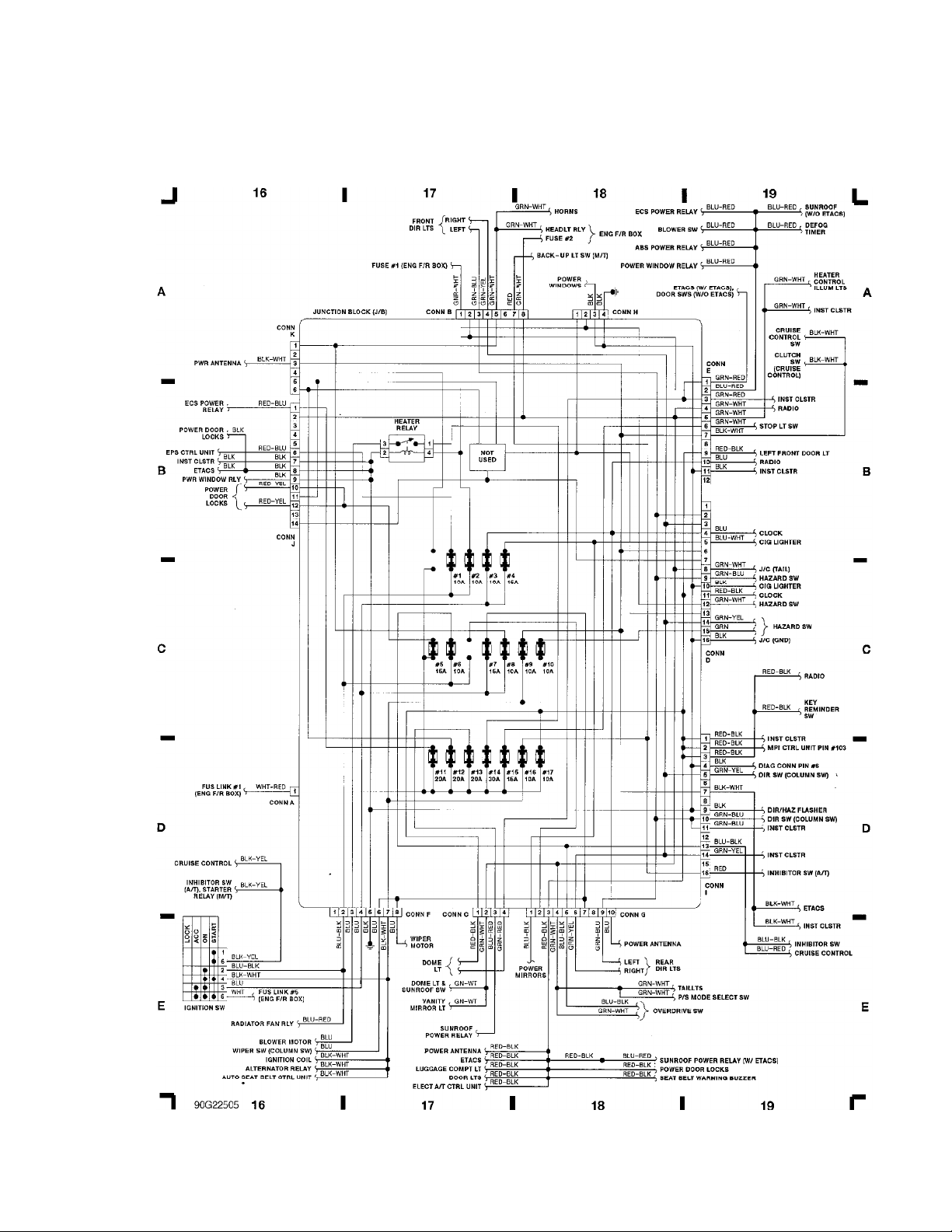

JUNCTION BLOCK (J/B) ....................... |
5 (A-C 16-18) |
||
JUNCTION CONNS .............................. |
11 (D 42-43) |
||
MPI CONTROL RLY 2.0L DOHC) ....................... |
|
2 |
(B 4) |
MPI CONTROL RLY (2.0L SOHC) ...................... |
|
3 |
(E 8) |
MPI CTRL UNIT (DOHC) ........................... |
2 (A 4-7) |
||
MPI CTRL UNIT SOHC) ........................... |
3 (A 8-11) |
||
POWER DOOR LOCKS .......................... |
12 (A-B 44-45) |
||
POWER MIRROR ................................ |
12 (C 44-45) |
||
POWER TRANSISTOR (2.0L DOHC) ..................... |
|
2 |
(E 4) |
POWER WINDOWS ............................. |
12 (D-E 44-46) |
||
STARTER MOTOR .................................... |
|
1 |
(C 3) |
STARTER RELAY (M/T) .............................. |
|
1 |
(D 3) |
STOP LT SW (W/CRUISE CONTROL) ................... |
8 |
|
(A 32) |
STOP LT SW (W/O CRUISE CONTROL) |
................ 12 |
|
(C 47) |
SUNROOF POWER RELAY ............................. |
8 |
|
(B 28) |
THROTTLE POSITION SENSOR |
|
|
|
2.0L DOHC ....................................... |
|
3 |
(C 7) |
2.0L SOHC ...................................... |
3 |
|
(B 11) |
VANITY MIRROR LT ................................ |
8 |
|
(A 30) |
WIPER SYSTEM ................................. |
10 (C-E 39) |
||
ДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДДД
WIRING DIAGRAMS
WIRING DIAGRAMS
Article Text (p. 3)
1990 Mitsubishi Galant
For (095) 723-1791 Kirill
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 16, 1999 01:10PM
Fig. 1: Engine Compartment & Headlights (Grid 1-3)
WIRING DIAGRAMS
Article Text (p. 4)
1990 Mitsubishi Galant
For (095) 723-1791 Kirill
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 16, 1999 01:10PM
Fig. 2: Computer Engine Control (2.0L DOHC) (Grid 4-7)
WIRING DIAGRAMS
Article Text (p. 5)
1990 Mitsubishi Galant
For (095) 723-1791 Kirill
Copyright © 1998 Mitchell Repair Information Company, LLC
Thursday, December 16, 1999 01:10PM
Fig. 3: Computer Engine Control (2.0L SOHC) (Grid 8-11)
