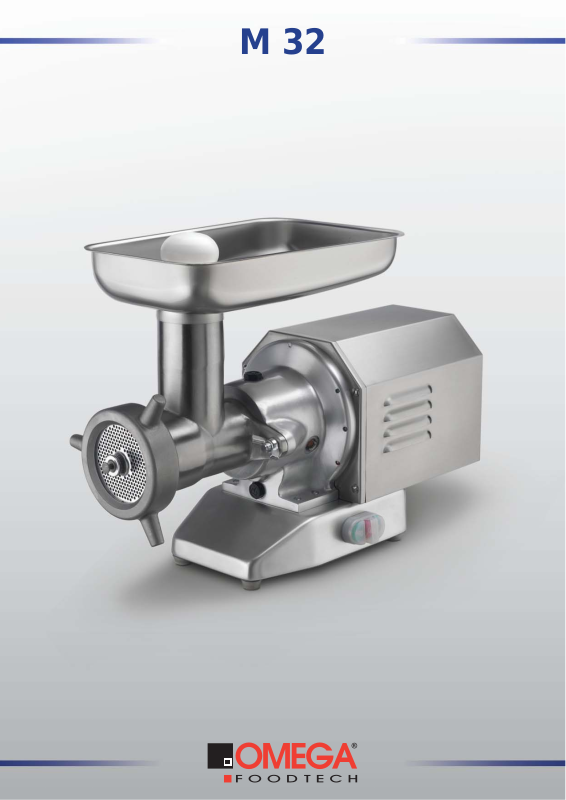

Minerva M 32 Datasheet

M 32

M 32

TRITACARNE DA BANCO 32/98

• Carrozzeria, bocca, tramoggia, coclea, bacinella raccoglicarne (optional) in acciaio
inox AISI 304.

• Versione entreprise: 1 piastra inox e 1 coltello autoaffi lanti, 1 estrattore.

• Marcia avanti, stop e marcia indietro (reverse).

• Per il dettaglio, macellerie e la ristorazione collettiva.

• Comandi con dispositivo N.V.R.

TABLE TOP MEAT MINCERS 32/98

• Coating, barrel, feed pan, worm and meat receiving tray (optional) made of stainless
steel AISI 304.

• Enterprise version: 1 stainless steel holeplate and 1 self-sharpening knife,1 extractor.

• Start, stop and reverse push buttons.

• For retail, butchers and collective catering.

• Controls with N.V.R. device

TISCH FLEISCHWÖLFE 32/98

• Maschinengehaeuse, Schneidsatz, Einfuellschuessel, Schneckengehaeuse, Empfangschale
(optional) aus Edelstahl AISI 304.

• Enterprise Ausfuehrung: 1 Lochscheibe und 1 Messer, 1 Ausziehvorrichtung.

• Vonvärtsgang, Plizstoptasteund Rückwärtsgang.

• Für Einzelhandel, Fleischereien und Großgastronomie.

• Ein-Aus Drucktaste.

HACHOIRS DE COMPTOIR 32/98

• Carrosserie, bouche, trémie, vis sans fi n, plateau de reception viande en acier inoxidable
AISI 304.

• Version Entreprise: 1 plaque et 1 couteau, 1 extracteur.

• Marche avant, arrêt et marche arrière boutons demarrage.

• Pour le détail, boucherie et la restauration collective.

• Boutons Marche-Arrêt.

CARATTERISTICHE TECNICHE - TECHNICAL SPECIFICATIONS -

TECHNISCHE DATEN - CARACTÉRISTIQUES - ESPECIFICACIONES

M 32S

Bocca - Head - Corps -

32/98

Gehäuse - Boca
Produzione - Output -

Production - Produktion

kg/h

(kg/min)

200

- Producción
motore MF, motor SPH,

Motor EPH, moteur MPH,

kW

(HP)

1,5

(1,1)

motor MF
Peso netto - Net weight -

kg 27

Poids net - Nettogewicht

- Peso neto

570 240

360

405

PICADORAS DE CARNE DE MESA 32/98

• Carrocería, boca, cóclea y cubeta (opcional) de acero inoxidable AISI 304.

• Versión Entreprise: 1 placa inoxidable, 1 cuchilla autoafi lante y 1 extractor.

• Marcha acia adelante, parade y marcha acia ätras.

• Para venta minorista y restauración colectiva.

• Mandos con dispositivo N.V.R.

276 190

I dati del presente catalogo non sono impegnativi e potranno subire variazioni senza preavviso. Specifi cations and other features are subject to change without notice. (12/15)

Minerva Omega group s.r .l.

Via del V etraio, 36 z.i. Roveri 2 - 40138 Bologna - Italy
tel. [phone] - fax [phone]
[e-mail] - www.minervaomegagroup.com
[e-mail] - www.omegafoodtech.it
UNI EN ISO 9001: 2008 - REG. N. 9656-A

Macchina conforme alle
norme

in materia di

igiene e di sicurezza.

Body accredited by ACCREDIA

Organismo accreditato da ACCREDIA

The machine complies with
standards in terms of hygiene
and safety.
