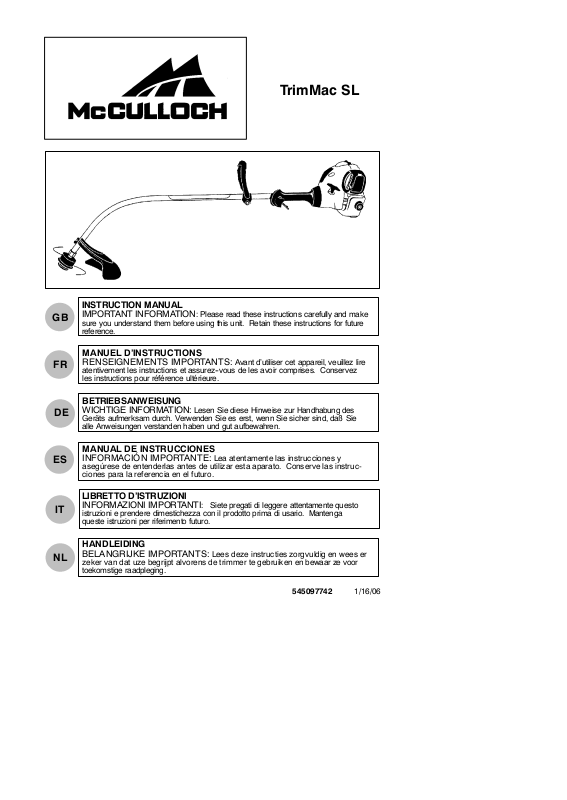

McCulloch TRIMMAC SL 545097742 User Manual

TrimMac SL

GB

FR

DE

ES

IT

NL

INSTRUCTION MANUAL

IMPORTANT INFORMATION: Please read these instructions carefully and make sure you understand them before using this unit. Retain these instructions for future reference.

MANUEL D’INSTRUCTIONS

RENSEIGNEMENTS IMPORTANTS: Avant d’utiliser cet appareil, veuillez lire

atentivement les instructions et assurez--vous de les avoir comprises. Conservez les instructions pour référence ultérieure.

BETRIEBSANWEISUNG

WICHTIGE INFORMATION: Lesen Sie diese Hinweise zur Handhabung des Geräts aufmerksam durch. Verwenden Sie es erst, wenn Sie sicher sind, daß Sie alle Anweisungen verstanden haben und gut aufbewahren.

MANUAL DE INSTRUCCIONES

INFORMACIÓN IMPORTANTE: Lea atentamente las instrucciones y asegúrese de entenderlas antes de utilizar esta aparato. Conserve las instrucciones para la referencia en el futuro.

LIBRETTO D’ISTRUZIONI

INFORMAZIONI IMPORTANTI: Siete pregati di leggere attentamente questo istruzioni e prendere dimestichezza con il prodotto prima di usario. Mantenga queste istruzioni per riferimento futuro.

HANDLEIDING

BELANGRIJKE IMPORTANTS: Lees deze instructies zorgvuldig en wees er

zeker van dat uze begrijpt alvorens de trimmer te gebruiken en bewaar ze voor toekomstige raadpleging.

545097742 1/16/06

IDENTIFICATION (WHAT IS WHAT?)





Assist handle



Spark plug

Muffler



Manual









Shaft

















Trimmer



Assist handle adjustment

Primer

Throttle







Bulb



head

Shield























Choke











Fuel tank







Wrench













Starter handle



IDENTIFICATION OF SYMBOLS

A. WARNING! This trimmer can be dangerous! Careless or improper use can cause serious or even fatal injury.

B.Read and understand the instruction manual before using the trimmer.

C.With this handle, only use trimmer head. Never use blades or flailing devices with this tool.

D.WARNING! The trimmer line can throw objects violently. You can be blinded or injured. Always wear eye protection.

E.Always use: Ear protection

Protective glasses or visor

F.Assist handle to be positioned only below the arrow.

G.The operator of the machine must insure that no one comes within a 15 meter radius while working. When several operators are working within the same area a safety distance of at least 15 meters must be observed.

H.Use unleaded or quality leaded petrol and two--stroke oil mixed at a ratio of 2.5%.

I.Engine ON/OFF Switch.

J.Guaranteed sound power level according to Directive 2000/14/EC

K.Maximum rotational frequency of the spindle, rpm

L.Sound pressure level at 7,5 meters

2

SAFETY RULES

WARNING: When using gardening

appliances, basic safety precautions should always be followed to reduce the risk of fire and

serious injury. Read and follow all instructions.

This power unit can be dangerous! Operator is responsible for following instructions and warnings on unit and in manual. Read entire instruc-

tion manual before using unit! Be thoroughly familiar with the controls and the proper use of the unit. Restrict the use of this unit to persons who read, understand, and follow instructions and warnings on unit and in manual. Never allow children to operate this unit.

INSTRUCTION

SAFETY INFORMATION

MANUAL

ON THE UNIT

DANGER: Never use blades, wire, or flailing devices. This unit is designed for line

trimmer use only. Use of any other accessories or attachments will increase the risk of injury.

WARNING: Trimmer line throws ob-

jects violently. You and others can be blinded/ injured. Wear safety glasses and leg protection. Keep body parts clear of rotating line.

Keep children, bystanders, and animals 15 meters away. If approached stop unit immediately.

If situations occur which are not covered in this manual, use care and good judgement. If you need assistance, contact your authorized service dealer.

OPERATOR SAFETY

S Dress properly. Always wear safety glasses or similar eye protection when operating, or performing maintenance, on your unit (safety glasses are available). Eye protection should be marked Z87.

S Always wear face or dust mask if operation is dusty.

S Always wear heavy, long pants, long sleeves, boots, and gloves. Wearing safety leg guards is recommended.

S Always wear foot protection. Do not go barefoot or wear sandals. Stay clear of spinning line.

SSecure hair above shoulder length. Secure or remove loose clothing or clothing with loosely hanging ties, straps, tassels, etc. They can be caught in moving parts.

SBeing fully covered also helps protect you from debris and pieces of toxic plants

thrown by spinning line.

SStay Alert. Do not operate this unit when you are tired, ill, upset or under the influence of al-

cohol, drugs, or medication. Watch what you are doing; use common sense.

SWear hearing protection. Long or continuous exposure to high noise levels may cause permanent hearing impairment.

SNever start or run inside a closed room or building. Breathing exhaust fumes can kill.

S Keep handles free of oil and fuel.

UNIT / MAINTENANCE SAFETY

S Disconnect the spark plug before performing maintenance except carburetor adjustments.

S Look for and replace damaged or loose parts before each use. Look for and repair fuel leaks before use. Keep in good working condition.

S Replace trimmer head parts that are chipped, cracked, broken, or damaged in any other way before using the unit.

S Maintain unit according to recommended procedures. Keep cutting line at proper length.

SUse only 2 mm diameter McCullochbrand line. Never use wire, rope, string, etc.

S Install required shield properly before using

the unit. Use only specified trimmer head; make sure it is properly installed and securely fastened.

SMake sure unit is assembled correctly as shown in this manual.

S Make carburetor adjustments with lower end supported to prevent line from contacting any object.

SKeep others away when making carburetor adjustments.

SUse only recommended McCullochaccessories and replacement parts.

SHave all maintenance and service not explained in this manual performed by an authorized service dealer.

FUEL SAFETY

S Mix and pour fuel outdoors.

S Keep away from sparks or flames. S Use a container approved for fuel.

S Do not smoke or allow smoking near fuel or the unit.

S Avoid spilling fuel or oil. Wipe up all fuel spills.

SMove at least 3 meters away from fueling site before starting engine.

S Stop engine and allow to cool before removing fuel cap.

S Always store gasoline in a container approved for flammable liquids.

3
