Operator's manual

ROB S400, ROB S500, ROB

S600

Read the operator's manual carefully and make sure that

you understand the instructions before you use the

product.

1 Introduction

1.1 Introduction.................................................

1.2 Product overview........................................4

1.3 Symbols on the product..............................5

1.4 Symbols on the display.............................. 5

1.5 Symbols on the battery...............................5

1.6 Menu structure overview............................ 7

1.7 Display........................................................7

1.8 Keypad....................................................... 8

2 Safety

2.1 Safety definitions........................................ 9

2.2 General safety instructions.........................9

2.3 Safety instructions for operation...............11

3 Installation

3.1 Introduction - Installation.......................... 14

3.2 Before the installation of the wires........... 14

3.3 Before the installation of the product........14

3.4 Installation of the product......................... 18

3.5 To put the wire into position with stakes...19

3.6 To bury the boundary wire or the

guide wire....................................................... 19

3.7 To change the position of the

boundary wire or the guide wire..................... 19

3.8 To extend the boundary wire or the

guide wire....................................................... 19

3.9 After the installation of the product...........20

3.10 To do the product settings......................20

4 Operation

4.1 The ON/OFF button..................................26

4.2 To start the product.................................. 26

4.3 Operating modes......................................26

4.4 Park modes.............................................. 27

4.5 Stop.......................................................... 27

4.6 Switch off..................................................27

4.7 Schedule and Standby............................. 27

4.8 To charge the battery............................... 28

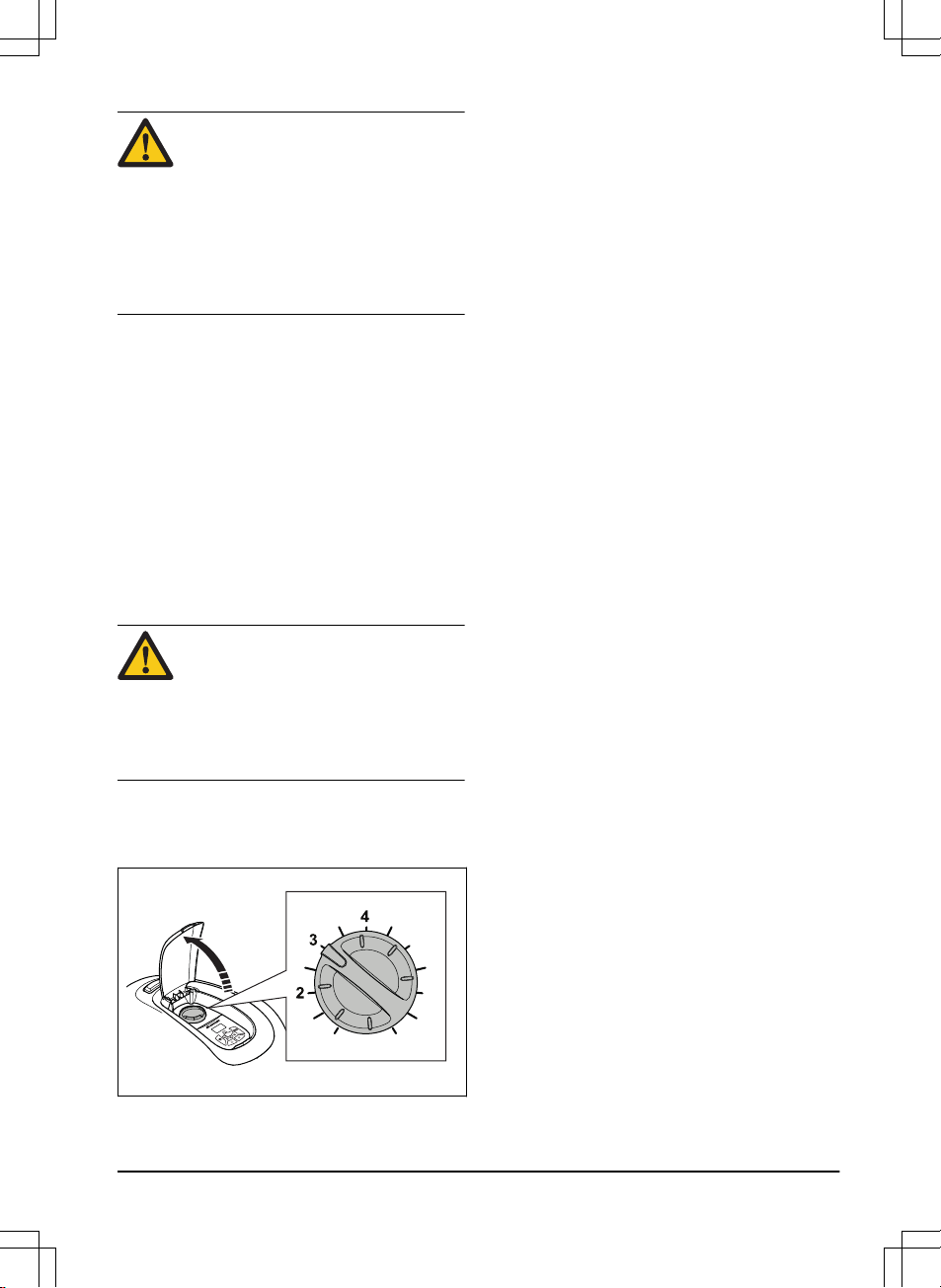

4.9 Adjust the cutting height........................... 29

5 Maintenance

5.1 Introduction - maintenance.......................30

5.2 Clean the product..................................... 30

5.3 Replace the blades...................................31

5.4 Software update....................................... 31

5.5 Battery...................................................... 32

5.6 Winter service...........................................33

6 Troubleshooting

6.1 Introduction - troubleshooting...................34

6.2 Fault messages........................................ 35

6.3 Information messages.............................. 39

6.4 Indicator lamp in the charging station.......40

6.5 Symptoms................................................ 41

6.6 Find breaks in the loop wire..................... 42

7 Transportation, storage and disposal

7.1 Transportation.......................................... 45

7.2 Storage.....................................................45

7.3 Disposal....................................................45

8 Technical data

8.1 Technical data.......................................... 46

9 Warranty

9.1 Guarantee terms...................................... 49

10 Applicable to US/CA market

10.1 Supplier's Declaration of Conformity...... 50

10.2 Compliance requirements...................... 50

2 985 - 004 - 22.01.2019

1 Introduction

1.1 Introduction

Serial number:

PIN code:

Product registration key:

The serial number is on the product rating plate and on the product carton.

•

Use the serial number to register your product on www.mcculloch.com.

1.1.1 Support

For support about the

McCulloch product, speak

to your servicing dealer.

1.1.2 Product description

Note: McCulloch

regularly updates the appearance and function of the products. Refer to

Support on page 3

The product is a robotic lawn mower. The product has a battery power source and cuts the grass

automatically. Collection of grass is not necessary.

The operator selects the operation settings with the keys on the keypad. The display shows the selected and possible operation settings, and the operation mode of the product.

The boundary wire and the guide wire controls the movement of the product within the work area.

985 - 004 - 22.01.2019 Introduction - 3

1.2 Product overview

The numbers in the figure represent:

Body

2. Hatch to display and keypad

3. Stop button

4. Rear wheel

5. Front wheels

6. Charging station

7. Contact strips

8. LED for operation check of the charging station, boundary wire and guide wire

9. Cutting height adjustment

10. Rating plate

11. Display

12. Keypad

13. ON/OFF button

14. Cutting system

15. Blade disc

16. Handle

17. Chassis box with electronics, battery and motors

18. Battery cover

19. Power supply (the appearance of the power supply may differ depending on market)

20. Stakes

21. Measurement gauge for help when installing the boundary wire (the measurement gauge is broken loose from the box)

22. Couplers for loop wire

23. Screws for securing the charging station

24. Connector for the loop wire

25. Low voltage cable

26. Loop wire for boundary loop and guide wire

27. Operator’s Manual and Quick Guide

4 - Introduction 985 - 004 - 22.01.2019

1.3 Symbols on the product

These symbols can be found on the product. Study them carefully.

WARNING: Read the user instructions before operating the product.

WARNING: Operate the disabling device before working on or lifting the product.

The product can only start if the ON/OFF button is pressed and the indicator lamp is lit. Also, the correct PIN code must be entered. Before any inspections or maintenance is done, turn off the product and check that the indicator lamp on the

ON/OFF button is not lit.

WARNING: Keep a safe

distance from the product when operating. Keep your hands and feet away from the rotating blades.

WARNING: Do not ride on the product. Never put your hands or feet close to or under the product.

Do not use a high-pressure washer.

This product conforms to the applicable EC Directives.

Noise emission to surroundings. The product’s emissions are set out in

Technical data on page 46

and on the

rating plate.

It is not permitted to dispose this product as normal household waste. Ensure that the product is recycled in accordance with local legal requirements.

The low voltage cable must not be shortened, extended or spliced.

Do not use a trimmer nearby the low voltage cable. Be careful when trimming edges where the cables are placed.

1.4 Symbols on the display

The schedule function controls when the product cuts the lawn.

The settings function is where the general settings for the products are set.

The product will not cut the grass due to the schedule function.

The product overrides the schedule function.

The battery indicator shows the charge level of the battery. When the product charges the symbol flashes.

The product is put in the charging station but do not charge the battery.

The product is set in ECO-mode.

1.5 Symbols on the battery

Read the user instructions.

985 - 004 - 22.01.2019 Introduction - 5

Do not discard the battery into fire and do not expose the battery to a heat source.

Do not immerse the battery into water.

6 - Introduction 985 - 004 - 22.01.2019

1.6 Menu structure overview

Settings

Time & date

Set tim

e Set date Time format Date format

Language Country

Reset all user setting

About

Lawn shield Security

Installation

General

Low/Mid/High

Use Lawnshield

Cutting time

Starting point

Drive past wire

ECO mode

Mower house

Security Level

Advanced

Low Medium High

Bluetooth

New loop signal

Change PIN code

New pairing

Remove paired devices

Lawn Coverage

Schedule

Overview/Week

Period 1

Period 2 Copy

Current day

All week

SaFrThWeTuMoAll

days

Reset

Wizard AdvancedDay

mode

Night mode

1.7 Display

The display on the product shows information and settings of the product.

To access the display, push the STOP button.

985 - 004 - 22.01.2019 Introduction - 7

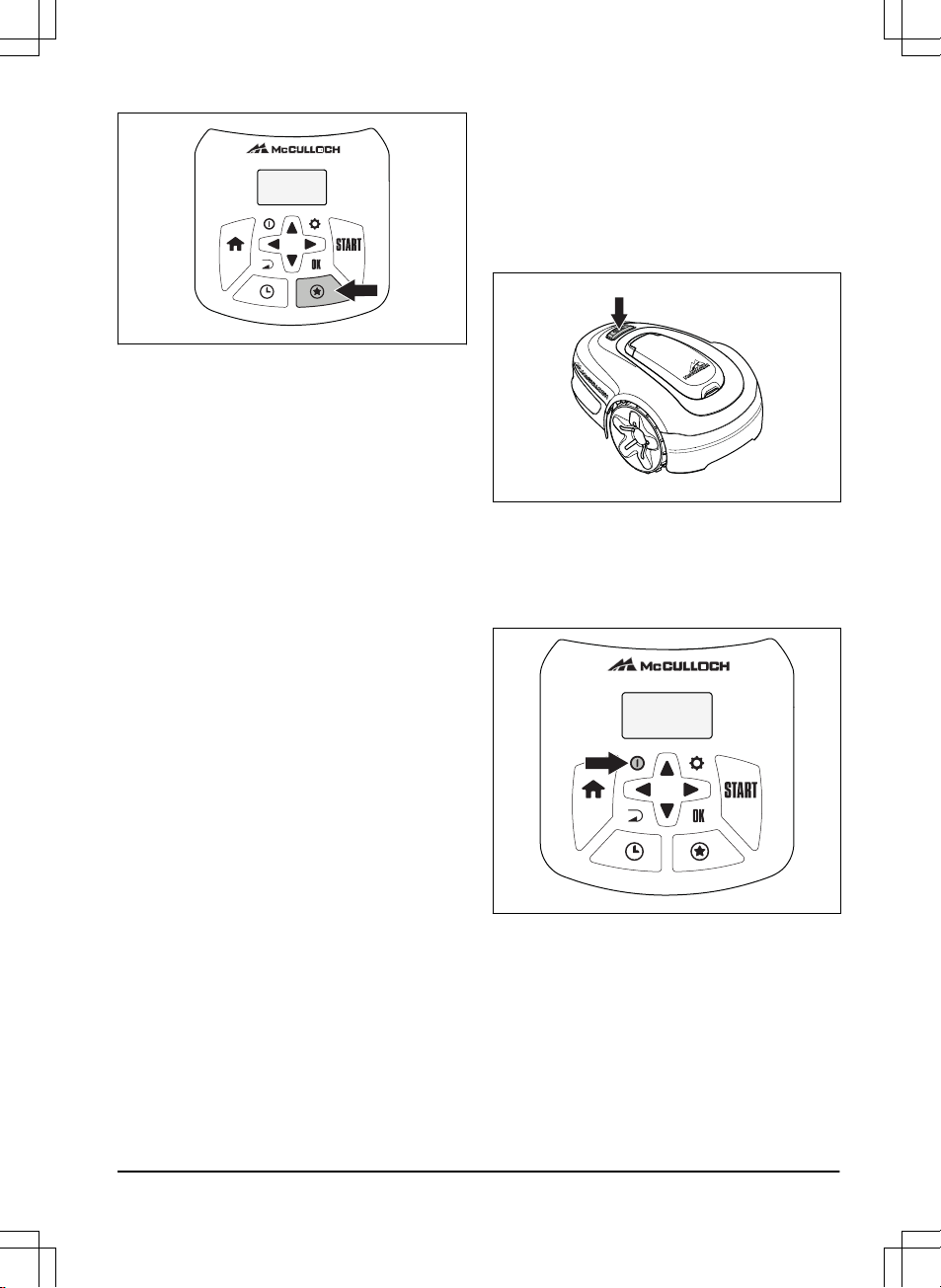

1.8 Keypad

The keypad consists of 6 groups of buttons:

109

1. The indicator lamp on the keypad is an important status indicator. Refer to

The

indicator lamp on page 26

2. The ON/OFF button is used to turn the product ON/OFF.

3. The Settings button is used to go to the main menu.

4. The Home button is used to choose the park modes:

Home & Stay

and

Home & Wait

5. The Start button is used to start the operation of the product. The OK button is used to confirm the chosen settings in the menus.

6. The Back button is used when moving back up in the menu lists.

7. The OK button is used to confirm the chosen settings in the menus.

8. The arrow keys are used to navigate in the menu. The up/down arrow keys are also used to enter digits, for example, PIN code, time and date

9. The Schedule button is used to go to the schedule menu.

10. The STAR button is used to choose operating modes:

2nd area, Power Cut

and

Spot Cut

8 - Introduction 985 - 004 - 22.01.2019

2 Safety

2.1 Safety definitions

Warnings, cautions and notes are used to point out specially important parts of the manual.

WARNING: Used if there is a risk of injury or death for the operator or bystanders if the instructions in the manual are not obeyed.

CAUTION: Used if there is a risk of damage to the product, other materials or the adjacent area if the instructions in the manual are not obeyed.

Note: Used to give more information that is necessary in a given situation.

2.2 General safety instructions

The following system is used in the Operator’s Manual to make it easier to use:

•

Text written in

italics

is a text that is shown on the display of the product or is a reference to another section in the Operator’s Manual.

• Text written in bold is one of the buttons on the keypad of the product.

• Text written in

UPPERCASE

and

italics

refer to the different operating modes available in the product.

985 - 004 - 22.01.2019 Safety - 9

2.2.1 IMPORTANT. READ CAREFULLY BEFORE USE. KEEP FOR FUTURE REFERENCE

The operator is responsible for accidents or hazards occurring to other people or property.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities (that could affect a safe handling of the product), or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Local regulations may restrict the age of the operator. Cleaning and maintenance shall not be made by children without supervision.

Never connect the power supply to an outlet if the plug or cord is damaged. Worn or damaged cord increase the risk of electric shock.

Only charge the battery in the included charging station. Incorrect use may result in electric shock, overheating or leaking of corrosive liquid from the battery. In the event of leakage of electrolyte, flush with water/neutralizing agent. Seek medical help if it comes in contact with the eyes.

Use only original batteries recommended by the manufacturer. Product safety cannot be guaranteed with other than original batteries. Do not use non-rechargeable batteries.

The appliance must be disconnected from the supply mains when removing the battery.

10 - Safety 985 - 004 - 22.01.2019

WARNING: The product

can be dangerous if used incorrectly.

WARNING: Do not use the product when persons, especially children, or animals, are in the work area.

WARNING: Keep your hands and feet away from the rotating blades. Never put your hands or feet close to or under the product when the motor is running.

2.3 Safety instructions for operation

2.3.1 Use

•

The product is designed to mow grass in open and level ground areas. It may only be used with the equipment recommended by the manufacturer. All other types of use are incorrect. The manufacturer’s instructions with regard to operation/maintenance must be followed precisely.

• Warning signs shall be placed around the work area of the product if it is used in public areas. The signs shall have the following text: Warning! Automatic lawnmower!

Keep away from the machine! Supervise children!

Warning!

Automatic lawnmower!

Keep away from the machine!

Supervise children!

Warning!

Automatic lawnmower!

Keep away from the machine!

Supervise children!

• Use the operating mode

Park

or turn off the product when persons, especially children, or animals, are in the work area. It is recommended to program the product for use during hours when the area is free from activity, e.g. at night. Refer to

To set the

schedule on page 21

. Consider that certain species, e.g. hedgehogs, are active at night. They can potentially be harmed by the product.

• The product may only be operated, maintained and repaired by persons that are fully conversant with its special characteristics and safety regulations. Please read the Operator’s Manual carefully and make sure you understand the instructions before using the product.

• It is not permitted to modify the original design of the product. All modifications are made at your own risk.

• Check that there are no stones, branches, tools, toys or other objects on the lawn that can damage the blades. Objects on the lawn can also lead to the product getting stuck. Help may be required to remove the object before the product can continue mowing. Always turn off the product using the ON/OFF button before clearing a blockage.

985 - 004 - 22.01.2019 Safety - 11

• Start the product according to the instructions. When the product is turned on, make sure to keep your hands and feet away from the rotating blades. Never put your hands and feet under the product.

•

Never touch moving hazardous parts, such as the blade disc, before it has come to a complete stop.

• Never lift up the product or carry it around when it is turned on.

• Do not let persons who do not know how the product works and behaves use it.

• The product must never be allowed to collide with persons or other living creatures. If a person or other living creature comes in the product’s way it shall be stopped immediately. Refer to

Stop on page 27

• Do not put anything on top of the product or its charging station.

• Do not allow the product to be used with a defective guard, blade disc or body. Neither should it be used with defective blades, screws, nuts or cables. Never connect a damaged cable, or touch a damaged cable before it is disconnected from the supply.

• Do not use the product if the ON/OFF button does not work.

• Always switch off the product using the ON/OFF button when the product is not in use. The product can only start when the ON/OFF button has been turned on and the correct PIN code has been entered.

• MCCULLOCH does not guarantee full compatibility between the product and other types of wireless systems such as remote controls, radio transmitters, hearing loops, underground electric animal fencing or similar.

• Metal objects in the ground (for example reinforced concrete or anti-mole nets) can result in a stoppage. The metal objects can cause interference with the loop signal which then can lead to a stoppage.

•

Operation and storage temperature is 0-50 °C / 32-122 °F. Temperature range for charging is 0-45 °C / 32-113 °F. Too high temperatures might cause damage to the product.

2.3.2 Battery safety

WARNING: Lithium-ion batteries can

explode or cause fire if disassembled, short-circuited, exposed to water, fire, or high temperatures. Handle carefully, do not dismantle, open the battery or use any type of electrical/mechanical abuse. Avoid storage in direct sunlight.

For more information about the battery, refer to

Battery on page 32

2.3.3 How to lift and move the product

To safely move from or within the work area:

1. Press the STOP button to stop the product. If security is set to high level (refer to

To set

the security level on page 22

) the PIN code has to be entered. The PIN code contains four digits and is selected when you start the product for the first time. Refer to

To do the

basic settings on page 20

2. Press the ON/OFF button and make sure the product is turned off. Check that the indicator lamp on the keypad is not lit. This means that the product is disabled. Refer to

The indicator lamp on page 26

12 - Safety 985 - 004 - 22.01.2019

3. Carry the product by the handle with the blade disc away from the body.

WARNING: The product must be turned off before lifting it. The product is disabled when the indicator lamp on the keypad is not lit.

CAUTION: Do not lift the product when it is parked in the charging station. It can damage the charging station and/or the product. Press STOP and pull the product out of the charging station before lifting it.

2.3.4 Maintenance

WARNING: The product must be

turned off before any maintenance is done. The product is disabled when the indicator lamp on the keypad is not lit.

CAUTION: Never use a high-pressure washer to clean the product. Never use solvents for cleaning.

Inspect the product weekly and replace any damaged or worn parts. Refer to

Maintenance on

page 30

2.3.5 In the event of a thunderstorm

To reduce the risk of damage to electrical components in the product and the charging station, we recommend that all connections to the charging station are disconnected (power supply, boundary wire and guide wire) if there is a risk of a thunderstorm.

1. Mark the wires to simplify reconnecting. The charging station’s connections are marked R, L and GUIDE.

2. Disconnect all connected wires and the power supply.

3. Connect all the wires and the power supply if there is no longer a risk of thunder. It is important that each wire is connected to the right place.

985 - 004 - 22.01.2019 Safety - 13

3 Installation

3.1 Introduction - Installation

WARNING: Read and understand the

safety chapter before you install the product.

CAUTION: Only use original spare parts and installation material.

Note: Refer to www.mcculloch.com

for more

information about installation.

3.2 Before the installation of the wires

You can select to attach the wires with stakes or bury them. You can use the 2 procedures for the same work area.

•

Bury the boundary wire or the guide wire if you are going to use a dethatcher on the work area. If not, attach the boundary wire or guide wire with stakes.

• Cut the grass before you install the product. Make sure that the grass is maximum 4 cm /

1.6 in.

Note: The first weeks after installation the perceived sound level when cutting the grass may be higher than expected. When the product has cut the grass for some time, the perceived sound level is much lower.

3.3 Before the installation of the

product

•

Make a blueprint of the work area and include all obstacles.

• Make a mark on the blueprint where to put the charging station, the boundary wire and the guide wire.

• Make a mark on the blueprint where the guide wire connects to the boundary wire. Refer to

To install the guide wire on page

• Fill in holes in the lawn.

Note: Holes with water in the lawn can cause damage to the product.

3.3.1 To examine where to put the charging station

•

Keep a minimum 2 m / 6.6 ft. of free space in front of the charging station.

• Keep a minimum of 30 cm / 12 in. of free space to the right and left of the center of the charging station.

60- cm / 24- in.

• Put the charging station near an outdoor power outlet.

•

Put the charging station on a level surface.

Max 5 cm /2"

Max 5 c

m/ 2"

14 - Installation 985 - 004 - 22.01.2019

Max +/- 2 cm / 0.8 in.

• Put the charging station in the lowest possible section of the work area.

•

Put the charging station in an area with protection from the sun.

• If the charging station is installed on an island, make sure to connect the guide wire to the island. Refer to

To make an island on

page 16

3.3.2 To examine where to put the power

supply

•

Put the power supply in an area with a roof and protection from the sun and rain.

• Put the power supply in an area with good airflow.

• Use a residual-current device (RCD) when you connect the power supply to the power outlet.

WARNING: Do not change the power supply. Do not cut or extend the lowvoltage cable. There is a risk of electrical shock.

Low-voltage cables of different lengths are available as accessories.

CAUTION: Make sure that the blades on the product do not cut the lowvoltage cable.

CAUTION: Do not put the low-voltage cable in a coil or below the charging station plate. The coil causes interference with the signal from the charging station.

3.3.3 To examine where to put the boundary wire

CAUTION: If the work area is adjacent

to water bodies, slopes, precipices or a public road, the boundary wire must have a protective wall. The wall must be minimum

15 cm / 6 in. in height.

• Put the boundary wire around all of the work area (A). Adapt the distance between the boundary wire and obstacles.

•

Put the boundary wire 35 cm / 14 in. (B) from an obstacle that is more than 5 cm / 2 in. high.

• Put the boundary wire 30 cm / 12 in. (C) from an obstacle that is 1-5 cm / 0.4-2 in. high.

• Put the boundary wire 10 cm / 4 in. (D) from an obstacle that is less than 1 cm / 0.4 in.

985 - 004 - 22.01.2019 Installation - 15

• If you have a paving stone path that is in level with the lawn, put the boundary wire below the paving stone.

Note: If the paving stone is minimum

30 cm / 12 in. wide, use the factory setting for the Drive Past Wire function to cut all the grass adjacent to the paving stone.

CAUTION: Do not let the product operate on gravel.

• If you make an island, put the boundary wire that runs to and from the island near together (E). Put the wires in the same stake.

•

Make an eyelet (F) where the guide wire is to be connected to the boundary wire.

CAUTION: Do not make sharp bends when you install the boundary wire.

CAUTION: For careful operation without noise, isolate all obstacles such as trees, roots and stones.

3.3.3.1 To put the boundary wire in a slope

•

For slopes steeper than 35% inside the work area, isolate the slope with boundary wire.

• For slopes steeper than 10% along the outer edge of the lawn, put the boundary wire 20 cm / 8 in. (A) from the edge.

• For slopes adjacent to a public road, put a fence or a protective wall along the outer edge of the slope.

>10%

-35%

3.3.3.2 Passages

A passage is a section that has boundary wire on each side and that connects 2 work areas. The

passage must be a minimum of 60 cm / 24 in. wide.

Note: If a passage is less than 2

m / 6.5 ft. wide,

install a guide wire through the passage.

3.3.3.3 To make an island

•

Put the boundary wire to and around the obstacle to make an island.

• Put the 2 sections of boundary wire that run to and from the obstacle together.

• Put the 2 sections of boundary wire in the same stake.

0 cm / 0

CAUTION: Do not put a section of boundary wire across the other. The sections of boundary wire must be parallel.

CAUTION: Do not put the guide wire across the boundary wire, for example a boundary wire that goes to an island.

16 - Installation 985 - 004 - 22.01.2019

3.3.3.4 To make a secondary area

Make a secondary area if the work area has 2 areas that are not connected with a passage.

•

Put the boundary wire around the secondary area (B) to make an island. The work area with the charging station is the main area (A). Refer to

To make an island on page 16

Note: When the product cuts grass in the secondary area, the

Secondary area

mode

must be selected. Refer to

2nd area on page

3.3.4 To examine where to put the guide wire

• Put the guide wire in a line at a minimum of 1 m / 3.3 ft. in front of the charging station.

Min 1m / 3.3ft

• Make sure that the guide wire has as much free area as possible to the left of the guide wire when facing the charging station. Refer to

Guide calibration on page 20

• Put the guide wire minimum 30 cm / 12 in. from the boundary wire.

• Do not make sharp bends when you install the guide wire.

•

If the work area has a slope, put the guide wire diagonally across the slope.

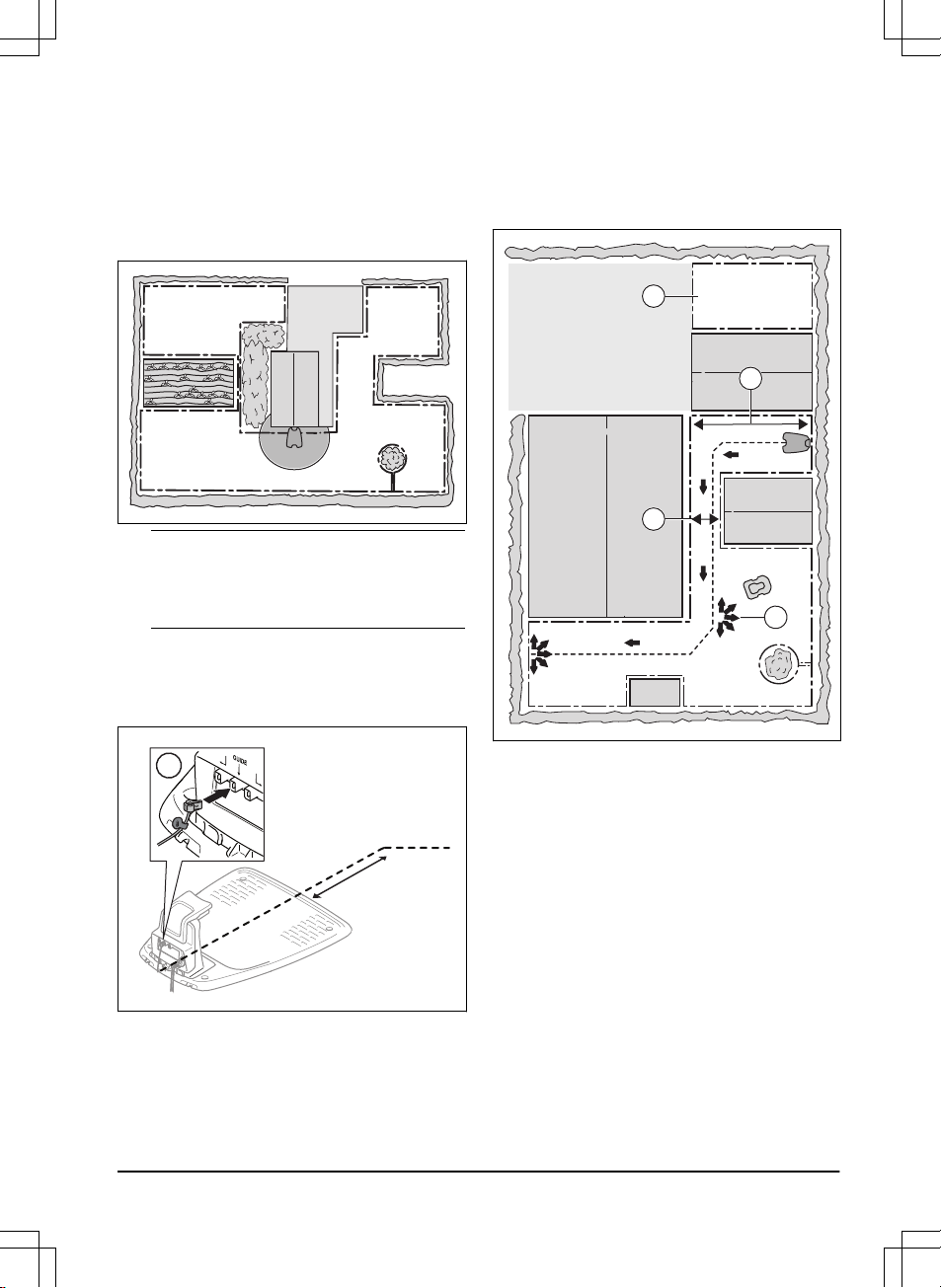

3.3.5 Work area examples

• If the charging station is put in a small area (A), make sure that the distance to the boundary wire is at a minimum

2 m / 6.6 ft.

• If the work area has a passage (B), make sure that the distance to the boundary wire is at a minimum 2 m / 6.5 ft. If the passage is smaller than 2 m / 6.5 ft., install a guide wire through the passage. Minimum passage between the boundary wire is 60 cm / 24 in.

• If the work area has areas which are connected by small passages (C), you can change the settings in

Lawn Coverage

Refer to

To set the Lawn Coverage function

on page 23

• If the work area includes a secondary area (D), refer to

To make a secondary area on

page 17

. Put the product in the secondary

area and select

Secondary area mode

985 - 004 - 22.01.2019 Installation - 17

3.4 Installation of the product

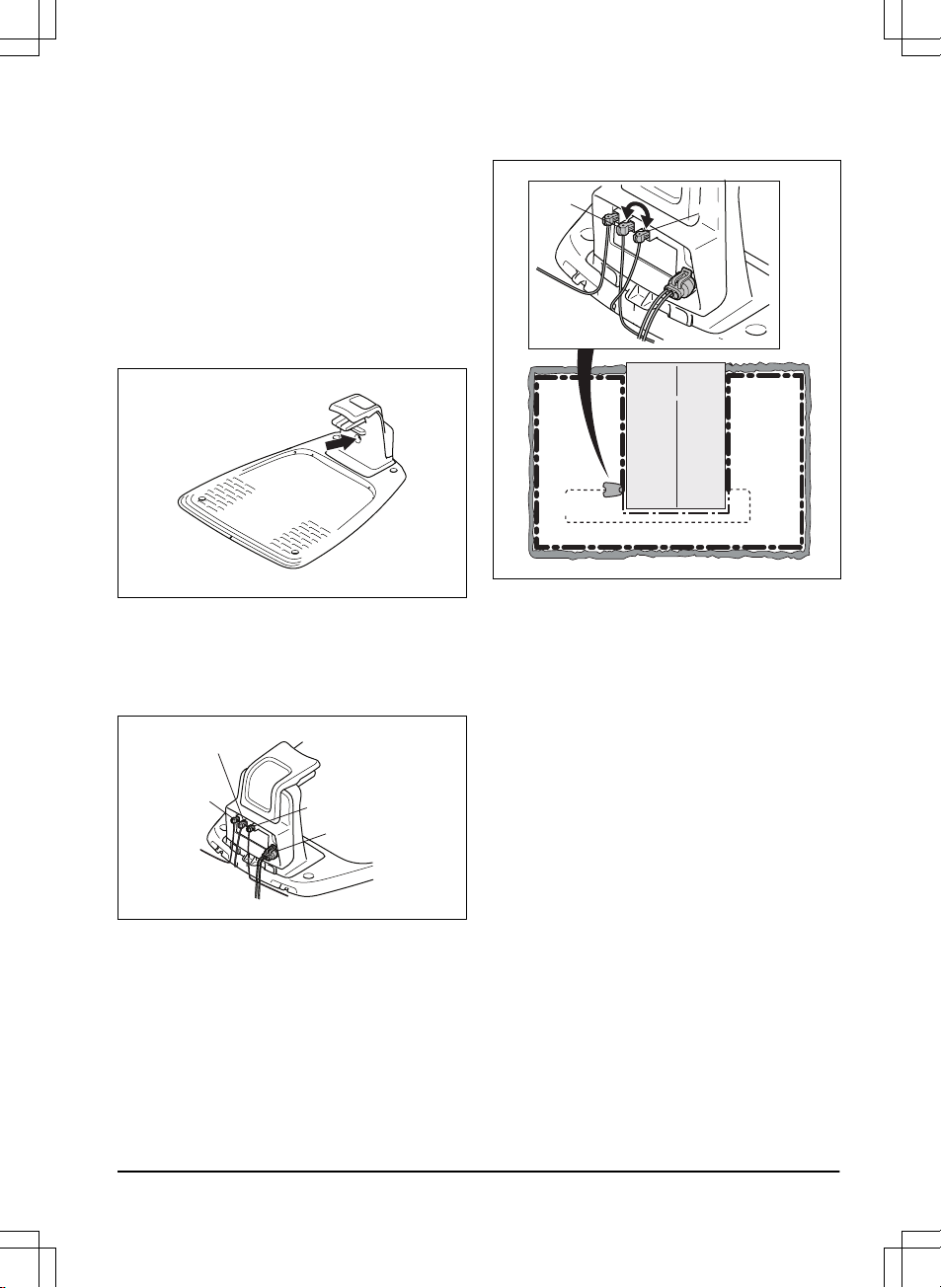

3.4.1 To install the charging station

WARNING: Obey national regulations

about electrical safety.

1. Read and understand the instructions about the charging station. Refer to

To examine where to put the charging station on page 14

2. Put the charging station in the selected area.

3. Connect the low-voltage cable to the charging station.

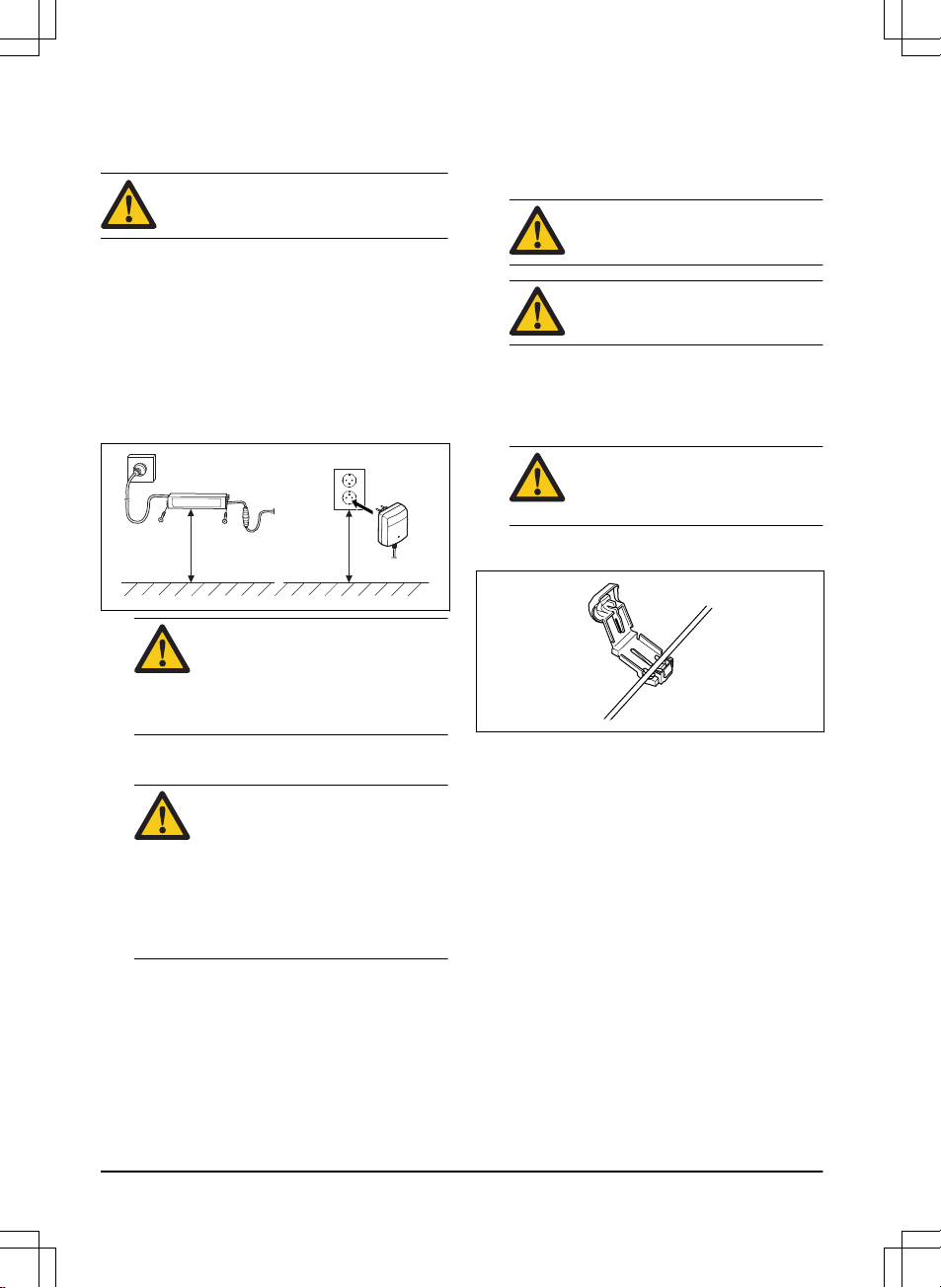

4. Put the power supply at a minimum height of 30 cm / 12 in.

min 30 cm / 12”

WARNING: Do not put the power supply at a height where there is a risk it can be put in water. Do not put the power supply on the ground.

5. Connect the power supply cable to a 100-240V outdoor power outlet.

WARNING: Applicable to USA/ Canada. If power supply is installed outdoors: Risk of Electric Shock. Install only to a covered Class A GFCI receptacle (RCD) that has an enclosure that is weatherproof with the attachment plug cap inserted or removed.

6. Attach the low-voltage cable in the ground with stakes or bury the cable. Refer to

To put the wire into position with stakes on page 19

To bury the boundary wire or

the guide wire on page 19

7. Connect the wires to the charging station. Refer to

To install the boundary wire on

page 18

and

To install the guide wire on

page 18

8. Attach the charging station to the ground with the supplied screws.

CAUTION: Do not make new holes in the charging station plate.

CAUTION: Do not put your feet on the charging station.

3.4.2 To install the boundary wire

1. Put the boundary wire around all of the work area. Start and complete the installation behind the charging station.

CAUTION: Do not put unwanted wire in a coil. The coil causes interference with the product.

2. Open the connector and put the boundary wire in the connector.

3. Close the connector with a pair of pliers.

Cut the boundary wire 1-2 cm / 0.4-0.8 in. above each connector.

5. Push the right connector onto the metal pin with the mark "R".

6. Push the left connector onto the metal pin with the mark "L".

3.4.3 To install the guide wire

1. Open the connector and put the wire in the connector.

2. Close the connector with a pair of pliers.

3. Cut the guide wire 1-2 cm / 0.4-0.8 in. above each connector.

4. Push the guide wire through the slot in the charging station plate.

5. Push the connector onto the metal pin with the mark "G".

18 - Installation 985 - 004 - 22.01.2019

6. Put the end of the guide wire at the eyelet on the boundary wire.

Cut the boundary wire with a pair of wire cutters.

8. Connect the guide wire to the boundary wire with a coupler.

a) Put the 2 ends of the boundary wire

and the end of the guide wire into the coupler.

Note: Make sure that you can see the end of the guide wire through the transparent area of the coupler.

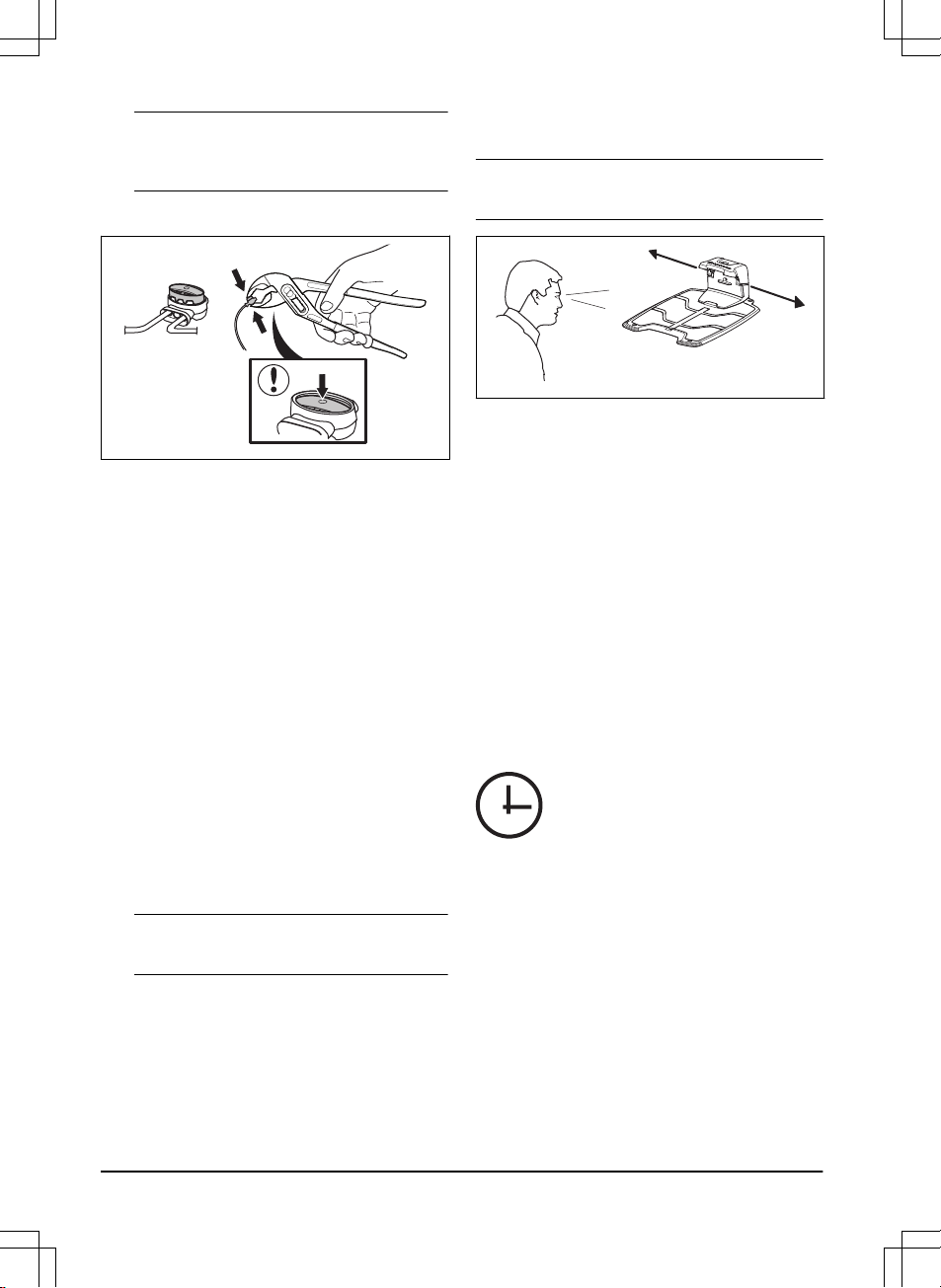

b) Push the button on the coupler with an

adjustable pliers.

CAUTION: Twinned cables, or a screw terminal block that is insulated with insulation tape are not satisfactory splices. Soil moisture will cause the wire to oxidize and after a time result in a broken circuit.

9. Attach the guide wire to the ground. With stakes or bury the guide wire in the ground. Refer to

To put the wire into position with

stakes on page 19

To bury the boundary

wire or the guide wire on page 19

3.5 To put the wire into position with

stakes

• Put the boundary wire and the guide wire on the ground.

• Put the stakes at a minimum of 75 cm / 30 in. distance from each other.

• Attach the stakes to the ground with a hammer or a plastic mallet.

CAUTION: Make sure that the stakes hold the boundary wire and the guide wire against the ground.

Note: The wire is overgrown with grass and not visible after a few weeks.

3.6 To bury the boundary wire or the guide wire

•

Cut a groove in the ground with an edge cutter or a straight shovel.

• Put the boundary wire or the guide wire 1-20 cm / 0.4-8 in. into the ground.

3.7 To change the position of the

boundary wire or the guide wire

1. If the boundary wire or the guide wire is put into position with stakes, remove the stakes from the ground.

2. Carefully remove the boundary wire or the guide wire from the ground.

3. Adjust the boundary wire or the guide wire into a new position.

4. Put the boundary wire or the guide wire into position. Refer to

To put the wire into

position with stakes on page 19

To bury the boundary wire or the guide wire on page 19

3.8 To extend the boundary wire or the guide wire

Note: Extend the boundary wire or the guide wire

if it is too short for the work area. Use original spare parts, for example couplers.

1. Cut the boundary wire or the guide wire with a pair of wire cutters where it is necessary to install the extension.

Add wire where it is necessary to install the extension.

3. Put the boundary wire or the guide wire into position.

4. Put the wire ends into a coupler.

985 - 004 - 22.01.2019 Installation - 19

Note: Make sure that you can see the ends of the boundary wire or the guide wire through the transparent area of the coupler.

5. Push the button on the coupler with an adjustable pliers.

3.9 After the installation of the

product

3.9.1 To do a visual check of the

charging station

Make sure that the indicator LED lamp on the charging station has a green light.

2. If the indicator LED lamp does not have a green light, do a check of the installation. Refer to

Indicator lamp in the charging

station on page 40

and

To install the

charging station on page 18

3.9.2 To do the basic settings

Before you start the product for the first time, you must do the basic settings and calibrate the product.

1. Push the ON/OFF button.

2. Push the arrow buttons and the OK button. Select

language, country, date, time

and set

a PIN code.

Note: It is not possible to use 0000 as PIN code.

3. Put the product in the charging station.

Push the START button and close the hatch.

3.9.3 Guide calibration

The calibration process sets as wide guide corridor as possible to reduce the risk of tracks

forming on the lawn. Refer to

To set the starting

point on page 23

Note: The product always runs to the left of the guide wire (as seen facing the charging station).

If the distance on the left side of the starting point is less than 0.6 m / 2 ft. the calibration process is interrupted. For the widest possible guide corridor, make sure that the distance from the starting point to the boundary wire is minimum

1.35 m / 4.5 ft. (perpendicular to the guide wire).

3.10 To do the product settings

The product has factory settings but the settings can be adapted to each work area.

3.10.1 To get access to the menu

1. Push the STOP button.

2. Use the up/down arrow buttons and the OK button to enter the PIN code.

3. Push the MENU button.

3.10.2 To do the schedule settings

3.10.2.1 Wizard

The wizard is a quick tool to find suitable schedule settings for your lawn.

Enter your estimated lawn size. It is not possible to enter a larger lawn size than the maximum work capacity.

2. Push the OK button to confirm the lawn size. By entering your lawn size the wizard suggests either a suitable daily schedule (go to step 4) or need input for inactive days.

3. Choose what day(s) the product should be inactive. Use the up/down arrow buttons to shift between days.

20 - Installation 985 - 004 - 22.01.2019

4. Push the OK button to confirm the chosen inactive day(s).

The wizard suggests a daily schedule for the active days. If you want to move the schedule interval to earlier or later in the day then push the arrow buttons up or down.

6. Push the OK button to confirm the daily schedule. An overview of the daily schedule is presented. Push the OK button to go back to main menu.

Note: To change the schedule settings for individual work days use the

Schedule -

Advanced

menu.

3.10.2.2 To calculate the schedule setting

Calculate the dimension of your lawn in m2 / yd2.

2. Divide the m2 / yd2 of the lawn with the approximate operation capacity. Refer to table below.

3. The result is equal to the number of hours that the product must operate each day. The number of hours includes both operation and charging time.

Note: The operation capacity is approximate and schedule settings can be adjusted.

Model Approximate operation

capacity, m2 / yd2 / h

600 m

42 / 50

500 m

41 / 49

400 m

40 / 48

Example: A lawn of 500 m2 / 600 yd2, cut with a product specified for

600 m2.

500 m2 / 42 ≈ 7 h.

600 yd2 / 50 ≈ 7 h.

Days / week

h / day Schedule settings

7 7 07:00 - 14:00 / 7:00

am - 2:00 pm

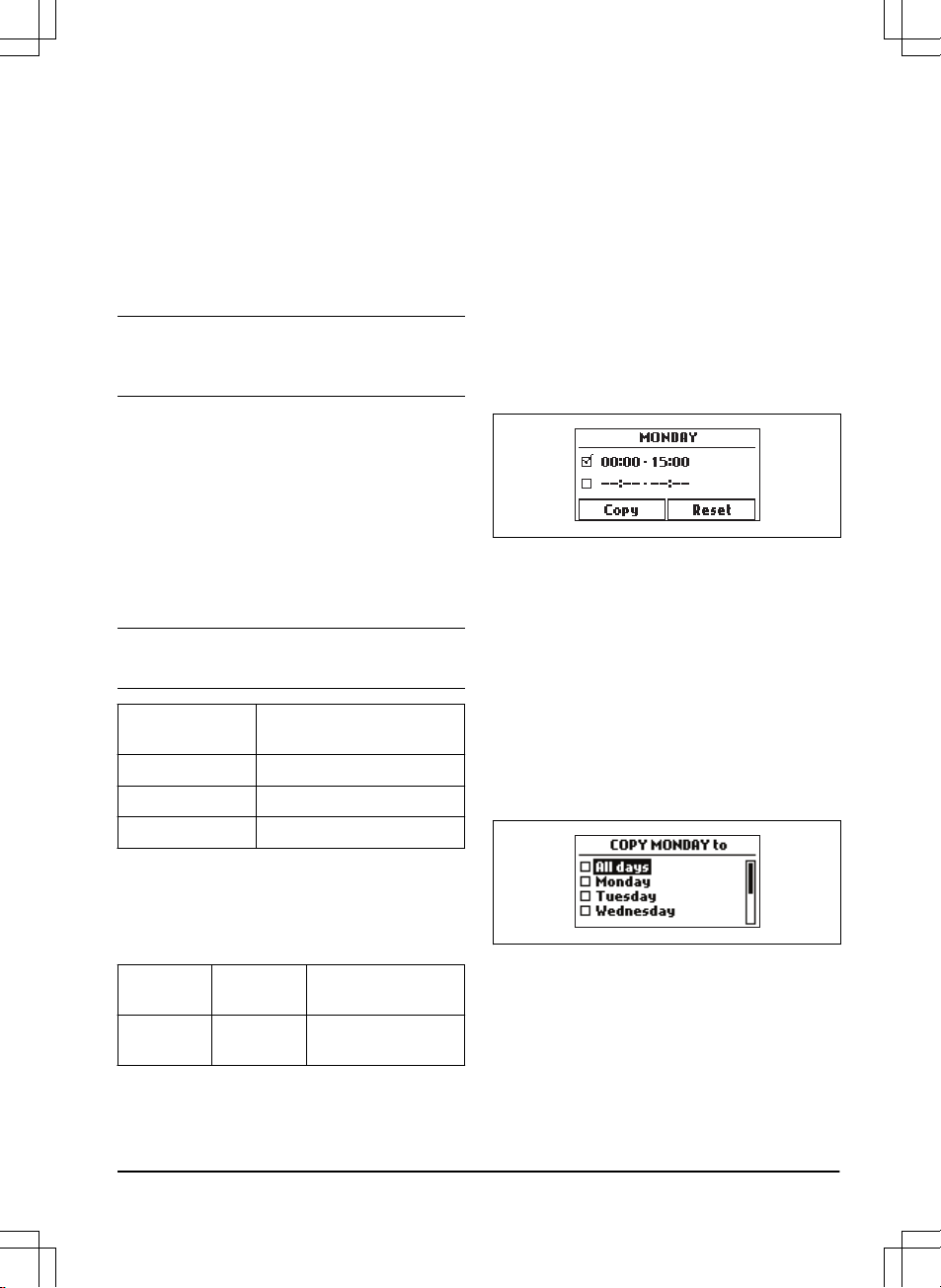

3.10.2.3 To set the schedule

Do steps 1–3 in

To get access to the menu

on page 20

2. Use the arrow buttons and the OK button to move through the menu structure

Schedule > Advanced > Overview

3. Use the arrow buttons and the OK button to select the day.

4. Use the left arrow button to select the period.

5. Push the OK button.

6. Enter the time with the arrow buttons. The product can cut the grass 1 or 2 periods each day.

7. If the product must not cut grass on a specified day, unselect the box adjacent to the 2 time periods.

3.10.2.4 To copy the schedule setting

Do steps 1–3 in

To get access to the menu

on page 20

2. Use the arrow buttons and the OK button to move through the menu structure

Schedule > Advanced > Overview > Copy

3. Use the arrow buttons and the OK button to copy the schedule setting. You can copy the schedule settings day to day or for the full week.

3.10.2.5 To reset the schedule setting

You can remove all schedule settings and use the factory setting.

Do steps 1–3 in

To get access to the menu

on page 20

2. Use the arrow buttons and the OK button to move through the menu structure

Schedule > Advanced > Overview > Reset

985 - 004 - 22.01.2019 Installation - 21

a) Push the arrow buttons

to select

Current day

to only set the current day

to factory settings.

b) Push the arrow buttons to select

All

week

to reset all schedule settings to

factory settings.

3. Push the OK button.

3.10.2.6 Day mode

The Day mode means that the product starts mowing at 08:00 / 8 am and mows the specified operation hours.

3.10.2.7 Night mode

The Night mode means that the product starts mowing at 20:00 / 8 pm and mows the specified operation hours.

3.10.3 Security level

There are 3 security levels for the product.

Function Low Medium High

Alarm X

PIN-code X X

Time lock X X X

• Alarm - An alarm goes off if the PIN-code is not entered within 10 seconds after the STOP

button is pushed. The alarm also goes off when the product is lifted. The alarm stops when the PIN-code is entered.

• PIN-code - The correct PIN-code must be entered to get access to the Menu structure of the product. If the incorrect PIN-code is entered 5 times, the product is locked for a time. The lock is extended for each new incorrect try.

• Time lock - The product locks if the PINcode has not been entered in 30 days. Enter the PIN-code to get access to the product.

3.10.3.1 To set the security level

Select 1 of 3 security levels for your product.

1. Do steps 1–3 in

To get access to the menu

on page 20

2. Use the arrow buttons

and the OK button

to move through the menu structure

Settings

> Security > Security level

3. Use the arrow buttons and the OK button to select the level of security.

4. Push the OK button.

3.10.3.2 To change the PIN-code

1. Do steps 1–3 in

To get access to the menu

on page 20

2. Use the arrow buttons and the OK button to move through the menu structure

Settings

> Security > Advanced > Change PIN-code

3. Enter the new PIN code.

4. Push the OK button.

5. Enter the new PIN code.

6. Push the OK button.

7. Make a note of the new PIN code. Refer to

Introduction on page 3

3.10.4 Lawn shield

The Lawn shield automatically adjust the cutting time to the growth of the grass. The product is not permitted to operate more than the schedule settings.

The first operation of the day is set by the schedule settings. Then the Lawn shield selects if the product will continue to operate.

Note: The Lawn shield is reset if the product stops to operate for more than 50 hours or if a Reset of all user setting is done. The Lawn shield is not changed if a Reset of schedule settings is done.

3.10.4.1 To set the Lawn shield

Do steps 1–3 in

To get access to the menu

on page 20

2. Use the arrow buttons and the OK button to move through the menu structure

Settings

> Lawn shield > Use Lawn shield

3. Push the OK button to select the Lawn shield.

4. Push the BACK button.

22 - Installation 985 - 004 - 22.01.2019

3.10.4.2 To set the Lawn shield frequency

Set how frequently the product must cut the grass when the Lawn shield is in use. There are 3 frequency levels: Low, Mid and High. The higher the frequency, the longer the product is allowed to work.

1. Do steps 1–3 in

To get access to the menu

on page 20

2. Use the arrow buttons and the OK button to move through the menu structure

Settings

> Lawn shield > Cutting time

3. Use the arrow buttons to select

Low, Mid

High

frequency.

4. Push the BACK button.

3.10.5 Lawn Coverage

The Lawn Coverage function is used to guide the product to remote parts of the work area.

3.10.5.1 To set the Lawn Coverage function

1. Do steps 1–3 in

To get access to the menu

on page 20

2. Use the arrow buttons and the OK button to move through the menu structure

Settings

> Installation > Lawn Coverage > Area 1

3. Use the arrow buttons to select the % of the cutting time the product must cut the area. The % is equal to the % of the area in relation to the complete work area.

a) Measure the area. b) Divide the area with the work area. c) Convert the result to %.

30%

20%

4. Push the BACK button.

3.10.5.2 To do a test of the Lawn Coverage function

3.10.5.3 To disable or enable the Lawn Coverage function

Disable or enable the

Lawn Coverage

function for

each area.

1. Do steps 1–3 in

To get access to the menu

on page 20

2. Use the arrow buttons and the OK button to move through the menu structure

Settings > Installation > Lawn Coverage > Area 1 > Disable

3. Push the OK button.

4. Push the BACK button.

3.10.5.4 To reset the Lawn Coverage settings

You can reset the

Lawn Coverage

settings for

each area and use the factory setting.

1. Do steps 1–3 in

To get access to the menu

on page 20

2. Use the arrow buttons and the OK button to move through the menu structure

Settings > Installation > Lawn Coverage > Area 1 > More > Reset

3. Push the OK button.

3.10.6 To set the starting point

This function allows you to control how far the product drives along the guide wire from the charging station before it starts operating. The factory setting is 60 cm and the maximum distance is 300 cm.

985 - 004 - 22.01.2019 Installation - 23

1. Put the product in the charging station.

2. Do step 1-3 in

page 20

3. Use the arrow buttons and the OK button to move through the menu structure

To get access to the menu on

Installation > Lawn Coverage > Area 1 > More > Test

4. Push the OK button.

5. Push the START button.

6. Close the hatch.

7. Make sure the product can find the area.

Settings >

Note: This is a useful function if the charging station is placed below a veranda or in another limited space area. Choosing a good starting point is important so that the guide calibration process is optimized.

1. Do steps 1-3 in

To get access to the menu

on page 20

2. Use the arrow button and the OK button to move through the menu structure

Settings >

Installation > Starting point

3. Use the arrow buttons to specify the distance in cm.

4. Push the BACK button.

3.10.7 To set the Drive Past Wire

function

The front of the product always moves past the boundary wire by a specified distance before the product moves back into the work area. The factory setting is 30 cm. You can select a distance of 20-40 cm.

1. Do steps 1–3 in

To get access to the menu

on page 20

2. Use the arrow button and the OK button to move through the menu structure

Settings >

Installation > Drive Past Wire

3. Use the arrow buttons to set the distance in cm.

4. Push the BACK button.

3.10.8 ECO mode

ECO mode

stops the signal in the boundary loop, the guide wire and the charging station, when the product is parked or is charging.

Note: Use

ECO mode

if the signal from the charging station causes interference with other wireless equipment, for example hearing loops or garage doors.

Note: Push the STOP button before you remove the product from the charging station. If not, the product can not be started in the work area.

3.10.8.1 To set the ECO mode

Do steps 1–3 in

To get access to the menu

on page 20

2. Use the arrow buttons and the OK button to move through the menu structure

Settings >

Installation > ECO mode

3. Push the OK button to select the

ECO

mode

4. Push the BACK button.

3.10.9 To avoid collisions with the

mower house

The wear on the product and the mower house decreases when you select

Avoid house

collisions

1. Do steps 1–3 in

To get access to the menu

on page 20

2. Use the arrow buttons and the OK button to move through the menu structure

Settings > Installation > Mower house > Avoid house collisions

3. Push the BACK button.

Note: If

Avoid house collisions

is selected it can result in grass that is not cut around the charging station.

3.10.10 Bluetooth

The product can connect to mobile devices that have the McCULLOCH

app installed. McCULLOCH is a free app for your mobile device. The short-range interaction with the product is called Bluetooth®. When pairing between the product and app has been confirmed, you have access to the menus and functions as long as you are within short-range (Bluetooth®).

3.10.10.1 To install the McCULLOCH app

1. Download the McCULLOCH app on your

mobile device.

2. Register in the McCULLOCH app.

3. Log in to your McCulloch account in the

McCULLOCH app.

3.10.10.2 To pair the McCULLOCH app and the product

1. Do steps 1–3 in

To get access to the menu

on page 20

2. Use the arrow buttons and the OK button

to move through the menu structure

Settings

> Installation > Bluetooth > New pairing

24 - Installation 985 - 004 - 22.01.2019

3. Select

My mowers

in the McCULLOCH app.

4. Select the plus sign (+).

5. Follow the instructions in the app.

3.10.11 General

General

you can change the general settings

of the product.

3.10.11.1 To set the time & date

1. Do steps 1–3 in

To get access to the menu

on page 20

2. Use the arrow buttons and the OK button to move through the menu structure

Settings

> General > Time & Date

3. Use the arrow buttons to set the time and then push the BACK button.

4. Use the arrow buttons to set the date and then push the BACK button.

5. Use the arrow buttons to set the time format and then push the BACK button.

6. Use the arrow buttons to set the date format and then push the BACK button.

3.10.11.2 To set the language

1. Do steps 1–3 in

To get access to the menu

on page 20

2. Use the arrow buttons and the OK button to move through the menu structure

Settings

> General > Language.

3. Use the arrow buttons to select language and then push the BACK button.

3.10.11.3 To set the country

1. Do steps 1–3 in

To get access to the menu

on page 20

2. Use the arrow buttons and the OK button to move through the menu structure

Settings

> General > Country.

3. Use the arrow buttons to select country and then push the BACK button.

3.10.11.4 To reset all user settings

1. Do steps 1–3 in

To get access to the menu

on page 20

2. Use the arrow buttons and the OK button to move through the menu structure

Settings

> General > Reset all user settings

3. Use the right arrow button to select

Proceed with reset of all user settings?

4. Push the OK button to reset all the user settings.

Note:

Security level, PIN code, Loop signal,

Messages, Date & Time, Language

and

Country

settings

are not reset.

3.10.11.5 The About menu

The

About

menu displays information about the product, for example serial number and software versions.

985 - 004 - 22.01.2019 Installation - 25

4 Operation

4.1 The ON/OFF button

WARNING: Read the safety

instructions carefully before you start the product.

WARNING: Keep your hands and feet away from the rotating blades. Never put your hands or feet close to or under the machine when the motor is running.

WARNING: Do not use the product when persons, especially children, or animals, are in the work area.

• Press the ON/OFF button to turn the product on. The product is active when the indicator lamp on the keypad is lit.

•

Press the ON/OFF button to turn the product off.

4.1.1 The indicator lamp

The indicator lamp on the keypad is an important status indicator:

• The product is active if the indicator lamp lights continuously.

• The product is in standby if the indicator lamp flashes. This means that the operator must press the ON/OFF button to make the product active again.

• The product is disabled when the indicator lamp is not lit.

WARNING: It is only safe to carry out inspection or maintenance on the product when the product is disabled. The product is disabled when the lamp on the keypad is not lit.

4.2 To start the product

1. Open the hatch to the keypad.

2. Push the ON/OFF button. The display is lit up.

3. Use the up/down arrow buttons and the OK button to enter the PIN code.

4. Select the desired operating mode and confirm with the OK button. Refer to

Operating modes on page 26

5. Close the hatch.

Note: If the product is parked in the charging station, the product will only leave the charging station when the battery is fully charged and if the schedule allows the product to operate.

4.3 Operating modes

When the STAR button is pressed the following operating modes can be selected:

• Secondary area (2nd area)

• Power Cut

• Spot Cut

26 - Operation 985 - 004 - 22.01.2019

4.3.1 2nd area

To mow secondary areas the operating mode

2nd area

must be chosen. Selecting

2nd area

means that the product mows until the battery is empty.

If the product is charged in the

2nd area

mode, it will fully charge, drive out about 50 cm and then stop. This indicates that the product is charged and ready to start mowing.

4.3.2 Power Cut

The schedule settings can be temporarily overridden by selecting

Power Cut

. It is possible to override the schedule for 3 h. It is not possible to override a standby period.

4.3.3 Spot Cut

Spot cut

is useful for quickly mowing an area where the grass has been mown less than in other parts of the garden. You must manually move the product to the chosen area.

Spot cut means that the product mows in a spiral pattern in order to cut the grass in the area where it was started.

The

Spot cut

function is activated with the STAR

button.

4.4 Park modes

4.4.1 Home & Stay

Park mode

Home & Stay

means that the product remains in the charging station until a different operating mode is selected.

4.4.2 Home & Wait

Park mode

Home & Wait

means that the product remains in the charging station until the next

schedule or standby permits operation. Refer to

Schedule and Standby on page 27

4.5 Stop

1. Press the STOP button on top of the product.

The product stops and the blade motor stops.

4.6 Switch off

Press the STOP button.

2. Open the hatch.

3. Press the ON/OFF button for 3 seconds.

4. The product shuts down.

Check that the indicator lamp on the keypad is not lit.

4.7 Schedule and Standby

The product has an inbuilt standby period according to the Standby time table. The standby period provides for instance a good opportunity to water or play games on the lawn.

985 - 004 - 22.01.2019 Operation - 27

Model Standby time, mini-

mum hours per day

600 m

500 m

400 m

4.7.1 Example 1

This example is applicable to products with a specified work area of 500 m2, but the principle is the same for the other models.

Schedule setting, Period 1:

08:00 - 22:00.

Active period (A): 08:00 - 20:00.

The schedule settings ensure that the product begins cutting the lawn at 08:00. However the product is parked in standby mode in the charging station from 20:00 and rests until it starts cutting again at 08:00.

If the schedule setting is divided into 2 work periods, the standby period can be divided into a number of periods. The minimum standby period time must however be according to the Standby time table.

24 h

Mowing

Charging

Standby

Operation

Example: A specified work area of 500 m

Operation, A = max. hours 12

Charging/Standby, B = min. hours 12

4.7.2 Example 2

This example is applicable to products with a specified work area of 500 m2, but the principle is the same for the other models.

The schedule settings can be divided into 2 work periods to prevent mowing when there usually is other activities ongoing. If the schedule settings are divided into 2 work periods, the standby period is divided into several periods. The total standby period must however be according to the Standby time table.

Schedule setting Period 1 (A):

08:00 - 17:00.

Schedule setting Period 2 (C): 20:00 - 24:00.

Active period (A): 08:00 - 17:00

Active period (C): 20:00 - 23:00.

The product operates between 08:00 and 17:00. It starts again at 20:00 but stops at 23:00 due to standby mode until next start at 08:00.

Mowing

Charging

Operation

Standby

and

Example: A specified work area of 500 m

Operation, A + C = max. hours 12

Charging/Standby, B + D = min. hours

4.8 To charge the battery

When the product is new or has been stored for a long period, the battery can be empty and needs to be charged before starting. In the normal mode, the product automatically alternates between mowing and charging.

28 - Operation 985 - 004 - 22.01.2019

WARNING: Only charge the product

using a charging station which is intended for it. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery.

In the event of leakage of electrolyte flush with water and seek medical help if it comes in contact with the eyes etc.

1. Press the ON/OFF button to start the product.

Place the product in the charging station. Slide the product in as far as possible to ensure proper contact between the product and the charging station. Refer to contact and charging strips in

Product overview on

page 4

3. The display shows a message that charging is in progress.

4.9 Adjust the cutting height

The cutting height can be varied from MIN (2 cm /

0.8 in.) to MAX (5 cm / 2 in.).

CAUTION: During the first weeks after a new installation, the cutting height must be set to MAX to avoid damaging the loop wire. After this, the cutting height can be lowered step by step every week until the desired cutting height has been reached.

4.9.1 To adjust the cutting height

Press the STOP button to stop the product.

2. Open the hatch.

3. Turn the knob to the required position.

• Turn clockwise to increase the cutting height.

•

Turn counter-clockwise to decrease the cutting height.

4. Close the hatch.

985 - 004 - 22.01.2019 Operation - 29

5 Maintenance

5.1 Introduction - maintenance

For better operating reliability and longer service life: check and clean the product regularly and replace worn parts if necessary. All maintenance and servicing must be done according to McCulloch

's instructions. Refer to

Guarantee

terms on page 49

When the product is first used, the blade disc and blades should be inspected once a week. If the amount of wear during this period has been low, the inspection interval can be increased.

It is important that the blade disc rotates easily. The edges of the blades should not be damaged. The lifetime of the blades varies immensely and depends for instance on:

• Operating time and size of the work area.

• Type of grass and seasonal growth.

• Soil, sand and use of fertilizers.

• The presence of objects such as cones, windfalls, toys, tools, stones, roots and the like.

The normal life is 4 to 7 weeks when used under favorable conditions. Refer to

To replace the

blades on page 31

on how to replace the

blades.

Note: Working with blunt blades gives a poorer mowing result. The grass is not cut cleanly and more energy is needed resulting in the product not mowing such a large area.

WARNING: The product must be turned off before any maintenance is done. The product is disabled when the indicator lamp on the keypad is not lit.

WARNING: Wear protective gloves.

5.2 Clean the product

It is important to keep the product clean. A product with large amounts of grass stuck to it will not cope as well with slopes. It is recommended to clean using a brush.

McCulloch offers a special cleaning and maintenance kit as an accessory. Contact your McCulloch

central service.

CAUTION: Never use a high-pressure washer to clean the product. Never use solvents for cleaning.

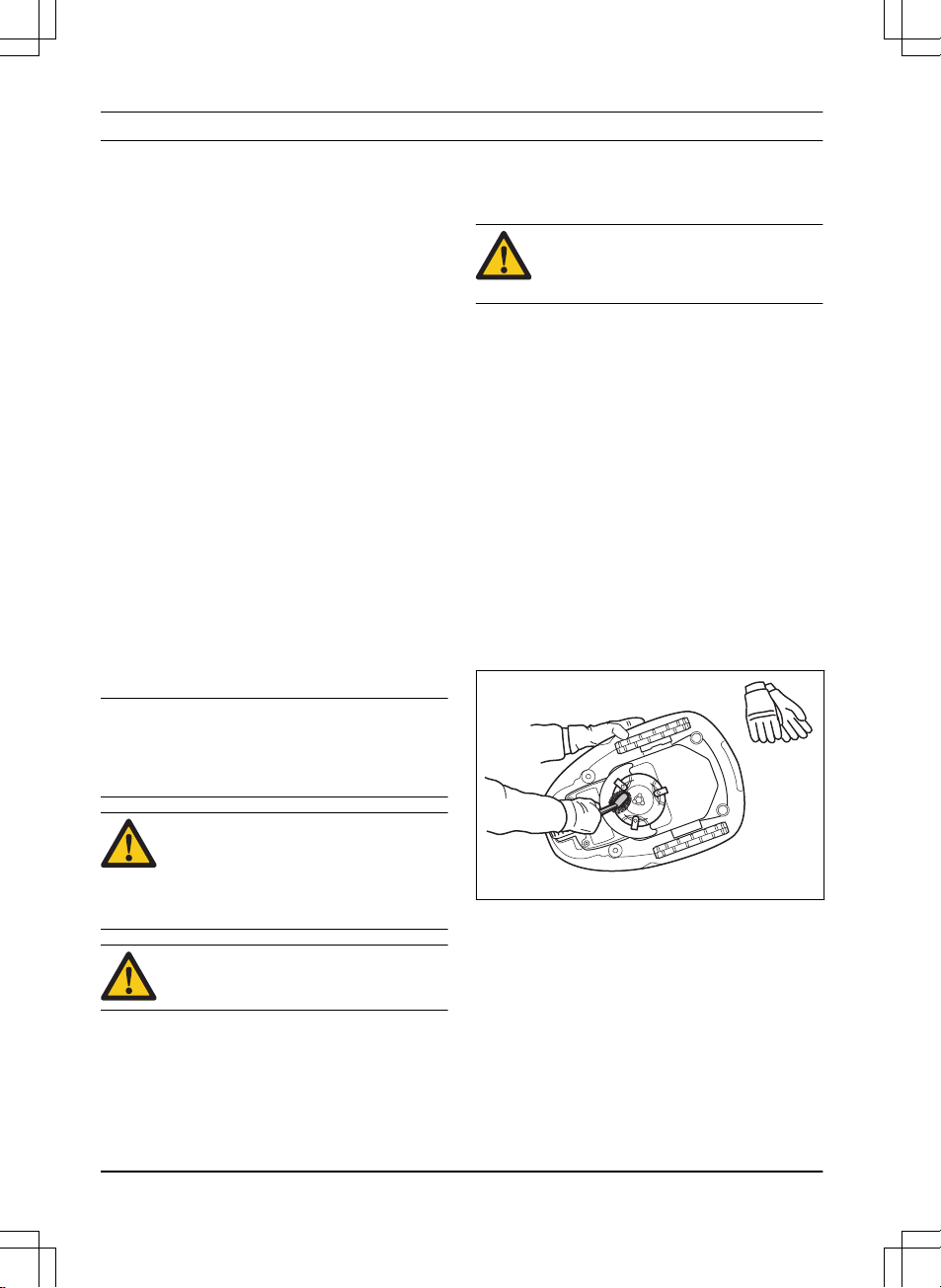

5.2.1 Chassis and blade disc

Inspect the blade disc and blades once a week.

Press the STOP button.

2. Press the ON/OFF button for 3 seconds to turn off the product.

3. Check that the indicator lamp on the keypad is not lit.

4. If the product is very dirty, clean it by using a dish brush or a garden hose. Do not use a high-pressure washer.

5. Lift the product onto its side.

6. Clean the blade disc and chassis using for example a dish brush. At the same time, check that the blade disc rotates freely in relation to the foot guard. Also, check that the blades are intact and can pivot freely.

5.2.2 Wheels

Clean around the front wheels and rear wheel as well as the rear wheel bracket. Grass on the wheels can impact on how the product performs in slopes.

5.2.3 Cover

Use a damp, soft sponge or cloth to clean the cover. If the cover is very dirty it may be necessary to use a soap solution or washing-up liquid.

30 - Maintenance 985 - 004 - 22.01.2019

5.2.4 Charging station

Clean the charging station regularly from grass, leaves, twigs and other objects that may impede docking.

WARNING: Use the plug to disconnect the charging station before any maintenance, or cleaning of charging station or power supply.

5.3 Replace the blades

WARNING: Use blades and screws of

the right type. McCulloch

can only guarantee safety when using original blades. Only replacing the blades and reusing the screw can result in a screw wearing during mowing. The blades can then be propelled from under the body and cause serious injury.

Replace worn or damaged parts for safety reasons. Even if the blades are intact, they should be replaced on a regular basis for the best mowing result and low energy usage. All 3 blades and screws must be replaced at the same time to obtain a balanced cutting system. Use

McCulloch original blades embossed with the crowned Hmark logotype, refer to

Guarantee terms on page

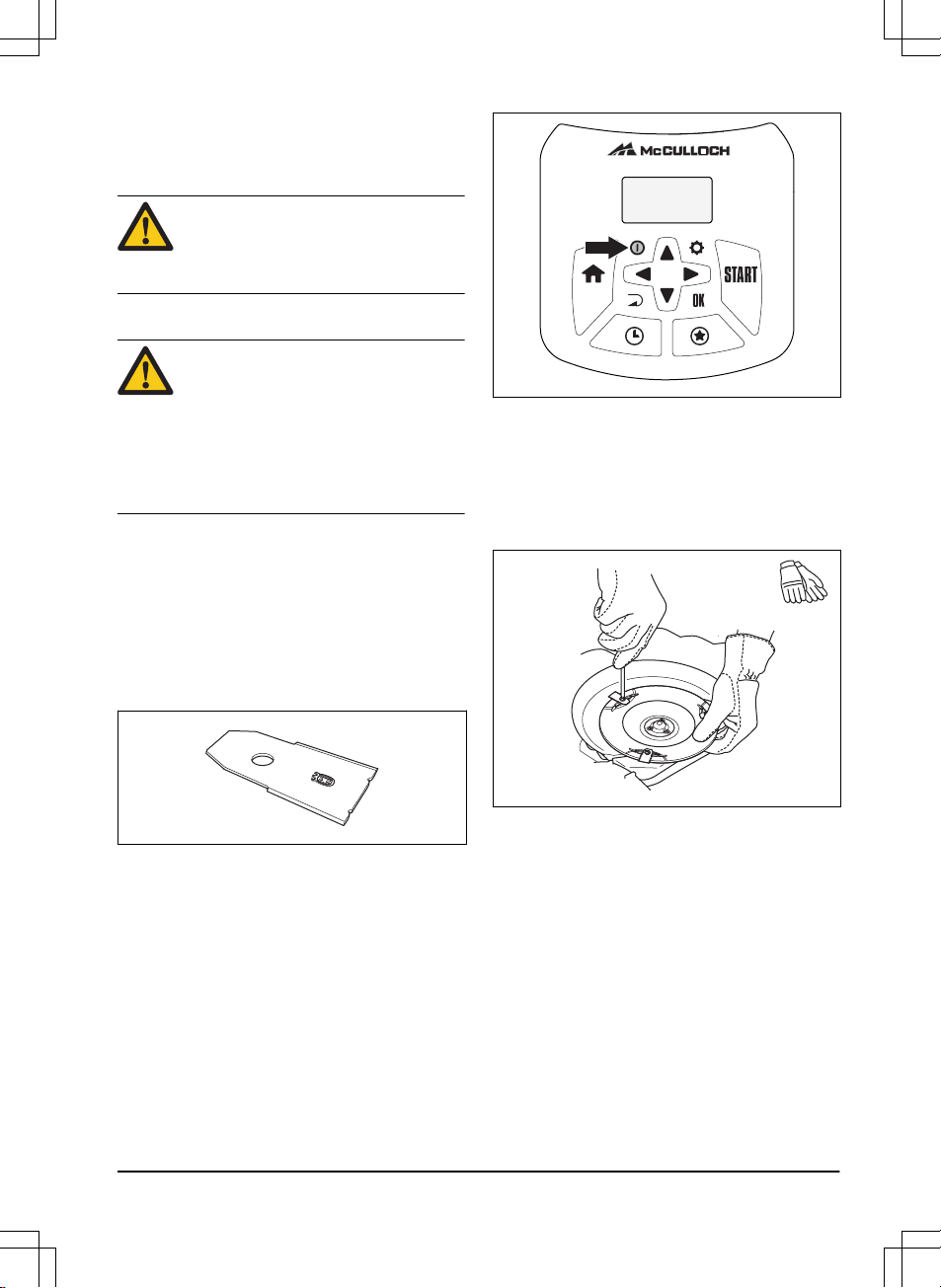

5.3.1 To replace the blades

1. Press the STOP button.

2. Open the hatch.

3. Press the ON/OFF button for 3 seconds to

turn off the product.

4. Check that the indicator lamp on the keypad is not lit.

Turn the product upside down. Place the product on a soft and clean surface to avoid scratching the body and the hatch.

6. Remove the 3 screws. Use a straight slot or cross-tip screwdriver.

7. Remove each blade and screw.

Fasten new blades and screws.

9. Check that the blades can pivot freely.

5.4 Software update

If service is done by McCulloch customer service then available software updates are downloaded to the product by the service technician. However, owners of McCulloch products can update the software if this is initiated by McCulloch. Registered users are in that case notified.

985 - 004 - 22.01.2019 Maintenance - 31

5.5 Battery

WARNING: Only charge the product

using a charging station which is intended for it. Incorrect use may result in electric shock, overheating or leakage of corrosive liquid from the battery. In the event of leakage of electrolyte flush with water and seek medical help if it comes in contact with the eyes etc.

WARNING: Use only original batteries recommended by the manufacturer. Product safety cannot be guaranteed with other batteries. Do not use nonrechargeable batteries.

CAUTION: The battery must be charged fully before winter storage. If the battery is not fully charged it can be damaged and in certain cases be rendered useless.

If the operating times for the product are shorter than normal between charges, this indicates that the battery is getting old and eventually needs replacing. The battery is fine as long as the product maintains a well-cut lawn.

Note: Battery life is dependent on the length of the season and how many hours a day the product is operating. A long season or many hours of use a day means that the battery must be replaced more regularly.

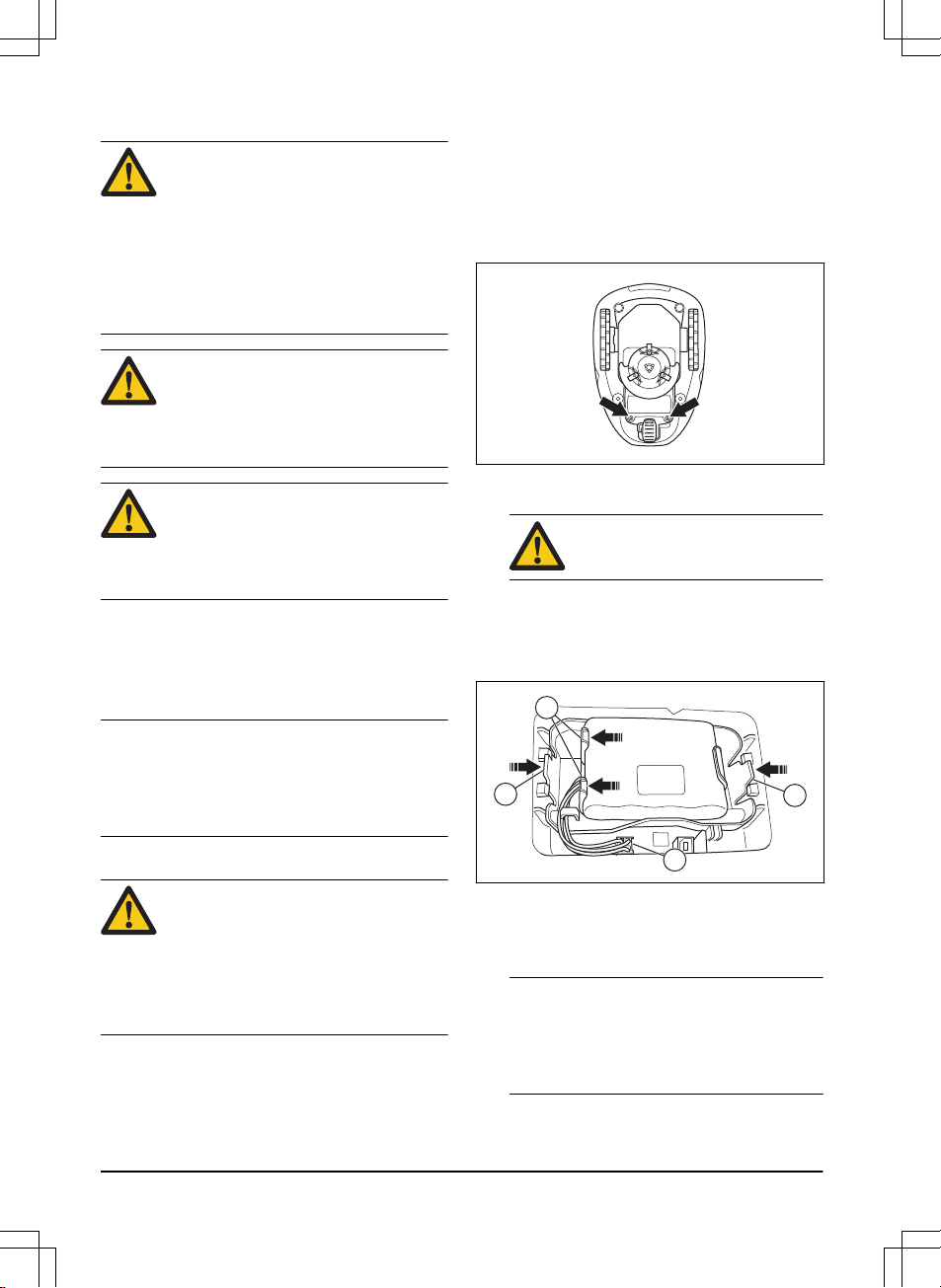

5.5.1 To replace the battery

WARNING: Use only original batteries

recommended by the manufacturer. Product safety cannot be guaranteed with other batteries. Do not use nonrechargeable batteries. The appliance must be disconnected from the supply mains when removing the battery.

1. Press the ON/OFF button for 3 seconds to turn off the product. Check that the indicator lamp on the keypad is not lit.

2. Set the cutting height to MIN (2).

Turn the product upside down. Place the product on a soft and clean surface to avoid scratching the body and the display cover.

4. Clean around the battery cover.

5. Unscrew the screws to the battery cover (Torx 20) and remove the battery cover.

6. Release the latch of the connector and pull it upwards.

CAUTION: Do not pull the cables.

7. Release the latch of the battery holder and lift up the battery holder (including the battery) from the product. If the new battery is encapsulated in a hard plastic shell, go to number 10.

side down

8. Release the latch of the battery and lift up the battery from the battery holder.

Place the new battery into the battery holder.

Note: The sticker "This side down" must be facing up when you place it into position. This means that "This side down" will be facing downwards when the product is standing on its wheels.

32 - Maintenance 985 - 004 - 22.01.2019

10. Place the battery holder (including the battery) or the new encapsulated battery into place in the product.

11.

Connect the cable

12. Fit the battery cover without clamping the cables. If the seal on the battery cover is visibly damaged, the entire battery cover must be replaced.

13. Carefully cross-tighten the 4 screws for the battery cover (Torx 20).

5.6 Winter service

Take your product to your local McCulloch representative for service prior to winter storage. Regular winter service will maintain the product in good condition and create the best conditions for a new season without any disruptions.

Service usually includes the following:

• Thorough cleaning of the body, the chassis, the blade disc and all other moving parts.

• Testing of the products’s function and components.

• Checking and, if required, replacing wear items such as blades and bearings.

• Testing the products’s battery capacity as well as a recommendation to replace battery if necessary.

• If new software is available, the product is updated.

985 - 004 - 22.01.2019 Maintenance - 33

6 Troubleshooting

6.1 Introduction - troubleshooting

In this chapter, faults and symptoms are described and can guide you if the product does not operate as expected. More suggestions for steps to take in the event of malfunction or symptoms can be found on www.mcculloch.com

- Troubleshooting 985 - 004 - 22.01.2019

6.2 Fault messages

Below a number of fault messages are listed which may be shown in the display of the product. Contact McCulloch

customer service if the same message appears often.

Message Cause Action

Wheel motor blocked, left

Grass or other object has wrapped around the drive wheel.

Check the drive wheel and remove the grass or other object.

Wheel motor blocked, right

Grass or other object has wrapped around the drive wheel.

Check the drive wheel and remove the grass or other object.

Cutting system blocked

Grass or other object has wrapped around the blade disc.

Check the drive wheel and remove the grass or other object.

The blade disc lies in a pool of water. Move the product and prevent the col-

lection of water in the work area.

No loop signal

The power supply is not connected. Check the wall socket connection and

whether an earth-fault breaker has tripped or not. Check that the low voltage cable is connected to the charging station.

The low voltage cable is damaged or not connected.

Check that the low voltage cable is not damaged. Check that it is also properly connected to the charging station and to the power supply.

The boundary wire is not connected to the charging station.

Check that the boundary wire connectors are fitted properly to the charging station. Replace connectors if damaged. Refer to

Boundary wire broken. Find out where the break is. Replace

the damaged section of the loop with a new loop wire and splice using an original coupler. Refer to

ECO mode

is activated and the product has attempted to start outside the charging station.

Place the product in the charging station and press the STOP button. Refer to

The boundary wire is crossed on its way to and from an island.

Check that the boundary wire is laid according to instructions, e.g. in the right direction around the island. Refer to

The connection between the product and the charging station has been broken.

Place the product in the charging station and generate a new loop signal.

Disturbances from metal objects (fences, reinforcement steel) or buried cables close by.

Try moving the boundary wire.

985 - 004 - 22.01.2019 Troubleshooting - 35

Message Cause Action

Trapped

The product has got caught in something.

Free the product and rectify the reason for it becoming trapped.

The product is stuck behind a number of obstacles.

Check if there are any obstacles which make it hard for the product to move on from this location.

Outside working area

The boundary wire connections to the charging station are crossed.

Check that the boundary wire is connected correctly.

The boundary wire is too close to the edge of the work area.

Check that the boundary wire has been laid according to the instructions. Refer to

To install the boundary wire on page

The work area slopes too much by the boundary loop.

The boundary wire is laid in the wrong direction around an island.

Disturbances from metal objects (fences, reinforcement steel) or buried cables close by.

Try moving the boundary wire.

The product finds it hard to distinguish the signal from another product installation close by.

Place the product in the charging station and generate a new loop signal.

Empty battery

The product cannot find the charging station.

Check that the charging station and the guide wire are installed in accordance with the instructions. Refer to

To install

the guide wire on page 18

The guide wire is broken or not connected.

Find out where the break is and rectify it.

The battery is spent. Replace the battery. Refer to

Battery

on page 32

The charging station’s antenna is defective.

Check if the indicator lamp in the charging station flashes red. Refer to

Indicator lamp in the charging station on page 40

Wrong PIN code

Wrong PIN code has been entered. Five attempts are permitted, and the keypad is then blocked for five minutes.

Enter the correct PIN code. Contact McCulloch customer service if you forget the PIN code.

36 - Troubleshooting 985 - 004 - 22.01.2019

Message Cause Action

No drive

The product has got caught in something.

Free the product and rectify the reason for the lack of drive. If it is due to wet grass, wait until the lawn has dried before using the product.

The work area includes a steep slope. Steep slopes should be isolated. Refer

To examine where to put the guide

wire on page 17

The guide wire is not laid at an angle on a slope.

If the guide wire is laid on a slope, it must be laid at an angle across the slope. Refer to

To install the guide wire

on page 18

Wheel motor overloaded, right

The product has got caught in something.

Free the product and rectify the reason for the lack of drive. If it is due to wet grass, wait until the lawn has dried before using the product.

Wheel motor overloaded, left

Charging station blocked

The contact between the charging strips and contact strips may be poor and the product has made a number of attempts to charge.

Put the product in the charging station and check that the charging strips and contact strips make good contact.

An object is obstructing the product. Remove the object.

The charging station is tilted or bent. Confirm that the charging station is

placed on a fully flat and horizontal ground. The charging station must not be tilted or bent.

Stuck in charging station

There is an object in the way of the product preventing it from leaving the charging station.

Remove the object.

Upside down

The product is leaning too much or has turned over.

Turn the product the right way up.

Needs manual charging

The product is set to the

Secondary

area

operating mode.

Place the product in the charging station. This behavior is normal and no action is required.

Next start hh:mm

The schedule setting prevents the product from operating.

Change the schedule settings. Refer to

To do the schedule settings on page 20

The rest period is in progress. The product has an inbuilt standby period according to the Standby time table.

This behavior is normal and no action is required.

The clock on the product is not correct. Set the time. Refer to

To set the time &

date on page 25

985 - 004 - 22.01.2019 Troubleshooting - 37

Message Cause Action

Today's mowing completed

The rest period is in progress. The product has an inbuilt standby period according to the Standby time table.

This behavior is normal and no action is required.

Lifted

The lift sensor has been activated as the product has become trapped.

Free the product.

Collision sensor problem, front/rear

Product body can not move freely around its chassis.

Check that the product body can move freely around its chassis.

If the problem remains, the message requires action by authorized service technician.

Wheel drive problem, right/left

Grass or other object is wrapped around the drive wheel.

Clean the wheels and around the wheels.

Safety function faulty

Temporary electronic or software related issue in the product.

Restart the product.

If the problem remains, the message requires action by authorized service technician.

Electronic problem

Loop sensor problem, front/rear

Charging system problem

Tilt sensor problem

Temporary problem

Temporary battery problem

Temporary battery or software related issue in the product.

Restart the product.

Disconnect and reconnect the battery.

If the problem remains, the message requires action by authorized service technician.

Battery problem

Charging current too high

Wrong or faulty power supply unit. Restart the product.

If the problem remains, the message requires action by authorized service technician.

Connectivity problem

Potential problem on the connectivity circuit board in the product.

Restart the product.

If the problem remains, the message requires action by authorized service technician.

Connectivity settings restored

The connectivity settings was restored due to a fault.

Please check and change the settings if needed.

38 - Troubleshooting 985 - 004 - 22.01.2019

Message Cause Action

Poor signal quality

The connectivity circuit board in the product is assembled upside down, or the product itself is tilted or upside down.

Verify the product is not upside down or tilted. If not, the message requires action by authorized service technician.

6.3 Information messages

Below a number of information messages are listed which may be shown in the display of the product. Contact

McCulloch customer service if the same message appears often.

Message Cause Action

Low battery

The product cannot find the charging station.

Check that the charging station and the guide wire are installed in accordance with the instructions. Refer to

To install

the guide wire on page 18

The guide wire is broken or not connected.

Find out where the break is and rectify it.

The battery is spent. Replace the battery. Refer to

Battery

on page 32

The charging station’s antenna is defective.

Check if the indicator lamp in the charging station flashes red. Refer to

Indicator lamp in the charging station on page 40

Settings restored

Confirmation that a

Reset all user set-

tings

has been carried out.

This is normal. No action required.

Guide not found

The guide wire is not connected to the charging station.

Check that the guide wire connector is tightly connected to the charging station. Refer to

To install the guide wire

on page 18

Break in the guide wire. Find out where the break is. Replace

the damaged section of the guide wire with a new loop wire and splice using an original coupler.

The guide wire is not connected to the boundary loop.

Check that the guide wire is connected correctly to the boundary loop. Refer to

To install the guide wire on page 18

Guide calibration failed

The product has failed to calibrate the guide wire.

Check that the guide wire is installed according to the instructions. Refer to

To examine where to put the guide wire on page 17

. Also, check that the minimum distance to the left of the guide wire is met. Refer to

To examine where

to put the guide wire on page 17

Guide calibration accomplished

The product has succeeded to calibrate the guide wire.

No action required.

985 - 004 - 22.01.2019 Troubleshooting - 39

6.4 Indicator lamp in the charging station

For a fully functional installation, the indicator lamp in the charging station must emit a solid or flashing green light. If something else appears, follow the troubleshooting guide below.

There is more help on

www.mcculloch.com. If you still need help, please contact McCulloch customer

service.

Light Cause Action

Solid green light

Good signals No action required

Green flashing light

The signals are good and

ECO mode

activated.

No action required. For more information on

ECO mode

. Refer to

ECO mode

on page 24

Blue flashing light

The boundary loop is not connected to the charging station.

Check that the boundary wire connectors are fitted properly to the charging station. Refer to

To install the guide

wire on page 18

Break in the boundary loop. Find out where the break is. Replace

the damaged section of the loop with a new loop wire and splice using an original coupler.

Yellow flashing light

The guide wire is not connected to the charging station.

Check that the guide wire connector is properly connected to the charging station. Refer to

To install the guide wire

on page 18

Break in the guide wire. Find out where the break is. Replace

the damaged section of the guide wire with a new loop wire and splice using an original coupler.

Red flashing light

Interruption in the charging station’s antenna.

Contact McCulloch customer service.

Solid red light

Fault in the circuit board or incorrect power supply in the charging station. The fault should be rectified by an authorized service technician.

Contact McCulloch customer service.

40 - Troubleshooting 985 - 004 - 22.01.2019

6.5 Symptoms

If your product does not work as expected, follow the symptoms guide below.

There is a FAQ (Frequently Asked Questions) on

www.mcculloch.com which provides more detailed answers to a number of standard questions. Contact McCulloch customer service if you still cannot find the reason for the fault.

Symptoms Cause Action

The product has difficulty docking.

The guide wire is not laid in a long straight line that is far enough out from the charging station.

Check that the charging station has been installed according to the instructions in

To install the charging station

on page 18

The guide wire is not inserted in the slot under the charging station.

It is absolutely critical for operation that the guide wire is perfectly straight and is in the correct position under the charging station. Therefore make sure that the guide wire is always in its slot in the charging station. Refer to

To in-

stall the guide wire on page 18

The charging station is on a slope. Place the charging station on a surface

that is entirely level. Refer to

To examine where to put the charging station on page 14

The product runs at the wrong time

The product clock needs to be set. Set the clock. Refer to

To set the time

& date on page 25

The start and stop times for mowing are incorrect.

Reset the start time and stop time settings for mowing. Refer to

To reset the

schedule setting on page 21

The product vibrates.

Damaged blades lead to imbalance in the cutting system.

Inspect the blades and screws and replace them if necessary. Refer to

To re-

place the blades on page 31

Too many blades in the same position lead to imbalance in the cutting system.

Check that only one blade is fitted at each screw.

Different versions (thickness) of McCulloch blades are used.

Check if the blades are of different versions.

The product runs, but the blade disc does not rotate.

The product searches for the charging station, or is driving to the starting point.

No action. The blade disc does not rotate when the product is searching for the charging station.

The product mows for shorter periods than usual between charges.

Grass or other foreign object blocks the blade disc.

Remove and clean the blade disc. Refer to

Clean the product on page 30

The battery is spent. Replace the battery. Refer to

Battery

on page 32

985 - 004 - 22.01.2019 Troubleshooting - 41

Symptoms Cause Action

Both the mowing and charging times are shorter than usual.

The battery is spent. Replace the battery. Refer to

Battery

on page 32

The product is parked for hours in the charging station.

The product has an inbuilt standby period according to the Standby time table. Refer to

Schedule and Standby on

page 27

No action.

The STOP button has been activated. Open the hatch, enter the PIN code

and confirm with the OK button. Press the

Start button and then close the

hatch.

Uneven mowing results.

The product works too few hours per day.

Increase the mowing time. Refer to

To calculate the schedule setting on page 21

The

How often?

setting is incorrect in

relation to the layout of the work area.

Check that the correct

How often?

val-

ue is selected.

Work area too large. Try limiting the work area or extending

the work time. Refer to

To set the

schedule on page 21

Dull blades. Replace all the blades. Refer to

To re-

place the blades on page 31

Long grass in relation to the set cutting height.

Increase the cutting height and then successively lower it.

Accumulation of grass by the blade disc or around the motor shaft.

Check that the blade disc rotates freely and easily. If not, screw off the blade disc and remove grass and foreign objects. Refer to

Clean the product on

page 30

6.6 Find breaks in the loop wire

Breaks in the loop wire are usually the result of unintentional physical damage to the wire such as when gardening with a shovel. In countries with ground frost, also sharp stones that move in the ground can damage the wire. Breaks can also occur due to the wire being stretched excessively during installation.

Mowing the grass too low right after the installation can damage wire insulation. Damage to the insulation may not cause disruptions until several weeks or months later. To avoid this,

always select the maximum cutting height the first weeks after installation and then lower the height one step at a time every second week until the desired cutting height has been reached.

A defective splicing of the loop wire can also lead to disruptions several weeks after the splice was done. A faulty splice can, for example, be the result of the original coupler not being pressed together hard enough with a pair of pliers, or that a coupler of lower quality than the original coupler has been used. Please first check all known splices before further troubleshooting is done.

42 - Troubleshooting 985 - 004 - 22.01.2019

The shape of the work area requires the use of find its way to all remote areas.

Area 1

for the product to

Use

Area 1

remote area. Refer to

to steer the product to a

To set the Lawn

Coverage function on page 23

A wire break can be located by gradually halving the distance of the loop where the break may have occurred until there is only a very short section of the wire left.

The following method does not work if

ECO

mode

is activated. Make sure first that

ECO

mode

is turned off. Refer to

ECO mode on page

1. Check that the indicator lamp in the charging station flashes blue, which indicates a break in the boundary loop. Refer to

Indicator lamp

in the charging station on page 40

2. Check that the boundary wire connections to the charging station are properly connected and not damaged. Check that the indicator lamp in the charging station is still flashing blue.

GUIDE

POWER

3. Switch the connections between the guide wire and the boundary wire in the charging station.

Start by switching connection

L and GUIDE.

If the indicator lamp is lit with a solid green light, then the break is somewhere on the boundary wire between L and the point where the guide wire is connected to the

boundary wire (thick black line in the illustration).

GUIDE

Guide

To rectify the fault you will need boundary wire, connector(s) and coupler(s):

a) If the suspected boundary wire is short then it is easiest to exchange all of the boundary wire between

L and the point where the guide wire is connected to the boundary wire (thick black line).

b) If the suspected boundary wire is long (thick black line) then do as follows: Put L and GUIDE back to their original positions. Then disconnect R. Connect a new loop wire to R. Connect the other end of this new loop wire at the middle of the suspected wire section.

985 - 004 - 22.01.2019 Troubleshooting - 43

If the indicator lamp now is green, then the break is somewhere in the wire between the disconnected end to the point where the new wire is connected (thick black line below). In that case, move the connection for the new wire closer to the disconnected end (roughly at the middle of the suspected wire section) and check again if the indicator lamp is green.

Continue until only a very short section of the wire remains which is the difference between a solid green light and a flashing blue light. Then follow instruction in step 5 below.

If indicator lamp still flashes blue in step 3 above: Put L and GUIDE back in their original positions. Then switch R and GUIDE. If indicator lamp now is lit with a solid green light then disconnect L and connect a new boundary wire to L. Connect the other end of this new wire at the middle of the suspected wire section. Follow the same approach as in 3a) and 3b) above.

5. When the break is found, the damaged section must be replaced with a new wire. Always use original couplers.

44 - Troubleshooting 985 - 004 - 22.01.2019

7 Transportation, storage and disposal

7.1 Transportation

The supplied Li-ion batteries obey the Dangerous Goods Legislation requirements.

•

Obey all applicable national regulations.

• Obey the special requirement on package and labels for commercial transportations, including by third parties and forwarding agents.

7.2 Storage

• Fully charge the product. Refer to

To charge

the battery on page 28

• Disconnect the product with the ON/OFF button. Refer to

The ON/OFF button on

page 26

• Clean the product. Refer to

Clean the

product on page 30

• Keep the product in a dry, frost free space.

• Keep the product with all wheels on level ground during storage, or use a McCulloch wall hanger.

• If you keep the charging station indoors, disconnect and remove the power supply and all the connectors from the charging station. Put the end of each connector wire in a container with grease.

Note: If you keep the charging station outdoors, do not disconnect the power supply and the connectors.

7.3 Disposal

•

Obey the local recycling requirements and applicable regulations.

• For questions about how to remove the battery, refer to

To replace the battery on

page 32

985 - 004 - 22.01.2019 Transportation, storage and

disposal

- 45

8 Technical data

8.1 Technical data

Data ROB S400

ROB S500

ROB S600

Dimensions

Length, cm 55

Width, cm 38

Height, cm 23

Weight, kg 7.3

Electrical system ROB S400

ROB S500

ROB S600

Battery, Lithium-Ion 18 V/2.1 Ah Art.No 584 85 28-01, 584 85 28-02

Battery, Lithium-Ion 18 V/2.0 Ah Art.No 590 21 42-02

Battery, Lithium-Ion 18.25 V/2.0 Ah Art.No 590 21 42-03

Power supply, V/28 V DC 100-240

Low voltage cable length, m 5

Mean energy consumption at maximum use 5 kWh/month in a 500 m2 work area

Charge current, A DC 1.3

Average mowing time, min 65

Average charging time, min 60

Boundary wire antenna ROB S400

ROB S500

ROB S600

Operating Frequency Band, Hz 300-80000

Maximum Radio-frequency power, mW @60m 1<25

Maximum active output power to antennas in the frequency band in which the radio equipment operates.

46 - Technical data 985 - 004 - 22.01.2019

Noise emissions measured in the environment as sound power

ROB S400

ROB S500

ROB S600

Measured sound power noise level, dB (A) 56

Noise emissions uncertainties KWA, dB (A) 2

Guaranteed sound power noise level, dB (A) 57

Sound pressure noise level at the operator’s ear, dB (A)

The noise emission declarations conforms to EN 50636-2-107:2015

Mowing ROB S400

ROB S500

ROB S600

Cutting system 3 pivoted cutting blades

Blade motor speed, rpm 2500

Power consumption during cutting, W +/- 20 % 20

Cutting height, cm 2-5

Cutting width, cm 16

Narrowest possible passage, cm 60

Maximum slope for cutting area, % 35

Maximum slope for boundary wire, % 10

Maximum length boundary wire, m 300

Maximum length guide loop, m 150

IP-classification ROB S400

ROB S500

ROB S600

Product IPX5

Charging station IPX5

Power supply IPX4

Noise emissions in the environment measured as sound power (LWA) in conformity with EC directive 2000/14/EC. The guaranteed sound power level includes variation in production as well as variation from the test code with 1-3 dB(A).

Sound pressure noise uncertainties KpA, 2-4 dB (A)

985 - 004 - 22.01.2019 Technical data - 47

Bluetooth

ROB S400

ROB S500

ROB S600

Operating frequency band, MHz 2400 - 2484

Maximum transmitted power, dBm 8

Husqvarna AB does not guarantee full compatibility between the product and other types of wireless systems such as remote controls, radio transmitters, hearing loops, underground electric animal fencing or similar.

The products are made in England or the Czech Republic. See information on the rating plate. Refer to

Introduction on page 3

48 - Technical data 985 - 004 - 22.01.2019

9 Warranty

9.1 Guarantee terms

McCulloch

guarantees this product’s functionality for a period of two years (from date of purchase). The guarantee covers serious faults relating to materials or manufacturing faults. Within the guarantee period, we will replace the product or repair it at no charge if the following terms are met:

• The product and the charging station may

only be used in compliance with the instructions in this Operator’s Manual. This manufacturer's warranty does not affect warranty entitlements against the dealer/ retailer.

• End-users or non-authorized third parties

must not attempt to repair the product.

Examples of faults which are not included in the guarantee:

• Damage caused by water seepage from

using a high-pressure washer, or from being submerged under water, for example when heavy rain forms pools of water.

• Damage caused by lightning.

• Damage caused by improper battery storage

or battery handling.

• Damage caused by using a battery that is

not a McCulloch original battery.

• Damage caused by not using McCulloch

original spare parts and accessories, such as blades and installation material.

• Damage to the loop wire.

• Damage caused by non-authorized

changing or tampering with the product or its power supply.

The blades and wheels are seen as disposable and are not covered by the guarantee.

If an error occurs with your McCulloch product, please contact McCulloch customer service for further instructions. Please have the receipt and the products’s serial number at hand when contacting McCulloch customer service.

985 - 004 - 22.01.2019 Warranty - 49

10 Applicable to US/CA market

10.1 Supplier's Declaration of Conformity

Issuer: Husqvarna AB, Drottninggatan 2, S-561 82 Huskvarna, Sweden www.husqvarnagroup.com

Responsible party: Husqvarna Professional Products, Inc. 9335 Harris Corners Parkway Suite 500 Charlotte, NC 28269 United States U.S. Contact information: James McNew, Manager Product Compliance, Telephone: +1 704 597 5000.

10.2 Compliance requirements

FCC ID: ZASHQ-BLE-1A (the module).

The module is located on the HMIboard (PCBA) in the upper chassis. It must only be accessed by an authorized service technician.

The device complies with part 15 of the FCC Rules. Operation is subjected to the following 2 conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

WARNING: To comply with RF exposure requirements, please maintain a separation distance of at least 20 cm/ 7 inches from any part of the product.

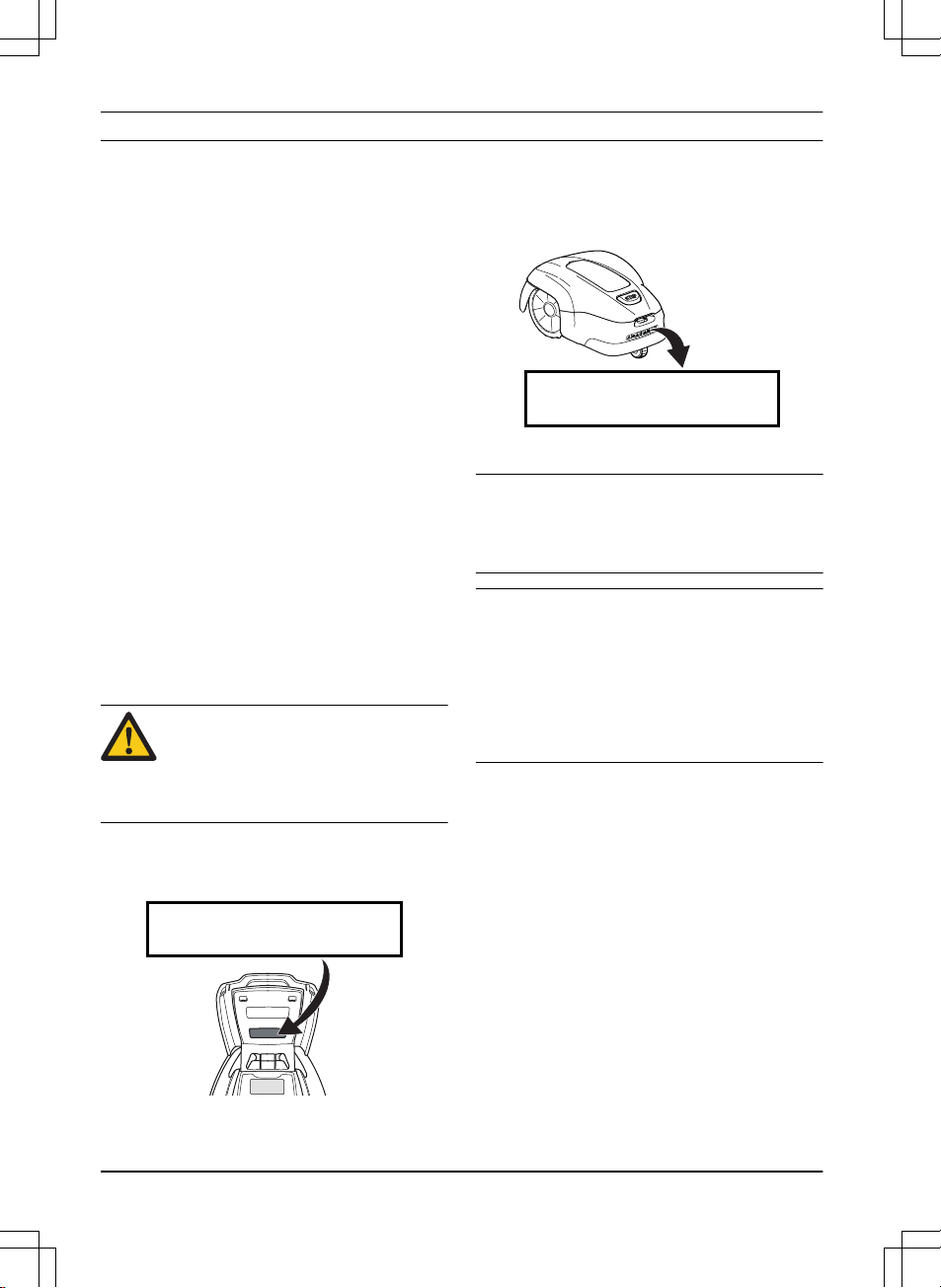

Models with a hatch: The supplied label shall be attached to the product according to figure below.

This device contains the module F

CC ID: XXX1YYYY2ZZZ

Models without a hatch: The supplied label shall be attached to the product according to figure below

This device contains the module F

CC ID: XXX1YYYY2ZZZ

Note: Changes or modifications made to this equipment not expressly approved by Husqvarna may void the FCC authorization to operate this equipment.

Note: This device complies with Part 15 of the FCC Rules [and with Industry Canada licenceexempt RSS standard(s)]. Operation is subject to the following two conditions: this device may not cause harmful interference, and this device must accept any interference received, including interference that may cause undesired operation.

50 - Applicable to US/CA market 985 - 004 - 22.01.2019

Note: This equipment has been tested and found

to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

•

Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

985 - 004 - 22.01.2019 Applicable to US/CA market -

McCulloch and other product and feature names are trademarks of the Husqvarna Group.

All measurements quoted are approximate.

www.mcculloch.com

Original instructions

2019-01-23

1140737-95

McCulloch ROB S600, ROB S400 User manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Lawn Coverage

ECO mode

General

2nd area

Power Cut

Spot cut

Home & Stay

Home & Wait

Press the STOP button.

Symptoms Cause Action

disposal
