MAZDA MIATA 1990-97
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
220
madpl1_g01_

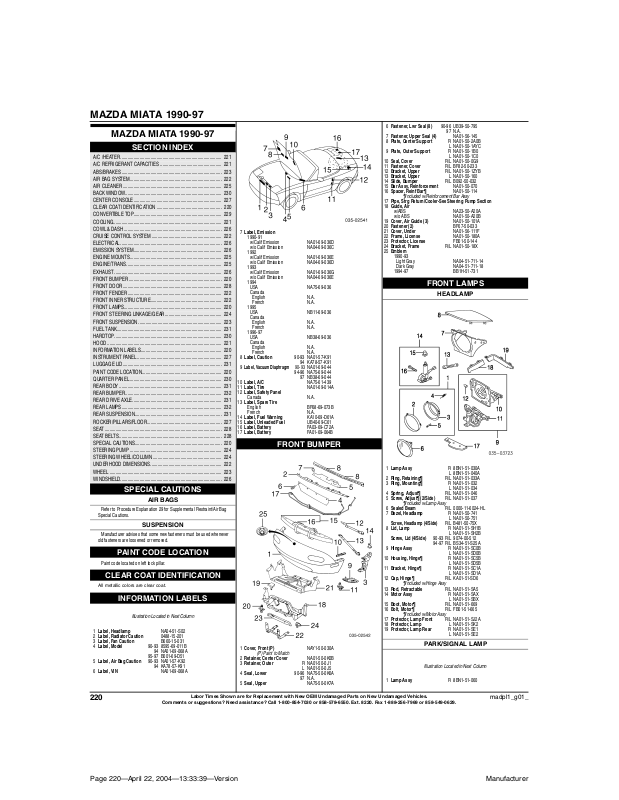

Page 220—April 22, 2004—13:33:39—Version Manufacturer
MAZDA MIATA 1990-97
SPECIAL CAUTIONS
AIR BAGS
Refer to Procedure Explanation 29 for Supplemental Restraint/Air Bag
Special Cautions.
SUSPENSION
Manufacturer advises that some new fasteners must be used whenever
old fasteners are loosened or removed.
PAINT CODE LOCATION
Paint code located on left lock pillar.
CLEAR COAT IDENTIFICATION
All metallic colors are clear coat.
INFORMATION LABELS
Illustration Located in Next Column
1
Label, Headlamp
NA04-51-S02
2
Label, Radiator Caution
0488-15-201
3
Label, Fan Caution
B660-15-031
4
Label, Model
90-93 8595-69-011B
94 NA01-69-068A
95-97 B001-69-D51
5
Label, Air Bag Caution
90-93 NA01-57-K92
94 KA78-57-K91
6
Label, VIN
NA01-69-068A
7
Label, Emission
1990-91
w/Calif Emission NA01-69-036D
w/o Calif Emission NA04-69-036C
1992
w/Calif Emission NA01-69-036E
w/o Calif Emission NA04-69-036D
1993
w/Calif Emission NA01-69-036G
w/o Calif Emission NA04-69-036E
1994
USA NA75-69-036
Canada
English N.A.
French N.A.
1995
USA NB11-69-036
Canada
English N.A.
French N.A.
1996-97
USA NB38-69-036
Canada
English N.A.
French N.A.
8
Label, Caution
90-93 NA01-57-K91
94 KA78-57-K91
9
Label, Vacuum Diaphragm
90-93
NA01-69-044
94-96 NA75-69-044
97 NB38-69-044
10
Label, A/C
NA75-61-439
11
Label, Tire
NA01-69-014A
12
Label, Safety Panel
Canada N.A.
13
Label, Spare Tire
English BF68-69-073B
French N.A.
14
Label, Fuel Warning
KA10-69-D61A
15
Label, Unleaded Fuel
UB40-69-C61
16
Label, Battery
FA03-69-C72A
17
Label, Battery
FA01-69-064B
FRONT BUMPER
1
Cover, Front (P)
NAY1-50-030A
(P) Paint to Match
2
Retainer, Center Cover
NA01-50-0K0B
3
Retainer, Outer
R NA01-50-0J1
L NA01-50-0J5
4
Seal, Lower
90-96 NA75-50-0K6A
97 N.A.
5
Seal, Upper
NA75-50-0K7A
6
Fastener, Lwr Seal (8)
90-96 UB39-50-795
97 N.A.
7
Fastener, Upper Seal (4)
NA01-56-145
8
Plate, Center Support
R NA01-50-2A0B
L NA01-50-1AYC
9
Plate, Outer Support
R NA01-50-1B0
L NA01-50-1C0
10
Seal, Cover
R/L NA01-50-0G9
11
Fastener, Cover
R/L BF82-50-233
12
Bracket, Upper
R/L NA01-50-1ZYB
13
Bracket, Upper
L NA01-50-160
14
Slide, Bumper
R/L B092-50-032
15
Bar Assy, Reinforcement
NA01-50-070
16
Spacer, Reinf Bar¶
NA01-50-114
¶Included w/Reinforcement Bar Assy
17
Pipe, Strg Return/Cooler-See Steering Pump Section
18
Guide, Air
w/ABS NA23-50-A20A
w/o ABS NA01-50-A20B
19
Cover, Air Guide (3)
NA01-50-101A
20
Fastener (2)
BF67-50-033
21
Cover, Under
NA01-56-111F
22
Frame, License
NA01-50-180A
23
Protector, License
FB01-50-144
24
Bracket, Frame
R/L NA01-50-18X
25
Emblem
1990-93
Light Gray NA04-51-711-14
Dark Gray NA04-51-711-18
1994-97 BB1H-51-731
FRONT LAMPS
HEADLAMP
1
Lamp Assy
R 8BN1-51-030A
L 8BN1-51-040A
2
Ring, Retaining¶
R/L NA01-51-033A
3
Ring, Mounting¶
R NA01-51-032
L NA01-51-034
4
Spring, Adjust¶
R/L NA01-51-046
5
Screw, Adjust¶ (2/Side)
R/L NA01-51-037
¶Included w/Lamp Assy
6
Sealed Beam
R/L 0000-11-6024-HL
7
Bezel, Headlamp
R NA01-50-741
L NA01-50-751
Screw, Headlamp (4/Side)
R/L B481-50-75X
8
Lid, Lamp
R NA01-51-SH1B
L NA01-51-SH2B
Screw, Lid (4/Side)
90-93 R/L 9074-00-512
94-97 R/L BS34-51-S25A
9
Hinge Assy
R NA01-51-SC0B
L NA01-51-SD0B
10
Housing, Hinge¶
R NA01-51-SC5B
L NA01-51-SD5B
11
Bracket, Hinge¶
R NA01-51-SC1A
L NA01-51-SD1A
12
Cap, Hinge¶
R/L KA01-51-SD6
¶Included w/Hinge Assy
13
Rod, Retractable
R/L NA01-51-SA5
14
Motor Assy
R NA01-51-SAX
L NA01-51-SBX
15
Boot, Motor¶
R/L NA01-51-669
16
Bolt, Motor¶
R/L FB01-51-665
¶Included w/Motor Assy
17
Protector, Lamp Front
R/L NA01-51-SJ2A
18
Protector, Lamp
L NA01-51-SK2
19
Protector, Lamp Rear
R NA01-51-SE1
L NA01-51-SE2
PARK/SIGNAL LAMP
Illustration Located in Next Column
1
Lamp Assy
R 8BN1-51-060
SECTION INDEX
A/C /HEATER .................................................................................... 221
A/C REFRIGERANT CAPACITIES ................................................... 221
ABS/BRAKES ................................................................................... 223
AIR BAG SYSTEM............................................................................ 222
AIR CLEANER .................................................................................. 225
BACK WINDOW................................................................................ 230
CENTER CONSOLE......................................................................... 227
CLEAR COAT IDENTIFICATION ...................................................... 220
CONVERTIBLE TOP......................................................................... 229
COOLING.......................................................................................... 221
COWL & DASH................................................................................. 226
CRUISE CONTROL SYSTEM .......................................................... 222
ELECTRICAL.................................................................................... 226
EMISSION SYSTEM......................................................................... 226
ENGINE MOUNTS............................................................................ 225
ENGINE/TRANS ............................................................................... 225
EXHAUST ......................................................................................... 226
FRONT BUMPER ............................................................................. 220
FRONT DOOR.................................................................................. 228
FRONT FENDER.............................................................................. 222
FRONT INNER STRUCTURE........................................................... 222
FRONT LAMPS................................................................................. 220
FRONT STEERING LINKAGE/GEAR............................................... 224
FRONT SUSPENSION ..................................................................... 223
FUEL TANK....................................................................................... 231
HARDTOP......................................................................................... 230
HOOD ............................................................................................... 221
INFORMATION LABELS................................................................... 220
INSTRUMENT PANEL ...................................................................... 227
LUGGAGE LID.................................................................................. 231
PAINT CODE LOCATION.................................................................. 220
QUARTER PANEL ............................................................................ 230
REAR BODY..................................................................................... 231
REAR BUMPER................................................................................ 232
REAR DRIVE AXLE.......................................................................... 231
REAR LAMPS................................................................................... 232
REAR SUSPENSION........................................................................ 231
ROCKER/PILLARS/FLOOR.............................................................. 227
SEAT ................................................................................................. 228
SEAT BELTS ..................................................................................... 228
SPECIAL CAUTIONS........................................................................ 220
STEERING PUMP ............................................................................ 224
STEERING WHEEL/COLUMN ......................................................... 224
UNDERHOOD DIMENSIONS........................................................... 222
WHEEL ............................................................................................. 223
WINDSHIELD.................................................................................... 226
MAZDA MIATA 1990-97
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
221
madpl1_g01_
Page 221—April 22, 2004—13:33:41—Version Manufacturer
L 8BN1-51-070
2
Lens & Housing Assy¶
R NA01-51-06XA
L NA01-51-07XA
3
Tube, Lamp¶ (a)
R/L NA01-51-069
(a) Included w/Lens & Housing Assy
4
Socket¶
R/L NA01-51-064
5
Wire¶
USA-Serviced w/Socket
Canada R/L N.A.
6
Bulb¶
R/L 0000-11-0194
¶Included w/Lamp Assy
SIDE MARKER LAMP
1
Lamp Assy
R 8BN1-51-120
L 8BN1-51-130
2
Lens & Body Assy¶
90 R NA01-51-5E1C
L NA01-51-5F1C
91-97 R NA01-51-5EXA
L NA01-51-5FXA
3
Gasket, Lens¶ (a)
R/L NA01-51-5D3A
(a) Included w/Lens & Body Assy
4
Socket¶
R/L NA01-51-5E2
5
Bulb¶
R/L 0000-11-1157-NA
¶Included w/Lamp Assy

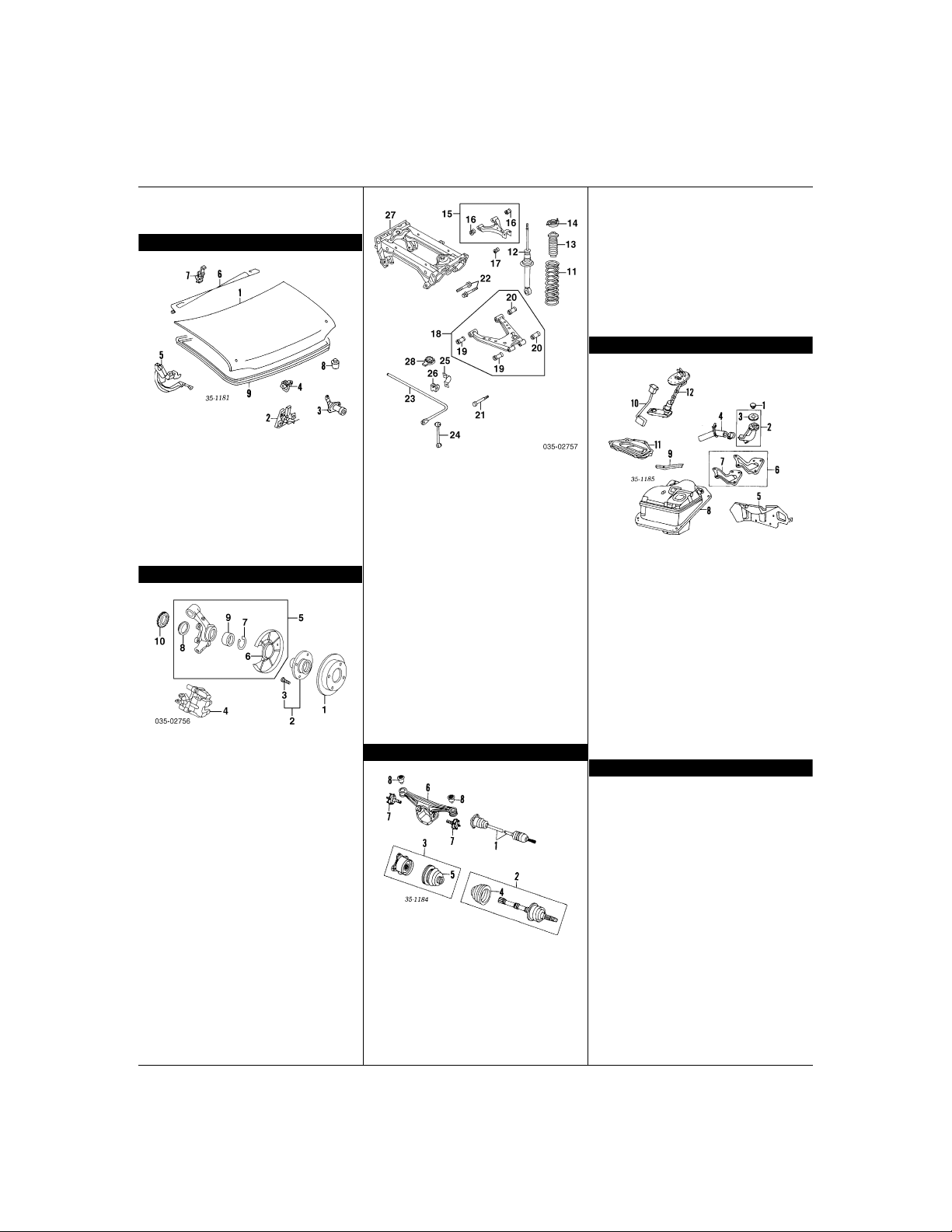

HOOD
1
Panel, Hood
NAY1-52-310D
2
Cushion, Front Rubber
R/L FB01-56-787B
3
Cushion, Center Rubber
R/L FB01-56-786A
4
Cushion, Rear Rubber
R/L NA01-56-78X
5
Hinge
R NA01-52-410D
L NA01-52-420D
6
Latch
NA01-56-620C
7
Rod, Support
90-93 NA01-56-650
94-97 NA75-56-650A
8
Holder, Rod Front
G030-56-693A
9
Holder, Rod Rear
B092-52-518
10
Cable, Release
NA01-56-720D
11
Fastener, Cable
LA01-56-631
12
Holder, Cable
H115-45-916A
13
Clip, Cable
G030-67-519
14
Seal, Cowl
NA01-56-760
COOLING
Illustration Located in Next Column
1
Radiator Assy
Man Trans 90-93 BPE8-15-200
94-97 BPE8-15-200
Auto Trans 90-93 B64J-15-200C
94-97 BPE9-15-200
2
Cap, Radiator¶
D316-15-205
3
Cock, Drain¶
NF01-15-203
4
Mount, Rad Upper¶
R/L N326-15-202
5
Mount, Rad Lower¶
R/L B61P-15-202
¶Included w/Radiator Assy
6
Fan, Cooling
Man Trans 90-91 B61P-15-140
92-97 B61P-15-140A
Auto Trans 90-91 B6S8-15-140A
92-97 B64J-15-140
7
Shroud, Fan
B61P-15-210B
8
Motor, Fan
Man Trans BPE8-15-150
Auto Trans B64J-15-150A
9
Pump Set, Water
90-94 8AB8-15-010
95-97 8ABB-15-010A
10
Gasket, Pump¶
90-93 B6BF-15-116
94-97 B6BF-15-116
¶Included w/Water Pump Set
11
Pulley, Pump
90-93 B366-15-131A
94-97 B3C7-15-131
12
Hose, Rad Upper
90-93 B61P-15-186
94-97 BPE8-15-186
13
Hose, Frt Lower Rad
90-93 B61P-15-185
94-97 B61P-15-185
14
Hose, Rear Lower Rad
B61P-15-184
15
Pipe, Lower Rad
B61P-15-190
16
Tank Assy, Coolant
B61P-15-350D
17
Cap, Tank¶
B61P-15-355A
¶Included w/Coolant Tank Assy
A/C REFRIGERANT CAPACITIES
A/C R-12 Refrigerant Capacity
1990-93: 28 Ozs (1.75 Lbs)
A/C R-134 Refrigerant Capacity
1994-97: 21.2 Ozs (1.32 Lbs)
A/C /HEATER
1
Condenser
NA75-61-480
2
Receiver/Drier
90-93 NA01-61-500A
94-97 NA75-61-500
3
Pipe, Receiver/Drier
NA75-61-467
4
Compressor Assy
90-93 NA02-61-450A
94-97 NA75-61-450
5
Compressor¶
90-93 NA02-61-K00
94-97 NA75-61-K00
6
Clutch Assy, Magnet¶
90-93 NA02-61-L10
94-97 NA75-61-L10
7
Armature, Clutch¶ (a)
90-93 F065-61-611
94-97 NA75-61-L11
8
Pulley, Clutch¶ (a)
90-93 NA02-61-L12
94-97 NA75-61-L12
9
Coil, Magnet¶ (a)
90-93 FD15-61-L13
94-97 NA75-61-113
¶Included w/Compressor Assy
(a) Included w/Magnet Clutch Assy
10
Hose, Suction
90-93 NA01-61-461C
94-97 NA75-61-461
11
Hose, Pressure
90-93 NA01-61-462D
94-97 NA75-61-462
12
Tube Assy, Upper A/C
90-93 NA01-61-46X
94-97 NA75-61-46XA
13
Switch, Pressure¶
90-93 NA01-61-503
94-97 GB6H-61-503
¶Included w/Upper A/C Tube Assy
14
Tube, Lower A/C
90-93 NA01-61-468A
94-97 NA75-61-468
15
Pipe, Condenser Pressure
1990-93 NA02-61-466C
1994-97-Serviced w/Pressure Hose
16
Fan, Condenser
NA01-61-710
17
Bracket, Mounting
NA01-61-4H1
18
Evaporator Assy
90-93 NA75-61-520D
94-97 NA75-61-520D
19
Case, Evap Upper¶
90-93 NA01-61-J20
94-97 NA01-61-J01A
20
Case, Evap Lower¶
NC10-61-J02
21
Core, Evaporator¶
NA75-61-520D
22
Valve, Expansion¶
90-93 NA01-61-J14
94-97 NA75-61-J14
23
Pipe, Valve¶
NA01-61-J15
¶Included w/Evaporator Assy
24
Heater Assy
90-93 NA01-61-130A
94-97 NC10-61-130F
25
Case, Heater¶
R/L NA01-61-A01-2
26
Core, Heater¶
90-93 NA01-61-A10
94-97 NA75-61-A10
27
Linkage, Heater Air Flow¶
NA01-61-A30A
28
Linkage, Heater Temperature¶
NA01-61-A20
¶Included w/Heater Assy
29
Blower Assy
90-93 NA01-61-140A
94-97 NC11-61-140A
30
Case, Upper¶
90-93 NA01-61-B01
94-97 NA75-61-B01
31
Case, Lower¶
NA01-61-B02
32
Motor, Blower¶
NA01-61-B10
MAZDA MIATA 1990-97
Labor Times Shown are for Replacement with New OEM Undamaged Parts on New Undamaged Vehicles.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
222
madpl1_g01_
Page 222—April 22, 2004—13:33:43—Version Manufacturer
A/C /HEATER Cont’d
33
Flap, Vent¶-Serviced w/Blower Assy
34
Resistor¶
NA01-61-B15
¶Included w/Blower Assy
FRONT FENDER
1
Fender (HSLA)
R NAY1-52-110
L NAY1-52-210
2
Liner, Fender
R NA01-56-131A
L NA01-56-141C
3
Fastener, Liner (5/Side)
R/L NA01-56-145
4
Clip, Liner Screw
(5/Side) R/L LA01-56-135
UNDERHOOD DIMENSIONS

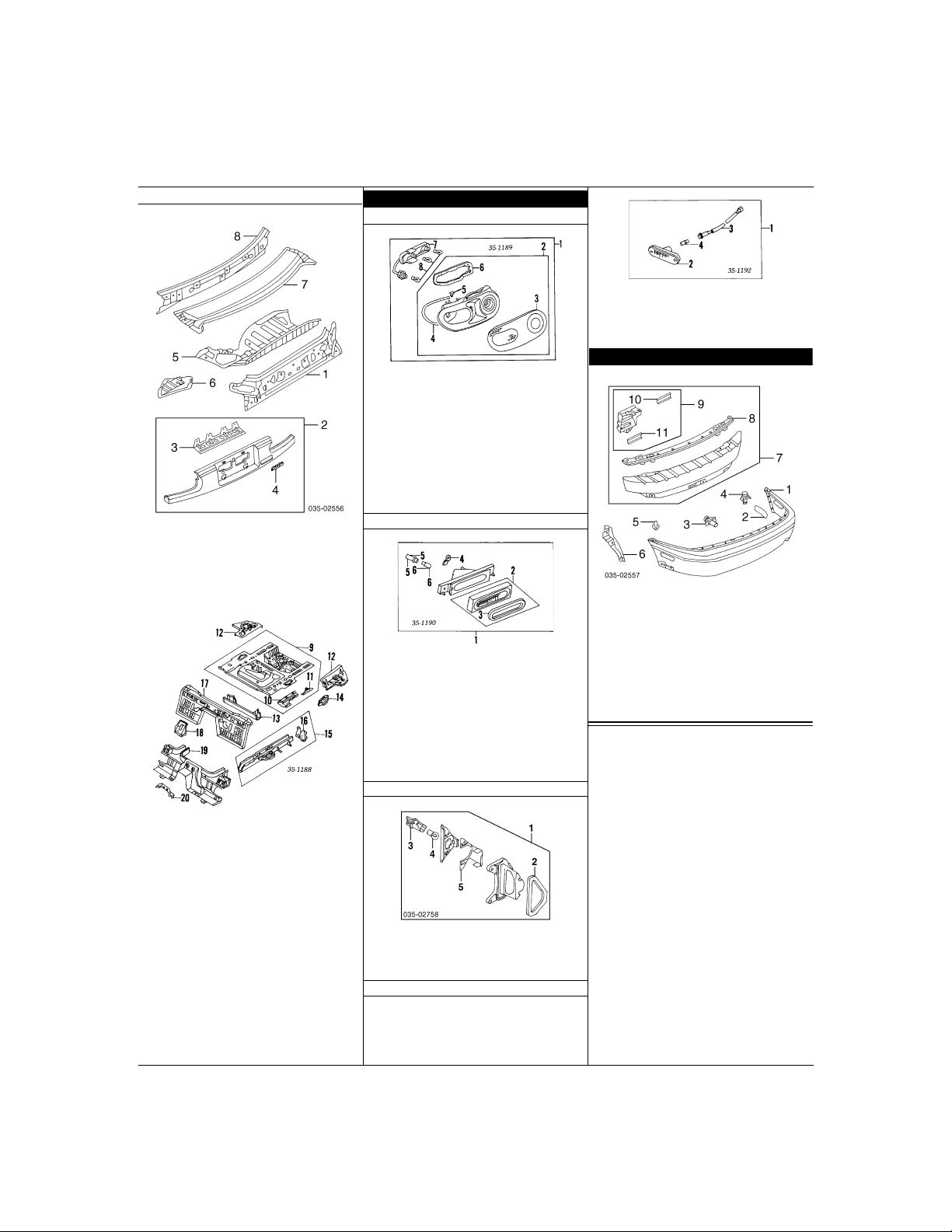

FRONT INNER STRUCTURE
FRONT
Illustration Located in Next Column
1
Bar, Upper Tie
90-93 NA01-53-100F
94-97 NA75-53-100
2
Bar, Lower Tie
NA01-53-16XC
3
Support, Latch
NA01-56-221B
4
Bracket, Radiator
R B61P-15-240A
L B61P-15-250A
5
Bracket, Stay
R/L NA01-54-180
SIDE
1
Apron Assy (a)
90-93 R NAY1-53-200D
L NAY1-54-200D
94-97 R NAY1-53-200D
L NAY2-54-200
2
Panel, Apron¶ (a)
R NA01-53-210F
L NA01-54-210G
(a) Use w/Part #B001-56-051
Cover¶ (b)
B001-56-051
(b) As Required
3
Rail, Upper Front¶
R NA01-53-37Y
L NA01-54-37Y
4
Rail, Upper Rear¶
90-96 R NA01-53-37ZB
L NA01-54-37ZA
97 R NA01-53-37ZB
L NA01-54-37ZD
5
Reinforcement¶
R NA01-53-380
L NA01-54-380B
6
Bracket, Air Cleaner¶
Left Side NA01-54-36X
7
Box, Torque¶
R NA01-53-391
L NA01-54-391
8
Bracket, Stabilizer¶
R N067-53-330
L N067-54-330
9
Reinf, Tie Down Hook¶
R NA01-53-32XB
L NA01-54-32XC
¶Included w/Apron Assy
10
Hook, Tie-Down
R NA01-56-34XD
L NA01-56-34YD
11
Reinf, Apron
R NA01-53-591
L NA01-54-590
12
Shield, Splash
NA01-56-112
ELECTRICAL COMPONENTS
1
Block Assy, Main Fuse
90 NA01-66-760B
91-93 NA23-66-760
94 NA80-66-760
95-97 NB11-66-760
2
Cover, Fuse Block¶
90 NA02-66-762B
91-93 NA23-66-762
94 NA80-66-762
95-97 NB11-66-762
¶Included w/Main Fuse Block Assy
CRUISE CONTROL SYSTEM
1
Actuator, Cruise Control
LA01-66-310A
2
Brkt, Actuator Front
NA01-66-3A3A
3
Brkt, Actuator Rear
NA01-66-3A2A
4
Wire, Cruise Control
NA01-66-311A
Clip, Cruise Control Wire
5 Front LA01-66-3A1
6 Rear UB39-61-479A
7
Control, Cruise
NA01-66-320
AIR BAG SYSTEM
1990-94
1
Sensor, Outer
R NA01-57-K2XK
L NA01-57-K2YK
2
Sensor, Center
90-93 NA01-57-K10H
94 NA75-57-K1XA
3
Cover, Outer Sensor
R NA01-57-K45B
L NA01-57-K46B
4
Cover, Center Sensor
NA01-57-K47C
Cover, Outer Sensor
5 Right NA01-56-191A
6 Left
w/o ABS NA01-56-181A
7
Sensor, Inner Air Bag
NA01-57-K40D
Illustration Located in Next Column
8
Module, Driver Air Bag
NA01-57-K00E-00
9
Module, Pass Air Bag
94 NAY5-57-K7X-00
10
Control Unit, Diagnosis
1990-93 NA01-67-7F0A
1994 GA2A-67-7F0A
11
Bracket, Control Unit
R NA05-67-9A1B
L NA06-67-9A1B
12
Power Unit, Back-Up
90-93 NA01-67-7G0A
Clockspring¶-See Steering Wheel/Column Section
¶Serviced w/Combination Switch
MAZDA MIATA 1990-97
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
223
madpl1_g01_
Page 223—April 22, 2004—13:33:45—Version Manufacturer
1995-97
1
Sensor Assy, Air Bag¶
N034-57-K30B
¶Add'l Parts &/or Dealer Contact Required
2
Sensor, Air Bag¶
N034-57-K30B
3
Bracket, Sensor¶
N034-57-KX0A
¶Included w/Air Bag Sensor Assy
4
Module, Driver Air Bag
NB11-57-K00-00
5
Module, Passenger Air Bag
NB29-57-K7X-00
6
Clockspring¶ (a)
1997 NB17-66-CS0A
¶1995-96-Serviced w/Combination Switch Assy-See Steering
Wheel/Column Section
(a) Included w/Combination Switch Assy
ABS/BRAKES
Illustration Located in Next Column
1
Hydraulic Unit, ABS
90-94 NA23-43-7A0C
95 NA13-43-7A0A
96-97 NA13-43-7A0B
2
Brkt, Hydraulic Unit
90-94 NA23-43-310B
95-97 NB13-43-310A
3
Bracket, Upper
95-97 NB13-43-321A
4
Control Unit, ABS¶
90-94 NA17-67-650A
95-97 N036-67-650
5
Bracket, ABS Control Unit
1990-94¶-Serviced w/ABS Control Unit
1995-97 NB13-67-B4X
¶Included w/ABS Control Unit
6
Sensor, ABS Front
R NA23-43-70XE
L NA23-43-73XE
7
Sensor, ABS Rear
R NA23-43-71YB
L NA23-43-72YB
WHEEL
STEEL WHEEL
1
Wheel
14x5-1/2JJ" 9965-B9-5540
2
Cap Assy, Center
90-93 B455-37-190
94-96 NA53-37-190
97 B455-37-191
3
Emblem¶
90-92 B001-37-192
93-96 GA7C-37-192
97 N.A.
¶Included w/Center Cap Assy
4
Stem, Valve
9963-60-4130
5
Nut, Lug
w/Chrome B002-37-160A
w/o Chrome 0603-26-161A
ALUMINUM WHEEL
Wheel
1 14x5-1/2" (7 Spoke) 90-91 8BN1-37-600
93 8BN5-37-600
2 14x6" BBS 92-93 8BN4-37-600
94 9965-09-6040
95-97 9965-C3-6050
3 14x6" 7 Spoke
Silver 94-97 9965-13-6040
Polished 94-97 9965-19-6040
4 15x6" 5 Spoke 95-97 9965-E8-6050
5
Cap, Center
14x5-1/2" (7 Spoke) 90-92 NA01-37-190A
93 NA52-37-190A
Cap, Center (BBS Wheel)
6 Cap Set M011-37-190
7 Emblem¶ M011-37-192
¶Included w/Cap Set
8
Cap, Center (Spoke Wheels)
EA02-37-192
9
Stem, Valve
9963-60-4130
10
Nut, Lug
w/Chrome B002-37-160A
w/o Chrome 0603-26-161A
SPARE WHEEL
1
Wheel
14x4T" 90-93 9965-15-4040
94-96 9965-18-4040
97 N.A.
2
Stem, Valve
9963-60-4130

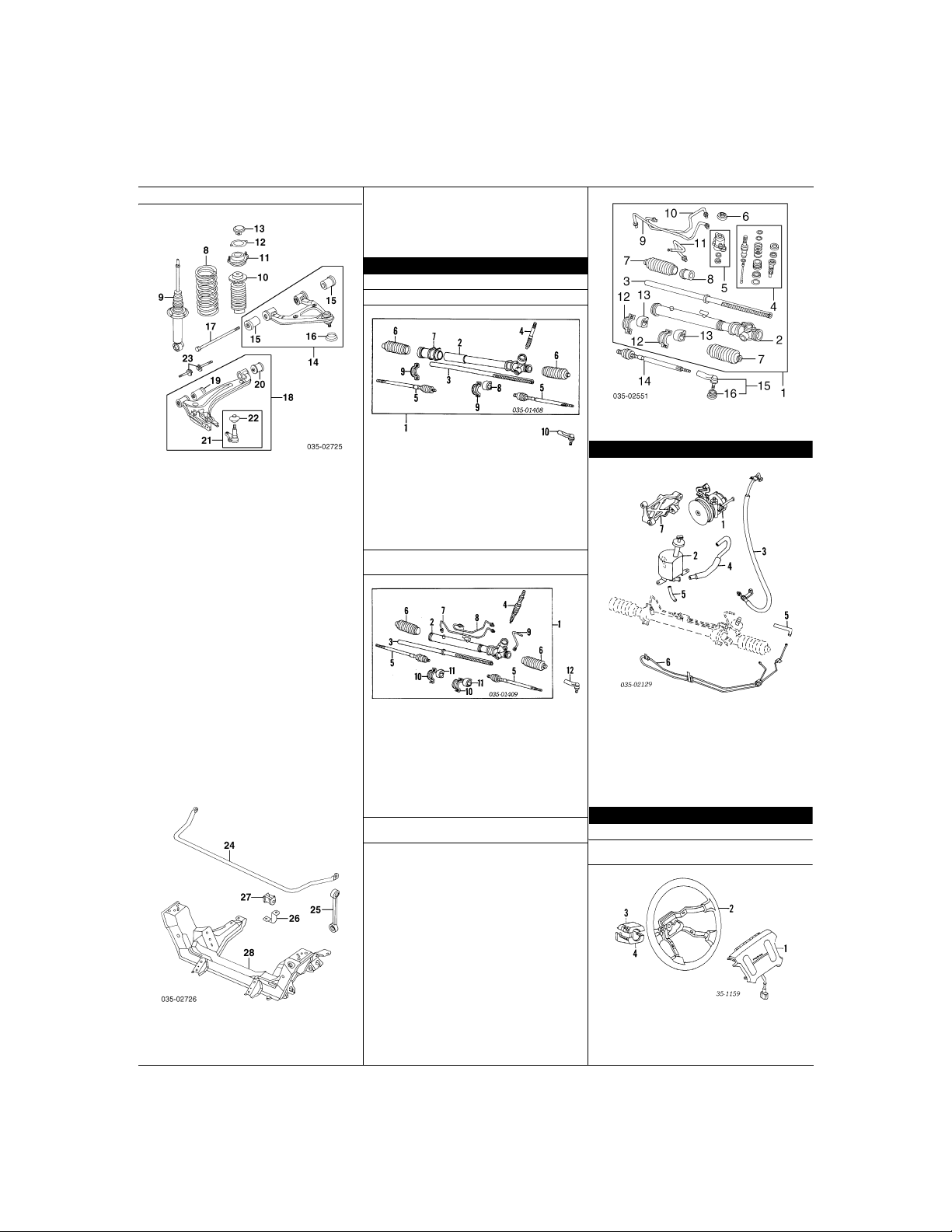

FRONT SUSPENSION
1
Rotor, Brake
90-93 R/L B25Y-33-25XB
94-97 R/L N026-33-25XC
2
Hub Assy
w/ABS 90-93 R/L NA23-33-04XA
94-97 R/L NA23-33-04XA
w/o ABS R/L NA01-33-04X
3
Bolt, Hub¶ (4/Side)
R/L B455-33-062
4
Ring, ABS Sensor¶
R/L NA23-33-471B
¶Included w/Hub Assy
Sensor, ABS-See Anti-Lock Brake System Section
5
Caliper, Brake
1990-93
w/ABS R NAY0-33-98ZR
L NAY0-33-99ZR
w/o ABS R N001-33-980
L NAY0-33-99ZR
1994-96 R NAY5-33-98ZR
L NAY5-33-99ZR
1997 R NAY5-33-98ZR
L NAY5-33-99ZR
Hose, Brake
90-93 R NA01-43-810B
L NA01-43-820B
94-97 R NA75-43-810A
L NA75-43-820A
6
Knuckle Assy
w/ABS 90-94 R NA23-33-021A
L NA23-33-031A
95-97 R NA23-33-021B
L NA23-33-031B
w/o ABS 90-94 R NA01-33-021A
L NA01-33-031A
95-97 R NA01-33-021B
L NA01-33-031B
7
Shield, Splash
1990-93¶
w/ABS R NA23-33-261
L NA23-33-271
w/o ABS R NA01-33-261
L NA01-33-271
1994-97 R NA75-33-261
L NA75-33-271
¶Included w/Knuckle Assy
Illustration Located in Next Column
8
Spring, Coil
Man Trans 90-93 R/L NA01-34-011A
94-97 R/L NA03-34-011
Auto Trans 90-93 R/L NA03-34-011
94-97 R/L NA81-34-011
9
Strut
1990-93
w/ABS R/L NA23-34-700B
w/o ABS R/L NA01-34-700
1994
w/ABS R/L NA53-34-700B
w/o ABS R/L N018-34-700B
1995-97
w/Sport Pkg R/L N023-34-700D
Loading...
