Mazda B2300 2006 Quick Tips

DRIVER ASSURANCE

for 48 months or 50,000 miles, whichever comes first.

Mazda Service Transportation Solution

Being without your Mazda may put a crimp in your day, if you do ever have to take your Mazda in for repairs don’t worry, you’re covered. With the Mazda Transportation Solution, you will be given a loaner car at no charge when your Mazda vehicle is in for warranty repairs.

For all the details, see your Mazda Dealer.

Mazda Drivers Assurance Plan

Check out www.mymazda.com, the website dedicated to you. Manage your maintenance records, receive valuable offers, see the latest accessories and much more!

Mazda Roadside Assistance

Exhilaration, liberation and inspiration are great reasons to drive a Mazda car, truck, SUV or minivan. In addition to all the other great standard features, you also get peace of mind, our Emergency Roadside Assistance Plan, it’s just a phone call away, 24 hours a day, 365 days a year, call 1-800-866-1998.

Mazda ‘’bumper-to-bumper” Limited Warranty

We design and build every Mazda to give you driving pleasure now and far down the road. We’re so confident in our quality that we cover the entire vehicle against defects in materials and workmanship

©2005 Calcar, Quick Tips®is a trademark of Calcar, made in USA 5/05 18.1 DOT Mazda North American Operations reserves the right to change product specifications at any time without incurring obligations.

9999-95-023C-06QT 6L5L-19A285-AA

This Quick Tips®guide is provided

by Mazda North American

Operations to make your Mazda

ownership experience more

convenient. It is not intended to

replace your Owner’s Manual.

If you have any questions about

your vehicle, you are invited to

contact your local dealer.

Or if you need additional help,

feel free to call our

Customer Assistance Center

at 1-800-222-5500

Monday through Friday,

8 a.m.- 4 :45 p.m., Pacific

9 a.m.-5:45 p.m., Eastern/Central

Gasoline

Unleaded

87-octane

minimum

For fuel

capacity, see

Instrument Cluster tab

2006

Reference

Guide for

Controls and

Functions

Quick Tips

MAZDA B-SERIES TRUCK

DRIVER’S VIEW

Driver’s

View

Always check the Owner’s Manual for more operating information and safety features

1. Power door locks*,

see Locks

2. Power window switches*,

see Switches/Interior Lights

3. Dual power mirrors*,

see Switches/Interior Lights

4. Lighting switch

Tail, parking and dashboard lights on: Rotate knob to first notch

Tail, parking, dashboard and headlights on: Rotate knob to second notch

5. Instrument panel lighting

To brighten/dim: Rotate thumb-wheel up/down

6. Air vents

To open/close: Move thumb-wheel left/right To direct air flow: Move tab in center of vent

7. Side window defroster

8. Turn signals/headlight high beams/wiper/ washer lever,

see Getting Started

9. Horn/Air bag

Press to sound horn

10. Hazard warning switch

Press on/off

11. Gearshift lever (A/T)*,

see Transmission

12. 4x4 control*,

see Transmission

13. 12V socket

Use for optional electrical accessories

14. Audio system,

see Audio Systems

15. Fog light switch*

Press on/off; on with lowbeams/parking lights only

16. Climate control panel,

see Climate Control

17. Passenger’s front air bag deactivation switch/light,

see Getting Started

18. Cigarette lighter*

19. Hood release handle

Pull to unlatch hood, see Under Hood

20. Cruise control*,

see Getting Started

21. Parking brake pedal

22. Parking brake release lever

23. Tilt steering-wheel lever*

To change position: Pull lever, tilt wheel up or down, release to lock

*Denotes optional equipment

Getting Started

B-Series Truck Quick Tips®are designed to quickly familiarize you with some important features of your B-Series Truck

This Driver’s View tab is your index to the Quick Tips®, locate the item you would like to learn more about and then turn to the listed tab

Be sure to see the tab called Getting Started, this section contains important operating tips about your B-Series Truck

Items identified in blue text call out important information

6 7

RPMx1000 MPH km/h

5 4 3 2

OFF

2223 1620

109

40 80

20 100

40 160

0120

80 120

200

RES

SET+

CST-

18 17

611

13 14

GETTING STARTED

Always check the Owner’s Manual for more operating information and safety features

Getting Started

Turn signals/headlight high beams/wiper/ washer lever

High beams on/off: Push forward to detent/pull back To flash high beams: Pull rearward and release

To turn on wipers: Rotate knob forward; first 7 detents are progressively faster intervals, 8th detent is low speed, 9th is high

To activate washers: Push in end of knob; will also operate wipers

OFF

PASSENGER AIR BAG

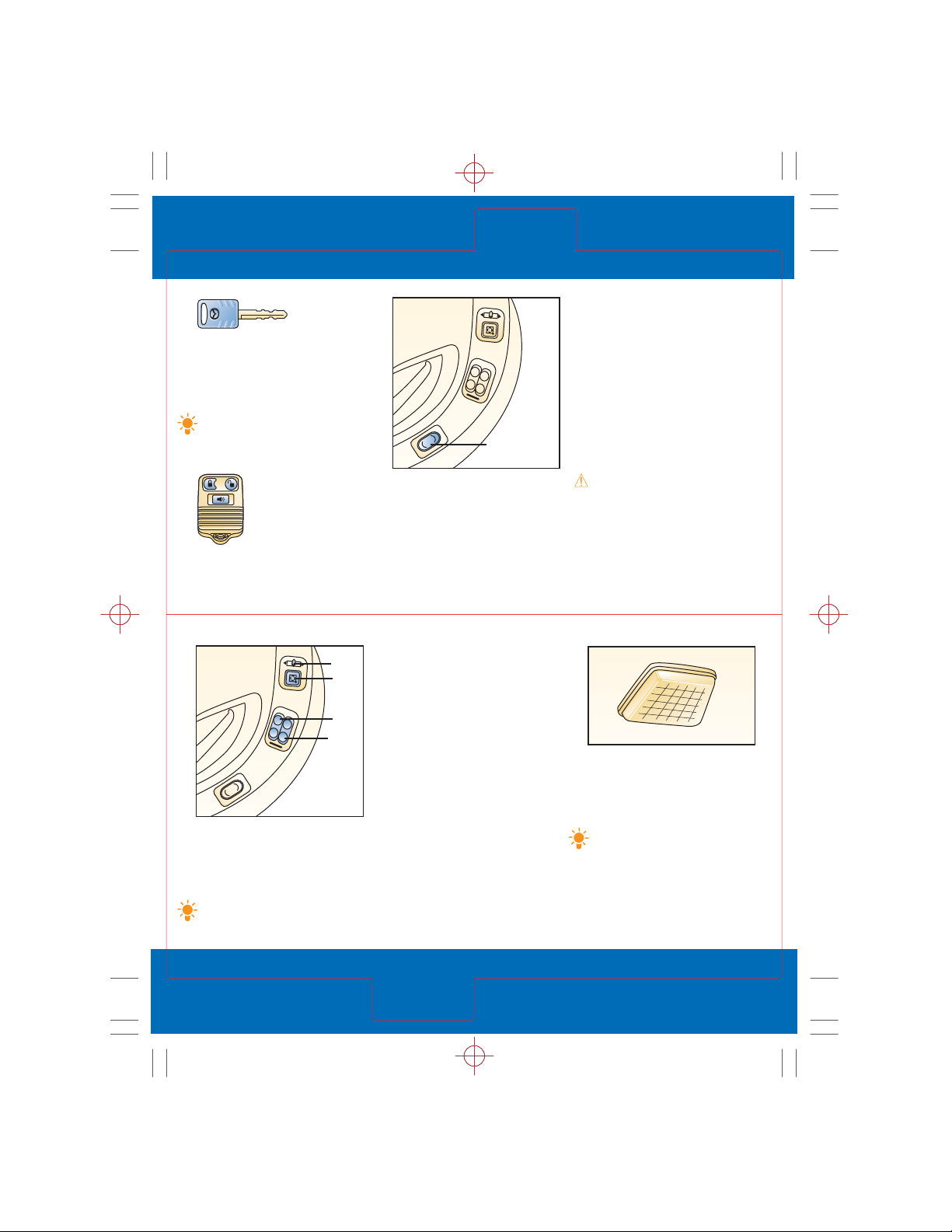

Keyless remote entry system*

Functions only with ignition in

OFF position To lock doors: Press (1), pressing (1) again within 3 seconds causes doors to relock, horn to beep once if all doors are closed, twice if any door is ajar

To unlock driver’s door: Press (2), press again within 3 seconds to unlock passenger’s door

Panic alarm: Press (3); horn sounds, parking lights flash and interior lights illuminate; press (3) again to stop or insert key and turn ignition to ON or ACC position

Cruise control*

Operates above 30 mph Press and release ON (4)

To set speed: Press and release SET+(6) at desired speed, cruise control indicator on instrument cluster illuminates, hold (6) to accelerate

To decelerate: Press and hold CST–(7), release at desired speed; or tap brake pedal, press and release (6) at desired speed

Incremental deceleration: Press and release (7), each tap = minus 1 mph

Incremental acceleration: Press and release (6), each tap = plus 1 mph

To cancel: Tap brake/clutch pedal or push OFF button (8) Return to preset speed (after braking): Press and release RES (resume) button (5)

Passenger’s front air bag deactivation switch

Deactivate passenger’s front air bag when using a child-safety seat To deactivate/activate: Insert ignition key in switch, rotate to OFF/ON, remove key Amber OFF light illuminates when deactivated and ignition is on

Tip: Turn ignition off when disabling passenger front air bag

WARNINGS: When using a rear-facing infant-safety seat or a front-facing child seat, always set the passenger seat air bag deactivation switch to

OFF position, an infant or child is in serious danger of being injured or killed if front passenger air bag is deployed

If you must install a front-facing child-seat, put it in the outboard seat and slide it all the way rearward, set passenger air bag deactivation switch to OFF position

For Cab-Plus vehicles, do not put child restraints in the center facing jump seats, for complete details see Owner’s Manual

Fuel pump shutoff

Disables fuel pump after a substantial jolt or collision;

located under righthand side of glove box, just above carpet

To reset: Press down top of exposed red reset button (9)

WARNING: Do not reset shutoff switch if you see or smell fuel

*Denotes optional equipment

2 3

RES

OFF

SET+

CST-

INSTRUMENT CLUSTER

Always check the Owner’s Manual for more operating information and safety features

Instrument

Cluster

Instrument

Cluster

GAUGES

1. Tachometer

2. Engine coolant temperature gauge

If above normal range, stop truck and turn off engine; check coolant level when safe

3. Fuel gauge

Regular Cab: 17-gallon/64.4-liter tank

Cab Plus:

19.5-gallon/73.8-liter tank

4. Speedometer

5. Gearshift indicator* (A/T)

6. Trip odometer reset button

Push to reset

7. Odometer

8. Trip odometer

*Denotes optional equipment

WARNING LIGHTS

9. Turn signals/hazard warning on

10. Engine coolant temperature

High engine coolant temperature; stop truck and turn off engine; check coolant level when safe

11. Air bag readiness

Air bag malfunction; dealer inspection required

12. Charging system warning light

Dealer inspection required

13. High beams on

14. Cruise control*

Illuminates when cruise control is engaged

15. Check fuel cap

Fuel cap not securely tightened

16. Low fuel

17. Door ajar

Door not completely shut

18. Always fasten safety belts

Light and chimes

19. Engine oil pressure

Immediately stop truck and turn off engine; check oil level

20. Brake system

Indicates parking brake on or low brake fluid level, if brake fluid level is low, have vehicle inspected by nearest Mazda Dealer

21. Anti-lock Brake System (ABS)

ABS malfunction, normal brakes only, dealer inspection required

22.

4X4 HIGH/

4X4 LOW Indicator*,

see Transmission

23. Anti-theft on*

24. Overdrive off indicator* (A/T)

When lit, transmission does not shift into overdrive

25. Check engine

Dealer inspection required

3141211210 139 9161 4

x1000r/min MPH

4x4

LOW

40 80

20 100

40 160

0 120

80 120

2000

51819 1720212223246 257

4x4

LOW
