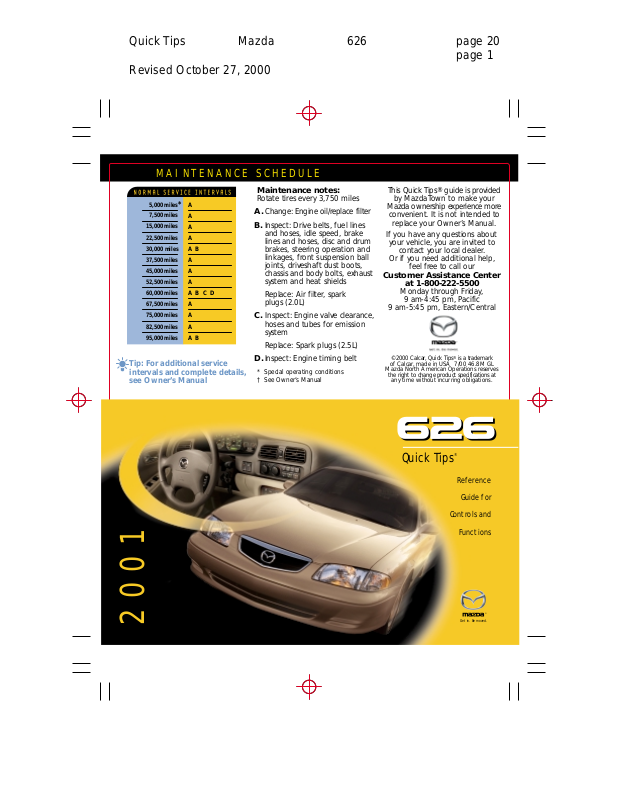

Quick Tips Mazda 626 page 20

page 1

Revised October 27, 2000

MAINTENANCE SCHEDULE

of Calcar, made in USA 7/00 46.8M GL

Mazda North American Operations reserves

the right to change product specifications at

any time without incurring obligations.

Maintenance notes:

Rotate tires every 3,750 miles

A.Change: Engine oil/replace filter B. Inspect: Drive belts, fuel lines

and hoses, idle speed, brake lines and hoses, disc and drum brakes, steering operation and linkages, front suspension ball joints, driveshaft dust boots, chassis and body bolts, exhaust system and heat shields

Replace: Air filter, spark plugs (2.0L)

C. Inspect: Engine valve clearance,

hoses and tubes for emission system

Replace: Spark plugs (2.5L)

D.Inspect: Engine timing belt

* Special operating conditions † See Owner’s Manual

This Quick Tips®guide is provided

by MazdaTown to make your

Mazda ownership experience more

convenient. It is not intended to

replace your Owner’s Manual.

If you have any questions about

your vehicle, you are invited to

contact your local dealer.

Or if you need additional help,

feel free to call our

Customer Assistance Center

at 1-800-222-5500

Monday through Friday,

9 am-4:45 pm, Pacific

9 am-5:45 pm, Eastern/Central

Tip: For additional service intervals and complete details, see Owner’s Manual

5,000 miles*

7,500 miles 15,000 miles 22,500 miles 30,000 miles 37,500 miles 45,000 miles 52,500 miles 60,000 miles 67,500 miles 75,000 miles 82,500 miles 95,000 miles

A B

A B C D

A B

A A

Reference

Guide for

Controls and

Functions

Get in. Be moved.

2001

Quick Tips

DRIVER’S VIEW

1. Power window switches,

see Switches

2. Power door locks,

see Locks

3. Dual power mirrors,

see Switches

4. Air vents

5. Turn signal/lighting control lever,

see Driver Controls

6. Horn/Air bag

7. Wiper/washer control lever, see Driver Controls

8. Swing

Press to activate/deactivate center air vent oscillation

9. Climate control panel,

see Climate Controls

10. Audio system,

see Audio System

11. Accessory socket*

12. Gearshift lever (A/T)*,

see Transmission

13. Parking brake lever,

see Console/Trunk

14. Console,

see Console/Trunk

15. Rear window defogger*

Press on/off; shuts off with ignition; also operates heated side mirrors*

16. Hazard warning switch

Press on/off

17. Cruise control,

see Driver Controls

18. Tilt steering wheel lever

Pull lever down to unlock column, position wheel, push lever up to lock

Tip: If lever does not lock move wheel up/down slightly until lever clicks into recess

19. Traction Control System*,

see Under Hood

20. Instrument panel lighting

To brighten/dim turn thumb-wheel up/down

21. Fog lights*

Press on/off

22. Fuse panel

23. Hood release handle

24. Remote fuel-door release

25. Remote trunk-lid release

Push to open trunk

Driver’s

View

Quick Tips Mazda 626 page 2

page 3

Revised October 27, 2000

Key

Operates ignition and all locks

Tip: Use key number plate to purchase new key; store in safe place

Immobilizer system

Prevents engine from running unless coded key used, see Owner’s Manual

Remote keyless entry system,

see Locks

65 7

19 17 15161718

431 2 4 4

10 11

12 13

LOCK

*Denotes optional equipment

Always check the Owner’s Manual for more operating information and safety features

INSTRUMENT CLUSTER

Always check the Owner’s Manual for more operating information and safety features

Instrument

Cluster

Instrument

Cluster

Quick Tips Mazda 626 page 4

page 5

Revised October 27, 2000

8 7

km/h

MPHX 1000r/min

100

120

140

CHEF

100

120

140

160

180

200 220

240

TCS OFF

TRIP ODO

TCS

2 11 12 14111 13

3202123 22 18194 5 6

15. Always fasten safety belts

16. Cruise control on

17. Rear window defogger on

18. Immobilizer system on,

see Driver’s View

19. Anti-lock Brake System (ABS)*

ABS malfunction, normal brakes only, dealer inspection required

20. Brake system

Parking brake on/low fluid level

21. Check engine

Dealer inspection required

22. Engine oil pressure warning light

23. Charging system warning light

Dealer inspection required

WARNING LIGHTS

7. Overdrive off indicator*,

see Transmission

8. Traction Control System* off,

System turned off manually or malfunctioning, dealer inspection required

TCS

Traction Control

System*,

Light flashes when in use; dealer inspection required if light remains on

10. High beams on

11. Turn signals/hazard warning on

12. Door ajar

13. Air bag readiness

Air bag malfunction, dealer inspection required

14. Low fuel

GAUGES

1. Tachometer

2. Speedometer

3. Odometer/trip odometer

4. Odometer/trip odometer selector

Press to select among trip A, trip B, and odometer Press and hold to reset selected trip meter

5. Engine coolant temperature gauge

If above normal range, stop vehicle and turn off engine, check coolant level when safe

6. Fuel gauge

*Denotes optional equipment
