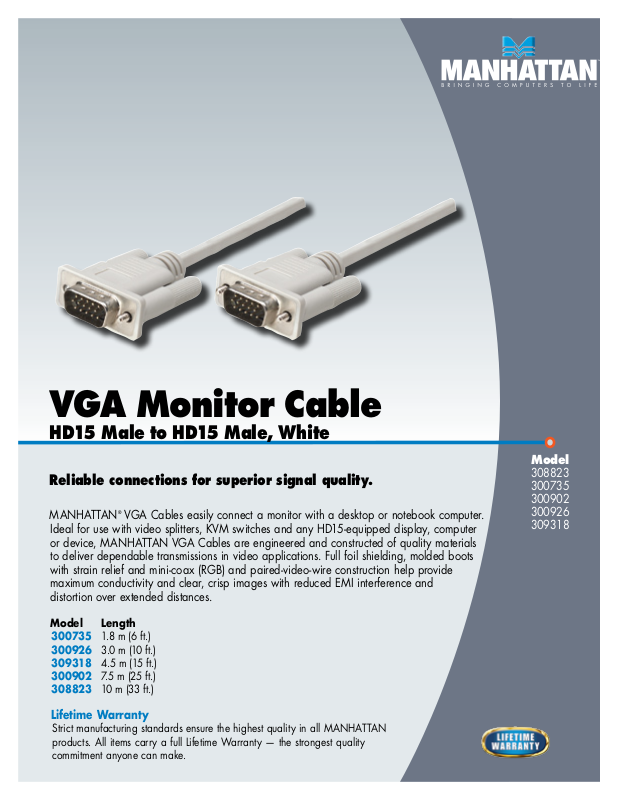

VGA Monitor Cable
HD15 Male to HD15 Male, White
Reliable connections for superior signal quality.
MANHATTAN
Ideal for use with video splitters, KVM switches and any HD15-equipped display, computer
or device, MANHATTAN VGA Cables are engineered and constructed of quality materials
to deliver dependable transmissions in video applications. Full foil shielding, molded boots
with strain relief and mini-coax (RGB) and paired-video-wire construction help provide
maximum conductivity and clear, crisp images with reduced EMI interference and
distortion over extended distances.
Model Length
300735 1.8 m (6 ft.)
300926 3.0 m (10 ft.)
309318 4.5 m (15 ft.)
300902 7.5 m (25 ft.)
308823 10 m (33 ft.)
®
VGA Cables easily connect a monitor with a desktop or notebook computer.
Model
308823
300735
300902
300926
309318
Lifetime Warranty
Strict manufacturing standards ensure the highest quality in all MANHATTAN
products. All items carry a full Lifetime Warranty — the strongest quality
commitment anyone can make.
Page 2
Technical Drawing
Insulation Resistance:
THESE DRAWINGS AND SPECIFICATIONS ARE
THESE DRAWINGS AND SPECIFICATIONS ARE
THE PROPERTY OF MANHATTAN AND SHALL
THE PROPERTY OF MANHATTAN AND SHALL
NOT BE REPRODUCED, COPIED OR USED IN
NOT BE REPRODUCED, COPIED OR USED IN
ANY MANNER WITHOUT THE PRIOR WRITTEN
ANY MANNER WITHOUT THE PRIOR WRITTEN
CONSENT OF MANHATTAN.
CONSENT OF MANHATTAN.
Features
• HD15 male to HD15 male
• Connects VGA source to VGA display
• Fully shielded to reduce EMI and other interference sources
• Molded PVC boot and strain relief
• Lifetime Warranty
MH P/N: 308502
Specifications
CONTACTS
• (2) 15-pin HD male connections
• Nickel-plated contacts
• Molded PVC boot
• Built-in strain relief
• Mini-coax (RGB) and paired video
wire
DIMENSIONS
• Overall diameter: 5.0 mm (0.19 in.)
CABLE
• 30 AWG cable
• Withstanding voltage: 300 V DC
• Thermal plastic casing
PACKAGE CONTENTS
• VGA Monitor Cable
For more information on MANHATTAN products, consult your
local dealer or visit
All names of products or services mentioned herein are trademarks or registered trademarks of their respective owners.
Distribution and reproduction of this document, and use and disclosure of the contents herein, are prohibited unless specifically authorized.
www.manhattan-products.com
.
Copyright © MANHATTAN
MH-CABLES-DS-0209-01
