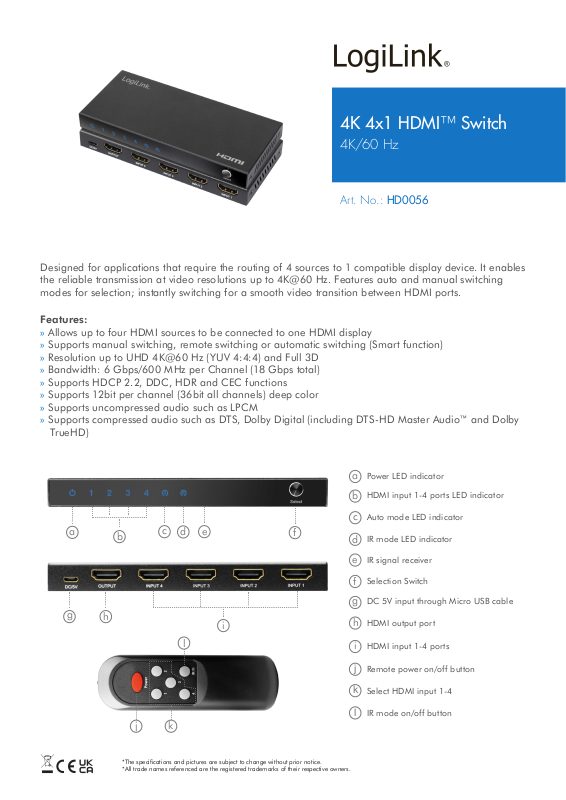

Page 1
4K 4x1 HDMI™ Switch
4K /60 H z
Art. No.: HD0056
Designed for applications that require the routing of 4 sources to 1 compatible display device. It enables
the reliable transmission at video resolutions up to 4K@60 Hz. Features auto and manual switching
modes for selection; instantly switching for a smooth video transition between HDMI ports.
Features:
» Allows up to four HDMI sources to be connected to one HDMI display
» Supports manual switching, remote switching or automatic switching (Smart function)
» Resolution up to UHD 4K@60 Hz (YUV 4:4:4) and Full 3D
» Bandwidth: 6 Gbps/600 MHz per Channel (18 Gbps total)
» Supports HDCP 2.2, DDC, HDR and CEC functions
» Supports 12bit per channel (36bit all channels) deep color
» Supports uncompressed audio such as LPCM
» Supports compressed audio such as DTS, Dolby Digital (including DTS-HD Master Audio™ and Dolby
TrueHD)
Power LED indicator
a
HDMI input 1-4 ports LED indicator
b
Auto mode LED indicator
c
a
g
b
h
c
j
k
e
d
i
l
f
IR mode LED indicator
d
IR signal receiver
e
Selection Switch
f
g
DC 5V input through Micro USB cable
HDMI output port
h
HDMI input 1-4 ports
i
j
Remote power on/off button
k
Select HDMI input 1-4
IR mode on/off button
l
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
Page 2
Power via Micro USB
cable
TV
4K
60Hz
Computer
Premium
High
Speed
Game Console
3D
Support
DVD player
DV
HDCP
Support
Specifications:
Input Ports 4x HDMI-A female, 1x Micro USB female
Output Port 1x HDMI-A female
HDMI Version 2.0
HDCP Version 2.2
HDMI CEC Yes
HDMI HDR Yes
480i/60 Hz, 576i/50 Hz, 1080i/50/60 Hz, 480p/60 Hz, 576p/50 Hz,
Output Resolution
Video Bandwith 6 Gbps/600 MHz
3D Supporting Yes
Input and output DDC signal Yes
720p/50/60 Hz, 1080p/24/25/30/50/60 Hz, 4K@24/25/30 Hz,
4K@50/60 Hz
Chassis Material Metal
LED Indication Yes
IR Remote Support Yes (require 2x 1,5 V AA A batteries, not included in the package)
Power By Through Micro USB cable, 5 V/1 A (5 W max.)
Uncompressed Audio L P CM 7.1
Compressed Audio DTS, Dolby Digital, DTS-HD Master Audio™, Dolby TrueHD
Operating Temperature 0–70˚C
Operating Humidity 10–85% RH (no condensation)
Storage Temperature -10 – 80˚C
Storage Humidity 5–90% RH (no condensation)
Dimensions 13,6 x 6,1 x 1,45 cm
Weight 0,173 kg
Color Black
Package Contents:
» 1x HDMI Switch
» 1x Remote Control
» 1x USB Charging Cable
» 1x User Manual
Package Information:
» Packing Dimension: 193x145x60 mm
» Packing Weight: 0,34 kg
» Carton Dimension: 505x235x340 mm
» Carton Q‘ty: 15 pcs
» Carton Weight: 5,6 kg
*The specifications and pictures are subject to change without prior notice.
*All trade names referenced are the registered trademarks of their respective owners.
