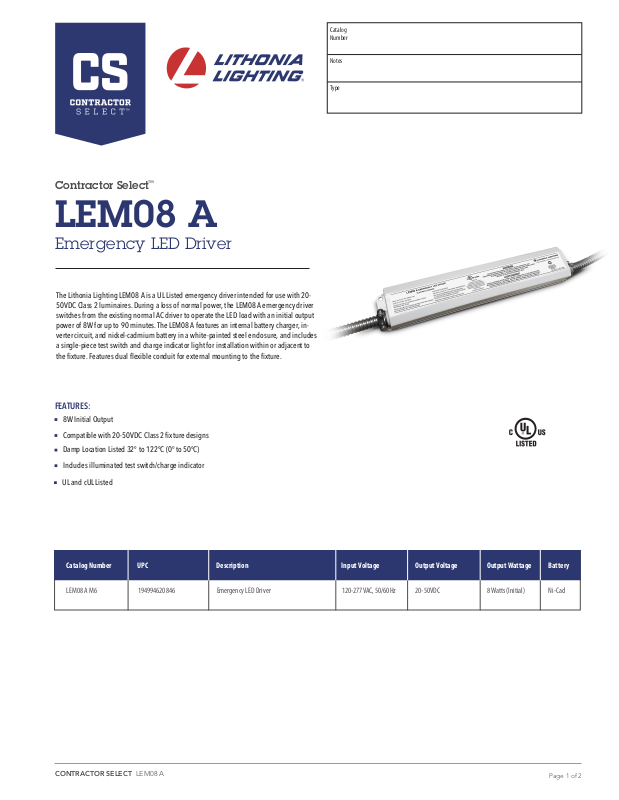

LEM08 A

Emergency LED Driver

The Lithonia Lighting LEM08 A is a UL Listed emergency driver intended for use with 20­50VDC Class 2 luminaires. During a loss of normal power, the LEM08 A emergency driver
switches from the existing normal AC driver to operate the LED load with an initial output
power of 8W for up to 90 minutes. The LEM08 A features an internal battery charger, in­verter circuit, and nickel-cadmium battery in a white-painted steel enclosure, and includes
a single-piece test switch and charge indicator light for installation within or adjacent to
the xture. Features dual exible conduit for external mounting to the xture.

FEATURES:

8W Initial Output

Compatible with 20-50VDC Class 2 xture designs

Damp Location Listed 32° to 122°C (0° to 50°C)

Includes illuminated test switch/charge indicator

UL and cUL Listed

Catalog Number UPC Description Output WattageOutput VoltageInput Voltage Battery

LEM08 A M6 Emergency LED Driver 120-277VAC, 50/60Hz 8 Watts (Initial)20-50VDC Ni-Cad194994620846

CONTRACTOR SELECT LEM08 A

Page 1 of 2

Specifications

Dimensions

INTENDED USE:

Enables the lighting xture to deliver a minumum of 90 minutes illumination in
the event of a loss of normal power. For use with switched or unswitched xtures.

CONSTRUCTION:

Galvanized steel enclosure with dual exible conduit (24” ea.) and holes for
center mounting or 4-hole mounting.

ELECTRICAL:

Universal Voltage Input (two wire): 120-277VAC, 50/60Hz

Output Wattage: 8W (initial)

Output Voltage: 20-50VDC Class 2 Compliant

BATTERY:

Long life, high-temperature maintenance-free Ni-Cad

24-hour Recharge

Low Voltage Disconnect (LVD) protects against premature battery failure
caused by deep discharge

INSTALLATION:

Unit is suitable for top mounting or remote mounting with wiring enclosed in a exible
conduit to the xture junction box or channel space.

LEM08 A

FLEXIBLE CONDUIT (24")

LENGTH: 13.35"

MOUNTING CENTER: 12.6"

Length: 13.35” (339)

Mounting Center: 12.6” (320)

Width: 2.38” (60.4)

Height: 1.55” (39.3)

Weight: 3.4 lbs (1.54 kg)

All dimensions are inches (millimeters) unless otherwise indicated.

FLEXIBLE CONDUIT (24")

HEIGHT: 1.55"

WIDTH: 2.38"

LISTINGS:

UL 924 Listed for eld installation in United States and Canada. UL Listed and Classied
to FTBV. UL 1310 Certied, Output Class 2 Compliant. Meets or exceeds all NEC, IBC, and
Life Safety Code Emergency Lighting requirements. Suitable for use in Damp Location,
Recessed Type IC xtures.

WARRANTY:

3-Year limited warranty. Complete warranty terms located at:
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx

Note: Specications subject to change without notice.
