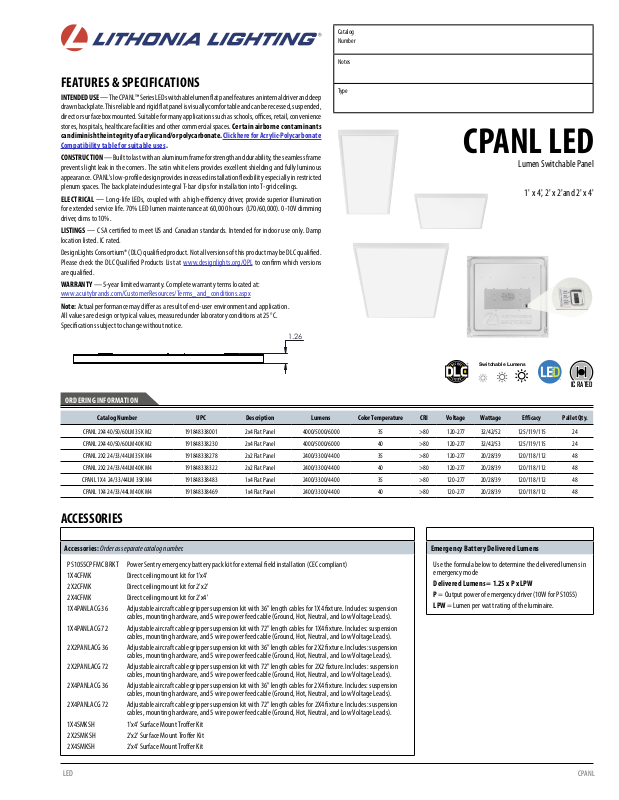

Page 1
Catalog
23.79
23.79
2
1
IC RATED
Number
Notes
FEATURES & SPECIFICATIONS
INTENDED USE The CPANL™ Series LED swi tchable lumen fl at panel featu res an intern al driver and de ep
drawn bac kplate. This re liable and rig id flat panel is vi sually comfo rtable and c an be recess ed, suspend ed,
direc t or surface b ox mounted. Sui table for many a pplication s such as schoo ls, offices, ret ail, convenience
stores, hospitals, healthcare facilities and other commerc ial spaces. Certain airborne contaminants
can dim inish the i ntegrit y of acr ylic and/or p olycar bonate. Click here for Acrylic-Polycarbonate
Compatibility table for suitable uses.
CONSTRUCTION — Built to las t with an aluminu m frame for s trength and d urabilit y, the seamless f rame
prevents light leak in the corners. The satin white lens provides excellent shielding and fully luminous
appearan ce. CPANL's low-profi le design provi des increase d installatio n flexibilit y especially i n restric ted
plenum spa ces. The back plate in cludes integral T-b ar clips for insta llation into T-grid cei lings.
ELECTRICAL Long-life LEDs, coupled with a high-efficiency driver, provide superior illumination
for extended ser vice life. 70% LED lumen maintenance at 60,000 hours (L70/60,000). 0-10V dimming
driver, dims to 10% .
LISTINGS CSA certified to meet US and Canadian standards. Intended for indoor use only. Damp
locatio n listed. IC rated.
DesignLi ghts Consor tium® (DLC) qualifie d product. No t all versions of th is product may b e DLC qualified.
Please check the DLC Qualified Products List at ww w.designlights.org/QPL to confirm which versions
are qualified.
WARRANTY — 5-ye ar limited warrant y. Complete warran ty terms locate d at:
www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx
Note: Act ual performa nce may differ as a resul t of end-user envir onment and applic ation.
All values ar e design or typic al values, measure d under laborator y conditions at 2 5 °C.
Specifications subject to change without notice.
1.26
Type
CPANL LED
Lumen Switchable Panel
1' x 4', 2' x 2'and 2' x 4'
Switchable Lumens
TM
ORDERING INFORMATION
Catalog Number UPC Description Lumens Color Temperature CRI Voltage Wattage Efficacy Pallet Qty.
CPANL 2X4 40/50/60LM 35K M2 191848338001 2x4 Flat Panel 4000/5000/6000 35 >80 120-277 32/42/52 125/119/115 24
CPANL 2X4 40/50/60LM 40K M2 191848338230 2x4 Flat Panel 4000/5000/6000 40 >80 120-277 32/42/53 125/119/115 24
CPANL 2X2 24/33/44LM 35K M4 191848338278 2x2 Flat Panel 2400/3300/4400 35 >80 120-277 20/28/39 120/118/112 48
CPANL 2X2 24/33/44LM 40K M4 191848338322 2x2 Flat Panel 2400/3300/4400 40 >80 120-277 20/28/39 120/118/112 48
CPANL 1X4 24/33/44LM 35K M4 191848338483 1x4 Flat Panel 2400/3300/4400 35 >80 120-277 20/28/39 120/118/112 48
CPANL 1X4 24/33/44LM 40K M4 191848338469 1x4 Flat Panel 2400/3300/4400 40 >80 120-277 20/28/39 120/118/112 48
ACCESSORIES
Accessories: Order as separate catalog num ber.
PS1055CP FMC BRKT Power Sentry emergency battery pack kit for external field installation (CEC compliant)
1X4CFMK Direct ceili ng mount kit for 1'x4'
2X2CFMK Direct ceili ng mount kit for 2'x 2'
2X4CFMK Direct ceili ng mount kit for 2'x4'
1X4PA NLACG 3 6 Adjus table aircraf t cable grippe r suspension kit wi th 36" length cables f or 1X4 fixture. Includ es: suspension
1X4PANLACG 72 Adjustab le aircraft ca ble gripper susp ension kit with 72" le ngth cables for 1X4 fix ture. Includes: s uspension
2X 2PANLA CG 36 Adjus table aircraf t cable grippe r suspension kit wi th 36" length cables f or 2X2 fixture. I ncludes: suspens ion
2X2PANLACG 72 Adjustab le aircraft ca ble gripper susp ension kit with 72" le ngth cables for 2 X2 fixture. Inc ludes: suspension
2X4 PANLAC G 36 Adjus table aircraf t cable grippe r suspension kit wi th 36" length cables f or 2X4 fixture. Inc ludes: suspensio n
2X4PANLACG 72 Adjustab le aircraft ca ble gripper susp ension kit with 72" le ngth cables for 2 X4 fixture. Includ es: suspension
1X4SM KSH 1'x4' Surface Moun t Troffer Kit
2X2SMKSH 2'x2' Surface M ount Troffer Kit
2X4SMK SH 2'x4' Surf ace Mount Troffer Kit
cables, m ounting hardwar e, and 5 wire power feed c able (Ground, Hot, Neu tral, and Low Voltage Lea ds).
cables, m ounting hardwar e, and 5 wire power feed c able (Ground, Hot, Neu tral, and Low Voltage Lea ds).
cables, m ounting hardwar e, and 5 wire power feed c able (Ground, Hot, Neu tral, and Low Voltage Lea ds).
cables, m ounting hardwar e, and 5 wire power feed c able (Ground, Hot, Neu tral, and Low Voltage Lea ds).
cables, m ounting hardwar e, and 5 wire power feed c able (Ground, Hot, Neu tral, and Low Voltage Lea ds).
cables, m ounting hardwar e, and 5 wire power feed c able (Ground, Hot, Neu tral, and Low Voltage Lea ds).
Emergency Battery Delivered Lumens
Use the formula below to determine the delivered lumens in
emergency mode
Deliver ed Lumens = 1.25 x P x LPW
P = Output p ower of emergenc y driver (10W for PS1055)
LPW = Lumen per w att rating of the lu minaire.
LED CPANL
Page 2
CPANL LED Flat Panel
CPANL compatible with Sensor Switch™
WSX-D and SPOD wall switches.
PHOTOMETRICS
See www.lithonia.com for photometry reports.
WSX-D SPOD
CPANL
LED: One Lithonia Way Conyers, GA 30012 Phone: 800-858-7763 www.acuitybrands.com © 2017-2018 Acuity Brands Lighting, Inc. All rights reserved. Rev. 12/26/18
Page 3
CPANL LED Flat Panel
Ceiling Direct Mount Bracket
DIMENSIONS
47.72
23.79
11.85
23.79
47.81 in
23.79 in
CPANL
LED: One Lithonia Way Conyers, GA 30012 Phone: 800-858-7763 www.acuitybrands.com © 2017-2018 Acuity Brands Lighting, Inc. All rights reserved. Rev. 12/26/18
