Lithonia Lighting KBMF1088 Specifications

Page 1

Catalog Number

Notes

FEATURES & SPECIFICATIONS

INTENDED USE — Provides a minimum of 90 minutes illumination for the rated wattage upon loss of

AC power to meet and exceed code required emergency lighting. Ideal for applications requiring attractive LED unit equipment with quick installation and unparalleled performance for lower mounting heights.

Certain airborne contaminants can diminish the integrity of acrylic and/or polycarbonate.

Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.

CONSTRUCTION — The housing is a standard white (black optional) thermoplastic with a compact and

low-proﬁle contemporary design. It is 5VA ﬂame rated, impact-resistant, scratch-resistant and corrosion proof. The UV-stable resin resists discoloration from natural and man-made light sources. There is a low-proﬁle, integrated and back-lit test switch with an easily visible multi-color LED status indicator. The back-plate contains a universal j-box mounting pattern to facilitate ease of installation on a wide variety of j-boxes and the front housing allows tool-less access for ease of maintenance. US Patents Pending.

ELM2LF: Fixed lamp head arrangement for ease of installation and maximum path of egress aiming coverage with no aiming required for wall mount applications.

ELM2L: Unique track and swivel arrangement permits full range of direction for lamp head adjustment.

OPTICS — Both the ELM2L and ELM2LF feature two, high performance LEDs with acrylic lens’ rated at 1.2 watts each and delivering a total of 220 lumens in a linear pattern (LP220L). The typical life of an LED is 10 years. The LED light sources typically never need to be replaced under normal conditions for normal oﬀ applications.

ELECTRICAL — CCT: 5000K. Orderable in multiple voltages (see ordering tree for speciﬁc voltages).

Current-limiting charger maximizes battery life and minimizes energy consumption to meet California Energy Commission Title 20 requirements for small battery charger systems and provides low operating costs.

Short-circuit protection — current-limiting charger circuitry protects printed circuit board from shorts.

Regulated charge voltage maintains constant-charge voltage over a wide range of line voltages.

Prevents over/undercharging that shortens battery life and reduces capacity. Filtered charger input minimizes charge voltage ripple and extends battery life.

BATTERY: Sealed, maintenance-free nickel-cadmium or Lithium Iron Phosphate.

Lithium Iron Phosphate battery powers both on board LEDs and up to 2.4W additional LED remote lamp heads simultaneously or oﬀers extended run-time up to 3 hours.

SELF-DIAGNOSTICS and REMOTE TEST (SDRT option):

Automatic 24-hour recharge after a 90-minute discharge.

Advanced electrical design provides constant light output throughout the entire discharge period.

Brownout protection is automatically switched to emergency mode when supply voltage drops below approximately 80 percent nominal of 120, 220, 277 or 347. Other input voltages may vary.

AC/LVD reset allows battery connection before AC power is applied and prevents battery damage from deep discharge.

Self-Diagnostics: Continuously monitors AC functionality. Test switch and remote tester (ELA LRT accessory) provides manual activation of 30-second diagnostic testing for on-demand visual inspection. Standard derangement monitoring will indicate disconnected battery, charger failure and displays green ﬂashing indicator light while in emergency mode. Single multi-chromatic LED indicator to display two-state charging, test activation and three-state self-diagnostics.

Self-diagnostic testing: Five minutes every 30 days and 90 minutes annually. Diagnostic evaluation of lamps, AC to DC transfer, battery charging and condition of microprocessor. Automatic test is easily postponed for eight hours by activating manual test switch or use of remote tester (ELA LRT accessory).

INSTALLATION — Wall mount and ceiling mount standard for ELM2L. Wall mount only for ELM2LF. Blind-mate connector ensures easy installation and safe maintenance. 7/8" entrance provision at top of unit for standard 1/2" conduit entry. Tool-less removal of front cover from back-plate for ease of installation and maintenance.

LISTINGS — UL damp location listed standard and wet location listed when used with the WPVS accessory, all at 50-104°F (10-40°C). Meets or exceeds all applicable requirements for UL 924, NFPA 101 (current Life Safety Code), NFPA 70 (NEC), NOM (Norma Oﬁcial Mexicana), California Energy Commission Title 20 section 1605.3 (W)(4), FCC and OSHA. List and labeled to comply with Canadian Standards C22.2 No. 141-10.

WARRANTY — 5-year limited warranty. Complete warranty terms located at:

www.acuitybrands.com/CustomerResources/Terms_and_conditions.aspx

NOTE: Actual performance may diﬀer as a result of end-user environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Speciﬁcations subject to change without notice.

Type

Contemporary Commercial LED Emergency Light

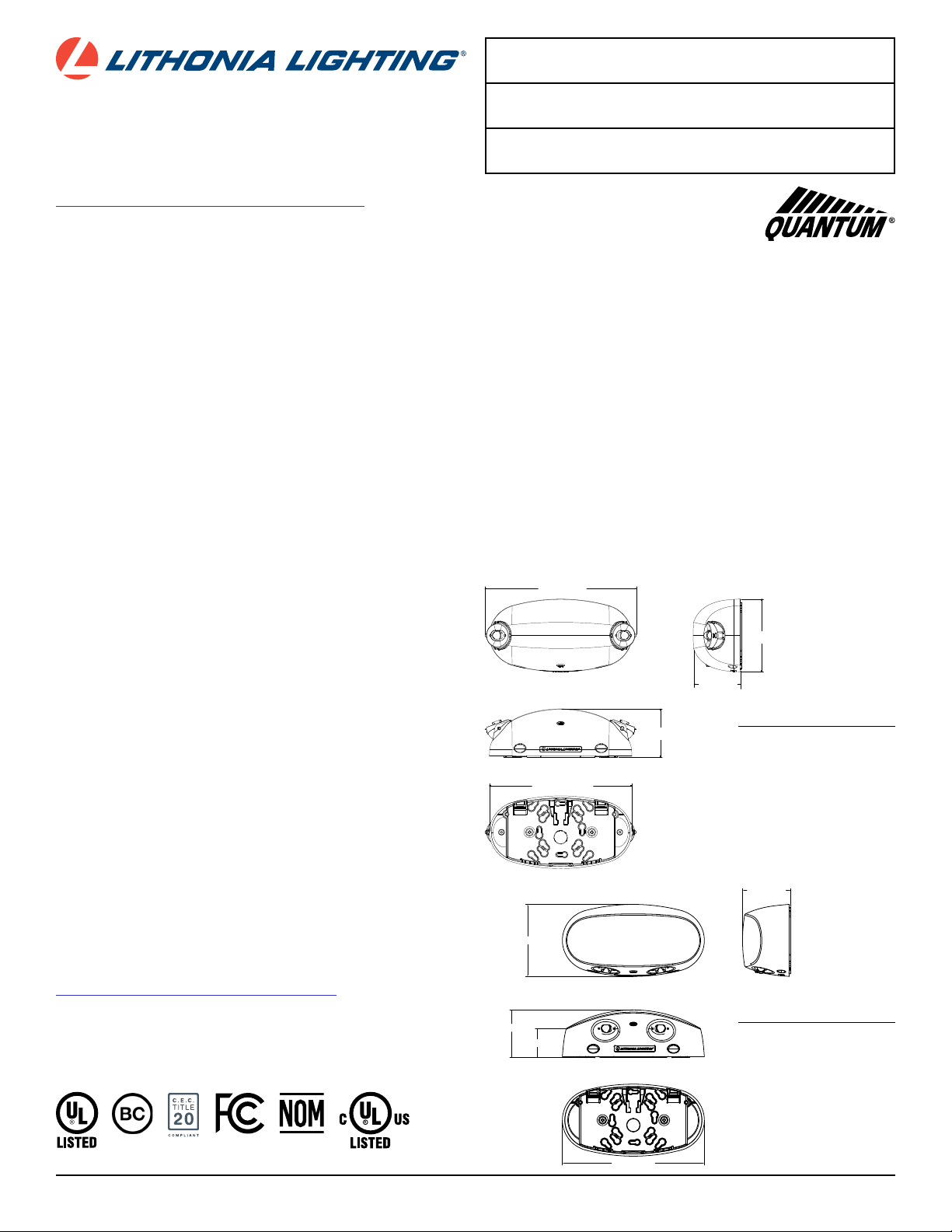

MOUNTING AND SPECIFICATIONS

All dimensions are inches (centimeters) unless otherwise indicated.

9.72 [24.69]

3.10 [7.87]

9.15 [23.24]

4.68 [11.88]

3.10 [7.87]

1.89 [4.80]

ELM2L

Aimable Optics

ELM2LF

Fixed Optics

LITHIUM IRON PHOSPHATE

Nickel Cadmium

4.68 [11.88]

ELM2L Speciﬁcations

Length: 9.72 (24.69)

Depth: 3.10 (7.87)

Height: 4.68 (11.88)

Weight: 1.31lbs (0.59kg)

3.10 [7.87]

ELM2LF Speciﬁcations

Length: 9.22 (23.42)

Depth: 3.10 (7.87)

Height: 4.68 (11.88)

Weight: 1.25lbs (0.57kg)

9.22 [23.42]

EMERGENCY ELM2LF_ELM2L

Pg. 1 of 3

Page 2

ELM2L_ELM2LF Quantum® Contemporary Commercial LED Emergency Light

NICKEL CADMIUM BATTERY MODELS

ORDERING INFORMATION

For shortest lead times, conﬁgure product using bolded options.

Series Lamp type Housing color Volta ge Battery type Automatic Testing Options

ELM2L Aimable optics ELM2LF Fixed optic s

(blank) LP220L 220

lumen, 2.4 wat t, linear pattern, two lamps

(blank) White B Black

(blank) 120/277 VAC/60Hz 120/ 347 120/ 347 VAC /60H z SVO LT 220-240/50-60 Hz

(blank) Nicad (blank) None (blank) None

RRL RELOC® Ready luminaire WPVS Wet protective vandal shield USPOM Ass embled in the US

Notes

1 WPVS brea ks out and ship s separately a nd color will ma tch (ex: WPVS SML B). Must b e ordered

when usin g for wet locat ion applica tions. See spe c sheet WPVS for more information.

LITHIUM IRON PHOSPHATE BATTERY MODELS

ORDERING INFORMATION

Series

ELM2L Aimable Optics ELM2LF Fixed Optics

BATTERY CAPACITY AND LOADING

Battery Option Total Capacity Maximum# Remote lamp heads*

LTP 4.8W

* These ar e in addition to t he lamp heads on t he product .

For shortest lead times, conﬁgure product using bolded options.

Lamp type Housing color Volta ge Battery type Automatic Testing Options

(blank) LP220L 220

lumen, 2.4 Watt, Linear Pattern, two lamps

(blank) White B Black

2 - ELA LED M12

2 - ELA LED WP M12

1 - ELA Q L0309

1 - ELA QWP L0309

UVO LT 120 - 347

VAC/50- 60 Hz

LTP Lithium Iron

Phosphate

Notes

1 Exte nded run-ti me or remote cap acity is st andard. Ther e are no compati ble remotes wi th

SDRT at thi s time. Non-SDRT mo dels are only co mpatible wi th remotes lis ted in the compa tible remote ac cessories l isted on this pa ge.

2 SDRT not compatible to run remote heads.

3 WPVS brea ks out and ship s separately a nd color will ma tch (ex: WPVS SML B). Must b e ordered

when usin g for wet locat ion applica tions. See spe c sheet WPVS for more information.

(blank) None

SDRT Self-diagnostics,

remote test

1,2

Example: ELM2LF

Example: ELM2LF UVOLT LTP

(blank) None

RRL RELOC® Read y

luminaire

WPVS Wet protective

vandal shield

USPOM Ass embled in the US

LTP Compatible Remote Accessories3: Order as separate cata log number.

ELA Q L0309

Single LED in door remote head, wh ite. See spec sheet EL A-Q-LED. ELA QWP L0309 Singl e LED weather-proof re mote head, gray. See spec s heet ELA-Q-LED. ELA LED M12 Single LED re mote lamp . See spec she et ELA LED (Contractor S elect LED Remote s). ELA LED WP M12 S ingle LED Weather proo f remote lamp. See spec s heet ELA LED (Contractor Select

ELA Q

ELA LED ELA LED T

LED Remotes). ELA LED T M12 Twin LED remote lam p . See spec sheet EL A LED (Contrac tor Select LED Re motes). ELA LED T WP M12 Twin LED Weather proof rem ote lamp. See spec she et ELA LED (Contractor Select

LED Remotes).

LTP EXTENDED RUNTIMES

Products Total Run-time with no remotes

ELM2L LTP 3 hours

ELM2LF LTP 3 hours

ELA QWP

ELA LED WP

ELA LED T WP

Other Accessories: Order as separate catal og number.

WPVS SML W Wet p rotective vand al shield (must be used f or wet location app lications) WPVS SML B Wet p rotective van dal shield, black (must b e used for wet loca tion application s) ELA WG1 ELA LRT Remote te st (laser) for dist ances up to 30'

Wireguar d, 15" W x 13-1/2" H x 6" D (see spec sheet EL A-WG)

ELM2L mounted inside the WPVS (white) ELM2LF mounted inside WPVS (white)

ELM2LF_ELM2L

Pg. 2 of 3

Page 3

ELM2L_ELM2LF Quantum® Contemporary Commercial LED Emergency Light

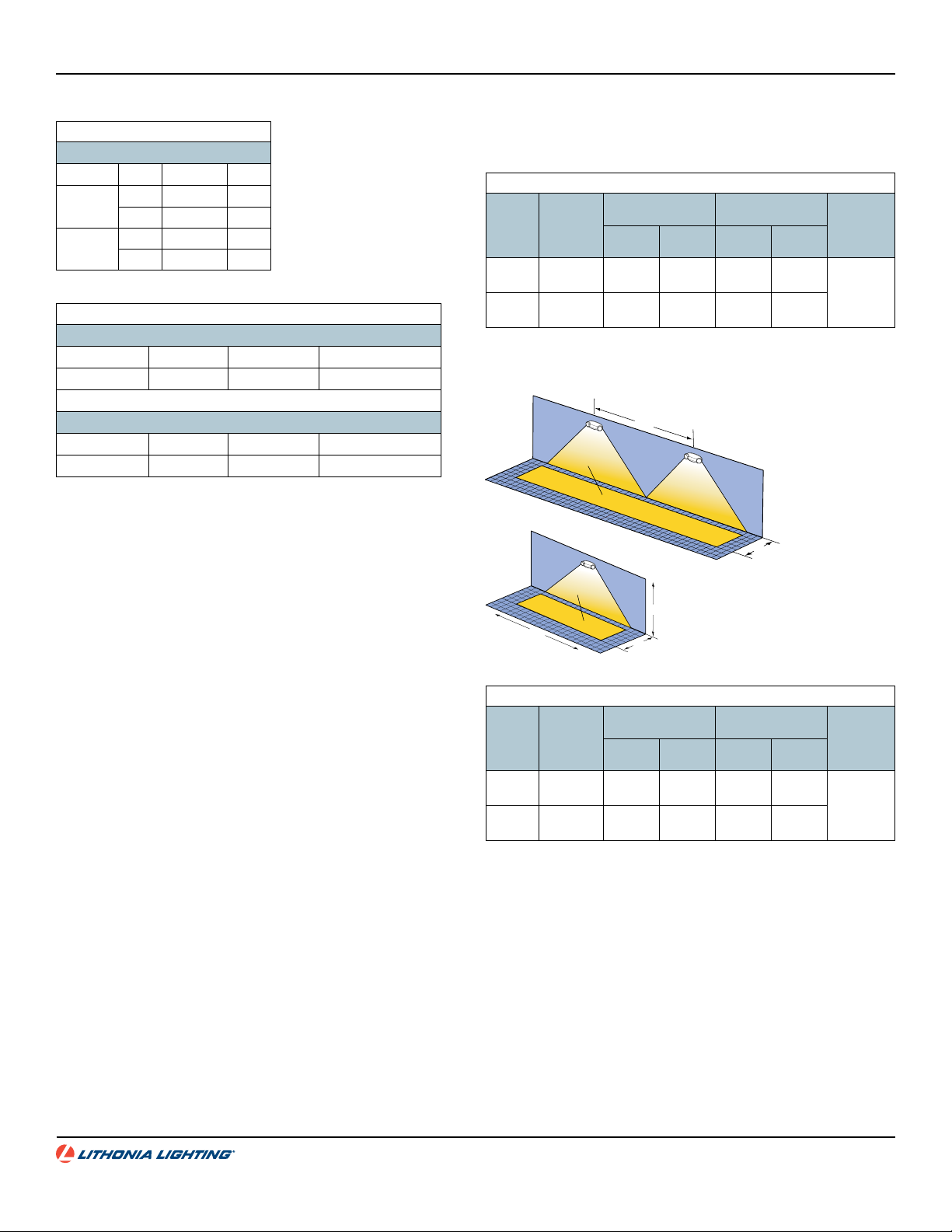

SPECIFICATIONS

ELECTRICAL

Primary Circuit

Typ e Volts Input amps Watts

Nicad

Lithium I ron

Phosphate

BATT ERY

Nicad (6V)

Typical Shelf life

Lithium Iron Phosphate (3.6V)

Typical Shelf life1Typical life

Notes

1 At 77°F (25°C) ambient temperature, charge/discharge cycles and prolonged full discharge may reduce useful life.

2 All life s afety equi pment, inclu ding emergen cy lighting f or path of egre ss must be tes ted in accorda nce with

all Natio nal Fire Protec tion Asso ciation (NFPA) and l ocal codes. Fai lure to perfo rm the requi red testing co uld jeopar dize the safe ty of occupa nts and will voi d all warranti es.

3 Ambient t emperature r ange where un it will provid e capacity f or 90 minutes . Higher and lowe r temperatur es

aﬀec t life and capac ity.

4 Batte ry life is neg atively impac ted by many var iables inclu ding tempera ture, chargin g rates, numbe r of cycles

and deep d ischarges du e to long perio ds of time with out AC power.

120 0.0 18 1. 09

347 0.012 1.34

120 0.022 1.35

347 0.014 1.6 4

Typical life

Maintenance

Temperature Range

3 years 7-9 years none 50°-104°F (10-40°C)

Maintenance

Temperature Range

1 years 7-9 years none 50°-104°F (10-40°C)

3,4

SPACING GUIDELINES

*Note: To see co mplete photo metric repo rt or downlo ad the .ies ﬁle fo r this produc t, visit Lithonia Lighting ELM2L or ELM2LF home page.

Maximum Spacing Guidelines — ELM2LF

Single Luminaire

Mounting

Notes:

1. Also mee ts the additio nal illuminatio n requirement s of NFPA 101: .1FC minimum and ma x/min ration

Illumination

Height

7.5 ' 1FC Avg

10' 1FC Avg

of 40:1.

28'

Level

1 FC average

Coverage

3' Path of

Egress

6' Path of

Egress

32' 20 ' 35' 28'

20' NA 27' 24'

33'

Exampl e of single ELM2L illumin ating a 3' path of egres s.

7.5'

* Applic ation image ex amples are usi ng LP220L lamp.

Multiple Luminaire

Spacing

3' Path of

Egress

6' Path of

Egress

Example of multiple ELM2L lumina ires illuminat ing a 3' path of egress.

Application

Notes

100' Corri dor,

8' wide, and

12' high with

80/50/20

reﬂectances

Maximum Spacing Guidelines — ELM2L

Single Luminaire

Mounting

Notes:

1. Also mee ts the additio nal illuminatio n requirement s of NFPA 101: .1FC minimum and ma x/min ration

Illumination

Height

7.5 ' 1FC Avg

10' 1FC Avg

of 4 0:1.

Level

Coverage

3' Path of

Egress

6' Path of

Egress

28' 20' 33' 27'

20' 14' 27 ' 23'

Multiple Luminaire

Spacing

3' Path of

Egress

6' Path of

Egress

Application

Notes

100' Corri dor,

8' wide, and

12' high with

80/50/20

reﬂectances

ELM2LF_ELM2L

Pg. 3 of 3
