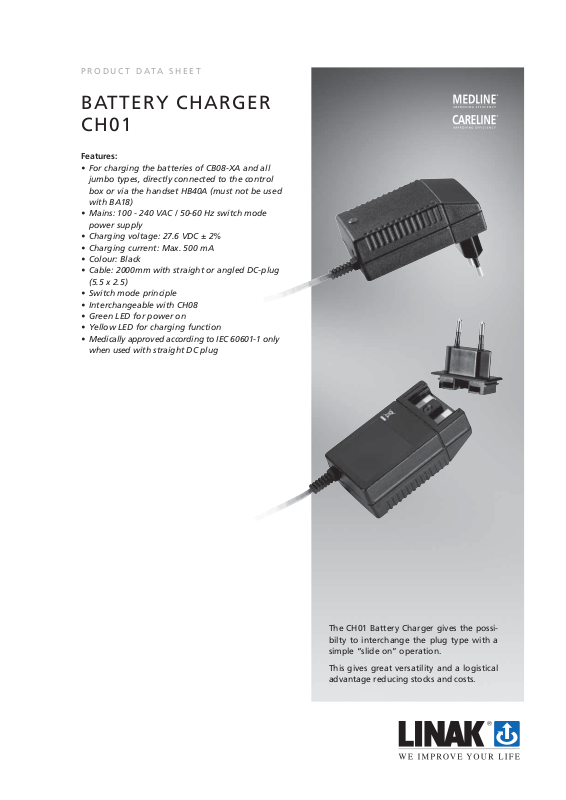

PRODUCT DATA SHEET

BATTERY CHARGER CH01

Features:

• For charging the batteries of CB08-XA and all jumbo types, directly connected to the control box or via the handset HB40A (must not be used with BA18)

• Mains: 100 - 240 VAC / 50-60 Hz switch mode power supply

• Charging voltage: 27.6 VDC ± 2%

• Charging current: Max. 500 mA

• Colour: Black

• Cable: 2000mm with straight or angled DC-plug (5.5 x 2.5)

• Switch mode principle

• Interchangeable with CH08

• Green LED for power on

• Yellow LED for charging function

• Medically approved according to IEC 60601-1 only when used with straight DC plug

The CH01 Battery Charger gives the possibilty to interchange the plug type with a simple “slide on” operation.

This gives great versatility and a logistical advantage reducing stocks and costs.

English plugEuro plug Shaver plug

U.S. / Japan plug

Australian plug

Charging module: Part number: 10CH01S-00 (Straight plug) 10CH01A-00 (Angled plug)

Plug Adaptor unit: Part number:

English plug 00CH01UK-00

Australian plug 00CH01AUS-00

Euro plug 00CH01EU-00

U.S. / Japanese / UL plug 00CH01US-00

Shaver plug 00CH01IEC-00

Please order in multiples of 69 as there are 69 pieces in a box.

Charging module

Specifications subject to change without prior notice. It is the responsibility of the product user to determine the suitability of LINAK A/S products for a specific application. LINAK will at point of delivery replace/repair defective products covered by the warranty if promptly returned to the factory. No liability is assumed beyond such replacement/repair.
