G4-001
G4 HOME GYM
Customer Support Services
PARTS MANUAL
G4-001 G4 HOME GYM
CONTENTS
|
PAGE |
COMPONENT ASSEMBLY I |
3 |
COMPONENT ASSEMBLY I LEGEND |
4 |
COMPONENT ASSEMBLY II |
5 |
COMPONENT ASSEMBLY II LEGEND |
6 |
COMPONENT ASSEMBLY III |
7 |
COMPONENT ASSEMBLY IV |
8 |
COMPONENT ASSEMBLY V |
9 |
COMPONENT ASSEMBLY V LEGEND |
10 |
LAT CABLE |
11 |
PEC FLY CABLE |
12 |
GUIDE CABLE |
13 |

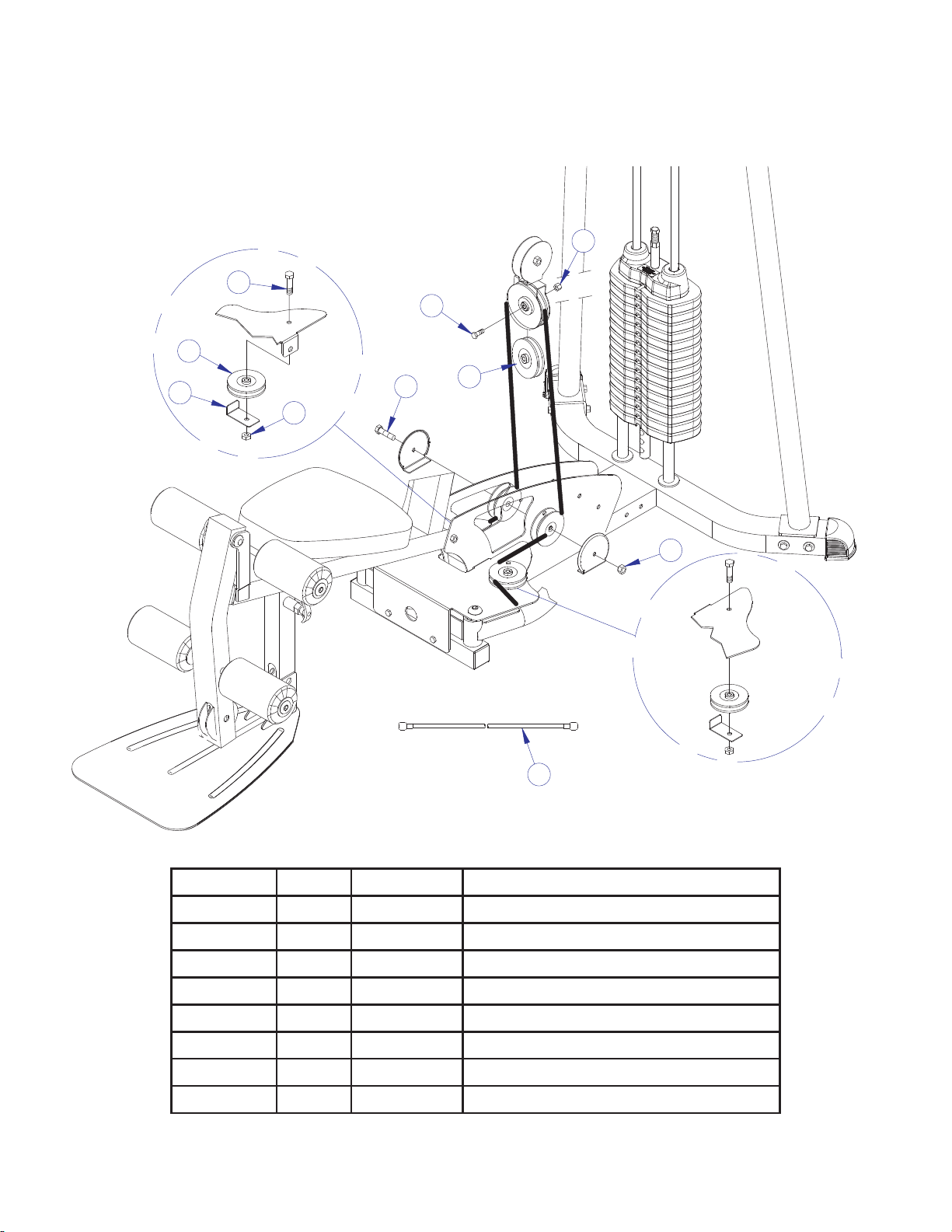

LOW CABLE |
14 |
WEIGHT STACK ASSEMBLY |
15 |
SUPPLIED ACCESSORIES |
16 |
HARDWARE BAG |
17 |
Page 2
G4-001 G4 HOME GYM COMPONENT ASSEMBLY I
38
29
16
|
|
|
34 |
|
6 |
|
30 |
|
17 |
|
|
|
|
|
|
|
|
31 |
|
|
28 |
|
1 |
|
|
|
11 |
||
|
|
|
|
|
|
|
|
|
12 |
|
|
|
|
|
|
40 |
|
|
|
|
41 |
|
|
|
|
|
37 |
18 |
24 |
|
|
|
|
10 |
|
|
|
|
39 |
3 |
|
|
|
36 |
|
|
|
|
|
|
|
|
|
|
|
|
|
33 |
|
|
|
|
41 |
|
|
|
|
15 |
|
|
2 |
|
|
|
|
|
|
57 |
44 |
43 |
42 |
|
|
|
|
|
35 |
|
|
8 |
|
19 |
|
|
|
|
|
26 |
|
49 |
48 |
|
|
||
|
|
|
|
|
|
|
50 |
|
|
51 |
22 |
27 |
|
|
|
7 |
|
21 |
|
|
|
||
|
|
|
|
5 |
|
|
|
23 |
|
|
|
|
|
45 |
|
|
|
|
46 |
25 |
|
|
47 |
41 |
|
|
|
42 |
|
|
|
43 |
|
|
20 |
44 |
|
|
32
11
3 33
|
52 |
|
14 |
9 |
|
|
|
|
|
|
|
|
4 |
13 |
|
54 |
|
59 |
|
56 |
55 |
|
|
|
|
|
|
|
|
|
53 |
60 |
58 |
|
|
|
|
|
|
|
|
|
61 |
|
|
|
|
60 |
|
Page 3
LEGEND ON PAGE 4
G4-001 G4 HOME GYM
COMPONENT ASSEMBLY I LEGEND
______________________________________
ITEM NO. |
QTY. |
PART NO. |
DESCRIPTION |
1 |
1 |
8589201 |
ASSY, FRAME, G4 |
2 |
1 |
8589501 |
ASSY, BASE, G4 |
|
|
|
|
3 |
2 |
8602501 |
BASE PLATE |
4 |
1 |
8587801 |
WLDMT, FOOT PLATE |
|
|
|
|
5 |
1 |
8602601 |
BOOM PLATE LEFT |
6 |
1 |
8602701 |
BOOM PLATE RIGHT |
7 |
1 |
8589901 |
ASSY, LEFT REAR UPRIGHT |
|
|
|
|
8 |
1 |
8590201 |
ASSY, RIGHT REAR UPRIGHT |
9 |
1 |
8590401 |
ASSY, LEFT PEC FLY ARM |
|
|
|
|
10 |
1 |
8590701 |
ASSY, RIGHT PEC FLY ARM |
11 |
2 |
8599901 |
ASSY, PEC FLY HANDLE |
12 |
1 |
8591001 |
ASSY, PRESS ARM |
13 |
1 |
8590901 |
WLDMT, BRACE |
14 |
1 |
8577801 |
ASSY, LEG PEDESTAL |
|
|
|
|
15 |
1 |
8585201 |
ASSY, SEAT ADJUST |
16 |
1 |
8591301 |
ASSY, PRESS ARM SUPPORT FRAME |
|
|
|
|
17 |
1 |
8599801 |
PRESS ARM ADJUST PLATE |
18 |
1 |
8603301 |
BACK INCLINE ADJUSTMENT |
19 |
1 |
8595501 |
PTD ASSY, SHROUD BRKT - TOP |
|
|
|
|
20 |
1 |
8595601 |
PTD ASSY, SHROUD BRKT - BTM |
21 |
1 |
8597401 |
SHROUD, LEFT |
|
|
|
|
22 |
1 |
8597501 |
SHROUD, RIGHT |
23 |
2 |
8595701 |
PLATE, DOUBLE PULLEY |
24 |
1 |
8596901 |
ASSY, DOUBLE FLOAT PULLEY BRKT |
|
|
|
|
25 |
1 |
8597301 |
BRKT, FLOATING PULLEY |
26 |
2 |
8603501 |
L CABLE RETAINER |
|
|
|
|
27 |
1 |
8595401 |
4-1/2 CABLE GUARD |
28 |
1 |
8599501 |
SHAFT, PRESS ARM PIVOT |
29 |
1 |
8602901 |
PRESS ARM SUPPORT PIVOT |
|
|
|
|
30 |
4 |
3268501 |
BUSHING 31 OD X 25.1 ID X 20H |
31 |
1 |
8591201 |
T HANDLE SPRING PIN |
32 |
2 |
8589801 |
CAP, COVER 2 X 2 |
33 |
2 |
8591601 |
GUARD, 3-1/2 PULLEY |
|
|
|
|
34 |
2 |
8578901 |
PLATE, PULLEY |
35 |
1 |
7316201 |
3/4 X 17-7/8 TUBE |
|
|
|
|
36 |
1 |
7316202 |
3/4 X 18-7/8 TUBE |
37 |
1 |
7316203 |
3/4 X 21 TUBE |
38 |
2 |
8591501 |
ASSY, BEARING BLOCK |
|
|
|
|
39 |
1 |
8594301 |
PAD, CONSUMER, SEAT |
40 |
1 |
8594201 |
PAD, CONSUMER, BACK |
|
|
|
|
41 |
6 |
8578401 |
PAD, ROLLER |
42 |
12 |
8584201 |
WASHER, PLASTIC |
43 |
6 |
8598001 |
AL CAP, ROLLER PAD END |
44 |
6 |
3268301 |
CAP SCREW, BTN HD 3/8-16 BO |
45 |
1 |
8587601 |
WEIGHT STACK PIN |
46 |
2 |
3108002 |
CUSHION, WEIGHT STACK 3/4 ID |
47 |
2 |
8588601 |
WLDMT, WEIGHT STACK SPACER |
|
|
|
|
48 |
2 |
6224501 |
SOCKET BUSHING |
49 |
2 |
8588501 |
COLLAR, SHAFT, AL 32.5 OD X 11.1H |
50 |
2 |
3247701 |
M4 X 0.7 X 3 HZS NO CUP ST BO |
|
|
|
|
51 |
2 |
6523401 |
GUIDE ROD, 3/4 OD X 72-3/8 |
52 |
1 |
8603601 |
AB STRAP |
|
|
|
|
53 |
1 |
6409101 |
STRAP, ANKLE STANDARD |
54 |
1 |
6075906 |
CHAIN, 12 LINK |
55 |
4 |
3103801 |
LINK, SNAP 5/16 DIA |
|
|
|
|
56 |
1 |
8588301 |
ASSY, LOW ROW BAR |
57 |
1 |
8598701 |
ASSY, LAT BAR, G4 |
|
|
|
|
58 |
2 |
8598901 |
HAND GRIP - 25MM OD X 580L |
59 |
2 |
7662801 |
RING, GRIP 1.25 OD |
60 |
8 |
3247701 |
M4 X 0.7 X 3 HZS NO CUP ST BO |
|
|
|
|
61 |
2 |
7662901 |
CAP; GRIP 1.25 OD |
Page 4
G4-001 G4 HOME GYM
COMPONENT ASSEMBLY II
12
13
12
8
9
1 |
4 |
10 |
2 |
|
|
|
|
|
|
3 |
|
15
5 |
10 |
10
14 7
12 6
11
10
10
LEGEND ON PAGE 6
Page 5
G4-001 G4 HOME GYM
COMPONENT ASSEMBLY II LEGEND
ITEM NO. |
QTY. |
PART NO. |
DESCRIPTION |
1 |
1 |
8582201 |
CAP, END 75 X 50 |
|
|
|
|
2 |
2 |
8582101 |
LAT BAR HOOK COVER - 3/8 ID X 4-3/8 L |
|
|
|
|
3 |
1 |
8584301 |
ADJUSTABLE GLIDE |
|
|
|
|
4 |
1 |
8589401 |
GS4 ALUMINUM LOGO |
|
|
|
|
5 |
1 |
8599401 |
SLEEVE, AL 13 OD X 10 ID X 12L |
|
|
|
|
6 |
1 |
8582001 |
T-HANDLE SPRING PIN |
|
|
|
|
7 |
1 |
8599101 |
BUMPER |
|
|
|
|
8 |
1 |
8580401 |
KNOB, SEAT ADJUSTER |
|
|
|
|
9 |
1 |
3102904 |
3/8-16X3 UNS HEX FHB G2 ZN |
|
|
|
|
10 |
10 |
3102807 |
NUT, NYLOCK 3/8-16 LOW HT |
|
|
|
|
11 |
2 |
8589701 |
END CAP, 2 SQ |
|
|
|
|
12 |
9 |
3102905 |
3/8-16 X 3-3/4 UNS HEX FHB G2 ZN |
|
|
|
|
13 |
2 |
3102965 |
3/8-16 X 3/4 UNS HEX FHB G2 ZN |
|
|
|
|
14 |
4 |
3102514 |
WASHER, FLAT 3/8 IN SAE ST ZN |
|
|
|
|
15 |
1 |
7611601 |
V PULLEY |
|
|
|
|
Page 6
