LG T0102HFWP Owner's Manual [ar]

WASHING

MACHINE

T0102HFWP

T0102HFLP

MFL68465608

P/NO : MFL68465608

Rev. No.: 00

Page No.

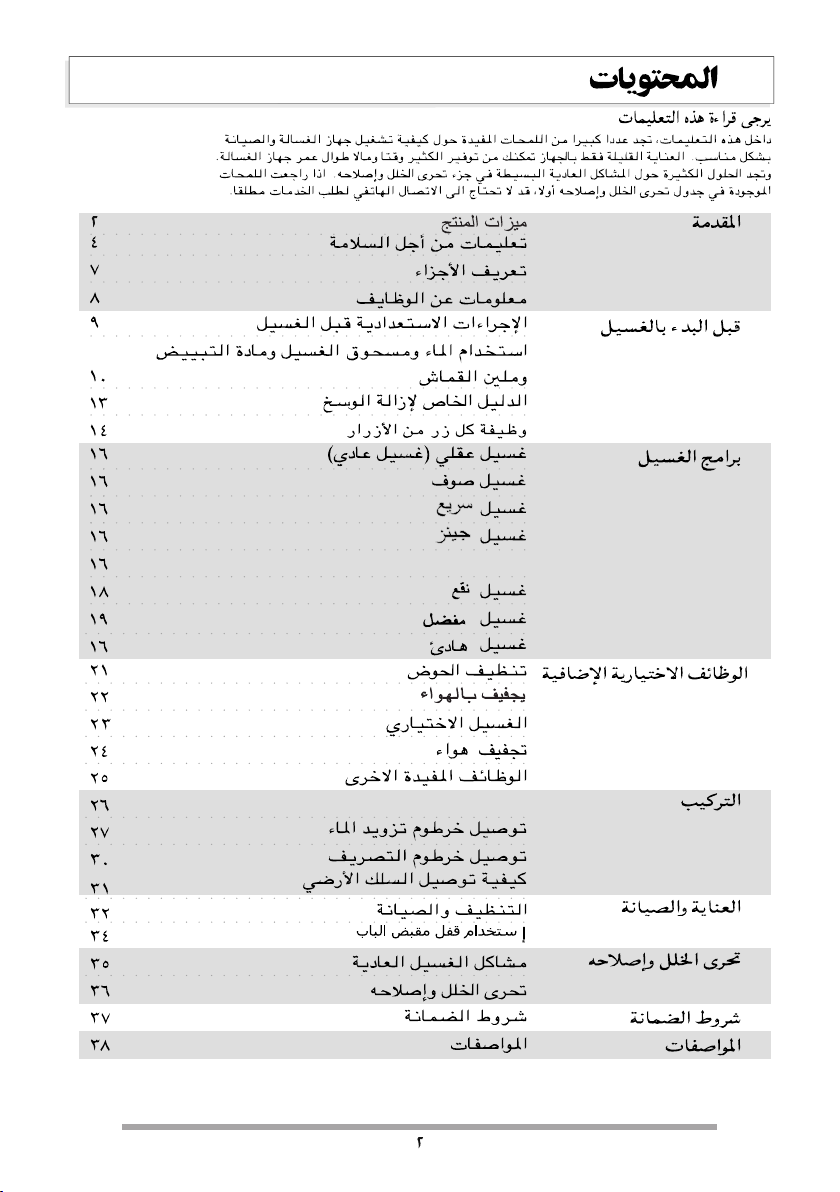

ContentsREAD THIS MANUAL

Inside you will find many helpful hints on how to use and maintain your washer properly. Just a little preventive care on your part can save you a great deal of time and money over the life of your washer. You will find many answers to common problems in the Troubleshooting section. If you review our chart of Troubleshooting Tips first, you may not need to call for service at all.

Introduction

Before Starting to Wash

Washing Programs

Additional Function

Program

Installation

Care and Maintenance

Troubleshooting

Terms of Warranty

Features & Specifications

Product Features	3
Safety Information	4
Identification of Parts	7
Function Information	8
Preparation Before Washing	9
Use of Water, Detergent, Bleach and Softener	10

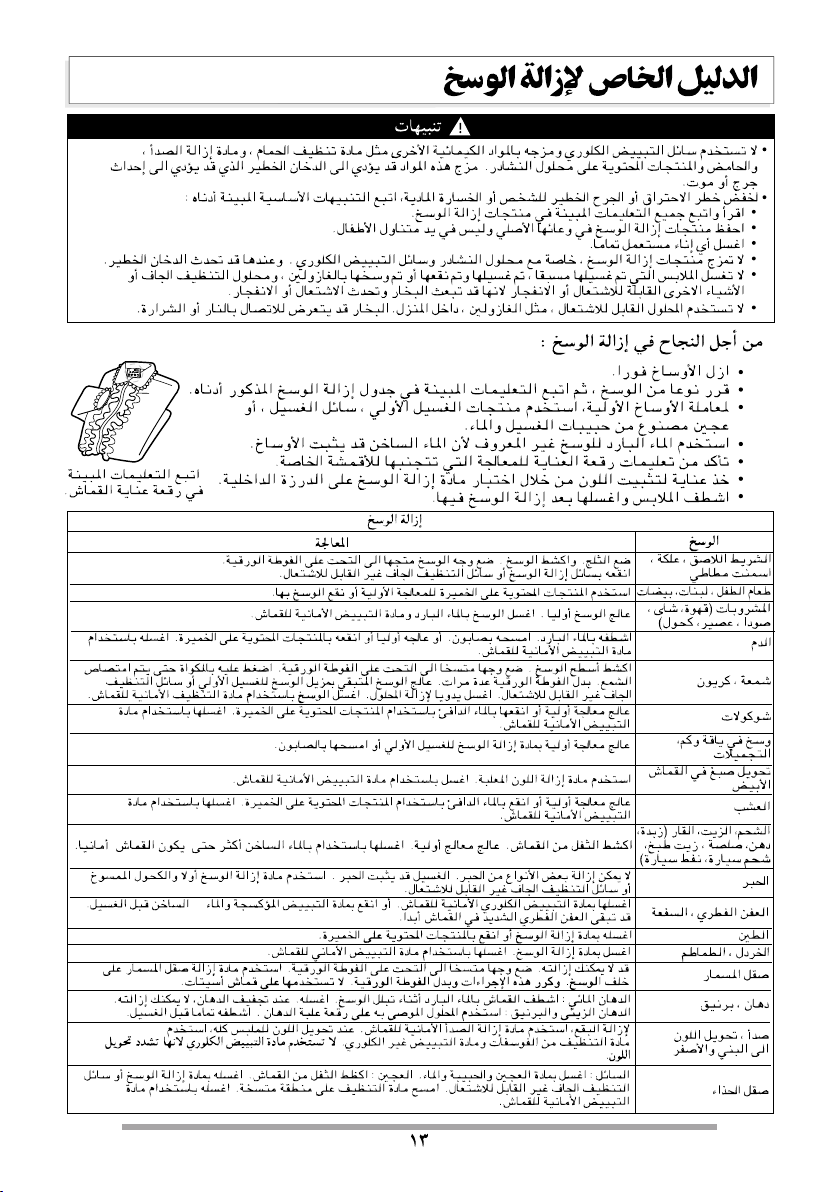

Special Guide for Stain Removal	13
Function of each Button	14

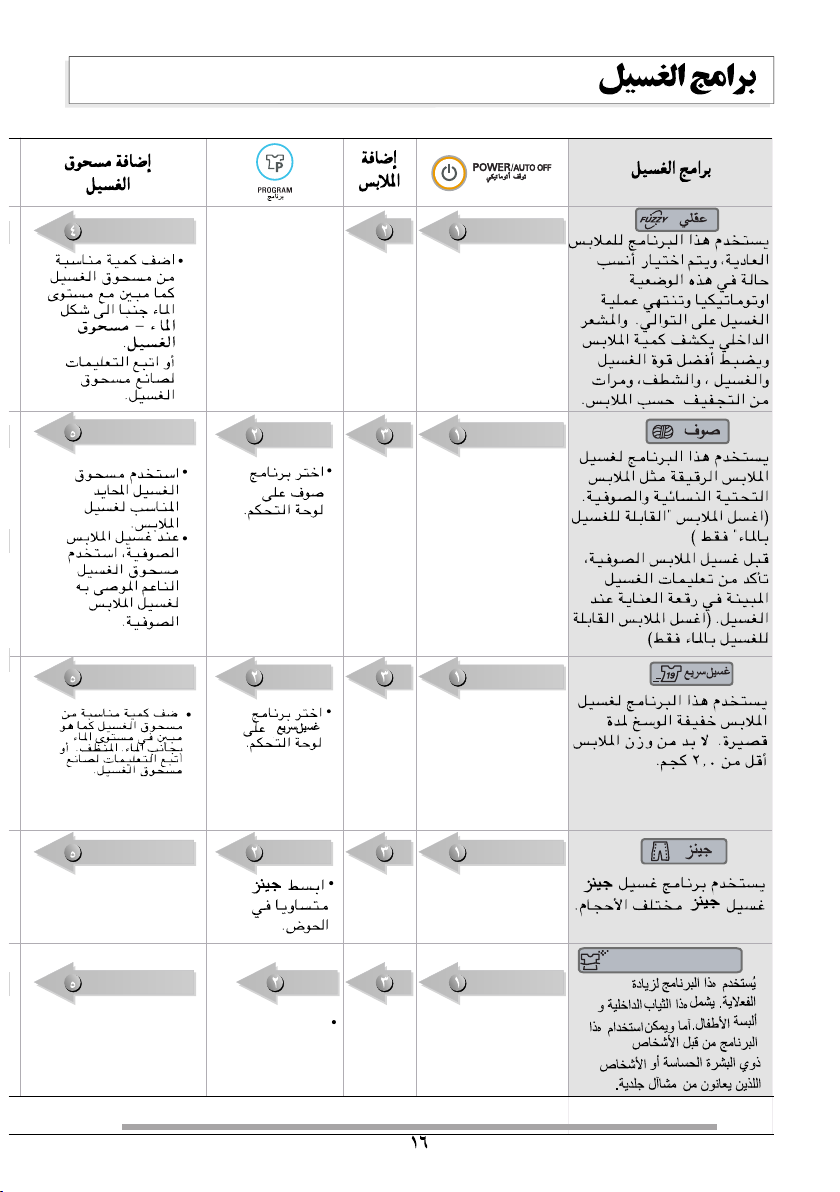

FUZZY Wash (Normal Wash)	16
WOOL Wash	16
QUICK WASH	16
JEANS Wash	16
SMART CLEANING/EXTRA CLEANING	16

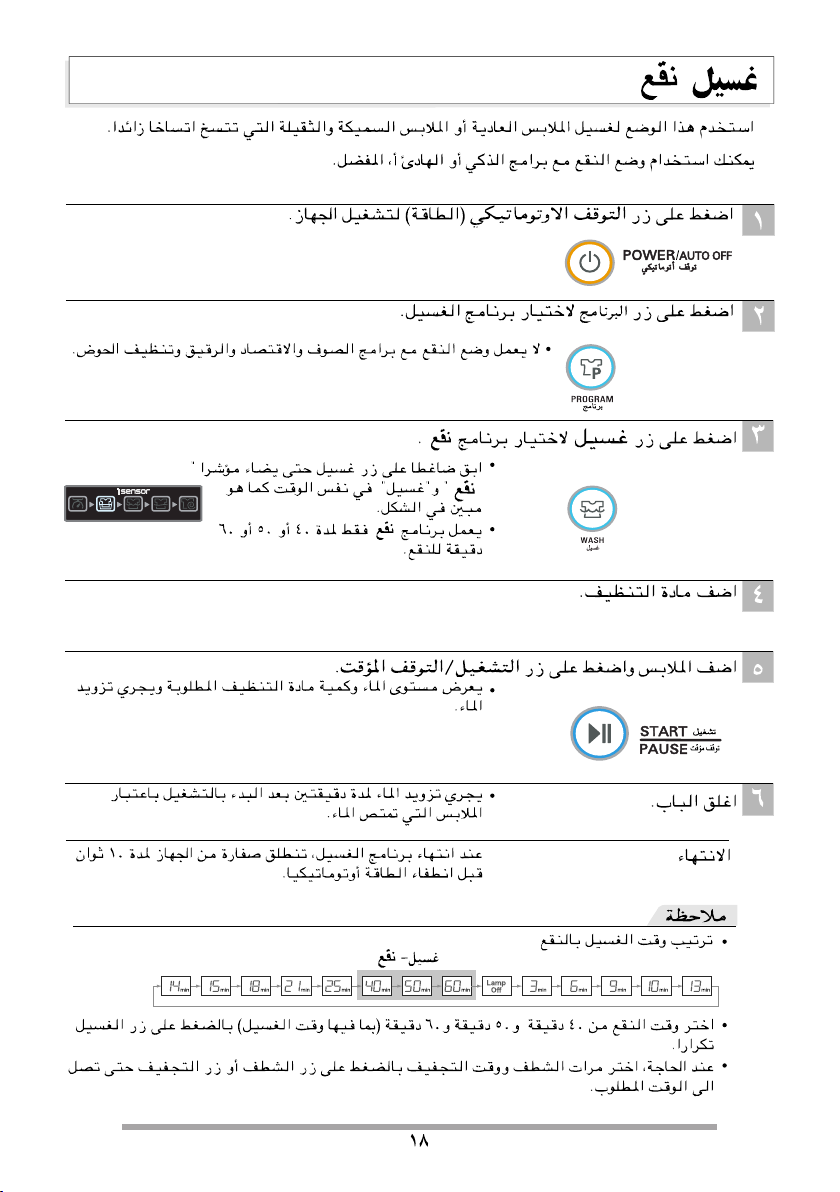

SOAK Wash	18
FAVORITE Wash	19
SILENT Wash	20

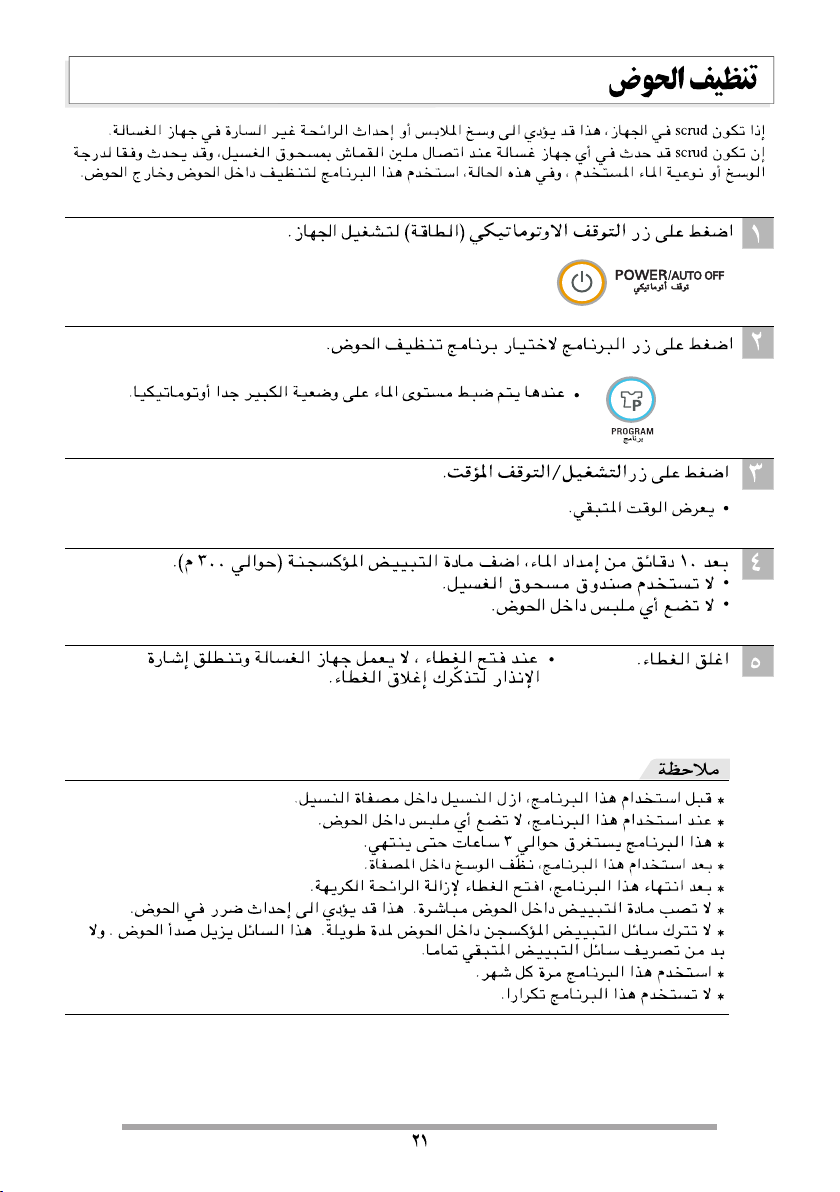

TUB CLEAN	21
AIR DRY	22

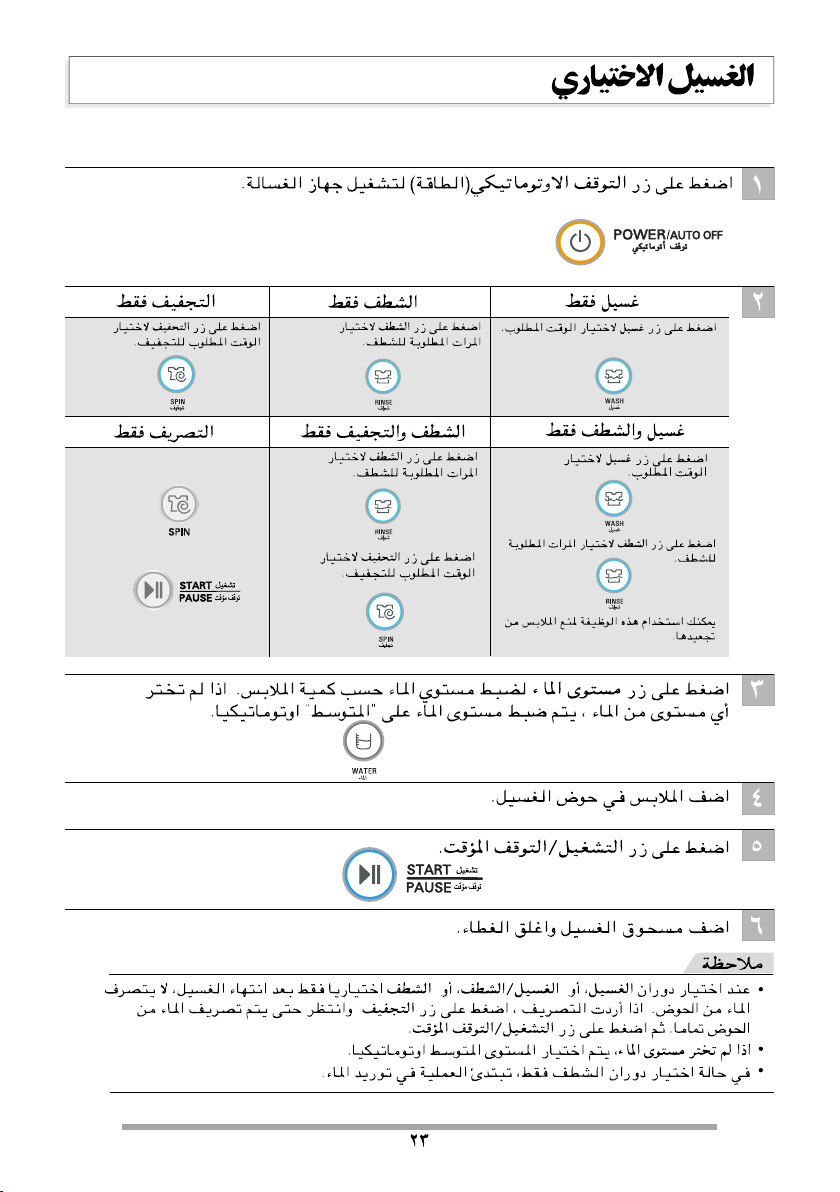

Option Washing	23

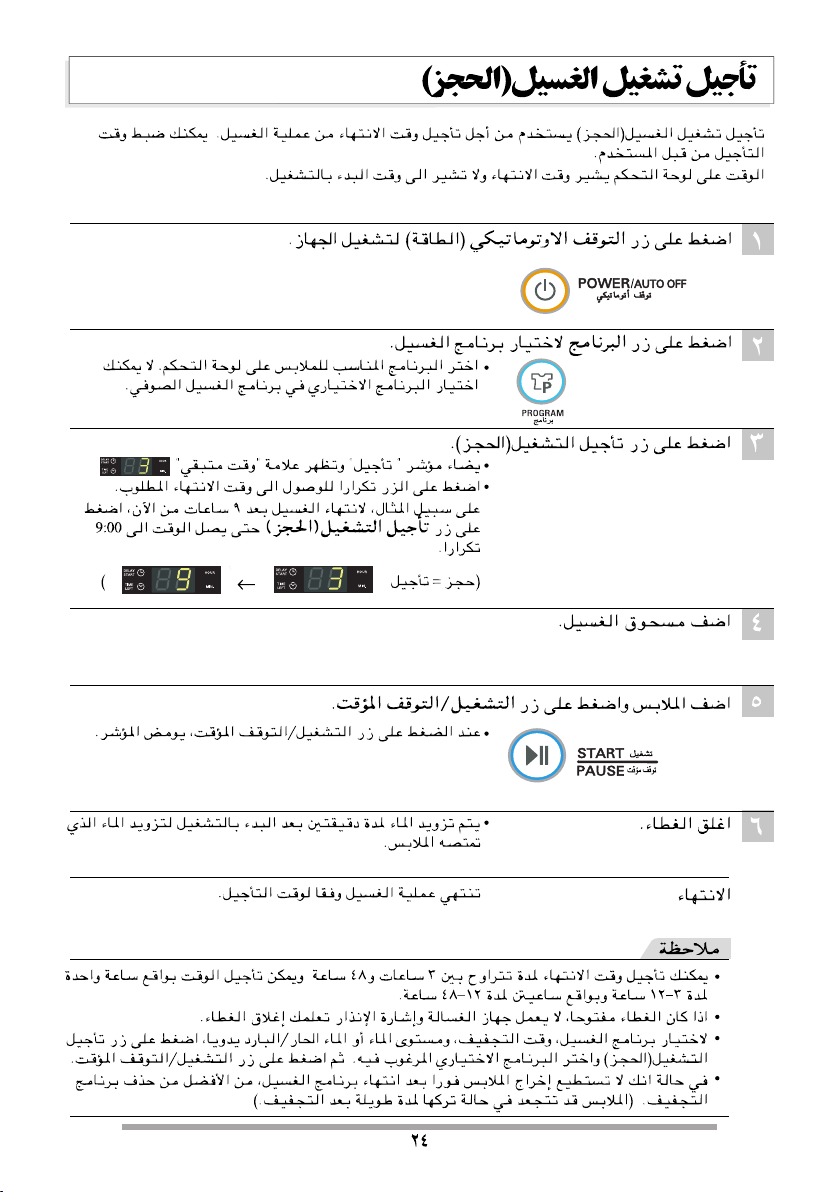

DELAY START (RESERVATION) Wash	24
Other Useful Functions	25

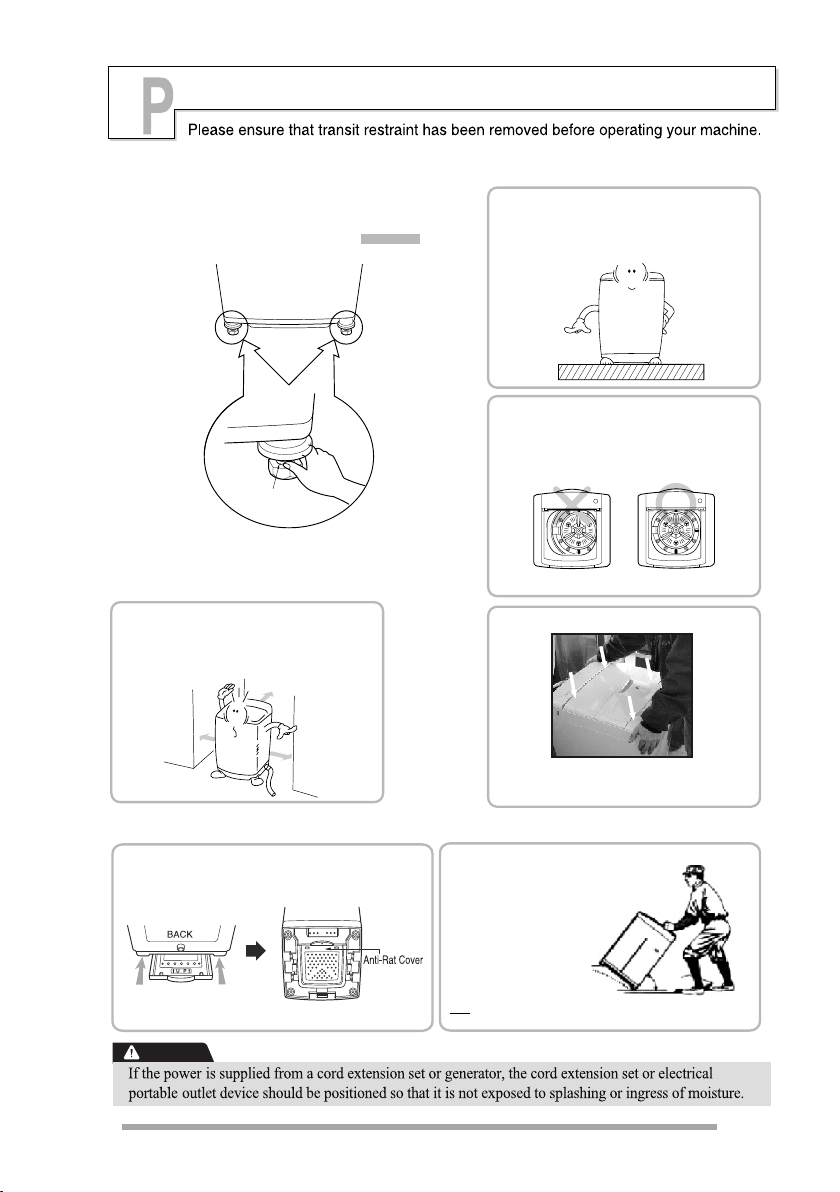

Placing, Leveling and Installation	26

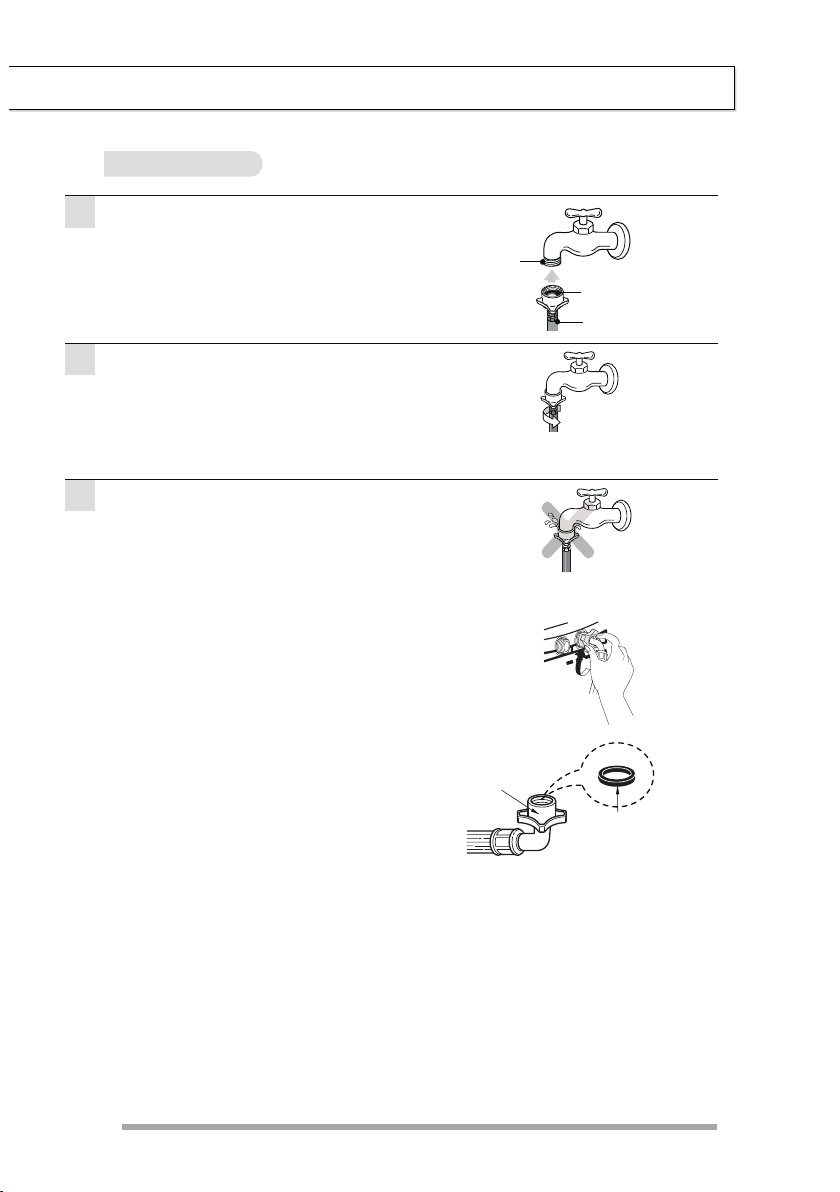

Connecting Water Supply Hose	27
Connecting Drain Hose	30

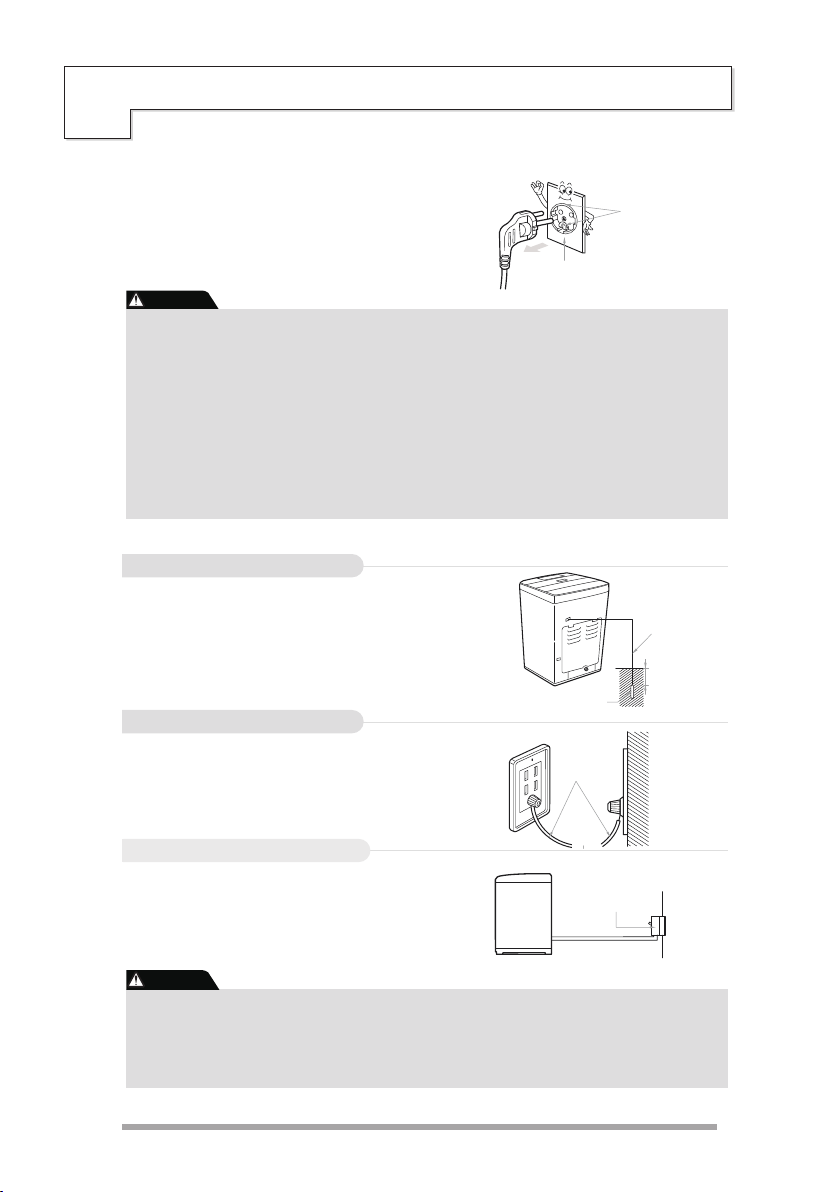

Grounding Method	31
Cleaning and Maintenance	32

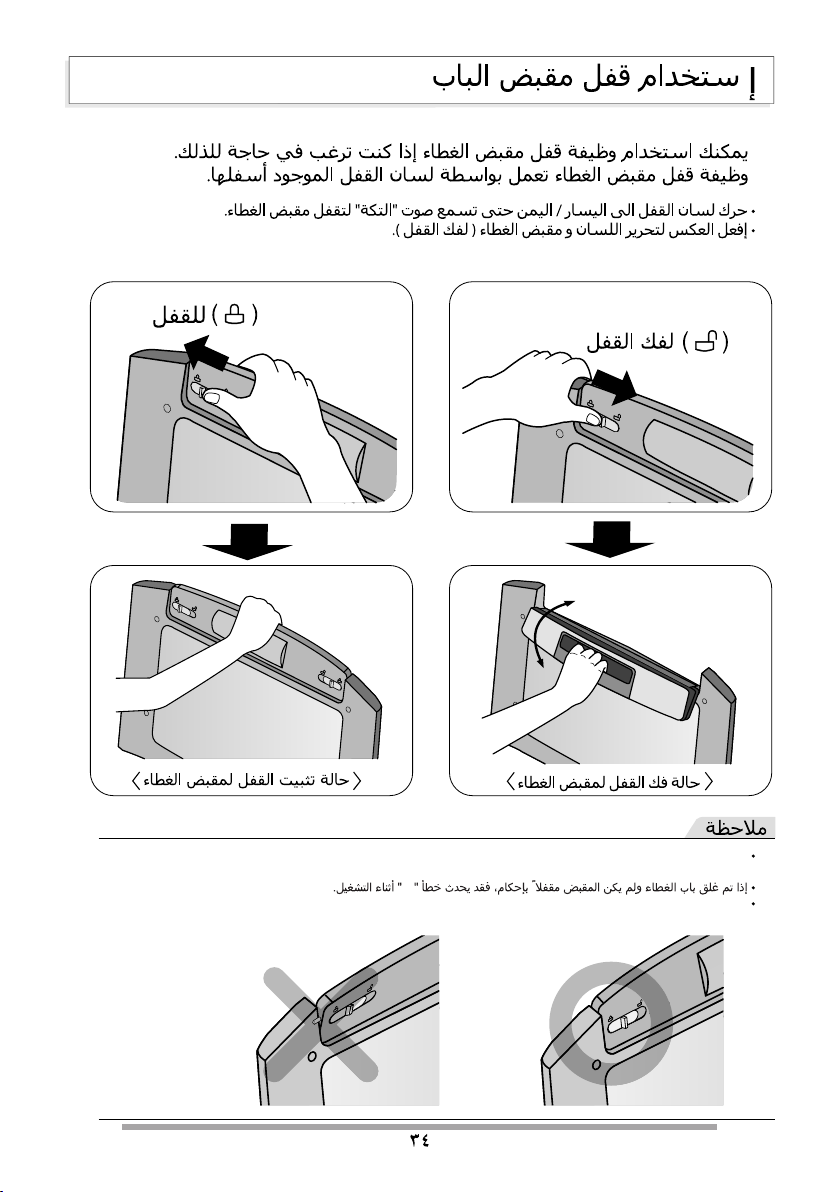

Use of Handle Locker	34
Common washing problems	35
Troubleshooting	36
Terms of Warranty	37
Features & Specifications	38

*Product feature may vary according to different models. Refer page 38 for modelwise features for your purchased model.

2

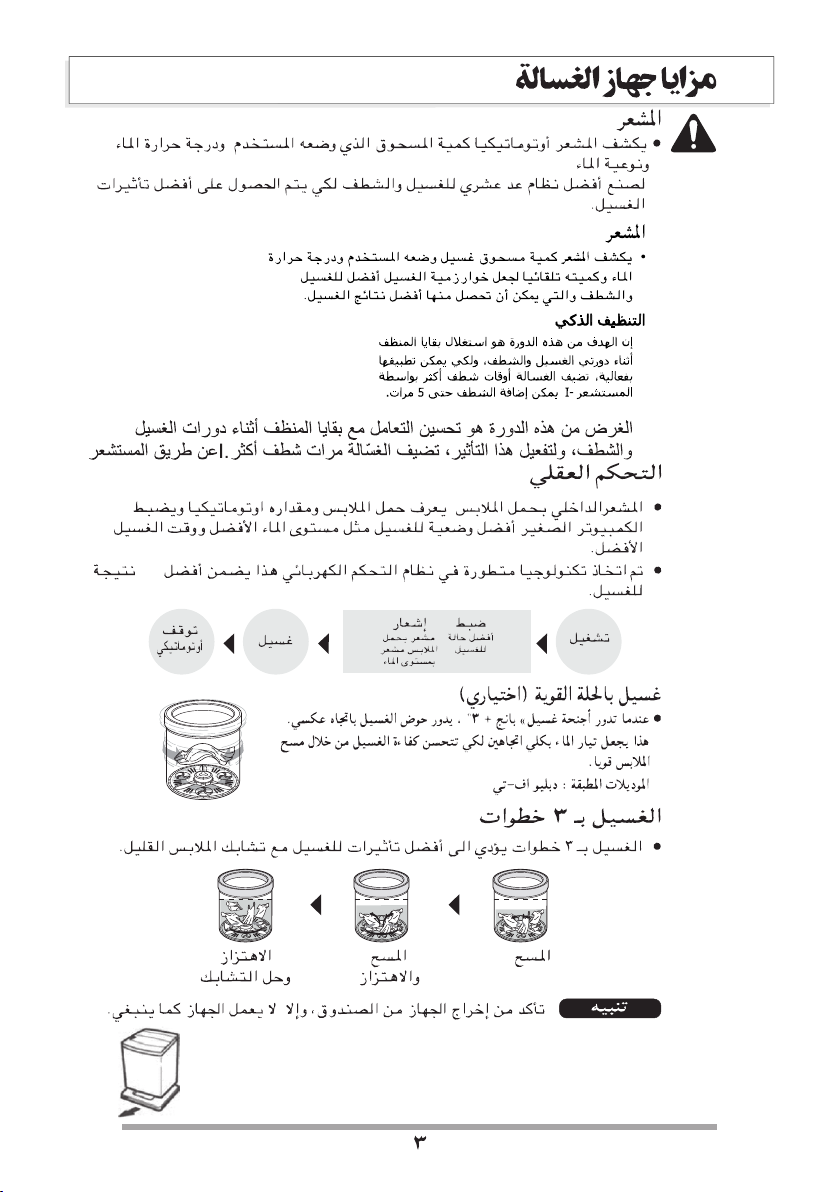

Product Features

Washer doesn't operate while the lid is open. If the lid is open during the wash, rinse

or spin cycles, the operation stops for safety.

sensor

•The sensor automatically detects the quantity of a Detergent put by a user and the temperature and the quality of water to make the best washing algorithm for washing and rinsing, which can give the best washing effect.

SMART CLEANING

•The purpose of this cycle is to optimize detergent residues during the washing and rinsing cycles, in order to implement this effect,the washer adds more rinsing times by I-sensor. Rinse can be added until max 5 times.

EXTRA CLEANING

•The purpose of this cycle is to reduce detergent residues during the washing and rinsing cycles. In order to implement this effect the washer adds one rinsing cycle. (Total 3 rinsing cycles)

FUZZY logic control

• A built-in load sensor automatically detects the laundry load and a microprocessor optimizes washing conditions such as ideal WATER LEVEL and washing time.

START	SENSING	SETTING	WASHING	AUTO
	Laundry Sensor	Optimum		POWER
	Water Level Sensor	Washing		OFF
		Condition

• Advanced technology is built into the Electronic Control System which ensures the best washing result.

TurboDrum washing

• When "Punch + 3" washing wings turn, the washing tub turns in the opposite direction. This makes the both sides current of water which improve wash-performance by rubbing clothes strongly.

3 Step washing

• 3 step washing makes the best washing performance with low tangling.

Rubbing	Rubbing and	Shaking and
	Shaking	Disentangling

NOTE : Be sure to remove the product from the carton base, otherwise the machine will not be able to operate properly.

*Product feature may vary according to different models. Refer page 38 for modelwise features for your purchased model.

3

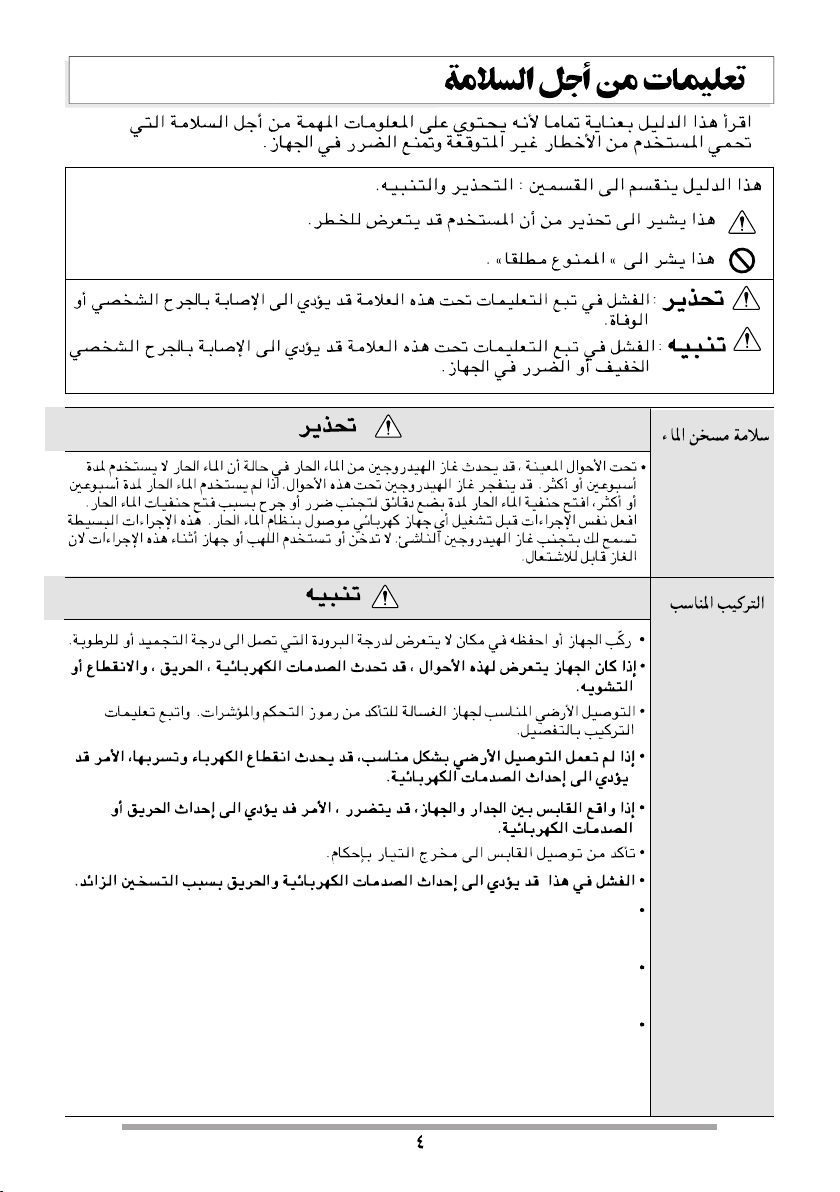

Safety Information

Read carefully and thoroughly go through this booklet as it contains important safety information that will protect the user from unexpected dangers and prevent potential damages to the product.

This booklet is divided into 2 parts : Warning and Caution.

:This is a warning sign specifying user’s applications which might be dangerous.

:This is a sign specifying ‘Strictly Forbidden’ applications.

WARNING

CAUTION

:Failure to comply with the instructions under this sign may result in major physical injuries or death.

:Failure to comply with the instructions under this sign may result in minor physical injuries or damages to the product.

WATER	WARNING
HEATER
SAFETY

Under certain conditions hydrogen gas may be produced in a water heater that has not been used for two weeks or more. Hydrogen gas can be explosive under these circumstances. If the HOT water has not been used for two weeks or more, prevent the possibility of damage or injury by turning on all Hot water faucets and allowing them to run for several minutes. Do this before using any electrical appliance which is connected to the HOT water system. This simple procedure will allow any built-up hydrogen gas to escape. Since the gas is flammable, do not smoke or use an open flame or appliance during this process.

PROPER	CAUTION
INSTALLATION

•The base opening must not be obstructed by carpeting when the washing machine is installed on a carpeted floor.

•Install or store where it will not be exposed to temperature below freezing or exposed to the weather (Rain / Water Splash).

If the product is exposed to such conditions, electric shock, fire, break down or deformation may occur.

•Properly ground washer to confirm with all governing codes and ordinances. Follow details in Installation Instructions.

If not grounded properly, break down and leakage of electricity may occur, which may cause electric shock.

•Machine must be positioned so that the plug is accessible.

If the plug is placed between the wall and the machine, it may get damaged, possibly causing fire or electric shock.

•Make sure the plug is completely pushed into the outlet.

Failure to do so may cause electric shock and fire due to overheating.

•Do not connect ground to a gas pipe.

It can cause explosion.

•Do not connect ground to telephone wires or lightning rods.

This may be dangerous during electrical storms.

•Washer shall be placed in dry areas specifically during rainy season.

Humid conditions may cause rusting which may result in product failure.

4

Safety Information

YOUR	WARNING
LAUNDRY
AREA	• Keep the area underneath and around your appliances free of combustible
	materials such as lint, paper, rags, chemical etc.
	Operating with such materials around the machine may trigger explosion or
	fire.

•Close supervision is necessary if this appliance is used by or near children. Do not allow children to play on, with or inside this or any other appliance.

There is potential danger that children might drown in the tub.

Do not touch the power plug with a wet hand.

It will cause electric shock

Do not put your hand, foot or anything under the washing machine while the washing machine is in operation.

There is a rotating mechanism under the machine, so you could be injured.

WHEN USING	CAUTION
THE WASHER

•Use this appliance only for its intended purpose as described in this Owner’s Manual.

•The laundry process can reduce the flame retardancy of fabrics. To avoid such a result, carefully follow the garment manufacturer’s wash and care instructions.

•To minimize the possibility of electric shock, unplug this appliance from the power supply or disconnect the washer at the household distribution panel by removing the fuse or switching off the circuit breaker before attempting any maintenance or cleaning.

NOTE : Pressing Power button to turn off does NOT

disconnect the appliance from the power supply.

•Make sure that drainage is working properly.

If water is not drained properly, your floor may get flooded.

Flooded floors may induce electricity leakage, further resulting in electric shock or fire.

•If, during spinning, opening the lid does not stop the tub within about 15 seconds, immediately discontinue operating the machine.

Call for repair. A machine that spins with its door open may cause injuries.

Never reach into the machine while it is running.

Wait until the machine has completely stopped before opening the lid.

Even slow rotation can cause injury.

Never attempt to operate this appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

Operating with a damaged plug may cause electric shock.

Do not use water hotter than 60°C.

Use of excessively hot water may cause damage to fabrics or cause leakage of water.

Ensure No water logging near or below washer to prevent rusting.

Rusting on certain parts may result in product failure

5

Safety Information

WHEN USING	WARNING
THE WASHER

•This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Do not use a plug socket and wiring equipment for more than their rated capacity.

Exceeding the limit may lead to electric shock, fire , break down, and/or deformation of parts.

Do not mix chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acids (such as vinegar) or product containing ammonia.

Mixing different chemicals can produce toxic gases which may cause death.

Do not wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, drycleaning solvents, kerosene, etc). Do not add these substances to the wash water.

Do not use or place these substances around your washer or dryer during operation.

It may ignite or explode.

Avoid electric heater, candle light, cigarette light, bug smoker, etc. near the machine.

It may ignite or deform the plastic part.

WHEN NOT	CAUTION
IN USE

•Turn off water faucets to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur. Check the condition of the fill hoses; they may need replacement after 5years.

•When the air temperature is high and the water temperature is low, condensation may occur and thus wet the floor.

•Wipe off dirt or dust on the contacts of the power plug.

Using unclean power plug may cause fire.

•Before discarding a washer, or removing it from service, remove the washer lid to prevent children from hiding inside.

Children may be trapped and suffocated if the lid is left intact.

Do not attempt to repair or replace any part of this appliance unless specifically recommended in this Owner’s Manual, or in published userrepair instructions that you understand and have the skills to carry out.

Operating the machine with improperly replaced parts may be a cause for fire or electric shock.

Do not tamper with controls.

It may lead to electric shock, fire , break down, deformation.

Do not yank the power cord in an attempt to disconnect the power plug.

Securely hold the power plug to unplug the machine.

Failure to observe these instructions may cause electric shock or fire due to shortcircuit .

When you are cleaning the washing machine, do not apply water directly to any part of the washing machine.

It will cause short circuit and electric shock.

6

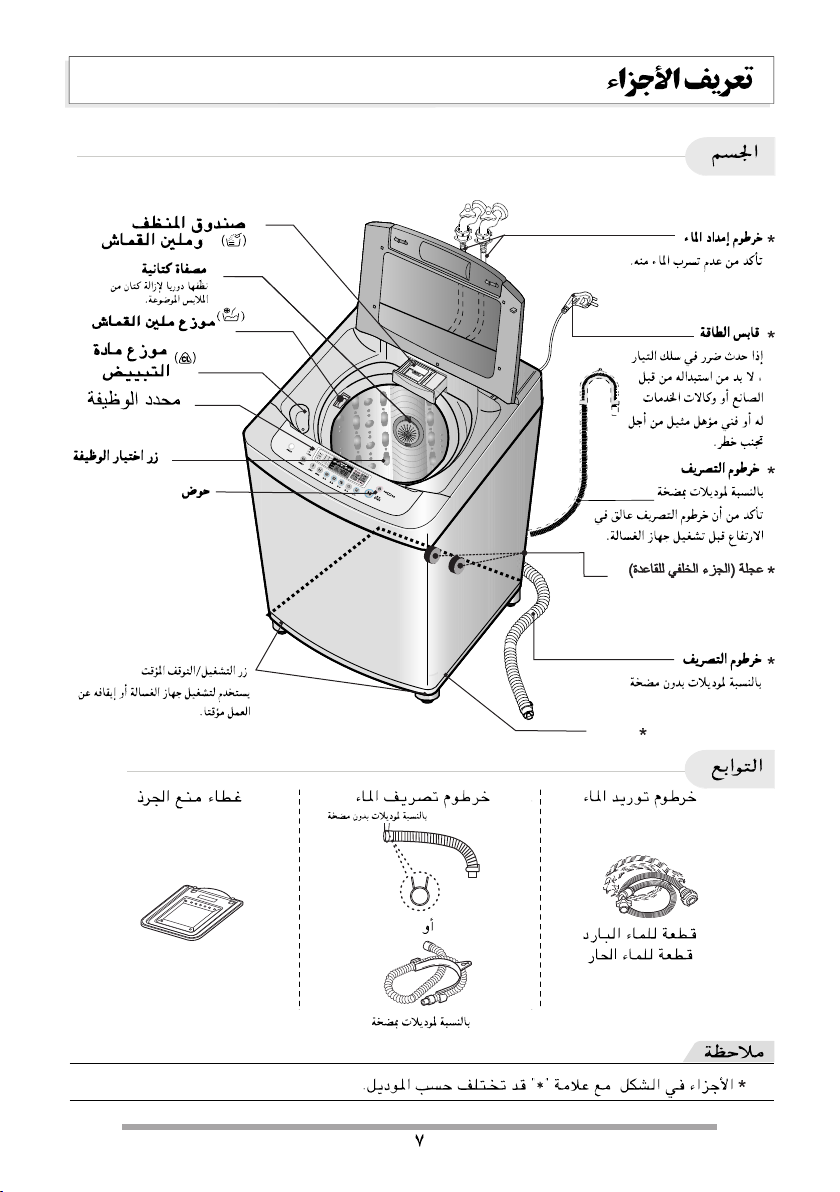

Identification of Parts

Body

POWDER

DETERGENT BOX

MAGIC FILTER

Clean regularly to

stop linting on the

clothes load.

SOFTENER

INLET

BLEACH

DISPENSER

FUNCTION

SELECTOR

TUB

START/PAUSE

BUTTON

Use to start or stop the washing machine temporarily.

ADJUSTABLE LEGS

Use to level the washing machine for correct balance & spin operation.

WATER SUPPLY

HOSE

Make sure the water does not leak.

POWER PLUG

If the supply cord is

damaged, it must be

replaced by the

manufacturer or its

service agents or

similarly qualified

person in order to

avoid a hazard.

CASTOR Use for easy translocation

(at rear bottom edge)

DRAIN HOSE for pump model

Check if the drain hose is hung up before operating the washing machine.

DRAIN HOSE for non pump model

BASE

Accessories

Water supply hoses	Drain hose
	Anti-rat cover
	For Non-pump model
	Snap Ring
1 Each for COLD and	or
HOT water	For Pump model

NOTE

"*" Parts can be different according to the model.

7

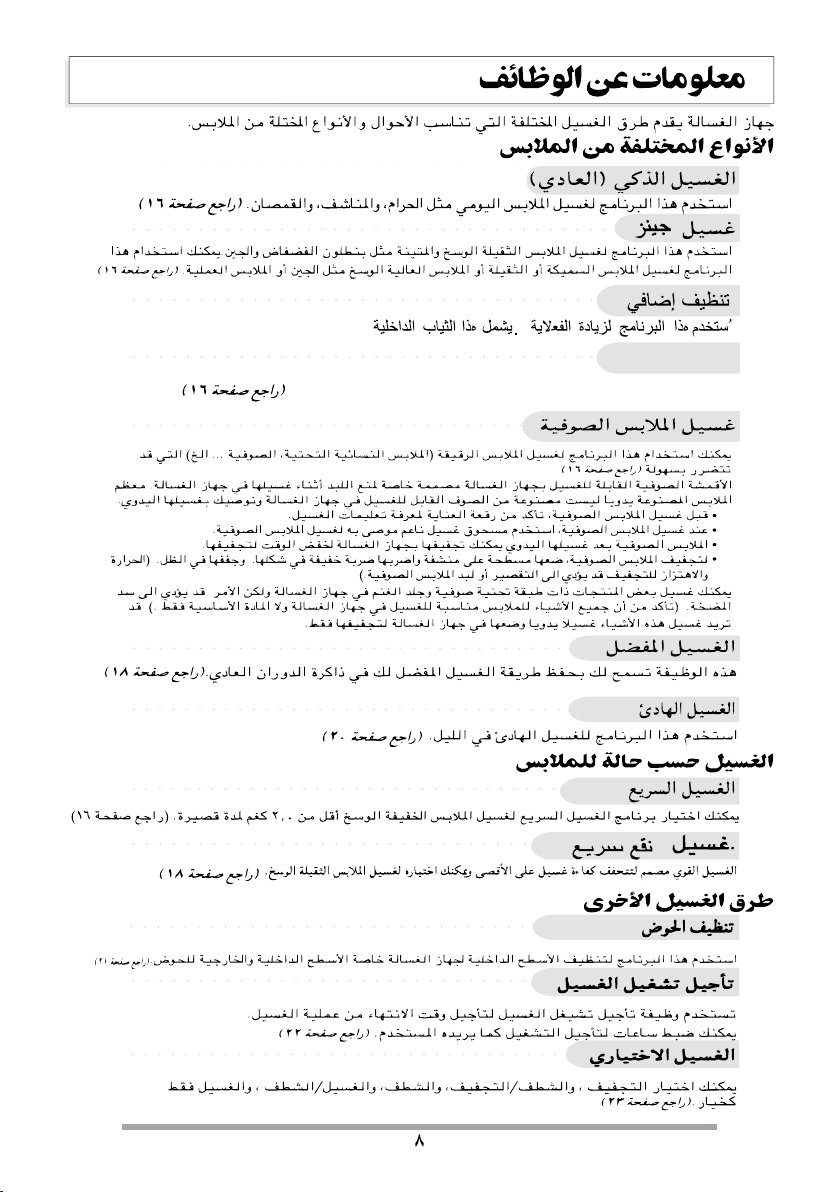

Function Information

Our machine provides various washing methods which suits various conditions and types of laundry.

Different types of laundry washing

FUZZY(Normal) Wash

Use this Program for everyday washing e.g. sheets, towels, T-shirts. (refer to page 16)

JEANS Wash

Use this Program for heavily soiled durable garments e.g. overalls, jeans.

Thick and heavy clothes or those which are excessively dirty like jeans or working uniforms can be washed.(refer to page 16)

SMART CLEANING

Use this program to get better rinsing performance. (refer to page 16)

EXTRA CLEANING

Use this program to get better rinsing performance. (refer to page 16)

WOOL Wash

Wool clothes (lingerie, wool, etc.) which may be easily damaged can be washed. (refer to page 16)

The fibers of machine washable woolens have been specifically modified to prevent felting when they are machine washed. Most handknitted garments are not made of machine washable wool and we recommend that you hand wash them

•Before washing your woolens check the care label for the washing instructions.

•When washing woolens use a mild Detergent recommended for washing wool.

•Hand washed woolens may be spun in a washing machine to reduce the time they take to dry.

•To dry woolens lay down them flat on a towel and pat into shape. Dry woolens out of direct sunlight.

(The heat and tumble action of a dryer may cause shrinkage or felting of woolen garments.)

Some wool underlays and sheepskin products can be washed in a washing machine but may cause pump blockages. (Ensure that the whole article is suitable for machine washing and not just the backing material.)

You may wish to handwash these articles and place them in the machine to spin dry.

FAVORITE Wash

This setting allows you to store your FAVORITE wash conditions in the normal cycle memory. (refer to page 19)

SILENT Wash

Use this program to wash quietly at night. (refer to page 20)

Washing according to the condition of laundry

QUICK WASH

QUICK WASH can be selected to wash lightly soiled clothes of less than 2.0 kg in a short time. (refer to page 16)

SOAK Wash

SOAK Wash can be selected to wash heavily soiled laundry by soaking in water for some time to remove dirt and grime. (refer to page 18)

Other washing method

TUB CLEAN

Use this program to clean the inside of washing machine especially Inner tub & Outer tub . (refer to page 21)

DELAY START Wash

DELAY START Wash is used to delay the finishing time of the operation.

The number of hours to be delayed can be set by the user accordingly. (refer to page 24)

OPTION WASH

When the user needs only SPIN, RINSE/SPIN, RINSE, WASH/RINSE, WASH, WASH/RINSE/SPIN.

(refer to page 23)

8

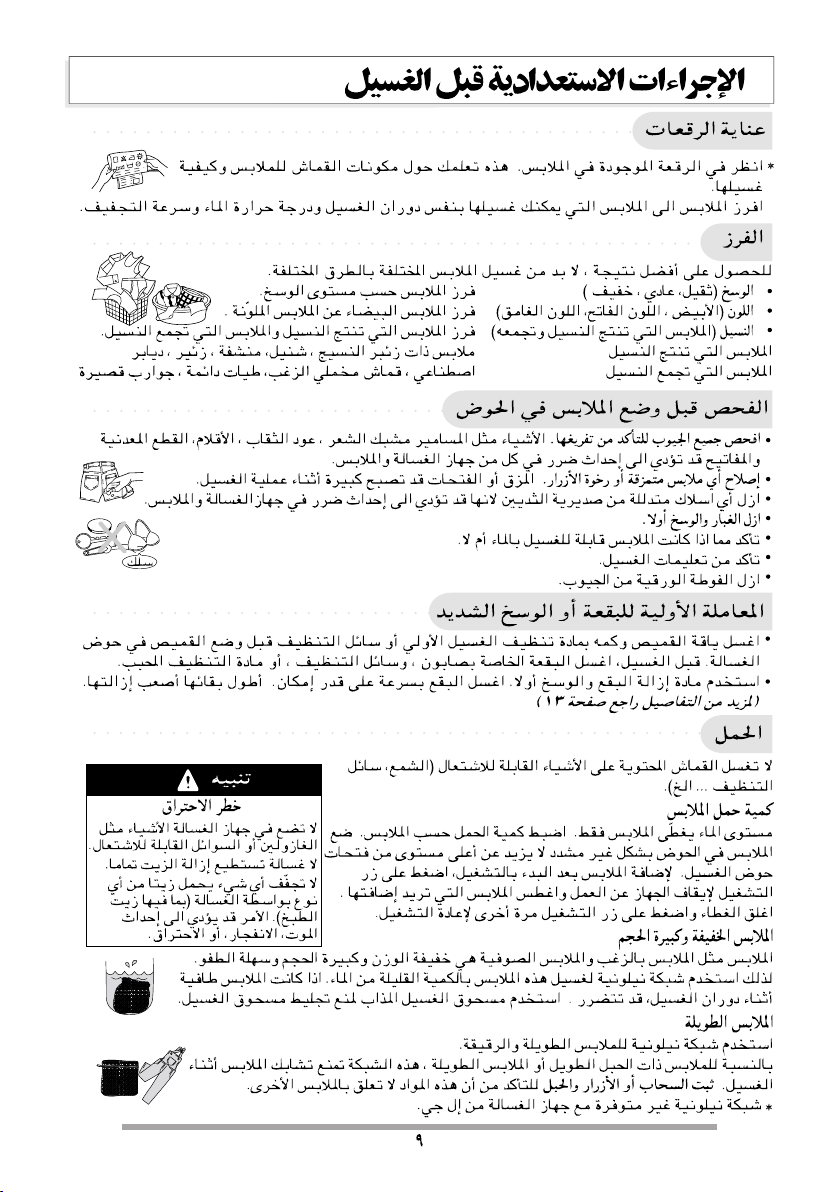

Preparation Before Washing

Care Labels

Look for a care label on your clothes. This will tell you about the fabric content of your garment and how it should be washed.

Sort clothes into loads that can be washed with the same wash cycle, Water Temperature and spin speed.

Sorting

To get the best results, different fabrics need to be washed in different ways.

• SOIL (Heavy, Normal, Light)	Separate clothes according to th e type and amount of soil.
• COLOR (Whites, Lights, Darks)	Separate white fabrics from colored fabrics.
• LINT (Lint Producers, Collectors) Separate lint producers and lint collectors.
Lint Producers	Terry cloth, Chenille Towels, Nappies, Diapers
Lint Collectors	Synthetics, Corduroy, Socks

Check before Loading

• Check all pockets to make sure that they are empty. Things such as nails, hairclips, matches, pens, coins, and keys can damage both your washer and your clothes.

• Mend any torn garments or loose buttons. Tears or holes may become larger during washing.
• Remove belts, underwires, etc. to prevent damage to the machine or your clothes.
• Pretreat any dirt and stains.
• Make sure the clothes are washable in water.	WIRE

•Check the washing instructions.

•Remove tissue in pockets.

Pretreatment on stains or heavy soil

•Pretreat shirt collars and cuffs with a pre-wash product or liquid Detergent when placing them in the washer. Before washing treat special stains with bar soaps, liquid Detergent or a paste of water and granular Detergent.

•Use a pretreat soil and stain remover.

Treat stains AS SOON AS POSSIBLE. The longer they are left the harder they are to remove.

(For more detail refer to page13)

Loading

	Do not wash fabrics containing flammable materials (waxes, cleaning fluids, etc.)
	Load Size	WARNING
	The WATER LEVEL should just cover the clothes. Adjust the load size	Fire Hazard
		Never place items in the washer that are
	accordingly. Loosely load clothes not higher than the top row of holes in	dampened with gasoline or other flammable
	the washer tub. To add items after washer has started, press Start button and	fluids.
	submerge additional items. Close the lid and press Start button again to restart.	No washer can completely remove oil.
		Do not dry anything that has ever had any
		type of oil on it (including cooking oils).
	Light and Large-sized clothing	Doing so can result in death, explosion or fire.

Clothes like downs and woollens are light weight, large and float easily. Use a nylon net and wash them in a small amount of water. If the laundry floats during the wash cycle, it may become damaged. Use dissolved Detergent to prevent the Detergent from clumping.

Long laundry items

Use nylon nets for long, DELICATE items. For laundry with long strings or long length , a net will prevent tangling during washing. Fasten zippers, hook, and strings to make sure that these items don't snag on other clothes.

Nylon net is not supplied by LG.

9

Use of Water, Detergent, Bleach and Softener

Using Water

Amount of WATER LEVEL

•This machine detects the quantity of laundry automatically, then sets the WATER LEVEL.

•When you select a wash program, the WATER LEVEL will be shown on the control panel.

•The following table shows the amount of water level.

•When the WATER LEVEL is automatically detected, it may differ depending on the quantity of laundry even though the same WATER LEVEL is indicated on the control panel.

NOTE

[ Minimum water amount]

WATER

10

It depends on laundry load and washer mode. Or manually you can pour a certain amount water into tub directly to some height. That's because if water level reaches to the some height sensed by washer itself, washer automatically operates. In other words, it is needed to pour water to the point when washer starts operating.

Water Temperature

•You can change the Inlet Water Temperature by pressing the TEMP. button. (refer to page 14)

(Machine does not have internal heater, water temp. indicates the temp of inlet water feeded to machine)

•The temperature of the water impacts the effectiveness of all laundry additives and therefore, the cleaning results. We recommend temperatures of:

- HOT 49~60°C… (120-140°F)		White items, diapers, underclothing and heavily soiled, colorfast items.
- WARM 29~40°C…	(85-105°F)	Most items
- COLD* 18~24°C…	(65-75°F)	Only very bright colors with light soil.

• When washing in COLD water additional steps may be needed:

-Adjust Detergent amount and pre-dissolve Detergent in WARM water

-Pretreat spots and stains

-Soak heavily soiled items

-Use appropriate bleach

* Temperature below 18°C… (65°F) will not activate laundry additives and may cause lint, residue, poor cleaning, etc.

In addition, Detergent manufactures and care labels define COLD water as 26~29°C… (80-85°F).

If the temperature of the water in the tub is too cold for your hands, the Detergent will not activate and clean effectively.

NOTE

If iron is present in the water the clothes may become an all-over yellow or they may be stained with brown or orange spots or streaks. Iron is not always visible. Installation of water softener or an iron filter may be necessary for severe cases.

Using Detergent

Detergent

Follow the Detergent package directions. Using too little Detergent is a common cause of laundry problems. Use more Detergent if you have hard water, large loads, greasy or oily soils or lower Water Temperature.

Choosing the right Detergent

We recommend the use of domestic Detergent, (powder, liquid or concentrated). Soap flakes or granulated soap powders should not be used in your washing machine. When washing woolens, remember to use Detergent suitable for washing woolens.

10

Water Level and Amount of Detergent

λ Concentrated detergent: 20g per 30 liters of water.

	λ Regular synthetic detergent: 30g per 30 liters of water.	Water	Amount	Amount
		Level	of Water	of laundry
	λ When sensing water levels automatically, the amount of	10	65 l	Less than
		9	61 l	Less than 4.0kg
	detergent can differ according to the amount of laundry
	even at the same water level.	8	51 l	Less than 3.5kg
	.	7	42 l	Less than 3.0kg
	λ For synthetic detergent, use one that generates less
	.	6	38 l
	bubbles. This type of detergent is specially designed			Less than 2.5kg
	for washers	5	34 l	Less than 2.0kg
	λ In case of using liquid detergent, dissolve it with water	4	32 l	Less than 1.5kg
	(detergent: water=1:1) and deposit it through the bleach	3	29 l	Less than 1.0kg
	deposit hole	2	29 l	Less than 0.6kg
	λ The correct amount of detergent will vary depending	1	23 l	Less than 0.3kg
	on the amount of soil in your clothes. (Jeans and work		Applicable for models
	clothes may need more detergent, while bath towels
	usually need less.)		8.0kg and lesser
	λ For liquid and concentrated detegants, follow the		Rated Capacity of Model

recommondations of the detergent manufacturer.

Note : To check you are using the correct amount of Detergent, lift the lid of your machine about halfway through the wash. There should be a thin layer of foam over the surface of the water. Lots of foam may look good, but it does not contribute to cleaning your clothes. No foam means not enough Detergent has been used, soil and lint can settle back on the clothes or the washing machine.

If excess Detergent is used, the rinse will not be efficient. Also, it could cause environmental pollution, so use it accordingly.

Adding the detergent

Add measured detergent to the detergent compartment of the dispenser drawer. We recommend the use of powdered detergent in the dispenser when using a delay wash function.

Detergent is flushed through the dispenser at the beginning of the wash phase. Detergent usage may need to be adjusted for water temperature, water hardness, size and soil level of the load.

Avoid using too much detergent in your washer, as it can lead to oversudsing and detergent residue being left on the clothes.

Using Liquid Bleach

•Check clothing care label for special instructions and separate the laundry to be bleached.

•Dilute liquid chlorine bleach.

• Measure the recommended amount of liquid bleach carefully following instructions on the bottle.

• Before starting the washer, pour measured amount of bleach directly into bleach dispenser. Avoid splashing or overfilling. Powdered bleach should be mixed with water before pouring.

NOTE

Bleach dispenser

( )

n Never pour undiluted liquid bleach directly onto clothes or into the wash basket. This may cause change of color or damage the laundry.

nDo not mix chlorine bleach with ammonia or acids such as vinegar and/or rust remover. Mixing can release a toxic gas which may cause death.

nDo not pour powdered bleach into bleach dispenser.

11

Use of Water, Detergent, Bleach and Softener

Using Fabric Softener

•Dilute fabric softener with water.

Undiluted fabric softener may result in spots that look like oil stains.

•Measure and add the recommended amount of fabric softener into the compartment marked with this symbol( ).

Follow manufacturer’s direction.

Fabric softener is automatically dispensed in the final rinse with indication beep.

If you want extra rinse, you must add fabric softener manually when indication beep rings in the final rinse.

This maximize the fabric softener function.

Softener dispenser( )

•Do not overfill. The dispenser hold max 35ml. Never add more than 35ml.

Overfilling can cause early dispensing of the fabric softener which could result in stained clothes. A cup with a pouring spout will help you avoid spilling.

•The effect of adding fabric softener may vary according to its viscosity. The stickier fabric softener makes its effect the lower. For a sticky fabric softener it is recommended that it be diluted with water, then be manually correct time to dispense manually is optionally applied to some models. Please keep it in mind that fabric softener has to be diluted with water before dispensed and never poured directly on clothes.

Attention

•Do not mix with detergent or bleach.

•Never pour fabric softener directly on clothes. It may stain them.

•Do not stop the washer during the first spin for timely dispensing.

•Option washing is not designed to be used with fabric softener dispenser.

Scrud (Waxy Build up)

Scrud is the name given to the waxy build-up that can occur within any washer when the fabric softener comes into contact with Detergent. This build-up is not brought about by a fault in the machine.

If scrud is allowed to build-up in the machine it can result in stains on yours clothes or an unpleasant smell in your washer.

If you wish to use fabric softener we recommend

•Using fabric softener sparingly.

•When filling the dispenser, do not splash or overfill.

•Clean dispenser as soon as the cycle is finished.

•Clean your machine regularly. (refer to page 21 or 32, 33)

•Cold water washing increases the chance of this build-up occurring. We recommend a regular WARM or HOT wash e.g. every 5th wash should be at least a warm one.

•Fabric softener of thinner consistency is less likely to leave residue on the dispenser and contribute to a build-up.

12

Special Guide for Stain Removal

WARNING

■Do not use or mix liquid chlorine bleach with other household chemicals such as toilet cleaners, rust removers, acid or products containing ammonia. These mixtures can produce dangerous fumes which can cause serious injury or death.

■To reduce the risk of fire or serious injury to persons or property, comply with the basic warnings listed below:

•Read and comply with all instructions on stain removal products.

•Keep stain removal products in their original labeled containers and out of children’s reach

•Thoroughly wash any utensil used.

•Do not combine stain removal products, especially ammonia and chlorine bleach. Dangerous fumes may result.

•Never wash items which have been previously cleaned in, washed in, soaked in or spotted with gasoline, dry

cleaning solvents or other flammable or explosive substances because they give off vapors that could ignite or explode.

•Never use highly flammable solvents, such as gasoline, inside the home. Vapors can explode on contact with flames or sparks.

For successful stain removal:

•Remove stains promptly.

•Determine the kind of stain, then follow the recommended treatment in the stain removal chart below.

•To pretreat stains, use a prewash product, liquid Detergent, or a paste made from granular Detergent and water.

•Use COLD water on unknown stains because HOT water can set stains.

•Check care label instructions for treatments to avoid on specific fabrics.

•Check for colorfastness by testing stain remover on an inside seam.

•Rinse and wash items after stain removal.

Follow fabric care label instructions

		Stain Removal
	STAIN	TREATMENT
	Adhesive tape, chewing gum,	Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with prewash stain remover or
	rubber cement	nonflammable dry cleaning fluid.
	Baby formula, dairy products, egg	Use product containing enzymes to pretreat or soak stains.
	Beverages (coffee, tea, soda, juice,	Pretreat stain. Wash using COLD water and bleach safe for fabric.
	alcoholic beverages)
	Blood	Rinse with COLD water. Rub with bar soap. Or pretreat or soak with product containing enzymes. Wash using
		bleach safe for fabric.
	Candle wax, crayon	Scrape off surface wax. Place stain face down between paper towels. Press with warm iron until wax is absorbed.
		Replace paper towels frequently. Treat remaining stain with prewash stain remover or nonflammable dry cleaning
		fluid. Hand wash to remove solvent. Wash using bleach safe for fabric.
	Chocolate	Pretreat or soak in WARM water using product containing enzymes. Wash using bleach safe for fabric.
	Collar or cuff soil, cosmetics	Pretreat with prewash stain remover or rub with bar soap.
	Dye transfer on white fabric	Use packaged color remover. Wash using bleach safe for fabric.
	Grass	Pretreat or soak in WARM water using product containing enzymes. Wash using bleach safe for fabric.
	Grease, oil, tar (butter, fats, salad	Scrape residue from fabric. Pretreat. Wash using hottest water safe for fabric. For heavy stains and tar, apply
	dressing, cooking oils, car grease,	nonflammable dry cleaning fluid to back of stain. Replace towels under stain frequently. Rinse throughly. Wash
	motor oils)	using hottest water safe for fabric.
	Ink	Some inks may be impossible to remove. Washing may set some inks. Use prewash stain remover, denatured
		alcohol or nonflammable dry cleaning fluid.
	Mildew, scorch	Wash with chlorine bleach if safe for fabric. Or soak in oxygen bleach and HOT water before washing. Badly
		mildewed fabrics may be permanently damaged.
	Mud	Brush off dry mud. Pretreat or soak with product containing enzymes.
	Mustard, tomato	Pretreat with prewash stain remover. Wash using bleach safe for fabric.
	Nail polish	May be impossible to remove. Place stain face down on paper towels. Apply nail polish remover to back of stain.
		Repeat, replacing paper towels frequently. Do not use on acetate fabrics.
	Paint, varnish	WATER BASED : Rinse fabric in cool water while stain is wet. Wash. Once paint is dry, it cannot be removed.
		OIL BASED & VARNISH : Use solvent recommended on can label. Rinse thoroughly before washing.
	Rust, brown or yellow	For spots, use rust remover safe for fabric. For discoloration of an entire load, use phosphate Detergent and
	discoloration	nonchlorine bleach. Do not use chlorine bleach because it may intensify discoloration.
	Shoe polish	LIQUID : Pretreat with a paste of granular Detergent and water. PASTE : Scrape residue from fabric. Pretreat with
		prewash stain remover or nonflammable dry cleaning fluid. Rub Detergent into dampened area, Wash using bleach
		safe for fabric.

13

**

WATER TEMPERATURE BUTTON (Only 2 valves)

•Use to select Water Temperatures. Pressing the button allows you to select COLD » WARM (HOT&COLD) » HOT » COLD respectively. Default setting is COLD.

WATER

BUTTON

•Use to select the proper amount of water in relation to the weight and type of laundry. Automatically controlled, but can be selected manually by pressing the Water Button.

•WATER is automatically selected for FUZZY Program. The following settings are indicated as the button is pushed.

7 » 8 » 9 »10 » 1 » 2 » 3 » 4 » 5 » 6 » 7

TIME LEFT, DELAY START

(RESERVATION), ALARM INDICATION

•Time left: During operation, the remaining time is indicated.

•DELAY START INDICATION

When DELAY START (RESERVATION) program is selected, it indicates the finishing time. (RES.=DELAY)

•Alarm indicationWhen an error occurs, an error message appears to indicate the abnormality. For example, indicates that the lid is open.

AIR DRY

•This button is used for air-drying of your laundry

•Air dry selection light up in sequence as follow

TUB DRY » 60 » 90»120 » TUB DRY as the button is pushed.

(refer to page 22)

NOTE

CHILD LOCK

FUNCTION

•Use to lock or unlock the control button to prevent setting from being changed by a child.

To lock, push the RINSE and SPIN buttons simultaneously and to unlock push them one more time during washing process.

(refer to page 25)

WASH, RINSE,

SPIN BUTTON

•Use when wash, rinse, spin time need to be adjusted.

•The time increases when the button is pressed.

•If adjustments are needed during the wash, press the [START/PAUSE] button before making any changes.

•When the button is pressed during washing, the remaining time is displayed.

*For optimizing the washing algorithm, the displaying time may be changed during washing-increased by 8minutes at maximum and decreased by 4 minutes at maximum.

*If the Detergent quantity is put more than the standard, for increasing the rinsing performance, it automatically adds rinsing, and the remaining time may be increased.

*The standard detected by the sensor changing the algorithm is set by the normal standard. It may not be same to the washing habit of a specific user. So, it does not matter that the user uses it according to her/his washing habit.

*The sensor for a Detergent quantity is designed to detect based on a synthetic Detergent powder. If you put a liquid one or a natural one or too much bleaching agent, the detecting ability of the sensor may be decreased.

**Product feature may vary according to different models. Refer page 38 for modelwise features for your purchased model.

14

WASHING CONDITION INDICATOR (Applicable For i-Sensor models only)

•It only operates in FUZZY Program.

•During being detected by the sensor, the LED flashes green, orange

and red in turn. And, after detecting, the LED lights a specific color according to the detecting condition as follows:

If the current washing condition (Detergent quantity, Water Temperature, water quality, etc.) is determined as better than the standard one, it optimizes the algorithm to save the energy by decreasing washing time/strength, and the LED automatically turns to red.

If the current washing condition is determined as worse than the standard one, it optimizes the algorithm by increasing washing time/strength, and the LED automatically turns to orange.

If the current washing condition is determined as equal to the standard one, the algorithm has no change and the LED turns to green.

SMART

POWER (AUTO OFF)

BUTTON

•Use to turn the power on or off.

•Push again and power goes on or off.

•The power goes off automatically about 10 seconds after the wash is finished.

DELAY START (RESERVATION) BUTTON

•Use to set a delayed finishing time.

•The time increase when the button is pushed.

•The following settings are indicated as the button is pushed: 3 » 4 » 5 »... » 11 » 12 » 14 » 16 »... 46 » 48 » 3H. To cancel delay time, turn the power switch off.

(refer to page 24)

PROGRAM BUTTON

•Use for selecting wash program.

•This button allows you to select 8 different programs for difference kinds of laundry and dirtiness.

•Program selection light up in sequence as follows: FUZZY»WOOL »QUICK WASH»JEANS»SMART/ EXTRA CLEANING»SILENT WASH» FAVORITE»TUB CLEAN»FUZZY etc. Select the desired program by pressing the button.

START/PAUSE

BUTTON

•Use to start or pause the washing process.

•Repeat start and pause by pushing the button.

*Because the detecting ability of the sensor may be decreased by using it for a long time, periodically use TUB CLEAN course to clean the tub. (refer to page 21)

*Even if the water level or the water temperature are changed by the user in FUZZY(Normal) Program, the sensor will still work. The sensor algorithm may differ according to models.

*The control panel may differ according to different models.

15

Washing

POWER

Add

Add

the

Programs

the Detergent

AUTO OFF

laundry

(Normal Wash)

1

2

4

Used for normal loads, this

* Add the appropriate

mode automatically selects the

most appropriate conditions

quantity of Detergent

as indicated by the

and completes the sequence

WATER LEVEL next to

in one operation. The built-in

WATER DETERGENT.

sensor detects the size of the

Or follow the Detergent

load and the ideal wash time &

manufacturer’s

No. of Rinse cycle & spin times

instructions

are set accordingly.

Use this program for washing

1

3

2

5

delicate fabrics such as lingerie

* Select the

* Use neutral

and woolens. (Wash only

WOOL

Detergent appropriate

“water washable” clothes)

program on

for the laundry.

* When washing

Before washing your woolens

the Control

woolens use a mild

check the care label for the

panel.

Detergent

recommended for

washing instructions.(Wash only

washing wool.

water washable clothes)

1

3

2

5

Use this mode when washing

* Select the

* Add the appropriate

lightly soiled clothes for a short

QUICK

quantity of Detergent as

time. The highly recommended

WASH

indicated by the

program on

WATER LEVEL next to

laundry amount is under 2.0kg.

WATER DETERGENT.

the Control

* Or follow the

panel.

Detergent

manufacturer’s

instructions

1

3

2

5

Use JEANS program when

* Spread

* Select the

washing Jeans of different sizes.

the jeans

JEANS

evenly in

program on

the tub.

the Control

panel.

SMART

EXTRA

CLEANING CLEANING

1

3

2

5

Use this program to increase

rising performance.

* Select the SMART

This would include underwear

CLEANING / EXTRA

and baby clothes.

CLEANING program

If someone has sensitive skin or

on the Control panel.

skin trouble,use this program.

*Product feature may vary according to different models. Refer page 38 for modelwise features for your purchased model.

16

		START		Close the lid		Finish	Caution & Note
		PAUSE
							* If water is already in the tub, or putting
	3			5		6
							wet laundry into the tub before starting
							will increase the WATER LEVEL.
		* The pulsator rotates for		* Water will be		* When the wash	* With lightweight bulky loads, WATER
		8 seconds to detect the		supplied for 2		program ends, the	LEVEL can be set low.
		laundry load.		minutes after the		buzzer will ring	* Changes to Water Temperature
		* Then the WATER LEVEL		start of the wash to		for 10 seconds	(HOT/COLD) and water level are
		and the amount of		supplement the		before the Power	possible during operation.
		Detergent to be used		water the laundry		goes off	(refer to page 14)
		will be shown and		has absorbed.		automatically.
		water will be supplied.
						7	* When setting the WATER LEVEL
		4		6			manually, do not set to Medium to
							prevent damage to laundry.
							* Washing with HOT water may damage
							the laundry (Water is set to cold
							automatically). Ensure that the load is
							under 2kg.
							* In order to avoid damage to laundry,
							the spin cycle may appear slow.
							This also avoids wrinkles and clothing
							may still contain some water. This is
							normal.
							* When static pressure of water is more
						7	than 2kg/cm2, the QUICK WASH course
	4			6			will be within 19min.

4

6

7

4

6

7

17

Use this mode to wash normal clothes or thick and heavy clothes which are excessively dirty. SOAK mode can be used with FUZZY or JEANS or SMART CLEANING or EXTRA CLEANING or FAVORITE program.

1Press the POWER ( AUTO OFF) button to turn power on.

PO

AUTO OFF

2 Press the PROGRAM button to select the washing program.

• SOAK will not work in WOOL and QUICK WASH, TUB CLEAN Program.

3Press the WASH button, to select SOAK program.

•Keep pressing the WASH button until the light turns on ‘ SOAK’ and ‘ WASH’ simultaneously as next image.

• SOAK program only works when soaking time is 40, 50 or 60 minutes.

4Add the Detergent.

5Add the laundry and press the START/PAUSE button.

• The WATER LEVEL will be shown and water will be

START

supplied.

PAUSE

6

Close the lid.

• Water will

be supplied for 2 minutes after the start of the

wash to supplement the absorbed water by the laundry.

Finish

• When the wash program ends, the buzzer will ring for

10seconds before the Power goes off automatically.

NOTE

• Order of Soak-Wash timing

Soak-Wash

Lamp

min

min

min

min

min

min

min

min

Off

min

min

min

min

min

•Select soaking time 40minutes, 50minutes, or 60minutes (Including washing time) by pressing the Wash button repeatedly.

•If necessary, select the times of Rinse and the time for Spinning by pressing the Rinse or Spin buttons till you reach the desired times.

18

Pressing the FAVORITE button allows you to store your FAVORITE wash conditions in the normal cycle memory and then recall it for use at a later time.

1Press the POWER (AUTO OFF) button to turn power on.

POWER

AUTO OFF

2Select the FAVORITE program.

3Select your FAVORITE wash conditions.

•Press the TEMP. button to select wash WaterTemperature.

•Press the WATER button to select WATER.

•Press the WASH button, the RINSE button & the SPIN button to select wash time, rinse times & spin time respectively you want to store.

4Press the START/PAUSE button to store & start your FAVORITE wash cycle. Power turns off automatically after wash.

START

PAUSE

NOTE

To recall your FAVORITE cycle.

1.Press POWER on.

2.Select the FAVORITE cycle by pressing the PROGRAM.

3.Press the START/PAUSE button. Then the wash cycle starts.

19

ILENT WASH

Use this program to wash quietly in SILENT especially during late night and dawn.

1Press the POWER (AUTO OFF) button to turn power on.

POWER

AUTO OFF

2Press the PROGRAM button to select SILENT program.

3Add the laundry into the washing tub.

4Press the START/PAUSE button.

START

PAUSE

5Add the Detergent and close the lid.

NOTE

•SILENT program takes longer washing time than FUZZY(Normal) program.

•To reduce noise in spinning, spin rpm is lower than normal spinning rpm. So the laundry has more moisture than normal.

20

wax

odour.

to the tub.

,as it may rust the tub.

21

dirty caused by remaining moisture.

Caution :

22

When you only need the SPIN, RINSE/SPIN,RINSE, WASH/RINSE, WASH, WASH/ RINSE/SPIN these can be set manually.

1Press the POWER (AUTO OFF) button to turn power on.

POWER

AUTO OFF

2	Only Wash	Only Rinse	Only Spin
	Press the WASH button to	Press the RINSE button to	Press the SPIN button to
	select the desired timing.	select the desired times of rinse.	select the desired times of
			spin.

	Only Wash, Rinse	Only Rinse, Spin	Only Drain
	Press the WASH button to	Press the RINSE button to	When you want to only
	select the desired timing.	select the desired time of rinse.	drain, press SPIN button.
	Press the RINSE button to	Press the SPIN button to select	Then press START/PAUSE
	select the desired times of
			button.
	rinse.	the desired times of spin.
	You can use this option		Wait until the water in the
			washing tub drains completely
	for preventing wrinkles		and then press POWER button
	of laundry.		to finish the activity.

3Press the WATER button, to control the water level according to the amount of laundry.

If you do not choose anything, it is set the middle water level automatically. (Not applicable for only spin process)

4Add the laundry into the washing tub.

5Press the START/PAUSE button.

START

PAUSE

6Add the detergent and close the lid. (Add detergent only where wash cycle is

selected)

NOTE

•When a Wash, Wash/Rinse or Rinse only option is selected, after the wash is completed the water will not be drained off. If you wish to drain the water, press SPIN button START / PAUSE button and wait until has the water in the tub drained completely.

•If you do not specify the water level , then Medium will be automatically selected.

•If only Rinse is selected, the process will start from Water Supply.

23

program

24
