LG MU50PZ90V Users manual

PLASMA MONITOR

OWNER’S MANUAL

MODELS:MU-50PZ90M/90V

MU-50PZ90MA/90VA
MU-50PZ90MB/90VB
MU-50PZ90MK/90VK
MU-50PZ90MR/90VR
MU-50PZ90MS/90VS

Please read this owner’s manual carefully before operating the
Monitor.
Retain it for future reference.
Record model number and serial number of the Monitor.
See the label attached on the back of the Monitor and quote
this information to your dealer when you require service.

Model number :
Serial number :

P/NO : 3828VA0410A(RF03GB)

Warning

WARNING

RISK OF ELECTRIC SHOCK
DO NOT OPEN

W

arning

W

arning

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER
SERVICEABLE PARTS INSIDE. REFER TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to

the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of suffi­cient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of

important operating and maintenance (servicing) instructions in the literature accompanying the appli­ance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

FCC NOTICE

• A Class B digital device

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

• Any changes or modifications not expressly approved by the party responsible for compli­ance could void the user’s authority to operate the equipment.

WARNING

TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.

2 Plasma Display

Safety Instruction

PORTABLE CART WARNING

Safety Instructions

Safety Instructions

Important safeguards for you and your new product

Y our product has been manufactured and tested with your safety in mind. However, improper use can result in potential elec­trical shock or fire hazards. To avoid defeating the safeguards that have been built into your new product, please read and
observe the following safety points when installing and using your new product, and save them for future reference.

Observing the simple precautions discussed in this booklet can help you get many years of enjoyment and safe operation
that are built into your new product.

This product complies with all applicable U.S. Federal safety requirements, and those of the Canadian Standards
Association.

1. Read Instructions

All the safety and operating instructions should be read
before the product is operated.

2. Follow Instructions

All operating and use instructions should be followed.

3. Retain Instructions

The safety and operating instructions should be retained for
future reference.

4. Heed Warnings

All warnings on the product and in the operating instructions
should be adhered to.

5. Cleaning

Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a damp
cloth for cleaning.

6. Water and Moisture

Do not use this product near water, for example, near a bath
tub, wash bowl, kitchen sink, or laundry tub, in a wet base­ment, or near a swimming pool.

7. Accessories Carts and Stands

Do not place this product on a slippery or tilted surface, or on
an unstable cart, stand, tripod, bracket, or table. The product
may slide or fall, causing serious injury to a child or adult,
and serious damage to the product. Use only with a cart,
stand, tripod, bracket, or table recommended by the manu­facturer, or sold with the product. Any mounting of the prod­uct should follow the manufacturer’s instructions, and should
use a mounting accessory recommended by the manufac­turer.

8. Transporting Product

A product and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may
cause the product and cart combination to overturn.

9. Attachments

Do not use attachments not recommended by the product
manufacturer as they may cause hazards.

10. Ventilation

Slots and openings in the cabinet are provided for ventilation
and to ensure reliable operation of the product and to protect
it from overheating, and these openings must not be blocked
or covered. The openings should never be blocked by plac­ing the product on a bed, sofa, rug, or other similar surface.
This product should not be placed in a built-in installation
such as a bookcase or rack unless proper ventilation is pro­vided or the manufacturer’s instructions have been adhered
to.

11. Power Sources

This product should be operated only from the type of power
source indicated on the marking label. If you are not sure of
the type of power supply to your home, consult your product
dealer or local power company. For products intended to
operate from battery power, or other sources, refer to the
operating instructions.

12. Power-Cord Polarization

This product is equipped with a three-wire grounding type
plug, a plug having a third (grounding) pin. This plug will only
fit into the grounding-type power outlet. This is a safety fea­ture. If you are unable to insert the plug into the outlet, con­tact your electrician to replace your obsolete outlet. Do not
defeat the safety purpose of the grounding-type plug.

13. Power-Cord Protection

Power-supply cords should be routed so that they are not
likely to be walked on or pinched by items placed upon or
against them, paying particular attention to cords at plugs,
convenience receptacles, and the point where they exit from
the product.

(Continued on next page)

Owner’s Manual 3

Safety Instruction

Antenna Lead in Wire

Antenna Discharge Unit
(NEC Section 810-20)

Grounding Conductor
(NEC Section 810-21)

Ground Clamps
Power Service Grounding

Electrode System (NEC
Art 250, Part H)

Ground Clamp

Electric Service

Equipment

Safety Instructions continued

Safety Instructions continued

(Continued from previous page)

14. Outdoor Antenna Grounding

If an outside antenna or cable system is connected to the
product, be sure the antenna or cable system is grounded so
as to provide some protection against voltage surges and
built-up static charges. Article 810 of the National Electrical
Code (U.S.A.), ANSI/ NFPA 70 provides information with
regard to proper grounding of the mast and supporting struc­ture, grounding of the lead-in wire to an antenna discharge
unit, size of grounding conductors, location of antenna-dis­charge unit, connection to grounding electrodes, and
requirements for the grounding electrode.

Example of Grounding According to National
Electrical Code Instructions

18. Object and Liquid Entry

Never push objects of any kind into this product through
openings as they may touch dangerous voltage points or
short-out parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.

19. Servicing

Do not attempt to service this product yourself as opening or
removing covers may expose you to dangerous voltage or
other hazards. Refer all servicing to qualified service per­sonnel.

20. Damage Requiring Service

Unplug this product from the wall outlet and refer servicing to
qualified service personnel under the following conditions:

a. If the power-supply cord or plug is damaged.
b. If liquid has been spilled, or objects have fallen into the

product.
c. If the product has been exposed to rain or water.
d. If the product does not operate normally by following the

operating instructions. Adjust only those controls that are

covered by the operating instructions as an improper

adjustment of other controls may result in damage and

will often require extensive work by a qualified technician

to restore the product to its normal operation.
e. If the product has been dropped or the cabinet has been

NEC - National Electrical Code

damaged.
f. If the product exhibits a distinct change in performance.

21. Replacement Parts

15. Lightning

For added protection for this product (receiver) during a light­ning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet and disconnect
the antenna or cable system. This will prevent damage to the
product due to lightning and power-line surges.

16. Power Lines

An outside antenna system should not be located in the
vicinity of overhead power lines or other electric light or
power circuits, or where it can fall into such power lines or
circuits. When installing an outside antenna system, extreme
care should be taken to keep from touching such power lines
or circuits as contact with them might be fatal.

17. Overloading

Do not overload wall outlets and extension cords as this can
result in a risk of fire or electric shock.

When replacement parts are required, be sure the service
technician has used replacement parts specified by the man­ufacturer or have the same characteristics as the original
part. Unauthorized substitutions may result in fire, electric
shock, or other hazards.

22. Safety Check

Upon completion of any service or repairs to this product,
ask the service technician to perform safety checks to deter­mine that the product is in proper operating condition.

23. Wall or Ceiling Mounting

The product should be mounted to a wall or ceiling only as
recommended by the manufacturer. The product may slide
or fall, causing serious injury to a child or adult, and serious
damage to the product.

24. Heat

The product should be situated away from heat sources
such as radiators, heat registers, stoves, or other products
(including amplifiers) that produce heat.

4 Plasma Display

Contents

Contents

Contents

Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3~4

Introduction

Controls and Connection Options . . . . . . . . . . . .7

Remote Control Key Functions . . . . . . . . . . . . . .8

Installation

Installation Instruction . . . . . . . . . . . . . . . . . . . .9~10

External Equipment Connections . . . . . . . . . .11~14

VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Cable TV Setup . . . . . . . . . . . . . . . . . . . . . . . . 11

External A/V Source Setup . . . . . . . . . . . . . . . .12

DVD Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

DTV Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

PC Setup . . . . . . . . . . . . . . . . . . . . . . . . . .13~14

Operation

Turning on the Monitor . . . . . . . . . . . . . . . . . . . . .15

Menu Language Selection . . . . . . . . . . . . . . . . . .15

Video Menu Options

APC (Auto Picture Control) . . . . . . . . . . . . . . . . 16

Manual Picture Control . . . . . . . . . . . . . . . . . . .16

Adjusting Auto Color Control . . . . . . . . . . . . . . .16

Manual Color Temperature Control . . . . . . . . . .16

Audio Menu Options

DASP (Digital Auto Sound Processing) . . . . . . .17

Manual Sound Control . . . . . . . . . . . . . . . . . . .17

AVL(Auto Volume Leveler) . . . . . . . . . . . . . . . .17

Time Menu Options

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . .18

Setting the On/Off Timer . . . . . . . . . . . . . . . . .18

Auto Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Special Menu Options

Key Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

ISM Method . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Low power . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Menu Rotation For Vertical Viewing . . . . . . . . . .19

Screen Menu Options

Auto Adjustment . . . . . . . . . . . . . . . . . . . . . . . .20

Setting Picture Format . . . . . . . . . . . . . . . . . . .20

Picture Size Zoom . . . . . . . . . . . . . . . . . . . . . .20

Split Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

Screen Position . . . . . . . . . . . . . . . . . . . . . . . .21

Manual Configure . . . . . . . . . . . . . . . . . . . . . . .21

Screen Adjustments . . . . . . . . . . . . . . . . . . . . .22

Initializing . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Selecting Wide VGA/XGA mode . . . . . . . . . . . .22

PIP (Picture In Picture) Feature

Watching PIP . . . . . . . . . . . . . . . . . . . . . . . . . .23

PIP Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

PIP Aspect Ratio . . . . . . . . . . . . . . . . . . . . . . . .23

Swapping PIP . . . . . . . . . . . . . . . . . . . . . . . . . .23

Moving PIP . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Selecting a Input Signal Source for PIP . . . . . . .23

Twin Picture Setup Options

Main Picture Size Adjustment . . . . . . . . . . . . . .24

Sub Picture Size Adjustment . . . . . . . . . . . . . . .24

Swapping the Twin Picture . . . . . . . . . . . . . . . .24

Selecting a Source for the Twin Picture . . . . . . .24

External Control Device Setup . . . . . . . . . . . . . . . .25~29

IR Code (NEC format) . . . . . . . . . . . . . . . . . . . . . . .30~31

Troubleshooting Checklist . . . . . . . . . . . . . . . . . . . . . .32

Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

After reading this manual, keep it handy for future reference.

Owner’s Manual 5

Introduction

Introduction

Introduction

What is a Plasma Display Panel (PDP)?

If voltage is inputted to gas in glass panels, ultraviolet rays is outputted and fused with a fluorescent substance. At this moment,
light is emitted. APlasma Display is a next generation flat Display using this phenomenon.

160° - Wide angle range of vision

Your flat panel plasma screen offers an exceptionally broad viewing angle -- over 160 degrees. This means that the display is
clear for audience members anywhere in the room.

Wide Screen

The screen of a Plasma Display is 50" so that you can get vivid experience as if you are in a theater.

Multimedia

Connect your plasma display to a PC and you can use it for conferencing, games, and internet browsing. The Picture-in-Picture
feature allows you to view your PC and video images simultaneously.

Versatile

The light weight and thin size makes it easy to install your plasma display in a variety of locations where conventional displays
don’t fit.

The PDP Manufacturing Process: Why colored dots may be present on the PDP screen

The PDP (Plasma Display Panel) which is the display device of this product is composed of 0.9 to 2.2 million cells. A few cell
defects will normally occur in the PDP manufacturing process. Several colored dots visible on the screen should be acceptable.
This also occurs in other PDP manufacturers' products and the dots appearing does not mean that this PDP is defective. Thus a
few cell defects are not sufficient cause for the PDP to be exchanged or returned. Our production technology is designed to mini­mize cell defects.during the operation of this product. We hope you understand that a certain level of noise from the cooling fans is
acceptable and is not sufficient cause for the PDP to be exchanged or returned.

Cooling Fan Noise

In the same way that a fan is used in a PC computer to keep the CPU (Central Processing Unit) cool, the PDP is equipped with
cooling fans to cool the Monitor and improve its reliability. Therefore, a certain level of noise could occur while the fans are operat­ing and cooling the PDP.
This noise doesn't have any negative effect on the PDP's efficiency or reliability. The noise from these fans is normal during the
operation of this product. We hope you understand that a certain level of noise from the cooling fans is acceptable and is not suffi­cient cause for the PDP to be exchanged or returned.

WARNING

TO REDUCE THE RISK OF FIRE AND ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.

6 Plasma Display

Controls

R

( )

( )

( )

( )

L

RS-232C INPUT

(CONTROL/SERVICE)

EXTERNAL SPEAKER

YPBP

R

(MONO)

R

AUDIO

L

R

AUDIO

L

S-VIDEO

AC INPUT

AUDIO INPUTVIDEO INPUT

AUDIO INPUT

AUDIO INPUT

REMOTE
CONTROL

COMPONENT INPUT

DVI INPUT

RGB INPUT

RGB OUTPUT

VOL.

MENU

INPUT

SELECT

ON/OFF

Controls

Front Panel Controls

Front Panel Controls

Instruction

Main Power Button

Remote Control Sensor

Connection Options

Connection Options

Back Connection Panel

1

1. EXTERNAL SPEAKER (8 ohm output)

Connect to optional external speaker(s).
* For further information, refer to ‘Speaker & Speaker

Stand’ manual.

2. RS-232C INPUT (CONTROL/SERVICE) PORT

Connect to the RS-232C port on a PC.

3. DVI (Digital Visual Interface) INPUT/
RGB INPUT/AUDIO INPUT JACKS

Connect the monitor output connector of a PC to the appro­priate input port.

4. RGB OUTPUT JACKS

You can watch the RGB signal on another monitor, connect
RGB OUTPUT to another monitor ’s PC input port. Note: In
standby mode, RGB output does not work.

2 4 53 7

E, D Buttons

INPUT SELECT Button

VOLUME (F,G) Buttons

MENU Button

Power Standby Indicator

Illuminates red in standby mode,

Illuminates green when the

Monitor is turned on

6

5. REMOTE CONTROL

Connect your wired remote control to the remote control
port on the Monitor.

6. COMPONENT INPUT/AUDIO INPUT JACKS

7. S-VIDEO INPUTS

Connect video out from an S-VIDEO VCR to the S-VIDEO
input.

AUDIO/VIDEO INPUT JACKS

Connect audio/video out from external equipment to these
jacks.

8. POWER CORD SOCKET

This Monitor operates on an AC power. The voltage is indi­cated on the Specifications page. Never attempt to operate
the Monitor on DC power.

8

Owner’s Manual 7

Instruction

123

456

7809

POWER

SLEEP INPUT SELECT

APC DASP

ARC PIP ARC

PIP

TWIN PICTURE

SWAP

MENU MUTE

OK

VOL

POWER STOP

PLAY FF

REC

REW

P/STILL

WIN.SIZE

WIN.POSITION

ZOOM +

ZOOM -

SPLIT ZOOM

VOL

SUB INPUT

Remote Control Key Functions

Remote Control Key Functions

- When using the remote control, aim it at the remote control sensor on the monitor.

- Under certain conditions such as when the beam is interrupted, the remote control may not function. Press the key
again if necessary.

POWER

Switches the Monitor on from

standby or off to standby.

SLEEP

Sets the sleep timer.

(Refer to p.18)

APC

Adjusts the factory preset picture

according to the room.

(Refer to p.16)

ARC

Changes the picture format.

(Refer to p.20)

PIP

Switches the sub picture on or off.

(Refer to p.23)

Exchanges main and sub picture

images. (Refer to p.23, 24)

Displays on screen menus one by one.

Exits the current menu.

Memorizes menu changes.

NUMBER buttons

SWAP

MENU

INPUT SELECT

Selects:

Video, S-Video, RGB, DVI

or Component mode.

DASP

To select the sound appropriate to
your viewing program character:

Flat, Music, Cinema, Sports,or
User (Refer to p.17)

PIP ARC

Changes the PIP picture format.
(Refer to p.23)

TWIN PICTURE

(Refer to p.24)

SUB INPUT

Selects the input mode for the sub
picture.

MUTE

Switches the sound on or off.

OK

D / E

Selects a menu option.

F / G (Volume button)

Increases/decreases sound level.
Adjusts menu settings.

Adjusts the sub picture size.

WIN. SIZE

WIN.POSITION

Moves the sub picture.

SPLIT ZOOM

Enlarge the screen with regular

ZOOM-/ZOOM+

Enlarges or reduces

ration.

VCR BUTTONS

Controls a LG video cassette
recorder.

the main picture size.

Installing Batteries

Installing Batteries

8 Plasma Display

• Open the battery compartment cover on the back side and
insert the batteries with correct polarity.

• Install two 1.5V alkaline batteries of AAA type. Don’t mix used
batteries with new batteries.

Installation

1.5V

1.5V

123

456

7809

POWER

SLEEP INPUT SELECT

APC DASP

ARC PIP ARC

PIP

TWIN PICTURE

SWAP

MENU MUTE

OK

VOL

POWER STOP

PLAY FF

REC

REW

P/STILL

WIN.SIZE

WIN.POSITION

ZOOM +

ZOOM -

SPLIT ZOOM

VOL

SUB INPUT

Installation

Installation

Ensure that the following accessories are included with your plasma display. If an accessory is missing, please contact the dealer
where you purchased the product.

Owner’s Manual

D-sub 15 pin cable

Installation Instructions

Installation Instructions

Alkaline batteries

Power Cord

BNC-RCA adapter

Remote Control

DVI Cable

• The Monitor can be installed in various ways such such as on a wall, or on a desktop etc.

• The plasma display is designed to be mounted horizontally or vertically. The speakers depicted are optional.

GROUNDING

Ensure that you connect the grounding / earth wire to prevent possible
electric shock. If grounding methods are not possible, have a qualified
electrician install a separate circuit breaker. Do not try to ground the
unit by connecting it to telephone wires, lightening rods, or gas pipes.

all Mount Installation

WWall Mount Installation

Short-circuit

Power

supplier

breaker

For proper ventilation, allow a clearance of 4” on each
side and 2” from the wall. Detailed installation instruc­tions are included from your dealer in the optional Wall
Mounting Bracket Installation and Setup Guide.

4inch

4inch4inch

4inch

1.18inch

Owner’s Manual 9

Installation

ON/OFF

INPUT
SELECT

VOLUME

Installation Instructions continued

Installation Instructions continued

Desktop Pedestal Installation

Desktop Pedestal Installation

For proper ventilation, allow a clearance of 4” on each
side and the top, 2.36” on the bottom, and 2” from the
wall. Detailed installation instructions are included from
your dealer in the optional Desktop Stand Installation and
Setup Guide.

Wall Mount: Vertical installation

4inch

4inch

4inch

2.36inch

1.18inch

Detailed installation instructions are included from your
dealer in the optional Vertical Wall Mounting Bracket
Installation and Setup Guide.
NOTE: When installing the monitor vertically, the front
panel controls must be in the left side position.

When installing the monitor vertically, you
have to change the OSD display mode so
that the menus will appear correctly and also
to protect the monitor from overheating
(Refer to P. 19).

10 Plasma Display

Installation

S-VIDEO

OUT

IN

(R) AUDIO (L) VIDEO

YPBP

R

(MONO)

R

AUDIO

L

R

AUDIO

L

S-VIDEO

AUDIO INPUTVIDEO INPUT

AUDIO INPUT COMPONENT INPUT

TV

VCR

RF Cable

(R) AUDIO (L) VIDEO

YPBP

R

(MONO)

R

AUDIO

L

R

AUDIO

L

S-VIDEO

AUDIO INPUTVIDEO INPUT

AUDIO INPUT

COMPONENT INPUT

External Equipment Connections

External Equipment Connections

NOTE: Not all depicted cables are included with the plasma display.

VCR Setup

VCR Setup

- To avoid picture noise (interference), leave an adequate distance between the VCR and Monitor

- Use the orbiter function to Avoid having a fixed image remain on the screen for a long period of time. Typically a frozen still pic­ture from a VCR. If a 4:3 picture format is used; the fixed image may remain visible on the screen.

How to connect

1. Connect the provided BNC-RCA adapter to the monitor’s VIDEO
INPUT.

2. Connect the audio and video cables between the VCR's output
jacks and the monitor input jacks, as shown in the figure. When con­necting the monitor to VCR, match the colors of connecting jacks
(Video = yellow, Audio Left = white, and Audio Right = red).

Mono VCR: Connect the video output cable from the VCR to the
VIDEO input.
S-VIDEO VCR: Connect the S-Video output cable from the VCR to
the S-VIDEO input. (Note that S-Video offers higher quality).

How to use

1. Insert a video tape into the VCR and press PLAY on the VCR.
(Refer to the VCR owner’s manual.)

2. Use the INPUT SELECT button on the remote control to select
Video.
(If connected to S-VIDEO, select the S-Video external input source.)

VCR

Cable

TV Setup

Cable

TV Setup

- After subscribing to a cable TV service from a local provider and installing a converter, you can watch cable TV programming.
The monitor cannot display TV programming unless a TV tuner device or cable TV converter box is connected to the Monitor.

- For further information regarding cable TV service, contact your local cable TV service provider(s).

How to connect

1. Connect the provided BNC-RCA adapter to the monitor’s VIDEO
INPUT.

2. Connect the audio and video cables between the cable TV's output
jacks and the monitor input jacks, as shown in the figure.
When connecting the monitor to VCR, match the colors of connect­ing jacks (Video = yellow, Audio Left = white, and Audio Right = red).

How to use

1. Use the INPUT SELECT button on the remote control to select
Video.

2. Select your desired channel with the remote control for cable box.

Cable TV

Owner’s Manual 11

Installation

RL

AUDIO VIDEO

Video game set

Camcorder

YPBP

R

(MONO)

R

AUDIO

L

R

AUDIO

L

S-VIDEO

AUDIO INPUTVIDEO INPUT

AUDIO INPUT

COMPONENT INPUT

YPBP

R

(MONO)

R

AUDIO

L

R

AUDIO

L

S-VIDEO

AUDIO INPUTVIDEO INPUT

AUDIO INPUT

AUDIO INPUT

REMOTE

CONTROL

COMPONENT INPUT

DVI INPUT

RGB INPUT

RGB OUTPUT

B

R

(R) AUDIO (L)

DTV OUTPUT

(R) AUDIO (L)

B

R

(R) AUDIO (L) (R) AUDIO (L)

S-VIDEO

YPBP

R

(MONO)

R

AUDIO

L

R

AUDIO

L

S-VIDEO

AUDIO INPUTVIDEO INPUT

AUDIO INPUT

COMPONENT INPUT

External

External

A/V Source Setup

A/V Source Setup

How to connect

1. Connect the provided BNC-RCA adapter to the monitor’s
VIDEO INPUT.

2. Connect the audio and video cables between the external
equipment's output jacks and the monitor input jacks, as
shown in the figure. When connecting the monitor to exter­nal equipment, match the colors of connecting jacks (Video
= yellow, Audio Left = white, and Audio Right = red).

How to use

1. Use the INPUT SELECT button on the remote control to
select Video.

2. Operate the corresponding external equipment. Refer exter­nal equipment operating guide.

DVD Setup

DVD Setup

How to connect

1. Connect the DVD video outputs to the COMPONENT (Y, P

2. If your DVD only has an S-Video output jack, connect this to the

How to use

1. Turn on the DVD player, insert a DVD

2. Use the INPUT SELECT button on the remote control to select

• Component Input ports

or

DVD

)

B, PR

INPUT jacks and connect the DVD audio outputs to the AUDIO
INPUT jacks, as shown in the figure.

S-VIDEO input on the monitor and connect the DVD audio outputs
to the AUDIO INPUT jacks, as shown in the figure.

Component. Refer to the DVD player's manual for operating
instructions.

To get better picture quality, connect a DVD player to the compo­nent input ports as shown below.

Component ports of the

Monitor

Y PB

R

P

DTV Setup

DTV Setup

- To watch digitally broadcast programs, purchase and
connect a digital set-top box.

- This monitor supports HDCP (High-bandwidth Digital
Contents Protection) protocol for DVI DTV
(480p,720p,1080i) mode.

How to connect

1. Connect the DTV set-top box video output to the mon­itor’s COMPONENT (Y, P
jacks.

2. If the box has an RGB connector, connect it to the
monitor’s RGB INPUT connector and the audio input
jack.

B, PR) INPUT and audio

How to use

1. Turn on the digital set-top box. (Refer to the owner’s
manual for the digital set-top box.)

2. Use INPUT SELECT on the remote control to select
Component, RGB or DVI.

12 Plasma Display

Pb

B-Y

Cb

P

Pr

R-Y

Cr

PR

B

Video output ports
of DVD player

Y
Y
Y
Y

or

Digital Set-top box

Installation

R

( )

( )

( )

( )

L

RS-232C INPUT

(CONTROL/SERVICE)

EXTERNAL SPEAKER

AUDIO INPUT

REMOTE
CONTROL

DVI INPUT

RGB INPUT

RGB OUTPUT

PC Setup

PC Setup

This plasma display provides Plug and Play capability, meaning that the PC adjusts automatically to its settings. The plasma dis­play sends configuration information (EDID) to the PC using the Video Electronics Standard Association (VESA) Display Data
Channel (DDC) protocol. It perceives the 640x480 resolution at 60 Hz to provide the Advanced Television Systems Committee
(ATSC) 480P or 480-line progressive-scan television video signaling standard that is part of the Digital Television (DTV) standard
for 60 frame-per-second video.

How to connect

1. To get the best picture quality, adjust the PC
graphics card to a 1024x768, 60Hz or 1366x768,
75 Hz. Resolutions over UXGA cannot be dis­played.

2. Connect the signal cable from the PC video output
port to the monitor’s RGB INPUT port, or the PC's
DVI (Digital Visual Interface) output port to the
monitor’s DVI INPUT port. If the graphic card on
the PC does not output analog and digital RGB
simultaneously, connect only one of both RGB
INPUT or DVI INPUT to display the PC on the
monitor.

If the graphic card on the PC does output analog
and digital RGB simultaneously, set the monitor to
either RGB or DVI; (the other mode is set to Plug
and Play automatically by the monitor.)

3. Connect the audio cable from the PC to the
AUDIO INPUT jacks on the plasma display. If
using a sound card, adjust the PC sound as
required.

How to use

1. Turn on the PC and the monitor.

2. Turn on the display by pressing the POWER button on the monitor's remote control.

3. Use the INPUT SELECT button on the remote control to select the RGB or DVI.

4. Check the image on your monitor. There may be noise associated with the resolution, vertical pattern, contrast or
brightness in PC mode. If noise is present, change the PC mode to another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the menu until the picture is clear. If the refresh rate of the PC
graphic card can not be changed, change the PC graphic card or consult the manufacturer of the PC graphic card.

NOTES: • Depending on the graphics card, DOS mode may not work if you use a DVI-I cable.

• Avoid keeping a fixed image on the monitor's screen for a long period of time.The fixed image may become

permanently imprinted on the screen. Use the Orbiter screen saver when possible.

• The synchronization input form for Horizontal and Vertical frequencies is separate.

Owner’s Manual 13

Operation

한국어

Operation

urning on the Monitor

TTurning on the Monitor

Tu rning on the Monitor just after installation

1. Connect power cord correctly.

2. Press the ON/OFF button on the Monitor. At this moment, the Monitor is switched to standby
mode. Press the INPUT SELECT button on the Monitor or press the POWER, INPUT SELECT but-
ton on the remote control and then the Monitor will switch on.

Turning on the Monitor (power cord is still connected)

1. If the Monitor was turned off with the ON/OFF button on the Monitor

• Press the ON/OFF button on the Monitor to turn the Monitor on.

2. If the Monitor was turned off with the remote control or the ON/OFF button on the Monitor

Operation

• Press the ON/OFF button on the Monitor and then press the INPUT SELECT button on the

Monitor or press the POWER, INPUT SELECT button on the remote control to turn the Monitor on.

Menu Language Selection

Menu Language Selection

- The menus can be shown on the screen in the selected language. First select your language.

1. Press the MENU button and then use

2. Press the G button and then use

3. Press the G button and then use

D/ E

D/ E

button to select the SPECIAL menu.

D/ E

button to select Language.

button to select your desired language.

From this point on, the on-screen menus will be shown in the language of your choice.

4. Press the MENU button to save and return to the previous menu.

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

Language G

Key lock
ISM method
Low power
Set id.
OSD rotate

MENU

Prev.

English
Español
Português
Français

Owner’s Manual 15

Operation

0
0
0

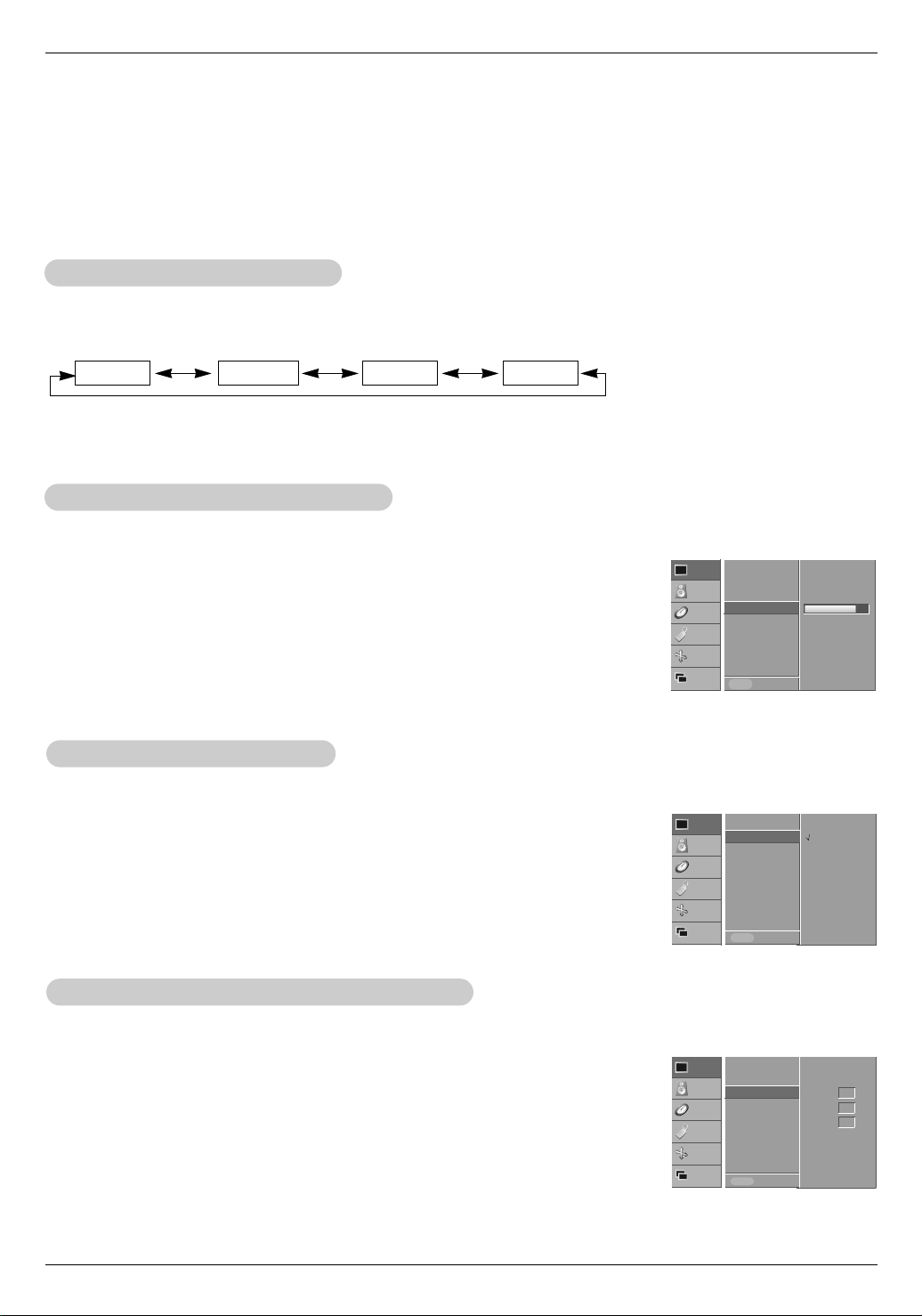

ideo Menu Options

VVideo Menu Options

- Each adjustment for video menu options doesn’t effect other input source. Readjust Video menu for
each following mode.
: RGB (PC) / DVI (DVI),
: RGB (DTV) / DVI (DTV) / Component (480p, 720p, 1080i)
: Video / S-Video / Component (480i)

APC (Auto Picture Control)

APC (Auto Picture Control)

- This function adjusts the Monitor to the best picture appearance.

1. Press the APC button repeatedly to select the picture appearance setup option as shown below.

Clear Optimum Soft User

• You can also select Clear, Optimum, Soft or User in the VIDEO menu.

• Clear, Optimum and Soft are preset for good picture quality at the factory and cannot be changed.

Manual Picture Control (User

Manual Picture Control (

option)

option)

- You can adjust picture contrast, brightness, color, sharpness and tint to the levels you prefer.

- PIP settings are not adjustable.

1. Press the MENU button and then use

2. Press the G button and then use

Contrast, Brightness, Color, Sharpness, Tint).

(

3. Press the

G button and then use F / G button to make appropriate adjustments.

D / E

button to select the VIDEO menu.

D / E

button to select the desired picture option

4. Press the MENU button to save and return to the previous menu.

Adjusting

Adjusting

Auto Color Control

Auto Color Control

- To initialize values (reset to default settings), select the Normal option.

1. Press the MENU button and then use

2. Press the G button and then use

3. Press the

button to select either Normal (Default), Cool (Preset), Warm

D / E

D / E

button to select the VIDEO menu.

D / E

button to select ACC .

(Preset) or User (Manual Adjustment).

4. Press the MENU button to save and return to the previous menu.

Manual Color TT

Manual Color

emperature Control (User

emperature Control (

option)

option)

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

APC
ACC
Color temp.

Contrast 85 G

Brightness 60
Color 50
Sharpness 50
Tint 0

MENU

Prev.

APC

ACC G

Color temp.
Contrast 85
Brightness 60
Color 50
Sharpness 50
Tint 0

MENU

Prev.

Normal
Cool
Warm
User

- You can adjust red, green, or blue to any color temperature you prefer.

1. Press the MENU button and then use

2. Press the

3. Press the G button and then use

G

button and then use

D / E

D / E

button to select the VIDEO menu.

D / E

button to select the Color temp .
button to select Red, Green or Blue.

4. Use the F / G button to make appropriate adjustments.

• The adjustment range of Red, Green, and Blue is -10 ~ +10.

5. Press the MENU button to save and return to the previous menu.

16 Plasma Display

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

APC
ACC

Color temp. G

Contrast 85
Brightness 60
Color 50
Sharpness 50
Tint 0

MENU

Prev.

Red
Green
Blue

Audio Menu Options

Audio Menu Options

DASP

DASP

(Digital

(Digital

Auto Sound Processing)

Auto Sound Processing)

- This function lets you enjoy the best sound without any special adjustment because the Monitor automatically
selects the appropriate sound option based on the program content.

- When adjusting sound options (treble, bass, and balance) manually, DASP automatically changes to User.

1. Use the DASP button repeatedly to select the appropriate sound setup as shown below.

Flat Music Cinema Sports User

• You can also select Flat, Music, Cinema, Sports, or User in the AUDIO menu.

• Flat, Music, Cinema and Sports are preset for good sound quality at the factory and cannot be

changed.

Operation

Manual Sound Control (User

Manual Sound Control (

Press the MENU button and then use

1.

2. Press the G button and then use

(

Balance, Treble, Bass).

option)

option)

button to select the AUDIO menu.

D / E

button to select the desired sound option

D / E

3. Press the G button and then use F / G button to make appropriate adjustments.

4. Press the MENU button to save and return to the previous menu.

(Auto V

AAVLVL(Auto V

olume Leveler)

olume Leveler)

- This feature maintains an equal volume level; even if you change channels.

1. Press the MENU button and then use

2. Press the G button and then use

3. Press the

G button and then use

D / E

D / E

button to select the AUDIO menu.

D / E

button to select AV L .
button to select On or Off.

4. Press the MENU button to save and return to the previous menu.

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

DASP
AVL
Balance 0

Treble 50 G

Bass 50

MENU

PREV.

DASP

AVL G

Balance 0
Treble 50
Bass 50

MENU

PREV.

On
Off

Owner’s Manual 17

Operation

12 00

30

:

-- --:

z

z

z

z

ime Menu Options

TTime Menu Options

Setting the Clock

Setting the Clock

- If current time setting is erased by a power failure, if TV is unplugged or if the monitor is turned off with
the ON/OFF button on the monitor, reset the clock.

1. Press the MENU button and then use

2. Press the G button and then use

3. Press the

G button and then use

4. Press the G button and then use

D / E

D / E

D / E

5. Press the MENU button to save and return to the previous menu.

button to select the TIME menu.

D / E

button to select Clock.
button to set the hour.
button to set the minutes.

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

Clock G

Off timer
On timer
Auto off

MENU

Prev.

Setting the On/Off f TT

Setting the On/Of

imer

imer

- Timer function operates only if current time has been already set.

- Off-Timer function overrides On-Timer function if they are set to the same time.

- The monitor must be in standby mode for the On Timer to work.

1. Press the MENU button and then use

2. Press the G button and then use

3. Press the G button and then use

D / E

D / E

button to select the TIME menu.

D / E

button to select Off timer or On timer.
button to select On.

• To cancel On/Off timer function, select Off.

4. Press the

5. Press the G button and then use

6. For only On timer function; Press the G button and then use

G button and then use

button to set the hour.

D / E

button to set the minutes.

D / E

D / E

button to set

volume level.

6. Press the MENU button to save and return to the previous menu.

Auto Offf

Auto Of

- If there is no input signal, the Monitor turns off automatically after 10 minutes.

1. Press the MENU button and then use

2. Press the G button and then use

3. Press the

G button and then use

D / E

D / E

button to select the TIME menu.

D / E

button to select Auto off.
button to select On or Off.

4. Press the MENU button to save and return to the previous menu.

VIDEO

Clock
Off timer

AUDIO

On timer G

TIME

Auto off

SPECIAL

SCREEN

TWIN

VIDEO

Clock

AUDIO

Off timer
On timer

TIME

Auto off G Off

SPECIAL

SCREEN

TWIN

MENU

MENU

Prev.

Prev.

Off
On

Vol.

On

Sleep TT

Sleep

imer

imer

- The sleep timer turns the Monitor off at a preset time. Note that this setting is cleared when the monitor is turned off.

1. Press the SLEEP button repeatedly to select the number of minutes. First the --- Min option appears on the
screen, followed by the following sleep timer options:

10, 20, 30, 60, 90, 120, 180, and 240 minutes.

2. When the number of minutes you want is displayed on the screen, press the OK button. The timer begins to count

down from the number of minutes selected.

3. To check the remaining minutes before the monitor turns off, press the SLEEP or OK button once.

4. To cancel the Sleep Timer, press the SLEEP button repeatedly until --- Min appears.

18 Plasma Display

Special Menu Options

Special Menu Options

Key Lock

Key Lock

- The monitor can be set up so that it can only be used with the remote control.

- This feature can be used to prevent unauthorized viewing.

- This Monitor is programmed to remember which option it was last set to even if you turn the monitor off.

1. Press the MENU button and then use

2. Press the G button and then use

3. Press the G button and then use

D / E

D / E

button to select the SPECIAL menu.

D / E

button to select Key lock.

button to select On or Off.

4. Press the MENU button to save and return to the previous menu.

• With the Key lock ‘On’ setting, the display ‘ Key lock’ appears on the screen if

any button on the front panel is pressed.

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

Language

Key lock G

ISM method
Low power
Set id.
OSD rotate

MENU

Prev.

-In setting Key lock ‘On’, if the monitor is turned off with the remote control, press the INPUT SELECT button
on the monitor or POWER, INPUT SELECT on the remote control.

ISM (Image Sticking Minimization) method

ISM (Image Sticking Minimization) method

- Frozen still picture from a PC/video game displayed on the screen for prolonged periods will result in an ghost
image remaining even when you change the image. Avoid allowing a fixed image to remain on the Monitor's screen
for a long period of time.

1. Press the MENU button and then use

2. Press the

3. Press the G button and then use

Orbiter or Inversion. If you unnecessary to set this function, set Normal.

G button and then use

D / E

D / E

button to select the SPECIAL menu.

D / E

button to select ISM method.
button to select either Normal, White wash,

• White wash:
White Wash removes permanent images from the screen. Note: An excessive perma-

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

Language
Key lock

ISM method G

Low power
Set id.
OSD rotate

MENU

Prev.

nent image may be impossible to clear entirely with White Wash.

•

Orbiter:

Orbiter may help prevent ghost images. However, it is best not to allow any fixed image to remain on the screen. To avoid
a permanent image on the screen, the screen will move every 2 minutes: Right → Right → Downside → Downside → Left
→ Left → Upside → Upside. To return to normal viewing, press the any button.

• Inversion:
This is the function to invert the panel color of monitor. The panel color is automatically inverted every 30 minutes.

4. Press the MENU button to save and return to the previous menu.

Operation

On
Off

Normal
White wash
Orbiter
Inversion

Low power

Low power

- This is the function to reduce the power consumption of the monitor.

1. Press the MENU button and then use

2. Press the

3. Press the G button and then use

G button and then use

D / E

D / E

button to select the SPECIAL menu.

D / E

button to select Low power.
button to select On or Off.

• When you select On, the screen becomes dim.

4. Press the MENU button to save and return to the previous menu.

Menu Rotation for V

Menu Rotation for V

1. Press the MENU button and then use the

2. Press the

G button and then use the

3. Press the G button and then use the

ertical V

ertical V

iewing

iewing

button to select the SPECIAL menu.

D / E

button to select OSD rotate.

D / E

button to select Normal or Rotate.

D / E

• Select Normal if the monitor was installed horizontally.

• Select

Rotate, if the monitor was installed vertically.

4. Press the MENU button to save and return to the previous menu.

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

language
Key lock
ISM method

Low power

Set id.
OSD rotate

MENU

Language
Key lock
ISM method
Low power
Set id.

OSD rotate

MENU

Prev.

Prev.

G

On
Off

G

Normal
Rotate

Owner’s Manual 19

Operation

Screen Menu Options

Screen Menu Options

Auto

Adjustment

Auto

Adjustment

- RGB (PC) mode only; This function doesn’t work in RGB-DTV.

- Automatically adjusts picture position and minimizes image shaking.

- If the image is still not correct, your Monitor is functioning properly but needs further adjustment.

- The AUTO CONFIG. and the MANUAL CONFIG can be adjust automatically for DVI mode.

1. Press the MENU button and then use

2. Press the G button and then use

D / E

3. Press the G button to run Auto configure.

• When Auto config. has finished, OK will be shown on screen.

• If the position of the image is still not correct, try Auto adjustment again.

4. If picture needs to be adjusted more after Auto adjustment in RGB mode, you can

button to select the SCREEN menu.

D / E

button to select Auto config..

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

Auto config. G

ARC
Zoom in/out
Position
Manual config.

Screen adj.

Reset
XGA mode

MENU

Prev.

adjust the Manual config..

Setting Picture Format

Setting Picture Format

- If a 4:3 fixed image is on the screen for a long time, it may remain visible.

1. Use the ARC button repeatedly to select the desired picture format. You can also select picture format 4:3, 16:9,

Panorama or ZOOM in the SCREEN menu.

• 4:3

- Choose when you want to view a picture with an original 4:3 aspect ratio, with black bars appearing at both the

left and right sides.

• 16:9 (Wide)

- Choose when you want to adjust the picture horizontally, in a linear proportion to fill the entire screen. (Useful

for viewing 4:3 formatted DVDs.)

• Panorama

- Choose when you want to adjust the picture in a non-linear proportion, that is, more enlarged at both sides, to

create a spectacular view.

- RGB, DVI or Component (DTV) sources can’t use the Panorama feature.

• ZOOM

- Choose when you want to view the picture without any alteration. However, the top and bottom portions of the

picture will be cropped.

- RGB, DVI or Component (DTV) sources can’t use the Zoom feature.

To set

Picture Size Zoom

Picture Size Zoom

When enlarging or reducing the picture, the image may become distorted.

1. Use ZOOM+/ZOOM- button to enlarge or reduce the picture size.

• The adjustment range of Zoom is 100~300.

/ F / G

2. Adjust the main picture position with the

Zoom out

100%

D

F

G

E

D / E

buttons in enlarged picture mode.

20 Plasma Display

1
4

▲
▼

◀▶

▲
▼

◀▶

12

54

▲
▼

◀▶

12

3

4

5

6

7

89

0
0

◀▶

▲

▼

▲
▼

◀▶

12

3

4

5

6

7

89

Split Zoom

Split Zoom

- Enlarges the picture in correct proportion.

- Split Zoom can be used for every input source.

- with 2-SPLIT ZOOM, you can only move the screen into upside or downside.

- If a screen is enlarged, a screen can move without selecting section of screen Split Zoom.

1. Press the SPLIT ZOOM button repeatedly switches between dividing the screen into 2, 4 or 9 sections.

Operation

2-Split zoom

4-Split zoom

9-Split zoom

2. Press the number button corresponding to the section you wish to enlarge. you can move the enlarged screen
with using the

Screen Position

Screen Position

/ F / G button. To return to normal viewing, press the SPLIT ZOOM button again.

D / E

9-Split zoom

Example of choosing 5.

Section 5 is enlarged to fill
the screen.

- This function works in the following mode:
RGB-PC, RGB-DTV (480p,720p,1080i), COMPONENT (480p,720p,1080i).

1. Press the MENU button and then use

2. Press the

3. Press the

G button and then use
G button and then use

D / E
D / E

button to select the SCREEN menu.

D / E

button to select Position.

/ F / G button to adjust the position.

4. Press the MENU button to save and return to the previous menu.

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

Auto config.
ARC
Zoom in/out

Position G

Manual config.

Screen adj.

Reset
XGA mode

MENU

Prev.

Manual Configure (RGB-PC mode only)

Manual Configure (RGB-PC mode only)

- If the picture isn’t clear after auto adjustment and especially if characters are still jittery, adjust the picture phase
manually.

- To correct the screen size, adjust Clock.

1. Press the MENU button and then use

2. Press the G button and then use

3. Press the G button and then use

D / E

D / E

4. Use the F / G button to make appropriate adjustments.

• The adjustment range of Phase is 0 ~ 31.

• The adjustment range of Clock is -50 ~ +50.

button to select the SCREEN menu.

D / E

button to select Manual config..
button to t o select Phase or Clock.

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

Auto config.
ARC
Zoom in/out
Position

Manual config. G

Screen adj.

Reset
XGA mode

MENU

Prev.

5. Press the MENU button to save and return to the previous menu.

Owner’s Manual 21

Phase
Clock

Operation

Screen Menu Options continued

Screen Menu Options continued

Screen

Screen

Adjustments (V

Adjustments (V

ideo, S-V

ideo, S-V

ideo and Component 480i mode only)

ideo and Component 480i mode only)

- Use this function to correct jittering or picture instability while viewing a video tape.

1. Press the MENU button and then use

2. Press the G button and then use

3. Press the G button and then use

D / E

D / E

button to select the SCREEN menu.

D / E

button to select Screen adj..
button to t o select TV or VC R.

• Select the VCR option if watching a VCR.

• Select the

TV option for other equipment.(Except VCR)

4. Press the MENU button.

Initializing (Reset to original factory value)

Initializing (Reset to original factory value)

- This function operates in every mode.

- To initialize the adjusted value

1. Press the MENU button and then use

2. Press the G button and then use

D / E

button to select the SCREEN menu.

D / E

button to select Reset.

3. Press the G button.

•You can initialize POSITION, PIP size, PIP position and sub picture size for twin pic­ture.

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

Auto config.

ARC
Zoom in/out

Position
Manual config.

Screen adj. G

Reset
XGA mode

MENU

Prev.

Auto config.
ARC
Zoom in/out
Position
Manual config.

Screen adj.

Reset G

XGA mode

MENU

Prev.

TV
VCR

To set

Selecting W

Selecting W

ide VGA/XGA

ide VGA/XGA

mode (RGB, DVI-PC mode only)

mode (RGB, DVI-PC mode only)

- To see a normal picture, match the resolution of RGB XGAmode (1024x768, 1360x768, 1366x768) with the selection for XGA mode
and the resolution of RGB VGA mode (640x480, 848x480, 852x480) with the selection for VGA mode in the SCREEN menu.

- If the input source is RGB VGA mode, the screen menu option is changed from XGA mode to VGA mode automatically .

1. Press the MENU button and then use

2. Press the G button and then use

3. Press the G button and then use

D / E

D / E

4. Press the MENU button.

button to select the SCREEN menu.

D / E

button to select VGA mode/XGA mode.

button to select the desired VGA/XGA resolution.

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

Auto config.
ARC
Zoom in/out
Position
Manual config.

Screen adj.

Reset

XGA mode G

MENU

Prev.

1024x768
1360x768
1366x768

22 Plasma Display

Operation

10 : 30

PIP

PIP

(Picture-In-Picture) Feature

(Picture-In-Picture) Feature

- PIP lets you view 2 different inputs (sources) on your monitor screen at the same time. One source will be large, and the
other source will show a smaller inset image.

- When you select PC or DTV for main picture in PIP, you can watch VIDEO, S-VIDEO or COMPONENT 480i for sub picture.

PIP

Size

PIP

atching PIP

WWatching PIP

Press the PIP button repeatedly to select turn PIP on or off.

Size

Press the WIN.SIZE button and then use F / G button to
change the sub picture size.

Component

Video

Win.size

F G

PIP

Aspect Ratio

PIP

Aspect Ratio

Press the PIP ARC button. The sub picture appears as shown.

4 : 3

16 : 9

Swapping the PIP

Swapping the PIP

Press the SWAP button to exchange the main and sub pictures.

Component

Video

10 : 30 10 : 30

Video

Component

Moving the PIP

Moving the PIP

Press the WIN.POSITION button.
Press the

/ F / G button repeatedly until desired posi-

D / E

tion is achieved. The sub picture moves up/down/left/right.

Win.position

▲

◀▶

▼

Main Picture Sub Picture

Selecting a Input Signal Source for the PIP

Selecting a Input Signal Source for the PIP

Use the SUB INPUT button to select the input source for
the sub picture.

• In Video for main picture, you can select S-Video,
Component 480p/720p/1080i, RGB and DVI for sub pic­ture.

• In S-Video for main picture, you can select Video,
Component 480p/720p/1080i, RGB and DVI for sub pic­ture.

• In Component 480i for main picture, you can select RGB,
DVI, Video and S-Video for sub picture.

• In Component 480p/720p/1080i for main picture, you can
select Video and S-Video for sub picture.

• In RGB and DVI for main picture, you can select
Component 480i, Video and S-Video for sub picture.

Component

Video

10 : 30

Owner’s Manual 23

Operation

DW 1

DW 2

10 : 30

10 : 30

10 : 30

◀▶

win Picture Setup Option

TTwin Picture Setup Option

- As the name suggests, this mode splits the screen into 2, allowing 2 picture sources to be shown on the monitor screen at the
same time. Each source is given half the screen.

Main Picture Size

Main Picture Size

Adjustment

Adjustment

Use the TWIN PICTURE button repeatedly to select one of the Twin Picture options.

Sub Picture Size

Sub Picture Size

Adjustment

Adjustment

Use the WIN.SIZE button.

• Use the F / G button to adjust the sub picture size.

• Using WIN.SIZE function in Twin Picture mode, main and sub picture are adjusted

simultaneously.
Using WIN.SIZE function in PIP mode, sub picture is adjusted.

• WIN.POSITION is not functional in twin picture mode.

Swapping the TT

Swapping the

win Picture

win Picture

Use the SWAP button to switch the main and sub pictures in twin picture mode.

Off

Win.size

F G

Selecting a Source for the TT

Selecting a Source for the

Component

Video

win Picture

win Picture

Video

Component

Use the SUB INPUT button to select the input source for the sub picture.

• In Video for main picture, you can select S-Video, Component 480p/720p/1080i, RGB
and DVI for sub picture.

• In S-Video for main picture, you can select Video, Component 480p/720p/1080i, RGB
and DVI for sub picture.

• In Component 480i for main picture, you can select RGB, DVI, Video and S-Video for
sub picture.

• In Component 480p/720p/1080i for main picture, you can select Video and S-Video for
sub picture.

• In RGB and DVI for main picture, you can select Component 480i, Video and S-Video
for sub picture.

24 Plasma Display

COMPONENT

VIDEO

External Control Device Setup

1

External Control Device Setup

External Control Device Setup

- Connect the RS-232C input jack to an external control device (such as a computer or an A/V control system)
and control the Monitor’s functions externally.

- Connect the serial port of the control device to the RS-232C jack on the Monitor back panel.

- RS-232C connection cables are not supplied with the Monitor.

ype of connector; D-Sub 9-pin male

TType of connector; D-Sub 9-pin male

No. Pin name
1 No connection
2 RXD (Receive data)
3 TXD (Transmit data)
4 DTR (DTE side ready)
5 GND
6 DSR (DCE side ready)
7 RTS (Ready to send)
8 CTS (Clear to send)
9 No Connection

RS-232C configurations

RS-232C configurations

1

5

9

6

7-wire configuration

(Standard RS-232C cable)

PC

RXD
TXD

GND

DTR
DSR
RTS
CTS

Set ID

Set ID

- Use this function to specify a monitor ID number.

- Refer to ‘Real Data Mapping 1’. See page 27.

1. Press the MENU button and then use the

2. Press the G button and then use

3. Press the
monitor ID number.

• The adjustment range of Set id. is 1 ~ 99.

2
3
5
4
6
7
8

D-Sub 9

G button and then use F / G button to adjust Set id. to choose the desired

PDP

3
2
5
6
4
8
7

D-Sub 9

D / E

button to select Set id..

D / E

TXD
RXD
GND
DSR
DTR
CTS
RTS

button to select the SPECIAL menu.

RXD
TXD

GND

DTR
DSR
RTS
CTS

D-Sub 9

3-wire configuration

(Not standard)

PC

2
3
5
4
6
7
8

VIDEO

AUDIO

TIME

SPECIAL

SCREEN

TWIN

PDP

3
2
5
4
6
7
8

D-Sub 9

language
Key lock
ISM method
Low power

Set id. G

OSD rotate

MENU

TXD
RXD
GND

DTR
DSR

RTS

CTS

Prev.

Communication Parameters

Communication Parameters

• Baud rate : 115200 bps (UART)

• Data length : 8 bits

• Parity : None

• Stop bit : 1 bit

• Communication code : ASCII code

Owner’s Manual 25

External Control Device Setup

Command Reference List

Command Reference List

COMMAND 1 COMMAND 2 DATA

01. Power k a 0 ~ 1

02. Input Select k b 0 ~ 4

03. Aspect Ratio k c 0 ~ 2

04. Screen Mute k d 0 ~ 1

05. Volume Mute k e 0 ~ 1

06. Volume Control k f 0 ~ 64

07. Contrast k g 0 ~ 64

08. Brightness k h 0 ~ 64

09. Color k i 0 ~ 64

10. Tint k j 0 ~ 64

11. Sharpness k k 0 ~ 64

12. OSD select k l 0 ~ 1

13.

Remote control lock mode

14. PIP/Twin k n 0 ~ 3

15. PIP size k o 0 ~ 1

16. PIP position k q 0 ~ 3

17. Treble k r 0 ~ 64

18. Bass k s 0 ~ 64

19. Balance k t 0 ~ 64

20. Color temperature k u 0 ~ 3

21. Red adjustment k v 0 ~ 64

22. Green adjustment k w 0 ~ 64

23. Blue adjustment k $ 0 ~ 64

24. PIP input source k y 0 ~ 4

25. Abnormal Status k z 0 ~ a

26. Orbiter j p 0 ~ 1

27. White Wash j q 0 ~ 1

28. Orbiter Time Setting j r 1 ~ FE

29. Orbiter Pixel Setting j s 0 ~9

30. Picture Size Setting j t 0 ~64
for Twin Picture mode

k m 0 ~ 1

(Hexadecimal)

• When setting the 26 ~ 30, a menu doesn’t display on

screen.

OK Acknowledgement

[Command2][ ][Set ID][ ][OK][Data][x]

* The Monitor transmits ACK (acknowledgement) based on

this format when receiving normal data. At this time, if the
data is data read mode, it indicates present status data. If
the data is data write mode, it returns the data of the PC
computer.

Error Acknowledgement

[Command2][ ][Set ID][ ][NG][x]

* The Monitor transmits ACK (acknowledgement) based on

this format when receiving abnormal data from
non-viable functions or communication errors.

01. Power (Command:a)

G To control Power On/Off of the Monitor.

ransmission

T

[k][a][ ][Set ID][ ][Data][Cr]
Data 0 : Power Off 1 : Power On

Acknowledgement

[a][ ][Set ID][ ][OK][Data][x]

G To show Power On/Off.

ransmission

T

[k][a][ ][Set ID][ ][FF][Cr]
Data 0 : Power Off 1 : Power On

Acknowledgement

[a][ ][Set ID][ ][OK][Data][x]

* In like manner, if other functions transmit ‘FF’ data based

on this format, Acknowledgement data feed back presents
status about each function.

ransmission / Receiving Protocol

TTransmission / Receiving Protocol

ransmission

T

[Command1][Command2][ ][Set ID][ ][Data][Cr]

[Command 1] : k

*

[Command 2] : To control PDP set.

*

[Set ID] : You can adjust the set ID to choose

*

[DATA] : To transmit command data.

*

[Cr] : Carriage Return

*

[ ] : ASCII code ‘space (0x20)’

*

26 Plasma Display

desired monitor ID number in special
menu. See previous page.
Adjustment range is 1 ~ 99.
When selecting Set ID ‘0’, every
connected PDP set is controlled.

Transmit ‘FF’ data to read status of
command.

ASCII code ‘0x0D’

02. Input Select (Command:b) (Main Picture Input)

G To select input source for the Monitor.

You can also select an input source using the INPUT
SELECT button on the Monitor's remote control.

ransmission

T

[k][b][ ][Set ID][ ][Data][Cr]
Data 0 : RGB 1

1 : COMPONENT
2 : VIDEO

Acknowledgement

[b][ ][Set ID][ ][OK][Data][x]

3 : S-VIDEO
4 : RGB 2

External Control Device Setup

03. Aspect Ratio (Command:c) (Main picture format)

G To adjust the screen format.

You can also adjust the screen format using the ARC
(Aspect Ratio Control) button on remote control or in the
Special menu.

ransmission

T

[k][c][ ][Set ID][ ][Data][Cr]

Data 0 : Wide screen (16:9)

1 : Normal screen (4:3)
2 : Full screen (Zoom)

Acknowledgement

[c][ ][Set ID][ ][OK][Data][x]

* Using the PC input, you select either 16:9 or 4:3 screen

aspect ratio.

04. Screen Mute (Command:d)

G To select screen mute on/off.

ransmission

T

[k][d][ ][Set ID][ ][Data][Cr]

Data 0 : Screen mute off (Picture on)

1 : Screen mute on (Picture off)

Acknowledgement

[d][ ][Set ID][ ][OK][Data][x]

05. Volume Mute (Command:e)

G To control volume mute on/off.

You can also adjust mute using the MUTE button on
remote control.

ransmission

T

[k][e][ ][Set ID][ ][Data][Cr]

Data 0 : Volume mute on (Volume off)

1 : Volume mute off (Volume on)

Acknowledgement

[e][ ][Set ID][ ][OK][Data][x]

06. Volume Control (Command:f)

G To adjust volume.

You can also adjust volume with the volume buttons
on remote control.

T

ransmission

[k][f][ ][Set ID][ ][Data][Cr]

Data Min : 0 ~ Max : 64

Refer to ‘Real data mapping1’ as shown right.

*

Acknowledgement

[f][ ][Set ID][ ][OK][Data][x]

07. Contrast (Command:g)

G To adjust screen contrast.

You can also adjust contrast in the Video menu.

ransmission

T

[k][g][ ][Set ID][ ][Data][Cr]

Data Min : 0 ~ Max : 64

Refer to ‘Real data mapping1’ as shown below.

*

Acknowledgement

[g][ ][Set ID][ ][OK][Data][x]

08. Brightness (Command:h)

G To adjust screen brightness.

You can also adjust brightness in the Video menu.

ransmission

T

[k][h][ ][Set ID][ ][Data][Cr]

Data Min : 0 ~ Max : 64

Refer to ‘Real data mapping1’ as shown below.

*

Acknowledgement

[h][ ][Set ID][ ][OK][Data][x]

09. Color (Command:i)

G To adjust the screen color.

You can also adjust color in the Video menu.

ransmission

T

[k][i][ ][Set ID][ ][Data][Cr]

Data Min : 0 ~ Max : 64

Refer to ‘Real data mapping1’ as shown below.

*

Acknowledgement

[i][ ][Set ID][ ][OK][Data][x]

10. Tint (Command:j)

G To adjust the screen tint.

You can also adjust tint in the Video menu.

T

ransmission

[k][j][ ][Set ID][ ][Data][Cr]

Data Red : 0 ~ Green : 64

Refer to ‘Real data mapping1’ as shown below.

*

Acknowledgement

[j][ ][Set ID][ ][OK][Data][x]

Real data mapping 1

*

0 : Step 0

A : Step 10 (SET ID 10)

F : Step 15 (SET ID 15)

10 : Step 16 (SET ID 16)

64 : Step 100

Real data mapping 2

*

0 : -10
5: -9
A: -8

2D: -1
32: 0
37: +1

5F: +9
64: +10

Owner’s Manual 27

External Control Device Setup

11. Sharpness (Command2:k)

G To adjust the screen sharpness.

You can also adjust sharpness in the Video menu.

ransmission

T

[k][k][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64

• Refer to ‘Real data mapping1’. See page 27.

Acknowledgement

[k][ ][Set ID][ ][OK][Data][x]

12. OSD Select (Command2:l)

G To select OSD (On Screen Display) on/off.

Transmission

[k][l][ ][Set ID][ ][Data][Cr]

Data 0: OSD off 1: OSD on

Acknowledgement

[l][ ][Set ID][ ][OK][Data][x]

13. Remote Control Lock Mode (Command2:m)

G To lock the front panel controls on the monitor

ransmission

T

[k][m][ ][Set ID][ ][Data][Cr]

Data 0: Lock off 1: Lock on

Acknowledgement

[m][ ][Set ID][ ][OK][Data][x]

If you’re not using the remote control, use this mode.

•

When main power is on/off, remote control lock is released.

14. PIP / Twin (Command2:n)

G To control the PIP (Picture In picture).

You can also control the PIP/TWIN using the PIP or Twin
picture button on the remote control or in the Special menu.

ransmission

T

[k][n][ ][Set ID][ ][Data][Cr]

Data 0: PIP/DW off

1: PIP

Acknowledgement

[n][ ][Set ID][ ][OK][Data][x]

15. PIP Size (Command2:o)

G To select the PIPpicture format.

You can also select the PIP picture format using WIN.SIZE
on the remote control.

ransmission

T

[k][o][ ][Set ID][ ][Data][Cr]

Data 0: 4:3 1: 16:9

Acknowledgement

[o][ ][Set ID][ ][OK][Data][x]

2: DW1
3: DW2

16. PIP Position (Command2:q)

G To select sub picture position for PIP.

You can also adjust the sub picture position using
WIN.POSITION on the remote control or in the Special menu.

ransmission

T

[k][q][ ][Set ID][ ][Data][Cr]
Data 0: Right down on screen

1: Left down on screen
2: Left up on screen
3: Right up on screen

Acknowledgement

[q][ ][Set ID][ ][OK][Data][x]

17. Treble (Command2:r)

G To adjust treble.

You can also adjust treble in the Audio menu.

ransmission

T

[k][r][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64

• Refer to ‘Real data mapping1’. See page 27.

Acknowledgement

[r][ ][Set ID][ ][OK][Data][x]

18. Bass (Command2:s)

G To adjust bass.

You can also adjust bass in the Audio menu.

ransmission

T

[k][s][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64

• Refer to ‘Real data mapping1’. See page 27.

Acknowledgement

[s][ ][Set ID][ ][OK][Data][x]

19. Balance (Command2:t)

G To adjust balance.

You can also adjust balance in the Audio menu.

ransmission

T

[k][t][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64

• Refer to ‘Real data mapping1’. See page 27.

Acknowledgement

[t][ ][Set ID][ ][OK][Data][x]

20. Color Temperature (Command2:u)

G To adjust color temperature.

You can also adjust ACC in the Video menu.

ransmission

T

[k][u][ ][Set ID][ ][Data][Cr]

Data 0: Normal 1: Cool 2: Warm 3: User

Acknowledgement

[u][ ][Set ID][ ][OK][Data][x]

28 Plasma Display

External Control Device Setup

21. Red Adjustment (Command2:v)

G To adjust red in color temperature.

Transmission

[k][v][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64

• Refer to ‘Real data mapping 2’. See page 27.

Acknowledgement

[v][ ][Set ID][ ][OK][Data][x]

22. Green Adjustment (Command2:w)

G To adjust green in color temperature.

Transmission

[k][w][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64

• Refer to ‘Real data mapping 2’. See page 27.

Acknowledgement

[w][ ][Set ID][ ][OK][Data][x]

23. Blue Adjustment (Command2:$)

G To adjust blue in color temperature.

Transmission

[k][$][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64

Refer to ‘Real data mapping 2’. See page 27.

•

Acknowledgement

[$][ ][Set ID][ ][OK][Data][x]

24. PIP Input Select (Command2:y)

G To select input source for sub picture in PIP mode.

Transmission

[k][y][ ][Set ID][ ][Data][Cr]

Data 0: RGB1 1: COMPONENT

2: VIDEO 3: S-VIDEO 4: RGB2

Acknowledgement

[y][ ][Set ID][ ][OK][Data][x]

25. Abnormal State (Command2:z)

G To recognize an abnormal state.

Transmission

[k][z][ ][Set ID][ ][FF][Cr]

Data 0: Normal (Power on and signal exist)

1: No signal (Power on)
2: Turn the monitor off by remote control
3: Turn the monitor off by sleep time function
4: Turn the monitor off by RS-232C function
5: 5V down
6: AC down
7: Turn the monitor off by Fan Alarm function
8: Turn the monitor off by off time function
9: Turn the monitor off by auto off function
a: Turn the monitor off by AV board detect

Acknowledgement

[z][ ][Set ID][ ][OK][Data][x]

* This function is “read only”.

26. Orbiter (Command2:p)

G To control the orbiter function on/off.

Transmission

[j][p][ ][Set ID][ ][Data][Cr]

Data 0: Orbiter off

1: Orbiter on

Acknowledgement

[p][ ][Set ID][ ][OK][Data][x]

27. White Wash (Command2:q)

G To control the white wash function on/off.

ransmission

T

[j][q][ ][Set ID][ ][Data][Cr]
Data 0: White Wash off

1: White Wash on

Acknowledgement

[q][ ][Set ID][ ][OK][Data][x]

28. Orbiter Time Setting (Command2:r)

G To adjust orbiter operation time term.

Transmission

[j][r][ ][Set ID][ ][Data][Cr]

Data Min: 1 ~ Max: FE

• Refer to ‘Real data mapping1’. See page 27.

Acknowledgement

[r][ ][Set ID][ ][OK][Data][x]

29. Orbiter Pixel Setting (Command2:s)

G To adjust pixel number in orbiter function.

T

ransmission

[j][s][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 9

• Refer to ‘Real data mapping1’. See page 27.

Acknowledgement

[s][ ][Set ID][ ][OK][Data][x]

30. Picture Size Setting for Twin Picture mode
(Command2:t)

G To adjust main window size in twin picture mode.

Transmission

[j][t][ ][Set ID][ ][Data][Cr]

Data Min: 0 ~ Max: 64

• Refer to ‘Real data mapping1’. See page 27.

Acknowledgement

[t][ ][Set ID][ ][OK][Data][x]

Owner’s Manual 29

IR Code

G Output waveform

Single pulse, modulated with 37.917KHz signal at 455KHz

G Configuration of frame

G Repeat code

G Lead code

•

1st frame

Low
custom code

Lead
code

High
custom code

Data code

Data code

TC

T

f

T1

C0

Carrier frequency

FCAR

= 1/TC = fOSC/12

Duty ratio = T1/T

C = 1/3

• Repeat frame

C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7

Repeat code

9 ms 4.5 ms

0.55 ms

9 ms

2.25 ms

G Bit description

G Frame interval : Tf

The waveform is transmitted as long as a key is depressed.

• Bit “0”

Tf Tf

Tf=108ms @455KHz

0.56 ms 0.56 ms

1.12 ms

• Bit “1”

2.24 ms

IR Code (NEC Format)

IR Code (NEC Format)

How to connect

How to connect

G Connect your wired remote control to the Remote port on the Monitor.

Set the CONTROL LOCK to ‘ON’ on the Monitor back panel to operate Monitor with wired remote control.

Remote Control IR Code (NEC Format)

Remote Control IR Code (NEC Format)

30 Plasma Display

Code (Hexa) Function Note

00H
01H
02H
03H
08H
C4H
C5H
09H
10H
11H
12H
13H
14H
15H
16H
17H
18H
19H
0BH
98H
C6H
5AH
51H
BFH
0EH
44H
43H
52H
4DH
60H
61H
63H
64H
6BH
40H
41H
69H
6AH
7BH
79H
76H
77H
AFH

UP (D)
DOWN (

)

E

VOL+ (G)

F)

VOL- (
POWER On/Off
POWER ON
POWER OFF
MUTE
Number Key 0
Number Key 1
Number Key 2
Number Key 3
Number Key 4
Number Key 5
Number Key 6
Number Key 7
Number Key 8
Number Key 9
AII INPUT SELECT
RGB 1
RGB 2 (DVI input)
VIDEO
S-VIDEO
COMPONENT
SLEEP
OK (

Á)

MENU
DASP
APC
PIP
PIP INPUT
SWAP
PIP ARC
TWIN PICTURE
ZOOM +
ZOOM ­Window Size
Window Position
Split Zoom
ARC
ARC (4:3)
ARC (16:9)
ARC (ZOOM)

R/C Button
R/C Button
R/C Button
R/C Button
R/C Button (Power On/Off)
Discrete IR Code (Only Power On)
Discrete IR Code (Only Power Off)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button(RGB1/RGB2/Comp/VIDEO/S-VIDEO)
Discrete IR Code (Input RGB1 Selection)
Discrete (Input RGB2 Selection)
Discrete (Input VIDEO Selection)
Discrete (Input S-VIDEO Selection)
Discrete (Input COMPONENT Selection)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button (PIP/TWIN Exchange)
R/C Button (4:3/16:9)
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button
R/C Button(4:3/16:9/Zoom Mode Selection)
Discrete (Only 4:3 mode)
Discrete (Only 16:9 mode)
Discrete (Only ZOOM mode)

IR Code

Owner’s Manual 31

Troubleshooting Checklist

roubleshooting Checklist

TTroubleshooting Checklist

• Check whether the Monitor is turned on.

No picture &

No sound

Picture OK &

No sound

The remote control

doesn’t work

Picture appears slowly,

after switching on

• Power cord inserted into wall outlet?

• Test the wall power outlet, plug other product’s power cord into the wall outlet
where the Monitor’s power cord was plugged in.

• Press the VOLUME (G) button.

• Sound muted? Press MUTE button.

• Check to see if there is any object between the Plasma Display and the

remote control causing obstruction.

• Are batteries installed with correct polarity (+ to +, - to -)?
(Refer to p.8)

• Install new batteries. (Refer to p.8)

• This is normal as the image is muted during the startup process of the moni-

tor. Please contact your service centre,if the picture has not appeared after
five minutes.

• Select Color in the VIDEO menu and press the VOLUME (G) button.
(Refer to p.16)

No or Poor color

or Poor picture

Horizontal/vertical bars

or picture shaking

No output from one of

the speakers

Unusual sound from

inside the monitor

32 Plasma Display

• Keep a certain distance between the Monitor and the VCR.

• Activate any function to restore the brightness of the picture.

(If still picture is on the screen for more than 5 minutes, the screen gets dark.)

• Check for local interference such as an electrical appliance or power tool.

• Adjust Balance in the AUDIO menu. (Refer to p.17)

• A change in ambient humidity or temperature may result in an unusual noise

at the time of switching off or on of the monitor and does not indicate a fault
with the monitor.

Maintenance & Specification

Maintenance

Maintenance

- Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you will have your
new Monitor. Be sure to turn the power off and unplug the power cord before you begin any cleaning.

Cleaning the Screen

Cleaning the Screen

1. Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm water and
a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then use it to wipe the
screen.

2. Make sure the excess water is off the screen, and then let it air-dry before you turn on your Monitor.

Cleaning the Cabinet

Cleaning the Cabinet

To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
Please be sure not to use a wet cloth.

Extended

Extended

Product Specifications

Product Specifications

Width (inches / mm)

Height (inches / mm)

Depth (inches / mm)

Weight (pounds / kg)

Absence

Absence

If you leave your Monitor dormant for a long time (such as a vacation), it’s a good idea to unplug the
power cord to protect against possible damage from lightning or power surges.

MODEL

Power requirement

Resolution

Color

MU-50PZ90M/90MA/90MB/90MK/90MR/90MS

MU-50PZ90V/90VA/90VB/90VK/90VR/90VS

16,770,000 (256 steps of each R, G and B)

48.2 / 1223

28.9 / 734

4.1 / 105

99.2 / 45

AC120V, 60Hz

1366 x 768 (Dot)

Operating Temperature Range

Operating Humidity Range

Maximum Elevation

• The specifications shown above may be changed without notice for quality improvement.

32 ~ 104°F (0 ~ 40°C)

Less than 80%

6561 feet (2000m)

Owner’s Manual 33
