Instructions for preparing the
installation connections
LG Giant-C washer
Review and selection of the appropriate location
The machine should be mounted on a solid floor, strong and rigid enough to withstand
the weight of the machine, even to the full end, without bending. If it is too bent, it
will need to be further stuck. If the floor is not strong enough, strong vibrations and
sounds will appear. Be sure you have chosen a firm and smooth floor.
It is necessary to leave enough space between the machine and surrounding walls for
installation.
It is necessary to leave enough space for the connection pipes for the water, the
drainage pipe and the circulating air around the machine.
Machine dimensions:
W686xD767xH983mm
Depth when the door is open:
1291mm
Minimum side space:
25mm
Minimum rear space:
100mm
Power supply
Type of connection:
Fixed connection to Single Phase Switch
Installation height:
min. 1000mm
Voltage:
220V/50Hz
Total power:
3,6kW
Minimum cable thickness:
2,5mm2
Fuse in the distribution box:
20A
Picture of switch:
NOTE: The unit is connected only through the fuse switch, not the sockets.
Page 2
2
Water supply
Cold water connection:
Cold water pipe thread ¾“
Hot water connection:
Hot water pipe thread ¾“
Maximum hot water temperature:
55⁰C
Installation height:
800mm
Picture of hot and cold water pipe:
NOTE: If hot water is not available, it is necessary two pipes with cold water
Water drain
Drain type:
Pump
Diameter of supply:
50mm
Drain height:
600mm
Image of floor drainage:
Page 3
3

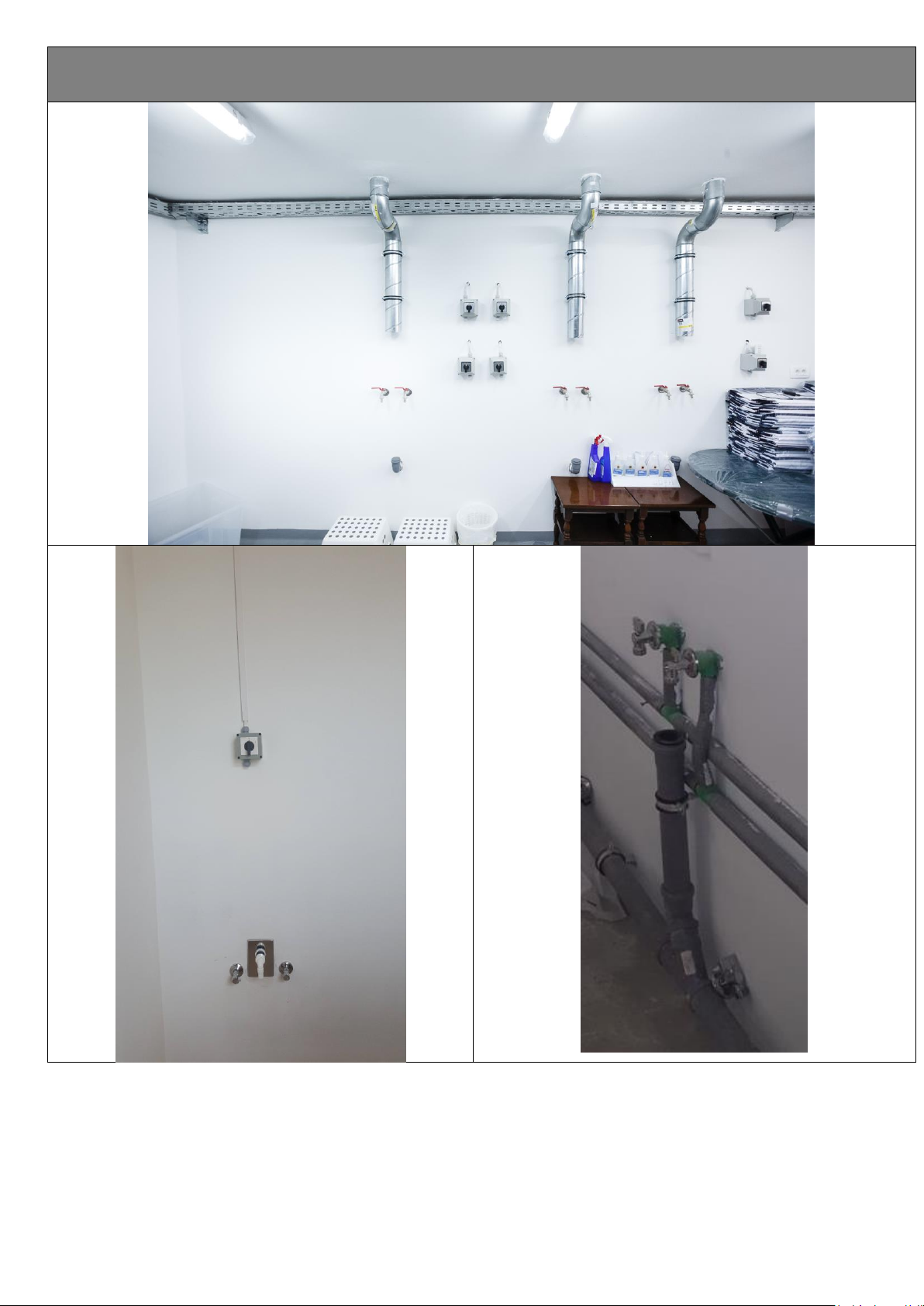

Pictures of Prepared Installations
Page 4
4
REQUIRED: Before installing, check the "check" list and send the finished instalation pictures
to the e-mail:
LG Giant-C"Check" list
Setting up a washing machine
Yes/No
Comments
Minimum dimensions for the device
W750xD1291xH983 mm
The floor on which the machine is mounted is
firm and stable
Power supply
Yes/No
Comments
Voltage 220V/50Hz
Power 3,6 kW
Off switch (not socket) is not an integral part of
delivery
Fuse 20A
Cable thickness 2,5mm2
Connection and drainage
Yes/No
Comments
Cold water connection with ¾“
Hot water connection with pipe ¾“
max. temperature 55 ° C
Water pressure at the supply between 2 bar
and 8 bar
Outlet valve diameter 50mm
Water drainage at floor height of 600mm
