Important Safety Precautions

Check the following ‘Important Safety Precautions’ to prevent unexpected danger or damage in advance.

‘Important Safety Precautions’ is divided into ‘WARNING’ and ‘CAUTION.’

WARNING: Noncompliance with the instruction may cause serious

physical damage or fatal injuries.

CAUTION: Noncompliance with the instruction may cause minor damage

to the body or the machine

While using product

WARNING

CAUTION

yUse the product in a safe place where there is no danger

of the product falling. yDo not use the product in a dusty or humid place. yDo not use the product in a high or low-temperature

environment. yDo not touch the power cord with your hands wet. yKeep the power cable port free of foreign substances. yClean the product with a proper agent and dry it

completely before using it again.

yDo not press the monitor screen with fingers or put

objects on it. yDo not tap or scratch the screen with a sharp object. yIf the screen is damaged, do not touch it with your

hands. yKeeping a paused image on the screen for an extended

period of time may result in screen burn-in. yUse a screensaver, etc. yWhen its temperature is low, turning on the monitor may

cause momentary blinking of the screen. yIf this is the case, you may see some red, green, and blue

spots on the screen but it is normal.

.

2Checking the Components

ENGLISH



Checking the Components

The components shown below are provided when you purchase the product. Check the components before use.

ySome of its components may look different in shape and color from the pictures

in certain models.

yTo clean the product, use a dedicated cleaning agent for PC and monitor.

Using thinners, benzene, alcohol or other similar agents may cause product damage or deformation.

Monitor body

Owner’s manual /

Regulatory information

NOTE

yThe figures in the owner’s manual are subject to change without prior

notice.

USB-C™ cable Folio cover

Product Tour

The product may differ in shape and color from the product images included in this Owner’s manual.

3

1

2

USB-C™ port



USB-C™ port



Screen brightness adjustment / Power button

1 The USB-C™ port only supports PD (Power Delivery)* and connection to

external display screens. * Supported when connecting the PD charger

2 If you press and hold the upper and lower buttons of the screen brightness

adjustment button at the same time for 2 seconds or longer, you can turn on or off the power.

1

2

3

ENGLISH

!

Using Folio Cover

You can fold back the folio cover to protect the monitor screen and use it as a stand.

With a folio cover

CAUTION

1 Put the folio cover on the monitor screen.

2 Attach the docking side of the folio cover on the back side of the monitor.

yWhen you are moving the product, make sure to keep the

folio cover on it to protect the screen.

Stand Mode

CAUTION

yTo prevent damage, use in the right direction. yIf used in a wrong direction, the stand is not attached.

NOTE

yYou can use the stand in two types of angles (Level 1, Level 2) as necessary.

[Level 1] [Level 2]

1 Fold the soft side (suede) outwards and make a stand so that a

triangular shape [ ] faces downward.

[Front] [Back]

4Connecting the Product

ENGLISH

!

2 Attach the folio cover on the back side of the monitor and use it in a

horizontal/vertical mode.



[Horizontal Mode]



[Vertical Mode]

Connecting the Product

CAUTION

Connecting to PC Immediately

Connect the USB-C™ ports of the monitor and the PC using the USB-C™ cable.

NOTE

ySome PCs may not support monitor connection. yThe device to connect to the monitor must support power output (USB PD) of

7.5 W (5 V / 1.5 A) or higher and DisplayPort Alternate Mode (DP Alt Mode).

yUse the USB-C™ cable enclosed with the monitor and a cable certified by

LG Electronics for connection. If another cable is used, it may cause the screen

to operate abnormally. yIf the PC connected to the monitor has low battery, connection may be lost. yThis monitor supports the plug-and-play function.

(Plug-and-play: When a device is connected to a PC, the PC automatically

recognizes the connected device without any environment settings by the user.)

yDo not connect any other type of cable than USB-C™

cable for this connection. Doing so can damage the connector.

yIf power consumption of the PD charger is low, the

battery level of the device connected to the monitor may decrease.

5

ENGLISH

!



Adjusting Screen Brightness

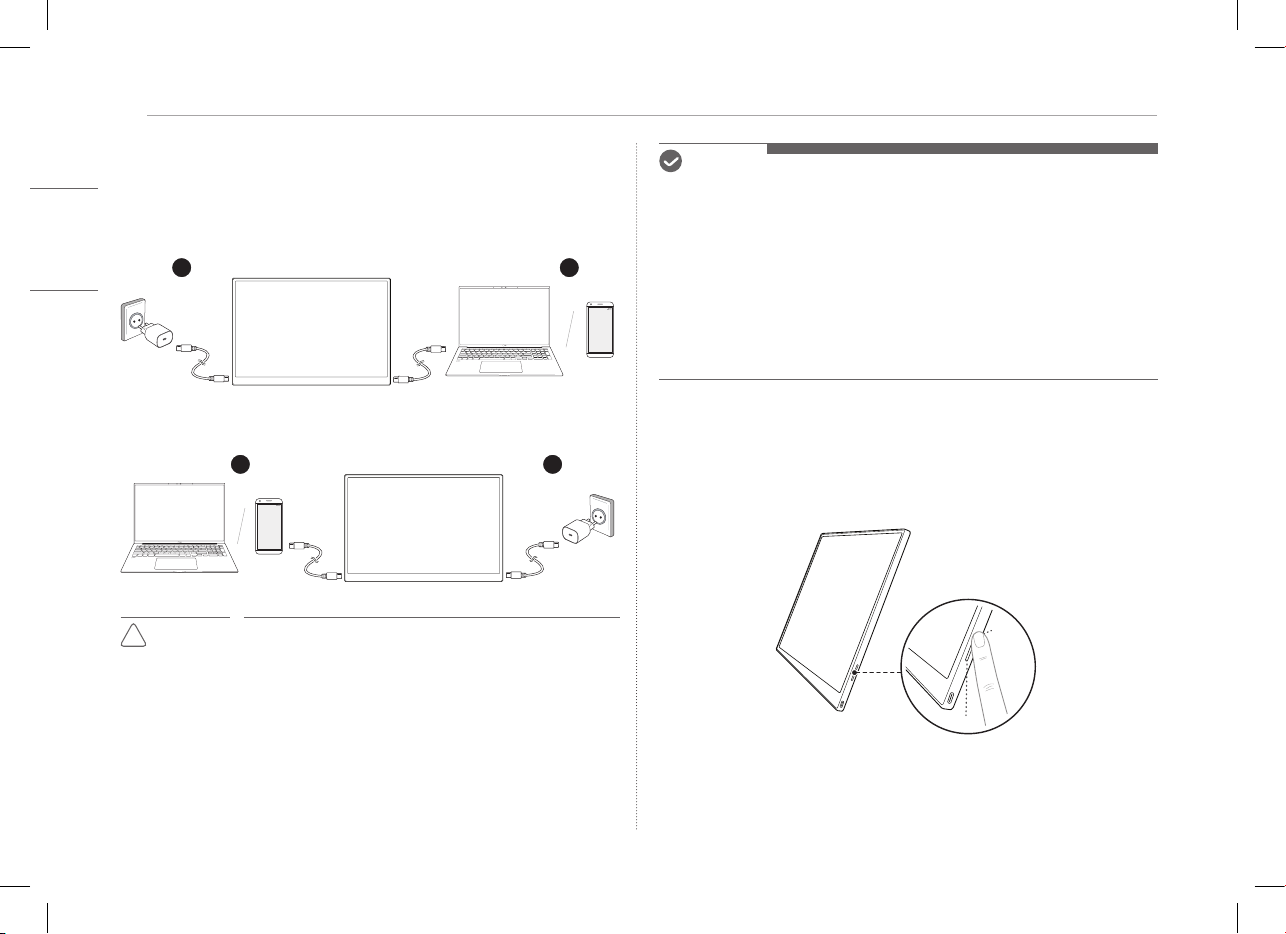

Connecting with PD Charger

Connect the PD charger to the monitor and then connect another device (PC, smartphone, etc.).

1

CAUTION

2

yIf the monitor and smartphone are connected directly

without connecting a PD charger, it may not operate normally.

2

1

NOTE

yA charger is sold separately and is not provided as a component. yTo use the USB PD (Power Delivery) function, you need a PD charger with 25 W

or higher. (It is recommended to use a PD charger with 45 W or higher.)

yConnecting a 65 W PD charger supports the maximum 45 W of PD output.

Connecting a 45 W PD charger supports the maximum 30 W of PD output. Connecting a 25 W PD charger supports the maximum 10 W of PD output.

yThe PD function does not operate while the Sleep mode or power is turned off.

When not used for a long time, remove the cable.

ySome smartphone chargers and PCs may not support the PD or Sink

function.

Adjusting Screen Brightness

You can use the screen brightness button on the right of the monitor to adjust the screen brightness.

6Setting PC Screen (Expansion Mode)

ENGLISH

Setting PC Screen (Expansion Mode)

If you set the portable monitor to Extension Mode, you can set the screen ratio and layout.

[ / ] or

1 Press

menu.

yWindows 10: Press the Start button [ ] and then select the Settings [ ].

yWindows 11: Press the Start button [ ] and then select the Settings [ ]

on the start screen.

2 When the Settings screen appears, select [System] > [Display].

3 Windows 10: Select [Extend these displays] under [Multiple displays].

Windows 11: Select [Extend these displays].

4 Select monitor 2.

5 Change settings as desired under [Scale & layout].

[Ctrl] + [ESC] on your keyboard to bring up the Start

NOTE

yThe image is only representative and may vary depending on the Windows

version and language of the country.

Installing SW

Install LG Switch and use various functions such as screen split, monitor settings, and screen switch easily and conveniently.

1 Visit the LG Electronics website (www.lg.com). 2 Press [(Product Support) or (Support)] > [(Software & Drivers) or

(Software & Firmware)] and then search “Product Model Name (16MR70)”

3 Select “LG Switch” and start installing the software.

NOTE

yAfter LG Switch is installed, you can see how to

use it from the Help menu provided inside the app.

yLG Switch is available for Windows only.

yThe Auto Screen Rotation function is available

only while LG Switch is enabled.

7

ENGLISH

Pre-Tech Support Checklist

If the following symptoms appear while using the product, check again. It may not be a malfunction.

Symptom Cause and Solution

The screen stays blank or connection is unstable.

The power does not turn on.

The monitor’s supported frequency range has been exceeded.

The screen looks unclear.

Screen burn-in remains even when power is off.

yCheck if the device connected to the monitor

supports DisplayPort Alternate Mode (DP Alt Mode) and USB Power Delivery (USB PD).

yIf the smartphone is not connected, connect the

USB-C™

cable to the monitor first and then connect

the smartphone.

yCheck if you can properly connect the device to the

monitor using the the monitor.

yThis phenomenon occurs when the signal sent from

the PC exceeds the horizontal or vertical frequency range. Refer to the Factory Mode settings and reset the frequency.

ySetting the screen resolution to any other than the

recommended (optimal) resolution may result in blurry text or dimming, cropping, or tilting of the screen. Use the recommended screen resolution setting.

yNote that having a fixed screen on for an extended

period of time may cause damage to the display and lead to screen burn-in.

yTo use the monitor for a long time, use a

screensaver.

USB-C™

cable that comes with

Symptom Cause and Solution

There are spots on the screen.

I can't charge. yCheck if the adapter supports PD charging.

yYou may see a few pixel spots (red, green, blue,

white, black) on the screen while using the monitor. This is a normal phenomenon of an LCD screen. This is unrelated to the monitor performance and is not an abnormality.

It is recommended to use a PD charger with 45 W or higher.

Appendix

Product Specications

Display 16 inch (40.6 cm) IPS LCD

Color Depth 16.7 million colors (8 bits)

Resolution

Display Standard Supported

Power

Maximum Resolution

Recommended Resolution

DisplayPort Alternate Mode (DP Alt Mode)

Rated 5

Power Consumption

2560 x 1600 @ 60 Hz

0

3.25 A

- 20 V

Operation mode: 8 W general (factory default)*

8Appendix

ENGLISH

+32 °F to +104 °F (0 °C to 40 °C)

-4 °F to +140 °F (-20 °C to 60 °C)

Environment

Operation

Storage

Temperature

Humidity Lower than 80 %

Temperature

Humidity 85 % or lower

14.3 (width) x 9.8 (height) x 0.4 inch (thickness) / (362.4 (width) x 247.6 (height) x

10.8 mm (thickness) )

14.2 (width) x 9.7 (height) x 0.3 inch (thickness) / (360 (width) x 245.5 (height) x 8.3

Dimensions (not including package)

With a folio cover

Without a folio cover

mm (thickness) )

Weight (not including package)

With a folio cover Approx. 32.5 oz (920 g)

Without a folio cover

Approx. 24 oz (670 g)

NOTE

y* Power consumption in On Mode was measured under LGE’s standard testing

conditions (full white pattern, maximum resolution, maximum brightness).

yThe product specifications are subject to change without notice for product

improvement.

yPower consumption level may differ depending on the operating conditions

and monitor settings.

Factory Default Mode

Preset Mode

Horizontal

Frequency (kHz)

640 x 480 29.38 59.46 +/-

800 x 600 36.98 59.84 +/-

1024 x 768 47.30 59.87 +/-

1152 x 720 44.40 59.92 +/-

1280 x 800 49.31 59.91 +/-

1600 x 1000 61.65 59.91 +/-

1680 x 1050 64.67 59.88 +/-

1920 x 1200 74.04 59.95 +/-

2560 x 1440 88.79 59.95 +/-

2560 x 1600 98.71 59.97 +/-

Vertical

Frequency (Hz)

Polarity (H/V)

ENGLISH

9

Appendix

Registered Trademark and Open Source Software Notice Information

USB Type-C™ and USB-C™ are trademarks of USB Implementers forum.

LG logo is a registered trademark of LG Electronics Inc.

To obtain the source code that is contained in this product, under GPL, LGPL, MPL, and other open source licenses that have the obligation to disclose source code, and to access all referred license terms, copyright notices and

other relevant documents please visithttps://opensource.lge.com.

LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such distribution (such as the cost of media,

shipping, and handling) upon email request toopensource@lge.com.

This offer is valid to anyone in receipt of this information for a period of three years after our last shipment of this product.

Symbols

Refers to alternating current (AC).

~

Refers to direct current (DC).

0

Refers to class II equipment.

Refers to stand-by.

1

Refers to “ON” (power).

!

Refers to dangerous voltage.
