Lexus ES 330 Navigation Manual

Introduction

Thank you for your purchase of the Navigation System. Please read this manual carefully to ensure proper use. Keep this manual
in your vehicle at all times.

The Navigation System is one of the most technologically advanced vehicle accessories ever developed. The system receives satellite signals
from the Global Positioning System (GPS) operated by the U.S. Department of Defense. Using these signals and other vehicle sensors, the
system indicates your present position and assists in locating a desired destination.

The navigation system is designed to select efficient routes from your present starting location to your destination. The system is designed
to direct you to a destination that is unfamiliar to you in an efficient manner. The system uses the maps of DENSO. The calculated routes
may not be the shortest nor the least traffic congested. Your own personal local knowledge or “short cut” may at times be faster than the calcu­lated routes.

The navigation system’s database includes about 75 Point of Interest categories to allow you to easily select destinations such as restaurants
and banks. If a destination is not in the database, you can enter the street address or a major intersection close to it and the system will guide
you there. The system will provide both a visual map and audio instructions. The audio instructions will announce the distance remaining
and the direction to turn in approaching a fork or intersection. These voice instructions will help you keep your eyes on the road and are timed
to provide enough time to allow you to maneuver, change lanes or slow down.

Please be aware that all current vehicle navigation systems have certain limitations that may affect their ability to perform properly.
The accuracy of the vehicle’s position depends on the satellite condition, road configuration, vehicle condition or other circumstan­ces. For more information on the limitations of the system, refer to pages 10 through 12.

i

Important information about this manual

For safety reasons, this manual indicates
items requiring particular attention with the
following marks.

CAUTION

This is a warning against anything
which may cause injury to people if the
warning is ignored. You are informed
about what you must or must not do in
order to reduce the risk of injury to
yourself and others.

NOTICE

This is a warning against anything
which may cause damage to the ve­hicle or its equipment if the warning is
ignored. You are informed about what
you must or must not do in order to
avoid or reduce the risk of damage to
your vehicle and its equipment.

INFORMATION

This provides additional information.

Initial screen

When you start the engine or turn the ignition
switch to the “ACC” position, the initial
screen appears and the system begins
operating.

CAUTION

When the vehicle is stopped with the
engine running, always apply the park­ing brake for safety.

After a few seconds, the “CAUTION” screen
appears.

ii

Touch either “English” or

“Français” to select a language. Read

and follow the instructions.
When you touch the

on the screen, the map screen appears.

You can access this screen when you push
the

“INFO” button and touch the “Lan-

guage”

guage.

switch. Then you can select a lan-

“I Agree” switch

Safety Instruction

To use your system in the safest possible
manner, follow all the safety tips shown be­low.

This system is intended to assist you in
reaching your destination and, if used prop­erly, can do so. You, as the driver, are solely
responsible for the safe operation of your ve­hicle and the safety of your passengers.

Do not use any feature of this system to the
extent it distracts you from safe driving. Your
first priority while driving should always be
the safe operation of your vehicle. While you
are driving, be sure to observe all traffic regu­lations.

Prior to the actual use of this system, learn
how to use it and become thoroughly familiar
with it. Read the entire Navigation System
Owner’s Manual to make sure you under­stand the system. Do not allow others to use
this system until they have read and under­stood the instructions in this manual.

For your safety, some functions may become
inoperable when you start driving. Unavail­able switches are dimmed. You can input
your destination and select your route only
when the vehicle is not moving.

iii

CAUTION

D For safety, the driver should not

operate the navigation system while
he/she is driving. Inattention to the
road and traffic may cause an
accident.

D While you are driving, be sure to

obey the traffic regulations and
maintain awareness of the road
conditions. If a traffic sign on the
road has been changed, route
guidance may provide wrong
information such as the direction of
a one way street.

While you are driving, listen to the voice in­structions as m u c h a s possible and glance at
the screen briefly and only when it is safe.
However, do not totally rely on voice gui­dance. Use it just for your information. If t h e
system cannot determine your current posi­tion correctly, there is a possibility of incor­rect, late or non−voice guidance.

The data in the system may occasionally be
incomplete. Road conditions, including driv­ing restrictions (no left turns, street closures,
etc.) frequently change. Therefore, before
you follow any instruction from the system,
look to see whether you can comply with the
instruction safely and legally.

This system cannot warn you about such
things as the safety of an area, condition of
streets, and availability of emergency servi­ces. If you are unsure about the safety of an
area, do not drive into it. Under no circum-

stances is this system a substitute for the
driver’s personal judgement.

Use this system only in locations where it is
legal to do so. Some states/provinces may
have laws prohibiting video screens within
sight of the driver.

iv

v

1

— Quick reference

North−up or heading−up symbol

This symbol indicates a map view with
north−up or heading−up. Touching this sym-

bol changes the map orientation. 9. . . . . . .

2

Scale indicator

This figure indicates the map scale. 9. . . .

3

“INFO” button

Push this button to display the “Information

Menu” screen. ii, 100, 105, 115. . . . . . . . .

4

Zoom out switch

Touch this switch to reduce the map scale.

5

“Mark” switch

Touch this switch to register the cursor posi-

tion as a memory point. 6. . . . . . . . . . . . . . .

6

“Route” switch

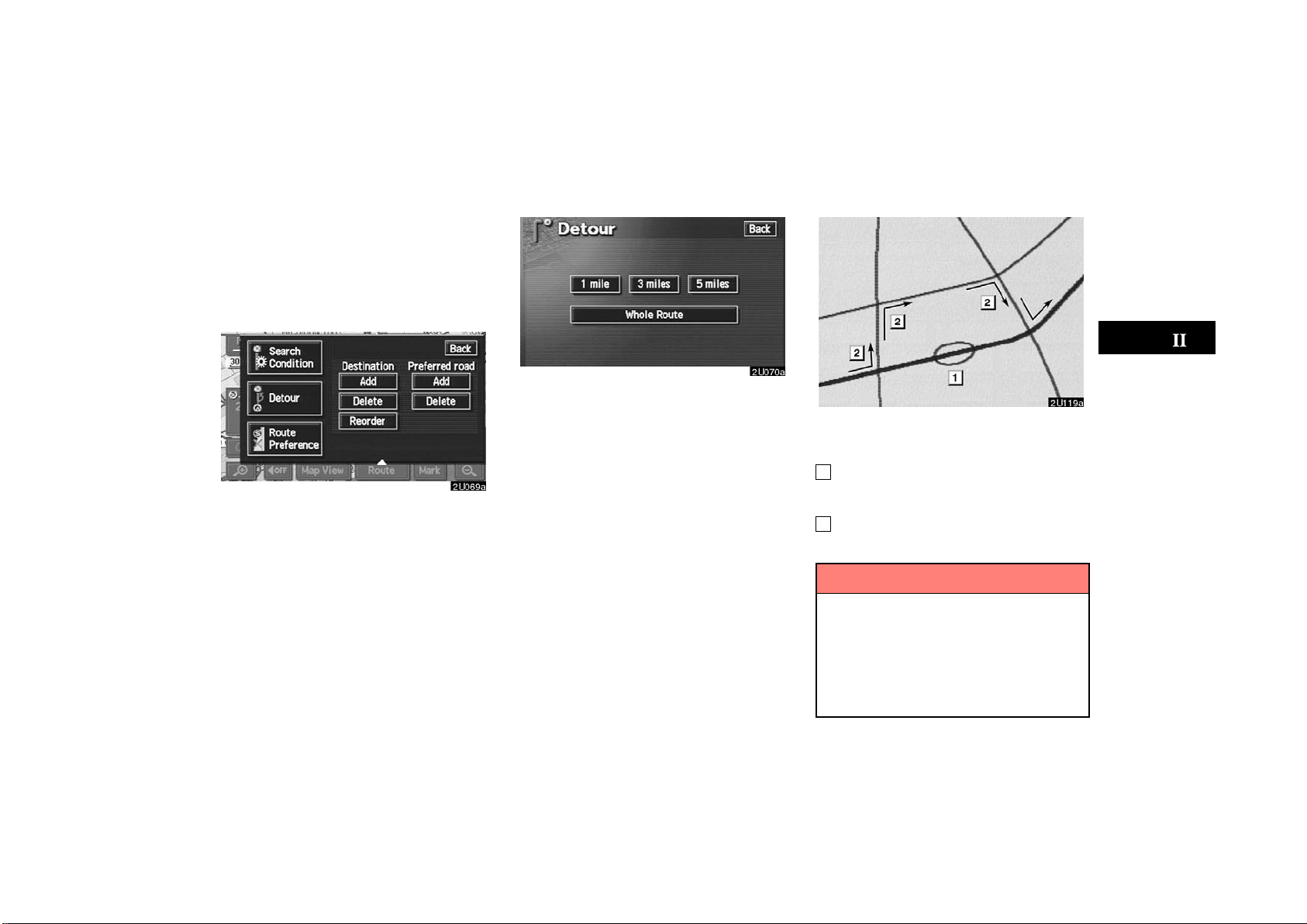

Touch this switch to change the route.

46, 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7

“DISPLAY” button

Push this button to display the “Display”

screen. 114. . . . . . . . . . . . . . . . . . . . . . . . . . .

9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

vi

8

“Map View” switch

Touch this switch to obtain information re­garding the route to the destination and infor­mation about the POI (Points of Interest) on

the map screen. 53, 55, 56. . . . . . . . . . . . .

9

“AOFF” switch

Touch this switch to obtain a broader view.
Some of the switches on the screen are not
displayed. They reappear by touching the

“ON "” switch. 93. . . . . . . . . . . . . . . . . . . . .

10

Zoom in switch

Touch this switch to magnify the map scale.

11

Foot print map switch

Touch this switch to display the foot print

map and the building information. 62. . . . .

12

“MAP/VOICE” button

Push this button to repeat a voice guidance,
cancel one touch scroll, start guidance and

display the current position. 5, 6, 46. . . . .

13

“DEST” button

Push this button to display the “Destination”

screen. viii, 24. . . . . . . . . . . . . . . . . . . . . . . .

14

Screen configuration switch

Touch this switch to change the screen

mode. 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

15

“MENU” button

Push this button to display the “Menu”

screen. x, 20, 65. . . . . . . . . . . . . . . . . . . . . .

16

Distance and time to destination

Displays the distance and the estimated

travel time to the destination. 61. . . . . . . . .

17

“GPS” mark (Global Positioning
System)

Whenever your vehicle is receiving signals
from the GPS, this mark is displayed.

18

9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Speech command system indicator

This indicator is shown by pushing the
speech command switch. The speech com­mand system can be operated while this in-

dicator is shown. 112, 114. . . . . . . . . . . . . .

10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

vii

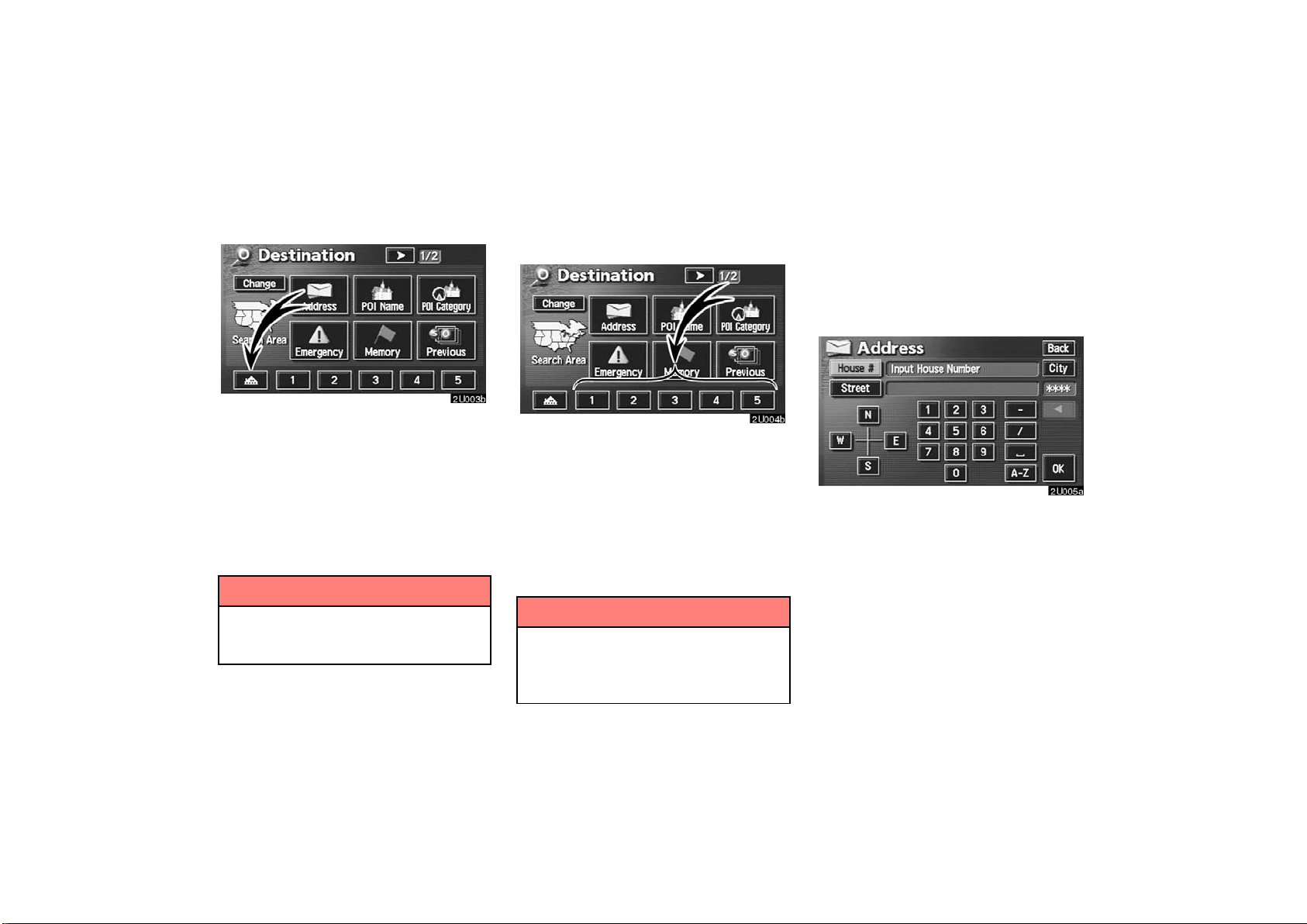

To search for a destination, the switches

— “Destination” screen

below perform the following operations.

1

“Address” switch

You can input the house number and the
street address by using the input keys.

26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2

“POI Name” switch

You can select one of the many POIs (Points
of Interest) that have already been stored in

the system’s database. 30. . . . . . . . . . . . . .

3

“POI Category” switch

You can select a destination from the POI

category. 33. . . . . . . . . . . . . . . . . . . . . . . . . .

4

“Previous” switch

Y ou can select a destination from any of the
last 99 previously set destinations and from

the previous starting point. 38. . . . . . . . . . .

5

“Memory” switch

You can select the location from those regis­tered as “Memory points”. (To register

memory points, see page 70.) 37. . . . . . . .

6

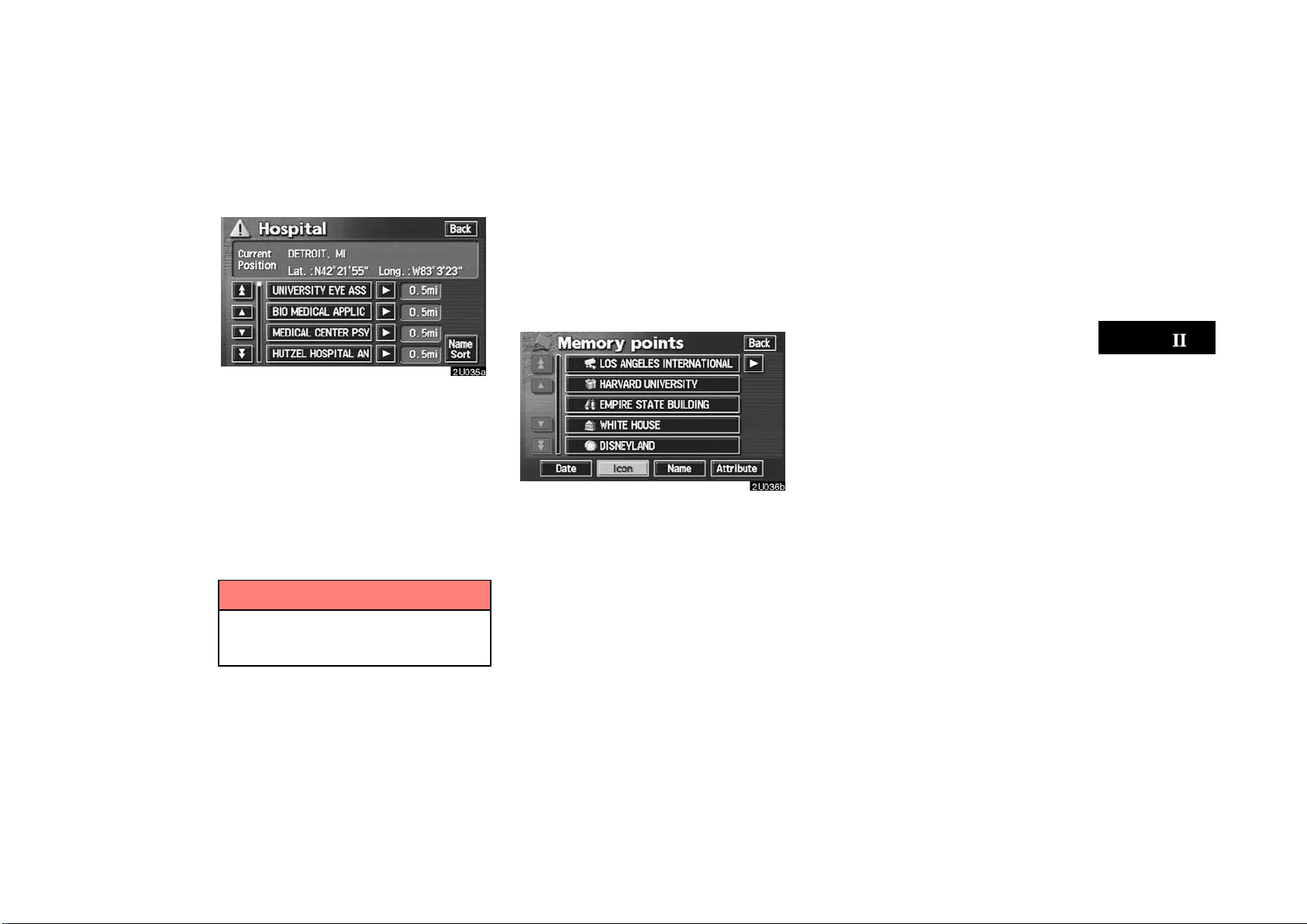

“Emergency” switch

You can select one of the three categories of
emergency service points that have been al­ready stored in the system’s database.

36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

viii

7

“Map” switch

You can select a destination simply by
touching the location on the displayed map.

38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8

“Intersection” switch

You can enter the names of two intersecting
streets. This is helpful if you do not know the
specific street address of your destination

but know the general vicinity. 39. . . . . . . . .

9

“Freeway Ent./Exit” switch

Y ou can enter the name of a freeway (inter-

state) entrance or exit. 40. . . . . . . . . . . . . . .

10

“Phone #” switch

You can enter a destination by the telephone

number. 41. . . . . . . . . . . . . . . . . . . . . . . . . . .

11

“Coordinates” switch

Y ou can set a destination using latitude a n d

longitude as coordinates. 41. . . . . . . . . . . .

12

Quick access switch

You can select one of 5 preset destinations
directly. To use this function, it is necessary
to set the “Attribute” for each memory point.
(To register a “Quick Access”, see page 74.)

26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

13

Home switch

You can select your own home without en­tering the address each time. To use this
function, it is necessary to set the “Attribute”
for the memory point. (To register “Home”,

see page 74.) 26. . . . . . . . . . . . . . . . . . . . . .

14

“Change” switch

To change the search area, touch this

switch. 24. . . . . . . . . . . . . . . . . . . . . . . . . . . .

ix

The switches below perform the follow-

— “Menu” screen

ing operations.

1

“Map DVD” switch

Displays information regarding the disc ver-

sion or covered area. 12. . . . . . . . . . . . . . . .

2

“Select User” switch

Enables recall of up to three memorized user

setting patterns. 67. . . . . . . . . . . . . . . . . . . .

3

“Setup” switch

Enables various settings for the navigation

system. 80. . . . . . . . . . . . . . . . . . . . . . . . . . .

4

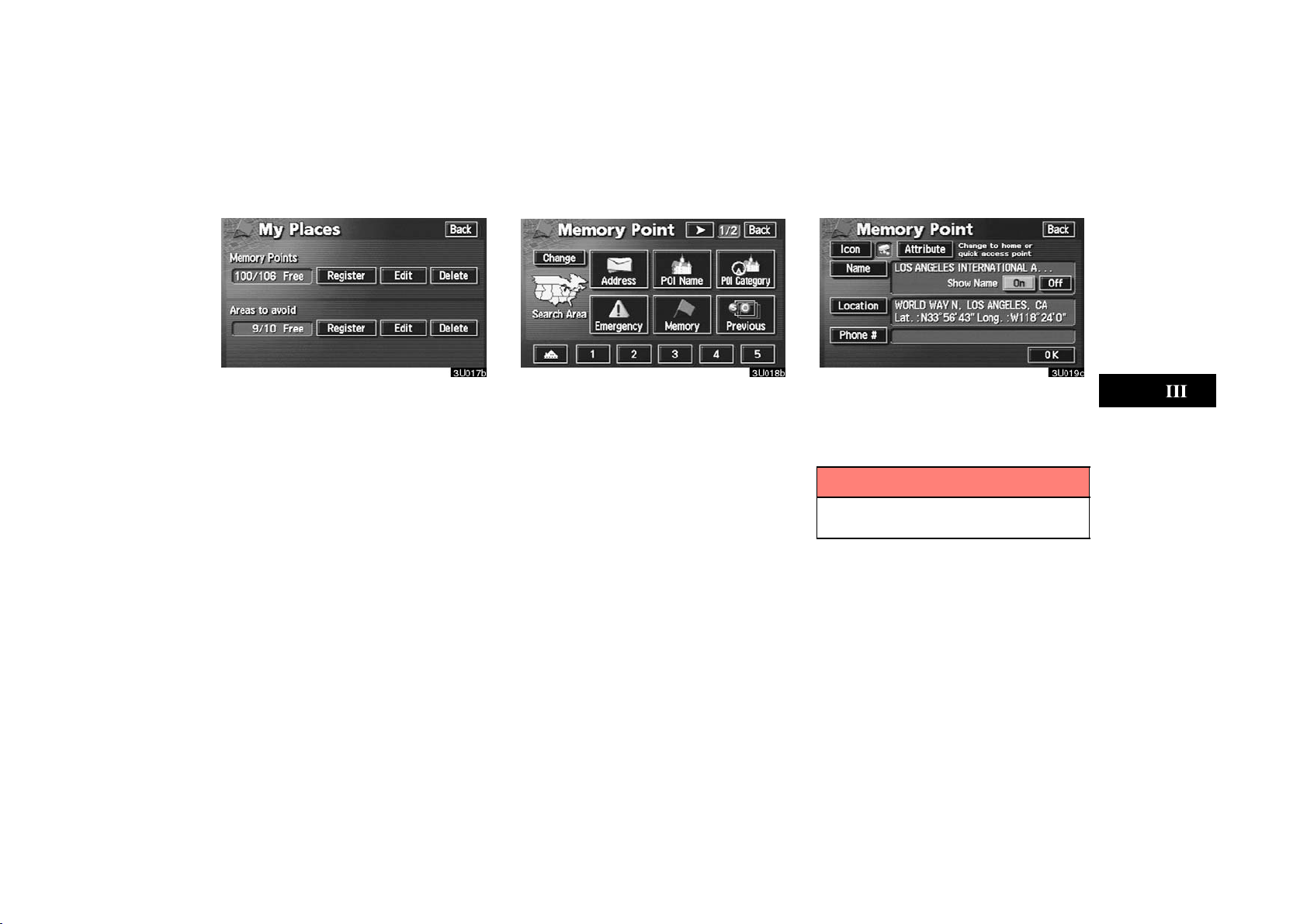

“My Places” switch

Enables changes to “Memory points” and

“Areas to avoid”. 70. . . . . . . . . . . . . . . . . . . .

5

“Suspend Guidance” and “Resume
Guidance” switch

Suspends or resumes guidance. 66. . . . . .

6

“Volume” switch

Sets the volume for voice guidance.

67. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

x

SECTION I

BASIC FUNCTIONS

Basic information before operation

Display operation 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Touch switch operation 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inputting letters and numbers 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Current position display 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Screen scroll operation (one−touch scroll) 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Map scale 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Orientation of the map 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Limitations of the navigation system 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Map database information and updates 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1

Display operation

1U009

You can adjust the angle of the display by
pushing the

“TILT” button will tilt the display to

the
positions
the reverse order.

If you turn the ignition switch off, the display
will automatically move back to position
The display will automatically resume the pre­vious position when the ignition switch is
turned to the “ACC” or “ON” position.

“TILT” button. Each push of

1, 2, 3

and then back to 0 in

0

CAUTION

Take care not to jam your hand while
the display is moving. Otherwise, you
could be injured.

NOTICE

Do not obstruct the display while it is
moving. It could damage your naviga­tion system.

INFORMATION

Under extremely cold conditions, the
display may react slowly or operation
sound may become louder.

.

Touch switch operation

This system is operated mainly by the
switches on the screen. To prevent dam­age to the screen, lightly touch switches
on the screen with your finger. When you
touch a switch on the screen, a beep
sounds.

Do not use objects other than your finger
to touch the screen.

INFORMATION

D If the system does not respond to a

touch of a switch, move your finger
away from the screen and then touch
it again.

D You cannot operate dimmed

switches.

D Wipe off fingerprints on the surface of

the display using a glass cleaning
cloth.

D The displayed image may become

darker and moving images may be
slightly distorted when the display is
cold.

D Under extremely cold conditions, the

map may not be displayed and the
data input by a user may be deleted.
Also, the switches may be harder
than usual to depress.

2

Inputting letters and numbers

When searching for an address or a name, or
entering a memo, you can input letters and
numbers via the touch screen.

D To input letters

To display the alphabet keys, touch the

“A−Z” switch or the “ ” switch.

Enter letters by touching the alphabet keys di­rectly.

: Touching this switch erases one let-

ter. Holding this switch will continue
to erase letters.

D To input numerals and symbols

To display the number keys and symbol keys,
touch the

Enter numerals and symbols by touching the
number keys and symbol keys directly.

“0−9” switch.

: Touching this switch erases one let-

ter. Holding this switch will continue
to erase letters.

: Touching this switch displays other

symbols.

D To display the list

T o search for an address or a name, touch the

“List” switch. Matching items from the da-

tabase are listed even if the entered address
or name is incomplete.

If the number of matches is four or less, the list
is displayed without touching the
switch.

“List”

3

INFORMATION

The number of matching items is shown
to the right side of the screen. If the
number of matching items is more than
9,999, the system displays “
the screen.

∗∗∗∗” on

D List screen operation

When a list is displayed, you can scroll or
page through the list by using the appropriate
switch.

To shift to the next or previous
page.

To scroll up or down one item at a
time.

This expresses a displayed
screen position.

If appears to the right of the
item name, the complete name is
too long for the display. Touch
to scroll to the end of the name.

Touch to scroll to the
beginning of the name.

4

Current position display

When starting the navigation system, the cur­rent position is displayed first.

This screen displays the current vehicle posi­tion and a map of the surrounding local area.

The current position is automatically set as
your vehicle receives signals from the GPS
(Global Positioning System). If your current
position is not correct, it is automatically cor­rected after your vehicle receives signals
from the GPS.

INFORMATION

D After battery disconnection, or on a

new vehicle, the current position may
not be correct. As soon as the system
receives signals from the GPS, the
correct current position is displayed.

D To correct the current position manu-

ally, see page 81.

Screen scroll operation
(one−touch scroll)

T ouch a n y p o i n t o n the map and that point
moves to the center of the screen and is
shown by the cursor mark.

The current vehicle position mark appears in
the center or bottom center of the map
screen. You can return to this map screen
showing your current position at any time
from any screen by pushing the

VOICE”

During driving, the current vehicle position
mark is fixed in the screen and the map
moves.

button.

“MAP/

If you wish to look at a point on the map which
is different to your current vehicle position,
you can bring the desired point to the center
of the screen by using the scroll feature.

If you continue to hold your finger on the
screen, the map will continue scrolling in that
direction until you lift your finger.

5

After you scroll the screen, the map remains
centered at the selected location until you ac­tivate another function. The current vehicle
position mark will continue to move along
your actual route and may move off the
screen. When you push the

VOICE”

mark returns to the center of the screen and
the map moves as you proceed along the
designated route.

button, the current vehicle position

“MAP/

INFORMATION

When you use the one−touch scroll fea­ture, the current vehicle position mark
may disappear from the screen. Move
the map with a one−touch scroll again or
push the
turn to the current vehicle position map
location display.

“MAP/VOICE” button to re-

D To set the cursor position as a destina-

tion

You can set a specific point on the map as a
destination using the one−touch scroll func­tion.

Touch the “Enter ” switch.
The screen changes and displays the map

location of the selected destination and
the route preference. (See “ — Entering
destination” on page 42.)

If there is already a preset destination, touch

“Add to ” switch or the “Replace

the

” switch.

When there is already a preset destination,
using the
tional destination, will set the new one as the
first point of arrival.

“Add to ” switch to set an addi-

D To register the cursor position as a

memory point

Memory point registration enables easy ac­cess to a specific point.

Touch the “Mark” switch.

When you touch the
lowing screen appears for a few seconds, and
then the map screen returns.

“Mark” switch, the fol-

6

The registered point is shown by on the
map.

To change the icon or name, etc., see page

72.
You can register up to 106 memory points. If

you attempt to register more than 106, a mes­sage appears for confirmation.

D To see information about the icon

where the cursor is set

To display information about an icon, set the
cursor on it.

POI INFORMATION

When the cursor is set on a POI icon, the
name and
the top of the screen.

“Info.” switch are displayed on

Touch the “Info.” switch.

Information such as the name, address, and
phone number are displayed.

If you touch the
tion of cursor is set as a destination.

If there is already a preset destination, the

“Enter ” switch, the posi-

“Add to ” switch and the “Replace

” switch are displayed.

When there is already a preset destination,
using the
tional destination, will set the new one as the
first point of arrival.

To register this POI as a memory point, touch
the

70.)

“Add to ” switch to set an addi-

“Mark” switch. (For details, see page

7

INFORMATION

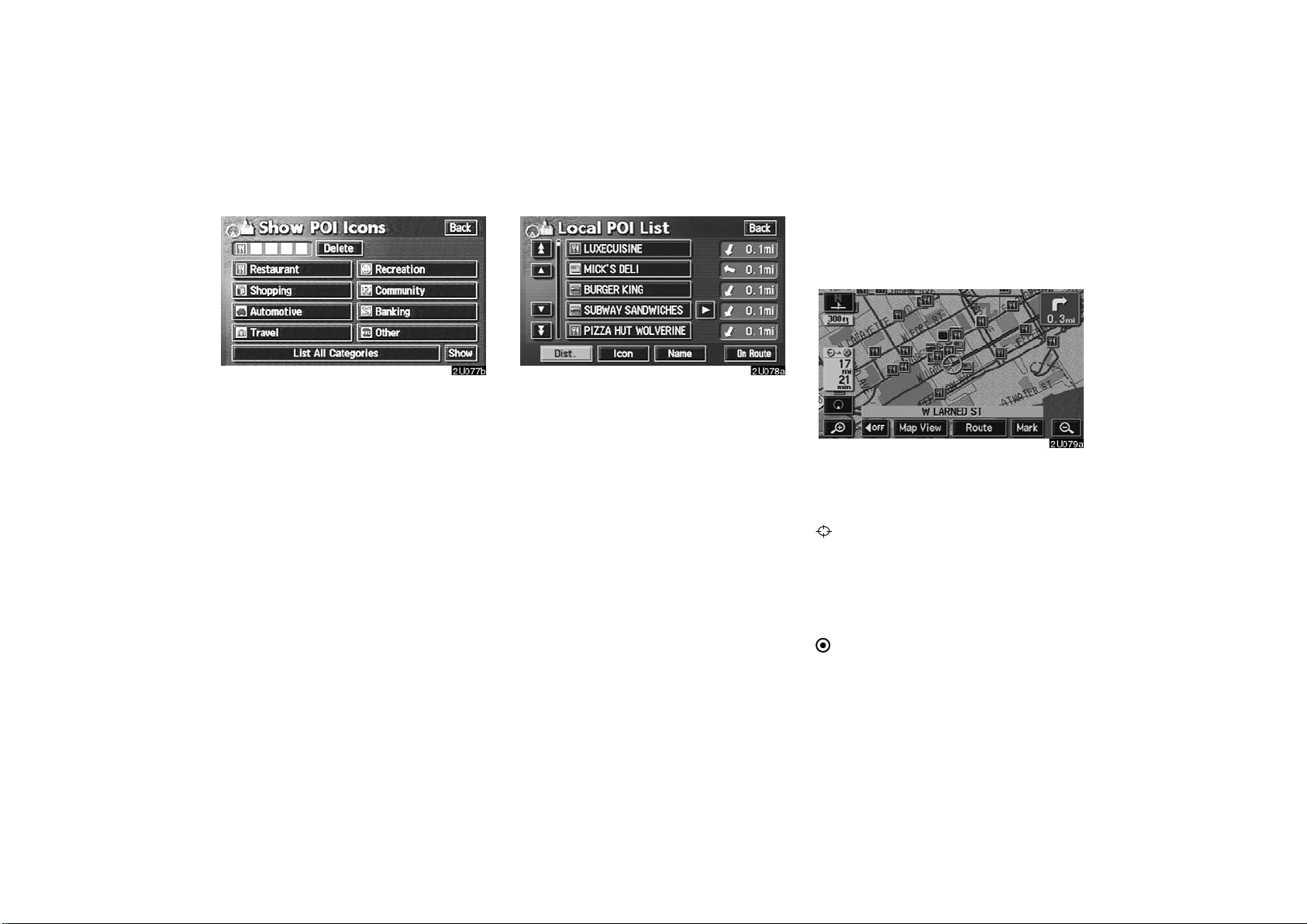

The desired Point of Interest can be dis­played on the map screen. (For details,
see page 53.)

MEMORY POINT INFORMATION

When the cursor is set on a memory point
icon, the name and
played on the top of screen.

Touch the “Info.” switch.

Information such as the name, location, and
phone number are displayed.

If you touch the
tion of cursor is set as a destination.

“Info.” switch are dis-

“Enter ” switch, the posi-

If there is already a set destination, the

” switch and the “Replace ”

to

switch are displayed.
When there is already a preset destination,

using the
tional destination, will set the new one as the
first point of arrival.

To edit a memory point, touch the
switch. (For details, see page 72.)

“Add to ” switch to set an addi-

“Add

“Edit”

8

Map scale

Touch the or switch to change
the scale of the map display. The scale bar

and indicator at the bottom of the screen indi­cates the m a p s c a l e menu. The scale ranges
150 feet (50 m) to 250 miles (400 km).

INFORMATION

When the map scale is at the maximum
range of 250 miles (400 km), is not
shown. When the map scale is at the
minimum range of 150 feet (50 m),
is not shown. However, in the area
where the foot print map is contained,
when the map scale is changed to 150
feet (50 m), the switch changes to
the switch.

Orientation of the map

North−up screen

Touch the
scale bar changes normally. If you continue

to touch on the switch, the scale bar changes
smoothly.

You can change the scale of the map display
by touching the scale bar directly. It is not
available during driving.

The map scale is displayed under the north−
up symbol or heading−up symbol at the top
left of the screen.

or switch until the

Heading−up screen

9

You can change the orientation of the map
from North−up to Heading−up by touching
the orientation symbol at the top left of the
screen.

North−up symbol

Regardless of the direction of vehicle travel,
North is always up.

Heading−up symbol

The direction of vehicle travel is always up.
A red arrow indicates North.

Limitations of the navigation
system

This navigation system calculates the cur­rent vehicle position using satellite sig­nals, various vehicle signals, map data,
etc. However, the accurate position may
not be shown depending on the satellite
condition, road configuration, vehicle
condition or other circumstances.

The Global Positioning System (GPS) devel­oped and operated by the U.S. Department of
Defense provides an accurate current vehicle
position using 3 to 4 satellites. The GPS sys­tem has a certain level of inaccuracy. While
the navigation system will compensate for
this most of the time, occasional positioning
errors of up to 300 feet (100 m) can and
should be expected. Generally, position er­rors will be corrected within a few seconds.

When your vehicle is receiving signals from
the satellites, the “GPS” mark appears at the
top left of the screen.

The GPS signal may be physically ob­structed, leading to inaccurate vehicle posi­tion on the map display. Tunnels, tall build­ings, trucks, or even the placement of objects
on the instrument panel may obstruct the
GPS signals.

The installation of window tinting may also ob­struct the GPS signals. Most window tinting
contains some metallic content that will inter­fere with GPS signal reception. We advice
against the use of window tinting on vehicles
equipped with navigation systems.

The GPS satellites may not send signals due
to repairs or improvements being made to
them.

10

Even when the navigation system is receiving
clear GPS signals, the vehicle position may
not be shown accurately or inappropriate
route guidance may occur in some cases.

(a) Accurate current vehicle
position may not be shown in
the following cases:

D When driving on a small angled Y−shaped

road.

D When driving on a winding road.
D When driving on a slippery road such as

in sand, gravel, snow, etc.

D When driving on a long straight road.
D When freeway and surface streets run in

parallel.

D After moving by ferry or vehicle carrier.
D When a long route is searched during high

speed driving.

D When driving without setting the current

position calibration correctly.

D After repeating a change of direction by

going forward and backward, or turning on
a turntable in the parking lot.

D When leaving a covered parking lot or

parking garage.

D When a roof carrier is installed.
D When driving with tire chains installed.
D When the tires are worn.
D After replacing a tire or tires.
D When using tires that are smaller or larger

than the factory specifications.

D When the tire pressure in any of the four

tires is not correct.

INFORMATION

If your vehicle cannot receive GPS sig­nals, you can correct the current posi­tion manually. For information on set­ting the current position calibration, see
page 81.

11

(b) Inappropriate route
guidance may occur in the
following cases:

D When turning at an intersection off the

designated route guidance.

D If you set more than one destination but

skip any of them, auto reroute will display
a route returning to the destination on the
previous route.

D When turning at an intersection for which

there is no route guidance.

D When passing through an intersection for

which there is no route guidance.

D During auto reroute, the route guidance

may not be available for the next turn to
the right or left.

D It may take a long time to operate auto re-

route during high speed driving. In auto
reroute, a detour route may be shown.

D After auto reroute, the route may not be

changed.

D An unnecessary U−turn may be shown or

announced.

D A location may have multiple names and

the system will announce one or more.

D Some routes may not be searched.
D If the route to your destination includes

gravel, unpaved roads or alleys, the route
guidance may not be shown.

D Your destination point might be shown on

the opposite side of the street.

D When a portion of the route has regula-

tions prohibiting the entry of the vehicle
that vary by time or season or other rea­sons.

D The road and map data stored in your nav-

igation system may not be complete or
may not be the latest version.

After replacing the tire, implement the op­eration described in the “D Tire change
calibration”. (For details, see page 82.)

This navigation system uses tire turning data
and is designed to work with factory−speci-
fied tires for your vehicle. Installing tires that
are larger or smaller than the originally
equipped diameter may cause inaccurate
display of the vehicle’s position. The tire pres­sure also affects the diameter of the tires so
please make sure the tire pressure of all four
tires is correct.

12

Map database information and
updates

This system uses the maps of DENSO.

© GDT, Geographic Data Technology,
Inc.
© 2004 NAVTEQ. All rights reserved.
Data by infoUSA Copyright ©2004, All
Rights Reserved.
© 2004 VISA Corporation
National Research Bureau ©2004
The Bullseye Design is a registered
trademark of Target Brands, Inc.

END USER LICENSE AGREEMENT

PLEASE READ THIS AGREEMENT
CAREFULLY BEFORE USING THE
NAVIGATION SYSTEM

THIS IS A LICENSE AGREEMENT FOR
YOUR COPY OF THE MAP DA TABASE
(“The DATABASE”), ORIGINALLY
MADE BY Geographic Data Technology,
Inc. (“GDT”), USED IN THE
NAVIGATION SYSTEM. BY USING THE
DATABASE, YOU ACCEPT AND
AGREE TO ALL TERMS AND
CONDITIONS SET FORTH BELOW.

OWNERSHIP
The DATABASE and the copyrights and
intellectual property or neighboring rights
therein are owned by GDT or its
licensors.

LICENSE GRANT
GDT grants you a non−exclusive license
to use your copy of the DATABASE for
your personal use or for use in your
business’ internal operations. This
license does not include the right to grant
sub−licenses.

LIMITATIONS ON USE
The DATABASE is restricted for use in
the specific system for which it was
created. Except to the extent explicitly
permitted by mandatory laws, you may
not extract or re−utilize any portion of the
contents of the DATABASE, nor
reproduce, copy, modify, adapt,
translate, disassemble, decompile, or
reverse engineer any portion of the
DATABASE.

TRANSFER
You may not transfer the DATABASE to
third parties, except together with the
system for which it was created, provided
that you do not retain any copy of the
DATABASE, and provided that the
transferee agrees to all terms and
conditions of this AGREEMENT.

DISCLAIMER OF WARRANTY
GDT does not warrant or make any
representations regarding, either
express or implied, regarding the use or
results of the use of the DATABASE in
terms of its correctness, accuracy,
reliability, or otherwise, and expressly
disclaims any implied warranties of
quality, performance, merchantability,
fitness for a particular purpose or
non−infringement. GDT does not
warrant that the DATABASE is or will be
error free. No oral or written information
or advice provided by GDT, your supplier
or any other person shall create a
warranty.

LIMITATION OF LIABILITY
The price of the DATABASE does not
include any consideration for assumption
of risk of consequential, indirect or
unlimited direct damages which may
arise in connection with your use of the
DATABASE. Accordingly, in no event
shall GDT or supplier of the navigation
system using the DATABASE
(“Supplier”) be liable for any
consequential, special, incidental or
indirect damages, including without
limitation, loss of revenue, data, or use,
incurred by you or any third party arising
out of your use of the DATABASE,
whether in an action in contract or tort or
based on a warranty , even if GDT or the
Supplier has been advised of the
possibility of such damages. In any
event GDT’s liability for direct damages
is limited to the price of your copy of the
DATABASE.
THE DISCLAIMER OF WARRANTY
AND LIMITATION OF LIABILITY, SET
FORTH IN THIS AGREEMENT, DO N OT
AFFECT OR PREJUDICE YOUR
STATUTORY RIGHTS WHERE YOU
HAVE ACQUIRED THE DATABASE
OTHERWISE THAN IN THE COURSE
OF A BUSINESS. Some states and laws
do not allow the exclusion of implied
warranties, so the above disclaimer may
not apply to you.

13

WARNINGS
The DATABASE reflects reality as
existing before you received the
DATABASE and it comprises data and
information from government and other
sources, which may contain errors and
omissions. Accordingly, the DATABASE
may contain inaccurate or incomplete
information due to the passage of time,
changing circumstances, and due to the
nature of the sources used. The
DATABASE does not include or reflect
information on − inter alia −
neighborhood safety; law enforcement;
emergency assistance; construction
work; road or lane closures; vehicle or
speed restrictions; road slope or grade;
bridge height, weight or other limits; road
or traffic conditions; special events;
traffic congestion; or travel time.

GOVERNMENT END USERS
If the DATABASE is for a region of North
America and is being acquired by or on
behalf of the United States government
or any other entity seeking or applying
rights similar to those customarily
claimed by the United States
government, the DATABASE is licensed
with “limited rights.” Utilization of the
DATABASE is subject to the restrictions
specified in the “Rights in Technical Data
and Computer Database” clause at
DFARS 252.227−7013, or the equivalent
clause for non−defense agencies.
Manufacturer of the DATABASE for
North America is Geographic Data
Technology, Inc., at 11 Lafayette Street,
Lebanon, New Hampshire 03766, USA.

END USER NOTICE

PLEASE READ THIS NOTICE
CAREFULLY BEFORE USING THIS
NAVIGATION SYSTEM

The Point Of Interest Data (“POI” Data) in
the navigation system is in part provided
by infoUSA Inc. (“infoUSA”). By using
the POI Data, you accept and agree to all
terms and conditions set forth below.

1. Ownership
All rights, title and interest to the infoUSA
POI Data shall be retained by infoUSA.

2. Limitations on use
Except to the extent explicitly permitted
by mandatory laws, you may not extract
or re−utilize any portion of the contents of
the POI Data, nor reproduce, copy,
modify, adapt, translate, disassemble,
decompile, or reverse engineer any
portion of the POI Data.

3. Transfer
You may not transfer the POI Data to third
parties, except together with the system
for which it was created, provided that
you do not retain any copy of the POI
Data.

14

4. Disclaimer of warranty
EXCEPT AS STATED HEREIN,
INFOUSA MAKES NO EXPRESS OR
IMPLIED WARRANTIES, INCLUDING,
WITHOUT LIMITATION, ANY
EXPRESS OR IMPLIED WARRANTY
OF FITNESS FOR A PARTICULAR
PURPOSE OR WARRANTY OF
MERCHANTABILITY.

5. Limitation of Liability
EITHER INFOUSA OR SUPPLIER OF
POI DATA SHALL NOT BE LIABLE FOR
ANY INDIRECT, CONSEQUENTIAL OR
INCIDENTAL DAMAGES MADE OR
ALLEGED IN CONNECTION WITH
YOUR USE OF THE POI DATA.

END USER LICENSE AGREEMENT

Personal Use Only. You agree to use this
information for solely personal,
non−commercial purposes, and not for
service bureau, time−sharing or other
similar purposes. You may not modify
the information or remove any copyright
notices that appear on the information in
any way. You may not decompile,
disassemble or reverse engineer any
portion of this information, and may not
transfer or distribute it in any form, for any
purpose. Without limiting the foregoing,
you may not use this information with any
products, systems, or applications
installed or otherwise connected to or in
communication with vehicles, capable of
vehicle navigation, positioning, dispatch,
real time route guidance, fleet
management or similar applications.

No Warranty. This information is
provided to you “as is,” and you agree to
use it at your own risk. DENSO and its
licensors (and their licensors and
suppliers, collectively “DENSO”) make
no guarantees, representations or
warranties of any kind, express or
implied, arising by law or otherwise,
including but not limited to, and DENSO
expressly disclaims any warranties
regarding content, quality, accuracy,
completeness, effectiveness, reliability,
fitness for a particular purpose,
non−infringement, usefulness, use or
results to be obtained from this
information, or that the information or
server will be uninterrupted or error−free.
Some states, territories and countries do
not allow certain warranty exclusions, so
to that extent, the above exclusion may
not apply to you.

15

Disclaimer of Liability: DENSO SHALL
NOT BE LIABLE TO YOU FOR ANY
CLAIM, DEMAND OR ACTION,
IRRESPECTIVE OF ITS NATURE,
ALLEGING ANY LOSS, INJURY OR
DAMAGES, WHETHER DIRECT,
INDIRECT, INCIDENTAL, SPECIAL OR
CONSEQUENTIAL DAMAGES,
INCLUDING ANY LOSS OF PROFIT,
REVENUE OR CONTRACTS ARISING
OUT OF YOUR POSSESSION, USE OF
OR INABILITY TO USE THIS
INFORMATION, ANY DEFECT IN THE
INFORMATION, OR THE BREACH OF
THESE TERMS OR CONDITIONS,
WHETHER IN AN ACTION IN
CONTRACT OR TORT OR BASED ON
A WARRANTY, EVEN IF DENSO OR
ITS LICENSORS HAVE BEEN
ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. Some states,
territories and countries do not allow
certain liability exclusions or damages
limitations, so to that extent the above
may not apply to you.

Indemnity. You agree to indemnify,
defend and hold DENSO and its
licensors (including their respective
licensors, suppliers, assignees,
subsidiaries, affiliated companies, and
the respective officers, directors,
employees, shareholders, agents and
representatives of each of them) free and
harmless from and against any liability,
loss, injury (including injuries resulting in
death), demand, action, cost, expense,
or claim of any kind or character,
including but not limited to attorney’s
fees, arising out of or in connection with
any use or possession by you of this
information.

END USER NOTICE

The marks of companies displayed by
this product to indicate business
locations are the marks of their
respective owners. The use of such
marks in this product does not imply any
sponsorship, approval, or endorsement
by such companies of this product.

END−USER TERMS

The Map Data Disc (“Data”) is provided
for your personal, internal use only and
not for resale. It is protected by copy­right, and is subject to the following terms
and conditions which are agreed to by
you, on the one hand, and DENSO COR­PORATION (“[LICENSEE]”) and its li­censors (including their licensors and
suppliers) on the other hand. Such licen­sors include NAVTEQ North America,
LLC. Without limiting the foregoing, you
agree that NAVTEQ North America, LLC
shall have the right to enforce these
Terms directly against you.

© 2004 NAVTEQ. All rights reserved.
The Data for areas of Canada includes

information taken with permission from
Canadian authorities, including: © Her
Majesty the Queen in Right of Canada, ©
Queen’s Printer for Ontario, © Canada
Post Corporation, Geobase R.

16

TERMS AND CONDITIONS

Personal Use Only. You agree to use this
Data for the solely personal, non com­mercial purposes for which you were li­censed, and not for service bureau,
time−sharing or other similar purposes.
Accordingly, but subject to the restric­tions set forth in the following para­graphs, you may copy this Data only as
necessary for your personal use to (i)
view it, and (ii) save it, provided that you
do not remove any copyright notices that
appear and do not modify the Data in any
way. You agree not to otherwise repro­duce, copy, modify, decompile, disas­semble or reverse engineer any portion
of this Data, and may not transfer or dis­tribute it in any form, for any purpose, ex­cept to the extent permitted by mandato­ry laws. You may transfer the Data and
all accompanying materials on a perma­nent basis if you retain no copies and the
recipient agrees to these End−User
Terms. Multi−disc sets may not be trans­ferred on a divided basis.

Restrictions. Except where you have
been specifically licensed to do so by [LI­CENSEE] and without limiting the pre­ceding paragraph, you may not (a) use
this Data with any products, systems, or
applications installed or otherwise con­nected to or in communication with ve­hicles, capable of vehicle navigation,
positioning, dispatch, real time route
guidance, fleet management or similar
applications; or (b) with or in communica­tion with any positioning devices or any
mobile or wireless−connected electronic
or computer devices, including without
limitation cellular phones, palmtop and
handheld computers, pagers, and per­sonal digital assistants or PDAs.

No Warranty. This Data is provided to
you “as is,” and you agree to use it at your
own risk. [LICENSEE] and its licensors
(and their licensors and suppliers) make
no guarantees, representations or war­ranties of any kind, express or implied,
arising by law or otherwise, including but
not limited to, content, quality, accuracy,
completeness, effectiveness, reliability,
fitness for a particular purpose, useful­ness, use or results to be obtained from
this Data, or that the Data or server will be
uninterrupted or error−free.

Disclaimer of Warranty:
AND ITS LICENSORS (INCLUDING
THEIR LICENSORS AND SUPPLIERS)
DISCLAIM ANY WARRANTIES, EX­PRESS OR IMPLIED, OF QUALITY,
PERFORMANCE, MERCHANTABIL­ITY, FITNESS FOR A PARTICULAR
PURPOSE OR NON−INFRINGEMENT.
Some States, Territories and Countries
do not allow certain warranty exclusions,
so to that extent the above exclusion may
not apply to you.

[LICENSEE]

17

Disclaimer of Liability: [LICENSEE] AND
ITS LICENSORS (INCLUDING THEIR
LICENSORS AND SUPPLIERS) SHALL
NOT BE LIABLE TO YOU IN RESPECT
OF ANY CLAIM, DEMAND OR ACTION,
IRRESPECTIVE OF THE NATURE OF
THE CAUSE OF THE CLAIM, DEMAND
OR ACTION ALLEGING ANY LOSS, IN­JURY OR DAMAGES, DIRECT OR IN­DIRECT, WHICH MAY RESULT FROM
THE USE OR POSSESSION OF THE
INFORMATION; OR FOR ANY LOSS
OF PROFIT, REVENUE, CONTRACTS
OR SAVINGS, OR ANY OTHER DI­RECT, INDIRECT, INCIDENTAL, SPE­CIAL OR CONSEQUENTIAL DAM­AGES ARISING OUT OF YOUR USE
OF OR INABILITY TO USE THIS IN­FORMATION, ANY DEFECT IN THE IN­FORMATION, OR THE BREACH OF
THESE TERMS OR CONDITIONS,
WHETHER IN AN ACTION IN CON­TRACT OR TORT OR BASED ON A
WARRANTY, EVEN IF [LICENSEE] OR
ITS LICENSORS HAVE BEEN AD­VISED OF THE POSSIBILITY OF SUCH
DAMAGES.
Some States, Territories and Countries
do not allow certain liability exclusions or
damages limitations, so to that extent the
above may not apply to you.

Export Control. You agree not to export
from anywhere any part of the Data pro­vided to you or any direct product thereof
except in compliance with, and with all li­censes and approvals required under,
applicable export laws, rules and regula­tions.

Entire Agreement.
ditions constitute the entire agreement
between [LICENSEE] (and its licensors,
including their licensors and suppliers)
and you pertaining to the subject matter
hereof, and supersedes in their entirety
any and all written or oral agreements
previously existing between us with re­spect to such subject matter.

Governing Law.
conditions shall be governed by the laws
of the Illinois, without giving effect to (i) its
conflict of laws provisions, or (ii) the
United Nations Convention for Contracts
for the International Sale of Goods, which
is explicitly excluded. You agree to sub­mit to the jurisdiction of Illinois for any and
all disputes, claims and actions arising
from or in connection with the Data pro­vided to you hereunder.

These terms and con-

The above terms and

Government End Users. If the Licensed
Data is being acquired by or on behalf of
the United States government or any oth­er entity seeking or applying rights similar
to those customarily claimed by the
United States government, (i) for acquisi­tions conducted by the Department of
Defense, the Licensed Data is licensed
with “Limited Rights” in accordance with
the rights set forth at DFARS

252.227−7013(b)(3), TECHNICAL
DATA−NONCOMMERCIAL ITEMS, and
Licensed Data delivered or otherwise fur­nished with “Limited Rights” shall be
marked with the following “Limited Rights
Notice” set forth at DFARS

252.227−7013(f)(3), and shall be treated
in accordance with such Notice:

18

LIMITED RIGHTS

CONTRACTOR (MANUFACTURER/

SUPPLIER) NAME:

NAVTEQ North America, LLC

CONTRACTOR (MANUFACTURER/

SUPPLIER) ADDRESS:

222 Merchandise Mart Plaza,

Suite 900, Chicago, Illinois 60654

The Government’s rights to use,
modify, reproduce, release, perform,
display, or disclose these technical
data are restricted by paragraph (b)(3)
of the Rights in Technical Data−Non-
commercial Items clause contained in
the above identified contract. Any re­production of technical data or portions
thereof marked with this legend must
also reproduce the markings. Any per­son, other than the Government, who
has been provided access to such data
must promptly notify the above named
Contractor.

and; (ii) for civilian agency acquisitions,
the Licensed Data is licensed in accor­dance with the rights set forth at FAR

52.227−14(g)(1), RIGHTS IN DATA−
GENERAL (Protection of limited rights
data and computer software). In the
event that the Contracting Officer re­quires the delivery of limited rights Li­censed Data that has been withheld or
would otherwise be withholdable in ac­cordance with FAR 52.227−14(g)(1), the
Licensed Data is licensed with “Limited
Rights” as set forth in the following “Limit­ed Rights Notice” at FAR

52.227−14(g)(2) (Alternate II), which
shall be af fixed to the Licensed Data and
the Licensed Data shall be treated in ac­cordance with such Notice (which shall
be marked on any reproduction of these
data, in whole or in part):

LIMITED RIGHTS NOTICE
(JUN 1987)

These data may be reproduced and
used by the Government with the ex­press limitation that they will not, with­out written permission of the Contrac­tor, be used for purposes of manufac­ture nor disclosed outside the Govern­ment; except that the Government may
disclose these data outside the Gov­ernment for the following purposes, if
any, provided that the Government
makes such disclosure subject to pro­hibition against further use and disclo­sure: There are no additional purposes

permitting disclosure of such Data.

The manufacturer/supplier of the Data
is NAVTEQ North America, LLC, 222
Merchandise Mart Plaza, Suite 900,
Chicago, Illinois 60654.

If the Contracting Officer refuses to use
either of the licenses provided in (i) or (ii),
herein, the Contracting Officer must
notify NAVTEQ North America, LLC prior
to seeking additional or alternative rights
in the Licensed Data.

19

There are two types of areas available for
route guidance. In one type of area, pri­marily around metropolitan centers, de­tailed route guidance is available for the
entire area. In the other type of area, all
roads are displayed on the map but route
guidance is limited. The navigation route
might lack precision because the data (no
right turns, one−way traffic, etc.) is not
complete. It is still possible to reach the
destination by following the arrow direc­tion and distance as shown on the bottom
left of the screen. The arrow points in the
direction of the destination. The distance
shown is as measured in a straight line
from the current vehicle position to the
destination area.

In order to provide you with as accurate map
information as possible, we are always gath­ering information such as on road repairs and
carrying out on−site investigations. However ,
the names of roads, streets, facilities, and
their locations are often changed. In some
places, construction on roads may be in pro­gress. For that reason, information on some
areas in this system might be different from
the actual location.

The map database is normally updated once
a year. Contact your dealer for information
about the availability and pricing of an update.

D To confirm the database version and

disc coverage area

1. Push the

2. Touch the “Map DVD” switch.

Make sure the version of the database on this
screen. (The database version on the screen
above may be different from the actual
screen.)

“MENU” button.

20

To display the disc coverage area, touch the

“Covered Area” switch. Confirm the

covered area on the screen.
Contact your dealer to find out if there is a

more recent update released.

D To replace map disc

The slot for the map disc is behind the dis­play.

To lower the display, push the “OPEN”
button. After replacing map disc, push the
button again to close the display.

CAUTION

D Do not place anything on the opened

display , a s such items may be thrown
about in the compartment and possi­bly injure people in the vehicle during
sudden braking or in an accident.

D To reduce the chance of injury in the

case of an accident or sudden stop­ping while driving, keep the display
closed.

D Take care not to jam your hand while

the display is moving. Otherwise, you
could be injured.

NOTICE

Do not obstruct the display while it is
moving. It could damage your naviga­tion system.

INFORMATION

Under extremely cold conditions, the
display may react slowly or operation
sound may become louder.

21

22

SECTION II

DESTINATION INPUT AND ROUTE GUIDANCE

Basic functions in frequent use

Destination input 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Selecting the search area 24. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Destination input by Home 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Destination input by Quick access 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Destination input by “Address” 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Destination input by “POI Name” 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Destination input by “POI Category” 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Destination input by “Emergency” 36. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Destination input by “Memory” 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Destination input by “Previous” 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Destination input by “Map” 38. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Destination input by “Intersection” 39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Destination input by “Freeway Ent./Exit” 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Destination input by “Coordinates” 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Destination input by “Phone #” 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Starting route guidance 42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Entering destination 42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Route guidance screen 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Typical voice guidance prompts 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Setting and deleting destination 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Setting and deleting route 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Show POI icons 53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Route overview 55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Route preview 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Screen configuration 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Distance and time to destination 61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Foot print map 62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

23

Destination input —

Push the “DEST” button and the “Des-
tination” screen appears.

You can use one of 13 different methods to
enter your destination. (See pages 26
through 41.)

D Route guidance may not be available

if there is no road data for the speci­fied location.

D When setting the destination on a

map with a scale larger than 0.5 mile
(800 m), the map scale changes to 0.5
mile (800 m) automatically. Set the
destination again.

D To select an

Name”

, “Freeway Ent./Exit”,

“Address”, “POI

“Intersection” or “Phone #” in a

different area, it is necessary to
change the search area.

D If you enter a destination, the road

nearest to the point you selected is
set as the destination.

— Selecting the search area

The “Destination” screen allows you to select
the area to search for your destination.

Touch the
“Destination” screen to display a map of
the United States and Canada divided into
11 areas. See page 12 for map database in­formation and updates.

“Change” switch on the

INFORMATION

D When inputting the destination, the

response to the switch may be slow.

D The route for returning may not be the

same as that for going.

D The route guidance to the destination

may not be the shortest route nor a
route without traffic congestion.

CAUTION

While you are driving, be sure to obey
traffic regulations and keep the road
conditions in mind. If a traffic sign on
the road has been changed, the route
guidance may provide wrong informa­tion.

24

Touch one of the “US1” through “CAN”
switches to select a search area. Touch

“OK” switch and the “Destination”

the
screen returns.

U.S.A.

Switch States included in the search area

Idaho

“US1”

“US2”

“US3”

“US4”

“US5”

“US6”

Oregon
Washington

California
Nevada

Arizona
Colorado
Montana
New Mexico
Utah
Wyoming

Iowa
Kansas
Minnesota
Missouri
North Dakota
Nebraska
South Dakota

Oklahoma
Texas

Illinois
Indiana
Kentucky
Michigan
Ohio
Wisconsin

“US7”

“US8”

“US9”

“US10”

Arkansas
Alabama
Louisiana
Mississippi
Tennessee

Connecticut
Massachusetts
Maine
New Hampshire
New Jersey
New York
Rhode Island
Vermont

Washington, D.C.
Delaware
Maryland
New Jersey
Pennsylvania
Virginia
West Virginia

Florida
Georgia
North Carolina
South Carolina

Switch

“CAN”

Canada

Provinces and regions included in
the search area

All provinces and regions in
Canada included in this switch.

25

— Destination input by Home

Touch the home switch on the “Destina­tion” screen.

The screen changes and displays the map
location of your home and the route pref­erence. (See “ — Entering destination” on
page 42.)

To use this function, it is necessary to set the
“Attribute” for the memory point. (To register
the “Home”, see page 74.)

INFORMATION

Guidance starts from your current posi­tion to your home if you touch the

switch even while driving.

ter”

“En-

— Destination input by Quick
access

Touch any of the quick access switches
on the “Destination” screen.

The screen changes and displays the map
location of the quick access point and the
route preference. (See “ — Entering des­tination” on page 42.)

To use this function, it is necessary to set the
“Attribute” for each memory point. (To regis­ter the “Quick Access”, see page 74.)

INFORMATION

Guidance starts from your current posi­tion to the quick access point if you
touch the
driving.

“Enter” switch even while

— Destination input by
“Address”

There are 2 ways to input a destination by
address.

Touch the
“Destination” screen.

“Address” switch on the

26

(a) Inputting a house number
and a street name

Touch numerals directly on the screen to
input a house number.

After inputting a house number, touch the

“OK” switch to display the screen for input-

ting a street name.
It is possible to input a street name first.

Touch the
screen for inputting a street name.

“Street” switch to display the

Input the street name. When you find your desired street name,

touch the corresponding switch.
The screen changes and displays the map

location of the selected destination and
the route preference. (See “ — Entering
destination” on page 42.)

If the same address exists in more than one
city, the current screen changes to the city list
screen.

27

(b) Selecting a city to search

Touch the “City” switch.

Select or enter your desired city.
“Input Name”: To narrow down the listed

items by inputting the city name.

If you input a street name first, the screen
changes. You can then input the house num­ber.

To search by city , the following three methods
are possible.

1. Selecting from the last 5 cities

2. Selecting from the nearest 5 cities

3. Inputting the city name

INFORMATION

To cancel the city setting, touch the

“Any City” switch.

If the above screen appears, you can select
an address range on the screen.

28

SELECTING FROM THE LAST 5 CITIES

Touch the switch of the desired city name.

If you have not used the navigation yet, no cit­ies will be displayed on the screen.

The current screen changes to the screen
for inputting a house number or a street
name. (See page 27.)

SELECTING FROM THE NEAREST 5
CITIES

Touch the

Touch the switch of the desired city name
from the displayed list.

The current screen changes to the screen
for inputting a house number or a street
name. (See page 27.)

“Nearest 5 Cities” switch.

INPUTTING THE CITY NAME
Touch the

Input a city name.

“Input City Name” switch.

29

— Destination input by “POI
Name”

Touch the “POI Name” switch on the
“Destination” screen.

Touch the switch of the desired city name
from the displayed list.

“Map”: To display the selected destination

and the route preference. (See “ — Entering
destination” on page 42.)

The current screen changes to the screen
for inputting a house number or a street
name. (See page 27.)

Input the name of Point of Interest.

30

Touch the switch of the desired destina­tion. The screen changes and displays the
map location of the selected destination
and the route preference. (See “ — Enter­ing destination” on page 42.)

If you input the name of a specific Point of In­terest and there are more than two sites with
the same name, the list screen appears.

Touch the switch of the desired destina­tion.

“Dist. Sort”: In the order of distance from

your current position. The distance from your
current position up to the destination is dis­played on the right of the name.

“Name Sort”: In alphabetical order by name.
If the same name exists in more than one city ,

you can search for it more easily with the

“City” and “Category” switches. (See

“(a) Selecting a city to search” and “(b) Select­ing from the categories”.)

INFORMATION

The desired Point of Interest can be dis­played on the map screen. (For details,
see page 53.)

(a) Selecting a city to search

Touch the “City” switch.

To search by city , the following three methods
are possible.

1. Selecting from the last 5 cities

2. Selecting from the nearest 5 cities

3. Inputting the city name

INFORMATION

To cancel the city setting, touch the

“Any City” switch.

SELECTING FROM THE LAST 5 CITIES

Touch the switch of the desired city name.

If you have not used the navigation yet, no cit­ies will be displayed on the screen.

31

SELECTING FROM THE NEAREST 5
CITIES

Touch the

Touch the switch of the desired city name.

“Nearest 5 Cities” switch.

INPUTTING THE CITY NAME
Touch the

Input the city name.

“Input City Name” switch.

Touch the switch of the desired city name
from the displayed list.

32

(b) Selecting from the
categories

Touch the “Category” switch.

If the desired POI category is on the
screen, touch the name to display a de­tailed list of the POI category.

If the desired POI category is not on the
screen, touch the

switch to list all POI categories.

ries”

“List All Catego-

When you touch the desired category, th e
POI name list screen appears.

— Destination input by “POI
Category”

The destination can be set by selecting the
POI category and the search point.

Touch the
the “Destination” screen.

“POI Category” switch on

33

(a) Selecting the POI category

If the desired POI category is on the
screen, touch the name to display a de­tailed list of the POI category.

If the desired POI category is not on the
screen, touch the

switch to list all POI categories.

ries”

Touch the desired POI category from the
list.

The selected category icon appears on the
top left of the screen.

If you wish to delete the selected category,
touch the

If you wish to select another category, touch
the
screen.

If you wish to select a destination from the
category displayed by the icon, touch the

“Delete” switch.

“OK” switch to return to the previous

“List” switch.

“List All Catego-

(b) Setting a search point

It is possible to display the names of POIs lo­cated within approximately 20 miles (30 km)
from the selected search point.

Touch the

To set search points, the following four meth­ods are possible.

1. Inputting city center

2. Setting the current position as the search
point

3. Setting the search point via the map
screen

4. Setting the search point from the destina­tions

“Search Point” switch.

INPUTTING CITY CENTER
Touch the

Input the city center name.

Touch the switch of the desired city center
name.

“Input City Center” switch.

34

When you touch an arrow facing the desired
point, the map scrolls in that direction. When
you release your finger, scrolling stops.

To set the position of the cursor, touch the

“Enter” switch.

SETTING THE CURRENT POSITION AS
THE SEARCH POINT

Touch the

When you touch an arrow facing the desired
point, the map scrolls in that direction. When
you release your finger, scrolling stops.

To set the position of the cursor, touch the

“Current Position” switch.

“Enter” switch.

SETTING THE SEARCH POINT VIA THE
MAP SCREEN

Touch the

When you touch an arrow facing the desired
point, the map scrolls in that direction. When
you release your finger, scrolling stops.

To set the position of the cursor, touch the

“Map” switch.

“Enter” switch.

35

SETTING THE SEARCH POINT FROM THE
DESTINATIONS

Touch the destination switches at the bot­tom of the screen.

(c) Selecting from a list

You can select the desired destination from
the listed POI names.

— Destination input by
“Emergency”

By touching the “Emergency” switch
on the “Destination” screen, the display
changes to a screen to select dealers, hos­pitals or police stations. During driving,
only nearby police stations, hospitals or
dealers are shown. The current position is
shown with an address, the latitude and
the longitude at the top of the screen.

When you touch an arrow facing the desired
point, the map scrolls in that direction. When
you release your finger, scrolling stops.

To set the position of the cursor, touch the

“Enter” switch.

When you touch the switch of the desired
item, the screen changes and displays the
map location of the selected destination
and the route preference. (See
ing destination” on page 42.)

“Dist.”: To sort in the order of distance from

your current location.

“Icon”: To sort in the order of the POI icons.
“Name”: To sort in alphabetical order by

name.
“On Route”: When the indicator is illumi-

nated by touching this switch, the list of the
items searched along the route is displayed.

“ — Enter-

36

When you touch the desired emergency cate­gory, the selected emergency category list is
displayed.

Touch the switch of the desired destina­tion. The screen changes and displays the
map location of the selected destination
and the route preference. (See
ing destination” on page 42.)

“Dist. Sort”: To sort in the order of distance

from your current position. The distance from
your current position up to the destination is
displayed on the right of the name.

“Name Sort”: To sort in alphabetical order by
name.

“ — Enter-

INFORMATION

The navigation system does not guide in
areas where route guidance is unavail­able. (See page 12.)

— Destination input by
“Memory”

Touching the “Memory” switch on the
“Destination” screen displays your list of
registered memory points. See page 70
for registering and editing memory points.

When you touch the switch of your de­sired memory point, the screen changes
and displays the map location of the se­lected destination and the route prefer­ence. (See “ — Entering destination” on
page 42.)

There are 4 ways to list the memory point
by touching switches on the bottom of the
screen.

“Date”: To list the memory points in order of

registered date.
“Icon”: To list the memory points by the regis-

tered icon.
“Name”: To list the memory points in alpha-

betical order.
“Attribute”: To list the memory points by the

registered attribute.

37

— Destination input by
“Previous”

Touch the “Previous” switch on the
“Destination” screen.

The previous starting point and up to 99 pre­viously set destinations are displayed on the
screen.

Touch the switch of the desired destina­tion. The screen changes and displays the
map location of the selected destination
and the route preference. (See “ — Enter­ing destination” on page 42.)

“Date”: To list the previous destinations in or-

der of registered date.
“Name”: To list the previous destinations in

alphabetical order.

INFORMATION

You can delete the list of previous des­tinations while your vehicle is stopped,
if you no longer need them. (See page

95.)

— Destination input by “Map”

T ouch t h e “Map” switch on the “Destina-
tion” screen.

The screen changes and displays the map
location that was previously displayed
just before the destination input operation
and the route preference. (See “ — Enter­ing destination” on page 42.)

INFORMATION

Guidance starts if you touch the “En-

ter”

switch even while driving. Howev-

er, the cursor cannot be moved.

38

— Destination input by
“Intersection”

T ouch t he “Intersection” switch on the
“Destination” screen.

Input the name of the two intersecting
streets which are located near the destina­tion to be set.

Touch the switch of the desired item. After
inputting the two intersecting streets, the
screen changes and displays the map
location of the selected destination and
the route preference. (See “ — Entering
destination” on page 42.)

If the same two streets cross at more than one
intersection, the screen changes and dis­plays the menu to select the city name where
the streets intersect. Select the city , and the
map location of the selected destination and
the route preference. (See “ — Entering des­tination” on page 42.)

39

— Destination input by
“Freeway Ent./Exit”

To input a freeway entrance or exit, touch
the

“Freeway Ent./Exit” switch on the

“Destination” screen.

Be sure to use the complete name of the free­way or highway, including the hyphen, when
entering the destination. Freeways and inter­states use an “I” (I−405). US highways use
the state designation before the number
(CA−118).

Select the desired freeway by touching
the switch.

You can then select either a freeway “En-

trance”

or “Exit”.

40

Touch the switch of the desired entrance
or exit name. The screen changes and dis­plays the map location of the selected des­tination and the route preference. (See
“ — Entering destination” on page 42.)

“Dist. Sort”: In the order of distance from

your current position. The distance from your
current position up to the destination is dis­played on the right of the name.

“Name Sort”: In alphabetical order by name.
“Input Name”: An applicable list is displayed

by touching this switch and inputting name.

— Destination input by
“Coordinates”

Touch the “Coordinates” switch on the
“Destination” screen.

Input the latitude and the longitude.

When the input is finished, touch the
switch.

When you touch the switch of the desired
point, the screen changes and displays
the map location of the selected destina­tion and the route preference. (See “ —
Entering destination” on page 42.)

“OK”

— Destination input by
“Phone #”

Touch the “Phone #” switch on the
“Destination” screen.

Input a telephone number.
After inputting a telephone number, touch

“OK” switch, and the screen changes

the
and displays the map location of the se­lected destination and the road prefer­ence. (See “ — Entering destination” on
page 42.)

If there is more than one site having the same
number, the following screen appears.

INFORMATION

D If there is no match for the telephone

number inputted, a list of identical
numbers but with different area
codes will be displayed.

D To set a memory point as a destina-

tion using the phone number, the
number must be registered previous­ly. (See page 76.)

41

Starting route guidance —
— Entering destination

After you input the destination, the screen
changes and displays the map location of
the selected destination and the route
preference.

“Replace

tions and set a new one.
“Change”: To change the route preference.

(See page 43.)
“Info.”: If this switch is displayed on the top

of the screen, touch the switch to see name,
address, and phone number, etc.

”: To delete the existing destina-

INFORMATION

D Guidance can be suspended or re-

sumed. (See page 66.)

D If you keep touching the

switch until a beep sounds, Demo
mode will start.

“Guide”

SCREEN A

1. When you touch an arrow facing the
desired point, the map scrolls in that
direction. When you release your finger,
scrolling stops.

2. To set the destination and display
SCREEN B, touch the

When the destination is already set, the

“Enter” switch.

“Add to ” switch and the “Replace

” switch are displayed.

“Add to

”: To add a destination.

SCREEN B

3. T o start guidance, touch the

switch.
“3 Routes”: To select the desired route from

three possible routes. (See page 43.)
“Route”: To change the route. (See pages

46 and 48.)

“Guide”

42

D

To change the route before starting
guidance

ROUTE PREFERENCE

Y ou can change route preference by touching

“Change” switch on SCREEN A.

the

You can turn the indicator on or off by
touching the switch.

When searching for a route, the system
avoids routes where the indicator is dimmed
as much as possible.

After choosing conditions, touch the

“OK” switch.

INFORMATION

D Even if the “Allow Freeway” indi-

cator is dimmed, the route cannot
avoid including a freeway in some
cases.

D If the calculated route includes a trip

by ferry, the route guidance shows a
sea route. After you travel by ferry,
the current vehicle position may be
incorrect. Upon reception of GPS sig­nals, it is automatically corrected.

3 ROUTES SELECTION

To select the desired route from three routes,
touch the
B.

Touch the “Quick1”, “Quick2” or

“3 Routes” switch on SCREEN

“Short” switch to select the desired

route.
“Quick1”: Recommended route.

This route is indicated by an orange line.
“Quick2”: Other route.

This route is indicated by a purple line.
“Short”: A route by which you can reach the

destination in the shortest distance.
This route is indicated by a green line.

43

“Info.”: To display the following information
about each of the 3 routes.

1

Time necessary for entire trip

2

Distance of entire trip

3

Toll road

4

Freeway

5

Ferry

— Route guidance screen

When starting route guidance, the following
screen is displayed.

This screen displays the route that guides the
driver to the destination.

The route to the destination is indicated by a
highlighted line. Drive along the guided route.

When the vehicle approaches a guidance
point such as an intersection or a freeway, the
screen automatically divides in two to display
the guidance screen. (For details, see page

57.)

The current street name will be displayed at
the bottom of the screen.

In some areas, the roads have not been com­pletely digitized in our database yet. For this
reason, the route guidance may guide the
road that is not allowed to pass.

— Typical voice guidance
prompts

The voice guidance provides various mes­sages as you approach an intersection, or
other point where you need to maneuver the
vehicle.

1

2

3

4

“Proceed about 5 miles.”
“In a quarter of a mile, right turn.”
“Right turn.”
(Beep sound only)

44

INFORMATION

On freeways, interstates or other high­ways with higher speed limits, the voice
guidance will be made at earlier points
than on city streets in order to allow time
to maneuver.

4.2 miles

0.25 miles

∗

1

“Proceed about 4 miles to the traf­fic circle.”

2

“In a quarter of a mile, traffic circle
ahead, and then 3rd exit ahead.”

3

4

5

“The 3rd exit ahead.”
“The exit ahead.”
(Beep sound only)

: The system indicates a U−turn if the dis-
tance between two one−way roads (of oppo-
site directions) is less than 50 feet (15 m) in
residential areas or 164 feet (50 m) in non−
residential areas.

1

“In half of a mile, make a legal U−
turn.”

2

3

“Make a legal U−turn ahead.”
(Beep sound only)

One−way road

One−way road

45

The system announces your approach to the
final destination.

INFORMATION

D If the system cannot determine the

current vehicle position correctly (in
cases of poor GPS signal reception),
the voice guidance may be made ear­ly or delayed.

D If you did not hear the voice guidance

command, pus h t h e
button to hear it again.

D To adjust the voice guidance volume,

see page 67.

“MAP/VOICE”

Setting and deleting
destination
(a) Adding destinations

You can add destinations and search
again for the routes.

1

2

“Your destination is ahead.”
“You have arrived at your destina-

tion. The route guidance is now
finished.”

1. Touch the “Route” switch.

2. Touch the “Add” switch of “Destina-
tion”.

46

3. Input an additional destination in the
same way as the destination input. (See
page 24.)

4. Touch the desired “Add” switch to
determine the arrival order of the addition­al destination.

(b) Reordering destinations

When more than one destination is set,
you can change the arrival order of the
destinations.

1. Touch the

2. Touch the “Reorder” switch of “Des­tination”.

“Route” switch.

3. Select the destination in the order of
arrival by touching the switch of destina­tions.

Reordered number of arrival is displayed on
the right side of the screen.

When you finish selecting the destinations,
touch the
searches for the guidance route again, and
displays the entire route. Even if you do not
touch the
displayed automatically within a few seconds
when order is fixed.

“OK” switch. The system

“OK” switch, the entire route is

47

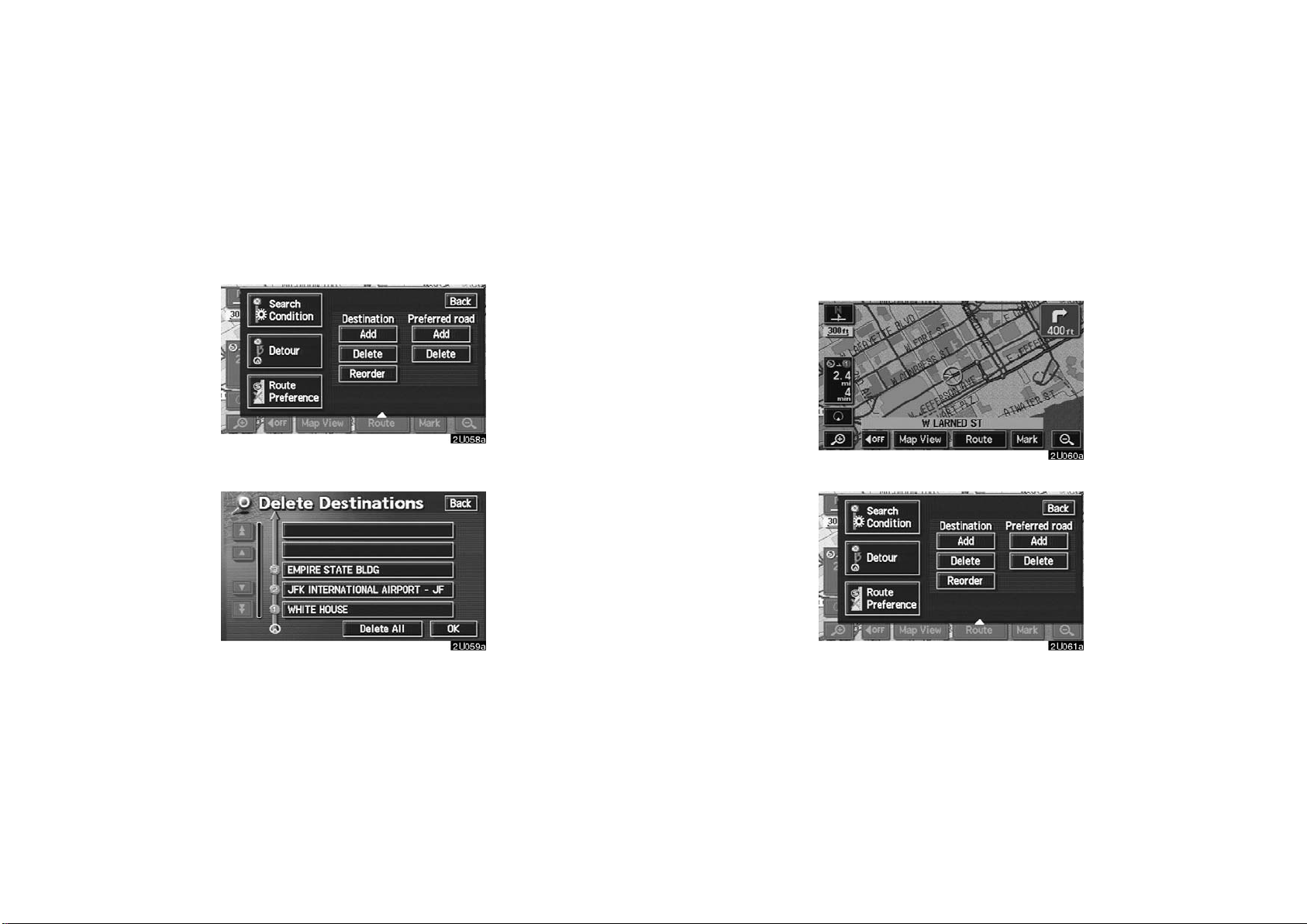

(c) Deleting destination

You can delete a set destination.

1. Touch the

2. Touch the “Delete” switch of “Des-
tination”.

“Route” switch.

“Delete All”: To delete all destinations on the

list.

4. A message appears to confirm your re­quest to delete. To delete the destina­tion(s), touch the

If you touch the
not be recovered.

If you touch the
screen will return.

5. If more than one destination is set,
touch the
destinations. The system searches for the
guidance route again, and displays the en­tire route.

“OK” switch after deleting the

“Yes” switch.

“Yes” switch, the data can-

“No” switch, the previous

Setting and deleting route
(a) Adding preferred road

You can add points you wish to pass
through.

1. Touch the “Route” switch.

3. When more than one destination is set,
a list will appear on the screen. Touch the
destination on the screen you wish to de­lete.

2. Touch th e “Add” switch of “Preferred
road”.

48

(b) Deleting preferred road

You can delete a set preferred road.

1. Touch the

“Route” switch.

3. Select the preferred road which you
wish to modify and touch the
switch.

4. A message appears to confirm your re­quest. To add the preferred road, touch

“OK” switch.

the

Touch the
road.

“Next” switch to use another

“Enter z”

5. If more than one destination is set, the
“Add Preferred Road” screen appears.
Touch the
to add a preferred road.

“Add” switch where you wish

49

2. Touch the “Delete” switch of “Pre-
ferred road”.

3. When more than one preferred road is
set, a list will appear on the scree n. Touch
the switch of the preferred road to be de­leted.

“Delete All”: To delete all the listed preferred

road.

4. A message appears to confirm your re­quest to delete. To delete the preferred
road, touch the

If you touch the
not be recovered.

If you want to try again or cancel deletion,
touch the
will return.

5. If more than one preferred road is set,
touch the
preferred road. The system searches for
the guidance route again, and displays en­tire route.

“Yes” switch.

“Yes” switch, the data can-

“No” switch. The previous screen

“OK” switch after deleting the

(c) Search condition

You can designate the route conditions of
the route to the destination.

1. Touch the

2. Touch the “Search Condition”
switch. The “Search Condition” screen
appears.

“Route” switch.

3. Touch the “Quick”, “Quick1”,

“Quick2” or “Short” switch and touch

“OK” switch.

the

The entire route from the starting point to the
destination is displayed.

“Guide”: To start guidance.
“Route”: To add or change a route. (For de-

tails, see pages 46 and 48.)

50

(d) Detour setting

While the route guidance is operating, you
can change the route to detour around a
section of the route where a delay is
caused by road repairs, an accident, etc.

1. Touch the

2. Touch the “Detour” switch.

“Route” switch.

3. Select the switch below to select the
desired detour distance.

“1 mile (km)”, “3 miles (km)” or “5 miles
(km)”: Touch one of these switches to start

the detour process. After detouring, the sys­tem returns to the original guidance route.

“Whole Route”: If you touch this switch, the
system will calculate an entire new route to
the destination.

This picture shows an example of how the
system would guide you around a delay
caused by a traffic jam.

1

This position indicates the location of a
traffic jam caused by road repairs or an
accident.

2

This route indicates the detour sug­gested by the system.

INFORMATION

D When you r vehicle is on a freeway, the

detour distance selections are 5, 15,
and 25 miles (km).

D The system may not be able to calcu-

late a detour route depending on the
selected distance and surrounding
road conditions.

51

(e) Route preference

You are given a number of choices on the
conditions which the system uses to de­termine the route to your destination.

1. Touch the

2. Touch the “Route Preference”
switch to change the conditions which are
to determine the route to your destination.

“Route” switch.

3. You can turn the indicator on or off by
touching the switch.

When searching for a route, the system
avoids routes where the indicator is dimmed
as much as possible.

After choosing the conditions, touch the

“OK” switch.

(f) Starting route from
adjacent road

You can start the route guidance from the
adjacent road.

(ex. When the route guidance guides the
route on the freeway, but you drive on the par­allel way along a freeway.)

1. Touch the

“Route” switch.

52

2. Touch the “Start from Adjacent

Road”

When there is no adjacent road, this switch
will not appear.

switch.

Show POI icons

Points of Interest such as gas stations and
restaurants can be displayed on the map
screen. You can also set their location as
a destination and use them for route guid­ance.

1. Touch the “Map View” switch.

2. Touch the “Show POI Icon” switch
to display a particular type of Point of In­terest on the screen.

A screen with a limited choice of Points of In­terest will be displayed. (To change the dis­played POI, see page 94.) When you touch
the desired Point of Interest category, sym­bols will appear on the map screen indicating
where the POI addresses are located.

To turn off the symbols of the Points of In­terest on the map screen, touch the

Off”

switch.

“More”: If you cannot find your desired Point

of Interest on the limited choice screen, touch
this switch. The screen then displays the
complete POI listing screen.

Y ou can display up to 5 categories of icons on
the screen.

“POI

53

D To set a POI as a destination

You can select one of the Points of Interest
icons on the map screen as a destination and
use it as route guidance.

When you select a Point of Interest type from
either the limited list or the complete list, the
screen will display symbols at those locations
on the map screen.

Touching the
last selected icon.

“Local POI List”: If you want to search for the
nearest Point of Interest, touch this switch.
Then choose one of the categories. The sys­tem will list the points within 20 miles (30 km).

“Delete” switch will delete the

Touch the switch of your desired Point of In­terest. Selected Points of Interest are dis­played on the map screen.

“Dist.”: To sort in the order of distance from
your current location.

“Icon”: To sort in the order of the POI icons.
“Name”: To sort in alphabetical order by

name.
“On Route”: When the indicator is illumi-

nated by touching this switch, the list of the
items searched along the route is displayed.

54

Directly touch the Point of Interest icon
that you wish to set as a destination.

The map will shift so that the icon is centered
on the screen and overlaps with the cursor

. At this time, the distance from your cur­rent position can be displayed on the screen.
The distance shown is measured as a straight
line from the current vehicle position to the
POI.

When your desired Point of Interest over­laps with the cursor, touch the

“Enter

” switch. The screen changes and dis-

plays the map location of the selected des­tination and route preference. (See “ —
Entering destination” on page 42.)

Route overview

1. Touch the “Map View” switch.

2. Touch the “Route Overview”
switch.

The entire route from the current position to
the destination is displayed.

“Guide”: To start guidance.
“Route”: To change the route. (For details,

see pages 46 and 48.)
“Turn List”: The following screen displays

the list of the roads up to your destination.

55

You can scroll through the list of roads by
touching

names in the route may appear on the list. If
a road changes its name without requiring a
turn (such as on a street that runs through two
or more cities), the name change will not ap­pear on the list. The street name closest to
the starting point will be displayed with a mile­age to the next turn.

or . However, not all road

These marks indicate the
direction in which you should turn
at an intersection.

Touch the “Map” switch of your desired
point. The point which you choose is dis­played on the map screen.

Route preview

1. Touch the “Map View” switch.

: To indicate the next destination.
: To preview the route to the next des-

tination.

: To preview the route to the next des-

tination in fast−forward mode.

: To stop the preview.
: To review the route to the previous

destination or starting point.

2. Touch the “Route Preview” switch.

56

: To review the route to the previous

destination or starting point in fast−
forward mode.

: To indicate the previous destination

or starting point.

Screen configuration

You can choose any one of the screen
configurations.

1. Touch this switch to display the follow­ing screen.

2. To select the desired screen configura­tion, touch one of the following switches.

Depending on the conditions, it may not be
possible to select certain screen configura­tion switches.

: To display single map screen. (See

page 57.)

: To display dual map screen. (See

page 58.)

: To display compass mode screen.

(See page 58.)

: To display turn list screen. (See page

59.)

: To display arrow screen. (See page

59.)

: To display freeway information

screen. (See page 59.)

: To display intersection guidance

screen or guidance screen on free­way. (See page 60.)

(a) Single map

The screen shows the single map.

57

(b) Dual map

The screen shows the dual map. The map on
the left is the main map.

You can edit the right side map by touching
any specific point on the right side map.

This screen can perform the following
procedures.

D Changing the map scale
D Displaying the POI icon
D Changing the orientation of the map

Touch the
editing. The screen returns to the dual map
screen.

“OK” switch when you complete

(c) Compass mode

Information about the destination and current
position, as well as a compass, is displayed
on the screen.

The destination mark is displayed in the direc­tion of the destination. When driving, refer to
the longitude and latitude coordinates and the
compass, to make sure that your vehicle is
headed in the direction of the destination.

INFORMATION

When the vehicle goes out of the disc
area, the guidance screen changes into
compass mode.

58

(d) Turn list screen

(e) Arrow screen

(f) Freeway information screen

The screen shows the turn list. You cannot
scroll through the list of roads.

The screen shows the current road name and
the distance to the next corner.

59

This screen displays the distance to the next
junction and exit, or POIs in the vicinity of the
freeway exit.

“Map”: To display the selected map of the
exit vicinity.

On the left side of the
five POIs around the selected exit are dis­played.

: To scroll for farther junctions or exits.
: To scroll for closer junctions or exits.
: To scroll for the closest three junctions

or exits.

“Map” switch, up to

INFORMATION

When you drive on a freeway, the screen
is automatically divided into two parts,
with freeway information screen on the
right side.

(g) Intersection guidance
screen/guidance screen on
freeway

D Intersection guidance screen

This screen automatically appears when the
vehicle approaches an intersection on the
road.

The distance to the intersection is shown at
the bottom of the screen.

“AOFF”: The intersection guidance screen
disappears and the map screen appears.

D Guidance screen on freeway

This screen automatically appears when the
vehicle approaches a junction or exit on a
freeway.

The distance to the junction or exit is shown
at the bottom of the screen.

“AOFF”: The guidance screen on freeway
disappears and the map screen appears.

When touching the

“MAP/VOICE” button, the guidance

the
screen on freeway reappears.

switch or pushing

When touching the

“MAP/VOICE” button, the intersec-

the
tion guidance screen reappears.

switch or pushing

INFORMATION

Intersection guidance can be turned on
or off. (See page 89.)

60

INFORMATION

Guidance screen on freeway can be
turned on or off. (See page 90.)

Distance and time to
destination

When the vehicle is on the guidance route,
the distance and the estimated travel time
to the destination are displayed. When the
vehicle is not on the guidance route, the
distance to and the direction of the des­tination are displayed.

When driving on the guidance route and more
than one destination is set, the distance and
the estimated travel time from current position
to each destination are displayed.

1. Touch this switch to display the follow­ing screen.

2. Touch the number switch of the des­tination you wish to display.

The distance and the estimated travel time
from the current position to the selected des­tination are displayed.

Displayed while driving along the
guidance route.

Displayed while driving off the
guidance route. The destination
direction is indicated by an arrow.

INFORMATION

When the vehicle is on the guidance
route, the distance measured along the
route is displayed. Travel time is calcu­lated based on the set vehicle speed in­formation. (For details, see page 83.)
However, when the vehicle is not on the
guidance route, the distance is the linear
distance between the current position
and the destination.

61

Foot print map

For the area which is covered by the foot print
map (Some areas in the following cities;
Detroit, Chicago, N.Y., L.A), you can switch to
the foot print map on a scale of 75 feet (25 m).

D To switch to the foot print map

The
switch when the map is scaled down to 150

feet (50 m).

To display the foot print map, touch the

D To delete the foot print map display

Touch the

switch changes into the

switch.

switch.

INFORMATION

D If the map or the current position is

moved to the area which is not cov­ered by the foot print map, the screen
scale automatically changes to 150
feet (50 m).

D On the foot print map, a one way

street is displayed by .

D It is not possible to perform scrolling

on the foot print map (one−touch
scroll) while driving.

D To display building information

Information is available only for buildings for
which information is recorded on the map
disc.

1. Touch the “Info.” switch while the
foot print map is displayed.

If the map is displayed in split screen, it turned
into a single map display.

62

2. Using an eight−direction arrow, move
the cursor to the position of the building
you wish to display information.

3. Touch the

“Building Info.” switch.

4. Details of POIs in some buildings may
be displayed. If you wish to see detailed
POI information, touch the building name.
You can see the detail of the selected
POIs.

63

64

SECTION III

ADVANCED FUNCTIONS

Descriptions of functions for more effective use

Suspending and resuming guidance 66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Volume 67. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

User selection 67. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

My places 70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Area to avoid 77. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Setup 80. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Current position calibration 81. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Distance unit 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Estimated travel time 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Auto reroute 85. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Adjusting time zone 85. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Auto voice guidance 86. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Voice guidance in all modes 87. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Notifying traffic restriction 88. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Intersection guidance 89. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Guidance screen on freeway 90. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Street name on scroll map 91. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Display of building shape 92. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Screen layout function (

POI category change (Show POI Icons) 94. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Delete previous point 95. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Map color 96. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Screen animation 97. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Function) 93. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

65

Suspending and resuming
guidance

D To suspend guidance

You can suspend route guidance.

Push the “MENU” button to display the
“Menu” screen and touch the

Guidance” switch.

INFORMATION

When you do not have route guidance,
the “Suspend Guidance” switch
cannot be used.

“Suspend

The screen will return to the current posi­tion map without route guidance.

D To resume guidance

You can resume the suspended route
guidance.

Push the “MENU” button to display the
“Menu” screen and touch the

“Resume

Guidance” switch.

The screen will change to the current posi­tion map with route guidance.

66

Volume

You can use voice guidance when ap­proaching a destination.

You can adjust the volume of the voice or turn
off voice guidance.

Push the “MENU” button to display the
“Menu” screen, and touch the
switch.

“Volume”

To adjust the volume, select the desired level
by touching the appropriate number.

If you do not need voice guidance, touch the

“Off” switch.

The selected item is highlighted in green.

INFORMATION

During route guidance, the voice guid­ance continues even if the navigation
screen is changed to other screens.

“Adaptive Volume Control”: If you turn the
“Adaptive Volume Control” on, the volume is
turned up automatically when the vehicle
speed exceeds 50 mph (80 km/h).

T o turn the “Adaptive Volume Control” system
on, touch the switch. The indicator will be
highlighted.

User selection

The system can memorize the following
settings for up to three users.

D Map direction
D Map scale
D Guidance mode
D Setup
D Volume
D Language

Push the “MENU” button to display the
“Menu” screen. Then touch the

switch.

User”

“Select

67

D To register

Touch the “Memorize” switch of your
desired “User number”.

The confirmation screen will appear. To
register, touch the “Yes” switch. To re-
turn to the previous screen, touch the

“No” or “Back” switch.

68

When you touch the switch already regis­tered, this screen appears. To replace,
touch the
placement, touch the “No” or “Back”
switch.

“Yes” switch. To cancel the re-

D To change user

Push the “MENU” button to display the
“Menu” screen. Then touch the

User”

switch.

“Select

Touch the “User number” switch you
wish to change.

The above message appears, then the
map screen will be displayed.

D To delete user

Touch the “Delete” switch of “User num­ber” you wish to delete.

69

The confirmation screen appears. To de­lete, touch the “Yes” switch. T o return t o
the previous screen, touch the

“No” or

“Back” switch.

My places

You can register and keep your own
memory points (like restaurants, sports fa­cilities, etc.) and use the memory points to
input a destination.

(a) Registering memory points

1. Push the “MENU” button to display
the “Menu” screen and touch the

Places”

switch.

“My

70

2. Touch the “Register” switch of the
“Memory Points”.

A screen similar to the destination input
screen appears. Input the desired point in the
same way as inputting a destination. (See
page 24.)

When you finish memory point registration,
the memory point data screen will appear.

71

You can set the icon, attribute, name, location
and phone number.

Touch the desired switch you want to set. (For
details, see “(b) Editing memory points”.)

INFORMATION

Up to 106 memory points can be regis­tered.

(b) Editing memory points

The icon, attribute, name, location and/or
telephone number of a registered memory
point can be edited.

1. Push the
the “Menu” screen and touch the

Places”

“MENU” button to display

“My

switch.

2. Touch the “Edit” switch of the
“Memory Points”.

The screen lists the memory points.
“Date”: Touch this switch to list the memory

points in order of the registered date.
“Icon”: Touch this switch to list the memory

points in order of the icon type.
“Name”: Touch this switch to list the memory

points in alphabetical order.
“Attribute”: Touch this switch to list the

memory points in order of the home and quick
access number.

Touch the desired memory point switch to dis­play the memory point data screen.

72

3. Touch the switch which you wish to
edit.

D To change “Icon”

T ouch the desired icon.

You can turn the page by touching

, “Page 2” or “With Sound” switch.

1”

“With Sound”: To display sound icons.

When your vehicle approaches the memory
point, the sound which you chose will sound.

“Page

Touch the desired sound icon.

The next screen appears when you touch the

“Bell (with direction)” switch.

73

Touch the direction switches and adjust the
direction. Touch the
bell sounds only when your vehicle ap­proaches this point in the direction that you
set.

“Enter” switch. The

D To change “Attribute”

For easy destination input, set the attrib­ute of the memory points as Home or
Quick access 1 to 5.

Touch the desired attribute. It is possible
to replace a registered attribute.

To replace the attribute, touch the “Yes”
switch. To return to the previous screen,
touch the

“No” or “Back” switch.

74

To delete the attribute, touch the “Del.”
switch.

To delete an attribute, touch the “Yes”
switch. To return to the previous screen,
touch the

“No” or “Back” switch.

D To change “Name”

T ouch the alphabet and/or numeral keys.

When the entry has been completed, touch

“OK” switch on the screen.

the
The previous screen will be displayed.

D “Show Name”

You can set the name of a memory point to
be displayed or not on the map.

To show the name, touch the
switch. Not to show it, touch the “Off”
switch.

“On”

D To change “Location”

Touch the eight direction switch to move
the cursor
map.

Touch the
screen will be displayed.

to the desired point on the

“Enter” switch and the previous

75

D To change “Phone #” (telephone num-

ber)

Touch numeral keys.

When the entry has been completed, touch
the

“OK” switch on the screen.

The previous screen will be displayed.

(c) Deleting memory points

1. Push the “MENU” button to display
the “Menu” screen and touch the

Places”

2. Touch the “Delete” switch of the
“Memory Points”.

switch.

“My

3. Touch the corresponding switch. To
delete all memory points, touch the “De-

lete All”

For efficient memory point search, memory
points can be sorted by the

switch.

“Date”,

“Icon”, “Name” or “Attribute” switch.

T o delete, touch the “Yes” switch. To cancel
the deletion, touch the

“No” switch.

76

Area to avoid

Areas you wish to avoid because of traffic
jams, construction work or other reasons
can be registered as areas to avoid.

Push the “MENU” button to display the
“Menu” screen and then touch the

Places”

screen.

switch to display the following

INFORMATION

If a destination is inputted in the area to
avoid or the route calculation cannot be
made without running through the area
to avoid, a route passing through the
area to avoid may be shown.

“My

(a) Registering area to avoid

1. Touch the “Register” switch of the
“Areas to avoid”.

3. Set the cursor in the center of the area
to avoid, and touch the “Enter” switch.

2. Enter the location in the same way as
inputting a destination, or display the map
of the area you wish to avoid. (See page

24.)

INFORMATION

Up to 10 locations can be registered as
point/area to avoid. If there are 10 loca­tions already registered, the message
“Unable to register additional points.
Perform operation again after deleting
unnecessary points.” appears on the
screen.

77

(b) Editing area to avoid

1. Touch the “Edit” switch of the “Areas
to Avoid” to display the “Edit Area to
Avoid” screen.

4. Touch either or switch to
change the size of the area to avoid.

3. Touch the “Name”, “Location” or

“Area Size” switch on this screen.

2. To edit an area to avoid, touch the cor­responding switch.

78

D To change “Name”

D To change “Location”

D To change “Area size”

T ouch alphabet or numeral keys.

When the entry has been completed, touch

“OK” switch on the screen.

the
The previous screen will be displayed.

D “Show Name”

The avoid area name can be set to be dis­played or not on the map. To show the
name, touch the “On” switch. Not to
show it, touch the

“Off” switch.

Set the cursor to the desired location, then
touch the “Enter” switch. The previous
screen will be displayed.

79

Touch either or switch to change
the size of area you want to avoid, and touch

the

“OK” switch. The previous screen will

be displayed.

(c) Deleting area to avoid

1. Touch the “Delete” switch of the
“Areas to Avoid” to display the “Delete
Area to Avoid” screen.

2. Touch the area you wish to delete from
the list.

“Delete all”: To delete all registered areas to

avoid in the system.

3. To delete, touch the “Yes” switch. To
cancel the deletion, touch the “No”
switch.

Setup

You can set the items shown on the “Set­up” screen.

1. Push the

2. To display the “Setup” menu screen,
touch the
items you wish to set.

“MENU” button.

“Setup” switch. Touch the

3. Touch the “OK” switch on the screen
and then the previous screen will be dis­played.

“Default”: This switch initializes all of the set-

tings.
“Calibration”: You can adjust the current ve-

hicle position mark manually.
“Distance”: You can select “km” or “miles” as

the distance unit.
“Estimated Travel Time”: You can set the

system to display the travel time to the des­tination on the route guidance screen.

“Auto Reroute”: You can set the system to
automatically search for a new route to the
destination.

“Adjust T ime Zone”: You can select your de ­sired time zone.

“Auto Voice Guidance”: You can set the au­tomatic voice guidance.

80

“Voice Guidance in All Modes”: You can set
the voice guidance in all modes.

“Notify Traffic Restriction”: You can select
notification of seasonal restrictions.

“Intersection Guidance”: You can select
ON or OFF to display intersection guidance.

“Guidance Screen on Freeway”: You can
select ON or OFF to display the guidance
screen on the freeway.

“Street Name on Scroll Map”: You can se­lect ON or OFF to display the street name on
the scroll map.

“Display Building Shape”: You can select
ON or OFF to display the building shape on
the map screen.

“

Function”: You can set to display or

not to display each switch and current street
name on the map screen.

“Show POI Icons”: You can choose 6 icons
displayed on “Show POI Icons” top screen.

“Previous Point”: You can delete the pre­vious destination.

“Map Color (Day)”: You can select the de­sired map color.

“Map Color (Night)”: You can select the de­sired map color.

“Screen Animation”: You can set some
screen displays to be animated.

Current position calibration

When driving, the current vehicle position
mark will be automatically corrected by
GPS signals. If GPS reception is poor due
to location, you can manually adjust the
current vehicle position mark.

2. Touch the “Adjust” switch of “Cal­ibration”.

1. Push the “MENU” button to display
the “Menu” screen, and then touch the

“Setup” switch.

3. Touch the “Position/Direction”
switch.

INFORMATION

For additional information on the accu­racy of a current vehicle position, see
“Limitations of the navigation system”
on page 10.

81

D Position/direction calibration

1. Touch the scroll arrows to move the
cursor

Touch the

to your desired location.

“Enter” switch.

2. Touch either the or switch to ad­just the direction of the current vehicle

position mark.

Touch the “Enter” switch and the map
screen will be displayed.

D Tire change calibration

The tire change calibration function will be
used when replacing the tires. This func­tion will adjust the mis−calculation caused
by the circumference difference between
the old tires and new ones. If this proce­dure is not performed when tires are re­placed, the current vehicle position mark
may be incorrectly displayed.

To perform a distance calibration procedure,
touch the
“Calibration” screen.

The message appears and the quick distance
calibration is automatically started. A few
seconds later, a map screen will be displayed.

“Tire Change” switch on the

82

Distance unit

1. Push the “MENU” button.

2. Touch the “Setup” switch.

3. Touch the “km” or “miles” switch of
“Distance” to choose the distance unit.

The selected switch is highlighted in green.

4. Touch the “OK” switch.

Estimated travel time

Y ou can set the speed that is used for the
calculation of the estimated travel time.

1. Push the “MENU” button.

83

2. Touch the “Setup” switch.

3. Touch the “Set Speed” switch of the
“Estimated Travel Time”.

4. Touch or to set the average ve­hicle speeds for driving on a Freeway,

Main street, and Residential.

To set the default speeds, touch the “De-

fault”

switch.

5. When you finish setting the desired
speeds, touch the

“OK” switch.

INFORMATION

D The displayed time to the destination

is the approximate driving time that is
calculated based on the speeds you
selected and your actual position
along the guidance route.

D The time shown on the screen may

vary greatly depending on your prog­ress along the route, which may be af ­fected by road conditions such as
traffic jams, construction work.

D It is possible to display up to 99 hours

59 minutes.

84

Auto reroute

When the “Auto Reroute” feature is turned
on, the system will automatically search
for a new route to the destination if you
stray from the guidance route. This fea­ture does not operate while you are driving
on roads where guidance is not available.

To turn the “Auto Reroute” mode on:

1. Push the

2. Touch the “Setup” switch.

“MENU” button.

3. Touch the “On” switch of “Auto
Reroute”.

The selected switch is highlighted in green.

INFORMATION

If your vehicle strays from the guidance
route, the system searches for a new
route to the destination. The new route
may or may not take you back to the pre­vious route depending on how far you
are off the original guidance route.

Adjusting time zone

1. Push the “MENU” button.

2. Touch the “Setup” switch.

85

3. Touch the “Change” switch. The
“Adjust T ime Zone” screen appears on t h e
display.

4. Touch the desired time zone.

The selected switch is highlighted in green.

5. Touch the “OK” switch on the screen
and the “Setup” screen will be displayed.

Auto voice guidance

When the “Auto Voice Guidance” feature
is turned on, the voice guidance can be
heard automatically.

When the “Auto Voice Guidance” feature
is turned off, the voice guidance can be
heard only if you push the

VOICE”

To turn the “Auto Voice Guidance” mode
on:

1. Push the

2. Touch the “Setup” switch. Then
touch switch to display page 2 of the
“Setup” screen.

button.

“MENU” button.

“MAP/

86

3. Touch the “On” switch of “Auto Voice
Guidance”.

The selected switch is highlighted in
green.

Voice guidance in all modes

When the “Voice Guidance in All Modes”
feature is turned on, you can hear the
voice guidance in all modes.

When the “Voice Guidance in All Modes”
feature is turned off, voice guidance can­not be heard when using the audio sys­tem.

To turn the “Voice Guidance in All Modes”
on:

1. Push the

“MENU” button.

2. Touch the “Setup” switch. Then
touch switch to display page 2 of the
“Setup” screen.

87

Notifying traffic restriction

When the “Notify Traffic Restriction” fea­ture is turned on, the system notifies you
of traffic or seasonal restrictions.

3. Touch the “On” switch of “V oice Guid­ance in All Modes” and touch the “OK”
switch.

To turn the “Notify Traffic Restriction”
mode on:

1. Push the

“MENU” button.

88

2. Touch the “Setup” switch. Then
touch switch to display page 2 of the
“Setup” screen.

Intersection guidance

When the “Intersection Guidance” feature
is turned on, the system will display the in­tersection guidance screen if you drive
with route guidance.

3. Touch the “On” switch of “Notify Traf­fic Restriction” and touch the
switch.

“OK”

To turn the “Intersection Guidance” mode
on:

1. Push the

“MENU” button.

89

2. Touch the “Setup” switch. Then
touch switch to display page 2 of the
“Setup” screen.

Guidance screen on freeway

When the “Guidance Screen on Freeway”
feature is turned on, the system will dis­play the lane guidance screen if you drive
on a freeway with route guidance.

3. Touch the “On” switch of “Intersec­tion Guidance” and touch the “OK”
switch.

To turn the “Guidance Screen on Free­way” mode on:

1. Push the

“MENU” button.

90

2. Touch the “Setup” switch. Then
touch switch to display page 2 of the
“Setup” screen.
