GAS STATION INFORMATION
D Fuel selection:
Select unleaded gasoline with an Octane Rating of 87
(Research Octane Number 91) or higher. For improved
vehicle performance, the use of premium unleaded
gasoline with an Octane Rating of 91 (Research Octane
Number 96) or higher is recommended.
D Fuel tank capacity:
70 L (18.5 gal., 15.4 lmp. gal.)
D Engine oil:
“Toyota Genuine Motor Oil” or equivalent
Oil grade: API grade SL “Energy−Conserving” or ILSAC
multigrade engine oil
Recommended oil viscosity: SAE 5W−30
Oil capacity: L (qt., lmp. qt.)
Drain and refill
With filter 4.7 (5.0, 4.1)
Without filter 4.5 (4.8, 4.0)
See page 312 for detailed information.
D Engine coolant:
Capacity: 9.2 L (9.7 qt., 8.2 lmp. qt.)
Coolant type − “Toyota Genuine Long Life Coolant” or
equivalent
With ethylene−glycol type coolant for a proper corrosion
protection of aluminum components
Do not use alcohol type antifreeze or plain water alone.
For checking the engine coolant, see page 315.
D Automatic transaxle:
Fluid type − Toyota Genuine ATF Type T−IV
See page 319 for detailed information.
D Tire information:
See pages 324 through 331 for detailed information.
D Tire pressure:
Tire size: P215/60R16 94V
Tire pressure:
Front 200 kPa (2.0 kgf/cm
Rear 200 kPa (2.0 kgf/cm2 or bar, 29 psi)
For sustained high speeds above 160 km/h (99 mph), in
countries where such speeds are permitted by law, add 40
kPa (0.4 kgf/cm2 or bar, 6 psi) to the front tires and rear tires,
but never exceed the maximum cold tire pressure molded
on the tire sidewall.
2
or bar, 29 psi)
FOREWORD
Congratulations on your selection of this Lexus. In Lexus vehicles we have invested all our engineering and design resources; all
the know−how we have gained in over 60 years of making automobiles; the highest motivation of our most talented employees; and
our tradition of incessant striving toward ever greater quality.
This Owner’s Manual explains the features of your new Lexus. Please read it and follow the instructions carefully so that you can
enjoy many years of safe motoring.
When it comes to service, remember that your Lexus dealer knows your vehicle best and is interested in your complete satisfaction.
Your Lexus dealer will provide quality maintenance and any other assistance you may require.
If there is not a Lexus dealer near you, or you need emergency assistance for any reason, please call the following number:
U.S. OWNERS
D When traveling in the U.S. mainland or Canada:
Lexus Roadside Assistance 1−800−25−LEXUS (Toll−Free)
D HAWAII:
Lexus Customer Service Assistance 1−800−25−LEXUS (Toll−Free)
CANADIAN OWNERS
D When traveling in Canada or the U.S. mainland:
Lexus Roadside Assistance/Customer Service 1−800−26−LEXUS (Toll−Free)
Please leave this Owner’s Manual in this vehicle at the time of resale. The next owner will need this information also.
All information and specifications in this manual are current at the time of printing. However, because of the Lexus policy
of continual product improvement, we reserve the right to make changes at any time without notice.
Please note that this manual applies to all models and explains all equipment, including options. Therefore, you may find
some explanations for equipment not installed on your vehicle.
(1−800−255−3987)
(1−800−255−3987)
(1−800−265−3987)
i
INTRODUCTION
New vehicle warranty
Your new vehicle is covered by the following Lexus limited
warranties:
D New vehicle warranty
D Emission control systems warranty
D Others
For further information, please refer to the “Owner’s Guide”,
“Owner’s Manual Supplement” or “Warranty Booklet”.
Your responsibility for maintenance
It is the owner’s responsibility to make sure the specified
maintenance is performed. Section 5 of this Owner’s Manual
gives details of these maintenance requirements. Included in
Section 6 is general maintenance. For scheduled
maintenance information, please refer to the “Owner’s Manual
Supplement/Scheduled Maintenance”.
Accessories, spare parts and modification of
your Lexus
A wide variety of non−genuine spare parts and accessories for
Lexus vehicles are currently available in the market. You
should know that Toyota does not warrant these products and
is not responsible for their performance, repair, or
replacement, or for any damage they may cause to, or adverse
effect they may have on, your Lexus vehicle.
This vehicle should not be modified with non−genuine Lexus
products. Modification with non−genuine Lexus products
could affect its performance, safety or durability, and may even
violate governmental regulations. In addition, damage or
performance problems resulting from the modification may not
be covered under warranty.
Spark ignition system of your Lexus
The spark ignition system in your Lexus meets all
requirements of the Canadian Interference−Causing
Equipment Standard.
Installation of a mobile two−way radio system
As the installation of a mobile two−way radio system in your
vehicle could affect electronic systems such as the multiport
fuel injection system/sequential multiport fuel injection system,
cruise control system, anti−lock brake system, SRS airbag
system and seat belt pretensioner system, be sure to check
with your Lexus dealer for precautionary measures or special
instructions regarding installation.
Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your
Lexus contain explosive chemicals. If the vehicle is scrapped
with the airbags and seat belt pretensioners left as they are,
this may cause an accident such as fire. Be sure to have the
systems of the SRS airbag and seat belt pretensioner removed
and disposed of by a qualified service shop or by your Lexus
dealer before you scrap your vehicle.
ii
HOW TO USE THIS MANUAL
HOW TO USE THIS MANUAL
The contents of this manual are explained briefly on this
page to help you make the best use of the manual. Please
read this page and the rest of the Owner’s Manual
carefully to make sure you fully understand the operation
of your vehicle.
This will help you enjoy safe and comfortable driving.
TABLE OF CONTENTS
The table of contents and the pictorial index provide easy
reference to the appropriate pages.
BASIC OPERATION − QUICK REFERENCE
Operation of basic equipment is briefly explained in an easily
understandable way for quick reference.
SECTION 1 − INSTRUMENTS AND CONTROLS
The vehicle’s equipment is divided into the 7 groups listed
below. Use of the equipment is explained, including any points
you should pay particular attention to.
1. Keys and doors
2. Switches
3. Gauges, meters and service reminder indicators
4. Interior equipment
5. Exterior equipment
6. Comfort adjustment
7. Theft deterrent
SECTION 2 − AIR CONDITIONING AND AUDIO
The features of the vehicle’s air conditioning and audio are
explained in detail. Be sure to read this section so that you can
make full use of them.
SECTION 3 − STARTING AND DRIVING
Starting the engine, driving, stopping, operation of features
affecting vehicle handling, hints on vehicle safety and safe
driving techniques are all explained. Please read everything
in this section, and remember − drive safely!
SECTION 4 − IN CASE OF AN EMERGENCY
This section explains what to do in the event of an urgent
situation such as the engine not starting or getting a flat tire,
etc. If such a problem occurs, check the contents of this
Owner’s Manual and follow the instructions given.
SECTION 5 − MAINTENANCE
This section explains the importance of regular maintenance.
Regular and periodic inspection and maintenance of your
Lexus will help to keep your vehicle in its best condition.
SECTION 6 − SERVICE PROCEDURES AND
SPECIFICATIONS
Simple maintenance procedure and service data are provided
here for your reference should you wish to perform inspection
and maintenance yourself.
iii
HOW TO USE THIS MANUAL
INDEX
The page number is listed for each item in the Owner’s Manual
so that you can rapidly find the item and page you are
searching for.
GAS STATION INFORMATION
The information you need to know for appropriate servicing at
the gas station is provided here.
QUICK INDEX
This is designed so that you can quickly find the needed
information when an urgent situation arises.
Safety symbol
In this manual, you will also see a circle with a slash through
it. This means “Do not”, “Do not do this”, or “Do not let this
happen”.
Safety and vehicle damage warnings
In this manual you will see CAUTION and NOTICE warnings.
These are used in the following ways:
CAUTION
This is a warning against anything which may cause
injury to people if the warning is ignored. You are
informed about what you must or must not do in order
to reduce the risk of injury to yourself and others.
NOTICE
This is a warning against anything which may cause
damage to the vehicle or its equipment if the warning is
ignored. You are informed about what you must or must
not do in order to avoid or reduce the risk of damage to
your Lexus and its equipment.
Your Lexus Owner’s Manual provides you with a
considerable amount of information. To use this
information most effectively, please take the time to
familiarize yourself with the contents and use of the
manual.
iv
INSTRUMENT PANEL
PICTORIAL INDEX
v
PICTORIAL INDEX
1 Door lock switch and power window
switches 24, 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Driving position memory switches 152. . . . . . . . . . .
3 Power rear view mirror control switches 102. . . . . .
4 Side vents 170. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Instrument panel light control dial 61. . . . . . . . . . . . .
6 Headlight, turn signal and
fog light switches 28, 30, 33, 34. . . . . . . . . . . . . . . . . . .
7 Multi−information display control switches 59. . . .
8 Ignition switch 225. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Wiper and washer switches 34. . . . . . . . . . . . . . . . . . .
10 Seat heater switches 44. . . . . . . . . . . . . . . . . . . . . . . . .
11 Emergency flasher switch 43. . . . . . . . . . . . . . . . . . . .
12 Clock 67. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13 Car audio 174, 196. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
14 Front passenger’s seat belt reminder light 53. . . . .
15 Security indicator light 14, 156. . . . . . . . . . . . . . . . . . .
Page
Page
16 Glove box 70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17 Automatic air conditioning controls 160. . . . . . . . . .
18 Rear window and outside rear view mirror
defogger switch 39. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19 Ashtray 68. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20 Automatic transmission selector lever 227. . . . . . . .
21 Rear electric sunshade switch 79. . . . . . . . . . . . . . . .
22 Electronic modulated suspension
control switch 237. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23 Traction control system off switch 238. . . . . . . . . . .
24 Cruise control switch 234. . . . . . . . . . . . . . . . . . . . . . .
25 Power adjustable pedals switch 100. . . . . . . . . . . . . .
26 Parking brake pedal 226. . . . . . . . . . . . . . . . . . . . . . . . .
27 Auxiliary box 76. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28 Hood lock release lever 84. . . . . . . . . . . . . . . . . . . . . .
29 Trunk lid opener 85. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30 Fuel filler door opener 87. . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the description given in each section.
vi
INSTRUMENT CLUSTER (vehicles sold in U. S. A.)
PICTORIAL INDEX
vii
PICTORIAL INDEX
1 Tachometer 49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Traction control system off indicator light 238. . . .
3 Vehicle skid control system/traction control
system warning light 57. . . . . . . . . . . . . . . . . . . . . . . . .
4 Headlight indicator light 28. . . . . . . . . . . . . . . . . . . . . .
5 Headlight high beam indicator light 33. . . . . . . . . . .
6 Turn signal indicator light 33. . . . . . . . . . . . . . . . . . . .
7 Fog light indicator light 34. . . . . . . . . . . . . . . . . . . . . . .
8 Cruise control indicator light 234. . . . . . . . . . . . . . . .
9 Slip indicator light 238, 240. . . . . . . . . . . . . . . . . . . . . .
10 Automatic headlight leveling system
warning light 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11 Low fuel level warning light 57. . . . . . . . . . . . . . . . . . .
12 Automatic transmission indicator lights 227. . . . . .
13 Engine coolant temperature gauge 48. . . . . . . . . . . .
Page
Page
14 Odometer and trip meter 50. . . . . . . . . . . . . . . . . . . . .
15 Trip meter reset knob 50. . . . . . . . . . . . . . . . . . . . . . . .
16 Fuel gauge 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17 Low washer fluid warning light 57. . . . . . . . . . . . . . . .
18 Low engine oil level warning light 54. . . . . . . . . . . . .
19 Multi−information display 59. . . . . . . . . . . . . . . . . . . . .
20 Rear light failure warning light 57. . . . . . . . . . . . . . . .
21 Low engine oil pressure warning light 54. . . . . . . . .
22 Brake system warning light 52. . . . . . . . . . . . . . . . . . .
23 Anti−lock brake system warning light 55. . . . . . . . . .
24 Driver’s seat belt reminder light 52. . . . . . . . . . . . . . .
25 Discharge warning light 53. . . . . . . . . . . . . . . . . . . . . .
26 SRS warning light 53. . . . . . . . . . . . . . . . . . . . . . . . . . . .
27 Open door warning light 57. . . . . . . . . . . . . . . . . . . . . .
28 Malfunction indicator lamp 54. . . . . . . . . . . . . . . . . . .
viii
For detailed information, refer to the description given in each section.
INSTRUMENT CLUSTER (vehicles sold in Canada)
PICTORIAL INDEX
ix
PICTORIAL INDEX
1 Tachometer 49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2 Traction control system off indicator light 238. . . .
3 Vehicle skid control system/traction control
system warning light 57. . . . . . . . . . . . . . . . . . . . . . . . .
4 Tail light indicator light 30. . . . . . . . . . . . . . . . . . . . . . .
5 Headlight high beam indicator light 33. . . . . . . . . . .
6 Turn signal indicator light 33. . . . . . . . . . . . . . . . . . . .
7 Fog light indicator light 34. . . . . . . . . . . . . . . . . . . . . . .
8 Cruise control indicator light 234. . . . . . . . . . . . . . . .
9 Slip indicator light 238, 240. . . . . . . . . . . . . . . . . . . . . .
10 Automatic headlight leveling system
warning light 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11 Low fuel level warning light 57. . . . . . . . . . . . . . . . . . .
12 Automatic transmission indicator lights 227. . . . . .
13 Engine coolant temperature gauge 48. . . . . . . . . . . .
Page
Page
14 Odometer and trip meter 50. . . . . . . . . . . . . . . . . . . . .
15 Trip meter reset knob 50. . . . . . . . . . . . . . . . . . . . . . . .
16 Fuel gauge 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17 Low washer fluid warning light 57. . . . . . . . . . . . . . . .
18 Low engine oil level warning light 54. . . . . . . . . . . . .
19 Multi−information display 59. . . . . . . . . . . . . . . . . . . . .
20 Rear light failure warning light 57. . . . . . . . . . . . . . . .
21 Low engine oil pressure warning light 54. . . . . . . . .
22 Brake system warning light 52. . . . . . . . . . . . . . . . . . .
23 Anti−lock brake system warning light 55. . . . . . . . . .
24 Driver’s seat belt reminder light 52. . . . . . . . . . . . . . .
25 Discharge warning light 53. . . . . . . . . . . . . . . . . . . . . .
26 SRS warning light 53. . . . . . . . . . . . . . . . . . . . . . . . . . . .
27 Open door warning light 57. . . . . . . . . . . . . . . . . . . . . .
28 Malfunction indicator lamp 54. . . . . . . . . . . . . . . . . . .
For detailed information, refer to the description given in each section.
x
SEAT AND STEERING WHEEL
PICTORIAL INDEX
Page
1 Tilt steering lock release
lever 99. . . . . . . . . . . . . . . . . . . . . . . . . .
2 Seat position, seat cushion
angle and height control
switch 95, 96. . . . . . . . . . . . . . . . . . . . . .
3 Seatback angle control switch 96. . .
4 Lumbar support control switch 97. .
For detailed information, refer to the
description given in each section.
xi
PICTORIAL INDEX
EXTERIOR VIEW
Page
1 Rear window defogger 39. . . . . . . . . .
2 Trunk lid 85. . . . . . . . . . . . . . . . . . . . . . .
3 Tire and wheel 324. . . . . . . . . . . . . . . .
4 Moon roof 90. . . . . . . . . . . . . . . . . . . . .
5 Outside rear view mirror 101. . . . . . .
6 Fuel filler door 87. . . . . . . . . . . . . . . . .
7 Door 22. . . . . . . . . . . . . . . . . . . . . . . . . .
8 Headlights 28, 30, 350. . . . . . . . . . . . . .
9 Hood 84. . . . . . . . . . . . . . . . . . . . . . . . . .
10 Wiper and washer 34, 348. . . . . . . . . .
For detailed information, refer to the
description given in each section.
xii
PICTORIAL INDEX
xiii
BASIC OPERATION
QUICK REFERENCE
Quick reference
Driver’s seat 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tilt steering wheel 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power adjustable pedals 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight and turn signal switch 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiper switch 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1
QUICK REFERENCE
1. DRIVER’S SEAT 2. TILT STEERING WHEEL
Seat position
Seat cushion
angle
Seat cushion
height
Seatback
angle
Lumbar
support
Head restraint
height
Head restraint
angle
2
To tilt the steering wheel up or down to the desired angle:
1. Pull the lever up while holding the steering wheel.
2. Tilt the steering wheel to the desired angle.
3. Release the lever.
3. POWER ADJUSTABLE PEDALS
To adjust the position of the accelerator and brake pedals:
1. Set the parking brake firmly.
2. Turn the ignition key to the “ON” position with the
automatic transmission selector lever in the “P” position.
3. Push the “
front most position.
4. Push the “ ” side of the switch to move the pedals
toward you until you can fully depress the brake pedal.
5. After adjusting, depress the pedals a few times to get
used to the feel.
” side of the switch to move the pedals to the
QUICK REFERENCE
3
QUICK REFERENCE
4. AUTOMATIC TRANSMISSION
BE056
SELECTOR LEVER POSITION
P: Parking, engine starting and key removal
position
R: Reverse position
N: Neutral position
D: Normal driving position (shifting into
overdrive possible)
4: Position for engine braking (shifting into
overdrive not possible)
3, 2: Position for more powerful engine braking
L: Position for maximum engine braking
OPERATION OF SELECTOR LEVER
BE057
K Shift while pressing the brake pedal. (Ignition
switch must be in the “ON” position.)
NOTE: When the cruise control is being used, even if you downshift from “D” to “4”, engine braking will not be enabled
because the cruise control is not cancelled. For the operation to decrease the vehicle speed, see page 236.
4
QUICK REFERENCE

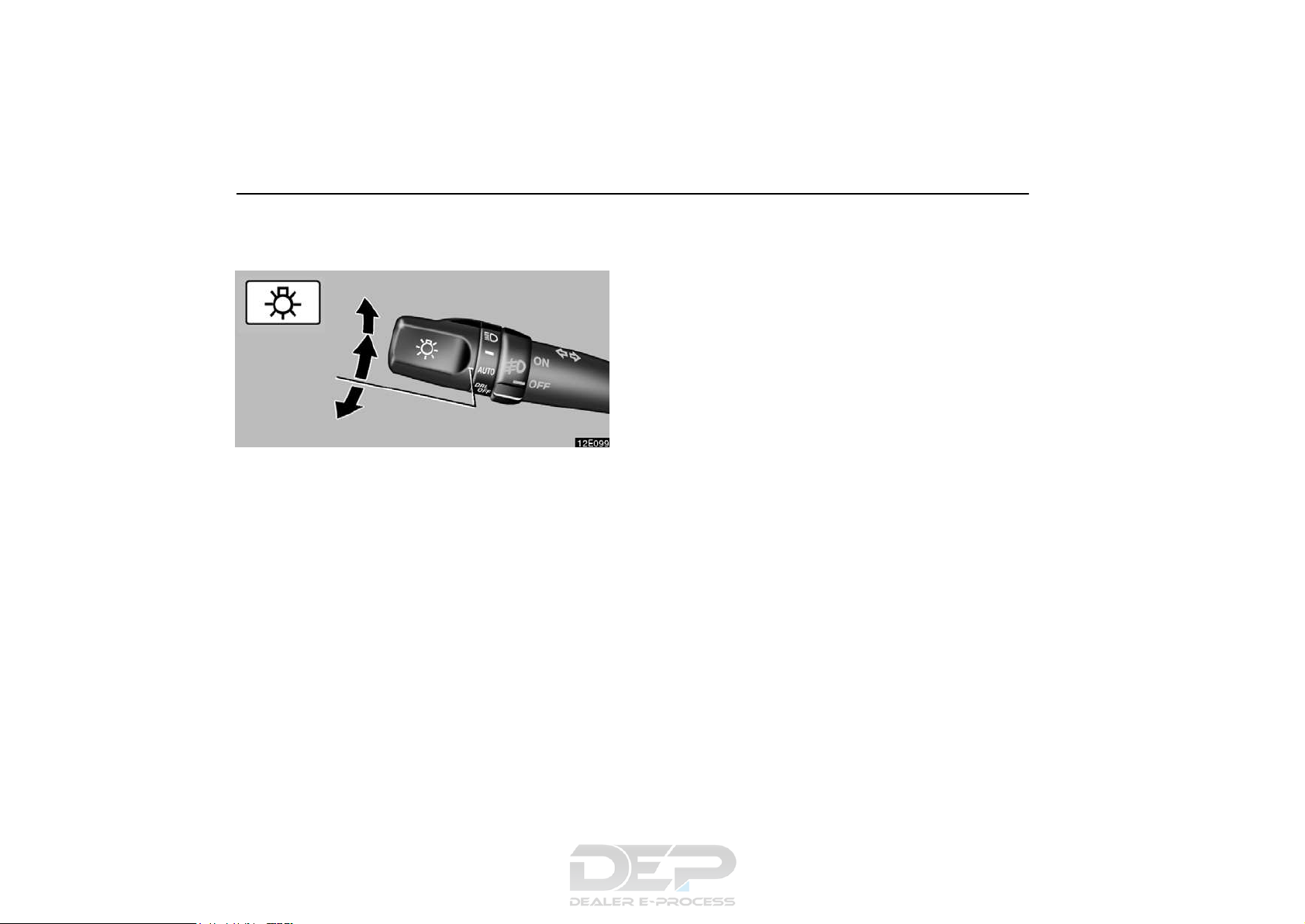

5. HEADLIGHT AND TURN SIGNAL
SWITCH
D HEADLIGHT SWITCH (U.S.A.)
With the ignition OFF
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights also turn on.
With the engine started and parking brake
released
Automatic light control
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights turn on at full
intensity.
Daytime running light
system off
D HEADLIGHT SWITCH (Canada)
With the ignition OFF
Parking, tail, license plate,
side marker and instrument
BE004
With the engine started and parking brake
released
panel lights turn on.
Headlights also turn on.
Automatic light control
Parking, tail, license plate,
side marker and instrument
panel lights turn on.
Headlights turn on at full
intensity.
BE004
Automatic light control
5
QUICK REFERENCE
D HEADLIGHT DIMMER SWITCH
High beam
Headlight flasher
D TURN SIGNAL SWITCH
Right or left turn
Lane change
(right or left)
6. WIPER SWITCH
Intermittent operational type
Intermittent operation
Low speed operation
High speed operation
Washer on
6
Raindrop detection type
QUICK REFERENCE
Automatic operation
Low speed operation
High speed operation
Washer on
7
QUICK REFERENCE
8
SECTION 1 – 1
INSTRUMENTS AND CONTROLS
Keys and doors
Keys 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine immobiliser system 14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control 15. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Doors 22. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9
KEYS AND DOORS
KEYS
1
Master keys (black) − These keys work in every lock.
For your Lexus dealer to make you a new key with
built−in transponder chip, your dealer will need it.
2
Sub key (gray) − This key will not open the glove box
and rear armrest door in the rear seat.
3
Key number plate − Keep the plate in a safe place
such as your wallet, not in the vehicle.
A transponder chip for engine immobiliser system has been
placed in the head of the master and sub keys. These chips
are needed to enable the system to function correctly, so be
careful not to lose these keys. If you make your own duplicate
key, you will not be able to cancel the system or start the
engine.
To protect items locked in the trunk or glove box when using
valet parking, leave the sub key with the attendant.
The trunk lid can be opened using a loop of wire in the trunk
even with the trunk lid opener main switch in the glove box
turned off. When keeping items in the trunk, be sure to turn off
the trunk lid opener main switch and lock the glove box and
rear armrest door. To turn off the main switch in the glove box,
see page 85. For locking the glove box, see page 70. For
locking the rear armrest door, see page 99.
Since the doors can be locked without a key, you should
always carry the flat key or spare master key in case you
accidentally lock your keys inside the vehicle.
If you should lose your keys or if you need additional keys,
duplicates can be made by a Lexus dealer using the key
number.
We recommend writing down the key number and storing it in
a safe place.
10
KEYS AND DOORS
Flat key
As a transponder chip is built in its key case, you can start
the engine with this key.
The flat key works in every lock.
A transponder chip for engine immobiliser system has been
placed in the key case of the flat key. This chip is needed to
enable the system to function correctly, so be careful not to
lose this key. If you make your own duplicate key, you will not
be able to cancel the system or start the engine.
Insert your key plate in its key case as shown. We recommend
that you always carry this with you for emergency use. Do not
leave it in your vehicle.
Starting the engine using a flat key
1. Remove the key plate from the key case.
2. Insert the key plate into the ignition switch. The indicator
light keeps flashing.
3. Bring the key case closer to the ignition switch within 10
seconds as indicated by the arrow head. The indicator light
goes out. This means the engine immobiliser system is
automatically canceled. (For details, see “Engine immobiliser
system” on page 14.) You can put the key case away then. You
cannot cancel the engine immobiliser system if 10 seconds
have past after you inserted the key plate. You need to remove
the key plate from the ignition switch and try it again from the
step 2.
4. Start the engine within 20 seconds after the security
indicator light goes out. You cannot start the engine if 20
seconds have past after the security indicator went off. You
need to remove the key plate from the ignition switch and try
it again from the step 2.
11
KEYS AND DOORS
NOTICE
D Do not let the key case become bent as the key plate
may fall out or become bent also.
D The flat key is designed for emergency use only. So
do not use it regularly instead of other master keys.
When using a key containing a transponder chip,
observe the following precautions:
D When starting the engine, do not use the key with a
key ring resting on the key grip and do not press the
key ring against the key grip. Doing so may prevent
the engine from starting, or may cause the engine to
stop soon after it starts.
12
KEYS AND DOORS
D When starting the engine, do not use the key in
proximity with other transponder keys (including the
flat key and keys of other vehicles), and do not press
other key plates against the key grip. Doing so may
prevent the engine from starting, or may cause the
engine to stop soon after it starts. If this happens,
remove the key once and then insert it again after
taking off other transponder keys (including the flat
key and keys of other vehicles) from the ring or while
gripping or covering them with your hand to start the
engine.
D Do not bend the key grip or flat key.
D Do not cover the key grip or flat key with any material
that cuts off electromagnetic waves.
D Do not knock the key or flat key hard against other
objects.
D Do not leave the key or flat key exposed to high
temperatures for a long period, such as on the
dashboard and hood under the direct sunlight.
D Do not put the key or flat key in water or wash it in an
ultrasonic washer.
D Do not use the key or flat key with electromagnetic
materials.
13
KEYS AND DOORS
ENGINE IMMOBILISER SYSTEM
The engine immobiliser system is a theft prevention
system. When you insert the key in the ignition switch, the
transponder chip in the key’s head transmits an electronic
code to the vehicle. The engine will start, only when the
electronic code in the chip corresponds to the registered
ID code for the vehicle.
The system is automatically set when the key is removed from
the ignition switch. At this time, the security indicator light
flashes. When you insert the key in the ignition switch, the
security indicator light goes out and the system is canceled
automatically, which enables the engine to start.
For your Lexus dealer to make you a new key with built−in
transponder chip, your dealer will need your key number and
master key. However, there is a limit to the number of
additional keys your Lexus dealer can make for you.
If you make your own duplicate key, you will not be able
to cancel the system or start the engine.
For vehicles sold in U.S.A.
FCC ID: MOZRI−16BTY−B
MADE IN JAPAN
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
CAUTION
Changes or modifications not expressly approved by
the party responsible for compliance could void the
user’s authority to operate the equipment.
14
KEYS AND DOORS
For vehicles sold in Canada
This device complies with RSS−210 of Industry
Canada.
Operation is subject to the following two conditions: (1)
This device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation of the
device.
WIRELESS REMOTE CONTROL
1
Locking the doors and sounding an alarm
2
Indicator light
3
Unlocking the trunk lid
4
Unlocking the doors
When you operate any button on the key, push it slowly and
surely. At this time, the indicator light on the key grip flashes
once.
The operational range of the wireless remote control is
approximately 1 meter (3 ft.). The effective range may vary
with different conditions. To activate the wireless remote
control without fail, do it approximately 1 meter (3 ft.) from your
Lexus.
15
KEYS AND DOORS
In the following cases, the battery in the key may be
discharged. If this is a case, replace it using a special
screwdriver.
D The remote control does not work.
D The operational range of wireless remote control becomes
extremely short.
D The indicator light on the key is dimmed or does not come
on.
For the replacement of the battery, see “Replacing the battery”
on page 20. You can also have the battery of the key replaced
by your Lexus dealer.
If you lose the wireless key, contact your Lexus dealer as soon
as possible to avoid the possibility of theft, or an accident. (See
“If you lose your keys or lock yourself out” on page 285.)
You can use up to 4 wireless remote control keys for the same
vehicle. Contact your Lexus dealer for detailed information.
The wireless remote control key is an electronic
component. Observe the following instructions in order
not to cause damage to the key.
D Do not leave the wireless remote control key on places
where the temperature becomes high such as on the
dashboard.
D Do not disassemble it.
D Avoid knocking it hard against other objects or dropping it.
D Avoid putting it in water.
Locking/Unlocking the doors
When you push the “LOCK” button on the key briefly, all
the doors can be locked from outside the vehicle.
At this time, one beep sounds and the turn signal lights flash
once.* However, when you push the “LOCK” button with any
door not closed securely, the buzzer sounds for 10 seconds.**
To stop the buzzer, close all the doors securely or push the
“UNLOCK” button. If the key is in the ignition switch, locking
cannot be done.
Make sure all the doors are locked when you leave the vehicle.
Push the “LOCK” button once again.
NOTE:
* The turn signal lights can be set not to flash and the beep
volume can be changed.
** The buzzer can be set not to sound if a door is not closed
securely.
Ask your Lexus dealer for details.
NOTICE
Do not push the “LOCK” button any longer than 2 to 3
seconds. Pushing the button longer activates an alarm.
For details, see page 18.
16
When you push the “UNLOCK” button, the driver’s door
is unlocked. Pushing that button once again within 3
seconds from the first push, all other doors are also
unlocked.*
NOTE:
* The 2−step unlocking function can be changed.
Ask your Lexus dealer for details.
At this time, two beeps sound and the turn signal lights flash
twice.* Together with the activation of unlocking, the interior
light comes on for 15 seconds if the interior light switch is in
“DOOR” position.** However, this function does not work
when the ignition key is in the “ACC” or “ON” position. For
further information, see “Illuminated entry system” on page 66.
You have 30 seconds to open a door after using the wireless
remote unlock feature.*** If a door is not opened by then, all
the doors will be automatically locked again.
Even if the “LOCK” or “UNLOCK” button is kept pressed in, the
locking or unlocking operation is not repeated. Release the
button and then push again.
NOTE:
* The turn signal lights can be set not to flash and the beep
volume can be changed.
** The duration of lighting can be changed
*** The time before automatic re−locking can be changed.
Ask your Lexus dealer for details.
KEYS AND DOORS
" 1Off 2Louder
When you push any button on the key, the vehicle sounds one
beep when the doors are locked by remote control, and sounds
two beeps when the doors are unlocked.
You can adjust the beep loudness with the knob under the
instrument panel. Turning the knob clockwise increases the
volume and turning it counterclockwise until it stops turns the
buzzer off.
17
KEYS AND DOORS
Unlocking the trunk lid
When you keep the button pushed for about 1 second, you
can unlock the trunk lid.* One beep sounds.
This function does not work when the ignition key is in the “ON”
position.
NOTE:
* The operation method can be changed.
Ask your Lexus dealer for details.
Sounding an alarm*
When you push the “PANIC” button for about 2 to 3
seconds, an alarm sounds to deter any person trying to
break into or damage your vehicle.
If you want to stop the alarm, push any button.
This function does not work when the ignition key is in the “ON”
position.
NOTE:
* The alarm can be set not to sound.
Ask your Lexus dealer for details.
18
KEYS AND DOORS
Operating the side windows and moon roof
The side windows and moon roof can be opened using a
wireless key from outside the vehicle.*
NOTE:
* The windows and moon roof can be deactivated.
Ask your Lexus dealer for details.
Push the “UNLOCK” button until the windows and moon roof
start to move. When you release the button, the windows and
moon roof stop operating.
For vehicles sold in U.S.A.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
NOTICE:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there
is no guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
D Reorient or relocate the receiving antenna.
19
KEYS AND DOORS
D Increase the separation between the equipment and
receiver.
D Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
D Consult the dealer or an experienced radio / TV
technician for help.
FCC WARNING:
Changes or modifications not expressly approved
by the party responsible for compliance could void
the user’s authority to operate the equipment.
For vehicles sold in Canada
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference, including
interference that may cause undesired operation of the
device.
Replacing the battery
When you replace the battery, prepare a lithium battery
CR1616 or equivalent and a special screwdriver.
CAUTION
Special care should be taken that small children do not
swallow the removed battery or components.
NOTICE
D When replacing the battery, be careful not to lose the
components.
D Replace only with the same or equivalent type
recommended by a Lexus dealer.
D Dispose of used batteries according to the local laws.
20
KEYS AND DOORS
1. Remove the screw, and then the cover while pushing it in the
arrow direction.
2. Remove the module from the key frame.
3. Remove the 2 screws to take out the lid of the module.
4. Take out the discharged battery and put a new battery with
the positive side up.
NOTICE
D Make sure the positive side and negative side of the
battery should be faced correctly.
D Do not replace the battery with wet hands. Water may
cause unexpected rust.
D Do not touch or move any components inside of the
transmitter, or it may interfere with proper operation.
D Be careful not to bend the electrode of the battery
insertion and that dust or oils do not adhere to the
inside of the module.
D Take care not to lose the screws.
21
KEYS AND DOORS
5. Install the lid with the 2 screws.
6. Install the module into the key frame and secure the cover
with the screw.
7. When pushing any button on the wireless key, make sure
the indicator light comes on.
DOORS
Locking with key
" 1Lock 2Unlock
Turn the key towards the front of the vehicle to lock and
towards the back to unlock.
The doors lock and unlock simultaneously with the driver’s
door. Turning the key once will unlock the driver’s door and
twice in succession will unlock all doors simultaneously.*
NOTE:
* The 2−step unlocking function can be changed.
Ask your Lexus dealer for details.
If a wrong key is used, the key cylinder rotates freely to isolate
inside mechanism. So, door locking is protected from thieves.
The windows and moon roof can be opened from outside the
vehicle using the key. For details, see page 42 and page 91.
22
KEYS AND DOORS
Locking with inside lock button
" 1Lock 2Unlock
Push in the lock button to lock and unlock the door.
The front doors can be opened by pulling the inside handles
even if the lock buttons are in the locked position.
CAUTION
Do not pull the inside handle of the front doors while
driving. The doors will open and an accident may occur.
Lexus strongly recommends that all children be placed
in the rear seat of the vehicle.
Closing the door with the lock button pushed in will also lock
the door. Be careful not to lock your keys in the vehicle. Doors
cannot be locked when either front door is open and the key is
in the ignition.
If the vehicle is subjected to a severe frontal, rear or side
impact with the ignition switch turned to the “ON” position, all
doors will unlock automatically after a few seconds.
CAUTION
Before driving, make sure the doors are closed and
locked, especially when small children are in the
vehicle. Along with the proper use of seat belts, locking
the doors helps prevent the driver and passengers from
being thrown out from the vehicle during an accident.
It also helps prevent the doors from being opened
unintentionally.
23
KEYS AND DOORS
Locking with power door lock switch
" 1Lock 2Unlock
To lock all the doors simultaneously, push the power door
lock switch down on the front side. Pushing down on the
rear side will unlock them.
The same switch is also located on the front passenger’s side.
If you do any of the following, no door can be unlocked with the
power door lock switch.
D Lock all the doors with the key or wireless remote control
when all the doors are closed.
D Open the driver’s door or front passenger’s door and move
the inside lock buttons of both front doors to the lock
position, then close the front doors.
The power door lock switch can be reset in the following ways.
D Turn the ignition key to the “ON” position.
D Unlock all the doors with the key or wireless remote control.
D Unlock the driver’s door or front passenger’s door with the
inside lock button, and then unlock all the doors with the
power door lock switch.
24
KEYS AND DOORS
Setting the auto door locking and unlocking
functions
You can set the following auto door locking and unlocking
functions.
(a) Locking linked with the shift position
All the doors are locked automatically when the selector lever
is moved out of the “P” position with the ignition switch in the
“ON” position.*
NOTE:
* This function is the default setting for new vehicles.
(b) Unlocking linked with the shift position
All the doors are unlocked automatically when the selector
lever is moved to the “P” position with the ignition switch in the
“ON” position.
(c) Locking linked with the vehicle speed
All the doors are locked automatically when the vehicle speed
reaches 20 km/h (12 mph) or higher. However, if any door is
unlocked during driving, this auto locking function will not
operate until the unlocked door is opened once.
(d) Unlocking linked with opening the driver’s door
All the doors are unlocked automatically when the driver’s door
is opened within 10 seconds after the ignition switch is turned
from “ON” to the “ACC” or “LOCK” position.
Setting the functions
1. Close all the doors.
2. Turn the ignition switch to the “ON” position.
3. Within 10 seconds after the ignition switch is turned to the
“ON” position;
D To set function (a)
Push and hold the front of the power door lock switch for 5
seconds with the selector lever in the “P” position.
D To set function (b)
Push and hold the rear of the power door lock switch for 5
seconds with the selector lever in the “P” position.
D To set function (c)
Push and hold the front of the power door lock switch for 5
seconds with the selector lever in any position except “P”.
D To set function (d)
Push and hold the rear of the power door lock switch for 5
seconds with the selector lever in any position except “P”.
All the doors are automatically lock and unlock when you
release the power door lock switch. This indicates that the
function is set. If all the doors do not lock and unlock, the time
the switch was held may have been too short or too long.
Perform the procedure over again starting from step 1.
If you want to cancel a function, repeat the procedure. Each
time you perform the procedure, the function is set or
cancelled.
25
KEYS AND DOORS
Locking with rear door child−protector
" 1Unlock 2Lock
Whenever small children are in the vehicle, lock the rear
door so that it does not open from the inside. To do this,
move the lever to the lock position as shown on the label
next to the lever.
26
SECTION 1 – 2
INSTRUMENTS AND CONTROLS
Switches
Headlight switch (U.S.A.) 28. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight switch (Canada) 30. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight dimmer and turn signal switch 33. . . . . . . . . . . . . . . . . . . . .
Fog light switch 34. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Windshield wiper and washer switch 34. . . . . . . . . . . . . . . . . . . . . . . . .
Rear window and outside rear view mirror
defogger switch
Power window switches 40. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Emergency flasher switch 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Seat heater switches 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27
SWITCHES
HEADLIGHT SWITCH
(U.S.A.)
“AUTO” position
The headlights and all other lights automatically turn on
depending on the darkness of the surroundings when the
ignition key is in the “ON” position.*
NOTE:
* The sensitivity of the automatic light control sensor can be
changed.
Ask your Lexus dealer for details.
To turn on the lights manually, twist the knob on the end
of the lever.
First clickstop: Only the parking, tail, license plate, side
marker and instrument panel lights turn on.
Second clickstop: Headlights also turn on.
When the headlights are on, the headlight indicator lights up in
the instrument cluster.
With the knob in the “AUTO” position, there may be a case
that the headlights do not turn on immediately, even when
the vehicle enters a dark place such as a tunnel or parking
lot according to lighting conditions. In this case, we
recommend you to twist the knob manually to the second
clickstop to turn on the headlights immediately.
When the headlight switch is turned to the first or second
clickstop, the brightness of the instrument cluster will be
reduced slightly unless the instrument panel light control dial
is turned fully up.
“DRL OFF” position
The daytime running light (DRL) system does not work
when the knob is set in this position.
For details, see the following “Daytime Running Light (DRL)
System”.
28
The automatic light control sensor is on the top of the driver’s
side instrument panel.
Do not place anything on the instrument panel, and/or do not
affix anything on the windshield to block this sensor.
When the headlights are on, they automatically turn off about
30 seconds after any door or trunk lid is opened and closed
with the ignition key turned to the “ACC” or “LOCK” position.*
If you want to turn off the lights immediately, push the “LOCK”
button on the wireless remote control key twice. The lights also
can be turned off immediately by pushing the “LOCK” button
on the wireless remote control key with all the doors locked and
the trunk lid closed.
NOTE:
* The time before turning off the lights can be changed.
Ask your Lexus dealer for details.
SWITCHES
To turn on the lights again, turn the ignition key to the “ON”
position, or twist the knob on the end of lever to the “AUTO”
position and then twist the knob until the first or second
clickstop.
If you are going to park for over one week, make sure the knob
is in the “AUTO” or “DRL OFF” position.
Daytime Running Light (DRL) System
When the knob is set in the “AUTO” position, the headlights
turn on at reduced intensity when the parking brake is released
with the engine started. They will not go off until the ignition
switch is turned off.
The headlights will automatically adjust to full intensity and/or
turn on the other lights depending on the darkness of the
surroundings.
To turn on the other exterior lights and instrument panel lights,
twist the knob to the first clickstop.
Twist the knob to the second clickstop to turn on the headlights
to full intensity for driving at night.
To cancel the DRL system, twist the knob to the “DRL OFF”
position.
NOTICE
To prevent the battery from being discharged, do not
leave the lights on longer than necessary when the
engine is not running.
29
SWITCHES
Automatic headlight leveling system
(vehicles with discharge headlight only)
Vehicle position changes according to loading condition,
passengers getting on and off, vehicle acceleration and
deceleration, etc. However, as the headlight beam level is
always maintained automatically by the system at the proper
level, your headlights do not dazzle other road users.
If this system fails, the warning light in the instrument cluster
comes on. If this occurs, have your vehicle checked by your
Lexus dealer.
If you replace the rear suspension and/or the vehicle height
changes, contact your Lexus dealer to check the automatic
headlight leveling system and headlight beam level.
HEADLIGHT SWITCH
(Canada)
To turn the lights on, twist the knob on the end of the lever.
FIRST CLICKSTOP: Only the parking, tail, license plate, side
marker and instrument panel lights turn on.
SECOND CLICKSTOP: Headlights also turn on.
THIRD CLICKSTOP (“AUTO”): The headlights and all other
lights automatically turn on depending on the darkness of the
surroundings.*
NOTE:
* The sensitivity of the automatic light control sensor can be
changed.
Ask your Lexus dealer for details.
30
With the knob in the “AUTO” position, there may be a case
that the headlights do not turn on immediately, even when
the vehicle enters a dark place such as a tunnel or parking
lot according to lighting conditions. In this case, we
recommend you to twist the knob manually to the second
clickstop to turn on the headlights immediately.
When the tail lights are on, the tail light indicator lights up in the
instrument cluster.
When the headlight switch is turned to the first or second
clickstop, the brightness of the instrument cluster will be
reduced slightly unless the instrument panel light control dial
is turned fully up.
SWITCHES
The automatic light control sensor is on the top of the driver’s
side instrument panel.
Do not place anything on the instrument panel, and/or do not
affix anything on the windshield to block this sensor.
When the headlights are on, they automatically turn off about
30 seconds after any door or trunk lid is opened and closed
with the ignition key turned to the “ACC” or “LOCK” position.*
If you want to turn off the lights immediately, push the “LOCK”
button on the wireless remote control key twice. The lights also
can be turned off immediately by pushing the “LOCK” button
on the wireless remote control key with all the doors locked and
the trunk lid closed.
NOTE:
* The time before turning off the lights can be changed.
Ask your Lexus dealer for details.
31
SWITCHES
To turn on the lights again, turn the ignition key to the “ON”
position, or turn the headlight switch off and then twist the knob
until the first or second clickstop.
If you are going to park for over one week, make sure the
headlight switch is off.
Daytime Running Light System
The headlights turn on at reduced intensity when the parking
brake is released with the engine started, even with the light
switch in the “OFF” position. They will not go off until the
ignition switch is turned off.
To turn on the other exterior lights and instrument panel lights,
twist the knob to the first clickstop.
Twist the knob to the second clickstop to turn on the headlights
to full intensity for driving at night.
When setting the knob to the third clickstop (“AUTO”), the
headlights will automatically adjust to full intensity and/or turn
on the other lights depending on the darkness of the
surroundings. Likewise, as the surroundings become brighter,
the headlights will turn to reduced intensity, ultimately turning
off the other lights.
NOTICE
To prevent the battery from being discharged, do not
leave the lights on longer than necessary when the
engine is not running.
Automatic headlight leveling system
(vehicles with discharge headlight only)
Vehicle position changes according to loading condition,
passengers getting on and off, vehicle acceleration and
deceleration, etc. However, the headlight beam level is always
maintained automatically by the system at the proper level so
that your headlights do not dazzle other road users.
If this system fails, the warning light in the instrument cluster
comes on. If this occurs, have your vehicle checked by your
Lexus dealer.
If you replace the rear suspension and/or the vehicle height
changes, contact your Lexus dealer to check the automatic
headlight leveling system and headlight beam level.
32
HEADLIGHT DIMMER AND TURN
SIGNAL SWITCH
For high beam, push the lever forward. Pull it back for low
beam. For the headlight flasher, pull it further back.
A blue light in the instrument cluster indicates high beam or
headlight flasher is on.
The headlight flasher works even when the headlight switch is
off.
SWITCHES
For signaling turns, move the lever up or down in the
conventional manner.
The ignition key must be in the “ON” position.
The turn signal is self−cancelling after a turn, but after a lane
change, you may have to cancel it by hand. You can also signal
a lane change by moving the turn signal lever partway and
holding it there.
If the green light in the instrument cluster flashes faster than
normal, it indicates that the front or rear turn signal bulb has
burned out. If this indicator light does not come on, the fuse
or the indicator light itself has probably failed.
33
SWITCHES
FOG LIGHT SWITCH
To turn on the fog lights, turn the switch to the “ON”
position. The fog lights come on only when the headlights
are on low beam.
Fog light indicator light in the instrument cluster will tell you that
the fog lights are on.
WINDSHIELD WIPER AND WASHER
SWITCH
Intermittent operation type
" 1Interval adjuster 2Washer on
To turn the wipers on, move the lever down until you reach
the desired speed setting.
The ignition key must be in the “ON” position.
There are 3 settings:
“INT” position: Intermittent operation
“LO” position: Low speed operation
“HI” position: High speed operation
34
SWITCHES
Twist the interval adjuster upward to increase the wiping
time interval between sweeps, and downward to decrease
it.
The wiper lever must be in the “INT” position.
To make the washer squirt, pull the lever toward you and
release it.
Also, the wipers will automatically operate a couple of times
after the washer squirts even with the lever in the “OFF”
position.
The low washer fluid warning light in the instrument cluster
comes on when the fluid level in the tank becomes nearly
empty. For information on adding washer fluid, see “Adding
washer fluid” on page 348.
In cold weather, warm the windshield with the defroster before
using the washer. This will help prevent icing, which could
block your vision.
NOTICE
Do not operate the wipers if the windshield is dry. It may
scratch the glass.
When waxing your vehicle, make sure that the washer nozzles
do not become blocked. If a nozzle becomes blocked, contact
your Lexus dealer to have the vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not try to clear it with
a pin or other object. The nozzle will be damaged.
35
SWITCHES
Raindrop detection type
" 1Automatic control adjuster 2Washer on
To turn the wipers on, move the lever down until you reach
the desired speed setting.
The ignition switch must be in the “ON” position.
There are 3 settings:
“AUTO” position: Automatic operation
“LO” position: Low speed operation
“HI” position: High speed operation
Automatic operation
The wiper speed is determined by the amount of raindrops
and sunlight detected by the automatic wiper control
sensor.
Twist the automatic control adjuster in the “–” direction to
lower the sensitivity, and the “+” direction to boost the
sensitivity.
The sensor is on the inside of the windshield as shown above.
Even if the wiper lever is in the “AUTO” position, the system will
switch to intermittent operations in the following conditions:
D When the windshield gets extremely cold (at less than
–10_C or 14_F)
D When the system malfunctions
However, when the windshield gets extremely hot (at more
than 90_C or 194_F), the wipers do not operate even if the
wiper lever is in the “AUTO” position.
36
SWITCHES
When the ignition switch is turned off with the wiper lever in the
“AUTO” position, and then the ignition switch is turned on
again, the automatic operation may not work even if raindrops
are on the windshield.
In this case, move the lever to another position and return it to
the “AUTO” position again.
CAUTION
Be careful not to get your fingers caught between the
wipers and windshield.
When the wiper lever is in the “AUTO” position with the
ignition switch on, the wipers could operate
automatically in the following cases:
D If you touch the upper center of the windshield
adjacent to the sensor.
D If you wipe the upper center of the windshield
(adjacent to which the sensor is located) with a towel.
D If the windshield vibrates.
D If you touch the sensor.
NOTICE
Do not apply detergent to or wet the automatic wiper
control sensor when cleaning the inside of the
windshield.
To make the washer squirt, pull the lever toward you and
release it.
Also, the wipers will automatically operate a couple of times
after the washer squirts even with the lever in the “OFF”
position.
The low washer fluid warning light in the instrument cluster
comes on when the fluid level in the tank becomes nearly
empty. For information on adding washer fluid, see “Adding
washer fluid” on page 348.
In cold weather, warm the windshield with the defroster before
using the washer. This will help prevent icing, which could
block your vision.
NOTICE
Do not operate the wipers if the windshield is dry. It may
scratch the glass.
When waxing your vehicle, make sure that the washer nozzles
do not become blocked. If a nozzle becomes blocked, contact
your Lexus dealer to have the vehicle serviced.
NOTICE
If a nozzle becomes blocked, do not try to clear it with
a pin or other object. The nozzle will be damaged.
37
SWITCHES
Shifting the windshield wiper position
" 1Rest position 2Retracted position
The wiper blades retract under the hood when the wipers are
turned off.
In the following cases, the wipers should be shifted from the
retracted position (position 2) to the rest position (position 1)
above the hood level.
D When cleaning the windshield
D When inspecting or replacing the wipers
D When the retraction may be obstructed by snow, etc., at the
bottom of the windshield
Other than the above cases, keep the wipers in the retracted
position.
* More than 10 cm (3.9 in.)
SHIFTING TO THE REST POSITION
Hold the connection of the wiper arm and wiper blade and
pull it upward for more than 10 cm (3.9 in.) along the
windshield glass with the force of about 98 N (10 kgf, 22
lbf).
NOTICE
To prevent the wiper blades from being deformed, be
sure to hold the connection of the wiper arm and wiper
blade securely.
38
RETURNING TO THE RETRACTED POSITION
Push the connection of the wiper arm and wiper blade
downward.
SWITCHES
REAR WINDOW AND OUTSIDE
REAR VIEW MIRROR DEFOGGER
SWITCH
NOTICE
To prevent the wiper blades from being deformed, be
sure to hold the connection of the wiper arm and wiper
blade securely.
To turn the electric rear window and outside rear view
mirror defogger on, push the switch.
The ignition key must be in the “ON” position.
The thin heater wires on the inside of the rear window and the
heater panels in the outside rear view mirrors will quickly clear
the surface. An indicator light is on when the defogger is
operating.
The system will automatically shut off when the defogger has
operated about 15 minutes.
39
SWITCHES
CAUTION
Since the mirror surfaces can get hot, do not touch them
when the switch is on.
If further defrosting or defogging is desired, simply actuate the
switch again. When the surface has cleared, push the switch
once again to turn the defogger off. Continuous use may cause
the battery to discharge, especially during stop−and−go
driving. The defogger is not designed to dry rain water or to
melt snow.
If the outside rear view mirrors are heavily coated with ice, use
a spray de−icer before operating the switch.
NOTICE
D When cleaning the inside of the rear window, be
careful not to scratch or damage the heater wires or
connectors.
D To prevent the battery from being discharged, turn
the switch off when the engine is not running.
POWER WINDOW SWITCHES
" 1For driver’s window
2
For front passenger’s window
3
For left rear window
4
For right rear window
To raise or lower the windows, use the switch on each
door. The passengers’ windows can also be controlled by
the switches on the driver’s door.
The power windows work when the ignition key is in the “ON”
position.
Key off operation: Even if the ignition key is turned to the
“ACC” or “LOCK” position with all the doors closed, the window
can be operated until a front door is opened (or for 43
seconds).
40
Operating the switch
To lower the window, push the switch halfway down. Pull
it up to raise the window. The window glass moves as long
as the switch is operated.
Automatic operation: To fully raise or lower the window
automatically, pull the switch fully up or push it fully down.
To stop the window partway, lightly push or pull the switch in
the opposite direction and then release it.
SWITCHES
Operating the window lock switch
"Indicator lights
With the window lock switch pressed in, only the driver’s
window can be raised or lowered.
The indicator lights on the switches tell you which of the
switches can be operated.
41
SWITCHES
Operating the windows from outside the
vehicle
The windows can be opened using an ignition key.*
NOTE:
* This feature can be deactivated.
Ask your Lexus dealer for details.
Insert the ignition key into the key hole on the driver’s
door.
Turn the key in the unlocking direction and hold it.
After the doors are unlocked, the windows begin to open. To
stop in the middle, return the key.
The windows also can be opened using the wireless remote
control. For details, see page 19.
Jam protection function
During automatic raising operation or key off raising operation,
the window stops and is lowered if something gets caught
between the window and window frame.
If the window receives a strong impact, this function may work
even if nothing is caught.
CAUTION
To avoid serious personal injury, you must do the
following.
D Before you close the power windows, always make
sure there is nobody around the power windows. You
must also make sure the heads, hands and other
parts of the bodies of all occupants are kept
completely inside the vehicle. If someone’s neck,
head or hands get caught in a closing window, it
could result in a serious injury. When anyone closes
the power windows, make sure he or she operates the
windows safely.
D When small children are in the vehicle, never let them
use the power window switches without supervision.
Use the window lock switch to prevent them from
making unexpected use of the switches.
42
SWITCHES
D Never leave small children alone in the vehicle,
especially with the ignition key still inserted. They
could use the power window switches and get
trapped in a window. Unattended children can be
involved in serious accidents.
D Never try jamming any part of your body to make the
jam protection function work intentionally.
D The jam protection function may not work if
something gets caught just before the window fully
closed.
EMERGENCY FLASHER SWITCH
To turn on the emergency flashers, push the switch.
All the turn signal lights will flash. The emergency flashers will
work with the engine running or off and with or without the
ignition key.
Turn on the emergency flashers to warn other drivers if you
must stop your vehicle where it might be a traffic hazard.
Always pull your vehicle as far off the road as possible.
The turn signal light switch will not work when the emergency
flashers are in operation.
43
SWITCHES
NOTICE
To prevent the battery from being discharged, do not
leave the switch on longer than necessary when the
engine is not running.
SEAT HEATER SWITCHES
" 1For driver’s seat 2For front passenger’s seat
To turn on the seat heater, push the switch. At this time,
the indicator lamp comes on.
The ignition switch must be in the “ON” position.
Each time you push the switch, the mode changes in order
from the “HI” (high heating temperature) mode to “LO” (low
heating temperature) mode to off.
The seat heater automatically changes to off mode when the
ignition switch is turned to the “ACC” or “LOCK” position.
When the ignition switch is turned to the “ON” position again,
the seat heater remains off until the switch is pushed.
44
SWITCHES
CAUTION
Occupants must use caution when operating the seat
heater because they may experience minor burns even
at low temperatures. Use extra caution for;
D Babies, small children, elderly persons, sick persons
or handicapped persons
D Persons who have delicate skin
D Persons who are exhausted
D Persons who have taken alcohol or drugs which
induce sleep (sleeping drug, cold remedy, etc.).
To prevent the seat from overheating, do not use the
seat heater with a blanket, cushion, or other insulating
objects which cover the seat.
NOTICE
D Do not put unevenly weighted objects on the seat and
do not stick sharp objects (needles, nails, etc.) into
the seat.
D When cleaning the seats, do not use organic
substances (paint thinner, benzine, alcohol,
gasoline, etc.). They may damage the heater and seat
surface.
D To prevent the battery from being discharged, turn
the switches off when the engine is not running.
45
SWITCHES
46
SECTION 1 – 3
INSTRUMENTS AND CONTROLS
Gauges, meters and service reminder indicators
Fuel gauge 48.
Engine coolant temperature gauge 48. . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Odometer and trip meter 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 50. . . . . . . . . . . . . .
Multi−information display 59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control 61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Finish
47
GAUGES, METERS AND SERVICE REMINDER INDICATORS
Finish
FUEL GAUGE
"Low fuel level warning light
The gauge is displayed when the ignition switch is on and
indicates the approximate quantity of fuel remaining in the
tank.
It is a good idea to keep the tank over 1/4 full.
If the fuel level approaches “E” or the low fuel level warning light
comes on, fill the fuel tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank,
the fuel gauge needle may fluctuate or the low fuel level
warning light may come on earlier than usual.
If the fuel tank is completely empty, the malfunction indicator
lamp comes on. Fill the fuel tank immediately.
The indicator lamp goes off after driving several times. If the
indicator lamp does not go off, contact your Lexus dealer as
soon as possible.
See the inner back cover for fuel capacity and recommended
fuel selection.
ENGINE COOLANT
TEMPERATURE GAUGE
"Normal range
The gauge indicates the engine coolant temperature when
the ignition switch is on. The engine operating
temperature will vary with changes in weather and engine
load.
If the needle points to the red zone or higher, stop your vehicle
and allow the engine to cool.
48
GAUGES, METERS AND SERVICE REMINDER INDICATORS
Finish
Your vehicle may overheat during severe operating conditions,
such as:
D Driving up a long hill on a hot day.
D Reducing speed or stopping after high speed driving.
D Idling for a long period with the air conditioning on in
stop−and−go traffic.
D Towing a trailer.
NOTICE
D Do not remove the thermostat in the engine cooling
system as this may cause the engine to overheat. The
thermostat is designed to control the flow of coolant
to keep the temperature of the engine within the
specified operating range.
D Do not continue driving with an overheated engine.
See “If your vehicle overheats” on page 269.
TACHOMETER
13E064
The tachometer indicates engine speed in thousands of
rpm (revolutions per minute). Use it while driving to
prevent engine over−revving.
Driving with the engine running too fast causes excessive
engine wear and poor fuel economy. Remember, in most
cases the slower the engine speed, the greater the fuel
economy.
NOTICE
Do not let the indicator needle get into the red zone. This
may cause severe engine damage.
49
GAUGES, METERS AND SERVICE REMINDER INDICATORS
Finish
ODOMETER AND TRIP METER
"Trip meter reset knob
This meter displays the odometer and two trip meters. To
change the mode indication, push the trip meter reset
knob briefly. Each time you push the knob, the mode
changes in order from the odometer to trip meter A to trip
meter B, then back to the odometer.
The odometer records the total distance the vehicle has
been driven. The twin trip meter records two different
distances independently.
For example, you can use one meter to calculate the fuel
economy and the other to measure the distance on each trip.
To set the A trip meter to zero, display the A meter reading,
push the knob and hold it. The same applies for the B trip
meter.
The data of trip meters will be cancelled if the electrical power
source is disconnected.
50
SERVICE REMINDER INDICATORS
AND WARNING BUZZERS
IF THIS INDICATOR OR
BUZZER COMES ON ...
(a)
or
(b)
(indicator and buzzer)
(c)
(on the center console)
(d)
(e)
DO THIS.
If parking brake is off,
stop immediately and
contact Lexus dealer.
Fasten driver’s seat
belt.
Fasten front
passenger’s seat belt.
Take vehicle to Lexus
dealer immediately.
Stop and check.
GAUGES, METERS AND SERVICE REMINDER INDICATORS
Finish
IF THIS INDICATOR OR
BUZZER COMES ON ...
(f)
(g)
(h)
(i)
or
(j)
(k)
DO THIS.
Stop and check.
Add engine oil.
Take vehicle to Lexus
dealer.
Take vehicle to Lexus
dealer.
Close all doors.
Replace bulb.
IF THIS INDICATOR OR
BUZZER COMES ON ...
(l)
(m)
(n)
Low fuel level
(o)
warning light
(p)
Key reminder buzzer
DO THIS.
Take vehicle to Lexus
dealer.
Add washer fluid.
Take vehicle to Lexus
dealer.
Fill up tank.
Remove key.
51
GAUGES, METERS AND SERVICE REMINDER INDICATORS
Finish
(a) Brake System Warning Light
This light comes on in the following cases when the ignition key
is in the “ON” position.
D When the parking brake is applied ...
This light comes on for a few seconds when the ignition key is
turned to the “ON” position even after the parking brake is
released.
D When the brake fluid level is low ...
CAUTION
It is dangerous to continue driving normally when the
brake fluid level is low.
Have your vehicle checked at your Lexus dealer in the
following cases.
D The light does not come on even if the parking brake is
applied when the ignition key is in the “ON” position.
D The light does not come on even if the ignition key is turned
on with the parking brake released.
A warning light turning on briefly during operation does not
indicate a problem.
CAUTION
If either of the following conditions occurs, immediately
stop your vehicle at a safe place and contact your Lexus
dealer.
D The light does not turn off even after the parking
brake is released while the engine is running.
In this case, the brakes may not work properly and
your stopping distance will become longer. Depress
the brake pedal firmly and bring the vehicle to an
immediate stop.
D The brake system warning light remains on together
with the “ABS” warning light.
In this case, not only the anti−lock brake system will
fail but also the vehicle will become extremely
unstable during braking.
(b) Driver’s Seat Belt Reminder Light and
Buzzer
This light and buzzer remind you to buckle up the driver’s seat
belt.
Once the ignition key is turned to “ON” or “START”, the
reminder light and buzzer come on if the driver’s seat belt is not
fastened. Unless the driver fastens the belt, the light stays on
and the buzzer stops after about 4 to 8 seconds.
52
GAUGES, METERS AND SERVICE REMINDER INDICATORS
Finish
(c) Front Passenger’s Seat Belt Reminder
Light
This light reminds you to buckle up the front passenger’s seat
belt.
Once the ignition key is turned to the “ON” position, the
reminder light flashes if a front passenger sits in the front
passenger seat and does not fasten the seat belt. Unless the
front passenger fastens the belt, the light keeps flashing.
If luggage load is placed on the front passenger seat,
depending on its weight and how it is placed on the seat,
built−in sensors in the seat cushion may detect the pressure,
causing the reminder light to come on.
(d) SRS Warning Light
This light comes on when the ignition key is turned to the
“ON” position. It goes off after about 6 seconds. This
means the SRS airbags and seat belt pretensioners are
operating properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver’s seat position sensor, driver’s seat belt buckle switch,
front seat belt pretensioner assemblies, inflators, warning light,
interconnecting wiring and power sources.
If any of the following conditions occurs, this indicates a
malfunction somewhere in the parts monitored by the warning
light system. Contact your Lexus dealer as soon as possible
to service the vehicle.
D When the ignition switch is turned to the “ON” position, the
light does not come on, remains on or flashes.
D The light comes on or starts flashing while driving.
If the light stays on, it indicates that the driver and front
passenger airbags fail. If the light flashes, the side and curtain
shield airbags and/or seat belt pretensioners fail.
(e) Discharge Warning Light
This light warns that the battery is being discharged.
If it comes on while you are driving, stop the vehicle, turn off the
engine, and check for the cause. Look first at the engine drive
belt.
D If it is loose or broken, the generator will not charge the
battery properly.
D If the belt is O.K., there is a problem somewhere in the
charging system.
The engine ignition will continue to operate, however, until the
battery is discharged. Turn off the air conditioning, blower,
radio, etc., and drive directly to the nearest Lexus dealer or
repair shop.
53
GAUGES, METERS AND SERVICE REMINDER INDICATORS
Finish
NOTICE
Do not continue driving if the engine drive belt is broken
or loose.
(f) Low Engine Oil Pressure Warning Light
This light warns that the engine oil pressure is too low.
If it flickers or stays on while you are driving, pull off the road
to a safe place and stop the engine immediately. Call a Lexus
dealer or qualified repair shop for assistance.
The light may occasionally flicker when the engine is idling or
it may come on briefly after a hard stop. There is no cause for
concern if it then goes out when the engine is accelerated
slightly.
The light may come on when the oil level is extremely low. It
is not designed to indicate low oil level, and the oil level must
be checked using the oil level dipstick.
NOTICE
Do not drive the vehicle with the warning light on − even
for one block. It may ruin the engine.
(g) Low Engine Oil Level Warning Light
This light warns that the engine oil level is too low. Add oil as
soon as possible. (For instructions, see “Checking the engine
oil level” on page 311.)
While driving on steep inclines or rough roads which causes
the vehicle to substantially sway or on curves, this light may
come on due to the movement of engine oil in the engine.
In normal conditions, due to engine oil consumption, this light
may come on earlier than the specified service interval of the
scheduled maintenance. This is because the engine oil is
consumed to the low level within the scheduled maintenance
interval and does not indicate a problem. (For detailed
information, see “Facts about engine oil consumption” on page
309.)
NOTICE
Continued engine operation with low engine oil will
damage the engine.
(h) Malfunction Indicator Lamp
This lamp comes on when the ignition key is turned to the
“ON” position and goes off after the engine starts. This
means that the warning light system is operating properly.
If the lamp remains on, or the lamp comes on while
driving, first check the followings.
54
GAUGES, METERS AND SERVICE REMINDER INDICATORS
Finish
D Empty fuel tank
If the fuel tank is empty, refuel immediately.
D Loose fuel tank cap
If the fuel tank cap is loose, securely tighten it.
These cases are temporary malfunctions. The malfunction
indicator lamp will go off after taking several driving trips.
If the lamp will not go off even after the several trips, contact
your Lexus dealer as soon as possible.
If the fuel tank is not empty or the fuel tank cap is not
loose...
D There is a problem somewhere in the engine, emission
control system, electronic throttle control system, automatic
transmission electrical system or warning light system itself.
Contact your Lexus dealer as soon as possible to service the
vehicle.
If the engine speed does not increase with the accelerator
pedal depressed down, there may be a problem somewhere
in your electronic throttle control system.
At this time, vibration may occur. However, if you depress the
accelerator pedal more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle checked by your
Lexus dealer as soon as possible.
Even if the abnormality of the electronic throttle control system
is corrected during low speed driving, the system may not be
recovered until the engine is stopped and the ignition key is
turned to “ACC” or “LOCK” position.
CAUTION
Be especially careful to prevent erroneous pedal
operation.
Emissions Inspection and Maintenance (I/M) programs
Your vehicle may not pass a state emission inspection if the
malfunction indicator lamp remains on. Contact your Lexus
dealer to check your vehicle’s emission control system and
OBD (On−Board Diagnostics) system before taking your
vehicle for the inspection.
For details, see “Emissions Inspection and Maintenance (I/M)
programs” on page 293.
(i) “ABS” Warning Light
Vehicles without vehicle skid control system—
The light comes on with the ignition key turned to the “ON”
position. If the anti−lock brake system works properly, the light
turns off after a few seconds. Thereafter, if the system
malfunctions, the light comes on again.
When the “ABS” warning light is on (and the brake system
warning light is off), the anti−lock brake system does not
operate, but the brake system still operates conventionally.
When the “ABS” warning light is on (and the brake system
warning light is off), the anti−lock brake system does not
operate so that the wheels could lock up during a sudden
braking or braking on slippery road surfaces.
55
GAUGES, METERS AND SERVICE REMINDER INDICATORS
Finish
If either of the following conditions occurs, this indicates
a malfunction somewhere in the parts monitored by the
warning light. Contact your Lexus dealer as soon as
possible to service the vehicle.
D The light does not come on when the ignition key is turned
to the “ON” position, or remains on.
D The light comes on while you are driving.
A warning light turning on briefly during operation does not
indicate a problem.
CAUTION
If the “ABS” warning light remains on together with the
brake system warning light, immediately stop your
vehicle at a safe place and contact your Lexus dealer.
In this case, not only the anti−lock brake system will fail
but also the vehicle will become extremely unstable
during braking.
Vehicles with vehicle skid control system—
The light comes on with the ignition key turned to the “ON”
position. If the anti−lock brake system and the brake assist
system work properly, the light turns off after a few seconds.
Thereafter, if the system malfunctions, the light comes on
again.
When the “ABS” warning light is on (and the brake system
warning light is off), the anti−lock brake system, the brake
assist system, the traction control system and the vehicle skid
control system do not operate, but the brake system still
operates conventionally.
When the “ABS” warning light is on (and the brake system
warning light is off), the anti−lock brake system does not
operate so that the wheels could lock up during a sudden
braking or braking on slippery road surfaces.
If either of the following conditions occurs, this indicates
a malfunction somewhere in the parts monitored by the
warning light. Contact your Lexus dealer as soon as
possible to service the vehicle.
D The light does not come on when the ignition key is turned
to the “ON” position, or remains on.
D The light comes on while you are driving.
A warning light turning on briefly during operation does not
indicate a problem.
CAUTION
If the “ABS” warning light remains on together with the
brake system warning light, immediately stop your
vehicle at a safe place and contact your Lexus dealer.
In this case, not only the anti−lock brake system will fail
but also the vehicle will become extremely unstable
during braking.
56
GAUGES, METERS AND SERVICE REMINDER INDICATORS
Finish
(j) Open Door Warning Light
This light remains on until all the doors are completely closed.
(k) Rear Light Failure Warning Light
If this light comes on when the headlight switch is turned on (at
the first or second clickstop), it indicates that one or more of the
tail lights are burned out.
If it comes on when the brake pedal is depressed, one or more
stop lights are burned out.
Have defective bulbs replaced as soon as possible.
(l) Vehicle Skid Control System/Traction
Control System Warning Light
This light warns that there is a problem somewhere in the
vehicle skid control system or traction control system.
The light will come on when the ignition key is turned to “ON”
and will go off after a few seconds.
If the light comes on while driving, the system does not work.
However, as conventional braking operates when applied,
there is no problem to continue your driving.
In the following cases, contact your Lexus dealer:
D The warning light does not come on after the ignition key is
turned to “ON”.
D The warning light remains on after the ignition key is turned
to “ON”.
D The warning light comes on while driving.
The “TRAC OFF” indicator light will come on when the “VSC”
warning light comes on even if the “TRAC OFF” switch is not
pushed.
(m) Low Washer Fluid Warning Light
This light comes on when the fluid level in the tank becomes
nearly empty. Fill the tank as soon as possible.
(n) Automatic Headlight Leveling System
Warning Light (vehicles with discharge
headlight only)
This light warns that when there is a problem somewhere
in the automatic headlight leveling system.
If it comes on, have your vehicle checked by your Lexus dealer.
(o) Low Fuel Level Warning Light
This light comes on when the fuel level in the tank becomes
nearly empty. Fill the tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank,
the low fuel level warning light may come on earlier than usual.
(p) Key Reminder Buzzer
This buzzer reminds you to remove the key when you open the
driver’s door with the ignition key in the “ACC” or “LOCK”
position.
57
GAUGES, METERS AND SERVICE REMINDER INDICATORS
Finish
How to check all the service reminder
indicators
(except the low fuel level warning light and low washer
fluid warning light):
1. Apply the parking brake.
2. Open the door.
The following service reminder indicator should come on. It
goes off when you close the door completely.
3. Turn the ignition key to “ON”.
The following service reminder indicators should come on.
or
w069
or
The following service reminder indicators go off after a few
seconds.
or
w069
The following service reminder indicator goes off after 6
seconds.
If any service reminder indicator or warning buzzer does not
function as described above, have it checked by your Lexus
dealer as soon as possible.
58
GAUGES, METERS AND SERVICE REMINDER INDICATORS
Finish
MULTI−INFORMATION DISPLAY
13E068
The following information is displayed in the instrument
cluster when you push the “MODE” button with the
ignition switch turned on.
Each time you push the “MODE” button, the display
toggles through this information.
(1) Instantaneous fuel consumption
(2) Average fuel consumption
(3) Driving range
(4) Average vehicle speed
(5) Driving time
The displayed values in the multi−information display indicate
general driving conditions. Accuracy varies with driving habits
and road conditions.
When the ignition switch is on, the last previously used mode
displayed just before the ignition switch is off will appear.
If the electrical power source has been disconnected from the
multi−information display, the display will automatically be set
to the initial mode.
When the instrument panel lights are turned on, the brightness
of the display will be reduced.
CAUTION
Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.
59
GAUGES, METERS AND SERVICE REMINDER INDICATORS
Finish
(1) Instantaneous fuel consumption
(“MPG” or “L/100km”)
The instantaneous fuel consumption is calculated and
displayed based on distance and fuel consumption for 2
seconds with the engine running.
The displayed value is updated every 2 seconds.
Note that an accurate figure may not be shown in the following
cases.
D When the vehicle is stopped with the engine running, the
display will indicate the extremely high fuel consumption.
D When the vehicle is driving down a long slope, applying the
engine brake, the display will indicate the extremely low fuel
consumption.
The calculation is reset when the ignition switch is turned off.
(2) Average fuel consumption
(“AVG. MPG” or “AVG. L/100 km”)
Average fuel consumption is calculated and displayed
based on total driving distance and total fuel consumption
with the engine running.
The displayed value is updated every 10 seconds.
To reset the calculations, push the “RESET” button.
(3) Driving range
(“RANGE MI” or “RANGE km”)
The distance the vehicle can travel with the remaining fuel
is calculated and displayed based on the quantity of
remaining fuel and past fuel consumption.
The driving range display indicates the approximate distance
that you can drive until the fuel gauge reaches “E”. It is different
from the actual distance traveled.
The displayed value is updated every time the fuel equivalent
for 1 mile or 1 km is consumed.
Every time you refuel the vehicle, the calculation is reset.
The actual driving range varies with driving habits and road
conditions. If fuel consumption is good, the driving range will
be longer. If fuel consumption is poor, the driving range will be
shorter.
If the low fuel level warning light comes on, refuel even if the
display indicates that the vehicle can be driven further.
(4) Average vehicle speed
(“AVG. MPH” or “AVG. km/h”)
Average vehicle speed is calculated and displayed based
on total driving distance and total driving time with the
engine running.
The displayed value is updated every 10 seconds.
To reset the calculations, push the “RESET” button.
60
GAUGES, METERS AND SERVICE REMINDER INDICATORS
Finish
(5) Driving time
(“E/T”)
The elapsed time after the engine starts is displayed.
When the engine is started, driving time is counted from 0:00.
Up to 99:59 (99 hours, 59 minutes) can be displayed. When
the driving time exceeds 99:59, the counter returns to 0:00.
To reset the calculations, push the “RESET” button.
INSTRUMENT PANEL LIGHT
CONTROL
To adjust the brightness of the instrument panel lights,
turn the dial.
With the dial turned fully up, the intensity of the instrument
panel lights will not be reduced when the headlight switch is on.
If the instrument panel light control dial is turned fully down, the
foot lights will turn off.
61
GAUGES, METERS AND SERVICE REMINDER INDICATORS
Finish
62
SECTION 1 – 4
INSTRUMENTS AND CONTROLS
Interior equipment
Vanity mirrors 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior light 65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Personal lights 66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Illuminated entry system 66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 67. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray 68. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet 69. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove box 70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear console box 70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Garage door opener 71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cup holders 74. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Overhead console box 75. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary boxes 76. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat 77. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Grocery bag hook 78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coat hooks 79. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear electric sunshade 79. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tie−down hooks 80. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage stowage precautions 81. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Finish
63
INTERIOR EQUIPMENT
VANITY MIRRORS
To use the vanity mirror, swing the sun visor down and
open the cover.
Finish
To turn on the vanity light, slide the switch.
The vanity light switch has the following positions:
“ON”—Turns the light on when you swing down the sun visor.
However, if the visor has been slid out, the light may not come
on.
“OFF”—Turns the light off.
64
INTERIOR EQUIPMENT
Finish
Sun visors
1
To block out glare from the front , swing the sun visor
down.
2
To block out glare from the side, remove the sun visor
from the hook and swing it to the side.
3
To block out glare coming obliquely from behind you,
slide the visor backward.
At this position, the vanity light does not come on.
INTERIOR LIGHT
14E130
To turn on the interior light, slide the switch.
The interior light switch has the following positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any of the doors is opened.
The light goes off when all the doors are closed. For details,
see “Illuminated entry system” on page 66.
65
INTERIOR EQUIPMENT
Finish
PERSONAL LIGHTS
To turn on the personal light, push the switch. To turn it
off, push the switch again.
ILLUMINATED ENTRY SYSTEM
14E133
1
"
Ignition switch light
2
Interior light (with the “DOOR” position)
3
Door courtesy lights
4
Foot lights
66
INTERIOR EQUIPMENT
Finish
All of the lights will come on when any of the doors are
opened.* After all the doors are closed, the lights remain
on for about 15 seconds before fading out.**
NOTE:
* The operating condition can be changed.
** The duration of lighting can be changed and only the foot
lights can be set not to come on.
Ask your Lexus dealer for details.
However, in the following cases, the lights go out immediately:
D All the doors are closed and the ignition key is in the “ACC”
or “ON” position. (The foot lights come on when the ignition
switch is in the “ON” position. See the following “Foot
lights”.)
D All the doors are locked.
When all the doors are unlocked simultaneously using either
the key or the wireless remote control, all of the lights will come
on and remain on for about 15 seconds before fading out.
Foot lights
The foot lights also come on when the ignition switch is in the
“ON” position with the selector lever in the “P” position. When
the selector lever is moved out of the “P” position, the foot lights
will be dimmed.*
NOTE:
* The foot lights can be set to turn off when the selector lever
is moved out of the “P” position.
Ask your Lexus dealer for details.
When the instrument panel light control dial is turned fully
down, the foot lights will turn off.
CLOCK
The digital clock indicates the time with the ignition key at
the “ACC” or “ON” position. To reset the hour, press the
“H” button. To reset the minutes, press the “M” button.
To adjust the time to the nearest hour, press the “:00”
button.
For example, if the “:00” button is pressed when the time is
between 9:30 − 9:59 or between 10:01 − 10:29, the time will
change to 10:00.
With the tail lights on, the brightness of the time indication will
be reduced.
If the electrical power source has been disconnected from the
clock, the time display will automatically be set to 1:00 (one
o’clock).
67
INTERIOR EQUIPMENT
Finish
CIGARETTE LIGHTER AND
ASHTRAY
"Cigarette lighter and ashtray
To use the cigarette lighter and ashtray, first push against
the ashtray cover. Then when the ashtray opens out,
press in the cigarette lighter. After it finishes heating up,
it automatically pops out ready for use.
Do not hold the cigarette lighter pressed in.
If the engine is not running, the ignition key must be in the
“ACC” position to use the lighter.
When finished with your cigarette, thoroughly extinguish it in
the ashtray to prevent other cigarette butts from catching fire.
After using the ashtray, push it back in completely.
To remove the ashtray, just pull it up.
Use a Lexus genuine cigarette lighter or equivalent for
replacement.
When finished with your cigarette, thoroughly extinguish it in
the ashtray to prevent other cigarette butts from catching fire.
After using the ashtray, close the lid completely.
To remove the ashtray, pull it out while pressing on the snuffer
bridge to release the catch.
CAUTION
To reduce the chance of injury in case of an accident or
sudden stop while driving, always completely close the
ashtray after use.
68
INTERIOR EQUIPMENT
Finish
POWER OUTLET
The power outlet is designed for power supply for car
accessories.
The ignition key must be in the “ACC” or “ON” position for the
power outlet to be used.
NOTICE
D To prevent the fuse from being blown, do not use the
electricity over the total vehicle capacity of
12V/120W.
D To prevent the battery from being discharged, do not
use the power outlet longer than necessary when the
engine is not running.
D Close the power outlet lid when the power outlet is
not in use. Inserting a foreign object other than the
appropriate plug that fits the outlet, or allowing any
liquid into the outlet may cause electrical failure or
short circuits.
69
INTERIOR EQUIPMENT
Finish
GLOVE BOX
" 1Unlock 2Open 3Lock
To open the glove box door, pull the lever. To lock the
glove box door, insert the master key and turn it
clockwise.
With the tail lights on, the glove box light will come on when the
glove box door is open.
The trunk lid opener main switch is installed inside the glove
box. See page 85 for further information.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the glove box door closed
while driving.
REAR CONSOLE BOX
14E104
1
"
Upper tray 2Console box
To access the upper tray, push the lock release button and
raise the lid. To access the console box, pull up the lock
release lever and raise the lid.
The rear console box light comes on when the tail lights are
turned on.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the rear console box closed
while driving.
70
INTERIOR EQUIPMENT
Finish
GARAGE DOOR OPENER
The garage door opener (HomeLink
Transceiver) is manufactured under license from
HomeLink
doors, gates, entry doors, door locks, home lighting
systems, and security systems, etc.
R
and can be programmed to operate garage
(a) Programming the HomeLink
" 1Indicator light 2 Buttons
R
The HomeLink
store one program for each button.
To ensure correct programming into the HomeLink
new battery in the hand−held transmitter prior to programming.
in your vehicle has 3 buttons and you can
R
Universal
R
R
, install a
The battery side of the hand−held transmitter must be pointed
away from the HomeLink
For Canadian users, follow the procedure in “Programming an
entrance gate/Programming all devices in the Canadian
market”.
1. Decide which of 3 HomeLink
2. Place your hand−held garage transmitter 25 to 75 mm (1 to
3 in.) away from the surface of the HomeLink
Keep the indicator light on the HomeLinkR in view while
programming.
3. Simultaneously press and hold the hand−held garage
transmitter button along with the selected HomeLinkR button.
4. When the indicator light on the HomeLinkR changes from a
slow to a rapid flash after 20 seconds, you can release both
buttons.
5. Test the operation of the HomeLink
programmed button. If programming a garage door opener,
check to see if the garage door opens and closes.
R
during the programming process.
R
buttons you want to program.
R
.
R
by pressing the newly
71
INTERIOR EQUIPMENT
Finish
If the garage door does not operate, identify if your garage
transmitter is of the “Rolling Code” type. Press and hold the
programmed HomeLink
rolling code feature if the indicator light (on the HomeLink
R
button. The garage door has the
R
flashes rapidly and then remains lit after 2 seconds. If your
garage transmitter is the “Rolling Code” type, proceed to the
heading “Programming a rolling code system”.
6. Repeat steps 2 through 5 for each remaining HomeLink
button to program another device.
Programming a rolling code system
If your device is “Rolling Code” equipped, it is necessary
to follow steps 1 through 4 under the heading
“Programming the HomeLink
the steps listed below.
1. Locate the “training” button on the ceiling mounted garage
door opener motor. The exact location and color of the button
may vary by brand of garage door opener. Refer to the owner’s
guide supplied by the garage door opener manufacturer for the
location of this “training” button.
2. Press the “training” button on the ceiling mounted garage
door opener motor.
Following this step, you have 30 seconds in which to initiate
step 3 below.
R
” before proceeding with
3. Press and release the vehicle’s programmed HomeLink
R
button twice. The garage door may open. If the door does
open, the programming process is complete. If the door does
)
not open, press and release the button a third time. This third
press and release will complete the programming process by
opening the garage door.
R
The ceiling mounted garage door opener motor should now
recognize the HomeLink
R
unit and be able activate the garage
door up/down.
4. Repeat steps 1 through 3 for each remaining HomeLink
R
button to program another rolling code system.
Programming an entrance gate /
Programming all devices in the Canadian
market
1. Decide which of the 3 HomeLinkR buttons you want to
program.
2. Place your hand−held gate/device transmitter 25 to 75 mm
(1 to 3 in.) away from the surface of the HomeLink
Keep the indicator light on the HomeLinkR in view while
programming.
3. Press and hold the selected HomeLink
R
4. Continuously press and release (cycle) the hand−held
gate/device transmitter button every two seconds until step 5
is complete.
5. When the indicator light on the HomeLink
slow to a rapid flash after 20 seconds, you can release both
buttons.
R
.
button.
R
changes from a
72
INTERIOR EQUIPMENT
Finish
6. Test the operation of the HomeLink
programmed button. Check to see if the gate/device operates
correctly.
7. Repeat steps 1 through 6 for each remaining HomeLink
button to program another device.
R
by pressing the newly
Programming other devices
To program other devices such as home security systems,
home door locks or lighting, contact your authorized Lexus
dealer for assistance.
Reprogramming a button
Individual HomeLink
reprogram a single button, follow the procedure “Programming
the HomeLink
(b) Operating the HomeLink
To operate the HomeLinkR, press the appropriate HomeLink
button to activate the programmed device. The HomeLink
indicator light should come on. The HomeLinkR continues to
send the signal for up to 20 seconds as long as the button is
pressed.
R
buttons cannot be erased, however, to
R
”.
R
(c) Erasing the entire HomeLinkR memory
(all three programs)
R
To erase all previously programmed codes at one time, press
and hold down the 2 outside buttons for 20 seconds until the
indicator light flashes.
If you sell your vehicle, be sure to erase the programs stored
in the HomeLink
R
memory.
CAUTION
D When programming the HomeLinkR Universal
Transceiver, you may be operating a garage door or
other device. Make sure people and objects are out
of the way of the garage door or other device to
prevent potential harm or damage.
R
D Do not use this HomeLink
R
R
with any garage door opener that lacks the safety
stop and reverse feature as required by federal safety
standards. (This includes any garage door opener
model manufactured before April 1, 1982.) A garage
door opener which cannot detect an object (signaling
the door to stop and reverse), does not meet current
federal safety standards. Using a garage door
opener without these features increases risk of
serious injury or death.
Universal Transceiver
73
INTERIOR EQUIPMENT
FCC ID: CB2V94800
CANADA: 1763 102 264
This device complies with FCC Rules Part 15.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
and (2) this device must accept any interference that
may be received, including interference that may
cause undesired operation. WARNING: This
transmitter has been tested and complies with
FCC and DOC/MDC rules. Changes or
modifications not expressly approved by the party
responsible for compliance could void the user’s
authority to operate the device.
Finish
CUP HOLDERS
"Front cup holder
To use the front cup holder, push the cup holder portion
of the rear console box.
74
"Rear cup holder
To use the rear cup holder, pull down the armrest and open
the cover.
The cup holder is designed for holding cups or drink−cans
securely.
Finish
INTERIOR EQUIPMENT
OVERHEAD CONSOLE BOX
To use the overhead console box, push the lid.
CAUTION
CAUTION
D Do not place anything else other than cups or
drink−cans in the cup holder, as such items may be
thrown about in the compartment and possibly injure
people in the vehicle during sudden braking or in an
accident.
D To reduce the chance of injury in case of an accident
or sudden stop while driving, keep the cup holder
closed when not in use.
D To reduce the chance of injury in case of an accident
or a sudden stop, always keep the overhead console
box closed while driving.
D As this box is designed for holding eyeglasses, do
not place any object heavier than approximately 60 g
(0.13 lb.) in it. Heavier objects may cause the box to
open and the contents to fly out resulting in injuries.
75
INTERIOR EQUIPMENT
Finish
NOTICE
During hot weather, the interior of the vehicle becomes
very hot. Do not leave anything flammable or
deformable such as a lighter, glasses, etc. inside.
AUXILIARY BOXES
To use them, open as shown in the following illustrations.
"On the instrument panel
To remove the adapter tray inside of the box, pull it up.
76
"In the trunk
Finish
INTERIOR EQUIPMENT
FLOOR MAT
14E116
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the auxiliary box closed
while driving.
Use a floor mat of the correct size.
If the floor carpet and floor mat have 2 holes, then they are
designed for use with locking clips. Fix the floor mat with
locking clips into the holes in the floor carpet.
77
INTERIOR EQUIPMENT
Finish
GROCERY BAG HOOK
14E125
CAUTION
Make sure the floor mat is properly placed on the floor
carpet. If the floor mat slips and interferes with the
movement of the pedals during driving, it may cause an
accident.
78
To use the grocery bag hook, push the lower portion of the
hook.
This hook is designed for hanging things like a grocery bag.
NOTICE
To prevent damage to the hook, do not hang any object
heavier than approximately 3 kg (7 lb.) on it.
INTERIOR EQUIPMENT
Finish
COAT HOOKS
To use the coat hook, push the hook.
CAUTION
Do not hook a hanger, heavy or sharp pointed object on
the coat hook. If the curtain shield airbag inflates, those
items will be hurled away with great force or the curtain
shield airbag may not activate correctly. When you
hang clothes, hang them on the coat hook directly.
REAR ELECTRIC SUNSHADE
14E137
To raise the rear electric sunshade, push the switch. To
lower the sunshade, push the same switch again.
The sunshade works when the ignition switch is in the “ON”
position.
When the selector lever is shifted into the “R” position
while the sunshade is raised, the sunshade will be
automatically lowered. To raise the sunshade, move the
selector lever out of “R” position and push the switch
again.
79
INTERIOR EQUIPMENT
Finish
CAUTION
D Do not touch the brackets fastening the sunshade to
avoid injuring your fingers or hands.
D Do not put your fingers in the sunshade groove while
the sunshade is operating to avoid getting them
caught or injured by the runner.
NOTICE
D To prevent the vehicle battery from being discharged,
always operate the sunshade while the engine is
running.
D Observe the following to avoid damage and/or
malfunction:
Do not overload the sunshade motor and other parts
(for instance by pushing down on the sunshade
bracket while it is opening).
Do not place anything where they may hinder the
opening/closing of the sunshade.
Do not affix anything to the sunshade.
Clean the sunshade groove if there is any foreign
matter or dust on it.
Do not operate the rear electric sunshade repeatedly
for a long time as its motor may overheat.
TIE−DOWN HOOKS
14E092
To secure your luggage, use the tie−down hooks as
shown above.
See “Luggage stowage precautions” on page 81 for
precautions in loading luggage.
80
INTERIOR EQUIPMENT
Finish
LUGGAGE STOWAGE
PRECAUTIONS
When stowing luggage or cargo in the vehicle, observe
the following:
D Put luggage or cargo in the trunk when at all possible. Be
sure all items are secured in place.
D Be careful to keep the vehicle level. Placing the weight as
far forward as possible helps maintain vehicle balance.
D For better fuel economy, do not carry unnecessary weight.
CAUTION
D Do not place anything on the package tray behind the
rear seatback. Such items may be thrown about and
possibly injure people in the vehicle during sudden
braking or an accident.
D Do not drive with objects left on top of the instrument
panel. They may interfere with the driver’s field of
view. Or they may move during sharp vehicle
acceleration or turning, and impair the driver’s
control of the vehicle. In an accident they may injure
the vehicle occupants.
NOTICE
Do not load the vehicle beyond the vehicle capacity
weight specified on the tire pressure label.
81
INTERIOR EQUIPMENT
Finish
82
SECTION 1 – 5
INSTRUMENTS AND CONTROLS
Exterior equipment
Hood 84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Trunk lid 85. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel tank cap 87. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Moon roof 90. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
83
EXTERIOR EQUIPMENT
HOOD
1. To open the hood, pull the hood lock release lever
under the instrument panel. The hood will spring up
slightly.
2. Insert your fingers under the hood, push up the
auxiliary catch lever and lift the hood.
Before closing the hood, check to see that you have not
forgotten any tools, rags, etc. Then lower the hood and make
sure it locks.
CAUTION
Before driving, be sure that the hood is securely locked.
Otherwise, the hood may open unexpectedly while
driving and an accident may occur.
84
EXTERIOR EQUIPMENT
TRUNK LID
Trunk lid opener
To open the trunk lid, push the switch.
To close the trunk lid, lower it and press down on it. After
closing the trunk lid, try pulling it up to make sure it is securely
closed.
The trunk lid can be unlocked using the wireless remote control
key. For details, see page 18.
CAUTION
Keep the trunk lid closed while driving. This not only
keeps the luggage from being thrown out, but also
prevents exhaust gases from entering the vehicle.
Trunk lid opener main switch
" 1Main switch 2Operative 3Inoperative
If you do not want to activate the trunk lid opener system,
turn off the main switch in the glove box. To turn it on,
push in the main switch.
85
EXTERIOR EQUIPMENT
The trunk lid can be opened using a loop of wire in the trunk
even with the main switch in the glove box turned off. When
keeping items in the trunk, be sure to turn off the main switch
and lock the glove box and rear armrest door. For locking the
glove box, see page 70. For locking the rear armrest door, see
page 99.
In case the opener is not actuated
1. Pull down the rear armrest and open the rear armrest
door.
2. Pull the loop of wire to unlock the trunk lid.
This is used in case the trunk lid cannot be unlocked due to a
discharged battery or other trouble.
86
Loading...
