Lexus ES250 2004, ES300 2004, ES330 2004, ES350 2004 Owner Manual

SECTION 6 –

SERVICE PROCEDURES AND SPECIFICATIONS

Body

Specifications 441. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Protecting your vehicle from corrosion 442. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Washing and waxing 443. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Cleaning the interior 447. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

440

SPECIFICATIONS

— DIMENSIONS AND WEIGHT

Overall length Overall width 1810 mm (71.3 in.) Overall height 1455 mm (57.3 in.)* Wheelbase 2720 mm (107.1 in.) Tread — Front

— Rear

4855 mm (191.1 in.)

1545 mm (60.8 in.) 1535 mm (60.4 in.)

BODY

Vehicle capacity weight (occupants + luggage)

Towing capacity (trailer weight + cargo weight)

*: Unladen vehicle

— FUEL TANK

Capacity 70 L (18.5 gal., 15.4 lmp. gal.)

410 kg (900 lb.)

907 kg (2000 lb.)

441

BODY

PROTECTING YOUR VEHICLE

FROM CORROSION

Proper care of your Lexus can help ensure long-term corrosion prevention.

The most common causes of corrosion to your vehicle are:

 The accumulation of road salt, dirt and moisture in

hard-to-reach areas under the vehicle.

 Chipping of paint or undercoating caused by minor

accidents or by stones and gravel.

The following conditions will cause or accelerate corrosion of your vehicle, so it is important to keep your vehicle, particularly the underside, as clean as possible and to repair any damage to paint or protective coatings as soon as possible.

 The presence of road salt or dust control chemicals, salt in

the air near the sea coast, industrial air pollution.

 High humidity, especially at temperatures just above

freezing point.

 Certain parts of your vehicle are wet or damp for an

extended period of time, even though other parts of the vehicle are dry.

 Components of the vehicle which are prevented from

quick-drying due to lack of proper ventilation are exposed to high temperature.

To help prevent corrosion on your Lexus, follow these guidelines:

Keep your vehicle clean by regular washing. In addition,

observe the following points.  If you drive on salted roads in the winter or if you live near

the ocean, you should hose off the undercarriage at least once a month to minimize corrosion.

 High pressure water or steam is effective for cleaning the

vehicle’s underside and wheel housings. Pay particular attention to these areas as it is dif ficult to see all the mud and dirt. It will do more harm than good to simply wet the mud and debris without removing. The lower edge of doors, rocker panels and frame members have drain holes which should not be allowed to clog with dirt as trapped water in these areas can cause corrosion.

 Wash the underside of the vehicle thoroughly when winter

is over. See “Washing and waxing” on page 443 for more tips. Check the condition of your vehicle’s paint and trim. If you

find any chips or scratches in the paint, touch them up immediately to prevent corrosion from starting. If the chips or scratches have gone through the bare metal, have a qualified body shop make the repair.

442

BODY

Check the interior of your vehicle. Water and dirt can

accumulate under the floor mats and could cause corrosion. Occasionally check under the mats to make sure the area is dry. Be particularly careful when transporting chemicals, cleansers, fertilizers, salt, etc. These should be transported in proper containers. If a spill or leak should occur, immediately clean and dry the area.

Keep your vehicle in a well ventilated garage or a roofed place. Do not park your vehicle in a damp, poorly ventilated garage. If you wash your vehicle in the garage, or

if you drive it covered with water or snow, your garage may be so damp and it will cause corrosion. Even if your garage is heated, a wet vehicle can corrode if the ventilation is poor.

WASHING AND WAXING

Washing your Lexus

Keep your vehicle clean by regular washing.

The following cases may cause weakness to the paint or corrosion to the body and parts. W ash your vehicle as soon as possible.

 When driving in a coastal area  When driving on a road sprinkled with antifreeze  When having coal tar, tree sap, bird droppings and carcass

of an insect

 When driving in the areas where there is a lot of smoke,

soot, dust, iron dust and chemical substances

 When the vehicle becomes remarkably dirty with dust and

mud

Hand-washing your Lexus

Work in the shade and wait until the vehicle body is not hot to the touch.

1. Rinse off loose dirt with a hose. Remove any mud or road salt from the underside of the vehicle or in the wheel wells.

2. Wash with a mild car-wash soap, mixed according to the manufacturer’s instructions. Use a soft cotton mitt and keep it wet by dipping it frequently into the wash water. Do not rub hard — let the soap and water remove the dirt.

443

BODY

Fuel filler door: Do not apply water (high-pressure car wash,

for example) at or near the fuel tank inlet with the fuel filler door opened. If the water enters the air vent, you may experience trouble with refueling or rough engine idling.

Plastic wheel ornaments: The plastic wheel ornaments are damaged easily by organic substances. If any organic substances splashes an ornament, be sure to wash it off with water and check if the ornament is damaged.

CAUTION

Do not attach the heavily damaged plastic wheel ornament. It may fly off the wheel and cause accidents while the vehicle is moving.

NOTICE

Do not use organic substances (gasoline, kerosene, benzine or strong solvents), which may be toxic or cause damage.

Aluminum wheels: Use only a mild soap or neutral detergent. Urethane bumpers and side moldings: Wash carefully. Do

not scrub with abrasive cleaners. The bumper and side molding faces are soft.

Road tar: Remove with turpentine or cleaners that are marked safe for painted surfaces.

444

BODY

3. Rinse thoroughly — dried soap can cause streaking. In hot weather you may need to rinse each section right after you wash it.

4. To prevent water spots, dry the vehicle using a clean soft cotton towel. Do not rub or press hard — you might scratch the paint.

Automatic car wash

Your vehicle may be washed in an automatic car wash, but remember that the paint can be scratched by some types of brushes, unfiltered washing water, or the washing process itself. Scratching reduces paint durability and gloss, especially on darker colors. The manager of the car wash should be able to advise you whether the process is safe for the paint on your vehicle.

Waxing your Lexus

Polishing and waxing is recommended to maintain the original beauty of your Lexus’ finish.

Apply wax once a month or if the vehicle surface does not repel water well.

1. Always wash and dry the vehicle before you begin waxing, even if you are using a combined cleaner and wax.

2. Use a good quality polish and wax. If the finish has become extremely weathered, use a car-cleaning polish, followed by a separate wax. Carefully follow the manufacturer’s instructions and precautions. Be sure to polish and wax the chrome trim as well as the paint.

3. Wax the vehicle again when water does not bead but remains on the surface in large patches.

Windshield washer nozzles: Make sure that the nozzles do not become blocked when waxing. If a nozzle becomes blocked, contact your Lexus dealer to have the vehicle serviced.

445

BODY

NOTICE

If a nozzle becomes blocked, do not try to clear it with a pin or other object. The nozzle will be damaged.

446

BODY

CLEANING THE INTERIOR

CAUTION

 Be careful not to splash water or spill liquid on the

floor. This may prevent the side airbags from activating correctly, resulting in serious injury.

 Do not wash the vehicle floor with water, or allow

water to get onto the floor when cleaning the vehicle interior or exterior. Water may get into audio components or other electrical components above or under the floor carpet (or mat) and cause a malfunction; and it may cause body corrosion.

Leather Interior

The selected leather is used in your Lexus. Due to characteristics of leather products, some parts of leather may be rough, uneven or scratched originally.

To keep good appearance, we recommend you to clean it periodically twice a year.

Remove dirt on the leather in the following ways:

1. Wipe it off lightly using a soft cloth (e.g. gauze) dampened with 5% solution of neutral detergent for wool.

2. Wring water from a clean cloth and thoroughly wipe off all traces of detergent with it.

3. Wipe o f f th e surface of the leather with a dry soft cloth. Allow the leather to dry in a ventilated shaded area. Excess of wet may cause the hardening or shrinking of the leather.

447

BODY

NOTICE



Dirt or sand adhered to the leather may damage the treated surface and cause it to wear earlier. Remove dirt or sand using a vacuum cleaner.



If a stain should fail to come out with a neutral detergent, apply a cleaner that does not contain an organic solvent.



Never use organic substances such as benzine, alcohol or gasoline, or alkaline or acid solutions for cleaning the leather as these could cause discoloring.



Use of a nylon brush or synthetic fiber cloth, etc. may scratch the fine grained surface of the leather.



Mildew may develop on soiled leather upholstery. Be especially careful to avoid oil spots. T ry to keep your upholstery always clean.



Long exposure to direct sunlight may cause the leather surface to harden and shrink. Keep your vehicle in a shaded area, especially in the summer.



The interior of your vehicle is apt to heat up on hot summer days, so avoid placing on the upholstery items made of vinyl or plastic or containing wax as these tend to stick to leather when warm.



Improper cleaning of the leather upholstery could result in discoloration or staining.

448

BODY

Synthetic Leather Areas (Dash)

The synthetic leather areas may be easily cleaned with a mild soap or detergent and water.

NOTICE

Do not use solvent, thinner, gasoline or window cleaner on the interior.

Carpets, Windows and Seat Belts

Begin by vacuuming thoroughly to remove as much dirt as possible. Several types of foam cleaners are available; some are in aerosol cans and others are powders or liquids which you mix with water to produce a foam. To shampoo the carpets, use a sponge or brush to apply the foam. Rub in overlapping circles. Do not apply water — the best results are obtained by keeping the carpet as dry as possible. Read the shampoo instructions and follow them closely.

First vacuum over the upholstery to remove loose dirt. Then, using a sponge or soft cloth, apply the soap solution to the synthetic leather. After allowing it to soak in for a few minutes to loosen the dirt, remove the dirt and wipe off the soap with a clean damp cloth. If all the dirt does not come off, repeat the procedure. Commercial foaming-type cleaners are also available which work well. Follow the manufacturer’s instructions.

The seat belts may be cleaned with mild soap and water or with lukewarm water.

Use a cloth or sponge. As you are cleaning, check the belts for excessive wear, fraying or cuts.

449

BODY

NOTICE



Use a good foam-type shampoo to clean the carpets.



Do not use dye or bleach on the belts — it may weaken them.



Do not use the belts until they become dry.



The windows may be cleaned with any household window cleaner.



Do not apply detergent to or wet the automatic wiper control sensor when cleaning the inside of the windshield.



When cleaning the inside of the rear window, be careful not to scratch or damage the heater wires or connectors.

450

BODY

Air Conditioning Control Panel, Car Audio, Instrument Panel, Console Panel and Switches

NOTICE



Do not use organic substances (solvents, kerosene, alcohol, gasoline, etc.) or alkaline or acidic solutions. These chemicals can cause discoloring, staining or peeling of the surface.



If you use cleaners or polishing agents, make sure their ingredients do not include the substances mentioned above.



If you use a liquid car freshener, do not spill the liquid onto the vehicle’s interior surfaces. It may contain the ingredients mentioned above. Immediately clean any spill using the method mentioned above.

If you have any questions about the cleaning of your Lexus, your local Lexus dealer will be pleased to answer them.

Use a soft damp cloth for cleaning. Soak a clean soft cloth in water or lukewarm water then lightly

wipe off any dirt.

451

GAS STATION INFORMATION

 Fuel selection:

Select unleaded gasoline with an Octane Rating of 87 (Research Octane Number 91) or higher. For improved vehicle performance, the use of premium unleaded gasoline with an Octane Rating of 91 (Research Octane

Number 96) or higher is recommended.

 Fuel tank capacity:

70 L (18.5 gal., 15.4 lmp. gal.)

 Engine oil:

“Toyota Genuine Motor Oil” or equivalent

Oil grade: API grade SL “Energy- Conserving” or ILSAC

multigrade engine oil Recommended oil viscosity: SAE 5W-30 Oil capacity: L (qt., lmp. qt.)

Drain and refill

With filter 4.7 (5.0, 4.1) Without filter 4.5 (4.8, 4.0)

See page 370 for detailed information.

 Engine coolant:

Capacity: 9.2 L (9.7 qt., 8.2 lmp. qt.)

Coolant type — “Toyota Super Long Life Coolant” or similar high quality ethylene glycol based non-silicate, non-amine, non- nitrite, and non- borate coolant with long- life hybrid

organic acid technology Do not use plain water alone. For checking the engine coolant, see page 375.

 Automatic transaxle:

Fluid type — Toyota Genuine ATF Type T-IV See page 381 for detailed information.

 Tire information:

See pages 389 through 407 for detailed information.

 Tire inflation pressure:

Tire size: P215/60R16 94V Tire inflation pressure:

Front 200 kPa (2.0 kgf/cm Rear 200 kPa (2.0 kgf/cm

or bar, 29 psi)

For sustained high speeds above 160 km/h (99 mph), in countries where such speeds are permitted by law, add 40 kPa (0.4 kgf/cm

or bar, 6 psi) to the front tires and rear tires,

but never exceed the maximum cold tire inflation pressure

molded on the tire sidewall.

Seat Belt Warning

WE REALLY CARE ABOUT YOU − PLEASE BUCKLE UP

Lexus has made a special effort to encourage use of seat belts.

Lexus belts are:

 Comfortable  Easy to use  Convenient

We encourage you to use your belts every time you drive.

SECTION 7

REPORTING SAFETY DEFECTS FOR U.S. OWNERS

Reporting safety defects for U.S. owners 453. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

452

REPORTING SAFETY DEFECTS

FOR U.S. OWNERS

If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you should immediately inform the National Highway Traffic Safety Administration (NHTSA) in addition to notifying Toyota Motor Sales, U.S.A., Inc. (Toll-free: 1-800-25-LEXUS).

If NHTSA receives similar complaints, it may open an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved in individual problems between you, your dealer, or Toyota Motor Sales, U.S.A., Inc.

To contact NHTSA, you may either call the Auto Safety Hotline toll- free at 1- 800- 424- 9393 (or 366-0123 in Washington, D.C. area) or write to: NHTSA, U.S. Department of Transportation, Washington, D.C. 20590. You can also obtain other information about motor vehicle safety from the Hotline.

KEYS AND DOORS

453

SECTION 6 –

SERVICE PROCEDURES AND SPECIFICATIONS

Chassis

Specifications 381. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking brake fluid 385. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking power steering fluid 387. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking tire inflation pressure 389. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tire information 392. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Types of tires 400. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Rotating tires 401. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking and replacing tires 402. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installing snow tires and chains 404. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Replacing wheels 406. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Aluminum wheel precautions 407. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Suspension and chassis 408. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

380

SPECIFICATIONS

— AUTOMATIC TRANSAXLE

Fluid capacity

Drain and refill

Fluid type Toyota Genuine ATF Type T-IV

: Change automatic transmission fluid only as necessary. Generally, it is necessary to change automatic transmission fluid only if your vehicle is driven under one of the Special Operating Conditions listed in your “Owner’s Manual Supplement/Scheduled Maintenance”. When changing the automatic transmission fluid, use only “Toyota Genuine ATF Type T-IV” (ATF JWS3309 or NWS6500) to aid in assuring optimum transaxle performance.

3.5 L (3.7 qt., 3.1 lmp. qt.)

CHASSIS

381

CHASSIS

NOTICE

Using automatic transmission fluid other than “Toyota Genuine ATF Type T-IV” may cause deterioration in shift quality, locking up of your transmission accompanied by vibration, and ultimately damage the automatic transmission of your vehicle.

Please contact your Lexus dealer for further details.

382

— BRAKES

Pedal clearance

Fixed type Adjustable type (in frontmost position)

70 mm (2.8 in.) Min. * 59 mm (2.3 in.) Min. *

1 1

Pedal free play

Fixed type Adjustable type (in frontmost position)

1 — 6 mm (0.04 — 0.24 in.)

1 — 8 mm (0.04 — 0.31 in.) Brake pad wear limit 1.0 mm (0.04 in.) Parking brake lining wear limit 1.0 mm (0.04 in.) Parking brake adjustment 3 — 6 clicks *

Fluid type SAE J1703 or FMVSS No. 116 DOT 3

*1: Minimum pedal clearance when depressed with the force of 490 N (50 kgf, 110 lbf) with the engine running

: Parking brake adjustment when depressed with the force of 294 N (30 kgf, 66 lbf)

— STEERING

Wheel free play

Less than 30 mm (1.2 in.) Power steering fluid type Automatic transmission fluid DEXRONII or III

CHASSIS

383

CHASSIS

— TIRES AND WHEELS

Tire size

P215/60R16 94V

Tire inflation pressure

Recommended cold tire inflation pressure

Front 200 kPa (2.0 kgf/cm2 or bar, 29 psi) Rear 200 kPa (2.0 kgf/cm

or bar, 29 psi)

For sustained high speeds above 160 km/h (99 mph), in countries where such speeds are permitted by law, add 40 kPa (0.4 kgf/cm

or bar, 6 psi) to the front tires and rear tires, but never exceed the maximum cold tire inflation pressure molded on the tire sidewall.

Wheel size 16  6 1/2 JJ Wheel nut torque 103 N·m (10.5 kgf·m, 76 ft·lbf)

NOTE: For a complete information on tires (e.g. replacing tires or replacing wheels), see “Checking tire inflation pressure” through “Aluminum wheel precautions” on pages 389 through 407.

384

CHASSIS

CHECKING BRAKE FLUID

To check the fluid level, simply look at the see-through reservoir. The level should be between the “MAX” and “MIN” lines on the tank.

It is normal for the brake fluid level to go down slightly as the brake pads wear. So be sure to keep the reservoir filled.

If the reservoir needs frequent refilling, it may indicate a serious mechanical problem.

If the level is low, add FMVSS No.116 DOT 3 or SAE J1703 brake fluid to the brake reservoir.

Remove and replace the reservoir cap by hand. Add brake fluid up to the “MAX” line.

Use only newly opened brake fluid. Once opened, brake fluid absorbs moisture from the air, and excess moisture can cause a dangerous loss of braking efficiency.

CAUTION

Take care when filling the reservoir because brake fluid can harm your hands or eyes and damage painted surfaces. If flu i d g e t s i n your hands or eyes, flush them with clean water immediately. If you still feel uncomfortable with your hands or eyes, go to the doctor.

385

CHASSIS

NOTICE

If you spill some of the fluid, be sure to wipe it off to prevent it from damaging the parts or paintwork.

386

CHECKING POWER STEERING

FLUID

CHASSIS

Check the fluid level through the reservoir. If necessary, add automatic transmission fluid DEXRON

If the vehicle has been driven around 80 km/h (50 mph) for 20 minutes (a little more in frigid temperatures), the fluid is hot (60C — 80C or 140F — 175F). You may also check the level when the fluid is cold (about room temperature, 10C — 30C or 50F — 85F) if the engine has not been run for about five hours.



II or III.



If cold O.K.

If hot add

Clean all dirt off the reservoir and look at the fluid level. If the fluid is cold, the level should be in the “COLD” range. Similarly, if it is hot, the fluid level should be in the “HOT” range. If the level is at the l o w s i d e o f t h e appropriate range, add automatic transmission fluid DEXRON the range.

To remove the reservoir cap, turn it counterclockwise and lift up. To reinstall it, turn it clockwise. After replacing the reservoir cap, visually check the steering box case, vane pump and hose connections for leaks or damage.

If cold add



II or III to bring the level within

If hot O.K.

CAUTION

The reservoir may be hot so be careful not to burn yourself.

387

CHASSIS

NOTICE

Avoid overfilling, or the power steering could be damaged.

388

CHASSIS

CHECKING TIRE INFLATION

PRESSURE

63E035

The recommended cold tire inflation pressures, tire sizes and the combined weight of occupants and cargo (vehicle capacity weight) are described on page 384 and 441. They are also described on the tire and loading information label as shown.

You should check the tire inflation pressure every two weeks, or at least once a month. And do not forget the spare!

The following instructions for checking tire inflation pressure should be observed:

 The pressure should be checked only when the

tires are cold. If your vehicle has been parked

for at least 3 hours and has not been driven for more than 1.5 km or 1 mile since, you will get an accurate cold tire inflation pressure reading.

 Always use a tire pressure gauge. The

appearance of a tire can be misleading. Besides, tire inflation pressures that are even just a few pounds off can degrade handling and ride.

 Do not bleed or reduce tire inflation pressure

after driving. It is normal for the tire inflation

pressure to be higher after driving.

 Never exceed the vehicle capacity weight. The

passengers and luggage weight should be located so that the vehicle is balanced.

389

CHASSIS

Inspection and adjustment procedure



Tire valve

Tire pressure gauge

1. Remove the tire valve cap.

2. Press the tip of the tire pressure gauge to the tire valve.

3. Read the pressure using a graduation of the gauge.

4. In case that the tire inflation pressure is not within the prescribed range, insert the compressed air from the valve. In case of applying too much air, press the center of the valve and release the air to adjust.

5.After completing the tire inflation pressure measurement and adjustment, apply soap water to the valve and check the leakage.

6. Install the tire valve cap.

If the gauge and the air pump are not available, have your vehicle checked by your Lexus dealer.

CAUTION

Be sure to reinstall the tire valve caps. Without the valve caps, dirt or moisture could get into the valve core and cause air leakage. If the caps have been lost, have new ones put on as soon as possible.

Incorrect tire inflation pressure may waste fuel, reduce the comfort of driving, reduce tire life and make your vehicle less safe to drive.

If a tire frequently needs refilling, have it checked by your Lexus dealer.

390

CAUTION

Keep your tires properly inflated. Otherwise, the following conditions may occur and cause an accident resulting in death or serious injuries.

Low tire pressure (underinflation) —

 Excessive wear  Uneven wear  Poor handling  Possibility of blowouts from overheated tire  Poor sealing of the tire bead  Wheel deformation and/or tire separation  A greater possibility of tire damage from road

hazards

High tire pressure (overinflation) —

 Poor handling  Excessive wear  Uneven wear  A greater possibility of tire damage from road

hazards

CHASSIS

391

CHASSIS

Tire symbols

TIRE INFORMATION

63E031

392



The illustration indicates typical tire symbols.

CHASSIS

Summer tire or all season tire: An all season

tire has “M+S” on the sidewall. The tire not marked with “M+S” is a summer tire. For details, see “Types of tires” on page 400.

Tire size: For details, see “Tire size” on page

394.

DOT and Tire Identification Number (TIN): For

details, see “DOT and Tire Identification Number (TIN)” on page 394.

Uniform tire quality grading: For details, see

“Uniform tire quality grading” that follows.

Location of the tread wear indicators: For

details, see “Checking and replacing tires” on page 402.

Tire ply composition and materials: Plies mean

a layer of rubber-coated parallel cords. Cords mean the strands forming the plies in the tire.

Radial tires or bias-ply tires: A radial tire has

“RADIAL” on the sidewall. The tire not marked with “RADIAL” is a bias-ply tire.

“TUBELESS” or “TUBE TYPE”: A tubeless tire

does not have a tube inside the tire. A tube type tire has a tube inside the tire and the tube maintains the air pressure.

Load limit at maximum cold tire inflation pressure: For details, see “Checking and

replacing tires” on page 402.

Maximum cold tire inflation pressure: This

means the pressure to which a tire may be inflated. For details about recommended cold tire inflation pressure, see “Specifications” on page

384.

393

CHASSIS

DOT and Tire Identification Number (TIN)



The illustration indicates typical DOT and Tire Identification Number (TIN).

“DOT” symbol

Tire Identification Number (TIN)

Tire manufacturer’s identification mark

Tire size code

Manufacturer’s optional tire type code

Manufacturing week

Manufacturing year

The “DOT” symbol certifies that the tire conforms to applicable Federal Motor Vehicle Safety Standards.

Tire size



The illustration indicates typical tire size.

Tire use (P=Passenger car, T=Temporary use)

Section width (in millimeters)

Aspect ratio (tire height to section width)

Tire construction code (R=Radial, D=Diagonal)

Wheel diameter (in inch)

Load index (2 digits or 3 digits)

Speed symbol (alphabet with one letter)

394



Section width

Tire height

Wheel diameter

Name of each section of tire



Bead

Sidewall

Shoulder

Tread

Belt

Inner liner

Reinforcing rubber

Carcass

Rim lines

Bead wires

Chafer

CHASSIS

395

CHASSIS

Uniform tire quality grading

This information has been prepared in accordance with regulations issued by the National Highway Traffic Safety Administration of the U.S. Department of Transportation. It provides the purchasers and/or prospective purchasers of Lexus vehicles with information on uniform tire quality grading.

Your Lexus dealer will help answer any questions you may have as you read this information.

DOT quality grades — All passenger car tires must conform to Federal Safety Requirements in addition to these grades. Quality grades can be found where applicable on the tire sidewall between tread shoulder and maximum section width. For example: Treadwear 200 Traction AA Temperature A

Treadwear — The treadwear grade is a comparative

rating based on the wear rate of the tire when tested under controlled conditions on a specified government test course. For example, a tire graded 150 would wear one and a half (1 - 1/2) times as well on the government course as a tire graded 100. The relative performance of tires depends upon the actual conditions of their use, however, and may depart significantly from the norm due to variations in driving habits, service practices and differences in road characteristics and climate.

396

Traction AA, A, B, C — The traction grades, from highest to lowest, are AA, A, B and C, and they represent the tire’s ability to stop on wet pavement as measured under controlled conditions on specified government test surfaces of asphalt and concrete. A tire marked C may have poor traction performance.

Warning: The traction grade assigned to this tire is based on braking (straight ahead) traction tests and does not include cornering (turning) traction.

Temperature A, B, C — The temperature grades are A (the highest), B, and C, representing the tire’s resistance to the generation of heat and its ability to dissipate heat when tested under controlled conditions on a specified indoor laboratory test wheel. Sustained high temperature can cause the material of the tire to degenerate and reduce tire life, and excessive temperature can lead to sudden tire failure. The grade C corresponds to a level of performance which all passenger car tires must meet under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent higher levels of performance on the laboratory test wheel than the minimum required by law.

Warning: The temperature grade for this tire established for a tire that is properly inflated and not overloaded. Excessive speed, underinflation, or excessive loading, either separately or in combination, can cause heat buildup and possible tire failure.

Tire related terms

CHASSIS

Cold tire inflation pressure

Maximum inflation pressure

Recommended inflation pressure

Accessory weight The combined weight (in excess of those standard items which may be replaced)

Curb weight The weight of a motor vehicle with standard equipment including the maximum

Maximum loaded vehicle weight

Normal occupant weight

Tire inflation pressure when the vehicle has been parked at least 3 hours or more, or it has not been driven more than 1.5 km or 1 mile under that condition

The maximum cold inflation pressure to which a tire may be inflated and shown on the sidewall of the tire

Cold tire inflation pressure recommended by a manufacturer

of automatic transmission, power steering, power brakes, power windows, power seats, radio, and heater, to the extent that these items are available as factory-installed equipment (whether installed or not)

capacity of fuel, oil, and coolant, and, if so equipped, air conditioning and additional weight optional engine

The sum of — (a) Curb weight; (b) Accessory weight; (c) Vehicle capacity weight; and (d) Production options weight

68 kg (150 lb.) times the number of occupants specified in the second column of Table 1 that follows

397

CHASSIS

Production options weight

The combined weight of those installed regular production options weighing over 2.3 kg (5 lb.) in excess of those standard items which they replace, not previously considered in curb weight or accessory weight, including heavy duty brakes, ride levelers, roof rack, heavy duty battery, and special trim

Vehicle capacity weight

The rated cargo and luggage load plus 68 kg (150 lb.) times the vehicle’s designated seating capacity

(Total load capacity) Intended outboard

sidewall

(a) The sidewall that contains a whitewall, bears white lettering or bears

manufacturer, brand, and/or model name molding that is higher or deeper than the same molding on the other sidewall of the tire, or

(b) The outward facing sidewall of an asymmetrical tire that has a particular side

that must always face outward when mounted on a vehicle

Occupant distribution Distribution of occupants in a vehicle as specified in the third column of Table 1 that

follows

Rim A metal support for a tire or a tire and tube assembly upon which the tire beads are

seated

Rim diameter (Wheel

Nominal diameter of the bead seat

diameter) Rim size designation Rim diameter and width

Rim type designation The industry of manufacturer’s designation for a rim by style or code Rim width Nominal distance between rim flanges

398

CHASSIS

Vehicle maximum load on the tire

Vehicle normal load on the tire

The load on an individual tire that is determined by distributing to each axle its share of the maximum loaded vehicle weight and dividing by two

The load on an individual tire that is determined by distributing to each axle its share of the curb weight, accessory weight, and normal occupant weight (distributed in accordance with Table 1 that follows) and dividing by two

Weather side The surface area of the rim not covered by the inflated tire

Table 1 — Occupant loading and distribution for vehicle normal load for various designated seating capacities

Designated seating capacity,

number of occupants

Vehicle normal load, number of

occupants

Occupant distribution in a

normally loaded vehicle

2 through 4 2 2 in front

5 through 10 3 2 in front, 1 in second seat

399

CHASSIS

TYPES OF TIRES

Determine what kind of tires your vehicle is originally equipped with.

1. Summer tires

Summer tires are high-speed capability tires best suited to highway driving under dry conditions.

Since summer tires do not have the same traction performance as snow tires, summer tires are inadequate for driving on snow-covered or icy roads. For driving on snow-covered or icy roads, we recommend using snow tires. If installing snow tires, be sure to replace all four tires.

2. All season tires

All season tires are designed to provide better traction in snow and to be adequate for driving in most winter conditions, as well as for use all year round.

All season tires, however, do not have adequate traction performance compared with snow tires in heavy or loose snow. Also, all season tires fall short in acceleration and handling performance compared with summer tires in highway driving.

The details about how to distinguish summer tires from all season tires are described on page 392.

CAUTION

 Do not use tires other than the manufacturer’s

designated tires, and never mix tires or wheels of the sizes different from the originals as this could result in loss of control and could cause death or serious injury.

 Do not mix summer and all season tires on

your vehicle as this can cause dangerous handling characteristics, resulting in loss of control.

400

CHASSIS

ROTATING TIRES

To equalize tire wear and help extend tire life, Lexus recommends that you rotate your tires according to the maintenance schedule. (For scheduled maintenance information, please refer to the “Owner’s Manual Supplement/Scheduled Maintenance”.) However, the most appropriate timing for tire rotation may vary according to your driving habits and road surface conditions.

The wheel assemblies must be rotated as illustrated above.

When rotating tires, check for uneven wear and damage. Abnormal wear is usually caused by incorrect tire inflation pressure, improper wheel alignment, out-of balance wheels, or severe braking.

Before storing radial, snow or studded tires, mark the direction of rotation and be sure to install them in the same direction when using them again. Tires should be stored in a cool dry place.

401

CHASSIS

CHECKING AND REPLACING TIRES

When to replace your tires



New tread

Worn tread

Replace the tires when the tread wear indicators show. The location of the tread wear indicators is shown by the marks such as “TWI” or “ marks, etc., molded on the sidewall of each tire.

The tires on your Lexus have built-in tread wear indicators to help you know when the tires need replacement. When the tread depth wears to 1.6 mm (0.06 in.) or less, the indicators will appear. If you can see the indicators in two or more adjacent grooves, the tire should be replaced.

Tread wear indicator

∆”

The effectiveness of snow tires is lost if the tread wears down below 4 mm (0.16 in.).

If you have tire damage such as cuts, splits, cracks deep enough to expose the fabric, or bulges indicating internal damage, the tire should be replaced.

If a tire often goes flat or cannot be properly repaired due to the size or location of a cut or other damage, it should be replaced. If you are not sure, consult with your Lexus dealer.

If an air loss occurs while driving, do not continue driving with a deflated tire. Driving even a short distance can damage a tire beyond repair.

Any tires which are over 6 years old must be checked by a qualified technician even if damage is not obvious.

Tires deteriorate with age even if they have never or seldom been used.

This also applies to the spare tire and tires stored for future use.

402

CHASSIS

Tire selection

When replacing a tire, use a tire of the same size and construction, and the same or greater maximum loads as the originally installed tires.

Using any other size or type of tire may seriously affect handling, ride, speedometer/odometer calibration, ground clearance, and clearance between the body and tires or snow chains.

Check that the maximum load of the replaced tire is greater than 1/2 of the Gross Axle Weight Ratings (GAWR) of either the front axle or the rear axle, whichever greater. As for the maximum load of the tire, see the load limit at maximum cold tire inflation pressure mentioned on the sidewall of the tire, and as for the Gross Axle Weight Ratings (GAWR), see the Certification Label. For details about Certification Label and sidewall of the tire, see pages 352 and 392.

CAUTION

Observe the following instructions. Otherwise, an accident may occur resulting in death or serious injuries.

 Do not mix radial, bias belted, or bias-ply tires

on your vehicle, as this may cause dangerous handling characteristics resulting in loss of control.

 Do not use tires other than the manufacturer’s

recommended size, as this may cause dangerous handling characteristics resulting in loss of control.

403

CHASSIS

INSTALLING SNOW TIRES AND

CHAINS

When to use snow tires or chains

Snow tires or chains are recommended when driving on snow or ice.

On wet or dry roads, conventional or radial tires provide better traction than snow or studded tires.

Snow tire selection

If you need snow tires, select tires of the same size, construction and load capacity as the originally installed tires.

Do not use tires other than stated above. Since your vehicle has radial tires as original equipment, make sure your snow tires also have radial construction. Do not install studded tires without first checking local regulations for possible restrictions.

CAUTION

Do not use snow tires other than the manufacturer’s recommended size, as this may cause dangerous handling characteristics resulting in loss of control. Otherwise, an accident may occur resulting in death or serious injuries.

Snow tire installation

Snow tires should be installed on all wheels.

Installing snow tires on the front wheels only can lead to an excessive difference in road grip capability between the front and rear tires which could cause loss of vehicle control.

CAUTION

 Snow tires should be inflated to the same pressure as

the original tires.

 Never drive over 120 km/h (75 mph) with any type of

snow tires.

404

CHASSIS

Tire chain selection



Side chain

Cross chain

Use the tire chains of correct size.

For P215/60R16 94V tires, use the following type chains.

mm (in.) A: Diameter of side chain 3 (0.12) B: Width of side chain 10 (0.39) C: Length of side chain 30 (1.18) D: Diameter of cross chain 4 (0.16) E: Width of cross chain 14 (0.55) F: Length of cross chain 25 (0.98)

Regulations regarding the use of tire chains vary according to location or type of road. Always check the local regulations before installing chains.

405

CHASSIS

NOTICE

If the wrong combination of tire and chain is used, the chains could damage the vehicle body.

Chain installation

Install the chains on the front tires as tightly as possible. Do not use tire chains on the rear tires. Retighten chains after driving 0.5 — 1.0 km (1/4 — 1/2 mile).

When installing chains on your tires, carefully follow the instructions of the chain manufacturer.

CAUTION

 Do not exceed 50 km/h (30 mph) or the chain

manufacturer’s recommended speed limit, whichever is lower.

 Drive carefully avoiding bumps, holes, and sharp

turns, which may cause the vehicle to bounce.

 Avoid sharp turns or locked-wheel braking, as use of

chains may adversely affect vehicle handling.

 When driving with chains installed, be sure to drive

carefully . Slow down before entering curves to avoid losing control of the vehicle. Otherwise an accident may occur.

406

REPLACING WHEELS

When to replace your wheels

If you have wheel damage such as bending, cracks or heavy corrosion, the wheel should be replaced.

If you fail to replace a damaged wheel, the tire may slip off the wheel or cause loss of handling control.

Replacement with used wheels is not recommended as they may have been subjected to rough treatment or high mileage and could fail without warning. Also, bent wheels which have been straightened may have hidden structural damage and therefore should not be used. Never use an inner tube in a leaking wheel which is designed for a tubeless tire.

CHASSIS

Wheel selection

When replacing wheels, care should be taken to ensure that they are equivalent to those removed in load capacity, diameter, rim width, and offset.

Correct replacement wheels are available at your Lexus dealer.

A wheel of a different size or type may adversely affect handling, wheel and bearing life, brake cooling, speedometer/odometer calibration, stopping ability, headlight aim, bumper height, vehicle ground clearance, and tire or snow chain clearance to the body and chassis.

CAUTION

Do not use wheels other than the manufacturer’s recommended size, as this may cause dangerous handling characteristics resulting in loss of control. Otherwise, an accident may occur resulting in death or serious injuries.

ALUMINUM WHEEL PRECAUTIONS

 When installing aluminum wheels, check that the wheel nuts

are tight after driving your vehicle the first 1600 km (1000 miles).

 If you have rotated, repaired, or changed your tires, check

that the wheel nuts are still tight after driving 1600 km (1000 miles).

 When using tire chains, be careful not to damage the

aluminum wheels.

 Use only the Lexus wheel nuts and wrench designed for

your aluminum wheels.

 When balancing your wheels, use only Lexus balance

weights or equivalent and a plastic or rubber hammer.

 As with any wheel, periodically check your aluminum

wheels for damage. If damaged, replace immediately.

407

CHASSIS

SUSPENSION AND CHASSIS

CAUTION

Do not modify the suspension/chassis with lift kits, spacers, springs, etc. It can cause dangerous handling characteristics, resulting in loss of control.

408

CHASSIS

409

SECTION 6 –

SERVICE PROCEDURES AND SPECIFICATIONS

Electrical components

Specifications 411. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking battery condition 421. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Battery recharging precautions 426. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking and replacing the blade type fuses 427. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking the cartridge type fuses 429. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Adding washer fluid 432. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking the headlight aim 433. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Replacing light bulbs 434. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

410

SPECIFICATIONS

— FUSE LOCATIONS

64E163

ELECTRICAL COMPONENTS



Engine compartment

Driver’s side instrument panel

411

ELECTRICAL COMPONENTS

— FUSES

Engine compartment

64E165

412

Driver’s side instrument panel

No. FUSE AMPERE CIRCUIT

1 A/F 25

2 DOOR1 25

3 TEL 5 No circuit 4 AM2 30

5 EFI 20

6 ALT-S 5 Charging system

HEAD LH

UPR

No. FUSE AMPERE CIRCUIT

8 ETCS 10

9 HORN 10 Horns

10 IGN 15 Starting system

HEAD RH

11 12 HAZ 15 Emergency flashers

UPR

Multiport fuel injection system/sequential multiport fuel injection system

Multiplex communication system (power door lock system, auto-door locking system, wireless remote control system)

All components in “IGN” and “IG2” fuses and starting system

Multiport fuel injection system/sequential multiport fuel injection system

Left- hand headlight (high beam)

Multiport fuel injection system/sequential multiport fuel injection system

Right- hand headlight (high beam)

ELECTRICAL COMPONENTS

413

ELECTRICAL COMPONENTS

13 D.C.C 30

14 IG2 10

15 ST 5 Starting system 16 ADJ PDL 30 Power adjustable pedals 17 CDS 30 Electric cooling fan

All components in “ECU-B”, “RAD NO.1” and “DOME” fuses

Multiport fuel injection system/sequential multiport fuel injection system, SRS airbag system, front seat belt pretensioners, cruise control system

414

No. FUSE AMPERE CIRCUIT

Anti- lock brake system,

18 ABS No.2 40

19 MAIN 40

20 ABS No.3 30

21 HTR 50 Air conditioning system 22 RDI 30 Electric cooling fan 23 SPARE 5 Spare fuse 24 SPARE 10 Spare fuse

25 ABS NO.1 50

vehicle stability control system, traction control system, brake assist system

All components in “HEAD LH LWR”, “HEAD RH LWR”, “HEAD LH UPR”, “HEAD RH UPR” and “DRL” fuses

Anti- lock brake system, vehicle stability control system, traction control system, brake assist system

All components in “RDI FAN”, “ABS No.2”, “ABS No.3”, “CDS”, “HTR (50 A)” and “ADJ PDL” fuses and anti- lock brake system, vehicle stability control system, traction control system, brake assist system

ELECTRICAL COMPONENTS

415

ELECTRICAL COMPONENTS

No. FUSE AMPERE CIRCUIT

All components in “DEF”, “PWR NO.1”, “PWR NO.2”, “PWR NO.3”, “PWR NO.4”, “STOP”, “DOOR NO.2”, “OBD”, “PWR SEAT”, “FUEL OPEN”, “FOG”, “AMP”, “PANEL”, “TAIL”,

26 ALT 120

27 SPARE 15 Spare fuse 28 A/C 10 No circuit 29 DRL 5 Daytime running light system

HEAD RH

LWR

HEAD LH

LWR

“AM1”, “CIG”, “POWER POINT”, “RAD NO.2”, “ECU- ACC”, “GAUGE1”, “GAUGE2”, “ECU-IG”, “WIPER”, “WASHER”, “HTR (10 A)”, “SEAT HTR” and “SUN- SHADE” fuses

Right- hand headlight (low beam)

Left- hand headlight (low beam) and front fog lights

416

No. FUSE AMPERE CIRCUIT

Multiplex communication system (power door lock system, security system, auto- door locking system, automatic light control system, headlight delay off system, tail

32 ECU-B 10

33 DOME 7.5

34 CIG 15 Cigarette lighter

ECU-

No. FUSE AMPERE CIRCUIT

36 RAD NO.2 10

ACC

POWER

POINT

15 Power outlet

light auto cut system, illuminated entry system, daytime running light system, wireless remote control system) air conditioning system, electronic modulated suspension, driving position memory system

Ignition switch light, interior light, personal lights, foot lights, door courtesy lights, trunk light, vanity lights, garage door opener, clock, outside temperature gauge, multi- information display

Power rear view mirrors, clock, multi- information display,

driving position memory system

Car audio system, navigation system

ELECTRICAL COMPONENTS

417

ELECTRICAL COMPONENTS

38 RAD NO.1 20

39 GAUGE1 10

40 ECU-IG 10

41 WIPER 25 Windshield wipers 42 HTR 10 Air conditioning system

MIR

HTR

Car audio system, navigation system

Gauges and meters, clock, outside temperature gauge, multi- information display, shift lock system

SRS airbag system, power windows, anti-lock brake system, electronic modulated suspension, driving position memory system

Outside rear view mirror heaters

418

No. FUSE AMPERE CIRCUIT

44 AM1 5 Starting system 45 FOG 15 Front fog lights

SUN-

SHADE

47 GAUGE2 10

48 PANEL 10

49 TAIL 10

50 PWR NO.4 20

No. FUSE AMPERE CIRCUIT

51 PWR NO.2 20

52 OBD 7.5 On-board diagnosis system

SEAT

HTR

15 Rear sunshade

Auto anti-glare inside rear view mirror, compass, back- up lights, automatic light control system, automatic headlight leveling system, cruise control system, seat belt reminder lights

Glove box light, console box light, clock, outside temperature gauge, multi- information display, instrument cluster lights, instrument panel lights

Tail lights, parking lights, license plate lights

Rear passenger’s power window (left side)

Front passenger’s door lock system, front passenger’s power window

20 Seat heaters

ELECTRICAL COMPONENTS

419

ELECTRICAL COMPONENTS

54 WASHER 15 Windshield washer 55

56 STOP 15

59 AMP 25 Car audio system 60 PWR NO.3 20

No. FUSE AMPERE CIRCUIT

62 PWR NO.1 30

63 DEF 40 Rear window defogger

FAN RL Y

FUEL OPEN

DOOR

NO.2

PWR

SEAT

10 Electric cooling fans

Stop lights, high mounted stoplight

5 Fuel filler door opener

Multiplex communication

system (power door lock system, auto-door locking system, wireless remote control system)

Rear passenger’s power window (right side)

Power seats, driving position memory system

Driver’s door lock system, driver’s power window, electric moon roof

420

CHECKING BATTERY CONDITION

Precautions

CAUTION

BATTERY PRECAUTIONS The battery produces flammable and explosive

hydrogen gas.  Do not cause a spark by contacting the battery

terminals with tools.  Do not smoke or light a match near the battery. The electrolyte contains poisonous and corrosive

sulfuric acid.

 Avoid contact with eyes, skin or clothes.  Never inhale or swallow electrolyte.  Wear protective safety glasses when working near

the battery.  Keep children away from the battery. EMERGENCY MEASURES  If electrolyte gets in your eyes, flush your eyes with

clean water immediately and get immediate medical

attention. If possible, continue to apply water with a

sponge or cloth while traveling to the medical office.

ELECTRICAL COMPONENTS

421

ELECTRICAL COMPONENTS

 If electrolyte gets on your skin, thoroughly wash the

contacted area. If you feel a pain or burn, get medical attention immediately.

 If electrolyte gets on your clothes, there is a

possibility of its soaking through to your skin, so immediately take off the exposed clothing and follow the procedure above, if necessary.

 If you accidentally swallow electrolyte, drink a large

quantity of water or milk. Follow with milk of magnesia, beaten raw egg or vegetable oil. Then go immediately for emergency help.

422

ELECTRICAL COMPONENTS

Checking battery exterior



Terminals

Check the battery for corroded or loose connections, cracks, or loose hold-down clamps.

1. If the battery is corroded, wash it off with a solution of warm water and baking soda. Coat the terminals with grease to prevent further corrosion.

2. If the connections are loose, tighten the clamp bolts — but do not overtighten.

3. Tighten the hold-down clamp only enough to keep the battery firmly in place. Overtightening may damage the battery case.

Hold-down clamp

423

ELECTRICAL COMPONENTS

NOTICE



Make sure the engine and all accessories are turned off before performing maintenance.



When checking the battery, remove the ground cable first and reinstall it last.



Be careful not to cause a short circuit with tools.



Take care no solution gets into the battery when washing it.

If the battery is disconnected or run down

The moon roof may not operate automatically and the jam protection function will not function correctly after you reconnect, replace or recharge the battery. In any of these cases, you should normalize the moon roof. To normalize the moon roof, see page 101.

424

Checking battery condition

Checking by indicator

Check the battery condition by the indicator color.

BLUE — Good condition

WHITE — Charging necessary. Have the battery checked by your Lexus dealer.

RED — Have the battery checked by your Lexus dealer.

NOTICE

Do not refill the battery with water.

ELECTRICAL COMPONENTS

425

ELECTRICAL COMPONENTS

BATTERY RECHARGING

PRECAUTIONS

During recharging, the battery is producing hydrogen gas.

Therefore, before recharging:

1. If recharging with the battery installed on the vehicle, be sure to disconnect the ground cable.

2. Make sure the power switch on the recharger is off when connecting the charger cables to the battery and when disconnecting them.

NOTICE

Never recharge the battery while the engine is running. Also, be sure all accessories are turned off.

CAUTION

 Always charge the battery in an unconfined area. Do

not charge the battery in a garage or closed room where there is not sufficient ventilation.

 Only do a slow charge (5 A or less). Charging at a

quicker rate is dangerous. The battery may explode causing personal injuries.

426

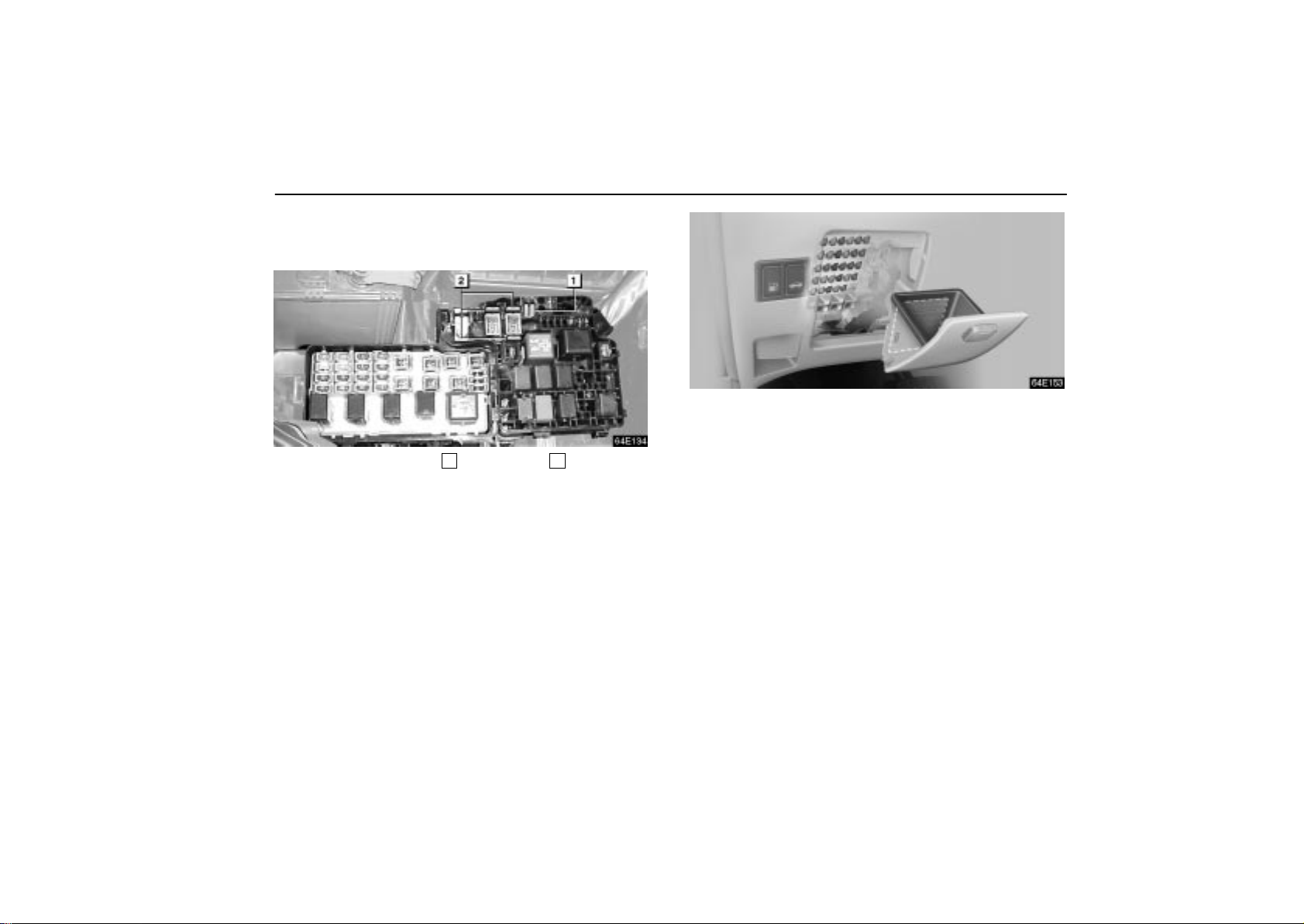

CHECKING AND REPLACING THE

BLADE TYPE FUSES



Engine compartment

Pull-out tool

Spare fuses

ELECTRICAL COMPONENTS



Driver’s side instrument panel

1. Turn the ignition switch off and remove the auxiliary box.

Determine which fuse may be causing the problem. The auxiliary box shows the name of the circuit for each fuse.

427

ELECTRICAL COMPONENTS

2. Make sure the inoperative component is turned off. Pull the suspected fuse straight out with the pull-out tool and check it. If it has blown, push a new fuse into the clips.

428



Good

a. Look carefully at the fuse. If the thin wire is broken, the fuse has blown. If you are not sure or if it is too dark to see, try replacing the suspected fuse with one of the same value that you know is good.

b. Only install a fuse with the amperage rating designated on the fuse box lid.

If you do not have a spare fuse, in an emergency you can pull out the “RAD NO.1”, “RAD NO.2” or “POWER POINT” fuse, which may be dispensable for normal driving, and use it if its amperage rating is the same.

If you cannot use one of the same amperage, use one lower than, but as close as possible to, the amperage. If the amperage is lower than that specified, the fuse might blow out again but this does not indicate anything wrong. Be sure to get the correct fuse as soon as possible and return the substitute to its original clips.



Blown

ELECTRICAL COMPONENTS

It is a good idea to purchase a set of spare fuses and keep them in your vehicle for emergencies.

If the new fuse immediately blows out, there is a problem with the electrical system. Have your Lexus dealer correct it as soon as possible.

CAUTION

Never use a fuse with a higher amperage rating, or any other object, in place of a fuse. This may cause extensive damage and possibly a fire.

CHECKING THE CARTRIDGE TYPE

FUSES



Engine compartment



Driver’s side instrument panel

429

ELECTRICAL COMPONENTS

If the headlights or other electrical components do not work and the blade type fuses are O.K., check the cartridge type fuses. If any of the cartridge type fuses are blown, they must be replaced.

If there is an overload in the circuits from the battery, the fuses are designed to blow before the entire wiring harness is damaged.

CAUTION

430



Good



Blown

Always use a genuine Lexus fuse or equivalent for replacement. Never install an ordinary wire — even for a temporary fix. This may cause extensive damage and possibly a fire.

NOTICE

Before replacing the fuses, have the cause of electrical overload determined and repaired by your Lexus dealer .

ELECTRICAL COMPONENTS

431

ELECTRICAL COMPONENTS

ADDING WASHER FLUID

NOTICE



Do not use engine antifreeze or any other substitute because it may damage your vehicle’s paint.



Do not fill washer fluid over the “NORMAL” level.

If the washer tank becomes nearly empty, add washer fluid.

You may use plain water as washer fluid. However, in cold areas where temperatures range below the freezing point, use washer fluid containing antifreeze. This product is available at your Lexus dealer and most auto parts stores. Follow the manufacturer’s directions for how much to mix with water.

432

ELECTRICAL COMPONENTS

CHECKING THE HEADLIGHT AIM

(vehicles with discharge headlight)



Vertical movement adjusting bolt 1

Vertical movement adjusting bolt 2

Before checking the headlight aim:

1. Be sure that the body around the headlight is not deformed.

2. Park the vehicle on a level spot.

3. The driver gets into the driver’s seat and puts the vehicle in a state readying for a driving (with a full tank).

4. Bounce the vehicle several times.

Adjusting the vertical aiming

1. Turn the vertical movement adjusting bolt 1 in either direction using a Phillips-head screwdriver. At this time, keep the turning direction and number of turns in mind.

433

ELECTRICAL COMPONENTS

2. Turn the vertical movement adjusting bolt 2 the same number of turns and in the same direction as step 1 using a Phillips-head screwdriver.

REPLACING LIGHT BULBS

The illustration on the following pages show the locations of light bulbs. If it is necessary to replace a bulb, take your vehicle to your Lexus dealer as soon as possible. Use bulbs with the bulb numbers and wattage ratings given in the table.

CAUTION

 To prevent burning yourself, do not replace the light

bulbs while they are hot.

 Halogen bulbs have pressurized gas inside and

require special handling. They can burst or shatter if scratched or dropped. Hold a bulb only by its plastic or metal case. Do not touch the glass part of a bulb

with bare hands. Vehicles with discharge headlights —  Do not touch the high voltage socket when the

headlight turns on. 20000 V is momentarily

generated and may cause severe injury by electric

shock.  Do not disassemble, repair or take apart the headlight

bulbs, connector, power supply circuits and rotated

components. Or you may be injured by electric

shocks. Call your dealer when the headlights fail to

work or have to be replaced or disposed of.

434

NOTICE

Only use a bulb of the listed type.

ELECTRICAL COMPONENTS

The inside of the lens of exterior lights such as headlights may temporarily fog up when the lens becomes wet in the rain or in a car wash. This is not a problem because the fogging is caused by the temperature difference between the outside and inside of the lens, just like the windshield fogged up in the rain. However, if there is a large drop of water on the inside of the lens, or if there is water pooled inside the light, contact your Lexus dealer.

LIGHT LOCATION

435

ELECTRICAL COMPONENTS

Light Bulbs Bulb No. W Type

Headlights (high beam) 9005 60 A

Headlights (low beam)

Discharge bulbs Halogen bulbs

Parking lights --- 5 E

Front side marker lights 194 3.8 E

Fog lights --- 55 D

Front turn signal lights --- 21 E

---

35 55

B C

436

Light Bulbs Bulb No. W Type

High mounted stoplight 7440 21 E

Rear turn signal lights --- 21 E

Rear side marker lights --- 5 E

Stop/tail lights 744 21/5 E

Back-up lights 921 18 E

License plate lights --- 5 E

Tail lights 168 5 E

ELECTRICAL COMPONENTS

437

ELECTRICAL COMPONENTS

Light Bulbs Bulb No. W Type

V anity lights --- 5 G

Interior light --- 8 G

Door courtesy lights 168 5 E

Glove box light --- 1.4 E

Personal lights --- 8 F

438

Light Bulbs Bulb No. W Type

Trunk light --- 3 G

A: HB3 halogen bulbs B: D2R discharge bulbs C: H7 halogen bulbs D: H3 halogen bulbs E: Wedge base bulbs F: Single end bulbs G: Double end bulbs

ELECTRICAL COMPONENTS

439

SECTION 6 –

SERVICE PROCEDURES AND SPECIFICATIONS

Engine

Specifications 362. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel 365. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Fuel pump shut off system 367. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Facts about engine oil consumption 368. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Used engine oil 369. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking the engine oil level 370. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking the engine coolant level 375. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Checking the radiator and condenser 377. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Spark plugs 378. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

361

ENGINE

SPECIFICATIONS

— GENERAL

Model Type 6 cylinder V type, 4 cycle, gasoline Bore and stroke 92.0  83.0 mm (3.62  3.27 in.) Displacement 3311 cm3 (202.1 cu. in.) V alve clearance (engine cold)

Intake Exhaust

Drive belt tension (with Borroughs drive belt tension gauge No. BT-33-73F)

— FUEL

Fuel type Octane Rating 87 (Research Octane Number 91) or higher

3MZ-FE

0.15 — 0.25 mm (0.006 — 0.010 in.)

0.25 — 0.35 mm (0.010 — 0.014 in.) 125  20 lb.

Only UNLEADED

362

ENGINE

— LUBRICATION SYSTEM

Oil capacity

Drain and refill

With filter Without filter

Oil grade API grade SL “Energy-Conserving” or ILSAC multigrade engine oil Recommended oil viscosity (SAE):

4.7 L (5.0 qt., 4.1 lmp. qt.)

4.5 L (4.8 qt., 4.0 lmp. qt.)

62Z002

Outside temperature

NOTE: “Toyota Genuine Motor Oil” is filled in your Lexus vehicle. Use Lexus approved “Toyota Genuine Motor Oil” or equivalent to satisfy the above grade and viscosity. Please contact your Lexus dealer for further details.

363

ENGINE

— COOLING SYSTEM

Capacity Coolant type “Toyota Super Long Life Coolant” or similar high quality ethylene glycol

NOTE: “Toyota Super Long Life Coolant” is filled in your Lexus vehicle at factory fill. In order to avoid technical problems, only use “Toyota Super Long Life Coolant” or similar high quality ethylene glycol based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology. Please contact your Lexus dealer for further details.

— IGNITION SYSTEM

Spark plug — Make DENSO

NGK

— Gap

— ELECTRICAL SYSTEM

Battery Open voltage at 20C (68F):

Charging rates

9.2 L (9.7 qt., 8.2 lmp. qt.)

based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life hybrid organic acid technology

Do not use plain water alone.

SK20R11 IFR6A11

1.1 mm (0.043 in.)

12.7 V Fully charged

12.3 V Half charged

11.9 V Discharged [Voltage that is checked 20 minutes after the key is removed with all the lights turned off]

5 A max.

364

ENGINE

FUEL

Fuel type

Y our vehicle must use only unleaded gasoline.

To help prevent gas station mixups, your Lexus has a smaller fuel tank opening. The special nozzle on pumps with unleaded fuel will fit it, but the larger standard nozzle on pumps with leaded gas will not.

NOTICE

Do not use leaded gasoline. Use of leaded gasoline will cause the three-way catalytic converter to lose its effectiveness and the emission control system to function improperly. Also, this can increase maintenance costs.

Octane rating

Select Octane Rating 87 (Research Octane Number 91) or higher. For improved vehicle performance, the use of premium unleaded gasoline with an Octane Rating of 91 (Research Octane Number 96) or higher is recommended.

At a minimum, the gasoline you use should meet the specifications of ASTM D4814 in the U.S.A. and CGSB

3.5-M93 in Canada.

Use of unleaded fuel with an Octane Rating or Research Octane Number lower than stated above will cause persistent heavy knocking. If it is severe, this will lead to engine damage.

If your engine knocks...

If you detect heavy knocking even when using the recommended fuel, or if you hear steady knocking while holding a steady speed on level roads, consult your Lexus dealer.

However, occasionally, you may notice light knocking for a short time while accelerating or driving up hills. This is normal and there is no need for concern.

Gasolines containing detergent additives

365

ENGINE

Lexus recommends the use of gasoline that contain detergent additives to avoid build-up of engine deposits.

For further details, ask your Lexus dealer or a local gasoline retailer.

Quality gasoline

Automobile manufacturers in U.S., Europe and Japan have developed a specification for quality fuel named World-W ide Fuel Charter (WWFC) that is expected to be applied world wide. The WWFC consists of four categories that depend on required emission levels. In the U.S., category 4 has been adopted. The WWFC improves air quality by providing for better emissions in vehicle fleets, and customer satisfaction through better vehicle performance.

Cleaner burning gasoline

Cleaner burning gasoline, including reformulated gasoline that contains oxygenates such as ethanol or MTBE is available in many areas.

Lexus recommends the use of cleaner burning gasoline and appropriately blended reformulated gasoline. These types of gasoline provide excellent vehicle performance, reduce vehicle emissions, and improve air quality.

Oxygenates in gasoline

Lexus allows the use of oxygenate blended gasoline where the oxygenate content is up to 10% ethanol or 15% MTBE. If you use gasohol in your Lexus, be sure that it has an octane rating no lower than 87.

Lexus does not recommend the use of gasoline containing methanol.

Gasoline containing MMT

Some gasoline contain an octane enhancing additive called MMT (Methylcyclopentadienyl Manganese Tricarbonyl).

Lexus does not recommend the use of gasoline that contains MMT. If fuel containing MMT is used, your emission control system may be adversely affected. The Malfunction Indicator Lamp on the instrument cluster may come on. If this happens, contact your Lexus dealer for service.

366

Gasoline quality

In a very few cases, you may experience driveability problems caused by the particular gasoline that you are using. If you continue to have unacceptable driveability, try changing gasoline brands. If this does not rectify your problem, then consult your Lexus dealer.

NOTICE



Do not use gasohol other than stated above. It will cause fuel system damage or vehicle performance problems.



If drivability problems are encountered (poor hot starting, vaporizing, engine knock, etc.), discontinue its use.



Take care not to spill gasohol during refueling. Gasohol may cause paint damage.

ENGINE

Fuel tank capacity

70 L (18.5 gal., 15.4 lmp. gal.)

FUEL PUMP SHUT OFF SYSTEM

The fuel pump shut off system stops supplying fuel to the engine to minimize the risk of fuel leakage when the engine stalls or an airbag inflates upon collision. To restart the engine after the fuel pump shut off system activates, turn the ignition switch to “ACC” or “LOCK” once and start it.

367

ENGINE

CAUTION

Inspect the ground under the vehicle before restarting the engine. If you find that liquid has leaked onto the ground, it is the fuel system has been damaged and it is in need of repair. I n this case, do not restart the engine.

FACTS ABOUT ENGINE OIL

CONSUMPTION

Functions of engine oil

Engine oil has the primary function of lubricating and cooling the inside of the engine, and plays a major role in maintaining the engine in proper working order.

Engine oil consumption

It is normal that an engine should consume some engine oil during normal engine operation. The causes of oil consumption in a normal engine are as follows.

 Oil is used to lubricate pistons, piston rings and cylinders.

A thin film of oil is left on the cylinder wall when a piston moves downwards in the cylinder. High negative pressure generated when the vehicle is decelerating sucks some of this oil into the combustion chamber. This oil as well as some part of the oil film left on the cylinder wall is burned by the high temperature combustion gases during the combustion process.

 Oil is also used to lubricate the stems of the intake valves.

Some of this oil is sucked into the combustion chamber together with the intake air and is burned along with the fuel. High temperature exhaust gases also burn the oil used to lubricate the exhaust valve stems.

The amount of engine oil consumed depends on the viscosity of the oil, the quality of the oil and the way the vehicle is driven.

368

ENGINE

More oil is consumed under driving conditions such as high speeds and frequent acceleration and deceleration.

A new engine consumes more oil, since its pistons, piston rings and cylinder walls have not become conditioned.

Oil consumption: Max. 1.0 L per 1000 km (1.1 qt./600 miles,

0.9 lmp. qt./600 miles)

When judging the amount of oil consumption, keep in mind that the oil may have become diluted, making it difficult to judge the true level accurately.

For example, if a vehicle is used for repeated short trips and consumes a normal amount of oil, the dipstick may not show any drop in the oil level at all, even after 1000 km (600 miles) or more. This is because the oil is gradually becoming diluted with fuel or moisture, making it appear that the oil level has not changed.

The diluting ingredients evaporate out when the vehicle is then driven at high speeds, as on an expressway , making it appear that oil is excessively consumed after driving at high speeds.

NOTICE

Failure to check the oil level regularly could lead to serious engine trouble due to insufficient oil.

For detailed information on oil level check, see “Checking the engine oil level” on page 370.

Importance of engine oil level check

One of the most important points in proper vehicle maintenance is to keep the engine oil at the optimum level so that oil function will not be impaired. Therefore, it is essential that the oil level be checked regularly. Lexus recommends that the oil level be checked every time you refuel the vehicle.

USED ENGINE OIL

369

ENGINE

CAUTION

 Used engine oil contains potentially harmful

contaminants which may cause skin disorders such as inflammation or skin cancer, so care should be taken to avoid prolonged and repeated contact with it. To remove used engine oil from your skin, wash thoroughly with soap and water.

 Do not leave used oil within the reach of children.  Dispose of used oil and used oil filters only in a safe

and acceptable manner. Do not dispose of used oil and used oil filters in household trash, in sewers or onto the ground. Call your Lexus dealer or a service station for information concerning recycling or disposal.

CHECKING THE ENGINE OIL LEVEL

With the engine at operating temperature and turned off, check the oil level on the dipstick.

1. To get a true reading, the vehicle should be on a level ground. After turning off the engine, wait a few minutes for the oil to drain back into the bottom of the engine.

2. Pull the dipstick out, hold a rag under the end and wipe it clean.

3. Reinsert the dipstick and push it in as far as it will go, or the reading will not be correct.

370

ENGINE

NOTICE

Be careful not to drop the engine oil on the vehicle components.



Add oil

O.K.

Too full

4. Pull the dipstick out and look at the oil level while holding a

rag under the end. If it is between the low level mark (

the full level mark (

), it is O.K.

) and

371

ENGINE

If the oil level is below or only slightly above the low mark, add engine oil of the same type as already in the engine.

Remove the oil filler cap and add engine oil a little at a time, checking the dipstick. We recommend that you use a funnel when adding oil. The approximate quantity of oil needed to fill between the low level mark and the full level mark on the dipstick is indicated below for reference.

When the level reaches within the correct range, return the filler cap and turn the cap clockwise until you hear a click.

Oil quantity, L (qt., lmp. qt.) 1.5 (1.6, 1.3)

372

NOTICE



Be careful not to spill the engine oil on the vehicle components.



Avoid overfilling, or the engine could be damaged. Check the oil level on the dipstick once again after adding the oil.

ENGINE

373

ENGINE

Engine oil selection

“Toyota Genuine Motor Oil” is filled in your Lexus vehicle. Use Lexus approved “Toyota Genuine Motor Oil” or equivalent to satisfy the following grade and viscosity.

Oil grade: API grade SL “Energy-Conserving” or ILSAC multigrade engine oil

Recommended viscosity: SAE 5W-30

62Z002

Outside temperature

SAE 5W-30 is the best choice for good fuel economy and good starting in cold weather.

If SAE 5W-30 is not available, SAE 10W-30 may be used. However, it should be replaced with SAE 5W-30 at the next oil change.

Oil identification marks

SOIL11



API Service Symbol

Either or both API registered marks are added to some oil containers to help you select the oil you should use.

 The API Service Symbol is located anywhere on the outside

of the container. The top portion of the label shows the oil quality by API

(American Petroleum Institute) designation such as SL. The center portion of the label shows the SAE viscosity grade such as SAE 5W-30. “Energy-Conserving”, shown in the lower portion, indicates that the oil has fuel-saving capabilities.

 The ILSAC (International Lubricant Standardization and

Approval Committee) Certification Mark is displayed on the front of the container.



ILSAC Certification Mark

374

ENGINE

To ensure excellent lubrication performance for your engine, “Toyota Genuine Motor Oil” is available, which has been specifically tested and approved for all Lexus engines.

Please contact your Lexus dealer for further details about “Toyota Genuine Motor Oil”.

CHECKING THE ENGINE COOLANT

LEVEL



Reservoir cap2Upper line

Look at the see-through coolant reservoir when the engine is cold. The coolant level is satisfactory if it is between the “F” and “L” lines on the reservoir. If the level is low, add the coolant. (For the coolant type, see “Coolant type selection” described below.)

The coolant level in the reservoir will vary with engine temperature. However, if the level is on or below the “L” line, add coolant. Bring the level up to the “F” line.

Lower line

375

ENGINE

If the coolant level drops within a short time after replenishing, there may be a leak in the system. Visually check the radiator, hoses, engine coolant filler cap, radiator cap and drain cock and water pump.

If you can find no leak, have your Lexus dealer test the cap pressure and check for leaks in the cooling system.

CAUTION

To prevent burning yourself, do not remove the radiator cap when the engine is hot.

Coolant type selection

Use of improper coolants may damage your engine cooling system.

Only use “Toyota Super Long Life Coolant” or similar high quality ethylene glycol based non- silicate, non- amine, non- nitrite, and non- borate coolant with long- life hybrid organic acid technology. (Coolant with long-life hybrid organic acid technology consists of the combination of low phosphates and organic acids.)

“Toyota Super Long Life Coolant” is pre- mixed with 50% coolant and 50% deionized water. This coolant provides protection down to about -35C (-31F).

Do not use plain water alone.

376

NOTICE

ENGINE

Lexus recommends “Toyota Super Long Life Coolant” which has been tested to ensure that it will not cause corrosion nor result in malfunction of your engine coolant system with proper usage. “Toyota Super Long Life Coolant” is formulated with long- life hybrid organic acid technology and has been specifically designed to avoid engine cooling system malfunction on Lexus vehicles.

“Toyota Super Long Life Coolant” is pre- mixed with 50% coolant and 50% distilled water. This coolant provides protection down to about -35C (-31F).

Please contact your Lexus dealer for further details.

NOTICE

To prevent damage to the radiator and condenser, do not perform the work by yourself.

CHECKING THE RADIATOR AND

CONDENSER

If either of the above parts are extremely dirty or you are not sure of their condition, take your vehicle to a Lexus dealer.

CAUTION

To prevent burning yourself, be careful not to touch the radiator, condenser or intercooler when the engine is hot.

377

ENGINE

SPARK PLUGS

NOTICE

Use only iridium-tipped spark plugs and do not adjust gaps for your engine performance and smooth drivability.

Your engine is fitted with iridium-tipped spark plugs.

378

ENGINE

379

SECTION 6 –

SERVICE PROCEDURES AND SPECIFICATIONS

Introduction

Vehicle identification 352. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Theft prevention labels 353. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Engine compartment overview 355. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Do-it-yourself service precautions 356. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Parts and tools 358. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Positioning the jack 359. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

351

INTRODUCTION

VEHICLE IDENTIFICATION

The vehicle identification number (VIN) is the legal identifier for your vehicle. This number is on the left top of the instrument panel and can be seen through the windshield from outside.

This is the primary identification number for your Lexus. It is used in registering the ownership of your vehicle.

The vehicle identification number (VIN) is also on the Certification Label.

The engine number is stamped on the engine block as shown.

352

INTRODUCTION

THEFT PREVENTION LABELS

(U.S.A. ONLY)

NOTICE

You should not attempt to remove the theft prevention labels as it may violate certain state or federal laws.

Your new vehicle carries theft prevention labels which are approximately 47 mm (1.85 in.) by 12 mm (0.47 in.).

The purpose of these labels is to reduce the incidence of vehicle thefts by facilitating the tracing and recovery of parts from stolen vehicles. The label is designed so that once it is applied to a surface, any attempt to remove it will result in destroying the integrity of the label. Transferring these labels intact from one part to another will be impossible.

353

INTRODUCTION

354

ENGINE COMPARTMENT OVERVIEW

61E080

INTRODUCTION

Power steering fluid reservoir

Engine oil filler cap

Brake fluid reservoir

Fuse box

Battery

Radiator

Condenser

Electric cooling fans

Engine oil level dipstick

Washer fluid tank

Engine coolant reservoir

355

Lexus ES250 2004, ES300 2004, ES330 2004, ES350 2004 Owner Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
