Owner’s ManualOwner’s Manual
NOT FOR REPRODUCTION
NX 300hNX 300h
©2015 TOYOTA MOTOR CORPORATION
NOT FOR REPRODUCTION
All rights reserved. This material may not be reproduced or copied, in whole or in part,
without the written permission of Toyota Motor Corporation.
Pictorial index
NOT FOR REPRODUCTION
For safety
1
and security
Search by illustration
Make sure to read through them
2

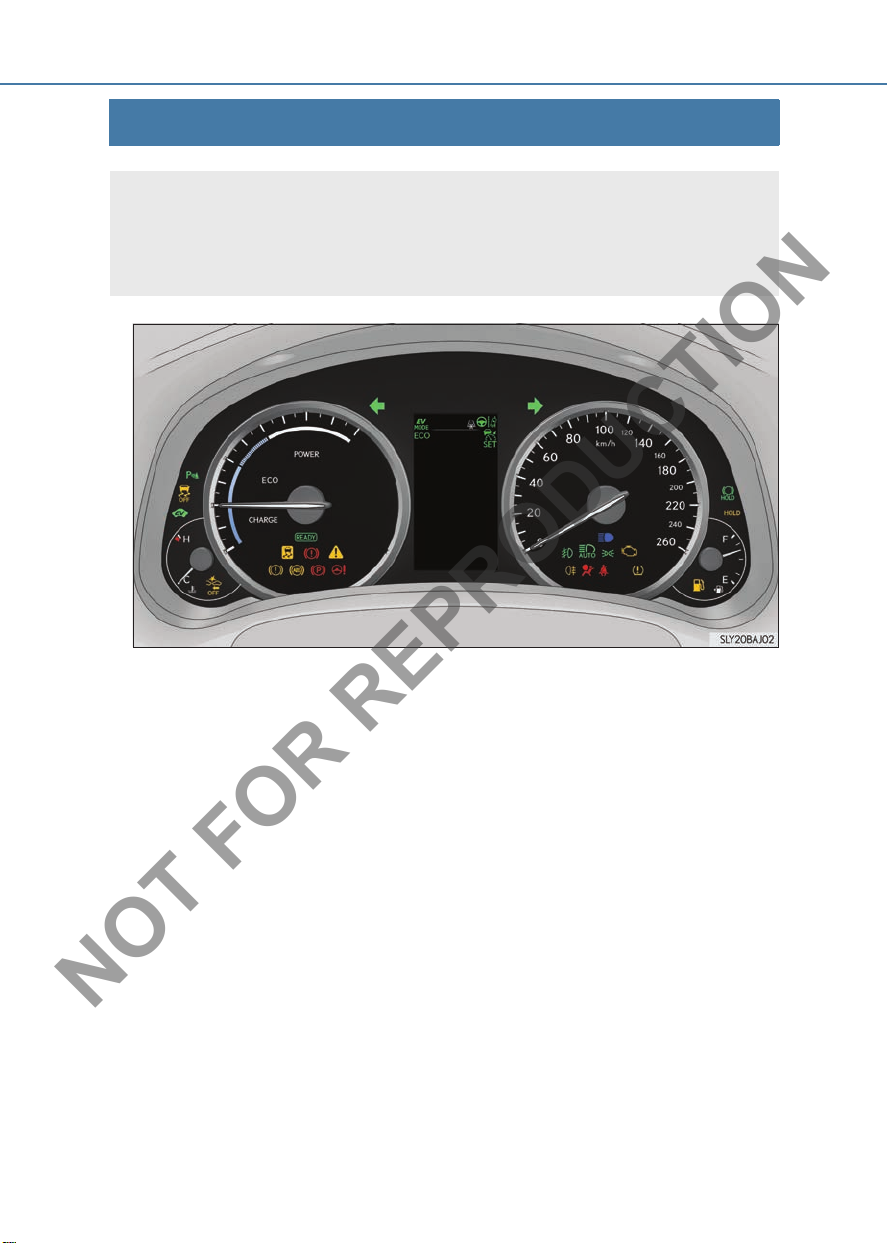

Instrument cluster
Operation of each
3
component
4
Driving
Lexus Display
5
Audio system
6
Interior features
Maintenance
7
and care
When trouble
8
arises
Vehicle
9
specifications
How to read the gauges and meters, the variety of warning
lights and indicators, etc.
Opening and closing the doors and windows, adjustment
before driving, etc.
Operations and advices which are necessary for driving
Operating the Lexus Display Audio system
Usage of the interior features, etc.
Caring for your vehicle and maintenance procedures
What to do in case of malfunction or emergency
Vehicle specifications, customizable features, etc.
Index
Search by symptom
Search alphabetically
TABLE OF CONTENTS2
NOT FOR REPRODUCTION
For your information ...................................8
Reading this manual.................................. 12
How to search.............................................. 13
Pictorial index ..............................................14
1
For safety and security
1-1. For safe use
Before driving.................................26
For safety drive...............................28
Seat belts ..........................................30

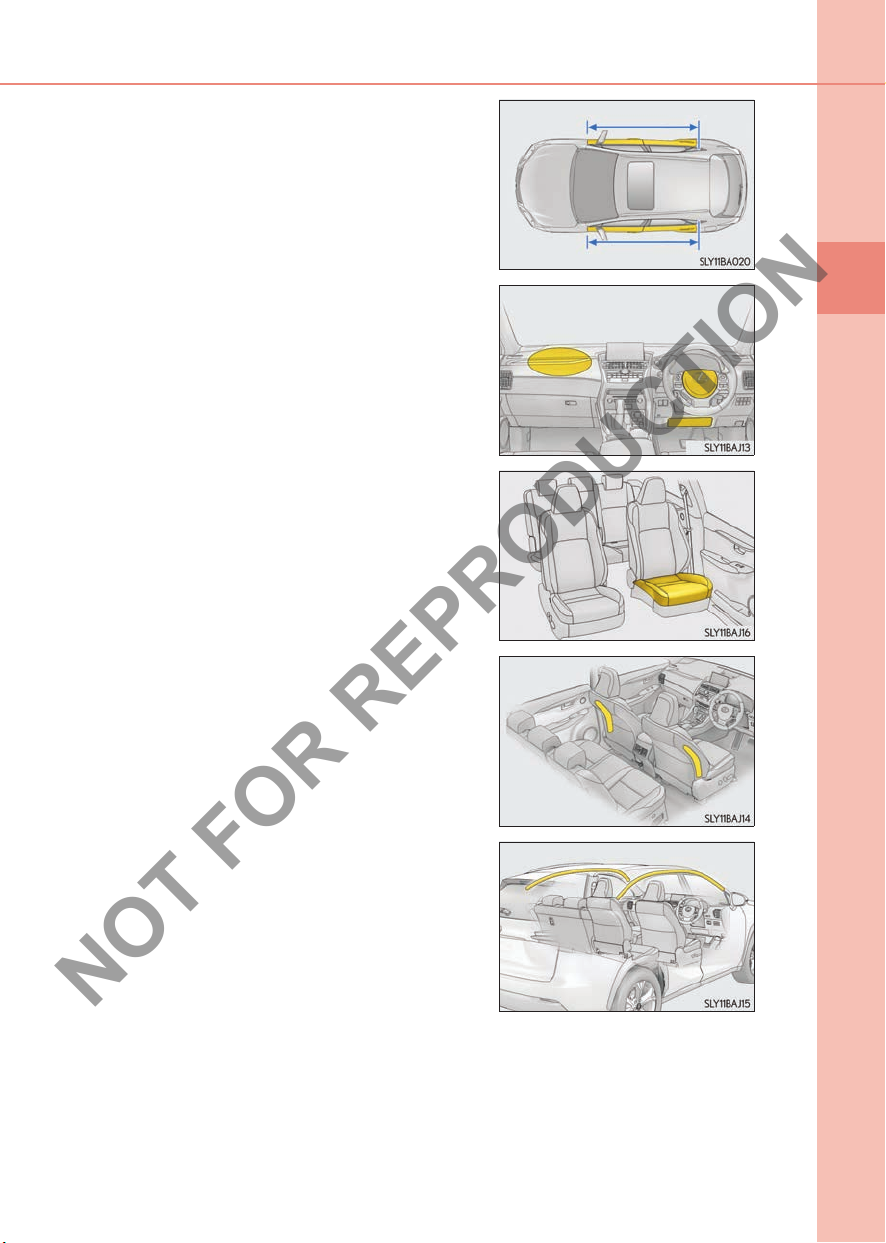

SRS airbags .....................................37
Safety information for
children...........................................46

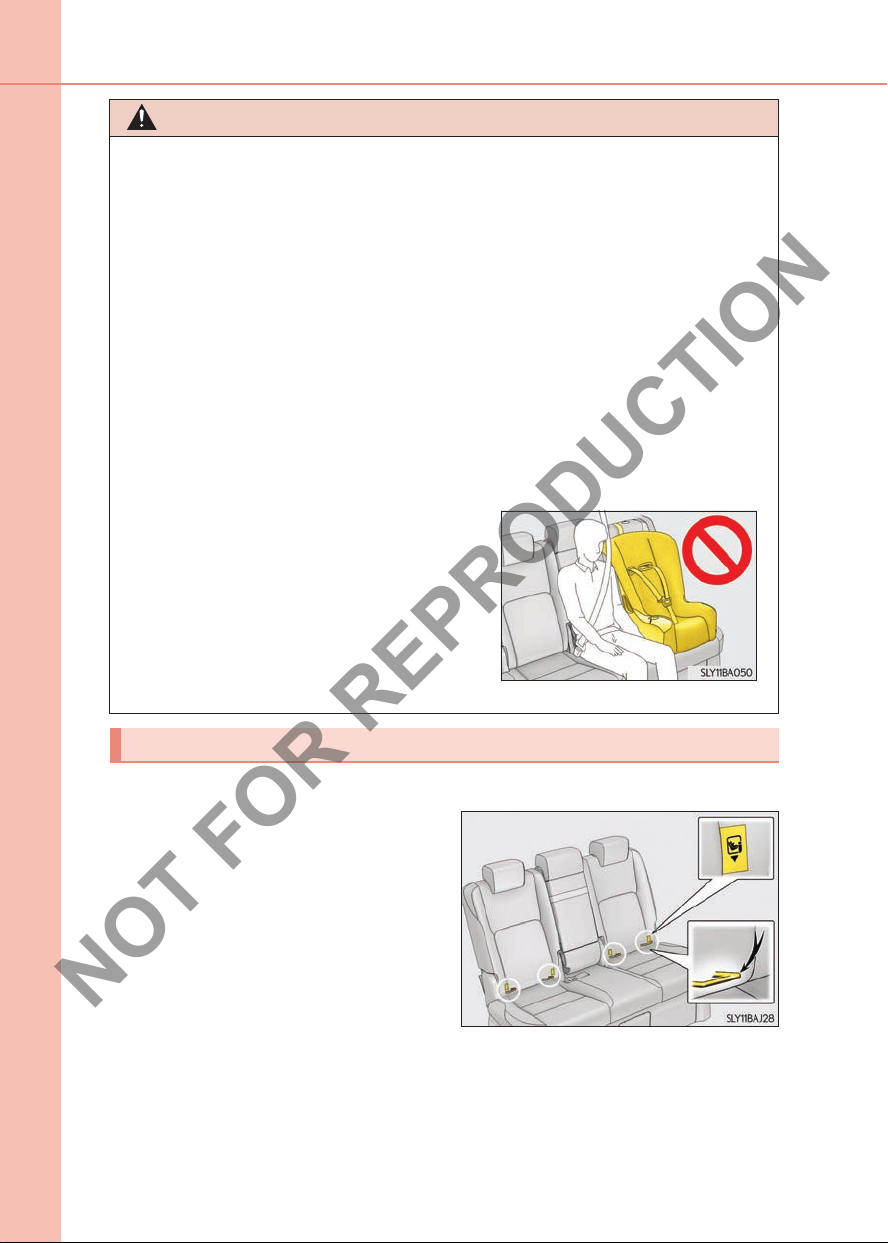

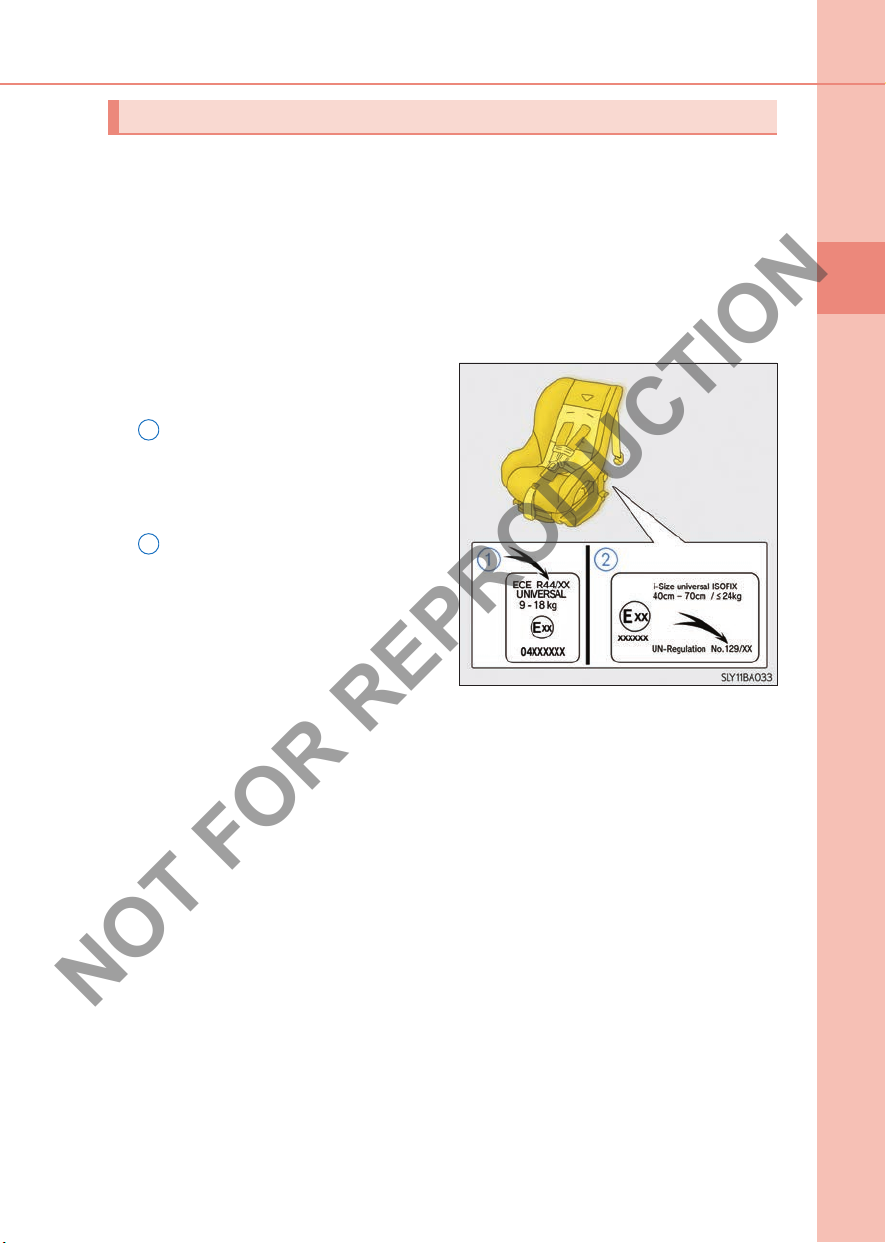

Child restraint systems................ 47
Exhaust gas precautions............72
1-2. Hybrid system
Hybrid system features............... 73
Hybrid system precautions ....... 77
1-3. Theft deterrent system
Immobilizer system.......................82
Alarm .................................................83
2
Instrument cluster
2. Instrument cluster

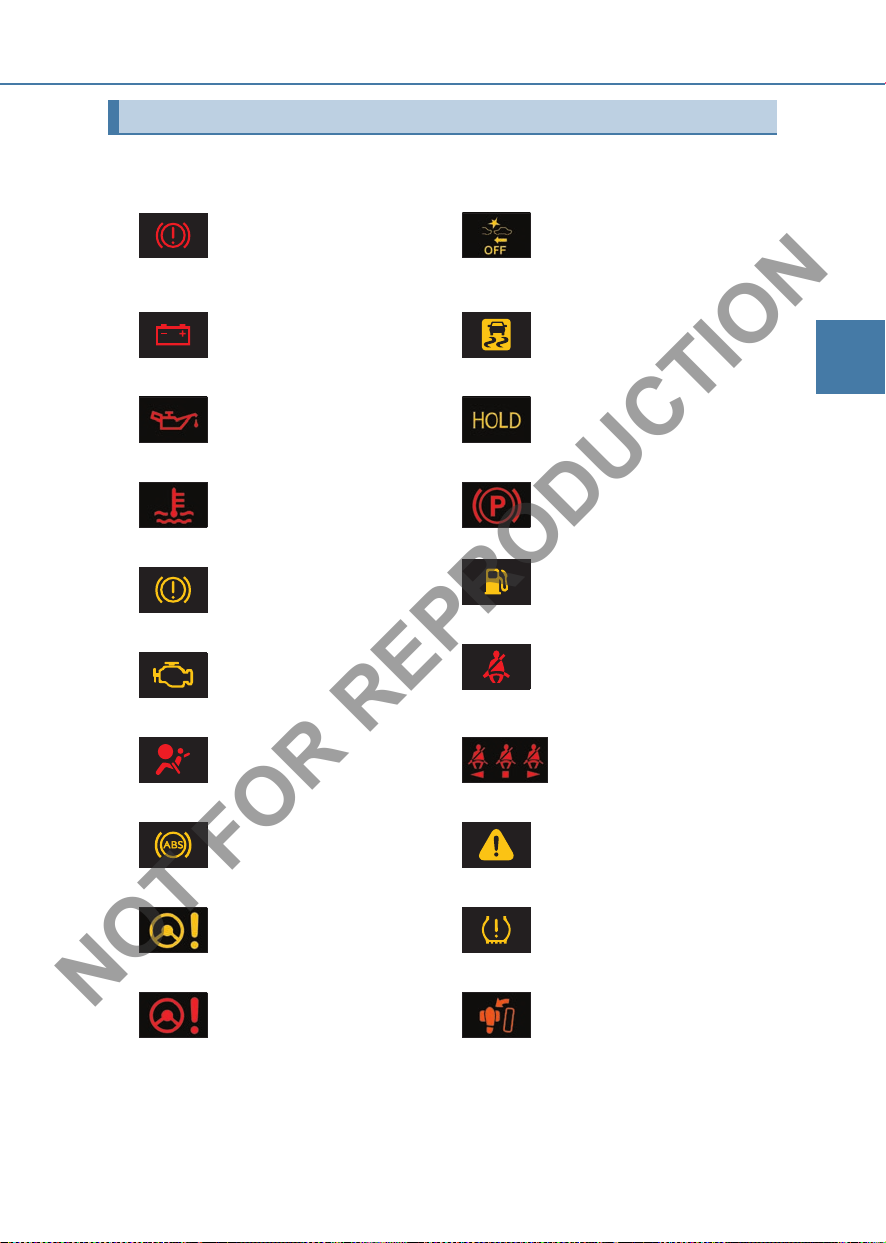

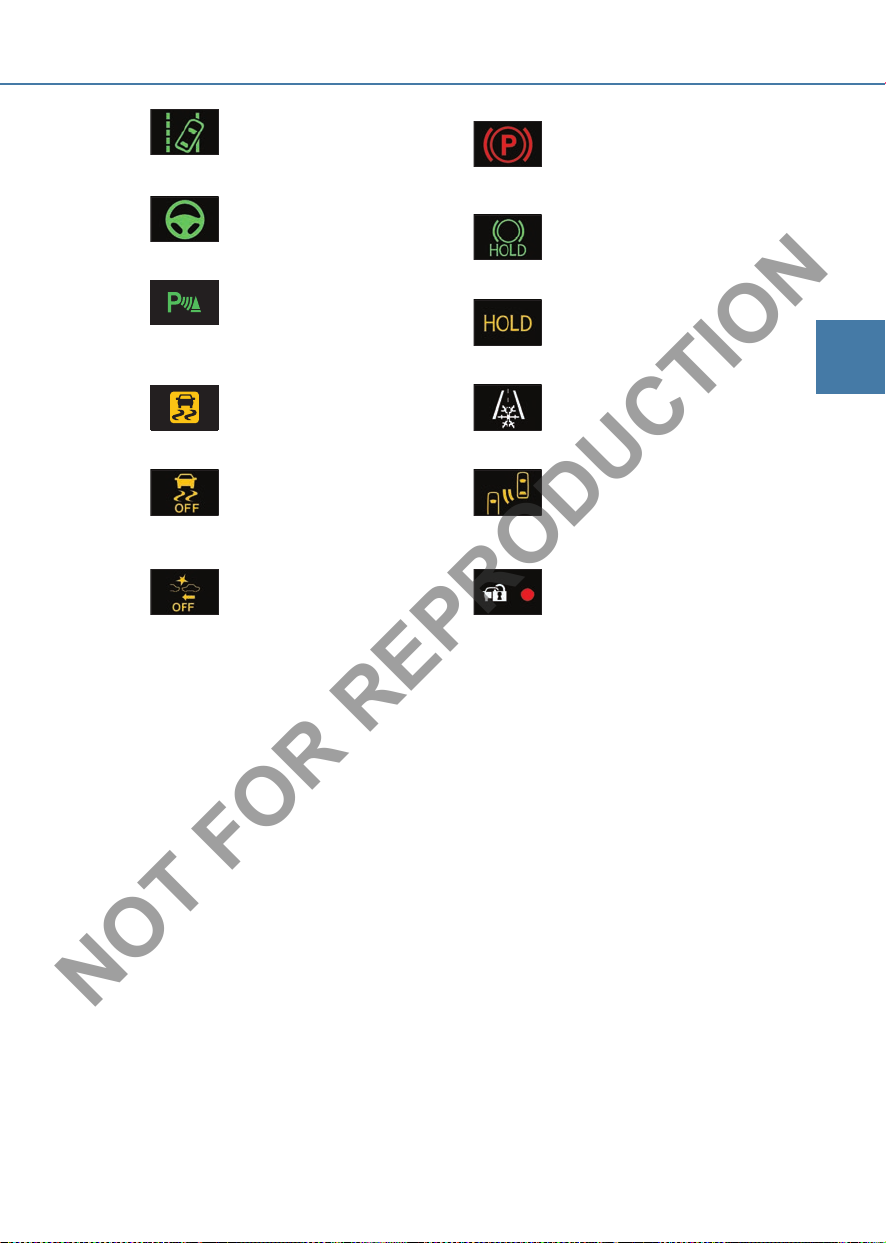

Warning lights and
indicators.......................................90

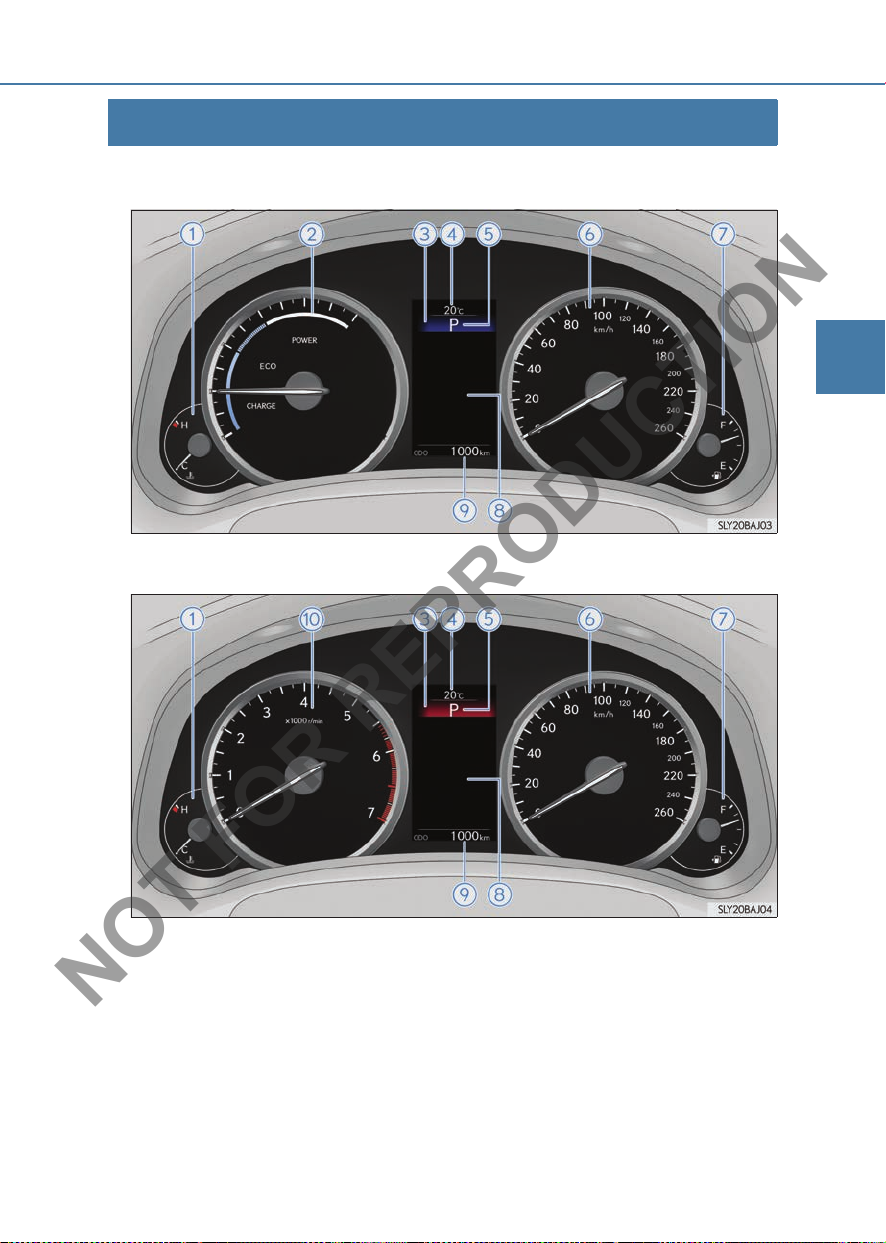

Gauges and meters.....................95
Multi-information display.........100
Head-up display..........................104
Energy monitor/
consumption screen................ 110
Operation of each
3
component
3-1. Key information
Keys.................................................... 118
3-2. Opening, closing and
locking the doors
Side doors.......................................124
Back door.......................................130
Smart entry & start system........141
3-3. Adjusting the seats
Front seats......................................146
Rear seats.......................................148
Driving position memory.........155
Head restraints.............................160
3
NOT FOR REPRODUCTION
3-4. Adjusting the steering
wheel and mirrors
Steering wheel .............................163
Inside rear view mirror..............165
Outside rear view mirrors ........167
3-5. Opening, closing the windows
and moon roof
Power windows............................ 170
Moon roof.......................................173
4
Driving
4-1. Before driving
Driving the vehicle...................... 178
Cargo and luggage.................... 187
Tra il er to wi ng
(2WD models and for
New Zealand vehicles
without towing package) ......189
Tra il er to wi ng
(AWD models and for
New Zealand vehicles
with towing package) .............190
4-2. Driving procedures
Power (ignition) switch...............197
EV drive mode............................202
Hybrid transmission..................204
Turn signal lever ..........................209
Parking brake................................210
Brake Hold.....................................213
ASC (Active Sound
Control)........................................215
4-3. Operating the lights
and wipers
Headlight switch.......................... 216
Automatic High Beam..............219
Fog light switch............................223
Windshield wipers and
washer..........................................225
Rear window wiper and
washer..........................................229
4-4. Refueling
Opening the fuel tank cap.......231
4-5. Using the driving support
systems
Dynamic radar cruise
control with full-speed
range............................................235
Cruise control .............................249
LDA (Lane Departure Alert
with steering control) ............252
Lexus parking
assist-sensor................................261
Rear view monitor system ...... 269
Driving mode select
switch ...........................................279
Driving assist systems...............282
PCS (Pre-Crash Safety
system)........................................ 288
BSM (Blind Spot Monitor)..... 294
4-6. Driving tips
Hybrid vehicle driving tips......302
Winter driving tips....................305
Utility vehicle precautions..... 309
1
2
3
4
5
6
7
8
9
TABLE OF CONTENTS4
NOT FOR REPRODUCTION
5
Lexus Display Audio system
5-1. Basic Operations
Lexus Display Audio
system...........................................314
Steering wheel audio
switches.......................................320
USB/AUX ports..........................321
5-2. Setup
Setup menu...................................323
General settings.........................324
Voice settings...............................327
Display settings...........................328
5-3. Using the audio system
Selecting the audio source.... 330
Optimal use of the audio
system...........................................331
Audio settings..............................332
Audio menu screen
operation ....................................335
5-4. Using the radio
Radio operation......................... 338
5-5. Playing an audio CD and
MP3/WMA/AAC discs
Audio CD player
operation ................................... 340
5-6. Using an external device
Listening to an iPod ...................345
Using USB memory
device...........................................349
Using the AUX port..................353
5-7. Connecting Bluetooth
Steps for using Bluetooth
devices.........................................354
Registering a Bluetooth
device...........................................356
Selecting a Bluetooth
device...........................................357
Connecting a Bluetooth
audio player.............................. 358
Connecting a Bluetooth
phone ...........................................359
Displaying a Bluetooth
device details........................... 360
Detailed Bluetooth
settings.......................................... 361
5-8. Bluetooth
Listening to Bluetooth
Audio............................................362
®
Audio
®
®
®
®
®
®
®
®
®
5
NOT FOR REPRODUCTION
5-9. Bluetooth® Phone
®
Using a Bluetooth
Phone...........................................364
Making a call................................366
Receiving a call ...........................369
Speaking on the phone............370
Using a Bluetooth
message......................................372
Using the steering wheel
switches........................................374
Bluetooth
settings.........................................375
5-10. Phonebook
Contact settings.........................377
Messaging setting.....................380
5-11. Bluetooth
What to do if...
(Troubleshooting).....................381
Bluetooth
5-12. Other function
“Information” screen................388
USB photo ...................................389
Voice command system ...........391
®
phone
®
®
®
phone
.................................. 384
6
Interior features
6-1. Using the air conditioning
system and defogger
Automatic air conditioning
system..........................................396
Seat heaters/
seat ventilators ........................ 405
6-2. Using the interior lights
Interior lights list..........................407
• Front interior light ...............408
• Personal lights.......................408
• Rear interior light ................408
6-3. Using the storage features
List of storage features..............410
• Glove box...................................411
• Console box..............................411
•Cup holders/
bottle holders.......................... 412
• Sunglass holder......................413
• Card holders........................... 414
Luggage compartment
features.........................................415
6-4. Other interior features
Other interior features ............420
• Sun visors ................................420
• Vanity mirrors ........................420
• Clock.......................................... 421
• Power outlet............................ 421
• Wireless charger..................423
• Armrest....................................429
• Assist grips..............................429
• Coat hooks.............................430
1
2
3
4
5
6
7
8
9
TABLE OF CONTENTS6
NOT FOR REPRODUCTION
7
Maintenance and care
7-1. Maintenance and care
Cleaning and protecting the
vehicle exterior ........................432
Cleaning and protecting the
vehicle interior..........................436
7-2. Maintenance
Maintenance
requirements.............................439
7-3. Do-it-yourself maintenance
Do-it-yourself service
precautions................................442
Hood ...............................................444
Positioning a floor jack.............445
Engine compartment................447
12-volt battery..............................456
Tires..................................................460
Tire inflation pressure................467
Wheels............................................469
Air conditioning filter..................471
Electronic key battery..............473
Checking and replacing
fuses..............................................475
Light bulbs..................................... 479
8
When trouble arises
8-1. Essential information
Emergency flashers...................494
If your vehicle has to
be stopped in an
emergency.................................495
8-2. Steps to take in an emergency
If your vehicle needs to be
towed............................................496
If you think something is
wrong.......................................... 502
If a warning light turns on
or a warning buzzer
sounds......................................... 503
If a warning message is
displayed.................................... 509
If you have a flat tire....................513
If the hybrid system will not
start ...............................................525
If the shift lever cannot be
shifted from P............................527
If the electronic key does not
operate properly .....................528
If the 12-volt battery is
discharged.................................532
If your vehicle overheats .........537
If the vehicle becomes
stuck...............................................541
9
For vehicles with a navigation system, refer to the “Navigation System Owner’s
Manual” for information regarding the equipment listed below.
• Navigation system
• Lexus parking assist monitor
• Audio/visual system
NOT FOR REPRODUCTION
Vehicle specifications
9-1. Specifications
Maintenance data
(fuel, oil level, etc.)...................544
Fuel information..........................554
9-2. Customization
Customizable features.............555
9-3. Initialization
Items to initialize .........................565
7
1
2
3
Index
What to do if...
(Troubleshooting)...............................568
Alphabetical index.................................572
4
5
6
7
8
9
8
NOT FOR REPRODUCTION
For your information
Main Owner’s Manual
Please note that this manual applies to all models and explains all equipment, including
options. Therefore, you may find some explanations for equipment not installed on your
vehicle.
All specifications provided in this manual are current at the time of printing. However,
because of the Lexus policy of continual product improvement, we reserve the right to
make changes at any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ from your
vehicle in terms of color and equipment.
Accessories, spare parts and modification of your Lexus
A wide variety of non-genuine spare parts and accessories for Lexus vehicles are currently available in the market. Using these spare parts and accessories which are not
genuine Lexus products may adversely affect the safety of your vehicle, even though
these parts may be approved by certain authorities in your country. Toyota Motor Corporation therefore cannot accept any liability or guarantee spare parts and accessories
which are not genuine Lexus products, nor for replacement or installation involving such
parts.
This vehicle should not be modified with non-genuine Lexus products. Modification with
non-genuine Lexus products could affect its performance, safety or durability, and may
even violate governmental regulations. In addition, damage or performance problems
resulting from the modification may not be covered under warranty.
Installation of an RF-transmitter system
NOT FOR REPRODUCTION
The installation of an RF-transmitter system in your vehicle could affect electronic systems such as:
● Multiport fuel injection system/sequential multiport fuel injection system
● Dynamic radar cruise control system
● Cruise control system
● Anti-lock brake system
● SRS airbag system
● Seat belt pretensioner system
Be sure to check with your Lexus dealer for precautionary measures or special instructions regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna positions and
installation provisions for the installation of RF-transmitters, is available on request at
your Lexus dealer.
High voltage parts and cables on the hybrid vehicles emit approximately the same
amount of electromagnetic waves as the conventional gasoline powered vehicles or
home electronic appliances despite of their electromagnetic shielding.
Unwanted noise may occur in the reception of the radio frequency transmitter (RF-transmitter).
Vehicle data recordings
Your Lexus is equipped with several sophisticated computers that will record certain
data, such as:
• Engine speed
• Electric motor speed (traction motor speed)
• Accelerator status
•Brake status
• Vehicle speed
•Shift position
• Hybrid battery (traction battery) status
The recorded data varies according to the vehicle grade level and options with which it is
equipped. Furthermore, these computers do not record conversations, sounds or pictures.
● Data usage
Lexus may use the data recorded in these computers to diagnose malfunctions, conduct research and development, and improve quality.
Lexus will not disclose the recorded data to a third party except:
• With the consent of the vehicle owner or with the consent of the lessee if the vehicle
is leased
• In response to an official request by the police, a court of law or a government
agency
• For use by Lexus in a lawsuit
• For research purposes where the data is not tied to a specific vehicle or vehicle
owner
9
10
NOT FOR REPRODUCTION
Event data recorder
This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR
is to record, in certain crash or near crash-like situations, such as an airbag deployment
or hitting a road obstacle, data that will assist in understanding how a vehicle’s systems
performed. The EDR is designed to record data related to vehicle dynamics and safety
systems for a short period of time, typically 30 seconds or less. However, data may not
be recorded depending on the severity and type of a crash.
The EDR in this vehicle is designed to record such data as:
• How various systems in your vehicle were operating;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which
crashes and injuries occur.
NOTE: EDR data are recorded by your vehicle only if a non-trivial crash situation occurs;
no data are recorded by the EDR under normal driving conditions and no personal data
(e.g., name, gender, age, and crash location) are recorded. However, other parties, such
as law enforcement, could combine the EDR data with the type of personally identifying
data routinely acquired during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as
law enforcement, that have the special equipment, can read the information if they have
access to the vehicle or the EDR.
● Disclosure of the EDR data
Lexus will not disclose the data recorded in an EDR to a third party except when:
• An agreement from the vehicle’s owner (or the lessee for a leased vehicle) is
obtained
• In response to an official request by the police, a court of law or a government
agency
• For use by Lexus in a lawsuit
However, if necessary, Lexus may:
• Use the data for research on vehicle safety performance
• Disclose the data to a third party for research purposes without disclosing informa-
tion about the specific vehicle or vehicle owner
Scrapping of your Lexus
WA R N I N G
NOT FOR REPRODUCTION
The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left as
they are, this may cause an accident such as fire. Be sure to have the systems of the SRS
airbag and seat belt pretensioner removed and disposed of by a qualified service shop or
by your Lexus dealer before you scrap your vehicle.

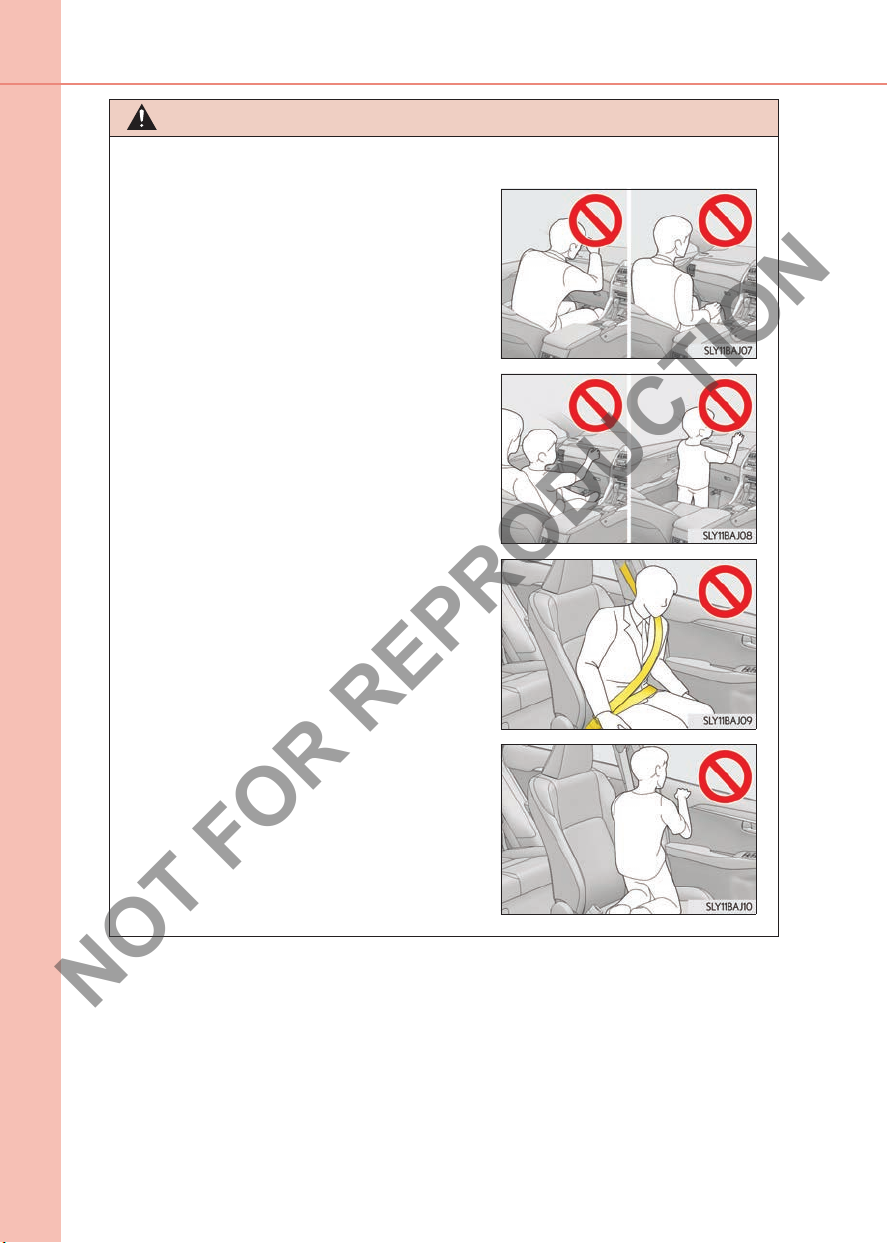

■ General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
alcohol or drugs that have impaired your ability to operate your vehicle. Alcohol and
certain drugs delay reaction time, impair judgment and reduce coordination, which
could lead to an accident that could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or
pedestrians might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that distracts the
driver, such as adjusting controls, talking on a cellular phone or reading can result in a
collision with resulting death or serious injury to you, your occupants or others.
■ General precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to have or use
the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is also a
danger that children may injure themselves by playing with the windows, the moon
roof, or other features of the vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.
11
12
NOT FOR REPRODUCTION
Reading this manual
WA R NI N G :
Explains something that, if not obeyed, could cause death or serious injury
to people.
NOTICE:
Explains something that, if not obeyed, could cause damage to or a malfunction in the vehicle or its equipment.
Indicates operating or working procedures. Follow the steps in
numerical order.
Indicates the action (pushing,
turning, etc.) used to operate
switches and other devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Indicates the component or position being explained.
Means “Do not”, “Do not do this”,
or “Do not let this happen”.
How to search
NOT FOR REPRODUCTION
■ Searching by name
• Alphabetical index ................ P. 572
■ Searching by installation position
• Pictorial index ..............................P. 14
■ Searching by symptom or sound
• What to do if...
(Troubleshooting) ..................P. 568
13
■ Searching by title
• Table of contents.......................... P. 2
14
1
2
3
NOT FOR REPRODUCTION
Pictorial index
Pictorial index
■ Exterior
The shape of the headlights may differ depending on the grade, etc.
Side doors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 124
Locking/unlocking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 124
Opening/closing the door glasses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 170
Locking/unlocking by using the mechanical key . . . . . . . . . . . . . . . . . . . . . . . .P. 528
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 509
Back door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 130
Opening from inside the cabin* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 131
Opening from outside . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 131
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 509
Outside rear view mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 167
Adjusting the mirror angle. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 167
Folding the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 167
Driving position memory* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 155
Defogging the mirrors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 401
Pictorial index
4
5
6
7
8
9
10
11
12
13
14
15
16
NOT FOR REPRODUCTION
Windshield wipers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 305
Precautions against car wash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 434
Fuel filler door . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 231
Refueling method. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 231
Fuel type/fuel tank capacity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 546
Tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 460
Tire size/inflation pressure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 552
Winter tires/tire chain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 306
Checking/rotation/tire pressure warning system. . . . . . . . . . . . . . . . . . . . . . . .P. 460
Coping with flat tires. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 513
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 444
Opening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 444
Engine compartment cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 448
Engine oil. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 547
Coping with overheat . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 537
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 509
Light bulbs of the exterior lights for driving
(Replacing method: P. 479, Watts: P. 553)
Headlights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 216
Front position lights/daytime running lights . . . . . . . . . . . . . . . . . . . . . . . . . P. 216
Front fog lights
Cornering lights
Turn signal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209
Tail lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 216
Stop lights
Emergency brake signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 283
License plate lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 216
Rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223
Back-up light
Shifting the shift lever to R . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 204
* . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 223
*. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 217
15
*: If equipped
16
1
2
3
NOT FOR REPRODUCTION
Pictorial index
■ Instrument panel
Power switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 19 7
Starting the hybrid system/changing the modes. . . . . . . . . . . . . . . . . . . . . . . . . .P. 197
Emergency stop of the hybrid system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 495
When the hybrid system will not start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 525
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 509
Shift lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 204
Changing the shift position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 204
Precautions against towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 496
When the shift lever does not move. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 527
Meters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 95
Reading the meters/adjusting the instrument panel light . . . . . . . . . . . . . P. 95, 97
Warning lights/indicator lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 90
When the warning lights come on . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 503
Pictorial index
4
5
6
7
8
9
10
11
NOT FOR REPRODUCTION
Multi-information display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 100
Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 100
Energy monitor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 110
When the warning messages are displayed . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 509
Turn signal lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 209
Headlight switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 216
Headlights/front position lights/tail lights/
license plate lights/daytime running lights. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 216
Front fog lights
Windshield wiper and washer switch . . . . . . . . . . . . . . . . . . . . . . . . . P. 225, 229
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 225, 229
Adding washer fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 455
Warning messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 509
Emergency flasher switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 494
Hood lock release lever . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 444
Tilt and telescopic steering control switch. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 163
Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 163
Driving position memory
Air conditioning system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 396
Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 396
Rear window defogger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 401
Audio system*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 314
Hands-free system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 364
1
/rear fog light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 223
*
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 156
*
17
1
*
: If equipped
2
*
: For vehicles with a navigation system, refer to “Navigation System Owner’s Manual”.
18
1
2
3
4
5
6
7
8
9
10
11
NOT FOR REPRODUCTION
■ Switc hes
Pictorial index
Seat heater switches*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 406
Seat ventilator switches
Odometer/trip meter and trip meter reset button . . . . . . . . . . . . . . . . . . . P. 97
Instrument panel light control switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 97
Automatic High Beam switch
Lexus parking assist-sensor switch
BSM (Blind Spot Monitor) main switch
Power back door switch
1, 2
Camera switch
PCS (Pre-Crash Safety system) switch*1. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 289
Rear seat operations switch
*
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 406
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 219
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 261
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . P. 294
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 131
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 148
Pictorial index
1
2
3
4
5
6
7
NOT FOR REPRODUCTION
HUD (Head-up display) switches*1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 104
1
*
ASC (Active Sound Control) dial
Outside rear view mirror switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 167
Window lock switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 170
Power window switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 170
Driving position memory switches
Door lock switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 126
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 215
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 156
19
1
*
: If equipped
2
*
: Refer to “Navigation System Owner’s Manual”.
20
1
2
3
4
5
6
7
8
NOT FOR REPRODUCTION
Pictorial index
Audio remote control switches*1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 320
Paddle shift switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 205, 206
Meter control switches. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 101
2
*
Vehicle-to-vehicle distance button
Cruise control switch
Cruise control*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 249
Dynamic radar cruise control
LDA switch*2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 254
1
*
Ta l k sw i t c h
Telephone switches
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 374
*
2
*
1
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 374
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 235
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 235
Pictorial index
1
2
3
4
5
6
7
NOT FOR REPRODUCTION

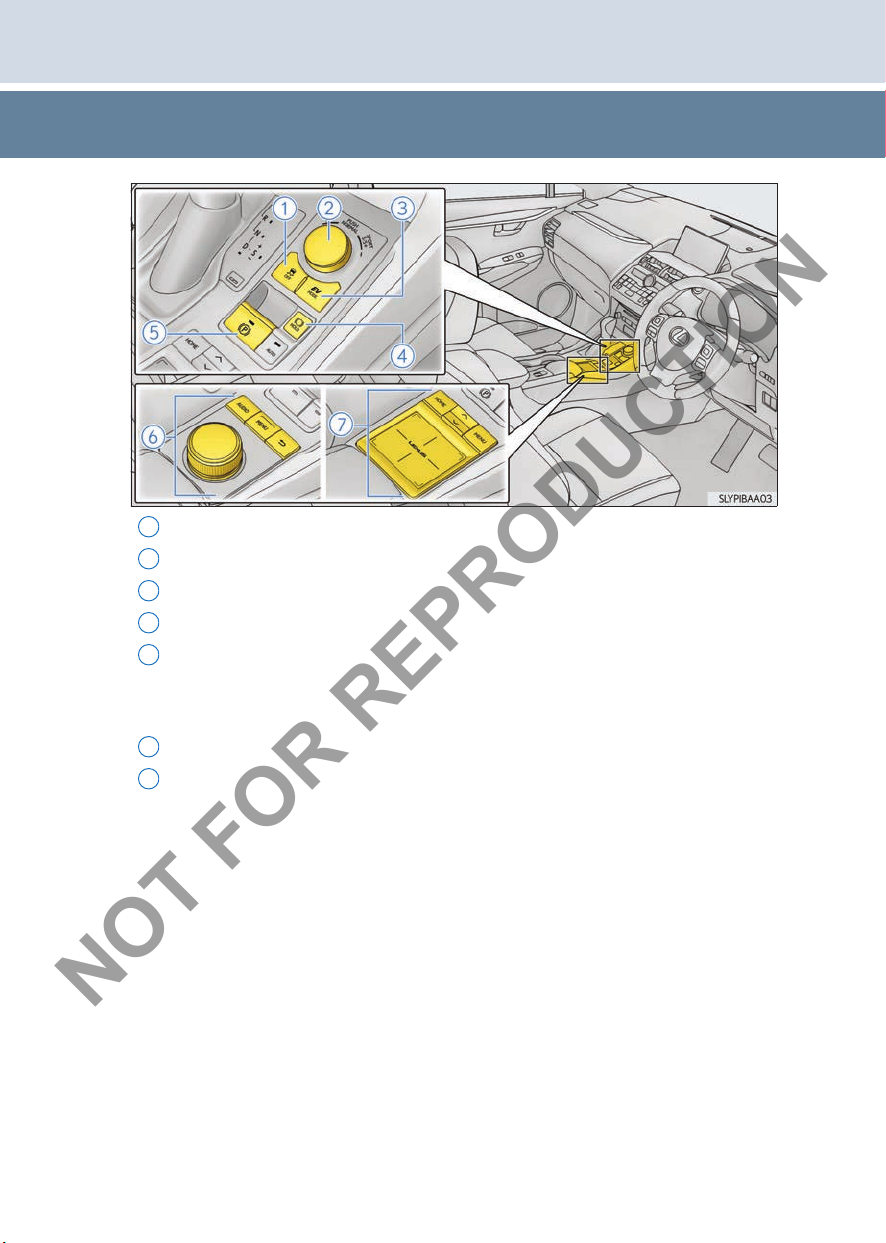

VSC OFF switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 284
Driving mode select switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 279
EV drive mode switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 202
Brake hold switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 213
Parking brake switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 210, 211
Applying/releasing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 210, 211
Precautions against winter season . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 306
Warning buzzer/message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 503, 509
Lexus Display Audio controller*2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 316
Remote Touch
1, 2
*
21
1
*
: For vehicles with a navigation system, refer to “Navigation System Owner’s Manual”.
2
*
: If equipped
22
1
2
3
4
5
6
7
8
9
10
NOT FOR REPRODUCTION
■ Interior
Pictorial index
SRS airbags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 37
Floor mats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 26
Front seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 146
Rear seats. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 148
Head restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 160
Seat belts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .P. 30
Console box . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 41 1
Inside lock buttons. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 126
Cup holders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 4 1 2
Assist grips. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 429
Pictorial index
1
2
3
4
5
6
*
1
:If equipped
*
2
: NEVER use a rearward facing child
restraint on a seat protected by an
ACTIVE AIRBAG in front of it, DEATH
or SERIOUS INJURY to the CHILD can
occur. (P. 5 3)
*
3
: The illustration shows the front, but they are also equipped in the rear.
NOT FOR REPRODUCTION
Inside rear view mirror . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 165
2
*
Sun visors
Vanity mirrors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 420
Interior light
Personal lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 408
Moon roof switches
Intrusion sensor and tilt sensor cancel switch
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 420
3
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 408
1
*
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . P. 173
1
*
. . . . . . . . . . . . . . . . . . . . . .P. 85
23
24
NOT FOR REPRODUCTION
Pictorial index
25
NOT FOR REPRODUCTION
For safety and security
1
1-1. For safe use
Before driving.................................26
For safety drive...............................28
Seat belts..........................................30
SRS airbags......................................37
Safety information for
children..........................................46
Child restraint systems................47
Exhaust gas precautions.............72
1-2. Hybrid system
Hybrid system features................73
Hybrid system precautions........77
1-3. Theft deterrent system
Immobilizer system ......................82
Alarm.................................................83
26
*
NOT FOR REPRODUCTION
1-1. For safe use
Before driving

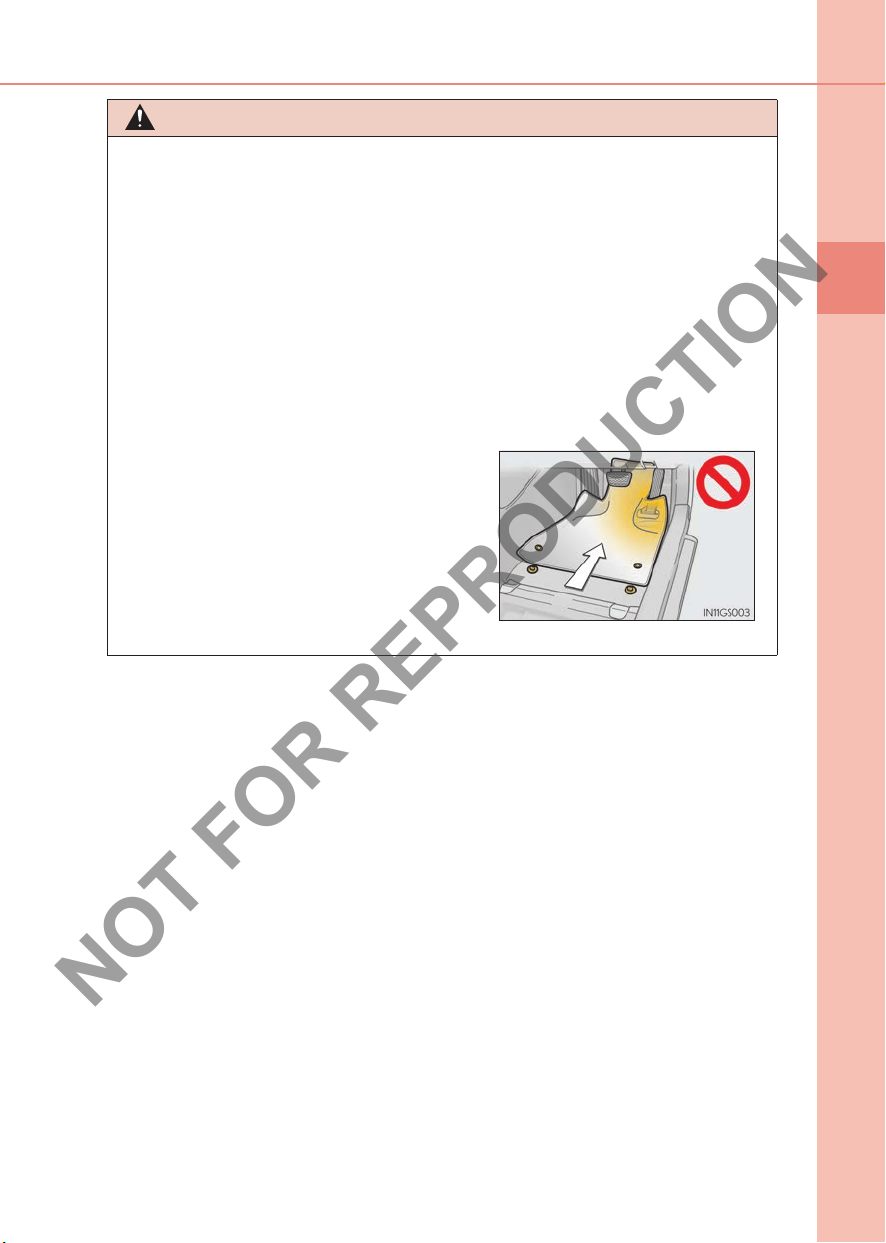

Floor mat
Use only floor mats designed specifically for vehicles of the same model and
model year as your vehicle. Fix them securely in place onto the carpet.
1
Insert the retaining hooks (clips) into
the floor mat eyelets.
2
Turn the upper knob of each retaining hook (clip) to secure the floor
mats in place.
*: Always align the marks.
The shape of the retaining hooks (clips) may differ from that shown in the illustration.
1-1. For safe use
WA R N I N G
● Check that the floor mat is securely fixed in
the correct place with all the provided retaining hooks (clips). Be especially careful to perform this check after cleaning the floor.
● With the hybrid system stopped and the shift
lever in P, fully depress each pedal to the floor
to make sure it does not interfere with the
floor mat.
NOT FOR REPRODUCTION
Observe the following precautions.
Failure to do so may cause the driver’s floor mat to slip, possibly interfering with the pedals while driving. An unexpectedly high speed may result or it may become difficult to
stop the vehicle. This could lead to an accident, resulting in death or serious injury.
■ When installing the driver’s floor mat
● Do not use floor mats designed for other models or different model year vehicles,
even if they are Lexus Genuine floor mats.
● Only use floor mats designed for the driver’s seat.
● Always install the floor mat securely using the retaining hooks (clips) provided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
27
1
For safety and security
28
NOT FOR REPRODUCTION
1-1. For safe use

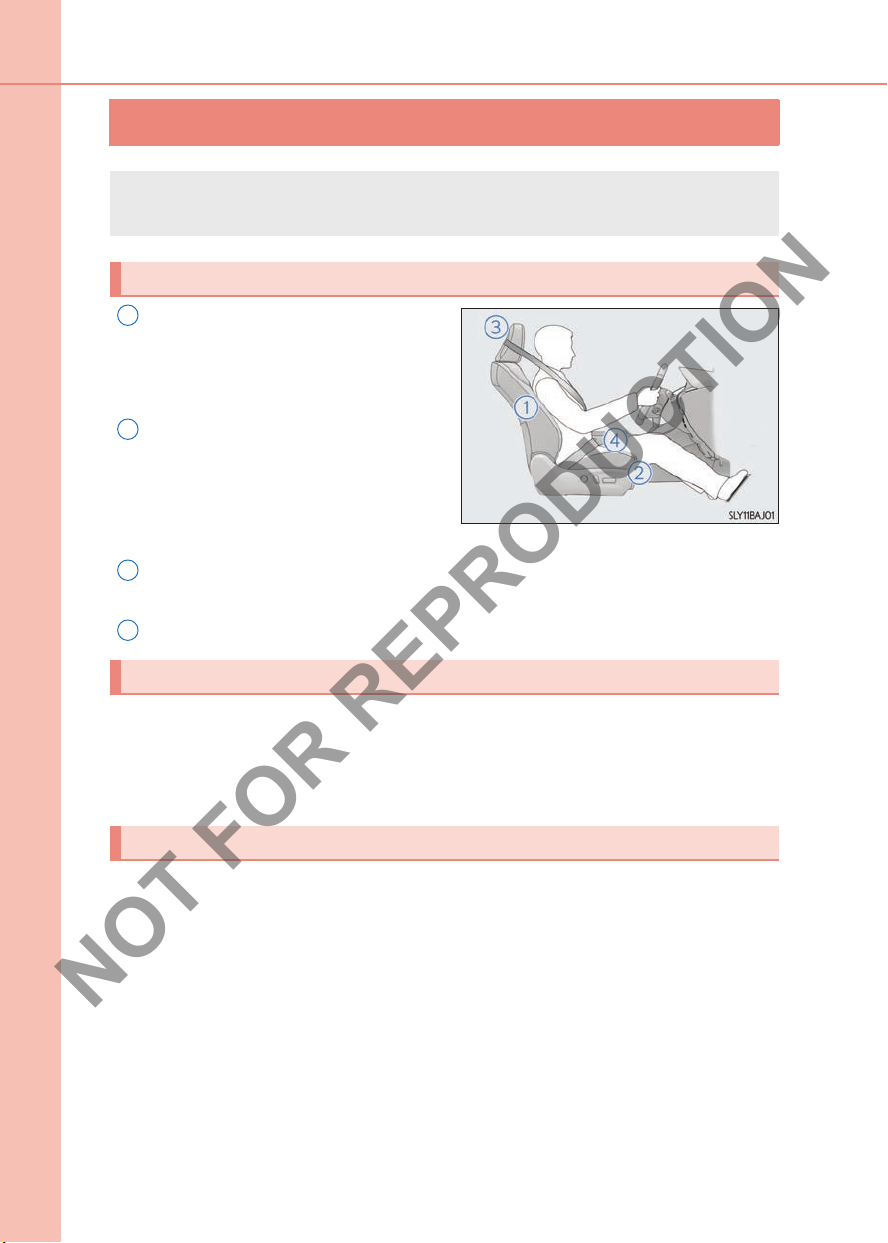

For safety drive
For safe driving, adjust the seat and mirror to an appropriate position before
driving.
Correct driving posture
1
Adjust the angle of the seatback so
that you are sitting straight up and so
that you do not have to lean forward
to steer. (P. 14 6)
2
Adjust the seat so that you can
depress the pedals fully and so that
your arms bend slightly at the elbow
when gripping the steering wheel.
(P. 146, 163)
3
Lock the head restraint in place with the center of the head restraint closest to
the top of your ears. (P. 16 0 )
4
Wear the seat belt correctly. (P. 3 0)
Correct use of the seat belts
Make sure that all occupants are wearing their seat belts before driving the vehicle. (P. 30)
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt. (P. 47 )
Adjusting the mirrors
Make sure that you can see the rear of the vehicle clearly, by adjusting the inside
and outside rear view mirrors properly. (P. 165, 167)
1-1. For safe use
WA R N I N G
NOT FOR REPRODUCTION
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not adjust the position of the driver’s seat while driving.
Doing so could cause the driver to lose control of the vehicle.
● Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the effectiveness of the seat belt and head restraint.
● Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks and stop
the seat from locking in place. This may lead to an accident and the adjustment mechanism may also be damaged.
● When driving over long distances, take regular breaks before you start to feel tired.
Also, if you feel tired or sleepy while driving, do not force yourself to continue driving
and take a break immediately.
29
1
For safety and security
30
Release button
1
NOT FOR REPRODUCTION
1-1. For safe use
Seat belts
Make sure that all occupants are wearing their seat belts before driving the
vehicle.
Correct use of the seat belts
● Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with the
neck or slide off the shoulder.
● Position the lap belt as low as possi-
ble over the hips.
● Adjust the position of the seatback.
Sit up straight and well back in the
seat.
● Do not twist the seat belt.
Fastening and releasing the seat belt (except for the rear center seat)
To fasten the seat belt, push the plate
into the buckle until a click sound is
heard.
2
To release the seat belt, press the
release button.
Fastening the seat belt (for the rear center seat)
Plate B
Plate A
1
Plate A
Buckle A
Plate B
Buckle B
2
1
2
NOT FOR REPRODUCTION
Take out the plate.
When fixing the belt, in the order of
plate A and then plate B, insert the
plate into the buckle until a clicking
sound is heard.
Plate A, buckle A
Plate B, buckle B
1-1. For safe use
31
1
For safety and security
32
Release button
1
Plate B
Buckle A
2
Plate A
Plate B
3
NOT FOR REPRODUCTION
1-1. For safe use
Releasing and stowing the seat belt (for the rear center seat)
To release the hooked buckle B,
push the buckle release button.
Insert the mechanical key (P. 118 )
or plate B into the notch of buckle A
and remove the belt.
Retract the belt slowly when releasing
and stowing the seat belt.
Stow in the cover in the order of
plate B and then plate A.
In order to securely fix it, firmly insert it
to the back.
1-1. For safe use
Buckle A
Buckle B
4
Release button
NOT FOR REPRODUCTION
Stow seat belt buckle A and buckle
B in the pockets.
Adjusting the seat belt shoulder anchor height (front seats)
1
Push the seat belt shoulder anchor
down while pressing the release button.
2
Push the seat belt shoulder anchor
up.
Move the height adjuster up and down
as needed until you hear a click.
Seat belt pretensioners (front seats)
33
1
For safety and security
The pretensioners help the seat belts to
quickly restrain the occupants by
retracting the seat belts when the vehicle is subjected to certain types of
severe frontal or side collision.
The pretensioners do not activate in the
event of a minor frontal impact, a minor
side impact, a rear impact or a vehicle
rollover.
34
NOT FOR REPRODUCTION
■ Emergency locking retractor (ELR)
■ Child seat belt usage
■ Replacing the belt after the pretensioner has been activated
■ Seat belt regulations
1-1. For safe use
The retractor will lock the belt during a sudden stop or on impact. It may also lock if you
lean forward too quickly. A slow, easy motion will allow the belt to extend so that you can
move around fully.
The seat belts of your vehicle were principally designed for persons of adult size.
● Use a child restraint system appropriate for the child, until the child becomes large
enough to properly wear the vehicle’s seat belt. (P. 47 )
● When the child becomes large enough to properly wear the vehicle’s seat belt, follow
the instructions regarding seat belt usage. (P. 30 )
If the vehicle is involved in multiple collisions, the pretensioner will activate for the first
collision, but will not activate for the second or subsequent collisions.
If seat belt regulations exist in the country where you reside, please contact your Lexus
dealer for seat belt replacement or installation.
1-1. For safe use
WA R N I N G
Obtain medical advice and wear the seat belt
in the proper way. (P. 30)
Women who are pregnant should position the
lap belt as low as possible over the hips in the
same manner as other occupants, extending
the shoulder belt completely over the shoulder
and avoiding belt contact with the rounding of
the abdominal area.
If the seat belt is not worn properly, not only the
pregnant woman, but also the fetus could suffer
death or serious injury as a result of sudden
braking or a collision.
NOT FOR REPRODUCTION
Observe the following precautions to reduce the risk of injury in the event of sudden
braking, sudden swerving or an accident.
Failing to do so may cause death or serious injury.
■ Wearing a seat belt
● Ensure that all passengers wear a seat belt.
● Always wear a seat belt properly.
● Each seat belt should be used by one person only. Do not use a seat belt for more
than one person at once, including children.
● Lexus recommends that children be seated in the rear seat and always use a seat belt
and/or an appropriate child restraint system.
● To achieve a proper seating position, do not recline the seat more than necessary. The
seat belt is most effective when the occupants are sitting up straight and well back in
the seats.
● Do not wear the shoulder belt under your arm.
● Always wear your seat belt low and snug across your hips.
■ Pregnant women
35
1
For safety and security
■ People suffering illness
Obtain medical advice and wear the seat belt in the proper way. (P. 30 )
36
WA R N I N G
Do not use the rear center seat belt with either
buckle released. Fastening only one of the
buckles may result in death or serious injury in
case of sudden braking or a collision.
NOT FOR REPRODUCTION
1-1. For safe use
■ When children are in the vehicle
Do not allow children to play with the seat belt. If the seat belt becomes twisted around
a child’s neck, it may lead to choking or other serious injuries that could result in death.
If this occurs and the buckle cannot be unfastened, scissors should be used to cut the
belt.
■ Seat belt pretensioners
If the pretensioner has activated, the SRS warning light will come on. In that case, the
seat belt cannot be used again and must be replaced at your Lexus dealer.
■ Adjustable shoulder anchor
Always make sure the shoulder belt is positioned across the center of your shoulder.
The belt should be kept away from your neck, but not falling off your shoulder. Failure to
do so could reduce the amount of protection in an accident and cause death or serious
injuries in the event of a sudden stop, sudden swerve or accident. (P. 33)
■ Seat belt damage and wear
● Do not damage the seat belts by allowing the belt, plate, or buckle to be jammed in
the door.
● Inspect the seat belt system periodically. Check for cuts, fraying, and loose parts. Do
not use a damaged seat belt until it is replaced. Damaged seat belts cannot protect an
occupant from death or serious injury.
● Ensure that the belt and plate are locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Lexus dealer.
● Replace the seat assembly, including the belts, if your vehicle has been involved in a
serious accident, even if there’s no obvious damage.
● Do not attempt to install, remove, modify, disassemble or dispose of the seat belts.
Have any necessary repairs carried out by your Lexus dealer. Inappropriate handling
may lead to incorrect operation.

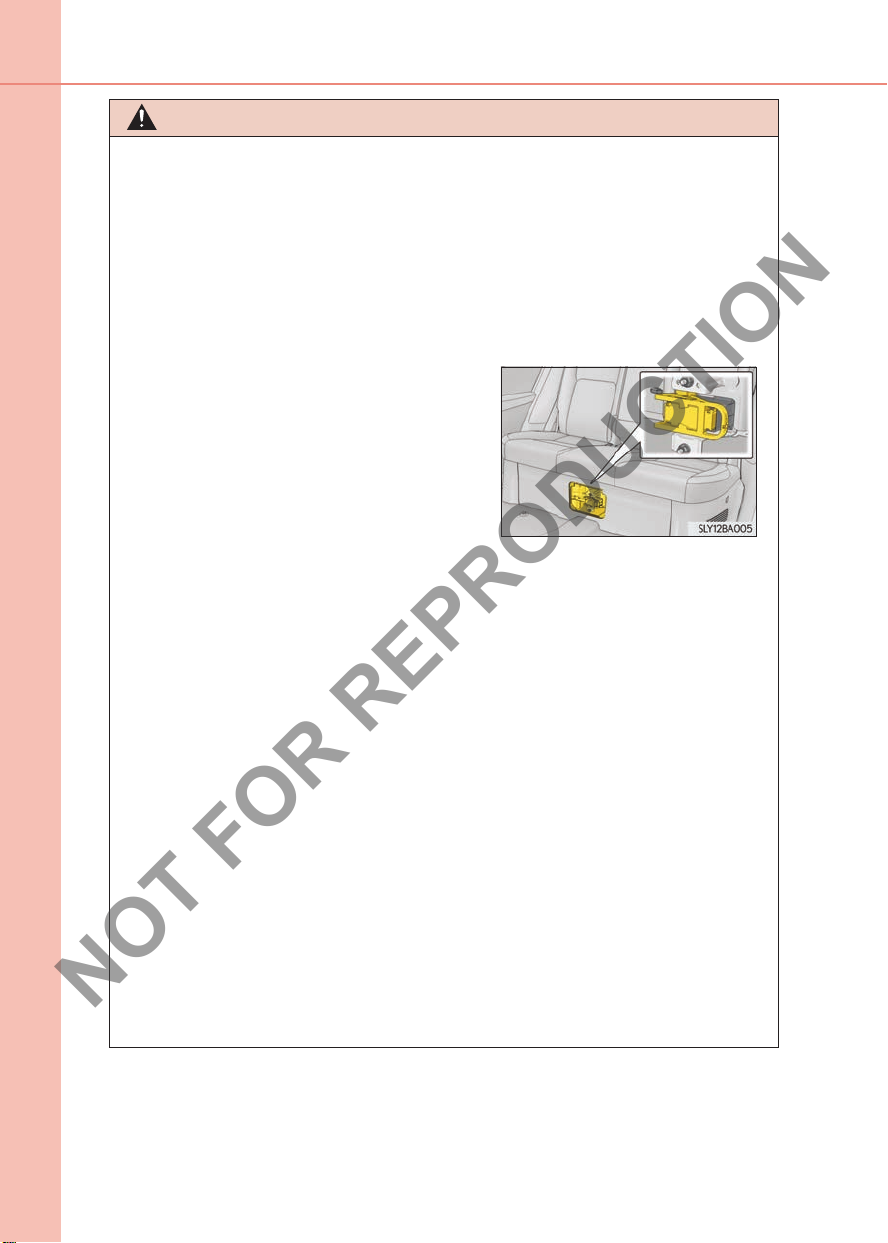

■ When using the rear center seat belt
1-1. For safe use
1
2
3
4
5
NOT FOR REPRODUCTION
SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain types of
severe impacts that may cause significant injury to the occupants. They work
together with the seat belts to help reduce the risk of death or serious injury.
37
1
For safety and security
◆ SRS front airbags
SRS driver airbag/front passenger airbag
Can help protect the head and chest of the driver and front passenger from
impact with interior components
SRS knee airbag
Can help provide driver protection
SRS seat cushion airbag
Can help restrain the front passenger
◆ SRS side and curtain shield airbags
SRS side airbags
Can help protect the torso and pelvis of the front seat occupants
SRS curtain shield airbags
Can help protect primarily the head of occupants in the outer seats
38
9
10
11
12
13
14
15
NOT FOR REPRODUCTION
1-1. For safe use
SRS airbag system components
1
Side impact sensors (rear)
2
Side airbags
3
Curtain shield airbags
4
Driver airbag
5
SRS warning light
6
Front passenger airbag
7
Front impact sensors
8
Side impact sensors (front)
Seat belt pretensioners and force
limiters
Airbag sensor assembly
Passenger seat cushion airbag
Front passenger’s seat belt buckle
switch
Driver’s seat belt buckle switch
Knee airbags
Driver’s seat position sensor
The main SRS airbag system components are shown above. The SRS airbag system is controlled by the airbag sensor assembly. As the airbags deploy, a chemical reaction in the inflators quickly fills the airbags with non-toxic gas to help
restrain the motion of the occupants.
1-1. For safe use
WA R N I N G
NOT FOR REPRODUCTION
■ SRS airbag precautions
Observe the following precautions regarding the SRS airbags.
Failure to do so may cause death or serious injury.
● The driver and all passengers in the vehicle must wear their seat belts properly.
The SRS airbags are supplemental devices to be used with the seat belts.
● The SRS driver airbag deploys with considerable force, and can cause death or seri-
ous injury especially if the driver is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.) of inflation,
placing yourself 250 mm (10 in.) from your driver airbag provides you with a clear
margin of safety. This distance is measured from the center of the steering wheel to
your breastbone. If you sit less than 250 mm (10 in.) away now, you can change your
driving position in several ways:
• Move your seat to the rear as far as you can while still reaching the pedals comfortably.
• Slightly recline the back of the seat. Although vehicle designs vary, many drivers
can achieve the 250 mm (10 in.) distance, even with the driver seat all the way forward, simply by reclining the back of the seat somewhat. If reclining the back of
your seat makes it hard to see the road, raise yourself by using a firm, non-slippery
cushion, or raise the seat if your vehicle has that feature.
• If your steering wheel is adjustable, tilt it downward. This points the airbag toward
your chest instead of your head and neck.
The seat should be adjusted as recommended above, while still maintaining control
of the foot pedals, steering wheel, and your view of the instrument panel controls.
● The SRS front passenger airbag also deploys with considerable force, and can cause
death or serious injury especially if the front passenger is very close to the airbag. The
front passenger seat should be as far from the airbag as possible with the seatback
adjusted, so the front passenger sits upright.
● Improperly seated and/or restrained infants and children can be killed or seriously
injured by a deploying airbag. An infant or child who is too small to use a seat belt
should be properly secured using a child restraint system. Lexus strongly recommends that all infants and children be placed in the rear seats of the vehicle and properly restrained. The rear seats are safer for infants and children than the front
passenger seat. (P. 4 7)
39
1
For safety and security
40
WA R N I N G
● Do not sit on the edge of the seat or lean
against the dashboard.
● Do not allow a child to stand in front of the
SRS front passenger airbag unit or sit on the
knees of a front passenger.
● Do not allow the front seat occupants to hold
items on their knees.
● Do not lean against the door, the roof side rail
or the front, side and rear pillars.
● Do not allow anyone to kneel on the passen-
ger seat toward the door or put their head or
hands outside the vehicle.
NOT FOR REPRODUCTION
1-1. For safe use
■ SRS airbag precautions
WA R N I N G
■ SRS airbag precautions

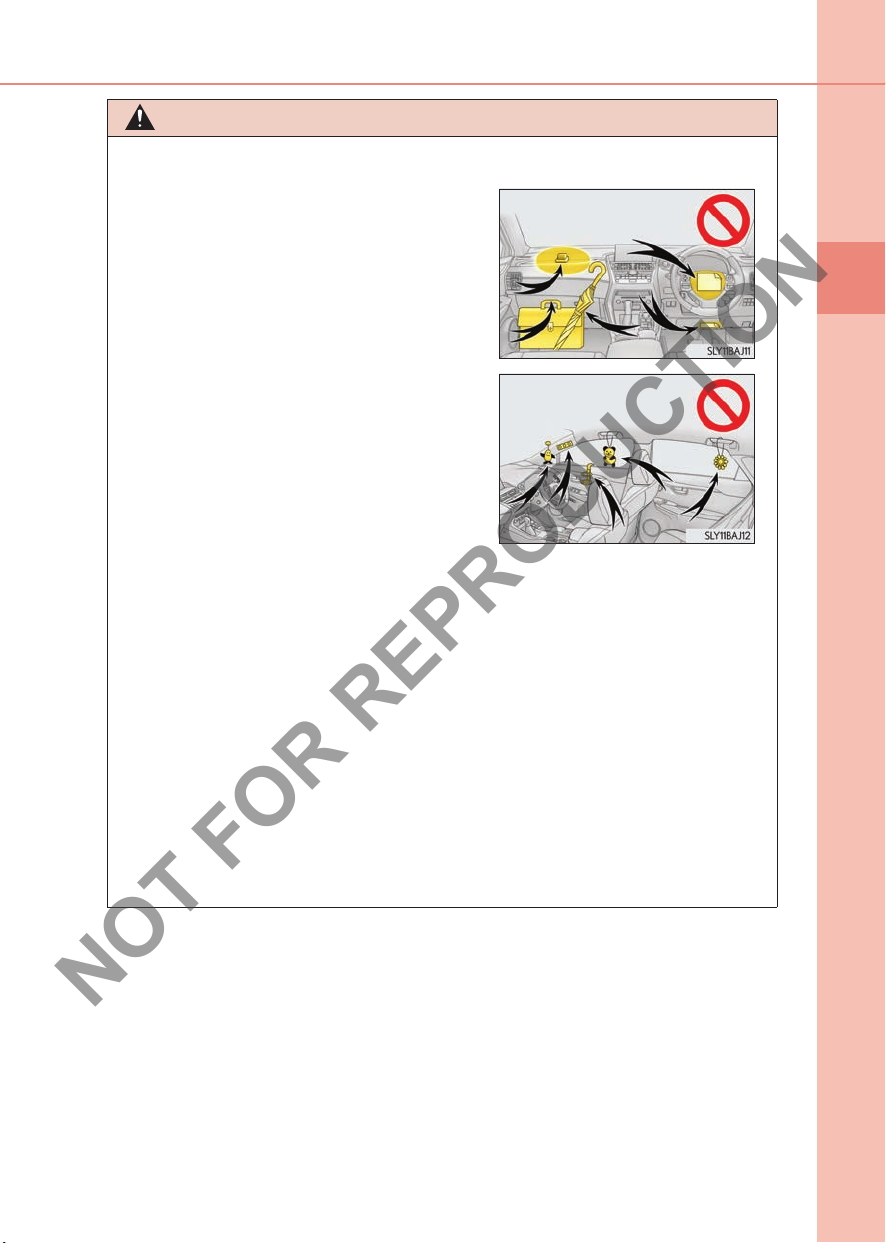

● Do not attach anything to or lean anything
against areas such as the dashboard, steering
wheel pad and lower portion of the instrument panel.
These items can become projectiles when the
SRS driver, front passenger and knee airbags
deploy.
● Do not attach anything to areas such as a
door, windshield glass, side door glass, front
or rear pillar, roof side rail and assist grip.
NOT FOR REPRODUCTION
● Do not hang coat hangers or other hard objects on the coat hooks. All of these items
could become projectiles and may cause death or serious injury, should the SRS curtain shield airbags deploy.
● If a vinyl cover is put on the area where the SRS knee airbag will deploy, be sure to
remove it.
● Do not use seat accessories which cover the parts where the SRS side airbags and
SRS seat cushion airbag inflate as they may interfere with inflation of the SRS airbags.
Such accessories may prevent the side airbags and SRS seat cushion airbag from
activating correctly, disable the system or cause the side airbags and SRS seat cushion airbag to inflate accidentally, resulting in death or serious injury.
● Do not strike or apply significant levels of force to the area of the SRS airbag compo-
nents.
Doing so can cause the SRS airbags to malfunction.
● Do not touch any of the component parts immediately after the SRS airbags have
deployed (inflated) as they may be hot.
1-1. For safe use
41
1
For safety and security
42
WA R N I N G
NOT FOR REPRODUCTION
1-1. For safe use
■ SRS airbag precautions
● If breathing becomes difficult after the SRS airbags have deployed, open a door or
window to allow fresh air in, or leave the vehicle if it is safe to do so. Wash off any residue as soon as possible to prevent skin irritation.
● If the areas where the SRS airbags are stored, such as the steering wheel pad and
front and rear pillar garnishes, are damaged or cracked, have them replaced by your
Lexus dealer.
■ Modification and disposal of SRS airbag system components
Do not dispose of your vehicle or perform any of the following modifications without
consulting your Lexus dealer. The SRS airbags may malfunction or deploy (inflate)
accidentally, causing death or serious injury.
● Installation, removal, disassembly and repair of the SRS airbags
● Repairs, modifications, removal or replacement of the steering wheel, instrument
panel, dashboard, seats or seat upholstery, front, side and rear pillars or roof side rails
● Repairs or modifications of the front fender, front bumper, or side of the occupant
compartment
● Installation of a grille guard (bull bars, kangaroo bar, etc.), snow plows or winches
● Modifications to the vehicle’s suspension system
● Installation of electronic devices such as mobile two-way radios (RF-transmitter) and
CD players
■ If the SRS airbags deploy (inflate)
● Slight abrasions, burns, bruising etc., may be sustained from SRS airbags, due to the
extremely high speed deployment (inflation) by hot gases.
● A loud noise and white powder will be emitted.
● Parts of the airbag module (steering wheel hub, airbag cover and inflator) as well as the
front seats, parts of the front and rear pillars, and roof side rails, may be hot for several
minutes. The airbag itself may also be hot.
● The windshield may crack.
1-1. For safe use
NOT FOR REPRODUCTION
■ SRS airbag deployment conditions (SRS front airbags)
● The SRS front airbags will deploy in the event of an impact that exceeds the set thresh-
old level (the level of force corresponding to an approximately 20-30 km/h [12-18
mph] frontal collision with a fixed wall that does not move or deform).
However, this threshold velocity will be considerably higher in the following situations:
• If the vehicle strikes an object, such as a parked vehicle or sign pole, which can move
or deform on impact
• If the vehicle is involved in an underride collision, such as a collision in which the
front of the vehicle “underrides”, or goes under, the bed of a truck
● Depending on the type of collision, it is possible that only the seat belt pretensioners will
activate.
● The SRS seat cushion airbag on the front passenger seat will not operate if the occu-
pant is not wearing a seat belt.
■ SRS airbag deployment conditions (SRS side and curtain shield airbags)
● The SRS side and curtain shield airbags will deploy in the event of an impact that
exceeds the set threshold level (the level of force corresponding to the impact force
produced by an approximately 1500 kg [3300 lb.] vehicle colliding with the vehicle
cabin from a direction perpendicular to the vehicle orientation at an approximate
speed of 20 -30 km/h [12 -18 mph]).
● The SRS side and curtain shield airbags may also deploy in the event of a severe frontal
collision.

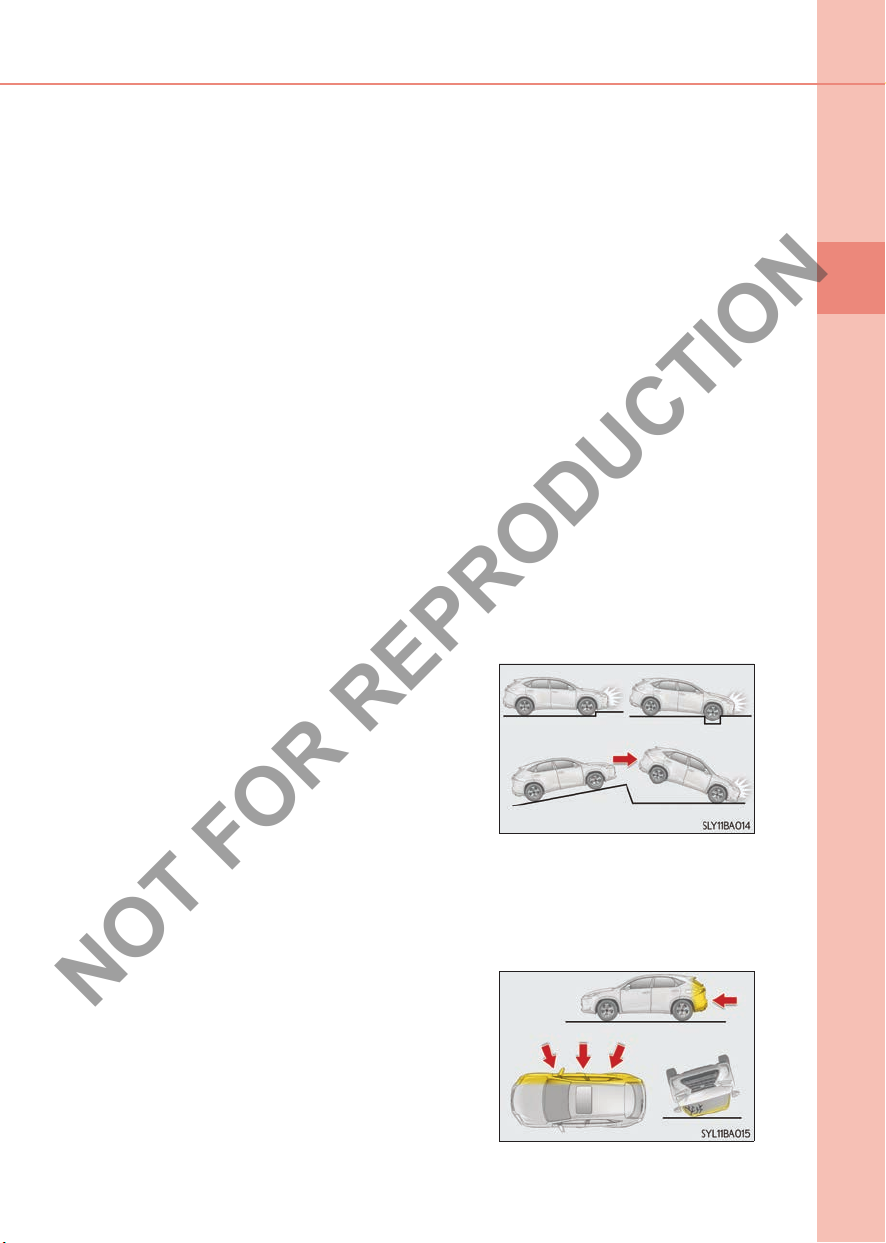

■ Conditions under which the SRS airbags may deploy (inflate), other than a collision
The SRS front airbags and SRS side and curtain shield airbags may also deploy if a serious impact occurs to the underside of your vehicle. Some examples are shown in the
illustration.
● Hitting a curb, edge of pavement or hard sur-
face
● Falling into or jumping over a deep hole
● Landing hard or falling
43
1
For safety and security
■ Types of collisions that may not deploy the SRS airbags (SRS front airbags)
The SRS front airbags do not generally inflate if the vehicle is involved in a side or rear
collision, if it rolls over, or if it is involved in a low-speed frontal collision. But, whenever a
collision of any type causes sufficient forward deceleration of the vehicle, deployment of
the SRS front airbags may occur.
● Collision from the side
● Collision from the rear
● Vehicle rollover
44
NOT FOR REPRODUCTION
■ Types of collisions that may not deploy the SRS airbags
1-1. For safe use
(SRS side and curtain shield airbags)

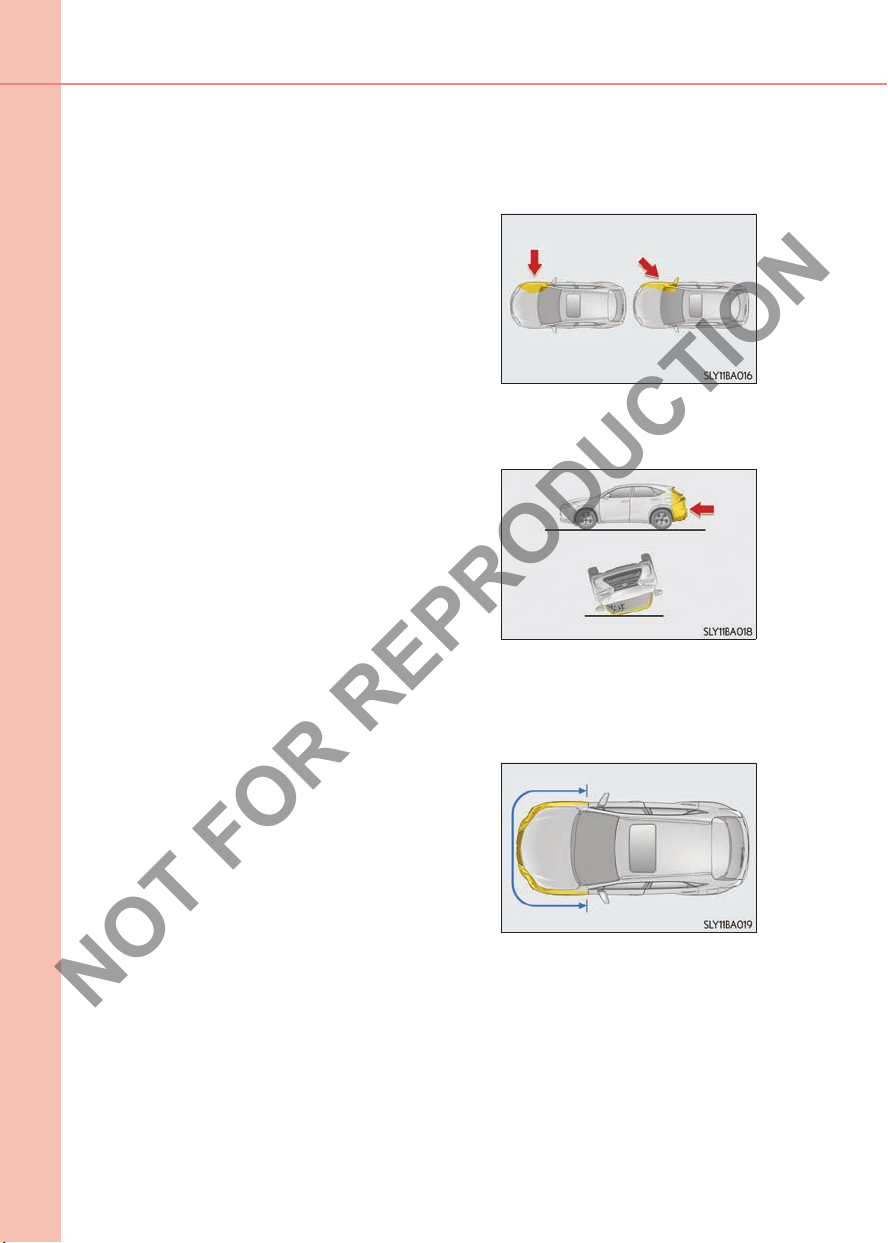

The SRS side and curtain shield airbags may not activate if the vehicle is subjected to a
collision from the side at certain angles, or a collision to the side of the vehicle body other
than the passenger compartment.
● Collision from the side to the vehicle body
other than the passenger compartment
● Collision from the side at an angle
The SRS side and curtain shield airbags do not generally inflate if the vehicle is involved in
a rear collision, if it rolls over, or if it is involved in a low-speed side or low-speed frontal
collision.
● Collision from the rear
● Vehicle rollover
■ When to contact your Lexus dealer
In the following cases, the vehicle will require inspection and/or repair. Contact your
Lexus dealer as soon as possible.
● Any of the SRS airbags have been inflated.
● The front of the vehicle is damaged or
deformed, or was involved in an accident that
was not severe enough to cause the SRS front
airbags to inflate.
● A portion of a door or its surrounding area is
NOT FOR REPRODUCTION
damaged or deformed, or the vehicle was
involved in an accident that was not severe
enough to cause the SRS side and curtain
shield airbags to inflate.
1-1. For safe use
45
● The pad section of the steering wheel, dash-
board near the front passenger airbag or
lower portion of the instrument panel is
scratched, cracked, or otherwise damaged.
● The front passenger’s seat cushion surface is
scratched, cracked, or otherwise damaged.
● The surface of the seats with the side airbag is
scratched, cracked, or otherwise damaged.
● The portion of the front pillars, rear pillars or
roof side rail garnishes (padding) containing
the curtain shield airbags inside is scratched,
cracked, or otherwise damaged.
1
For safety and security
46
WA R N I N G
NOT FOR REPRODUCTION
1-1. For safe use
Safety information for children
Observe the following precautions when children are in the vehicle.
Use a child restraint system appropriate for the child, until the child becomes
large enough to properly wear the vehicle’s seat belt.
● It is recommended that children sit in the rear seats to avoid accidental con-
tact with the shift lever, wiper switch, etc.
● Use the rear door child-protector lock or the window lock switch to avoid
children opening the door while driving or operating the power window accidentally. (P. 127 , 170 )
● Do not let small children operate equipment which may catch or pinch body
parts, such as the power window, hood, back door, seats etc.
Never leave children unattended in the vehicle, and never allow children to have or use
the key.
Children may be able to start the vehicle or shift the vehicle into neutral. There is also a
danger that children may injure themselves by playing with the windows, the moon roof
(if equipped) or other features of the vehicle. In addition, heat build-up or extremely
cold temperatures inside the vehicle can be fatal to children.
1-1. For safe use
NOT FOR REPRODUCTION
Child restraint systems
Before installing a child restraint system in the vehicle, there are precautions
that need to be observed, different types of child restraint systems, as well as
installation methods, etc., written in this manual.
● Use a child restraint system when riding with a small child that cannot prop-
erly use a seat belt. For the child’s safety, install the child restraint system to a
rear seat. Be sure to follow the installation method that is in the operation
manual enclosed with the restraint system.
Table of contents
Points to remember......................................................................................................... P. 47
Child restraint system .................................................................................................... P. 49
When using a child restraint system on a passenger seat .............................. P. 52
When using a child restraint system on a rear seat ........................................... P. 54
Child restraint system installation method
• Fixed with a seat belt................................................................................................. P. 55
• Fixed with an ISOFIX rigid anchor ..................................................................... P. 60
• Using a child restraint anchor fitting .................................................................. P. 68
47
1
For safety and security
Points to remember
● Prioritize and observe the warnings, as well as the laws and regulations for
child restraint systems.
● Choose a child restraint system that suits your vehicle and is appropriate to
the age and size of the child.
● Use a child restraint system suitable for installation in the vehicle which con-
forms to ECE R44
● Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the vehicle’s seat belt.
* or ECE R129*.
*: ECE R44 and ECE R129 are U.N. regulations for Child restraint systems.
48
WA R N I N G
NOT FOR REPRODUCTION
1-1. For safe use
■ When a child is riding
Observe the following precautions.
Failure to do so may result in death or serious injury.
● For effective protection in automobile accidents and sudden stops, a child must be
properly restrained, using a seat belt or child restraint system depending on the age
and size of the child.
● Lexus strongly urges the use of a proper child restraint system that conforms to the
size of the child, installed on the rear seat. According to accident statistics, the child is
safer when properly restrained in the rear seat than in the front seat.
● Holding a child in your or someone else’s arms is not a substitute for a child restraint
system. In an accident, the child can be crushed against the windshield or between
the holder and the interior of the vehicle.
● Place one child to a child restraint system and then secure the child with the harness
of the child restraint system.
■ Handling the child restraint system
If the child restraint system is not properly fixed in place, the child or other passengers
may be seriously injured or even killed in the event of sudden braking, sudden swerving, or an accident.
● If the vehicle were to receive a strong impact from an accident, etc., it is possible that
the child restraint system has damage that is not readily visible. In such cases, do not
reuse the restraint system.
● Depending on the child restraint system, installation may be difficult or impossible. In
those cases, check whether the child restraint system is suitable for installment in the
vehicle. (P. 55, 60) Be sure to install and observe the usage rules after carefully
reading the child restraint system fixing method in this manual, as well as the operation manual enclosed with the child restraint system.
● Keep the child restraint system properly secured on the seat even if it is not in use. Do
not store the child restraint system unsecured in the passenger compartment.
● If it is necessary to detach the child restraint system, remove it from the vehicle or
store it securely in the luggage compartment.
1-1. For safe use
1
2
NOT FOR REPRODUCTION
Child restraint system
Install the available child restraint system in vehicle upon confirming the following
items.
■ Standards for child restraint systems
Use a child restraint system that conforms to ECE R44
The following approval mark is displayed on child restraint systems which are
conformed.
Check for an approval mark attached to the child restraint system.
Example of the displayed regulation
number
3
ECE R44 approval mark
The weight range of the child who
is applicable for an ECE R44
approval mark is indicated.
ECE R129 approval mark
The height range of the child who
is applicable as well as available
weights for an ECE R129
approval mark is indicated.
*
3
*
1
*
or ECE R129*
1, 2
.
49
1
For safety and security
1
*
: ECE R44 and ECE R129 are U.N. regulations for child restraint systems.
2
*
: The child restraint systems mentioned in the table may not be available outside of
the EU area.
3
*
: The displayed mark may differ depending on the product.
50
NOT FOR REPRODUCTION
1-1. For safe use
■ Mass group (ECE R44 only)
This Mass group table is required when confirming the [Child restraint system
suitability for various seating positions]. Confirm in accordance with the
[Child restraint system suitability for various seating positions] (P. 56, 63).
The child restraint system which conforms to the standard of ECE R44 is categorized into 5 groups according to the weight of the child.
Mass group Child weight Reference age*
Group 0 until 10 kg (22 lb.) about 9 months
Group 0+ until 13 kg (28 lb.) about 1.5 years
Group I
Group II
Group III
9 - 18 kg
(20 - 39 lb.)
15 - 25 kg
(34 - 55 lb.)
22 - 36 kg
(49 - 79 lb.)
from 9 months - about 4 years
from 3 years - about 7 years
from 6 years - about 12 years
*: The age range is a standard approximation. Choose according to the weight of the
child.
1-1. For safe use
NOT FOR REPRODUCTION
■ Types of child restraint system installation methods
Confirm with the operation manual enclosed with the child restraint system
about the installation of the child restraint system.
Installation method Pag e
Seat belt attachment P. 55
51
1
For safety and security
ISOFIX rigid anchor
attachment
Child restraint anchor
fitting attachment
P. 6 0
P. 6 8
52
NOT FOR REPRODUCTION
1-1. For safe use
When using a child restraint system on a passenger seat
■ When installing a child restraint system to a passenger seat
For the safety of a child, install child restraint systems to a rear seats. When
installing child restraint system to a front passenger seat is unavoidable, adjust
the passenger seat as follows and install the child restraint system.
● Raise the seatback as much as
possible
● Move the seat to the rearmost
position
● Raise the seat to the upper most
position
● If the head restraint interferes
with the child restraint system
installation and the head restraint
can be removed, remove the
head restraint.
1-1. For safe use
WA R N I N G
● Extreme Hazard! Do not use a rearward fac-
ing child restraint on a seat protected by an
airbag in front of it! This is because the force
of the rapid inflation of the front passenger
airbag can cause death or serious injury to
the child.
There is a label(s) on the passenger side sun
visor, indicating it is forbidden to attach a rearfacing child restraint system to the front passenger seat.
Details of the label(s) are shown in the illustration below.
NOT FOR REPRODUCTION
■ When installing a child restraint system
Observe the following when installing child restraint system to the front passenger seat
if it is unavoidable. The front passenger SRS airbag inflates with considerable speed
and force that if not observed may lead to death or serious injury to the child.
53
1
For safety and security
54
WA R N I N G
WA R N I N G
● When installing a forward-facing child
restraint system to the front passenger seat,
move the seat to the rearmost position, raise
the seat to the upper most position, and then
install.
If the head restraint interferes with the child
restraint system installation and the head
restraint can be removed, remove the head
restraint.
● If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the left-hand rear seat.
● Adjust the front passenger seat so that it does
not interfere with the child restraint system.
NOT FOR REPRODUCTION
1-1. For safe use
■ When installing a child restraint system
● Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, front pillars or roof side rails from which the SRS side airbags or SRS curtain shield airbags deploy even if the child is seated in the child
restraint system. It is dangerous if the SRS side and curtain shield airbags inflate, and
the impact could cause death or serious injury to the child.
● When a junior seat (booster seat) is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be kept away
from the child’s neck, but not so that it could fall off the child’s shoulder.
When using a child restraint system on a rear seat
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Use child restraint system suitable to the age and size of the child and install it to the
rear seat.
● Do not allow the child to lean his/her head or any part of his/her body against the
door or the area of the seat, rear pillars or roof side rails from which the SRS curtain
shield airbag deploys even if the child is seated in the child restraint system. It is dangerous if the SRS curtain shield airbag inflates, and the impact could cause death or
serious injury to the child.
1-1. For safe use
1
2
NOT FOR REPRODUCTION
Child restraint system fixed with a seat belt
■ Child restraint system suitability for various seating positions
The child restraint system suitability table (P. 56), with symbols, displays the
types of usable child restraint systems and possible seating position installation for the child restraint system owned by the customer. Confirm also in
accordance with [Confirming the possible installation seating positions and
the Mass Group for the seat belt installation type child restraint systems].
◆ Confirming the possible installation seating positions and the Mass Group
for the seat belt installation type child restraint systems
Confirm the corresponding [Mass group] from the weight of the child
(P. 50 )
(Ex. 1) When the weight is 12 kg, [Mass group 0+]
(Ex. 2) When the weight is 15 kg, [Mass group I]
Confirm and select the appropriate possible seating position for the child
restraint system and the corresponding type of system from the [Child
restraint system suitability for various seating positions]. (P. 56 )
55
1
For safety and security
56
Seating position
Mass groups
NOT FOR REPRODUCTION
1-1. For safe use
◆ Child restraint system suitability for various seating positions
(Installed using seat belts)
Information provided in the table shows your child restraint system suitability
for various seating positions.
Front seat
0
Up to 10 kg (22 lb.)
(0 - 9 months)
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
Passenger seat
X
X
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)
Rearward-facing —
X
Forward-facing —
UF
UF
1
*
1
*
Rear seat
Seating position
Mass groups
NOT FOR REPRODUCTION
1-1. For safe use
Right-hand Left-hand Center
57
0
Up to 10 kg (22 lb.)
(0 - 9 months)
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
I
9 to 18 kg (20 to 39 lb.)
(9 months - 4 years)
II, III
15 to 36 kg (34 to 79 lb.)
(4 - 12 years)
3
*
U
3
U
*
2, 3
U
*
2 , 3
U
*
U*
U*
U*
U*
3
3
2, 3
2 , 3
X
X
X
X
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint systems approved for use in
this mass group.
UF: Suitable for forward-facing “universal” category child restraint systems
approved for use in this mass group.
X: Seat position not suitable for children in this mass group.
1
*
: If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint. If the passenger seat is equipped with a
vertical height adjuster, it must be placed in the upper most position.
2
*
: If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint.
3
*
: When using the rear manual seat:
Adjust the seatback to the 3rd lock position from the most upright position.
When using the rear power seat:
If there is gap between the child seat and the seatback, adjust the seatback until good
contact is achieved.
● When using the left-hand rear seat for the child restraint system, do not sit in
the center rear seat.
● When using child restraint systems other than “universal” category, the suit-
ability of the systems must be carefully checked with the child restraint system
manufacturer concerned and the seller of those seats.
1
For safety and security
58
1
1
2
3
NOT FOR REPRODUCTION
1-1. For safe use

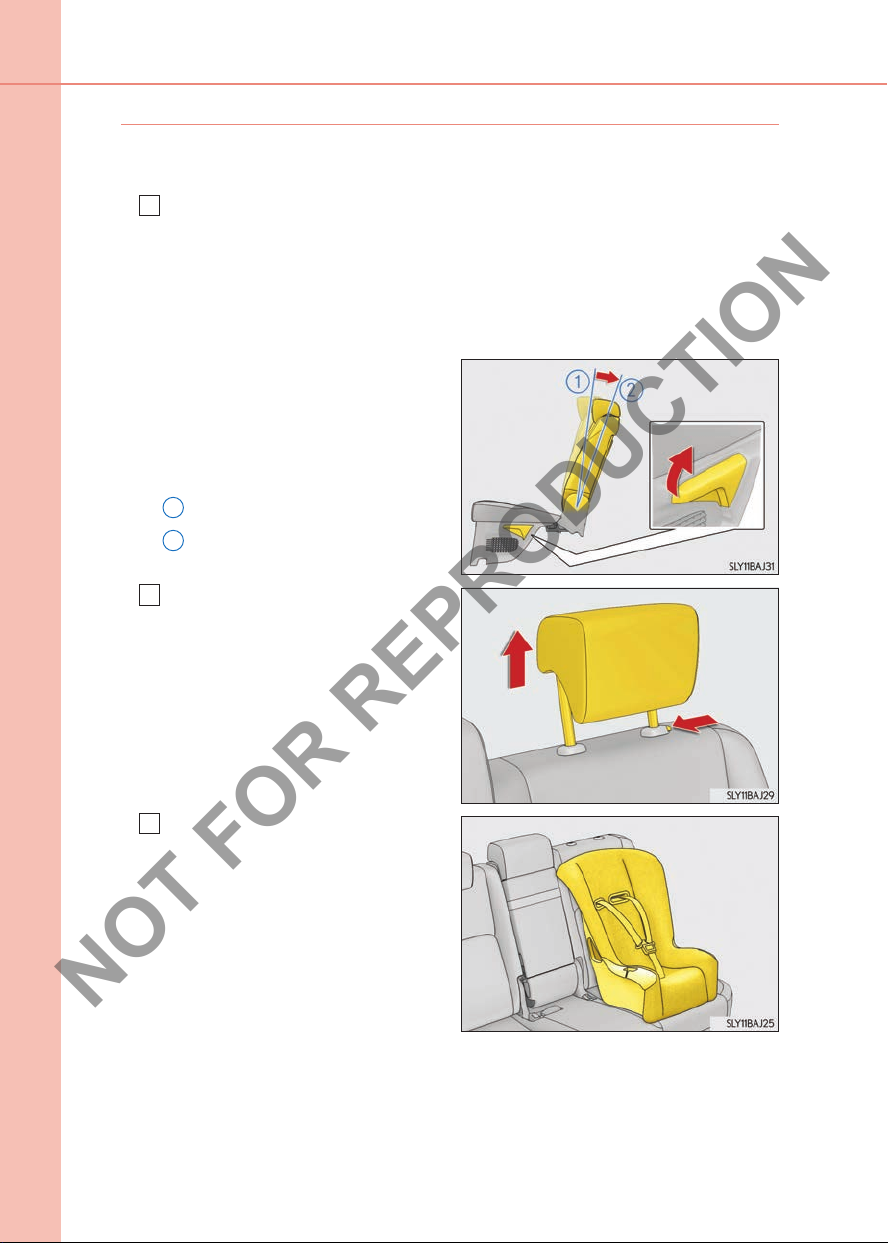

◆ Installing child restraint system using a seat belt
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
Adjust the seatback
When using the front seat or rear power seat
If there is a gap between the child seat and the seatback, adjust the seatback
until good contact is achieved.
When using the rear manual seat
Fold the seatback while pull the
lever. Return the seatback (most
upright position).
Adjust the seatback to the 3rd lock
position.
Most upright position
2
3rd lock position
If the head restraint interferes
with the child restraint system
installation and the head restraint
can be removed, remove the
head restraint. (P. 161)
Place the child restraint system
on the seat.
1-1. For safe use
4
5
6
NOT FOR REPRODUCTION

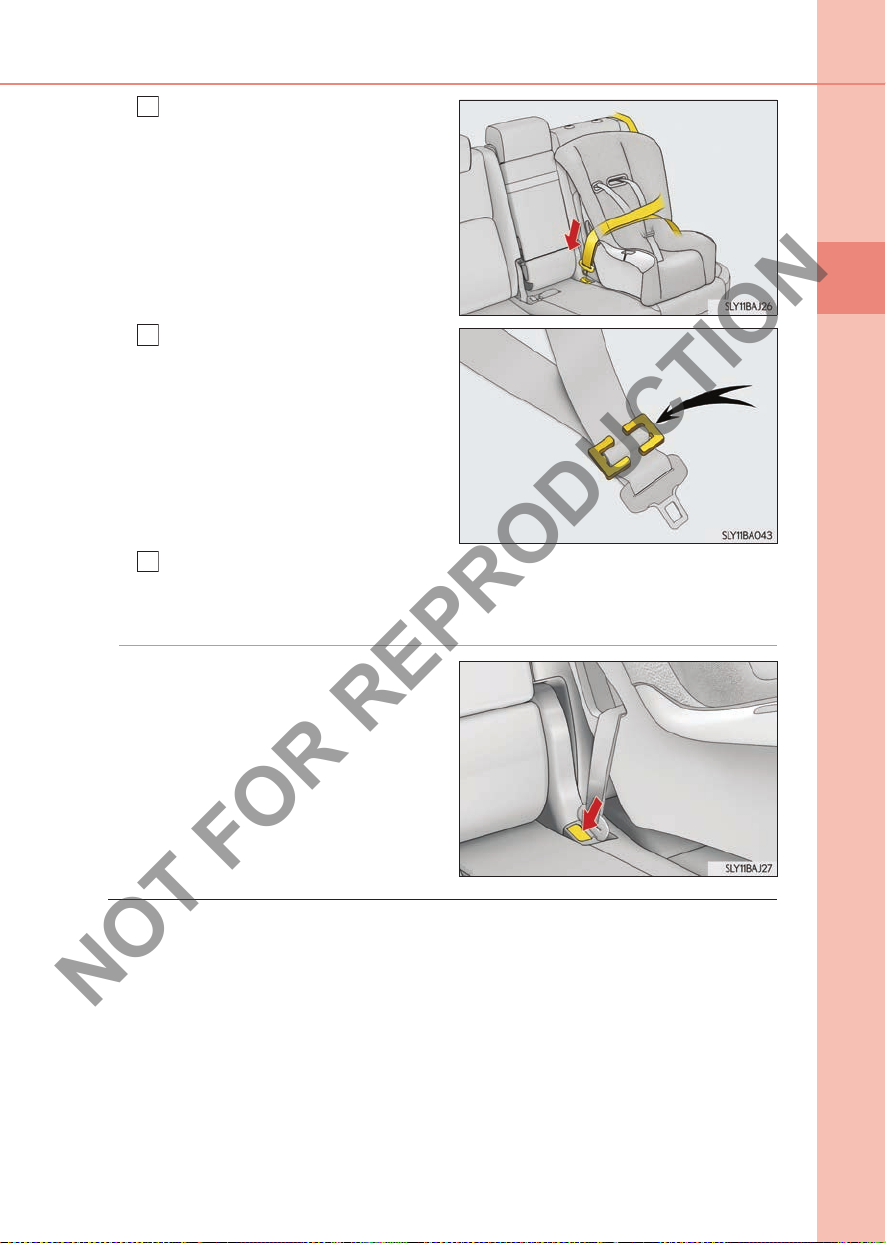

Run the seat belt through the
child restraint system and insert
the plate into the buckle. Make
sure that the belt is not twisted.
Securely fix the seat belt to the
child restraint system in accordance to the directions enclosed
with the child restraint system.
If your child restraint system is not
equipped with a lock-off (a seat
belt locking feature), secure the
child restraint system using a
locking clip.
After installing the child restraint system, rock it back and forth to ensure
that it is installed securely.
◆ Removing a child restraint system installed with a seat belt
59
1
For safety and security
Press the buckle release button and
fully retract the seat belt.
When releasing the buckle, the child
restraint system may spring up due to
the rebound of the seat cushion.
Release the buckle while holding
down the child restraint system.
Since the seat belt automatically
reels itself, slowly return it to the
stowing position.
■ When installing a child restraint system
You may need a locking clip to install the child restraint system. Follow the instructions
provided by the manufacturer of the system. If your child restraint system does not provide a locking clip, you can purchase the following item from your Lexus dealer: Locking
clip for child restraint system
(Part No. 73119-22010)
60
WA R N I N G
● When using the left side seat for the child
restraint system, do not have the center rear
seat occupied. Seat belt function may be
impaired, such as being positioned overly
high or loose-fitting, which may result in death
or serious injury in the event of sudden braking or an accident.
NOT FOR REPRODUCTION
1-1. For safe use
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Do not allow children to play with the seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to choking or other serious injuries that could result
in death. If this occurs and the buckle cannot be unfastened, scissors should be used
to cut the belt.
● Ensure that the belt and plate are securely locked and the seat belt is not twisted.
● Shake the child restraint system left and right, and forward and backward to ensure
that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● When a junior seat (booster seat) is installed, always ensure that the shoulder belt is
positioned across the center of the child’s shoulder. The belt should be kept away
from the child’s neck, but not so that it could fall off the child’s shoulder.
● Follow all installation instructions provided by the child restraint system manufacturer.
Child restraint system fixed with an ISOFIX rigid anchor
■ ISOFIX rigid anchors (ISOFIX child restraint system)
Lower anchors are provided for the
outboard rear seats. (Tags displaying
the location of the anchors are
attached to the seats.)
1-1. For safe use
NOT FOR REPRODUCTION
■ Use a child restraint system that conforms to ECE R44* or ECE R129*
Approval marks are displayed on child restraint systems which have conformed. (P. 4 9)
*: ECE R44 and ECE R129 are U.N. regulations for child restraint systems.
■ Child restraint system suitability for various seating positions
The child restraint system suitability table (P. 63), with symbols, displays the
types of usable child restraint systems and possible seating position installation for the child restraint system owned by the customer. Confirm in accordance with the listed Size class, Anchor, as well as [Confirming the Mass
group and Size class for ECE R44 ISOFIX corresponding child restraint systems].
■ ECE R44 child restraint system size classes and anchors
Class Code which represents the child restraint system and the accompanying installation anchor code.
61
1
For safety and security
Size class Anchor Shape/Size
A ISO/F3 Full-Height Forward-facing Small child
Reduced-
Height
Reduced-
Height
B1
C
D
G
B
E
F
ISO/F2
ISO/F2X
ISO/R3 Full-Size Rearward-facing Small child
ISO/R2 Reduced-Size Rearward-facing Small child
ISO/R1 — Rearward-facing Infant
ISO/L1 Carrycot* Left-facing Infant
ISO/L2 Carrycot* Right-facing Infant
Directional
usage
For ward- facin g Small child
For ward- facin g Small child
Child size
*: Carrycot is a seat for babies which can be attached sideways and orientated to allow
the infant to sleep. For further details, inquire with the child restraint system manufacturer or dealer.
62
1
2
NOT FOR REPRODUCTION
1-1. For safe use
■ Confirming the Mass group and Size class for ECE R44 ISOFIX corre-
sponding child restraint systems
Confirm the corresponding [Mass group] from the weight of the child
(P. 50 )
(Ex. 1) When the weight is 12 kg, [Mass group 0+]
(Ex. 2) When the weight is 15 kg, [Mass group I]
Confirming Size class
Select the Size class corresponding to [Mass group] confirmed in step
from the [Child restraint system suitability for various seating positions]
(P. 63)
(Ex. 1) When [Mass group 0+], the corresponding size class is [C], [D], [E].
(Ex. 2) When [Mass group I], the corresponding size class is [A], [B], [B1],
*.
[C], [D].
*: However, listings that are marked with [X] cannot be selected, despite having the
corresponding size class in the suitability table of the [Vehicle ISOFIX position].
1
1-1. For safe use
NOT FOR REPRODUCTION
■ Child restraint system suitability for various seating positions
(Installed using ISOFIX [Child restraint system conforms with ECE R44])
Information provided in the table shows your child restraint system suitability
for various seating positions.
Rear seat
63
Mass groups Size class Fixture
Carrycot
0
Up to 10 kg (22 lb.)
(0 - 9 months)
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
I
9 to 18 kg (20 to 39 lb.)
(9 months - 4 years)
FISO/L1 X X
GISO/L2 X X
EISO/R1 IL IL
EISO/R1 IL IL
DISO/R2 IL IL
CISO/R3 IL IL
DISO/R2 IL IL
CISO/R3 IL IL
BISO/F2IUF
B1 ISO/F2X IUF* IUF*
AISO/F3IUF* IUF*
Vehicle ISOFIX
positions
Right-hand Left-hand
* IUF*
1
For safety and security
64
NOT FOR REPRODUCTION
1-1. For safe use
Key of letters inserted in the above table:
IUF: Suitable for ISOFIX forward-facing child restraint systems of universal cat-
egory approved for use in this mass group.
IL: Suitable for ISOFIX child restraint systems of the categories for “specific
vehicles”, “restricted”, or “semi-universal”, approved for use in this mass
group.
X: ISOFIX position not suitable for ISOFIX child restraint systems in this mass
group and/or this size class.
*: If the head restraint interferes with your child restraint system, and the head restraint
can be removed, remove the head restraint.
● When using the rear manual seat:
Adjust the seatback to the 3rd lock position from the most upright position.
● When using the rear power seat:
If there is gap between the child seat and the seatback, adjust the seatback
until good contact is achieved.
● When using the left-hand rear seat for the child restraint system, do not sit in
the center rear seat.
● When using child restraint systems other than “universal” category, the suit-
ability of the systems must be carefully checked with the child restraint system
manufacturer concerned and the seller of those seats.
1-1. For safe use
NOT FOR REPRODUCTION
■ Child restraint system suitability for various seating positions
(Installed using ISOFIX [Child restraint system conforms with ECE R129])
Seating position
Front seat Rear seat
Passenger seat Right-hand Left-hand Center
i-Size child
restraint systems
Key of letters inserted in the above table:
i-U: Suitable for i-Size “universal” child restraint systems forward and rearward
facing.
i-UF: Suitable for forward-facing i-Size “universal” child restraint systems only.
X: Seating position not suitable for i-Size “universal” child restraint systems.
● If the head restraint interferes with your child restraint system, and the head
restraint can be removed, remove the head restraint.
● When using the rear manual seat:
Adjust the seatback to the 3rd lock position from the most upright position.
● When using the rear power seat:
If there is gap between the child seat and the seatback, adjust the seatback
until good contact is achieved.
● When using the left-hand rear seat for the child restraint system, do not sit in
the center rear seat.
Xi-Ui-UX
65
1
For safety and security
66
1
2
2
NOT FOR REPRODUCTION
1-1. For safe use
■ Installation with ISOFIX rigid anchor (ISOFIX child restraint system)
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
Adjust the seatback
When using the rear power seat
If there is a gap between the child seat and the seatback, adjust the seatback
until good contact is achieved.
When using the rear manual seat
Fold the seatback while pull the lever.
Return the seatback (most upright position).
Adjust the seatback to the 3rd lock
position.
1
Most upright position
3rd lock position
If the head restraint interferes
with the child restraint system
installation and the head restraint
can be removed, remove the
head restraint. (P. 161)
1-1. For safe use
3
4
NOT FOR REPRODUCTION
Check the positions of the exclu-
sive fixing bars, and install the
child restraint system to the seat.
The bars are installed in the clear-
ance between the seat cushion and
seatback.
After installing the child restraint system, rock it back and forth to ensure
that it is installed securely.
67
1
For safety and security
68
WA R N I N G
● When using the left side seat for the child
restraint system, do not have the center rear
seat occupied. Seat belt function may be
impaired, such as being positioned overly
high or loose-fitting, which may result in death
or serious injury in the event of sudden braking or an accident.
Anchor
fittings
Rear center seat
Outboard rear seats
NOT FOR REPRODUCTION
F
1-1. For safe use
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Shake the child restraint system left and right, and forward and backward to ensure
that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● When using the lower anchors, be sure that there are no foreign objects around the
anchors and that the seat belt is not caught behind the child restraint system.
● Follow all installation instructions provided by the child restraint system manufacturer.
■ Using child restraint anchorages
WARNING: child restraint anchorages are designed to withstand only those loads
imposed by correctly fitted child restraints. Under no circumstances are they to be
used for adult seatbelts, harnesses, or for attaching other items or equipment to the
vehicle.
Using a child restraint anchor fitting
■ Child restraint anchor fitting
For Australia: Anchor fittings are
provided for each rear seat.
Except for Australia: Anchor fittings
are provided for the outboard rear
seats only.
Use anchor fitting when fixing the
strap.
1-1. For safe use
Upper anchorage strap
Attaching clip
2
NOT FOR REPRODUCTION
■ Fixing the strap to the anchor fitting
Install the child restraint system in accordance to the operation manual
enclosed with the child restraint system.
Outboard rear seats
1
Adjust the head restraint to the
upmost position.
If the head restraint interferes with
the child restraint system or upper
anchorage strap installation and the
head restraint can be removed,
remove the head restraint. (P. 1 61 )
Open the anchor fitting cover,
latch the attaching clip onto the
anchor fitting and tighten the
upper anchorage strap.
Make sure the upper anchorage
strap is securely latched.
When installing the child restraint
system with the head restraint being
raised, be sure to have the upper
anchorage strap pass underneath
the head restraint.
Rear center seat
69
1
For safety and security
1
Adjust the head restraint to the
downmost position.
If the head restraint interferes with
the child restraint system installation
and the head restraint can be
removed, remove the head restraint.
(P. 161)
70
Upper
anchorage
strap
Attaching clip
WA R N I N G
NOT FOR REPRODUCTION
1-1. For safe use
2
Open the anchor fitting cover,
latch the attaching clip onto the
anchor fitting and tighten the
upper anchorage strap.
Make sure the upper anchorage
strap is securely latched.
When installing the child restraint
system with the head restraint being
lower, be sure to have the upper
anchorage strap pass over the top of
the head restraint.
■ When installing a child restraint system
Observe the following precautions.
Failure to do so may result in death or serious injury.
● Firmly attach the upper anchorage strap and make sure that the belt is not twisted.
● Do not attach the upper anchorage strap to anything other than the anchor fitting.
● Shake the child restraint system left and right, and forward and backward to ensure
that it has been securely installed.
● After securing a child restraint system, never adjust the seat.
● Follow all installation instructions provided by the child restraint system manufacturer.
● Outboard rear seats: When installing the child restraint system with the head restraint
being raised, after the head restraint has been raised and then the anchor fitting has
been fixed, do not lower the head restraint.
● Rear center seat: When installing the child restraint system with the head restraint
being lowered, be sure to have the upper anchorage strap pass over the top of the
head restraint. If the belt passes below the head restraint, it is possible that the child
restraint system may not be securely fixed.
● Vehicles with a rear center seat anchor fitting: When installing a child restraint system
in the rear center seat, adjust both seatbacks at the same angle. Otherwise, the child
restraint system cannot be securely restrained and this may cause death or serious
injuries in the event of sudden braking, sudden swerving or an accident.
■ Using child restraint anchorages
WARNING: child restraint anchorages are designed to withstand only those loads
imposed by correctly fitted child restraints. Under no circumstances are they to be
used for adult seatbelts, harnesses, or for attaching other items or equipment to the
vehicle.
1-1. For safe use
NOTICE
NOT FOR REPRODUCTION
■ Child restraint anchor fitting
When not in use, make certain to close the lid. If it remains open, the lid may be damaged.
71
1
For safety and security
72
WA R N I N G
NOT FOR REPRODUCTION
1-1. For safe use
Exhaust gas precautions
Harmful substance to the human body are contained in exhaust gases if
inhaled.
Exhaust gases contain harmful carbon monoxide (CO), which is colorless and odorless.
Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to an accident
caused by light-headedness, or may lead to death or a serious health hazard.
■ Important points while driving
● Keep the back door closed.
● If you smell exhaust gases in the vehicle even when the back door is closed, open the
windows and have the vehicle inspected at your Lexus dealer as soon as possible.
■ When parking
● If the vehicle is in a poorly ventilated area or a closed area, such as a garage, stop the
hybrid system.
● Do not leave the vehicle with the hybrid system on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space and ensure
that exhaust fumes do not enter the vehicle interior.
● Do not leave the hybrid system operating in an area with snow build-up, or where it is
snowing. If snowbanks build up around the vehicle while the hybrid system is operating, exhaust gases may collect and enter the vehicle.
■ Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or crack caused
by corrosion, damage to a joint or abnormal exhaust noise, be sure to have the vehicle
inspected and repaired by your Lexus dealer.
1-2. Hybrid system
NOT FOR REPRODUCTION
Hybrid system features
Your vehicle is a hybrid vehicle. It has characteristics different from conventional vehicles. Be sure you are closely familiar with the characteristics of your
vehicle, and operate it with care.
The hybrid system combines the use of a gasoline engine and an electric
motor (traction motor) according to driving conditions, improving fuel efficiency and reducing exhaust emissions.
73
1
For safety and security
The illustration is an example for explanation and may differ from the actual item.
1
Gasoline engine
2
Front electric motor (traction motor)
3
Rear electric motor (traction motor)
*
:AWD models only
*
74
NOT FOR REPRODUCTION
1-2. Hybrid system
◆ When stopped/during start off
The gasoline engine stops* when the vehicle is stopped. During start off, the
electric motor (traction motor) drives the vehicle. At slow speeds or when
traveling down a gentle slope, the engine is stopped* and the electric motor
(traction motor) is used.
When the shift lever is in N, the hybrid battery (traction battery) is not being
charged. When the vehicle is stopped, always put the shift lever to P.
Also, even in heavy traffic conditions, drive the vehicle in D or S.
*: When the hybrid battery (traction battery) requires charging or the engine is warm-
ing up, etc., the gasoline engine will not automatically stop. (P. 75)
◆ During normal driving
The gasoline engine is predominantly used. The electric motor (traction
motor) charges the hybrid battery (traction battery) as necessary.
◆ When accelerating sharply
When the accelerator pedal is depressed heavily, the power of the hybrid battery (traction battery) is added to that of the gasoline engine via the electric
motor (traction motor).
◆ When braking (regenerative braking)
The wheels operate the electric motor (traction motor) as a power generator,
and the hybrid battery (traction battery) is charged.
1-2. Hybrid system
NOT FOR REPRODUCTION
■ Regenerative braking
In the following situations, kinetic energy is converted to electric energy and deceleration force can be obtained in conjunction with the recharging of the hybrid battery (traction battery).
● The accelerator pedal is released while driving with the shift lever in D or S.
● The brake pedal is depressed while driving with the shift lever in D or S.
■ EV indicator
The EV indicator comes on when the vehicle is
driven using only the electric motor (traction
motor) or the gasoline engine is stopped.
■ Conditions in which the gasoline engine may not stop
The gasoline engine starts and stops automatically. However, it may not stop automatically in the following conditions:
● During gasoline engine warm-up
● During hybrid battery (traction battery) charging
● When the temperature of the hybrid battery (traction battery) is high or low
● When the heater is switched on
■ Charging the hybrid battery (traction battery)
As the gasoline engine charges the hybrid battery (traction battery), the battery does not
need to be charged from an outside source. However, if the vehicle is left parked for a
long time the hybrid battery (traction battery) will slowly discharge. For this reason, be
sure to drive the vehicle at least once every few months for at least 30 minutes or 16 km
(10 miles). If the hybrid battery (traction battery) becomes fully discharged and you are
unable to start the hybrid system, contact your Lexus dealer.
■ Charging the 12-volt battery
P. 5 34
■ After the 12-volt battery has discharged or when the terminal has been removed and
installed during exchange, etc.
The gasoline engine may not stop even if the vehicle is being driven by the hybrid battery
(traction battery). If this continues for a few days, contact your Lexus dealer.
75
1
For safety and security
76
NOT FOR REPRODUCTION
■ Sounds and vibrations specific to a hybrid vehicle
■ Maintenance, repair, recycling, and disposal
■ Customization
1-2. Hybrid system
There may be no engine sound or vibration even though the vehicle is able to move with
the “READY” indicator is illuminated. For safety, make sure to shift the shift lever to P and
apply the parking brake when parked.
The following sounds or vibrations may occur when the hybrid system is operating and
are not a malfunction:
● Motor sounds may be heard from the engine compartment.
● Sounds may be heard from the hybrid battery (traction battery) behind the rear seats
when the hybrid system starts or stops.
● Relay operating sounds such as a snap or soft clank will be emitted from the hybrid bat-
tery (traction battery), behind the rear seats, when the hybrid system is started or
stopped.
● Sounds from the hybrid system may be heard when the back door is open.
● Sounds may be heard from the transmission when the gasoline engine starts or stops,
when driving at low speeds, or during idling.
● Engine sounds may be heard when accelerating sharply.
● Sounds may be heard due to regenerative braking when the brake pedal is depressed
or as the accelerator pedal is released.
● Operating sounds or motor sounds that occur when the brake pedal is operated.
● Vibration may be felt when the gasoline engine starts or stops.
● Cooling fan sounds may be heard from the air intake vents under the rear seats.
Contact your Lexus dealer regarding maintenance, repair, recycling and disposal. Do
not dispose of the vehicle yourself.
Settings (e.g. on/off operation of the EV indicator) can be changed.
(Customizable features: P. 555)
1-2. Hybrid system
5
6
7
8
NOT FOR REPRODUCTION
Hybrid system precautions
Take care when handling the hybrid system, as it is a high voltage system
(about 650V at maximum) as well as contains parts that become extremely
hot when the hybrid system is operating. Obey the warning labels attached to
the vehicle.
77
1
For safety and security
The illustration is an example for explanation and may differ from the actual item.
1
Warning label
2
Hybrid battery (traction battery)
3
Rear electric motor (traction
*
motor)
4
Service plug
High voltage cables (orange)
Front electric motor (traction
motor)
Powe r con tro l unit
Air conditioning compressor
*:AWD models only
78
Air intake vents
Air discharge vents
NOT FOR REPRODUCTION
1-2. Hybrid system
Hybrid battery (traction battery) air intake and discharge vents
The cooling air intake and discharge
vents for the hybrid battery (traction
battery) are located under the rear
seats and between the rear seats and
deck board, respectively. If the air
intake vents are blocked, it could lead
to a reduction in hybrid battery (traction battery) output.
The hybrid battery (traction battery)
output will not be reduced, even if the
space between the upper part of the air
discharge vents on the back of the rear
seat and deck board is blocked with luggage, etc.
Emergency shut off system
When a certain level of impact is detected by the impact sensor, the emergency
shut off system blocks the high voltage current and stops the fuel pump to minimize the risk of electrocution and fuel leakage. If the emergency shut off system
activates, your vehicle will not restart. To restart the hybrid system, contact your
Lexus dealer.
Hybrid warning message
A message is automatically displayed when a malfunction occurs in the hybrid
system or an improper operation is attempted.
If a warning message is shown on the
multi-information display, read the
message and follow the instructions.
1-2. Hybrid system
NOT FOR REPRODUCTION
■ If a warning light comes on, a warning message is displayed, or the 12-volt battery is dis-
connected
The hybrid system may not start. In this case, try to start the system again. If the “READY”
indicator does not come on, contact your Lexus dealer.
■ Running out of fuel
When the vehicle has run out of fuel and the hybrid system cannot be started, refuel the
vehicle with at least enough gasoline to make the low fuel level warning light (P. 505)
go off. If there is only a small amount of fuel, the hybrid system may not be able to start.
(The standard amount of fuel is about 10.1 L [2.7 gal., 2.2 Imp.gal.], when the vehicle is on
a level surface. This value may vary when the vehicle is on a slope. Add extra fuel when
the vehicle is inclined.)
■ Electromagnetic waves
● High voltage parts and cables on hybrid vehicles incorporate electromagnetic shield-
ing, and therefore emit approximately the same amount of electromagnetic waves as
conventional gasoline powered vehicles or home electronic appliances.
● Your vehicle may cause sound interference in some third party-produced radio parts.
■ Hybrid battery (traction battery)
The hybrid battery (traction battery) has a limited service life. The lifespan of the hybrid
battery (traction battery) can change in accordance with driving style and driving conditions.
79
1
For safety and security
80
WA R N I N G
● Never try to open the service plug access
hole located underneath the rear seats. The
service plug is used only when the vehicle is
serviced and is subject to high voltage.
NOT FOR REPRODUCTION
1-2. Hybrid system
■ High voltage precautions
This vehicle has high voltage DC and AC systems as well as a 12-volt system. DC and
AC high voltage is very dangerous and can cause severe burns and electric shock that
may result in death or serious injury.
● Never touch, disassemble, remove or replace the high voltage parts, cables or their
connectors.
● The hybrid system will become hot after starting as the system uses high voltage. Be
careful of both the high voltage and the high temperature, and always obey the warning labels attached to the vehicle.
■ Road a ccid ent c autio ns
Observe the following precautions to reduce the risk of death or serious injury:
● Pull your vehicle off the road, shift the shift lever to P, apply the parking brake, and
turn the hybrid system off.
● Do not touch the high voltage parts, cables and connectors.
● If electric wires are exposed inside or outside your vehicle, an electric shock may
occur. Never touch exposed electric wires.
● If a fluid leak occurs, do not touch the fluid as it may be strong alkaline electrolyte
from the hybrid battery (traction battery). If it comes into contact with your skin or
eyes, wash it off immediately with a large amount of water or, if possible, boric acid
solution. Seek immediate medical attention.
● If a fire occurs in the hybrid vehicle, leave the vehicle as soon as possible. Never use a
fire extinguisher that is not meant for electric fires. Using even a small amount of
water may be dangerous.
● If your vehicle needs to be towed, do so with front wheels (2WD models) or four
wheels (AWD models) raised. If the wheels connected to the electric motor (traction
motor) are on the ground when towing, the motor may continue to generate electricity. This may cause a fire. (P. 496 )
● Carefully inspect the ground under the vehicle. If you find that liquid has leaked onto
the ground, the fuel system may have been damaged. Leave the vehicle as soon as
possible.
1-2. Hybrid system
WA R N I N G
NOTICE
NOT FOR REPRODUCTION
■ Hybrid battery (traction batter y)
● Never resell, hand over or modify the hybrid battery. To prevent accidents, hybrid
batteries that have been removed from a disposed vehicle are collected through
Lexus dealer. Do not dispose of the battery yourself.
Unless the battery is properly collected, the following may occur, resulting in death
or serious injury:
• The hybrid battery may be illegally disposed of or dumped, and it is hazardous to
the environment or someone may touch a high voltage part, resulting in an electric
shock.
• The hybrid battery is intended to be used exclusively with your hybrid vehicle. If
the hybrid battery is used outside of your vehicle or modified in any way, accidents
such as electric shock, heat generation, smoke generation, an explosion and electrolyte leakage may occur.
When reselling or handing over your vehicle, the possibility of an accident is
extremely high because the person receiving the vehicle may not be aware of these
dangers.
● If your vehicle is disposed of without the hybrid battery having been removed, there is
a danger of serious electric shock if high voltage parts, cables and their connectors
are touched. In the event that your vehicle must be disposed of, the hybrid battery
must be disposed of by your Lexus dealer or a qualified service shop. If the hybrid battery is not disposed of properly, it may cause electric shock that can result in death or
serious injury.
81
1
For safety and security
■ Hybrid battery (traction battery) air intake and discharge vents
● Do not place objects that will block the air intake vents. The hybrid battery (traction
battery) may have a reduction in hybrid battery (traction battery) output as well as be
damaged.
● Clean the air intake and discharge vents regularly to prevent the hybrid battery (trac-
tion battery) from overheating.
● Do not get water or foreign materials in either the air intake and discharge vents as
this may cause a short circuit and damage the hybrid battery (traction battery).
● Do not carry large amounts of water such as water cooler bottles in the vehicle. If
water spills onto the hybrid battery (traction battery), the battery may be damaged.
Have the vehicle inspected by your Lexus dealer.
82
NOTICE
NOT FOR REPRODUCTION
1-3. Theft deterrent system
Immobilizer system
The vehicle’s keys have built-in transponder chips that prevent the hybrid system from starting if a key has not been previously registered in the vehicle’s
on-board computer.
Never leave the keys inside the vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not guarantee
absolute security against all vehicle thefts.

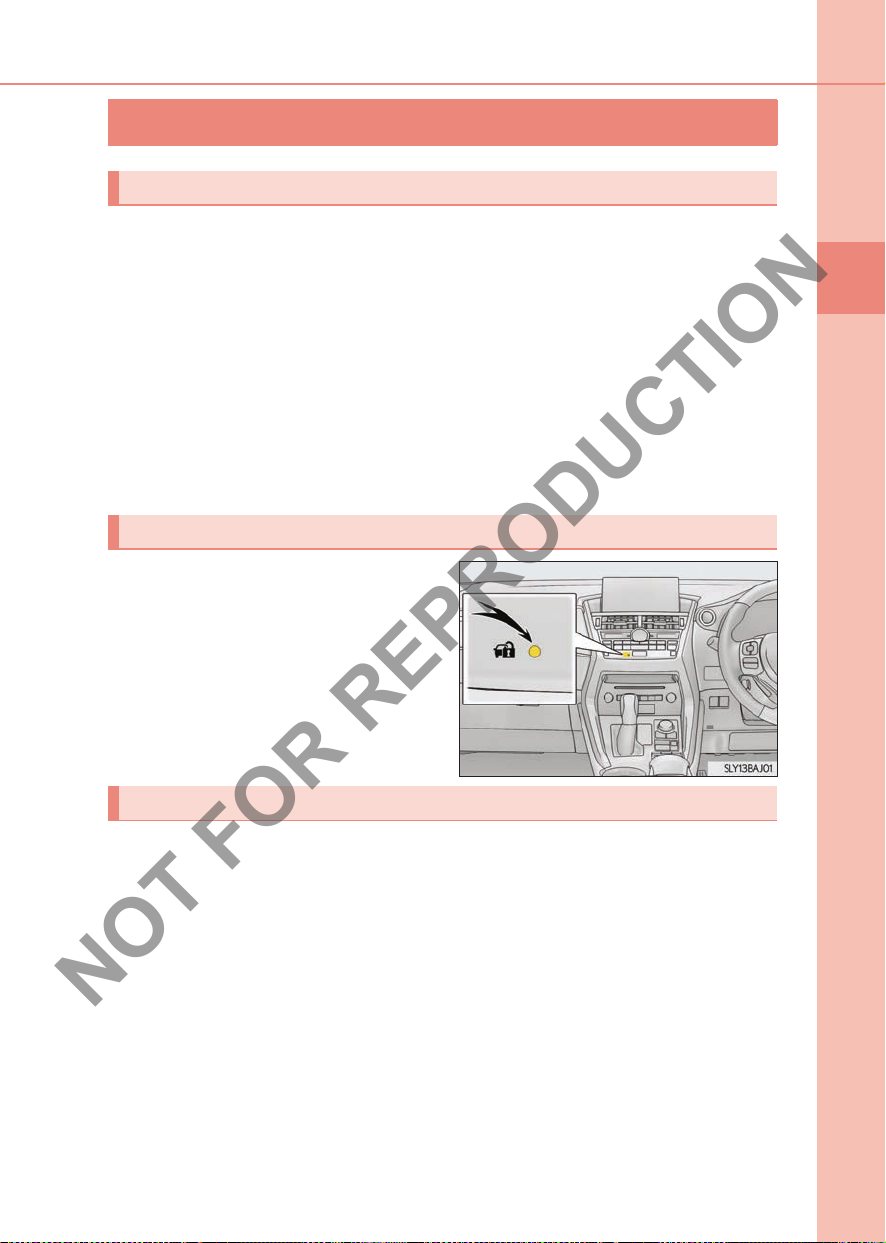

The security indicator flashes after the
power switch has been turned off to
indicate that the system is operating.
The indicator stops flashing after the
power switch has been turned to
ACCESSORY or ON mode to indicate that the system has been canceled.
■ System maintenance
The vehicle has a maintenance-free type immobilizer system.
■ Conditions that may cause the system to malfunction
● If the grip portion of the key is in contact with a metallic object
● If the key is in close proximity to or touching a key registered to the security system (key
with a built-in transponder chip) of another vehicle
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of
the system cannot be guaranteed.
1-3. Theft deterrent system
NOT FOR REPRODUCTION
Alarm
The alarm
The alarm uses light and sound to give an alert when an intrusion is detected.
The alarm is triggered in the following situations when the alarm is set:
● A locked door is unlocked or opened in any way other than using the entry
function, wireless remote control or mechanical key. (The doors will lock again
automatically.)
● The hood is opened.
● The intrusion sensor detects something moving inside the vehicle. (An
intruder gets in the vehicle.) (if equipped)
● The tilt sensor detects a change of vehicle inclination. (if equipped)
● Any of the windows are broken. (if equipped)
Setting the alarm system
Close the doors and hood, and lock all
the doors. The system will be set automatically after 30 seconds.
The security indicator changes from
being on to flashing when the system is
set.
83
1
For safety and security
Deactivating or stopping the alarm
Do one of the following to deactivate or stop the alarm.
● Unlock the doors.
● Turn the power switch to ACCESSORY or ON mode, or start the hybrid sys-
tem. (The alarm will be deactivated or stopped after a few seconds.)
84
NOTICE
NOT FOR REPRODUCTION
■ System maintenance
■ Items to check before locking the vehicle
■ Triggering of the alarm
1-3. Theft deterrent system
The vehicle has a maintenance-free type alarm system.
To prevent unexpected triggering of the alarm and vehicle theft, make sure of the following.
● Nobody is in the vehicle.
● The windows and moon roof (if equipped) are closed before the alarm is set.
● No valuables or other personal items are left in the vehicle.
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)
● A person inside the vehicle opens a door or
hood, or unlocks the vehicle using a inside lock
button.
● The 12-volt battery is disconnected.
(P. 5 34 )
■ Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically lock to
prevent improper entry into the vehicle:
● When a person remaining in the vehicle unlocks the door and the alarm is activated.
● While the alarm is activated, a person remaining in the vehicle unlocks the door.
● When recharging or replacing the 12-volt battery.
■ To ensure the system operates correctly
Do not modify or remove the system. If modified or removed, the proper operation of
the system cannot be guaranteed.
1-3. Theft deterrent system
1
2
NOT FOR REPRODUCTION
Intrusion sensor and tilt sensor (if equipped)
● The intrusion sensor detects intruders or movement in the vehicle.
● The tilt sensor detects changes in vehicle inclination, such as when the vehicle
is towed away.
This system is designed to deter and prevent vehicle theft but does not guarantee
absolute security against all intrusions.
■ Setting the intrusion sensor and tilt sensor
The intrusion sensor and tilt sensor will be set automatically when the alarm is
set. (P. 8 3)
■ Canceling the intrusion sensor and tilt sensor
If you are leaving pets or other moving things inside the vehicle, make sure to
disable the intrusion sensor and tilt sensor before setting the alarm, as they will
respond to movement inside the vehicle.
Turn the power switch off.
Press the intrusion sensor and tilt
sensor cancel switch.
A message will be shown on the
multi-information display in the
instrument cluster.
The intrusion sensor and tilt sensor will revert to on each time the
power switch is turned to ON
mode.
85
1
For safety and security
■ Canceling and automatic re-enabling of the intrusion sensor and tilt sensor
● The alarm will still be set even when the intrusion sensor and tilt sensor are canceled.
● After the intrusion sensor and tilt sensor are canceled, pressing the power switch or
unlocking the doors using the entry function or wireless remote control will re-enable
the intrusion sensor and tilt sensor.
● The intrusion sensor and tilt sensor will automatically be re-enabled when the alarm
system is reactivated.
86
NOT FOR REPRODUCTION
■ Intrusion sensor detection considerations
1-3. Theft deterrent system
The sensor may trigger the alarm in the following situations:
● People or pets are in the vehicle.
● A window or the moon roof (if equipped) is
open.
In this case, the sensor may detect the follow-
ing:
• Wind or the movement of objects such as
leaves and insects inside the vehicle
• Ultrasonic waves emitted from devices
such as the intrusion sensors of other vehicles
• The movement of people outside the vehicle
● Unstable items, such as dangling accessories
or clothes hanging on the coat hooks, are in
the vehicle.
● The vehicle is parked in a place where extreme
vibrations or noises occur, such as in a parking
garage.
● Ice or snow is removed from the vehicle, caus-
ing the vehicle to receive repeated impacts or
vibrations.
1-3. Theft deterrent system
NOTICE
● Do not spray air fresheners or other products
directly into the sensor holes.
● To ensure that the sensors operate properly,
do not touch or cover them.
NOT FOR REPRODUCTION
● The vehicle is inside an automatic or high-pressure car wash.
● The vehicle experiences impacts, such as hail, lightning strikes, and other kinds of
repeated impacts or vibrations.
■ Tilt sensor detection considerations
The sensor may trigger the alarm in the following situations:
● The vehicle is transported by a ferry, trailer, train, etc.
● The vehicle is parked in a parking garage.
● The vehicle is inside a car wash that moves the vehicle.
● Any of the tires loses air pressure.
● The vehicle is jacked up.
● An earthquake occurs or the road caves in.
● Cargo is loaded onto or unloaded from the roof luggage carrier.
■ To ensure the intrusion sensor functions correctly
87
1
For safety and security
● Installing accessories other than genuine Lexus parts or leaving objects between the
driver’s seat and front passenger’s seat may reduce the detection performance.
88
NOT FOR REPRODUCTION
1-3. Theft deterrent system
89
NOT FOR REPRODUCTION
Instrument cluster
2
2. Instrument cluster
Warning lights and
indicators.......................................90
Gauges and meters.....................95
Multi-information display ........100
Head-up display.......................... 104
Energy monitor/
consumption screen .................110
90
NOT FOR REPRODUCTION
2. Instrument cluster
Warning lights and indicators
The warning lights and indicators inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustration displays all warning
lights and indicators illuminated.
2. Instrument cluster
NOT FOR REPRODUCTION
Wa rn i ng li gh ts
Warning lights inform the driver of malfunctions in any of the vehicle’s systems.
91
1
*
Brake system warning light
(P. 5 03 )
2
*
Charging system warning
light (P. 5 03 )
2
*
Low engine oil pressure
warning light (P. 5 03 )
2
*
High coolant temperature
warning light (P. 5 03 )
1
*
Brake system warning light
(P. 5 03 )
1
*
Malfunction indicator lamp
(P. 5 03 )
1
*
SRS warning light
(P. 5 04 )
1
*
ABS warning light
(P. 5 04 )
1, 3
*
(if equipped)
1, 3
*
*
PCS warning light
(P. 50 4)
1
*
Slip indicator light
(P. 50 4)
Brake hold operated
indicator (P. 50 4)
3
Parking brake indicator
(P. 50 4)
Low fuel level warning light
(P. 50 5)
Driver’s and front
passenger’s seat belt
reminder light (P. 505)
4
*
Rear passengers’ seat
belt reminder light
(P. 50 5)
1
*
Master warning light
(P. 50 5)
2
Instrument cluster
1
*
Electric power steering
system warning light
(P. 5 04 )
1
*
Electric power steering
system warning light
(P. 5 04 )
1
*
Tire pressure warning light
(P. 50 5)
2
*
Brake Override System/
Drive-Start Control warning
light (P. 50 5)
92
NOT FOR REPRODUCTION
2. Instrument cluster
1
*
: These lights turn on when the power switch is turned to ON mode to indicate that a
system check is being performed. They will turn off after the hybrid system is on, or
after a few seconds. There may be a malfunction in a system if the lights do not turn on,
or turn off. Have the vehicle inspected by your Lexus dealer.
2
*
: This light illuminates on the multi-information display.
3
*
: The light flashes to indicate a malfunction.
4
*
: This light illuminates on the center panel.
Indicators
The indicators inform the driver of the operating state of the vehicle’s various systems.
8
*
EV drive mode indicator
(P. 2 02 )
8
*
“ECO” mode indicator
(P. 2 79 )
8
*
“SPORT” indicator
(P. 2 79 )
8
*
“SPORT S” indicator
(P. 2 79 )
8
*
“SPORT S+” indicator
(P. 2 79 )
8
*
Radar cruise control
indicator (P. 2 35 )
8
*
Cruise control “SET”
indicator (P. 2 35 , 2 49 )
(if equipped)
(if equipped)
Turn signal indicator
(P. 20 9)
Tail light indicator
(P. 21 6)
Headlight high beam
indicator (P. 2 16 )
(if equipped)
Automatic High Beam
indicator (P. 2 19)
(if equipped)
Front fog light indicator
(P. 22 3)
(if equipped)
Rear fog light indicator
(P. 22 3)
(if equipped)
“READY” indicator
(P. 19 7)
8
*
EV indicator (P. 75 )
Cruise control indicator
(P. 2 35 , 249 )
2. Instrument cluster
NOT FOR REPRODUCTION
93
LDA indicator (P. 2 52 )
(if equipped)
Steering control indicator
(P. 252)
(if equipped)
Lexus parking
assist-sensor indicator
(if equipped)
(if equipped)
1
*
: These lights turn on when the power switch is turned to the ON mode to indicate that
a system check is being performed. They will turn off after the hybrid system is on, or
after a few seconds. There may be a malfunction in a system if the lights do not turn on,
or turn off. Have the vehicle inspected by your Lexus dealer.
2
*
: The light flashes to indicate that the system is operating.
3
*
: The light comes on when the system is turned off.
4
*
: When the outside temperature is approximately 3°C (37°F) or lower, the indicator
will flash for approximately 10 seconds, then stay on.
5
*
: In order to confirm operation, the BSM outside rear view mirror indicators illuminate
in the following situations:
• When the power switch is turned to ON mode while the BSM main switch is set to
ON.
• When the BSM main switch is set to ON while the power switch is in ON mode.
If the system is functioning correctly, the BSM outside rear view mirror indicators will
turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminate or do not turn off,
there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Lexus dealer.
(P. 261 )
1, 2
*
Slip indicator light
(P. 28 4)
1
*
VSC OFF indicator
(P. 28 5)
1, 3
*
PCS warning light
(P. 28 9)
(if equipped)
Parking brake indicator
(P. 2 10, 211)
1
*
Brake hold standby
indicator (P. 2 13 )
1
*
Brake hold operated
indicator (P. 2 13 )
4, 8
*
Low outside temperature
indicator (P. 95 )
5, 6
*
BSM outside rear view
mirror indicators
(P. 2 94 )
7
*
Security indicator
(P. 8 2, 83)
2
Instrument cluster
94
WA R N I N G
NOT FOR REPRODUCTION
2. Instrument cluster
6
*
: This light illuminates on the outside rear view mirrors.
7
*
: This light illuminates on the center panel.
8
*
This light illuminates on the multi-information display.
■ If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS airbag warning light not come on
when you start the hybrid system, this could mean that these systems are not available
to help protect you in an accident, which could result in death or serious injury. Have
the vehicle inspected by your Lexus dealer immediately if this occurs.
2. Instrument cluster
NOT FOR REPRODUCTION
Gauges and meters
When driving mode is in other than sport mode (P. 27 9)
When driving mode is in sport mode (P. 27 9)
95
2
Instrument cluster
96
4
8
NOT FOR REPRODUCTION
2. Instrument cluster
1
Engine coolant temperature gauge
Displays the engine coolant temperature
2
Hybrid System Indicator
Displays hybrid system output or regeneration level (P. 9 8)
3
Background color of drive mode
Background color changes according to the drive mode. (P. 2 79 )
•Sport mode: Red
• Eco drive mode: Blue
When in Normal mode, the background color is Black.
Outside temperature
Displays the outside temperature within the range of -40°C (-40°F) to 50°C
(122°F). Low outside temperature indicator comes on when the ambient temperature
is 3°C (37°F) or lower.
5
Shift position and shift range
Displays the selected shift position or selected shift range (P. 2 04)
6
Speedometer
Displays the vehicle speed
7
Fuel gauge
Displays the quantity of fuel remaining in the tank
Multi-information display
Presents the driver with a variety of vehicle data (P. 1 00 )
Displays warning messages in case of a malfunction (P. 50 9)
9
Odometer, trip meter and maintenance required information display
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last
reset. Trip meters “A” and “B” can be used to record and display different distances independently.
Maintenance required information:
Displays the remaining distance until the engine oil should be changed.
• Displays the maintenance required information when the power switch is in ON
mode.
• It can be reset from the “settings display” of the multi-information display.
(P. 1 00 )
10
Tachometer
Displays the engine speed in revolutions per minute
Changing the display
NOT FOR REPRODUCTION
Switches between odometer, trip meter
and maintenance required information
displays. When the trip meter is displayed, pressing and holding the button
will reset the trip meter.
2. Instrument cluster
97
2
Instrument panel light control
The brightness of the instrument panel lights can be adjusted.
1
Darker
2
Brighter
■ The meters and display illuminate when
The power switch is in ON mode.
■ Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can be adjusted
individually. However, when the surroundings are bright (daytime, etc.), turning on the tail
lights will not change the instrument panel brightness.
Instrument cluster
98
NOT FOR REPRODUCTION
■ Hybrid System Indicator
2. Instrument cluster
1
Pow er are a
Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)
2
Eco area
Shows that the vehicle is being driven in an
Eco-friendly manner.
3
Hybrid Eco area
Shows that gasoline engine power is not
being used very often.
The gasoline engine will automatically stop
and restart under various conditions.
4
Charge area
Shows that energy is being recovered via the
regenerative brake.
● Hybrid System Indicator is displayed when the driving mode is in other than the sport
mode.
● By keeping the indicator needle within Eco area, more Eco-friendly driving can be
achieved.
● Charge area indicates regeneration* status. Regenerated energy will be used to
charge the hybrid battery (traction battery).
*: When used in this manual, “regeneration” refers to the conversion of energy created
by the movement of the vehicle into electrical energy.
■ Tachometer
Hybrid System Indicator switches to the tachometer when driving mode is in sport mode.
The settings of the tachometer display can be changed on the multi-information display.
(P. 5 60)
■ Engine speed
On hybrid vehicles, engine speed is precisely controlled in order to help improve fuel
efficiency and reduce exhaust emissions, etc.
There are times when the engine speed that is displayed may differ even when vehicle
operation and driving conditions are the same.
■ Outside temperature display
● In the following situations, the correct outside temperature may not be displayed, or the
display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 20 km/h [12 mph])
• When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)
● When “--” or “E” is displayed, the system may be malfunctioning.
Take your vehicle to your Lexus dealer.
