Pictorial index
Not for Reproduction
Search by illustration
For safety
and security
Vehicle status
information and
indicators
Before driving
Driving
Interior features
Maintenance
and care
When trouble
arises
Vehicle
specifications
Make sure to read through them
(Main topics: Child seat, theft deterrent system)
Reading driving-related information
(Main topics: Meters, multi-information display)
Opening and closing the doors and windows, adjustment
before driving
(Main topics: Keys, doors, seats, power windows)
Operations and advice which are necessary for driving
(Main topics: Starting engine, refueling)
Usage of the interior features
(Main topics: Air conditioner, storage features)
Caring for your vehicle and maintenance procedures
(Main topics: Interior and exterior, light bulbs)
What to do in case of malfunction and emergency
(Main topics: Battery discharge, flat tire)
Vehicle specifications, customizable features
(Main topics: Fuel, oil, tire inflation pressure)
1
2
3
4
5
6
7
8
Index
Search by symptom
Search alphabetically
2
Not for Reproduction
TABLE OF CONTENTS
For your information......................................6
Reading this manual.......................................9
How to search ............................................... 10
Pictorial index.................................................12
1
For safety and security
1-1. For safe use
Before driving....................................24
For safe driving..................................25
Seat belts .............................................26
SRS airbags ........................................32
Safety information for children.. 39
Child restraint systems................. 39
Exhaust gas precautions...............57
1-2. Theft deterrent system
Engine immobilizer system......... 58
Alarm ................................................... 59
2
Instrument cluster
3-2. Opening, closing and locking the
doors
Side doors...........................................90
Back door............................................94
Smart entry & start system ........ 106
3-3. Adjusting the seats
Front seats......................................... 110
Rear seats............................................111
Driving position memory.............117
Head restraints..............................120
3-4. Adjusting the steering wheel and
mirrors
Steering wheel................................122
Inside rear view mirror ................123
Outside rear view mirrors..........124
3-5. Opening, closing the windows and
moon roof
Power windows..............................127
Moon roof.........................................129
Electronic sunshade.....................132
2-1. Instrument cluster
Warning lights and indicators.....64
Gauges and meters....................... 69
Multi-information display..............72
Head-up display..............................78
Fuel consumption information... 82
3
Before driving
3-1. Key information
Keys ......................................................86
4
Driving
4-1. Before driving
Driving the vehicle.........................136
Cargo and luggage.......................142
Trailer towing (vehicles without
towing package) .........................143
Trailer towing (vehicles with towing
package).........................................144
TABLE OF CONTENTS
Not for Reproduction
3
4-2. Driving procedures
Engine (ignition) switch ..............149
Automatic transmission..............152
Turn signal lever............................156
Parking brake................................. 157
Brake Hold.......................................159
ASC (Active Sound Control)... 161
4-3. Operating the lights and wipers
Headlight switch............................162
AHS (Adaptive High-beam Sys-
tem)..................................................164
Automatic High Beam................167
Fog light switch ..............................170
Windshield wipers and washer172
Rear window wiper and washer174
4-4. Refueling
Opening the fuel tank cap......... 175
4-5. Using the driving support systems
Lexus Safety System+.................178
PCS (Pre-Collision System)......181
LDA (Lane Departure Alert with
steering control).........................189
Dynamic radar cruise control with
full-speed range.......................... 196
Cruise control ...............................206
Stop & Start system.....................208
Lexus parking assist-sensor...... 216
BSM (Blind Spot Monitor)........ 221
Driving mode select switch......229
Driving assist systems..................231
All-wheel drive lock switch (AWD
models)..........................................235
4-6. Driving tips
Winter driving tips.......................237
Utility vehicle precautions........240
5
Interior features
5-1. Remote Touch
Remote Touch................................244
5-2. Using the air conditioning system
and defogger
Automatic air conditioning system
...........................................................249
Seat heaters/seat ventilators .. 256
5-3. Using the interior lights
Interior lights list........................... 258
5-4. Using the storage features
List of storage features................261
Luggage compartment features
.......................................................... 265
5-5. Using the other interior features
Other interior features.............. 269
1
2
3
4
5
6
7
8
4
Not for Reproduction
TABLE OF CONTENTS
6
Maintenance and care
6-1. Maintenance and care
Cleaning and protecting the vehi-
cle exterior...................................278
Cleaning and protecting the vehi-
cle interior.....................................281
6-2. Maintenance
Maintenance requirements.....284
6-3. Do-it-yourself maintenance
Do-it-yourself service precautions
...........................................................286
Hood .................................................288
Positioning a floor jack...............288
Engine compartment..................290
Tires ...................................................297
Tire inflation pressure.................302
Wheels..............................................303
Air conditioning filter..................305
Electronic key battery................306
Checking and replacing fuses 307
Light bulbs........................................310
7-2. Steps to take in an emergency
If your vehicle needs to be towed
............................................................314
If you think something is wrong318
Fuel pump shut off system..........319
If a warning light turns on or a warn-
ing buzzer sounds.....................320
If a warning message is displayed
.......................................................... 328
If you have a flat tire ......................331
If the engine will not start.......... 339
If you lose your keys.................... 340
If the fuel filler door cannot be
opened ............................................341
If the electronic key does not oper-
ate properly...................................341
If the vehicle battery is discharged
.......................................................... 344
If your vehicle overheats............347
If the vehicle becomes stuck... 349
7
When trouble arises
7-1. Essential information
Emergency flashers...................... 312
If your vehicle has to be stopped in
an emergency.............................. 312
8
Not for Reproduction
Vehicle specifications
8-1. Specifications
Maintenance data (fuel, oil level,
etc.) ................................................. 352
Fuel information............................360
8-2. Customization
Customizable features...............361
8-3. Initialization
Items to initialize...........................370
Index
TABLE OF CONTENTS
5
1
2
3
What to do if... (Troubleshooting)
........................................................... 372
Alphabetical Index...................... 375
4
5
6
7
8
6
Not for Reproduction
For your information
Main Owner’s Manual
Please note that this manual applies to
all models and explains all equipment,
including options. Therefore, you may
find some explanations for equipment
not installed on your vehicle.
All specifications provided in this manual are current at the time of printing.
However, because of the Lexus policy
of continual product improvement, we
reserve the right to make changes at
any time without notice.
Depending on specifications, the vehicle shown in the illustrations may differ
from your vehicle in terms of color and
equipment.
Accessories, spare parts and modification of your Lexus
A wide variety of non-genuine spare
parts and accessories for Lexus vehicles are currently available in the market. Using these spare parts and
accessories which are not genuine
Lexus products may adversely affect
the safety of your vehicle, even though
these parts may be approved by certain authorities in your country. Toyota
Motor Corporation therefore cannot
accept any liability or guarantee spare
parts and accessories which are not
genuine Lexus products, nor for
replacement or installation involving
such parts.
This vehicle should not be modified
with non-genuine Lexus products.
Modification with non-genuine Lexus
products could affect its performance,
safety or durability, and may even violate governmental regulations. In addition, damage or performance
problems resulting from the modification may not be covered under warranty.
Installation of an RF-transmitter system
The installation of an RF-transmitter
system in your vehicle could affect
electronic systems such as:
Multiport fuel injection sys-
tem/sequential multiport fuel injection system
Lexus Safety System+
Cruise control system
Anti-lock brake system
SRS airbag system
Seat belt pretensioner system
Be sure to check with your Lexus
dealer for precautionary measures or
special instructions regarding installation of an RF-transmitter system.
Further information regarding frequency bands, power levels, antenna
positions and installation provisions for
the installation of RF-transmitters, is
available on request at your Lexus
dealer.
7
Not for Reproduction
Vehicle data recordings
Your Lexus is equipped with several
sophisticated computers that will
record certain data, such as:
• Engine speed
• Accelerator status
• Brake status
• Vehicle speed
•Shift position
The recorded data varies according to
the vehicle grade level and options
with which it is equipped. Furthermore,
these computers do not record conversations, sounds or pictures.
Data usage
Lexus may use the data recorded in these
computers to diagnose malfunctions, conduct research and development, and
improve quality.
Lexus will not disclose the recorded data to
a third party except:
• With the consent of the vehicle owner or
with the consent of the lessee if the vehicle is leased
• In response to an official request by the
police, a court of law or a government
agency
• For use by Lexus in a lawsuit
• For research purposes where the data is
not tied to a specific vehicle or vehicle
owner
Event data recorder
This vehicle is equipped with an event
data recorder (EDR). The main purpose of an EDR is to record, in certain
crash or near crash-like situations, such
as an airbag deployment or hitting a
road obstacle, data that will assist in
understanding how a vehicle’s systems
performed. The EDR is designed to
record data related to vehicle dynamics and safety systems for a short
period of time, typically 30 seconds or
less. However, data may not be
recorded depending on the severity
and type of a crash.
The EDR in this vehicle is designed to
record such data as:
How various systems in your vehicle
were operating;
How far (if at all) the driver was
depressing the accelerator and/or
brake pedal; and,
How fast the vehicle was traveling.
These data can help provide a better
understanding of the circumstances in
which crashes and injuries occur.
NOTE: EDR data are recorded by your
vehicle only if a non-trivial crash situation occurs; no data are recorded by
the EDR under normal driving conditions and no personal data (e.g., name,
gender, age, and crash location) are
recorded. However, other parties, such
as law enforcement, could combine the
EDR data with the type of personally
identifying data routinely acquired
during a crash investigation.
To read data recorded by an EDR, special equipment is required, and access
to the vehicle or the EDR is needed. In
addition to the vehicle manufacturer,
other parties, such as law enforcement,
8
WARNING
Not for Reproduction
that have the special equipment, can
read the information if they have law
enforcement, that have the special
equipment, can read the information if
they have
Disclosure of the EDR data
Lexus will not disclose the data recorded in
an EDR to a third party except when:
• An agreement from the vehicle’s owner
(or the lessee for a leased vehicle) is
obtained
• In response to an official request by the
police, a court of law or a government
agency
• For use by Lexus in a lawsuit
However, if necessary, Lexus may:
• Use the data for research on vehicle
safety performance
• Disclose the data to a third party for
research purposes without disclosing
information about the specific vehicle or
vehicle owner
Scrapping of your Lexus
The SRS airbag and seat belt
pretensioner devices in your Lexus
contain explosive chemicals. If the
vehicle is scrapped with the airbags
and seat belt pretensioners left as they
are, this may cause an accident such as
fire. Be sure to have the systems of the
SRS airbag and seat belt pretensioner
removed and disposed of by a qualified
service shop or by your Lexus dealer
before you scrap your vehicle.
■ General precautions while driving
Driving under the influence: Never drive
your vehicle when under the influence of
alcohol or drugs that have impaired your
ability to operate your vehicle. Alcohol
and certain drugs delay reaction time,
impair judgment and reduce coordination, which could lead to an accident that
could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other
drivers or pedestrians might make and
be ready to avoid accidents.
Driver distraction: Always give your full
attention to driving. Anything that distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with
resulting death or serious injury to you,
your occupants or others.
■ General precaution regarding chil-
dren’s safety
Never leave children unattended in the
vehicle, and never allow children to have
or use the key.
Children may be able to start the vehicle
or shift the vehicle into neutral. There is
also a danger that children may injure
themselves by playing with the windows,
the moon roof, or other features of the
vehicle. In addition, heat build-up or
extremely cold temperatures inside the
vehicle can be fatal to children.
9
Not for Reproduction
Reading this manual
Explains symbols used in this manual
Symbols in this manual
Symbols Meanings
WARNING:
Explains something that, if
not obeyed, could cause
death or serious injury to
people.
NOTICE:
Explains something that, if
not obeyed, could cause
damage to or a malfunction
in the vehicle or its equipment.
Indicates operating or working procedures. Follow the
steps in numerical order.
Symbols in illustrations
Symbols Meanings
Indicates the action (pushing, turning, etc.) used to
operate switches and other
devices.
Indicates the outcome of an
operation (e.g. a lid opens).
Symbols Meanings
Indicates the component or
position being explained.
Means Do not, Do not do
this, or Do not let this happen.
10
Not for Reproduction
How to search
■ Searching by name
Alphabetical index: P.375
■ Searching by installation position
Pictorial index: P.12
■ Searching by symptom or sound
What to do if... (Troubleshooting):
P.372
■ Searching by title
Table of contents: P.2
11
Not for Reproduction
12
Not for Reproduction
Pictorial index
Pictorial index
■Exterior
The shape of the headlights may differ depending on the grade, etc.
Side doors ................................................................................................................... P.90
A
Locking/unlocking..............................................................................................................P.90
Opening/closing the side windows............................................................................P.127
Locking/unlocking by using the mechanical key..................................................P.341
Warning messages..........................................................................................................P.328
Back door ................................................................................................................... P.94
B
Opening from inside the cabin
Opening from outside.............................................................................................P.95, 105
Warning messages..........................................................................................................P.328
Outside rear view mirrors ....................................................................................P.124
C
Adjusting the mirror angle..............................................................................................P.124
Folding the mirrors ............................................................................................................P.125
Driving position memory
Defogging the mirrors....................................................................................................P.250
*
.....................................................................................P.97
*
.................................................................................................P.117
Pictorial index
K
Not for Reproduction
Windshield wipers..........................................................................................P.172, 174
D
Precautions against winter season.............................................................................P.237
Precautions against car wash (Rain-sensing windshield wipers)
Fuel filler door ..........................................................................................................P.175
E
Refueling method...............................................................................................................P.175
Fuel type/fuel tank capacity......................................................................................... P.354
Tires ............................................................................................................................P.297
F
Tire size/inflation pressure...........................................................................................P.358
Winter tires/tire chain....................................................................................................P.238
Checking/rotation/tire pressure warning system ..............................................P.297
Coping with flat tires .........................................................................................................P.331
Hood ......................................................................................................................... P.288
G
Opening...............................................................................................................................P.288
Engine oil..............................................................................................................................P.354
Coping with overheat......................................................................................................P.347
Warning messages..........................................................................................................P.328
*
................P.279
13
Light bulbs of the exterior lights for driving
Headlights ................................................................................................................. P.162
H
Front position lights/daytime running lights ................................................... P.162
I
Front fog lights
J
Cornering lights
Turn signal lights ...................................................................................................... P.156
Stop/tail lights ..........................................................................................................P.162
L
Stop lights
M
Emergency brake signal................................................................................................ P.232
License plate lights .................................................................................................P.162
N
*
........................................................................................................P.170
*
.....................................................................................................P.163
14
Not for Reproduction
*
: If equipped
Pictorial index
Rear fog light ............................................................................................................ P.174
O
Back-up light
P
Shifting the shift lever to R...............................................................................................P.152
■Instrument panel
Not for Reproduction
Pictorial index
15
Engine switch............................................................................................................P.149
A
Starting the engine/changing the modes........................................................P.149, 151
Emergency stop of the engine......................................................................................P.312
When the engine will not start ....................................................................................P.339
Warning messages..........................................................................................................P.328
Shift lever ...................................................................................................................P.152
B
Changing the shift position.............................................................................................P.152
Precautions against towing............................................................................................P.314
When the shift lever does not move...........................................................................P.154
Meters ..........................................................................................................................P.69
C
Reading the meters/adjusting the instrument panel light............................P.69, 71
Warning lights/indicator lights.......................................................................................P.64
When the warning lights come on ............................................................................P.320
Multi-information display .......................................................................................P.72
D
Display.......................................................................................................................................P.72
When the warning messages are displayed......................................................... P.328
16
Not for Reproduction
*1
*2
Pictorial index
Turn signal lever ...................................................................................................... P.156
E
Headlight switch ...................................................................................................... P.162
Headlights/front position lights/tail lights/
license plate lights/daytime running lights...............................................................P.162
*1
Front fog lights
Windshield wiper and washer switch .......................................................P.172, 174
F
Usage .............................................................................................................................P.172, 174
Adding washer fluid......................................................................................................... P.296
Warning messages..........................................................................................................P.328
Emergency flasher switch ........................................................................ ............P.312
G
Hood lock release lever ...................................................................................... P.288
H
Tilt and telescopic steering control switch ......................................................P.122
I
Adjustment............................................................................................................................P.122
Driving position memory
Air conditioning system....................................................................................... P.249
J
Usage .................................................................................................................................... P.249
Rear window defogger ..................................................................................................P.250
Audio system
K
: If equipped
: Refer to “Navigation System Owner’s Manual”.
/rear fog light .....................................................................................P.170
*1
................................................................................................P.117
*2
Pictorial index
C
G
Not for Reproduction
■Switches
Front seat heater switches*1...............................................................................P.256
A
*1
Front seat ventilator switches
B

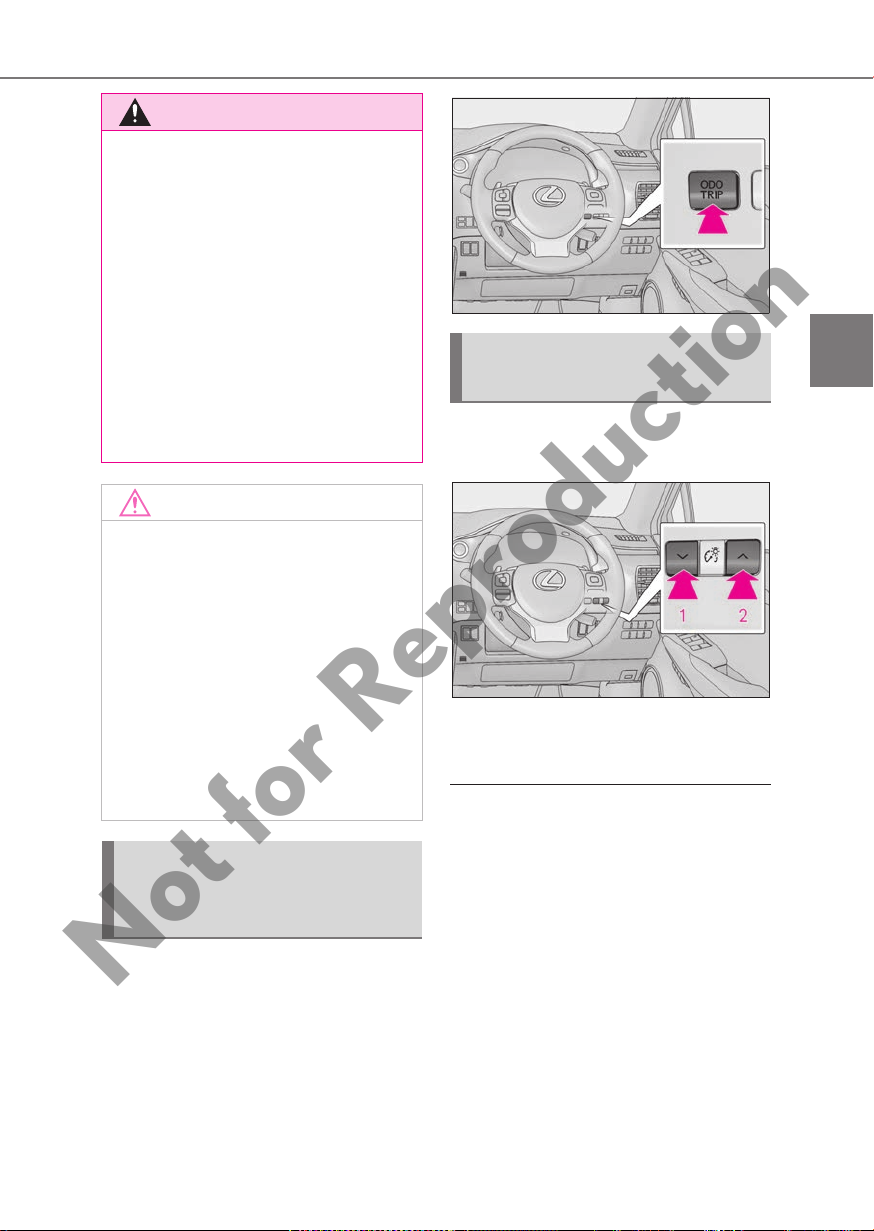

Odometer/trip meter and trip meter reset button ......................................... P.71
Instrument panel light control switches . ............................................................. P.71
D
Automatic High Beam switch
E
Adaptive High-beam System switch
BSM (Blind Spot Monitor) main switch
F
Power back door switch
All-wheel drive lock switch
H
Camera switch
I
*1, 2
......................................................................... P.257
*1
........................................................................... P.167
*1
.............................................................. P.164
*1
.........................................................P.221
*1
.......................................................................................P.97
*1
............................................................................. P.235
17
Rear seat operations switch*1................................................................................ P.111
J
*1
: If equipped
*2
: Refer to “Navigation System Owner’s Manual”.
18
A
D
Not for Reproduction
Pictorial index
HUD (Head-up display) switches
ASC (Active Sound Control) dial
B
Outside rear view mirror switches .................................................................... P.124
C
Window lock switch............................................................................................... P.128
Power window switches ........................................................................................ P.127
E
Driving position memory switches
F
Door lock switches .................................................................................................. P.92
G
*
: If equipped
*
...................................................................... P.78
*
...................................................................... P.161
*
.................................................................... P.117
Pictorial index
A
D
G
Not for Reproduction
19
Audio remote control switches
Paddle shift switches .................................................................................... P.154, 155
B
Meter control switches ...........................................................................................P.72
C
Vehicle-to-vehicle distance switch
Cruise control switch
E
*2
Cruise control
Dynamic radar cruise control with full-speed range
LDA (Lane Departure Alert with steering control) switch
F
LDA (Lane Departure Alert with steering control)*2.........................................P.189
Talk switch
Telephone switches
H
*1
: Refer to “Navigation System Owner’s Manual”.
*2
: If equipped
................................................................................................................ P.206
*1
*1
*1
*2
............................................................... P.196
*2
.......................................P.196
*2
20
F
Not for Reproduction
Pictorial index
VSC off switch........................................................................................................ P.232
A
Driving mode select switch ................................................................................ P.229
B
Stop & Start cancel switch....................................................................................P.215
C
Brake hold switch ....................................................................................................P.159
D
Parking brake switch.............................................................................................. P.157
E
Applying/releasing..................................................................................................P.157, 158
Precautions against winter season............................................................................ P.238
Warning buzzer/message ...............................................................................P.320, 328
Remote Touch........................................................................................................ P.244
Rear seat heater switches*..................................................................................P.257
G
*
: If equipped
Pictorial index
B
Not for Reproduction
■Interior
SRS airbags ................................................................................................................ P.32
A
Floor mats ................................................................................................................... P.24
Front seats .................................................................................................................. P.110
C
Rear seats .................................................................................................................... P.111
D
Head restraints ....................................................................................................... P.120
E
Seat belts ........................................................................................................... ..........P.26
F
Console box............................................................................................................ P.263
G
Inside lock buttons ................................................................................................... P.93
H
Cup holders .......................................................................................................... .. P.263
I
Assist grips ...............................................................................................................P.274
J
21
22
C
Not for Reproduction
*1
*2
Pictorial index
Inside rear view mirror ..........................................................................................P.123
A
Sun visors
B
Vanity mirrors .........................................................................................................P.269
Interior light
D
Personal lights ........................................................................................................ P.260
Moon roof switches
E
Moon roof switches
F
Electronic sunshade switch
Intrusion sensor and tilt sensor cancel switch
G
: If equipped
: NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIR-
BAG in front of it, DEATH or SERIOUS INJURY to the CHILD can occur. (P.43)
*2
..............................................................................................................P.269
*3
.........................................................................................................P.269
*1
.............................................................................................P.129
*1
.............................................................................................P.129
*1
...............................................................................P.132
*1
.............................................. P.60
*3
: The illustration shows the front, but they are also equipped in the rear.
23
Not for Reproduction
For safety and security
1-1. For safe use
Before driving.................................24
For safe driving...............................25
Seat belts ..........................................26
SRS airbags .....................................32
Safety information for children39
Child restraint systems .............. 39
Exhaust gas precautions ............57
1-2. Theft deterrent system
Engine immobilizer system...... 58
Alarm ................................................ 59
1
1
For safety and security
24
A
WARNING
Not for Reproduction
1-1.For safe use
1-1. For safe use
Before driving
tration.
Observe the following before starting off in the vehicle to ensure
safety of driving.
Installing floor mats
Use only floor mats designed specifically for vehicles of the same model
and model year as your vehicle. Fix
them securely in place onto the carpet.
1 Insert the retaining hooks (clips)
into the floor mat eyelets.
2 Turn the upper knob of each retain-
ing hook (clip) to secure the floor
mats in place.
Observe the following precautions.
Failure to do so may cause the driver’s
floor mat to slip, possibly interfering with
the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle. This
could lead to an accident, resulting in
death or serious injury.
■ When installing the driver’s floor mat
● Do not use floor mats designed for
other models or different model year
vehicles, even if they are Lexus Genuine floor mats.
● Only use floor mats designed for the
driver’s seat.
● Always install the floor mat securely
using the retaining hooks (clips) provided.
● Do not use two or more floor mats on
top of each other.
● Do not place the floor mat bottom-
side up or upside-down.
■ Before driving
● Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this
check after cleaning the floor.
Always align the marks.
The shape of the retaining hooks (clips)
may differ from that shown in the illus-
● With the engine stopped and the shift
lever in P, fully depress each pedal to
the floor to make sure it does not interfere with the floor mat.
1-1. For safe use
WARNING
Not for Reproduction
25
For safe driving
For safe driving, adjust the seat and
mirror to an appropriate position
before driving.
Correct driving posture
Adjust the angle of the seatback so
A
that you are sitting straight up and
so that you do not have to lean forward to steer. (P.110)
Adjust the seat so that you can
B
depress the pedals fully and so that
your arms bend slightly at the
elbow when gripping the steering
wheel. (P.110, 122)
Lock the head restraint in place
C
with the center of the head restraint
closest to the top of your ears.
(P.120)
Wear the seat belt correctly.
D
(P.26)
● Do not adjust the position of the
driver’s seat while driving.
Doing so could cause the driver to lose
control of the vehicle.
● Do not place a cushion between the
driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce
the effectiveness of the seat belt and
head restraint.
● Do not place anything under the front
seats.
Objects placed under the front seats
may become jammed in the seat
tracks and stop the seat from locking in
place. This may lead to an accident
and the adjustment mechanism may
also be damaged.
● Always observe the legal speed limit
when driving on public roads.
● When driving over long distances, take
regular breaks before you start to feel
tired.
Also, if you feel tired or sleepy while
driving, do not force yourself to continue driving and take a break immediately.
Correct use of the seat belts
Make sure that all occupants are wearing their seat belts before driving the
vehicle. (P.27)
Use a child restraint system appropriate for the child until the child becomes
large enough to properly wear the
vehicle’s seat belt. (P.39)
Adjusting the mirrors
1
For safety and security
Observe the following precautions.
Failure to do so may result in death or
serious injury.
Make sure that you can see the rear of
the vehicle clearly, by adjusting the
inside and outside rear view mirrors
26
WARNING
Not for Reproduction
1-1. For safe use
properly. (P.123, 124)
Seat belts
Make sure that all occupants are
wearing their seat belts before driving the vehicle.
Observe the following precautions to
reduce the risk of injury in the event of
sudden braking, sudden swerving or an
accident.
Failing to do so may cause death or serious injury.
■ Wearing a seat belt
● Ensure that all passengers wear a seat
belt.
● Always wear a seat belt properly.
● Each seat belt should be used by one
person only. Do not use a seat belt for
more than one person at once, including children.
● Lexus recommends that children be
seated in the rear seat and always use
a seat belt and/or an appropriate child
restraint system.
● To achieve a proper seating position,
do not recline the seat more than necessary. The seat belt is most effective
when the occupants are sitting up
straight and well back in the seats.
● Do not wear the shoulder belt under
your arm.
● Always wear your seat belt low and
snug across your hips.
WARNING
■ Pregnant women
Not for Reproduction
Obtain medical advice and wear the seat
belt in the proper way. (P.26)
Women who are pregnant should position the lap belt as low as possible over
the hips in the same manner as other
occupants, extending the shoulder belt
completely over the shoulder and avoiding belt contact with the rounding of the
abdominal area.
If the seat belt is not worn properly, not
only the pregnant woman, but also the
fetus could suffer death or serious injury
as a result of sudden braking or a collision.
1-1. For safe use
■ Seat belt damage and wear
● Do not damage the seat belts by allow-
ing the belt, plate, or buckle to be
jammed in the door.
● Inspect the seat belt system periodi-
cally. Check for cuts, fraying, and loose
parts. Do not use a damaged seat belt
until it is replaced. Damaged seat belts
cannot protect an occupant from
death or serious injury.
● Ensure that the belt and plate are
locked and the belt is not twisted.
If the seat belt does not function correctly, immediately contact your Lexus
dealer.
● Replace the seat assembly, including
the belts, if your vehicle has been
involved in a serious accident, even if
there’s no obvious damage.
● Do not attempt to install, remove,
modify, disassemble or dispose of the
seat belts. Have any necessary repairs
carried out by your Lexus dealer. Inappropriate handling may lead to incorrect operation.
27
1
For safety and security
Correct use of the seat belts
■ People suffering illness
Obtain medical advice and wear the seat
belt in the proper way. (P.26)
■ When children are in the vehicle
Do not allow children to play with the
seat belt. If the seat belt becomes twisted
around a child’s neck, it may lead to
choking or other serious injuries that
could result in death. If this occurs and
the buckle cannot be unfastened, scissors should be used to cut the belt.
Extend the shoulder belt so that it
comes fully over the shoulder, but
does not come into contact with the
neck or slide off the shoulder.
Position the lap belt as low as possi-
28
A
B
Not for Reproduction
1-1. For safe use
ble over the hips.
Adjust the position of the seatback.
Sit up straight and well back in the
seat.
Do not twist the seat belt.
■ Child seat belt usage
The seat belts of your vehicle were principally designed for persons of adult size.
● Use a child restraint system appropriate
for the child, until the child becomes large
enough to properly wear the vehicle’s
seat belt. (P.39)
● When the child becomes large enough to
properly wear the vehicle’s seat belt, follow the instructions regarding seat belt
usage. (P.26)
■ Seat belt regulations
If seat belt regulations exist in the country
where you reside, please contact your
Lexus dealer for seat belt replacement or
installation.
Fastening and releasing the seat
belt (except for the rear center
seat)
■ Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if you
lean forward too quickly. A slow, easy
motion will allow the belt to extend so that
you can move around fully.
Fastening the seat belt (for the
rear center seat)
1 Take out the plate.
Plate A
A
Plate B
2 When fixing the belt, in the order of
plate A and then plate B, insert the
1 To fasten the seat belt, push the
plate into the buckle until a click
sound is heard.
2 To release the seat belt, press the
release button .
1-1. For safe use
WARNING
C
C
Not for Reproduction
29
plate into the buckle until a clicking
sound is heard.
Plate A
A
Plate B
B
Buckle A
Buckle B
D
■ When using the rear center seat belt
Do not use the rear center seat belt with
either buckle released. Fastening only
one of the buckles may result in death or
serious injury in case of sudden braking
or a collision.
Releasing and stowing the seat
belt (for the rear center seat)
1 To release the hooked buckle B,
push the buckle release button .
2 Insert the mechanical key (P.86)
or plate B into the notch of buckle
A and remove the belt.
Retract the belt slowly when releasing and
stowing the seat belt.
B
1
For safety and security
Plate B
B
Buckle A
3 Stow in the cover in the order of
plate B and then plate A.
In order to securely fix it, firmly insert it to
30
WARNING
A
Not for Reproduction
1-1. For safe use
the back.
Plate A
A
Plate B
B
4 Stow seat belt buckle in the pock-
ets.
Adjusting the seat belt shoulder
anchor height (front seats)
1 Push the seat belt shoulder anchor
down while pressing the release
button .
2 Push the seat belt shoulder anchor
up.
Move the height adjuster up and down as
needed until you hear a click.
■ Adjustable shoulder anchor
Always make sure the shoulder belt is
positioned across the center of your
shoulder. The belt should be kept away
from your neck, but not falling off your
shoulder. Failure to do so could reduce
the amount of protection in an accident
and cause death or serious injuries in the
event of a sudden stop, sudden swerve or
accident. (P.30)
Seat belt pretensioners (front
■ Emergency locking retractor (ELR)
The retractor will lock the belt during a sudden stop or on impact. It may also lock if you
lean forward too quickly. A slow, easy
motion will allow the belt to extend so that
you can move around fully.
seats)
The pretensioners help the seat belts to
quickly restrain the occupants by
retracting the seat belts when the vehicle is subjected to certain types of
severe frontal or side collision.
The pretensioners do not activate in the
event of a minor frontal impact, a minor
WARNING
Not for Reproduction
side impact, a rear impact or a vehicle rollover.
■ Replacing the belt after the
pretensioner has been activated
If the vehicle is involved in multiple collisions, the pretensioner will activate for the
first collision, but will not activate for the
second or subsequent collisions.
■ Seat belt pretensioners
If the pretensioner has activated, the SRS
warning light will come on. In that case,
the seat belt cannot be used again and
must be replaced at your Lexus dealer.
Failure to do so may cause death or serious injury.
1-1. For safe use
31
1
For safety and security
32
D
Not for Reproduction
■ Location of the SRS airbags
1-1. For safe use
SRS airbags
The SRS airbags inflate when the vehicle is subjected to certain types of
severe impacts that may cause significant injury to the occupants. They work
together with the seat belts to help reduce the risk of death or serious injury.
SRS airbag system
SRS front airbags
SRS driver airbag/front passenger airbag
A
Can help protect the head and chest of the driver and front passenger from impact with
interior components
SRS knee airbag
B
Can help provide driver protection
SRS seat cushion airbag
C
Can help restrain the front passenger
SRS side and curtain shield airbags
SRS side airbags
Can help protect the torso and pelvis of the front seat occupants
SRS curtain shield airbags
E
K
Not for Reproduction
Can help protect primarily the head of occupants in the outer seats
■ SRS airbag system components
Side impact sensors (rear)
A
Side airbags
B
Curtain shield airbags
C
Driver airbag
D
SRS warning light
E
Front passenger airbag
F
Front impact sensors
G
Side impact sensors (front)
H
Seat belt pretensioners and force limiters
I
Airbag sensor assembly
J
Passenger seat cushion airbag
1-1. For safe use
33
1
For safety and security
Front passenger’s seat belt buckle switch
L
Driver’s seat belt buckle switch
M
N
Knee airbags
O
Driver’s seat position sensor
The main SRS airbag system components are shown above. The SRS airbag system is controlled by the airbag sensor assembly. As the airbags deploy, a chemical
reaction in the inflators quickly fills the airbags with non-toxic gas to help restrain
34
Not for Reproduction
1-1. For safe use
the motion of the occupants.
■ If the SRS airbags deploy (inflate)
● Slight abrasions, burns, bruising etc., may
be sustained from SRS airbags, due to the
extremely high speed deployment (inflation) by hot gases.
● A loud noise and white powder will be
emitted.
● Parts of the airbag module (steering
wheel hub, airbag cover and inflator) as
well as the front seats, parts of the front
and rear pillars, and roof side rails, may
be hot for several minutes. The airbag
itself may also be hot.
● The windshield may crack.
■ SRS a irbag deployment conditions (SRS
front airbags)
● The SRS front airbags will deploy in the
event of an impact that exceeds the set
threshold level (the level of force corresponding to an approximately 20-30
km/h [12-18 mph] frontal collision with a
fixed wall that does not move or deform).
However, this threshold velocity will be
considerably higher in the following situations:
• If the vehicle strikes an object, such as a
parked vehicle or sign pole, which can
move or deform on impact
• If the vehicle is involved in an underride
collision, such as a collision in which the
front of the vehicle underrides, or goes
under, the bed of a truck
● Depending on the type of collision, it is
possible that only the seat belt
pretensioners will activate.
● The SRS seat cushion airbag on the front
passenger seat will not operate if the
occupant is not wearing a seat belt.
■ SRS a irbag deployment conditions (SRS
side and curtain shield airbags)
● The SRS side and curtain shield airbags
will deploy in the event of an impact that
exceeds the set threshold level (the level
of force corresponding to the impact
force produced by an approximately
1500 kg [3300 lb.] vehicle colliding with
the vehicle cabin from a direction perpendicular to the vehicle orientation at an
approximate speed of 20 -30 km/h [12 18 mph]).
● The SRS side and curtain shield airbags
may also deploy in the event of a severe
frontal collision.
■ Conditions under which the SRS air-
bags may deploy (inflate), other than a
collision
The SRS front airbags and SRS side and
curtain shield airbags may also deploy if a
serious impact occurs to the underside of
your vehicle. Some examples are shown in
the illustration.
● Hitting a curb, edge of pavement or hard
surface
● Falling into or jumping over a deep hole
● Landing hard or falling
■ Types of collisions that may not deploy
the SRS airbags (SRS front airbags)
The SRS front airbags do not generally
inflate if the vehicle is involved in a side or
rear collision, if it rolls over, or if it is involved
in a low-speed frontal collision. But, whenever a collision of any type causes sufficient
forward deceleration of the vehicle, deployment of the SRS front airbags may occur.
● Collision from the side
● Collision from the rear
● Vehicle rollover
1-1. For safe use
Not for Reproduction
your Lexus dealer as soon as possible.
● Any of the SRS airbags have been
inflated.
● The front of the vehicle is damaged or
deformed, or was involved in an accident
that was not severe enough to cause the
SRS front airbags to inflate.
35
■ Types of collisions that may not deploy
the SRS airbags
(SRS side and curtain shield airbags)
The SRS side and curtain shield airbags
may not activate if the vehicle is subjected
to a collision from the side at certain angles,
or a collision to the side of the vehicle body
other than the passenger compartment.
● Collision from the side to the vehicle
body other than the passenger compartment
● Collision from the side at an angle
The SRS side and curtain shield airbags do
not generally inflate if the vehicle is involved
in a rear collision, if it rolls over, or if it is
involved in a low-speed side or low-speed
frontal collision.
● Collision from the rear
● Vehicle rollover
1
For safety and security
● A portion of a door or its surrounding
area is damaged or deformed, or the
vehicle was involved in an accident that
was not severe enough to cause the SRS
side and curtain shield airbags to inflate.
● The pad section of the steering wheel,
dashboard near the front passenger airbag or lower portion of the instrument
panel is scratched, cracked, or otherwise
damaged.
● The front passenger’s seat cushion sur-
face is scratched, cracked, or otherwise
■ When to contact your Lexus dealer
In the following cases, the vehicle will
require inspection and/or repair. Contact
damaged.
36
WARNING
Not for Reproduction
● The surface of the seats with the side air-
● The portion of the front pillars, rear pillars
1-1. For safe use
bag is scratched, cracked, or otherwise
damaged.
or roof side rail garnishes (padding) containing the curtain shield airbags inside is
scratched, cracked, or otherwise damaged.
● The SRS driver airbag deploys with
considerable force, and can cause
death or serious injury especially if the
driver is very close to the airbag.
Since the risk zone for the driver’s airbag is the first 50 - 75 mm (2 - 3 in.) of
inflation, placing yourself 250 mm (10
in.) from your driver airbag provides
you with a clear margin of safety. This
distance is measured from the center
of the steering wheel to your breastbone. If you sit less than 250 mm (10
in.) away now, you can change your
driving position in several ways:
• Move your seat to the rear as far as
you can while still reaching the pedals
comfortably.
• Slightly recline the back of the seat.
Although vehicle designs vary, many
drivers can achieve the 250 mm (10
in.) distance, even with the driver seat
all the way forward, simply by reclining
the back of the seat somewhat. If
reclining the back of your seat makes it
hard to see the road, raise yourself by
using a firm, non-slippery cushion, or
raise the seat if your vehicle has that
feature.
• If your steering wheel is adjustable, tilt
it downward. This points the airbag
toward your chest instead of your head
and neck.
The seat should be adjusted as recommended above, while still maintaining
control of the foot pedals, steering wheel,
■ SRS airbag precautions
Observe the following precautions
regarding the SRS airbags.
Failure to do so may cause death or serious injury.
● The driver and all passengers in the
vehicle must wear their seat belts
properly. The SRS airbags are supplemental devices to be used with the seat
belts.
and your view of the instrument panel
controls.
● The SRS front passenger airbag also
deploys with considerable force, and
can cause death or serious injury
especially if the front passenger is very
close to the airbag. The front passenger seat should be as far from the airbag as possible with the seatback
adjusted, so the front passenger sits
upright.
WARNING
● Improperly seated and/or restrained
Not for Reproduction
infants and children can be killed or
seriously injured by a deploying airbag.
An infant or child who is too small to
use a seat belt should be properly
secured using a child restraint system.
Lexus strongly recommends that all
infants and children be placed in the
rear seats of the vehicle and properly
restrained. The rear seats are safer for
infants and children than the front passenger seat. (P.39)
● Do not sit on the edge of the seat or
lean against the dashboard.
1-1. For safe use
● Do not lean against the door, the roof
side rail or the front, side and rear pillars.
● Do not allow anyone to kneel on the
passenger seat toward the door or put
their head or hands outside the vehicle.
37
1
For safety and security
● Do not allow a child to stand in front of
the SRS front passenger airbag unit or
sit on the knees of a front passenger.
● Do not allow the front seat occupants
to hold items on their knees.
● Do not attach anything to or lean any-
thing against areas such as the dashboard, steering wheel pad and lower
portion of the instrument panel.
These items can become projectiles
when the SRS driver, front passenger
and knee airbags deploy.
38
WARNING
Not for Reproduction
1-1. For safe use
● Do not attach anything to areas such
as a door, windshield glass, side door
glass, front or rear pillar, roof side rail
and assist grip.
● Do not hang coat hangers or other
hard objects on the coat hooks. All of
these items could become projectiles
and may cause death or serious injury,
should the SRS curtain shield airbags
deploy.
● If a vinyl cover is put on the area where
the SRS knee airbag will deploy, be
sure to remove it.
● Do not use seat accessories which
cover the parts where the SRS side airbags and SRS seat cushion airbag
inflate as they may interfere with inflation of the SRS airbags. Such accessories may prevent the side airbags and
SRS seat cushion airbag from activating correctly, disable the system or
cause the side airbags and SRS seat
cushion airbag to inflate accidentally,
resulting in death or serious injury.
● Do not strike or apply significant levels
of force to the area of the SRS airbag
components.
Doing so can cause the SRS airbags to
malfunction.
● Do not touch any of the component
parts immediately after the SRS airbags have deployed (inflated) as they
may be hot.
● If breathing becomes difficult after the
SRS airbags have deployed, open a
door or window to allow fresh air in, or
leave the vehicle if it is safe to do so.
Wash off any residue as soon as possible to prevent skin irritation.
● If the areas where the SRS airbags are
stored, such as the steering wheel pad
and front and rear pillar garnishes, are
damaged or cracked, have them
replaced by your Lexus dealer.
■ Modification and disposal of SRS air-
bag system components
Do not dispose of your vehicle or perform any of the following modifications
without consulting your Lexus dealer.
The SRS airbags may malfunction or
deploy (inflate) accidentally, causing
death or serious injury.
● Installation, removal, disassembly and
repair of the SRS airbags
● Repairs, modifications, removal or
replacement of the steering wheel,
instrument panel, dashboard, seats or
seat upholstery, front, side and rear pillars or roof side rails
● Repairs or modifications of the front
fender, front bumper, or side of the
occupant compartment
● Installation of a grille guard (bull bars,
kangaroo bar, etc.), snow plows or
winches
● Modifications to the vehicle’s suspen-
sion system
● Installation of electronic devices such
as mobile two-way radios (RF-transmitter) and CD players
1-1. For safe use
WARNING
Not for Reproduction
39
Safety information for children
Observe the following precautions
when children are in the vehicle.
Use a child restraint system appropriate for the child, until the child
becomes large enough to properly
wear the vehicle’s seat belt.
It is recommended that children
sit in the rear seats to avoid accidental contact with the shift lever,
wiper switch, etc.
Use the rear door child-protector
lock or the window lock switch to
avoid children opening the door
while driving or operating the
power window accidentally.
(93, 128)
Do not let small children operate
equipment which may catch or
pinch body parts, such as the
power window, hood, back door,
seats etc.
Child restraint systems
Before installing a child restraint
system in the vehicle, there are precautions that need to be observed,
different types of child restraint systems, as well as installation methods, etc., written in this manual.
Use a child restraint system when
riding with a small child that cannot
properly use a seat belt. For the
child’s safety, install the child restraint
system to a rear seat. Be sure to follow the installation method that is in
the operation manual enclosed with
the restraint system.
Table of contents
Points to remember: P.39
Child restraint system: P.40
When using a child restraint system on
a passenger seat: P.42
When using a child restraint system on
a rear seat: P.44
1
For safety and security
■ When children are in the vehicle
Never leave children unattended in the
vehicle, and never allow children to have
or use the key.
Children may be able to start the vehicle
or shift the vehicle into neutral. There is
also a danger that children may injure
themselves by playing with the windows,
the moon roof (if equipped) or other features of the vehicle. In addition, heat
build-up or extremely cold temperatures
inside the vehicle can be fatal to children.
Child restraint system installation
method
• Fixed with a seat belt: P.45
• Fixed with an ISOFIX rigid anchor:
P.49
• Using a child restraint anchor fitting:
P.54
Points to remember
Prioritize and observe the warn-
ings, as well as the laws and regula-
40
WARNING
Not for Reproduction
1-1. For safe use
tions for child restraint systems.
Choose a child restraint system that
suits your vehicle and is appropriate
to the age and size of the child.
Use a child restraint system suitable
for installation in the vehicle which
*
conforms to ECE R44
*
.
R129
or ECE
Use a child restraint system appro-
priate for the child until the child
becomes large enough to properly
wear the vehicle’s seat belt.
*
: ECE R44 and ECE R129 are U.N. regu-
lations for Child restraint systems.
■ When a child is riding
Observe the following precautions.
Failure to do so may result in death or
serious injury.
● For effective protection in automobile
accidents and sudden stops, a child
must be properly restrained, using a
seat belt or child restraint system
depending on the age and size of the
child.
● Lexus strongly urges the use of a
proper child restraint system that conforms to the size of the child, installed
on the rear seat. According to accident statistics, the child is safer when
properly restrained in the rear seat
than in the front seat.
● Holding a child in your or someone
else’s arms is not a substitute for a child
restraint system. In an accident, the
child can be crushed against the windshield or between the holder and the
interior of the vehicle.
● Place one child to a child restraint sys-
tem and then secure the child with the
harness of the child restraint system.
■ Handling the child restraint system
If the child restraint system is not properly fixed in place, the child or other passengers may be seriously injured or even
killed in the event of sudden braking, sudden swerving, or an accident.
● If the vehicle were to receive a strong
impact from an accident, etc., it is possible that the child restraint system has
damage that is not readily visible. In
such cases, do not reuse the restraint
system.
● Depending on the child restraint sys-
tem, installation may be difficult or
impossible. In those cases, check
whether the child restraint system is
suitable for installment in the vehicle.
(P.45, 49) Be sure to install and
observe the usage rules after carefully
reading the child restraint system fixing
method in this manual, as well as the
operation manual enclosed with the
child restraint system.
● Keep the child restraint system prop-
erly secured on the seat even if it is not
in use. Do not store the child restraint
system unsecured in the passenger
compartment.
● If it is necessary to detach the child
restraint system, remove it from the
vehicle or store it securely in the luggage compartment.
Child restraint system
Install the available child restraint system in vehicle upon confirming the following items.
■ Standards for child restraint sys-
tems
Use a child restraint system that conforms to ECE R44
The following approval mark is displayed on child restraint systems which
*1
or ECE R129
*1, 2
.
1-1. For safe use
Not for Reproduction
41
are conformed.
Check for an approval mark attached
to the child restraint system.
Example of the displayed regulation
number
■ Mass group (ECE R44 only)
ECE R44 approval mark
A
The weight range of the child who is applicable for an ECE R44 approval mark is
indicated.
ECE R129 approval mark
B
The height range of the child who is applicable as well as available weights for an
ECE R129 approval mark is indicated.
*1
: ECE R44 and ECE R129 are U.N. reg-
ulations for child restraint systems.
*2
: The child restraint systems mentioned in
the table may not be available outside of
the EU area.
*3
: The displayed mark may differ depend-
ing on the product.
*3
*3
This Mass group table is required when confirming the [Child restraint system suitability for various seating positions]. Confirm in accordance with the [Child
restraint system suitability for various seating positions] (P.46, 51).
1
For safety and security
The child restraint system which conforms to the standard of ECE R44 is categorized into 5 groups according to the weight of the child.
Mass group Child weight Reference age
Group 0 until 10 kg (22 lb.) about 9 months
Group 0+ until 13 kg (28 lb.) about 1.5 years
Group I
Group II
Group III
*
: The age range is a standard approximation. Choose according to the weight of the child.
9 - 18 kg
(20 - 39 lb.)
15 - 25 kg
(34 - 55 lb.)
22 - 36 kg
(49 - 79 lb.)
from 9 months - about 4
years
from 3 years - about 7 years
from 6 years - about 12 years
*
42
Not for Reproduction
■ Types of child restraint system installation methods
Confirm with the operation manual enclosed with the child restraint system about
the installation of the child restraint system.
1-1. For safe use
Installation method Page
Seat belt attachment P.45
ISOFIX rigid anchor
attachment
Child restraint
anchor fitting attach-
ment
When using a child restraint system on a passenger seat
■ When installing a child restraint
system to a passenger seat
For the safety of a child, install child
restraint systems to a rear seats. When
P.49
P.54
installing child restraint system to a
front passenger seat is unavoidable,
adjust the passenger seat as follows
and install the child restraint system.
Raise the seatback as much as pos-
sible
1-1. For safe use
WARNING
Not for Reproduction
Move the seat to the rearmost posi-
tion
Raise the seat to the upper most
position
If the head restraint interferes with
the child restraint system installation and the head restraint can be
removed, remove the head restraint.
■ When installing a child restraint system
Observe the following when installing child restraint system to the front passenger seat if
it is unavoidable. The front passenger SRS airbag inflates with considerable speed and
force that if not observed may lead to death or serious injury to the child.
● Extreme Hazard! Do not use a rearward facing child restraint on a seat protected by an
airbag in front of it! This is because the force of the rapid inflation of the front passenger
airbag can cause death or serious injury to the child.
There is a label(s) on the passenger side sun visor, indicating it is forbidden to attach a
rear-facing child restraint system to the front passenger seat.
Details of the label(s) are shown in the illustration below.
43
1
For safety and security
44
WARNING
WARNING
Not for Reproduction
1-1. For safe use
● When installing a forward-facing child
restraint system to the front passenger
seat, move the seat to the rearmost
position, raise the seat to the upper
most position, and then install.
If the head restraint interferes with the
child restraint system installation and
the head restraint can be removed,
remove the head restraint.
● Do not allow the child to lean his/her
head or any part of his/her body
against the door or the area of the seat,
front pillars or roof side rails from
which the SRS side airbags or SRS
curtain shield airbags deploy even if
the child is seated in the child restraint
system. It is dangerous if the SRS side
and curtain shield airbags inflate, and
the impact could cause death or serious injury to the child.
● When a junior seat (booster seat) is
installed, always ensure that the shoulder belt is positioned across the center
of the child’s shoulder. The belt should
be kept away from the child’s neck, but
not so that it could fall off the child’s
shoulder.
When using a child restraint system on a rear seat
■ When installing a child restraint sys-
tem
Observe the following precautions.
Failure to do so may result in death or
serious injury.
● Use child restraint system suitable to
the age and size of the child and install
it to the rear seat.
● If the driver’s seat interferes with the
child restraint system and prevents it
from being attached correctly, attach
the child restraint system to the lefthand rear seat.
● Adjust the front passenger seat so that
it does not interfere with the child
restraint system.
● Do not allow the child to lean his/her
head or any part of his/her body
against the door or the area of the seat,
rear pillars or roof side rails from which
the SRS curtain shield airbag deploys
even if the child is seated in the child
restraint system. It is dangerous if the
SRS curtain shield airbag inflates, and
the impact could cause death or serious injury to the child.
Child restraint system fixed with
Not for Reproduction
a seat belt
■ Child restraint system suitability
for various seating positions
The child restraint system suitability
table (P.46), with symbols, displays
the types of usable child restraint systems and possible seating position
installation for the child restraint system owned by the customer. Confirm
also in accordance with [Confirming
the possible installation seating positions and the Mass Group for the seat
belt installation type child restraint systems].
■ Confirming the possible installa-
tion seating positions and the Mass
Group for the seat belt installation
type child restraint systems
1 Confirm the corresponding [Mass
group] from the weight of the child
(P.41)
(Ex. 1) When the weight is 12 kg, [Mass
group 0+]
(Ex. 2) When the weight is 15 kg, [Mass
group I]
2 Confirm and select the appropriate
possible seating position for the
child restraint system and the corresponding type of system from the
[Child restraint system suitability
for various seating positions].
(P.46)
1-1. For safe use
45
1
For safety and security
46
Not for Reproduction
■ Child restraint system suitability for various seating positions
1-1. For safe use
(Installed using seat belts)
Information provided in the table shows your child restraint system suitability for
various seating positions.
Front seat
Mass groups
0
Up to 10 kg (22 lb.)
(0 - 9 months)
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
I
9 to 18 kg
(20 to 39 lb.)
(9 months - 4 years)
II, III
15 to 36 kg
(34 to 79 lb.)
(4 - 12 years)
Rear seat
Mass groups
Seating position
Passenger seat
X
X
Rearward-facing —
X
Forward-facing —
Seating position
Right-hand Left-hand Center
UF
UF
*1
*1
0
Up to 10 kg (22 lb.)
(0 - 9 months)
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
*3
U
*3
U
*3
U
*3
U
X
X
1-1. For safe use
Not for Reproduction
47
Mass groups
I
9 to 18 kg (20 to 39 lb.)
(9 months - 4 years)
II, III
15 to 36 kg (34 to 79 lb.)
(4 - 12 years)
Right-hand Left-hand Center
*2, 3
U
*2, 3
U
Seating position
*2, 3
U
*2, 3
U
X
X
Key of letters inserted in the above table:
U: Suitable for “universal” category child restraint systems approved for use in this
mass group.
UF: Suitable for forward-facing “universal” category child restraint systems
approved for use in this mass group.
X: Seat position not suitable for children in this mass group.
*1
: If the head restraint interferes with your
child restraint system, and the head
restraint can be removed, remove the
head restraint. If the passenger seat is
equipped with a vertical height adjuster,
it must be placed in the upper most
position.
*2
: If the head restraint interferes with your
child restraint system, and the head
restraint can be removed, remove the
head restraint.
*3
: When using the rear manual seat:
Adjust the seatback to the 3rd lock
position from the most upright position.
When using the rear power seat:
If there is gap between the child seat
and the seatback, adjust the seatback
until good contact is achieved.
When using the left-hand rear seat
for the child restraint system, do not
sit in the center rear seat.
When using child restraint systems
other than “universal” category, the
suitability of the systems must be
carefully checked with the child
restraint system manufacturer concerned and the seller of those seats.
■ Installing child restraint system
using a seat belt
Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint system.
1 Adjust the seatback
When using the front seat or rear
power seat
If there is a gap between the child seat and
the seatback, adjust the seatback until
good contact is achieved.
When using the rear manual seat
Fold the seatback while pulling the lever.
Return the seatback (most upright position).
Adjust the seatback to the 3rd lock posi-
1
For safety and security
48
Not for Reproduction
1-1. For safe use
tion.
Most upright position
A
3rd lock position
B
2 If the head restraint interferes with
the child restraint system installation and the head restraint can be
removed, remove the head
restraint. (P.121)
into the buckle. Make sure that the
belt is not twisted. Securely fix the
seat belt to the child restraint system in accordance to the directions
enclosed with the child restraint
system.
5 If your child restraint system is not
equipped with a lock-off (a seat belt
locking feature), secure the child
restraint system using a locking clip.
3 Place the child restraint system on
the seat.
4 Run the seat belt through the child
restraint system and insert the plate
6 After installing the child restraint
system, rock it back and forth to
ensure that it is installed securely.
■ Removing a child restraint system
installed with a seat belt
Press the buckle release button and
fully retract the seat belt.
When releasing the buckle, the child
restraint system may spring up due to the
rebound of the seat cushion. Release the
buckle while holding down the child
1-1. For safe use
WARNING
Not for Reproduction
49
restraint system.
Since the seat belt automatically reels itself,
slowly return it to the stowing position.
■ When installing a child restraint system
You may need a locking clip to install the
child restraint system. Follow the instructions provided by the manufacturer of the
system. If your child restraint system does
not provide a locking clip, you can purchase
the following item from your Lexus dealer:
Locking clip for child restraint system
(Part No. 73119-22010)
● After securing a child restraint system,
never adjust the seat.
● When a junior seat (booster seat) is
installed, always ensure that the shoulder belt is positioned across the center
of the child’s shoulder. The belt should
be kept away from the child’s neck, but
not so that it could fall off the child’s
shoulder.
● Follow all installation instructions pro-
vided by the child restraint system
manufacturer.
● When using the left side seat for the
child restraint system, do not have the
center rear seat occupied. Seat belt
function may be impaired, such as
being positioned overly high or loosefitting, which may result in death or
serious injury in the event of sudden
braking or an accident.
1
For safety and security
■ When installing a child restraint sys-
tem
Observe the following precautions.
Failure to do so may result in death or
serious injury.
● Do not allow children to play with the
seat belt. If the seat belt becomes
twisted around a child’s neck, it may
lead to choking or other serious injuries that could result in death. If this
occurs and the buckle cannot be
unfastened, scissors should be used to
cut the belt.
Child restraint system fixed with
an ISOFIX rigid anchor
■ ISOFIX rigid anchors (ISOFIX
child restraint system)
Lower anchors are provided for the
outboard rear seats. (Tags displaying
the location of the anchors are
● Ensure that the belt and plate are
securely locked and the seat belt is not
twisted.
● Shake the child restraint system left
and right, and forward and backward
to ensure that it has been securely
installed.
attached to the seats.)
50
Not for Reproduction
1-1. For safe use
*
: ECE R44 and ECE R129 are U.N. regu-
lations for child restraint systems.
■ Child restraint system suitability
for various seating positions
The child restraint system suitability
table (P.51), with symbols, displays
the types of usable child restraint systems and possible seating position
■ Use a child restraint system that
conforms to ECE R44
*
R129
*
or ECE
Approval marks are displayed on child
restraint systems which have conformed. (P.40)
■ ECE R44 child restraint system size classes and anchors
installation for the child restraint system owned by the customer. Confirm
in accordance with the listed Size class,
Anchor, as well as [Confirming the
Mass group and Size class for ECE
R44 ISOFIX corresponding child
restraint systems].
Class Code which represents the child restraint system and the accompanying
installation anchor code.
Size class Anchor Shape/Size
A ISO/F3 Full-Height Forward-facing Small child
B ISO/F2
B1 ISO/F2X
C ISO/R3 Full-Size Rearward-facing Small child
D ISO/R2 Reduced-Size Rearward-facing Small child
E ISO/R1 — Rearward-facing Infant
F ISO/L1 Carrycot
G ISO/L2 Carrycot
*
: Carrycot is a seat for babies which can be attached sideways and orientated to allow the
infant to sleep. For further details, inquire with the child restraint system manufacturer or
dealer.
Reduced-
Height
Reduced-
Height
*
*
Directional
usage
Forward-facing Small child
Forward-facing Small child
Left-facing Infant
Right-facing Infant
Child size
1-1. For safe use
Not for Reproduction
51
■ Confirming the Mass group and
Size class for ECE R44 ISOFIX
corresponding child restraint systems
1 Confirm the corresponding [Mass
group] from the weight of the child
(P.41)
(Ex. 1) When the weight is 12 kg, [Mass
group 0+]
(Ex. 2) When the weight is 15 kg, [Mass
group I]
2 Confirming Size class
Select the Size class corresponding
■ Child restraint system suitability for various seating positions
to [Mass group] confirmed in step 1
from the [Child restraint system
suitability for various seating posi-
*
tions] (P.51)
(Ex. 1) When [Mass group 0+], the corresponding size class is [C], [D], [E].
(Ex. 2) When [Mass group I], the corresponding size class is [A], [B], [B1], [C], [D].
*
: However, listings that are marked with
[X] cannot be selected, despite having
the corresponding size class in the suitability table of the [Vehicle ISOFIX position].
.
(Installed using ISOFIX [Child restraint system conforms with ECE R44])
Information provided in the table shows your child restraint system suitability for
various seating positions.
Rear seat
Vehicle ISOFIX
Mass groups Size class Fixture
Right-hand
positions
Left-hand
1
For safety and security
Carrycot
0
Up to 10 kg (22 lb.)
(0 - 9 months)
0+
Up to 13 kg (28 lb.)
(0 - 2 years)
I
9 to 18 kg (20 to 39 lb.)
(9 months - 4 years)
F ISO/L1 X X
G ISO/L2 X X
E ISO/R1 IL IL
E ISO/R1 IL IL
D ISO/R2 IL IL
C ISO/R3 IL IL
D ISO/R2 IL IL
C ISO/R3 IL IL
B ISO/F2 IUF
B1 ISO/F2X IUF
A ISO/F3 IUF
*
*
*
IUF
IUF
IUF
*
*
*
52
Not for Reproduction
Key of letters inserted in the above table:
IUF:Suitable for ISOFIX forward-facing child restraint systems of universal category approved for use in this mass group.
IL:Suitable for ISOFIX child restraint systems of the categories for “specific vehicles”, “restricted”, or “semi-universal”, approved for use in this mass group.
X:ISOFIX position not suitable for ISOFIX child restraint systems in this mass
group and/or this size class.
*
When using the rear manual seat:
Adjust the seatback to the 3rd lock position from the most upright position.
When using the rear power seat:
If there is gap between the child seat and the seatback, adjust the seatback until good contact is achieved.
When using the left-hand rear seat for the child restraint system, do not sit in the
When using child restraint systems other than “universal” category, the suitabil-
1-1. For safe use
: If the head restraint interferes with your child restraint system, and the head restraint can
be removed, remove the head restraint.
center rear seat.
ity of the systems must be carefully checked with the child restraint system manufacturer concerned and the seller of those seats.
■ Child restraint system suitability for various seating positions
(Installed using ISOFIX [Child restraint system conforms with ECE R129])
Seating position
Front seat Rear seat
Passenger seat Right-hand Left-hand Center
i-Size child
restraint systems
Key of letters inserted in the above table:
i-U:Suitable for i-Size “universal” child restraint systems forward and rearward facing.
i-UF:Suitable for forward-facing i-Size “universal” child restraint systems only.
X:Seating position not suitable for i-Size “universal” child restraint systems.
If the head restraint interferes with your child restraint system, and the head
restraint can be removed, remove the head restraint.
X i-U i-U X
1-1. For safe use
Not for Reproduction
When using the rear manual seat:
Adjust the seatback to the 3rd lock position from the most upright position.
When using the rear power seat:
If there is gap between the child seat and the seatback, adjust the seatback until good contact is achieved.
When using the left-hand rear seat for the child restraint system, do not sit in the
center rear seat.
■ Installation with ISOFIX rigid
anchor (ISOFIX child restraint system)
Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint system.
1 Adjust the seatback
When using the rear power seat
If there is a gap between the child seat and
the seatback, adjust the seatback until
good contact is achieved.
When using the rear manual seat
Fold the seatback while pulling the lever.
Return the seatback (most upright position).
Adjust the seatback to the 3rd lock position.
2 If the head restraint interferes with
the child restraint system installation and the head restraint can be
removed, remove the head
restraint. (P.121)
3 Check the positions of the exclu-
sive fixing bars, and install the child
restraint system to the seat.
The bars are installed in the clearance
53
1
For safety and security
Most upright position
A
3rd lock position
B
54
WARNING
Not for Reproduction
1-1. For safe use
between the seat cushion and seatback.
4 After installing the child restraint
system, rock it back and forth to
ensure that it is installed securely.
■ When installing a child restraint sys-
tem
Observe the following precautions.
Failure to do so may result in death or
serious injury.
● Shake the child restraint system left
and right, and forward and backward
to ensure that it has been securely
installed.
● After securing a child restraint system,
never adjust the seat.
● When using the lower anchors, be
sure that there are no foreign objects
around the anchors and that the seat
belt is not caught behind the child
restraint system.
● When using the left side seat for the
child restraint system, do not have the
center rear seat occupied. Seat belt
function may be impaired, such as
being positioned overly high or loosefitting, which may result in death or
serious injury in the event of sudden
braking or an accident.
■ Using child restraint anchorages
WARNING: child restraint anchorages
are designed to withstand only those
loads imposed by correctly fitted child
restraints. Under no circumstances are
they to be used for adult seatbelts, harnesses, or for attaching other items or
equipment to the vehicle.
Using a child restraint anchor fitting
■ Child restraint anchor fitting
For Australia: Anchor fittings are provided for each rear seat.
Except for Australia: Anchor fittings
are provided for the outboard rear
seats only.
Use anchor fitting when fixing the
strap.
● Follow all installation instructions pro-
vided by the child restraint system
manufacturer.
Anchor fittings
A
B
Not for Reproduction
Rear center seat
B
Outboard rear seats
C
■ Fixing the strap to the anchor fit-
ting
Install the child restraint system in
accordance to the operation manual
enclosed with the child restraint system.
Outboard rear seats
1 Adjust the head restraint to the
upmost position.
If the head restraint interferes with the child
restraint system or upper anchorage strap
installation and the head restraint can be
removed, remove the head restraint.
(P.121)
1-1. For safe use
Make sure the upper anchorage strap is
securely latched.
When installing the child restraint system
with the head restraint being raised, be
sure to have the upper anchorage strap
pass underneath the head restraint.
Upper anchorage strap
A
Attaching clip
Rear center seat
1 Adjust the head restraint to the
downmost position.
If the head restraint interferes with the child
restraint system installation and the head
restraint can be removed, remove the head
restraint. (P.121)
55
1
For safety and security
2 Open the anchor fitting cover, latch
the attaching clip onto the anchor
fitting and tighten the upper
2 Open the anchor fitting cover, latch
the attaching clip onto the anchor
fitting and tighten the upper
anchorage strap.
anchorage strap.
Make sure the upper anchorage strap is
securely latched.
When installing the child restraint system
with the head restraint being lower, be sure
56
WARNING
A
NOTICE
Not for Reproduction
1-1. For safe use
to have the upper anchorage strap pass
over the top of the head restraint.
Attaching clip
Upper anchorage strap
B
■ When installing a child restraint sys-
tem
Observe the following precautions.
Failure to do so may result in death or
serious injury.
● Firmly attach the upper anchorage
strap and make sure that the belt is not
twisted.
● Rear center seat: When installing the
child restraint system with the head
restraint being lowered, be sure to
have the upper anchorage strap pass
over the top of the head restraint. If the
belt passes below the head restraint, it
is possible that the child restraint system may not be securely fixed.
● Vehicles with a rear center seat anchor
fitting: When installing a child restraint
system in the rear center seat, adjust
both seatbacks at the same angle.
Otherwise, the child restraint system
cannot be securely restrained and this
may cause death or serious injuries in
the event of sudden braking, sudden
swerving or an accident.
■ Using child restraint anchorages
WARNING: child restraint anchorages
are designed to withstand only those
loads imposed by correctly fitted child
restraints. Under no circumstances are
they to be used for adult seatbelts, harnesses, or for attaching other items or
equipment to the vehicle.
● Do not attach the upper anchorage
strap to anything other than the anchor
fitting.
● Shake the child restraint system left
and right, and forward and backward
to ensure that it has been securely
installed.
● After securing a child restraint system,
never adjust the seat.
● Follow all installation instructions pro-
vided by the child restraint system
manufacturer.
● Outboard rear seats: When installing
the child restraint system with the head
restraint being raised, after the head
restraint has been raised and then the
anchor fitting has been fixed, do not
lower the head restraint.
■ Child restraint anchor fitting
When not in use, make certain to close
the lid. If it remains open, the lid may be
damaged.
1-1. For safe use
WARNING
Not for Reproduction
57
Exhaust gas precautions
Harmful substance to the human
body are contained in exhaust
gases if inhaled.
Exhaust gases contain harmful carbon
monoxide (CO), which is colorless and
odorless.
Observe the following precautions.
Failure to do so may cause exhaust gases
enter the vehicle and may lead to an
accident caused by light-headedness, or
may lead to death or a serious health
hazard.
■ Important points while driving
● Keep the back door closed.
● If you smell exhaust gases in the vehi-
cle even when the back door is closed,
open the windows and have the vehicle inspected at your Lexus dealer as
soon as possible.
■ When parking
● If the vehicle is in a poorly ventilated
area or a closed area, such as a
garage, stop the engine.
■ Exhaust pipe
The exhaust system needs to be checked
periodically. If there is a hole or crack
caused by corrosion, damage to a joint
or abnormal exhaust noise, be sure to
have the vehicle inspected and repaired
by your Lexus dealer.
1
For safety and security
● Do not leave the vehicle with the
engine running for a long time.
If such a situation cannot be avoided,
park the vehicle in an open space and
ensure that exhaust fumes do not enter
the vehicle interior.
● Do not leave the engine running in an
area with snow build-up, or where it is
snowing. If snowbanks build up around
the vehicle while the engine is running,
exhaust gases may collect and enter
the vehicle.
58
NOTICE
Not for Reproduction
1-2.Theft deterrent system
1-2. Theft deterrent system
Engine immobilizer system
The vehicle’s keys have built-in transponder chips that prevent the
engine from starting if a key has not
been previously registered in the
vehicle’s on-board computer.
Never leave the keys inside the
vehicle when you leave the vehicle.
This system is designed to help prevent vehicle theft but does not guarantee absolute security against all
vehicle thefts.
Operating the system
The security indicator flashes after the
engine switch has been turned off to
indicate that the system is operating.
■ Conditions that may cause the system to
malfunction
● If the grip portion of the key is in contact
with a metallic object
● If the key is in close proximity to or touch-
ing a key registered to the security system (key with a built-in transponder chip)
of another vehicle
■ To ensure the system operates cor-
rectly
Do not modify or remove the system. If
modified or removed, the proper operation of the system cannot be guaranteed.
The indicator stops flashing after the
engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.
■ System maintenance
The vehicle has a maintenance-free type
engine immobilizer system.
1-2. Theft deterrent system
Not for Reproduction
59
Alarm
The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the following situations when the alarm is set:
A locked door is unlocked or
opened in any way other than
using the entry function, wireless
remote control or mechanical
key. (The doors will lock again
automatically.)
The hood is opened.
The intrusion sensor detects
something moving inside the
vehicle. (An intruder gets in the
vehicle.) (if equipped)
The tilt sensor detects a change of
vehicle inclination. (if equipped)
Any of the windows are broken. (if
equipped)
Setting/canceling/stopping the
alarm system
No valuables or other personal
items are left in the vehicle.
■ Setting
Close the doors and hood, and lock all
the doors. The system will be set automatically after 30 seconds.
The security indicator changes from being
on to flashing when the system is set.
■ Canceling or stopping
Do one of the following to deactivate
or stop the alarm.
Unlock the doors.
Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.)
1
For safety and security
■ Items to check before locking the
vehicle
To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following.
Nobody is in the vehicle.
The windows and moon roof (if
equipped) are closed before the
alarm is set.
■ System maintenance
The vehicle has a maintenance-free type
alarm system.
■ Triggering of the alarm
The alarm may be triggered in the following
situations:
(Stopping the alarm deactivates the alarm
system.)
● A person inside the vehicle opens a door
or hood, or unlocks the vehicle using a
inside lock button.
60
NOTICE
Not for Reproduction
1-2. Theft deterrent system
vehicle inclination, such as when the
vehicle is towed away.
This system is designed to deter and
prevent vehicle theft but does not
guarantee absolute security against all
intrusions.
● The battery is recharged or replaced
when the vehicle is locked. (P.345)
■ Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically lock to
prevent improper entry into the vehicle:
● When a person remaining in the vehicle
unlocks the door and the alarm is activated.
● While the alarm is activated, a person
remaining in the vehicle unlocks the door.
● When recharging or replacing the bat-
tery.
■ To ensure the system operates cor-
rectly
Do not modify or remove the system. If
modified or removed, the proper operation of the system cannot be guaranteed.
■ Setting the intrusion sensor and tilt
sensor
The intrusion sensor and tilt sensor will
be set automatically when the alarm is
set. (P.59)
■ Canceling the intrusion sensor and
tilt sensor
If you are leaving pets or other moving
things inside the vehicle, make sure to
disable the intrusion sensor and tilt
sensor before setting the alarm, as they
will respond to movement inside the
vehicle.
1 Turn the engine switch off.
2 Press the intrusion sensor and tilt
sensor cancel switch.
A message will be shown on the multiinformation display in the instrument cluster.
The intrusion sensor and tilt sensor will
revert to on each time the engine switch is
turned to IGNITION ON mode.
Intrusion sensor and tilt sensor (if
equipped)
The intrusion sensor detects intrud-
ers or movement in the vehicle.
The tilt sensor detects changes in
1-2. Theft deterrent system
Not for Reproduction
61
■ Canceling and automatic re-enabling of
the intrusion sensor and tilt sensor
● The alarm will still be set even when the
intrusion sensor and tilt sensor are canceled.
● After the intrusion sensor and tilt sensor
are canceled, pressing the engine switch
or unlocking the doors using the entry
function or wireless remote control will
re-enable the intrusion sensor and tilt
sensor.
● The intrusion sensor and tilt sensor will
automatically be re-enabled when the
alarm system is reactivated.
■ Intrusion sensor detection consider-
ations
The sensor may trigger the alarm in the following situations:
● People or pets are in the vehicle.
● Unstable items, such as dangling acces-
sories or clothes hanging on the coat
hooks, are in the vehicle.
1
For safety and security
● The vehicle is parked in a place where
extreme vibrations or noises occur, such
as in a parking garage.
● Ice or snow is removed from the vehicle,
causing the vehicle to receive repeated
impacts or vibrations.
● A window or the moon roof (if equipped)
is open.
In this case, the sensor may detect the following:
• Wind or the movement of objects such as
leaves and insects inside the vehicle
• Ultrasonic waves emitted from devices
such as the intrusion sensors of other
vehicles
• The movement of people outside the
vehicle
● The vehicle is inside an automatic or
high-pressure car wash.
● The vehicle experiences impacts, such as
hail, lightning strikes, and other kinds of
repeated impacts or vibrations.
■ Tilt sensor detection considerations
The sensor may trigger the alarm in the following situations:
● The vehicle is transported by a ferry,
trailer, train, etc.
● The vehicle is parked in a parking garage.
● The vehicle is inside a car wash that
62
NOTICE
Not for Reproduction
● Any of the tires loses air pressure.
● The vehicle is jacked up.
● An earthquake occurs or the road caves
● Cargo is loaded onto or unloaded from
1-2. Theft deterrent system
moves the vehicle.
in.
the roof luggage carrier.
■ To ensure the intrusion sensor func-
tions correctly
● Do not spray air fresheners or other
products directly into the sensor holes.
● To ensure that the sensors operate
properly, do not touch or cover them.
● Installing accessories other than genu-
ine Lexus parts or leaving objects
between the driver’s seat and front
passenger’s seat may reduce the
detection performance.
63
Not for Reproduction
Instrument cluster
2-1. Instrument cluster
Warning lights and indicators..64
Gauges and meters.................... 69
Multi-information display...........72
Head-up display...........................78
Fuel consumption information 82
2
2
Instrument cluster
64
Not for Reproduction
2-1.Instrument clus ter
For the purpose of explanation, the following illustration displays all warning lights
and indicators illuminated.
2-1. Instrument cluster
Warning lights and indicators
The warning lights and indicators inform the driver of the status of the vehicle’s
various systems.
Instrument cluster
2-1. Instrument cluster
Not for Reproduction
65
Warning lights
Warning lights inform the driver of malfunctions in any of the vehicle’s systems.
*1
*1
*1
(P.322)
(P.322)
(Yellow)
(Red)
(if equipped)
(Orange)
(if equipped)
Brake system warning light
(P.320)
Charging system warning
*2
(P.320)
light
Low engine oil pressure
*2
warning light
High coolant temperature
warning light
(P.320)
*2
(P.321)
Brake system warning light
(P.321)
Malfunction indicator lamp
(P.321)
SRS warning light
*1
(P.321)
ABS warning light
*1
(P.322)
Electric power steering system warning light
*1
Electric power steering system warning light
PCS warning light
*1
*1
(P.322)
LDA indicator
*2
(P.323)
Slip indicator light
*1
(P.323)
Brake hold operated
indicator
*1, 3
(P.323)
Parking brake indicator
(P.323)
Low fuel level warning light
(P.324)
Driver’s and front
passenger’s seat belt
reminder light (P.324)
Rear passengers’ seat
belt reminder light
*4
(P.324)
Master warning light
*1
(P.324)
Tire pressure warning light
(P.325)
Brake Override System/
Drive-Start Control warning
*2
(P.325)
light
*1
: These lights turn on when the engine
switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction in a
system if the lights do not turn on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2
: This light illuminates on the multi-infor-
mation display.
*3
: The light flashes to indicate a malfunc-
tion.
*4
: This light illuminates on the center
panel.
*3
2
Instrument cluster
*1
66
WARNING
Not for Reproduction
2-1. Instrument cluster
■ If a safety system warning light does
not come on
Should a safety system light such as the
ABS and SRS airbag warning light not
come on when you start the engine, this
could mean that these systems are not
available to help protect you in an accident, which could result in death or serious injury. Have the vehicle inspected by
your Lexus dealer immediately if this
occurs.
Indicators
The indicators inform the driver of the
operating state of the vehicle’s various
systems.
Turn signal indicator
(P.156)
Tail light indicator
(P.162)
Headlight high beam
indicator (P.163)
(if equipped)
Automatic High Beam
indicator
High-beam System indicator
(P.164, 167)
Front fog light indicator
(P.170)
Rear fog light indicator
(P.170)
Eco Driving Indicator Light
(P.68)
“Eco” indicator
(P.229)
*1
/Adaptive
*2
*1
*1
“Sport” indicator
(if equipped)
(if equipped)
(if equipped)
(if equipped)
(P.229)
“Sport S” indicator
(P.229)
“Sport S+” indicator
(P.229)
“Custom” indicator
(P.229)
*2
*2
*2
*2
2-1. Instrument cluster
Not for Reproduction
67
(if equipped)
(White)
(if equipped)
(Green)
(if equipped)
(Orange)
(if equipped)
(if equipped)
(if equipped)
(AWD mod-
els only)
Dynamic radar cruise control
indicator
Cruise control “SET”
indicator
Cruise control indicator
*2
(P.196)
*2
(P.206, 196)
*2
(P.206, 196)
LDA indicator*2 (P.189)
LDA indicator*2 (P.189)
LDA indicator
*2, 3
(P.189)
Lexus parking
assist-sensor indicator
(P.216)
Slip indicator light
*1, 3
(P.232)
VSC off indicator
*1, 4
(P.232)
PCS warning light
*1, 4
(P.183)
Stop & Start indicator
*1, 2
(P.214)
Stop & Start cancel
*1, 2, 4
indicator
(P.215)
All-wheel drive lock
*1
indicator
(P.235)
Parking brake indicator
(P.158)
Brake hold standby
indicator
*1
(P.159)
Brake hold operated
*1
indicator
(P.159)
Low outside temperature
*2, 5
(P.69)
*6, 7
*8
(if equipped)
indicator
BSM outside rear view
mirror indicators
(P.221)
Security indicator
(P.58, 59)
*1
: These lights turn on when the engine
switch is turned to the IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few seconds. There may be a malfunction in a
system if the lights do not turn on, or
turn off. Have the vehicle inspected by
your Lexus dealer.
*2
: This light illuminates on the multi-infor-
mation display.
*3
: The light flashes to indicate that the sys-
tem is operating.
*4
: The light comes on when the system is
turned off.
*5
: When the outside temperature is
approximately 3°C (37°F) or lower, the
indicator will flash for approximately 10
seconds, then stay on.
*6
: In order to confirm operation, the BSM
outside rear view mirror indicators illuminate in the following situations:
• When the engine switch is turned to
IGNITION ON mode while the
BSM main switch is set to ON.
• When the BSM main switch is set to
ON while the engine switch is in
IGNITION ON mode.
2
Instrument cluster
68
A
D
Not for Reproduction
2-1. Instrument cluster
If the system is functioning correctly,
the BSM outside rear view mirror
indicators will turn off after a few
seconds.
If the BSM outside rear view mirror
indicators do not illuminate or do
not turn off, there may be a malfunction in the system.
If this occurs, have the vehicle
inspected by your Lexus dealer.
*7
: This light illuminates on the outside rear
view mirrors.
*8
: This light illuminates on the center
panel.
■ Eco Driving Indicator
Eco driving ratio based on acceleration
C
If the acceleration exceeds the Zone of Eco
driving, the right side of the Eco Driving
Indicator Zone Display will illuminate.
When this happens, the Eco Driving Indicator Light will turn off.
Zone of Eco driving
Eco Driving Indicator will not operate
under the following conditions:
● The shift lever is in any position other than
D.
● A paddle shift switch is operated.
● Neither Normal mode nor Eco mode is
selected. (P.229)
● The vehicle speed is approximately 130
km/h (80 mph) or higher.
Settings of the display and non-display of
the Eco Driving Indicator Light can be
changed.
Eco Driving Indicator Light
During Eco-friendly acceleration (Eco driving), the Eco Driving Indicator Light will
turn on. When the acceleration exceeds the
Zone of Eco driving, or when the vehicle is
stopped, the light turns off.
Eco Driving Indicator Zone Display
B
Suggests the Zone of Eco driving with current Eco driving ratio based on acceleration.
Gauges and meters
Not for Reproduction
The meters display various drive information.
Meter display
Engine coolant temperature gauge
A
Displays the engine coolant temperature
2-1. Instrument cluster
69
2
Instrument cluster
Tachometer
B
Displays the engine speed in revolutions per minute
Outside temperature
C
Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F). Low
outside temperature indicator comes on when the ambient temperature is 3°C (37°F) or
lower.
Background color of drive mode
D
Background color changes according to the drive mode. (P.229)
•Sport mode: Red
•Eco mode: Blue
When in Normal mode/Custom mode, the background color is black.
Clock
E
Time displayed is linked to the analog clock on the instrument panel. (P.269)
Shift position and shift range
F
Displays the selected shift position or selected shift range (P.152)
70
G
H
I
Not for Reproduction
2-1. Instrument cluster
Speedometer
Displays the vehicle speed
Fuel gauge
Displays the quantity of fuel remaining in the tank
Multi-information display
Presents the driver with a variety of vehicle data (P.72)
Displays warning messages in case of a malfunction (P.328)
Odometer, trip meter and maintenance required information display
J
Odometer:
Displays the total distance the vehicle has been driven
Trip meter:
Displays the distance the vehicle has been driven since the meter was last reset. Trip meters
“A” and “B” can be used to record and display different distances independently.
Maintenance required information:
Displays the remaining distance until the engine oil should be changed.
• Displays the maintenance required information when the engine switch is in IGNITION
ON mode.
• It can be reset on
of the multi-information display. (P.72)
■ Operating condition
The engine switch is in IGNITION ON
mode.
■ Outside temperature display
● In the following situations, the correct
outside temperature may not be displayed, or the display may take longer
than normal to change.
• When stopped, or driving at low speeds
(less than 20 km/h [12 mph])
• When the outside temperature has
changed suddenly (at the entrance/exit of
a garage, tunnel, etc.)
● When “--” or “E” is displayed, the system
may be malfunctioning.
Take your vehicle to your Lexus dealer.
■ Pop-up display
In some situations, a pop-up display will be
temporarily displayed on the multi-information display or the odometer/trip
meter/maintenance required information
screen. The pop-up display function can be
set on/off.
■ Liquid crystal display
Small spots or light spots may appear on the
display. This phenomenon is characteristic
of liquid crystal displays, and there is no
problem continuing to use the display.
■ Customization
The meter display can be customized on
the multi-information display.
(Customizable features: P.364)
WARNING
■ The information display at low tem-
NOTICE
Not for Reproduction
peratures
Allow the interior of the vehicle to warm
up before using the liquid crystal information display. At extremely low temperatures, the information display
monitor may respond slowly, and display
changes may be delayed.
For example, there is a lag between the
driver’s shifting and the new gear number
appearing on the display. This lag could
cause the driver to downshift again,
causing rapid and excessive engine braking and possibly an accident resulting in
personal death or injury.
■ To prevent damage to the engine and
its components
● Do not let the indicator needle of the
tachometer enter the red zone, which
indicates the maximum engine speed.
2-1. Instrument cluster
Changing the Instrument panel
light brightness
The brightness of the instrument panel
lights can be adjusted.
71
2
Instrument cluster
● The engine may be overheating if the
engine coolant temperature gauge is
in the red zone (H); or “Engine Coolant Temp High” is shown on the multiinformation display. In this case, immediately stop the vehicle in a safe place,
and check the engine after it has
cooled completely. (P.347)
Changing between the odometer, trip meter and maintenance
required information
Switches between odometer, trip
meter and maintenance required information displays. When the trip meter is
displayed, pressing and holding the
button will reset the trip meter.
1 Darker
2 Brighter
■ Instrument panel brightness adjustment
The instrument panel brightness levels
when the tail lights are on and off can be
adjusted individually. However, when the
surroundings are bright (daytime, etc.),
turning on the tail lights will not change the
instrument panel brightness.
72
NOTICE
Not for Reproduction
2-1. Instrument cluster
Multi-information display
The multi-information display presents the driver with a variety of
vehicle data.
Display contents
■ Menu icons
Drive information
■ The multi-information display at low
temperatures
Allow the interior of the vehicle to warm
up before using the liquid crystal information display. At extremely low temperatures, the information display
monitor may respond slowly, and display
changes may be delayed.
Changing the meter display
The multi-information display is operated using the meter control switches.
Navigation system-linked display
Audio system-linked display
Driving assist system information
Stop & Start system information
Warning message display
Settings display
■ Liquid crystal display
P.70
1 Select an item/change pages
2 Enter/set
3 Return to the previous screen
4 Press:
Displays the screen registered to
When no screen has been registered, the
drive information screen will be displayed.
Press and hold:
Registers the currently displayed
screen to (P.364)
The registration confirmation screen is displayed. If the selected screen cannot be
registered, a registration failure message
will be shown.
2-1. Instrument cluster
Not for Reproduction
73
Drive information
■ Content displayed as drive infor-
mation
Select to display various drive data.
Up to 2 of the following items can be
selected.
Items displayed can be switched by
pressing or of the meter con-
trol switches to select and pressing
or .
Current fuel consumption
Displays the current rate of fuel consumption
Average fuel consumption (after
*2
/after start/after refuel)
reset
Displays the average fuel consumption
since the function was reset, the engine
was started, and the vehicle was refueled,
respectively
Use the displayed average fuel consumption as a reference.
Average vehicle speed (after
*2
/after start)
reset
Displays the average vehicle speed since
the function was reset and the engine was
started, respectively
Elapsed time (after reset*2/after
*1
start)
Displays the elapsed time since the function was reset and the engine was started,
respectively
Distance (driving range/after start)
Displays the estimated maximum distance
that can be driven with the quantity of fuel
remaining and the distance driven after the
*1
*1
*1
engine was started respectively.
• This distance is computed based on your
average fuel consumption. As a result,
the actual distance that can be driven
may differ from that displayed.
• When only a small amount of fuel is
added to the tank, the display may not be
updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without turning the engine switch off, the display may
not be updated.
*1
: Displayed when the item is set in “Drive
Info 1”, “Drive Info 2” and “Drive Info 3”.
*2
: The function can be reset by pressing
the of the meter control switches
for longer than 1 second when the item
to reset is displayed.
If there is more than one item that can
be reset, the item selection screen will
appear.
■ Eco Driving Indicator Zone Dis-
play
P.68
■ Boost Meter/Oil Temperature
Gauge/Oil Pressure Gauge (if
equipped)
Boost Meter:
Displays the boost pressure. The display changes colors when the specified
pressure is exceeded.
Oil Temperature Gauge:
Displays the temperature of the engine
oil. The display flashes when the engine
*1
oil exceeds 140°C (284°F).
Oil Pressure Gauge:
Displays the oil pressure for the engine
2
Instrument cluster
74
Not for Reproduction
2-1. Instrument cluster
interior. A buzzer sounds and warning
message is displayed when the oil
pressure gets low. (P.328)
Depending on the road conditions, temperature, vehicle speed, etc., the actual
vehicle condition on the display screen
may differ.
Use the display screen as a reference.
■ G monitor (if equipped)
Displays the acceleration forces of the
front, back, left and right of the vehicle.
Also displays the turning angle of the
steering wheel, brake oil pressure,
accelerator opening.
The actual vehicle conditions may
differ from those on the display
screen, depending on the road conditions, outside temperature, vehicle
speed, etc. Use the display screen
as a reference.
If a battery terminal is disconnected
and reconnected, the steering
amount display may be disabled
temporarily. After driving the vehicle for a while, the display will be
enabled.
■ Speedometer
Displays the vehicle speed.
■ Vehicle sway warning
Detects the sway of the vehicle within a
lane, which is often associated with a
decrease in the driver's attention level,
and displays the decrease in attention
using a bar display.
The shorter the bar length, the more
the driver may need to rest.
This display is a part of the LDA (Lane
Departure Alert with steering control) system. The display is enabled when the operating conditions of the vehicle sway
warning are met. (P.190)
■ Display off
A blank screen is displayed
Navigation system-linked display
Select to display the following navigation system-linked information.
Route guidance
Compass display (north-up dis-
play/heading-up display)
Audio system-linked display
Select to enable selection of an audio
source or track on the display using the
meter control switches.
Driving assist system information
Select to display the operational status
of the following systems:
LDA (Lane Departure Alert with
steering control) (if equipped)
(P.189)
Dynamic radar cruise control with
full-speed range (if equipped)
(P.196)
The displayed icon changes depending
on the system used.
2-1. Instrument cluster
Not for Reproduction
75
Stop & Start system information
Able to display the operation status of
the Stop & Start system. (P.208)
■ Stop & Start system settings
P.208
■ Idling Stop Time
Displays the current idling stop time
(Engine stop time due to the Stop &
Start system)
■ Idling Stop Time (after reset/after
start)
Displays the total idling stop time
(engine stop time via the Stop & Start
system) after resetting and engine
startup.
■ Idling Stop Time fuel savings (after
reset/after start)
Displays the fuel savings (reference)
during idling stop time after resetting
and engine startup.
Warning message display
Select to display warning messages
and measures to be taken if a malfunction is detected. (P.328)
Settings display
The settings of the following items can
be changed using the meter control
switches.
For functions that can be enabled or
disabled, the function switches
between on and off each time is
pressed.
■ LDA (Lane Departure Alert
with steering control) (if equipped)
(P.189)
Select to set up the following items.
Steering Assist
Select to enable/disable steering wheel
assistance.
Alert
Select to set a vibrator or buzzer as the
notification method used to warn the
driver.
Alert sensitivity
Select to set the warning sensitivity.
Sway warning
Select to enable/disable the vehicle sway
warning.
Sway sensitivity
Select to set the vehicle sway warning sensitivity.
■ PCS (Pre-Collision System) (if
equipped) (P.181)
Select to set up the following items.
PCS on/off
Select to enable/disable the pre-collision
system.
PCS sensitivity
Select to change the warning timing.
■ Lexus parking assist-sensor (if
equipped) (P.216)
Select to set up the following items.
Lexus parking assist-sensor
2
Instrument cluster
76
Not for Reproduction
2-1. Instrument cluster
Select to enable/disable the Lexus parking
assist-sensor.
Volume
Select to set the volume of the buzzer
which sounds when the Lexus parking
assist-sensor is operated.
■ Clock
Select to switch between 12-hour display and 24-hour display.
■ Vehicle Settings
PBD (Power Back Door)
(P.94)
Select to set up the following items.
• System settings
Select to enable/disable the power back
door system.
•Volume
Select to set the volume of the buzzer
which sounds when the power back door
system.
•Kick Sensor
Select to enable/disable the kick sensor.
*1
: Vehicles with power back door
*2
: Vehicles with hands free power back
door
*1
*2
Stop & Start (P.208)
• Stop & Start system operation time
Select to set the length of time the Stop &
Start system will operate when the “A/C”
switch of the air conditioning system is on.
TPMS (Tire Pressure Warning Sys-
tem) (P.299)
Select to initialize the tire pressure warning
system.
Oil maintenance (P.291)
Select to reset the engine oil maintenance
information (message indicating maintenance is required and distance until the
next oil change) after engine oil maintenance is performed.
■ Meter settings
Language
Select to change the language on the display.
Units
Select to change the unit of measure for
fuel consumption.
Eco Driving Indicator Light
(P.68)
Select to activate/deactivate the Eco Driving Indicator Light.
Switch settings (P.72)
Displays a procedure to register a desired
screen to
.
You can register 1 screen as a shortcut,
which can be displayed by pressing
.
Drive information screen (P.73)
Select to choose between 2 items that will
be displayed on each drive information
screen (“
“Drive Info 3
Drive Info 1”, “Drive Info 2” and
”) respectively.
Pop-up display (P.70)
Select to set the following pop-up displays,
which may appear in some situations,
on/off.
• Intersection guidance display of the navigation system-linked system
• Incoming call display of the hands-free
phone system
• Stop & Start system duration
WARNING
NOTICE
Not for Reproduction
• Stop & Start system status
• Instrument panel brightness adjustment
display
Accent color
Select to change the accent colors on the
screen, such as the cursor color.
Initialization
Select to reset the meter display settings.
2-1. Instrument cluster
■ During setting up the display
To prevent battery discharge, ensure th at
the engine is running while setting up the
display features.
77
2
Lexus parking assist-sensor (if
equipped)
Automatically displayed when the system is used. (P.216)
■ Suspension of the settings display
In the following situations, operation of the
settings display will be temporarily suspended.
● When a warning message appears on the
multi-information display
● When the vehicle begins to move
■ When disconnecting and reconnecting
battery terminals
The drive information will be reset.
■ Cautions during setting up the dis-
play
As the engine needs to be running
during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area such as
a garage, exhaust gases including harmful carbon monoxide (CO) may collect
and enter the vehicle. This may lead to
death or a serious health hazard.
Instrument cluster
78
WARNING
NOTICE
Not for Reproduction
2-1. Instrument cluster
Head-up display
*
: If equipped
*
The head-up display can be used to
project vehicle speed and other
information onto the windshield.
■ Head-up display
The head-up display may seem dark and
hard to see when viewed through sunglasses, especially polarized sunglasses.
Adjust the brightness of the head-up display
or remove your sunglasses.
■ Before using the head-up display
Check that the position and brightness of
the head-up display image does not
interfere with safe driving. Incorrect
adjustment of the image’s position or
brightness may obstruct the driver’s view
and lead to an accident, resulting in
death or serious injury.
■ Caution for changing settings of the
head-up display
As the engine needs to be running while
changing the settings of the head-up display, ensure that the vehicle is parked in a
place with adequate ventilation. In a
closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
■ To prevent damage to components
● Do not place any drinks near the head-
up display projector. If the projector
gets wet, electrical malfunctions may
result.
● Do not place anything on or put stick-
ers onto the head-up display projector.
Doing so could interrupt head-up display indications.
● Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector.
Doing so could cause mechanical malfunctions.
■ When changing the settings of the
head-up display
To prevent battery discharge, ensure th at
the engine is running while the changing
the settings of the head-up display.
2-1. Instrument cluster
B
E
Not for Reproduction
79
Summary of functions
“HUD” button
A
Display brightness adjustment
switch
Display brightness can be adjusted to the
desired level.
Display position adjustment switch
C
“DISP” button
D
Head-up display
Display brightness will change automatically according to the brightness of the surrounding area.
Head-up display contents
selected shift range (P.152)
Audio display
Displays audio information for approximately 3 seconds when the audio system is
operated
Route guidance display (P.81)
When approaching an intersection while
the navigation system is giving route guidance, an arrow will automatically be displayed to indicate the direction of travel.
Lane departure warning display
(LDA [Lane Departure Alert with
steering control]) (if equipped)
(P.189)
Approach warning display (dynamic
radar cruise control with full-speed
range) (if equipped) (P.196)
Pre-collision warning message (pre-
collision system) (if equipped)
(P.181)
Lexus parking assist-sensor display
(if equipped) (P.216)
G monitor (if equipped) (P.74)
Boost Meter (if equipped) (P.73)
Switching the head-up display
■ “HUD” button
Pressing the button turns the head-up
display on/off.
2
Instrument cluster
Vehicle speed
Eco Driving Indicator (P.68)
Tachometer
Shift position and shift range
Displays the selected shift position or
80
A
Not for Reproduction
■ “DISP” button
Pressing the button changes the display items (except vehicle speed) as
follows:
•Off
• Eco Driving Indicator
•Tachometer
• Tachometer/Boost Meter (if
• G monitor (if equipped)
2-1. Instrument cluster
equipped)
Making the display easier to see
■ Adjusting the display position
1 Higher
2 Lower
■ Setting the brightness
The brightness of the display is automatically adjusted in accordance with
the brightness of the surrounding environment. However, the brightness can
also be manually adjusted in 9 stages.
1 Brighter
2 Darker
■ Head-up display
When the head-up display is turned off, it
will not display anything until it is turned on
again.
2-1. Instrument cluster
A
B
Not for Reproduction
81
Eco Driving Indicator
Eco Driving Indicator Zone Display
Suggests the Zone of Eco driving with current Eco driving ratio based on acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco Driving Indicator Zone Display will illuminate.
Zone of Eco driving
C
Eco Driving Indicator will not operate
under the following conditions:
and the distance
will also be displayed.
*
: The distance indication will disappear
when the vehicle passes through the
intersection.
*
to the intersection
Display customization
The audio display can be shown or hidden.
When customizing vehicle features,
ensure that the vehicle is parked in a
safe place with the shift lever in P and
the parking brake set.
2
Instrument cluster
The shift lever is in any position
other than D.
A paddle shift switch is operated.
Neither Normal mode nor Eco
mode is selected. (P.229)
The vehicle speed is approximately
130 km/h (80 mph) or higher.
1 Press and hold the “DISP” button
Route guidance display
When the vehicle approaches an intersection, the direction the vehicle
should go is guided by the arrow.
When the vehicle approaches an intersection, the route guidance will start
until the screen changes.
Customization can be performed when
the head-up display is on.
2 Press the “DISP” button to switch
between on and off.
On and off will be switched between each
time the button is pressed.
82
A
Not for Reproduction
2-1. Instrument cluster
If the button is left alone without being
operated for a short time, setting will be
finished automatically.
■ When the battery is disconnected
The customize settings of the head-up display will be reset.
Fuel consumption information
Fuel consumption information can
be displayed on the navigation system display.
System components
Navigation system display
“MENU” button
B
Touchpad
C
Fuel consumption
■ Trip information
Press the “MENU” button on the
Remote Touch, then select on the
screen.
If a screen other than “Trip information” is
displayed, select “Trip information”.
A
D
Not for Reproduction
2-1. Instrument cluster
83
Resetting the consumption data
A
Fuel consumption in the past 15
B
minutes
Current fuel consumption
C
Average vehicle speed since the
D
engine was started.
Elapsed time since the engine was
E
started.
Cruising range (P.83)
F
Average fuel consumption for the past
15 minutes is divided by color into past
averages and averages attained since
the engine switch was last turned to
IGNITION ON mode. Use the displayed average fuel consumption as a
reference.
The image is an example only, and may
vary slightly from actual conditions.
■ History
Press the “MENU” button on the
Remote Touch, then select on the
screen.
If a screen other than “History” is displayed, select “History”.
Best recorded fuel consumption
Latest fuel consumption
B
Previous fuel consumption record
C
Resetting the history data
Updating the latest fuel consump-
E
tion data
The average fuel consumption history
is divided by color into past averages
and the average fuel consumption
since the last updated. Use the displayed average fuel consumption as a
reference.
The image is an example only, and may
vary slightly from actual conditions.
■ Updating the past record data
Update the latest fuel consumption by
selecting “Clip” to measure the current fuel
consumption again.
■ Resetting the data
The fuel consumption data can be deleted
by selecting “Clear”.
■ Cruising range
Displays the estimated maximum distance
that can be driven with the quantity of fuel
remaining.
This distance is computed based on your
average fuel consumption.
As a result, the actual distance that can be
driven may differ from that displayed.
2
Instrument cluster
84
Not for Reproduction
2-1. Instrument cluster
Using the side display
Display the vehicle information on the
side display (P.247), and then select
or to display the desired
screen.
■ Trip information (type A)
Displays the average fuel consumption
for the past 10 minutes in 1 minute
intervals, as well as the cruising range.
The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consumption as a reference.
■ Trip information (type B)
Use the displayed average fuel consumption as a reference.
■ History
Displays the average fuel consumption
and highest fuel consumption.
The image is an example only, and may
vary slightly from actual conditions.
Use the displayed average fuel consumption as a reference.
Displays the cruising range, latest fuel
consumption and the amount of time
elapsed since the engine was started.
The image is an example only, and may
vary slightly from actual conditions.
85
Not for Reproduction
Before driving
3-1. Key information
Keys ................................................... 86
3-2. Opening, closing and locking the
doors
Side doors....................................... 90
Back door.........................................94
Smart entry & start system.....106
3-3. Adjusting the seats
Front seats......................................110
Rear seats........................................ 111
Driving position memory......... 117
Head restraints............................120
3-4. Adjusting the steering wheel and
mirrors
Steering wheel ............................ 122
Inside rear view mirror............. 123
Outside rear view mirrors...... 124
3-5. Opening, closing the windows
and moon roof
Power windows .......................... 127
Moon roof.....................................129
Electronic sunshade..................132
3
3
Before driving
86
A
Not for Reproduction
3-1.Key information
3-1. Key information
Keys
Key types
The following keys are provided with
the vehicle.
Electronic keys
• Operating the smart entry & start system (P.106)
• Operating the wireless remote control
function
Mechanical keys
B
Key number plate
C
Card key (electronic key)
D
(if equipped)
Operating the smart entry & start system
(P.106)
■ Card key (if equipped)
● The mechanical key that is stored inside
the card key should be used only if a
problem arises, such as when the card
key does not operate properly.
● If the battery cover is not installed and the
battery falls out or if the battery was
removed because the key got wet, reinstall the battery with the positive terminal
facing the Lexus emblem.
● The card key is not waterproof.
■ When riding in a n aircraft
When bringing an electronic key onto an
aircraft, make sure you do not press any
buttons on the electronic key while inside
the aircraft cabin. If you are carrying an
electronic key in your bag, etc., ensure that
the buttons are not likely to be pressed accidentally. Pressing a button may cause the
electronic key to emit radio waves that
could interfere with the operation of the aircraft.
■ Electronic key battery depletion
● The standard battery life is 1 to 2 years.
(The card key battery life is about a year
and a half.)
● If the battery becomes low, an alarm will
sound in the cabin when the engine stops.
● As the electronic key always receives
radio waves, the battery will become
depleted even if the electronic key is not
used. The following symptoms indicate
that the electronic key battery may be
depleted. Replace the battery when necessary. (P.306)
• The smart entry & start system or the
wireless remote control does not operate.
• The detection area becomes smaller.
• The LED indicator on the key surface
does not turn on.
● To avoid serious deterioration, do not
leave the electronic key within 1 m (3 ft.)
of the following electrical appliances that
3-1. Key information
NOTICE
Not for Reproduction
87
produce a magnetic field:
•TVs
•Personal computers
• Cellular phones, cordless phones and
battery chargers
• Recharging cellular phones or cordless
phones
• Induction cookers
• Table lamps
■ Replacing the battery
P.306
■ Confirmation of the registered key
number
The number of keys already registered to
the vehicle can be confirmed. Ask your
Lexus dealer for details.
■ To prevent key damage
● Do not drop the keys, subject them to
strong shocks or bend them.
● Do not expose the keys to high tem-
peratures for long periods of time.
● Do not get the keys wet or wash them
in an ultrasonic washer, etc.
● Do not attach metallic or magnetic
materials to the keys or place the keys
close to such materials.
● Do not disassemble the keys.
● Do not attach a sticker or anything else
to the surface of the electronic key.
■ Carrying the electronic key on your
person
Carry the electronic key 10 cm (3.9 in.)
or more away from electric appliances
that are turned on. Radio waves emitted
from electric appliances within 10 cm
(3.9 in.) of the electronic key may interfere with the key, causing the key to not
function properly.
■ In case of a smart entry & start system
malfunction or other key-related
problems
Take your vehicle with all the electronic
keys provided with your vehicle, including the card key, to your Lexus dealer.
■ When an electronic key is lost
If the electronic key remains lost, the risk
of vehicle theft increases significantly.
Visit your Lexus dealer immediately with
all remaining electronic keys and the
card key that were provided with your
vehicle.
■ Handling the card key
● If the battery or card key terminals get
wet, the battery may corrode and the
card key may stop working.
If the key is dropped into water, or if
drinking water, etc., is spilled on the
key, immediately remove the battery
cover and wipe the battery and terminals. (To remove the battery cover,
lightly grasp and pull it.) If the battery is
corroded, have your Lexus dealer
replace the battery.
3
Before driving
● Do not place the keys near objects that
produce magnetic fields, such as TVs,
audio systems and induction cookers,
or medical electrical equipment, such
as low-frequency therapy equipment.
● Do not crush the battery cover or use
a screwdriver to remove the battery
cover. Forcibly removing the battery
cover may bend or damage the key.
● If the battery cover is frequently
removed, the battery cover may
become loose.
88
NOTICE
F
Not for Reproduction
3-1. Key information
● When installing the battery, make sure
to check the direction of the battery.
Installing the battery in the wrong
direction may cause the battery to
deplete rapidly.
● The surface of the card key may be
damaged, or its coating may peel off in
the following situations:
• The card key is carried together with
hard objects, such as coins and keys.
• The card key is scraped with a sharp
object, such as the tip of a mechanical
pencil.
• The surface of the card key is wiped
with thinner or benzene.
Wireless remote control
The electronic keys are equipped with
the following wireless remote control:
Locks all the doors (P.90)
A
Closes the windows and moon
B
*1, 2
roof
Unlocks all the doors (P.90)
C
Opens the windows and moon
D
roof
Opens and closes the power back
E
door
(P.90)
*1, 2
(P.90)
*1
(P.97)
Sounds the alarm (P.88)
*1
: If equipped
*2
: These settings must be customized at
your Lexus dealer.
■ Theft deterrent panic mode
When is pressed for longer than
about 1 second, an alarm will sound inter-
mittently and the vehicle lights will flash to
deter any person from trying to break into
or damage your vehicle.
To stop the alarm, press any button on the
electronic key.
■ Back door reserve lock function (vehi-
cles with a power back door)
This function is a function which reserves
locking of all doors, beforehand, when the
back door is open. When the follow is done,
all the doors except the back door are
locked and then back door will also be
locked at the same time it is closed.
1 Close all doors, except the back door.
2 Push the wireless lock button during the
automatic closing operation of the back
door.
Using the mechanical key
To take out the mechanical key, push
the release button and take the key out.
The mechanical key can only be inserted in
one direction, as the key only has grooves
on one side. If the key cannot be inserted in
a lock cylinder, turn it over and re-attempt
to insert it.
3-1. Key information
NOTICE
Not for Reproduction
89
After using the mechanical key, store it in
the electronic key. Carry the mechanical
key together with the electronic key. If the
electronic key battery is depleted or the
entry function does not operate properly,
you will need the mechanical key.
(P.347)
■ Card key
● If it is difficult to take out the mechanical
key, push down the release button using a
pen tip, etc. If it is still difficult to pull it out,
use a coin, etc.
● To store the mechanical key in the card
key, insert it while pressing the release
button.
3
Before driving
■ Handling the card key
Do not apply excess force when inserting
the mechanical key into the card key.
Doing so may damage the card key.
■ When required to leave the vehicle’s
key with a parking attendant
Lock the glove box as circumstances
demand. (P.262)
Remove the mechanical key for your own
use and provide the attendant with the electronic key only.
■ If you lose your mechanical keys
New genuine mechanical keys can be
made by your Lexus dealer using another
mechanical key and the key number
stamped on your key number plate. Keep
the plate in a safe place such as your wallet,
not in the vehicle.
■ If a wrong key is used
The key cylinder rotates freely to isolate
inside mechanism.
90
Not for Reproduction
3-2.Opening, closing and locking the doors
3-2. Opening, closing and locking the doors
Side doors
The vehicle can be locked and
unlocked using the entry function,
wireless remote control or door
lock switch.
Unlocking and locking the doors
from the outside
■ Using the smart entry & start sys-
tem
Carry the electronic key to enable this
function.
■ Using the wireless remote control
1 Locks all the doors
Check that the door is securely locked.
Press and hold to close the windows and
moon roof.
*1, 2
2 Unlocks all the doors
Pressing the button unlocks the driver’s
door. Pressing the button again within 3
seconds unlocks the other doors.
Press and hold to open the windows and
moon roof.
*1
: If equipped
*2
: These settings must be customized at
*1, 2
your Lexus dealer.
1 Grip the driver’s door handle to
unlock the door. Grip any passenger door handle to unlock all the
*
doors.
Make sure to touch the sensor on the back
of the handle.
The doors cannot be unlocked for 3 seconds after the doors are locked.
*
: The door unlock settings can be
changed. (P.92, 363)
2 Touch the lock sensor (the indenta-
tion on the surface of the door handle) to lock the doors.
Check that the door is securely locked.
■ Switching the door unlock function
It is possible to set which doors the entry
function unlocks using the wireless remote
control.
1 Turn the engine switch off.
2 Cancel the intrusion sensor and tilt sen-
sor of the alarm system to prevent unintended triggering of the alarm while
changing the settings. (if equipped)
(P.60)
3 When the indicator light on the key sur-
face is not on, press and hold ,
or for approximately 5
seconds while pressing and holding
.
The setting changes each time an operation
is performed, as shown below. (When
3-2. Opening, closing and locking the doors
Not for Reproduction
91
changing the setting continuously, release
the buttons, wait for at least 5 seconds, and
repeat step 3.)
Multi-information
display
Exterior: Beeps 3
times
Interior: Pings
once
Exterior: Beeps
twice
Interior: Pings
once
To prevent unintended triggering of the
alarm, unlock the doors using the wireless
remote control and open and close a door
once after the settings have been changed.
(If a door is not opened within 30 seconds
after is pressed, the doors will be
locked again and the alarm will automatically be set.)
In a case that the alarm is triggered, immediately stop the alarm. (P.59)
■ Lock ing the doors from the outside with-
out a key
1 Move the inside lock button to the lock
position.
2 Close the door while pulling the door
handle.
The door cannot be locked if the engine
switch is in ACCESSORY or IGNITION
ON mode, or the electronic key is left
inside the vehicle.
The key may not be detected correctly and
the door may be locked.
Unlocking function
Holding the driver’s
door handle unlocks
only the driver’s door.
Holding any of the
passenger door handles unlocks all the
doors.
Holding a door handle unlocks all the
doors.
■ Impact detection door lock release sys-
tem
In the event that the vehicle is subject to a
strong impact, all the doors are unlocked.
Depending on the force of the impact or the
type of accident, however, the system may
not operate.
■ Operation signals
Doors:
A buzzer sounds and the emergency flashers flash to indicate that the doors have
been locked/unlocked. (Locked: Once;
Unlocked: Twice)
Windows:
A buzzer sounds to indicate that all windows are opening/closing.
■ Security feature
If a door is not opened within approximately
30 seconds after the vehicle is unlocked,
the security feature automatically locks the
vehicle again.
■ Open door warning buzzer
If the vehicle speed reaches 5 km/h (3
mph), the master warning light flashes and a
buzzer sounds to indicate that the door(s)
or hood is not fully closed.
The open door(s) or hood is displayed on
the multi-information display.
■ Welcome light illumination control
The front position, tail and license plate
lights automatically turn on at night when
the doors are unlocked using the entry
function or wireless remote control if the
light switch is in the “AUTO” position.
■ When the door cannot be locked by the
lock sensor on the surface of the door
handle
When the door cannot be locked even if the
lock sensor on the surface of the door handle is touched by a finger, touch the lock
sensor with the palm.
When gloves are being worn, remove the
gloves.
3
Before driving
92
WARNING
Not for Reproduction
■ Door lock buzzer
If an attempt to lock the doors is made when
a door is not fully closed, a buzzer sounds
continuously for 5 seconds. Fully close the
door to stop the buzzer, and lock the vehicle once more.
■ Setting the alarm
Locking the doors will set the alarm system.
(P.59)
■ Conditions affecting the operation of
P.92
■ If the smart entry & start system or the
● Use the mechanical key to lock and
● Replace the key battery with a new one if
■ Customization
Settings (e.g. unlocking function using a
key) can be changed.
(Customizable features: P.361)
3-2. Opening, closing and locking the doors
the smart entry & start system or wireless remote control
wireless remote control does not operate properly
unlock the doors. (P.341)
it is depleted. (P.306)
● Do not pull the inside handle of the
doors while driving.
Be especially careful for the front
doors, as the door may be opened
even if the inside lock buttons are in
locked position.
● Set the rear door child-protector locks
when children are seated in the rear
seats.
■ When opening or closing a door
Check the surroundings of the vehicle
such as whether the vehicle is on an
incline, whether there is enough space
for a door to open and whether a strong
wind is blowing. When opening or closing the door, hold the door handle tightly
to prepare for any unpredictable movement.
■ When using the wireless remote con-
trol and operating the power windows
or moon roof (if equipped)
Operate the power window or moon
roof after checking to make sure that
there is no possibility of any passenger
having any of their body parts caught in
the window or moon roof. Also, do not
allow children to operate the wireless
remote control. It is possible for children
and other passengers to get caught in
the power window or moon roof.
Unlocking and locking the doors
from the inside
■ Using the door lock switch
■ To prevent an accident
Observe the following precautions while
driving the vehicle.
Failure to do so may result in a door
opening and an occupant falling out,
resulting in death or serious injury.
● Ensure that all doors are properly
closed and locked.
3-2. Opening, closing and locking the doors
Not for Reproduction
93
1 Locks all the doors
2 Unlocks all the doors
■ Using the inside lock buttons
1 Locks the door
2 Unlocks the door
The driver’s door can be opened by pulling
the inside handle even if the lock button is
in the lock position.
■ Rear door child-protector lock
The door cannot be opened from inside the
vehicle when the lock is set.
P.361.
Function Operation
All doors are auto-
matically locked
Speed linked door
locking function
Shift position linked
door locking function
Shift position linked
door unlocking
function
Driver’s door linked
door unlocking
function
when vehicle speed
is approximately 20
km/h (12mph) or
higher.
All doors are auto-
matically locked
when shifting the
shift lever out of P.
All doors are auto-
matically unlocked
when shifting the
shift lever to P.
All doors are auto-
matically unlocked
when driv er’s door is
opened.
3
Before driving
1 Unlock
2 Lock
These locks can be set to prevent children
from opening the rear doors. Push down on
each rear door switch to lock both rear
doors.
■ Automatic door locking and unlocking
systems
The following functions can be set or canceled:
For instructions on customizing, refer to
94
WARNING
Not for Reproduction
3-2. Opening, closing and locking the doors
Back door
The back door can be
locked/unlocked and
opened/closed by the following
procedures.
■ Caution while driving
● Keep the back door closed while driv-
ing.
If the back door is left open, it may hit
nearby objects while driving or luggage may be unexpectedly thrown out,
causing an accident.
In addition, exhaust gases may enter
the vehicle, causing death or a serious
health hazard. Make sure to close the
back door before driving.
● Before driving the vehicle, make sure
that the back door is fully closed. If the
back door is not fully closed, it may
open unexpectedly while driving,
causing an accident.
● Never let anyone sit in the luggage
compartment. In the event of sudden
braking or a collision, they are susceptible to death or serious injury.
■ When children are in the vehicle
Observe the following precautions.
Failure to do so may result in death or
serious injury.
● Do not allow children to play in the lug-
gage compartment.
If a child is accidentally locked in the
luggage compartment, they could
have heat exhaustion or other injuries.
● Do not allow a child to open or close
the back door.
Doing so may cause the back door to
move unexpectedly, or cause the
child’s hands, head, or neck to be
caught by the closing back door.
■ Operating the back door
Observe the following precautions.
Failure to do so may cause parts of the
body to be caught, resulting in death or
serious injury.
● Remove any heavy loads, such as snow
and ice, from the back door before
opening it. Failure to do so may cause
the back door to suddenly shut again
after it is opened.
● When opening or closing the back
door, thoroughly check to make sure
the surrounding area is safe.
● If anyone is in the vicinity, make sure
they are safe and let them know that
the back door is about to open or
close.
● Use caution when opening or closing
the back door in windy weather as it
may move abruptly in strong wind.
● Vehicles without power back door:
The back door may suddenly shut if it is
not opened fully. It is more difficult to
open or close the back door on an
incline than on a level surface, so
beware of the back door unexpectedly
opening or closing by itself. Make sure
that the back door is fully open and
secure before using the luggage compartment.
● Vehicles with power back door: The
back door may suddenly shut if it is not
opened fully, while on a steep incline.
Make sure that the back door is
secured before using the luggage
compartment.
3-2. Opening, closing and locking the doors
WARNING
Not for Reproduction
● When closing the back door, take
extra care to prevent your fingers, etc.,
from being caught.
● When closing the back door, make
sure to press it lightly on its outer surface. If the back door handle is used to
fully close the back door, it may result
in hands or arms being caught.
● Do not pull on the back door damper
stay (vehicles without power back
door) (P.96) or back door spindle
(vehicles with power back door)
(P.102) to close the back door, and
do not hang on the back door damper
stay (vehicles without power back
door) or back door spindle (vehicles
with power back door).
Doing so may cause hands to be
caught or the back door damper stay
(vehicles without power back door) or
back door spindle (vehicles with
power back door) to break, causing an
accident.
● If a bicycle carrier or similar heavy
object is attached to the back door, it
may suddenly shut again after being
opened, causing someone’s hands,
head or neck to be caught and injured.
When installing an accessory part to
the back door, using a genuine Lexus
part is recommended.
95
Unlocking and locking the back
door from the outside
■ Smart entry & start system
Carry the electronic key to enable this
function.
3
Before driving
1 Locks all the doors
Check that the door is securely locked.
2 Unlocks all the doors
The doors cannot be unlocked for 3 seconds after the doors are locked.
■ Wireless remote control
P.88
Unlocking and locking the back
door from the inside
■ Door lock switch
P.92
Opening/closing the back door
(vehicles without power back
door)
■ Open
Raise the back door while pressing up
the back door opener switch.
96
NOTICE
A
Not for Reproduction
■ Close
Lower the back door using the back
door handle, and make sure to push
the back door down from the outside
to close it.
3-2. Opening, closing and locking the doors
2 Move the lever.
■ Back door damper stays
The back door is equipped with damper
stays that hold the back door in place.
A
Observe the following precautions.
Failure to do so may cause damage to
the back door damper stay , resulting
in malfunction.
■ Luggage compartment light
● The luggage compartment light turns on
when the back door is opened.
● If the luggage compartment light is left on
when the engine switch is turned off, the
light will go off automatically after 20
minutes.
■ If the back door opener is inoperative
The back door can be unlocked from the
inside.
1 Remove the cover.
To protect the cover, place a rag between
the flathead screwdriver and the cover as
shown in the illustration.
● Do not attach any foreign objects, such
as stickers, plastic sheets, or adhesives
to the damper stay rod.
● Do not touch the damper stay rod with
gloves or other fabric items.
● Do not attach any accessories other
than genuine Lexus parts to the back
door.
● Do not place your hand on the damper
stay or apply lateral forces to it.
3-2. Opening, closing and locking the doors
Not for Reproduction
97
Opening/closing the back door
(vehicles with power back door)
■ Opening/closing the back door
using the wireless remote control
Press the switch for 1 second.
It can be made to operate when unlocking
the back door.
■ Opening/closing the back door
from the inside
Press the switch for 1 second.
A buzzer sounds and the back door automatically opens and closes.
Pressing the switch while the back door is
opening/closing stops the operation.
When the switch is pressed again for 1 second during the halted operation, the back
door will perform the reverse operation.
When the back door is unlocked: Press the
back door opener switch.
When the back door is locked: While carrying the electronic key on your person,
press the back door opener switch.
A buzzer sounds and the back door automatically opens.
Pressing the switch while the back door is
opening stops the operation.
3
Before driving
Close
Pressing the switch.
A buzzer sounds and the back door automatically closes.
Pressing the switch while the back door is
closing stops the operation.
Pressing the switch again will reverse the
operation.
Close the back door and lock all
doors (close & lock function)
■ Opening/closing the back door
from the outside
Open
Press the switch.
A different buzzer than the normal one will
sound and the power back door will begin
98
Not for Reproduction
3-2. Opening, closing and locking the doors
closing automatically. When the power
back door is closed, all of the doors will
lock simultaneously and operation signals
will indicate that all of the doors have been
locked.
If the switch is pressed while the power
back door is closing, the operation will
stop.
Pressing the switch again will close the
power back door automatically.
■ Closing the back door using the
back door handle
Lower the back door using the back
door handle, then a buzzer sounds and
the back door automatically closes.
near the lower center part of the rear
bumper and then moving it away.
1 While carrying an electronic key,
put your foot within 100 mm (3.94
in.) of the lower center part of the
rear bumper, where the kick sensor
is located, and move it away.
A
When all of the doors are locked: When
the movement is detected by the kick sensor, all of the doors will be unlocked.
2 The buzzer sounds and the power
back door begins to operate
The buzzer sounds and the power back
door automatically opens or closes.
To stop the power back door partway or
operate it again, use either the kick sensor,
the wireless remote control (P.88), or
power back door switch (P.97).
■ Luggage compartment light
● The luggage compartment light turns on
when the back door is opened.
● If the luggage compartment light is left on
when the engine switch is turned off, the
light will go off automatically after 20
■ Opening/closing the back door
using the kick sensor (vehicles with
hands free power back door)
The power back door enables automatic opening and closing of the
power back door by putting your foot
minutes.
■ Power back door operating conditions
With the power back door operations set to
ON, it can automatically open and close for
the following conditions:
● When the electronic key is being carried
and the power back door switch is
*
pushed
