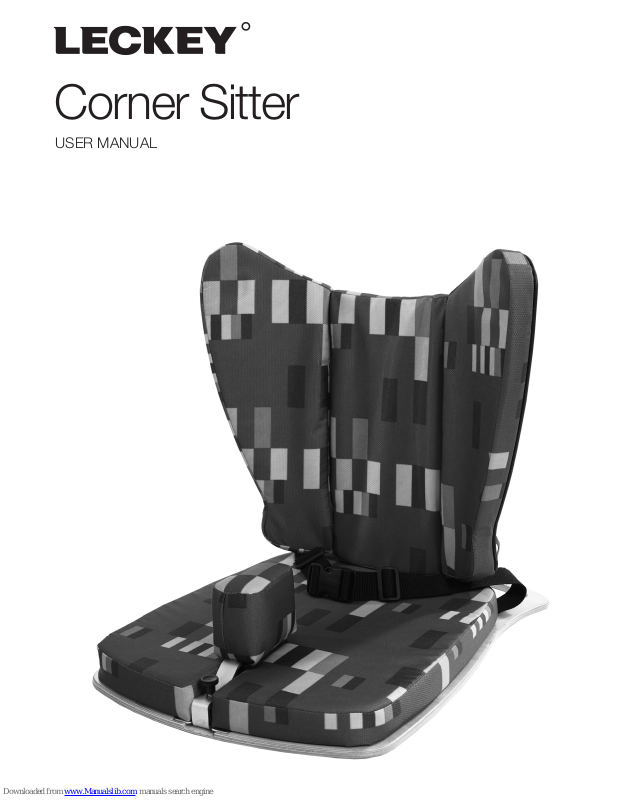

Page 1
Corner Sitter
USER MANUAL
Page 2
Page 3
Contents
1. Intended Use
2. Declaration of conformity
3. Terms of warranty
4. Product history record
5. Product training record
6. Safety information
7. How to unpack and assemble
8. Clinical setup for postural management
& daily use
9. Cleaning & care information
10. Daily product inspection
11. Annual product inspection
12. Reissuing Leckey products
13. Product servicing
14. Technical information
The Leckey Corner Sitter has been
designed to improve posture and oer
a better quality of life. This manual shows
you how you can quickly and easily make
use of all of the functions. The instructions
on the safety and maintenance of the
product will ensure that you will enjoy the
use of this product for a long time.
Page 4
1 Intended Use
The Leckey Corner sitter is intended for
children with disabilities from the age of
11/2 -14. It can be used for long sitting
which aids the therapeutic stretching of the
ham strings. The Corner Sitter also provides
minimal support for the pelvis and lower
spine to promote sitting balance and
function for the trunk and extremities
from a sitting position.
2 Declaration of Conformity
James Leckey Design Ltd. as manufacturer
with sole responsibility declares that the
Corner Sitter conforms to the requirements
of the 93/42/EEC Guidelines and EN12182
Technical aids for disabled persons. General
requirements and test methods.
3 Terms of Warranty
The warranty applies only when
the product is used according to the
specied conditions and for the intended
purposes, following all manufacturers’
recommendations (also see general terms
of sales, delivery and payment). A two
year warranty is provided on all Leckey
manufactured products and components.
4 Product History Record
Your Leckey product is classied as a Class
1 Medical device and as such should only
be prescribed, set up or reissued for use
by a technically competent person who
has been trained in the use of this product.
Leckey recommend that a written record is
maintained to provide details of all setups,
reissue inspections and annual inspections
of this product.
5 Product Training Record
(Parents, Teachers & Carers)
Your Leckey product is a prescribed Class
1 Medical Device and as such Leckey
recommend that parents, teachers and
carers using the equipment should be made
aware of the following sections of this user
manual by a technically competent person:
Section 6
Safety Information
Section 8
Clinical setup for postural management
& daily use
Section 10
Daily Product Inspection
Leckey recommend that a written record is
maintained of all those who have trained in
the correct use of this product.
Page 5
1. Always read instructions fully
before use.
2. Users should not be left unattended at
any time whilst using Leckey equipment.
3. Only use Leckey approved
components with your product.
Never modify the product in any way.
Failure to follow instructions may put
the user or carer at risk and will
invalidate the warranty on the product.
4.When placing your client in the Corner
Sitter, both for positional and safety
reasons, always secure the hip belt first.
5. If in any doubt to the continued safe
use of your product or if any parts should
fail, please cease using the product and
contact our Customer Care Team or local
dealer as soon as possible.
6. Never leave the product on a
sloping surface, greater than 5 degrees.
Always remember to lock all the castors.
7. The product contains components
which could present a choking hazard to
small children. Always check that locking
knobs and bolts within the child’s reach
are tightened and secure at all times.
8. Leckey products comply with fire
safety regulations in accordance with
EN12182. However the product contains
plastic components and therefore should
be kept away from all direct sources
of heat including naked flames,
cigarettes, electric and gas heaters.
9. Do not place hot objects on the tray,
not greater than 40 degrees Celsius
10. Leckey products comply with
fire safety regulations in accordance
with EN12182. However the product
contains plastic components and
therefore should be kept away from
all direct sources of heat including
naked flames, cigarettes, electric
and gas heaters.
11. Clean the product regularly. Do not use
abrasive cleaners. Carry out maintenance
checks on a regular basis to ensure your
product is in good working condition.
12. The product is designed for indoor
use and when not in use should be
stored in a dry place that is not subjected
to extremes of temperature. The safe
operating temperature range of the
product is +5 to +40 deg Celsius.
6 Safety Instructions
Page 6
How to
unpack and
assemble
Congratulations on purchasing your Corner
Sitter. Your Corner Sitter will be boxed and
wrapped in bubble wrap packaging on
receipt. The Corner Sitter will be supplied
with a hip belt and pommel and with your
choice of accessories.
Page 7

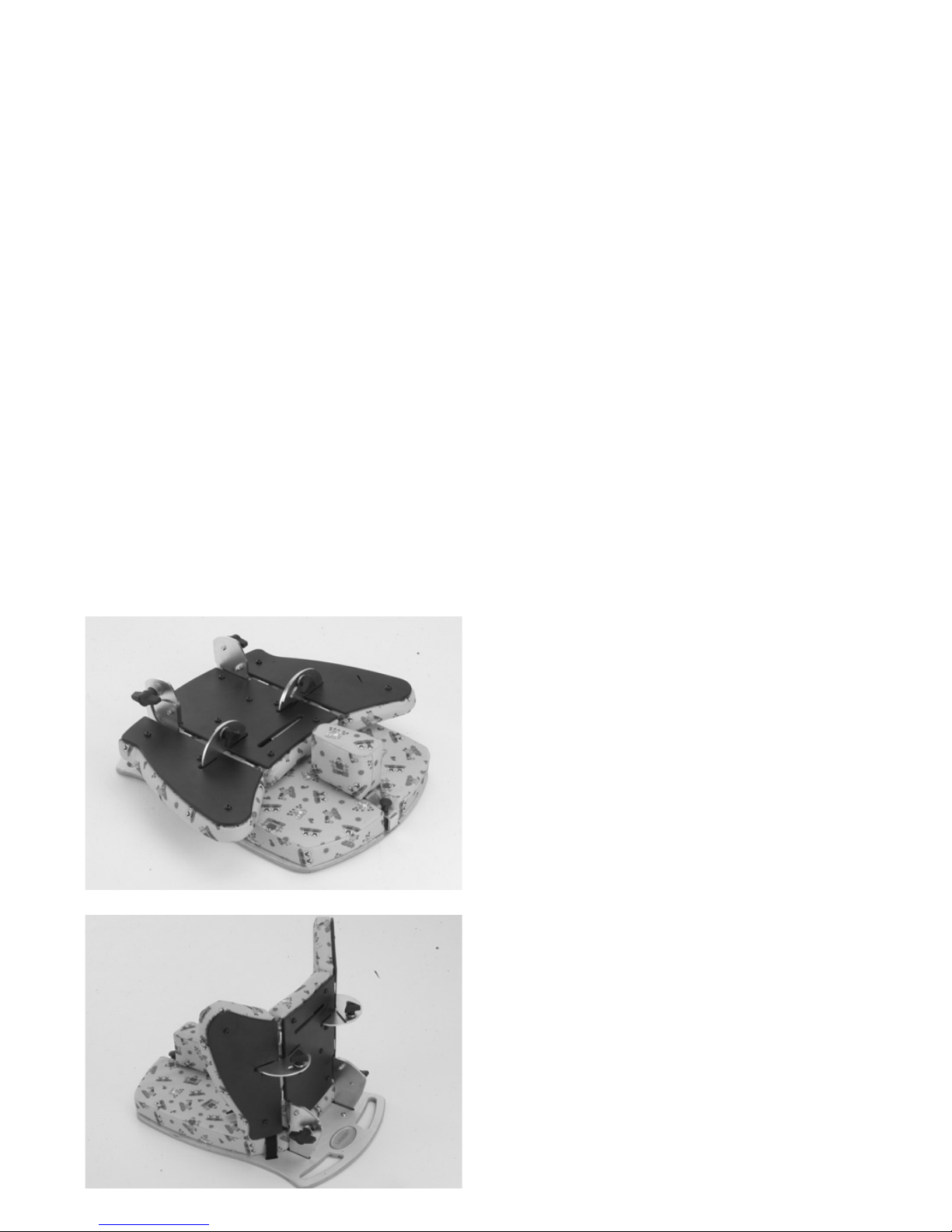

The Corner Sitter will arrive folded.
To assemble the Corner Sitter lift up the
backrest to the required position and secure
all 4 knobs.

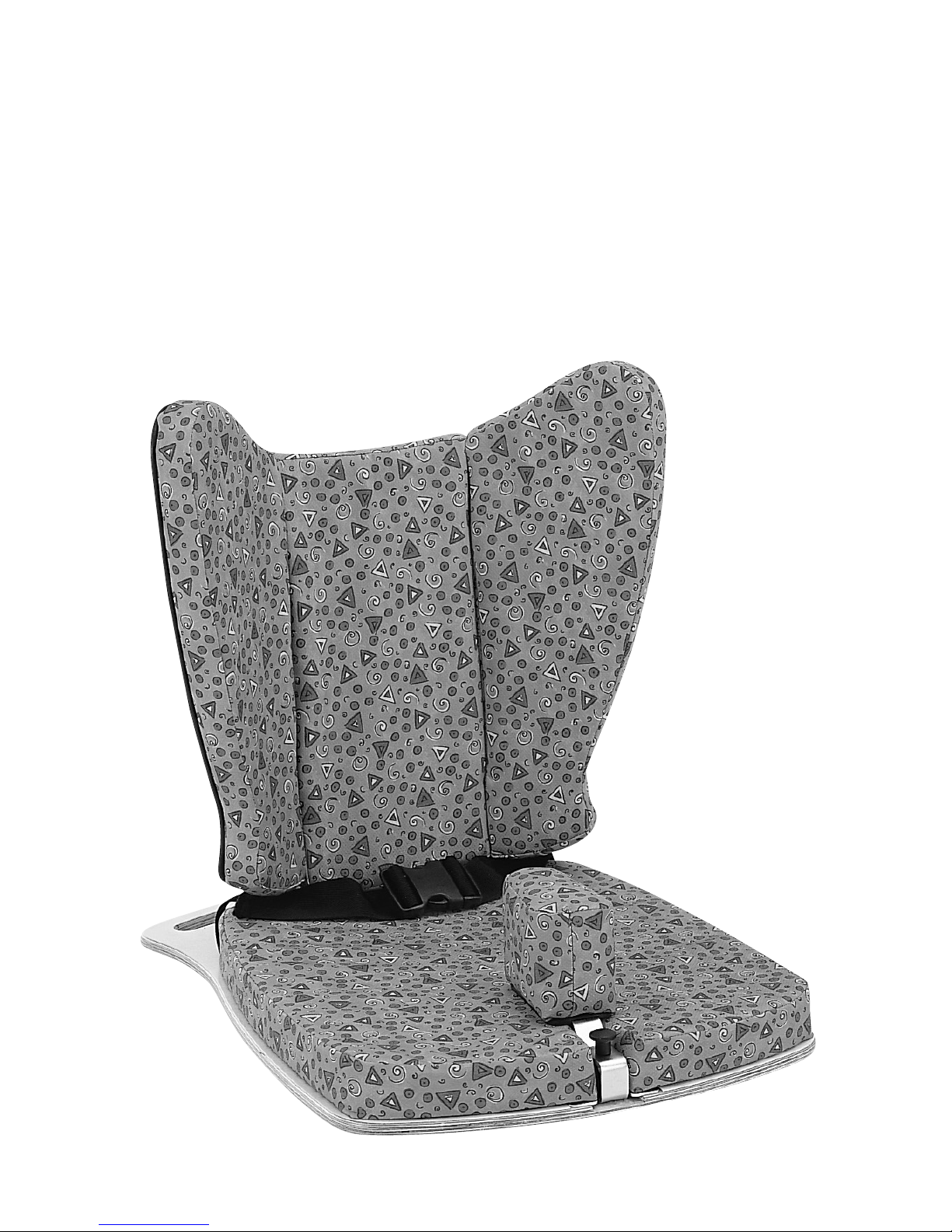

The Corner Sitter is a portable oor seating
unit with a handle at the back to make
carrying easier.
Page 8
Clinical setup
for postural
management
& daily use
The clinical setup of the product should be
completed by a technically and clinically
competent person who has been trained in
the use of the product. Leckey recommend
a written record is maintained of all clinical
setups for this product.
Parents and carers should be shown how
to make frequent adjustments and made
aware of the safety checks in Section
6 by a technically and clinically competent
person who has been trained in the use
of the product. Leckey recommend that
a written record is maintained of all parent
and carers who have been trained in the
use of this product.
Page 9

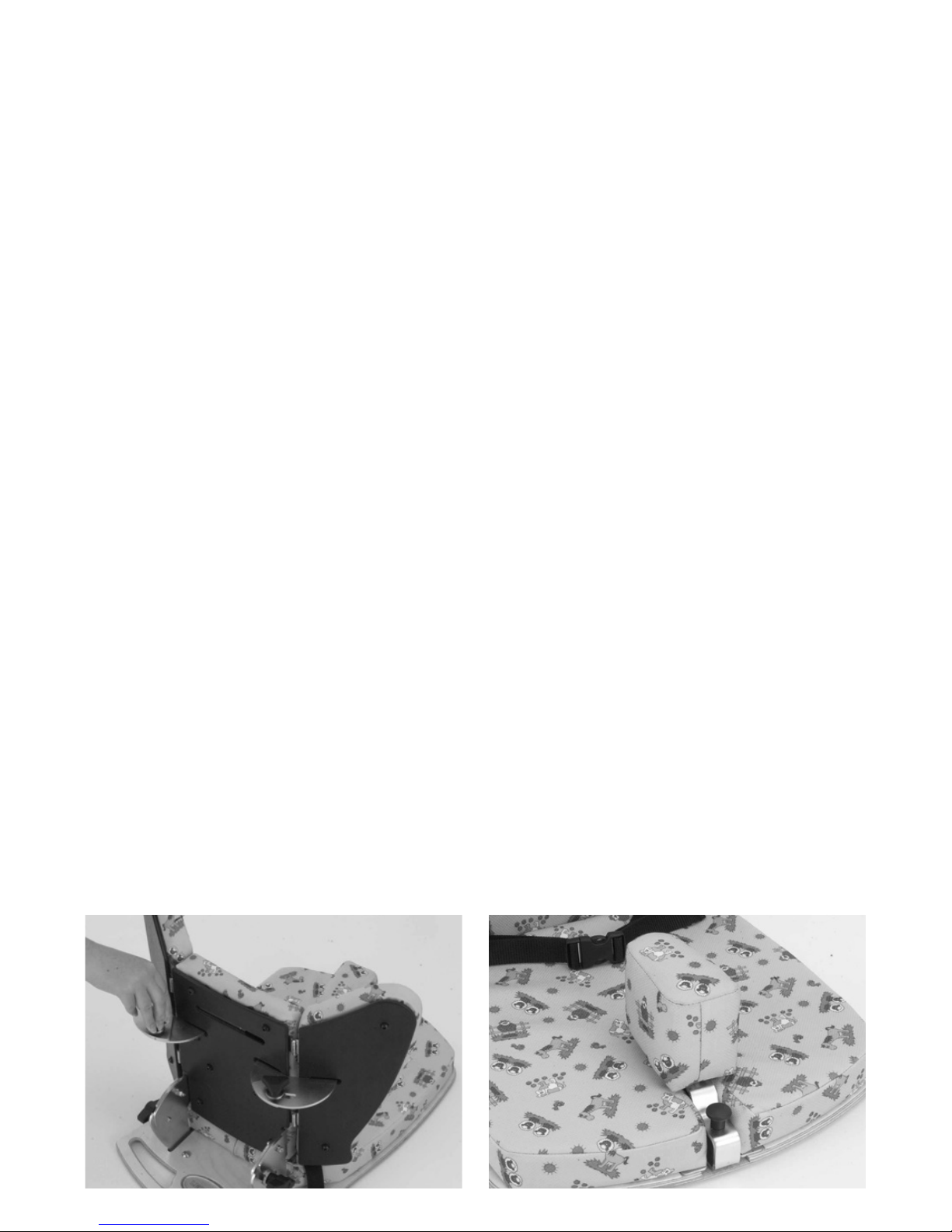

The sides of the Corner Sitter can be
adjusted in towards the user to give
additional lateral support. Simply release
the two back adjustment knobs (a) (one on
either side), select the position you require
and re-tighten.
To adjust the depth of the pommel, pull up
the pommel adjustment pin (a), select the
position you require and release the pin.
Pommel Lateral Adjustments
Page 10

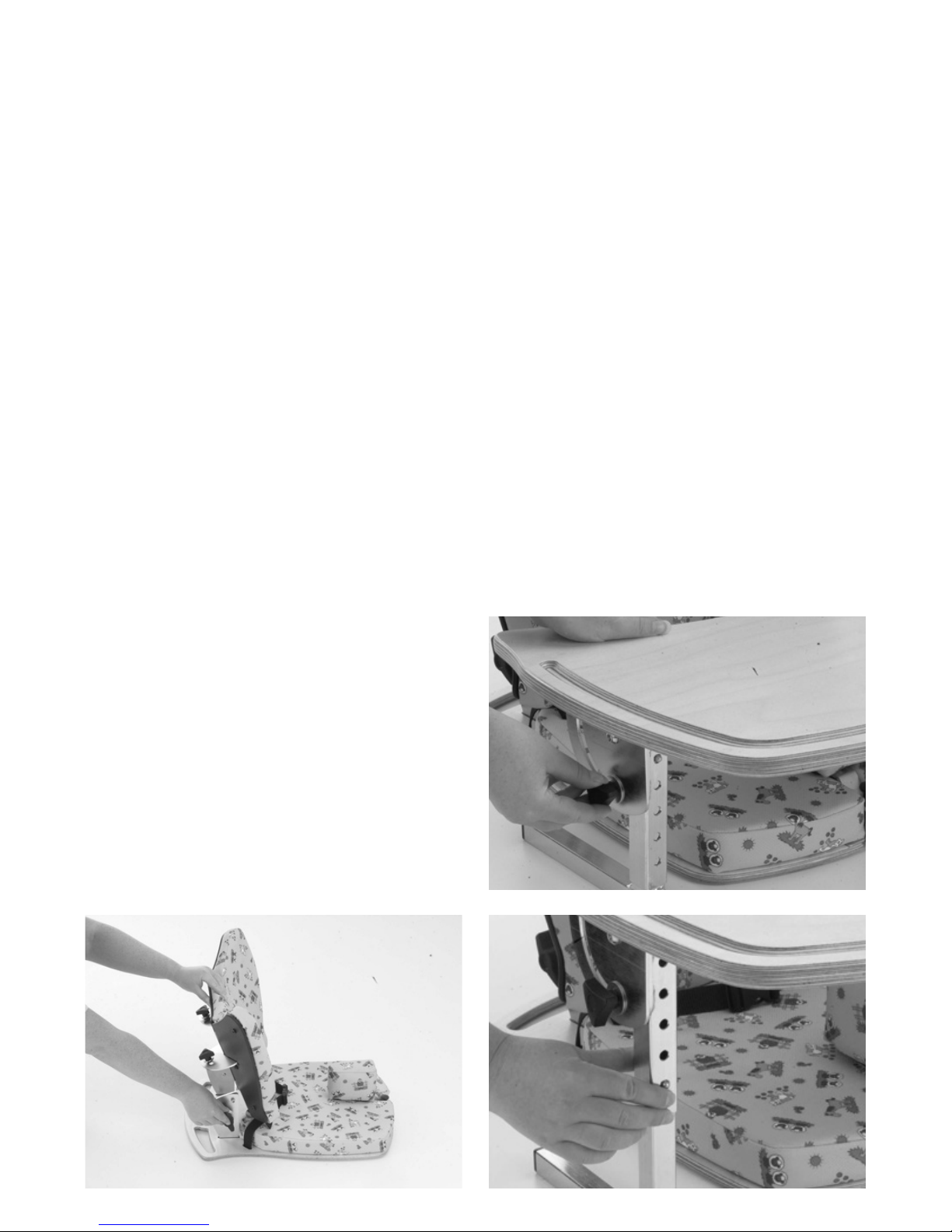

A degree of back recline and prone angle can
be achieved by loosening the adjustments
knob (a) (one at either side), selecting the
position you require and re-tightening the
knobs. Please note that the backrest should
be supported by the carer when adjusting
the angle while the user is seated in the chair.
The Corner Sitter Table is height and
angle adjustable. To adjust the angle of the
table loosen the two table top adjustment
knobs (a) (one on each side), select the
position you require and re-tighten the
knobs securely.
To adjust the height of the table, press in
poppers and position the leg to the relevant
slot to obtain required height.
Tray height and
Angle Adjustment
Back Angle
Adjustment
Page 11

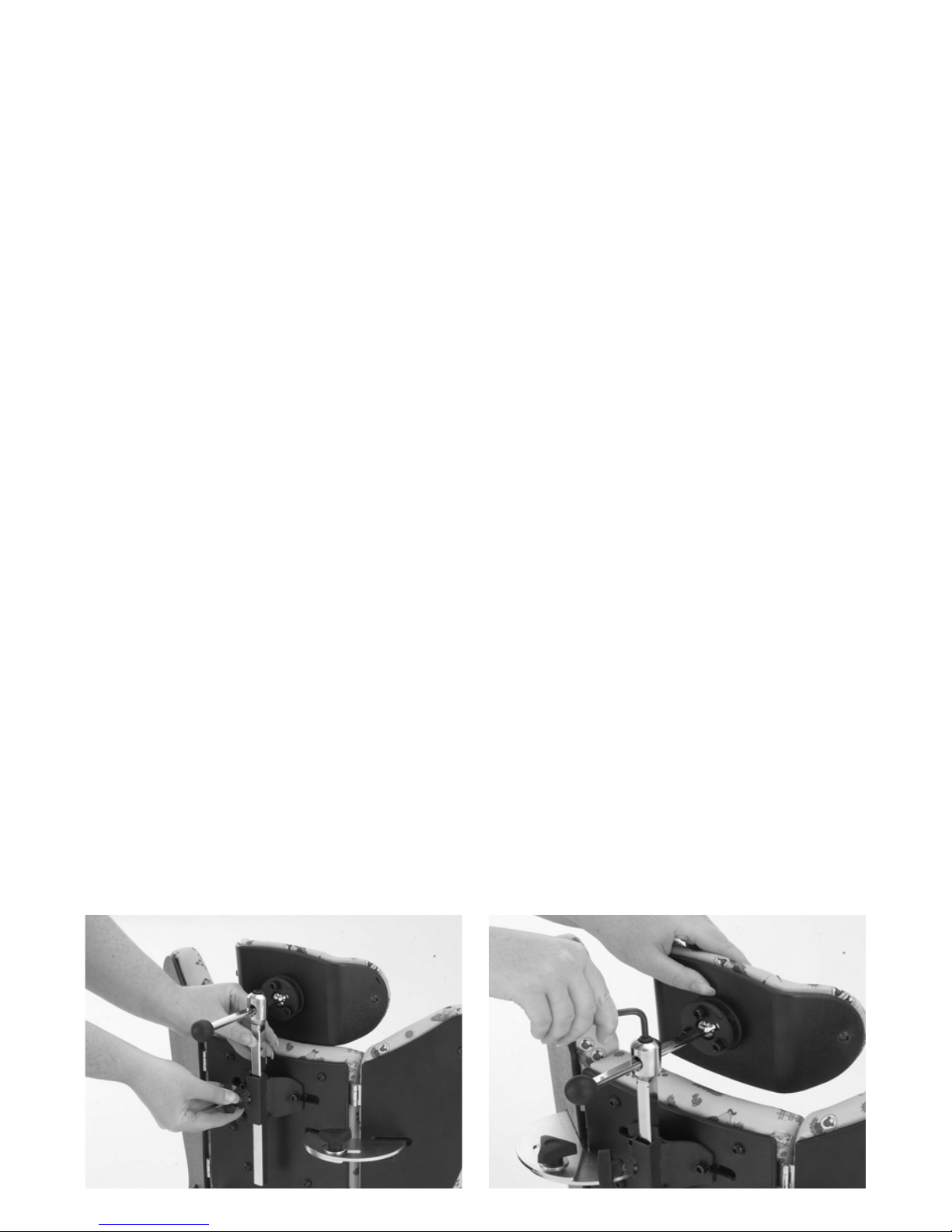

If a high back has been specied at the time
of order, a bracket to t the high back will
already be attached. If the high back has
been ordered separately then the high back
bracket should be attached to the back of
the seat by securing it with two allen bolts
supplied. The high back is height adjustable
by loosening the knob (a). Once the required
position is achieved knob (a) should be
re-tightened securely. To adjust the depth
loosen the allen bolt (b), position as required
and then re-tighten securely.
Multi Adjustable
Contoured High Back
Page 12
How to Maintain
When cleaning the product we
recommend that you use only warm water
and a non-abrasive detergent. Never use
organic solvents or dry cleaning uids.
Upholstery and fabrics
1. The upholstery and fabrics can be cleaned
by hand whilst in place. When cleaning we
recommend that you use only warm water
and a nonabrasive detergent.
2. The best cleaning method is a
‘wipe & dry’ technique.
3. Staining should be removed as
quickly as possible with absorbent cloth,
towels or a sponge. Routine soap and warm
water sponging is eective for ordinary
soiling and minor spills. Be careful not to
over wet the fabric, as this will cause the
staining to spread.
4. Antiseptic cleaning agents can be used
on more stubborn stains. These may require
a safe solvent such as Isopropyl Alcohol
or Mineral Spirit. A half cup of household
bleach to 5 litres of water can also be used
as a useful disinfectant.
5. Always ensure the product is dry
before use.
Metal and plastic and wooden
components
1. Soap and water or antibacterial spray can
be used for daily cleaning.
2. For deep cleaning a low pressure steam
cleaner can be used.
3. Do not use solvents to clean plastic
wooden or metal components.
4. Make sure the product is dry before use.
5. Check all wooden components regularly to
ensure there are no cracks or splitters.
9 Cleaning & Care
Information
Page 13
(Therapists, Parents & Carers)
We recommend that daily visual checks of
the equipment are carried out by therapists,
carers or parents to ensure the product is
safe for use. The recommend daily checks
are detailed below.
1. Ensure all adjustment knobs and bolts
are in place and secure.
2. Check all upholstery for signs of wear
and tear.
If in any doubt to the continued safe
use of your Leckey product or if any
parts should fail, please cease using
the product and contact our Customer
Care Team or your local dealer as soon
as possible.
(Therapist, Technician, VIDA Product
Specialist, Dealer)
Leckey recommend that each product
should be subject to a detailed inspection at
least once a year and every time the product
is reissued for use. This inspection should
be carried out by a technically competent
person who has been trained in the use of
the product and should include the following
checks as a minimum requirement.
1. Visually check the structure of the product
paying attention to weld points on the frame
ensuring there are no signs of fatigue or
cracking around the welds.
2. Leckey recommend that a written record is
maintained of all annual product inspections.
If in any doubt to the continued safe
use of your Leckey product or if any
parts should fail, please cease using
the product and contact our Customer
Care Team or your local dealer as soon
as possible.
10 Daily Product
Inspection
11 Annual Product
Inspection
Page 14
Most Leckey products are assessed
and ordered to meet the needs of an
individual user. Before reissuing a product
we recommend that the therapist prescribing
the product has carried out an equipment
compatibility check for the new user and
has ensured that the product being
re-issued contains no modications
or special attachments.
A detailed technical inspection should be
carried on the product prior to re-issuing.
This should be carried out by a technically
competent person who has been trained in
the use and inspection of the product.
Please refer to section 11 for the required
checks to be carried out.
Ensure the product has been cleaned
thoroughly in accordance with section
9 of this manual.
Ensure a copy of the user manual is supplied
with the product. A copy can be downloaded
from our website www.leckey.com
Leckey recommend that a written record is
maintained of all product inspections carried
out during the reissue of the product.
If in any doubt to the continued safe
use of your Leckey product or if any
parts should fail, please cease using
the product and contact our Customer
Care Team or your local dealer as soon
as possible.
12 Re-issuing Leckey
Products
Servicing of all Leckey products should
only be carried out by technically competent
persons who have been trained in the use of
the product.
All international service enquiries should
be directed to the appropriate Leckey
distributor who will be delighted to assist
you. For further information on Leckey
distributors please visit our website
www.leckey.com.
13 Product Servicing
Page 15
Product & Accessory Codes
The corner sitter comes as standard with
a hip belt and pommel. The size 1 comes
in Meadow Fabric and the size 2 and 3 in
Mondeo Blue.
LCS/1 - Corner Sitter size 1
LCS/2 – Corner Sitter size 2
LCS/3 – Corner Sitter size 3
LCT/# - Corner Sitter Table
LCT/#/104-* Multi Adjustable contoured
high back
# Please select size at time of order
* Please select colour at time of order
14 Technical Information
Page 16
Size
3
2
1
mm inches mm inches mm inches
1165 45.9 1330 52.4 1630 64.2
335 14 460 18.1 550 21.6
380 15 425 16.7 475 18.7
180 7 180 7 180 7
9kg 11kg 13kg
300 11.8 400 15.7 500 19.7
120 4.7 140 5.5 160 6.3
170 4 170 5.3 170 6.7
50 2.7 75 2.7 75 2.7
30kg 40kg 50kg
15 15 15
20 20 20
640 25 640 25 640 25
x450 x17.7 x450 x 17.7 x 450 x 17.7
220 8.8 220 8.8 220 8.8
320 12.8 320 12.8 320 12.8
Overall User Height
Seat Base
length
width
Height in Folded Position
Weight of Product
Backrest Height
High Back Height
High Back Adjustment
Pommel Adjustment
Max User Weight
Degree of Angular
Adjustment on Backrest
prone
recline
Tray Sizes
min
max
2
Size
3
1
Age (approx)
min 1.5 5 8
max
6914
15 Technical Data
Page 17
Page 18
LS565-04
VIDA Global
19C Ballinderry Road,
Lisburn, BT28 2SA
Northern Ireland,
United Kingdom
T: 028 9260 0750
F: 028 9260 0799
E: info@vidaglobal.co.uk
W: vidaglobal.co.uk
24 hour postural
care for babies,
kids & adults.
Sleeping, Sitting,
Standing, Walking,
Moving, Bathing,
Toileting.
Loading...
