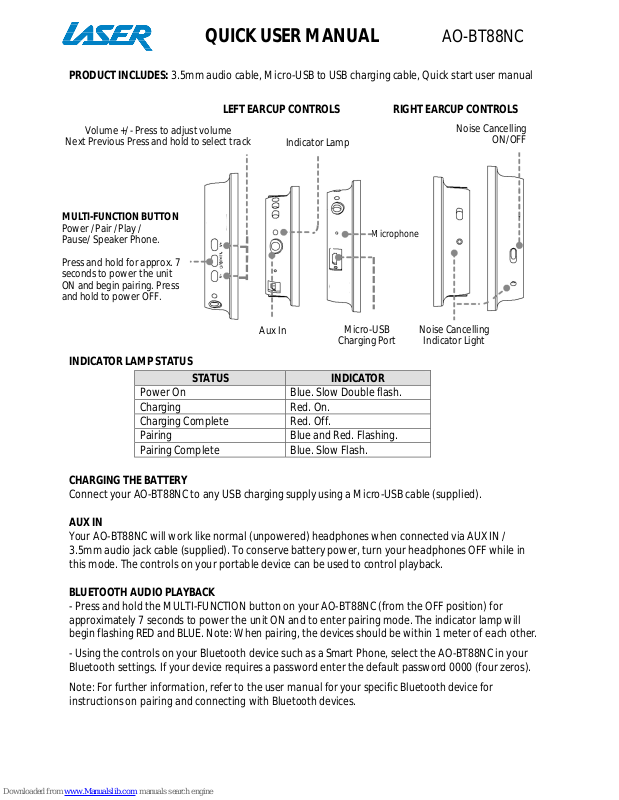

Laser AO-BT88NC Quick User Manual

AO-BT88NC

QUICK USER MANUAL

PRODUCT INCLUDES: 3.5mm audio cable, Micro-USB to USB charging cable, Quick start user manual

INDICATOR LAMP STATUS

STATUS INDICATOR

Power On Blue. Slow Double flash.
Charging Red. On.
Charging Complete Red. Off.
Pairing Blue and Red. Flashing.
Pairing Complete Blue. Slow Flash.

CHARGING THE BATTERY
Connect your AO-BT88NC to any USB charging supply using a Micro-USB cable (supplied).

AUX IN

Your AO-BT88NC will work like normal (unpowered) headphones when connected via AUX IN /

3.5mm audio jack cable (supplied). To conserve battery power, turn your headphones OFF while in
this mode. The controls on your portable device can be used to control playback.

BLUETOOTH AUDIO PLAYBACK

- Press and hold the MULTI-FUNCTION button on your AO-BT88NC (from the OFF position) for
approximately 7 seconds to power the unit ON and to enter pairing mode. The indicator lamp will
begin flashing RED and BLUE. Note: When pairing, the devices should be within 1 meter of each other.

- Using the controls on your Bluetooth device such as a Smart Phone, select the AO-BT88NC in your
Bluetooth settings. If your device requires a password enter the default password 0000 (four zeros).

Note: For further information, refer to the user manual for your specific Bluetooth device for
instructions on pairing and connecting with Bluetooth devices.

LEFT EARCUP CONTROLS

Aux In

RIGHT EARCUP CONTROLS

Micro

-

USB

Charging Port

Noise Cancelling

Indicator Light

Noise Cancelling

ON/OFF

Microp

hone

Volume +/

- Press to adjust volume

Next Previous Press and hold to select track

MULTI

-

FUNCTION BUTTON

Power /Pair /Play /
Pause/ Speaker Phone.

Press and hold for approx. 7
seconds to power the unit
ON and begin pairing. Press
and hold to power OFF.

I

ndicator

Lamp

AO-BT88NC

QUICK USER MANUAL

- When successfully paired, the INDICATOR LAMP will slowly flash blue and an audible tone will
sound through the headphones.

- Use the controls on either your smart phone or your AO-BT88NC for playback.

USING THE SPEAKERPHONE (While connected via Bluetooth)

- When a call is received, a ringtone will sound through your AO-BT88NC.

- Press the MULTI-FUNCTION button to accept the call, or accept the call using the controls on your
smart phone.

- The incoming call will then be heard through your AO-BT88NC.

- To end the call, either press the MUTLI-FUNCTION button or end the call using the controls on the
connected device.

NOISE CANCELLING

The Noise Cancelling feature electronically disguises background noise. It can be used with the
Bluetooth or AUX In modes.

Noise cancelling mode will function even if the headphones are not powered ON. To conserve
battery power, it is recommended to power the headphones OFF if you want to use the Noise
Cancelling feature without playing audio.

SPECIFICATIONS

Battery life Up to 12 hours
Battery type Built-in rechargeable lithium ion battery
Headband Adjustable
Aux in 3.5mm Audio Input
USB Socket for charging Micro-USB port
Other features Built-in microphone (for hands free voice calls)
Wireless range Up to 10 Meters

AO-BT88NC

QUICK USER MANUAL

WARRANTY AGAINST DEFECTS

Laser Corporation Pty Ltd (“Laser”) warrants your new product to be free from defects in materials and
workmanship for 12 months, from the date of purchase, provided that the product is used in accordance with
accompanying recommendations or instructions where provided. The benefit of this warranty is in addition to
your rights under the Australian Consumer Law and to other rights and remedies of the consumer under a law
in relation to the goods or services to which the warranty relates. Through a network of retailers and resellers,
Laser will provide you with your choice of a repair, exchange (where possible) or refund (within Dead on
Arrival period) for this product if it becomes defective within the warranty period. This warranty will no longer
apply where the defect is a result of alteration, accident, misuse, abuse, normal wear and tear, neglect or
improper storage. Please retain your receipt as proof of purchase
How to make a product warranty claim:
Step 1: Find your receipt which proves the date of purchase. Where the date of purchase cannot be verified,
your place of purchase or Laser will make an assessment based on the date of manufacture, the condition of
the Laser Product and the type of defect.
Step 2a): Contact your place of purchase. They will assess the nature of the fault and repair, replace or fund
the product as per their store refund or warranty policy.
Step 2b): If your place of purchase cannot be contacted, then you can contact Laser. Customer Service with
details of your defective Laser Product: Phone: [phone]; or Email: [e-mail] or online

www.laserco.com.au/warranty (click on “Consumers (End Users)”). Our business address is at 1/6-8 Byfield

Street, North Ryde, NSW 2113
Step 3: Laser will issue you with a Return Authorisation (RA) number within 48 hours. When requested, send
us the defective Product and a copy of your receipt. Laser will cover the cost of the return delivery.
Step 4: Wait for us to contact you. Once we have received your defective Laser Product for inspection, we
will inform you of our assessment of your claim within 7 days. When we contact you, we will firstly let you
know whether you have a valid claim under this Warranty, and if so, we will inform you whether your
defective Laser Product will be replaced or repaired, together with the number of days you can expect to wait
to receive your replaced or repaired Laser Product.
Step 5: For further details on warranty cover and returns, please check Terms and Conditions for Warranty

Returns section on http://www.laserco.com.au/warranty

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are
entitled to a replacement or refund for a major failure and compensation for any other reasonably
foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to
be of acceptable quality and the failure does not amount to a major failure.
