LCD Flat Television Users Guide

For Models:

LT-42E488

LT-42E478

LT-32E488

LT-32E478

POWER

SLEEP SUB CH V.STATUS SOUND

1

2



3

4

5



6

7

8



9

TUNE





RETURN+/TV



0





V1

V2

V3

V4

MUTING









CH+



V5

FAV.

+

VOL



VOL



CH–



ML/MTS

DISPLAY C.C.

ASPECT

MENU

BACK

GUIDE



OK





RM-C1291





TV



Illustration of LT-32E488 and RM-C1291

Important Note:

In the spaces below, enter the model and serial number of your television (located at the rear of the television cabinet). Staple your sales receipt or invoice to the inside cover of this guide. Keep this user’s guide in a convenient place for future reference. Keep the carton and original packaging for future use.

Model Number:

Serial Number:

LCT2224-001A-A 0107TNH-II-IM

Important Safety Precautions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: To reduce the risk of electric shock. Do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION: TO INSURE PERSONAL SAFETY, OBSERVE THE FOLLOWING RULES

REGARDING THE USE OF THIS UNIT.

1. Operate only from the power source specified on the unit.

2.Avoid damaging the AC plug and power cord.

3.Avoid Improper installation and never position the unit where good ventilation is unattainable.

4.Do not allow objects or liquid into the cabinet openings.

5.In the event of trouble, unplug the unit and call a service technician. Do not attempt to repair it yourself or remove the rear cover.

Changes or modifications not approved by JVC could void the warranty.

*When you don’t use this TV set for a long period of time, be sure to disconnect both the power plug from the AC outlet and antenna for your safety.

*To prevent electric shock do not use this polarized plug with an extension cord, receptacle or other outlet unless the blades can be fully inserted to prevent blade exposure.

As an “ENERGY STAR®” partner,

JVC has determined that this product or product model meets the

“ENERGY STAR®” guidelines for energy efficiency.

2

IMPORTANT RECYCLING INFORMATION

This product has a fluorescent lamp that contains mercury. Disposal of these materials may be regulated in your community due to environmental considerations. For disposal or recycling information, please contact your local authorities or for USA, the Electronic Industries Alliance: http://www.eiae.org

IMPORTANT SAFETY INSTRUCTIONS

1)Read these instructions.

2)Keep these instructions.

3)Heed all warnings.

4)Follow all instructions.

5)Do not use this apparatus near water.

6)Clean only with dry cloth.

7)Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8)Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9)Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10)Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11)Only use attachments/accessories specified by the manufacturer.

12)Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

3

13)Unplug this apparatus during lightning storms or when unused for long periods of time.

14)Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15)Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

16)Avoid improper installation and never position the unit where good ventilation is impossible. When installing this TV, distance recommendations must be maintained between the set and the wall, as well as inside a tightly enclosed area or piece of furniture. Keep to the minimum distance guidelines shown for safe operation.

200 mm

200 mm

150 mm

150 mm



50 mm

17)Cautions for installation

Do not tilt the TV towards the left or right, or towards the back.

Install the TV in a corner on the floor so as to keep cords out of the way.

The TV will generate a slight amount of heat during operation. Ensure that sufficient space is available around the TV to allow satisfactory cooling.

18)Make enough room for inserting and removing the power plug. Place the TV as close to the outlet as possible. The main power supply for this TV is controlled by inserting or removing the power plug.

4

Warnings

We have an important note for customers who subscribe to basic cable services (do not have a separate cable box) and plan to use their JVC TV remote control to select channels.

Once you run the Auto Tuner Setup (which detects and programs all the channels your TV is receiving through the RF input), every channel number available from your cable company will appear in your television’s Channel Summary and they will all be marked as available for scanning. Even though every channel is detected and appears as available, you will only be able to view those that you specifically subscribe to from your cable company. This will likely mean there are blank channels between those channels you wish to scan or “surf”.

We apologize for any inconvenience this may cause but it is important to note that this is not a malfunction of your television. If you want to sequentially scan those channels you subscribe to without blank ones in between, you can contact your cable company for their cable box and remote.

Avoiding Ghost Images

Displaying fixed images for extended periods of time can leave a subtle but temporary ghost image on your screen. To avoid this, mix your viewing pattern.

Examples include, but are not limited to the following:

Stock-market report bars

For example...



TV on

TV off

Shopping channel logos and pricing







displays





Video game patterns or scoreboards





Bright station logos





Internet web sites or other computer-style







images.





DVD discs, video tapes, laser discs





Broadcast, cable, satellite channels or

XYZ

XYZ



digital television tuners/converters.







5

Warnings

Caring for the Cabinet

Normally, light dusting with a soft, non-scratching duster will keep your TV clean.

If you wish to wipe down the television, first unplug it. Then wipe gently with a soft cloth, slightly moistened with water. You can add a few drops of mild liquid detergent to the water to help remove spots of oily dirt.

DO NOT allow liquid to enter the TV through the ventilation slots.

DO NOT use strong or abrasive cleaners on the TV.

DO NOT spray liquids or cleaners directly on the TV’s surface.

DO NOT rub or scrub the TV harshly. Wipe the set gently with a soft cloth.

Caring for the Screen

The screen is treated with an electrostatic-proof coating. When it gets dirty, wipe it gently with a soft cloth. If the screen is very dirty, wipe it down with a cloth dipped in a diluted kitchen cleaner and thoroughly wrung-out. Then wipe immediately after with a clean, dry cloth.

Do not apply alcohol, organic solvents (like acetone), acidic or alkaline cleansers to the screen.

These will remove the coating layer and cause discolorations.

Do not push or hit the screen. This could cause scratches on the screen surface and image distortions.

Tidying the cables

A cable holder which keeps your connection cables tidy is attached to the back of the stand.

6

Warnings

Disconnecting the stand

If you disconnect the stand, attach the bottom cover and the screw (supplied) into the hole.

1)Place the TV face down on a soft cloth on a table.

2)Remove the four screws from the back of the TV.

3) Pull out the stand from the TV.

4) Cover the hole with a bottom cover and tighten the screw.

Note:

• To re-install the stand, reverse the procedure from 4) to 1).

7

Table of Contents

Important Safety Precautions . . 2 Warnings . . . . . . . . . . . . . . . 5 Quick Setup . . . . . . . . . . . . . . 9

Unpacking your TV . . . . . . . . . . . . 9

TV Models . . . . . . . . . . . . . . . . 10

TV Remote Control . . . . . . . . . . . 11 Getting Started . . . . . . . . . . . . . 12 The Remote Control . . . . . . . . . . 12

Connecting Your Devices . . . . . . . 13

Interactive Plug In Menu . . . . . . . . 21

Onscreen Menus . . . . . . . . . 24

Using the Guide . . . . . . . . . . . . . 24 Onscreen Menu System . . . . . . . . . 25

Initial Setup . . . . . . . . . . . . . 28

Noise Muting . . . . . . . . . . . . . . 28 Language . . . . . . . . . . . . . . . . 28 Front Panel Lock . . . . . . . . . . . . 28 V-Chip . . . . . . . . . . . . . . . . . . 29 Set Lock Code . . . . . . . . . . . . . 35

Closed Caption . . . . . . . . . . . . . 36

Auto Shut Off . . . . . . . . . . . . . . 38 Software Version . . . . . . . . . . . . . . 38 Power Indicator . . . . . . . . . . . . . 38 Quick Startup . . . . . . . . . . . . . . . 39 Auto Tuner Setup . . . . . . . . . . . . 40 Channel Summary . . . . . . . . . . . . 41 Channel Label . . . . . . . . . . . . . 42 Find Channel . . . . . . . . . . . . . . . 43 Digital Antenna Level . . . . . . . . . . 43

HDMI Size . . . . . . . . . . . . . . . . . 44

Video-1 Audio . . . . . . . . . . . . . 44 Video Input Label . . . . . . . . . . . 45 Picture Adjust . . . . . . . . . . . . . 46 Picture Settings . . . . . . . . . . . . . 46 Color Temperature . . . . . . . . . . . . 46 Color Management . . . . . . . . . . . . 47 Dynamic Gamma . . . . . . . . . . . . . 47

Noise Reduction . . . . . . . . . . . . . . . 47

Natural Cinema . . . . . . . . . . . . . . 48

Position Adjustment . . . . . . . . . . . . 48

Reset . . . . . . . . . . . . . . . . . . 49 Sound Adjust . . . . . . . . . . . . . 50 Sound Settings . . . . . . . . . . . . . 50 Optical Out . . . . . . . . . . . . . 50

Turn On Volume . . . . . . . . . . . . . 51 Volume Limit . . . . . . . . . . . . . . 51 Reset . . . . . . . . . . . . . . . . . . 51

Clock/Timers . . . . . . . . . . . . . . . . 52 Set Clock . . . . . . . . . . . . . . . . 52 On/Off Timer . . . . . . . . . . . . . . . 53 Photo Viewer . . . . . . . . . . . . . . . . 54 Auto Demo . . . . . . . . . . . . . . . 56

Button Functions . . . . . . . . . . 57

Power . . . . . .

. . . . . . . . . . . . 57

Number Buttons .

. . . . . . . . . . . . 57

Tune . . . . . . . . . . . . . . . 57

Input . . . . . . .

. . . . . . . . . . . . 57

Channel +/- . . . . . . . . . . . . . 57

Volume +/- . . . . . . . . . . . . . 58

Return+/TV . . . .

. . . . . . . . . . . 58

Sound . . . . . . .

. . . . . . . . . . . 58

Muting . . . . . . .

. . . . . . . . . . . 58

Video Status . . . .

. . . . . . . . . . . 59

Sleep Timer . . . .

. . . . . . . . . . . 59

Display . . . . . .

. . . . . . . . . . . 60

C.C. . . . . . . . .

. . . . . . . . . . . 60

Aspect . . . . . .

. . . . . . . . . . . 61

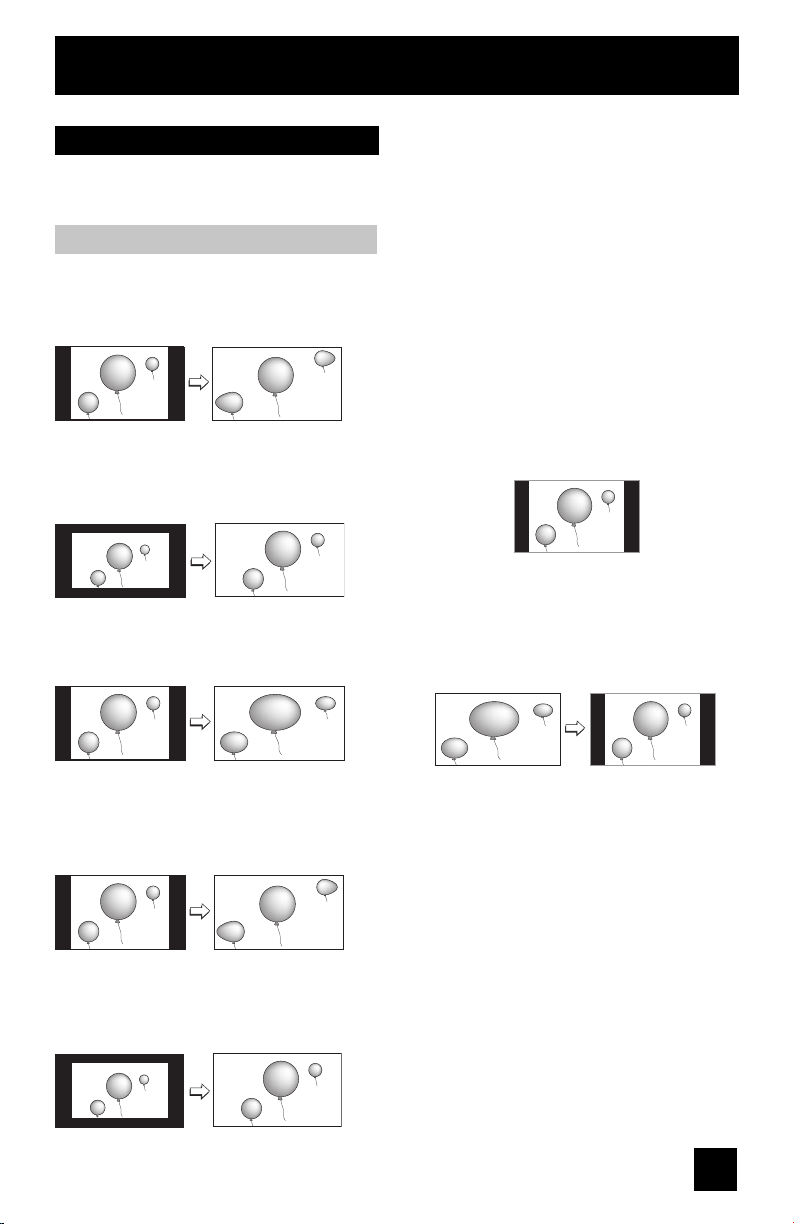

Aspect Ratios . . . . . . . . . . . . . 61

Menu . . . . . . .

. . . . . . . . . . . 62

OK . . . . . . . .

. . . . . . . . . . . 62

Back . . . . . . . .

. . . . . . . . . . . 62

ML/MTS . . . . . .

. . . . . . . . . . . 63

Sub Channel . . . . . . . . . . . . . 63

Favorite . . . . . . . . . . . . . . . . 64

Guide . . . . .

. . . . . . . . . . 64

OSD Information . . . . . . . . . . 65

Weak Signal . . . . . . . . . . . . . 65 Audio/Data Only Channel . . . . . . . 65

Troubleshooting . . . . . . . . . . 66

Specifications . . . . . . . . . . 68

Warranty . . . . . . . . . . . . . 70

Authorized Service Center . . . 71

8

Quick Setup

Unpacking your TV

Thank you for your purchase of a JVC LCD Flat Television. Before you begin setting up your new television, please check to make sure you have all of the following items. In addition to this guide, your television box should include:

1 Television

1 Remote Control









POWER



SLEEP

SUB CH V.STATUS SOUND



1

2



3



4

5



6



7

8



9



TUNE





RETURN+/TV





0







V1

V2

V3

V4



MUTING











CH+



V5



FAV.

+



VOL





VOL





CH–







ML/MTS DISPLAY

C.C. ASPECT



MENU

BACK GUIDE





OK









RM-C1291



TV

Two AA

Batteries

+

+

Alkaline AA

Alkaline AA

Note: Your television and/or remote control may differ from the examples illustrated here.

1 Cover

1 Screw

























We recommend that before you start using your new television, you read this entire User’s Guide so you can learn about your new television’s many great features. If you’re anxious to start using your television right away, a quick setup guide follows on the next few pages.

9
