Dear Customer

Thank you for purchasing this hard disk camera. Before use, please read the safety information and precautions contained in pages 2 and 3 to ensure safe use of this product.

For Future Reference:

Enter the Model No. (located on the bottom of the camera) and Serial No. (located on the battery pack mount of the camera) below.

Model No.

Serial No.

Cher client,

Nous vous remercions d’avoir acheté cet appareil photo à disque dur. Avant utilisation, veuillez lire les informations et les précautions de sécurité présentées dans les pages 2 et 3 pour utiliser cet appareil en toute sécurité.

Pour consultation ultérieure :

Noter ci-dessous le N° du modèle

(fi gurant sous l’appareil photo) et le N° de série (fi gurant sur le logement de la batterie de l’appareil photo).

N° du modèle

N° de série

ENGLISH

FRANÇAIS

Safety Precautions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK).

NO USER-SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

NOTES:

The rating plate and safety caution are on the bottom and/or the back of the main unit.

The serial number plate is on the battery pack mount.

The rating information and safety caution of the AC adapter are on its upper and lower sides.

Caution on Replaceable lithium battery

The battery used in this device may present a fi re or chemical burn hazard if mistreated.

Do not recharge, disassemble, heat above 100°C or incinerate.

Replace battery with Panasonic (Matsushita Electric), Sanyo, Sony or Maxell CR2025. Danger of explosion or Risk of fi re if the battery is incorrectly replaced.

Dispose of used battery promptly.

Keep away from children.

Do not disassemble and do not dispose of in fi re.

For USA-California Only

This product contains a CR Coin Cell Lithium Battery which contains Perchlorate Material

– special handling may apply.

See www.dtsc.ca.gov/hazardouswaste/perchlorate

When the equipment is installed in a cabinet or on a shelf, make sure that it has suffi cient space on all sides to allow for ventilation (10 cm (3-15/16 ") or more on both sides, on top and at the rear). Do not block the ventilation holes.

(If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.)

No naked fl ame sources, such as lighted candles, should be placed on the apparatus.

When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.

The apparatus shall not be exposed to dripping or splashing.

Do not use this equipment in a bathroom or places with water.

Also do not place any containers fi lled with water or liquids (such as cosmetics or medicines, fl ower vases, potted plants, cups etc.) on top of this unit. (If water or liquid is allowed to enter this equipment, fi re or electric shock may be caused.)

Do not point the lens directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fi re or electric shock.

CAUTION!

The following notes concern possible physical damage to the camera and to the user.

Carrying or holding the camera by the LCD monitor can result in dropping the unit, or in a malfunction. Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camera.

CAUTION!

Connecting cables (Audio/Video, S-Video, etc.) to the camera and leaving it on top of the TV is

not recommended, as tripping on the cables will cause the camera to fall, resulting in damage.

CAUTION:

The mains plug shall remain readily operable.

WARNING:

The battery pack, the camera with battery installed, and the remote control with battery installed should not be exposed to excessive heat such as direct sunlight, fi re or the Iike.

2

IMPORTANT SAFETY INSTRUCTIONS

1.Read these instructions.

2.Keep these instructions.

3.Heed all warnings.

4.Follow all instructions.

5.Do not use this apparatus near water.

6.Clean only with dry cloth.

7.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8.Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifi ers) that produce heat.

9.Only use attachments/accessories specifi ed by the manufacturer.

10. Use only with the cart, stand, tripod, bracket,

or table specifi ed by the manufacturer, or sold with the

apparatus. When a cart is used, use caution

when moving the

cart/apparatus combination to avoid injury from tip-over.

11.Unplug this apparatus during lightning storms or when unused for long periods of time.

12.Refer all servicing to qualifi ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

If this symbol is shown, it is only valid in the European Union.

Remember that this camera is intended for private consumer use only.

Any commercial use without proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.)

Trademarks

Manufactured under license from Dolby Laboratories. Dolby and double-D symbol are trademarks of Dolby Laboratories.

Windows® is either registered trademark or trademark of Microsoft Corporation in the United States and/or other countries.

Macintosh is a registered trademark of Apple Inc.

Other product and company names included in this instruction manual are trademarks

and/or registered trademarks of their respective holders.

ENGLISH

3

Easy Start Guide

1 Preparation

QAttach the battery

ROpen the lens

SOpen the LCD monitor

pack

cover

The camera turns on

Charge the Battery Pack.



automatically.





( pg. 14)





BATT.





2 Video recording

QSelect ! (video) mode

RSelect recording (REC) mode



[ 5 h 5 6 m ]



SELECT



PLAY/REC

3 Playing back



QSelect ! (video) mode

RSelect playback (PLAY) mode



to display thumbnails on the



screen



SELECT



PLAY/REC

4

CAUTION: Touch the sensors with your finger. The sensors do not function if you touch them with your fi nger nail or with gloves on.

ENGLISH

TWhen [SET DATE/TIME!] appears,

USet the date and time

select [YES] within 10 seconds.

( pg. 14)



SET DATE/TIME!







DATE

TIME

YES

JAN 31

2007 11 07 AM





NO





( pg. 6)





SPress the START/STOP button to start recording

SSelect the desired file using the touch sensor. And then touch the OK button to start playback

To stop playback

Select L.

5

How to Select an Item Using the Touch Sensor

An example screen in English is used for the guidance below.

LSelecting an item from the menu list

(on the menu screen)

MENU

Q IMAGE QUALITY

IMAGE SIZE

GAIN UP

BASIC SETTINGS

R

QSlide your fi nger up and down on the sensor.

R Touch the OK button.

LUsing on-screen buttons

(e.g. during playback pg. 18)

A

B

To select an on-screen button appearing on the left side, touch the portion of the sensor next to the on-screen button.

To select an on-screen button appearing at the bottom of the screen, touch the touch sensor under the on-screen button you want to select.

NOTE

The cursor moves from 1 to 9 on the index screen when you slide your fi nger on the touch sensor.

1 2 3

4 5 6

7 8 9

CAUTION

Touch the sensors with your fi nger. The sensors do not function if you touch them with your fi nger nail or with gloves on.

6

Make a backup of important recorded data

JVC will not be responsible for any lost data. It is recommended to copy your important recorded data to a DVD or other recording media for storage. ( pg. 22)

Make a trial recording

Before the actual recording of important data, make a trial recording and play back the recorded data to check that the video and sound have been recorded correctly.

Reset the camera if it does not operate correctly

This camera uses a microcomputer. Factors such as background noise and interference can prevent it from operating correctly. If the camera does not operate correctly, reset the camera. ( pg. 33)

Precautions on handling batteries

Be sure to use the JVC BN-VF808U/VF815U/VF823U battery packs.

If the camera is subjected to electrostatic discharge, turn the power off before using it again.

If a malfunction occurs, stop using the camera immediately and consult your local JVC dealer

If a problem occurs when using the microSD card, take the card together with the camera for repair. If one of them is not included, the cause of the malfunction cannot be diagnosed, and the camera cannot be repaired.

Recorded data may be erased while the camera is being repaired or inspected. Back up all data before requesting repairs or inspections.

Because the camera may be used for demonstration in a shop, the demonstration mode is set to [ON] by default

To deactivate the demonstration mode, set [DEMO MODE] to [OFF] from the MENU.

When connecting the camera to other devices using an optional DV cable, make sure to follow the procedure below. Connecting the cable incorrectly may cause malfunctions to the camera and/or other devices.*

Connect the DV cable fi rst to the device, and then to the camera.

Connect the DV cable (plugs) correctly according to the shape of the DV connector. * This does not apply to the GZ-MG360/330 model.

ENGLISH

7

Contents



GETTING STARTED



Accessories ............................................

9

How to Use the Everio Dock..........................

9

Index ......................................................

10

Indications on LCD Monitor.................

12

Necessary Settings before Use...........

14

Charging the Battery Pack...........................

14

Date/Time Setting........................................

14

Other Settings.......................................

15

Attaching the Shoulder Strap.......................

15

Checking the Remaining Battery Power ......

15

Preparing the Remote Control.....................

15

RECORDING



Recording Files.....................................

16

Video Recording..........................................

16

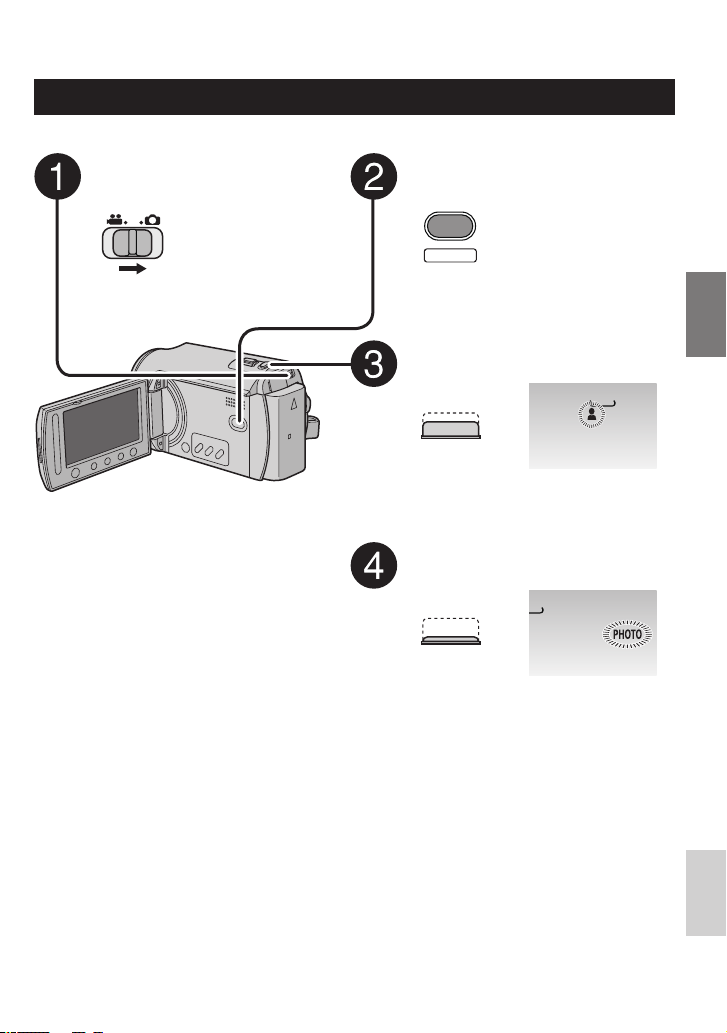

Still Image Recording ..................................

17

Playing Back Files ................................

18

Video/Still Image Playback ..........................

18

Watching Images on TV........................

19

EDITING/COPYING



Managing Files......................................

20

Deleting/Protecting Files..............................

20

Copying Files ........................................

22

Using a DVD Burner to Copy Files from the



Camera ......................................................

22

PC OPERATION



File Backup on a Windows® PC ...........

23

System Requirements .................................

23

Software Installation ....................................

24

Connecting the Camera to the PC...............

25

File Backup on the PC.................................

26

File Backup on the PC without Using



Software .....................................................

27

Other Windows® PC Operations ..........

28

Getting More Use of the Software ...............

28

Folder Structure and Extensions ........

29

File Backup on a Macintosh® ..............

30

System Requirements .................................

30

Connecting the Camera to the Macintosh ...

30

File Backup on the Macintosh .....................

31

Customer Support Information ...........

32

FURTHER INFORMATION



Troubleshooting....................................

33

Cleaning ................................................

34

Warning Indications .............................

35

Specifications .......................................

36

Cautions ................................................

38

Terms.....................................................

40

Read these INSTRUCTIONS to enjoy your CAMCORDER.

For more details on the operations, refer to the GUIDEBOOK in the supplied CD-ROM.

In order to view the GUIDEBOOK, Adobe® Acrobat® ReaderTM or Adobe® Reader® must be installed.

Adobe® Reader® can be loaded from Adobe’s web site: http://www.adobe.com/

NOTE

Select your desired language with a single click.

The model name is indicated on the bottom of your camcorder.

8

GETTING STARTED

Accessories

ENGLISH

Everio Dock*

AC Adapter

Battery Pack

Battery Pack

CU-VC4U ( below)

AP-V18U/14U

BN-VF815U

BN-VF808U





(GZ-MG467)

(GZ-MG360/335/330)

Audio/Video Cable

USB Cable

Shoulder Strap

CD-ROM



( pg. 22, 25 and 30)

( pg. 15)

( pg. 24, 28)







NOTE







Make sure to use the

Remote Control Unit

Lithium Battery

Core Filter

provided cables for

connections. Do not use

RM-V751U ( pg. 15)

CR2025





any other cables.



Pre-installed in the











remote control unit.





How to Use the Everio Dock*

You can connect cables to the connectors of the Everio dock. The connection is completed when you place the camera on the dock.



S-Video Jack

Camera Connection Terminal

AV Jack





DC Jack

DV Jack

USB Jack

NOTE

For the connection using the S-Video jack and DV jack, an optional S-Video cable and DV cable are needed. Consult the JVC Service Center described on the sheet included in the package for details on its availability. Make sure to connect the end with a core filter to the camera. The core filter reduces interference.

The S-Video cable (optional) enables even higher playback quality on TV. ( pg. 19)

* GZ-MG360/330 model does not include the Everio dock.

Attaching the Core Filter to the USB Cable

Connect the end of the cable with the core filter to the camera.

Release the stopper.

3 cm (1-3/16")

Wind once.

9

JVC GZ-MG360U, GZ-MG335U, GZ-MG330U, GZ-MG467U User Manual

Index

NOTES

The LCD monitor can rotate 270°.

Power-linked operation

You can also turn the camera on/off by opening/closing the LCD monitor during the recording mode.

Be careful not to cover 4, 5, 7 and 9 during shooting.

10

Camera



Remote Control







! Touch Sensor ( pg. 6)



Q Infrared Beam Transmitting Window

# OK (DISP) Button [OK/DISP] ( pg. 13)



R ZOOM (T/W) Buttons

$ Menu Button [MENU]



Zoom In/Out

% Power Switch [POWER]



S Up Button

(You can turn off the camera by pressing



Rotate Button (counterclockwise)

and holding this button.)



( pg. 18)

& Speaker



T Skip Backward Button

( Playback/Recording Mode Switching



U Left Button

Button [SELECT PLAY/REC] ( pg. 16)



V Back Button

) Access/Charge Lamp [ACCESS/CHARGE]



W PLAYLIST Button

(Blinks when you access files or charge



X START/STOP Button

the battery. Do not turn off the power or



Y SNAPSHOT Button ( pg. 17)

remove the battery pack/AC adapter while



Z INFO Button ( pg. 15)

accessing fi les.)



a Skip Forward Button

* Direct DVD Button [DIRECT DVD]



b PLAY/PAUSE Button

( pg. 22)/Title Button [TITLE]



c Right Button

+ Direct Backup Button [DIRECT BACK



d Next Button

UP] ( pg. 26)/Information Button [INFO]



e Down Button

( pg. 15)



Rotate Button (clockwise) ( pg. 18)

, Auto/Manual Mode Button [AUTO/



f INDEX Button

MANUAL]



g DISP Button

-Video Recording Start/Stop Button [START/ STOP] ( pg. 16)

.Still Image Shooting Button [SNAPSHOT] ( pg. 17)

/Zoom Lever [W 7,T ,] Speaker Volume Control [–VOL+]

( pg. 18)

0 Mode Switch [!, #]

1 DC Jack [DC] ( pg. 14)

2 Audio/Video Jack [AV]

3 USB (Universal Serial Bus) Jack [ 2 ] ( pg. 22, 25 and 30)

4 LED Light

5Camera Sensor

Remote Sensor ( pg. 15)

6 Lens Cover

7 Lens

8 Lens Cover Switch [ =, > ]

9 Stereo Microphone : microSD Card Slot ; Stud Hole

< Tripod Mounting Socket

= Battery Release Button [BATT.] ( pg. 14) > Battery Pack Mount ( pg. 14)

? Grip Strap

ENGLISH

11

Indications on LCD Monitor

During both Video and Still Image



During Video Recording Only

Recording















1/250

JAN. 20. 2007 4:55PM

!Selected Operation Mode Indicator 4 : Auto Mode

3 : Manual Mode

#Effect Mode Indicator

$ Tele Macro Mode Indicator

% LED Light Indicator

& Program AE Mode Indicator

( AV/S-Video Input Jack Indicator*

) Zoom Indicator

* Selected Medium Indicator

+Drop Detection Indicator (Appears when [DROP DETECTION] is set to [OFF].)

, Approximate Zoom Ratio

- White Balance Indicator

. Manual Focus Adjustment Indicator / Battery Indicator ( pg. 35)

0 Date/Time ( pg. 14)

1 Brightness Control Indicator

2 Backlight Compensation Indicator

3 Iris Lock Indicator

4 ± : Exposure Adjustment Indicator

. : Metering Area Control Indicator 5 Shutter Speed

*This does not apply to the GZ-MG360/330 model.

[ 5 h 5 6 m ] 0 : 0 4 : 0 1

! Mode Indicator

# Counter

$ Picture Quality: B (ULTRA FINE),

C (FINE), D (NORMAL), E (ECONOMY)

%Remaining Time ( pg. 16, 37)

& MREC: (Appears during recording.) ( pg. 16)

MQ: (Appears during record-standby mode.)

(Digital Image Stabilizer (DIS) Indicator (Appears when [DIS] is set to [OFF].)

) Wind Cut Indicator

* Event Indicator

During Still Image Recording Only

640 FINE [ 9 9 9 9 ]

10PHOTO

! Mode Indicator

# Focus Indicator

$ Image Size

%Picture Quality: FINE (fi ne) or STD (standard)

& Remaining Number of Shots ( pg. 37) ( Shooting Indicator ( pg. 17)

) Shutter Mode Indicator

* Self-Timer Recording Indicator

12

During Video Playback



During Still Image Playback



































































































































































































9X: -5650: 0 1







1 0 1 - 0 0 9 8

























































































































































































































































































































































JAN. 20. 2007

4:55PM

JAN. 20. 2007

4:55PM

! Mode Indicator ( pg. 18)

# Effect Mode Indicator

$ Wipe/Fader Effect Indicator

% 6 : Playlist Playback Indicator (Appears when playing back a playlist.)

¨ª : Event Search Playback Indicator (Appears when playing back a video fi le from the event search.)

¨© : Date Search Playback Indicator (Appears when playing back a video fi le from the date search.)

& Picture Quality: B (ULTRA FINE),

C (FINE), D (NORMAL), E (ECONOMY) ( Counter

)Playback Mode ( pg. 18)

F :Playback Q :Pause

K :Forward Search

J :Reverse Search

G :Forward Slow-Motion

E :Reverse Slow-Motion

(The number on the left shows speed.) * Selected Medium Indicator

+Drop Detection Indicator (Appears when [DROP DETECTION] is set to [OFF].)

, Volume Level Indicator

- Battery Indicator ( pg. 35)

. Date/Time ( pg. 14)

! Mode Indicator ( pg. 18)

# Effect Mode Indicator

$ Folder/File Number

% Slide Show Playback Indicator ( pg. 18) & Selected Medium Indicator

(Drop Detection Indicator (Appears when [DROP DETECTION] is set to [OFF].)

) Battery Indicator ( pg. 35) * Date/Time ( pg. 14)

Switching indication modes on LCD monitor

Each time you touch the DISP button, indications on LSD monitor switch as shown below;

In recording mode:

All indications/Indications for selected functions

In playback mode:

All indications/Only date and time/ No indications

On-screen function guide

The on-screen function guide is displayed at the bottom of the screen during menu display, etc.

EFFECT

WIPE/FADER

MONITOR OFF

BASIC SETTINGS

ADD EFFECT TO IMAGE

ENGLISH

13

Necessary Settings before Use

Charging the Battery Pack

1 Close the LCD monitor to turn off the camera.

2 Attach the battery pack.

Slide the battery pack down until it locks in place.

Bottom of the Camera

BATT.

3 Connect the AC adapter.

DC Jack

AC Adapter

To AC Outlet (110V to 240V)

NOTES

You can also use the camera with just the AC adapter.

Please do not pull or bend the AC adapter plug and cable. This may damage the AC adapter.

Date/Time Setting

1 Open the LCD monitor to turn on the camera.

2 When [SET DATE/TIME!] appears, select [YES] within 10 seconds.

SET DATE/TIME!

YES

NO

If you do not select within 10 seconds, the screen disappears. In such case, press and hold the POWER button and turn the camera on again.

3 Set the date and time.

DATE

TIME

JAN 31 2007 11 07 AM

Repeat this step to input the month, day, year, hour and minute.

You can also connect the AC adapter using the Everio dock connector.* ( pg. 9)

*GZ-MG360/330 model does not include the Everio dock.

The charge lamp blinks to indicate charging has started.

When the lamp goes out, charging is

fi nished. Unplug the AC adapter from the AC outlet and disconnect the AC adapter from the camera

LTo detach the battery pack

Slide and hold BATT. ( step 2), then remove the battery pack.

LTo check the remaining battery power

See page 15.

4 Touch the OK button to finish.

LTo change the date and time

1)Touch the MENU button.

2)Select [BASIC SETTINGS], and then [CLOCK ADJUST].

3)Set the date and time.

LTo return to the previous screen

Select @.

LTo quit the screen

Touch the MENU button.

14

Other Settings

Attaching the Shoulder Strap



Buckle

Eyelet

Strap Guide



ENGLISH

Checking the Remaining Battery

Power

Preparation:

Attach the battery pack.

Press the SELECT PLAY/REC button to select recording mode.

For ! mode:

Press the INFO button twice or the INFO button and then select ;.

For # mode:

Press the INFO button.

DIRECT

BATTERY CONDITION

BACK UP





MAX TIME

min

INFO

QUIT

LTo return to the normal screen

Press the INFO button again.

NOTES

If “COMMUNICATING ERROR” appears, there may be a problem with your battery. In such a case, consult your nearest JVC dealer.

The recordable time display should only be used as a guide. It is displayed in 10 minute units.

Preparing the Remote Control

A battery is included inside the remote control at the time of purchase.

Remove the insulation sheet before use.

Beam Effective Area

Remote Sensor

Effective distance: 5 m (16 ft)

NOTE

The transmitted beam may not be effective or may cause incorrect operation when the remote sensor is directly exposed to sunlight or powerful lighting.

To Reinsert the Battery

Pull out the battery holder by pressing the lock tab.

Lock Tab

Lithium Battery (CR2025)

15

Recording Files

Video Recording

Preparation: Open the LCD monitor to turn on the camera.

Slide the mode switch to select

Press the SELECT PLAY/REC

! (video) mode.

button to select recording mode.

SELECT

PLAY/REC

Press the START/STOP button to start recording.

[ 5 h 5 6 m ]

REC

LTo stop recording

Press the START/STOP button again.

LTo view the video you just recorded

Select A during pause.

During the preview, you can delete the video by selecting *.

LTo change the picture quality

Approximate remaining time for recording appears.

LTo change the aspect ratio of the image (16:9/4:3)

Change the settings in [SELECT ASPECT RATIO] from the MENU.

Change the settings in [VIDEO QUALITY] from the MENU.

NOTES

Video fi les are given the names MOV001.MOD to MOV009.MOD, MOV00A.MOD to MOV00F.MOD, and MOV010.MOD in order of recording.

After recording video for 12 consecutive hours, recording stops automatically.

A new fi le will be created for every 4 GB of continuous shooting.

This camera records video in MPEG2 format compliant with SD-VIDEO format. This camera is not compatible with other digital video formats.

16

Still Image Recording

Preparation: Open the LCD monitor to turn on the camera.

Slide the mode switch to select

# (still image) mode.

LTo view the image you just recorded

Select A after shooting.

During the preview, you can delete the image by selecting *.

LTo change the picture quality

Change the settings in [IMAGE QUALITY] from the MENU.

LTo record still images continuously

Set to [CONTINUOUS SHOOTING] in [SHUTTER MODE] from the MENU.

LTo change the image size

Press the SELECT PLAY/REC button to select recording mode.

SELECT

PLAY/REC

Press and hold the SNAPSHOT button halfway.

640 FINE [

The ? indicator becomes green when the captured image is focused.

Press the SNAPSHOT button fully to take the photo/picture.

40 FINE [ 9 9 9 9 ]

Change the settings in [IMAGE SIZE] from the MENU.

ENGLISH

17

Playing Back Files

Video/Still Image Playback

1 Slide the mode switch to select ! (video) or # (still image) mode.

2 Press the SELECT PLAY/REC button to select playback mode.

SELECT

PLAY/REC

The index screen for videos appears.

LOperations during Video Playback

! N : Return to the first scene of the fi le

# O : Go to the fi rst scene of the next fi le $ L : Return to the index screen

%J : Reverse search (during playback) E : Frame-by-frame playback in reverse

direction (during pause)* & F : Playback

Q : Pause

(K : Forward search (during playback) G : Frame-by-frame playback in forward

direction (during pause)*

*Slow playback starts when you keep touching the sensor button under E / G for a while.

3 Select the desired file.

VIDEO PLAYBACK

LTo watch on TV

See page 19.

LTo check the file information

Press the INFO button when playback is paused.

LTo adjust the sound volume of videos

Turn down the

Turn up the

volume

volume

LOperations during Still Image Playback

!( : Rotate 90 degrees counterclockwise P : Change playback order of slide show

in reverse direction

#) : Rotate 90 degrees clockwise

F : Change playback order of slide show

in forward direction

$ L : Return to the index screen % N : Display the previous fi le & F : Start/end the slide show ( O : Display the next fi le

18

Watching Images on TV

Preparation:

Set [SWITCH TO ANALOG I/O] to [OUTPUT] from the MENU. (Factory-preset = [OUTPUT])*

Turn off all units.

* This does not apply to the GZ-MG360/330 model.

AV Jack

DC Jack

AV Cable

ENGLISH





































































































To AC Outlet

















AC Adapter

AV Input Jack















NOTES

You can also connect the cables using the Everio dock connectors. The S-Video cable (optional) enables even higher playback quality. ( pg. 9) When other devices such as a DVD burner are connected to the Everio dock, turn the power of these devices off.*

This camera is designed to be used with NTSC-type color television signals. It cannot be used with a television of a different standard.

* GZ-MG360/330 model does not include the Everio dock.

1

2

3

4

Turn on the camera and the TV.

Set the TV to its VIDEO mode.

(Only when connecting the camera to the VCR/DVD recorder)

Turn on the VCR/DVD recorder, and set it to its AUX input mode.

Start playback on the camera. ( pg. 18)

16:9 TV

4:3 TV

LIf the aspect ratio of the image is not correct as shown on the right

Change the settings in [SELECT TV TYPE] from the MENU.

LTo display the camera’s on-screen display on TV

Set [DISPLAY ON TV] to [ON] from the MENU.

19

Managing Files

CAUTION

Do not remove the recording medium or perform any other operation (such as turning off the power) while accessing fi les. Also,

be sure to use the provided AC adapter, as the data on the recording medium may be corrupted if the battery becomes exhausted during operation. If the data on the recording medium becomes corrupted, format the recording medium.

Deleting/Protecting Files

Protected fi les cannot be deleted. To delete them, release the protection fi rst.

Once fi les are deleted, they cannot be restored. Check fi les before deleting.

Preparation:

Slide the mode switch to select ! or # mode.

Press the SELECT PLAY/REC button to select playback mode.

The following screen illustrations are examples when performing [DELETE].

1 Touch the MENU button.

You can skip directly to the delete menu by selecting *.

2 Select [DELETE] or [PROTECT/ CANCEL].

DELETE

PROTECT/CANCEL

PLAYBACK PLAYLIST

PLAYBACK MPG FILE

DELETE RECORDED FILES

Deleting/Protecting the Currently

Displayed File

After performing steps 1-2

3 Select [CURRENT].

DELETE

CURRENT

FILE SELECT

DELETE ALL

SELECT FILES ONE BY ONE

QUIT

4 When [DELETE?] or [PROTECT?] appears, select [YES].

DELETE?

Remaining files:

YES

NO

You can select the previous or next file by selecting { or }.

Deleting/Protecting Files

After performing steps 1-2

3 Select [FILE SELECT].

4 Select the desired file.

VIDEO DELETE

QUIT

The * (deletion) or x (protection) mark appears on the fi le. To select other fi les, repeat this step.

If you slide the zoom lever towards T, the preview screen is displayed. Sliding the zoom lever towards W returns to the index screen.

5 Select [QUIT].

20

6 Select [EXECUTE AND QUIT] (when performing [DELETE]) or [YES] (when performing [PROTECT]).

DELETE?

EXECUTE AND QUIT

QUIT

RETURN

Deleting/Protecting All Files

After performing steps 1-2 ( pg. 20)

3 Select [DELETE ALL] or [PROTECT ALL].

4 When [DELETE ALL?] or [PROTECT ALL?] appears, select [YES].

DELETE ALL?

(EXCEPT PROTECTED FILE)

YES

NO

LTo quit the screen

Select [QUIT].

LTo release protection

Select the protected fi le in step 4 (“Deleting/Protecting Files” pg. 20).

LTo release protection of all files

1)In step 3, select [CANCEL ALL].

2)Select [YES].

ENGLISH

21

Copying Files

Types of Copying and Connectable Device

The Camera

You can copy video/still images from HDD onto microSD card or from microSD card to HDD with this camera alone.

DVD Burner (CU-VD3)

You can copy video fi les recorded on this camera onto DVD discs. ( right column)

PC

You can copy video/still image fi les on this camera onto your PC. ( pg. 23 to 32)

Using a DVD Burner to Copy Files from the Camera

Supported discs: 12cm DVD-R, DVD-RW

Regarding DVD-R discs, only unused DVD- R discs can be used. Regarding DVD-RW discs, used DVD-RW discs can also be used, but they need to be formatted before recording. Formatting a disc deletes all content recorded on the disc up until that time.

Dual-layer discs cannot be used.

Regarding fi nalization after copying

The disc is automatically fi nalized so that it can be played on other devices. After

fi nalizing, the disc is a play-only disc, so no more fi les can be added.

NOTE

When using the optional DVD Burner, read its instructions.

Connection with a DVD Burner

Preparation:

Close the LCD monitor to turn off the camera.

To AC Outlet

AC Adapter

USB Jack

DC Jack



USB Jack

DVD Burner

USB Cable

NOTE

Use the USB cable that came with the DVD burner.

Copying Video Files that Have Never Been Copied

Files that have never been copied to the DVD discs are automatically selected and copied.

1 Open the LCD monitor to turn on the camera.

2 Press the DIRECT DVD button.

3 Select [EXECUTE].

The DVD disc begins to be created. When [COMPLETED] appears, touch the OK button.

When [COMPLETED. CHANGE DISC] appears, change the disc. The second DVD disc begins to be created.

To cancel the DVD creation, select [CANCEL].

LTo quit the screen

1)Select [QUIT].

2)When [QUIT?] appears, select [YES].

22

PC OPERATION

File Backup on a Windows® PC

Install the software that came with the camera to your PC.

You can back up your fi les on your PC with a simple one-touch operation, edit your fi les on your PC, and also create discs.

Even if you do not install the software, you can still back up your fi les on your PC. ( pg. 27)

System Requirements

OS:

Either one of the following OS should be preinstalled (32-bit):

Windows® XP Home Edition (SP2), Windows® XP Professional (SP2), Windows VistaTM Home Basic, Windows VistaTM Home Premium

CPU:

Intel® Pentium® 4, at least 1.6 GHz (at least 2.2 GHz recommended) Intel® Pentium® M, at least 1.4 GHz Intel® CoreTM Duo, at least 1.5 GHz

RAM:

[XP] At least 256 MB (For creating DVD Video by PowerCinema, 1 GB or more)

[Vista] At least 1 GB (2 GB or more recommended)

Free hard disk space:

At least 550 MB for installation

For creating DVD Video, at least 10 GB recommended

For creating VCD, at least 1 GB recommended

USB port:

USB 2.0 port

Display:

Must be capable of displaying at least

1024 x 768 (XGA) in high color 16 bit or higher (1280 x 1024 (SXGA) or higher is recommended)

Miscellaneous:

Internet Explorer 5.5 or later DirectX 9.0 or later

Supported media:

DVD-Video: DVD-R/-RW, DVD+R/+RW DVD-VR: DVD-RW, DVD-RAM DVD+VR: DVD+RW

VideoCD: CD-R/RW

For the compatible DVD burners, refer to CyberLink web site: http://www.cyberlink.com/english/products/ powerproducer/3/comp_dvd_drives.jsp

NOTE

The system requirements information is not a guarantee that the provided software will

work on all personal computers meeting those requirements.

ENGLISH

23

File Backup on a Windows® PC (Continued)

Software Installation

Please read the “JVC SOFTWARE LICENCE AGREEMENT” in the CD-ROM instruction before you install software.

The following software is included in the CDROM that came with your camera.

CyberLink DVD Solution

Comprehensive application software that consists of the following three kinds of software.

PowerCinema NE for Everio

The main fi le managing software. You can perform various operations such as fi le backup, playback, and DVD authoring.

Q





























T

R

























U

























V





































































W























































S



























X





















































Y





































QYou can perform detailed settings for each item.

R Select a function on the right, and the explanation of function is displayed.

SDisplays operating procedure for each function. (internet connection is required)

T Plays back video fi les on the PC

U Plays back still image fi les on the PC V Copies/edits fi les on the PC

W Burns fi le that are backed up on the PC onto a DVD

X Creates a DVD-Video

YBacks up camera fi les onto the PC ( pg. 26)

PowerProducer 3 NE

Allows you to create discs. Automatically starts from an operation in PowerCinema NE for Everio.

PowerDirector 5 NE Express

Allows you to edit fi les on your PC. Automatically starts from an operation in PowerCinema NE for Everio.

Digital Photo Navigator 1.5

Allows you to change the format of still image fi les backed up on your PC.

You can find the latest information on the provided software program at CyberLink’s world wide web server at http://www2.cli. co.jp/products/ne/

Preparation:

Quit any other software you are using. (Check that there are no other application icons on the status bar.)

1 Load the provided CD-ROM into the PC.

After a moment, the [SETUP] screen appears. If the [SETUP] screen does not appear, double-click the CD-ROM icon in [My Computer].

2 Click [Easy Installation].

If you want to specify the type of software to install or the installation destination folder etc., select [Custom Installation]. Follow the instructions on the screen to install the software.

3 Click [Yes].

24
