GY-HM200SP Additional Functions
The input initial time for count down is reflected to
the score overlay by pressing the [Set] button. (The
Reflects numerical values such as points scored and
You can input numbers and letters. It is not
[Overlay Settings]
Press the [DISPLAY] button to switch the display
screen type if the score overlay is hard to see due
to the display screen.
①
②
④
③
④
②
③
Possession
Team Name
Points Scored
Period
Remain Time
Team Name
Games Won
Points Scored
Set
Possession
Team Name
Points Scored
Period
Remain Time
TOL
Down & Distance
①
④
②
③
Please read this together with the “INSTRUCTIONS”.

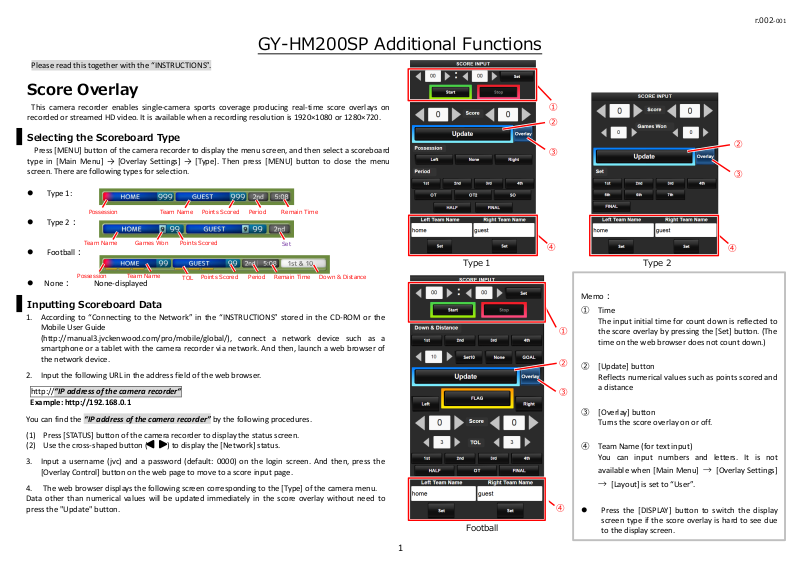

Score Overlay
This camera recorder enables single-camera sports coverage producing real-time score overlays on
recorded or streamed HD video. It is available when a recording resolution is 1920×1080 or 1280×720.
Selecting the Scoreboard Type
Press [MENU] button of the camera recorder to display the menu screen, and then select a scoreboard
type in [Main Menu] → [Overlay Settings] → [Type]. Then press [MENU] button to close the menu
screen. There are following types for selection.
Type 1:
Type 2：
r.002-001
Football：
None： None-displayed
Inputting Scoreboard Data
1. According to “Connecting to the Network” in the “INSTRUCTIONS” stored in the CD-ROM or the
Mobile User Guide
(http://manual3.jvckenwood.com/pro/mobile/global/), connect a network device such as a
smartphone or a tablet with the camera recorder via network. And then, launch a web browser of
the network device.
2. Input the following URL in the address field of the web browser.
http://“IP address of the camera recorder“
Example: http://192.168.0.1
You can find the “IP address of the camera recorder” by the following procedures.
(1) Press [STATUS] button of the camera recorder to display the status screen.
(2) Use the cross-shaped button ( ) to display the [Network] status.
3. Input a username (jvc) and a password (default: 0000) on the login screen. And then, press the
[Overlay Control] button on the web page to move to a score input page.
4. The web browser displays the following screen corresponding to the [Type] of the camera menu.
Data other than numerical values will be updated immediately in the score overlay without need to
press the "Update" button.
Type 1 Type 2
Memo：
① Time
time on the web browser does not count down.)
② [Update] button
a distance
③ [Overlay] button
Turns the score overlay on or off.
④ Team Name (for text input)
available when [Main Menu] →
→ [Layout] is set to “User”.
Football
1
Team Setting
Error Message
Status
Action
Failed To Read File From
Media!
SDP Generator.
No User Layout Exists.
SDP Generator.
Failed To Write File To The
Camera!
the camera.
dealers in your area.
Import Error!
occurred.
dealers in your area.
Team names can be displayed by one of the following way:
Inputting a text with a web browser.
Importing an image including a team name and logo
Inputting a text with a web browser
You can input the team name from a web browser after [Main Menu] → [Overlay Settings] →
[Layout] is set to “Default”.
Importing an image including a team name and logo
You can overlay a team logo image as a team name instead of inputting text by importing a data file to
the camera. This data file (SDP file) can be generated by the PC/Mac application named SDP Generator,
and the maximum number of team names that it is possible to store is 30. Please refer to the following
GY-HM200SP URL about SDP Generator.
http://pro.jvc.com/prof/attributes/features.jsp?model_id=MDL102399
Caution:
Please confirm content and font licenses in the team image before use.
r.002-001
4. In order to apply the imported SDP file to the overlay, set [Main Menu] → [Overlay Settings] →
[Layout] to “User”. If a valid SDP file has not imported to the camera, the “No User Layout Exists.”
message appears. In this case, please import a valid SDP file in [Import User Layout].
5. You can select team name images in [Main Menu] → [Overlay Settings] → [Left Team] (*) or [Right
Team] (*).
* This menu item names can be changed by the setting of SDP Generator.
1. Copy a SDP file generated by SDP Generator into a root folder of a SDHC/SDXC card. A SDP file name
length must be 8 or less. Also the filename extension must be “.sdp”.
Example: “overlay1.sdp”
2. Insert this SDHC/SDXC card to slot A or B, then select [Main Menu] → [Overlay Settings] →
[Import User Layout]. The existing SDP data in the camera will be overwritten after importing.
3. The SDP files in a root folder of slot A and B are displayed (max. 8 files each). Select a SDP file you
want to import and execute “Import”. Import takes about 20 – 30 seconds.
If it failed, the following message is displayed.
2
Loading...
