DIGITAL VIDEO CAMERA
GR-DVX78A GR-DVX49A GR-DVX48A GR-DVX78EA GR-DVX48EA GR-DVX78SH GR-DVX48SH
Please visit our Homepage on the World Wide Web and answer our Consumer Survey
(in English only):
http://www.jvc-victor.co.jp/english/index-e.html
The camcorder illustrations appearing in this instruction manual are of the GR-DVX78.
INSTRUCTIONS
|
ENGLISH |
|
|
CONTENTS |
|
AUTOMATIC |
6 |
DEMONSTRATION |
|
|
|
GETTING STARTED |
7 – 16 |
|
|
VIDEO RECORDING & |
17 – 24 |
PLAYBACK |
|
VIDEO RECORDING ............. |
18 – 20 |
VIDEO PLAYBACK ............... |
21 – 24 |
|
|
DIGITAL STILL CAMERA (D.S.C.) |
|
RECORDING & |
25 – 36 |
PLAYBACK |
|
D.S.C. RECORDING .............. |
26 – 27 |
D.S.C. PLAYBACK ................ |
28 – 36 |
|
|
ADVANCED |
37 – 75 |
FEATURES |
|
USING MENUS FOR |
|
DETAILED ADJUSTMENT ...... |
38 – 44 |
FOR RECORDING ................ |
45 – 56 |
DUBBING ......................... |
57 – 61 |
USING THE REMOTE |
|
CONTROL UNIT ................ |
62 – 73 |
SYSTEM CONNECTIONS ........ |
74 – 75 |
|
|
REFERENCES |
76 – 99 |
DETAILS ................................... |
77 |
TROUBLESHOOTING ............ |
78 – 83 |
USER MAINTENANCE ................... |
84 |
INDEX ............................. |
85 – 92 |
CAUTIONS ........................ |
93 – 95 |
TERMS ............................ |
96 – 97 |
SPECIFICATIONS ................. |
98 – 99 |
|
|
The D.S.C. (Digital Still Camera) features are available on GR-DVX78.
LYT0776-001A EN
2EN
Dear Customer,
Thank you for purchasing this digital video camera. Before use, please read the safety information and precautions contained in the following pages to ensure safe use of this product.
Using This Instruction Manual
•All major sections and subsections are listed in the Table Of Contents on the cover page. •Notes appear after most subsections. Be sure to read these as well.
•Basic and advanced features/operation are separated for easier reference.
It is recommended that you . . .
.... refer to the Index (Z pgs. 85 – 92) and familiarise yourself with button locations, etc. before use.
.... read thoroughly the Safety Precautions and Safety Instructions that follow. They contain extremely important information regarding the safe use of this product.
You are recommended to carefully read the cautions on pages 93 through 95 before use.
SAFETY PRECAUTIONS
WARNING:
TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
CAUTIONS:
nIf you notice smoke or a peculiar smell coming from the camcorder or AC Adapter, shut it down and unplug it immediately. Continue using the camcorder or AC Adapter under these conditions could lead to fire or electric shock. Contact your JVC dealer. Do not attempt to repair the malfunction yourself.
nTo prevent shock, do not open the cabinet. No user serviceable parts inside. Refer servicing to qualified personnel.
nWhen you are not using the AC Adapter for a long period of time, it is recommended that you disconnect the power cord from AC outlet.
NOTES:
cThe rating plate (serial number plate) and safety caution are on the bottom and/or the back of the main unit.
cThe rating information and safety caution of the AC Adapter are on its upper and lower sides.
CAUTION:
To avoid electric shock or damage to
the unit, first firmly
insert the small end of the power cord into
the AC Adapter until
it is no longer wobbly, and then plug the larger end of the power cord into an AC outlet.
EN3
CAUTIONS:
cThis camcorder is designed to be used with PAL-type colour television signals. It cannot be used for playback with a television of a different standard. However, live recording and LCD monitor/viewfinder playback are possible anywhere.
cUse the JVC BN-V507U/V514U battery packs and, to recharge them or to supply power to the camcorder from an AC outlet, use the provided multi-voltage AC Adapter and Power Cord. (An appropriate conversion adapter may be necessary to accommodate different designs of AC outlets in different countries.)
When the equipment is installed in a cabinet or on a shelf, make sure that it has sufficient space on all sides to allow for ventilation (10 cm or more on both sides, on top and at the rear).
Do not block the ventilation holes.
(If the ventilation holes are blocked by a newspaper, or cloth etc. the heat may not be able to get out.)
No naked flame sources, such as lighted candles, should be placed on the apparatus.
When discarding batteries, environmental problems must be considered and the local rules or laws governing the disposal of these batteries must be followed strictly.
The apparatus shall not be exposed to dripping or splashing.
Do not use this equipment in a bathroom or places with water.
Also do not place any containers filled with water or liquids (such as cosmetics or medicines, flower vases, potted plants, cups etc.) on top of this unit.
(If water or liquid is allowed to enter this equipment, fire or electric shock may be caused.)
4EN
SAFETY PRECAUTIONS
Do not point the lens or the viewfinder directly into the sun. This can cause eye injuries, as well as lead to the malfunctioning of internal circuitry. There is also a risk of fire or electric shock.
CAUTION!
The following notes concern possible physical damage to the camcorder and to the user.
When carrying, be sure to hold the camcorder firmly in your hand, with the grip strap securely around your wrist. Carrying or holding the camcorder by the viewfinder and/or the LCD monitor can result in dropping the unit, or in a malfunction.
Take care not to get your finger caught in the cassette holder cover. Do not let children operate the camcorder, as they are particularly susceptible to this type of injury.
Do not use a tripod on unsteady or unlevel surfaces. It could tip over, causing serious damage to the camcorder.
CAUTION!
Connecting cables (Audio/Video, S-Video, etc.) to the camcorder and leaving it on top of the TV is not recommended, as tripping on the cables will cause the camcorder to fall, resulting in damage.
nThis camcorder is designed exclusively for the digital video cassette, SD Memory Card and MultiMediaCard. Only cassettes marked “” and memory cards* marked “” or “” can be used with this unit.
Before recording an important scene . . .
.... make sure you only use cassettes with the Mini DV mark |
. |
|
.... make sure you only use memory cards* with the mark |
or |
. |
.... remember that this camcorder is not compatible with other digital video formats.
.... remember that this camcorder is intended for private consumer use only. Any commercial use without proper permission is prohibited. (Even if you record an event such as a show, performance or exhibition for personal enjoyment, it is strongly recommended that you obtain permission beforehand.)
*Memory cards can be used with GR-DVX78 only.
EN5
PROVIDED ACCESSORIES
• AC Adapter |
• Remote Control Unit |
AP-V10A, AP-V10EA |
RM-V717U |
or AP-V10ED |
|
•Power Cord |
•Core Filter |
|
(GR-DVX49/DVX48 |
|
only) |
|
(for optional S-Video |
|
cable) Z pg. 6 for |
|
attachment |
• Battery Pack |
• AAA (R03) Battery x 2 |
BN-V507U |
(for remote control unit) |
• Memory Card |
• CD-ROM |
8 MB (GR-DVX78 |
|
only) |
|
(Already inserted in |
|
the camcorder) |
|
•Editing Cable GR-DVX78:
Both plugs have 1 ring around the pin.
GR-DVX49/DVX48:
One plug has 3 rings around the pin and the other has 1 ring around the pin.
•PC Connection Cable (GR-DVX49/DVX48 only)
• Audio/Video Cable |
• Jack box |
(ø3.5 mini-plug to RCA plug) |
GR-DVX78: |
|
CU-V506 |
GR-DVX49/DVX48:
CU-V505
•USB Cable (GR-DVX78 only)
NOTE:
In order to maintain optimum performance of the camcorder, provided cables may be equipped with one or more core filter. If a cable has only one core filter, the end that is closest to the filter should be connected to the camcorder.
6EN
How To Attach The Core Filter (GR-DVX49/DVX48 only) (for optional S-Video cable)
Attach the Core Filter (if provided with your model Z pg. 5) to an optional cable. The Core Filter reduces interference.
1 |
2 |
3 cm |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
Stopper |
|
|
Wind once |
Release the |
Run the cable through the Core Filter, leaving approx. |
stoppers on both |
3 cm of cable between the cable plug and the Core |
ends of the Core |
Filter. Wind the cable once around the outside of the |
Filter. |
Core Filter as shown in the illustration. |
|
•Wind the cable so that it is not slack. |
|
NOTE: |
|
Take care not to damage the cable. |
3
Close the Core Filter until it clicks shut.
n When connecting cables, attach the end with the Core Filter to the camcorder.
AUTOMATIC DEMONSTRATION
Automatic Demonstration takes place when “DEMO MODE” is set to “ON” (factorypreset).
nAvailable when the Power Switch is set to “” or “” and no cassette is in the camcorder.
nPerforming any operation during the demonstration stops the demonstration temporarily. If no operation is performed for more than 1 minute after that, the demonstration will resume.
n“DEMO MODE” remains “ON” even if the camcorder power is turned off.
nTo cancel Automatic Demonstration:
1.Set the Power Switch to “” while pressing down the Lock Button located on the switch and press the MENU Wheel in. The Menu Screen appears.
2.Rotate the MENU Wheel to select “ SYSTEM” and press it. The SYSTEM Menu appears.
3.Rotate the MENU Wheel to select “DEMO MODE” and press it. The Sub Menu appears.
4.Rotate the MENU Wheel to select “OFF” and press it.
5.Rotate the MENU Wheel to select “RETURN”, and press it twice. The normal screen appears.
MENU Wheel
Sub Menu
DEMO MODE – OF F
ON
GR-DVX78 only
Power Switch
Lock Button
F |
|
LP |
A |
||
FO Y |
|
GETTING STARTED |
EN7 |
GETTING STARTED |
|
CONTENTS |
|
Power ................................................................ |
8 – 9 |
Grip Adjustment ........................................................ |
10 |
Viewfinder Adjustment ................................................ |
10 |
Tripod Mounting ........................................................ |
10 |
Date/Time Settings .................................................... |
11 |
Loading/Unloading A Cassette ....................................... |
12 |
Recording Mode Setting ............................................... |
13 |
Loading A Memory Card (GR-DVX78 only) ......................... |
14 |
Picture Quality Mode Setting (GR-DVX78 only) .................... |
15 |
Image Size Mode Setting (GR-DVX78 only) ........................ |
15 |
Operation Mode ........................................................ |
16 |
8ENGETTINGSTARTED(cont.)
Power
CHARGE Lamp
This camcorder’s 2-way power supply system lets you choose the most appropriate source of power. Do not use provided power supply units with other equipment.
Power Switch
CHARGING THE BATTERY PACK
1
BATT. RELEASE
Switch
2
Battery pack
To DC IN connector
AC Adapter
4 3
Open the cover.
5 To AC outlet
Battery pack |
Charging time |
|
|
BN-V507U |
approx. 1 hr. 30 min. |
|
|
BN-V514U (optional) |
approx. 2 hr. 45 min. |
|
|
1 Insert the terminal end 1 of the battery pack into the battery pack mount, then firmly push the end 2 of the battery pack in the direction of the arrow until it locks into place as shown in the illustration.
2 Set the Power Switch to “OFF”. Connect the AC Adapter to the camcorder 3, then connect the Power Cord to the AC Adapter 4.
3 Plug the AC Adapter into an AC outlet 5.
The CHARGE lamp on the camcorder blinks to indicate charging has started.
4 When the CHARGE lamp stops blinking but stays lit, charging is finished. Unplug the AC Adapter from the AC outlet. Disconnect the AC Adapter from the camcorder.
To Detach The Battery Pack . . .
.... slide BATT. RELEASE and detach it.
NOTES:
cDuring charging, the camcorder cannot be operated.
cCharging is not possible if the wrong type of battery is used.
cWhen charging the battery pack for the first time or after a long storage period, the CHARGE lamp may not light. In this case, remove the battery pack from the camcorder, then try charging again.
cIf the battery operation time remains extremely short even after having been fully charged, the battery is worn out and needs to be replaced. Please purchase a new one.
cUsing the optional AA-V50 AC Power Adapter/Charger, you can charge the BN-V507U/V514U battery pack without the camcorder. However, it cannot be used as an AC adapter.
For other notes, Z pg. 77
ATTENTION:
Before detaching the power source, make sure that the camcorder’s power is turned off. Failure to do so can result in a camcorder malfunction.
NOTES:
cRecording time is reduced significantly under the following conditions:
•Zoom or Record-Standby mode is engaged repeatedly.
•The LCD monitor is used repeatedly.
cBefore extended use, it is recommended that you prepare enough battery packs to cover 3 times the planned shooting time.
EN9
USING THE BATTERY PACK
Perform step 1 of “CHARGING THE BATTERY PACK” (Z pg. 8).
Approximate recording time
Battery pack |
LCD monitor off/ |
LCD monitor on/ |
|
|
Viewfinder on |
Viewfinder off |
|
|
|
|
|
|
||
|
|
|
|
|
BN-V507U |
GR-DVX78 : 1 hr. |
GR-DVX78 : 50 min. |
|
|
|
||||
GR-DVX49/DVX48 : 1 hr. 10 min. |
GR-DVX49/DVX48 : 1 hr. |
|
|
|
|
|
|
|
|
BN-V514U |
GR-DVX78 : 2 hr. 10 min. |
GR-DVX78 : 1 hr. 50 min. |
|
|
(optional) |
GR-DVX49/DVX48 : 2 hr. 25 min. |
GR-DVX49/DVX48 : 2 hr. |
|
|
|
|
|
|
|
BN-V840U |
GR-DVX78 : 6 hr. 10 min. |
GR-DVX78 : 5 hr. 15 min. |
|
|
(optional) |
GR-DVX49/DVX48 : 6 hr. 50 min. |
GR-DVX49/DVX48 : 5 hr. 50 min. |
|
|
BN-V856U |
GR-DVX78 : 9 hr. |
GR-DVX78 : 7 hr. 40 min. |
|
|
(optional) |
GR-DVX49/DVX48 : 10 hr. |
GR-DVX49/DVX48 : 8 hr. 20 min. |
|
|
|
|
|
|
|
INFORMATION:
The extended-use battery pack kit is a set composed of a battery pack and AC Power Adapter/Charger: VU-V840 KIT: BN-V840U battery pack & AA-V15 AC Power Adapter/Charger
VU-V856 KIT: BN-V856U battery pack & AA-V80 AC Power Adapter/Charger Read the kit's instruction manual before using.
Neither BN-V840U nor BN-V856U can be charged by using the AC Adapter provided with this camcorder. Use only the AA-V15 AC Power Adapter/Charger for BN-V840U battery pack and only AA-V80 AC Power Adapter/Charger for BN-V856U battery pack. Also, by using the optional JVC VC-VBN856U DC Cord, it will be possible to connect BN-V840U or BN-V856U battery packs to the camcorder and supply power directly to the camcorder.
To DC IN |
USING AC POWER |
connector |
Use the AC Adapter (connect as shown in the illustration). |
AC Adapter |
NOTES: |
|
c The provided AC Adapter features automatic voltage |
|
selection in the AC range from 110 V to 240 V. |
|
c For other notes, Z pg. 77. |
|
Open the cover. |
To AC outlet |
|
Lithium-ion is vulnerable in colder temperatures.
About Batteries
DANGER! Do not attempt to take the batteries apart, or expose them to flame or excessive heat, as it may cause a fire or explosion.
WARNING! Do not allow the battery or its terminals to come in contact with metals, as this can result in a short circuit and possibly start a fire.
The Benefits Of Lithium-Ion Batteries
Lithium-ion battery packs are small but have a large power capacity. However, when one is exposed to cold temperatures (below 10°C), its usage time becomes shorter and it may cease to function. If this happens, place the battery pack in your pocket or other warm, protected place for a short time, then re-attach it to the camcorder. As long as the battery pack itself is not cold, it should not affect performance.
(If you’re using a heating pad, make sure the battery pack does not come in direct contact with it.)
10ENGETTINGSTARTED(cont.)
|
Lock |
Power Switch |
Button |
F |
|
LP |
A |
||
FO Y |
|
PAUSE
Dioptre Adjustment
Control
Grip Adjustment
1 Separate the Velcro strip.
2 Pass your right hand through the loop and grasp the grip.
3 Adjust your thumb and fingers through the grip, to easily operate the Recording Start/Stop button and Power Switch and Power Zoom Lever. Be sure to fasten the Velcro strip to your preference.
Viewfinder Adjustment
1 Set the Power Switch to “” or “” while pressing down the Lock Button located on the switch.
2 Pull out the viewfinder fully.
3 Turn the Dioptre Adjustment Control until the indications in the viewfinder are clearly focused.
Tripod Mounting
1 Align the screw on the tripod with the camera’s mounting socket. Then tighten the screw. •Some tripods are not equipped with studs.
CAUTION:
When attaching the camera to a tripod, extend its legs to stabilise the camcorder. It is not advised to use small sized tripods. This may cause damage to the unit by falling over.
Power lamp
Power Switch
Lock Button
F |
|
LP |
A |
||
FO Y |
|
MENU Wheel
Display
|
W IPE / FADER |
|
|
OF F |
||
|
PROGRAM AE |
|
|
|
|
|
|
|
|
|
|
||
|
W. BALANCE |
|
|
|
|
|
|
CAMERA |
|
|
|
|
|
|
MANUAL |
|
|
|
|
|
|
|
|
|
|
||
|
SYSTEM |
|
|
|
|
|
|
D I SPLAY |
|
|
|
|
|
|
DSC |
|
|
|
GR-DVX78 only |
|
|
|
|
|
|
|
|
|
END |
|
|
|
||
|
|
|
|
|
||
|
|
|
|
– |
|
DISPLAY Menu |
|
|
|
|
|||
|
ON SCREEN |
|
LCD / TV |
|||
|
DATE / T I ME |
|
– |
AUTO |
||
|
T I ME CODE |
|
– |
OF F |
||
|
CLOCK |
|
|
2 0 . 12 . 01 |
|
|
|
ADJ . |
|
|
17 : 3 0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
RETURN |
|
|
|
|
|
|
CLOCK |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 0 |
. 12 |
. 01 |
|
|
|
ADJ . |
|
|
|
17 |
: 3 0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
EN11
Date/Time Settings
The date/time is recorded onto the tape at all times, but its display can be turned on or off during playback
(Z pg. 42, 43).
1 Set the Power Switch to “” while pressing down the Lock Button located on the switch, then open the LCD monitor fully or pull out the viewfinder fully. The power lamp lights and the camcorder is turned on.
2 Press the MENU Wheel in. The Menu Screen appears.
3 Rotate the MENU Wheel to select “ DISPLAY”. Press it and the DISPLAY Menu appears.
4 Rotate the MENU Wheel to select “CLOCK ADJ.”. Press it and “day” is highlighted.
Rotate the MENU Wheel to input the day. Press it. Repeat to input the month, year, hour and minute. Rotate the MENU Wheel to select “RETURN”, and press it twice. The Menu Screen closes.
Built-in Clock’s Rechargeable Lithium Battery
To store the date/time in memory, the clock’s rechargeable lithium battery is integrated in the camcorder. While the camcorder is connected to an AC outlet using the AC Power Adapter/Charger, or while the battery pack attached to the camcorder continues to supply power, the clock’s rechargeable lithium battery is always charged. However, if the camcorder is not used for approx. 3 months, the clock’s lithium battery will become discharged and the date/time stored in memory will be lost. When this occurs, first connect the camcorder to an AC outlet using the AC Power Adapter/Charger for over 24 hours to charge the clock’s rechargeable lithium battery. Then perform the date/time setting before using the camcorder.
Note that the camcorder can be used without setting the date/time.
NOTE:
Even if you select “CLOCK ADJ.”, if the parameter is not highlighted the camcorder’s internal clock continues to operate. Once you move the highlight bar to the first date/time parameter (day), the clock stops. When you finish setting the minute and press the MENU Wheel in, the date and time begin operation from the date and time you have just set.
12ENGETTINGSTARTED(cont.)
Cassette holder cover
Cassette holder
Make sure the window side is facing out.
PUSH HERE
OPEN/EJECT
Switch
Erase protection tab*
* To Protect Valuable Recordings . . .
....slide the erase protection tab on the back of the tape in the direction of “SAVE”. This prevents the tape from being recorded over. To record on this tape, slide the tab back to “REC” before loading it.
Be sure to press only the section labeled “PUSH HERE” to close the cassette holder; touching other parts may cause your finger to get caught in the cassette holder, resulting in injury or product damage.
Loading/Unloading A Cassette
The camcorder needs to be powered up to load or eject a cassette.
1 Slide down and hold OPEN/EJECT in the direction of the arrow then pull the cassette holder cover open until it locks. The cassette holder opens automatically.
•Do not touch internal components.
2 Insert or remove a tape and press “PUSH HERE” to close the cassette holder.
•Once the cassette holder is closed, it recedes automatically. Wait until it recedes completely before closing the cassette holder cover.
•When the battery’s charge is low, you may not be able to close the cassette holder cover. Do not apply force. Replace the battery with a fully charged one before continuing.
3 Close the cassette holder cover firmly until it locks into place.
Approximate recording time
Tape |
|
Recording mode |
|
|
|
|
|
SP |
|
LP |
|
|
|
||
30 min. |
30 min. |
|
45 min. |
|
|
|
|
60 min. |
60 min. |
|
90 min. |
|
|
|
|
80 min. |
80 min. |
|
120 min. |
|
|
|
|
NOTES:
cIt takes a few seconds for the cassette holder to open. Do not apply force.
cIf you wait a few seconds and the cassette holder does not open, close the cassette holder cover and try again. If the cassette holder still does not open, turn the camcorder off then on again.
cIf the tape does not load properly, open the cassette holder cover fully and remove the cassette. A few minutes later, insert it again.
cWhen the camcorder is suddenly moved from a cold place to a warm environment, wait a short time before opening the cassette holder cover.
cClosing the cassette holder cover before the cassette holder comes out may cause damage to the camcorder.
cEven when the camcorder is switched off, a cassette can be loaded or unloaded. After the cassette holder is closed with the camcorder switched off, however, it may not recede. It is recommended to turn the power on before loading or unloading.
cWhen resuming recording, once you open the cassette holder cover a blank portion will be recorded on the tape or a previously recorded scene will be erased (recorded over) regardless of whether the cassette holder came out or not. See page 20 for information about recording from the middle of a tape.
Power lamp
Power Switch
Lock Button
F |
|
LP |
A |
||
FO Y |
|
MENU Wheel
Display
CAMERA Menu
REC MODE – SP
LP
Sub Menu
GR-DVX78 only
EN13
Recording Mode Setting
Set the tape recording mode depending on your preference.
1 Set the Power Switch to “” while pressing down the Lock Button located on the switch, then open the LCD monitor fully or pull out the viewfinder fully. The power lamp lights and the camcorder is turned on.
2 Press the MENU Wheel in. The Menu Screen appears.
3 Rotate the MENU Wheel to select “ CAMERA” and press it. The CAMERA Menu appears.
4 Rotate The MENU Wheel to select “REC MODE” and press it. The Sub Menu appears. Select “SP” or “LP” by rotating the MENU Wheel and press it. Rotate the MENU Wheel to select “RETURN”, and press it twice. The Menu Screen closes.
•Audio Dubbing (Z pg. 66) and Insert Editing (Z pg. 68) are impossible on a tape recorded in the LP mode.
•“LP” (Long Play) is more economical, providing 1.5 times the recording time.
NOTES:
cIf the recording mode is switched during recording, the playback picture will be blurred at the switching point.
cIt is recommended that tapes recorded in the LP mode on this camcorder be played back on this camcorder.
cDuring playback of a tape recorded on another camcorder, blocks of noise may appear or there may be momentary pauses in the sound.
14ENGETTINGSTARTED(cont.)
CARD OPEN
Card Cover
Clipped edge |
Label |
Loading A Memory Card (GR-DVX78 only)
The provided memory card is already inserted in the camcorder when you receive the camcorder.
1 Make sure the camcorder’s power is off.
2 Slide CARD OPEN to open the card cover.
3 Insert the memory card firmly clipped edge first. •Do not touch the terminal on the reverse side of
the label.
4 To close the card cover, push it until you hear a click.
To Unload A Memory Card . . .
.... in step 3 push the memory card, then the memory card comes out of the camcorder automatically. Pull it out and close the card cover.
NOTES:
cBe sure to use only SD Memory Cards marked “” or MultiMediaCards marked “”.
cSome brands of memory cards are not compatible with this camcorder. Before purchasing a memory card, consult its manufacturer or dealer.
cBefore using a new memory card, it is necessary to FORMAT the card. Z pg. 36
Memory card
ATTENTION:
Do not insert/remove the memory card while the camcorder is turned on, as this may cause the memory card to be corrupted or cause the camcorder to become unable to recognise whether or not the card is installed.
EN15
Power Switch
Lock Button
F |
|
LP |
A |
||
FO Y |
|
MENU Wheel
Display
DSC Menu
|
QUAL I TY |
– |
F I NE |
|
|||
|
S I ZE |
|
STANDARD |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
I MAGE SIZE – VGA
XGA
NOTES:
cThe number of storable images depends on the selected picture quality as well as the composition of the subjects in the images and the type of memory card being used.
cIn the XGA mode, images are shot in 720 x 576 pixels and they are converted and stored in the XGA mode file size (1024 x 768 pixels).
cThe number of storable images in the below chart is approximate value for a memory card with 12 sound effects pre-stored.
Approximate Number of Storable Images
Picture Quality Mode Setting (GR-DVX78 only)
The Picture Quality mode can be selected to best match your needs. Two Picture Quality modes are available: FINE and STANDARD (in order of quality).
1 Set the Power Switch to “” while pressing down the Lock Button located on the switch, then open the LCD monitor fully or pull out the viewfinder fully. The power lamp lights and the camcorder is turned on.
2 Press the MENU Wheel in. The Menu Screen appears.
3 Rotate the MENU Wheel to select “ DSC” and press it. The DSC Menu appears.
4 Rotate the MENU Wheel to select “QUALITY” and press it. The Sub Menu appears. Rotate the MENU Wheel to select the desired mode and press it.
Rotate the MENU Wheel to select “RETURN”, and press it twice. The Menu Screen closes.
Image Size Mode Setting (GR-DVX78 only)
The Image Size mode can be selected to best match your needs. Two Image Size modes are available: XGA (1024 x 768 pixels) and VGA (640 x 480 pixels) (in order of quality).
1 Set the Power Switch to “” while pressing down the Lock Button located on the switch, then open the LCD monitor fully or pull out the viewfinder fully. The power lamp lights and the camcorder is turned on.
2 Press the MENU Wheel in. The Menu Screen appears.
3 Rotate the MENU Wheel to select “ DSC” and press it. The DSC Menu appears.
4 Rotate the MENU Wheel to select “IMAGE SIZE” and press it. The Sub Menu appears. Rotate the MENU Wheel to select the desired mode and press it. Rotate the MENU Wheel to select “RETURN”, and press it twice. The Menu Screen closes.
Image Size/Picture |
|
Memory Card |
|
* Provided with GR-DVX78 only |
||
|
|
** Optional |
||||
|
|
|
|
|||
Quality Mode |
8MB* |
16MB** |
32MB** |
64MB** |
||
|
||||||
|
|
|||||
XGA FINE |
20 |
40 |
90 |
190 |
|
|
|
|
|
|
|
|
|
XGA STANDARD |
60 |
140 |
290 |
600 |
|
|
|
|
|
|
|
|
|
VGA FINE |
40 |
100 |
210 |
430 |
|
|
|
|
|
|
|
|
|
VGA STANDARD |
130 |
290 |
610 |
1230 |
|
|
|
|
|
|
|
|
16ENGETTINGSTARTED(cont.)
To turn on the camcorder, set the Power Switch to any operation mode except “OFF” while pressing down the Lock Button located on the switch.
VIDEO/DSC Switch (GR-DVX78 only)
Power Switch
Lock Button
F |
|
LP |
A |
||
FO Y |
|
Power lamp
Operation Mode
Choose the appropriate operation mode according to your preference using the Power Switch and VIDEO/DSC Switch (GR-DVX78 only).
Power Switch Position
(Manual):
Allows you to set various recording functions using the Menus. If you want more creative capabilities than Full Auto recording, try this mode.
(Full Auto):
Allows you to record using NO special effects or manual adjustments. Suitable for standard recording.
OFF:
Allows you to switch off the camcorder.
:
•Allows you to play back a recording on the tape. •Allows you to transfer a still image recorded on the
tape to a computer (GR-DVX49/DVX48 only). •Allows you to display a still image stored in the
memory card or to transfer a still image stored in the memory card to a computer (GR-DVX78 only).
When the Power Switch is set to “”,
“ ” appears. When set to “” or “”, there is no indication.
When the Power Switch is set to “” or “” and the VIDEO/DSC Switch is set to “”, the selected image size (“VGA” or
“XGA”) is displayed. When set to “VIDEO”, there is no indication. (GR-DVX78 only)
VGA
VIDEO/DSC Switch Position (GR-DVX78 only)
VIDEO:
Allows you to record on a tape or play back a tape. If “REC SELECT” is set to “ / ” in the DSC Menu Screen, still images are also recorded in the memory card.
:
Allows you to record a still image or display a still image stored in the memory card.
VIDEO RECORDING & PLAYBACK |
EN17 |
VIDEO RECORDING |
|
& |
|
PLAYBACK |
|
CONTENTS |
|
VIDEO RECORDING ............................................ |
18 – 20 |
Basic Recording ......................................................... |
18 |
Journalistic Shooting ................................................... |
19 |
Self-Recording .......................................................... |
19 |
Zooming ................................................................ |
19 |
Time Code ............................................................... |
20 |
Recording From The Middle Of A Tape ............................... |
20 |
VIDEO PLAYBACK .............................................. |
21 – 24 |
Normal Playback ....................................................... |
21 |
Still Playback ........................................................... |
21 |
Shuttle Search .......................................................... |
21 |
Frame-By-Frame Playback ............................................ |
21 |
Connections ...................................................... |
22 – 23 |
Blank Search ............................................................ |
24 |
18ENVIDEORECORDING
Power Lamp
VIDEO/DSC Switch |
|
|
(GR-DVX78 only) |
Power Switch |
|
|
Lock Button |
|
|
|
LP |
|
F A |
|
|
FO Y |
|
|
Recording Start/ |
|
|
Stop Button |
|
MENU Wheel |
|
|
Display |
|
|
25min |
Tape remaining |
|
|
time indicator |
(Approximate)
min 90 min 89 min 3 min
(Now calculating)
0 min 1 min 2 min
(Blinking) (Blinking) (Blinking)
Tally lamp (Lights while recording is in progress)
BR I GHT
180° 90°
Basic Recording
NOTE:
You should already have performed the procedures listed below. If not, do so before continuing.
cPower (Z pg. 8)
cGrip Adjustment (Z pg. 10)
cViewfinder Adjustment (Z pg. 10)
cLoad A Cassette (Z pg. 12)
cRecording Mode Setting (Z pg. 13)
1 Set the VIDEO/DSC Switch to “VIDEO” (GR-DVX78 only), then set the Power Switch to
“” or “” while pressing down the Lock Button located on the switch.
Shooting while using the LCD monitor: Make sure the viewfinder is pushed back in. Open the LCD monitor fully.
Shooting while using the viewfinder: Make sure the LCD monitor is closed and locked. Pull out the viewfinder fully.
•Be sure to pull out the viewfinder until you hear a click, otherwise it may be pushed back in during use.
•The Power lamp lights and the camcorder enters the Record-Standby mode. “PAUSE” is displayed.
Press the Recording Start/Stop Button. “ |
” |
2 appears while recording is in progress. |
|
To Stop Recording . . .
.... press the Recording Start/Stop Button. The camcorder re-enters the Record-Standby mode.
To Adjust The Brightness Of The Display
.... rotate the MENU Wheel until the bright level indicator on the display moves and the appropriate brightness is reached.
•It is also possible to adjust the brightness of the viewfinder.
NOTES:
cThe image will not appear simultaneously on the LCD monitor and the viewfinder.
cIf the Record-Standby mode continues for 5 minutes, the camcorder’s power shuts off automatically. To turn the camcorder on again, push back and pull out the viewfinder again or close and re-open the LCD monitor.
cWhen a blank portion is left between recorded scenes on the tape, the time code is interrupted and errors may occur when editing the tape. To avoid this, refer to “Recording From The Middle Of A Tape” (Z pg. 20).
cTo turn the tally lamp or beep sounds off, Z pg. 38,
40.
For other notes, Z pg. 77
EN19
Journalistic Shooting
In some situations, different shooting angles may provide more dramatic results. Hold the camcorder in the desired position and tilt the LCD monitor in the most convenient direction. It can rotate 270° (90° downward, 180° upward).
Self-Recording
You can shoot yourself while viewing your own image in the LCD monitor. Open the LCD monitor and tilt it upward 180° so that it faces forward, then point the lens toward yourself and start recording.
Zoom in (T: Telephoto)
1 xW |
T |
|
|
|
|
1 0 xW |
T |
|
|
|
|
20xW |
T |
|
|
|
|
40xW |
T |
Zoom out (W: Wide angle)
Zoom display
1 0 x WT
Digital zoom zone
10X (optical) zoom zone
Approximate zoom ratio
FEATURE: Zooming
PURPOSE:
To produce the zoom in/out effect, or an instantaneous change in image magnification.
OPERATION:
Zoom In
Slide the Power Zoom Lever towards “T”.
Zoom Out
Slide the Power Zoom Lever towards “W”.
nThe further you slide the Power Zoom Lever, the quicker the zoom action.
NOTES:
cFocusing may become unstable during Zooming. In this case, set the zoom while in Record-Standby, lock the focus by using the manual focus
(Z pg. 51), then zoom in or out in Record mode.
cZooming is possible to a maximum of 200X (GR-DVX78/DVX48)/300X (GR-DVX49), or it can be switched to 10X magnification using the optical zoom (Z pg. 39).
cZoom magnification of over 10X is done through Digital image processing, and is therefore called Digital Zoom.
cDuring Digital zoom, the quality of image may suffer.
cDigital zoom cannot be used in the following cases:
•When digital image processing, such as Picture Wipe/Dissolve (Z pg. 48, 49) or Video Echo (Z pg. 47), is activated.
cMacro shooting (as close as approx. 5 cm to the subject) is possible when the Power Zoom Lever is set all the way to “W”. Also see “TELE MACRO” in the Menu Screen on page 39.
Power Zoom
Lever
20ENVIDEORECORDING(cont.)
Time Code
During recording, a time code is recorded on the tape. This code is to confirm the location of the recorded scene on the tape during playback.
If recording starts from a blank portion, the time code begins counting from “00:00:00” (minute:second:frame). If recording starts from the end of a previously recorded scene, the time code continues from the last time code number.
To perform Random Assemble Editing (Z pg. 69 – 73), time code is necessary. If during recording a blank portion is left partway through the tape, the time code is interrupted. When recording is resumed, the time code starts counting up again from “00:00:00”. This means the camcorder may record the same time codes as those existing in a previously recorded scene. To prevent this, perform “Recording From The Middle of A Tape” below in the following cases;
•When shooting again after playing back a recorded tape.
•When power shuts off during shooting. •When a tape is removed and re-inserted during
shooting.
•When shooting using a partially recorded tape. •When shooting on a blank portion located
partway through the tape.
•When shooting again after shooting a scene then opening/closing the cassette holder cover.
Display
|
|
|
|
|
Frames are not displayed |
|
|
|
|
|
during recording. |
|
|
|
|
|
Minutes |
|
|
|
|
||
|
|
|
|
|
Seconds |
|
|
|
|
|
|
|
|
|
|
|
Frames |
|
|
|
|
|
|
1 |
2 : 3 |
4 : 2 |
4 |
|
(25 frames = 1 second) |
Recording From The Middle Of A Tape
1.Play back a tape or use Blank Search (Z pg. 24) to find the spot at which you want to start recording, then engage the Still Playback mode (Z pg. 21).
2.Set the Power Switch to “” or “” while pressing down the Lock Button located on the switch, then start recording.
NOTES:
cThe time code cannot be reset.
cDuring fast-forwarding and rewinding, the time code indication does not move smoothly.
cThe time code is displayed only when “TIME CODE” is set to “ON” (Z pg. 41, 42).
When a blank portion is recorded on a tape
Time code |
|
|
Time code |
Time code |
|
|||
00:00:00 |
|
|
05:43:21 |
00:00:00 |
|
|||
|
|
|
|
|
|
|
|
|
Tape |
|
Already recorded scene |
|
Blank |
|
|
Newly recorded scene |
|
|
|
|
|
|
|
|||
Shooting start point |
Shooting stop point |
Shooting start point |
||||||
Proper recording |
|
|
|
|
|
|
||
Time code |
|
|
Time code |
Time code |
|
|||
00:00:00 |
|
|
05:43:21 |
05:44:00 |
|
|||
|
|
|
|
|
|
|
||
Tape |
|
Already recorded scene |
|
New scene |
|
Latest scene |
||
|
|
|
|
|
|
|
|
|
Shooting start point |
Shooting start point |
Shooting start point |
VIDEOPLAYBACK
Play/Pause Button (4/6)
Rewind Button (2)
Fast-Forward Button (3)
Stop Button (5)
VIDEO/DSC Switch (GR-DVX78 only)
Power Switch
EN21
Normal Playback
1 Load a tape (Z pg. 12).
Set the VIDEO/DSC Switch to “VIDEO” (GR-DVX78 |
|
2 only), then set the Power Switch to “ |
” while |
pressing down the Lock Button located on the switch. To start playback, press 4/6.
•To stop playback, press 5.
•Press 2to rewind, or 3to fast-forward the tape during Stop mode.
Lock Button
|
F |
|
F |
Y |
O |
A |
|
L |
|
P |
Power Zoom |
Speaker |
Lever (Speaker |
|
Volume Control) |
|
(VOL.) |
|
To Control The Speaker Volume . . .
.... slide the Power Zoom Lever (Speaker Volume Control) (VOL.) towards “+” to turn up the volume, or towards “–” to turn down the volume.
NOTES:
cIf Stop mode continues for 5 minutes when power is supplied
from a battery, the camcorder shuts off automatically. To turn on again, set the Power Switch to “OFF”, then to “”.
cThe playback picture can be viewed in the LCD monitor, viewfinder or on a connected TV (Z pg. 22, 23).
cYou can also view the playback picture on the LCD monitor with it flipped over and pushed against the camera body.
cLCD monitor/viewfinder indications:
•When power is supplied from a battery: the “” battery pack remaining power indicator is displayed. When power is supplied from an AC outlet: “” does not appear.
•During Stop mode, none of the indications are displayed.
cWhen a cable is connected to the AV connector, the sound is not heard from the speaker.
Still Playback: Pauses during playback.
1)Press 4/6during playback.
2)To resume normal playback, press 4/6again.
cIf still playback continues for more than about 3 minutes, the camcorder’s Stop mode is automatically engaged. After 5 minutes in the Stop mode, the camcorder’s power is automatically turned off.
cWhen 4/6is pressed, the image may not pause immediately while the camcorder stabilises the still image.
Shuttle Search: Allows high-speed search in either direction.
1)Press 3for forward or 2for reverse search during playback.
2)To resume normal playback, press 4/6.
cDuring playback, press and hold 2or 3. The search continues as long as you hold the button. Once you release it, normal playback resumes.
cA slight mosaic effect appears on screen during Shuttle Search. This is not a malfunction.
Frame-By-Frame Playback: Allows frame-by-frame search.
1)Engage Still Playback.
2)Rotate MENU Wheel towards “+” for forward Frame-By-Frame Playback, or towards “–” for reverse
Frame-By-Frame Playback during Still Playback. n To resume normal playback, press 4/6.
c You can also use the provided remote control for Frame-By-Frame Playback (Z pg. 64).
Slow-Motion Playback, Playback Zoom and Playback Special Effects
Available only with the remote control (provided) (Z pg. 64, 65).
22ENVIDEOPLAYBACK(cont.)
Connections
These are some basic types of connections. When making the connections, refer also to your VCR and TV instruction manuals.
A. Connection to a TV or VCR equipped only with A/V input (RCA type) connectors
|
To TV or VCR |
|
TV |
White to AUDIO L IN** |
To |
|
Red to |
AV IN/OUT*** or |
|
AUDIO R IN** |
AV OUT*** |
VCR
Audio/Video cable
Yellow to VIDEO IN [mini-plug to RCA plug] (provided)
* When connecting the cables, open this cover. |
|
|
|
|
|
Connector cover* |
**The Audio cable is not required for watching still images only.
***AV IN/OUT:GR-DVX78, AV OUT:GR-DVX49/DVX48
B.Connection to a TV or VCR equipped with an S-VIDEO IN and A/V input connectors
To AV IN/OUT*** or AV OUT***
|
Audio/Video cable |
|
[mini-plug to RCA plug] |
To TV or VCR |
(provided) |
White to AUDIO L IN** |
|
|
|
TV |
Connector cover* |
||
Red to AUDIO R IN** |
|||
|
|
||
|
Yellow: Not connected |
Jack box**** |
|
VCR |
|
||
|
|
To S-VIDEO IN |
S-Video cable |
To S-VIDEO |
|
(optional) |
|
*When connecting the cables, open this cover.
**The Audio cable is not required for watching still images only.
***AV IN/OUT:GR-DVX78, AV OUT:GR-DVX49/DVX48
****Refer to “Jack Box Attachment” (Z pg. 23).
EN23
1 Make sure all units are turned off.
2 Connect the camcorder to a TV or VCR as shown in the illustration (Z pg. 22).
If using a VCR . . . go to step 3. If not . . . go to step 4.
3
4 Turn on the camcorder, the VCR and the TV.
5 Set the VCR to its AUX input mode, and set the TV to its VIDEO mode.
To choose whether or not the following displays appear on the connected TV . . .
•Date/Time
.... set “DATE/TIME” to “AUTO”, “ON” or “OFF” in the Menu Screen (Z pg. 42, 43).
•Time Code
.... set “TIME CODE” to “ON” or “OFF” in the Menu Screen (Z pg. 42, 43).
•Playback Sound Mode, Tape Speed And Tape Running Displays for video playback
Or
Type of file, Directory/File Names and Image Number/Total Number of Images for D.S.C. Playback (GR-DVX78 only)
.... set “ON SCREEN” to “LCD” or “LCD/TV” in the Menu Screen (Z pg. 42, 43).
Or, press DISPLAY on the remote control.
NOTES:
cIt is recommended to use the AC Adapter as the power supply instead of the battery pack
(Z pg. 9).
cTo monitor the picture and sound from the
camcorder without inserting a tape or memory
card*, set the camcorder’s Power Switch to “” or “”, then set your TV to the appropriate input mode.
*GR-DVX78 only
cMake sure you adjust the TV sound volume to its minimum level to avoid a sudden burst of sound when the camcorder is turned on.
cIf you have a TV or speakers that are not specially shielded, do not place the speakers adjacent to the TV as interference will occur in the camcorder playback picture.
cWhile the Audio/Video cable is connected to the AV connector, sound cannot be heard from the speaker.
cIf no image is displayed or no sound is heard from the TV, set “S/AV INPUT” to “OFF” in the Menu Screen (GR-DVX78 only, Z pg. 42).
Jack Box Attachment
Insert the terminal end 1 of the jack box into the jack box mount, then firmly push the end 2 of the jack box in the direction of the arrow until it locks into place as shown in the illustration. To detach the jack box, slide the BATT. RELEASE Switch and
detach it.
1
BATT. RELEASE
2 Switch
24ENVIDEOPLAYBACK(cont.)
Blank Search
Stop Button (5) |
VIDEO/DSC Switch |
|
|
||
|
(GR-DVX78 only) |
|
|
Power Switch |
|
|
Lock Button |
|
|
|
F |
|
|
F |
|
Y |
O |
|
A |
|
|
L |
|
|
P |
FOCUS/BLANK Button
Display
44
BLANK SEARCH
Helps you find where you should start recording in the middle of a tape to avoid time code interruption
(Z pg. 20).
1 Load a tape (Z pg. 12).
|
Set the VIDEO/DSC Switch to “VIDEO” (GR-DVX78 |
|
2 only), then set the Power Switch to “ |
” while |
|
|
pressing down the Lock Button located on the |
|
|
switch. |
|
3 |
|
|
Press FOCUS/BLANK. |
|
|
•“BLANK SEARCH” appears blinking and the |
camcorder automatically starts reverse or forward shuttle search, then stops at the spot which is about 3 seconds of tape before the beginning of the detected blank portion.
To cancel Blank Search midway . . .
.... press 5.
NOTES:
cIn step 3, if the current position is at a blank portion the camcorder searches in the reverse direction, and if the current position is at a recorded portion the camcorder searches in the forward direction.
cBlank Search does not work if “HEAD CLEANING REQUIRED. USE CLEANING CASSETTE” has appeared with the tape.
cIf the beginning or end of the tape is reached during Blank Search, the camcorder stops automatically.
cA blank portion which is shorter than 5 seconds of tape may not be detected.
cThe detected blank portion may be located between recorded scenes. Before you start recording, make sure there is no recorded scene after the blank portion.
DIGITALSTILLCAMERA(D.S.C.)RECORDING&PLAYBACKEN25
DIGITAL STILL CAMERA (D.S.C.)
RECORDING
&
PLAYBACK
The D.S.C. (Digital Still Camera) features are available on GR-DVX78.
CONTENTS |
|
D.S.C. RECORDING ..................................... |
26 – 27 |
Basic Shooting (Snapshot) ...................................... |
26 – 27 |
D.S.C. PLAYBACK ....................................... |
28 – 36 |
Normal Playback (Of Images) ........................................ |
28 |
Auto Playback (Of Images) ........................................... |
28 |
Index Screen ............................................................ |
29 |
Index Playback ......................................................... |
30 |
Jump Playback ......................................................... |
30 |
Protecting Files ......................................................... |
31 |
Deleting Files .................................................... |
32 – 33 |
Setting Print Information (DPOF Setting) ..................... |
34 – 35 |
Initialising A Memory Card ............................................ |
36 |
26END.S.C.RECORDING
VIDEO/DSC
Switch
Power Switch
Lock Button
F |
|
LP |
A |
||
FO Y |
|
SNAPSHOT Button
Display
CAMERA Menu
SNAP MODE – P I N–UP
FRAME
FUL L
MUL T I – 4
MUL T I – 9
Basic Shooting (Snapshot)
You can use your camcorder as a Digital Still Camera for taking snapshots.
NOTE:
You should already have performed the procedures listed below. If not, do so before continuing.
cPower (Z pg. 8)
cGrip Adjustment (Z pg. 10)
cViewfinder Adjustment (Z pg. 10)
cLoading A Memory Card (Z pg. 14)
cPicture Quality/Image Size Mode Setting (Z pg. 15)
SNAPSHOT MODE SELECTION
1 Set the VIDEO/DSC Switch to “”, then set the Power Switch to “” while pressing down the Lock Button located on the switch. Open the LCD monitor fully or pull out the viewfinder fully.
2 Press the MENU Wheel in. The Menu Screen appears.
3 Rotate the MENU Wheel to select “ CAMERA”, then press it. The CAMERA Menu appears.
4 Rotate the MENU Wheel to select “SNAP MODE”, then press it.
5 Rotate the MENU Wheel to select the desired Snapshot mode, then press it. Rotate the MENU Wheel to select “RETURN” and press it twice. The Menu Screen closes.
Image Size mode
Displays the Image Size mode of the stored image. There are 2 modes available: XGA and VGA (Z pg. 15).
Display
SNAPSHOT RECORDING
1 Press SNAPSHOT. appears while the snapshot is being taken.
The image is stored in the memory card. •Regardless of the Power Switch position (“” or
“ ”), Snapshot recording takes place using the selected Snapshot mode.
•To use the flash, Z pg. 54.
VGA |
F I NE |
|
|
Picture Quality mode |
||
|
||||||
|
|
|
|
10 / 100 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Displays the Picture Quality mode of the stored image. There are 2 modes |
|
|
|
|
|
|
available: FINE and STD (Standard) (Z pg. 15). |
Total number of shots
Displays the approximate total number of shots that can be stored, including those already taken. The number increases or decreases depending on the shots stored, the Picture Quality/Image Size mode, etc.
Number of shots taken
Displays the number of images that have already been shot.
Card icon
Appears during shooting and blinks when a memory card is not loaded.
Shooting icon
Appears and blinks during shooting.
PIN-UP
Pin-Up mode*
FRAME Snapshot mode with frame*
FULL Snapshot mode with no frame*
MULTI-4
Multi-Analyzer 4
MULTI-9
Multi-Analyzer 9
*There is the sound effect of a shutter closing.
EN27
To Delete Unwanted Still Images . . .
.... when unwanted still images are stored in the memory card or its memory is full, refer to “Deleting Files” (Z pg. 32) and delete unwanted still images.
To Remove The Shutter Sound . . .
.... when you do not want to hear the shutter sound, set “BEEP” to “OFF” in the Menu Screen (Z pg. 38, 40). The sound is no longer heard from the speaker.
NOTES:
cEven if “MULTI-4” or “MULTI-9” is engaged, Snapshot recording will be performed in the FULL mode during Digital Zoom or Night-Scope (Z pg. 45).
cThe image is stored in the VGA mode regardless of the image size mode setting (Z pg. 15) if “MULTI-4” or “MULTI-9” is engaged.
cIf SNAPSHOT is pressed when “DIS” is set to “ON” (Z pg. 39), the Stabiliser will be disabled.
cIf Snapshot recording is not possible, “ ” blinks when SNAPSHOT is pressed.
cIf Program AE with special effects (Z pg. 46) is engaged, certain modes of Program AE with special effects are disabled during Snapshot recording. In such a case, the icon blinks.
cIf shooting is not performed for approx. 5 minutes when the Power Switch is set to “” or “” and power is supplied from the battery pack, the camcorder shuts off automatically to save power. To perform shooting again, push back and pull out the viewfinder again or close and re-open the LCD monitor.
cThe Motor Drive mode (Z pg. 50) is disabled when the VIDEO/DSC Switch is set to “”.
cWhen a cable is connected to the AV connector, the shutter sound is not heard from the speaker, however it is recorded onto the tape.
cStill images taken are compliant to DCF (Design rules for Camera File systems). They do not have any compatibility with devices which are not compliant to DCF.
cIn the XGA mode, images are shot in 720 x 576 pixels and they are converted and stored in the XGA mode file size (1024 x 768 pixels).
28EN |
D.S.C. PLAYBACK |
Play/Pause Button (4/6) |
Normal Playback (Of Images) |
Rewind Button (2)
Fast-Forward Button (3)
Stop Button (5)
Power Switch
Lock Button
|
F |
|
F |
Y |
O |
|
|
A |
|
L |
|
P |
Images shot with the camcorder are automatically numbered, then stored in numerical order in the memory card. You can view the stored images, one at a time, much like flipping through a photo album.
1 Load a memory card (Z pg. 14).
Set the VIDEO/DSC Switch to “ |
”, then set the |
|
2 Power Switch to “ |
” while pressing down the |
Lock Button. Open the LCD monitor fully or pull out the viewfinder fully.
•A stored image is displayed.
3 Press 3to display the next image. Press 2to display the previous image.
VIDEO/DSC Switch |
|
|
Auto Playback (Of Images) |
|||
[For Normal Playback] |
[For Auto Playback] |
You can run through all the images stored in memory |
||||
To display the next image |
automatically. |
|||||
|
Display |
|
1 Perform steps 1 and 2 above. |
|||
|
|
100-0010 |
|
|||
|
|
|
|
2 Press 4/6to start Auto Playback. |
||
10 |
/ 24 |
10.10.01 |
|
3 |
To end Auto Playback, press 5. |
|
|
|
100-0011 |
|
|||
|
|
|
|
|||
|
|
|
|
|
||
|
|
|
|
NOTES: |
||
|
|
|
|
c Even if you shoot a new image after playing back a |
||
11 |
/ 24 |
10.10.01 |
|
low-numbered one, this will not overwrite an existing |
||
|
|
100-0012 |
|
image, because new images are automatically stored |
||
|
|
|
|
after the last-recorded one. |
||
|
|
|
|
c Images shot in a file size other than VGA/XGA with |
||
|
|
|
|
devices that are compatible with DCF (Design rules for |
||
|
|
|
|
Camera File systems) will be displayed as reduced-size |
||
12 |
/ 24 |
10.10.01 |
|
thumbnail images. These thumbnail images cannot be |
||
|
transferred to a PC. |
|||||
|
|
100-0013 |
|
|||
|
|
|
c Images shot with devices (such as JVC GR-DVX7 or |
|||
|
|
|
|
|||
|
|
|
|
GR-DVX70) that are not compatible with DCF cannot |
||
|
|
|
|
be viewed with this camcorder; “Unsupported |
||
|
|
|
|
file!” will be displayed. |
||
13 |
/ 24 |
10.10.01 |
|
|
|
|
|
Total number of |
|
|
|
||
To display the |
images |
|
|
|
|
|
Displays the total |
Directory and File names |
|||||
previous image |
number of stored |
|||||
Displays the directory and file names (Z pg. 29). |
||||||
|
images. |
|
||||
|
|
|
|
|
||
Image number |
|
Date |
|
|
||
Displays the index |
|
|
|
|||
|
Displays the date when the image was shot (if “DATE/TIME”is |
|||||
number of the image file |
||||||
set to “ON” in the Menu Screen Z pg. 42–43). |
||||||
(Z pg. |
29). |
|
||||
|
|
|
|
EN29
E - CL I P
3 / 4
File (index) number
D . SOUND
1 / 1 2
EXPLOS I ON
Selected sound effect name
Total number of files
To view video clips (Z pg. 61) stored in a memory card . . .
… during normal playback of image, press SELECT (Z pg. 86 and 87, @ SELECT Button) once to engage the video clip mode. “E-CLIP” appears. Then pressing 4/6can allow you to view the video clips in the LCD monitor or viewfinder; video clips cannot be displayed on a connected TV.
•You can look for the desired file using Index Screen (Z below and pg. 30).
To listen to sound effects (Z pg. 56) stored in a memory card . . .
… during normal playback of image, press SELECT (Z pg. 86 and 87, @ SELECT Button) twice to engage the sound effect mode. “D.SOUND” appears. Then pressing D.SOUND PLAY (Z pg. 86 and 87,2 D.SOUND PLAY Button) can allow you to listen to the sound effect.
•You can look for the desired file using Index Screen (Z below and pg. 30).
Index Screen |
|
|
Picture |
||
|
|
Type of file |
|||
|
|
Quality |
|||
Directory and File |
|
Selected file |
|
|
|
|
|
|
|||
names |
|
|
|
|
|
|
|
|
|
|
|
E X I T |
|
I M A G E |
VGA |
|
|
100-DVC00003 |
|
|
|||
1 |
F |
2 |
S |
3 |
S |
4 |
F |
5 |
F |
6 |
F |
Image Size
Index number |
Protect icon |
The files you stored can be displayed together with their index information. Convenient for checking files stored beforehand, the Index Screen also shows the Picture Quality, Image Size mode, directory and file names as well as which files are protected against accidental erasure. To display the Index Screen, Z pg. 30.
IMAGE/E-CLIP/SOUND: Type of File
Displays the type of file of the displayed index screen. There are 3 types available: IMAGE for still images, E-CLIP for video clips (Z pg. 61), SOUND for sound effects (Z pg. 56, 67).
1: Index number
Index numbers are marked from 1. For example, when 10 files are stored (index number: 1 to 10), if three files with index numbers 2, 4 and 6 are deleted from memory, the remaining files are automatically moved up to fill any gaps in the numerical sequence. Therefore, the number of remaining files is 7, and the new index numbers range from 1 to 7.
100-DVC00003: Directory and File names
Shows that the selected file is in a directory called “100” and its file name is “DVC00003”. Each time shooting takes place, a file name is made using a number which is larger by one than the largest number of the file names which are in use. If the file name reaches DVC09999, a new directory will be made and the file name will start again from DVC00001. In the playback screen (Z pg. 28), the directory and only the last four digits of the file name are displayed.
In the Index Screen for sound effects, the name of the selected sound effect is displayed if the name is compatible with ID3TAG ver 1 or 2.
F/S: Picture Quality
Displays the Picture Quality mode of the stored image. There are 2 modes available: FINE and STANDARD (in order of quality) (Z pg. 15). (Appears only when displaying still images.)
VGA/XGA: Image Size
Displays the size of the stored image. There are 2 modes available: VGA and XGA (Z pg. 15). (Appears only when displaying still images.)

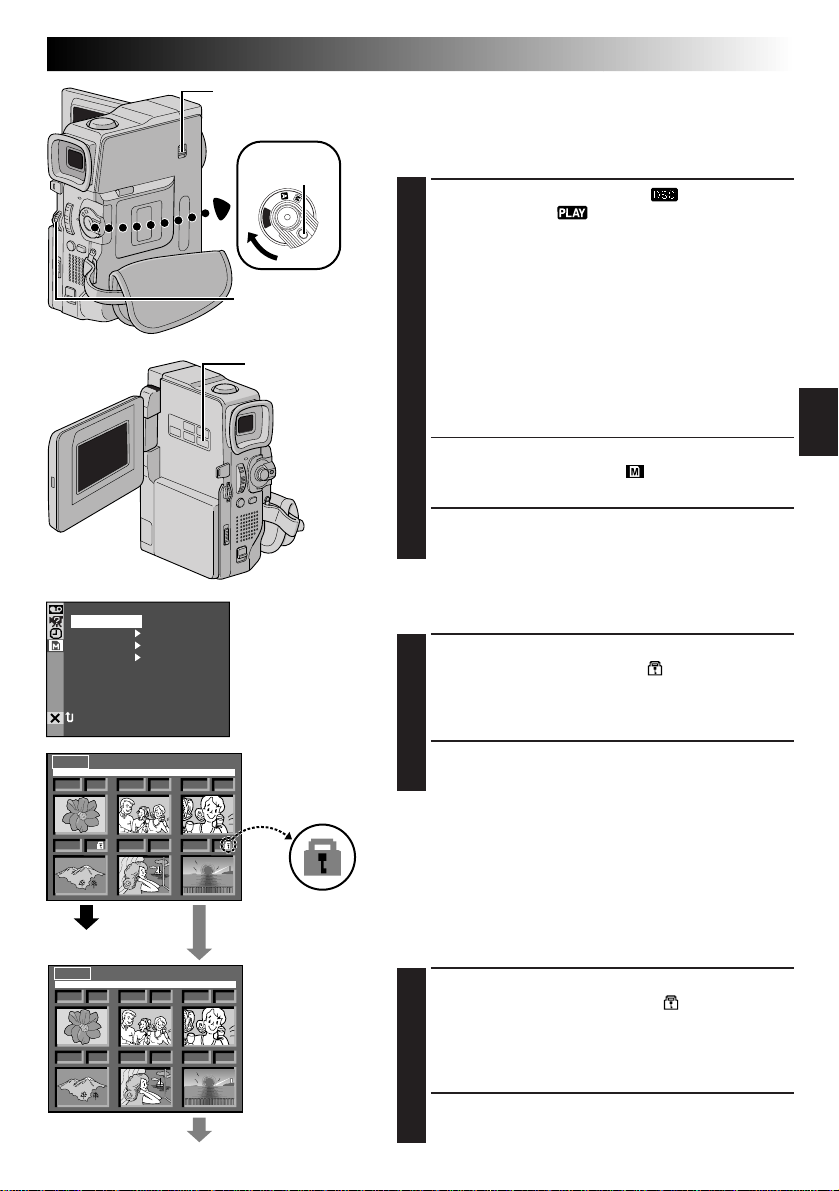

: Protect icon
When a file is protected against its accidental erasure, a padlock mark appears next to the index number, and that file cannot be deleted.
Selected File
A file is framed in green when it is selected. Rotate the MENU Wheel to move the green frame to the desired file.
30EN
INDEX Button
|
D.S.C. PLAYBACK (cont.) |
|
SELECT |
Index Playback |
|
You can view or listen to the files (still images, video clips |
||
Button |
||
|
(Z pg. 61), or sound effects (Z pg. 56, 67)) stored in |
|
|
memory six at a time. Use this mode when looking for a |
|
|
file you wish to view or hear. |
|
|
|
|
|
Perform steps 1 and 2 of “Normal Playback” on |
|
|
|
|
|
1 pg. 28. |
||
|
|
|
|
2 |
To display the Index Screen . . . |
|
|
|
|
|
… for images, go to step 3. |
||
JUMP Button |
|
|
|
… for video clips (Z pg. 61), press SELECT once to |
||
|
MENU |
|
engage the video clip mode. “E-CLIP” appears. |
|||
|
|
|
|
|||
|
|
|
|
Then go to step 3. |
||
|
|
|
Wheel |
|
||
|
|
|
|
… for sound effects (Z pg. 56), press SELECT twice |
||
|
|
|
|
|
||
|
|
|
|
|
to engage the sound effect mode. “D.SOUND” |
|
E X I T |
I M A G E |
|
Index Screen |
|
appears. Then go to step 3. |
|
VGA |
|
|
||||
100-DVC00001 |
for images |
3 Press INDEX. The Index Screen appears. |
||||
1 |
2 |
3 |
||||
|
||||||
|
|
|
||||
4 |
5 |
6 |
|
|
Rotate the MENU Wheel to move the green frame to |
|
|
|
|
|
4 the desired file and press it. The file selected in the |
||
|
|
|
|
|
Index Screen is displayed or played back. |
|
|
|
|
|
|
•To start playback of the selected video clip, press |
|
|
|
|
|
|
4/6. To stop playback midway, press 5. |
|
E X I T |
E - C L I P |
|
Index Screen |
|
•To start playback of the selected sound effect, press |
|
|
|
D.SOUND PLAY. |
||||
100-DVC00001 |
|
for video clips |
|
|||
1 |
2 |
3 |
|
|
||
|
|
|
||||
4 |
5 |
6 |
|
|
|
|
|
|
|
|
Jump Playback |
E X I T |
S O U N D |
|
|
|
Index Screen |
||||
EXPLOSION |
|
|
|
|
|
|
for sound |
||
1 |
|
|
2 |
|
|
3 |
|
|
effects |
4 |
|
|
5 |
|
|
6 |
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
Display
|
|
|
|
|
|
|
|
|
Jump Screen |
|
|
|
|
|
JUMP MENU |
|
|
|
|||
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
10 / |
50 |
|
|
|
|
Total number |
||
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
of files |
|
|
SELECT / SET |
[ MENU ] |
|||||||
|
|
|
|
|||||||
|
|
CANCEL |
[ JUMP ] |
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
You can call up directly a file you want to play back by specifying its index number.
1 During normal playback of images, press SELECT repeatedly to select the type of file you want to play back.
2 Press JUMP. The Jump Screen appears.
3 Rotate the MENU Wheel to enter the index number of the desired file and press it.
•The file for the selected index number is displayed. •To cancel the Jump Playback while the Jump
Screen is being displayed, press JUMP again.
Index number
