JVC DX-T5 User Manual [en, es]

COMPACT COMPONENT SYSTEM

SISTEMAS DE COMPONENTES COMPACTOS

SISTEMA DE COMPONENTE COMPACTO

DX-T5—Consists of CA-DXT5, SP-XT5, and SP-XST5 —Se compone de CA-DXT5, SP-XT5 y SP-XST5 —Composto por CA-DXT5, SP-XT5 e SP-XST5

¡ATENCION!

Antes de operar su equipo, lea cuidadosamente este instructivo.

INSTRUCTIONS

MANUAL DE INSTRUCCIONES

INSTRUÇÕES

GVT0146-004A [UW]

Warnings, Cautions and Others Avisos, precauciones y otras notas Advertências, precauções e outras notas

CAUTION— button!

Disconnect the mains plug to shut the power off completely. The button in any position does not disconnect the mains line. The power can be remote controlled.

CAUTION

To reduce the risk of electrical shocks, fire, etc.:

1.Do not remove screws, covers or cabinet.

2.Do not expose this appliance to rain or moisture.

CAUTION

•Do not block the ventilation openings or holes.

(If the ventilation openings or holes are blocked by a newspaper or cloth, etc., the heat may not be able to get out.)

•Do not place any naked flame sources, such as lighted candles, on the apparatus.

•When discarding batteries, environmental problems must be considered and local rules or laws governing the disposal of these batteries must be followed strictly.

•Do not expose this apparatus to rain, moisture, dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

PRECAUCIÓN––botón !

Desconecte el enchufe tomacorriente para desconectar la alimentación completamente. Ninguna posición del botón

conseguirá desconectar la red de alimentación eléctrica. La alimentación puede controlarse mediante control remoto.

PRECAUCIÓN

Para reducir riesgos de choques eléctricos, incendio, etc.:

1.No extraiga los tornillos, los cubiertas ni la caja.

2.No exponga este aparato a la lluvia o a la humedad.

PRECAUCIÓN

•No obstruya las rendijas o los orificios de ventilación. (Si las rendijas o los orificios de ventilación quedan tapados con un periódico, un trozo de tela, etc., no se podrá disipar el calor).

•No ponga sobre el aparato ninguna llama al descubierto, como velas encendidas.

•Cuando tenga que descartar las pilas, tenga en cuenta los problemas ambientales y observe estrictamente los reglamentos o las leyes locales sobre disposición de las pilas.

•No exponga este aparato a la lluvia, humedad, goteos o salpicaduras. Tampoco ponga recipientes conteniendo líquidos, como floreros, encima del aparato.

PRECAUÇÃO—botão !

Desligue a ficha da tomada da parede para desligar completamente a alimentação. O botão , quer esteja premido ou solto, não desliga a alimentação principal. A alimentação pode ser controlada à distância.

PRECAUÇÃO

Para reduzir riscos de choques elétricos, incêndio, etc.:

1.Não remova parafusos e tampas ou desmonte a caixa.

2.Não exponha este aparelho à chuva nem à umidade.

PRECAUÇÃO

•Não obstrua as aberturas e orifícios de ventilação. (Se os orifícios ou aberturas de ventilação estiverem obstruídos por qualquer papel ou tecido, não haverá circulação do ar quente.)

•Não coloque nenhum objeto com chamas, como velas acesas, sobre o aparelho.

•Ao descartar as baterias, leve em consideração os problemas que possam ser causados ao meio ambiente e os regulamentos e leis locais e governamentais sobre recolhimento dessas baterias devem ser rigorosamente seguidos.

•Não exponha este aparelho à chuva, umidade, pingos ou esguichos de água, nem coloque em cima do mesmo qualquer tipo de recipiente que contenha líquidos, como por exemplo vasos.

28 kg / 62 lbs.

CAUTION!

To avoid personal injury or accidentally dropping the unit, have two persons unpack, carry, and install the unit.

¡PRECAUCIÓN!

Para evitar lesiones personales o la caída accidental de la unidad, el desembalaje, traslado e instalación deben realizarse entre dos personas.

PRECAUÇÃO!

Para evitar lesões pessoais ou queda acidental do aparelho, o aparelho deve ser desembalado, carregado e instalado por duas pessoas.

G-1

Caution: Proper Ventilation

To avoid risk of electric shock and fire, and to prevent damage, locate the apparatus as follows

1.Front:No obstructions and open spacing.

2.Sides/ Top/ Back:No obstructions should be placed in the areas shown by the dimensions below.

3.Bottom:Place on the level surface. Maintain an adequate air path for ventilation by placing on a stand with a height of 10 cm or more.

Precaución: Ventilación correcta

Para evitar el riesgo de descargas eléctricas e incendio y prevenir posibles daños, instale el equipo en un lugar que cumpla los siguientes requisitos:

1.Parte frontal: Sin obstrucciones, espacio abierto.

2.Lados/parte superior/parte posterior: No debe haber ninguna obstrucción en las áreas mostradas por las dimensiones de la siguiente figura.

3.Parte inferior: Sitúe el equipo sobre una superficie nivelada. Mantenga un espacio adecuado para permitir el paso del aire y una correcta ventilación, situando el equipo sobre un soporte de 10 o más cm de allura.

Precaução: Ventilação adequada

Para evitar riscos de choques elétricos e incêndios, e prevenir avarias, instale o aparelho como segue:

1.Parte frontal: Sem obstruções e espaços abertos.

2.Partes laterais/ Tampa/ Posterior: Nenhuma obstrução deverá ser colocada entre as áreas cujas dimensões são indicadas abaixo.

3.Parte inferior: Instale-o sobre uma superfície plana. Deverá ser mantido espaço suficiente para a ventilação se este for instalado numa posição que tenha uma altura de 10 cm ou mais.

Front view

Vista frontal Vista fronta

Side view

	15 cm
1 cm	1 cm
	CA-DXT5

Vista lateral Vista lateral

15 cm

15 cm

CA-DXT5

10 cm

G-2

IMPORTANT FOR LASER PRODUCTS

1.CLASS 1 LASER PRODUCT

2.CAUTION: Do not open the top cover. There are no user serviceable parts inside the unit; leave all servicing to qualified service personnel.

3.CAUTION: Visible and invisible laser radiation when open and interlock failed or defeated. Avoid direct exposure to beam.

4.REPRODUCTION OF LABEL: CAUTION LABEL, PLACED INSIDE THE UNIT.

IMPORTANTE PARA PRODUCTOS LÁSER

1.PRODUCTO LÁSER CLASE 1

2.PRECAUCIÓN: No abra la tapa superior. En el interior de la unidad no hay piezas que pueda reparar el usuario; encargue el servicio a personal técnico cualificado.

3.PRECAUCIÓN: Radiación láser visible e invisible en caso de apertura o con interbloqueo averiado o defectuoso. Evite la exposición directa a los haces.

4.REPRODUCCIÓLN DE LA ETIQUETA: ETIQUETA DE PRECAUCIÓN, COLOCADA EN EL INTERIOR DE LA UNIDAD.

PARA PRODUTOS LASER, IMPORTANTE

1.PRODUTO LASER DE CLASSE 1

2.PRECAUÇÃO: não abrir a cobertura superior. Dentro da unidade não existem partes cuja manutenção tenha de ser feita pelo usuário; deixe qualquer manutenção a cargo do pessoal de serviço qualificado.

3.PRECAUCÃO: radiação laser visível e invisível quando se abre e com a conexão interna em falha ou frustrada. Evite a exposição direta ao raio.

4.REPRODUÇÃO DE ETIQUETA: ETIQUETA DE AVISO SITUADA NO INTERIOR DA UNIDADE.

G-3

Introduction

Precautions

Installation

•Install the System in a location with adequate ventilation to prevent internal heat buildup in the System.

DO NOT install the System in a location near heat sources, or in a place subject to direct sunlight, excessive dust or vibration.

•Install in a place which is level, dry and neither too hot nor too cold—between 5°C and 35°C.

•Leave sufficient distance between the System and the TV.

•Keep the speakers away from the TV to avoid interference with TV.

Power sources

•When unplugging the System from the wall outlet, always pull on the plug, not the AC power cord.

DO NOT handle the AC power cord with wet hands.

Moisture condensation

Moisture may condense on the lenses inside the System in the following cases:

•After starting to heat the room

•In a damp room

•If the System is brought directly from a cold to a warm place.

Should this occur, the System may malfunction. In this case, leave the System turned on for a few hours until the moisture evaporates, unplug the AC power cord, then plug it in again.

Internal heat

•Make sure there is good ventilation around the unit. Poor ventilation could overheat and damage the unit.

– A cooling fan is inside the unit to prevent heat buildup.

DO NOT block the ventilation openings or holes. If they are blocked by a newspaper or cloth, etc., the heat may not be able to get out.

Others

•Should any metallic object or liquid fall into the System, unplug the AC power cord and consult your dealer before operating any further.

DO NOT disassemble the System since there are no user serviceable parts inside.

• If you are not going to operate the System for an extended period of time, unplug the AC power cord from the wall outlet.

If anything goes wrong, unplug the AC power cord and consult your dealer.

Contents
Connections........................................................................	3
Display Indication .............................................................	6
Daily Operations—Playback............................................	7
Canceling the Demonstration ..........................................	7
Listening to the Radio .....................................................	8
Playing Back a Disc ........................................................	9

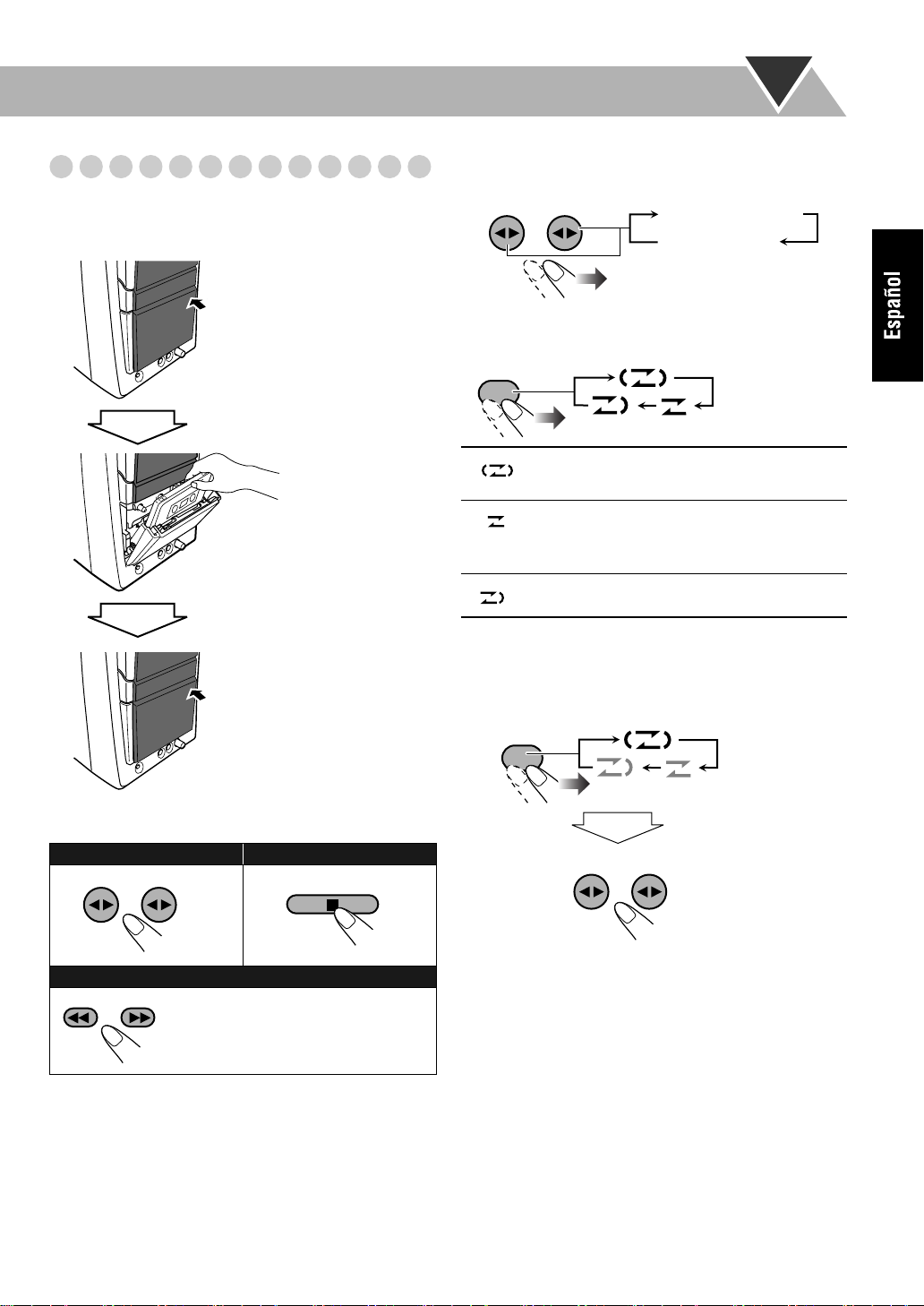

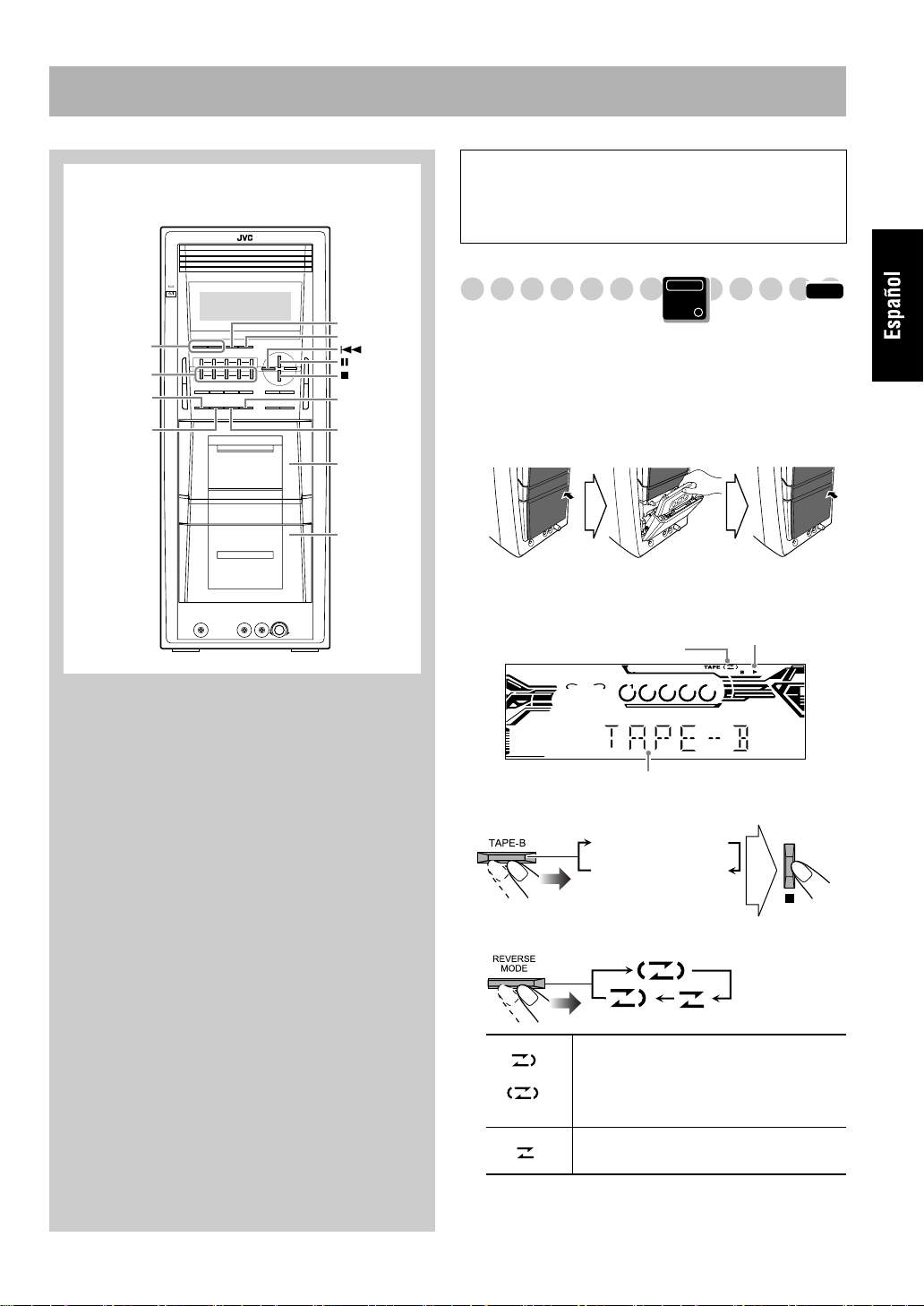

Playing Back a Tape......................................................	11
Daily Operations—Sound&Other Adjustments.............	12
Adjusting the Volume ...................................................	12
Reinforcing the Bass Sound ..........................................	12
Adjusting the Output Balance .......................................	12
Selecting the Sound Modes ...........................................	13
Creating Your Own Sound Modes—User Mode ..........	13
Creating 3-dimensional Sound Field—3D Phonic........	14
Presetting Automatic DVD Video Sound
Increase Level............................................................	14
Changing the Color System and Scanning Mode..........	14
Changing the Picture Tone............................................	14
Changing the Display Brightness..................................	15
Setting the Clock ...........................................................	15
Turning Off the Power Automatically ..........................	15
Unique DVD/VCD Operations.......................................	16
Selecting the Sound Track.............................................	16
Selecting the Subtitle Language....................................	17
Selecting the View Angle..............................................	17
Reviewing the Playback Quickly ..................................	17
Selecting Browsable Still Pictures ................................	17
Playing Back Bonus Group ...........................................	18
Special Picture Playback ...............................................	18
Advanced Disc Operations .............................................	19
Programming the Playing Order—Program Play..........	19
Playing at Random—Random Play...............................	20
Playing Repeatedly—Repeat Play ................................	21
Prohibiting Disc Ejection—Child Lock ........................	21
On-Screen Disc Operations ............................................	22
On-screen Bar Information............................................	22
Operations Using the On-screen Bar.............................	23
Operations on the Control Screen .................................	26
Recording Operations.....................................................	29
Enjoying Karaoke ...........................................................	31
Singing Along (Karaoke) ..............................................	31
Reducing the Lead Vocal—Vocal Masking..................	32
Scoring Your Karaoke Skill ..........................................	32
Reserving Karaoke Songs—Karaoke Program Play.....	33
Timer Operations............................................................	34
Setup Menu Operations..................................................	36
Operating the TV ............................................................	38
Additional Information...................................................	39
Troubleshooting ............................................................	42
Specifications ................................................................	44
Parts Index ......................................................................	46

English

1

English

Playable Disc Types
							INFO

DIGITAL VIDEO

DVD Logo is a trademark of DVD Format/Logo Licensing Corporation.

•CD-R/-RW: Recorded in the Audio CD/Video CD/ SVCD formats and MP3/WMA/JPEG files.

•DVD-R: Recorded in the DVD Video format.

•DVD-RW: Recorded in the DVD Video format or the Video Recording (DVD-VR) format.

•DVD-RAM: Recorded in the Video Recording (DVDVR) format.

In addition to the above discs, this system can play back audio data recorded on CD Text, CD-G (CD Graphics), and CD-Extra.

•The following discs cannot be played back:

DVD+R, DVD+RW, CD-I (CD-I Ready), Photo CD, etc. Playing back these discs will generate noise and damage the speakers.

•In this manual, “file” and “track” are interchangeably used for MP3/WMA/JPEG operations.

Caution for DualDisc playback:

The Non-DVD side of a “DualDisc” does not comply with the “Compact Disc Digital Audio” standard. Therefore, the use of Non-DVD side of a DualDisc on this product may not be recommended.

About color system

This System accommodates both NTSC and PAL system and can play back discs recorded with either system.

To change the color system, see page 14.

Note on Region Code

This System can play back only DVD Videos whose Region Code numbers include “4.”

EX.:

Audio formats

The System can play back the following digital audio formats.

•LPCM (Linear PCM), DIGITAL (Dolby Digital), DTS (Digital Theater Systems), MLP (Meridian Lossless Packing)

When playing a multi-channel encoded DVDs, the System properly converts these multi-channel signals into 2 channels, and emits the downmixed sound from the main speakers and matrix surround speakers.

•To enjoy the powerful sound of these multi-channel encoded DVDs, connect a proper decoder or an amplifier with a proper built-in decoder to the OPTICAL DIGITAL OUTPUT terminal on the rear.

IMPORTANT: Before playing a disc, make sure of the following...

•Turn on the TV and select an appropriate input mode on the TV to view the pictures or on-screen displays.

•For disc playback, you can change the initial setting to your preference. See “Setup Menu Operations” on page 36.

If “” appears on the TV screen when you press a button, the disc cannot accept the operation you have tried to do.

How to Read This Manual

•Button and control operations are explained as listed in the table below.

•Some related tips and notes are explained later in the sections “Learning More about This System” and “Troubleshooting,” but not in the same section explaining the operations ( INFO indicates that the content has some information).

Indicates that you press the button briefly.

Indicates that you press the button briefly and repeatedly until an option you want is

	selected.
	Indicates that you press one of the buttons.
2sec.	Indicates that you press and hold the button
	for a specified period.
	The number inside the arrow indicates the
	period of press (in the example, 2 seconds).

Indicates that you turn the control toward the specified direction(s).

Remote	Indicates that this operation is only
ONLY	possible using the remote control.
	Indicates that this operation is only
Main Unit	possible using the main unit.
ONLY

2

Connections

Do not connect the AC power cord until all other connections have been made.

•Connect VIDEO OUT directly to the video input of your TV. Connecting VIDEO OUT to a TV via a VCR may interfere with your viewing when playing back a copyprotected disc. Your viewing may be interfered when connecting VIDEO OUT to an integrated TV/VCR system.

~From the video input of TV/monitor

See page 4.

ŸFrom the digital input of digital audio component such as CD recorder

See page 4.

!From the analog audio output of auxiliary equipment (VCR, etc.)

See page 4.

⁄From AM/FM antenna

See page 4.

@From the main front/matrix surround speakers

See page 5.

¤From the powered subwoofer

See page 5.

#Voltage selector

Before plugging in, confirm the position the voltage selector points at. See page 5.

‹To a wall outlet

Plug the AC power cord only after all connections are complete.

•If the wall outlet does not match the AC plug, use the supplied AC plug adapter.

Supplied accessories

•FM antenna (x1)

•AM loop antenna (x1)

•Composite video cord (x1)

•Remote control (x1)

•Batteries (x2)

•AC plug adapter (x1)

If any item is missing, consult your dealer immediately.

English

3

English

~ TV/monitor

Composite video
cord (supplied)
S-video cord
(not supplied)
Green	Red
	Blue

Component video cord (not supplied)

•To select progressive scanning mode (see page 14), use COMPONENT jacks.

•Connect the VIDEO jack, S-VIDEO jack, or COMPONENT jacks whichever you want to use.

Ÿ Digital audio component

OPTICAL

DIGITAL

OUTPUT

Protective cap

•Set “DIGITAL AUDIO OUTPUT” in the “AUDIO” menu correctly according to the connected digital audio equipment (see page 37). If setting is incorrect, loud noise may be generated causing damage to the speakers.

! Auxiliary equipment

Red

Stereo audio cord (not supplied)

White

⁄ AM/FM antenna

To assemble the AM loop antenna

To connect AM/FM antenna

AM loop antenna (supplied)

Turn it until the best reception is obtained.

FM antenna (supplied)

Extend it so that you can obtain the best reception.

For better AM/FM reception

AM loop antenna (supplied)

Keep it connected.

Vinyl-covered wire (not supplied)

Extend it horizontally.

FM outdoor antenna (not supplied)

•Disconnect the supplied FM antenna, and connect to an outdoor FM antenna using a 75 Ω wire with coaxial type connector (IEC or DIN45325).

•Make sure the antenna conductors do not touch any other terminals, connecting cords and power cord. Also, keep the antennas away from metallic parts of the System, connecting cords, and the AC power cord. This could cause poor reception.

4

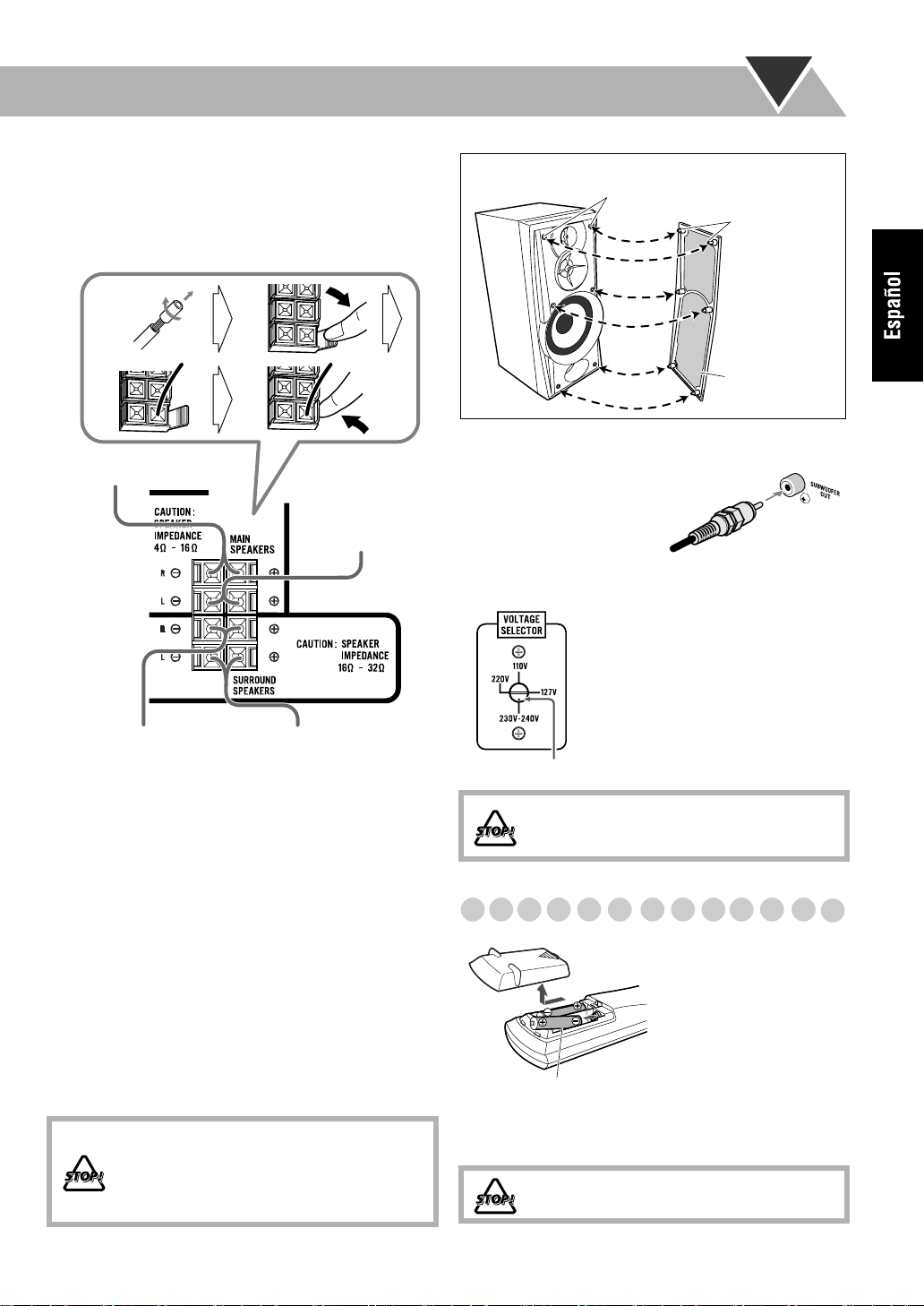

@Front main speakers and matrix surround speakers

•When connecting the speaker cords, match their polarity with that of the speaker terminals: red/white to (+) and black to (–).

1

2

3 4

From right front main speaker

From left front main speaker

To remove the speaker grilles of the main speakers

Holes

Projection

Speaker grille

¤ Powered subwoofer

From the powered subwoofer (not supplied)

# To adjust the voltage selector

								From left matrix
From right matrix
surround speaker								surround speaker

•Use only speakers with the same speaker impedance as indicated by the speaker terminals on the rear of the System.

•The front main speakers are magnetically shielded to avoid color distortions on TVs. However, if not installed properly, it may cause color distortions. So, pay attention to the following when installing the speakers.

–When placing the speakers near a TV set, turn off the TV’s main power switch or unplug it before installing the speakers.

Then wait at least 30 minutes before turning on the TV’s main power switch again.

Some TVs may still be affected even though you have followed the above instruction. If this happens, move the speakers away from the TV.

•DO NOT connect more than one speaker to each terminal.

•DO NOT push or pull the speakers as this will damage the foot spacers at the bottom of the speakers.

Use a screwdriver to rotate the voltage selector so that the voltage mark is pointing at the same voltage as where you are plugging in the unit. (See also the back cover page.)

Voltage mark

DO NOT plug in before setting the voltage selector and all connection procedures are complete.

Preparing the remote control

	When using the remote
	control, point the top of the
	remote control toward the
	remote sensor as directly as
	possible. If you operate it
	from a diagonal position,
	the operating range (approx.
R6(SUM-3)/AA(15F)	5 m) may be shorter.

•Dispose of batteries in the proper manner, according to federal, state, and local regulations.

DO NOT recharge, short, disassemble or heat the battery or dispose of it in a fire.

English

5

English

Display Indication

The indications on the display teach you a lot of things while you are operating the System.

Before operating the System, be familiar with when and how the indicator illuminates on the display.

1	2	3 456 7	8	9
	p q w e r t y u i o ; a

1PROGRESSIVE indicator

•Lights when the progressive scanning mode is selected. 2 Karaoke operation indicators (see pages 31 to 33)

•/ : lights when the Mic Mixing Mode is activated; flashes when scoring function is in use.

•MIC: lights when the Mic Mixing Mode is activated; flashes when scoring function is in use.

•ECHO: lights when the echo effect is activated.

•V.MASKING: lights when the Vocal Masking Mode is activated.

3Source signal indicators

•DTS: lights when a source signal is DTS.

• DIGITAL: lights when a source signal is Dolby Digital.

•DVD: lights when DVD Video is detected.

•DVD AUDIO: lights when DVD Audio is detected.

•PCM: lights when a source signal is linear PCM.

4BONUS indicator

•Lights when DVD Audio with bonus group is detected (see page 18).

5B.S.P. indicator

•Lights when browsable still pictures on DVD Audio are available (see page 17).

6RESUME indicator

•Lights when Resume is activated (see page 37). 7 Timer indicators

•: lights when Daily Timer or Recording Timer stands by or is working or being set.

•SLEEP: lights when the Sleep Timer is activated.

•DAILY: lights when the Daily Timer stands by; flashes while working or being set.

•REC: lights when the Recording Timer stands by; flashes while working or being set.

8DVD LEVEL 1/2/3 indicators

• Lights to indicate the DVD Video increase level.

9Tape operation indicators

•TAPE: lights when a tape is loaded in either deck A or B.

• (Reverse Mode): lights to indicate the current Reverse Mode (see page 11).

•A: lights when a tape is in the deck A.

•B: lights when a tape is in the deck B.

•2 3 (tape direction):

–Lights to indicate the current tape running direction.

–Flashes slowly during playback and recording.

–Flashes quickly while rewinding a tape.

•REC: lights while recording.

pDisc operation indicators

•PROGRAM: lights when Program Play is activated.

•RANDOM: lights when Random Play is activated.

•REPEAT: lights when Repeat Play is activated.

•ALL DISC: lights when All Disc Repeat is activated.

•1 DISC: lights when One Disc Repeat is activated.

•1: lights when One Track/Chapter/Step Repeat is activated.

q Main display

wTITLE indicator

•Lights to indicate the title number for DVD Video. e Audio signal indicators

•Lights to indicate the incoming audio channel signals. r GROUP indicator

•Lights to indicate the group number.

tCHAP. indicator

•Lights to indicate the chapter number. y TRACK indicator

•Lights to indicate the track number. u FILE indicator

•Lights to indicate the file number. i Disc indicators

•1 – 5: lights to indicate the current disc tray.

•: lights when a disc is detected on the disc tray; rotates during playback or paused.

oSound Mode indicators (see page 13)

•S.MODE: lights when one of the Sound Modes (Surround/SEA/User Modes) is activated (for Surround mode, also lights).

•DSP MODE: lights when one of the Surround Modes is activated.

;FM reception indicators

•ST (stereo): lights while an FM stereo station with sufficient signal strength is tuned in.

•MONO: lights while receiving an FM stereo station in monaural.

a3D PHONIC indicator

• Lights when 3D Phonic is activated (see page 14).

6

Daily Operations—Playback

In this manual, the operation using the remote control is mainly explained; however, you can use the buttons and controls on the main unit if they have the same (or similar) name and marks.

1

AUDIO

DISC 1 –

DISC 5

TV

2

3

	FM MODE /
TOP MENU	MENU

/ / //

ENTER

GROUP/TITLE	1	2	3

4	5	6	10 keys
7	8	9

10 0 +10

RETURN

REVERSE

MODE

SET

1	AUDIO

2	AUX

DVD/CD TAPE-A TAPE-B FM/AM

3 AUDIO VOL

¥ Turn on the power.

The STANDBY lamp on the main unit goes off.

•Without pressing AUDIO, the System also turns on by pressing one of the source select buttons in the next step.

øSelect the source.

Playback automatically starts if the selected source is ready to start playback.

•If you press AUX, start playback source on the external component.

πAdjust the volume.

[Operate the target source as explained later.

To turn off (stand by) the system

The STANDBY lamp on the main unit

AUDIO

lights in red.

•A small amount of power is always consumed even while on standby.

For private listening

Connect a pair of headphones to the PHONES jack on the main unit. The sound will no longer come out of the speakers. Be sure to turn down the volume before connecting or putting the headphones.

•Disconnecting the headphones will activate the speakers again.

DO NOT turn off (stand by) the System with the volume set to an extremely high level; Otherwise, the sudden blast of sound can damage your hearing, speakers and/or headphones when you turn on the System or start playback.

Canceling the Demonstration

Main Unit

ONLY

2 sec.

DEMO OFF

DEMO START

To start the demonstration, select DEMO START.

English

7

English

Listening to the Radio
	INFO

To select the AM tuner interval spacing Main Unit

ONLY

Some countries space AM stations 9 kHz apart, and other countries use 10 kHz spacing.

1 Select “AM,” then turn off (stand by) the System.

FM AM

2Select the AM tuner interval spacing. To select 9 kHz:

(holding then...)

To select 10 kHz:

(holding then...)

To select the band (FM/AM)

FM/AM	FM	AM

To tune in to a station

While FM or AM is selected...

1 sec.

Increases the frequencies.

					Remote
	If the received FM station is hard to listen				ONLY
	FM MODE			The MONO indicator lights on the
				display. Reception will improve though
				stereo effect is lost—monaural reception
				mode.
				To restore the stereo effect, press the
				button again (the MONO indicator goes
				off).

Remote

ONLY

To preset stations

You can preset 30 FM and 15 AM stations.

• To cancel the operation during process, press CANCEL.

1Tune in to a station you want to preset.

•You can also store the monaural reception mode for FM preset stations if selected.

2Start presetting.

SET

3 Select a preset number.

	1	2	3	Examples:
				To select preset number 5, press 5.
	4	5	6
				To select preset number 15, press +10,
	7	8	9	then 5.
	10	0	+10	To select preset number 30, press +10,
				+10, then 10.

• You can also use +/– buttons.

4 Store the station.

SET

Decreases the frequencies.

Frequency starts changing on the display.

When a station (frequency) with sufficient signal strength is tuned in, the frequency search stops.

•When you repeatedly press the button, the frequency changes step by step.

To stop searching manually, press either button.

To tune in to a preset station

1 Select the band (FM or AM).

FM/AM	FM	AM

8

2 Select a preset number. Examples:

1 2 3

4 5 6

7 8 9

10 0 +10

To select preset number 5, press 5. To select preset number 15, press +10, then 5.

To select preset number 30, press +10, +10, then 10.

•You can also use 4/¢ buttons on the remote control or PRESET +/– buttons on the main unit.

Playing Back a Disc
	INFO

Before operating a disc, be familiar how a disc is recorded.

•DVD Video comprises of “Titles” which includes “Chapters,” DVD Audio/MP3/WMA comprise of “Groups” which includes “Tracks,” JPEG comprises of “Groups” which includes “Files,” and CD/SVCD/VCD comprise of only “Tracks.”

•For JPEG playback, see page 27.

To insert discs Main Unit

ONLY

•When using an 8 cm disc, place it on the inner circle of the disc tray.

To close the disc tray, press the same 0 again.

•If you press 3 for the same tray, the disc tray closes automatically and playback starts.

To start:	To pause:	To stop:
DVD/CD	FM MODE
Playback of the	To release it, press
current disc starts.	DVD/CD 3.

While playing DVD/SVCD/VCD/MP3: This System can store the stop point, and when you start playback again by pressing DVD/CD 3, it starts from the position where you have stopped—Resume Play. (RESUME indicator lights up when you stop playback.)

To stop completely while Resume is activated, press 7 twice. (To cancel Resume, see “RESUME” on page 37.)

On-screen guide icons

•During disc playback, the following icons may appear for a while on the TV screen:

Appears at the beginning of a scene containing multi-angle views.

Appears at the beginning of a scene containing multi-audio languages.

Appears at the beginning of a scene containing multi-subtitle languages.

•The following icons will be also shown on the TV screen

to indicate your current operation.

, , , , ,

•To deactivate the on-screen guide icons, see “ON SCREEN GUIDE” on page 37.

To select a disc

DISC 1	DISC 2	DISC 3
DISC 4	DISC 5

Playback starts.

To select a title/group			Remote
			ONLY
While playing a disc...
	1	2	3
GROUP/TITLE	4	5	6
	7	8	9
	10	0	+10

To select a chapter/track

While playing a disc...

•First time you press 4, you can go back to the beginning of the current chapter/track.

1 2 3

or

4

5

6

7 8 9

10 0 +10

English

9

English

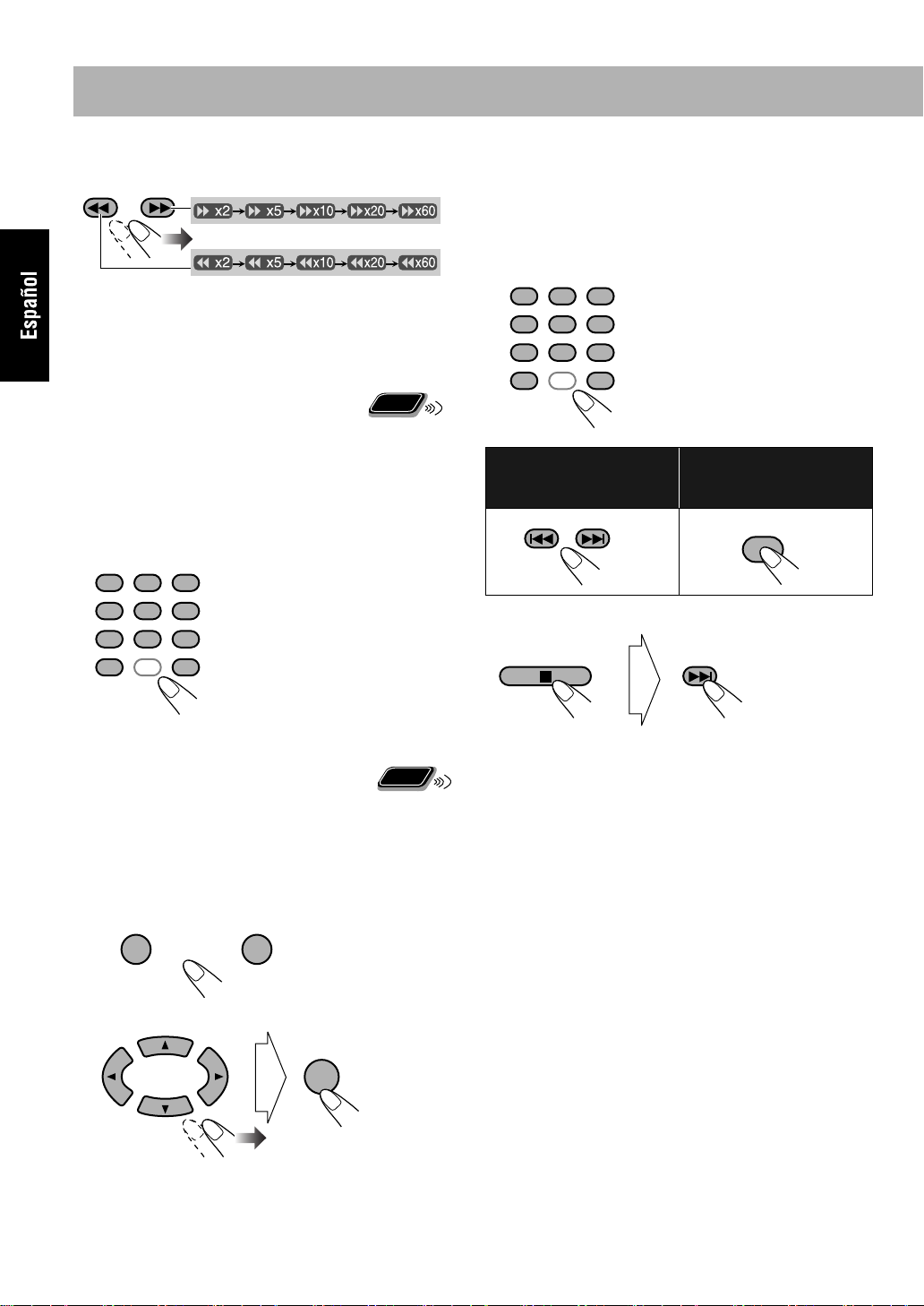

To locate a particular portion

While playing a disc except MP3/WMA...

•No sound comes out while searching on DVD Video/ SVCD/VCD.

To return to normal playback, press DVD/CD 3.

To select an item directly	Remote
	ONLY

You can select a title/chapter/track directly and start playback.

•For DVD Video, you can select a title before starting playback, while you can select a chapter after starting playback.

	1	2	3	Examples:
				To select number 5, press 5.
	4	5	6	To select number 15, press +10,
	7	8	9	then 5.
				To select number 30, press +10,
	10	0	+10
				+10, then 10.

Remote

To play back by using the disc menu

ONLY

You can operate the disc play using the disc menu.

7 For DVD Video/DVD Audio

1 Show the disc menu.

TOP MENU/PG

MENU/PL

or

2 Select an item on the disc menu.

ENTER

•On some discs, you can also select items by entering the number using the 10 keys.

7 For SVCD/VCD with PBC

While playing a disc with PBC, “PBC” appears on the display instead of the playing time.

When disc menu appears on the TV screen, select an item on the menu. Playback of the selected item starts.

	1	2	3	Examples:
				To select number 5, press 5.
	4	5	6	To select number 15, press +10,
	7	8	9	then 5.
				To select number 30, press +10,
	10	0	+10
				+10, then 10.

To move to the next or					To return to the previous
previous page of the					menu:
current menu:
						RETURN

To cancel PBC

You can also cancel PBC by pressing the 10 keys to start playback when disc menu is not shown on the TV screen.

To reactivate PBC, press 7, then press 4.

10

Playing Back a Tape

To insert a tape

You can play back type I tapes.

• The use of C-120 or longer tape is not recommended.

Push

Insert

Close

To start:

To stop:

TAPE-A TAPE-B

To rewind tape:

To change the tape running direction

TAPE-A TAPE-B	3 (forward)

2 (reverse)

To reverse the tape automatically

REVERSE

MODE

Tape is reversed, and playback repeats until you stop it.

Tape is not reversed. When the current side of the tape reaches its end, playback stops.

Tape is reversed once.

To playback the both decks A and B continuously —Relay Play

When the cassettes are set in the both decks...

REVERSE

MODE

TAPE-A TAPE-B

You can start playback of either deck A or B.

English

11

English

Daily Operations—Sound&Other Adjustments

Remote Control

			AUDIO
			TV
			AUDIO VOL +/–
			/ / / /
			ENTER
1	2	3
4	5	6
7	8	9	VFP /
10	0	+10
DVD LEVEL			SCAN MODE
ACTIVE			SOUND MODE
BASS EX
			3D PHONIC
RHYTHM AX			+/–
SET			L/R BALANCE

	CLOCK/TIMER	SETTING
		DIMMER
	SLEEP
	Main unit

ACTIVE BASS	VOLUME
EX.
SOUND MODE	RHYTHM AX
DVD LEVEL

Adjusting the Volume

The volume level can be adjusted in 32 steps (VOLUME MIN, VOLUME 1 – VOLUME 30, and VOLUME MAX).

Remote control:

Main unit:

AUDIO VOL

Reinforcing the Bass Sound

To adjust the bass level gradually—ACTIVE BASS EX.

You can select the bass level from level 0 (minimum) to level 2 (maximum).

Remote control:

Main unit:

ACTIVE

BASS EX

To emphasize rhythmical feeling—RHYTHM AX

This function emphasizes bass attack feeling.

RHYTHM AX	ON
	OFF

Adjusting the Output Balance	Remote
	ONLY

You can adjust the speaker output balance.

1 Enter the balance setting mode.

SETTING

LR BALANCE

SET

FANFARE

2 Adjust the balance.

L BALANCE R

R –6 0 L –6

12

Selecting the Sound Modes

You can select one of the preset Sound Modes.

SEA Modes

SOUND

ROCK POP CLASSIC

MODE

STADIUM HALL

DANCE

MULTI

OFF

Surround Modes*

SEA (Sound Effect Amplifier) Modes

ROCK

Boosts low and high frequency. Good for

acoustic music (initial setting).

POP

Good for vocal music.

CLASSIC	Good for classical music.
User Modes
USER 1/2/3	Your individual mode stored in memory.
	See the next column “Creating Your Own
	Sound Modes—User Mode.”
Multi Mode
MULTI	Outputs the same sound from the
	surround speakers as the sound output
	from the main speakers.
Surround Modes*
DANCE	Increases resonance and bass.
HALL	Adds depth and brilliance to the sound.
STADIUM	Adds clarity and spreads the sound, as in
	an outdoor stadium.

*Surround elements are added to the SEA elements to create being-there feeling in your room.

To cancel the Sound Mode, select “OFF.”

Creating Your Own Sound INFO

Remote

ONLY

Modes—User Mode

You can adjust the preset Sound Modes to create your own Sound Modes which suit your taste. The changed settings can be stored as the USER 1, USER 2 and USER 3 Modes.

•If you want to add surround elements into your Sound Mode, select one of the Surround Modes to adjust.

While “USER 1,” “USER 2,” or “USER 3” is shown on the

display...

1 Enter the SEA Control Mode.

SET

2

SET

3Adjust the SEA pattern.

1 Adjust BASS.

2 Adjust TREBLE.

L		BALANCE					R	SET

•You can adjust the bass and treble level from –3 to +3.

4 Select one of the User Modes.

L BALANCE R

USER 1USER 2 USER 3

5 Store the setting.

SET

• The Sound Mode changes to the one you have stored.

English

13

English

Creating 3-dimensional Sound

Field—3D Phonic

Remote

INFO

ONLY

While playing a disc...

3D PHONIC

3D PHONIC

ACTION

3D PHONIC

DRAMA

3D PHONIC

OFF

3D PHONIC

THEATER

On the TV screen

3D ACTION Suitable for action movies and sports

programs.

3D DRAMA

Creates natural and warm sound. Enjoy

movies in a relaxed mood.

3D THEATER Enjoy sound effects like in a major theater.

Presetting Automatic DVD Video Sound

Increase Level

The DVD Video sound is sometimes recorded at a lower level than for other discs and sources. You can set the increase level for the currently loaded DVD Video, so you do not have to adjust the volume when you change the source.

DVD LEVEL	DVD LEVEL1		DVD LEVEL2

DVD LEVEL3

Changing the Color System and

Scanning Mode	Remote	INFO
	ONLY

You can select the video output to match it to the color system of your TV (NTSC or PAL).

•If you connect a progressive TV through the COMPONENT jacks, you can enjoy a high quality picture from the built-in DVD player by selecting progressive scanning mode.

•You can change the setting only while the disc playback is stopped.

1 Enter the color system setting mode.

4 sec.

SCAN MODE

VFP

2 Select the color system and scanning mode.

L BALANCE R

NTSC PAL PAL PROGNTSC PROG

NTSC / PAL NTSC or PAL Interlaced scanning. For a conventional PAL or NTSC TV.

NTSC / PAL NTSC or PAL Progressive scanning. PROG For a progressive NTSC or PAL TV.

3 Store the setting.

SET

As the number increases, sound level also increases.

• The initial setting is “DVD LEVEL3.”

Changing the Picture Tone Remote

ONLY

While viewing a playback pictures on the TV, you can select the preset picture tone, or adjust it and store your own preference.

To select a preset picture tone

1 While playing, display VFP setting screen.

	SCAN MODE	NORMAL
		GAMMA	0
	VFP
		BRIGHTNESS	0
		CONTRAST	0
		SATURATION	0
		TINT	0
		SHARPNESS	0

On the TV screen

14

2 Select a preset picture tone.

	NORMAL	CINEMA
	USER2	USER1
NORMAL	Normally select this.
CINEMA	Suitable for a movie source.
USER1/USER2	You can adjust parameters and can
	store the settings (see below).

To adjust the picture tone

1Select “USER1” or “USER2.”

• Follow steps 1 and 2 explained on the previous page.

2Select a parameter you want to adjust.

	ENTER
GAMMA	Adjust if the neutral color is bright
	or dark. The brightness of dark and
	bright portions is maintained
	(–3 to +3).
BRIGHTNESS	Adjust if the picture is bright or
	dark as a whole (–8 to +8).
CONTRAST	Adjust if the far and near position
	is unnatural (–7 to +7).
SATURATION	Adjust if the picture is whitish or
	blackish (–7 to +7).
TINT	Adjust if the human skin color is
	unnatural (–7 to +7).
SHARPNESS	Adjust if the picture is indistinct

(–8 to +8).

3 Adjust the parameter.

ENTER

4 Repeat steps 2 to 3 to adjust other parameters.

To erase the VFP screen, press VFP again.

Changing the Display Brightness		Remote
		ONLY
DIMMER	DIMMER 1 DIMMER	2

DIMMER OFF

(Canceled)

DIMMER 1 Dims the display and the illumination on the main unit*.

DIMMER 2 Dims the display (same as DIMMER 1) and turns off the illumination on the main unit*.

*Except for the RHYTHM AX and KARAOKE SCORING lamps.

Setting the Clock	Remote	INFO
	ONLY

Without setting the build-in clock, you cannot use any timers.

•To exit from the clock setting, press CLOCK/TIMER as required.

•To correct a misentry during the process, press CANCEL. You can return to the previous step.

1 Activate clock setting mode.

CLOCK/

TIMER

•If you have already adjusted the clock before, press the button repeatedly until the clock time starts flashing.

2 Adjust the hour, then minute.

L		BALANCE					R	SET

Now the built-in clock starts working.

Turning Off the Power AutomaticallyRemote

ONLY

With Sleep Timer, you can fall asleep while listening to music.

1 Specify the time (in minutes).

SLEEP	10	20	30	60	90

Canceled 150 120

2 Wait until the set time goes off.

To check the time remaining until the shut-off time

SLEEP

• If you press the button repeatedly, you can change the shut-off time.

English

15

English

Unique DVD/VCD Operations

Remote Control
				AUDIO
DVD/CD 3					TV
GLANCE
BACK				/	/	/	/
				ENTER
	1	2	3	10 keys
AUDIO	4	5	6
SUB TITLE	7	8	9
ANGLE	10	0	+10
ZOOM
PAGE

Selecting the Sound Track	Remote	INFO
	ONLY

For DVD Video: While playing back a chapter containing audio languages, you can select the language to listen to. For DVD Audio: While playing back a track containing audio channels, you can select the audio channel to listen to.

For DVD-VR/Karaoke SVCD/VCD: When playing back a track, you can select the audio channel to play.

•You can also select the audio track using the on-screen bar (see page 23).

While playing DVD Video...

AUDIO

Ex.:

1/3	2/3	3/3
ENGLISH	FRENCH	JAPANESE

1/3	2/3	3/3
ENGLISH	FRENCH	JAPANESE

While playing a DVD-VR, SVCD, or VCD...

SVCD

AUDIO

ST1

ST2

L1

R2 L2 R1

DVD-VR/VCD

ST L R

ST1/ST2/ST To listen to normal stereo (2 channel) playback.

L1/L2/L To listen to the left audio channel.

R1/R2/R To listen to the right audio channel.

•SVCD can have 4 audio channels. Karaoke SVCD usually uses these 4 channels to record two 2-channel recordings (ST1/ST2).

16

Selecting the Subtitle Language	Remote
	ONLY

For DVD Video: While playing back a chapter containing subtitles in different languages, you can select the subtitle language to display on the TV screen.

For DVD-VR: While playing, you can turn on or off the subtitle.

For SVCD: While playing, you can select the subtitles even if no subtitles are recorded on the disc.

•You can also select the subtitle language using the onscreen bar (see page 23).

While playing a DVD Video...

1 Display the subtitle selection window.

SUB TITLE

2 Select the subtitle language.

Ex.:

1/3	2/3	3/3
ENGLISH	FRENCH	JAPANESE

1/3	2/3	3/3
ENGLISH	FRENCH	JAPANESE

While playing a DVD-VR...

SUB TITLE

ON	OFF
ON	OFF

While playing an SVCD...

SUB TITLE

Selecting the View Angle	Remote
	ONLY

For DVD Video only: While playing back a chapter containing multi-view angles, you can view the same scene from different angles.

•You can also select the view angle using the on-screen bar (see page 23).

While playing back...

ANGLE

Ex.:

1/3	2/3	3/3
1	2	3

1/3	2/3	3/3
1	2	3

Reviewing the Playback Quickly	Remote
	ONLY

For DVD Video/DVD-VR only: You can move the playback position to 10 seconds before the current position (only within the same title)—Glance Back.

While playing back...

GLANCE BACK

	Selecting Browsable Still Pictures	Remote
		ONLY

For DVD Audio only: While playing back a track linked to browsable still pictures (B.S.P.), you can select the still picture (turn the page) to be shown on the TV screen.

•If a track is linked to browsable still pictures (B.S.P.), they are usually shown in turn automatically during playback.

•You can also select the page using the on-screen bar (see page 23).

PAGE	Each time you press the button, the still
	picture changes one after another (if
	available).

English

17

English

Playing Back Bonus Group	Remote	INFO
	ONLY

For DVD Audio only: Some DVD Audios have a special group called “bonus group” whose contents are not open to the public.

•To play back a bonus group, you have to enter the specific “key number” (a kind of password) for the bonus group. The way of getting the key number depends on the disc.

1Select the bonus group.

•The bonus group is usually recorded as the last group (for example, if a disc contains 4 groups including a bonus group, “group 4” is the bonus group).

•For how to select the group, see “To select a title/group” on page 9.

2Enter the key number.

1 2 3

4 5 6

ENTER

7 8 9

10 0 +10

3Follow the interactive instruction shown on the TV screen.

To cancel the key number entry, press 7.

Special Picture Playback
	INFO

Still picture playback

While playing...

FM MODE

Still picture playback starts.

To resume normal playback, press DVD/CD 3.

Frame-by-frame playback

1 While playing...

FM MODE

Still picture playback starts.

2 Advance the still picture frame by frame.

FM MODE

To resume normal playback, press DVD/CD 3.

Slow-motion playback

1 While playing...

FM MODE

Still picture playback starts.

2 Select slow motion speed.

1/32 1/16 1/8 1/4 1/2

1/32

1/16

1/8

1/4

1/2

* Not available for DVD-VR/SVCD/VCD.

To resume normal playback, press DVD/CD 3.

Remote

Zoom ONLY

1 While playing...

ZOOM 1 ZOOM 2 ZOOM 3 ZOOM 4

ZOOM

ZOOM OFF ZOOM 6 ZOOM 5

As the number increases, magnification also increases.

• For JPEG, see page 28.

2 Move the zoomed-in position.

To resume normal playback, press ZOOM repeatedly until “ZOOM OFF” appears on the TV screen.

18

Advanced Disc Operations

Remote Control

AUDIO

DVD/CD 3

TV

/ //

/

1	2	3
4	5	6	10 keys
7	8	9
10	0	+10
REPEAT			PLAY MODE
CANCEL

Main unit

DVD/CD

DISC 1 0

Programming the Playing Order	Remote
	ONLY
—Program Play	INFO

You can arrange the playing order of the tracks (up to 99) before you start playback.

1 Before starting playback, activate Program Play.

PLAY MODE

PROGRAM RANDOM

Canceled

On the display

PROGRAM
No	Disc	Group/Title	Track/Chapter
1
2
3
4
5
6
7
8
9
10
USE NUMERIC KEYS TO PROGRAM TRACKS.
USE CANCEL TO DELETE THE PROGRAM.

On the TV screen

2Select chapters or tracks you want for Program Play.

1 Select a disc number.

2 Select a title or group number.

3 Select a chapter or track number.

To enter the numbers:

	1	2	3	Examples:
				To enter number 5, press 5.
	4	5	6
				To enter number 15, press +10,
	7	8	9	then 5.
	10	0	+10	To enter number 30, press +10,
				+10, then 10.

3Repeat the above step 2 until you finish what you want to program.

4Start playback.

Playback starts in the order you

DVD/CD

have programmed.

English

19

English

To skip a track: To pause:		To stop*:
FM MODE
To release, press
DVD/CD 3.
* Resume does not work for Program Play.
To check the programmed contents			Remote
			ONLY
Before or after playback...
	in the reverse order
	in the programmed order
To modify the program
Before or after playback...
To erase the last step:	To erase the entire
	program:
CANCEL

To add steps in the program:

Repeat step 2 on page 19.

To exit from Program Play

Before or after playback...

PLAY MODE

PROGRAM RANDOM

Canceled

Playing at Random—Random Play	Remote
	ONLY

You can play the contents of all the loaded discs at random.

• Random Play cannot be used for some DVDs.

1 Before starting playback, activate Random Play.

PLAY MODE

PROGRAM RANDOM

Canceled

2 Start playback.

Playback of the current disc

DVD/CD

starts in a random order. When all chapters/tracks on the current disc are played, playback of the next disc starts. Random Play ends when all loaded discs are played.

To skip:	To pause:	To stop:

FM MODE

To go to the beginning of the

To release, press

current track,

DVD/CD 3.

press 4.

To exit from Random Play

Before or after playback...

PLAY MODE

PROGRAM RANDOM

Canceled

20

Playing Repeatedly—Repeat Play	Remote
	ONLY

You can repeat playback.

•You can also select the repeat mode using the on-screen bar (see page 23).

•The indicator(s) lights on the display as follows to indicate the current repeat mode.

•For DVD Video:

While playing...

REPEAT	REPEAT 1	REPEAT
	Canceled	REPEAT ALL DISC

• For DVD Audio:

While playing or before playback...

REPEAT	REPEAT 1	REPEAT
	Canceled	REPEAT ALL DISC

• For MP3/WMA:

While playing or before playback...

REPEAT	REPEAT 1	REPEAT REPEAT 1 DISC
	Canceled	REPEAT ALL DISC

• For CD/SVCD/VCD:

While playing or before playback (without PBC for SVCD/ VCD)...

REPEAT	REPEAT 1	REPEAT 1 DISC
	Canceled	REPEAT ALL DISC

• For Random Play:

While playing or before playback...

REPEAT	REPEAT 1	REPEAT 1 DISC
	Canceled	REPEAT ALL DISC

REPEAT 1 Repeats the current chapter/track.

REPEAT Repeats the current title/group.

REPEAT 1 Repeats the current disc.

DISC*

REPEAT ALL Repeats all discs.

DISC*

REPEAT ALL Repeats all programmed tracks.

* These modes may not work correctly for DVD Video.

Prohibiting Disc Ejection Main Unit

ONLY

—Child Lock

You can lock the disc trays so that no one can eject the loaded discs.

•This operation is possible only when the source is the disc player.

While in standby mode...

(holding then...)

To cancel the prohibition, repeat the same procedure. “UNLOCKED” appears on the display.

• For Program Play:

While playing or before playback...

REPEAT	REPEAT 1	REPEAT ALL
	Canceled

English

21

English

On-Screen Disc Operations

On-screen Bar Information

Remote control

You can check the information on disc (except for MP3/ WMA/JPEG disc) and use some functions through the on-

screen bar.

AUDIO	On-screen bars

DVD Video

DVD/CD 3

TV

1

2

3

	DVD-VIDEO	Dolby D	DISC 1	TITLE	2	CHAP	3	TOTAL	1:01:58
		3/2.1ch
	TIME	OFF	CHAP.		1/3		1/3		1/1

PG	PL		4
	/ / / /	DVD Audio
	ENTER
	ON SCREEN	1	2	3

1	2	3	DVD-AUDIO	PPCM	DISC 2	GROUP 14	TRACK 23	TIME	0:15:58
				3/2.1ch

4	5	6	10 keys	TIME	OFF	TRACK	1/3 PAGE 1/3
7	8	9
10	0	+10				4

ZOOM

DVD-VR

REPEAT

	1				2				3
	DVD-VR	Dolby D	DISC 1	PG	2	CHAP	3	TOTAL	0:01:58
		2/0.0ch

TIME

OFF

CHAP.

ST

ON

4

SVCD

1

2

3

SVCD			DISC	3	TRACK	3	TIME	0:04:58
TIME	OFF	ST1	-/	4

4

VCD

1

2

3

VCD

DISC

4

TRACK

3

TIME

0:04:58

TIME

OFF

ST

4

CD

1

2

3

CD

DISC

5

TRACK

3

TIME

0:04:58

TIME OFF

4

22

1 Disc type

Operations Using the

ONLY

Remote

2 Playback information

On-screen Bar

INFO

Indication

Meanings

Basic operation procedure through the on-screen bar is as

Dolby D/

Audio format

follows:

PPCM

Ex.: Selecting a subtitle (French) for DVD Video:

3/2.1 ch/

Channel number

While a disc is selected as the source...

2/0.0 ch

DISC 1

Current disc

1 Display the on-screen bar with the pull-down menu.

Current title

TITLE

2

Current chapter

ON

CHAP 3

SCREEN

Current group

DVD-VIDEO

Dolby D

DISC 1

TITLE

2

CHAP

3

TOTAL

1:01:58

GROUP 1

3/2.1ch

Current track

TRACK 14

DVD-VIDEO

Dolby D

DISC 1

TITLE

2

CHAP

3

TOTAL

1:01:58

Current title

3/2.1ch

PG

2

TIME

OFF

CHAP.

1/3

1/3

1/1

Current play list

PL

2

Goes off

Time indications

TOTAL 1:25:58

3 Playback conditions

2 Select (highlight) the item you want.

Indication

Meanings

Playback

Forward/Reverse search

/

Forward/Reverse slow-motion

/

Pause

DVD-VIDEO

Dolby D

DISC 1

TITLE 2

CHAP

3

TOTAL

1:01:58

Stop

3/2.1ch

TIME

OFF

CHAP.

1/3

1/3

1/1

4 Operation icons (on the pull-down menu)

Indication	Meanings	3 Display the pop-up window.
TIME	Select to change the time indication	ENTER	1 TITLE 2	CHAP	3	TOTAL	1:01:58
	(see also page 24).

	Select to repeat playback (see also		1/3	1/3	1/1
				ENGLISH
	pages 21, 24 and 25).
	Select for time search (see also	4	Select the desired option in the pop-up window.
	page 25).

CHAP.	Select for chapter search (see also	1	TITLE	2	CHAP	3	TOTAL	1:01:58
	page 26).

1/3

2/3

1/1

	TRACK	Select for track search (see also	FRENCH
		page 26).
	1/3	Select to change the audio language or	5 Finish the setting.
		channel (see also page 16).
	1/3	Select to change subtitle language (see	Pop-up window goes off.
			ENTER
		also page 17).
	1/3	Select to change view angle (see also
		page 17).
	PAGE 1/15	Select to change the page (see also	To erase the on-screen bar
		page 17).
			ON
			SCREEN

English

23

English

To change the time information

You can change the time information in the on-screen bar and the display window on the main unit.

1	Display the on-screen bar with the pull-down menu.
		DVD-VIDEO		Dolby D		DISCTITLE1 TITLE14 2CHAP233 TOTAL1:25:581:01:58
				3/2.1ch
		TIMEE	OFFF			CHAP.	11/3	11/3	1/3
2	Make sure					is selected (highlighted).
					TIME
3	Change the time indication.

ENTER

TOTAL Elapsed disc time.

T.REM Remaining disc time.

TIME* Elapsed playing time of the current chapter/track.

REM* Remaining time of the current chapter/ track.

* Not available for DVD-VR.

To erase the on-screen bar

ON

SCREEN

Repeat Play

• See also page 21.

1While playing a disc (without PBC for SVCD/VCD), display the on-screen bar with the pull-down menu.

•Except for DVD Video: Repeat Play can be selected before starting playback.

2 Select

.

3 Display the pop-up window.

DVD-VIDEO	Dolby D	DISCTITLE1 TITLE14 2CHAP233 TOTAL1:25:581:01:58
	3/2.1ch
TIMEE	OFFF	CHAP.	11/3	11/3	1/3

OFF

4 Select the repeat mode you want.

ALL	Repeats all discs or all programmed
	tracks.
A-B	Repeats a desired portion (see the next
	page).
TITLE	Repeats the current title.
GROUP	Repeats the current group.
DISC	Repeats the disc (except for DVD).
CHAPTER	Repeats the current chapter.
TRACK*	Repeats the current track.
PG	Repeats the current title (for DVD-VR
	only). See also page 28.
PL	Repeats the current play list (for DVD-
	VR only). See also page 28.
OFF	Cancels Repeat Play.

*During Program Play or Random Play, “STEP” appears.

5 Finish the setting.

Pop-up window goes off.

ENTER

24

A-B Repeat

1While playing, display the on-screen bar with the pulldown menu.

2Select .

3Display the pop-up window.

DVD-VIDEO	Dolby D	DISCTITLE1 TITLE14 2CHAP233 TOTAL1:25:581:01:58
	3/2.1ch
TIMEE	OFFF	CHAP.	11/3	11/3	1/3

OFF

4 Select “A-B”.

	DVD-VIDEO	Dolby D	DISCTITLE1 TITLE14 2CHAP233 TOTAL1:25:581:01:58
		3/2.1ch
	TIMEE	OFFF	CHAP.	11/3	11/3	1/3

A–B

5 Select the start point (A).

ENTER	DVD-VIDEO	Dolby D	DISCTITLE1 TITLE14 2CH
		3/2.1ch

TIMEE AOFF- CHAP. 11/3

•After selecting the starting point (A), you can search for the end point using ¡.

6 Select the end point (B).

	A-B Repeat starts. The selected
ENTER	portion plays repeatedly.

To cancel A-B Repeat, repeat steps 1 to 3, and select “OFF” in step 4.

To erase the on-screen bar

ON

SCREEN

Time Search

You can move to a particular point by specifying the elapsed playing time from the beginning.

1While playing (without PBC for SVCD/VCD), display the on-screen bar with the pull-down menu.

•Except for DVD: Time Search can be used before starting playback.

2Select .

3Display the pop-up window.

DVD-VIDEO	Dolby D	DISCTITLE1 TITLE14 2CHAP233 TOTAL1:25:581:01:58
	3/2.1ch
TIMEE	OFFF	CHAP.	11/3	11/3	1/3
	TIME	_ : _ _ : _ _

4Enter the time.

You can specify the time in hours/minutes/seconds.

1 2 3

4 5 6

7 8 9

10 0 +10

Examples:

To move to a point of 1 (hours): 02 (minutes): 00 (seconds), press 1, 0, 2, 0, then 0.

To move to a point of 54 (minutes): 00 (seconds), press 0, 5, 4, 0, then 0.

•It is always required to enter the hour digit (even “0” hour), but it is not required to enter trailing zeros (the last two digits in the examples above).

•To correct a misentry, press cursor 2 to erase the last entry.

5 Finish the setting.

	The System starts playing from the
ENTER	specified time.

To erase the on-screen bar

ON

SCREEN

English

25

English

Chapter/Track Search

You can search for the number of the item to play. For DVD Video/DVD-VR: Chapter

For DVD Audio: Track

1While playing, display the on-screen bar with the pulldown menu.

2 Select CHAP. or TRACK .

3 Display the pop-up window.

DVD-VIDEO	Dolby D	DISCTITLE1 TITLE14 2CHAP233 TOTAL1:25:581:01:58
	3/2.1ch
TIMEE	OFF	CHAP.	11/3	11/3	1/3
		CHAPTER	_

4 Enter the desired chapter/track number.

	1	2	3	Examples:
				To select chapter/track 5, press 5.
	4	5	6	To select chapter/track 15, press
	7	8	9	1, then 5.
				To select chapter/track 30, press
	10	0	+10
				3, then 0.

•To correct a misentry, press the 10 keys until the desired number is shown in the pop-up window.

5 Finish the setting.

	The System starts playing the
ENTER	searched chapter or track.

To erase the on-screen bar

ON

SCREEN

Operations on the Control	ONLY
	Remote
Screen	INFO

For DVD-VR/MP3/WMA/JPEG: You can search for and play the desired items through the control screen.

Control screen for DVD-RW/RAM in DVD-VR format

The control screen is superimposed on the TV screen when you call up Original Program (PG) or Play List (PL).

To select playback type

To select the Original			To select the Play List:
Program:
	TOP MENU/PG			MENU/PL

When Original Program is selected.

ORIGINAL PROGRAM
No		Date	Ch	Time	Title
	1	25/04/04	4ch	19:00	JVC DVD World 2004
2		17/05/04	8ch	10:30
3		22/05/04	8ch	17:00	Music Festival
4		26/05/04	L-1	13:19	children 001
5		20/06/04	4ch	22:00
6		25/06/04	L-1	8:23	children 002

1 2 3 4 5 6

When Play List is selected.

PLAY LIST

No

Date

Chap

Length

Title

1

25/05/04

001

1:03:16

My JVC World

2

17/06/04

005

1:35:25

3

20/06/04

003

0:10:23

Favorite music

4

25/06/04

001

0:07:19

children001-002

1 7 8 9 5 6

1 Title/Play list number

2 Recording date

3Recording source (TV station, the input terminal of the recording equipment, etc.)

4 Start time of recording

5 Title of the program/play list*

6 Highlight bar (current selection)

7 Creating date of play lists

8 Number of chapters

9Playback time

*The title of the original program or play list may not be displayed depending on the recording equipment.

To erase the control screen for DVD-VR, press ENTER.

26
