SERVICE MANUAL

COLOUR TELEVISION

AV-20N3/AV-20N3

AV-20NMG3/AV-20NMG3B

/D

AV-20N3

AV-20NMG

AV-20NMG3

BASIC CHASSIS

CG

/AV-20NMG3

[

RM-C 36 4G Y ]

[ RM-C364 ]

CONTENTS

/-A

!

SPECIFICATIONS

!

SAFETY PRECAUT IONS ････････････････････････････････

! FEATU RES････････････････････････････････
! FUNCTIONS ････････････････････････････････
!

MAIN DIFFERENCE LIST ････････････････････････････････

! SPECIFIC SERVICE INSTRUCTIONS ････････････････････････････････
!

SERVICE ADJUSTMENTS

!

PARTS LIST ････････････････････････････････

★ OPERAT ING INSTRUCTIONS
★ STAND ARD CIRCUIT DIAGRAM ････････････････････････････････

1

････････････････････････････････････････････････････････････････

････････････････････････････････････････････････････････････････

････････････････････････････････

･････････････････････････････････････････････････････････････

････････････････････････････････････････････････････････････････

･･･････････････････････････････････････････････････････

････････････････････････････････････････････････････････････････

･･･････････････････････････････････

････････････････････････････････････････････････････････････････

････････････････････････････････････････････････････････････････

････････････････････････････････････････････････････････････････

･･･････････････････････････････････････････････････････

････････････････････････････････････････････････････････････････

･････････････････････････････････････････････

････････････････････････････････････････････････････････････････

････････････････････････････････

･････････････････････････････････････････････････････

････････････････････････････････････････････････････････････････

････････････････････････････････････････････････････････････････

････････････････････････････････････････････････････････････････

････････････････････････････････････････････････

････････････････････････････････････････････････････････････････

COPYRIGHT © 2002 VICTOR COMPANY OF JAPAN, LTD.

･････････････････････････････

･･････････････････････････････････････････････････････････

･･･････････････････････ 3

･･････････････････････････････････････････････

･･････････････････････････････････

････････････････････････････････････････････････････････････････

･･･････････････････････ 7

･･････････････････････････････････････････････

･････････････････････

･･････････････････････････････････････････

････････････････････････････････････ 33

････････････････････････････････････････････････････････････････

･･･ 4

･･････

･･ 5

････

･････････････ 8

･･････････････････････････

15

････････････････2-1

････････････････････････････････

2

No. 52025

Jun. 2002

A

V-20N3

A

A

V-20NMG3
V-20NMG3B

SPECIFICATIONS

CONT ENTS

ITEM

Dimen sions( W×H×D) 619mm×458mm×488mm

Mass

TV RF Syst em B/ G, I, D/K B/ G, I, D/K, M

19kg

AV - 20 N3

AV - 20 N3

/D

AV-20NMG3

AV-20NMG3B

AV-20NMG3

/-A

Colour System

Pi ctur e Tube

High Voltage 26.5kV±1.5kV(at zero beam current)

Receiving Frequency

Intermediate
Frequen cy

Col ou r S ub C arr ier Fr e q uen cy

Power Input Rated Voltage

Power Co nsumpti on

RF Mode PAL / SECAM PAL / SECAM / NTSC3.58 / NTSC4.43

VIDEO Mode PAL / SECAM / NTSC3.58 / NTSC4.43

Visible size: 48cm measured diagonally

VHF (VL) 46.25MHz～168.25MHz

VHF (VH) 175.25MHz～463.25MHz

UHF 471.25MHz～863.25MHz

Cable TVs of Mid ( X-Z, S1-S10)

CATV

VIF Carrier 38.0MHz

SIF Carrier

Super (S11-S20) & Hyper (S21-S41)
bands recei vable

32.5MHz (5.5MHz)

31.5MHz (6.5MHz)

32.0MHz

PAL (4.43MHz),
SECAM (4.40625MHz / 4.25MHz)

NTSC (3.58MHz / 4.43MHz)

AC110～240V, 50 / 6 0Hz

90W (Max) / 60W(Avg)

(6.0MHz)

32.5MHz(5.5MHz) /33.5MHz (4.5MHz)

31.5MHz (6.5MHz)

32.0MHz

(6.0MHz)

Speaker

Audio Output

Aer ial In pu t Termi n al

Input

Output

Headphone jack

Remote Control Unit

Video 1V(p-p), 75Ω (Front / Rear )

Audio

Video 1V(p-p), 75

Audio 500mV(rms) (-4dBs), Low impedance,

5cm×12 cm, Oval type×2

3W (monaural )

75Ω Unbalanced

500mV(rms) (-4dBs), High impedance,
RCA×2 (Front / Rear)

Ω

3.5mm mini jack

RM-C364GY
(Batter y size : AA / R06 / UM- 3×2)

Design and specifications are subject to change without notice.

2

No. 52025

[AV-20NMG3 / AV-20NMG3
: RM-C364G Y
[AV-20NMG3B]

: RM-C364
(Batter y size : AA / R06 / UM- 3×2)

/-A]

A

3

A

A

SAFETY PRECAUTIONS

V-20N

V-20NMG3

V-20NMG3B

1. The d es ign of th is prod uct c on ta ins sp eci al har d wa re , many
circuit s and components specially for safety purp oses. For
con tinu ed pr ot ection , n o c han g es sh ou ld b e ma de to the o ri g i nal
d esi gn un less auth or ized in w riti n g by th e ma nu fact urer.

Replacem en t par ts must b e id ent ic al to thos e u sed in th e or i gi n al
ci rcu its. Servi ce sho ul d b e per formed by qu alif ied p ers on nel
on ly.

2. Al te rati on s of t he des i g n or circui tr y of t he pr od ucts s h oul d not be
made. Any design alterations or additions will void the
manu fact ur er 's warrant y and w ill f urth er r el i eve t he manu factu rer
of r esp onsi b ility for perso na l injury or pr op erty dam ag e r es ult in g
th erefr om.

3. M an y electr i c al an d m ech anic a l p ar ts in th e prod ucts ha ve
special safety-related characteristics. These characteristics are
oft en not e v iden t f rom vi sual insp ec ti on n or c a n t he pro tec t io n
aff or de d by th em nec e ssar i l y be ob tai n ed b y u sing rep lacem en t
com po ne nts ra ted f or hig he r voltag e, w att ag e, etc. Rep lacem en t
p arts whic h ha ve th ese sp eci al s afet y charact erist ics ar e

ide ntified i n the parts li st of S ervice manual. El ectric al

components having such features are ide ntified by shading
on t h e sche mat ics and by (!!!! ) on the parts list in Service
manual. T he us e of a sub sti tu te rep lacem en t whic h do es n ot

h ave th e s ame saf ety ch ar act erist ics as t he reco mm en de d
replac em ent part sh own i n th e parts li st of Ser v ice m an ual m ay

cause shock, fire, or other hazards .

4. Don't shor t between the LIVE side ground and ISOLATED

(NE UTRAL) side ground or EARTH side ground when
repairing.

Some model's power circuit is partly different in the GND. The
diff er enc e of th e GND is s ho wn b y th e LIV E : ( ") side GN D, the
ISO LATE D(N EUTRAL) : (#) si de GND and EARTH : ( $) side
GND. Do n't s h or t bet we en th e LIV E sid e GN D an d

ISO LATE D(N EUTRAL) side GND or EART H side GND an d
n ever m ea sur e w it h a mea sur ing a ppa ratus ( os cil lo scop e etc.)
th e LI VE si d e GND an d IS OLA TED(N E UTRAL ) sid e G ND or
EARTH side GND at the s ame time.
If above not e will not be kept, a fuse or any parts will be broken.

5. If any repair has been made to the chassis, it is recommended
th at t he B1 set ting shou l d b e c h ecke d or adj u ste d ( See
ADJUST M ENT OF B 1 POW E R SUPPL Y).

6. The high vol tage app lie d t o th e pictu r e tu be mus t c on for m w it h
th at s p ec ifi ed i n S er v ice m an ual. E xcess ive h igh vo lt ag e ca n

cau s e an i ncre ase in X-Ray em i ssi on , ar c i ng an d possib le
component damage, therefore operation under excessive high
voltage conditions should be kept to a minimum, or should be
preve nt ed. If s ever e arc ing occur s, r em ove t he AC power

immed i ate ly and de termine th e cause b y visua l insp ect ion
(inc or r ect install at ion, cr ac ke d or mel te d high vo lt age har n ess,
p oor so lder i ng, et c.) . T o m ai nt ain the p r ope r mi n im u m le vel of
sof t X- R ay emis si on, c omp on ents in th e high voltag e cir c uitr y
incl ud i ng t he pict ur e tube must b e t he exac t r ep l aceme nts or

alte rn at ives ap prov e d b y th e manuf act ur er of th e c omplet e
prod uct.

7. Do n ot c hec k high volt ag e b y dr awing an ar c. U se a hi gh volt age
meter or a hi g h v ol tag e probe wit h a V TVM . Di s cha rge th e
picture tube before attempting meter connection, by connecting

a cl i p lead to the grou nd frame a nd conn ectin g th e oth er end of
the lead through a 10kΩ 2W resi sto r to the an od e butt on .

8. W hen service i s r equ ire d, ob ser ve th e or igina l lea d dres s. E x tr a
prec aut ion sh ou ld b e given t o assure correct l ea d dress in th e
high vol tag e ci r cui t a r ea. W her e a s hor t circui t h as occ u rr e d,
th ose co mpon ent s tha t i ndi ca te ev ide nce of ove r hea ting sho ul d

b e r e pl ace d. A lwa ys use th e ma nuf act urer's r ep l acemen t
components.

9. Isolation Check

(Safety for Electrical Shock Hazard)

Af ter re-ass emb ling th e pr odu c t, alw ays per f orm an i solat io n
ch ec k on the ex po sed me tal p ar ts of t he c abin et ( a nte nn a

ter m ina ls, video /au dio inpu t and ou tput t erminals, C on trol kn obs,
metal cabin et, s cr ew he ads, ea rph one jack, c on tr ol shaf ts, etc.)
to be s u re the p r odu c t i s s af e t o o perate with ou t d an ger of
elect rical s hoc k.

(1) Dielectric Strength Test

The is o l ati on be tween the AC pr im a ry ci rcu it an d all me tal p arts
exp osed t o th e us er, p arti c ularly an y expos ed met al p art having a
retu rn p ath to t he chas s is should withs tan d a volt age of 3 000 V
AC (r.m.s.) for a period of one second.

(. . . . W iths tan d a vo lt ag e of 1 10 0V A C ( r .m. s .) to an ap pl ianc e

rate d up to 12 0V , an d 3 00 0V AC ( r .m. s .) to an ap pl i an ce rat ed
200V or more, for a period of one second.)
This meth od of test requires a test equipment n ot g enerall y fou nd
in t he s er vic e trade.

(2) Leakage Current Check

Plug th e AC l in e c ord d ir ect ly into the A C ou tlet (d o n ot use a lin e
isol ati o n transf orm er dur in g this check .) . Usin g a " Leakag e

Curr ent Teste r", me asure th e lea kag e current f rom each exp osed
metal p ar t of the ca bi ne t, p art icu lar l y any e x pos ed me tal p ar t
h avi ng a re turn pa th to t he ch as sis , t o a kn ow n go od eart h
grou nd (wa ter pi p e, e tc.) . An y l eaka ge cur r en t must not e x ceed

0.5mA AC (r.m.s.).
Howev e r, i n tropic al ar ea , th is mus t no t exc e ed 0.2 mA AC
(r.m.s.).

"""" Altern at e Che ck M ethod

Plug th e AC l in e c ord d ir ect ly into the A C ou tlet (d o n ot use a lin e
isol ati o n transformer during t hi s che c k.). Use an AC v o lt me ter

h avi ng 1 000 oh ms pe r volt or m ore sens it i vity in th e fo llow i ng
mann er . C on nec t a 1 50 0Ω 10W res ist or para lle led b y a 0 .15µF

AC-type c apacit or bet ween an expo sed met al pa rt and a kno wn
g ood e ar th gro un d ( wa ter pi pe , etc.). M eas ure th e AC volt ag e
acr oss th e r es ist or with th e AC vo ltm eter . Move th e r esi s tor
con nec ti on to each ex p ose d me tal par t, p art i cularly a ny exposed

metal p ar t hav in g a r etu rn pat h to the ch ass is, an d m easu re th e
AC vol tag e ac ro ss the r es ist or . Now, re vers e th e plu g in th e AC
ou tl et and repe at eac h m ea s ur em en t. An y vol t age measu red
must no t e xceed 0 .7 5V AC (r.m.s.). This c orresponds to 0.5mA
AC (r.m.s.).

Howeve r, in tropica l area, this must n ot exceed 0.3V AC ( r.m. s.) .
This corresponds to 0.2mA AC (r.m.s.).

AC VOLT METER
(HAVING 1000 Ω /V,
OR MOR E SENSIT IVITY)

0.15μF AC-T YPE

PLACE THIS PROBE

1500 Ω 10W

GOOD EARTH GROUND

ON E A C H EX PO SE D
ME T AL PA RT

No.52025

3

A

V-20N3

A

A

V-20NMG3
V-20NMG3B

FEATURES

"

New c h assi s d esign enabl es us e of an int eractive on-scr ee n c ont ro l.

"

Wide ran ge volt age ( 1 10V～240V) AC power input.

" With AUDIO / VI DEO INPUT & OUTPUT te rminal.
"

MUT IN G button can r ed uce th e audi o level to z er o i nst ant l y.

" Func t ion al r em ote contr ol t o oper a te T V set (f or chann el se lect, volum e con tr ol , p ower ON /OFF , etc. ) f rom a d ist anc e.
"

I2C bu s con tr ol ut ilizes single chi p ICs for IF, V /C, DE F. VSM PR ES ET, PRESET & SETUP T OUR.

" By m eans of AUTO PR OGRA M, th e TV s tatio ns c an b e s electe d automatica lly a nd th e TV chann el s c an al so b e r ear r an ged a utom atically.
" Built-i n E CO MO DE (ECONOM Y, ECOLOG Y)

In acco rdanc e with the br ig ht nes s in a roo m, th e brig ht ness and / of con tr ast of th e p ic tur e c an b e a djus t ed autom at ically to mak e the
op ti mu m pictu re whi c h is eas y on the e ye.

"

Built – in ON TIMER, RETURN + & CHILD LOCK.

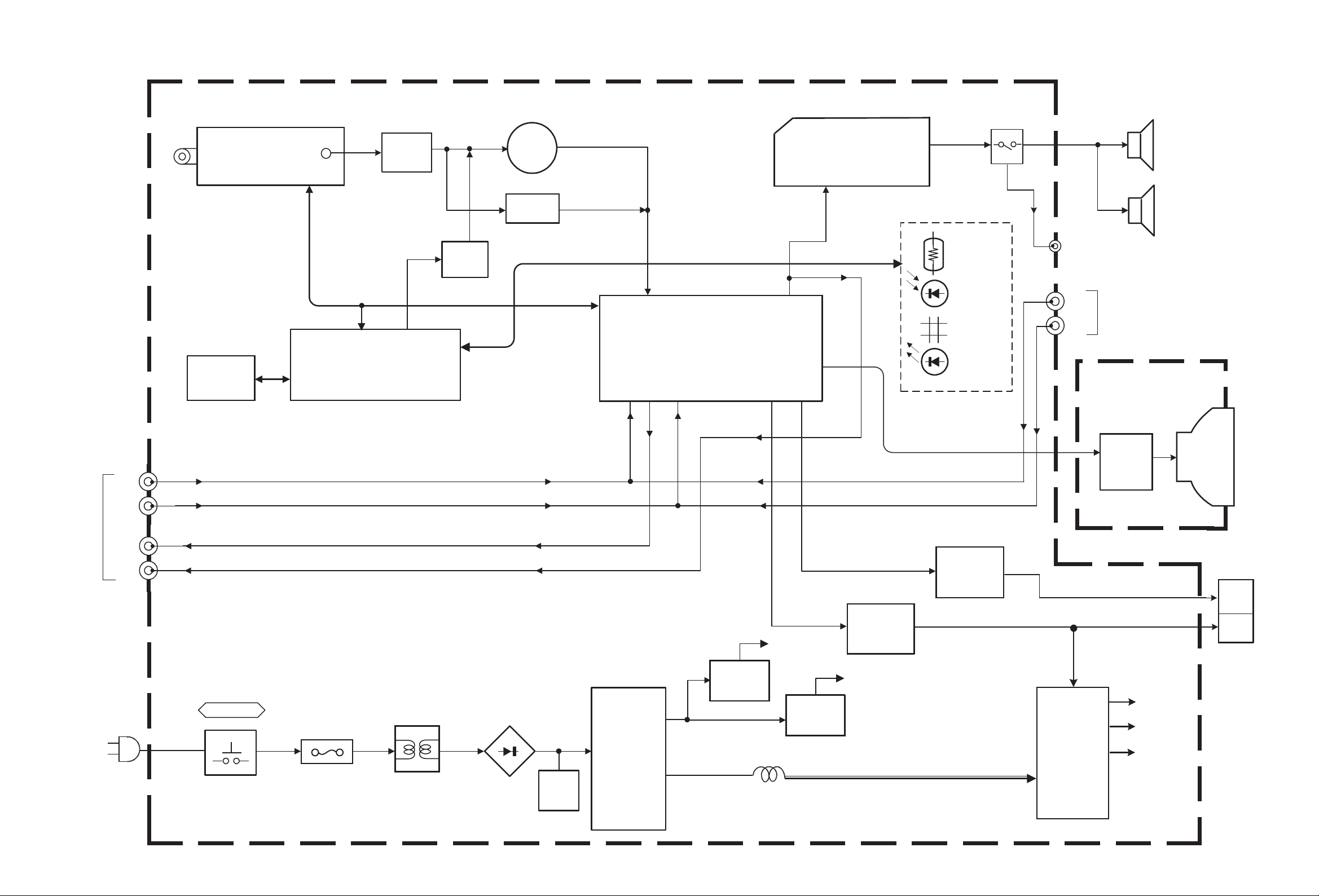

SYSTEM BLOCK DIAGRAM

IC702

MEMORY

SCL2/SDA2

IC701

MICRO

COMPUTER

IC301

VIDEO/CHROMA

DECORDER

SCL1/SDA1

TU001

TUNER

4

No. 52025

A

3

A

A

FUNCTIONS

■

FRONT PANEL

MENU buttons

1

CHANNEL －/＋ buttons

2

VOLUME －/＋ bu tto ns

3

AI ECO sen sor

4

REMO TE CONTR OL s ens or

5

ON TIMER lamp

6

POWER lamp

7

MAIN POWER button

8

A/V IN PUT t ermin al

9

HEAD PHONE jack

10

V-20N

V-20NMG3

V-20NMG3B

10 9 1 2 3 4 5 6

■

REAR TERMINAL

1

7

8

ANT Terminal

1

2

3

4

5

VIDEO INPUT Term inal

2

VIDEO OUTPUT Terminal

3

AUDIO INPUT T ermin al

4

5

AUDIO OUT PUT Terminal

No. 52025

5

A

V-20N3

A

A

V-20NMG3
V-20NMG3B

■

REMOTE CO NTRO L UN IT

RM-C364GY : AV-20N3 / AV-20N3/D / AV-20NMG3 / AV-20NMG3
RM-C364 : AV-20NMG3B

ECO S ENSOR ke y

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

1

SOUND SYSTEM key

2

COLOUR SY STEM ke y

3

TV/V IDEO key

4

OFF TIMER key

5

CHA NNEL SC AN k ey

6

RETURN＋key

7

DISPLAY key

8

CHANNEL key

9

POWER key

10

PICTURE MODE key

11

Number (CH.) key

12

－/－－key

13

MUTING key

14

MENU ke y

15

MENU ▲/▼ key
MENU －/＋ key

VOL UME－/＋ key

16

/-A

E xce pt f or d if ference i n body co lour , t he R em ote Cont r ol

Unit RM -C 3 64G Y and RM-C 36 4 have exa ctly th e sa me
Func ti ons.

6

No. 52025

A

3

A

A

MAIN DIFFERENCE LIST

V-20N

V-20NMG3

V-20NMG3B

Part Name

Model Name

AV-20N3 SCG-1403A-H2

AV-20N3

AV-20NMG3 SCG-1422A-H2

AV-20NMG3B

AV-20NMG3

/D

/-A

Part Name

Model Name

AV-20N3

AV-20N3

AV-20NMG3 A48LDD095X LCT1196- 001A-H LCT1197- 001A-H

AV-20NMG3B

AV-20NMG3

/D

/-A

Main PWB Remote Control Unit Front Cabinet Rating Label

RM-C364GY-1H LC10438-027A-H LC20377-010B-H

SCG-1425A-H2

LC10438-029A-H

RM-C364-1H LC10438-033A-H

RM-C364GY-1H LC10438-029A-H LC20413-002B-H

Picture Tube Inst Book Digest Manual

A48LWX10X LCT1188- 001A-H LCT1189- 001A-H

Item

Model Name

AV-20N3 B/G, I, D/K PAL / SECAM

AV-20N3

AV-20NMG3 B/G, I, D/K,M

AV-20NMG3B

AV-20NMG3

/D

/-A

TV RF System

Co l our S yst em

[RF Mode]

PAL / SECAM

NTSC3.58 / NTSC4.43

Interm ediate

Frequency

[SIF C arri er ]

32.5MHz (5.5MHz)

31.5MHz (6.5MHz)

32.0MHz (6.0MHz)

32.5MHz (5.5MHz)

33.5MHz (4.5MHz)

31.5MHz (6.5MHz)

32.0MHz (6.0MHz)

OSD Language

E / R

E / C / M / I

E / R / A / P

No. 52025

7

A

V-20N3

A

A

V-20NMG3
V-20NMG3B

SPECIFIC SERVICE INSTRUCTIONS

DISASSEMBLY PROCEDURE

REMOVING THE REAR COVER

1. Unp lug t he po wer pl u g.

####

!!!!

.

an d a

2. As sh own in f igur e , remove t he 6 screws marked

screw marked "

3. W i thdr a w t he r ear co ver to wa rd you .

".

""

REMOVING THE MAIN PW BOARD

" After removing the rear cover.

1. Sl ight l y raise t he bo th sid es of t he M AIN PW BOARD by hand .

2. W i thdr a w t he M AIN PW B OARD b ackw ar d.

(If necess ar y, ta k e off the wire c lamp, c onn ect or s etc. )

REMOVING THE SPEAKER

"

After removing the rear cover.

1. As sh own in fi gu r e, remove the 2 screws ma rked

2. Foll ow th e s ame st eps when r em oving the oth er ha nd speak er.

CHECKIN G THE MAIN PW BOARD

1. To ch eck the ba ck side of the PW B oar d.

1) Pu ll out the MA IN PW Bo ard. ( Ref er to RE MO VING TH E MAIN

PW B oar d)

2) Erect th e PW Board vert ic ally so th at you ca n easil y check th e
b ack side of th e PW Boar d.

[CAUTION]

" When e re c ti ng the PW Board, be c ar ef ul s o that th ere w ill b e n o

con tact in g with ot her PW Boar d.

" Before turning on power, make sure that the CRT earth wire and

oth er co nne cto r ar e p rope rly c onn ect ed.

WIRE CLAMPIN G AND CABLE TYING

1. Be sure t o clamp th e wire.

2. N ever rem o ve th e c able tie use d f or tyi ng the wire s to ge the r.
Sh oul d i t be inad verte ntly r em ove d, be su re to tie th e w ires w it h a

new cable tie.

8

No. 52025

A

3

A

A

FRONT CABI .

V-20N

V-20NMG3

V-20NMG3B

SP EAKER

SP EAKER

REAR

COVER

C

(×××× 2)

POWER

CORD

CRT SOCKET

PWB

MAIN PWB

C

(××××2)

B

(××××1)

A

(××××6)

No. 52025

9

A

V-20N3

A

A

S

U

/C

COLOU

/

MENU

V-20NMG3
V-20NMG3B

REPLACEMENT OF MEMORY ICs

1. MEMORY ICs

Thi s mod el u ses me mo r y I Cs. This memo r y IC da ta are f or pr o per opera tion of th e vide o a nd defl ect io n cir cuits.
When r ep la cing memory ICs , b e su r e to use ICs w r it ten w i th t he ini tial v a lu es of dat a.

2. PROCEDURE FOR REPLACIN G MEMORY ICs

(1) Power off

Switch the p ower of f and di sc o nn ect t he pow e r plu g f rom t he w al l out let.

(2) Replace ICs

Be sure to use memory ICs written with the initial data values.

(3) Power on

Connect th e pow er plu g i nt o the wal l ou tl et and s w itch t he po we r on .

(4) C heck and s et SY STEM CONSTAN T SET

・・・・ It must not adjust without adjustment signals.

1) Press t he DISPL AY ke y and th e PICTURE MODE key of the RE MOTE

CONTROL UNIT simultaneously.

2) The SERVICE MENU screen of Fig. 1 will be displayed.

3) W hi le th e SE RV IC E M EN U is di splay ed , again press the DI SPLAY ke y and

PICTURE MODE ke y s imulta neo us l y, an d t he S YSTEM C ON ST A NT SE T

screen of Fig. 2 w ill b e di splayed.

4) Check th e sett ing val u es of th e SYS TEM CONSTA NT SET of T abl e 1 If th e

valu e is diff erent, select th e s etting ite m with th e MENU ▼/▲key, and s et

th e co rrect valu e with t he MENU - / + k ey.

5) Press the DI SPLAY ke y twice, and r eturn to th e n or m al scr ee n.

(5) Receive channel of setting

Refe r to th e OPE RATING INST RUCTIONS and set th e r ece i ve c ha nn el s

(chan nels prese t) as descr i be d

(6) User Setting

Check t he us er s ettin g valu e of Tab le 2, a nd if se tti ng value is di f feren t, s et

th e co rrect valu e.

For setting , refer to the OPE RATING INSTRUCTIO NS.

(7) Setting of SERVICE MENU

Ve rif y the s et ting it ems of th e SER VICE MENU, and r eset whe r e n ecess a r y.

For setting , refer to the SERVICE ADJUSTMENTS.

KEY ASSIGNMENT OF REMOTE CONTROL UNIT

ERVICE MEN

1.IF 2.V

3.DEF 4.VSM PRESET

5.PRESET

6.SETUP TOUR OFF

1-6 SELECT DISP : EXIT

******

****** *****

***** **

************

**********

*** ** **

*** ** ** ** ***

*** ** ***** ** **

**.***

****

** ***

** ***** ***

***

******

Fig.1

SY STEM C ON STA NT-

SYSTEM CONSTA NT SE T 1

COL O UR :
BILIN GUAL : N O

TUNE R : MU
ECO SENSOR : YES
LANG U AG E :

: SELECT

/

- / + : OPERATE DISP : EXIT

***

***

SY STEM C ON STA NT- ⅡⅡⅡⅡ

SYSTEM CONSTA NT SE T 2

B/B SO UND :
LOCK : 180

R AUTO:
QSS : MINT
ALC : NO

TEXT R ATE : 2 0

: SELECT

/

- / + : OPERATE DISP : EXIT

***

***

ⅠⅠⅠⅠ

10


MO DE k e y

NUMBERS

key

DISPLAY

－/＋

key

key

MENU

▼/▲

key

E xce pt f or d if ference i n body co lour , t he R em ote Cont r ol
Unit RM -C 3 64G Y and RM-C 36 4 have exa ctly th e sa me

No. 52025

SY STEM C ON STA NT- ⅢⅢⅢⅢ

SYSTEM CONSTANT SET 3

AMP T UNER : NO
VNR : YES

TEXT TABLE : CYL
VOLUM PWM : POS

: SELECT

- / + : OPERATE DISP : EXIT

Fig.2

A

3

A

A

SE TT ING OF SY STEM C ON STANT SET

A

Setting item Setting contents

AV-20N3 AV-20N3

Setting value

AV-20NMG3 AV-20NMG3B AV-20NMG3

/D

V-20N

V-20NMG3

V-20NMG3B

/-A

COLOUR

BILINGUAL

TUNER

AI ECO S ENSOR

LA NG UA G E

B/B SOU ND

LO CK

COLOUR AUTO

QSS

ALC

TEXT RAT E

AMP TUNER

VNR

TEXT TABLE

VOL UM PW M

MUL TI . PA LTRIPLE

YE S NO

MA

MU

YE S

E/R/A /P

ON OFF

YES 10 20 ～ 230

250 240

YE S NO

MI NT MQ SS

YE S NO

10 20 40 80

YE S NO

YE S NO

RA

POS NEG

NO

CYL

E/R

E/C/M/I

TRIPLE MULTI.

NO

MU

YE S

E/R

OFF

18 0

NO

MI NT

NO

20

NO

YE S

CYL

POS

Table 1

E/C/ M/I E/R/A /P

ON

YE S

USER SE T TING V ALUES

Setting item Setting value Setting item Setting value

SUB POWER ON LANGUAGE ENGLISH

CHA NNEL PO SITIO N 1 PO SITIO N CHA NNEL P RE SET Refe r t o OPE RATIN G I NS TRUCTION

VOL UME About 10 AI ECO S EN SOR OFF

TV/V IDEO

ON SCR EEN DI SPLAY

COLOUR SYSTEM PAL ON TIMER PR1 0:00

SOUND SYSTEM B / G BLUE BACK OFF

OFF TIMER OFF OSD.Shows 00 CHILD LOCK OFF

PICTURE MODE (VSM) BRIGHT

TV VNR OFF

POSITION INDICATION AUTO SHUTOFF OFF

Table 2

No. 52025

11

A

V-20N3

A

A

)

V-20NMG3
V-20NMG3B

INITIAL SETTING VALUE OF SERVICE MENU

1. Ad just m ent of th e SER VICE MENU is m ade on th e bas is o f the initial set ti ng va lu es ; however, the n ew se tt in g va lu es w hich
set the screen in its optimum condition may differ from the initial setting.

2. Do not change the initial Setting Values of the Setting (Adjustment) items not listed In “ADJUSTMENT”.

2. V/C

Initial set ting v al ue

Setting item

2. DRI VE

3. BR IG HT

Colour sy stem

RED

GREE N1. CUT OFF

BL UE

RED

BL UE

Variabl e

range

-128 ～+127

-128 ～+127

-127～+127

PA L SE CAM NT SC 3.5 8 NT SC 4.4 3

-50

+ 0

+ 0

4. CONT .

5. COLOUR -63～+63 + 0

TV

AV -20N3

6. TINT

7. SECAM BL ADJ. -31～+31

8. SHARP

3. DEFL ECTION

1. VER. POS ITION -04 ～ +03 - 2 - 3

2. HOR. POSITION

3. VER. HEIGHT

4. VE R . L I NE ARIT Y

5. VER. S WCURVE

6. H OR. VC O AD J UST

VI DEO

Do Not Ad j.

Setting item Variabl e range

AV -20N3

AV -2 0NMG 3
AV -2 0NMG 3B

AV -2 0NMG 3

Do Not Ad j.

/D

/-A

TV - 8(Fixed)

VI DEO

-63 ～+63

-63 ～+63

-32～+31

-16 ～ +15

-64 ～ +63

-32 ～ +31

-32 ～ +31

-63 ～ +62

+ 0

+ 0 + 0

+0 - 2

+8 - 2

+ 0

+15(Fixed

Initial set ting v al ue

fv : 50Hz MODE fv : 60Hz MODE

+1 + 4

-40 + 0

+13 - 3

-32 + 0

+ 0 + 0

4. VS M PRESE T

12

VS M pr eset

VSM mode

Setting item

TINT SETTING VA LUE +1 5

COLOUR SE TTIN G VA LU E +15

BR IG HT SET TING VA LUE +1 5

CONT . SE TTING VA LU E +30 +15 + 11

SHARP SE TT IN G VA LU E +1 5 +1 2

BRIGHT STANDARD SOFT

No. 52025

A

3

A

A

5. PRESE T

The items in the following table, it i s no requirement for adjustment.

If va lues had changed by t he miss operation, se t the initial settin g v alue s i n the following table.

Colour Sy stem Do Not Ad ju st

V-20N

V-20NMG3

V-20NMG3B

Setting item

1. C TRAP FIX 1 1 1 1

2. SHARP PEAK 0 0 0 0

3. A BL 1 1 1 1

4. GAMMA 0 0 0 0

TV 0 2 2 3

5. Y. DE LAY TIME

VI DEO 0 2 0 2

6. BL ACK EX P STAR T

TV 1 1 0 0

7. C-BPF

VI DEO 1 1 1 1

8. CW / SCP 0 0 0 0

9. VIF DET LEVEL 0 0 0 0

11. IF AGC MIN 0 0 0 0

12 . VIF AGC 0 0 0 0

13. VIF PM OD 0 0 0 0

19 . VN R 15 15 15 15

PA L SE CAM NT SC 3.5 8 NT SC 4.4 3

＋3 ＋3 ＋3 ＋3

Initial set ting v al ue ( Fixed value)

20 . R GB LIM 1 1 1 1

21. RGB LIMIT LEVEL 2 2 2 2

23. TEXT H. POSITION -3 -3 -3 -3

24. READ DATA

Sound System D o No t Adj u s t

Setting item B/G I D/ K M

10. SIF DET L EVEL ＋0 ＋0 ＋0 ＋0

14. SIF BP F BW ADJUST

15. SIF TRAP FO ADJUST ＋0 ＋0 ＋0 ＋0

16. SIF TRAP FO ADJUST 2 ＋0 ＋0 ＋0 ＋0

17. SIF -TRAP 0 0 0 0

18. SIF -BPF 1 0 0 0

22 . SIF SW 0 1 1 1

＋

0

＋

0

＋

0

＋

0

No. 52025

13

A

V-20N3

A

A

V-20NMG3
V-20NMG3B

REPLACEMENT OF IC301 (IF V/C DECODER)

" For the IC301(IF V/C DECODER) of this mode l, a ll data are written in the micro-computer. So, wri te th e data i n the micro-

computer in accordance with the following procedures before starting adjustment.

PROCEDURES

(1) Tur n t he POWE R O F F.
(2) Rep l ace t he IC30 1 w i th a new o ne.

(3) Whi l e pr essi ng ME NU bu tton a nd VO L+ butto n ON the FRO NT C ABINE T s imult ane ous ly, turn th e POW ER O N. W h en th e POW ER i s

turn ed ON, th e d at a is w ritten in the m icro-compute r immed iately.

LOCATIONS OF FRONT PANEL BUTTONS AND LAMPS

MENU buttons

MENU buttons

1

CHANNEL ･ / ･ buttons

CHANNEL －/＋butto ns

2

(ME NU ･ / ･ bu tt ons )

(ME NU －/＋b uttons)

VOLUME －/＋ buttons

VOLUME －/＋ buttons

3

(MENU －/＋ bu tto ns)

(MENU －/＋ bu tto ns)

AI ECO sensor

AI ECO sensor

4

REMOTE CONTROL sensor

REMOTE CONTROL sensor

5

ON TIMER lamp

ON TIMER lamp

6

POWER lamp

POWER lamp

7

MAIN POW ER button

MAIN POW ER button

8

14

No. 52025

A

3

A

A

SERVICE ADJUSTMENTS

BEFORE STARTING SERVICE ADJUSTMENT

V-20N

V-20NMG3

V-20NMG3B

1. There ar e 2 w ay of adjus ti ng thi s TV: One i s wi th t h e
REMOTE CONTROL UNI T and the other is the conventional

method using adjustment parts and components.

2. The adjustment with the REMOTE CONTROL UNIT is made
on the basis of t he initia l se tting v alue s. The sett ing values

which adjust the screen to its optimum condition may differ
from the initia l s etting v al ues.

3. M ake s ur e th at connect ion is c orrec t l y made t o AC p ower
source.

4. Turn on t he power of th e se t an d eq uipm en t bef or e us e, an d
start t he adju stm en t proc edure s af ter waitin g at least 30 min utes.

5. Unless ot her w i se s pec ified, pr ep ar e th e mo st sui ta ble r ec epti o n
or inp ut si gn al for adj ust m ent.

6. N ev er t ouch a ny adjus tme n t part s, whi ch ar e not sp e cified
in the li st for thi s ad justme nt VRs , tra nsf or ms, c ond e n ser s,

etc.

7. Pr ep arati o n f or ad justmen t
Unless otherwise specified in the adjustment instructions, preset

the following functions with the REMOTE CONTRO L UNIT.

User mode position

MEASURING INSTRUMENT AND FIXTURES

1. DC voltmeter (or digital voltmeter)

2. Oscilloscope

3. Si gn al g ener at or (P att er n g ener at or) [ PAL / S EC AM / N T S C]

4. Remote control unit

PICTURE MODE (VSM) BRIGHT

VNR OFF

TINT / COLOUR / BRIG HT
CONT. / SHARP

BLUE BA CK OFF

OFF TIMER OFF

AI ECO S ENSOR OFF

AUTO S HUT O FF OFF

CENTER

ADJUSTMENT ITEMS

Adjustment it em Adjustment it em

B1 POW E R SUPPLY

FOCUS adjustment VSM PRESET setting

IF ci rc uit a djust me nt

V/C (Video / Chroma) circuit adjustment

DEFLECTION c ircuit adjustment

PURITY/ CO NV ER GEN C E adj us tm ent

No. 52025

15

A

V-20N3

A

A

3


t

V-20NMG3
V-20NMG3B

BASIC OPERATION OF SERVICE MENU

"

The adjustment using SERVICE MENU

The f ol lowing adjus tme nt it ems us e t he SE RV IC E M EN U in th e s er ies of the adj u s tm ent . The ad ju stment s are made on the bas is of the
initial s e tting val u es. The ad ju stm ent valu es whic h ad ju st t he s cr een to the o pti m um co ndit io n c an be diffe rent from the i n iti a l sett in g values.

With th e SER VICE ME NU, various s ett in gs c an be made , a nd the y are broa dl y c l ass ifi e d i n the f ollo win g ite ms of s etti n gs.

1.I F ･･･････ ･････････････ ･･･ Ad justment of th e IF cir cuits.

2.V /C ･･････････････････････ Ad ju stm en t of th e VID EO /CHRO MA cir cuit.

3.DEF ････････････････････ ･ Ad justm ent of the DEFL ECTION circuit.

4.V SM PRES ET ･･･････ ･････ Ad ju s tm en t of th e i ni t ia l sett in g va lue s of VSM c o nd it ion as STA NDA RD, SOFT a nd BRIGH T.

(VSM : Video Status Memory)

5.PRESET

6. SETUP TOUR OFF ･･･････ It s hould be abl e to sel ect mode ( LAN GU AG E a nd AU T O CH PRESE T )..

"

Key operation of the SERVICE MENU

[Enter to SERVICE MENU]

Press the DI SPLAY key and the PICTURE MODE key of the REMOTE CONTROL

UNIT s imult an eou sly. Th en enter the S ERVICE ME N U mod e as sh own in Fig.1 .

[Exit from SERVICE MENU]

When co m plete th e ad j ust me nt wor k , pr ess th e DISPLA Y key to retur n t o th e

SERVICE MENU.
An d th en pr es s the DISPLA Y ke y ag ain, retur n to the n or m al sc r een .

[ Se lec t fr o m SE RV IC E ME NU ]

In SER VI CE M ENU, pr ess t he n umber ( 1 ～6) ke y of th e r emo te c ont ro l un it , to select

an y of th e ad j ustm en t ite ms.

The colours w hi ch se le cte d i te m charact ers a r e ch ang ed .

･･･････ ･･････････

Adjustment of the RF circ uit [Do not adjust].

[Should be OFF].

SE RVICE M EN U

1.IF 2.V/C
.DEF 4.VSM PRESET

5.PRESET

6.SETUP TOUR OFF

1-6 SELECT DISP : EXIT

******

***********

***** **

************

**********

*** ** **

*** ** **** ***

*** ** ***** ** **

**.***

****

** ***

** ***** ***

***

******

Fig.1

KEY ASSIGNMENT OF REMOTE CONTROL UNIT

MO DE k e y

NUMBERS

key

DI SPL A Y k ey

MENU

－/＋

key

MENU

▼/▲ key

Exc e pt f or diff er enc e i n bod y colo ur, t he R e mo te Contr o l U ni

RM-C 36 4G Y and RM-C3 64 ha ve exac tl y t he s am e Fu nctions.

16

No. 52025

A

3

A

A

[Method of setting]

1. IF

[1. VCO]

① 1 K ey ･･･････ ･････････････ ･････ Select 1.IF.
② 1 K ey ･･･････ ･････････････ ･････ Select 1.VCO
③ The VCO (CW) screen will be displayed a allow mark when the AFC voltage is at a certain level.
④ DISPLA Y K ey･･･････ ･･･････････ As you press this key twice, you will return to the SERVIC E M E NU.

[2. DELA Y P OINT]

① 1 K ey･･･････ ･････････････ ･････ Select 1.IF.
② 2 K ey･･･････ ･････････････ ･････ Se le ct 2.DELAY P OINT.
③ ME NU - /+ K ey ･･･････ ･･････････ Set (adjust) the setting valu es of th e s etting items.
④ DISPLAY K ey･･････････････････ W hen th is is presse d twice, you will r et urn t o the SE RVICE MENU .

2.V /C, 3.D EF and 4 .V SM PRES ET

① 2~4Key ････････････････････ ･･･ Select one from 2. V/C, 3. DE F an d 4. VSM PRESET.
② MENU ▼/▲ Key ･･････････････ Select s etting items.
③ MENU -/+ Key ･･･････ ･･････････ Adju st th e va lues of t he i tem s.
④ DISPLA Y K ey ･･････････････････ W hen this is pr esse d, re turn t o t he SE RVICE MEN U.

V-20N

V-20NMG3

V-20NMG3B

6.SE TU P TOUR

① B y pres sing the 6 key, you can ch ange t he ON or OFF ( should be OFF).

(Should be OFF)

%･

The JVC’s logo will be shown about 15 s econds automatically.

② MENU -/+ Key ･･･････ ･･････････ Select Language.
③ MENU ▼ Key･･･････ ･･････････ Au to Se ar ch.

If it is ON , th en y ou tu rn th e TV po we r off , wh en y ou ar e t urn t he TV p ower o n a gain .

No. 52025

17

A

V-20N3

A

A

JUS

6.SETU

ON /

(By p

y)

G

(R)

S

U

O

V-20NMG3
V-20NMG3B

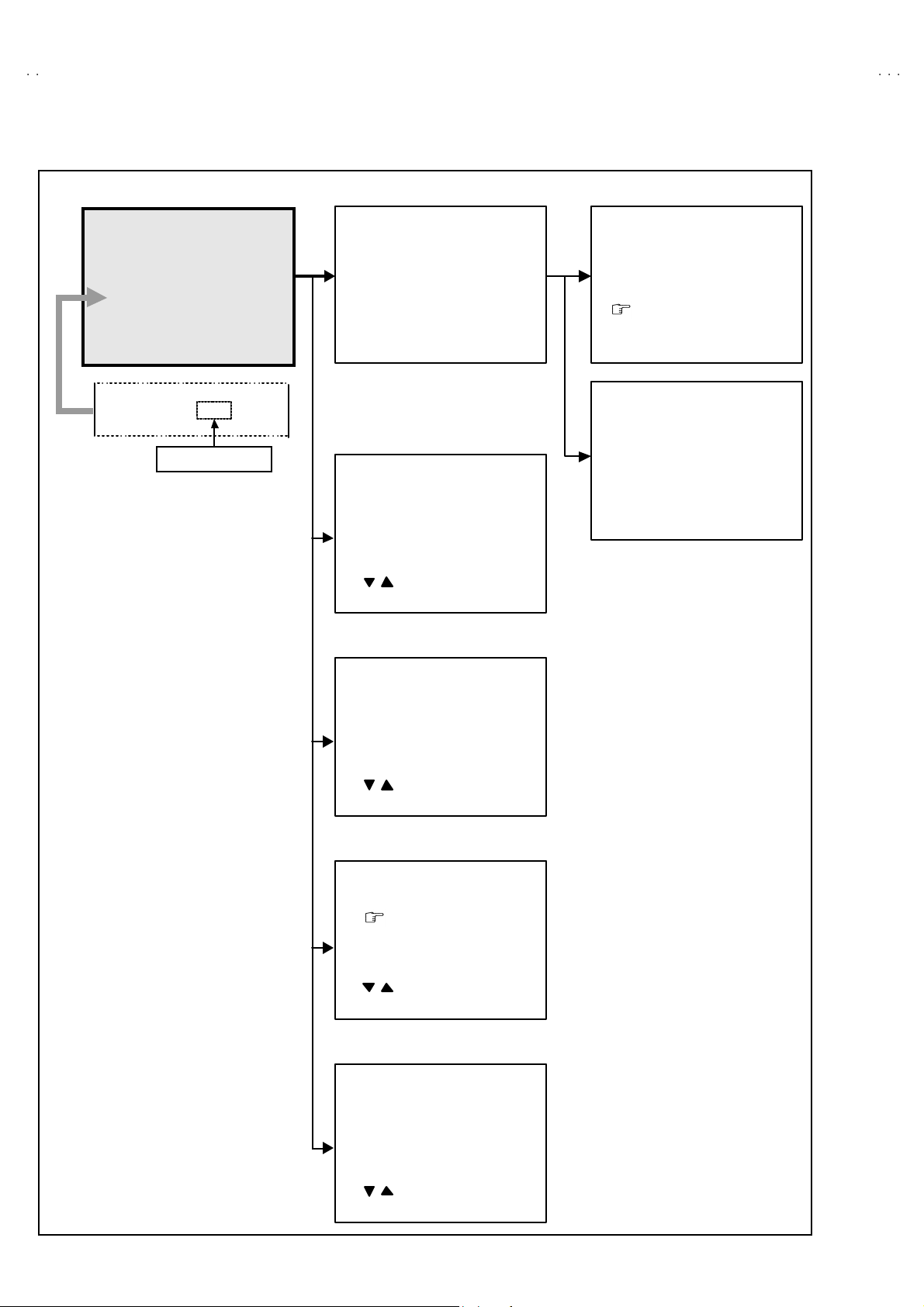

SERVICE MENU FLOW CHART

SE RVICE M EN U

ERVICE MEN

1.IF 2.V/C

3.DEF 4.VSM PRESET

5.PRESET

6.SETUP TOUR OFF

1-6 SELECT DISP : EXIT

******

****** *****

***** **

************

**********

*** ** **

*** ** ** ** ***

*** ** ***** ** **

P TOUR

**.***

****

** ***

** ***** ***

FF

OFF

***

******

ressing 6-ke

SU B ME NU 1. I F

IF

1. VCO

2. DELAY PO INT

1-2 : SELECT DISP : EXIT

SU B ME NU 2. V /C

V/C PAL

1. CUTOFF

50Hz

/ :SELECT

- / + : OPERATE DISP : EXIT

(G)
(B)

* **

* **

* **

VCO (CW)

TOO HIGH
ABOV E REFERENCE

BELOW REF ERENCE
TOO LOW

AFT ADJUST
VCO ADJUST

FINE

DELAY POINT UHF

AGC TAKE- OVER

- / + : OPERATE DI SP : EXIT

***.**

T REFERENCE

MH z

** *(* *)

** *(* *)

** *(* *)** *(* *)
** *(* *)

** *(* *)

** *(* *)** *(* *)

DISP : EXIT

**

SU B ME NU 3. D EF

DEF

1. VER. POSITION

50Hz

/ :SELECT

- / + : OPERATE DISP : EXIT

PAL

***

SUB ME NU 4. V SM PR ES ET

BRI GHT

TINT
COLO UR

HT

BRI
CONT.
SHARP

/ :SELECT

- / + : OPERATE DISP : EXIT

**
**

**
**

**

SUB ME NU 5. P RE SET

18

PRESET

1. C -TRAP FI X

50Hz

/ :SELECT

- / + : OPERATE DISP : EXIT

PAL

B/ G

***

No. 52025

A

3

A

A

ADJUSTMENT LOCATIONS

)

V-20N

V-20NMG3

V-20NMG3B

TOP

MAIN PWB

F9 01

CRT SOCKET PWB

TP-47R/G

TP-47G/R

T

IC701

(SOLDER SIDE)

U

TP-47B

TP-E

E1

CRT EARTH WIRE
(BRAIDED ASS'Y)

IC702

MEMORY IC

FRONT

DEG

PW

S

TU001

IC301

T

1

S

1Pin TP-91(B1)
2Pin NC

3Pin X-ray1
4Pin X-ray2
5Pin TP-E(

HV

U

HVT

UPPER:FOCUS
LOWER:SCREEN

No. 52025

19

A

V-20N3

A

A

)

adjust

JUS

V-20NMG3
V-20NMG3B

ADJUSTMENTS

B1 POW ER SUPPLY

Item

Check of
B1 Powe r

Measuring

instrume nt

Signal
generator

Supply

DC Vo lt ­meter

FOCU S ADJUSTMENT

Item

Ad j ust men t
of FOCUS

Measuring

instrume nt

Signal
generator

IF CIRCUIT ADJUS TMENT

Item

Measuring

instrume nt

Test point Ad justment part Description

TP-91 ( B1)
TP-E (####)

1. Input a whole bl ac k s ig na l.

2. C on nec t a DC vo lt me ter t o TP- 9 1( B1) a nd T P- E ( #).

3. M ake sure t hat the vol t age i s DC1 16.5±2.0 V.

Test point Ad justment part Description

FOCUS VR

[In HVT]

1. Input a cross-hatch signal.

2. Whi le watchi n g th e s cr een, adjust the FO CUS V R t o make th e

ver ti cal and ho ri zonta l l ines as f in e a nd sha rp as possi b le.

3. M ake sure th at wh en the scr ee n is d arken ed, the lin es re ma i n in

g ood focu s.

Test point Ad justment part Description

Ad j ust men t
of VCO(CW

Signal
generator

Remote
control unit

VCO (CW)

TOO HIGH
AB OVE REFEREN CE
JU ST REF ER ENCE

BEL OW R EFERE N CE
TOO LOW
AFT AD JUST
VCO ADJUST

FINE

DISP : EXIT

ADJUSTMENT AT THIS POINT IS USELESS

***.**

MHz

** *(* *)

** *(* *)

** *(* *)** *(* *)
** *(* *)

** *(* *)

** *(* *)** *(* *)

ADJUSTMENT POINT

1. VC O

YE LLOW

Do not

TOO HIGH

ABOVE REFERENCE

T REFE RENCE

B ELO W RE F E RE NC E

TOO LOW

●Please use signal generator which is correct proof about the

sen ding fr eque nc y.

1. Inp ut th e PA L f ull col o ur b ar (2 10 .2 5MHz) sig nal.

2. En ter th e SER VICE ME NU.

3. Select 1 .IF f ro m the SERVICE M ENU.

4. Pr es s 1 ke y an d s elect 1. VCO.

5. Select VCO ADJ UST with MENU ▲/▼ key.

6. Pr es s MENU -/+ k ey unt i l th e c o l our of t he c haract ers T OO

HIGH ch an ges b lue to ye llow. Then g r ad uall y press th e MEN U

-/+ key u ntil the TOO LOW ch ang es yellow . At thi s t im e, conf irm

th at t he val u e of VCO ADJUST is n ear + 00 .

7. Select AFT ADJUST with MENU ▲/▼ key.

8. Press MENU -/+ key until the characters JUST REFERENCE

ch ang es bl ue to yellow .

9. Pr es s the DISPLA Y key three times to return to normal screen.

20

No. 52025

A

V-20N

3

A

A

(QAU0287-001)

(QAU0185-004)

(QAU0282-001)

V-20NMG3

V-20NMG3B

Item

Ad j ust men t

of DELAY

POI NT

(AGC)

Measuring

instrume nt

Signal
generator

Remote
control unit

DELAY POINT UHF

AGC TA KE-OVER

- / + : OPERATE DISP : EXIT

Test point Adjustment part Description

**

DELAY P OINT

(AGC TAKE-OVER)

1. Inp ut a blac k and wh it e sign al ( colo ur of f).

2. En ter th e SER VICE ME NU.

3. Select 1. IF f rom t he SER VI CE M ENU.

4. Select 2. DELAY POINT by p r essi ng the 2 key on t he remo te

control unit.

5. Se t th e set ting v al ues of t he sett ing i t ems as sh own b ell ow

tabl e.

6. Then adjust the MENU - or + key until video noise disappears.

7. Turn t o o the r cha nnels an d m a ke su re th at th er e ar e n o

irregularities.

Setting It e m Variabl e ra nge Initial set ting v alue

DELAY P OINT

(AGC TAKE OVER)

NT SC 3.5 8

OTHER

0～127

MATSUSHITA

45 45 45

35 45 35

MURATA

ALPS

No. 52025

21

A

V-20N3

A

A

(B)

V-20NMG3
V-20NMG3B

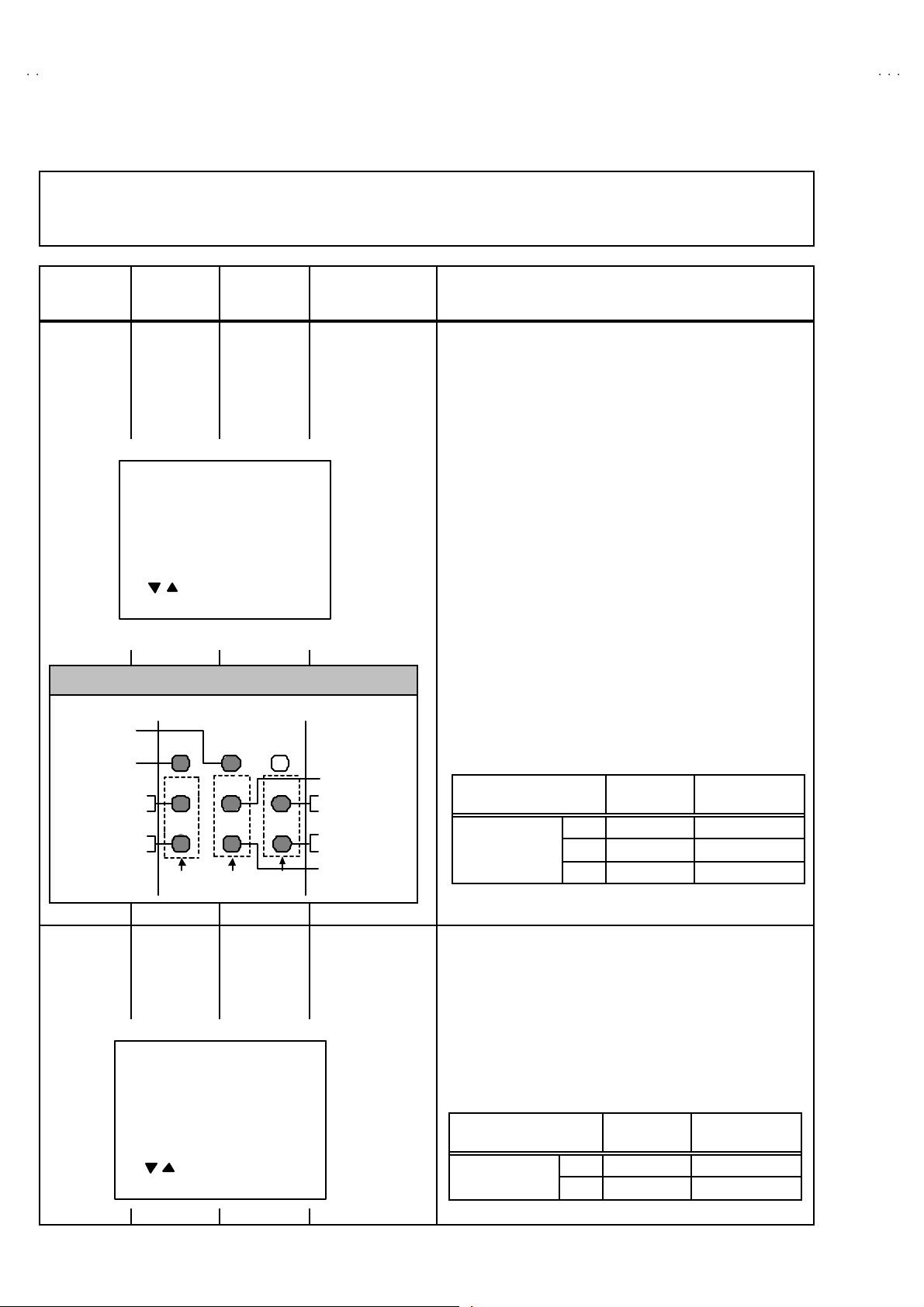

VIDEO / CHROM A CIRCU IT ADJUSTMENT

The setting (adjustment) using the REMOTE CONTROL UNIT is made on the basis of the initial setting values.

The setting values which adjust the screen to the optimum condition can be different from the initial setting valu es.

Do not c hang e the initial setting v alue s of the sett ing items n ot liste d in “A DJUSTMENT”.

Item

Ad j ust men t

of WHITE

BALANCE

(Low light)

Measuring

instrume nt

Test point Ad justment part Description

Signal
generator

Remote
control unit

V/C PAL

1. C UTO FF

50Hz

/ :SELECT

- / + : OPERATE DISP : EXIT

(R)
(G)

(B)

* **

* **

* **

KEY ASSIGNMENT OF REMOTE CONTROL UNIT

CU TO FF O F F

(H.LINE OFF)

CU TO FF O N

(H.LINE ON)

R. CUTOFF( )

R. CUTOFF( )

▲
▲

R. DRI VE( )

▼

R. DRI VE( )

▼

123

4

7

56

8

9

RGB

1. CUT OFF (R)

CUT OFF (G)

CUT OFF (B)

SCREEN VR
[IN HVT]

G .C UTOFF ( )

B. C UTO FF( )

B. D RIV E( )

B. C UTO FF( )

B. D RIV E( )

G .C UTOFF ( )

▲
▲

▲

▲

▲

▲

1. Input a bl ac k an d wh it e sign al (col o ur of f).

2. En ter th e SERVICE ME NU.

3. S elect 2. V/C fr om the SERVICE MENU, th en selec t 1. CUT OFF

(R), (G) and (B) .

4. Set each value to initial setting value with 4～ 9 keys of the

remote control unit.

5. Pr ess the 1 key of the remote control unit to sh ow the single

horizontal line on screen.

6. T urn t he SCREEN VR fully counter-cloc kwise, th en slowly tu rn it

cl ockw is e to where on e of a red , blu e or gre en co lour is fai nt ly

vis ible.

7. Use keys 4～9 of th e r e mo te co ntrol un it a nd adjust th e o the r 2

col o ur s which e x cept th e ap pea r ed c olo ur to whe re the si n gl e

h oriz o nt al lin e app ears whit e.

8. T urn th e SCREEN VR to wh er e th e sing l e hor izon ta l li ne gl ow s

fain tly.

9. Pr ess the 2 key to turn of f th e single horizontal li ne.

10.Pr ess the DISP LA Y key twic e to retu rn to the normal scr een.

Adjustment it em

R

G

Variabl e

range

-128 ～+127

-128 ～+127

Initial set ting

value

-50

-501. CUT OFF

B -128～+127 -50

Ad j ust men t

of WHITE

BALANCE

(Hi gh light)

Signal
generator

Remote
control unit

2. DRI VE (R

DRI VE ( B)

)

1. Inp ut a blac k and wh it e sign al ( colo ur of f).

2. En ter th e SER VICE ME NU.

3. Select 2. V/C from the SERVICE MENU .

4. Select 2. DRIVE (R) / (B) with MENU ▼/▲ key, and s et each

val u e to ini tial setti ng valu e with 4 a nd 7 or 6 an d 9 keys of th e

remote control unit.

5. U se th e keys 4 and 7 or 6 and 9 t o p ro duc e a white scr een

V/C PAL

* **

2. D RIV E

50Hz

/ :SELECT

- / + : OPERATE DISP : EXI T

(R)

* **

22

6. Press the DISPL AY key t wice to retu rn to the nomal scree n.

Adjustment it em

Variabl e

range

R -128～+127 +0

2. DRIVE
B

-128 ～+127

No. 52025

Initial set ting

value

+0

A

V-20N

3

A

A

V-20NMG3

V-20NMG3B

Item

Ad j ust men t

of

SUB BRI GHT

Ad j ust men t

of

SUB CONT.

Ad j ust men t

of

SUB

COLOUR

ⅠⅠⅠⅠ

Measuring

instrume nt

Remote
control unit

Remote
control unit

Remote
control unit

Test point Adjustment part Description

3. BR IG HT 1. Recei ve an y bro adc ast.

2. En ter th e SER VICE ME NU.

3. Select 2. V/C from S ERVICE MENU.

4. Select 3. BRIGHT with the MENU ▼/ ▲key.

5. Set the initial setting value with the MENU - / + key.

6. If th e brightness is not the bes t with the initial set val ue, make

fine adjustment until you get the best brightness.

4. CONT . 1. Recei ve an y bro adc ast.

2. En ter th e SER VICE ME NU.

3. Select 2. V/C from S ERVICE MENU.

4. Select 4. CONT. with th e MEN U ▼/ ▲ke y.

5. Set the initial setting value with the MENU - / + key.

6. If the co ntr ast is not th e b est w ith t he i ni ti al s et val ue , make fi n e

adjustment until you get the best contrast .

5. COLOUR [Method of adjustm ent without measuring instrument]

PAL COLOUR

1. R eceiv e a PAL broadc ast.

2. En ter th e SER VICE ME NU.

3. Select 2. V/C from t he SERVI CE M EN U.

4. Select 5. COLOUR with the MENU ▼/▲ key.

5. Set the initi al se tti ng va lu e f or P AL C OLOUR with th e MENU

- / + key.

6. If th e colo ur is not th e best with the initial set value, m ake f ine

adjustment until you get the best colour.

SECAM COLOUR

NTSC 3.58 COLOUR

NTSC 4.43 COLOUR

No. 52025

1. R eceiv e a SECAM b roadc ast.

2. M ake fi ne adju stmen t of SE CA M CO LOU R as previ ou sly .

1. R eceiv e a NTS C 3.5 8MHz br oadca st.

2. M ake si milar fine adjustment of NTS C 3. 58 C OLO UR as

previ ously .

When NTSC 3.58 adjustment completed, NTSC 4.43 will be

automatically set at t he resp ective values.

23

A

V-20N3

A

A

y

g

(A)

V-20NMG3
V-20NMG3B

Item

Ad j ust men t

of SUB

COLOUR

ⅡⅡⅡⅡ

W

Measuring

instrume nt

Signal
generator

Oscillo­sc ope

Remote
control unit

Y

C

Test point Ad justment part Description

TP-47G/R

TP-E (####)

[CRT S OCKET
PWB]

5. COLOUR [Method of adjustm ent using measur ing instrument]

PAL COLOUR

1. Inp ut a PA L f ull fi el d colo ur b ar signal (75% w hi te) .

2. En ter th e SER VICE ME NU.

3. Select 2. V/C from S ERVICE MENU.

4. Select 5. COLOUR with the MENU ▼/▲ key.

5. Se t the init ia l se tti ng value of P AL COLO UR with th e MEN U

- / + key.

6. C on nec t the os c illosc ope be tw ee n TP -4 7G and T P- E ( #).

B

R

M

(－)

7. Ad ju s t PA L C OL OU R to bring the value of (A) in the illustration

to the voltage as shown given billow.

(Volt age diff erenc e betwee n ( W) and (G))

Model Voltage(W-G)

AV -20N3

0V

(＋)

G

SECAM CO LOUR

1. Input a SECAM full field colour bar signal (75% white).

AV -20N3

AV -2 0NMG 3
AV -2 0NMG 3B

AV -2 0NMG 3

/D

/-A

2. Set the initial setting value of SECAM COLOUR wit h the MENU

- or + key.

3. Ad ju st SE CAM COLO UR to br i ng th e val ue of (A) in the

illu str ati on to th e volt ag e a s sho wn g iven billo w.

(Volta ge di ff er enc e b etw e en (W) an d (G))

Model Voltage(W-G )

AV-20N3
AV-20N3

/D

AV-20NMG 3
AV-20NMG B

AV-20NMG 3

/-A

+14V

+10V

+8V

+10V

NTSC 3.58 COLOUR

1. Inp ut a NTSC 3 .58 full f ie ld colo ur b ar s igna l (75% white) .

2. Set the init ial s etting value of NTSC 3.58 COLOUR wit h the

MENU - / + key.

3. Ad just N TSC 3 .5 8 COL OU R to br in g th e valu e of (A) in the

illu str ati on to th e volt ag e a s sho wn g iven billo w.

(Volta ge di ff er enc e b etw e en (W) an d (G))

Model Voltage(W-G)

AV-20N3
AV-20N3

/D

+11V

AV-20NMG 3

+10V

NTSC 4.43 COLOUR

AV-20NMG 3B
AV-20NMG 3

/-A

When NTSC 3.58 is set, NTSC 4.43 will be automatically set at the

resp ec ti ve val ues .

24

No. 52025

A

V-20N

3

A

A

g

V-20NMG3

V-20NMG3B

Item

Ad j ust men t
of TINTⅠⅠⅠⅠ

Ad j ust men t
of TINTⅡⅡⅡⅡ

Measuring

instrume nt

Signal
generator

Remote
control unit

Signal
generator

Oscillo­sc ope

Remote
control unit

Test point Adjustment part Description

6. TINT [Method of adjustment without measuring instrument]

TP-47G/R
TP-E (####)

[CRT
SOCKET
PWB]

NTSC 3.58 T INT

NTSC 4.43 TINT

6. TINT [Method of adjustment using measur ing instrument]

NTSC 3.58 T INT

1. Input a N TSC 3.58 full f ie ld col our b ar s igna l (75% white) .

2. En ter th e SERVICE ME NU.

3. Select 2. V/C from S ERVICE MENU.

4. Select 6. TINT with t he ME NU ▼/▲ key.

5. Se t th e i ni ti a l se tti ng valu e of N T SC 3. 58 with th e M EN U - / +

key.

6. If you can no t g et th e best ti nt wi th the in it ia l se tting value, make

fine adjustment until you get the best tint.

When NTSC 3.58 is set, NTSC 4.43 will be automatically set at the

resp ec ti ve val ues .

1. Input a N TSC 3.58 full f ie ld col our b ar s igna l (75% white) .

2. En ter th e SERVICE ME NU.

3. Select 2. V/C from S ERVICE MENU.

4. Select 6. TINT with t he ME NU ▼/▲ key.

5. Se t th e i ni ti a l se tti ng valu e of N T SC 3. 58 with th e M EN U - / +
key.

6. Con nect th e osc il losc ope be tw ee n TP -4 7G/R a nd T P- E.

7. Ad ju s t N TSC 3 .58 TIN T t o br i ng th e va lue of (B) in the

illu str ati on to th e volt ag e a s sho wn g iven billo w.

(Volta ge di ff er enc e b etw e en (W) an d (Cy))

W

B

R

M

(－)

AV-20N3

0V

Y

Cy

G

(B)

(＋)

NTSC 4.43 TINT

AV-20N3

AV-20NMG 3
AV-20NMG 3B

AV-20NMG 3

When NTSC 3.58 is set, NTSC 4.43 will be automatically set at the

resp ec ti ve val ues .

Model Voltage(W- Cy)

/D

/-A

+9V

+9V

No. 52025

25

A

V-20N3

A

A

V-20NMG3
V-20NMG3B

Item

of SECAM
BL AC K

OFF SET

KEY ASSIGNMENT OF REMOTE CONTROL UNIT

COLOUR

ON

COLOUR

OFF

Measuring

instrume nt

Remote
control unit

Signal
generator

12 3

Test point Adjustment part Description

7.SECAM

BL ADJUST

[Method of adjustment using measur ing instrument]Ad j ust men t

1. Inp ut a SE C AM full field c olour b ar si gn al.

2. En ter th e SER VICE ME NU.

3. Select 2. V/C from S ERVICE MENU.

4. Select 7. SECAM BL ADJUST with ▼/▲MENU key.

5. Set the initial setting value with the – or + MENU key.

6. Switch the ①ke y (c ol ou r OF F) an d ②key (c olour O N) o n the

remote contr ol an d ma ke sur e th at th er e is no col o ur on th e

blac k an d w h it e scr ee n.

7. If t he bl a ck and whi te s cre en is n ot bes t with th e ini ti al setti ng

value, make fine adjustment until you g et the best black and

white screen .

8. W hi l e wa tching the s cr ee n, ad ju st th e v alu e to be t he sam e

col o ur b etween O N & OFF b y t en key on t he remote c ontr o l

un it.

9. Press the DISPL AY key t wice to retu rn to the normal scr een.

4

7

56

8

9

26

No. 52025

A

3

A

A

DEFLECTION CIRCUIT ADJUSTMENT

"

The re ar e 2 m od es of adju stm ent (s ettin g value) ---- -- ① 50 Hz m od e and ② 6 0Hz m od e ----- de pe ndi n g upo n th e kind of s igna ls

(ver tic al freq uenc y 5 0Hz / 60Hz) .

"

When ad j uste d i n mod e ① , mode ② will be automatically set.

The setting (adjustmen t) usin g the REMOTE CONTROL UNIT is made on the basis of the initial setting values.

The setting values which adjust the screen to the opti mum condition can be different fr om the initial settin g values.

V-20N

V-20NMG3

V-20NMG3B

Item

Ad j ust men t

of V.HEIG HT

&

V. POSIT I ON

Screen

size

92%

Measuring

instrume nt

Test point Adjustment part Description

Signal
generator

Remote
control unit

SU B ME NU 3. D EF

DEF

1. VER. POSITION

50Hz

/ :SELECT

- / + : OPERATE DISP : EXIT

Scre en size

1. VE R. POSITION

3. VE R. HE I G HT

PAL

***

size
10 0%

1. Input a circle p att ern si gnal.

2. En ter th e SER VICE ME NU.

3. Select 3. DEF. f rom SERVICE MENU.

4. Select 1 . VER. POS ITION with the MENU ▼/▲ key.

5. Set the initial setting value with the MENU - / + key.

6. Adjust V and V’ t o be eq ual with the MENU - / + key as s hown in

Fig.2.

7. Inp ut a cr os s -hatc h s ign al.

8. Select 3. V . HEIG HT with the MENU ▼/▲ key.

9. Set the initial setting value with the MENU - / + key.

10 . As s hown i n F ig.1, adj u st VE R. HE I GH T and m ak e th e verti cal

screen size 92% of the pi ctu r e siz e with t he MEN U - / + keys of

remote control unit.

Ad j ust men t

of HOR .

POSITION

Pic ture size 1 00%

Fig.1

Signal

2.HOR. POSIT ION 11. Input a ci rcle p attern si gnal.

generator

Remote

control unit

HH"

V

V'

Fig.2

No. 52025

12. Sele ct 2. H OR POS ITION with the MENU ▼/▲ key.

13 . Se t th e ini ti a l sett i ng value of 2. HOR. POS ITION with the

MENU - / + key.

14. Adju st 2. HOR. POSITION to make H= H" as shown in Fig. 2

with the MENU - / + ke y.

27

A

V-20N3

A

A

S

V-20NMG3
V-20NMG3B

Item

Ad j ust men t

of VER. LI N.

& VER .

SCURVE

Measuring
instrume nt

Signal
generator

Remote
control unit

Fig .3

Test point Ad justment part Description

4. VER. L IN.

5. VER. S CURV E

TOP

CEN TER

BOTTOM

●●●● Whe n the v ertic al linea rity has b ee n dete riorated

remark ably, perform the followi ng steps .

15 . Input a cross -hatch sign al.

16. Sele ct 4. VER. LIN. with the MENU ▼/▲ key.

17. Set the initial setting value of 4. VE R LIN. with the MENU - / +

key.

18. Sele ct 5. VER. SCURVE with the MENU ▼/▲ key.

19. Set the initial setting value of 5. VER. SCURVE wi t h t h e ME NU

- / + key.

20. Adju st 4. VER. LIN. and 5. VER. SCURVE so that the sp aces

of each lin e as sh own i n F i g. 3 o n TOP, CENTER and

BOTTOM become uniform.

Make su r e th at th e a dj us t me nt is pr o per l y do ne on t he scre en of

60 Hz mode .

[NOTE]

"

Adjust to make both 50Hz & 60Hz are the same v. size and

fine straight line.

"

When ad j ust aga in, adju st 5 0H z m ode fi r s t.

"

When adjust in 60Hz mode, only 60Hz mode is adjust.

VSM PRESET SETTING

Item

Setting of

VS M

PRES ET

Measuring

instrume nt

Remote

control unit

TINT
COLO UR

BRI GHT
CONT.

HARP

/ :SELECT

- / + : OPERATE DISP : EXIT

Test point Ad justment part Description

TINT

COLOUR

BR IG HT

CONT .

SHARP

1. En ter th e SER VICE ME NU.

2. Select 4 . VS M PRESE T from the SERVICE MENU.

3. Select BRIG HT with the PICTURE MODE ke y.

4. Ad ju s t the ME NU ▼/▲ and MENU - / + ke y to b ring the set

val u es of TI NT

tabl e.

5. Resp ecti vely s elect the VSM PRES ET mode f or SO FT an d

STANDARD, and make similar adjustment as in 3 a bove.

～～～～

SHARP to the values shown in the below

•••• VSM PRESET

BRI GHT

**
**

**
**

**

VS M
Setti ng It em

TINT +15

COLOUR +15

BRIGHT + 15

CONT +30 +15 +11

SHAR P +15

BRIGHT STANDARD SOFT

←

←

←←
←←

←

+12

28

No. 52025

A

3

A

A

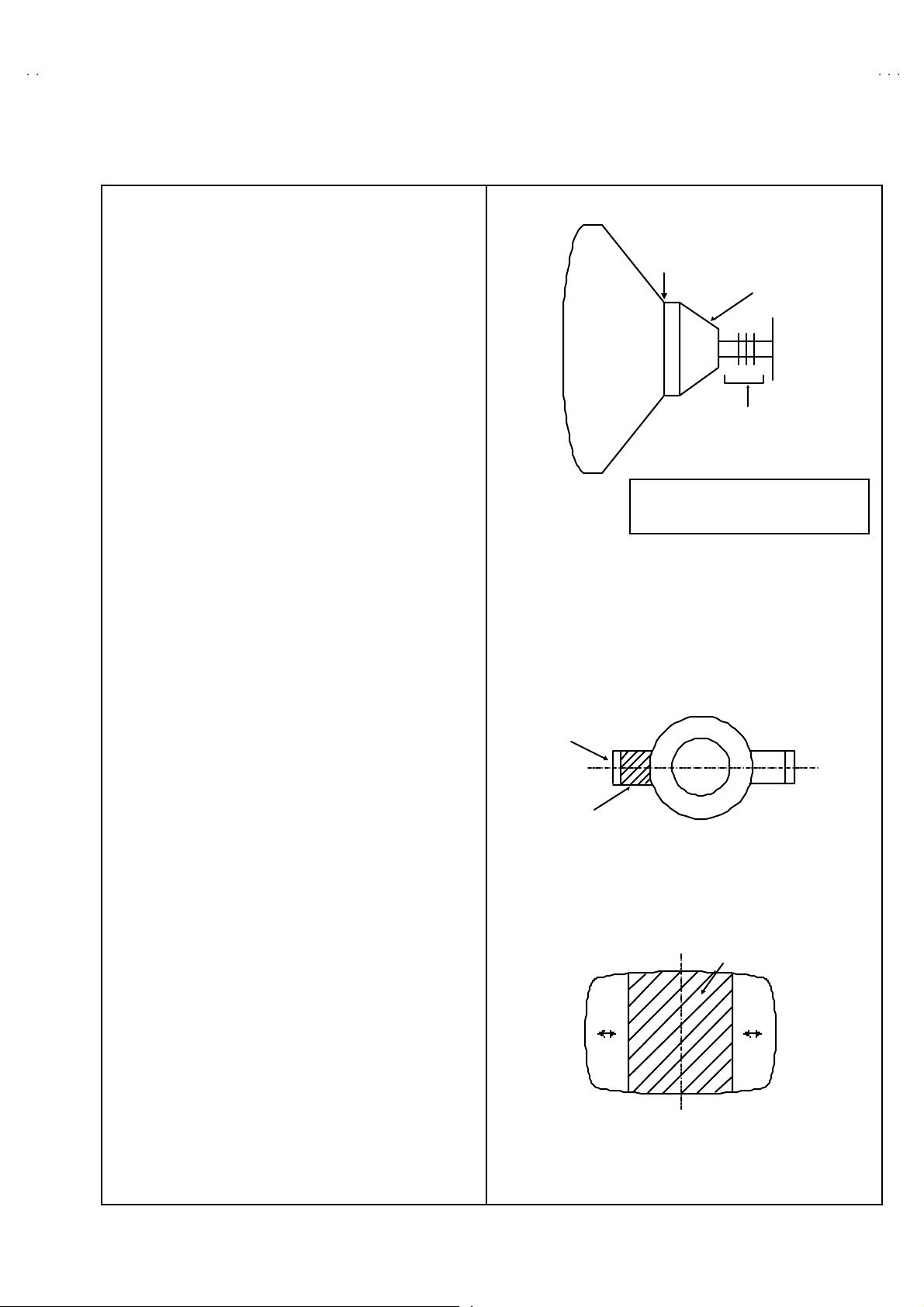

PURITY / CONVERGENCE ADJUSTMENT

PURITY ADJUST MENT

1. Demag ne tiz e CRT w it h the dema gneti zer.

V-20N

V-20NMG3

V-20NMG3B

2. L oose n th e re tain er scr ew of the d efl ec tion yok e .

3. Remove th e wed ge s.

4. Inp ut a g r een rast er si gn al from the signal ge ner at or , an d tur n

th e scr e en to g r een r aste r.

5. Move the deflection yoke backward.

6. Br ing t he lo ng lug of th e purity m agn ets on the sho rt lu g a nd
p osit ion t hem hor i zon tal ly. (Fi g. 2)

7. Ad ju st t he ga p be tween t wo l ug s so that the G RE EN R AS TER
will come into the center of the screen. (Fig.3)

8. M ove the d eflect ion y oke for ward, and fix th e pos iti o n of th e
deflection yoke so that the whole screen will bec ome green.

9. Ins ert th e we dg e t o the t op side of the def lect io n yo ke s o th at it
will not move.

CR T

#

WEDGE

DEFLECTION

YOKE

P

46

P / C

MAGNET S

P/ C MA GN ETS

P : PURITY M AGN E T
4 : 4 P OLES ( con vergence m agn ets)
6 : 6 P OLES (con v er gen ce magn ets )

Fig.1

PURITY MAG NETS

10 . Inp ut a cross hat ch sig nal.

11 . Ve rif y tha t th e scr e en is horiz on tal.

12 . Inp ut red and bl ue r ast er sign als , a nd m ak e sure tha t purity i s

prop er ly ad juste d.

Long lug

Short lug

(FRO NT VIEW )

Bring the long lug over the short lug
and position them horizontally.

Fig.2

GREEN RASTER

CEN TER

Fig.3

No. 52025

29

A

V-20N3

A

A

V-20NMG3
V-20NMG3B

STAT IC CONVERGENCE ADJUSTMENT

1. Inp ut a cr oss hatc h sig nal.

2. Usin g 4 - po le con verge nce magn ets , ove rla p t he re d and bl u e

lines in th e c en ter of th e scr een (Fi g. 1) and tu rn the m to
mag ent a (r ed/ blue ).

3. Usin g 6- pol e con ver ge nce ma gn ets, ov er lap the

mag ent a( re d/b lue) a nd g r een li nes in t he c en ter of the screen
an d t urn t hem t o whit e.

4. Rep eat 2 and 3 ab ove, an d ma ke b est c onve r ge nce.

DYNAMIC C ONVERGENCE ADJUSTMENT

1. Move th e d ef lec ti on yok e up an d d ow n and ov er lap th e lin es in
the periphery. (Fig . 2 )

2. M ove the def l ecti on yoke left to ri gh t and over lap t he l in es in the

p erip hery. (Fig. 3)

3. Rep eat 1 and 2 ab ove, an d ma ke b est c onve r ge nce.

(FRO NT VIEW )

(FRO NT VIEW )

BLUE

GREEN

RED

Fig.1

GREEN

BLUERED

RED

GREEN

BLUE

●

After ad justm ent, f ix the wedge at the original p osition.

Fas t en the retainer screw of th e def lecti on yoke .
Fi x the 6 magn ets with g lue.

(FRO NT VIEW )

GREEN

RED

BLUE

GREEN REDBLUE

Fig.2

Fig.3

BLUE

GREEN

RED

RED
GREEN

BLUE

BLUE

GREEN

RED

30

No.52025

A

3

A

A

REPLACEMENT OF CHIP COMPONENT

!

CAUT IONS

1. Avoid heating for more than 3 seconds.

2. D o n ot rub t he el ec t ro des an d the resist p arts of the patt ern.

3. W hen rem ovi ng a c hip par t, mel t th e s older adequ atel y.

4. D o n ot reuse a chip p ar t after removi ng it .

! SOLDERING IRON

1. U se a hig h i ns ulatio n s ol der ing iron with a t hin po in ted end of it.

2. A 3 0w s older ing i r on is r ec ommended for easil y r em ovi ng par ts.

! REPLACEMENT STEPS

1. How to remove Chip parts

$$$$ Resi st o rs, capacitors , et c

(1) As s h own in t he f ig ur e, push th e pa rt with tw ee zer s and

alte rn at ely m elt th e sol de r at each en d.

(2) Sh if t w i th tweez e rs and r emo ve th e ch i p p ar t.

$$$$ Trans ist o rs, dio d es , va ria bl e r esistor s, etc

(1) Ap pl y e xt ra s o ld er to each le ad .

SOLDE R SOLD E R

V-20N

V-20NMG3

V-20NMG3B

2. How to install Chip parts

$$$$

Resi st ors, ca pacit o rs , etc

(1) Apply sold er to the patt ern as ind icated in the fi g ure.

(2) Gr asp t he c h i p p art with tweezer s and pl ac e it on th e s ol d er.

The n hea t and me lt th e so lder a t b oth ends of t he chip part.

$$$$ Tran s ist ors, diodes , varia bl e res ist or s, et c

(1) Apply sold er to the patt ern as ind icated in the fi g ure.
(2) Grasp the ch ip p art wit h t we ez e rs and p lace it on th e so l der .

(3) First s older lead A as indicated i n t he figu re.

A

(2) As s h own in t he f ig ur e, push th e pa rt with tw ee zer s and

alte rn at ely m elt th e sold er a t each le ad. S hi ft an d r em ove t he
chip part.

(4) The n solder le ads B and C.

Note : A fte r re moving t he part , remove r emaining solder fr o m the

pattern.

C

A

C

No.52025

B

B

31

A

V-20N3

A

A

V-20NMG3
V-20NMG3B

32

No.52025

SERVICE MANUAL

COLOUR TELEVISION

52025E20047

BASIC CHASSIS

AV-20N3/C

Supplementary

The following items for the AV-20N3/C was changed partly from AV-20N3/B.
Therefore, this service manual describes only the items which differ from those of the AV-20N3/B service
manual.
For details other than those described in this manual, please refer to the AV-20N3/B service manual
(No.52025D, 2004/2).

OUTLINE

CG

Since the picture tube was changed, we have issued the SERVICE MANUAL for AV-20N3/C.

HOW TO IDENTIFY MODELS

“AV-20N3CT” is added to the serial No. under at the Rating label.

MODEL No.

SERIAL No.

AV-20N3

Indicated

AV-20N3CT

COPYRIGHT © 2004 Victor Company of Japan, Limited

No.52025E

2004/7

DIFFERENCE LIST

USING P.W. BOARD (Page 34)

P.W.B ASS'Y Name AV-20N3/B AV-20N3/C DESCRIPTION

MAIN P.W.B SCG-1510A-H2 SCG-1516A-H2 Non compatible

EXPLODED VIEW PARTS LIST (Page 36)

 Ref. No.

 V01 A48LSD095X A48AGY13X89K PICTURE TUBE(ITC) Inc.DEF YOKE

 DY01 QQD0034-001 --- DEF YOKE Delete

17 QYSBSF3010Z QYSBSF3010ZA TAP SCREW For REAR COVER

18 QYSBSFG4016Z QYSBSFG4016ZA TAP SCREW For REAR COVER

AV-20N3/B AV-20N3/C

Part No.

PART NAME DESCRIPTION

PRINTED WIRING BOARD PARTS LIST

MAIN P.W. BOARD ASS’Y (Page 31)

 Ref. No.

 SK1351 QNZ0536-001 QNZ0537-001 CRT SOCKET

R1401 NRSA63J-103X NRSA02J-103X MG RESISTOR 10kΩ 1/10W J
R1431 NRSA63J-103X NRSA02J-103X MG RESISTOR 10kΩ 1/10W J

C1433 QEHR1HM-475Z QEHR1HM-106Z E CAPACITOR E CAPACITOR

 Q1522 2SD2627-YB11 2SD2634-YD TRANSISTOR H OUT

 C1525 QFZ0200-982 QFZ0196-113 MPP CAPACITOR 0.011uF 1.5kV H

 C1527 --- QFZ0199-624 MPP CAPACITOR 0.62uF 250V J

 T1921 QQS0161-001 QQS0213-001 SW TRANSF

 C1909 --- QEZ0552-127 E CAPACITOR 120uF 400V M

C1976 QETN1EM-227Z QETN1HM-106Z E CAPACITOR 10uF 50V M

AV-20N3/B AV-20N3/C

Part No.

PART NAME DESCRIPTION

PACKING PARTS LIST (Page 50)

 Ref. No.

2 GG20025-003A-H GG20025-005A-H CORNER LABEL

Victor Company of Japan, Limited
AV & MULTIMEDIA COMPANY VIDEO DISPLAY CATEGORY 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama, kanagawa-prefecture, 221-8528, Japan

(No.52025E)

AV-20N3/B AV-20N3/C

Part No.

PART NAME DESCRIPTION

Printed in Japan

WPC

AV-20NMG3

AV-20NMG3B

SERVICE MANUAL

COLOUR TELEVISION

52025C20034

BASIC CHASSIS

AV-20NMG3/E,

AV-20NMG3B/E

CG

Supplementary

The following items for the AV-20NMG3/E, AV-20NMG3B/E model were changed p artly from AV-20 NMG3 model.
Therefore, this service manual describ es only the item s wh ich differ f rom those of the AV- 20NMG3 model
service manual.
For details other than those described in this manual, please refer to the AV-20NMG3, AV-20NMG3B model
service manual (No.52025, Jul.2002).

OUTLINE

Since the picture tube was changed, we have issued the SERVICE MANUAL for AV-20NMG3/E, AV-20NMG3B/E.

HOW TO IDENTIFY MODELS

“AV-20NMG3E”, “AV-20NMG3BE” is added to the serial No. under at the Rating label.

MODEL

AV-20NMG3
AV-20NMG3B

SERIAL No.

COPYRIGHT © 2003 VICTOR COMPANY OF JAPAN, LTD.

Indicated

AV-20NMG3E
AV-20NMG3BE

No.52025C

2003/4

AV-20NMG3
AV-20NMG3B

DIFFERENCE LIST

USING P.W.BOARD (Page 34)

P.W.B ASS’Y Name

MAIN PWB SCG-1422A-H2

AV-20NMG3

AV-20NMG3B

EXPLODED VIEW PARTS LIST (Page 36)

 Ref. No.
 V01 A48LSD095X

 DY01 QQD0034-001

 Ref. No.
 V01 A48LSD095X

 DY01 QQD0034-001

AV-20NMG3 AV-20NMG3/A AV-20NMG3/E

AV-20NMG3B AV-20NMG3/A AV-20NMG3B/E

PARTS No.

←
←

PARTS No.

←
←

AV-20NMG3/A

←

A48AGY13X89K PICTURE TUBE (ITC) Inc. DY01

------------ DEF YOKE Delete

A48AGY13X89K PICTURE TUBE (ITC) Inc. DY01

------------ DEF YOKE Delete

AV-20NMG3/E

AV-20NMG3B/E

SCG-1468A-H2 Non compatibl e

PARTS NAME DESCRIPTION

PARTS NAME DESCRIPTION

DESCRIPTION

1-2 (No.52025C)

PRINTING WIRING BOARD PARTS LIST

MAIN P.W. BOARD ASS'Y (Page 46)

 Symbol No.

R1159 NRSA02J-184X NRSA63J-184X MG RESISTOR 180kΩ 1/16W J
R1327 NRSA02J-475X NRSA63J-475X MG RESISTOR 4.7MΩ 1/16W J
R1330 QRE141J-0R0Y ------------ C RESISTOR Delete
R1433 QRE121J-2R7Y QRE121J-3R9Y C RESISTOR 3.9Ω 1/2W J
R1521 ------------ QRE121J-560Y C RESISTOR 56Ω 1/2W J
R1525 QRL029J-180 QRL029J-33 0 OMF RESISTOR 33Ω 2W J
R1921 QRE121J-2R2Y QRE121J-1R8Y C RESISTOR 1.8Ω 1/2W J
R1923 QRM034J-R22 QRM034J-R18 MP RESISTOR 0.18Ω 3W J
R1924 ------------ NRSA63J-154X MG RESISTOR 150kΩ 1/16W J
R1925 ------------ NRSA63J-105X MG RESISTOR 1MΩ 1/16W J
R1935 QRE121J-562Y QRE121J-392Y C RESISTOR 3.9kΩ 1/2W J
R1976 QRT029J-8R2 QRL029J-120 OMF RESISTOR 12Ω 2W J
R1979 QRL039J-220 QRL039J-47 0 OMF RESISTOR 47Ω 3W J
C1351 ------------ QCZ0364-102 C CAPACITOR 1000pF 2kV
C1352 QFZ0097-103 ------------ MM CAPACITOR Delete
C1433 QETN1HM-475Z QEHR1HM-475Z E CAPACITOR 4.7uF 50V M

 C1525 QFZ0200-972 QFZ0200-982 MPP CAPACITOR 9800pF 1.5kV H

C1526 QFLC1HJ-103Z QFLC1HJ-822Z M CAPACITOR 8200pF 50V J

 C1527 QFZ0199-564 QFZ0199-474 MPP CAPACITOR 0.47uF 250V J

C1529 QFN32AJ-102Z QFLC1HJ-332Z M CAPACITOR 3300pF 50V J

 C1904 QCZ9015-102 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
 C1905 QCZ9015-102 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z
 C1907 QCZ9015-102 QCZ9015-102Z C CAPACITOR 1000pF AC250V Z

C1932 NDC31HJ-681X NDC31HJ-221X C CAPACITOR 220pF 50V J
L1551 QQLZ034-360 QQLZ034-380 COIL 38uH
D1303 ------------ MA3091/M/-X Z DIODE Addtion
D1920 ------------ 1SS133-T2 SI DIODE Addtion
D1929 MTZJ3.3A-T2 ------------ Z DIODE Delete
D1942 RU3YX-LFC4 RGP30B-F1 SI DIODE
Q1703 UN2212-X 2SD601A/QR/-X TRANSISTOR
IC1704 PIC-47143SY GP1UM281QK IR DETECT UNIT 38kHz

 CP1981 ICP-N25-Y ICP-N50-Y IC PROTECTOR 2.0A

SCG-1422A-H2 SCG-1468A-H2

PARTS No.

PARTS NAME DESCRIPTION

AV-20NMG3

AV-20NMG3B

(No.52025C)1-3

AV-20NMG3
AV-20NMG3B

VICTOR COMPANY OF JAPAN, LIMITED

AV & MULTIMEDIA COMPANY DISPLAY CATEGORY 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama, kanagawa-prefecture, 221-8528, Japan

(No.52025C)

Printed in Japan

20034WPC

52025B200212

AV-20NMG3B

AV-20NMG3

SERVICE MANUAL

COLOUR TELEVISION

BASIC CHASSIS

AV-20NMG3B/C

CG

AV-20NMG3/C-A

Supplementary

The following items for the AV-20NMG3B/C, AV-20NMG3/C-A models were changed partly from AV­20NMG3B, AV-20NMG3/-A models.
Therefore, this service manual describes only the items which differ from those of the AV-20NMG3B, AV­20NMG3/-A model service manual.
For details other than those described in this manual, please refer to the AV-20NMG3B, AV-20NMG3/-A
model service manual (No.52025, Jun.2002).

OUTLINE

Since the picture tube was changed, we have issued the SERVICE MANUAL for AV-20NMG3B/C, AV-20NMG3/
C-A .

HOW TO IDENTIFY MODELS

“AV-20NMG3B/C”,“AV-20NMG3/CA” is added to the serial No. under at the Rating label.

MODEL

AV-20NMG3B
AV-20NMG3

SERIAL No.

Indicated

COPYRIGHT © 2002 VICTOR COMPANY OF JAPAN, LTD.

AV-20NMG3B/C
AV-20NMG3/CA

No.52025B

2002/12

AV-20NMG3B

AV-20NMG3

DIFFERENCE LIST

USING P.W.BOARD (Page 34)

P.W.B ASS’Y Name

MAIN PWB SCG-1422A-H2 SCG-1449A-H2

AV-20NMG3B

AV-20NMG3/-A

AV-20NMG3B/C

AV-20NMG3/C-A

EXPLODED VIEW PARTS LIST

EXPLODED VIEW (Page 36)

PARTS No.

 Ref. No.

 V01 A48LSD095X A48LWX10X PICTURE TUBE
 DY01 QQD0034-001 QQD0081-001 DEF YOKE

AV-20NMG3B

AV-20NMG3/-A

AV-20NMG3B/C

AV-20NMG3/C-A

PARTS NAME DESCRIPTION

PRINTING WIRING BOARD PARTS LIST

MAIN P.W.BOARD ASS’Y [AV-20NMG3B/C] [AV-20NMG3/C-A] (Page 47~48)

 Symbol No.

 C1525 QFZ0200-972 QFZ0200-103 MPP CAP. 0.01uF 1.5V H ±3%

L1551 QQLZ034-360 QQLZ034-300 INDUCTOR

SCG-1422A-H2 SCG-1449A-H2

PARTS No.

PARTS NAME DESCRIPTION

VICTOR COMPANY OF JAPAN, LIMITED

AV & MULTIMEDIA COMPANY 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama, kanagawa-prefecture, 221-8528, Japan

Printed in Japan
0212 WPC

A

V-20N

3

A

A

V-20NMG3

V-20NMG3B

PARTS LIST

CAUTION

! The parts identifi ed by the ! symbol are i m por t ant for t he safe ty. W hene ver replaci ng the se parts , be s ure t o use s pec if i ed o nes to se cure

the safety .

!

The parts n ot i nd ic ated in th is P arts L ist a nd tho se whic h ar e fil led with lines 　　 in the Part s No. columns will not be supplied.

! P. W. Board Ass'y will not be supplied, but those which are filled with the Parts No. in the Parts No. columns will be s upplied.

ABBREVIATIONS OF RESISTOR S, CAPACITORS AND TOLERANCES

RESISTORS CAPACITORS

C R Carbon Resistor C CAP. Ceramic Capacitor

F R Fusible Resistor E CAP. Electrolytic Capacitor

P R Plate Resistor M CAP. Mylar Capacitor

V R Variable Resisto

HV R High Voltage Resistor MF CAP. Metalized Film Capacitor

MF R Metal Film Resistor MM CAP. Metalized Mylar Capacitor

MG R Metal Glazed Resistor MP CAP. Metalized Polystyrol Capacitor

MP R M etal Plate Resi s to r PP CA P. Po lyp ropylen e Ca pa citor

OM R M etal Oxide Film R esis tor PS CA P. Polystyrol Capacitor

CMF R Coating Metal Film Resistor TF CAP. Thin Film Capacitor

UNF R Non- F lammable Resi sto r MP P CAP . Metal ize d Pol yprop ylene Cap ac ito r

CH V R Chip Variable Resistor TAN. CAP. Tantalum Capacit or

CH MG R Chip Metal Glazed Resistor CH C CAP. Chip Ceramic Capacitor

COMP . R Com posi tio n Re sist or BP E C AP . Bi-Pola r E l ectrolyti c Ca paci t or

LP TC R

Linear P ositive T emperat ur e C o eff ici e nt
Resistor

r

HV CAP. High Voltage Capacitor

CH AL E CAP. Chip Aluminum Electrolytic Capacitor

CH AL BP CAP.

CH TAN. E CAP.

Chip A lum i num B i- Po l ar C ap acitor

Chip T ant alum Elec trol ytic C ap acitor

CH AL BP E C AP.

Chip T ant alum Bi-Po l ar El ectro lytic Ca pac it or

TOLERANCES

FGJ KMNRHZ P

±1% ±2% ±5% ±10 % ±20 % ±30%

+30%

-10%

No. 52025

+50%

-10%

+80%

-20%

+100 %

-0%

33

A

V-20N3

A

A

V-20NMG3
V-20NMG3B

CONTENTS

!

USING PW BOARD & REMOTE CONTROL UNIT

･･･････ ･････････････ ････････････ ･･･････ ･･･････････････

! REMOTE CONTROL UNIT PART S LIST ･･･････ ･････････････ ････････････ ････････････････････ ････････････ 35
!

EXPLODED VIEW PARTS LIST

!

EXPLODED VIEW

!

PRINTED WIRING BOARD PARTS LIST

･･･････ ･････････････ ････････････ ･･･････ ･････････････････････････ ･･･････ ･････････････ ････

･･･････ ･････････････ ･･･････････････････ ･････････････ ･･･････････････････ ･･･

[ AV-20N3 ]

"

MAIN PW B OARD ASS ' Y (SCG-14 03 A- H2) (W ith CR T SO CKET PW BOAR D) ･･･････ ･････････････････････････ ･････ 38

[AV-20N3/D]

" MAIN PW BOAR D AS S' Y (SCG-14 25 A- H2) (Wi th CRT SO CK ET PW BOARD) ･･･････ ･････････････ ････････････ ･････ 42

[ AV-20NMG3 / AV-20NMG3B / AV-20NMG3/-A ]

" MAIN PW BOAR D AS S' Y (SCG-14 22 A- H2) (Wi th CRT SO CK ET PW BOARD) ･･･････ ･････････････ ････････････ ･････

!

PACKI NG PA RTS LIST

!

PACKING･･･････ ････････････････････････････････ ･････････････ ････････････ ････････････････････ ･･････････････ 51

･･･････ ･････････････ ･･･････････････････ ･････････････ ･･･････････････････ ････････････

34

36
37

46

50

USING PW BOARD & REMOTE CONTROL UNIT

PW B AS S'Y

Model

AV-20N3

AV-20N3

AV-20NMG3 SCG -1422A-H2

AV-20NMG3B

AV-20NMG3

/D

/-A

MAIN PWB REMOT E CONTROL UNIT

SCG-1403A-H2 RM-C364GY-1H

SCG-1425A-H2

RM-C364-1H

RM-C364GY-1H

34

No. 52025

A

3

A

A

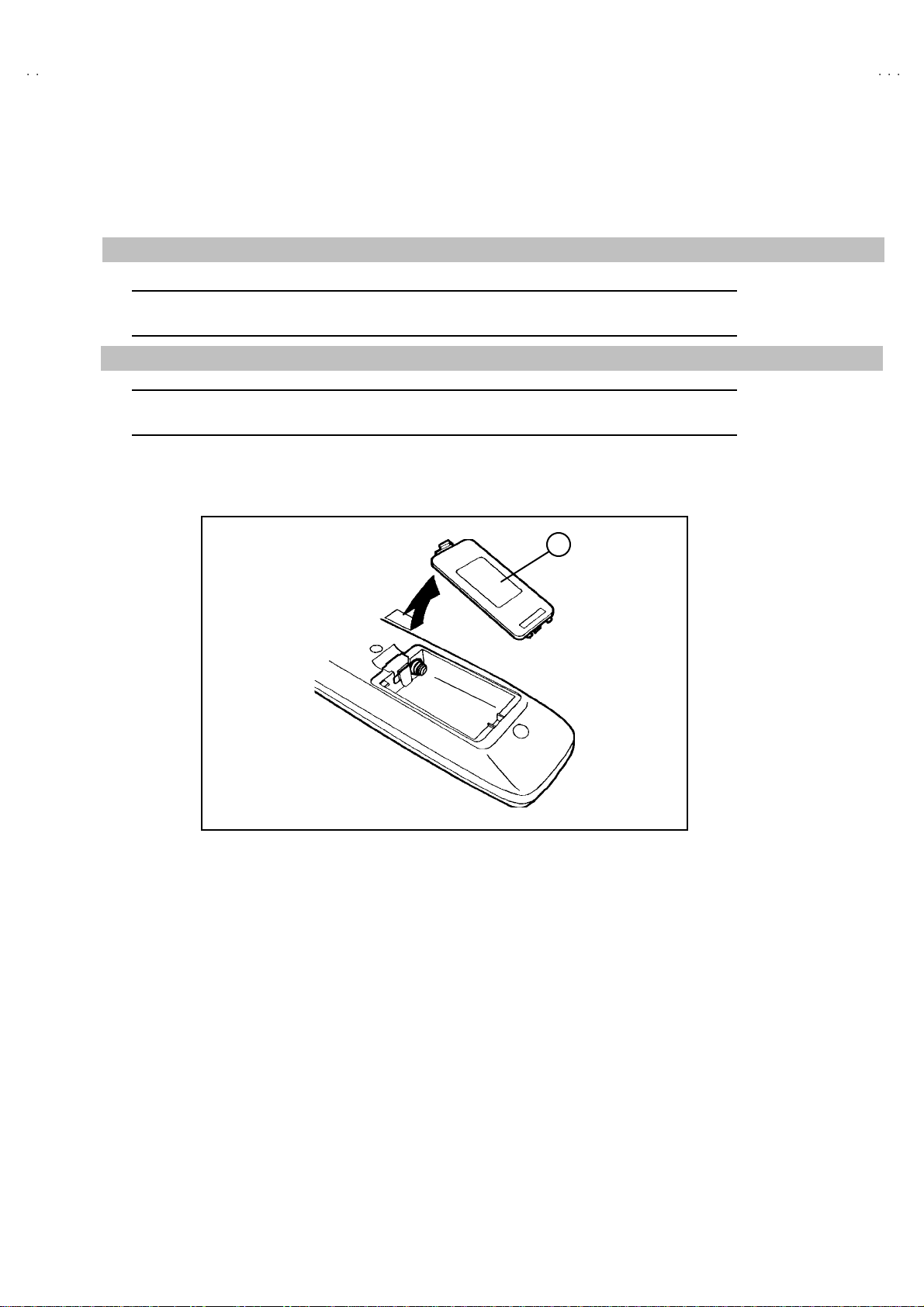

REMOTE CONTROL UNIT PARTS LIST

V-20N

V-20NMG3

V-20NMG3B

[ AV-20N3 / AV-20N3/D / AV-20NMG3 / AV-20NMG3

!

Ref.No. Part No. Part Name. Description

1 25-1168F BATTERY COVER

/-A

] (RM-C364GY-1H)

[ AV-20NMG3B] (RM-C364-1H)

Ref.No. Part No. Part Name. Description

!

1 25-1168F BATTERY COVER

1

No. 52025

35

A

V-20N3

A

A

V-20NMG3
V-20NMG3B

EXPLODE D VIEW PARTS LIST

!

Ref.No. Part No. Part Name Description

AV -2 0N 3

!

V01 A48LWX10X PICTURE TUBE

!

L01 QQW0061-001 DEG COIL
DY01 QQD0081-001 DEF YOKE

!

T1522 QQH0134-001 F B T

!
!

1 LC10438-027A-H FRONT CABINET
2 CM48006-007-C JVC MARK

!

3 LC30664-001B-H E.E.WINDOW
4 LC30663-003A-H POWER KNOB

!

5 LC20318-003A-H CONTROL KNOB

!
!

6 LC30601-001A LEG HOLDER
7 A 48 45 7 -3 -H S PR IN G
8 WJY0008-002A BRAIDED WIRE
9 A75034-B P C MAGNET or CE42378-00B
10 CE40764-00A WEDGE ASSY (X3)

!

11 CM36623-B01-H CHASSIS RAIL (X2)
12 QAS0086-001 SPEAKER (X2)SP01

!

13 QMPR340-165-K2 POWER CORD
14 CM47005-A01-H CORD CLAMP

!

15 LC10448-002B-H REAR COVER

!

16 LC20377-010B-H RATING LABEL

!

17 QYSBSF3010Z TAP SCREW (X1)For REAR COVER
18 QYSBSFG4016Z TAP SCREW (X6)For REAR COVER

AV -2 0N 3/D

V01 A48LWX10X PICTURE TUBE

!

L01 QQW0061-001 DEG COIL

!
!

DY01 QQD0081-001 DEF YOKE

!

T1522 QQH0134-001 F B T

!

1 L C1 04 38 - 02 7A -H FRO NT CA BI NE T
2 CM48006-007-C JVC MARK
3 LC30664-001B-H E.E.WINDOW

!
!

4 LC30663-003A-H POWER KNOB

!

5 LC20318-003A-H CONTROL KNOB

!

6 LC30601-001A LEG HOLDER
7 A 48 45 7 -3 -H S PR IN G
8 WJY0008-002A BRAIDED WIRE

9 A75034-B P C MAGNET or CE42378-00B
10 CE40764-00A WEDGE ASSY (X3)

!

11 CM36623-B01-H CHASSIS RAIL (X2)
12 QAS0086-001 SPEAKER (X2)SP01
13 QMPR340-165-K2 POWER CORD

!
!

14 CM47005-A01-H CORD CLAMP

!

15 LC10448-002B-H REAR COVER

!

16 LC20377-010B-H RATING LABEL
17 QYSBSF3010Z TAP SCREW (X1)For REAR COVER
18 QYSBSFG4016Z TAP SCREW (X6)For REAR COVER

AV-20NMG3 / AV-20NMG3B / AV-20NMG3 /- A

V01 A48LSD095X PICTURE TUBE

!
!

L01 QQW0061-001 DEG COIL

!

DY01 QQD0034-001 DEF YOKE

!

T1522 QQH0134-001 F B T
1 LC10438-029A-H FRONT CABINET [AV-20NMG3 / AV-20NMG3/-A]

!!!!

1 LC10438-033A-H FRONT CABINET [AV-20NMG3B]

!!!!

2 CM48006-007-C JVC MARK

!

3 LC30664-001B-H E.E.WINDOW

!

4 LC30663-003A-H POWER KNOB
5 LC20318-003A-H CONTROL KNOB

!

6 LC30601-001A LEG HOLDER

!

7 A 48 45 7 -3 -H S PR IN G
8 WJY0008-002A BRAIDED WIRE
9 A75034-B P C MAGNET or CE42378-00B
10 CE40764-00A WEDGE ASSY (X3)
11 CM36623-B01-H CHASSIS RAIL (X2)

!

12 QAS0086-001 SPEAKER (X2)SP01

!!!!

13 QMPR340-165-K2 POWER CORD [AV-20NMG3 / AV-20NMG3B]

!!!!

13 QMPR380-165-K2 POWER CORD [AV-20NMG3/-A]
14 CM47005-A01-H CORD CLAMP

!

15 LC10448-002B-H REAR COVER

!

16 GG20024-001A-H RATING LABEL [AV-20NMG3]

!!!!
!!!!

16 LC20377-010B-H RATING LABEL [AV-20NMG3B]

!!!!

16 LC20413-002B-H RATING LABEL [AV-20NMG3/-A]
17 QYSBSF3010Z TAP SCREW (X1)For REAR COVER
18 QYSBSFG4016Z TAP SCREW (X6)For REAR COVER

36

No. 52025

A

3

A

A

EXPLODE D VIEW

!

L01

!

V-20N

V-20NMG3

V-20NMG3B

!

6

!

5

1

!

7

1

12

V01

!

!

14

!

13

10

!

DY 01

!

11

9

!

4

8

CRT SOCKET

PWB

!

11

12

2

MAIN PWB

!

3

!

T1522

!

16

!

(×1)

(×6)

17

No. 52025

37

15

18

A

V-20N3

PRINTED WIRING BOARD PARTS LIST

[ AV-20N3 ]

MAIN P.W. BOARD ASS’Y (SCG-1403A-H2 )

Symbol No. Part No. Part Name Description

!

RESISTOR

R1002 NRSA63J-221X MG R 220Ω 1/16W J
R1003 NRSA63J-221X MG R 220Ω 1/16W J

R1004 NRSA63J-563X MG R 56kΩ 1/16W J
R1102 NRSA63J-750X MG R 75Ω 1/16W J
R1103 NRSA63J-100X MG R 10Ω 1/16W J
R1109 NRSA63J-682X MG R 6.8kΩ 1/16W J
R1110 NRSA63J-272X MG R 2.7kΩ 1/16W J
R1111 NRSA63J-181X MG R 180Ω 1/16W J

R1112 NRSA63J-100X MG R 10Ω 1/16W J
R1113 NRSA63J-101X MG R 100Ω 1/16W J
R1120 NRSA63J-391X MG R 390Ω 1/16W J
R1121 NRSA63J-221X MG R 220Ω 1/16W J
R1159 NRSA02J-184X MG R 180kΩ 1/10W J
R1301 NRSA63J-221X MG R 220Ω 1/16W J

R1302 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1303 NRSA63J-101X MG R 100Ω 1/16W J
R1304 NRSA63J-101X MG R 100Ω 1/16W J
R1305 NRSA63J-101X MG R 100Ω 1/16W J
R1306 NRSA63J-221X MG R 220Ω 1/16W J
R1307 NRSA63J-122X MG R 1.2kΩ 1/16W J

R1308 NRSA63J-182X MG R 1.8kΩ 1/16W J
R1312 NRSA63J-0R0X MG R 0.0Ω 1/16W J
R1313 NRSA63J-102X MG R 1kΩ 1/16W J
R1314 NRSA63J-102X MG R 1kΩ 1/16W J
R1321 NRSA63J-152X MG R 1.5kΩ 1/16W J
R1322 NRSA63J-272X MG R 2.7kΩ 1/16W J

R1323 NRSA63J-103X MG R 10kΩ 1/16W J
R1324 NRSA63J-102X MG R 1kΩ 1/16W J
R1326 NRSA63J-101X MG R 100Ω 1/16W J
R1327 NRSA02J-475X MG R 4.7MΩ 1/10W J
R1341 NRSA63J-332X MG R 3.3kΩ 1/16W J

R1347 NRSA63J-392X MG R 3.9kΩ 1/16W J
R1349 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1351 NRSA63J-151X MG R 150Ω 1/16W J
R1352 NRSA63J-151X MG R 150Ω 1/16W J
R1353 NRSA63J-151X MG R 150Ω 1/16W J
R1354 NRSA63J-331X MG R 330Ω 1/16W J

R1355 NRSA63J-331X MG R 330Ω 1/16W J
R1356 NRSA63J-331X MG R 330Ω 1/16W J
R1357 NRSA63J-101X MG R 100Ω 1/16W J
R1358 NRSA63J-101X MG R 100Ω 1/16W J
R1359 NRSA63J-101X MG R 100Ω 1/16W J
R1360 QRZ0107-152Z C R 1.5kΩ 1/2W K

R1361 QRZ0107-152Z C R 1.5kΩ 1/2W K
R1362 QRZ0107-152Z C R 1.5kΩ 1/2W K
R1363 QRL029J-123 OM R 12kΩ 2W J
R1364 QRL029J-123 OM R 12kΩ 2W J
R1365 QRL029J-123 OM R 12kΩ 2W J
R1366 NRSA63J-182X MG R 1.8kΩ 1/16W J

R1367 NRSA63J-182X MG R 1.8kΩ 1/16W J
R1368 NRSA63J-182X MG R 1.8kΩ 1/16W J
R1372 NRSA63J-0R0X MG R 0.0Ω 1/16W J
R1374 NRSA63J-682X MG R 6.8kΩ 1/16W J
R1401 NRSA63J-103X MG R 10kΩ 1/16W J
R1421 NRSA63J-472X MG R 4.7kΩ 1/16W J

R1423 NRSA63J-0R0X MG R 0.0Ω 1/16W J
R1424 NRSA63J-0R0X MG R 0.0Ω 1/16W J
R1425 NRSA63J-332X MG R 3.3kΩ 1/16W J
R1426 NRSA63J-0R0X MG R 0.0Ω 1/16W J
R1429 NRSA63J-103X MG R 10kΩ 1/16W J
R1430 NRSA63J-823X MG R 82kΩ 1/16W J

R1431 NRSA63J-103X MG R 10kΩ 1/16W J
R1432 QRE121J-3R9Y C R 3.9Ω 1/2W J
R1433 QRE121J-2R7Y C R 2.7Ω 1/2W J
R1436 NRSA63J-823X MG R 82kΩ 1/16W J
R1440 QRE121J-471Y C R 470Ω 1/2W J
R1441 NRSA63J-822X MG R 8.2kΩ 1/16W J

R1442 NRSA63J-103X MG R 10kΩ 1/16W J
R1443 QRE121J-1R0Y C R 1.0Ω 1/2W J
R1453 NRSA63J-272X MG R 2.7kΩ 1/16W J
R1502 NRSA63J-0R0X MG R 0.0Ω 1/16W J

Symbol No. Part No. Part Name Description

!

RESISTOR

R1503 NRSA63J-682X MG R 6.8kΩ 1/16W J
R1525 QRL029J-180 OM R 18Ω 2W J

R1526 QRE121J-271Y C R 270Ω 1/2W J
R1529 QRL039J-681 OM R 680Ω 3W J
R1531 NRSA63J-331X MG R 330Ω 1/16W J
R1532 NRSA63J-102X MG R 1kΩ 1/16W J

!

R1551 QRZ9011-1R0 F R 1.0 Ω 1/2W J
R1552 QRJ146J-2R2X C R 2.2Ω 1/4W J

R1554 QRE121J-681Y C R 680Ω 1/2W J
R1571 QRE121J-222Y C R 2.2kΩ 1/2W J
R1573 QRT029J-1R5 MF R 1.5Ω 2W J
R1574 QRT029J-1R5 MF R 1.5Ω 2W J
R1576 QRE121J-223Y C R 22kΩ 1/2W J
R1577 NRSA63J-392X MG R 3.9kΩ 1/16W J

R1578 NRSA63J-103X MG R 10kΩ 1/16W J
R1581 QRE121J-182Y C R 1.8kΩ 1/2W J
R1582 NRSA63J-223X MG R 22kΩ 1/16W J
R1583 NRSA63J-393X MG R 39kΩ 1/16W J
R1651 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1652 NRSA63J-102X MG R 1kΩ 1/16W J

R1653 NRSA63J-331X MG R 330Ω 1/16W J
R1654 NRSA63J-223X MG R 22kΩ 1/16W J
R1655 NRSA63J-473X MG R 47kΩ 1/16W J
R1656 NRSA63J-822X MG R 8.2kΩ 1/16W J
R1657 NRSA63J-222X MG R 2.2kΩ 1/16W J
R1658 NRSA63J-222X MG R 2.2kΩ 1/16W J

R1659 QRE121J-4R7Y C R 4.7Ω 1/2W J
R1660 NRSA63J-153X MG R 15kΩ 1/16W J
R1661 QRE121J-271Y C R 270Ω 1/2W J
R1662 QRE121J-271Y C R 270Ω 1/2W J
R1664 NRSA63J-682X MG R 6.8kΩ 1/16W J

R1665 NRSA63J-103X MG R 10kΩ 1/16W J
R1666 NRSA63J-101X MG R 100Ω 1/16W J
R1667 QRE121J-101Y C R 100Ω 1/2W J

!

R1668 QRT029J-5R6 MF R 5.6Ω 2W J
R1701 NRSA63J-562X MG R 5.6kΩ 1/16W J
R1702 NRSA63J-682X MG R 6.8kΩ 1/16W J

R1703 NRSA63J-392X MG R 3.9kΩ 1/16W J
R1704 NRSA63J-221X MG R 220Ω 1/16W J
R1705 NRSA63J-221X MG R 220Ω 1/16W J
R1706 NRSA63J-561X MG R 560Ω 1/16W J
R1707 NRSA63J-561X MG R 560Ω 1/16W J
R1708 NRSA63J-102X MG R 1kΩ 1/16W J

R1709 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1710 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1711 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1712 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1713 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1714 NRSA63J-472X MG R 4.7kΩ 1/16W J

R1715 NRSA63J-221X MG R 220Ω 1/16W J
R1716 NRSA63J-221X MG R 220Ω 1/16W J
R1718 NRSA63J-561X MG R 560Ω 1/16W J
R1719 NRSA63J-102X MG R 1kΩ 1/16W J
R1720 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1721 NRSA63J-103X MG R 10kΩ 1/16W J

R1723 QRL039J-270 OM R 27Ω 3W J

!

R1725 NRSA63J-102X MG R 1kΩ 1/16W J
R1726 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1727 NRSA63J-153X MG R 15kΩ 1/16W J
R1728 NRSA63J-102X MG R 1kΩ 1/16W J
R1729 NRSA63J-102X MG R 1kΩ 1/16W J

R1730 NRSA63J-103X MG R 10kΩ 1/16W J
R1731 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1736 NRSA63J-823X MG R 82kΩ 1/16W J
R1737 NRSA63J-104X MG R 100kΩ 1/16W J
R1738 NRSA63J-103X MG R 10kΩ 1/16W J
R1739 NRSA63J-103X MG R 10kΩ 1/16W J

R1740 NRSA63J-392X MG R 3.9kΩ 1/16W J
R1741 NRSA63J-561X MG R 560Ω 1/16W J
R1742 NRSA63J-563X MG R 56kΩ 1/16W J
R1746 NRSA63J-103X MG R 10kΩ 1/16W J

38

No. 52025

A

3

[ AV-20N3 ]

V-20N

Symbol No. Part No. Part Name Description

!

RESISTOR

R1747 NRSA63J-0R0X MG R 0.0Ω 1/16W J
R1748 NRSA63J-101X MG R 100Ω 1/16W J
R1749 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1771 NRSA63J-821X MG R 820Ω 1/16W J
R1772 NRSA63J-821X MG R 820Ω 1/16W J
R1791 NRSA63J-221X MG R 220Ω 1/16W J
R1792 NRSA63J-221X MG R 220Ω 1/16W J

R1793 NRSA63J-221X MG R 220Ω 1/16W J
R1794 NRSA63J-221X MG R 220Ω 1/16W J
R1795 NRSA63J-221X MG R 220Ω 1/16W J
R1796 NRSA63J-103X MG R 10kΩ 1/16W J
R1797 NRSA63J-153X MG R 15kΩ 1/16W J

R1802 NRSA63J-750X MG R 75Ω 1/16W J
R1806 QRE121J-271Y C R 270Ω 1/2W J
R1807 NRSA63J-680X MG R 68Ω 1/16W J
R1810 QRG01GJ-560 OM R 56Ω 1W J
R1811 NRSA63J-221X MG R 220Ω 1/16W J
R1815 QRE121J-181Y C R 180Ω 1/2W J

R1816 NRSA63J-681X MG R 680Ω 1/16W J
R1817 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1901 QRF104K-3R9 UNF R 3.9Ω 10W K
R1903 QRL029J-104 OM R 100kΩ 2W J
R1906 QRL029J-104 OM R 100kΩ 2W J
R1921 QRE121J-2R2Y C R 2.2Ω 1/2W J

R1922 QRE121J-221Y C R 220Ω 1/2W J
R1923 QRM034J-R22 MP R 0.22Ω 3W J
R1928 QRL039J-683 OM R 68kΩ 3W J
R1933 QRE121J-4R7Y C R 4.7Ω 1/2W J
R1934 NRSA63J-683X MG R 68kΩ 1/16W J
R1935 QRE121J-562Y C R 5.6kΩ 1/2W J

R1974 NRSA63J-222X MG R 2.2kΩ 1/16W J
R1976 QRT029J-8R2 MF R 8.2Ω 2W J
R1977 QRE121J-122Y C R 1.2kΩ 1/2W J
R1978 NRSA63J-473X MG R 47kΩ 1/16W J
R1979 QRL039J-220 OM R 22Ω 3W J
R1980 QRL029J-152 OM R 1.5kΩ 2W J

R1991 QRZ9046-825Z C R 8.2MΩ 1/2W K

!

CAPACITOR

C1001 QETN1HM-106Z E CAP. 10µF 50V M
C1002 NCB31HK-103X C CAP. 0.01µF 50V K
C1004 QETN1CM-477Z E CAP. 470µF 16V M

C1005 QFV71HJ-104Z MF CAP. 0.1µF 50V J
C1008 QETN1HM-475Z E CAP. 4.7µF 50V M
C1103 QETN1EM-476Z E CAP. 47µF 25V M

C1104 NCB31HK-472X C CAP. 4700pF 50V K
C1105 NCB31HK-472X C CAP. 4700pF 50V K

C1106 NCB31HK-472X C CAP. 4700pF 50V K
C1107 NCB31HK-472X C CAP. 4700pF 50V K

C1110 NRSA63J-0R0X MG R 0.0Ω 1/16W J
C1112 QETN1EM-476Z E CAP. 47µF 25V M

C1113 NCB31HK-472X C CAP. 4700pF 50V K
C1114 NCB31HK-103X C CAP. 0.01µF 50V K

C1115 NCB31HK-103X C CAP. 0.01µF 50V K
C1116 NCB31HK-103X C CAP. 0.01µF 50V K
C1117 QFV71HJ-224Z MF CAP. 0.22µF 50V J
C1119 QETN1HM-474Z E CAP. 0.47µF 50V M

C1120 NDC31HJ-121X C CAP. 120pF 50V J
C1121 NCB31HK-103X C CAP. 0.01µF 50V K
C1122 NCB31HK-103X C CAP. 0.01µF 50V K

C1162 NCB31HK-152X C CAP. 1500pF 50V K
C1301 NCB31HK-123X C CAP. 0.012 µF 50V K
C1302 QETN1HM-475Z E CAP. 4.7µF 50V M

C1303 NDC31HJ-100X C CAP. 10pF 50V J
C1304 QFV71HJ-474Z MF CAP. 0.47µF 50V J

C1305 QETN1HM-474Z E CAP. 0.47µF 50V M
C1306 NCB31HK-103X C CAP. 0.01µF 50V K
C1307 QETN1CM-477Z E CAP. 470µF 16V M
C1308 QETN1CM-107Z E CAP. 100µF 16V M
C1309 NCB31HK-103X C CAP. 0.01µF 50V K

C1310 NDC31HJ-221X C CAP. 220pF 50V J
C1311 NCB31HK-103X C CAP. 0.01µF 50V K
C1312 QENC1HM-474Z E CAP. 0.47µF 50V M

Symbol No. Part No. Part Name Description

!

CAPACITOR

C1313 QETN1HM-335Z E CAP. 3.3µF 50V M
C1314 NCB31HK-103X C CAP. 0.01µF 50V K
C1315 QETN1CM-107Z E CAP. 100µF 16V M
C1316 QETN1HM-106Z E CAP. 10µF 50V M
C1317 NCB31EK-473X C CAP. 0.047 µF 25V K

C1321 NDC31HJ-120X C CAP. 12pF 50V J
C1322 NCB31EK-273X C CAP. 0.027 µF 25V K
C1323 QETN1HM-474Z E CAP. 0.47µF 50V M

C1324 QETN1HM-106Z E CAP. 10µF 50V M
C1325 QENC1HM-106Z BP E CAP. 10µF 50V M

C1326 NCS21HJ-221X C CAP. 220pF 50V J
C1341 QETN1HM-106Z E CAP. 10µF 50V M
C1352 QFZ0097-103 MM CAP. 0.01µF 1250V K

C1354 NDC31HJ-271X C CAP. 270pF 50V J
C1355 NDC31HJ-221X C CAP. 220pF 50V J

C1356 NDC31HJ-331X C CAP. 330pF 50V J
C1357 QETN1AM-477Z E CAP. 470µF 10V M

C1365 QENC1HM-105Z E CAP. 1µF 50V M
C1366 QENC1HM-105Z E CAP. 1µF 50V M
C1367 QENC1HM-105Z E CAP. 1µF 50V M
C1401 QFV71HJ-474Z MF CAP. 0.47µF 50V J

C1423 QCS32HJ-180Z C CAP. 18pF 500V J
C1424 QFLC2AJ-103Z M CAP. 0.01µF 100V J

C1426 QFLC1HJ-102Z M CAP. 1000pF 50V J
C1427 QETN1VM-107Z E CAP. 100µF 35V M
C1428 QETN1VM-107Z E CAP. 100µF 35V M

C1429 QETN1HM-106Z E CAP. 10µF 50V M
C1430 QFN32AJ-472Z M CAP. 4700pF 100V J
C1433 QETN1HM-475Z E CAP. 4.7µF 50V M
C1435 QETM1EM-228 E CAP. 2200µF 25V M

C1436 QFV71HJ-334Z MF CAP. 0.33µF 50V J
C1437 NCB31HK-104X C CAP. 0.1µF 50V K
C1501 QETN1AM-477Z E CAP. 470µF 10V M
C1502 NCB31HK-103X C CAP. 0.01µF 50V K
C1503 QETN1HM-106Z E CAP. 10µF 50V M
C1523 QETN1EM-476Z E CAP. 47µF 25V M

C1525 QFZ0200-1042 M P P CAP 0.0104µF 1.5kVH±3%

!

C1526 QFLC1HJ-103Z M CAP. 0.01µF 50V J
C1527 QFZ0199-474 MPP CAP. 0.47µF 250V J

!

C1529 QFN32AJ-102Z M CAP. 1000pF 100V J
C1531 QEZ0203-107 E CAP. 100µF 160V M

C1552 QETM1VM-108 E CAP. 1000µF 35V M
C1554 QETN2EM-475Z E CAP. 4.7µF 250V M
C1555 QFLC2AJ-104Z M CAP. 0.1µF 100V J
C1557 QETN1HM-107Z E CAP. 100µF 50V M
C1571 QETN1AM-107Z E CAP. 100µF 10V M

C1572 QETN1EM-476Z E CAP. 47µF 25V M
C1581 QFV71HJ-104Z MF CAP. 0.1µF 50V J
C1652 NCB31HK-473X C CAP. 0.047 µF 50V K
C1653 QETN1HM-106Z E CAP. 10µF 50V M
C1654 QETN1CM-477Z E CAP. 470µF 16V M
C1655 QETN1HM-106Z E CAP. 10µF 50V M

C1656 QENC1HM-105Z E CAP. 1µF 50V M
C1657 QETN1EM-107Z E CAP. 100µF 25V M
C1658 QETN1EM-227Z E CAP. 220µF 25V M
C1659 QETN1HM-475Z E CAP. 4.7µF 50V M

C1663 NCB31HK-102X C CAP. 1000pF 50V K
C1664 QETN1CM-107Z E CAP. 100µF 16V M
C1665 NCB31HK-103X C CAP. 0.01µF 50V K

C1701 QETN1HM-106Z E CAP. 10µF 50V M
C1705 QETN1CM-477Z E CAP. 470µF 16V M
C1706 NCB31HK-104X C CAP. 0.1µF 50V K
C1707 NCB31HK-103X C CAP. 0.01µF 50V K
C1708 QETN1AM-108Z E CAP. 1000µF 10V M
C1709 NCB31HK-103X C CAP. 0.01µF 50V K

C1710 QETN1CM-107Z E CAP. 100µF 16V M
C1711 NCB31HK-103X C CAP. 0.01µF 50V K
C1712 NCB31HK-103X C CAP. 0.01µF 50V K
C1713 NCB31HK-103X C CAP. 0.01µF 50V K

C1716 NDC31HJ-181X C CAP. 180pF 50V J
C1717 NDC31HJ-181X C CAP. 180pF 50V J

C1718 NCB31HK-103X C CAP. 0.01µF 50V K
C1719 QETN1HM-105Z E CAP. 1µF 50V M
C1720 NCB31HK-103X C CAP. 0.01µF 50V K
C1721 NCB31EK-333X C CAP. 0.033 µF 25V K

No. 52025

39

A

V-20N3

[ AV-20N3 ]

Symbol No. Part No. Part Name Description

!

CAPACITOR

C1722 NDC31HJ-101X C CAP. 100pF 50V J
C1724 NDC31HJ-560X C CAP. 56pF 50V J
C1728 NDC31HJ-181X C CAP. 180pF 50V J
C1729 NDC31HJ-181X C CAP. 180pF 50V J

C1730 NCB31HK-103X C CAP. 0.01µF 50V K
C1744 NCB31HK-103X C CAP. 0.01µF 50V K
C1805 QETN1CM-227Z E CAP. 220µF 16V M
C1806 QETN1CM-477Z E CAP. 470µF 16V M

C1811 QETN1HM-106Z E CAP. 10µF 50V M
C1841 NCB31HK-152X C CAP. 1500pF 50V K

!

C1901 QFZ9078-224 MPF CAP. 0.22µFAC275V M

!

C1904 QCZ9015-102 C CAP. 1000pFAC250V Z

!

C1905 QCZ9015-102 C CAP. 1000pFAC250V Z
C1907 QCZ9015-102 C CAP. 1000pFAC250V Z

!
!

C1909 QEZ0552-127 E CAP. or QEZ0199-127 120µF 400V M

!

C1910 QFZ9078-473 MPF CAP. 0.047µFAC275V M
C1922 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1924 QETN1HM-475Z E CAP. 4.7µF 50V M

C1925 QETN1VM-476Z E CAP. 47µF 35V M
C1926 QFLC1HJ-332Z M CAP. 3300pF 50V J

C1929 QFKA2JK-103 MM CAP. 0.01µF 630V K

!
!

C1931 QCZ0364-681 C CAP. 680pF 2kV K
C1932 NDC31HJ-681X C CAP. 680pF 50V J
C1941 QCZ0364-561 C CAP. 560pF 2kV K

C1942 QEZ0203-107 E CAP. 100µF 160V M
C1944 QCB32HK-222Z C CAP. 2200pF 500V K

C1945 QEHR1EM-108Z E CAP. 1000µF 25V M
C1946 QETN1EM-108Z E CAP. 1000µF 25V M

C1947 QCB32HK-222Z C CAP. 2200pF 500V K
C1948 QETN1EM-108Z E CAP. 1000µF 25V M

C1949 NDC31HJ-471X C CAP. 470pF 50V J
C1976 QETN1EM-227Z E CAP. 220µF 25V M

C1977 QETN1CM-227Z E CAP. 220µF 16V M
C1978 QETN1EM-227Z E CAP. 220µF 25V M
C1979 QETN1AM-227Z E CAP. 220µF 10V M

C1991 QCZ9079-102 C CAP. 1000pFAC250V M

!

C1992 QCZ9079-102 C CAP. 1000pFAC250V M

!
!

C1993 QCZ9079-222 C CAP. 2200pFAC250V M

TRANSFORMER

T1501 QQR1244-001 DRIVE TRANSF.

!

T1522 QQH0134-001 F.B.TRANSF.

!

T1921 QQS0161-001 SW TRANSF.

COIL

L1001 QQL244K-8R2Z COIL 8.2µH K
L1101 QQL244J-2R2Z COIL 2.2µH J

L1103 QQL244K-8R2Z COIL 8.2µH K
L1551 QQLZ034-410 INDUCTOR

L1701 QQL244J-5R6Z COIL 5.6µH J
L1941 QQL26AK-820Z COIL 82µH K

L1942 QQL244J-4R7Z INDUCTOR
L1943 QQL244J-4R7Z INDUCTOR

DIODE

D1001 MTZJ33A-T2 ZENER DIODE
D1301 MTZJ9.1B-T2 ZENER DIODE
D1302 MTZJ9.1B-T2 ZENER DIODE
D1305 AK04-T2 SB DIODE

D1306 QRE121J-121Y C R 120Ω 1/2W J
D1341 MA111-X SI.DIODE
D1421 MTZJ75-T2 ZENER DIODE
D1423 1SR124-400A-T2 SI.DIODE

D1425 MA111-X SI.DIODE
D1427 MTZJ27B-T2 ZENER DIODE
D1501 MTZJ6.8C-T2 ZENER DIODE
D1551 RGP10J-5025-T3 SI.DIODE
D1552 RGP10J-5025-T3 SI.DIODE

D1553 MTZJ9.1B-T2 ZENER DIODE
D1554 MA111-X SI.DIODE
D1557 1SR124-400A-T2 SI.DIODE

Symbol No. Part No. Part Name Description

!

DIODE

D1571 MTZJ7.5S-T2 ZENER DIODE
D1581 MTZJ20B-T2 ZENER DIODE
D1582 RGP10J-5025-T3 SI.DIODE
D1651 MA111-X SI.DIODE

D1652 MTZJ12C-T2 ZENER DIODE
D1653 MA111-X SI.DIODE
D1654 MTZJ12C-T2 ZENER DIODE
D1655 MA111-X SI.DIODE
D1656 MA111-X SI.DIODE

D1657 MA111-X SI.DIODE
D1701 MA111-X SI.DIODE
D1704 SLR-342VR-T16 LED
D1705 SLR-342DU-T16 LED
D1707 MA111-X SI.DIODE
D1731 MA111-X SI.DIODE

D1801 MA111-X SI.DIODE

!

D1901 G2SBA60 BRIDGE DIODE
D1921 RGP10J-5025-T3 SI.DIODE
D1925 RGP10J-5025-T3 SI.DIODE
D1927 MTZJ36A-T2 ZENER DIODE

D1928 MTZJ3.3A-T2 ZENER DIODE
D1929 MTZJ3.3A-T2 ZENER DIODE
D1930 RGP10M-5010-T3 SI.DIODE
D1931 MA111-X SI.DIODE
D1933 MTZJ16C-T2 ZENER DIODE

D1941 RU3AM-LFC4 SI.DIODE
D1942 RU3YX-LFC4 SI.DIODE
D1943 RGP10J-5025-T3 SI.DIODE
D1982 MA111-X SI.DIODE
D1983 MA111-X SI.DIODE

TRANSISTOR

Q1102 2SC5083/L-P/-T SI.TRANSISTOR
Q1301 2SB709A/QR/-X SI.TRANSISTOR

Q1302 2SD601A/QR/-X SI.TRANSISTOR
Q1351 STC344-T SI.TRANSISTOR
Q1352 STC344-T SI.TRANSISTOR
Q1353 STC344-T SI.TRANSISTOR
Q1401 DTC124ESA-T DIGI.TRANSISTOR

Q1402 2SD601A/QR/-X SI.TRANSISTOR
Q1521 2SC2655/Y/-T SI.TRANSISTOR
Q1522 2SD2627-YB11 POWER TRANSISTOR H.OUT

!

Q1571 2SA1208/ST/Z1-T SI.TRANSISTOR
Q1572 2SD601A/QR/-X SI.TRANSISTOR

Q1651 2SD601A/QR/-X SI.TRANSISTOR
Q1652 2SD601A/QR/-X SI.TRANSISTOR
Q1653 2SB709A/QR/-X SI.TRANSISTOR
Q1702 2SD601A/QR/-X SI.TRANSISTOR
Q1703 UN2212-X DIGI.TRANSISTOR

Q1708 UN2212-X DIGI.TRANSISTOR
Q1709 2SB709A/QR/-X SI.TRANSISTOR
Q1803 2SC1815/YG/-T SI.TRANSISTOR
Q1804 2SD601A/QR/-X SI.TRANSISTOR
Q1974 2SA966/OY/-T SI.TRANSISTOR

Q1975 UN2212-X DIGI.TRANSISTOR

IC

IC1301 NN5198K I C
IC1421 AN5522 I C
IC1651 AN5265 I C
IC1701 MN1873287JJ1 I C(MCU)

!

IC1702 AT24C08-21DMG3 I C (SERVICE)
IC1703 L78LR05E-MA I C

IC1704 PIC-47143SY IR DETECT UNIT

!

IC1921 STR-W5753A/F5 I C
IC1971 BA17809T I C
IC1972 BA17805T I C

OTHERS

LC30114-001C-H LED HOLDER

!

CP1981 ICP-N25-Y I.C.PROTECT

!

CP1982 ICP-N75-Y I.C.PROTECT

!

F1901 QMF51E2-3R15J4 FUSE 3.15A

CM35921-005-H CDS HOLDER

40

No. 52025

A

3

[ AV-20N3 ]

Symbol No. Part No. Part Name Description

!

OTHERS

FC1901 CEMG002-001Z FUSE CLIP (X2)
FR1557 QRJ146J-2R2X C R 2.2Ω 1/4W J

J1002 QNN0384-001 PIN JACK
J1003 QNN0281-003 PIN JACK or CEMN065-001
J1004 QNN0281-002 PIN JACK or CEMN065-002
J1005 QNS0197-001 3.5 JACK

!

K1351 QQR0621-002Z FERRITE BEADS
K1421 QQR1113-001Z FERRITE BEADS

K1941 QQR1113-001Z FERRITE BEADS
K1942 QQR1113-001Z FERRITE BEADS
K1943 QQR1113-001Z FERRITE BEADS
LF1901 QQR0527-002 LINE FILTER

!

PC1701 P1241-04 PHOTO CONDUCTOR
S1701 QSW0619-003Z TACT SWITCH VOL+
S1702 QSW0619-003Z TACT SWITCH VOL­S1703 QSW0619-003Z TACT SWITCH CH+
S1704 QSW0619-003Z TACT SWITCH CH-

S1705 QSW0619-003Z TACT SWITCH MENU

!

S1901 QSW0750-001 PUSH SWITCH POWER SW
SF1102 QAX0666-002 SAW FILTER
SF1122 QAX0325-001 SAW FILTER
SK1351 QNZ0537-001 CRT SOCKET or QNZ0536-001

!
!

TH1901 QAD0121-9R0 THERMISTOR or QAD0119-9R0

!

TU1001 QAU0287-001 TUNER

!

VA1901 ERZV10V621CS VARISTOR or QAF0052-621
X1301 QAX0705-001Z CRYSTAL

!

X1302 CE41651-001Z X-TAL
X1701 QAX0307-001 C RESONATOR

V-20N

No. 52025

41

A

V-20N3

PRINTED WIRING BOARD PARTS LIST

[ AV-20N3

/D

]

MAIN P.W. BOARD ASS’Y (SCG-1425A-H2 )

Symbol No. Part No. Part Name Description

!

RESISTOR

R1002 NRSA63J-221X MG R 220Ω 1/16W J
R1003 NRSA63J-221X MG R 220Ω 1/16W J

R1004 NRSA63J-563X MG R 56kΩ 1/16W J
R1102 NRSA63J-750X MG R 75Ω 1/16W J
R1103 NRSA63J-100X MG R 10Ω 1/16W J
R1109 NRSA63J-682X MG R 6.8kΩ 1/16W J
R1110 NRSA63J-272X MG R 2.7kΩ 1/16W J
R1111 NRSA63J-181X MG R 180Ω 1/16W J

R1112 NRSA63J-100X MG R 10Ω 1/16W J
R1113 NRSA63J-101X MG R 100Ω 1/16W J
R1120 NRSA63J-391X MG R 390Ω 1/16W J
R1121 NRSA63J-221X MG R 220Ω 1/16W J
R1159 NRSA02J-184X MG R 180kΩ 1/10W J
R1301 NRSA63J-221X MG R 220Ω 1/16W J

R1302 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1303 NRSA63J-101X MG R 100Ω 1/16W J
R1304 NRSA63J-101X MG R 100Ω 1/16W J
R1305 NRSA63J-101X MG R 100Ω 1/16W J
R1306 NRSA63J-221X MG R 220Ω 1/16W J
R1307 NRSA63J-122X MG R 1.2kΩ 1/16W J

R1308 NRSA63J-182X MG R 1.8kΩ 1/16W J
R1312 NRSA63J-0R0X MG R 0.0Ω 1/16W J
R1313 NRSA63J-102X MG R 1kΩ 1/16W J
R1314 NRSA63J-102X MG R 1kΩ 1/16W J
R1321 NRSA63J-152X MG R 1.5kΩ 1/16W J
R1322 NRSA63J-272X MG R 2.7kΩ 1/16W J

R1323 NRSA63J-103X MG R 10kΩ 1/16W J
R1324 NRSA63J-102X MG R 1kΩ 1/16W J
R1326 NRSA63J-101X MG R 100Ω 1/16W J
R1327 NRSA02J-475X MG R 4.7MΩ 1/10W J
R1341 NRSA63J-332X MG R 3.3kΩ 1/16W J

R1347 NRSA63J-392X MG R 3.9kΩ 1/16W J
R1349 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1351 NRSA63J-151X MG R 150Ω 1/16W J
R1352 NRSA63J-151X MG R 150Ω 1/16W J
R1353 NRSA63J-151X MG R 150Ω 1/16W J
R1354 NRSA63J-331X MG R 330Ω 1/16W J

R1355 NRSA63J-331X MG R 330Ω 1/16W J
R1356 NRSA63J-331X MG R 330Ω 1/16W J
R1357 NRSA63J-101X MG R 100Ω 1/16W J
R1358 NRSA63J-101X MG R 100Ω 1/16W J
R1359 NRSA63J-101X MG R 100Ω 1/16W J
R1360 QRZ0107-152Z C R 1.5kΩ 1/2W K

R1361 QRZ0107-152Z C R 1.5kΩ 1/2W K
R1362 QRZ0107-152Z C R 1.5kΩ 1/2W K
R1363 QRL029J-123 OM R 12kΩ 2W J
R1364 QRL029J-123 OM R 12kΩ 2W J
R1365 QRL029J-123 OM R 12kΩ 2W J
R1366 NRSA63J-182X MG R 1.8kΩ 1/16W J

R1367 NRSA63J-182X MG R 1.8kΩ 1/16W J
R1368 NRSA63J-182X MG R 1.8kΩ 1/16W J
R1372 NRSA63J-0R0X MG R 0.0Ω 1/16W J
R1374 NRSA63J-682X MG R 6.8kΩ 1/16W J
R1401 NRSA63J-103X MG R 10kΩ 1/16W J
R1421 NRSA63J-472X MG R 4.7kΩ 1/16W J

R1423 NRSA63J-0R0X MG R 0.0Ω 1/16W J
R1424 NRSA63J-0R0X MG R 0.0Ω 1/16W J
R1425 NRSA63J-332X MG R 3.3kΩ 1/16W J
R1426 NRSA63J-0R0X MG R 0.0Ω 1/16W J
R1429 NRSA63J-103X MG R 10kΩ 1/16W J
R1430 NRSA63J-823X MG R 82kΩ 1/16W J

R1431 NRSA63J-103X MG R 10kΩ 1/16W J
R1432 QRE121J-3R9Y C R 3.9Ω 1/2W J
R1433 QRE121J-2R7Y C R 2.7Ω 1/2W J
R1436 NRSA63J-823X MG R 82kΩ 1/16W J
R1440 QRE121J-471Y C R 470Ω 1/2W J
R1441 NRSA63J-822X MG R 8.2kΩ 1/16W J

R1442 NRSA63J-103X MG R 10kΩ 1/16W J
R1443 QRE121J-1R0Y C R 1.0Ω 1/2W J
R1453 NRSA63J-272X MG R 2.7kΩ 1/16W J
R1502 NRSA63J-0R0X MG R 0.0Ω 1/16W J

Symbol No. Part No. Part Name Description

!

RESISTOR

R1503 NRSA63J-682X MG R 6.8kΩ 1/16W J
R1525 QRL029J-180 OM R 18Ω 2W J

R1526 QRE121J-271Y C R 270Ω 1/2W J
R1529 QRL039J-681 OM R 680Ω 3W J
R1531 NRSA63J-331X MG R 330Ω 1/16W J
R1532 NRSA63J-102X MG R 1kΩ 1/16W J

!

R1551 QRZ9011-1R0 F R 1.0 Ω 1/2W J
R1552 QRJ146J-2R2X C R 2.2Ω 1/4W J

R1554 QRE121J-681Y C R 680Ω 1/2W J
R1571 QRE121J-222Y C R 2.2kΩ 1/2W J
R1573 QRT029J-1R5 MF R 1.5Ω 2W J
R1574 QRT029J-1R5 MF R 1.5Ω 2W J
R1576 QRE121J-223Y C R 22kΩ 1/2W J
R1577 NRSA63J-392X MG R 3.9kΩ 1/16W J

R1578 NRSA63J-103X MG R 10kΩ 1/16W J
R1581 QRE121J-182Y C R 1.8kΩ 1/2W J
R1582 NRSA63J-223X MG R 22kΩ 1/16W J
R1583 NRSA63J-393X MG R 39kΩ 1/16W J
R1651 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1652 NRSA63J-102X MG R 1kΩ 1/16W J

R1653 NRSA63J-331X MG R 330Ω 1/16W J
R1654 NRSA63J-223X MG R 22kΩ 1/16W J
R1655 NRSA63J-473X MG R 47kΩ 1/16W J
R1656 NRSA63J-822X MG R 8.2kΩ 1/16W J
R1657 NRSA63J-222X MG R 2.2kΩ 1/16W J
R1658 NRSA63J-222X MG R 2.2kΩ 1/16W J

R1659 QRE121J-4R7Y C R 4.7Ω 1/2W J
R1660 NRSA63J-153X MG R 15kΩ 1/16W J
R1661 QRE121J-271Y C R 270Ω 1/2W J
R1662 QRE121J-271Y C R 270Ω 1/2W J
R1664 NRSA63J-682X MG R 6.8kΩ 1/16W J

R1665 NRSA63J-103X MG R 10kΩ 1/16W J
R1666 NRSA63J-101X MG R 100Ω 1/16W J
R1667 QRE121J-101Y C R 100Ω 1/2W J

!

R1668 QRT029J-5R6 MF R 5.6Ω 2W J
R1701 NRSA63J-562X MG R 5.6kΩ 1/16W J
R1702 NRSA63J-682X MG R 6.8kΩ 1/16W J

R1703 NRSA63J-392X MG R 3.9kΩ 1/16W J
R1704 NRSA63J-221X MG R 220Ω 1/16W J
R1705 NRSA63J-221X MG R 220Ω 1/16W J
R1706 NRSA63J-561X MG R 560Ω 1/16W J
R1707 NRSA63J-561X MG R 560Ω 1/16W J
R1708 NRSA63J-102X MG R 1kΩ 1/16W J

R1709 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1710 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1711 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1712 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1713 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1714 NRSA63J-472X MG R 4.7kΩ 1/16W J

R1715 NRSA63J-221X MG R 220Ω 1/16W J
R1716 NRSA63J-221X MG R 220Ω 1/16W J
R1718 NRSA63J-561X MG R 560Ω 1/16W J
R1719 NRSA63J-102X MG R 1kΩ 1/16W J
R1720 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1721 NRSA63J-103X MG R 10kΩ 1/16W J

R1723 QRL039J-270 OM R 27Ω 3W J

!

R1725 NRSA63J-102X MG R 1kΩ 1/16W J
R1726 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1727 NRSA63J-153X MG R 15kΩ 1/16W J
R1728 NRSA63J-102X MG R 1kΩ 1/16W J
R1729 NRSA63J-102X MG R 1kΩ 1/16W J

R1730 NRSA63J-103X MG R 10kΩ 1/16W J
R1731 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1736 NRSA63J-823X MG R 82kΩ 1/16W J
R1737 NRSA63J-104X MG R 100kΩ 1/16W J
R1738 NRSA63J-103X MG R 10kΩ 1/16W J
R1739 NRSA63J-103X MG R 10kΩ 1/16W J

R1740 NRSA63J-392X MG R 3.9kΩ 1/16W J
R1741 NRSA63J-561X MG R 560Ω 1/16W J
R1742 NRSA63J-563X MG R 56kΩ 1/16W J
R1746 NRSA63J-103X MG R 10kΩ 1/16W J

42

No. 52025

A

V-20N

3

[ AV-20N3

Symbol No. Part No. Part Name Description

!

RESISTOR

R1747 NRSA63J-0R0X MG R 0.0Ω 1/16W J
R1748 NRSA63J-101X MG R 100Ω 1/16W J
R1749 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1771 NRSA63J-821X MG R 820Ω 1/16W J
R1772 NRSA63J-821X MG R 820Ω 1/16W J
R1791 NRSA63J-221X MG R 220Ω 1/16W J
R1792 NRSA63J-221X MG R 220Ω 1/16W J

R1793 NRSA63J-221X MG R 220Ω 1/16W J
R1794 NRSA63J-221X MG R 220Ω 1/16W J
R1795 NRSA63J-221X MG R 220Ω 1/16W J
R1796 NRSA63J-103X MG R 10kΩ 1/16W J
R1797 NRSA63J-153X MG R 15kΩ 1/16W J

R1802 NRSA63J-750X MG R 75Ω 1/16W J
R1806 QRE121J-271Y C R 270Ω 1/2W J
R1807 NRSA63J-680X MG R 68Ω 1/16W J
R1810 QRG01GJ-560 OM R 56Ω 1W J
R1811 NRSA63J-221X MG R 220Ω 1/16W J
R1815 QRE121J-181Y C R 180Ω 1/2W J

R1816 NRSA63J-681X MG R 680Ω 1/16W J
R1817 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1901 QRF104K-3R9 UNF R 3.9Ω 10W K
R1903 QRL029J-104 OM R 100kΩ 2W J
R1906 QRL029J-104 OM R 100kΩ 2W J
R1921 QRE121J-2R2Y C R 2.2Ω 1/2W J

R1922 QRE121J-221Y C R 220Ω 1/2W J
R1923 QRM034J-R22 MP R 0.22Ω 3W J
R1928 QRL039J-683 OM R 68kΩ 3W J
R1933 QRE121J-4R7Y C R 4.7Ω 1/2W J
R1934 NRSA63J-683X MG R 68kΩ 1/16W J
R1935 QRE121J-562Y C R 5.6kΩ 1/2W J

R1974 NRSA63J-222X MG R 2.2kΩ 1/16W J
R1976 QRT029J-8R2 MF R 8.2Ω 2W J
R1977 QRE121J-122Y C R 1.2kΩ 1/2W J
R1978 NRSA63J-473X MG R 47kΩ 1/16W J
R1979 QRL039J-220 OM R 22Ω 3W J
R1980 QRL029J-152 OM R 1.5kΩ 2W J

R1991 QRZ9046-825Z C R 8.2MΩ 1/2W K

!

/D

]

Symbol No. Part No. Part Name Description

!

CAPACITOR

C1001 QETN1HM-106Z E CAP. 10µF 50V M
C1002 NCB31HK-103X C CAP. 0.01µF 50V K
C1004 QETN1CM-477Z E CAP. 470µF 16V M
C1005 QFV71HJ-104Z MF CAP. 0.1µF 50V J
C1008 QETN1HM-475Z E CAP. 4.7µF 50V M
C1103 QETN1EM-476Z E CAP. 47µF 25V M

C1104 NCB31HK-472X C CAP. 4700pF 50V K
C1105 NCB31HK-472X C CAP. 4700pF 50V K
C1106 NCB31HK-472X C CAP. 4700pF 50V K
C1107 NCB31HK-472X C CAP. 4700pF 50V K

C1110 NRSA63J-0R0X MG R 0.0Ω 1/16W J
C1112 QETN1EM-476Z E CAP. 47µF 25V M

C1113 NCB31HK-472X C CAP. 4700pF 50V K
C1114 NCB31HK-103X C CAP. 0.01µF 50V K
C1115 NCB31HK-103X C CAP. 0.01µF 50V K
C1116 NCB31HK-103X C CAP. 0.01µF 50V K
C1117 QFV71 HJ-224Z MF CAP. 0.22µF 50V J

C1119 QETN1HM-474Z E CAP. 0.47µF 50V M
C1120 NDC31HJ-121X C CAP. 120pF 50V J

C1121 NCB31HK-103X C CAP. 0.01µF 50V K
C1122 NCB31HK-103X C CAP. 0.01µF 50V K

C1162 NCB31HK-152X C CAP. 1500pF 50V K
C1301 NCB31HK-123X C CAP. 0.012µF 50V K
C1302 QETN1HM-475Z E CAP. 4.7µF 50V M

C1303 NDC31HJ-100X C CAP. 10pF 50V J
C1304 QFV71HJ-474Z MF CAP. 0.47µF 50V J
C1305 QETN1HM-474Z E CAP. 0.47µF 50V M
C1306 NCB31HK-103X C CAP. 0.01µF 50V K
C1307 QETN1CM-477Z E CAP. 470µF 16V M
C1308 QETN1CM-107Z E CAP. 100µF 16V M

C1309 NCB31HK-103X C CAP. 0.01µF 50V K
C1310 NDC31HJ-221X C CAP. 220pF 50V J

C1311 NCB31HK-103X C CAP. 0.01µF 50V K
C1312 QENC1HM-474Z E CAP. 0.47µF 50V M
C1313 QETN1HM-335Z E CAP. 3.3µF 50V M
C1314 NCB31HK-103X C CAP. 0.01µF 50V K
C1315 QETN1CM-107Z E CAP. 100µF 16V M

C1316 QETN1HM-106Z E CAP. 10µF 50V M
C1317 NCB31EK-473X C CAP. 0.047µF 25V K

C1321 NDC31HJ-120X C CAP. 12pF 50V J
C1322 NCB31EK-273X C CAP. 0.027µF 25V K
C1323 QETN1HM-474Z E CAP. 0.47µF 50V M
C1324 QETN1HM-106Z E CAP. 10µF 50V M
C1325 QENC1HM-106Z BP E CAP. 10µF 50V M

C1326 NCS21HJ-221X C CAP. 220pF 50V J
C1341 QETN1HM-106Z E CAP. 10µF 50V M
C1352 QFZ0097-103 MM CAP. 0.01µF 1250V K

C1354 NDC31HJ-271X C CAP. 270pF 50V J
C1355 NDC31HJ-221X C CAP. 220pF 50V J
C1356 NDC31HJ-331X C CAP. 330pF 50V J

C1357 QETN1AM-477Z E CAP. 470µF 10V M
C1365 QENC1HM-105Z E CAP. 1µF 50V M
C1366 QENC1HM-105Z E CAP. 1µF 50V M
C1367 QENC1HM-105Z E CAP. 1µF 50V M

C1401 QFV71HJ-474Z MF CAP. 0.47µF 50V J
C1423 QCS32HJ-180Z C CAP. 18pF 500V J

C1424 QFLC2AJ-103Z M CAP. 0.01µF 100V J
C1426 QFLC1HJ-102Z M CAP. 1000pF 50V J
C1427 QETN1VM-107Z E CAP. 100µF 35V M

C1428 QETN1VM-107Z E CAP. 100µF 35V M
C1429 QETN1HM-106Z E CAP. 10µF 50V M

C1430 QFN32AJ-472Z M CAP. 4700pF 100V J
C1433 QETN1HM-475Z E CAP. 4.7µF 50V M
C1435 QETM1EM-228 E CAP. 2200µF 25V M
C1436 QFV71HJ-334Z MF CAP. 0.33µF 50V J
C1437 NCB31HK-104X C CAP. 0.1µF 50V K

C1501 QETN1AM-477Z E CAP. 470µF 10V M
C1502 NCB31HK-103X C CAP. 0.01µF 50V K
C1503 QETN1HM-106Z E CAP. 10µF 50V M
C1523 QETN1EM-476Z E CAP. 47µF 25V M

!

C1525 QFZ0200-103 MPP CAP. 0.01µF1.5kVH±3%
C1526 QFLC1HJ-103Z M CAP. 0.01µF 50V J

!

C1527 QFZ0199-474 MPP CAP. 0.47µF 250V J
C1529 QFN32AJ-102Z M CAP. 1000pF 100V J

No. 52025

43

A

V-20N3

[ AV-20N3

Symbol No. Part No. Part Name Description

!

CAPACITOR

C1531 QEZ0203-107 E CAP. 100µF 160V M
C1552 QETM1VM-108 E CAP. 1000µF 35V M
C1554 QETN2EM-475Z E CAP. 4.7µF 250V M
C1555 QFLC2AJ-104Z M CAP. 0.1µF 100V J
C1557 QETN1HM-107Z E CAP. 100µF 50V M
C1571 QETN1AM-107Z E CAP. 100µF 10V M
C1572 QETN1EM-476Z E CAP. 47µF 25V M

C1581 QFV71HJ-104Z MF CAP. 0.1µF 50V J
C1652 NCB31HK-473X C CAP. 0.047 µF 50V K
C1653 QETN1HM-106Z E CAP. 10µF 50V M
C1654 QETN1CM-477Z E CAP. 470µF 16V M
C1655 QETN1HM-106Z E CAP. 10µF 50V M

C1656 QENC1HM-105Z E CAP. 1µF 50V M
C1657 QETN1EM-107Z E CAP. 100µF 25V M
C1658 QETN1EM-227Z E CAP. 220µF 25V M
C1659 QETN1HM-475Z E CAP. 4.7µF 50V M

C1663 NCB31HK-102X C CAP. 1000pF 50V K
C1664 QETN1CM-107Z E CAP. 100µF 16V M
C1665 NCB31HK-103X C CAP. 0.01µF 50V K
C1701 QETN1HM-106Z E CAP. 10µF 50V M

C1705 QETN1CM-477Z E CAP. 470µF 16V M
C1706 NCB31HK-104X C CAP. 0.1µF 50V K
C1707 NCB31HK-103X C CAP. 0.01µF 50V K
C1708 QETN1AM-108Z E CAP. 1000µF 10V M
C1709 NCB31HK-103X C CAP. 0.01µF 50V K
C1710 QETN1CM-107Z E CAP. 100µF 16V M

C1711 NCB31HK-103X C CAP. 0.01µF 50V K
C1712 NCB31HK-103X C CAP. 0.01µF 50V K
C1713 NCB31HK-103X C CAP. 0.01µF 50V K

C1716 NDC31HJ-181X C CAP. 180pF 50V J
C1717 NDC31HJ-181X C CAP. 180pF 50V J

C1718 NCB31HK-103X C CAP. 0.01µF 50V K
C1719 QETN1HM-105Z E CAP. 1µF 50V M
C1720 NCB31HK-103X C CAP. 0.01µF 50V K
C1721 NCB31EK-333X C CAP. 0.033 µF 25V K

C1722 NDC31HJ-101X C CAP. 100pF 50V J
C1724 NDC31HJ-560X C CAP. 56pF 50V J
C1728 NDC31HJ-181X C CAP. 180pF 50V J
C1729 NDC31HJ-181X C CAP. 180pF 50V J

C1730 NCB31HK-103X C CAP. 0.01µF 50V K
C1744 NCB31HK-103X C CAP. 0.01µF 50V K
C1805 QETN1CM-227Z E CAP. 220µF 16V M
C1806 QETN1CM-477Z E CAP. 470µF 16V M
C1811 QETN1HM-106Z E CAP. 10µF 50V M

C1841 NCB31HK-152X C CAP. 1500pF 50V K

!

C1901 QFZ9078-224 MPF CAP. 0.22µFAC275V M

!

C1904 QCZ9015-102 C CAP. 1000pFAC250V Z
C1905 QCZ9015-102 C CAP. 1000pFAC250V Z

!

C1907 QCZ9015-102 C CAP. 1000pFAC250V Z

!

C1909 QEZ0552-127 E CAP. or QEZ0199-127 120µF 400V M

!

C1910 QFZ9078-473 MPF CAP. 0.047µFAC275V M

!

C1922 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1924 QETN1HM-475Z E CAP. 4.7µF 50V M
C1925 QETN1VM-476Z E CAP. 47µF 35V M

C1926 QFLC1HJ-332Z M CAP. 3300pF 50V J
C1929 QFKA2JK-103 MM CAP. 0.01µF 630V K

!
!

C1931 QCZ0364-681 C CAP. 680pF 2kV K
C1932 NDC31HJ-681X C CAP. 680pF 50V J
C1941 QCZ0364-561 C CAP. 560pF 2kV K

C1942 QEZ0203-107 E CAP. 100µF 160V M
C1944 QCB32HK-222Z C CAP. 2200pF 500V K

C1945 QEHR1EM-108Z E CAP. 1000µF 25V M
C1946 QETN1EM-108Z E CAP. 1000µF 25V M

C1947 QCB32HK-222Z C CAP. 2200pF 500V K
C1948 QETN1EM-108Z E CAP. 1000µF 25V M

C1949 NDC31HJ-471X C CAP. 470pF 50V J
C1961 QETN1HM-475Z E CAP. 4.7µF 50V M
C1976 QETN1EM-227Z E CAP. 220µF 25V M

C1977 QETN1CM-227Z E CAP. 220µF 16V M
C1978 QETN1EM-227Z E CAP. 220µF 25V M
C1979 QETN1AM-227Z E CAP. 220µF 10V M

C1991 QCZ9079-102 C CAP. 1000pFAC250V M

!

C1992 QCZ9079-102 C CAP. 1000pFAC250V M

!
!

C1993 QCZ9079-222 C CAP. 2200pFAC250V M

/D

]

Symbol No. Part No. Part Name Description

!

TRANSFORMER

T1501 QQR1244-001 DRIVE TRANSF.

!

T1522 QQH0134-001 F.B.TRANSF.
T1921 QQS0161-001 SW TRANSF.

!

COIL

L1001 QQL244K-8R2Z COIL 8.2µH K
L1101 QQL244J-2R2Z COIL 2.2µH J

L1103 QQL244K-8R2Z COIL 8.2µH K
L1551 QQLZ026-410 INDUCTOR

L1701 QQL244J-5R6Z COIL 5.6µH J
L1941 QQL26AK-820Z COIL 82µH K

L1942 QQL244J-4R7Z INDUCTOR
L1943 QQL244J-4R7Z INDUCTOR

DIODE

D1001 MTZJ33A-T2 ZENER DIODE
D1301 MTZJ9.1B-T2 ZENER DIODE
D1302 MTZJ9.1B-T2 ZENER DIODE
D1305 AK04-T2 SB DIODE

D1306 QRE121J-121Y C R 120Ω 1/2W J
D1341 MA111-X SI.DIODE
D1421 MTZJ75-T2 ZENER DIODE

D1423 1SR124-400A-T2 SI.DIODE
D1425 MA111-X SI.DIODE
D1427 MTZJ27B-T2 ZENER DIODE
D1501 MTZJ6.8C-T2 ZENER DIODE
D1551 RGP10J-5025-T3 SI.DIODE

D1552 RGP10J-5025-T3 SI.DIODE
D1553 MTZJ9.1B-T2 ZENER DIODE
D1554 MA111-X SI.DIODE
D1557 1SR124-400A-T2 SI.DIODE
D1571 MTZJ7.5S-T2 ZENER DIODE

D1581 MTZJ20B-T2 ZENER DIODE
D1582 RGP10J-5025-T3 SI.DIODE
D1651 MA111-X SI.DIODE
D1652 MTZJ12C-T2 ZENER DIODE
D1653 MA111-X SI.DIODE

D1654 MTZJ12C-T2 ZENER DIODE
D1655 MA111-X SI.DIODE
D1656 MA111-X SI.DIODE
D1657 MA111-X SI.DIODE
D1701 MA111-X SI.DIODE
D1704 SLR-342VR-T16 LED

D1705 SLR-342DU-T16 LED
D1707 MA111-X SI.DIODE
D1731 MA111-X SI.DIODE
D1801 MA111-X SI.DIODE
D1901 G2SBA60 BRIDGE DIODE

!

D1921 RGP10J-5025-T3 SI.DIODE
D1925 RGP10J-5025-T3 SI.DIODE
D1927 MTZJ36A-T2 ZENER DIODE
D1928 MTZJ3.3A-T2 ZENER DIODE
D1929 MTZJ3.3A-T2 ZENER DIODE

D1930 RGP10M-5010-T3 SI.DIODE
D1931 MA111-X SI.DIODE
D1933 MTZJ16C-T2 ZENER DIODE
D1941 RU3AM-LFC4 SI.DIODE
D1942 RU3YX-LFC4 SI.DIODE

D1943 RGP10J-5025-T3 SI.DIODE
D1982 MA111-X SI.DIODE
D1983 MA111-X SI.DIODE

TRANSISTOR

Q1102 2SC5083/L-P/-T SI.TRANSISTOR
Q1301 2SB709A/QR/-X SI.TRANSISTOR
Q1302 2SD601A/QR/-X SI.TRANSISTOR
Q1351 STC344-T SI.TRANSISTOR

Q1352 STC344-T SI.TRANSISTOR
Q1353 STC344-T SI.TRANSISTOR
Q1401 DTC124ESA-T DIGI.TRANSISTOR
Q1402 2SD601A/QR/-X SI.TRANSISTOR
Q1521 2SC2655/Y/-T SI.TRANSISTOR

44

No. 52025

A

V-20N

3

[ AV-20N3

!

Symbol No. Part No. Part Name Description

TRANSISTOR

!

Q1522 2SD2627-YB11 POWER TRANSISTOR H.OUT
Q1571 2SA1208/ST/Z1-T SI.TRANSISTOR
Q1572 2SD601A/QR/-X SI.TRANSISTOR
Q1651 2SD601A/QR/-X SI.TRANSISTOR
Q1652 2SD601A/QR/-X SI.TRANSISTOR

Q1653 2SB709A/QR/-X SI.TRANSISTOR
Q1702 2SD601A/QR/-X SI.TRANSISTOR
Q1703 UN2212-X DIGI.TRANSISTOR
Q1708 UN2212-X DIGI.TRANSISTOR
Q1709 2SB709A/QR/-X SI.TRANSISTOR

Q1803 2SC1815/YG/-T SI.TRANSISTOR
Q1804 2SD601A/QR/-X SI.TRANSISTOR
Q1974 2SA966/OY/-T SI.TRANSISTOR
Q1975 UN2212-X DIGI.TRANSISTOR

IC

IC1301 NN5198K I C
IC1421 AN5522 I C
IC1651 AN5265 I C

!

IC1701 MN1873287JL I C
IC1702 AT24C08-21DMG3 I C (SERVICE)
IC1703 L78LR05E-MA I C
IC1704 PIC-47143SY IR DETECT UNIT
IC1921 STR-W5753A/F5 I C

!

IC1971 BA17809T I C
IC1972 BA17805T I C

OTHERS

CP1981 ICP-N25-Y I.C.PROTECT

!

CP1982 ICP-N75-Y I.C.PROTECT

!
!

F1901 QMF51E2-3R15J4 FUSE 3.15A
FC1901 CEMG002-001Z FUSE CLIP (X2)
FR1557 QRJ146J-2R2X C R 2.2Ω 1/4W J

J1002 QNN0384-001 PIN JACK
J1003 QNN0281-003 PIN JACK or CEMN065-001
J1004 QNN0281-002 PIN JACK or CEMN065-002
J1005 QNS0197-001 3.5 JACK

!

K1351 QQR0621-002Z FERRITE BEADS
K1421 QQR1113-001Z FERRITE BEADS

K1941 QQR1113-001Z FERRITE BEADS
K1942 QQR1113-001Z FERRITE BEADS
K1943 QQR1113-001Z FERRITE BEADS
LF1901 QQR0527-002 LINE FILTER

!

PC1701 P1241-04 PHOTO CONDUCTOR
S1701 QSW0619-003Z TACT SWITCH VOL+

S1702 QSW0619-003Z TACT SWITCH VOL­S1703 QSW0619-003Z TACT SWITCH CH+
S1704 QSW0619-003Z TACT SWITCH CH­S1705 QSW0619-003Z TACT SWITCH MENU

!

S1901 QSW0750-001 PUSH SWITCH POWER SW
SF1102 QAX0666-002 SAW FILTER
SF1122 QAX0325-001 SAW FILTER
SK1351 QNZ0537-001 CRT SOCKET or QNZ0536-001

!

TH1901 QAD0121-9R0 THERMISTOR or QAD0119-9R0

!
!

TU1001 QAU0287-001 TUNER

!

VA1901 ERZV10V621CS VARISTOR or QAF0052-621

!

X1301 QAX0705-001Z CRYSTAL
X1302 CE41651-001Z X-TAL
X1701 QAX0307-001 C RESONATOR

/D

]

LC30114-001C-H LED HOLDER
CM35921-005-H CDS HOLDER

No. 52025

45

A

V-20NMG3

A

V-20NMG3B

PRINTED WIRING BOARD PARTS LIST

[ AV-20NMG3 / AV-20NMG3B

/

AV-20NMG3

/-A

]

MAIN P.W. BOARD ASS’Y (SCG-1422A-H2 )

Symbol No. Part No. Part Name Description

!

RESISTOR

R1002 NRSA63J-221X MG R 220Ω 1/16W J
R1003 NRSA63J-221X MG R 220Ω 1/16W J

R1004 NRSA63J-563X MG R 56kΩ 1/16W J
R1102 NRSA63J-750X MG R 75Ω 1/16W J
R1103 NRSA63J-100X MG R 10Ω 1/16W J
R1109 NRSA63J-682X MG R 6.8kΩ 1/16W J
R1110 NRSA63J-272X MG R 2.7kΩ 1/16W J
R1111 NRSA63J-181X MG R 180Ω 1/16W J

R1112 NRSA63J-220X MG R 22Ω 1/16W J
R1113 NRSA63J-101X MG R 100Ω 1/16W J
R1114 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1115 NRSA63J-222X MG R 2.2kΩ 1/16W J
R1117 NRSA63J-0R0X MG R 0.0Ω 1/16W J
R1118 NRSA63J-222X MG R 2.2kΩ 1/16W J

R1120 NRSA63J-391X MG R 390Ω 1/16W J
R1121 NRSA63J-221X MG R 220Ω 1/16W J
R1159 NRSA02J-184X MG R 180kΩ 1/10W J
R1161 NRSA63J-102X MG R 1kΩ 1/16W J
R1162 NRSA63J-122X MG R 1.2kΩ 1/16W J
R1163 NRSA63J-222X MG R 2.2kΩ 1/16W J

R1164 NRSA63J-221X MG R 220Ω 1/16W J
R1165 NRSA63J-220X MG R 22Ω 1/16W J
R1166 NRSA63J-821X MG R 820Ω 1/16W J
R1301 NRSA63J-221X MG R 220Ω 1/16W J
R1302 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1303 NRSA63J-101X MG R 100Ω 1/16W J

R1304 NRSA63J-101X MG R 100Ω 1/16W J
R1305 NRSA63J-101X MG R 100Ω 1/16W J
R1306 NRSA63J-221X MG R 220Ω 1/16W J
R1307 NRSA63J-122X MG R 1.2kΩ 1/16W J
R1308 NRSA63J-182X MG R 1.8kΩ 1/16W J

R1312 NRSA63J-0R0X MG R 0.0Ω 1/16W J
R1313 NRSA63J-102X MG R 1kΩ 1/16W J
R1314 NRSA63J-102X MG R 1kΩ 1/16W J
R1321 NRSA63J-152X MG R 1.5kΩ 1/16W J
R1322 NRSA63J-272X MG R 2.7kΩ 1/16W J
R1323 NRSA63J-103X MG R 10kΩ 1/16W J

R1324 NRSA63J-102X MG R 1kΩ 1/16W J
R1326 NRSA63J-101X MG R 100Ω 1/16W J
R1327 NRSA02J-475X MG R 4.7MΩ 1/10W J
R1330 QRE141J-0R0Y C R 0.0Ω 1/4W J
R1341 NRSA63J-332X MG R 3.3kΩ 1/16W J
R1347 NRSA63J-392X MG R 3.9kΩ 1/16W J

R1349 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1351 NRSA63J-151X MG R 150Ω 1/16W J
R1352 NRSA63J-151X MG R 150Ω 1/16W J
R1353 NRSA63J-151X MG R 150Ω 1/16W J
R1354 NRSA63J-331X MG R 330Ω 1/16W J
R1355 NRSA63J-331X MG R 330Ω 1/16W J

R1356 NRSA63J-331X MG R 330Ω 1/16W J
R1357 NRSA63J-101X MG R 100Ω 1/16W J
R1358 NRSA63J-101X MG R 100Ω 1/16W J
R1359 NRSA63J-101X MG R 100Ω 1/16W J
R1360 QRZ0107-152Z C R 1.5kΩ 1/2W K
R1361 QRZ0107-152Z C R 1.5kΩ 1/2W K

R1362 QRZ0107-152Z C R 1.5kΩ 1/2W K
R1363 QRL029J-123 OM R 12kΩ 2W J
R1364 QRL029J-123 OM R 12kΩ 2W J
R1365 QRL029J-123 OM R 12kΩ 2W J
R1366 NRSA63J-182X MG R 1.8kΩ 1/16W J
R1367 NRSA63J-182X MG R 1.8kΩ 1/16W J

R1368 NRSA63J-182X MG R 1.8kΩ 1/16W J
R1372 NRSA63J-0R0X MG R 0.0Ω 1/16W J
R1374 NRSA63J-682X MG R 6.8kΩ 1/16W J
R1401 NRSA63J-103X MG R 10kΩ 1/16W J
R1421 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1423 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R1424 NRSA63J-0R0X MG R 0.0Ω 1/16W J
R1425 NRSA63J-332X MG R 3.3kΩ 1/16W J
R1426 NRSA63J-0R0X MG R 0.0Ω 1/16W J
R1429 NRSA63J-103X MG R 10kΩ 1/16W J

Symbol No. Part No. Part Name Description

!

RESISTOR

R1430 NRSA63J-823X MG R 82kΩ 1/16W J
R1431 NRSA63J-103X MG R 10kΩ 1/16W J

R1432 QRE121J-3R9Y C R 3.9Ω 1/2W J
R1433 QRE121J-2R7Y C R 2.7Ω 1/2W J
R1436 NRSA63J-823X MG R 82kΩ 1/16W J
R1440 QRE121J-471Y C R 470Ω 1/2W J
R1441 NRSA63J-822X MG R 8.2kΩ 1/16W J
R1442 NRSA63J-103X MG R 10kΩ 1/16W J

R1443 QRE121J-1R0Y C R 1.0Ω 1/2W J
R1453 NRSA63J-272X MG R 2.7kΩ 1/16W J
R1502 NRSA63J-0R0X MG R 0.0Ω 1/16W J
R1503 NRSA63J-682X MG R 6.8kΩ 1/16W J
R1525 QRL029J-180 OM R 18Ω 2W J
R1526 QRE121J-271Y C R 270Ω 1/2W J

R1529 QRL039J-681 OM R 680Ω 3W J
R1531 NRSA63J-331X MG R 330Ω 1/16W J
R1532 NRSA63J-102X MG R 1kΩ 1/16W J

!

R1551 QRZ9011-1R0 F R 1.0 Ω 1/2W J
R1552 QRJ146J-2R2X C R 2.2Ω 1/4W J
R1554 QRE121J-681Y C R 680Ω 1/2W J

R1571 QRE121J-222Y C R 2.2kΩ 1/2W J
R1573 QRT029J-1R5 MF R 1.5Ω 2W J
R1574 QRT029J-1R5 MF R 1.5Ω 2W J
R1576 QRE121J-223Y C R 22kΩ 1/2W J
R1577 NRSA63J-392X MG R 3.9kΩ 1/16W J
R1578 NRSA63J-103X MG R 10kΩ 1/16W J

R1581 QRE121J-182Y C R 1.8kΩ 1/2W J
R1582 NRSA63J-223X MG R 22kΩ 1/16W J
R1583 NRSA63J-393X MG R 39kΩ 1/16W J
R1651 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1652 NRSA63J-102X MG R 1kΩ 1/16W J

R1653 NRSA63J-331X MG R 330Ω 1/16W J
R1654 NRSA63J-223X MG R 22kΩ 1/16W J
R1655 NRSA63J-473X MG R 47kΩ 1/16W J
R1656 NRSA63J-822X MG R 8.2kΩ 1/16W J
R1657 NRSA63J-222X MG R 2.2kΩ 1/16W J
R1658 NRSA63J-222X MG R 2.2kΩ 1/16W J

R1659 QRE121J-4R7Y C R 4.7Ω 1/2W J
R1660 NRSA63J-153X MG R 15kΩ 1/16W J
R1661 QRE121J-271Y C R 270Ω 1/2W J
R1662 QRE121J-271Y C R 270Ω 1/2W J
R1664 NRSA63J-682X MG R 6.8kΩ 1/16W J
R1665 NRSA63J-103X MG R 10kΩ 1/16W J

R1666 NRSA63J-101X MG R 100Ω 1/16W J
R1667 QRE121J-101Y C R 100Ω 1/2W J
R1668 QRT029J-5R6 MF R 5.6Ω 2W J

!

R1701 NRSA63J-562X MG R 5.6kΩ 1/16W J
R1702 NRSA63J-682X MG R 6.8kΩ 1/16W J
R1703 NRSA63J-392X MG R 3.9kΩ 1/16W J

R1704 NRSA63J-221X MG R 220Ω 1/16W J
R1705 NRSA63J-221X MG R 220Ω 1/16W J
R1706 NRSA63J-561X MG R 560Ω 1/16W J
R1707 NRSA63J-561X MG R 560Ω 1/16W J
R1708 NRSA63J-102X MG R 1kΩ 1/16W J
R1709 NRSA63J-472X MG R 4.7kΩ 1/16W J

R1710 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1711 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1712 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1713 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1714 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1715 NRSA63J-221X MG R 220Ω 1/16W J

R1716 NRSA63J-221X MG R 220Ω 1/16W J
R1718 NRSA63J-561X MG R 560Ω 1/16W J
R1719 NRSA63J-102X MG R 1kΩ 1/16W J
R1720 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1721 NRSA63J-103X MG R 10kΩ 1/16W J

!

R1723 QRL039J-270 OM R 27Ω 3W J
R1725 NRSA63J-102X MG R 1kΩ 1/16W J

R1726 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1727 NRSA63J-153X MG R 15kΩ 1/16W J
R1728 NRSA63J-102X MG R 1kΩ 1/16W J

46

No. 52025

A

V-20NMG3

A

V-20NMG3B

[ AV-20NMG3 / AV-20NMG3B

Symbol No. Part No. Part Name Description

!

RESISTOR

R1729 NRSA63J-102X MG R 1kΩ 1/16W J
R1730 NRSA63J-103X MG R 10kΩ 1/16W J
R1731 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1736 NRSA63J-823X MG R 82kΩ 1/16W J
R1737 NRSA63J-104X MG R 100kΩ 1/16W J
R1738 NRSA63J-103X MG R 10kΩ 1/16W J
R1739 NRSA63J-103X MG R 10kΩ 1/16W J

R1740 NRSA63J-392X MG R 3.9kΩ 1/16W J
R1741 NRSA63J-561X MG R 560Ω 1/16W J
R1742 NRSA63J-563X MG R 56kΩ 1/16W J
R1746 NRSA63J-103X MG R 10kΩ 1/16W J
R1747 NRSA63J-0R0X MG R 0.0Ω 1/16W J

R1748 NRSA63J-101X MG R 100Ω 1/16W J
R1749 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1771 NRSA63J-821X MG R 820Ω 1/16W J
R1772 NRSA63J-821X MG R 820Ω 1/16W J
R1791 NRSA63J-221X MG R 220Ω 1/16W J
R1792 NRSA63J-221X MG R 220Ω 1/16W J

R1793 NRSA63J-221X MG R 220Ω 1/16W J
R1794 NRSA63J-221X MG R 220Ω 1/16W J
R1795 NRSA63J-221X MG R 220Ω 1/16W J
R1796 NRSA63J-103X MG R 10kΩ 1/16W J
R1797 NRSA63J-153X MG R 15kΩ 1/16W J
R1802 NRSA63J-750X MG R 75Ω 1/16W J

R1806 QRE121J-271Y C R 270Ω 1/2W J
R1807 NRSA63J-680X MG R 68Ω 1/16W J
R1810 QRG01GJ-560 OM R 56Ω 1W J
R1811 NRSA63J-221X MG R 220Ω 1/16W J
R1815 QRE121J-181Y C R 180Ω 1/2W J
R1816 NRSA63J-681X MG R 680Ω 1/16W J

R1817 NRSA63J-472X MG R 4.7kΩ 1/16W J
R1901 QRF104K-3R9 UNF R 3.9Ω 10W K
R1903 QRL029J-104 OM R 100kΩ 2W J
R1906 QRL029J-104 OM R 100kΩ 2W J
R1921 QRE121J-2R2Y C R 2.2Ω 1/2W J
R1922 QRE121J-221Y C R 220Ω 1/2W J

R1923 QRM034J-R22 MP R 0.22Ω 3W J
R1928 QRL039J-683 OM R 68kΩ 3W J
R1933 QRE121J-4R7Y C R 4.7Ω 1/2W J
R1934 NRSA63J-683X MG R 68kΩ 1/16W J
R1935 QRE121J-562Y C R 5.6kΩ 1/2W J
R1974 NRSA63J-222X MG R 2.2kΩ 1/16W J

R1976 QRT029J-8R2 MF R 8.2Ω 2W J
R1977 QRE121J-122Y C R 1.2kΩ 1/2W J
R1978 NRSA63J-473X MG R 47kΩ 1/16W J
R1979 QRL039J-220 OM R 22Ω 3W J
R1980 QRL029J-152 OM R 1.5kΩ 2W J

!

R1991 QRZ9046-825Z C R 8.2MΩ 1/2W K

CAPACITOR

C1001 QETN1HM-106Z E CAP. 10µF 50V M
C1002 NCB31HK-103X C CAP. 0.01µF 50V K
C1004 QETN1CM-477Z E CAP. 470µF 16V M
C1005 QFV71HJ-104Z MF CAP. 0.1µF 50V J

C1008 QETN1HM-475Z E CAP. 4.7µF 50V M
C1103 QETN1EM-476Z E CAP. 47µF 25V M

C1104 NCB31HK-472X C CAP. 4700pF 50V K
C1105 NCB31HK-472X C CAP. 4700pF 50V K

C1106 NCB31HK-472X C CAP. 4700pF 50V K
C1107 NCB31HK-472X C CAP. 4700pF 50V K
C1109 NCB31HK-472X C CAP. 4700pF 50V K

C1110 NRSA63J-0R0X MG R 0.0Ω 1/16W J
C1112 QETN1EM-476Z E CAP. 47µF 25V M

C1113 NCB31HK-472X C CAP. 4700pF 50V K
C1114 NCB31HK-103X C CAP. 0.01µF 50V K
C1115 NCB31HK-103X C CAP. 0.01µF 50V K

C1116 NCB31HK-103X C CAP. 0.01µF 50V K
C1117 QFV71HJ-224Z MF CAP. 0.22µF 50V J
C1119 QETN1HM-474Z E CAP. 0.47µF 50V M
C1120 NDC31HJ-121X C CAP. 120pF 50V J

C1121 NCB31HK-103X C CAP. 0.01µF 50V K
C1122 NCB31HK-103X C CAP. 0.01µF 50V K
C1161 NCB31HK-103X C CAP. 0.01µF 50V K

C1162 NCB31HK-152X C CAP. 1500pF 50V K
C1164 NCB31HK-103X C CAP. 0.01µF 50V K

/

AV-20NMG3

/-A

]

Symbol No. Part No. Part Name Description

!

CAPACITOR

C1165 NCB31HK-103X C CAP. 0.01µF 50V K
C1166 NCB31HK-104X C CAP. 0.1µF 50V K
C1301 NCB31HK-123X C CAP. 0.012 µF 50V K
C1302 QETN1HM-475Z E CAP. 4.7µF 50V M

C1303 NDC31HJ-100X C CAP. 10pF 50V J
C1304 QFV71HJ-474Z MF CAP. 0.47µF 50V J
C1305 QETN1HM-474Z E CAP. 0.47µF 50V M
C1306 NCB31HK-103X C CAP. 0.01µF 50V K

C1307 QETN1CM-477Z E CAP. 470µF 16V M
C1308 QETN1CM-107Z E CAP. 100µF 16V M
C1309 NCB31HK-103X C CAP. 0.01µF 50V K

C1310 NDC31HJ-221X C CAP. 220pF 50V J
C1311 NCB31HK-103X C CAP. 0.01µF 50V K
C1312 QENC1HM-474Z E CAP. 0.47µF 50V M
C1313 QETN1HM-335Z E CAP. 3.3µF 50V M
C1314 NCB31HK-103X C CAP. 0.01µF 50V K

C1315 QETN1CM-107Z E CAP. 100µF 16V M
C1316 QETN1HM-106Z E CAP. 10µF 50V M
C1317 NCB31EK-473X C CAP. 0.047 µF 25V K

C1321 NDC31HJ-120X C CAP. 12pF 50V J
C1322 NCB31EK-273X C CAP. 0.027 µF 25V K
C1323 QETN1HM-474Z E CAP. 0.47µF 50V M
C1324 QETN1HM-106Z E CAP. 10µF 50V M
C1325 QENC1HM-106Z BP E CAP. 10µF 50V M

C1326 NCS21HJ-221X C CAP. 220pF 50V J
C1341 QETN1HM-106Z E CAP. 10µF 50V M

C1352 QFZ0097-103 MM CAP. 0.01µF 1250V K
C1354 NDC31HJ-271X C CAP. 270pF 50V J

C1355 NDC31HJ-221X C CAP. 220pF 50V J
C1356 NDC31HJ-331X C CAP. 330pF 50V J

C1357 QETN1AM-477Z E CAP. 470µF 10V M
C1365 QENC1HM-105Z E CAP. 1µF 50V M

C1366 QENC1HM-105Z E CAP. 1µF 50V M
C1367 QENC1HM-105Z E CAP. 1µF 50V M
C1401 QFV71HJ-474Z MF CAP. 0.47µF 50V J
C1423 QCS32HJ-180Z C CAP. 18pF 500V J

C1424 QFLC2AJ-103Z M CAP. 0.01µF 100V J
C1426 QFLC1HJ-102Z M CAP. 1000pF 50V J

C1427 QETN1VM-107Z E CAP. 100µF 35V M
C1428 QETN1VM-107Z E CAP. 100µF 35V M
C1429 QETN1HM-106Z E CAP. 10µF 50V M

C1430 QFN32AJ-472Z M CAP. 4700pF 100V J
C1433 QETN1HM-475Z E CAP. 4.7µF 50V M
C1435 QETM1EM-228 E CAP. 2200µF 25V M
C1436 QFV71HJ-334Z MF CAP. 0.33µF 50V J

C1437 NCB31HK-104X C CAP. 0.1µF 50V K
C1501 QETN1AM-477Z E CAP. 470µF 10V M
C1502 NCB31HK-103X C CAP. 0.01µF 50V K
C1503 QETN1HM-106Z E CAP. 10µF 50V M
C1523 QETN1EM-476Z E CAP. 47µF 25V M

!

C1525 QFZ0200-972 MPP CAP. 9700pF1.5kVH±3%
C1526 QFLC1HJ-103Z M CAP. 0.01µF 50V J

!

C1527 QFZ0199-564 MPP CAP. 0.56µF 250V J
C1529 QFN32AJ-102Z M CAP. 1000pF 100V J

C1531 QEZ0203-107 E CAP. 100µF 160V M
C1552 QETM1VM-108 E CAP. 1000µF 35V M
C1554 QETN2EM-475Z E CAP. 4.7µF 250V M

C1555 QFLC2AJ-104Z M CAP. 0.1µF 100V J
C1557 QETN1HM-107Z E CAP. 100µF 50V M
C1571 QETN1AM-107Z E CAP. 100µF 10V M
C1572 QETN1EM-476Z E CAP. 47µF 25V M
C1581 QFV71HJ-104Z MF CAP. 0.1µF 50V J
C1652 NCB31HK-473X C CAP. 0.047 µF 50V K

C1653 QETN1HM-106Z E CAP. 10µF 50V M
C1654 QETN1CM-477Z E CAP. 470µF 16V M
C1655 QETN1HM-106Z E CAP. 10µF 50V M
C1656 QENC1HM-105Z E CAP. 1µF 50V M
C1657 QETN1EM-107Z E CAP. 100µF 25V M

C1658 QETN1EM-227Z E CAP. 220µF 25V M
C1659 QETN1HM-475Z E CAP. 4.7µF 50V M

C1663 NCB31HK-102X C CAP. 1000pF 50V K
C1664 QETN1CM-107Z E CAP. 100µF 16V M
C1665 NCB31HK-103X C CAP. 0.01µF 50V K
C1701 QETN1HM-106Z E CAP. 10µF 50V M
C1705 QETN1CM-477Z E CAP. 470µF 16V M
C1706 NCB31HK-104X C CAP. 0.1µF 50V K

C1707 NCB31HK-103X C CAP. 0.01µF 50V K

No. 52025

47

A

V-20NMG3

A

V-20NMG3B

[ AV-20NMG3 / AV-20NMG3B

Symbol No. Part No. Part Name Description

!

CAPACITOR

C1708 QETN1AM-108Z E CAP. 1000µF 10V M
C1709 NCB31HK-103X C CAP. 0.01µF 50V K
C1710 QETN1CM-107Z E CAP. 100µF 16V M
C1711 NCB31HK-103X C CAP. 0.01µF 50V K
C1712 NCB31HK-103X C CAP. 0.01µF 50V K
C1713 NCB31HK-103X C CAP. 0.01µF 50V K

C1716 NDC31HJ-181X C CAP. 180pF 50V J
C1717 NDC31HJ-181X C CAP. 180pF 50V J

C1718 NCB31HK-103X C CAP. 0.01µF 50V K
C1719 QETN1HM-105Z E CAP. 1µF 50V M

C1720 NCB31HK-103X C CAP. 0.01µF 50V K
C1721 NCB31EK-333X C CAP. 0.033µF 25V K
C1722 NDC31HJ-101X C CAP. 100pF 50V J

C1724 NDC31HJ-560X C CAP. 56pF 50V J
C1728 NDC31HJ-181X C CAP. 180pF 50V J
C1729 NDC31HJ-181X C CAP. 180pF 50V J

C1730 NCB31HK-103X C CAP. 0.01µF 50V K
C1744 NCB31HK-103X C CAP. 0.01µF 50V K
C1805 QETN1CM-227Z E CAP. 220µF 16V M

C1806 QETN1CM-477Z E CAP. 470µF 16V M
C1811 QETN1HM-106Z E CAP. 10µF 50V M

C1841 NCB31HK-152X C CAP. 1500pF 50V K
C1901 QFZ9078-224 MPF CAP. 0.22µFAC275V M

!
!

C1904 QCZ9015-102 C CAP. 1000pFAC250V Z

!

C1905 QCZ9015-102 C CAP. 1000pFAC250V Z

!

C1907 QCZ9015-102 C CAP. 1000pFAC250V Z

!

C1909 QEZ0552-127 E CAP. or QEZ0199-127 120µF 400V M
C1910 QFZ9078-473 MPF CAP. 0.047µFAC275V M

!

C1922 QFLC1HJ-104Z M CAP. 0.1µF 50V J
C1924 QETN1HM-475Z E CAP. 4.7µF 50V M
C1925 QETN1VM-476Z E CAP. 47µF 35V M

C1926 QFLC1HJ-332Z M CAP. 3300pF 50V J
C1929 QFKA2JK-103 MM CAP. 0.01µF 630V K

!

C1931 QCZ0364-681 C CAP. 680pF 2kV K

!

C1932 NDC31HJ-681X C CAP. 680pF 50V J
C1941 QCZ0364-561 C CAP. 560pF 2kV K

C1942 QEZ0203-107 E CAP. 100µF 160V M
C1944 QCB32HK-222Z C CAP. 2200pF 500V K

C1945 QEHR1EM-108Z E CAP. 1000µF 25V M
C1946 QETN1EM-108Z E CAP. 1000µF 25V M
C1947 QCB32HK-222Z C CAP. 2200pF 500V K

C1948 QETN1EM-108Z E CAP. 1000µF 25V M
C1949 NDC31HJ-471X C CAP. 470pF 50V J

C1976 QETN1EM-227Z E CAP. 220µF 25V M
C1977 QETN1CM-227Z E CAP. 220µF 16V M
C1978 QETN1EM-227Z E CAP. 220µF 25V M
C1979 QETN1AM-227Z E CAP. 220µF 10V M

!

C1991 QCZ9079-102 C CAP. 1000pFAC250V M
C1992 QCZ9079-102 C CAP. 1000pFAC250V M

!

C1993 QCZ9079-222 C CAP. 2200pFAC250V M

!

TRANSFORMER

T1501 QQR1244-001 DRIVE TRANSF.

!

T1522 QQH0134-001 F.B.TRANSF.

!

T1921 QQS0161-001 SW TRANSF.

COIL

L1001 QQL244K-8R2Z COIL 8.2µH K
L1101 QQL244J-2R2Z COIL 2.2µH J

L1103 QQL244K-8R2Z COIL 8.2µH K
L1551 QQLZ034-360 INDUCTOR

L1701 QQL244J-5R6Z COIL 5.6µH J
L1941 QQL26AK-820Z COIL 82µH K

L1942 QQL244J-4R7Z INDUCTOR
L1943 QQL244J-4R7Z INDUCTOR

/

AV-20NMG3

/-A

]

Symbol No. Part No. Part Name Description

!

DIODE

D1001 MTZJ33A-T2 ZENER DIODE
D1102 MA859-T2 SI.DIODE
D1301 MTZJ9.1B-T2 ZENER DIODE
D1302 MTZJ9.1B-T2 ZENER DIODE

D1305 AK04-T2 SB DIODE
D1306 QRE121J-121Y C R 120Ω 1/2W J
D1341 MA111-X SI.DIODE

D1421 MTZJ75-T2 ZENER DIODE
D1423 1SR124-400A-T2 SI.DIODE
D1425 MA111-X SI.DIODE
D1427 MTZJ27B-T2 ZENER DIODE
D1501 MTZJ6.8C-T2 ZENER DIODE

D1551 RGP10J-5025-T3 SI.DIODE
D1552 RGP10J-5025-T3 SI.DIODE
D1553 MTZJ9.1B-T2 ZENER DIODE
D1554 MA111-X SI.DIODE
D1557 1SR124-400A-T2 SI.DIODE

D1571 MTZJ7.5S-T2 ZENER DIODE
D1581 MTZJ20B-T2 ZENER DIODE
D1582 RGP10J-5025-T3 SI.DIODE
D1651 MA111-X SI.DIODE
D1652 MTZJ12C-T2 ZENER DIODE

D1653 MA111-X SI.DIODE
D1654 MTZJ12C-T2 ZENER DIODE
D1655 MA111-X SI.DIODE
D1656 MA111-X SI.DIODE
D1657 MA111-X SI.DIODE
D1701 MA111-X SI.DIODE

D1704 SLR-342VR-T16 LED
D1705 SLR-342DU-T16 LED
D1707 MA111-X SI.DIODE
D1731 MA111-X SI.DIODE
D1901 G2SBA60 BRIDGE DIODE

!

D1921 RGP10J-5025-T3 SI.DIODE
D1925 RGP10J-5025-T3 SI.DIODE
D1927 MTZJ36A-T2 ZENER DIODE
D1928 MTZJ3.3A-T2 ZENER DIODE
D1929 MTZJ3.3A-T2 ZENER DIODE

D1930 RGP10M-5010-T3 SI.DIODE
D1931 MA111-X SI.DIODE
D1933 MTZJ16C-T2 ZENER DIODE
D1941 RU3AM-LFC4 SI.DIODE
D1942 RU3YX-LFC4 SI.DIODE

D1943 RGP10J-5025-T3 SI.DIODE
D1982 MA111-X SI.DIODE
D1983 MA111-X SI.DI ODE

TRANSISTOR

Q1102 2SC5083/L-P/-T SI.TRANSISTOR
Q1103 UN2212-X DIGI.TRANSISTOR
Q1161 2SD601A/QR/-X SI.TRANSISTOR
Q1301 2SB709A/QR/-X SI.TRANSISTOR

Q1302 2SD601A/QR/-X SI.TRANSISTOR
Q1351 STC344-T SI.TRANSISTOR
Q1352 STC344-T SI.TRANSISTOR
Q1353 STC344-T SI.TRANSISTOR
Q1401 DTC124ESA-T DIGI.TRANSISTOR

Q1402 2SD601A/QR/-X SI.TRANSISTOR
Q1521 2SC2655/Y/-T SI.TRANSISTOR

!

Q1522 2SD2627-YB11 POWER TRANSISTOR H.OUT
Q1571 2SA1208/ST/Z1-T SI.TRANSISTOR
Q1572 2SD601A/QR/-X SI.TRANSISTOR

Q1651 2SD601A/QR/-X SI.TRANSISTOR
Q1652 2SD601A/QR/-X SI.TRANSISTOR
Q1653 2SB709A/QR/-X SI.TRANSISTOR
Q1702 2SD601A/QR/-X SI.TRANSISTOR
Q1703 UN2212-X DIGI.TRANSISTOR

Q1708 UN2212-X DIGI.TRANSISTOR
Q1709 2SB709A/QR/-X SI.TRANSISTOR
Q1803 2SC1815/YG/-T SI.TRANSISTOR
Q1804 2SD601A/QR/-X SI.TRANSISTOR
Q1974 2SA966/OY/-T SI.TRANSISTOR
Q1975 UN2212-X DIGI.TRANSISTOR

48

No. 52025

A

V-20NMG3

A

V-20NMG3B

[ AV-20NMG3 / AV-20NMG3B

Symbol No. Part No. Part Name Description

!

IC

IC1301 NN5198K I C
IC1421 AN5522 I C
IC1651 AN5265 I C
IC1701 MN1873287JJ1 I C(MCU)

!

IC1702 AT24C08-21DMG3 I C (SERVICE)
IC1703 L78LR05E-MA I C
IC1704 PIC-47143SY IR DETECT UNIT
IC1921 STR-W5753A/F5 I C

!

IC1971 BA17809T I C
IC1972 BA17805T I C

OTHERS

LC30114-001C-H LED HOLDER

CF1161 QAX0642-001Z C FILTER
CP1981 ICP-N25-Y I.C.PROTECT

!

CP1982 ICP-N75-Y I.C.PROTECT

!

F1901 QMF51E2-3R15J4 FUSE 3.15A

!

FC1901 CEMG002-001Z FUSE CLIP (X2)
FR1557 QRJ146J-2R2X C R 2.2Ω 1/4W J

J1002 QNN0384-001 PIN JACK
J1003 QNN0281-003 PIN JACK or CEMN065-001
J1004 QNN0281-002 PIN JACK or CEMN065-002
J1005 QNS0197-001 3.5 JACK

!

K1351 QQR0621-002Z FERRITE BEADS
K1421 QQR1113-001Z FERRITE BEADS

K1941 QQR1113-001Z FERRITE BEADS
K1942 QQR1113-001Z FERRITE BEADS
K1943 QQR1113-001Z FERRITE BEADS
LF1901 QQR0527-002 LINE FILTER

!

PC1701 P1241-04 PHOTO CONDUCTOR
S1701 QSW0619-003Z TACT SWITCH VOL+

S1702 QSW0619-003Z TACT SWITCH VOL­S1703 QSW0619-003Z TACT SWITCH CH+
S1704 QSW0619-003Z TACT SWITCH CH­S1705 QSW0619-003Z TACT SWITCH MENU

!

S1901 QSW0750-001 PUSH SWITCH POWER SW
SF1102 QAX0731-001 SAW FILTER
SF1122 QAX0325-001 SAW FILTER
SK1351 QNZ0537-001 CRT SOCKET or QNZ0536-001

!

TH1901 QAD0121-9R0 THERMISTOR or QAD0119-9R0

!
!

TU1001 QAU0287-001 TUNER

!

VA1901 ERZV10V621CS VARISTOR or QAF0052-621

!

X1301 QAX0705-001Z CRYSTAL
X1302 CE41651-001Z X-TAL
X1701 QAX0307-001 C RESONATOR

CM35921-005-H CDS HOLDER

/

AV-20NMG3

/-A

]

No. 52025

49

A

V-20N3

A

A

V-20NMG3
V-20NMG3B

PACKING PARTS LIST

!

Ref.No. Part No. Part Name Description

AV - 2 0N 3

1 GG10056-068A-H P CASE
2 GG20025-001A-H CORNER LABEL (×2)

3 LC10469-002A-H CUSHION ASSY 4pcs in 1set
4 RM-C364GY-1H RC HAND PIECE

5 CP30967-003-H POLY BAG or CP30967-00 5-H
6 R6PY/2S BATTERY (×2)

7 CP30966-001-H POLY BAG
8 LCT1188-001A-H INST BOOK

!
!

9 LCT1189-001A-H DIGEST MANUAL

AV - 2 0N 3

1 GG10056-068A-H P CASE
2 GG20025-001A-H CORNER LABEL (×2)

3 LC10469-002A-H CUSHION ASSY 4pcs in 1set
4 RM-C364GY-1H RC HAND PIECE

5 CP30967-003-H POLY BAG or CP30967-00 5-H
6 R6PY/2S BATTERY (X2)
7 CP30966-001-H POLY BAG
8 LCT1188-001A-H INST BOOK

!
!

9 LCT1189-001A-H DIGEST MANUAL

AV - 2 0N M G 3

1 GG10056-068A-H P CASE
2 GG20025-001A-H CORNER LABEL (×2)
3 LC10469-002A-H CUSHION ASSY 4pcs in 1set

4 RM-C364GY-1H RC HAND PIECE
5 CP30967-003-H POLY BAG or CP30967-00 5-H
6 R6PY/2S BATTERY (X2)

7 CP30966-001-H POLY BAG

!

8 LCT1196-001A-H INST BOOK

!

9 LCT1197-001A-H DIGEST MANUAL

AV - 2 0N M G 3 B

1 GG10056-068A-H P CASE
2 GG20025-001A-H CORNER LABEL (×2)

3 LC10469-002A-H CUSHION ASSY 4pcs in 1set
4 RM-C364-1H RC HAND PIECE

5 CP30967-003-H POLY BAG or CP30967-00 5-H
6 R6PY/2S BATTERY (X2)
7 CP30966-001-H POLY BAG
8 LCT1196-001A-H INST BOOK

!

9 LCT1197-001A-H DIGEST MANUAL

!

AV-20NMG3

1 GG10056-068A-H P CASE
2 GG20025-001A-H CORNER LABEL (×2)

3 LC10469-002A-H CUSHION ASSY 4pcs in 1set
4 RM-C364GY-1H RC HAND PIECE

5 CP30967-003-H POLY BAG or CP30967-00 5-H
6 R6PY/2S BATTERY (X2)
7 CP30966-001-H POLY BAG
8 LCT1196-001A-H INST BOOK

!
!

9 LCT1197-001A-H DIGEST MANUAL

/D

/-A

50

No. 52025

A

3

A

A

PACKING

5

V-20N

V-20NMG3

V-20NMG3B

4

3

7

!

6 8!9

1

2

3

2

No. 52025

51

VICTOR COMPANY OF JAPAN, LIMIT ED

HOME AV NETWORK BUSINESS UNIT 12, 3-chome, Mor iya-cho, Kanagawa-ku, Yokohama, Kanagawa-prefectur e, 221-8528, Japan

4

AV20N3-H,AV20N3D-H

AV20NMG3-H,AV20NMG 3B-H

AV20NMG3A-H

VP 0206
DP7059

SCHEMATIC DIAGRAMS

COLOUR TELEVISION

BASIC CHASSIS

AV-20N3

AV-20NMG3

AV-20NMG3B

AV-20N3 / AV-20N3/D

AV-20NMG3 / AV-20NMG3B

/ AV-20NMG3

CD-ROM No.SML200207

/-A

CG

[RM-C364GY]

[RM-C364]

CONTENTS

NOTE ON USING CIRCUIT DIAGRAMS
SEMICONDUCTOR SHAPES
BLOCK DIAGRAM
CIRCUIT DIAGRAMS
PATTERN DIAGRAMS

COPYRIGHT 2002 VICTOR COMPANY OF JAPAN, LTD.

2-1
2-2
2-3
2-5
2-9

No.52025

Jun. 2002

AV-20N3

STANDARD CIRCUI T DIAGRAM

AV-20N3, AV-20N3/D,
AV-20NMG3, AV-20NMG3B, AV-20NMG3/-A

NOTE ON USING CIRCUIT DIAGRAMS

1.SAFETY

The components identified by the symbol and shading are
critical for safety. For continued safety replace safety critical
components only with manufactures recomm e nded parts.

2.SPECIFIED VOLTAGE AND WAVEFORM VALUES

The voltage and waveform values have been measured under the
following conditions.

(1)Input signal : Colour bar signal
(2)Setting positions of

each knob/button and
variable resistor

(3)Internal resistance of tester

:DC 20k

/V

(4)Oscilloscope sweeping time

:H

20µS/div

:V

5mS/div

:Others

Sweeping time is
specified

(5)Voltage values

:All DC voltage values

Sin ce th e vo l tage val ue s of si gn a l cir cui t va ry to some ex ten t
according to adjustments, use them as reference values.

3.INDICATION OF PARTS SYMBOL [EXAMPLE]

In the PW board

:R1209

R209

4.INDICATIONS ON THE CIRCUIT DIAGRAM

(1)Resistors

Resistance value
No unit :[

]

K

:[K

]

M

Rated allowable power
No indication :1/ 16 [W]
Others :As specified

Type
No indication

:Carbon resistor

OMR

:Oxide metal film resistor

MFR

:Metal film resistor

MPR

:Metal plate resistor

UNFR

:Uninflammable resistor

FR

:Fusible resistor

C omposition resistor 1/2 [W] is specified as 1/2S or Comp.

(2)Capacitors

: Original setting position
when shipped

5.NOT E FOR REPAIRIN G SERVI CE

This mod el's power cir cuit is pa rtly diffe rent in the GND . The
difference of the GND is shown by the LIVE : ( ) side GND and the
ISOLATED(NEUTRAL) : ( ) side GND.Therefore, care must be
taken for the following points.

(1)Do not touch the LIVE side GND or the LIVE side GN D and the
ISOLATED(NEUTRAL) side GND simultaneously. If the above
caution is not respected, an electric shock may be caused.
Therefore, make sure that the power cord is surely removed from
the receptacle when, for example, the chassis is pulled out.

(2)Do not short between the LIVE side GND an d ISOLATED( NEUTRAL)
side GND or never measure with a measuring apparatus measure
with a measuring apparatus ( oscilloscope, etc.) the LIVE side GND
and ISOLATED(NEUTRAL) side GND at the same time.
If the above precaution is not respected , a fuse or any parts will be broken.

Since the circuit diagram is a standard one, the ci rcuit and
circuit constants may be subject to change for improvement
without any notic e.

NOTE
Due improvement in performance, some part numbers show
in the circuit diagram may not agree with those i ndi cate d in
the part li st.
When ordering parts, plea se use the numbers that appear
in the Parts List.

Type

MM

:M etal ized my lar cap ac i tor

PP

:Polypropylene capacitor

MPP

:Metalized polypropylene capacitor

MF

:Metalized film c apacitor

TF

:Thin film capacitor

BP

:Bipolar electrolytic capacitor

TAN

:Tant alum cap acitor

(3)Coils

No unit

:[

µ

H]

Others

:As specified

(4)Power Supply

:B1

:9V

:5V

Respective voltage values are indicated

(5)Test point

:T est point

:Only test point display

(6) Connecti ng method

:Connector

:Wrapping or soldering

:Receptacle

(7)Ground symbol

:LIVE side ground
:ISOLATED(NEUTRAL) side ground
:EARTH ground
:DIGITAL ground

:[M ]

Capacitance value

1 or higher :[pF]

less than 1

:[µF]
Withstand voltage
No indication :DC50[V]

Others :DC withstand voltage [V]
AC indicated

:AC withstand voltage [V]

Electrolytic Capacitors

47/50[Example]:Capacitance value [µF]/withstand voltage[V]

No indication

:Ceramic capacitor

:B2 (12V)

AV-20NMG3
AV-20NMG3B

AV-20N3

AV-20NMG3

AV-20NMG3B

2-12

No.52025

VP0206

DP8080

Jun. 2002 No. 52025

AV-20N3

B

G1

RK

H

1

4

E

U

MARK

C

GK

G1

HE

H

BK

G2 GK

RK

HE

BK

G1

G2

E1

SCREEN

Q351

Q352

Q353

R364

R369

R360

R361

R362

C357

L351

L354

R3

55

R356

R359

R366

C354

TP-E

R351

Y303

W611

SK351

Y304

R346

W338

R349

TP-47B

D352

D351

D356

UL MARK

5

1

MARK

T

C

B

C

B

E

/2!

E

CKF1674-BH1-1

W337

R363

R365

C352

C351

52

L3

L353

K351

W336

353

R

R354

R357

R358

R367

R368

C355

C356

R352

R345

R347

R348

W576

D353

D354

D355

TP-47G/R

TP-47R/G

AV-20NMG3
AV-20NMG3B

CONTENTS

AV-20N3

A V-20NMG3

AV-20NMG3B

CRT SOCKET PWB PATTERN

SEMICONDUCTOR SHAPES

BLOCK DIAGRA M
CIRCUIT DIAGRAMS

MAIN P W B CIRCUIT DIAGRAM

P ATTERN DIAGRAMS

MAIN PWB PATTERN

CRT SOCKET PWB PATTERN

SEMICONDUCTOR SHAPES

TRANSISTOR

BOTTOM VIE W

E
C

B

ECB

BCE

(G)(D)(S )

FRONT VIEW

ECB

ECB

2-2
2-3

2-5

TOP

2-9
2-11

TO P VI EW

CHIP TR

C

BE

IN OUTE

1 N

TO P VI EW

1

N

1 N

1

N

IC

N

N

OUT

E

IN

N

1

N

B O TT OM VI EW F R O NT VIEW TO P VI EW

CHIP IC

2-2 2-11

No.52025No.52025

BLOCK DIAGRAM

TU001

TUNER

AV-20N3

AV-20NMG3

AV-20NMG3B

IF

Q102

IF AMP

SF101

AV-20N3
A V-20NMG3
AV-20NMG3B

IC651

AUDIO AMP

AUDIO

2

SP

OUT

8

SP

SF102

REAR

VIDEO

IN

AUDIO

VIDEO

OUT

AUDIO

IC702

MEMORY

SCL

SDA

37.38

SCL
SDA

3.58/
OTH

IC701

MICRO COMPUTER

HEAD

SP

Q103

SW

SCL/SDA

25

18.19

SAW

30

AUDIO

OUT

IC301

ECO

REMOCON

KEY

1 CHIP DECODER

IND.

R / G /B

IC421

VIDEO

IN

24

VIDEO

OUT

36

AUDIO

IN

RGB

10.11.12

29

H.OUT V.OUT

42

46

V .OUT

VERT.OUT

PHONE

FRONT

IN

VIDEO

AUDIO

CRT SOCKET PWB

RGB
DRV

V01

CRT

AC IN

POWER SW

F901

No.52025

LF901

D901

RECT

IC921

POWER

REG.

T921

SW

TRANSF.

IC971

9V REG.

2-3 2-4

REG.

H.OUT

IC972

5V REG.

Q522

H.OUT

REG.

MAIN PWB

B1

No.52025

T522

HVT

DY(V)

DY(H)

DEF.YOKE

FOCUS

SCREEN

EHV

CIRCUIT DIAGRAMS MAIN PWB CIRCUIT DIAGRAMS (1/2)

AV-20N3

A V-20NMG3

AV-20NMG3B

AV-20N3
A V-20NMG3
AV-20NMG3B

FRONT

REAR

A_IN

A_IN

V_IN

V_IN

A_IN

V_OUT

A_OUT

J004
CEMN065-002

OR

QNN0281-002
J003
CEMN065-001

OR

QNN0281-003
J002

QNN0384-001

Q701

R731

4.7k

C729
180p

1
0
7
L

R827

X

C822

0.5V

INVERTER

INVERTER

R383

X

D373

X

C318
100p

9V

CH

BUS_FREESCL1

C
N

N
E
V

/E
D
D
O

.6
5

R828

X

0V

Q821

K703

K704

X
C833

XCH

X

XR835

Q822

Ys SW

0.2V

V
5

BW

BW

C
N

Z
6
R

-5

J
4
4
2
L
Q
Q

R705

C
N

R385

R372

R730

220

4.1V

X

Y374

MENU

S705

QSW0619-003Z

10K

SDA2 SCL2

L821

X

3.3V

S

.3

S

3

V

D
D
V

K
C
O
L

C

C

N

T

4V1.7V

0.1V

C835

XCH

R834

X

0.1V

R849

S
Y
_
D
S
O

X

0

0

W

D

P

N

_
B

G

T

_

S

A

D

W

N

P
_

G
_

B
T

A

S

X

C
C
V
_
A

C
C
V
_
A

0.1V

R714

4.7k
R720

4.7k
R713

4.7k
R712

4.7k
R704

220

PIC_MUTE

R832

X

TRESET

R844

X

C

C

N

N

H
T

/O

A

T

T

A

X

D

E

T

T

0V4V

Q824

INVERTER

0.5V

R837

X

XR836

C834

X

C849

X

Y
A
R
_
X

F

Y

F

A
R

/O

_

N

X

O
_
P

D
N
G

4.9V

4.9V

C709

.01

R738

10k

C722

100p CH

0V

Q702

*1
SW

L
C
T

XR845

X

INVERTER

LINE_V

CH

TEXT/OTH

F
F

T

/O

O

N

R

O
_

.P

P

A

T
O
R
.P
A

T

c

U

c
V

O

4.9V

4.1V

C719
1/50

AT24C08-21DMG3

MEMORY

SDA

S

C

NP

VDD A0

4.9V

R739

4.7V

R797

15k

2

2

H
T

/O
T

A

X

R848

D

E

T

T

X

C843

X

X

5
2
8
R

Q825

X

3.8
V

0.1
V

R838

X

C
C

P

V
_

B
F

H

P

C

B

C

F

V
_
H

IC704

PIC-47143SY

(IR DETECT UNIT)

IC702

VSS

A2

L

A1

10k

Q703

*1
SW

0V

R742

56k

C724

X

2

T

T

U

U

O

O

_

_
V

H

T

T

U

U

O

O

_

_
V

H

SP01

QAS0086-001

R703

3.9k

5.4V

Q709

P
C

T
F
A

BW

BW

X

BW

1
L
C
S

R701

5.6k

L78LR05E-MA

5V REG&RESET

IN

C705

470/16

1
0

W

7

B

P
C

R
M

0

O

7

W

2

3

-

3

2

J

7

9

7

R

3

2

0
L

!

R
Q

W
P
_
B
T
S

R307

1.2k

R308

1.8k

1
A
D
S

R792

220

D794

X

R791

220

R793

220

C701

10/50

D
C

C706

.01

CN00C

*2
SW

5V

IC703

D
N
G

E
T
U
M
_

IC
P

D731

*4

220R301

C301
.012

2
L
C
S

X

T
E
S
E
R

MA3091/M/-X

FBP

C308

100/16

R306

220

A

P
B

D

F

S

L

P
P

C

V

S

C302

4.7/50
R302

4.7k

2

E

A

E

D

R

S

F
_
S
U
B

R794

220

R795

220

C707

.01

D303

R702

6.8k

T
U
O

V
5

4.9V4.9V4.9V14.4V

S
S
V

1
C
P
.A
C

10/50

R341

3.3K

XD791

XD792

XD793

8
0
7
C

C341

D341

C309

*4

PC701

P1241-04

SENSORECO

!

QNS0197-001

HEADPHONE

R662

270

1/2W

0
/1

0
0
0
1

LB

D305

AK04-T2

D501

*6

V_OUT

R401

.01

10k

C401

.47

TF

]

P

C

V

C

G

[5

S

.A

D

r

D

e
V

V

s

L

Y

R

C

T

T

B

X

X

A

E

E

4.9V0V3.3V6.2V4.2V

N

O
R

C366

C365

1/50

1/50

BP

BP

C307

C306

470/16

.01

L
B
A

D701

*4

V_SYNC

SDA1

Y161

Y975

Y001

Y002

SCL1

2

2

D795

X

C
N
Y
S
_
V

V

C

9

N
Y
S
_
V

WJK0136-001A

J005

100 1/2W

Q653
MUTE

15.1V

R655

47k

D657

Y976

X

C504

X

C402

X

TF

C437

.1

t

th

u

o

o

o

V

T
W

A
S

G

B

T

T

X

X

E

E

N

N

O

O

G

B

C367
1/50

BP

CHGC05-340-G

S3 S4

CN0S3

R661

270

1/2W

R667

D654

*7

*2

15V

-2.2V

*4

CE41651-001Z

R503

6.8k

C503

C502

10/50

.01

C316

10/50

3.4V3.7V1.1V3V5V4.9V4.3V0.6V 4.2V

g

1
C

lin

F

p
u

A

o

H

c
e

IO

D

D
U
A

)
V
9

(

c

c

T
U

V

J

O
_

C
V

R

3

0

0

2

3

2

R

R

CN00T

CN0S4

X

XY655
BWY654
BWY653

IC651

DC ATT AUDIO OUT

1

c

c

D655

100/25

4
0
3
R

G

IN

V

*4
C664
100/16

C655

10/50

N

C656
1/50

BP

D656

*4

R656

8.2k

C657

C665

.01
R657

R658

2.2k

2.2k

Q302

9V

*1

BUFFER

C321

4.2V

12p

CH
X302

C

D306

C

1001/2W

V
_

T

H
U
O

W

H

_

B

C

H

1

0

0

0

1

5

0

/1

5

R

2

0

0

7

C

5

4

0

p

R

1

0

3

3

2

0

C

2

3
D

6.2V0.9V

t

z

c

u

c

H

o

V

M

H

H

8
.5

3

IC301

NN5198K

DECODE

D
N

T

T

U

U

G

J

O

O

_

_

C

B

V

G

C303

5

0

0

0

10p

2

2

3

2

2

R

CH

X301

!

QAX0705-001Z

.2
8

Z
2
R

3
0

-8

C112

1

K

L

4

47/25

4
2
L
Q
Q

D

B

V

N

9

SF102

G

*

SAW FILTER

C109 X

*

S5

CN0S5

NC

X

AN5265 AUDIO AMP

L

MUTE

O
V

10.5V

0.3V5.5V12.4V 22.1V10.9V10.7V

R666

C663

100

.001

C659

4.7/50

R665

D653

10k

*4

R654

22k

0V

Q652

*1
SW

0.6V

L
O
V

LINE_V

R321

1.5k

4.9V

Q301

BUFFER

*2

4.2V

k

P

1

B

4
1

R323

3

0

R

10k

/5
7

R327

.4

k

4.7M

1

2
1

3

C313

3

1
3

C

3.3/50

R

N

C322

0

.027/25

1
.0

2

R322

1

1

3

1

2.7k

3

R

C

4.2V4.3V2.7V

2

T

IN

IN

C

U

_

_

P

c

c
n

y

s
H

Z
H
M
3
.4
4

.47/50

C304

C113
.0047

O

n

_

.A

y

O

C

s

E

/V

ID

Y

V

f

f

re

re

L

)

L

L

V

L

E

9

P

B

c

c

M

M

V

A

A

IF

C

C

E

E

/S

S

S

V

C305

TF

.47/50

R118

*

Q103

*

SW

0.3V

Q651

C114

C111

R116

B
F

R653

330

*1

SW

.047/25

4.6V4.2V8.5V

]
V
[5

c

c
V

W
A
S

2.7V3.8V9V4.1V2.8V3.1V3.1V3.2V9V4.9V4.9V

.01

X

X

R660

10/50

0V

C314

15k

C653

.01

6
2
3
C

D
N
G

C110

Y301

Y302

C317

%
5

p
0
2
2

0

R651

4.7k

C651

x

0

t
u
o
t
e
D

IF
V

W
A
S

T
U
O

C658

220/25

R659

4.7

1/2W

OPT

100/16

1500p

)
V
(9

c

c
V
A
M
O
R
H
C

D
N

G
IF
/S
V

XL104

R117

C108

c

c
A

C654

470/16

C652
.047

C315

C162

5
1
1
C

2
2
1
C

SF101
SAW

FILTER

D102

*

0.47/50

is

s
a
h
p

m
e

­e
D

IN
_
S
S
Q

1
.0

1
.0

LINE_A

4.1V9V

R114

*

R652

1k

NRSA63J-102X

D301

*5

C323

l
e

v
e

L

k

c
la
B

t
u
o
C
G
A

F
R

0
2
2

1
2
1
R

C121

.01

*

5.6

QRT029J-5R6

D652

*7

E
T
U
M
_
A

AUDIO

10/50

3.9V3.2V

T

IN

U

_

O

IO

_

D

IO

U

D

A

U
A

t
u
o
o

IN

T
F

/C

A

V

1
.0

6

D302

1
1

*5

C

C107

.0047

R115

*

V
2
3

R324

C324

C117

R664

6.8k

D
N
G
_
A

1k

R325

X

IN
_

IF
S

C
G
A
_
IF

.22

TF

R326

100

C106

.0047

C105

.0047

!

R668

2

MAIN PWB

SCG-1403A-H2

(AV-20N3)

SCG-1422A-H2

(AV-20NMG3)
(AV-20NMG3B)
(AV-20NMG3/-A)

D651

3.4V3.6V

t
u

to
e
D
Q

C
P
A
V

3.4V2.9V3.2V3.6V1.8V1.8V2.7V

C
C
V
_
A

R161

.47/50

Q102

*10
AMP

C161

0
2
1
R

*

*

CF161

C119

0
9
3

10/50

*4

*

C120
120p

CH

C325

SF122X
QAX0325-001
SAW FILTER

QQL244J-2R2ZL101

9V

SCG-1425A-H2

(AV-20N3/D)

T
O
R
.P
A

VIDEO

R163

*

4
6
1

Y160

R

*

2
6
1
R

R166

*

CF162

X

N

BP

R160

X

R111

R109

180

6.8k
C104
.0047

2.2V

1.5V

R112

*

R110

2.7k

R113

100

IC301 36

2

C164

*

*

Q161

*

AMP

R165

*

*

R159
180k

R158

X

CF103

X

(1/2)

NOTE

*1:

2SD601A/QR/-X

*2:

2SB709A/QR/-X

*3:

UN2212-X

*4:

MA111-X

*5:

MTZJ9.1B-T2

*6: MTZJ6.8C-T2

MTZJ12C-T2*7:
UN2112-X*8:
QQR0621-002Z*9:

*10: 2SC5083/L-P/-T

DIFFERENCE LIST(*PARTS)

*

SF102
CF161

Q103
Q161 *1
D102
Y160
R112
R114

R117

R161

R163

R166

C166

*

5
6

*

1
C

C161

C165

!

IC701

39

2

AFT

8.2

L001

QQL244K-8R2Z

C003

x

C004

470/16

D001
MTZJ33A-T2

L002

X

T

D

U

N

O

G

C005

.1

C006

X

TF

R004

56k

11

C103

47/25

R103

10

CF102

X

3.58/OTH

IC301

3

5V REG

R001

X

IN

C009

X

IC001

X

10

IC301

3.4

SCG

-1403A-H2

QAX0666

-002
X

X
X

BW

X

NRSA63J

-100X
X

XR115
X
XR118
X
XR162
X
XR164
XR165
X
XC109
X
XC164
X
XC166

MN18732

87JJ1

IC301

42

2.5

TU001

!

QAU0287-001

R102

75

C001

BWK001

10/50

C002

.01

220R002

220R003

C007

X

4.7/50

IC301

3.4

C008

20NMG3,

20NMG3B,

20NMG3/-A

-1422A-H2

QAX0731
QAX0642

MA859

NRSA63J
NRSA63J
NRSA63J
NRSA63J
NRSA63J
NRSA63J
NRSA63J
NRSA63J
NRSA63J
NRSA63J
NRSA63J
NCB31HK
NCB31HK
NCB31HK
NCB31HK
NCB31HK
MN18732

0V

NC

32.6V

4.9V

4.3V

4.2V

NC

1.8V

12

-001

-001Z

-T2

-220X

-472X

-222X

-0R0X

-222X

-102X

-122X

-222X

-221X

-220X

-821X

-472X

-103X

-103X

-103X

-104X
87JJ1

SCG

*3

BW

IF

BTPS(32)

LOCK

5V

BM

SDA

SCL

AS

BT

AGC

20N3/D20N3

SCG

-1425A-H2

QAX0666

-002
X

X
X

BW

X

NRSA63J

-100X
X

X
X
X
X
X
X
X
X
X
X
X
X
X
X

MN18732

87JL1

2.2

46

VOL+ VOL-

R726

4.7k

X

7
3
7
R

]
W
O
[P
D

E
L

C
N

5
2
7
R

X

560
BW

BW

2.4V

V
.5

2
D
D
V

V
.3

3

D
D
V

C844

X

XCH

B
_
D
S
O

3
7

0

3
Y

X

1.3V1.2V1.2V1.2V 1.2V

X

QSW0619-003ZS702

QSW0619-003ZS701

C721

.033

k

R728

0
0

1k

1

R729

1

2

T
F
A

T
S
R

4.9V

k
1

C852

S
Y
_
D
S
O

S
B
V
C

B
_
T
X
E
T

1.2V1.2V1.3V1.3V

1
8
3
R

C831

R861

Y

Y

IN

E

E

O

K

K

C
E

K

C

C

N

1

Y

O

A

L

S

D

_

C

S

V

T

H
C

7
1

3

7

1

1

p

7

C

0

.0

C

8
1

1

W

0

B

7
K

6

0

1

2

7

2

R

TCL

SDA1

B

G

S

_

_

Y

T

T

_

X

X

T

E

E

X

T

T

E
T

X

X

7

8

3

3

8

8

C

C

X

X

X

3

5

1
5

5

5

8

8

8

R

R

R

R852XR854

X

X

0.1V0.2V0V

0.2V

B

R

G

_

_

_

D

D

D

S

S

S

O

O

O

IC821

X

TEXT

.5
2

A

A

S

D

C

S

D

N

V

V

C832

X

L824

X

X

Q826

INVERTER

R860

L828

X

R843

R862

X

X

XR379
XR382

3.2V

CB

AB2B1BOROVDD

X

D704

SLR-342VR-T16

POWER

R773

L
O

E

V

T

R749

U

4.7k

M

R771

_

820

A

X
k
0

X

0

D707

*4

6
2

X

7
C

F
F

/O
N
O
_
P

VIDEO

AUDIO
R810

1W OMR

LINE_V

C811

10/50

A_MUTE

5

7

R

C
N

F
F

/O
N
O
_
P

EF801

C
N

C
S

/S
C
N
Y
S
V

0V

XR857

R811

LINE_A

9
1
7
R

C725

X

220

R748

100

D706

C738

X

0.7V

2

1

3

3

X

X

7

7
C

C

0V

E
T
U
M
_
A

K
C
O
L

k
1

X

Y801

C
N

C
N

56

4.2V 0.1V 2.4V 0V 4.9V 2.9V 4.9V 4.9V 4.9V

L

F

T

T

F

E

X

O

S

E

V

/O

T

E

N

R
O
C
L
A

H

C

H

T

N

T

/O

Y

8

/O

S
_

.5

.5

3

4

H

8
1

1

7

.0

C

C720

.01

C723

R722

X

H
T

/O
8

.5
3

I/II

Y802

X

X

EF802

X

C

C

C

N

N

N

C

C

C

N

N

N

C847

X

8
4

X

C850

8

X

C

3

1

1

1
6

5

9

4

7

7

R

R

TRESET

TDA

0.3V

C712

.01

8.1V

4.1V

R816

0V

Y704

0

T
O
R
.P
A

QRG01GJ-560

Q803
2SC1815/YG/-T
BUFFER

4.8V

R806

270

1/2W

680

0V

C812

X

4.7V

H
T

/O
T
X
E
T

T
C
E
T
O
R
P

4.9V 4.9V 4.9V4.1V0V4.9V1.7V

ODD/EVEN

R817

4.7k

TEXT/OTH

D801

X

C727

X

R747

0

Q704

X

SW

R746

10k

Y
A
R
_
X

X

R717

SW

X

XJ006

C841

1500p

R802

75

C842

X

C805

220/16

C806

R807

470/16

68

R815

180

1/2W

Q804

*1
SW

X

R740

3.9k

X

7
3

X

7
C

X

R734

X

R706

560

C743

G
_
D
S
O

TEXT_R
GO

TEXT_G

BW

R
_
D
S
O

/V
V
T

I/II

C
N

C
N

2.4V

4.9V

C854

L825

!

3
3

X

7
C

8
0

k

7

1

R

S
Y
_
D
S
O

X

X
XL826

3.3V 2.5V

IC822

REG.IC

IN GND

Y371

BW

TIMER

R721

10k

D705

SLR-342DU-T16

R772

820

Q708

4.9V

*3
SW

4.9V

C744

R741

.01

560

D

C

C

N

N

N

G

IC701

*

MICOM

s
Y

B

G

_

_

_

D

D

D

S

S

S

O

O

O

4

5

3

3

X

X

7

7

C

C

1

0

9

k

k

1

1

0

7

7

7

.7

.7

R

R

4

R

4

G

B

_

_

D

D

S

S

O

O

L823

X

C853

X

C827

X

3.3V

V

C

C

N

N

.3
3
D
D
V

V
.5

2
D

C

D

C

V

N

N

C845

X

4.9V

X

NR

C855

X

C856

X

O
R

1
7

X

3
C

4.9V

R1 R2

G1 GO G2 INH VEE VSS

2
7

0

3
Y

0

7

8

7

X

X

3

3

R

R

Q710

]
IM
[T

D
E
L

R
_
D
S
O

0V0V0V0V

6
3
7
C

k
.7

4

R718

R
_
D
S
O

L827

X

S
S
V

S
S
V

O
B

IC371

RGB.SW

SW

560

C741

C742

C830

R707

8
7
3
R

CH+ CH-

QSW0619-003ZS704

QSW0619-003ZS703

R727

15k

R736

82k

.01C730

180p CHC728

1k

4.9V

4.8V

4.9V

0V

2

2

E

C

E

N

R
F
_
S
U
B

1
L

D

C

D

S

V

4.9V4.4V4.4V4.7V4.7V

H
C

6
1
7

p
0

C

8
1

Y705

BW

5

0

1

2

7

2

R

L822

R
_

X

T
X
E
T

X
6

3

C846

8

X

C

X
0

5
8
R

C826

2.4V

V
.5

2
A
D
D
V

C

C

N

N

R859

X

X

4.9V

X

1.5V

R842

X

X

XR384

N
E
V

/E
D
D
O

R856

X

N
E
V

/E
D
D
O

C823

A
S
S
V

2.2V

R376

C711
.01

X

X

CH

X
1

2
8
C

R841

R373

X

Q372

0V

Ys SW

R375

X

L

A

C

D

S

S

1

2

C

C

S

S

O

O

QAX0307-001

C824

X

CH

1
L
A

T
X

C

S

N

H

R846

X

R833

X

3.7V

SW

S
Y
_
T
X
E

D372

T

X

X

2
L
A

T
X

4.9V

X

X701

C710

100/16

C825

1
2
8
X

X

Q373

Q371

N
O
C
O
M
E
R

S
S
V

X

X

4V0.3V0.8V

T
S
R

S
V

0.1V0.5V0V2.4V0.7V3.3V0V2.4V

X

0V

X

0V

R374

3.9k

No.52025 No.52025

2-5 2-6

MAIN PWB CIRCUIT DIAGRAMS (2/2)

(AC110-240V)

POWER CORD

*

!

LIVE

VA901

QAF0052-621

OR ERZV10V621CS

!

C901

MFAC275V

QFZ9078-224

!

LF901

QQR0527-002

!

R904

X

IC921

OVP
TSD
OSC

Y904

Y905

Source

FB/OLP

OCP/INH

TH901

*

BW

BW

Drain

Y902

BW

QRM034J-R22

R906

100k 2WOMR

QRL029J-104

137.5V

2kV

C931

NC

QCZ0364-681

0.1V

0

4

GND

/5

2
9

.7
4

C

16.9V

Vcc

C922
.1

D929

*9

1V

2

p

3

0

9

2

C

2

D928

*7

QFLC1HJ-332Z

Y903

BW

!

C910

275VAC MF

QFZ9078-473

C907

.001 250VAC .001 250VAC

QCZ9015-102

!

R923

QCZ9015-102

!

QEZ0199-127

R921

R903

2.2

100k 2WOMR

1/2W

QRL029J-104

R922

220

2

-T

1/2W

A
6
3
J

7

R934

Z

2

T

9

68k

D

M

D931

*4

C925
47/35

TF

R935

C926

3.9k

3300p

1/2W

L01

*

DEG-COIL

CNDEG

QGZ5003C1-02

STR-W5753A/F5

DRIVE

MAIN PWB (2/2)

SCG-1403A-H2

(AV-20N3)

SCG-1422A-H2

(AV-20NMG3)
(AV-20NMG3B)
(AV-20NMG3/-A)

SCG-1425A-H2

(AV-20N3/D)

T3.15AH

QMF51E2-3R15J4

R901
QRF104K-3R9

QCZ9015-102

C905
.001

C909 400V

C930

X

K901

*8

D933

MTZJ16C-T2

D921

*5

2200p 250VAC

QRZ9046-825Z

BLU

BRN

CN0PW
QGAB80F1-02

!

S901

QSW0750-001

!

POWER SW

F901

DEG RELAY

RY971

X

!

C991

.001 250VAC

QCZ9079-102

!

C992

.001 2500VAC

QCZ9079-102

C904

D901

G2SBA60

C929
.01 630V

QFKA2JK-103

R928

68k

QRL039J-683

3WOMR

3

-T
0
1
0

0

-5

3
9

M
0

D

1
P
G

K902

R

*8

R933

4.7

1/2W

D925

*5

!

C993

QCZ9079-222

!

R991

8.2M

LIVE ISOLATED

N
E
V

/E
D

L

D

B

O

A

IC421 5

50

IC421 3 6

25

R422

R423

X

R424

R425

3.3k

X

R436

82k

MTZJ27B-T2

Q401

DTC124ESA-T

V.NECK

C523

47/25

2SC2655/Y/-T

H DRIVE

R531

330

W-B1

CHT32KK0-22-N

QEZ0203-107

D571

D562

X

C561

X

TP-E
( )

AV-20N3
A V-20NMG3
AV-20NMG3B

X

C427

100/35

0

0

R426

0

C424

QFLC2AJ-103Z

R443

1

1/2W

C436

.33

TF

D427

D425

0.2V

1k

2

C531

100/160

R565

X

Q522 B

*4

C429

10/50

9.7V

9
2

3

5

3

C

0
.0

R566

X

1

2

E
_

Y

Y

A

A

P
T

R

R

_

_

X

X

FOR TEST

W-B

47/25

5.5V

Q521

R532

C572

IC421

3.7V

.01

R453

2.7k

T501

QQR1244-001

MY

MY

.0082

680 3WOMR

QRL039J-681

114.8V

R576

22k

1/2W

R577

3.9k

TP-91
( B1)

1

C

S1

B

N

_
P
T

AN5522 V.OUT

THERMAL

PROTECTION

PUMP UP

GNDVcc

24.7

1V

V

14.6

D421
MTZJ75-T2

C423

R431

18p

C426
330p

R441

8.2k

R432

3.9

1/2W

K421

*8

!

Q522

2SD2627-YB11

-0.2V

R521

56

R526

1/2W

270

1/2W

R530

X

1/2W

C526

R529

C530

X

R528

X

1/2W

R574

1.5 2WOMR
R573

1.5 2WOMR

R575

X

C571

100/10

114.5V

Q571

0V

2SA1208/ST/Z1-T

PROTECTORFBT

D561

X

C562

X

CN0S1

QGA2501C5-05Z

DY01

!

24.9V

V

XC421

R442

10k

10k

C433

4.7/50

QETN1HM-475Z

C435

2200/25

R433

2.7

1/2W

.0047

H OUT

C528

X

D555

X

Y501

Y502

BW

BW

R571

2.2k

*

V.DY

100/35
D423

C430

MY

R440

470

1/2W

C582
250V

3.7V

C428

*6

X

R430

82k

9
2
4
R

X

7
3
4
R

7.2V

Q403

X

SW

!

C525

*

1.25KV

C527

.47
250V

QFZ0199-474

L522

X

QGZ5003C1-04

H.DY

k
0
1

C425

8200p

R434
1/2W
R438

R439

0.2V

CN0HV

X

X

X

0.2V

Q404

SW

X

26V

!

QRZ9011-1R0

QETM1VM-108

QRJ146J-2R2X

C557

100/50

CN10T

D554

*4

1/2W

D553

MTZJ9.1B-T2

R551

11W

C552

1000/35

FR557

R365

12k

2WOMR

Q353

STC344-T

B-OUT

2.4V

R353

150

2.2V

R368

1.8k

R364
12k

2WOMR

Q352

G-OUT

2.8V

X

C357

470/10

XR346

2.6V

Q351

STC344-T

R-OUT

3.1V

2.5V

R367

1.8k

R363

12k

2WOMR

115.3V

3.2V

2.4V
R366

1.8k

114V

GND

STC344-T

R352

150

R345

T

9V

B
G
R

R351

X

X

X

150

1

2

3

5

5

5

3

3

3

D

D

D

X

X

X

6

5

4

5

5

5

3

3

3

D

D

D

CRT SOCKET PWB

L551

R554

680

D551

*

C555

6800p

MY

FR556

X

*5

D557

*6

1000

FR

1

T522

QQH0134-001

L353

BW

124.2V

C356
330p CH

R356
330

L352

BW

QRZ0107-152Z

132.6V

C355

2.7V

220p CH

R355
330

L351

BW

QRZ0107-152Z

127V

C354

2.7V

270p CH

R354
330

!

FBT

70

28

R362

1.5k
1/2W

R359
100

R348

R361

1.5k
1/2W

R358

100

R360

1.5k
1/2W

R347

3.9k

R357

100

(1/2)

D582

T522

3

7

X

*5

Y550

R584

X

BW

C553

D552

*5

B
H

X

TP-47B

/R
G

7

-4
P
T

/G
R

7
4

­P
T

R349

4.7k

L354

BW

R369

X

NC

R
E
T

D

A

N

E

C

H

G

N

CHGC04-400-G

EHV

FOCUS
SCREEN

D584

X

C581

.1

R582

TF

22k

R585

X
MTZJ20B-T2

R552

QRJ146J-2R2X

240

220

!
SK351
QNZ0536-001

OR QNZ0537-001

BK
GK
RK
H

K351

QQR0621-002Z

CN10U

U

U

CN00U

Y553

BW

R581

1.8k
1/2W

R583

39k

D581

C554

4.7/250

5

9

B
G
R

2

1

G

G

Y303

X

Y304

X

TP-E

C351

X

C352

QFZ0097-103

120

120

DIFFERENCE LIST (*PARTS)

*
L551
C525

!

TH901

!

!

V01

!

L01

!

DY01
POWER

!

CORD

V01

*

3
G

CN0E1

FOCUS

SCREEN

Q353 C

Q351 C

120

Q352 C

20NMG3B

20NMG3

20N3

SCG

SCG

-1403A-H2
QQLZ034

-1042

QFZ0200

-1042

QAD0119

-9R0

OR

QAD0121

-9R0

A48LWX

10X

QQW0061

-001

QQD0081 QQD0034 QQD0034 QQD0034 QQD0081

-001 -001 -001 -001 -001

QMPR340

-165-K2

SCG

-1422A-H2

-1422A-H2

QQLZ034

QQLZ034

-380

-380

QFZ0200

QFZ0200 QFZ0200

-972

-972 -972

QAD0119

QAD0119

-9R0

OR

-9R0 OR

QAD0121

QAD0121

-9R0

-9R0

A48LSD

A48LSD

095X

095X

QQW0061 QQW0061 QQW0061 QQW0089

-001 -001 -001

QMPR340

QMPR340

-165-K2

-165-K2

20NMG3/-A

SCG

-1422A-H2
QQLZ034

-380

QAD0119

-9R0 OR
QAD0121

-9R0

A48LSD

095X

QMPR380

-165-K2

20N3/D

-1425A-H2
QQLZ034

-410

QFZ0200

-1042

QAD0123

-180

A48LWX

-001

QMPR340

-165-K2

SCG

10X

AV-20N3

AV-20NMG3

AV-20NMG3B

F

W

D

P

C

N

_

C

B

G

V

T

C946

82

C948

Y961

470p

_

_

B

S

A

L

A

Y973

0

X

Q975

R976

12

2WOMR

220/25

R979

3WOMR

220/25

R978

47k

R977

1.2k
1/2W

*3

SW

C976

47

C978

R961

X

Q962

11.4V

0.1V

Q961

X

X

IC971

BA17809T

REG 9V

11.8V

IC972

BA17805T

REG 5V

2SA966/OY/-T

15.4V

14.6V

R962

Q974

3.9V

X

H004

X

15.2V

SW

C971

9V

R974

2.2k

X

R963

R964

4.9V

BW

4.7

CN0S2

Y503

X

PW

ISOLATED

Q973

X

T921

QQS0161-001

K943

K942

RGP30B-F1

K941

*8

D973

X

!

*8

RGP10J-5025-T3

*8

QCZ0364-561

RU3AM-LFC4

R986

X

R987

X

D943

C944

QCB32HK-222Z

D942

QEHR1EM-108Z

C941

560p 2kV

D941

(())

R985

X

C947

QCB32HK-222Z

CP981

ICP-N25-Y

CP982

ICP-N75-Y

C945

1000/25

C972

X

D974XR988

X

L943

4.7

!

QQL244J-4R7Z

CP

QETN1EM-108Z

C949
NDC31HJ-471X

L942

!

QQL244J-4R7Z

CP

1000/25

QQL26AK-820Z

C942

100/160

QEZ0203-107

1000/25

L941

(())

C
C
V
_
H

Y972

X

R965

X

X

C961

X

X

C977

220/16

C979

220/10

Q521 B

1

STB

ON

R984

X

R983

X

D986

X

R982

X

Q982

X

SW

R981

X

NOTE
:

*1

2SD601A/QR/-X

:

*2

2SB709A/QR/-X

:

*3

UN2212-X
MA111-X

*4 :
*5

:

RGP10J-5025-T3

:

1SR124-400A-T2

*6
*7 :

MTZJ3.3A-T2

*8 :

QQR1113-001Z

*9

:

MTZJ5.6A-T2
BUS WIRE

BW

: : X NON MOUNT

(OPTION)

F
/O

N
O
_
P

Y
A
R

V

_

2
3

X

1.5k 2WOMR

QRL029J-152

T
U
O
_
H

4.9V

R980

C

T

N

U

Y
S

O

_

_

V

V

V_OUT

Q402

*1
SW

0V

R524

X

R525

33

2WOMR

Q521 C

P
B
F

R421

4.7k

D424

C422

T
O
R
.P

V

V

A

9

5

D982

*4

D983

*4

20

CHT32KK0-22-N

Y971

X

B1

OKNG

4.9V

MTZJ7.5S-T2

0V

SW

R578

Q572

10k

Q981

X

SW

D985

C981

*1

X

X

X_RAY PROTECTOR

No.52025

2-7 2-8

No.52025

PATTERN DIAGRAMS MAIN PWB PATTERN

AV-20N3

A V-20NMG3

AV-20NMG3B

AV-20N3
A V-20NMG3
AV-20NMG3B

FRONT

M

C925

W028

Y905

M

37

R923

R921

3

C932

W228

C924

W227

C909

S901

R922

DEG

C926

C922

W603

W061

4

8

D929

IC921

6

5

4

1

7

LIVE

D927

R906

1

C931

H003

R903

C905

TH901

Y904

2

2

PW

1

1

0

W229

6

5

4

3

R904

2

D928

35R9

W329

R

9

2

8

LF901

D921

D925

W023

D931

C910

R934

K901

D930

C904

W062

R901

L9

D933

C930

R933

W049

8

T921

76 4321

K902

C929

D901

C907

VA901

C901

FC901

T3.15AL 250V

POWER

R771

L

D704

R991

Y902

Y903

F901

R773

C993

CL003

C992

A

RY971

TIMER

D705

C949

R976

D974

L941

W543

C941

C942

910111213141516

K941

K943

D942

K942

CP982

C944

R978

EB

Q974

R977

W652

R986

W563

R988

Q973

C976

R987

IN

D973

IC972

H004

O

U

T

C991

R985

CL005

R772

Q710

C719

IC704

3

K

REMOCON

R981

C946

R965

W103

C972

IC971

IN

ISOLATED

E

B

D943

C945

Q975

C961

OUT

D982

W483

1

Q982

D941

CP981

L942

W184

W511

C947

W648
R961

C977

C979

C701

JK

R984

D986

L943

W466

R962 R963

C978

R723

ECO

J

R983

Q981

R982

S2

C981

D985

C948

POWER

W164

W566

R974

C971

AUDIO

Y961

EB

Q961

Q962

R964

W578

W014

D657

W188

R979

W187
W519

RGB SW

W631

W165

83

D9

W148

W647

W173

R656

R654
W653

D653

R664

W526

PC701

13

R657

W111

R668

W190

W143

Q372

D655

C655

C651

D652

C656

R660

W649

R375

C371

Y373

C738

R665

Q651

R703

R702

W053

W098

IC001

R666

C657

C367

C838

16 15 10

9

D001

IN

R658

Q371

C665

8

0

L002

L001

D656

4

S3

W654

Y371

Q652

R

9

OUT
E

R667

IC651

Q653

W204

R380
R376

Y372

IC371

W013

R651

D651

A

C005

C004

R001

H006

Y374

W632

R382

R379

5

8

Q709

S701

Y971

B

K001

R655

Y653

1

I

TUNER

1

5

R653

9

C652

R003
R002

C006

C009

74R3

R3

78

85

D707

W041

VOL+

W012

C001

D654

W422

W651

50R8
C836

W225

R3

43

W1
36

R717

D701

Y001

C007

W097

C663

C653

R659

Y655
Y654

1

MARK

W050

Y802

R381

R377

C741

18

C7

Q701

B

NC
W099

C003

BT

NC

10

IF

11

C659

C658

R652

W510

C854

C853

C837

R384

C742

C3

W473

W459

R726

AGC

D372
W113

D373

W101

W517

W4

E

R746

TU001

AS

BM

W030

C664

C654

W159

W555

EF802

R8
52

R856

45

Q704

R701

1

SCL
SDA

5

5V
LOCK

C002

C341

C366

W505

Y7
4

HI

Y002

R802

W641

C008

R004

E2

CF102

R102

W544

C304

W110

R303

W214

C301

R302

W069

W655

W481

W608

27

26

Q373

W114

R372

R708

R709

R719

W646

91
R796

C727

S702

VOL- CH+

W072

W054
W066

W620

25

R383

W112
R706

R734

W5

R747

W150

C365

W048

W623

C825

R741

W217

12

21

C732

30

C822

R853

33

W561

R722

C7

R750

W656

W005

W6

R8
48

D801

22

C726

20

R748

D706

C731

S703

R301
R308

W226

R8
51
C835

25

C725

20

C744

C302

1

52

C308

W658

C848

20

C7

C850

L8
21

33

C843

R825

R707

18

R745
R749
R740

C109

Q103

T

R306

50

IN

C824

R8

18

C7

6

4

CF103

R103

R304

C309

W479

IC822

153

35

W624

R7

C7

37

Q708

5

C806

MARK
C307

5

W090
IC301

Y976

R401

C847

X821

C832

W650

R711
R710

30

C7

33

R118

L103

15

4

C856

C823

L824

R828

C734

15

W524
R727

R109

R305

45

C5
2

C401

D501

R854

W625

15

W155

32

C842

C106

C104

R501

R855

40

W216

R8

35

W423

W523

R806

C108

W092

C437

C316

C855

R373

L825

C845

W662

C7

S704

R116

10

C306

W628

C852

C826

10

W663

R797

C7
36

10

W601

CH-

G

C305

X301

C503

R503

D731

C723

Q702

3

35

C722

R721
R730

R807

C103

B

Q102
L11
R111

R114

C111

C303

X302

W117

W629

45

C844

Q7

R737

A1V1

2

R110

D303

R327

C501

L822
L827

K701

C717

C721

GH

J002

C112

L823

L826

W664

W120

C730

3

1

C

C114

C113

40

C321

C504

W639

Y705

IC701

C716

5

R810

C107

W602

1

C311

R3
22

D306

V/C

Y801

W619

W627

IC821

40 42

W521

E

R112

4

SF101

C326

C402

TEXT

5

R725

R731

Q803

C105

R113

D102

R117

1

5

L104

C314

35

R312
C312

R313

C313

EF801

50

C8

27
W660

R742

X7
1

C713

C729

C728

1

K704

MICOM

EB

5

1

4

8

SF102

C115

2015

C162

C317

R321

D305

Q302

R314

C322

W626

R827

W630

R857

1

C724

R844

R738
R739

Y975

W432

W431

C711

K703

R729

R728

S705

MENU

R115

R160

52

L701

R811

C116

30

Y972

R845

C805

C110

C122

C166

C310

R307

C821

W617

W661

R716

IF

SF122

C164

C315

R715

C708

C710

W474

F

Y161

C117

64

27

Q301

Y301

Y973

C846

W616

R714
R720

R815

R816

C121

1

4

2625

D302

R1

W231

W174

C831

Q821

5

C707

R713

F

C811

C120

R121

Q161

R161

2Y3

W604

R838

C709

4

R712

R158

W168

R323

C849

R8
46

R834

5

1

C830

W618

3

J006

A2

Q804

W424

CF161
C1
61

C323

W502

W206

W615

C833

Q822

1

C706

8

R705

W580

C119

R159

Q826

R860

R835

W614

IC703

2

IC702

R704

2

R795

R817

C165

D301

W496

BUS FREE

C

6

R792

R793

R794

R791

W436

C812

R120

R166

R3
26

W095

W124
C325

R163

65

R1

Y160

R162

CF162

W130

R325

W220

E

R859

C

B

R842

D584

W621

D341

R3

R837

W494

Q824

R862

R843

C834

R849

R836

W613

C705

W429

14

CP701

1

J004

2

I C

C324

R502

41

L828

W609

Q825

A2

E

SDA2

2

R324

W588

R861

W610

SCL2

W182

R736

R841

W659

R584

SDA1

W579

W504

W247

E

SCL1

W057

D793

W472

W451

W645

W612

C841

D.GND

W482

R438

W413

R578

Q572

W539
W009
W162
W195
W196

W198
W199

W137

W412

J003

V2

1

5

R565

W201
W077

W411

D794

D795
D791
D792

S1

W094

3

Y553

W154

4

S4

1
2

W004

C572

D571

L
5
5

Y550

R566

C561

S5

#NAME?

J005

6

5

D

B1

C531

R577

1

1

MARK

C428

D562

D554

W636

W638
W643
W644

W634

-2MONO

1

R662

2

4

D

C571

Q571

W073

R554

R575

R576

4

W640

1

1

C
C554

U

C552

C421

C423

W106

W175

R661

C562

C555

W548

R430

90W5

D553

R423

W176

Q402

3

7

E

B
R552

MARK

D561

5

1

W080

D424

W169

R426

R531

IN OUT G

2

1

9

8

HP

C553

W605

C436

W003

7

R429

R436

0

R573

R571

1

B

R443

W087

C425

Q401

C581

R421

R574

FR556

FR557

R434

C427

W635

C426

W011

R422

D552

R581
W129

C557

IC421

R431
R441

D423

R424

W105

D427

D582

R585

D581

C422

3

R

D421

H001

D425

5

5

R433

R425

W657

D557

1

R432

R453

C

C

W017

R582

W071

C424

W495

R583

D551

K421

R439

C429

C430

C433

C435

Y503

W016

25V

NC/HB

H.PULSE

L522

R

W476

R437

CKF1674-BH1-1

HEATER

GND

5

R440

4

Y501

529

R528

C530

R442

Q403

Q404

R

B

4

C582

2

5

B

ABL

8

7

6

T522

3

21

B1

HV

1

Y502

C525

DEF

C527

W596
W032

D555
R530

R525

4

R532

UL MARK

HB

9

4.MAY'02

U.SOMKIAT

C528

R521

C526

/2!

GND

10

C

C523

R526

A

COL

Q522

H002

46

31

T501

C529
EB

Q521

A

9

8

7

6

E

B

5

4

TP-E

TP-91

(B1)

No.52025 No.52025

2-9 2-10

VICTOR COMPANY OF JAPAN, LIMITED

HOME AV NETWORK BUSINESS UNIT. 12, 3-chome, Moriya-cho, Kanagawa-ku, Yokohama, Kanagawa-prefecture, 221-8528, Japan

VP 0206
DP8080

SERVICE MANUAL

COLOUR TELEVISION

52025D20041

BASIC CHASSIS

AV-20N3/B

Supplementary

The following items for the AV-20N3/B model were changed partly from AV-20N3 model.
Therefore, this service manual describes only the items which differ from those of the AV-20N3 model
service manual.
For details other than those described in this manual, please refer to the AV-20N3 model service manual
(No.52025, Jun.2002).

OUTLINE

CG

Since the picture tube was changed, we have issued the SERVICE MANUAL for AV-20N3/B.

HOW TO IDENTIFY MODELS

“AV-20N3B” is added to the serial No. under at the Rating label.

MODEL AV-20N3

SERIAL No.

Indicated

“AV-20N3B”

COPYRIGHT © 2004 VICTOR COMPANY OF JAPAN, LIMITED

No.52025D

2004/1

DIFFERENCE LIST

USING P.W. BOARD (Page 34)

P.W.B ASS'Y Name AV-20N3 AV-20N3/B DESCRIPTION

MAIN P.W.B SCG-1403A-H2 SCG-1510A-H2 Non compatible

EXPLODED VIEW PARTS LIST (Page 36)

 Ref. No.

 V01 A48LWX10X A48LSD095X PICTURE TUBE
 DY01 QQD0081-001 QQD0034-001 DEF YOKE

AV-20N3 AV-20N3/B

PARTS No.

PARTS NAME DESCRIPTION

PRINTING WIRING BOARD PARTS LIST

MAIN P.W. BOARD ASS'Y (Page 38~41)

PARTS No.

 Ref. No.

R1401 NRSA02J-103X NRSA63J-103X MG RESISTOR 10kΩ 1/16W J
C1325 QENC1HM-106Z --- BP E CAPACITOR Delete
C1525 QFZ0200-103 QFZ0200-982 MPP CAPACITOR 9800pF 1.5kV H
C1351 QCZ0364-222 QCZ0364-102 D CAPACITOR 1000pF

 C1909 QEZ0552-127 --- E CAPACITOR Delete
 C1909 --- QEZ0649-127 E CAPACITOR 120uF (Addition)

C1976 QETN1HM-106Z QETN1EM-227Z E CAPACITOR 220uF 25V M
L1551 QQLZ034-300 QQLZ034-380 HEATER CHOKE 38uH

 SK1351 QNZ0536-001 QNZ0537-001 CRT SOCKET

AV-20N3 AV-20N3/B

SCG-1403A-H2 SCG-1510A-H2

PARTS NAME DESCRIPTION

VICTOR COMPANY OF JAPAN, LIMITED

AV & MULTIMEDIA COMPANY VIDEO DISPLAY CATEGORY 12, 3-chome, Moriya-cho, kanagawa-ku, Yokohama, kanagawa-prefecture, 221-8528, Japan

(No.52025D)

Printed in Japan

WPC
