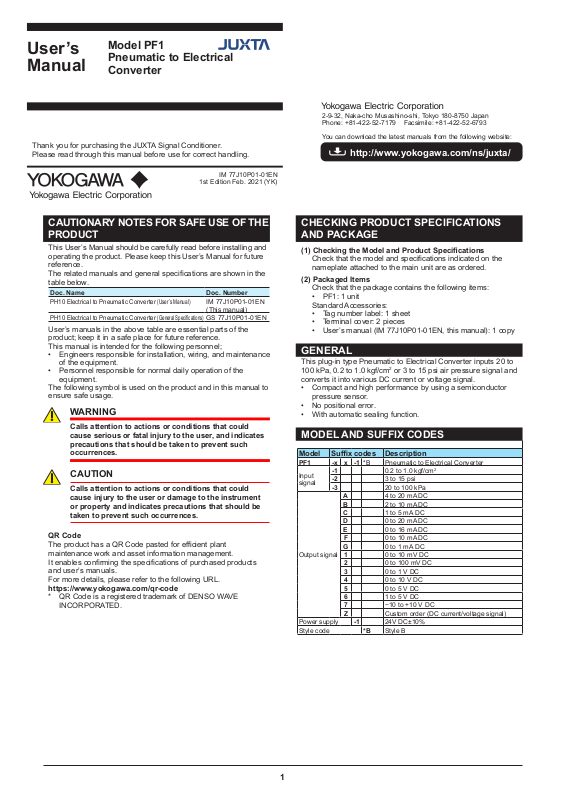

JUXTA PF1 User manual
User ’s
Manual
Thank you for purchasing the JUXTA Signal Conditioner.
Please read through this manual before use for correct handling.
Model PF1
Pneumatic to Electrical
Converter
IM 77J10P01-01EN
1st Edition Feb. 2021 (YK)
2-9-32, Naka-cho Musashino-shi, Tokyo 180-8750 Japan
Phone: +81-422-52-7179 Facsimile: +81-422-52-6793
You can download the latest manuals from the following website:
http://www.yokogawa.com/ns/juxta/
CAUTIONARY NOTES FOR SAFE USE OF THE PRODUCT
This User’s Manual should be carefully read before installing and
operating the product. Please keep this User’s Manual for future
reference.
The related manuals and general specications are shown in the
table below.
Doc. Name Doc. Number
PH10 Electrical to Pneumatic Converter
PH10 Electrical to Pneumatic Converter (General Specications)
User’s manuals in the above table are essential parts of the
product; keep it in a safe place for future reference.
This manual is intended for the following personnel;
• Engineers responsible for installation, wiring, and maintenance
of the equipment.
• Personnel responsible for normal daily operation of the
equipment.
The following symbol is used on the product and in this manual to
ensure safe usage.
WARNING
Calls attention to actions or conditions that could
cause serious or fatal injury to the user, and indicates
precautions that should be taken to prevent such
occurrences.
CAUTION
Calls attention to actions or conditions that could
cause injury to the user or damage to the instrument
or property and indicates precautions that should be
taken to prevent such occurrences.
QR Code
The product has a QR Code pasted for ecient plant
maintenance work and asset information management.
It enables conrming the specications of purchased products
and user’s manuals.
For more details, please refer to the following URL.
https://www.yokogawa.com/qr-code
* QR Code is a registered trademark of DENSO WAVE
INCORPORATED.
(User’s Manual)
IM 77J10P01-01EN
(This manual)
GS 77J10P01-01EN
CHECKING PRODUCT SPECIFICATIONS AND PACKAGE
(1) Checking the Model and Product Specications
Check that the model and specications indicated on the
nameplate attached to the main unit are as ordered.
(2) Packaged Items
Check that the package contains the following items:
• PF1: 1 unit
Standard Accessories:
• Tag number label: 1 sheet
• Terminal cover: 2 pieces
• User’s manual (IM 77J10P01-01EN, this manual): 1 copy
GENERAL
This plug-in type Pneumatic to Electrical Converter inputs 20 to
100 kPa, 0.2 to 1.0 kgf/cm2 or 3 to 15 psi air pressure signal and
converts it into various DC current or voltage signal.
• Compact and high performance by using a semiconductor
pressure sensor.
• No positional error.
• With automatic sealing function.
MODEL AND SUFFIX CODES
Model Sux codes Description
PF1 -x x -1 *B Pneumatic to Electrical Converter
Input
signal
Output signal
Power supply -1 24V DC±10%
Style code *B Style B
-1 0.2 to 1.0 kgf/cm
-2 3 to 15 psi
-3 20 to 100 kPa
A 4 to 20 mA DC
B 2 to 10 mA DC
C 1 to 5 mA DC
D 0 to 20 mA DC
E 0 to 16 mA DC
F 0 to 10 mA DC
G 0 to 1 mA DC
1 0 to 10 mV DC
2 0 to 100 mV DC
3 0 to 1 V DC
4 0 to 10 V DC
5 0 to 5 V DC
6 1 to 5 V DC
7 −10 to +10 V DC
Z Custom order (DC current/voltage signal)
2
1
1. MOUNTING METHOD
First, Fix the terminal board to the wall as shown in the gure
(*)
below
. Then x the main body on terminal board with two
screws.
* Terminal board can be detached from the main body by
removing two screws.
Terminal board
Mounting screws
(upper and lower)
Main body

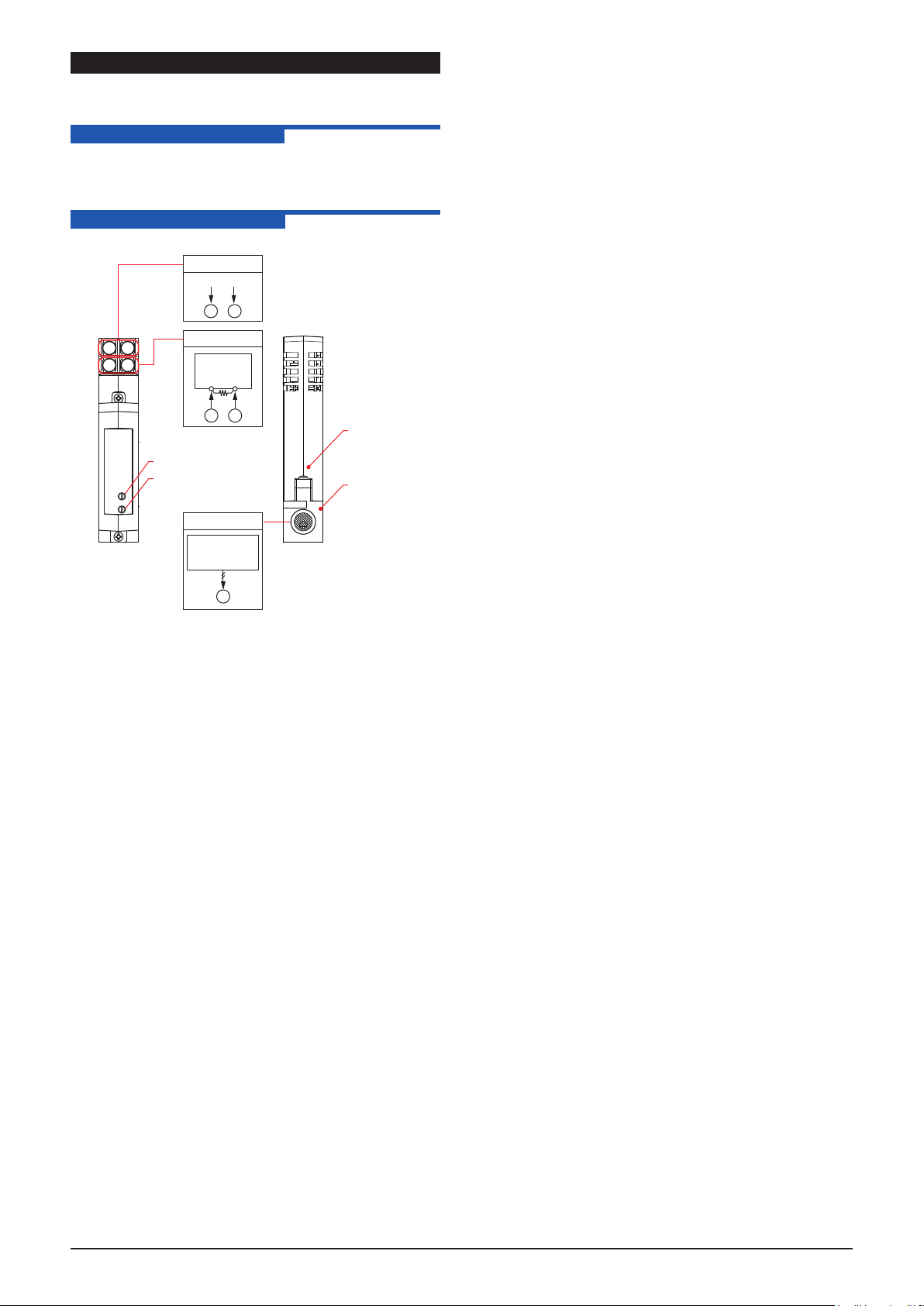

Mounting dimensions (Unit: mm)
25.5
M4 screw
5. EXTERNAL WIRING
WARNING
● To avoid the risk of an electric shock, turn o the
power supply and use a tester or similar device to
ensure that no power is supplied to a cable to be
connected, before carrying out wiring work.
● Do not operate the product in the presence of
ammable or explosive gases or vapors. To do so is
highly dangerous.
● Use of the product ignoring the specications may
cause overheating or damage. Before turning on
the power, ensure the following:
• Power supply voltage and input signal value
applied to the product should meet the required
specications.
• The external wiring to the terminals and wiring to
ground are as specications.
Wiring should be connected to the terminals on the socket of the
product. The terminals for external connections are of M3 screws.
Use crimp-on terminal lugs for connections to the terminals.
• Recommended cables: A nominal cross-sectional area of
Wiring Diagram
2
0.5 mm
or thicker for signal cables, and that of 1.25 mm2 or
thicker for power cables.
Power supply
24 V DC
+
–
1 2
3 4
1 2
Output signal
27
43
24
The PF1 can be mounted on the Air Supply Unit (PPU) and
can be mixed mounting with the PH10 (Electrical to Pneumatic
Converter).
The mounting method is the same as PH10. Refer to the PH10
user’s manual.
• Document number: IM 77J10P10-01EN
2. INSTALLATION AND ENVIRONMENTAL CONDITIONS
• Avoid the following environments for installation locations:
Areas with vibrations, corrosive gases, dust, water, oil,
solvents, direct sunlight, radiation, a strong electric eld,
and/or a strong magnetic eld, direct radiant heat, wind,
temperature uctuation.
• If there is any risk of a surge being induced into the power line
and/or signal lines due to lightning or other factors, a dedicated
lightning arrester should be used as protection for both the
product and a eld-installed device.
• Use indoors at an altitude of 2000 m or less.
• Operating temperature/humidity range: 0 to 50°C/5 to 90%RH
(no condensation)
+ –
4
3
Input signal
(Air pressure piping
inlet)
PF1
bottom view
PF1
Main body
Terminal
board
3. AUTOMATIC SEALING
When main body of the PF1 is removed from the terminal board,
air will be sealed automatically by closing a valve of terminal
board.
4. PIPING
Connect pipe for input pneumatic signal to inlet (Rc 1/4 (PT 1/4
female thread)) of terminal board. The thread size for pipes is R
1/4 (PT 1/4 male thread).
CAUTION
Fastening torque of pipe is 2±0.5 N•m
2
IM 77J10P01-01EN 1st Edition
