717A / 727A |
(Mini-Frame Z-TRAKS) |
|
|
7 |
|
5 |
|
|
4 |
6 |
|
|
||
|
3 |
|
9 |
|
|
4 |
|
|
|
1 |
|
|
8 |
|
|
10 |
|
5 |
|
|
|
11 |
|
|
13 |
|
12 |
14 |
|
2 |
||
|
||
|
15 |
|
|
|
part |
|
|
|
|
|
|
|
part |
|
|
key |
|
no. |
description |
|
|
key |
|
no. |
description |
||||
|
|
|
|
|
|
|
|
||||||
1 |
AM107423 |
OIL FILTER - ENGINE |
|
|
8 |
TY25221 |
BATTERY - DRY |
||||||
|
|||||||||||||
2 |
AM131054........ |
OIL FILTER - HYDRAULIC |
|
|
9 |
AM123716 ........ |
RELAY |
||||||
3 |
AM116304 ........ |
FUEL FILTER |
|
|
10 |
TCA14236 ........ |
IDLER |
||||||
4 |
M140295 .......... |
AIR FILTER - FOAM |
|
|
11 |
TCA14535 ........ |
CLUTCH, PTO |
||||||
|
|
M144100 .......... |
AIR FILTER - INNER - HEAVY DUTY |
|
|
12 |
TCA14018 ........ |
MUFFLER |
|||||
5 |
M150403 .......... |
AIR FILTER - PAPER - ESN —46884 (717A) |
|
|
|
M136651........... |
MUFFLER GASKET |
||||||
|
|
M150403 .......... |
AIR FILTER - PAPER - ESN —26307 (727A) |
|
|
13 |
GDA10000........ |
WHEEL & TIRE ASSY REAR |
|||||
|
|
M150949 .......... |
AIR FILTER - PAPER - ESN 46885— (717A) |
|
|
14 |
TCA13769 ........ |
WHEEL & TIRE ASSY FRONT |
|||||
|
|
M150949 .......... |
AIR FILTER - PAPER - ESN 26308— (727A) |
|
|
15 |
TCB10607 ........ |
KIT - BLOWER 717A S/N —011000 |
|||||
|
|
M144098 .......... |
AIR FILTER - OUTER - HEAVY DUTY |
|
|
|
TCB11011 ......... |
KIT - BLOWER 717A S/N 011001— |
|||||
6 |
M805853 .......... |
SPARK PLUG |
|
|
|
TCB10598 ........ |
KIT - BLOWER 727A S/N —011000 |
||||||
7 |
TCU20002........ |
BELT, HYDRAULIC PUMP |
|
|
|
TCB11012......... |
KIT - BLOWER 727A S/N 011001— |
||||||
|
|
TCU21814........ |
BELT - DECK TO BLOWER |
|
|
16 |
TCA18087 ........ |
HYDRAULIC PUMP (NOT SHOWN) |
|||||
|
|
TCU16122........ |
BELT - BLOWER - MCS 717A - S/N—GX717PF |
|
|
|
|
||||||
|
|
TCU20822........ |
BELT - BLOWER - MCS - S/N TC71MCS— |
|
|
|
|
|
|
|
|||
|
“ |
|
|
|
|
|
|
|
|
|
|
|
|
|
Parts Needed in First 250 hours of Operation |
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|||||
|
Qty |
Part No |
|
Item |
|
Capacity |
|
Interval In Hours |
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
AM107423 |
|
Engine Oil Filter |
|
|
|
|
|
5/100/200 |
|
|
|
6 |
|
TY22029 |
|
1 qt Turf Gard 10W30 Engine Oil |
|
1.8 qt |
|
5/100/200 |
|
|
||
|
1 |
|
AM131054 |
|
Hydraulic Oil Filter |
|
|
|
|
|
10 |
|
|
|
11 |
|
TY24349 |
|
1 qt Plus 50 0W40 Transmission Oil |
|
10.5 qt |
|
10 |
|
|
||
|
3 |
|
TY6341 |
|
Multi Purpose SD Polyurea Grease (14 oz) |
|
|
|
|
|
As Needed |
|
|
|
"As Needed" Parts |
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Qty |
Part Number |
|
Item |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
M140295 |
|
Air Filter - Inner |
|
|
|
|
|
|
|
|
|
1 |
|
M144100 |
|
Air Filter - Inner - Heavy Duty |
|
|
|
|
|
|
|
|
|
1 |
|
M150403 |
|
Air Filter - Outer ESN —46884 (717A) |
|
|
|
|
|
|
|
|
|
1 |
|
M150403 |
|
Air Filter - Outer ESN —26307 (727A) |
|
|
|
|
|
|
|
|
|
1 |
|
M150949 |
|
Air Filter - Outer ESN 46885— (717A) |
|
|
|
|
|
|
|
|
|
1 |
|
M150949 |
|
Air Filter - Outer ESN 26308— (727A) |
|
|
|
|
|
|
|
|
|
1 |
|
M144098 |
|
Air Filter - Outer - Heavy Duty |
|
|
|
|
|
|
|
|
|
1 |
|
AM116304 |
|
Fuel Filter |
|
|
|
|
|
|
|
|
|
2 |
|
M805853 |
|
Spark Plugs |
|
|
|
|
|
|
|
|
|
1 |
|
TCU20002 |
|
Belt - Hydraulic Pump |
|
|
|
|
|
|
|
|
|
1 |
|
TCU21814 |
|
Belt - Deck to Blower |
|
|
|
|
|
|
|
|
|
1 |
|
TC16122 |
|
Belt - Blower MCS 717A - S/N —GX717PF |
|
|
|
|
|
|
|
|
|
1 |
|
TCU20822 |
|
Belt - Blower MCS - S/N —TC71MCS— |
|
|
|
|
|
|
|
|
|
1 |
|
TCA16216 |
|
Filler Cap |
|
|
|
|
|
|
|
|
|
1 |
|
AM130907 |
|
Mower Deck Leveling Gauge |
|
|
|
|
|
|
|
|
|
1 |
|
TY26183 |
|
Grease Gun |
|
|
|
|
|
|
|
|
|

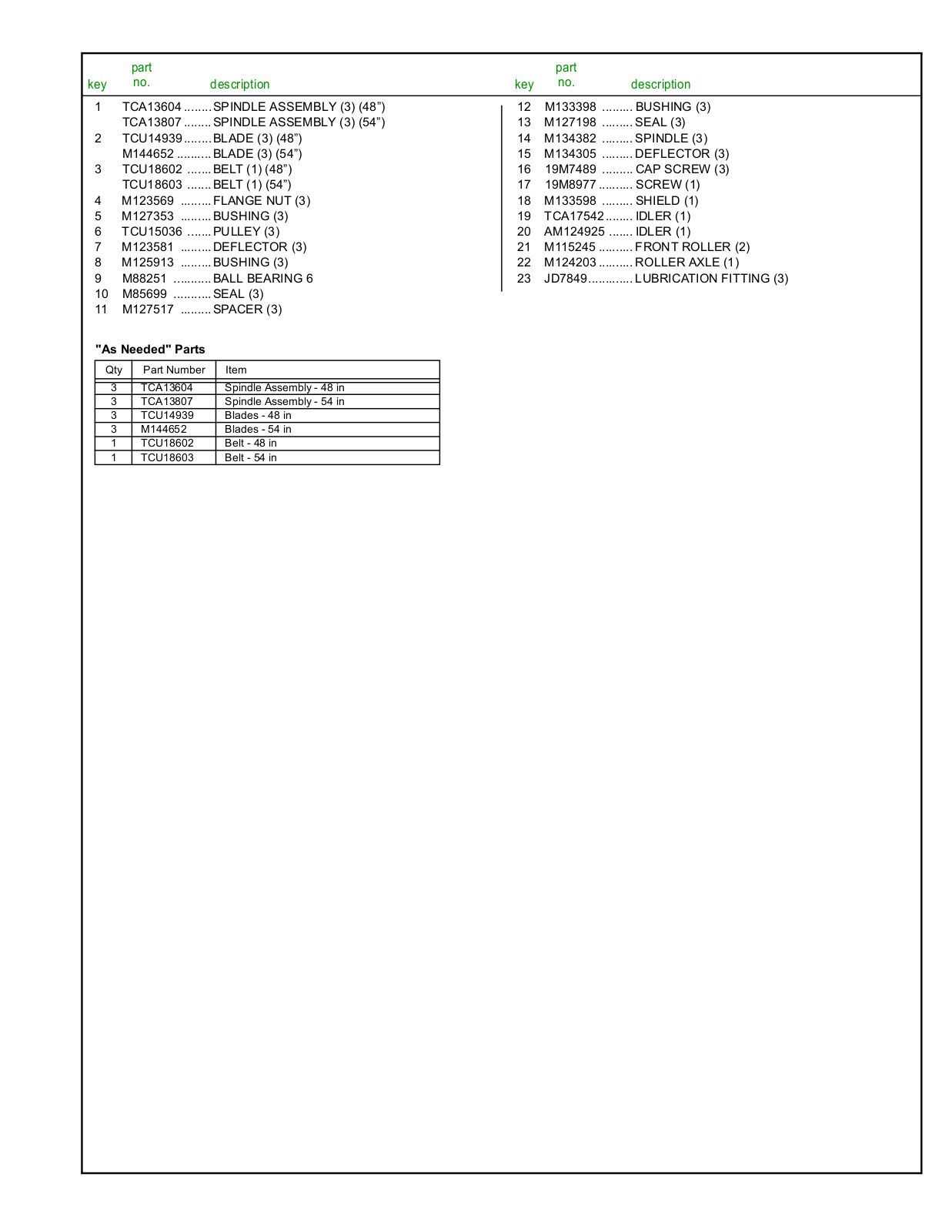

3 |
|
TCU14939 |
|
Blades - 48 in |
|
|
|
|
|
|
|
|
|
3 |
|
M144652 |
|
Blades - 54 in |
|
|
|
|
|
|
|
|
|
1 |
|
TCU18602 |
|
Belt - 48 in |
|
|
|
|
|
|
|
|
|
1 |
|
TCU18603 |
|
Belt - 54 in |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
